BMP is one of the leading 358 fence manufacturers we supplied high-Security Fence, also known as Anti-Climb Fence, “Prison Mesh”, or “358 security fence”, is a special fencing panel. “358” comes from its measurements of 3”*0.5”*8 gauge, which is approx. 76.2mm*12.7mm*4mm in metric. It is a professional structure combined with a steel framework coated with zinc or RAL colour power.
Applications of Anti-Climb 358 Fence
- High-Security Facilities: Ideal for prisons, military bases, and sensitive government buildings where preventing unauthorized access is critical. The small mesh apertures make it difficult to climb or cut through.
- Industrial Sites: Used in factories, warehouses, and industrial parks to protect valuable assets and restrict access to authorized personnel only.
- Public Infrastructure: Commonly installed around airports, railway stations, and power plants to secure vital infrastructure and ensure public safety.
- Commercial Properties: Provides security for commercial complexes, shopping malls, and office buildings, deterring theft and vandalism.
- Residential Complexes: Offers high-security fencing for residential areas, especially in gated communities or luxury estates, ensuring safety and privacy.
358 fence manufacturers Recommended Specifications for Secure-Wall Anti-Climb 358 Fence
| Specification |
Details |
| Width |
2130mm, 2440mm, 2740mm, or custom specifications |
| Height |
1830mm, 2130mm, 2440mm, 2740mm, or custom specifications |
| Mesh Aperture |
76.2mm x 12.7mm / 75mm x 13mm |
| Panel Type |
2D / 3D |
| Wire Option |
Low carbon iron wire, Galfan wire, Stainless wire |
| Wire Diameter |
3mm (4mm) Horizontal, 4mm Vertical, or customized |
| Wave Bends |
4 Stiffening Bends |
| Post Type |
"C" Section Post, Flat Bar |
| Coatings |
Galvanised |
| Surface Treatment |
Galvanised and PVC coated, or Hot Dipped Galvanised |
358 fence manufacturers Specifications
| Property |
Value |
| Tensile Strength |
400-600 MPa |
| Welding Strength |
50% of wire tensile strength |
| Yield Strength |
485 MPa |
| Hot-Dip Galvanized Zinc Coating |
70µm (500g/m²) |
| Polyester Powder Coating Thickness |
100µm |
| Brand of Polyester |
AkzoNobel |
| Standards |
ASTM-123, BS10244-2 Z40, BS1722-14, BS13438 |
| Life Warranty |
At least 10 Years |
| Inspection Reports |
TUV, SGS, BV, Intertek |
358 fence manufacturersPost Specifications
| Post Style |
Size |
Height |
| Rectangle Post |
40 x 60 x 1.5mm |
1.6m |
|
40 x 60 x 2mm |
1.8m |
|
60 x 80 x 2mm |
2.0m |
| Square Post |
40 x 40 x 1.5mm |
2.1m |
|
60 x 60 x 2mm |
2.3m |
|
80 x 80 x 2.5mm |
2.5m |
|
100 x 100 x 3mm |
2.8m |
| Peach Post |
50 x 70mm |
3.0m |
|
70 x 100mm |
3.5m |
| Round Post |
Φ38 x 1.5mm |
4.0m |
|
Φ42 x 2mm |
4.5m |
|
Φ48 x 2mm |
- |
|
Φ60 x 2.5mm |
- |
Treatment:
1) Use the
hot-dipped galvanised (or electro galvanised) wire as material. After welding, begin PVC or plastic spraying.
2) Use the low carbon steel wire welded to the panel, then electro or hot-dipped galvanised treatment, and finally PVC treatment.
3) In Europe, generally choose the galvanised after welding or PVC after welding.
Processing
Straighten & Cut Short--Welded --Galvanized--parkerizing-- Powder Coating—Package
Packaging & Shipping
As one of the leading manufacturers of 358 fences, we take great care to pack our products securely to ensure quality and safety during transport.

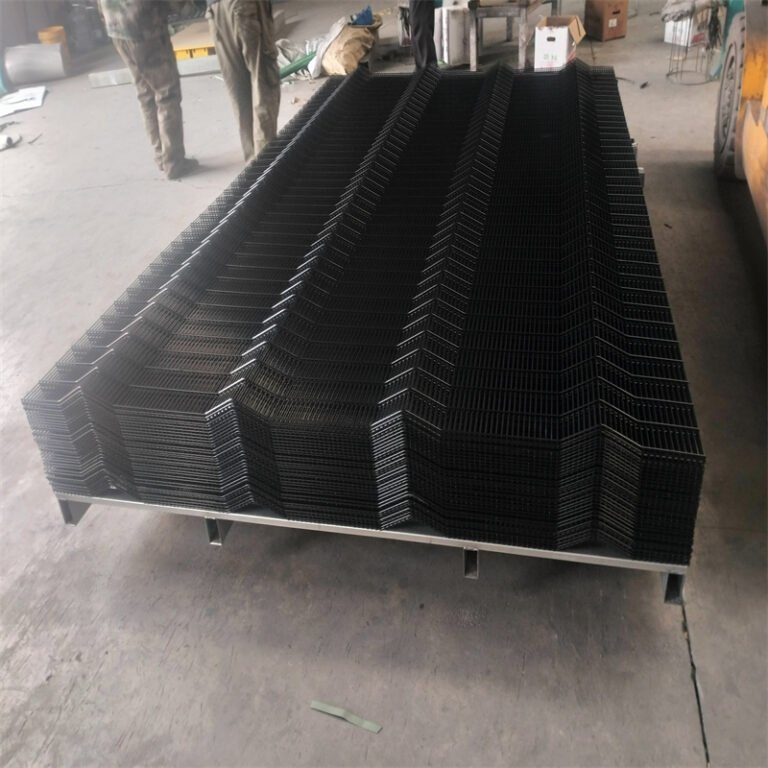

358 fence manufacturers Packing:
- Protection: We place a plastic film at the bottom of the panel stack to prevent damage.
- Stability: We use four metal corners to keep the panels solid and uniformly aligned.
- Top Support: A wooden plate is placed at the top of the pallet to protect the panels underneath.
- Pallet Construction: The pallet uses 40*80mm tubes positioned vertically at the bottom to add stability.
358 fence manufacturers Post Packing:
- Post Protection: We cover each post with a plastic cap to protect the ends.
- Secure Wrapping: We wrap posts in plastic film and place them on a metal pallet for secure transportation.
Accessories Packing:
- Accessory Security: We pack stainless steel nuts and screws with the clips for easy installation.
- Convenient Packaging: We load five sets of clips into one plastic bag, with 12 bags packed into one carton box for organization and protection.
This thorough packing process ensures that all components of the 358 fence arrive in excellent condition, ready for installation.
358 fence manufacturers project photo
Application
