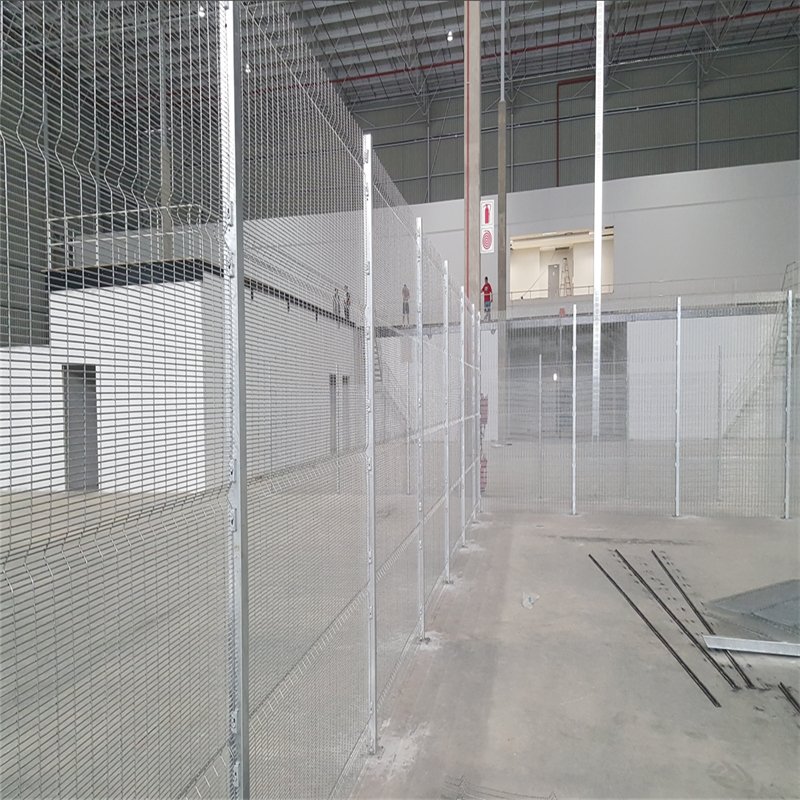

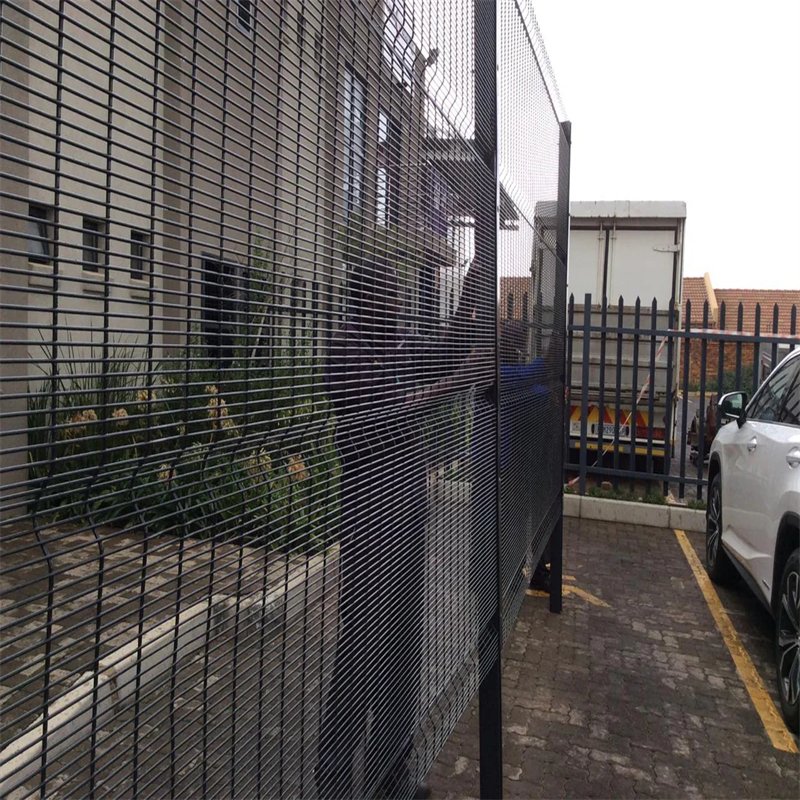

The 358 Anti-Climb Welded Mesh Fence offers a significantly higher level of security compared to standard 358 mesh fencing. While it shares the same wire diameter, its mesh aperture is considerably smaller, making it virtually impossible for intruders to climb using fingers or toes. Additionally, the dense mesh structure prevents the use of conventional tools such as bolt cutters.
This anti-climb fence features a rigid, double vertical wire welding structure, which enhances its resistance to penetration and deformation. It combines anti-climb, anti-cut, and anti-corrosion capabilities with excellent visibility, making it ideal for surveillance and monitoring.

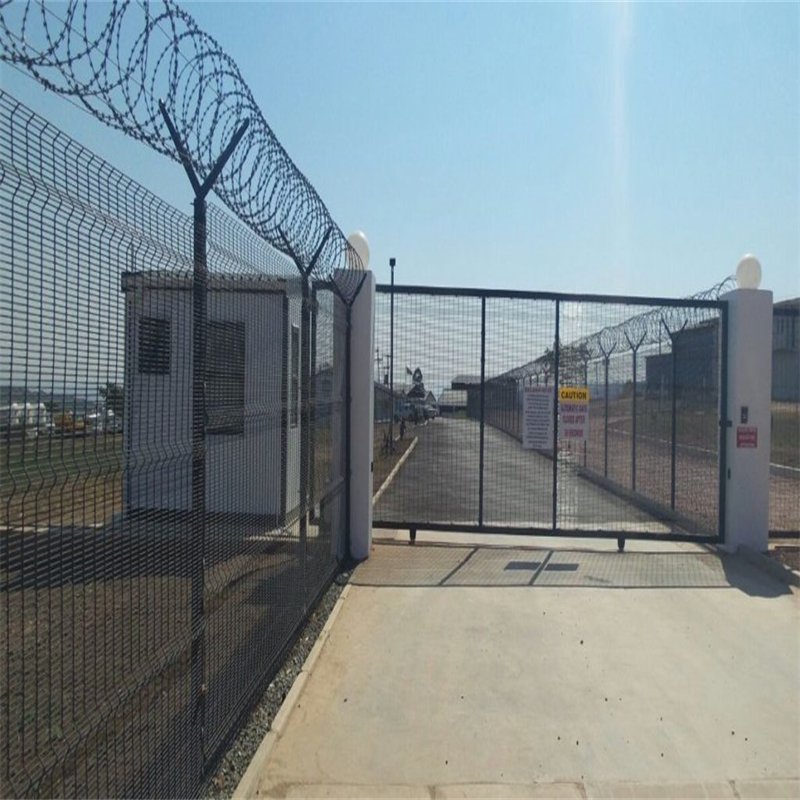

When integrated with high-security toppings such as razor wire, barbed wire, security fence spikes, or shark tooth spikes, the 358 mesh fence becomes a highly effective perimeter protection system. It is widely used in prisons, military installations, power facilities, and other high-risk areas requiring maximum security.
| Fence height (m) | Panel size Width 2515mm) |
Fence Post | Clamp Bar | Inter or corner Clamp No. (PCS) |
|---|---|---|---|---|
| 2.0 | 2007 | 2700 × 80 × 80 × 3 | 2007 × 60 × 5.00 | 7 or 14 |
| 2.4 | 2410 | 3100 × 80 × 80 × 3 | 2400 × 60 × 5.00 | 9 or 18 |
| 3.0 | 3010 | 3800 × 100 × 100 × 3.0 | 2997 × 80 × 6.00 | 11 or 22 |
| 3.6 | 3610 | 4500 × 100 × 100 × 3.5 | 3607 × 100 × 7.00 | 13 or 26 |
| Note: anti-climb mesh fencing can be custom ordered to measure. | ||||
The 358 anti-climb mesh fence is an advanced high-security perimeter solution designed to resist intrusion, cutting, and climbing. Its dense mesh pattern (70 × 8 mm) and fully welded intersections provide exceptional strength, making it ideal for critical infrastructure protection.
Clear visibility for monitoring and surveillance; classified as “clear view” fencing.
Fully welded at every intersection to ensure structural rigidity.
Double vertical wire design significantly enhances resistance to intrusion and deformation.
Anti-climb and anti-cut properties due to small mesh aperture; impossible to grip or cut with fingers, tools, or bolt cutters.
Corrosion resistant, using Galfan (zinc-aluminum) coating and optional PVC powder coating (minimum 120 microns).
Post-weld surface protection ensures all weld points are sealed and protected.
Integrated design with anti-tamper fasteners and secure post connections.
Optional security enhancements, including barbed wire, razor coils, or spike toppings.
Quick installation and low maintenance requirements.
Backed by a 5-year manufacturer’s warranty.
Wire diameter: 4 mm high-tensile steel.
Surface finish: Galfan coating (after welding), followed by PVC powder coating or painting.
Available PVC colors: Black, dark green, brown, yellow, desert sand, bronze, or custom.
Mesh opening: 70 mm × 8 mm.
Panel width: 2515 mm.
Height options: 2.0 m, 2.4 m, 3.0 m, 3.6 m (custom sizes available).
Razor Wire
Style: Flat or concertina coils
Barb Length: Short or long
Material: Galvanized or stainless steel
Wire: 25 mm high-tensile aluminum/zinc wire
Coil Diameter: 600 mm / 750 mm
Breaking Load: 7700 N
Loops: 55
Extended Length: 7.5 m
Barbed Wire
Type: Galvanized or PVC-coated, 2-strand, 4-point
Gauge: 11 gauge
Barb Spacing: 3 inches

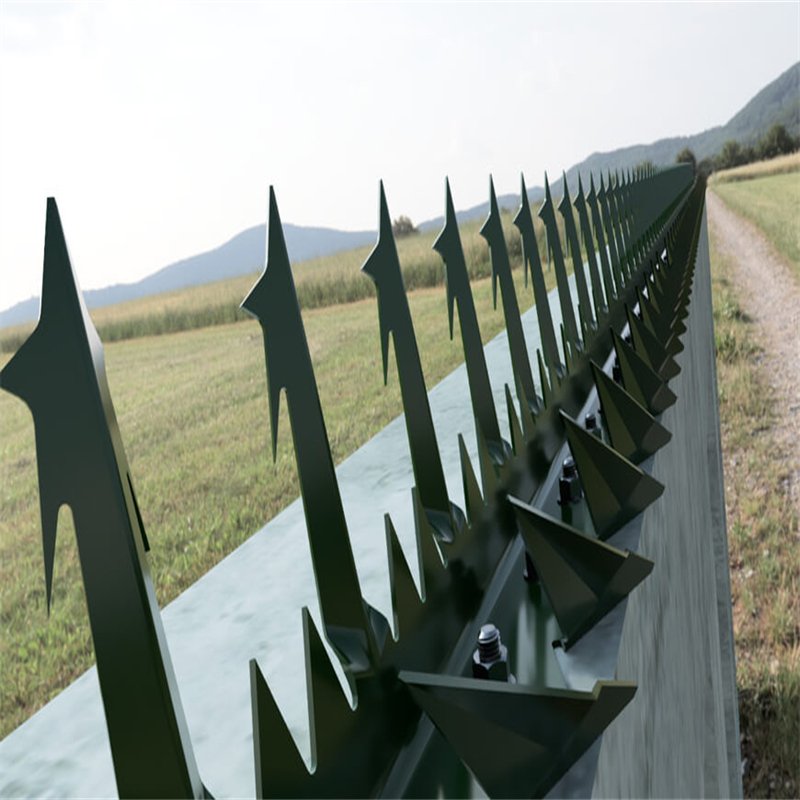

Security Spikes
Plate Thickness: 2.0 mm
Base Width: 65 mm
Spike Length: 35 mm (short), 70 mm (long)
Pitch: 70 mm
Shark Tooth Spikes
Width: 35 mm
Tooth Length: Up to 58 mm
The 358 anti-climb mesh fence is ideal for high-risk areas requiring strong physical barriers, including:
Prison and detention center perimeters
Military and government facilities

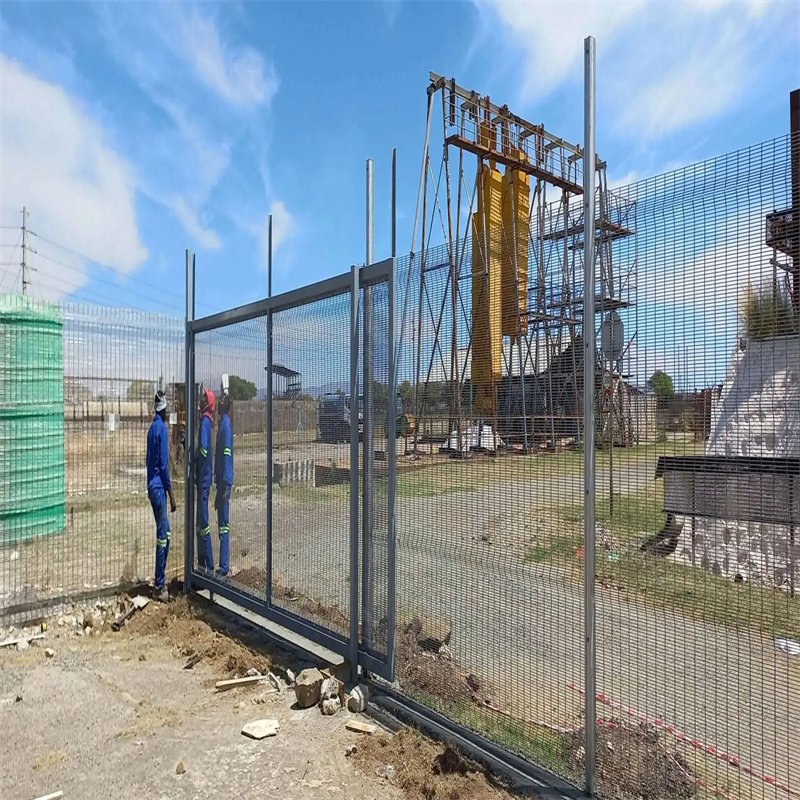

Electrical substations and power plants
Airports, highways, and rail infrastructure
Seaports and logistics hubs
Chemical and petroleum sites
Wildlife protection zones
Warehousing and distribution centers
Educational institutions
The price of the 358 high-security fence depends on:
Raw material costs
Processing and coating specifications
Transportation/freight
For low-corrosion environments (e.g., deserts or dry regions), Galfan-coated only panels may be a cost-effective choice.
In marine or high-humidity zones, we recommend Galfan + PVC coating for enhanced corrosion resistance and longer service life.
Recommendation: Choose the most durable configuration within your budget to ensure long-term performance and reduced maintenance.
