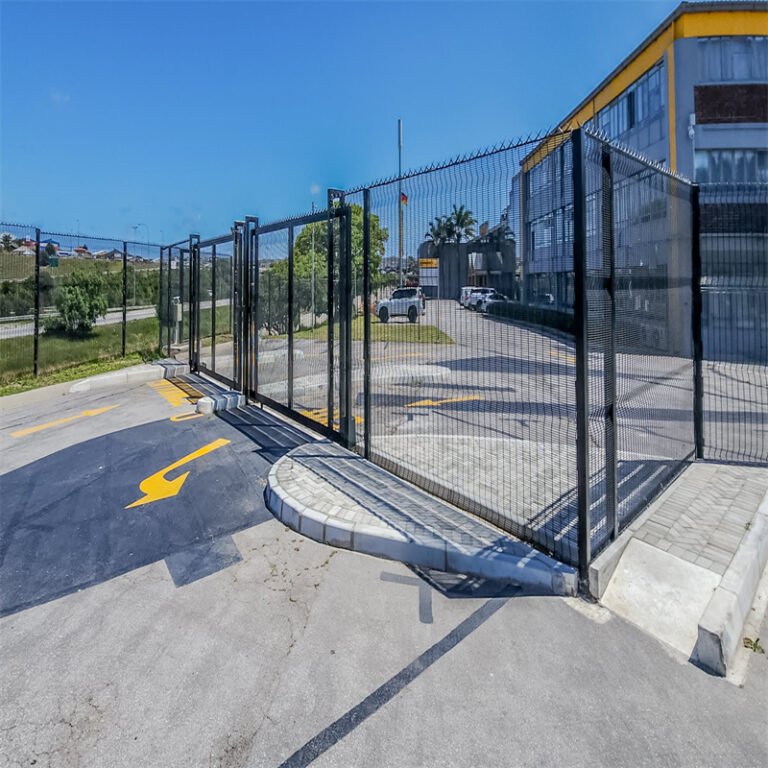

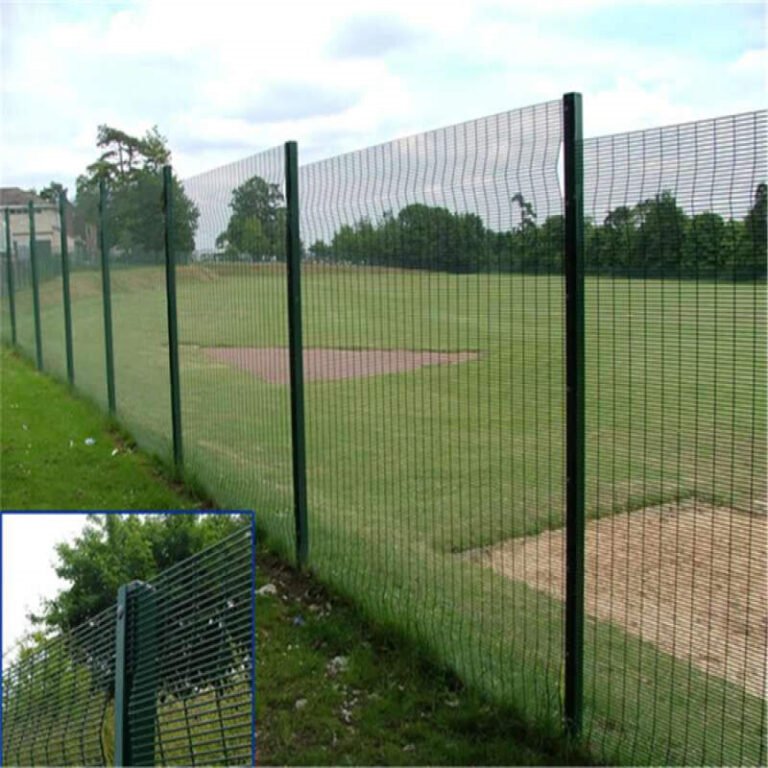

Clear View Fencing is security welded wire mesh fence barrier designed to bring maximum perimeter protection and excellent visibility through the mesh. V-Bends in the
clear view fence panels create strength and rigidity. As a high-security barrier, clear view security fencing forms a physical and psychological deterrent to unauthorized entry and break-ins.
Our high-density mesh
clearvu Fencing is the most common perimeter barrier or control for the architectural profession and defence protection. We design three standard fence panels according to different secure grades: high security, medium security, and low security.
BMP-02: High Security clear view fence with most secure, anti-climbing, and highly visible for residential fencing.
BMP-03: Medium Security clear view fencing with features of anti -cut and highly visible.
BMP-04: Low security clear view fence for road fencing.
Clear View Fencing specification
- Mesh panel heights: 1.8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m, larger sizes by special request.
- Mesh panel width: 2.515 m.
- Coatings: Hot dipped galvanized before welded, then polyester coated black, green, or white colour.
- Panel bends: 45 mm rigidity bends.
- Post with the plastic top cap.
- Fixing: clamps and blot.
- Security fencing toppings: fence spikes, razor wire, electrified fencing.
- Clear view fencing panels options: high security, medium security, low security.
Clear View Fencing Parameters
| Security Options |
Aperture |
Vertical Wire Thickness |
Horizontal Wire Thickness |
Features |
| High Security |
76 mm × 12.5 mm |
4 mm |
3.5 mm |
Most secure, anti-cut, anti-climb, highly visible |
| Medium Security |
76 mm × 25 mm |
4 mm |
3 mm |
Anti-cut, highly visible |
| Low Security |
76 mm × 50 mm |
4 mm |
4 mm |
Anti-cut, highly visible, cost-effective |
Specifications Table
| Panel Length (mm) |
Panel Height (mm) |
Horizontal Wire (mm) |
Vertical Wire (mm) |
Surface Finish |
50mm Depth V Folds |
| 3050 |
900 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
2 |
| 3050 |
1200 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
2 |
| 3050 |
1500 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
3 |
| 3050 |
1800 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
4 |
| 3050 |
2000 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
4 |
| 3050 |
2100 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
4 |
| 3050 |
2400 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
4 |
| 3050 |
3000 |
3 |
4 |
ZincAlume, Powder Coated, PVC |
4 |
Our clear view fence advantages
- Anti-climb, anti-cut and 85% - 90% see-thru.
- HD Galv and polyester coated for corrosion and rust resistance.
- High to low-security fencing options.
- V-Bends in the clearvu fencing panels create more strength and rigidity.
- Clear view fence panels fixing to square tube post maximum security and strength.
- We have professional installations teams.
Applications
A clear view fence is suitable for high, medium, and low-security applications as the following:
- Warehousing isolation, workshop segmentation.
- Road, railway, airport fence.
- Prison, military security fence.
- Medical facilities, educational school, recreational fencing.
- Residential areas, business districts, government agencies, fences or gates.
- Industrial area, farmhouse fence.
- It can be suitable for flat or slope areas.
| High security |
Low security |
Medium security |
 |
 |
 |
- Due to different mesh apertures, clear view fence panels in different security grades have different prices.
- High-security clear view fencing panels with the most density mesh has the highest price. But it is for the most secure and most attractive application.
- Low-security clear view fencing panels with the largest mesh opening is cost-effective fencing.
- In short, according to your actual fencing application and budget costs, choose the most suitable for your fence.
Panel Finish Options
- Standard Galvanised wire finish (typically 80-100g/m² of Zincprior to Welding / fabrication)
- Galfan wire finish (typically 275-300g/m2 of Zn/Al alloy before Welding / fabrication)
- All panels can be offered with triple coat anti-corrosion architectural finish consisting of Galvanised / Galfan wire + ZincPhosphate pre-treatment + 100-micron Polyester coating to give long-lasting protection against the elements.
Conclusion of Clear View Fence Panels
Clear View Fence Panels are an excellent choice for those seeking a high-security fencing solution that combines strength, durability, and aesthetic appeal. The panels feature a robust construction with 3mm horizontal wires and 4mm vertical wires, offering superior resistance to cutting and climbing. Available in various heights ranging from 900mm to 3000mm, and lengths of 3050mm, these panels can be customized to fit different security needs.
