clear view fence south africa, also known as clearvu fencing, is a type of high-security fencing designed to provide maximum visibility while ensuring robust protection. These fences are constructed using welded wire mesh panels with small apertures, making them difficult to climb or cut. The sleek and modern design of Clear View fencing offers an unobtrusive appearance that blends seamlessly with various environments, from residential properties to commercial and industrial sites. The primary materials used in Clear View fencing are high-quality galvanized steel or aluminum, ensuring durability and resistance to corrosion.
Clear View fences enhance home security and provide clear visibility for residential properties while adding a modern aesthetic. They secure commercial buildings and offices, protecting valuable assets and maintaining a professional appearance. Industrial facilities use Clear View fences to safeguard equipment and materials, prevent unauthorized access, and comply with safety regulations. Public infrastructure benefits from these fences by protecting parks, government buildings, and utility installations, ensuring safety and security.
Educational institutions, such as schools and universities, use Clear View fences to enhance security, create safe boundaries for students, and maintain an open and welcoming environment. Transportation hubs, including airports, train stations, and bus terminals, rely on these fences to secure restricted areas and ensure passenger safety. Sports facilities, like stadiums and sports complexes, use Clear View fences to protect the premises, manage crowd control, and allow security personnel to maintain visibility.
Clear View fences provide high security due to their robust construction, deterring intruders and preventing unauthorized access. The small apertures in the welded wire mesh make climbing and cutting difficult, enhancing overall protection. Additionally, these fences offer excellent visibility, allowing clear sightlines for monitoring and surveillance without compromising security.
Durability stands out as a key benefit. Made from high-quality galvanized steel or aluminum, Clear View fences resist corrosion and withstand harsh weather conditions, ensuring long-lasting performance with minimal maintenance. The sleek and modern design of these fences not only provides an unobtrusive appearance but also enhances the aesthetic appeal of any property, blending seamlessly with different environments.
| Specification | Details | Standard |
|---|---|---|
| Wire Diameter | 4mm (Vertical) x 3mm (Horizontal) | ISO 17885 |
| Aperture | 75mm x 25mm/12mm/100mm etc | ISO 9223 |
| Tensile Strength | 500 - 650 mpa | ISO 6892-1 / ASTM A370 |
| Weld Strength | 60% - 80% | AWS D1.1 / EN 10218-2 |
| Coating Type | Coating Thickness (g/m²) | Standard |
|---|---|---|
| Lightly Galvanised | 60g/m² | ISO 1461 / ASTM A123 |
| Fully Galvanised | 275g/m² | ISO 1461 / ASTM A123 |
| Galfan Coated | 220g/m² | ISO 20691 / ASTM A875 |
| Lightly Galvanised | 50g/m² | ISO 1461 / ASTM A123 |
| Fully Galvanised | 255g/m² | ISO 1461 / ASTM A123 |
| Galfan Coated | 195g/m² | ISO 20691 / ASTM A875 |
| Coating Type | Coating Thickness | Standard |
|---|---|---|
| Powder Coating | 60-80 microns | ISO 13438 / ASTM D3451 |
| Thermal Plastic | 250 microns min. | ISO 2063-1 / ASTM D3359 |
| 95% Zinc, 5% Aluminium | 28-42 microns | ISO 14713-1 / ASTM B117 |
 |
 |
 |
 |
| Height (mm) | Width (mm) | Mesh Size (mm) | Number of Bends | Vertical Wire Diameter (mm) | Horizontal Wire Diameter (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|
| 1200 | 3000 | 76x12.7 | 2 | 4.00 | 3.00 | 20.01 |
| 1500 | 3000 | 76x12.7 | 2 | 4.00 | 3.00 | 24.90 |
| 1800 | 3000 | 76x12.7 | 3 | 4.00 | 3.00 | 30.01 |
| 2000 | 3000 | 76x12.7 | 4 | 4.00 | 3.00 | 33.49 |
| 2100 | 3000 | 76x12.7 | 4 | 4.00 | 3.00 | 35.13 |
| 2200 | 3000 | 76x12.7 | 4 | 4.00 | 3.00 | 36.75 |
| 2400 | 3000 | 76x12.7 | 4 | 4.00 | 3.00 | 40.01 |
| 3000 | 3000 | 76x12.7 | 4 | 4.00 | 3.00 | 49.64 |
 |
 |
 |
 |
| Height (mm) | Width (mm) | Mesh Size (mm) | Number of Bends | Vertical Wire Diameter (mm) | Horizontal Wire Diameter (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|
| 1200 | 3000 | 76x25 | 2 | 4.00 | 3.00 | 12.69 |
| 1500 | 3000 | 76x25 | 2 | 4.00 | 3.00 | 15.72 |
| 1800 | 3000 | 76x25 | 3 | 4.00 | 3.00 | 18.81 |
| 2000 | 3000 | 76x25 | 4 | 4.00 | 3.00 | 21.04 |
| 2100 | 3000 | 76x25 | 4 | 4.00 | 3.00 | 22.05 |
| 2200 | 3000 | 76x25 | 4 | 4.00 | 3.00 | 23.05 |
| 2400 | 3000 | 76x25 | 4 | 4.00 | 3.00 | 25.07 |
| 3000 | 3000 | 76x25 | 4 | 4.00 | 3.00 | 31.11 |
 |
 |
 |
 |
| Height (mm) | Width (mm) | Mesh Size (mm) | Number of Bends | Vertical Wire Diameter (mm) | Horizontal Wire Diameter (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|
| 1200 | 3000 | 76x50 | 2 | 4.00 | 3.00 | 8.80 |
| 1500 | 3000 | 76x50 | 2 | 4.00 | 3.00 | 10.89 |
| 1800 | 3000 | 76x50 | 3 | 4.00 | 3.00 | 13.05 |
| 2000 | 3000 | 76x50 | 4 | 4.00 | 3.00 | 14.65 |
| 2100 | 3000 | 76x50 | 4 | 4.00 | 3.00 | 15.36 |
| 2200 | 3000 | 76x50 | 4 | 4.00 | 3.00 | 16.05 |
| 2400 | 3000 | 76x50 | 4 | 4.00 | 3.00 | 17.44 |
| 3000 | 3000 | 76x50 | 4 | 4.00 | 3.00 | 21.62 |
 |
 |
 |
 |
| Height (mm) | Width (mm) | Mesh Size (mm) | Number of Bends | Vertical Wire Diameter (mm) | Horizontal Wire Diameter (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|
| 1200 | 3000 | 100x50 | 2 | 4.00 | 3.00 | 7.64 |
| 1500 | 3000 | 100x50 | 2 | 4.00 | 3.00 | 9.45 |
| 1800 | 3000 | 100x50 | 3 | 4.00 | 3.00 | 11.31 |
| 2000 | 3000 | 100x50 | 4 | 4.00 | 3.00 | 12.71 |
| 2100 | 3000 | 100x50 | 4 | 4.00 | 3.00 | 13.32 |
| 2200 | 3000 | 100x50 | 4 | 4.00 | 3.00 | 13.92 |
| 2400 | 3000 | 100x50 | 4 | 4.00 | 3.00 | 15.13 |
| 3000 | 3000 | 100x50 | 4 | 4.00 | 3.00 | 18.74 |
| Type | Sizes (mm) | Wall Thickness (mm) |
|---|---|---|
| Square Post | 60x60, 76x76, 80x80, 100x100 | 1.60, 2.00, 6.00mm |
| I Post | 70x44x2, 55x100 | 1.60, 2.00, 6.00mm |
| IPE Post | 55x100, 100x68, 74x120 | 1.60, 2.00, 6.00mm |
| Rectangle Post | 40x80, 60x80, 80x100, 100x150 | 1.60, 2.00, 6.00mm |
| C Post | 60x80, 80x100, 100x150 | 1.60, 2.00, 6.00mm |
| T Post | 100x60, 76x40 | 1.60, 2.00, 6.00mm |
| Tapering Fencing Post | 85x45x85, 150x75x150 | 2.00mm, 2.50mm, 3.00mm etc. |
Clear view IPE post |
I Types Post |
Tapering Fencing Post 85mmx85mmx45mm plus single bolts clamps |
C post for clear view fencing |
H post |
Square Post |
Choosing the right clear view fence post involves considering several factors to ensure the fence meets your specific needs. Here are the key aspects to consider:
2. Sizes (mm)
3. Wall Thickness (mm)

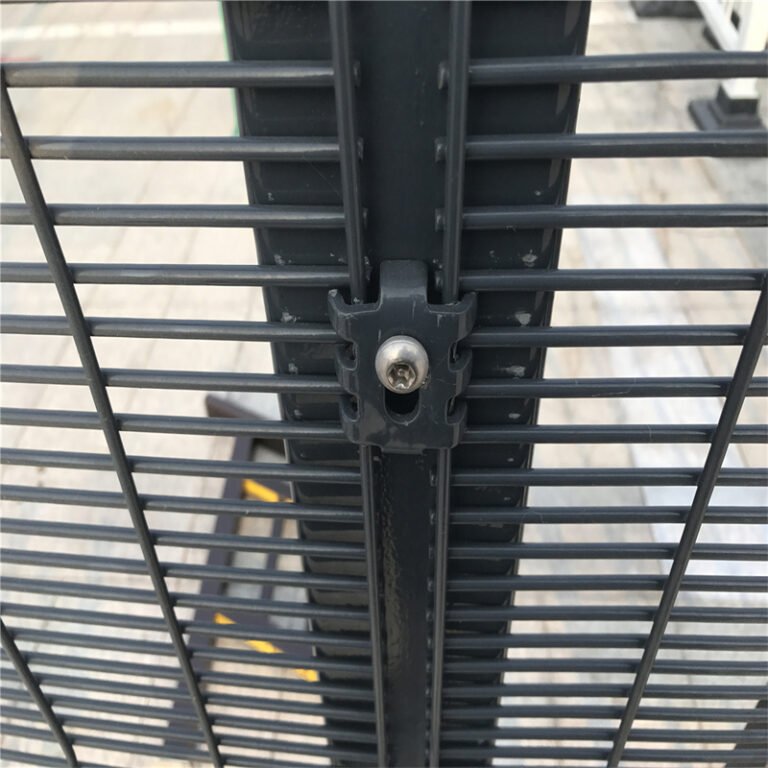

| clearview fence clamps use in I post
|
Clearview Fence tapering Post caps
|
| Spider clamps
|
tech screw
|

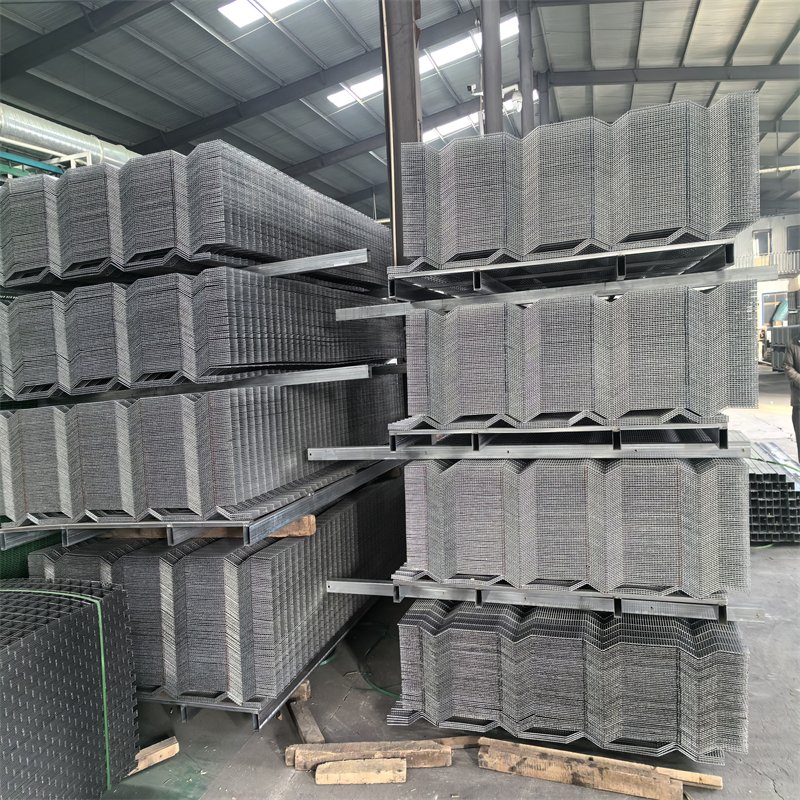

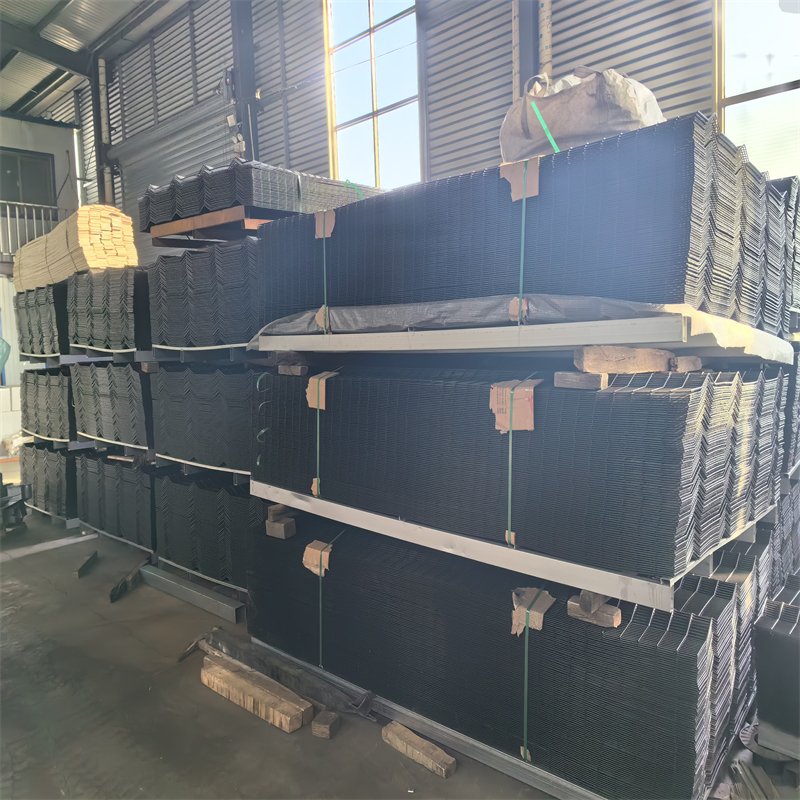

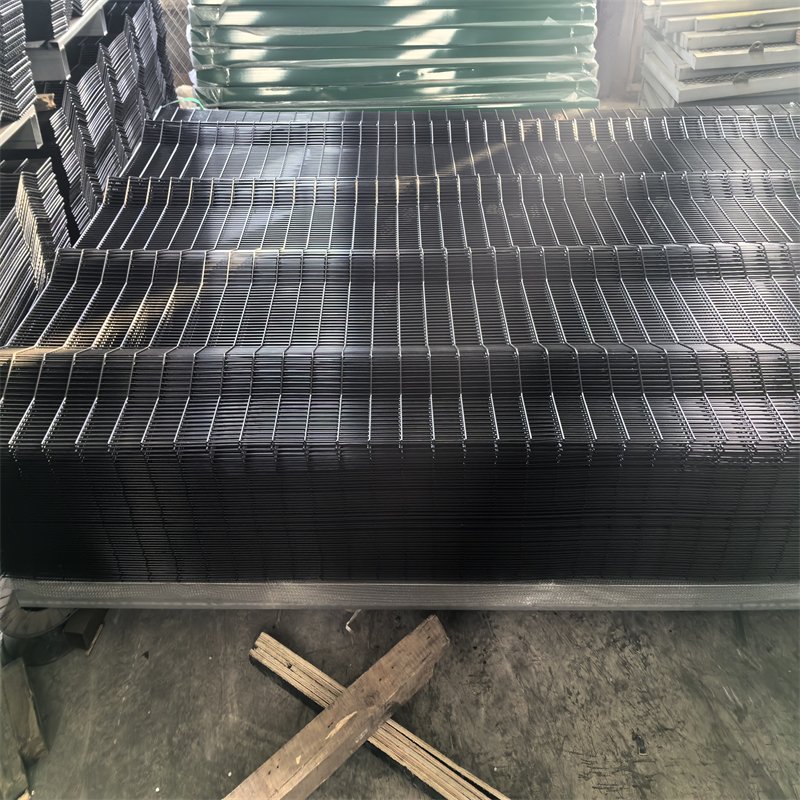

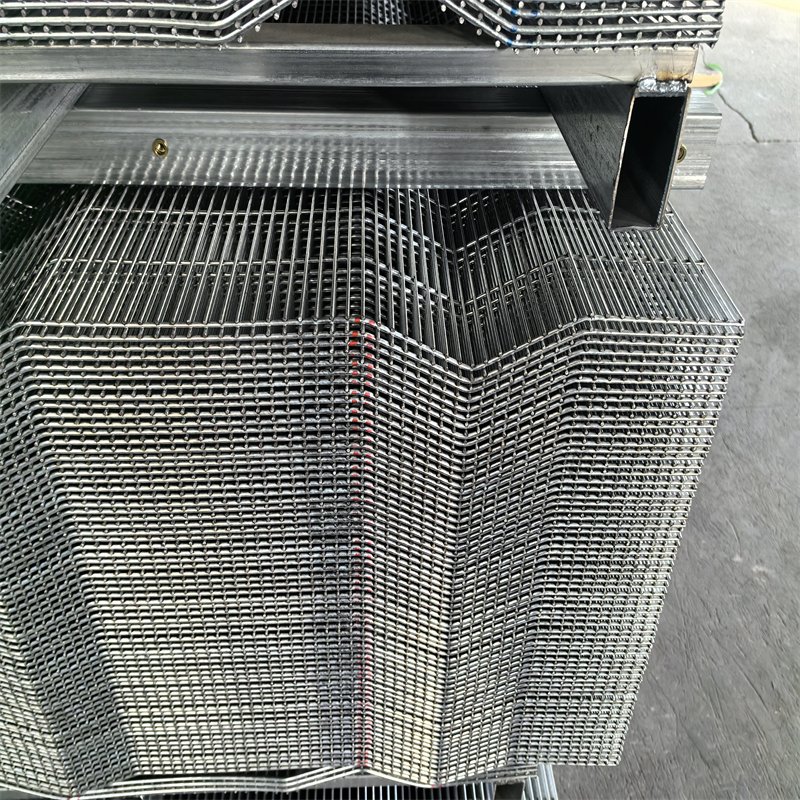

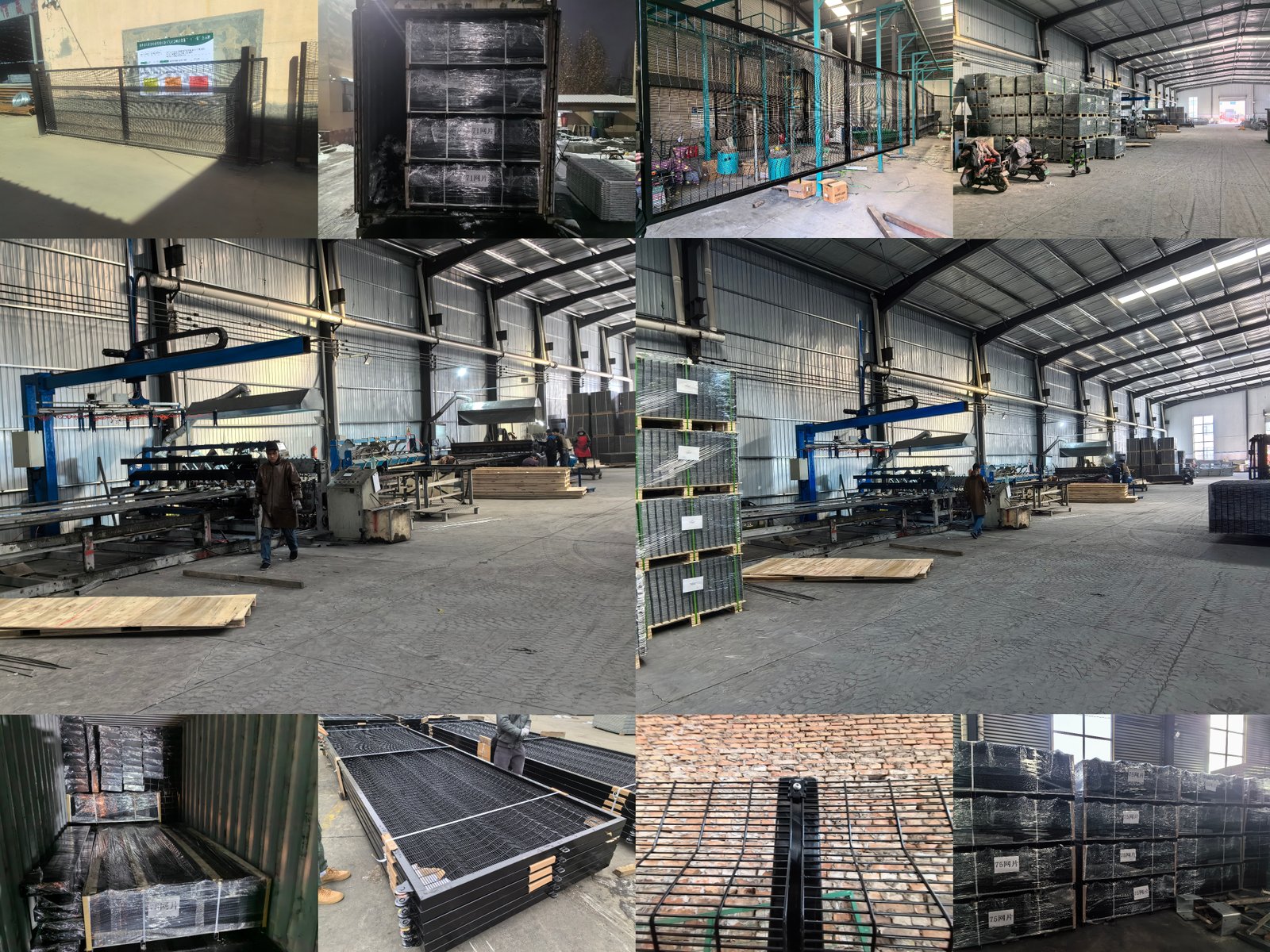

The Clear View fence production process ensures high-quality, durable fencing panels that meet specific security and aesthetic requirements. Here's a summary of the steps:
Clear View fence South Africa offer high security and visibility for various applications. They enhance safety for residential properties, commercial sites, and industrial facilities. Educational institutions and public infrastructure benefit from the robust protection and modern design of these fences. The durable construction ensures long-lasting performance and minimal maintenance. Clear View fences provide a versatile and cost-effective solution for anyone seeking reliable security. Their aesthetic appeal and adaptability to different environments make them an excellent choice for enhancing security while maintaining an unobtrusive appearance.If you are interested to get a clearvu fence price pls feel free to get us .
