The 358 fence also named Anti-climb fence & anti-cut fence for its panel mesh opening of 3" × 0.5" × 8 gauge, which approximately measures 76.2mm × 12.7mm × 4mm, consists of a strong welded mesh panel with small mesh openings. This design makes the fence extremely difficult to penetrate or cut using conventional hand tools, providing features that prevent climbing and cutting.
Application:
Designed for maximum security, the Anti-climb fence & anti-cut fence suits electronic alarm and detection systems. People use it to enclose prisons, military sites, and airports. It also secures industrial and commercial properties, warehouses, power plants, laboratories, secure hospitals, and schools. For parks, leisure, and recreational areas, the typical fence height is 3.60m. Prisons and military installations often use fences that are 5.20m tall. The 358 fence ensures a secure, long-lasting perimeter with an attractive appearance.
358 Anti-Climb mesh fence Features:
- Anti-climbing: more small openings, no toe or finger holds.
- Anti-cut: robust Wire aWireelded joints make cutting very difficult by bolt cutters and wire cutters.
- High strength welded at each intersection.
- Durable: covering Galvan and polymer powder coating ensure long service life.
- Mesh fencing is specially configured to provide maximum visibility, primarily used for emergency and electronic detection systems.
Anti-Climb Fence Panels Specification
Anti-climb fence panels consist of heavy mesh and provide a high level of security. They are available in a width of 2515mm and heights ranging from 2007mm to 3302mm. You can install several panels on top of each other to achieve a total height of up to 6300mm.
358 mesh anti-climb fence panel size
- Mesh pattern: 76.2mm (3") × 12.7mm (0.5") resistance welded well at each intersection
- Wire diameter: 4mm horizontal Wire and vertical Wire.
- Weld strength: range 540-690 N/m2
- Surface treatment: 358 mesh fence panels made from Galvan Wire, PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
- Colors: Green RAL 6005, or Black RAL 9005.
- Installation: Overlapped 75mm minimum at each post (shown as the two following pictures below) for securing with slotted clamp bars and M8 diameter bolts.
358 fence panel with mesh size length 76.2mm
specifications for the Anti-climb fence & anti-cut fence
| Fence Height (m) |
Panel Size (Height × Width) |
Fence Post (Height × Size × Thickness) |
Clamp Bar (Height × Width × Thickness) |
Inter or Corner Clamp No. (PCS) |
| 2.0 |
2007mm × 2515mm |
2700mm × 60×60×2.5mm |
2007mm × 60mm × 5.00mm |
7 or 14 |
| 2.4 |
2400mm × 2515mm |
3100mm × 60×60×2.5mm |
2400mm × 60mm × 5.00mm |
9 or 18 |
| 3.0 |
2997mm × 2515mm |
3800mm × 80×80×2.5mm |
2997mm × 80mm × 6.00mm |
11 or 22 |
| 3.3 |
3302mm × 2515mm |
4200mm × 80×80×2.5mm |
3302mm × 80mm × 6.00mm |
12 or 24 |
| 3.6 |
3607mm × 2515mm |
4500mm × 100×60×3.0mm |
3607mm × 100mm × 7.00mm |
13 or 26 |
| 3.6 |
3607mm × 2515mm |
4500mm × 100×100×3.0mm |
3607mm × 100mm × 7.00mm |
13 or 26 |
| 4.2 |
4204mm × 2515mm |
5200mm × 100×100×4.0mm |
4204mm × 100mm × 8.00mm |
15 or 30 |
| 4.5 |
4496mm × 2515mm |
5500mm × 100×100×5.0mm |
4496mm × 100mm × 8.00mm |
16 or 32 |
| 5.2 |
5207mm × 2515mm |
6200mm × 120×120×5.0mm |
5207mm × 100mm × 8.00mm |
18 or 36 |
Fence posts
- Anti Clim Fence Material: high-grade steel for maximum strength and rigidity.
- Post section: 80×60mm, 80×80mm or 120×60mm.
- Post Plate thickness: 2.5mm or 3.0mm.
- Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 microns).
- Colors: Green RAL 6005, or Black RAL 9005.
- Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with a plastic cap.
- Metal clips and clamps are hot dips galvanized, then powder coating in green or black color.
358 security mesh panels package
Anti-climb fence & anti-cut fence are packaged in a plastic film then stored and transported on wooden pallets. Each package is firmly attached to the pallet by a particular type of tape.
2D Anti-Climb Fence
These 2D anti-climb fence panels increase strength by 6mm vertical wire and additional 4mm wires at 152.4mm centers on the inside face. So it has double horizontal wires at 152.4mm centers. This structure makes the fence panel very rigid and has a higher level of strength and security than the standard 358 mesh fence. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high-security areas.
| Green color powder coating 2D security fencing with 6mm vertical wire and 4mm double horizontal Wire |
Details of 2D security fencing panel installed on post |
 |
 |
2D Anti-Climb Fence Panels Specification
- 358 Mesh Opening: Each intersection is welded at 76.2mm × 12.7mm.
- Horizontal Wires: 4mm diameter, placed at 12.7mm centers on the attack face and intermittent 4mm double wires at 152.4mm centers on the inside face.
- Vertical Wires: 6mm diameter at 76.2mm centers.
- Post: Includes a single row of M8 threaded inserts for panel attachment using specialized pressed steel brackets, spaced at 2.55m centers.
- General Attributes: Panel width, height, finish, fence post, and clamps align with the 358 mesh fence specifications.
3D Anti-climb fence & anti-cut fence
- Overview: The 3D Anti-Climb security fence utilizes a 4.0mm wire in a 12.7×76.2mm mesh pattern, akin to the 358 mesh fence, but enhances its appearance with pressed horizontal 'V-shaped beams for a distinct look.
- Utility: This fence is an ideal barrier solution that merges high security with visual appeal, making it suitable for schools, recreational areas, hospitals, railways, ports, airports, warehouses, industrial, and commercial facilities.

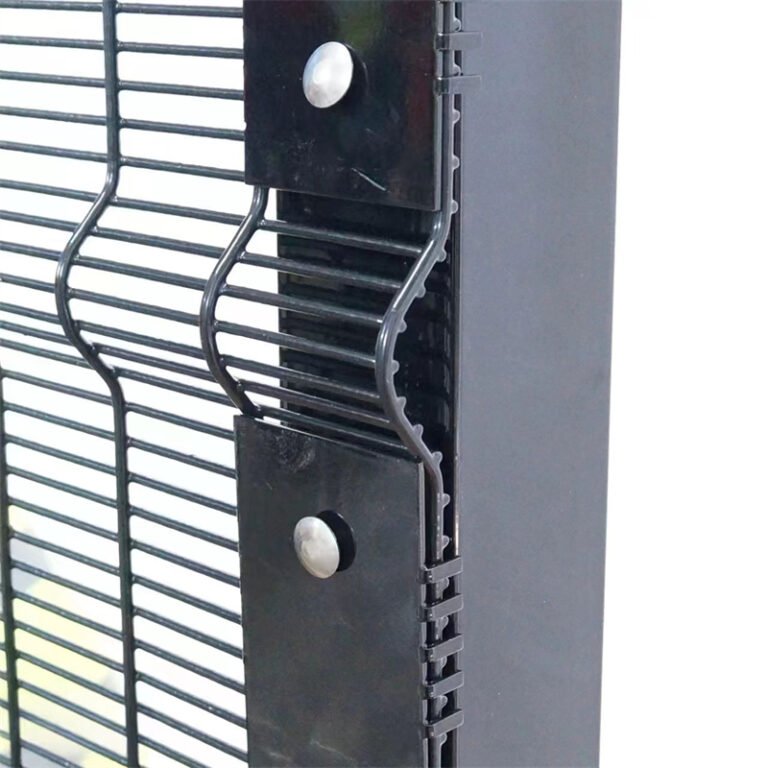

3D anti-climb security fence mesh panel with a V beam installed on a post with a V beam and 3d fence panels enhanced its appearance with pressed horizontal 'V-shaped beams.
Specification Anti-Climb 3D Fence
| Table-2: 3D security fence system specifications |
| Panels |
Posts |
| Fence height |
Panel Size Height/Width |
Number of Beams |
O/A Length |
Material and fixings |
| Inters |
Corners |
| m |
|
|
|
Material mm |
Fixings |
Material mm |
Fixings |
| 2.0 |
2000 × 2515 |
2 |
2700 |
80×60×2.0 RHS |
6 |
80×80×2.5 SHS |
12 |
| 2.4 |
2400 × 2515 |
3 |
3100 |
80×60×2.0 RHS |
7 |
80×80×2.5 SHS |
14 |
| 3.0 |
3000 × 2515 |
3 |
3800 |
80×80×2.5 SHS |
10 |
80×80×2.5 SHS |
20 |
