clearview fencing usa provides anti-climb perimeter solutions for American correctional facilities, industrial compounds, utilities, logistics centres, and commercial properties. BMP manufactures welded security mesh panels, steel posts, clamp bars, and matching gates for international projects. The traditional 358 configuration uses approximately 3-inch by 0.5-inch spacing with 8-gauge steel wire. Moreover, galvanized and powder-coated finishes offer different protection options for challenging outdoor environments. Buyers can select standard configurations or request custom manufacturing drawings.
American security projects face widely different environmental conditions. Coastal facilities encounter salt-bearing air, while northern states experience freezing temperatures and snow. Meanwhile, southern properties may face intense sunlight, hurricanes, or heavy seasonal rainfall. Consequently, fence design should address local exposure, structural loading, and access requirements.
358 prison mesh uses closely spaced welded steel wires to create a rigid perimeter barrier. The designation comes from three inches, half an inch, and eight-gauge wire.Its metric reference measures approximately 76.2 × 12.7mm with 4mm wire. Consequently, the narrow openings restrict convenient fingerholds and footholds.Unlike solid concrete walls, welded mesh maintainsvisibility through the perimeter. Furthermore, security personnel can observe selected areas beyond the boundary.However, the complete security system also depends on posts, foundations, gates, and monitoring procedures.
American construction documents commonly use inches and feet. Consequently, suppliers should present both imperial and metric dimensions.
| Component | Metric Reference | Approximate US Measurement |
|---|---|---|
| Mesh Centre Spacing | 76.2 × 12.7mm | 3 × 0.5 inches |
| Standard Wire Diameter | 4mm | 0.157 inches |
| Alternative Horizontal Wire | 3mm | 0.118 inches |
| Panel Width | 2515mm | 99.02 inches |
| Standard Fence Height | 2000mm | 6.56 feet |
| Standard Fence Height | 2400mm | 7.87 feet |
| Standard Fence Height | 3000mm | 9.84 feet |
| Standard Fence Height | 3600mm | 11.81 feet |
These conversions help American buyers compare imported panels with local project drawings. However, approved fabrication dimensions should retain precise tolerances.
Large-aperture fences often provide convenient climbing holds. In contrast, fine 358 mesh restricts ordinary hand and foot placement.
Furthermore, closely spaced wires increase the difficulty of using some conventional cutting tools. However, no standard steel mesh guarantees absolute resistance.
BMP offers two original wire arrangements for selected 358 security systems. Consequently, buyers can compare panel construction before choosing accessories.
The first original configuration uses 3mm horizontal wires and 4mm vertical wires. Its reference mesh spacing measures 76.2 × 12.7mm.
Additionally, the panel includes four V-shaped reinforcement bands and two side flanges. These formed details can improve panel stiffness.
However, actual strength depends on wire grade, weld quality, and the complete structural arrangement.
The second configuration uses 4mm wires in both directions. Original panel widths measure 2515mm.
Meanwhile, available reference heights range from approximately 2000mm through 3600mm. Consequently, buyers can compare several perimeter arrangements.
Four formed bands provide additional geometric stiffness in selected panel designs. However, band dimensions should match approved production drawings.

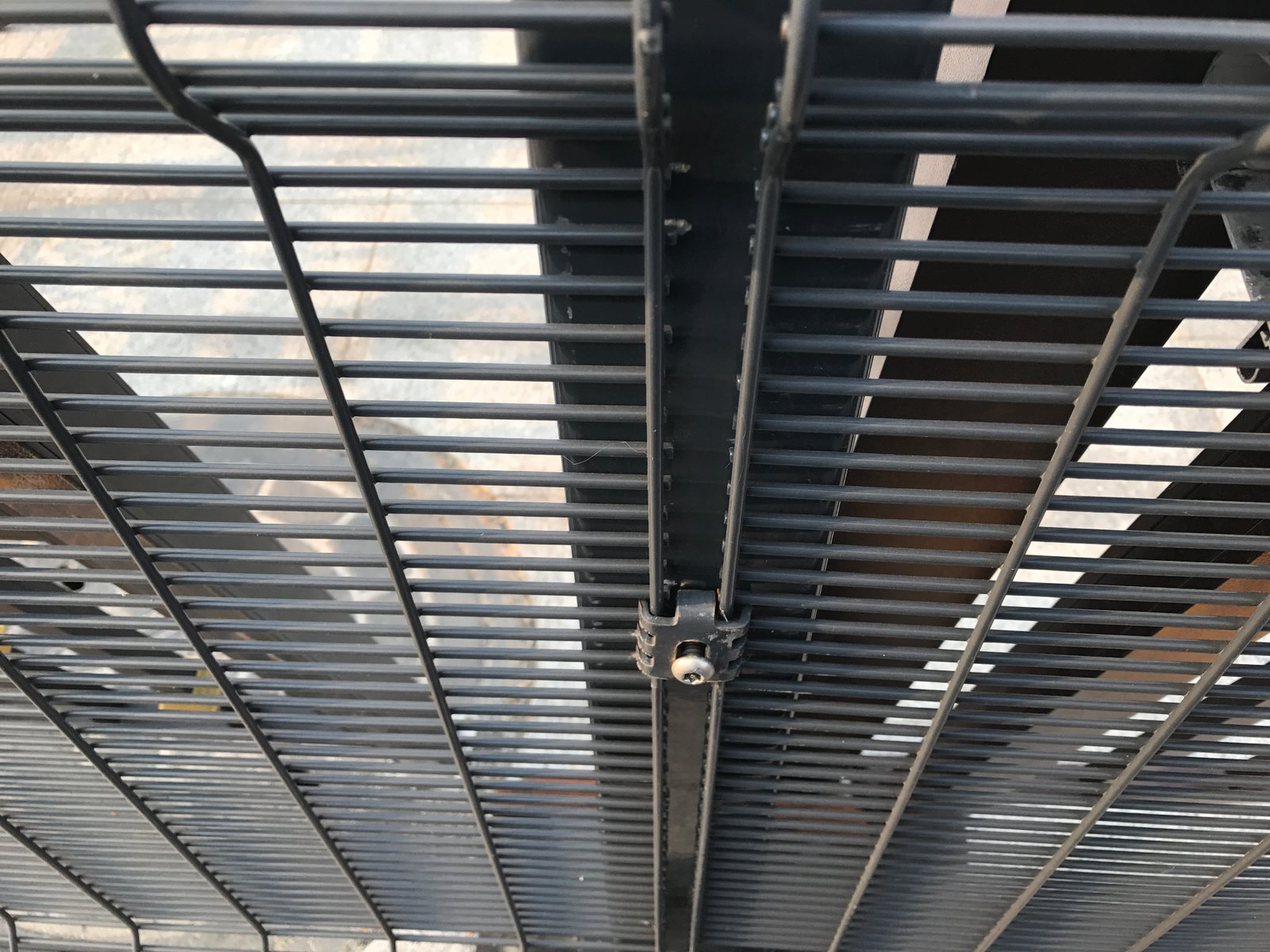

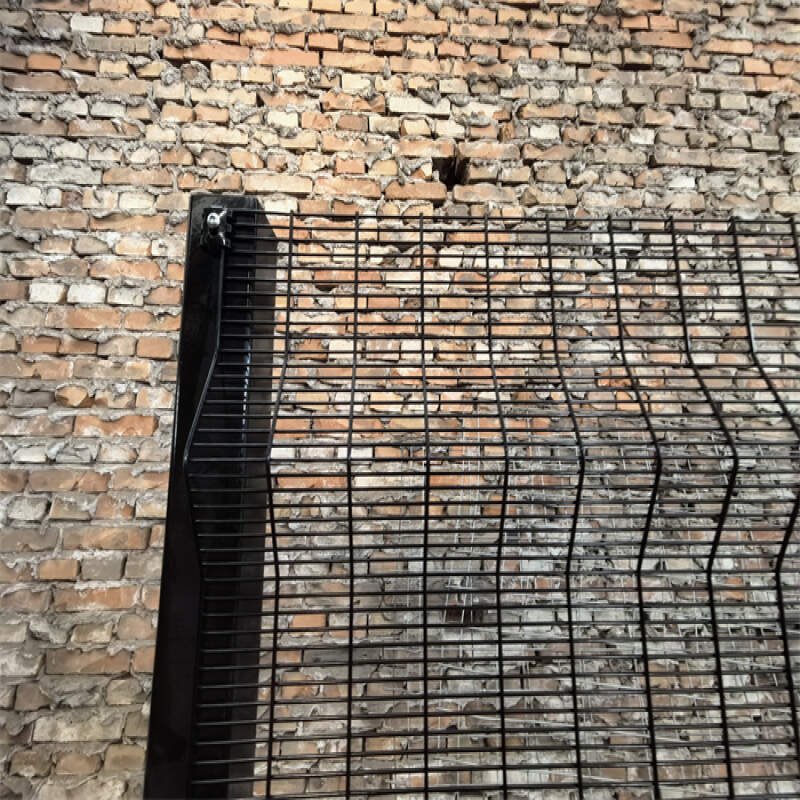

Side flanges accommodate compatible post connections and help define panel geometry. Consequently, their dimensions influence the fastening arrangement.

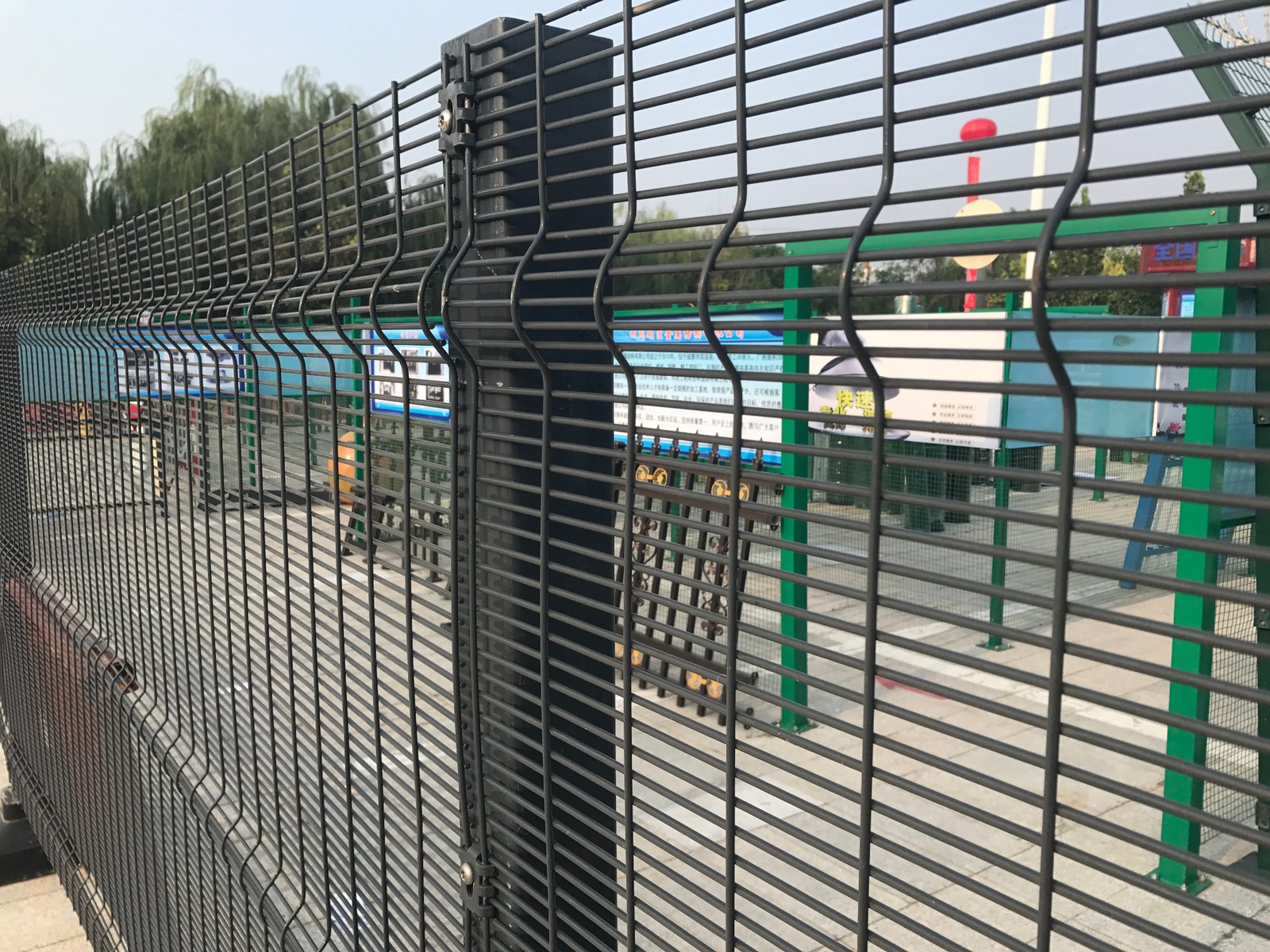

Tapered steel posts provide a distinctive profile for selected security fencing systems. Consequently, they can support integrated panel-edge connections.
| Component | Original Specification | Design Consideration |
|---|---|---|
| Tapered Post Option A | 85mm tapering to 45mm | Match compatible panel-edge fittings |
| Tapered Post Option B | 150mm tapering to 75mm | Verify structural loading |
| Post Cap | UV-protected polymer | Protect hollow post openings |

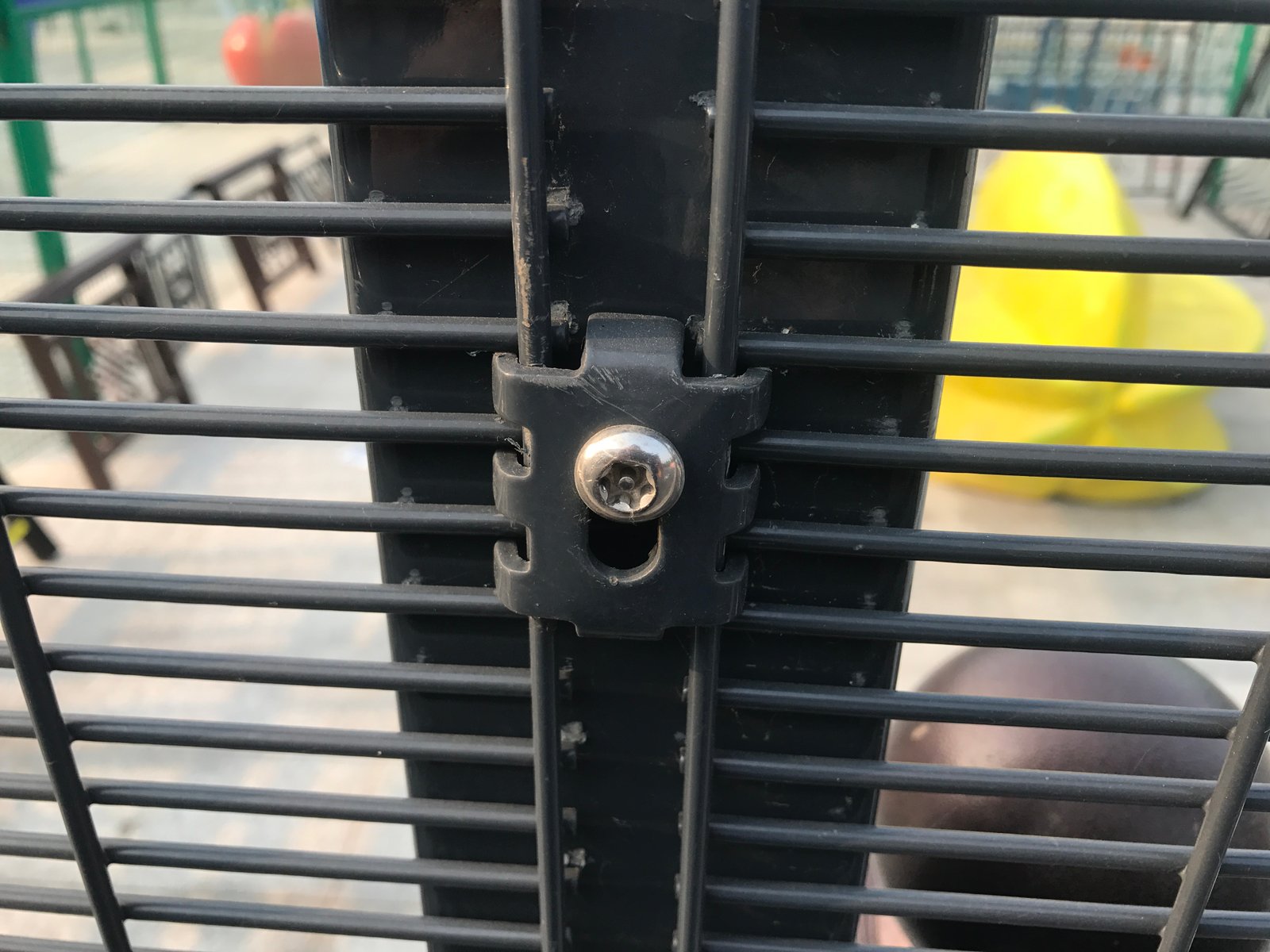

| Alternative Post Type | Square hollow steel | Use compatible clamp bars |
| Foundation | Project-specific | Verify soil, wind, and frost conditions |
The original tapered range includes 85-to-45mm and 150-to-75mm profiles. However, these dimensions alone cannot establish structural suitability.
UV-protected polymer caps help limit debris entering hollow steel sections. Furthermore, they provide a clean finished appearance.
Structural post strength depends on steel grade, wall thickness, and section geometry. Consequently, engineers should review actual load requirements.
Foundations transfer wind and fence loads into supporting soil. However, frost depth and soil capacity vary between American locations.
The original product includes four fence heights with corresponding posts and clamp bars. The following table preserves every original dimension.
| Fence Height (m) | Panel Size (Height × Width mm) | Fence Post (Length × Section × Thickness mm) | Clamp Bar (Length × Width × Thickness mm) | Intermediate / Corner Clamps (PCS) |
|---|---|---|---|---|
| 2.0 | 2007 × 2515 | 2700 × 80 × 80 × 3 | 2007 × 60 × 5.00 | 7 / 14 |
| 2.4 | 2410 × 2515 | 3100 × 80 × 80 × 3 | 2400 × 60 × 5.00 | 9 / 18 |
| 3.0 | 3010 × 2515 | 3800 × 100 × 100 × 3.0 | 2997 × 80 × 6.00 | 11 / 22 |
| 3.6 | 3610 × 2515 | 4500 × 100 × 100 × 3.5 | 3607 × 100 × 7.00 | 13 / 26 |
All four original panel, post, clamp bar, and fixing combinations remain unchanged. However, the reference table does not establish universal engineering approval.
Furthermore, the panel and clamp bar lengths differ slightly in several configurations. Therefore, buyers should verify the intended connection geometry.
The 2.0m reference uses a 2007 × 2515mm panel. Its 2700mm post has an 80 × 80 × 3mm section.
Meanwhile, the clamp bar measures 2007 × 60 × 5mm. The original fixing schedule lists seven intermediate clamps or fourteen corner clamps.
The 2.4m reference uses a 2410 × 2515mm panel. Its post measures 3100 × 80 × 80 × 3mm.
Additionally, the clamp bar measures 2400 × 60 × 5mm. The original schedule lists nine intermediate clamps or eighteen corner clamps.
The 3.0m reference uses a 3010 × 2515mm panel. Its post measures 3800 × 100 × 100 × 3mm.
Furthermore, the clamp bar measures 2997 × 80 × 6mm. The original schedule lists eleven intermediate clamps or twenty-two corner clamps.
The 3.6m reference uses a 3610 × 2515mm panel. Its post measures 4500 × 100 × 100 × 3.5mm.
Meanwhile, the clamp bar measures 3607 × 100 × 7mm. The original schedule lists thirteen intermediate clamps or twenty-six corner clamps.
Fine welded mesh provides physical separation and clear observation. However, its effectiveness depends on complete system design.
Narrow openings restrict ordinary climbing holds. Consequently, 358 mesh offers a different security profile from conventional chain-link fencing.
Thick steel wires increase cutting difficulty. However, buyers should avoid interpreting cut resistance as absolute cut-proof performance.
Open mesh supports observation through the boundary. Furthermore, suitable surveillance systems can monitor external activity.
Welded intersections help maintain consistent panel geometry. However, supporting posts and connections remain essential.
Heavy zinc coatings and compatible powder finishes help protect steel. Consequently, coating selection should reflect local exposure.

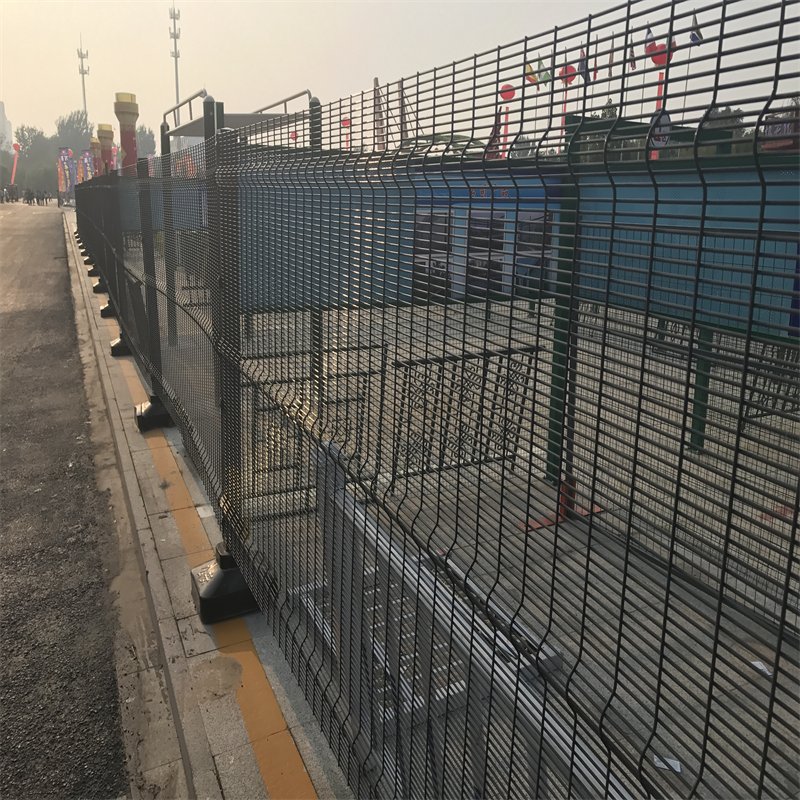

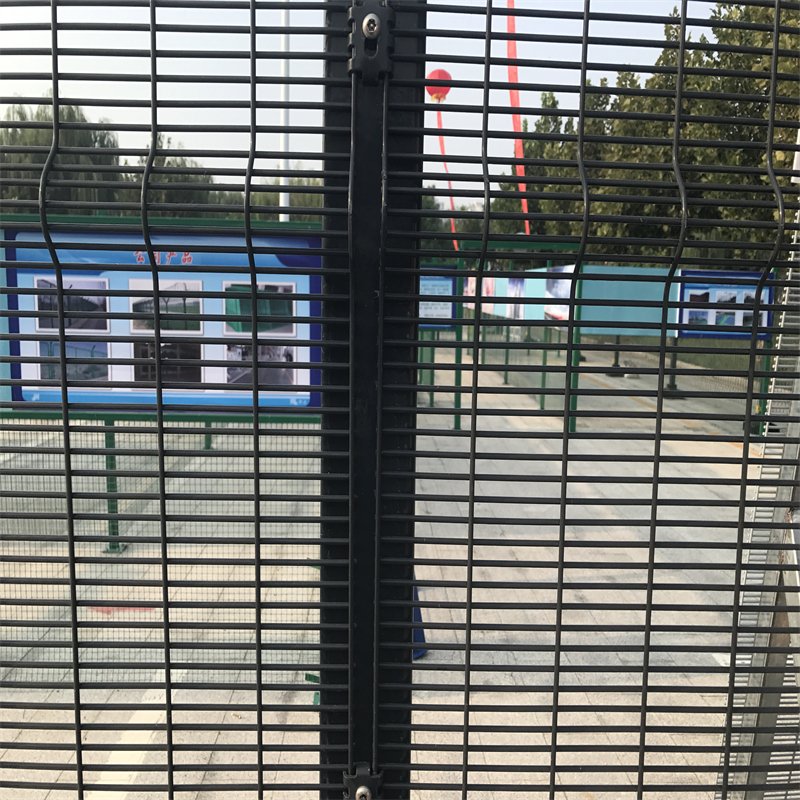

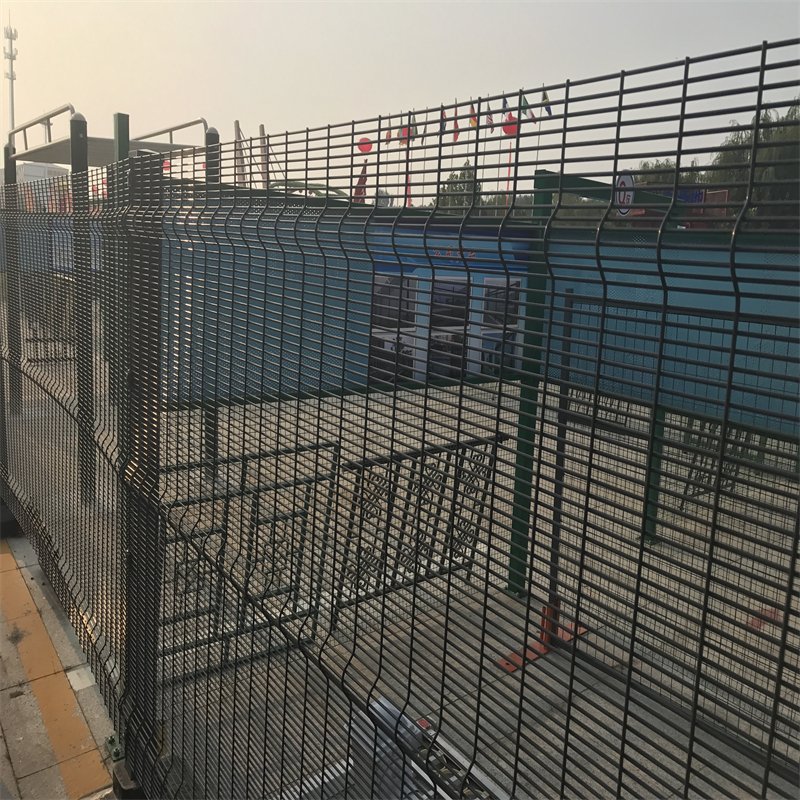

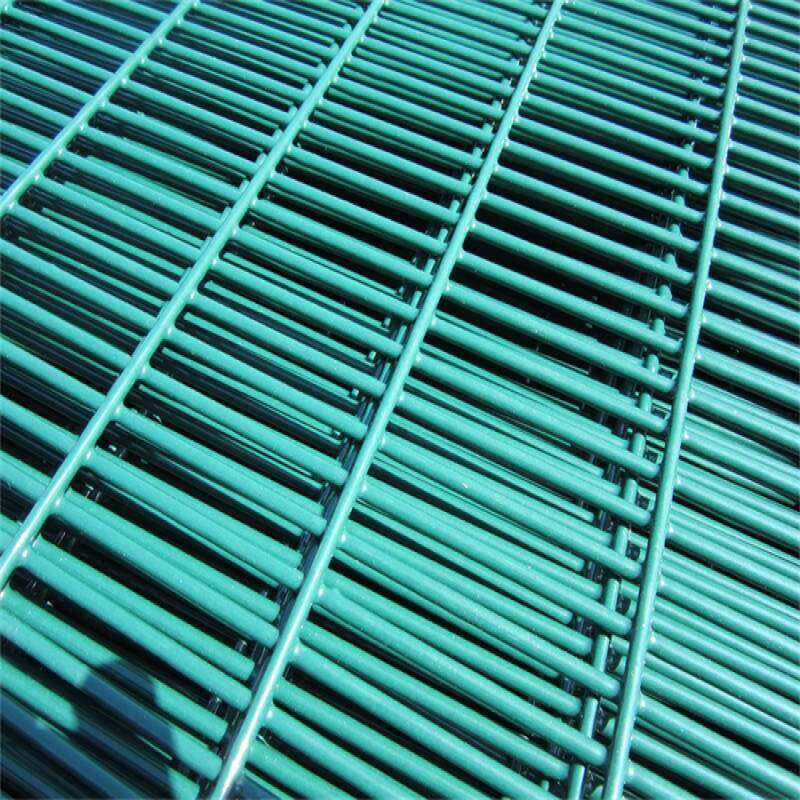

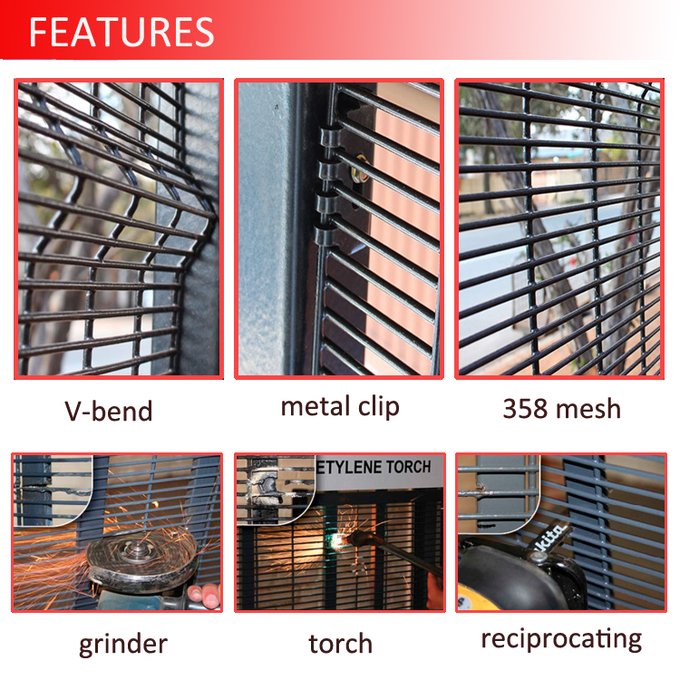

The original product photograph illustrates the fine welded security mesh. Consequently, buyers can review the general panel appearance before confirming dimensions.
Some restricted facilities require additional perimeter deterrents. However, local regulations and public safety requirements determine suitable arrangements.
Razor mesh may provide additional deterrence in authorized restricted environments. However, specialist installation and safety assessment remain essential.
The original product offers galvanized shark tooth spike rails measuring 100mm high. Consequently, buyers can consider this option where regulations permit.
Galvanized castle spikes provide another original topping option. Their reference height measures 100mm.
However, suitable placement and public safety remain important.
The original system also offers electric fence wire arrangements. However, electrical safety rules and local approvals govern installation.
Security toppings require particular care near public walkways and schools. Consequently, designers should assess contact risks before specifying them.
Correctional facilities require controlled boundaries and specialized security planning. Fine welded mesh can support selected perimeter arrangements.
However, complete correctional security also depends on surveillance, gates, operating procedures, and approved engineering.
Open mesh supports observation across the boundary. Consequently, security teams can coordinate selected camera positions and patrol routes.
Correctional entrances require specialized access procedures. Therefore, gates and locking systems must follow the facility's approved requirements.
Service compounds may require separate boundaries. Consequently, welded security mesh can help define controlled operational areas.
American data centres often require layered physical security. Consequently, perimeter barriers should coordinate with access control and surveillance.
Critical equipment compounds require controlled access. Fine welded mesh can help establish visible restricted boundaries.
Open mesh supports observation. However, camera placement should avoid close-range wire obstruction and glare.
Service entrances must accommodate authorized vehicles. Consequently, gate widths should reflect operational requirements.
Critical facilities require reliable emergency access. Therefore, perimeter planning must coordinate with site safety procedures.
Industrial sites often require secure storage areas and controlled entrances. Consequently, welded mesh can help establish defined boundaries.
Manufacturing facilities may require perimeter separation around production buildings. However, machine guarding requires separate safety engineering.
Warehouses need controlled vehicle movement and secure outdoor storage. Consequently, suitable gates complement welded security panels.
Electrical and water facilities may require restricted access. However, specialist utility requirements determine final safety arrangements.
Outdoor equipment yards benefit from visible boundaries. Furthermore, appropriate lighting supports nighttime observation.
American coastal properties encounter salt-bearing air and moisture. Consequently, suitable protective coatings become especially important.
Atlantic coastal facilities may experience humidity, storms, and salt exposure. Therefore, buyers should evaluate suitable galvanized and duplex finishes.
Gulf Coast properties may encounter high humidity and tropical storms. Consequently, structural wind loading and corrosion protection require careful assessment.
Pacific coastal exposure varies by location. However, marine salt can still affect exposed steel components.
Compatible powder coating over galvanized steel provides an additional protective layer. Consequently, this approach may suit demanding coastal environments.
Regular inspection helps identify coating damage. Furthermore, suitable cleaning can reduce salt accumulation on accessible surfaces.
Northern American states may experience snow, freezing temperatures, and repeated thawing. Consequently, foundations and gate systems require local planning.
Foundation depth should reflect local frost conditions and engineering requirements. However, no single embedment depth suits every American location.
Snow may obstruct gates and maintenance access. Consequently, site layouts should accommodate appropriate snow management.
Repeated freezing and thawing can affect vulnerable foundations and drainage. Therefore, contractors should follow suitable local construction practices.
Sliding gate tracks require regular debris removal. Furthermore, suitable hardware maintenance supports reliable operation.
Southern states often experience prolonged heat and strong sunlight. Consequently, exterior coatings should suit local UV exposure.
High temperatures influence outdoor working conditions and material handling. Therefore, contractors should plan suitable installation procedures.
Exterior powder coatings require suitable UV resistance. However, colour stability depends on the selected coating formulation.
Heavy storms may create concentrated runoff around foundations. Consequently, drainage planning should protect vulnerable post bases.
High-wind locations require appropriate structural verification. Furthermore, adding privacy screens can substantially increase fence loading.
American buyers often reference ASTM standards in project specifications. Consequently, suppliers should identify applicable requirements before production.
ASTM F2453/F2453M addresses welded wire mesh fence fabric with uniform mesh patterns within its defined scope.
However, citing this standard does not establish product conformity. Buyers should request suitable test documentation when necessary.
ASTM F1043 addresses strength and protective coating requirements for industrial steel fence framework. Consequently, it may inform suitable post specifications.
However, project engineers must determine applicable requirements and structural adequacy.
ASTM A123/A123M addresses hot-dip galvanizing of applicable iron and steel products. However, suitability depends on the component and coating process.
American contractors often require detailed technical submittals. Consequently, buyers should request panel drawings, post sections, connection details, and finish specifications.
Documentation may include material certificates and inspection records. However, certification should only appear when appropriate evidence supports it.
Gates provide controlled openings through the perimeter. However, their structural and operating requirements differ from ordinary fence panels.
Pedestrian gates support designated entrances. Suitable hinges, locks, and closers help maintain reliable operation.
Double swing gates accommodate vehicle entrances where adequate clearance exists. However, supporting posts require appropriate structural design.
Sliding gates offer another option for industrial and commercial entrances. Consequently, designers should assess tracks, motors, and safety devices.
Electronic access systems can coordinate with compatible gate hardware. However, emergency access requirements remain important.

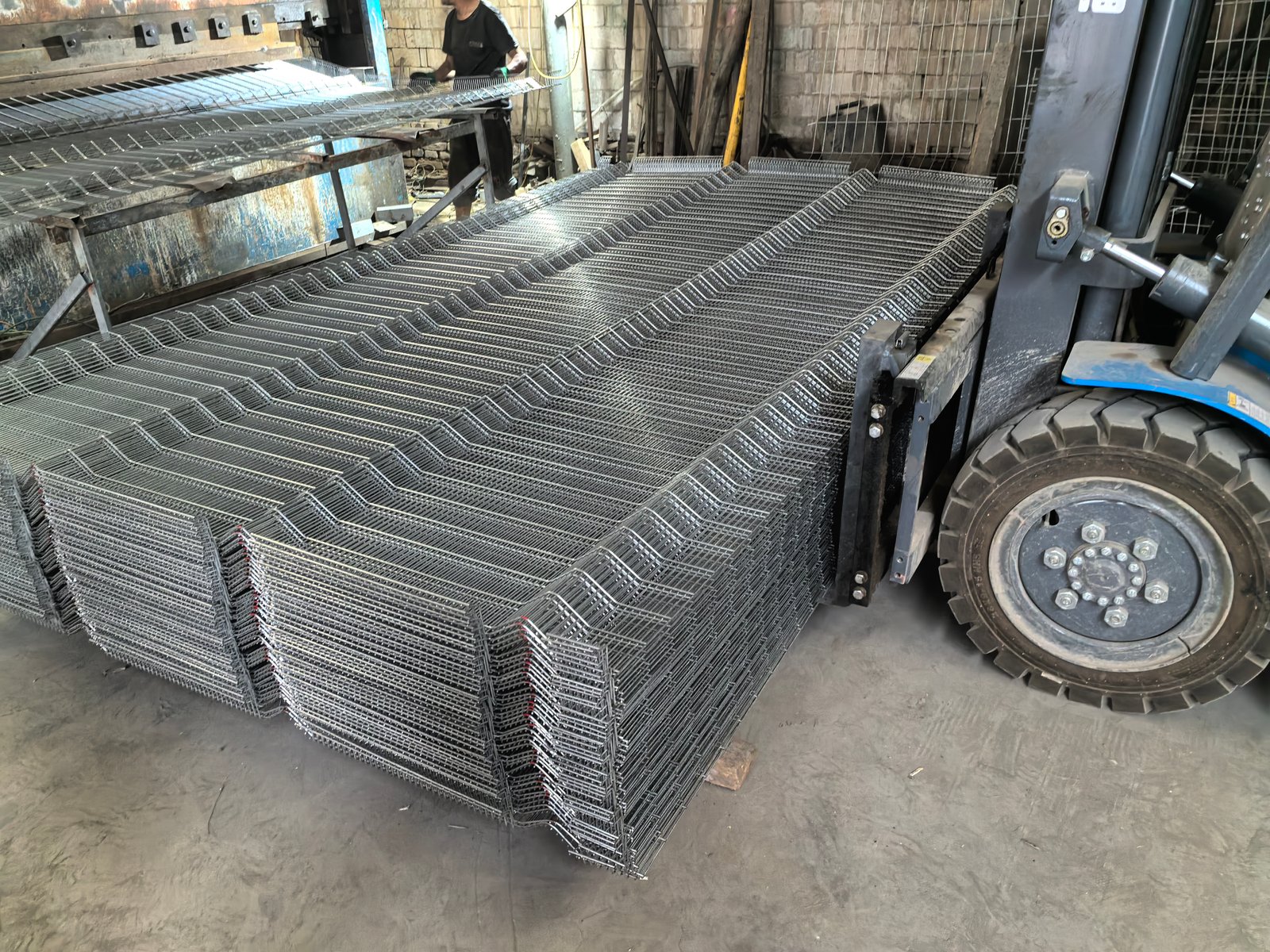

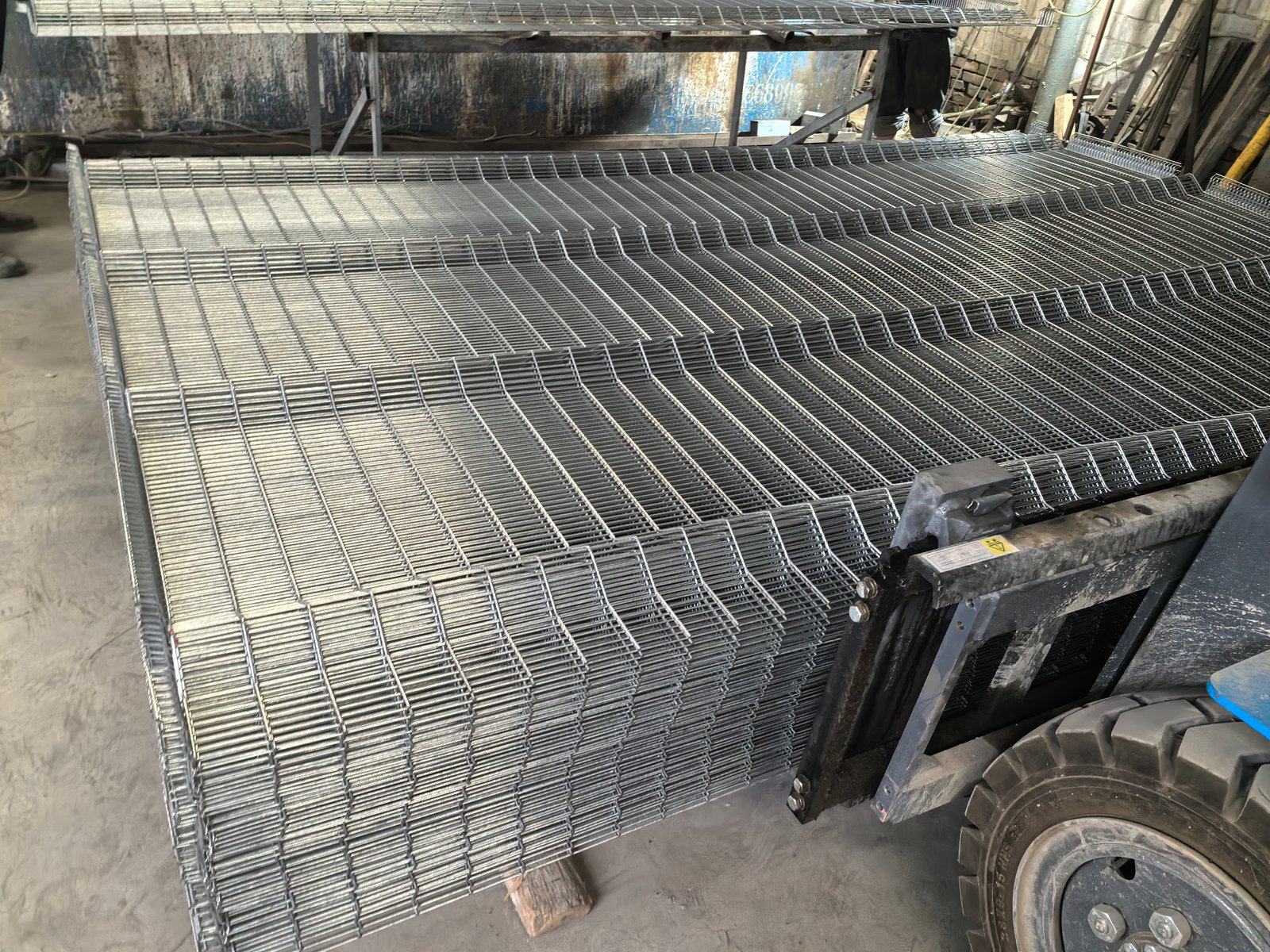

BMP prepares prison mesh panels and steel posts for international shipment. The original packing arrangement includes several protective layers.
Workers secure mesh panels and posts onto suitable pallets. Consequently, the packaging helps organize heavy steel components.
Straps help stabilize the pallet load. However, protective contact materials should prevent excessive pressure on coated surfaces.
Plastic film helps reduce moisture exposure during handling. Furthermore, suitable wrapping protects finished surfaces against abrasion.
The original packing design places rubber mats beneath the panels. Consequently, the mats reduce direct contact with pallet surfaces.
Four metal corners reinforce the pallet arrangement. Furthermore, they help protect vulnerable package edges.
Metal plates distribute pressure beneath selected strapping positions. Consequently, they help reduce concentrated loading on the mesh panels.
A wooden plate protects the upper panel surfaces. However, pallet stacking must still follow safe loading requirements.
Customers may request alternative packaging arrangements. Consequently, BMP can review specific shipment and handling requirements.

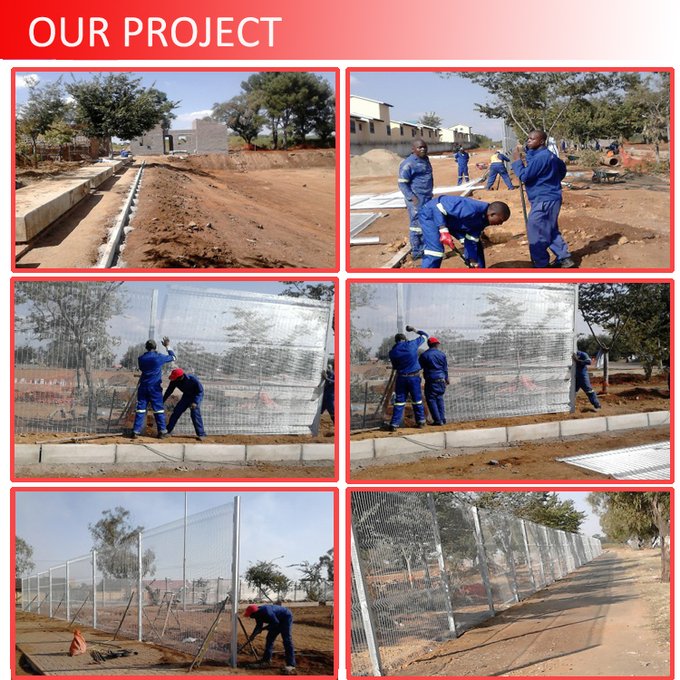

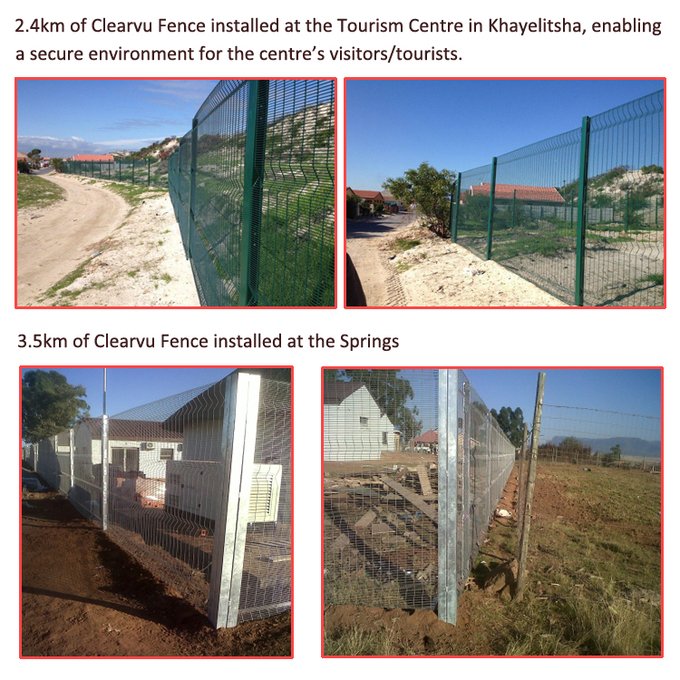

The original article describes two South African project examples. These references illustrate large perimeter installations rather than verified American projects.
The original description identifies a 2.4-kilometre security fence at a tourism centre in Khayelitsha. Its stated purpose involves visitor-area protection.
However, the supplied description does not include independent project verification or detailed engineering records.
This original project image illustrates a substantial security fence arrangement. Furthermore, it shows the visual openness of welded mesh construction.
The original description identifies another fence project measuring 3.5 kilometres in Springs. Its stated application includes a substantial protected boundary.
However, the original material does not establish the installation date or independent completion records.
The second original photograph provides another installation reference. Consequently, buyers can compare the overall appearance with their proposed projects.
American buyers importing steel fencing should coordinate technical and commercial requirements before manufacturing. Consequently, clear documentation reduces avoidable misunderstandings.
Approved drawings should identify panel dimensions, wire diameters, post sections, and fastening details. Furthermore, buyers should specify measurement tolerances.
A complete schedule should separate panels, intermediate posts, corner posts, gates, and accessories. Consequently, receiving teams can reconcile quantities.
Buyers should confirm the agreed Incoterms and destination arrangements. However, shipping quotations depend on actual cargo dimensions and routing.
Import classification depends on the product's actual construction and applicable tariff rules. Consequently, American importers should confirm classifications with qualified customs professionals.
Applicable duties and trade measures can change. Therefore, buyers should verify current requirements before confirming an order.
Local contractors should review applicable codes and permit requirements. Furthermore, qualified engineers should approve structural details where necessary.
Inspection helps verify manufacturing consistency before shipment. Consequently, buyers should establish acceptance criteria in advance.
Inspectors should measure steel wire diameter using suitable instruments. However, coated and uncoated measurements may differ.
Mesh spacing should match approved drawings. Furthermore, inspection should distinguish centre spacing from clear openings.
Welded intersections require appropriate inspection. However, test methods depend on the agreed specification.
Inspectors should verify post section size, wall thickness, and overall length. Consequently, incompatible components can receive attention before shipment.
Coating checks may include appearance, thickness, and adhesion. However, specific test methods require prior agreement.
Package labels should match the packing list. Furthermore, protective materials should suit the selected transport method.
American buyers frequently compare fine welded mesh with conventional chain-link systems. However, these products differ in construction and security characteristics.
| Feature | 358 Welded Security Mesh | Conventional Chain-Link Fence |
|---|---|---|
| Construction | Welded rectangular steel mesh | Interwoven steel wire |
| Opening Geometry | Fine rectangular openings | Usually larger diamond openings |
| Climbing Holds | More restricted | Generally more accessible |
| Panel Structure | Rigid welded panels | Flexible woven fabric |
| Visibility | High | High |
| Typical Application | Higher-security perimeters | General perimeter boundaries |
| Installation System | Compatible posts and clamp bars | Posts, rails, ties, and tension components |
For additional fine-mesh configurations, 358 Mesh Fencing Panels provide alternative dimensions. Meanwhile, 358 Welded Mesh includes flat and formed panel options.
Higher-security facilities may consider 358 Prison Mesh Fencing with compatible steel posts. Furthermore, 358 Security Mesh offers another reference for project specifications.
Different perimeter requirements may favour 358 Security Mesh Fencing with suitable protective finishes. However, buyers should compare actual manufacturing drawings before ordering.
Temporary pedestrian management requires a different barrier category. For example, Steel Crowd Control Barriers support selected events and construction areas.
However, portable barriers cannot replace permanent high-security fencing.
358 prison mesh uses closely spaced welded steel wires to create a rigid security barrier. Its narrow openings discourage ordinary climbing attempts.
The designation refers to three inches, half an inch, and approximately eight-gauge wire.
The traditional 358 reference uses approximately 4mm steel wire. However, BMP also offers selected 3mm and 4mm combinations.
The original standard reference uses 2515mm panels. Custom dimensions may also be available.
The original specification includes 2.0m, 2.4m, 3.0m, and 3.6m configurations.
Yes. BMP manufactures compatible square and tapered steel posts. However, final dimensions require approved drawings.
Yes. Compatible polyester powder coating provides colour and additional surface protection.
ASTM standards may apply to selected materials and components. However, actual conformity requires suitable testing and documentation.
Yes, with appropriate material selection and protective coatings. However, marine exposure requires careful maintenance planning.
Yes. BMP manufactures compatible pedestrian, swing, and sliding gates according to project requirements.
Yes. BMP can review packaging requirements according to cargo dimensions and shipping arrangements.
Provide fence length, height, wire specification, post dimensions, coating, gate requirements, drawings, and destination details.
Boss Metal and Plastic Co., Ltd. manufactures welded security fencing systems for international projects. BMP has supplied fencing products since 2006.
Our range includes prison mesh panels, steel posts, clamp bars, security fasteners, and matching gates. Furthermore, customers can request customized dimensions and protective finishes.
Accurate drawings support production planning and material coordination. Consequently, project buyers can organize complete fencing packages before shipment.

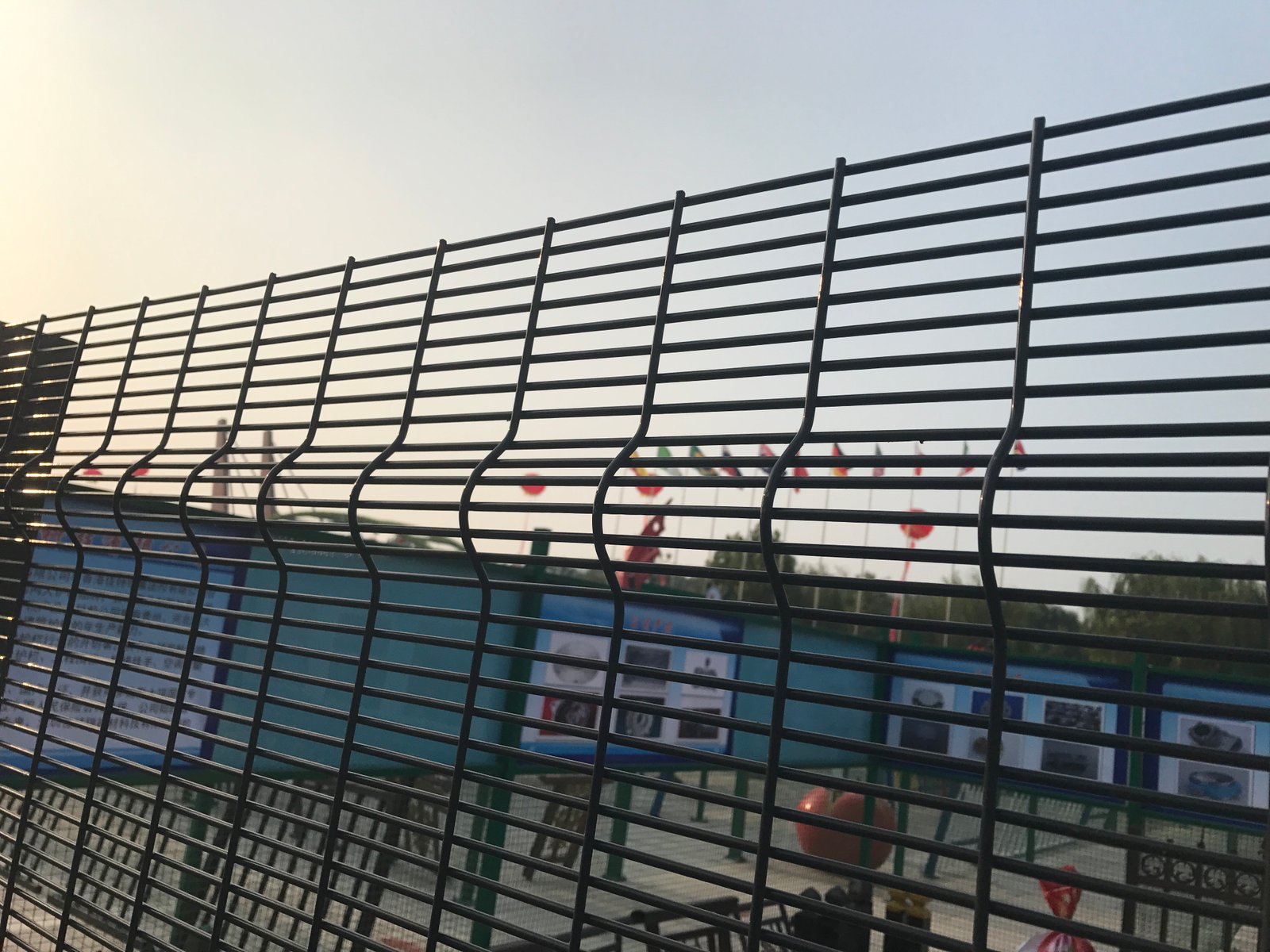

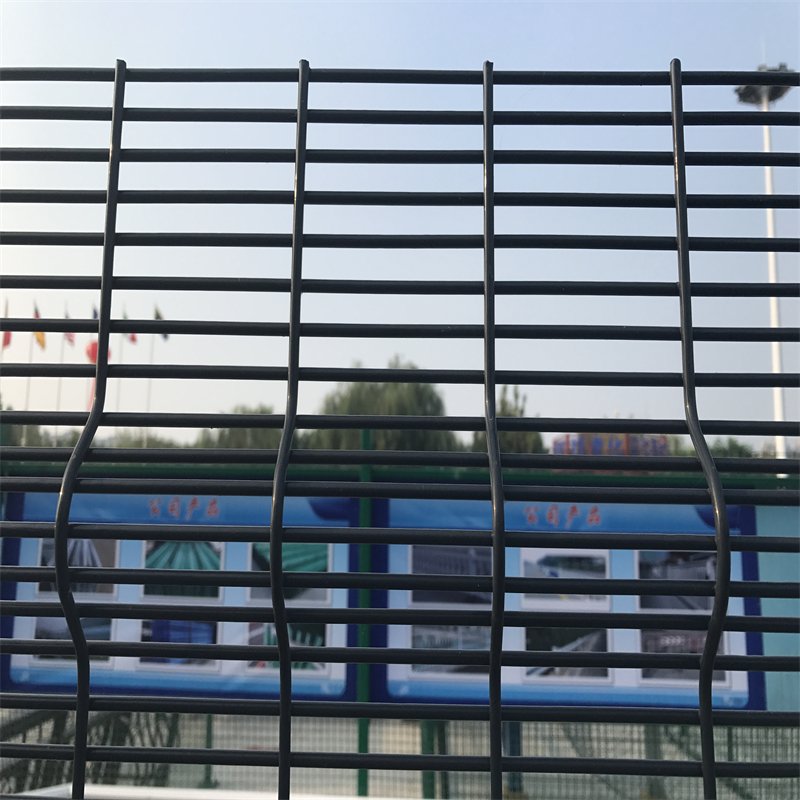

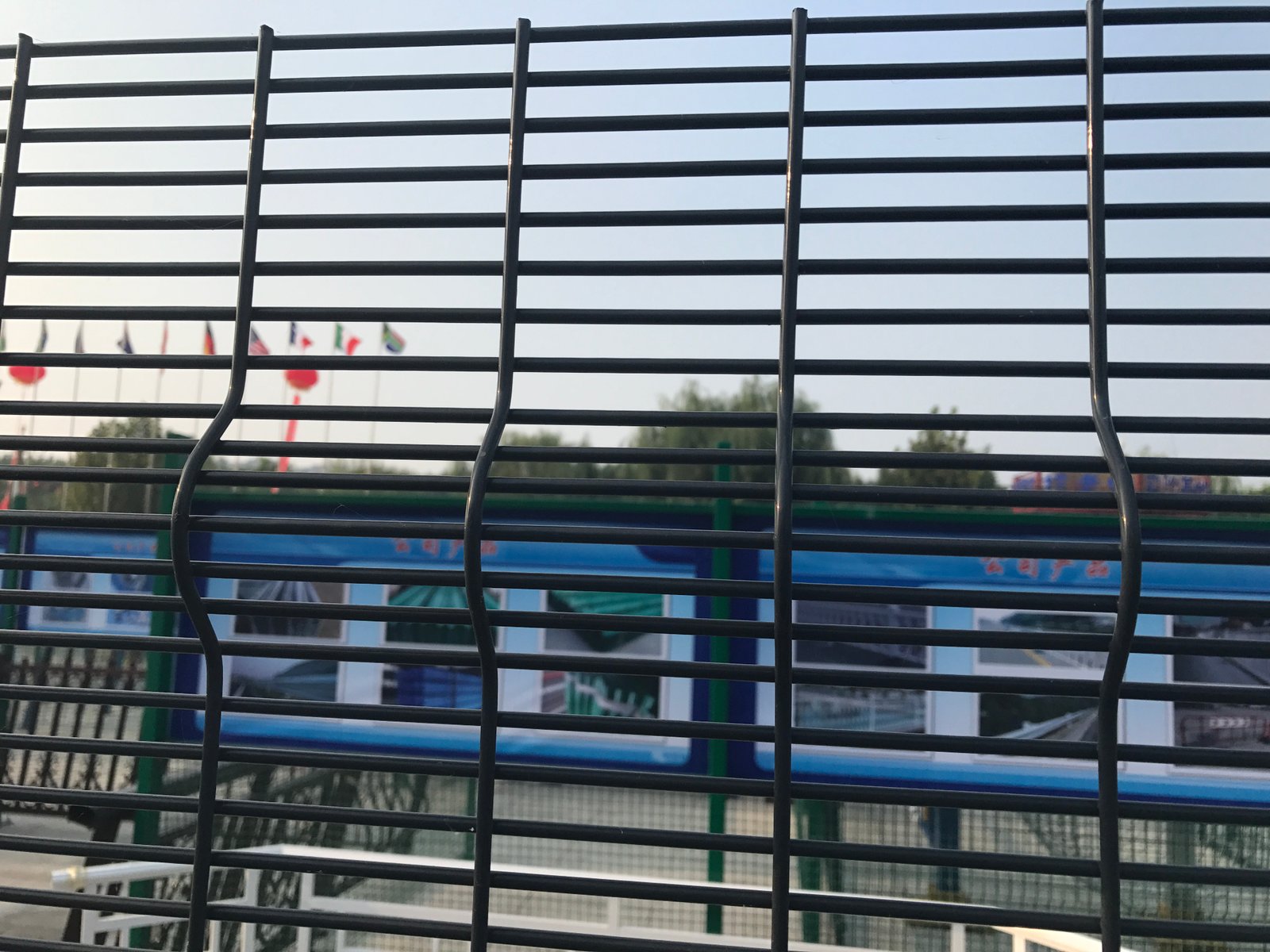

clearview fencing usa combines narrow welded mesh, rigid steel construction, and clear perimeter visibility. These characteristics support American industrial, commercial, institutional, and selected high-security applications.
However, effective perimeter protection requires compatible posts, reliable connections, suitable foundations, and appropriate maintenance. Consequently, buyers should evaluate the complete fencing system.

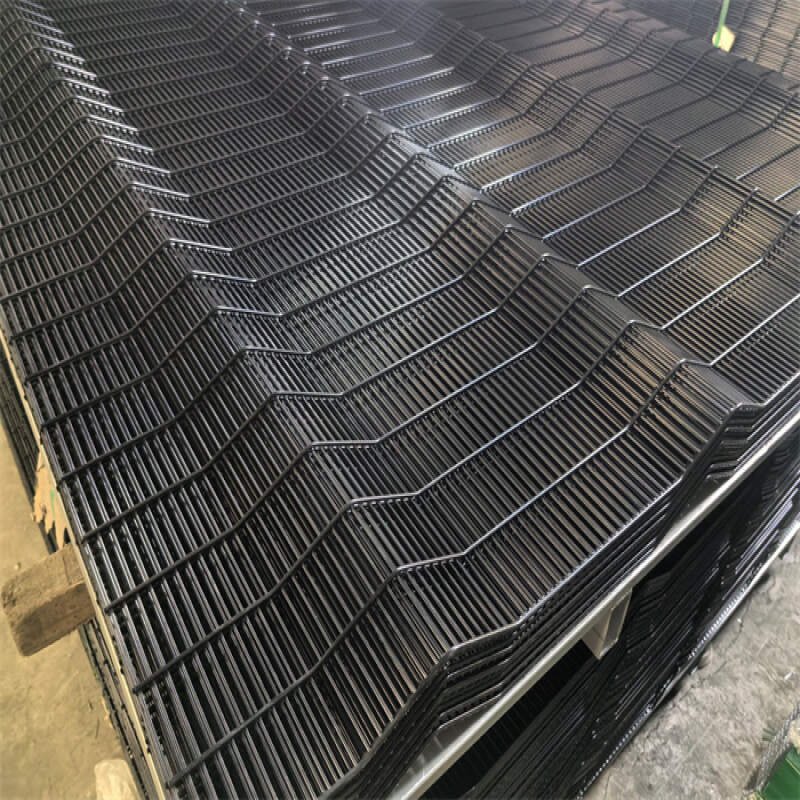

BMP manufactures configurable 358 security panels, tapered posts, protective coatings, and matching gates. Therefore, American customers can plan coordinated perimeter solutions according to local engineering and project requirements.
