china 3d security fence

  • Material: Low carbon steel wire or galvanized steel wire
  • Structure: Welded mesh panels with reinforcing curves
  • Wire Diameter: 3 mm to 8 mm
  • Mesh Sizes: 50×100 mm, 50×150 mm, 50×200 mm, 75×150 mm, 75×200 mm
  • Panel Height Range: 0.63 m to 2.43 m (available up to 4.0 m)
  • Panel Length Options: 2.0 m / 2.2 m / 2.5 m / 3.0 m
  • Curve Quantity by Height:
  • 2 curves: 0.63 m – 1.53 m
  • 3 curves: 1.7 m – 1.83 m
  • 3–4 curves: 2.0 m – 2.03 m
  • 4 curves: 2.43 m
  • Post Types: Peach, Square, Rectangular, Round
  • Post Sizes (mm):
  • Peach post: 50×70 / 70×100 (1.2 mm thick)
  • Square post: 40×40 (1.2 / 1.5 mm), 60×60 (2 / 2.5 mm)
  • Rectangular post: 40×60 (1.2 / 1.5 / 2.0 mm)
  • Round post: Ø38 / Ø40 / Ø42 / Ø48 (1.2 – 2.0 mm)
  • Post Height Range: 0.63 m to 4.5 m
  • Clips: Plastic or metal options
Inquiry Now
8615690482714info@clear-view-fencing.co.za
  • Description

A china 3d security fence, also called a curvy security fence or curved security fence, is a high-security fence widely used in airports, factories, residences and other places. The 3D security fence provides a robust, durable and flexible structure. The opening of the 3D security fence is close, which supplies high strength and prevents predators from entering unwanted areas.

The china 3d security fence is manufactured from zinc-coated or PVC-coated steel wire. The security fence panel has different curve quantities according to a different heights. The installation of 3D security is easy. They can be connected by different types of posts, such as peach, round, rectangular, and square. The 3D security fence can not only be installed on the earth but can also be installed on a concrete ground for different applications.

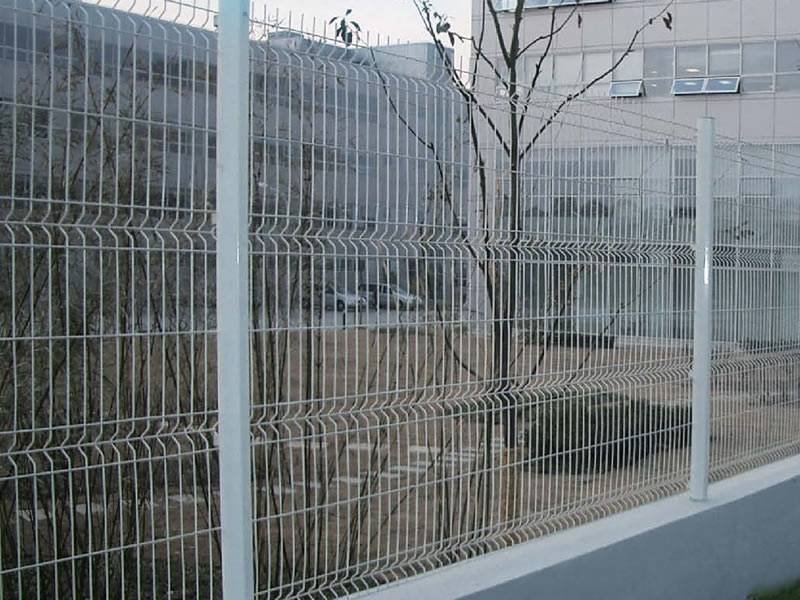

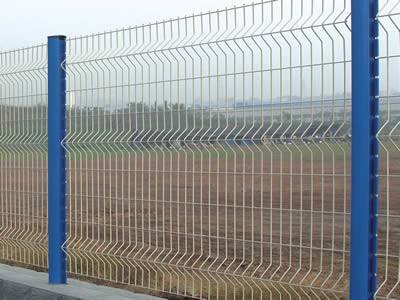

Several galvanized 3D security fences with three curves surrounding the factory. Several PVC coated 3D security fences with three curves surrounding the factory.
Galvanized 3D security fence PVC-coated 3D security fence.

Specifications of china 3d security fence

  • Material: low carbon steel wire or galvanized wire.
  • Wire diameter: 3 mm to 8 mm.
  • Mesh size: 50 mm × 100 mm, 50 mm × 150 mm, 50 mm × 200 mm, 75 mm × 150 mm, 75 mm × 200 mm.
  • Types: Weld Mesh Fence Panes
  • Panel height: 0.63 m to 2.43 m. Especially is 3.5 m to 4 m.
  • Panel length: 2 m to 3 m.
  • Curve Quantity: 2, 3 or 4.
  • Post type: peach, square, rectangular, and round.
  • Surface treatment:
    • Mild steel wire welding and then hot dipped galvanized.
    • Mild steel wire welding and then PVC coated.
    • Mild steel wire welding and thenPowderPr coated.
    • Galvanized steel wire welding and powder coated.
    • Galvanized steel wire welding and then powder coated.

Drawing of china 3d security fence

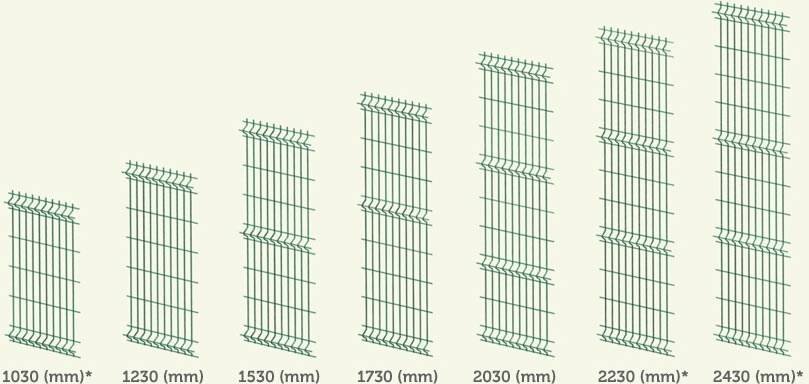

Seven drawings of 3D security fence with different height and curve quantity.

Several 3D security fences with two curves. Several 3D security fences with three curves. Several 3D security fences with four curves.
Two-curve 3D security fence.  Three-curve 3D security fence. Four-curve 3D security fence.



Panel sizes and curve quantity of 3D security fence
Item Panel height
(m)		 Panel length
(m)		 Curve quantity
BMP-01 0.63 2.0/2.2/2.5/3.0 2
BMP-02 1.03 2.0/2.2/2.5/3.0 2
BMP-03 1.23 2.0/2.2/2.5/3.0 2
BMP-04 1.5 2.0/2.2/2.5/3.0 2/3
BMP-05 1.53 2.0/2.2/2.5/3.0 2/3
BMP-06 1.7 2.0/2.2/2.5/3.0 3
BMP-07 1.73 2.0/2.2/2.5/3.0 3
BMP-08 1.8 2.0/2.2/2.5/3.0 3
BMP-09 1.83 2.0/2.2/2.5/3.0 3
BMP-10 2.0 2.0/2.2/2.5/3.0 3/4
BMP-11 2.03 2.0/2.2/2.5/3.0 3/4
BMP-12 2.43 2.0/2.2/2.5/3.0 4
Post specifications of the 3D security fence
Item Post style Post size
(mm)		 Post thickness
(mm)		 Post height
(m)		 clips
BMP-01 Peach post 50 × 70 1.2 0.63-4.5 Plastic/metal
BMP-02 Peach post 70 × 100 1.2 0.63-4.5 Plastic/metal
BMP-03 Square post 40 × 40 1.2 0.63-4.5 Plastic/metal
BMP-04 Square post 40 × 40 1.5 0.63-4.5 Plastic/metal
BMP-05 Square post 60 × 60 2 0.63-4.5 Plastic/metal
BMP-06 Square post 60 × 60 2.5 0.63-4.5 Plastic/metal
BMP-07 Rectangular post 40 × 60 1.2 0.63-4.5 Plastic/metal
BMP-08 Rectangular post 40 × 60 1.5 0.63-4.5 Plastic/metal
BMP-09 Rectangular post 40 × 60 2.0 0.63-4.5 Plastic/metal
BMP-10 Round post 38 1.2 0.63-4.5 Plastic/metal
BMP-11 Round post 40 1.5 0.63-4.5 Plastic/metal
BMP-12 Round post 42 1.5 0.63-4.5 Plastic/metal
​BMP-13 Round post 48 2 0.63-4.5 Plastic/metal

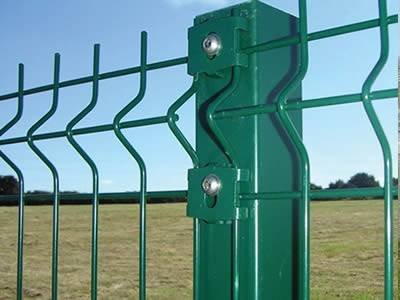

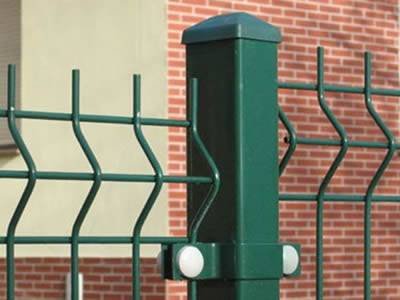

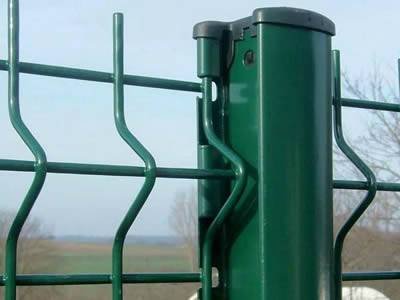

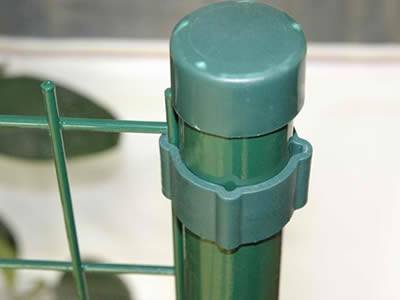

Two 3D security fence panels are connected by the peach post. Two 3D security fence panels are connected by the square post. Two 3D security fence panels are connected by the rectangular post. A 3D security fence panel is fastened by the round post.
 Peach post.  Square post. Rectangular post. Round post.

Features

  • High strength.
  • Corrosion and rust resistance.
  • Weather resistance.
  • Various colours for choice.
  • Durable and long service life.
  • Different installation types.
  • It can suit different installation environments.
  • Prevent intruders from entering unwanted areas.

Applications of china 3d security fence

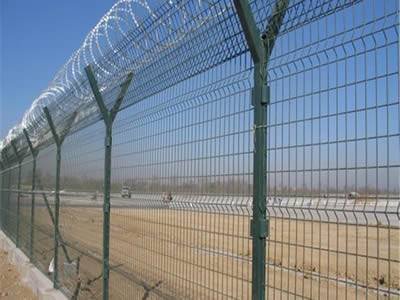

The 3D security fence can supply high security for several applications and places, such as:

  • Airport.
  • Highway.
  • Railway.
  • Parking lot.
  • Parks.
  • Residences.
  • Factories.
  • Warehouse.
  • Garden
  • Hospital.
  • Military sites.
  • Commercial sites.
  • Construction sites.

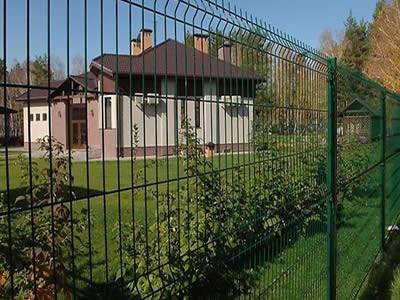

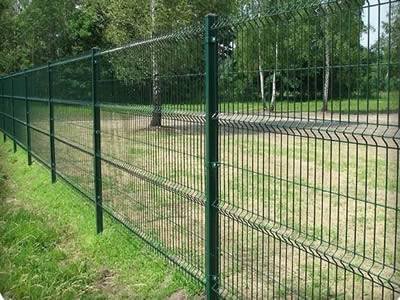

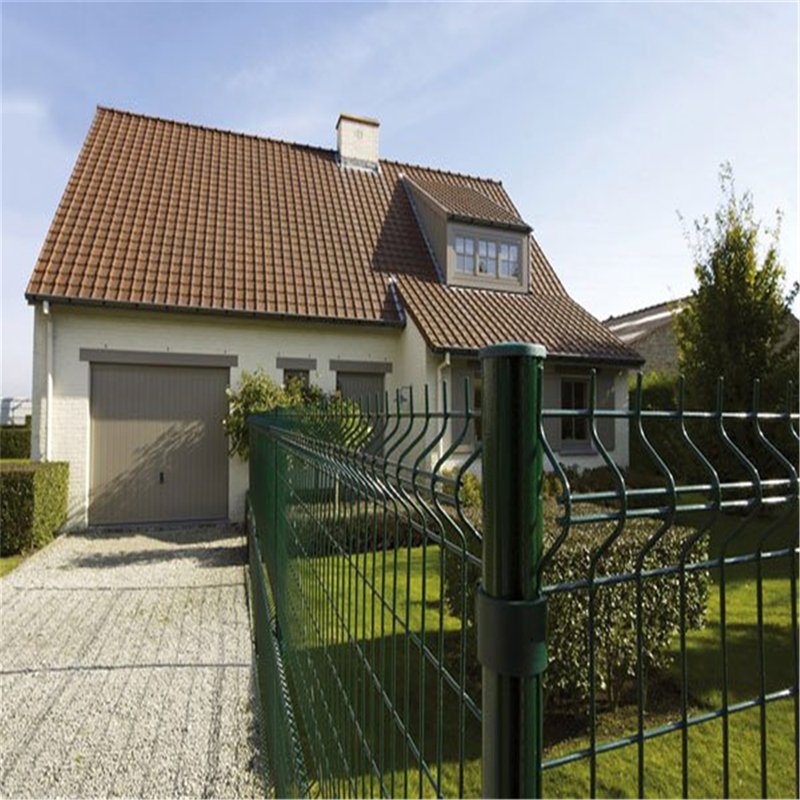

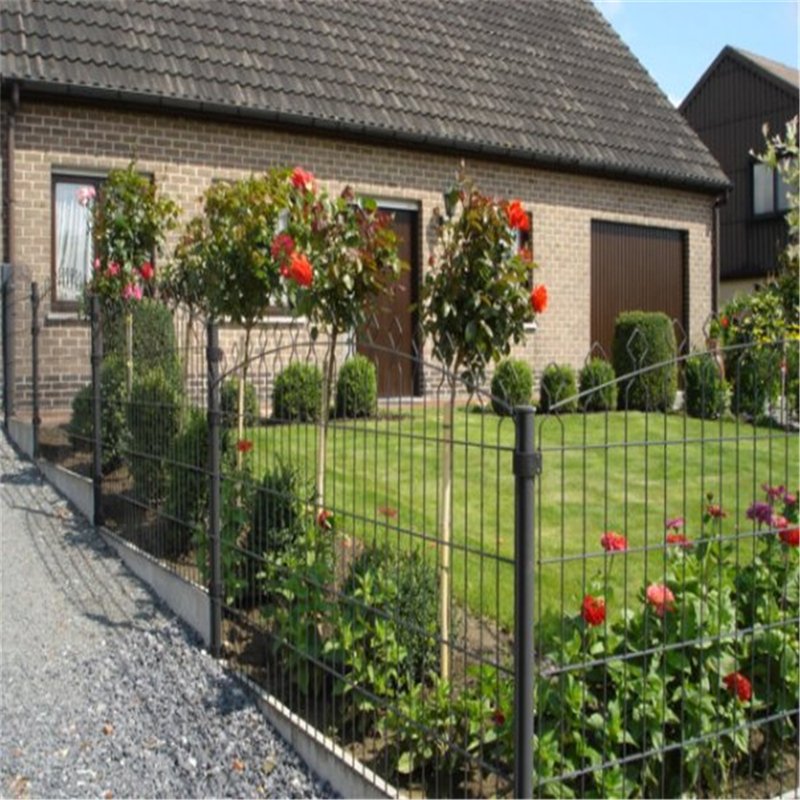

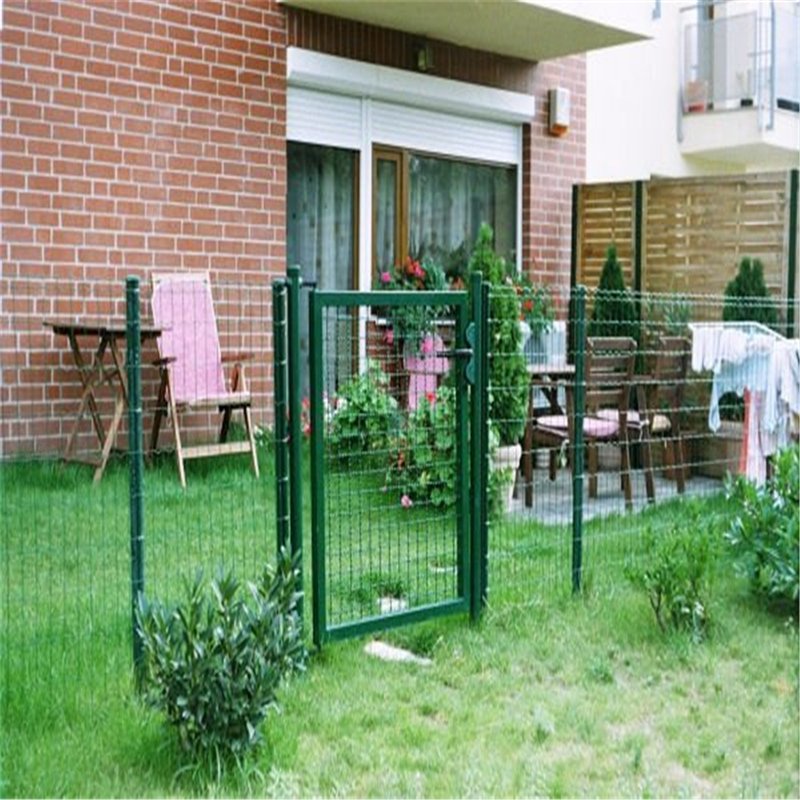

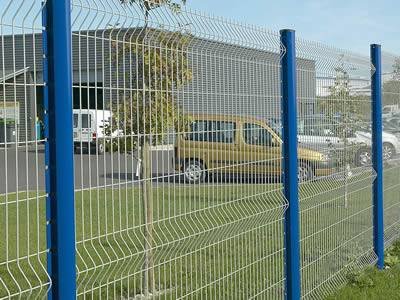

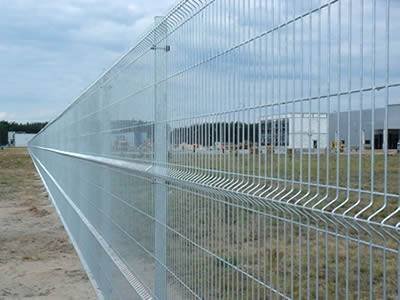

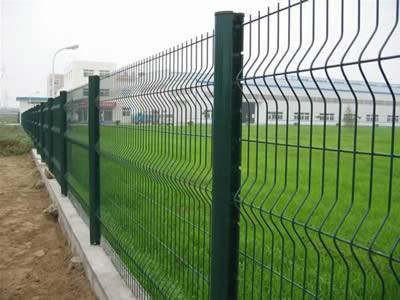

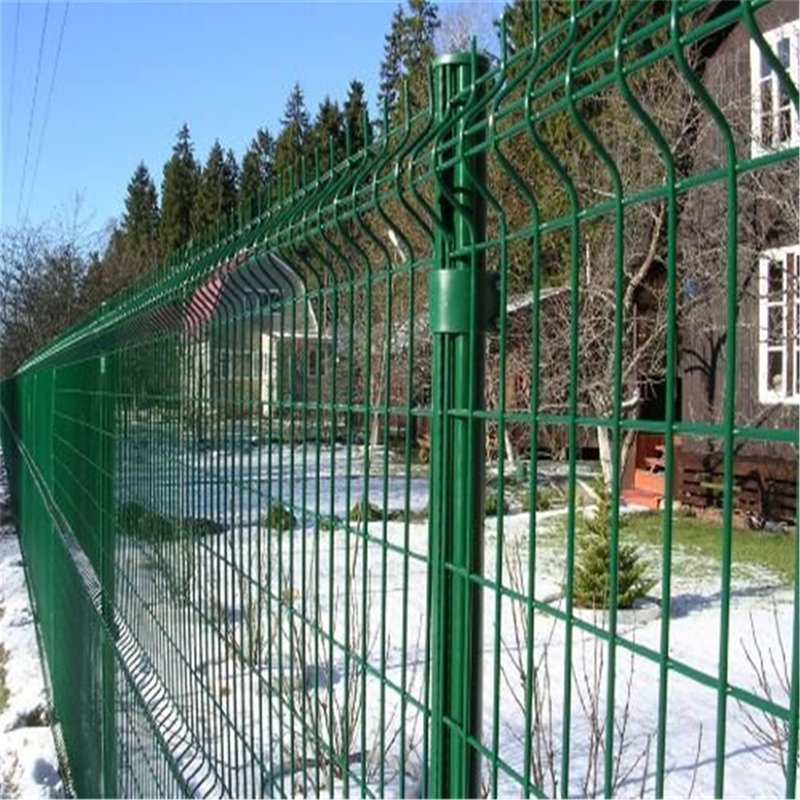

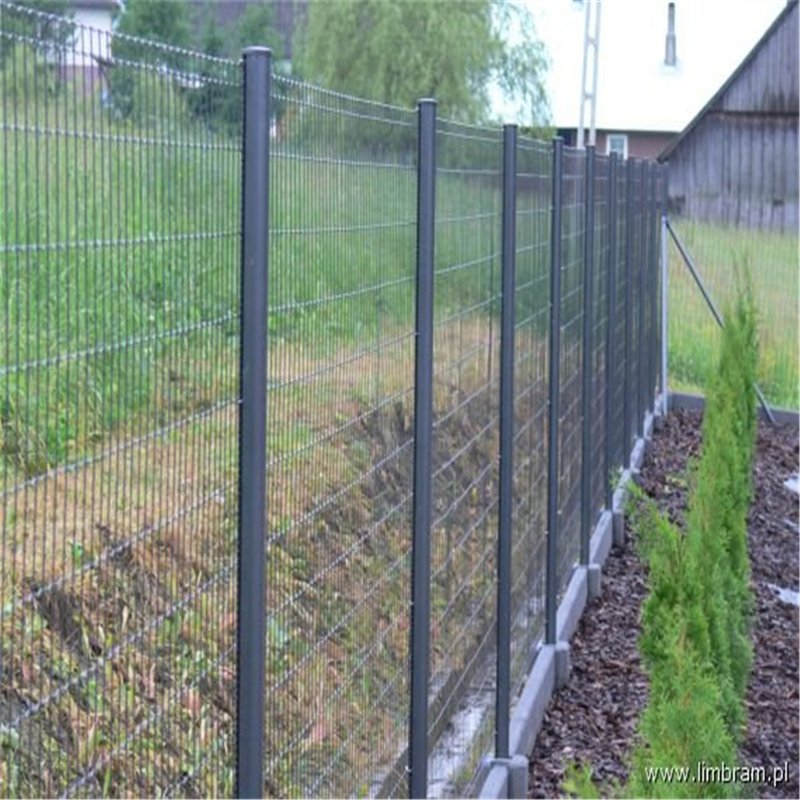

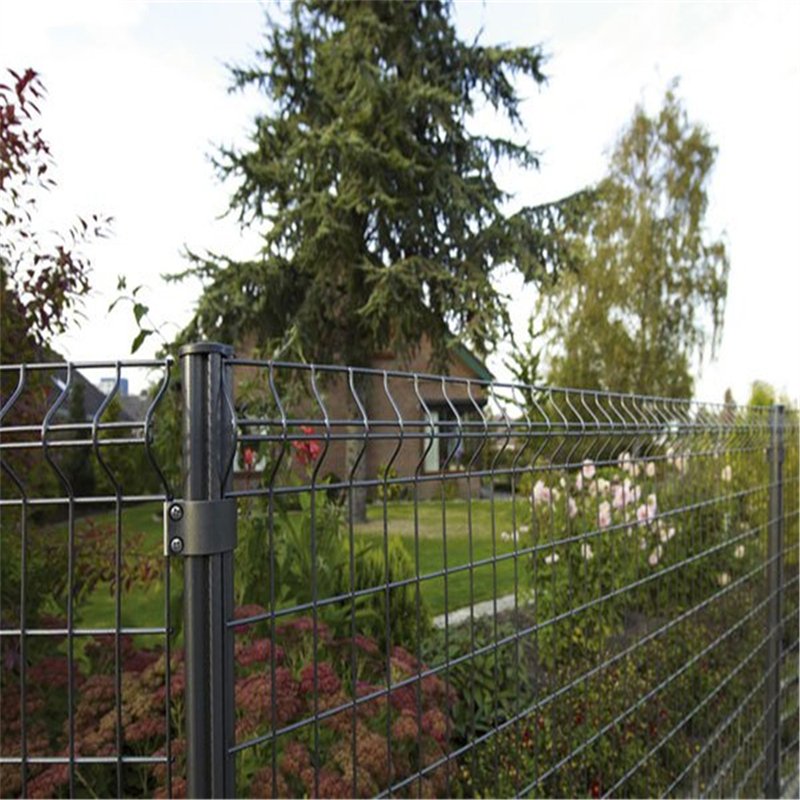

Green 3D security fences are surrounding the garden. Green 3D security fences are surrounding the residence. Green 3D security fences are surrounding the construction site. White 3D security fences are surrounding the parking lot.
A 3D security fence in the garden. A 3D security fence in the residence. 3D security fence on construction site. A 3D security fence in the parking lot.
