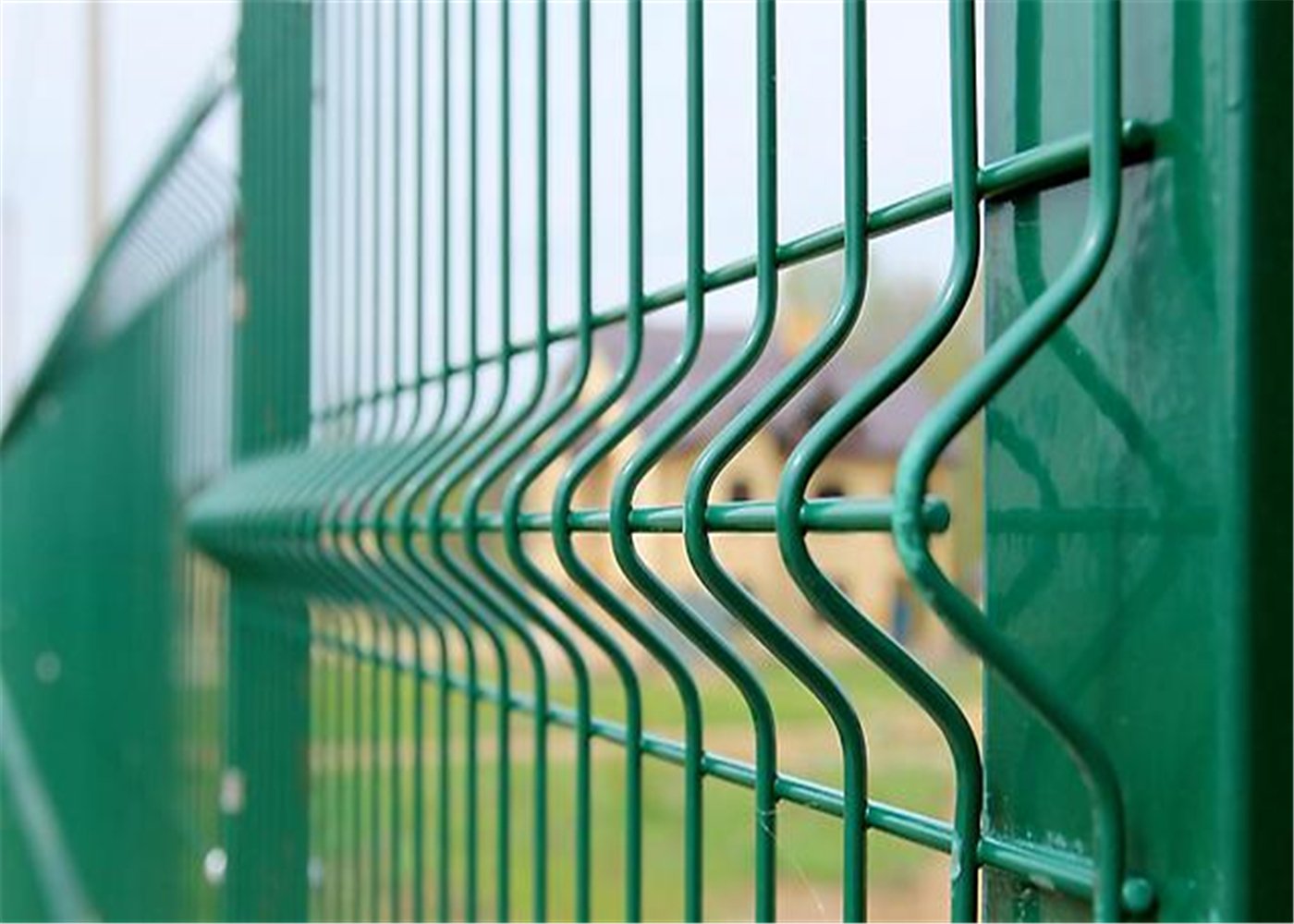

Nylofor 3D fence systems combine welded steel mesh with horizontal V-shaped reinforcements. These folds strengthen each panel without closing the view across a boundary. The design serves schools, sports facilities, landscaped estates, factories, and utility compounds. Betafence offers several Nylofor configurations, so product selection should start with the exact model and datasheet. A complete system includes compatible posts, fixings, gates, and a coating suited to the site's exposure.
Every Nylofor 3D fence project also needs a measured layout. Panel width influences post spacing, while slopes and corners affect quantities. Buyers comparing Nylofor 3D Fencing should separate reference dimensions from confirmed factory specifications. This distinction prevents confusion between branded panels and general 3D mesh options.

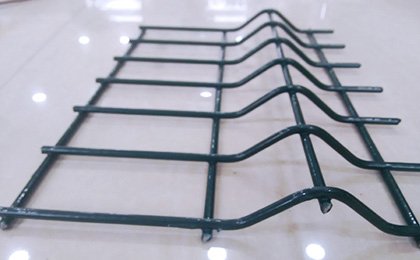

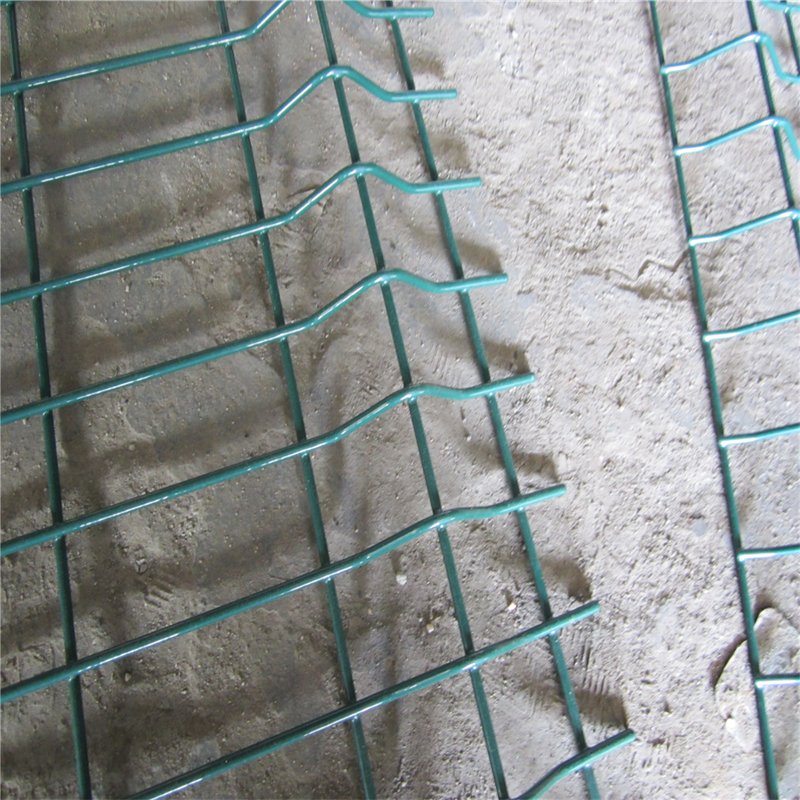

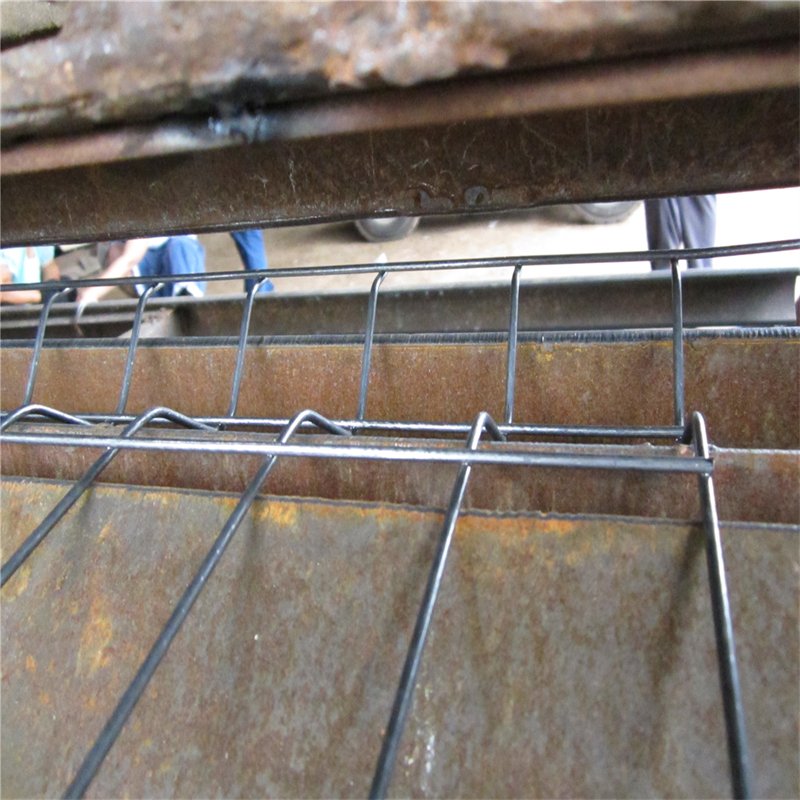

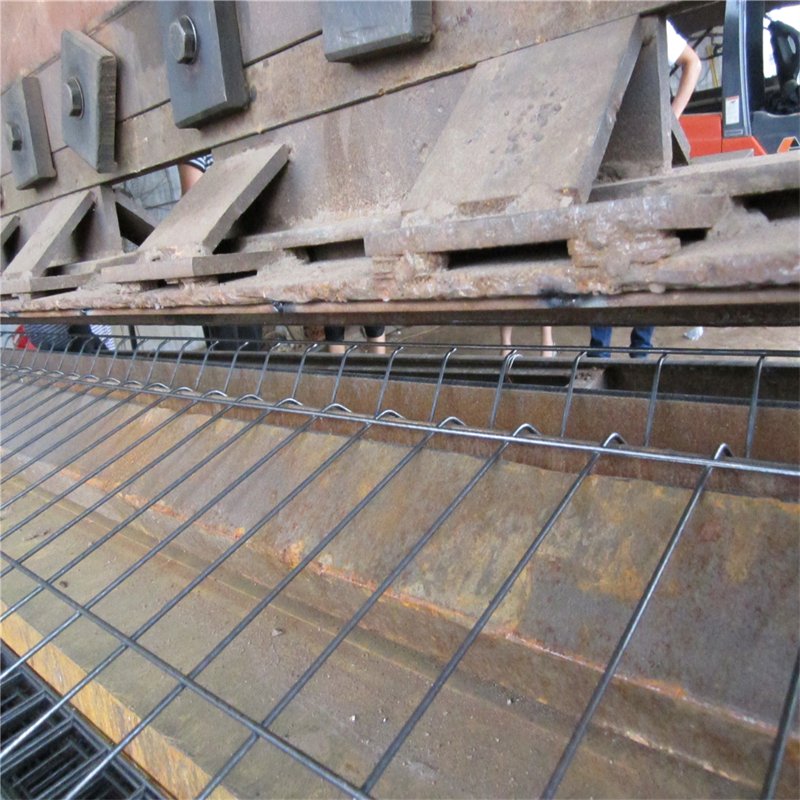

A flat wire sheet can flex across a large unsupported span. Nylofor 3D fence panels add horizontal profiles that increase their effective stiffness. These bends limit everyday deflection and help the panel retain its shape during handling. Panel rigidity also depends on wire diameter, weld consistency, and fixing locations. V-bends do not replace engineered posts or foundations.
Betafence lists a 200 × 50 mm main mesh for several Nylofor 3D variants. Folded sections can use a 100 × 50 mm pattern. These figures describe grid dimensions, not a guaranteed open space after subtracting wire thickness. Teams accustomed to Welded Wire Mesh should check both wire diameter and mesh spacing.
Betafence uses several distinct names within its Nylofor family. The basic 3D Essential configuration has 5 mm horizontal wires and 4 mm vertical wires. Standard 3D panels use 5 mm wires in both directions. Other systems may offer wider panels or heavier reinforcing wires. Choose the exact designation before specifying weight, posts, or coatings.
| System | Nominal width | Horizontal wire | Vertical wire | Primary consideration |
|---|---|---|---|---|
| Nylofor 3D Essential | 2500 mm | 5 mm | 4 mm | Economical boundary protection |
| Nylofor 3D / 3D+ | 2500 mm | 5 mm | 5 mm | Balanced rigidity and visibility |
| Nylofor 3D XL | 3000 mm | 5 mm | 5 mm | Longer nominal panel span |
Product availability varies by market and revision. Verify the delivered model's label and the matching Betafence documentation. Do not treat a general steel mesh catalogue as the original manufacturer's certification.
The following Nylofor 3D fence table preserves the original enquiry's dimensions. It describes a broader 3D welded-mesh reference range, not one confirmed Betafence factory assortment. A 2000 mm width, for example, requires specific product confirmation. Final offers should identify the exact brand model and approved post schedule.
| Panel height | Reference panel width | Mesh centres | Original wire options | V-bends | Reference post length |
|---|---|---|---|---|---|
| 1030 mm | 2000 / 2500 mm | 50 × 200 mm | 3.0 / 3.5 / 4.0 / 4.5 / 5.0 mm | 2 | 1330 mm |
| 1230 mm | 2000 / 2500 mm | 50 × 200 mm | Same reference options | 2 | 1530 mm |
| 1530 mm | 2000 / 2500 mm | 50 × 200 mm | Same reference options | 3 | 1830 mm |
| 1830 mm | 2000 / 2500 mm | 50 × 200 mm | Same reference options | 3 | 2130 mm |
| 2030 mm | 2000 / 2500 mm | 50 × 200 mm | Same reference options | 4 | 2330 mm |
Betafence's published 3D panel tables commonly use a 2500 mm width and additional factory height options. They also specify different post lengths for different fixing systems. Always follow the approved system drawing instead of automatically using the reference post lengths above.
Contract documents must distinguish nominal mesh centres from clear openings. A nominal 50 mm centre distance does not leave a full 50 mm opening. The wire diameter reduces the available gap. Inspectors should also note measurement direction, since rectangular mesh has different vertical and horizontal spacing.

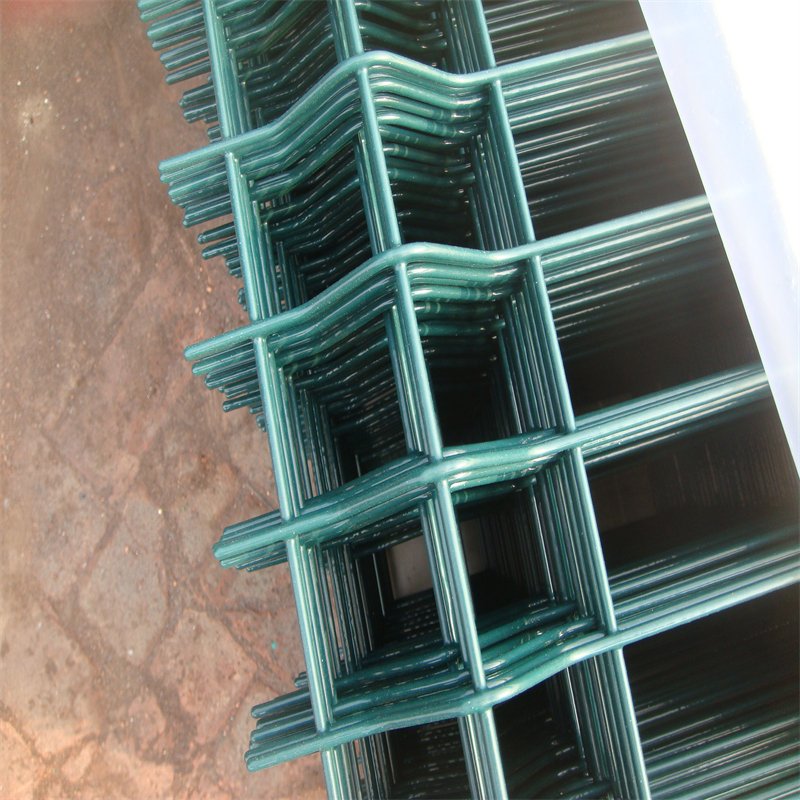

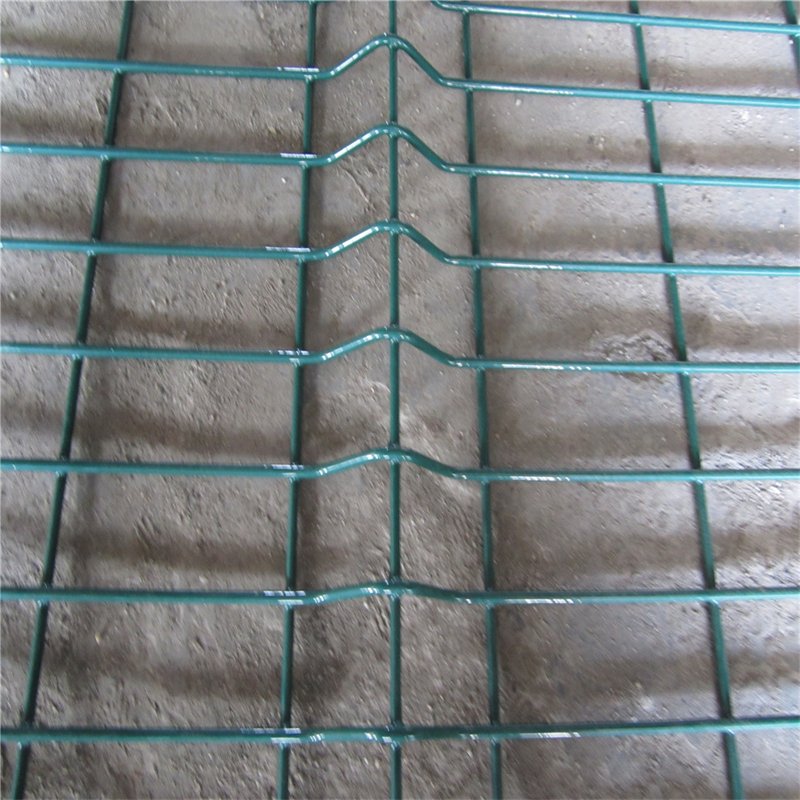

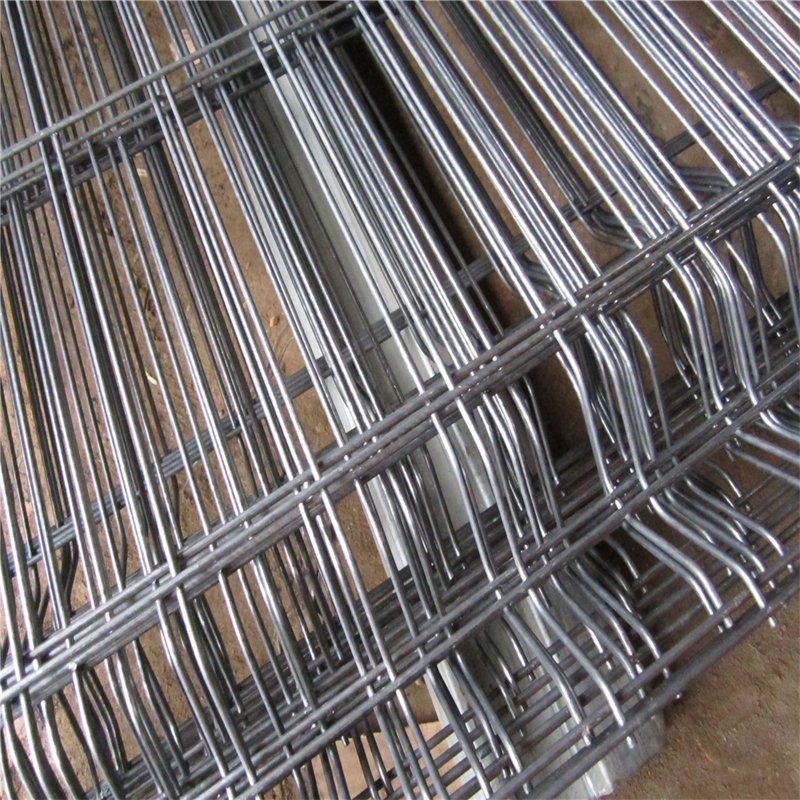

Nylofor 3D fence reinforcement counts rise with panel height in typical configurations. Shorter panels often use two folds, while taller panels can use three or four. Confirm the bend locations before ordering gates or attaching notices. Unplanned holes, cutting, or reshaping can damage protective coatings and affect rigidity.

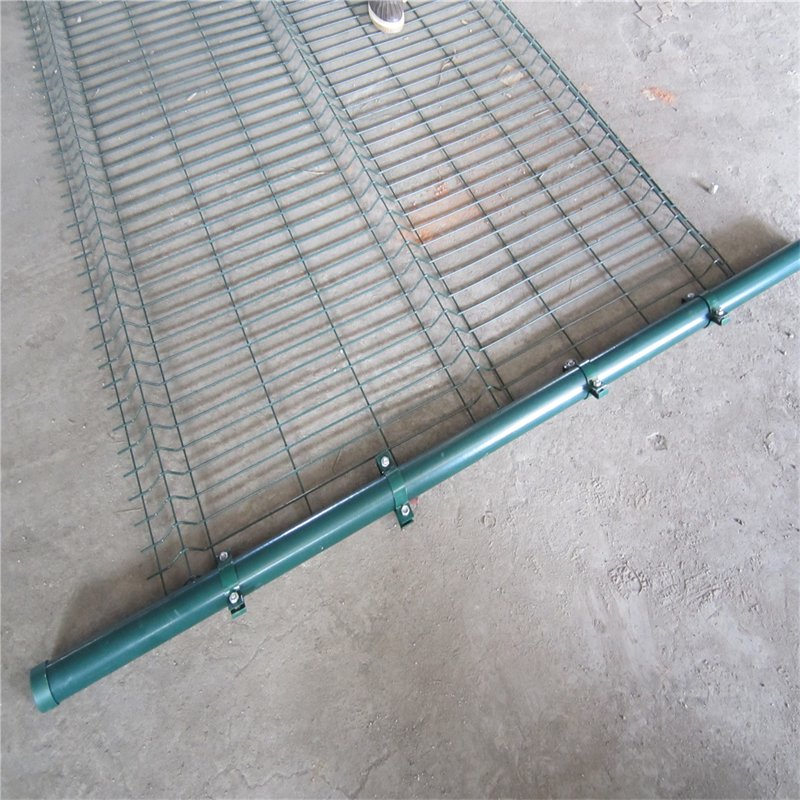

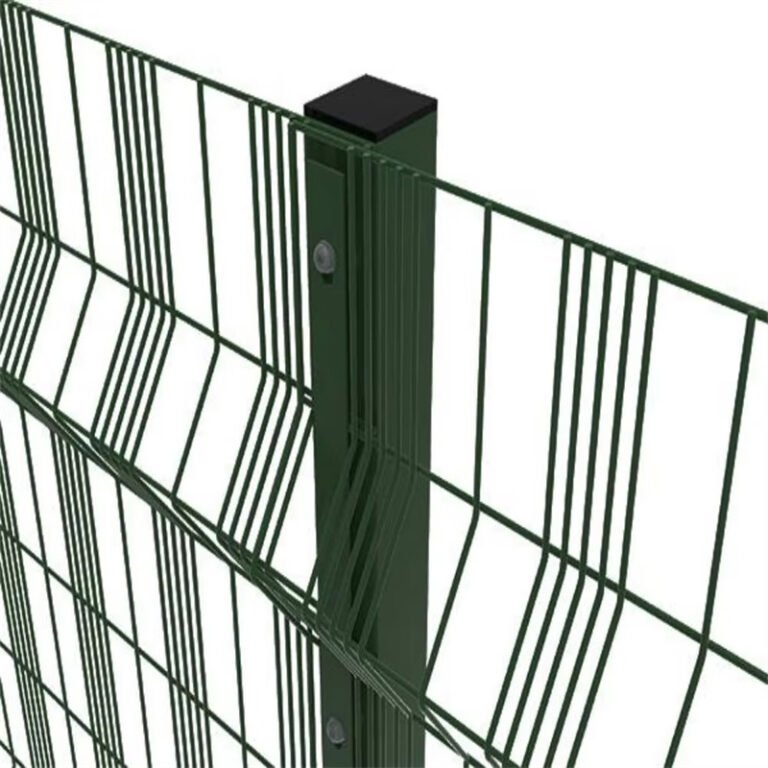

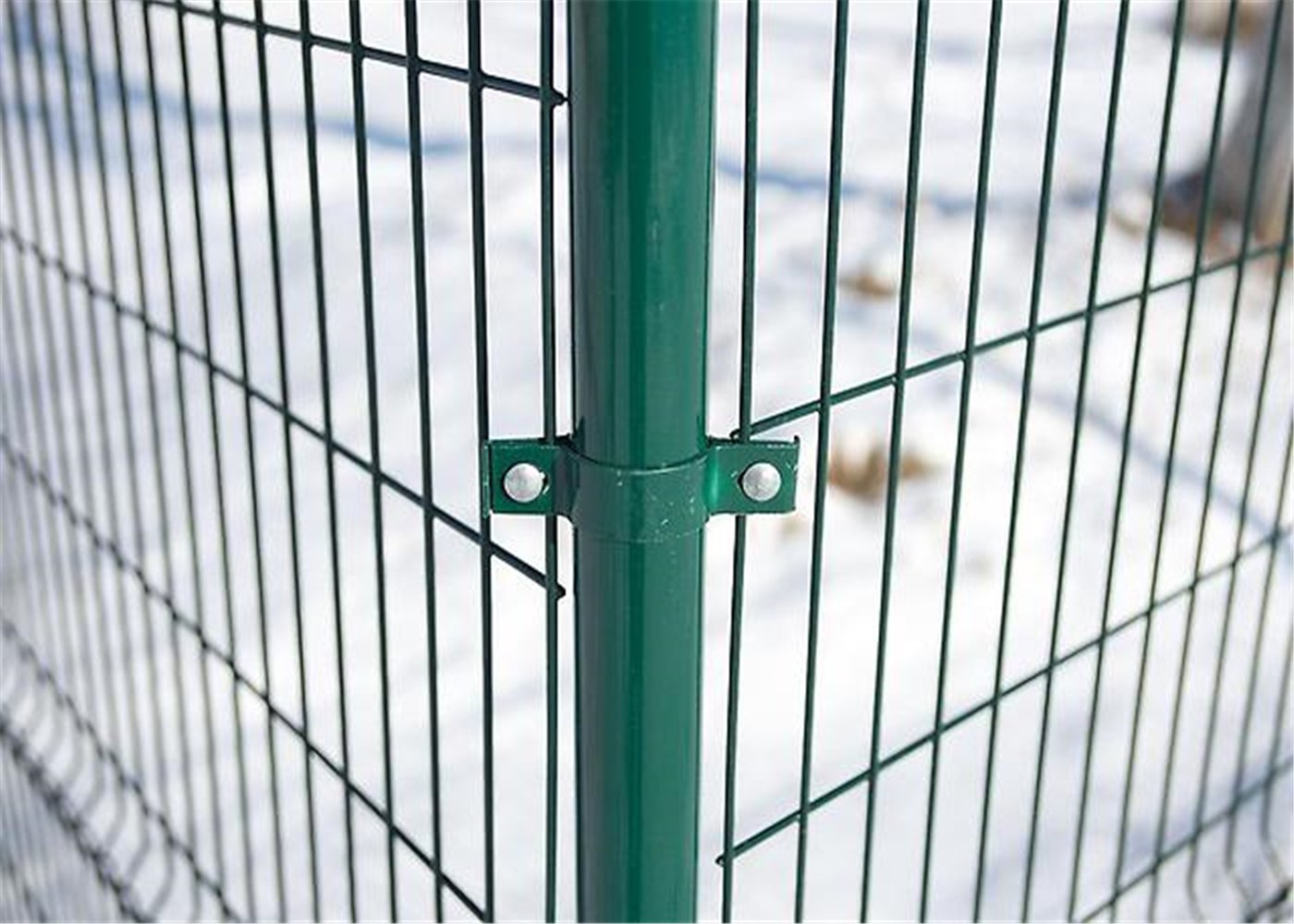

A Nylofor 3D fence requires compatible support posts and connectors. Betafence systems include purpose-matched post families with different attachment methods. A post's outside dimensions alone cannot prove connector compatibility. Check hole locations, bearing faces, coating, end caps, and foundation details.
Site teams sometimes compare square posts with Clearvu Fencing Post profiles. Others consider Clearvu Fencing IPE Post for different security projects. These profiles differ from Clearvu Fence Posts serving other mesh systems. They cannot automatically replace original Nylofor posts. A complete replacement needs a separate engineering and connection review.
Likewise, Clearvu Fence Clamps and Clearvu Fence Clamps serve other compatible systems. Never substitute them for proprietary Betafence fittings without written approval. Incorrect clips can loosen under movement or damage the panel finish.
Gates create the busiest points along many perimeters. A pedestrian gate needs proper hinge support, latch clearance, and safe opening space. Vehicle entrances require stronger supports, ground stops, and an approved operating method. Gate frames should align with the fence height without leaving avoidable gaps.
Betafence describes Robusta gates as part of its wider Nylofor system offering. Sites comparing other configurations may examine Clearvu Gates. Confirm the actual product brand and hinge specification before joining unlike systems. Motorised gates also need suitable safety devices and qualified commissioning.
Before installing a Nylofor 3D fence, establish the legal boundary and survey existing services. Mark corners, gate openings, changes in elevation, and support locations. The approved system's post centres take priority over nominal panel width. Foundations must suit local soil, fence height, wind loads, and structural requirements.
Set posts to the correct line and vertical alignment. Allow concrete to achieve the specified strength before loading the connections. Fit each panel with the designated clips and security hardware. Inspect the spacing at corners, ends, slopes, and gate interfaces. Record deviations before handover.
For a ground slope, the contractor may step panels or use an approved alternative geometry. Check gaps at the bottom of each section. Avoid twisting panels into irregular spans or drilling new holes without approval.
A simple quantity exercise helps buyers check their Nylofor 3D fence quotation. Assume a straight 100 m boundary and a nominal 2.5 m bay. This simplified example excludes gates, corners, special end supports, and fixing overlaps.
| Item | Calculation | Reference quantity |
|---|---|---|
| Nominal bays | 100 / 2.5 | 40 bays |
| Mesh panels | One panel per bay | 40 panels |
| Posts | Bays + one end post | 41 posts |
| Panel area | 100 × 2.03 | 203 m² at 2.03 m height |
| Clips and anchors | Follow post model | Confirm separately |
The Nylofor 3D fence layout may use post-centre spacing that differs from the panel's nominal width. Therefore, treat these quantities as estimating references only. Calculate exact panels, end posts, corner posts, gates, and fittings from the approved installation plan.
A Nylofor 3D fence coating should match the site rather than a generic marketing claim. Inland parks and coastal industrial sites can face very different corrosion conditions. Betafence product families use distinct zinc and polyester systems. Request the correct product-specific data sheet and warranty conditions.
For the official 3D panel specification, Betafence describes galvanised wire and polyester-based protective coatings. Standard colours include green and other selected RAL finishes, depending on the model. A buyer should confirm the zinc requirement, coating thickness, repair method, and inspection procedures.
Projects near seawater or aggressive industrial emissions require additional care. Examine any cut edges, transport damage, standing water, and contact between different metals. Do not promise permanent rust resistance without site-specific maintenance and documented coating performance.

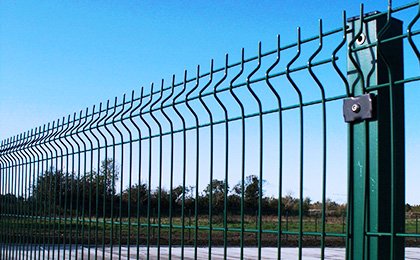

Receiving inspectors should verify identity before accepting a Nylofor 3D fence shipment. Compare product labels and packing lists with the contract model number. Measure panel height, width, mesh centres, wire diameters, and the number of folds. Check connectors, post caps, gate hardware, and visible coating continuity.
Inspect pallets for impact damage and confirm packaging quantities against the bill of materials. Record bent wires, missing fasteners, deep scratches, or mismatched panel heights. Photographs help document claims, but they cannot replace required laboratory certificates. Ask for the agreed testing evidence whenever the contract specifies measurable performance.

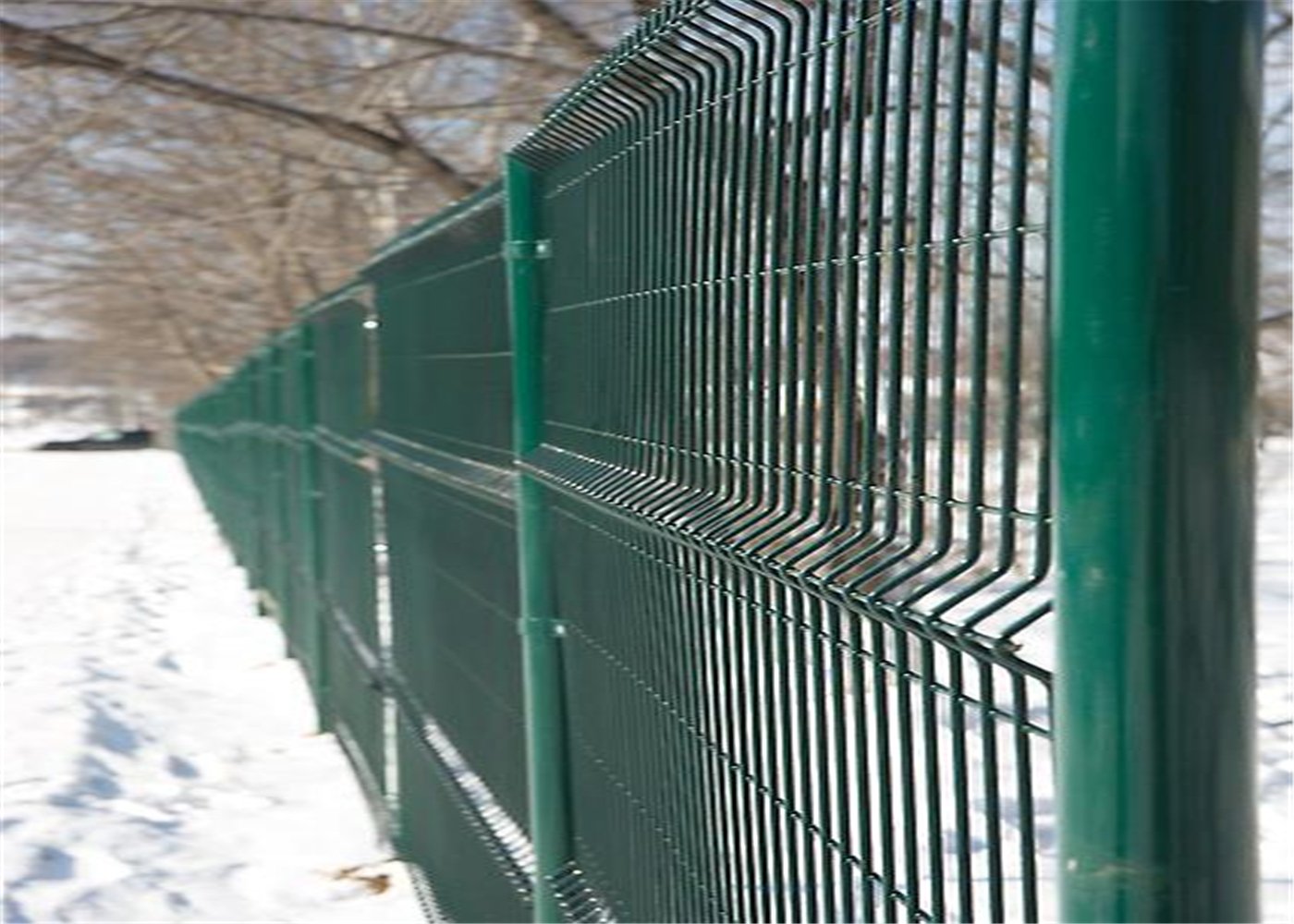

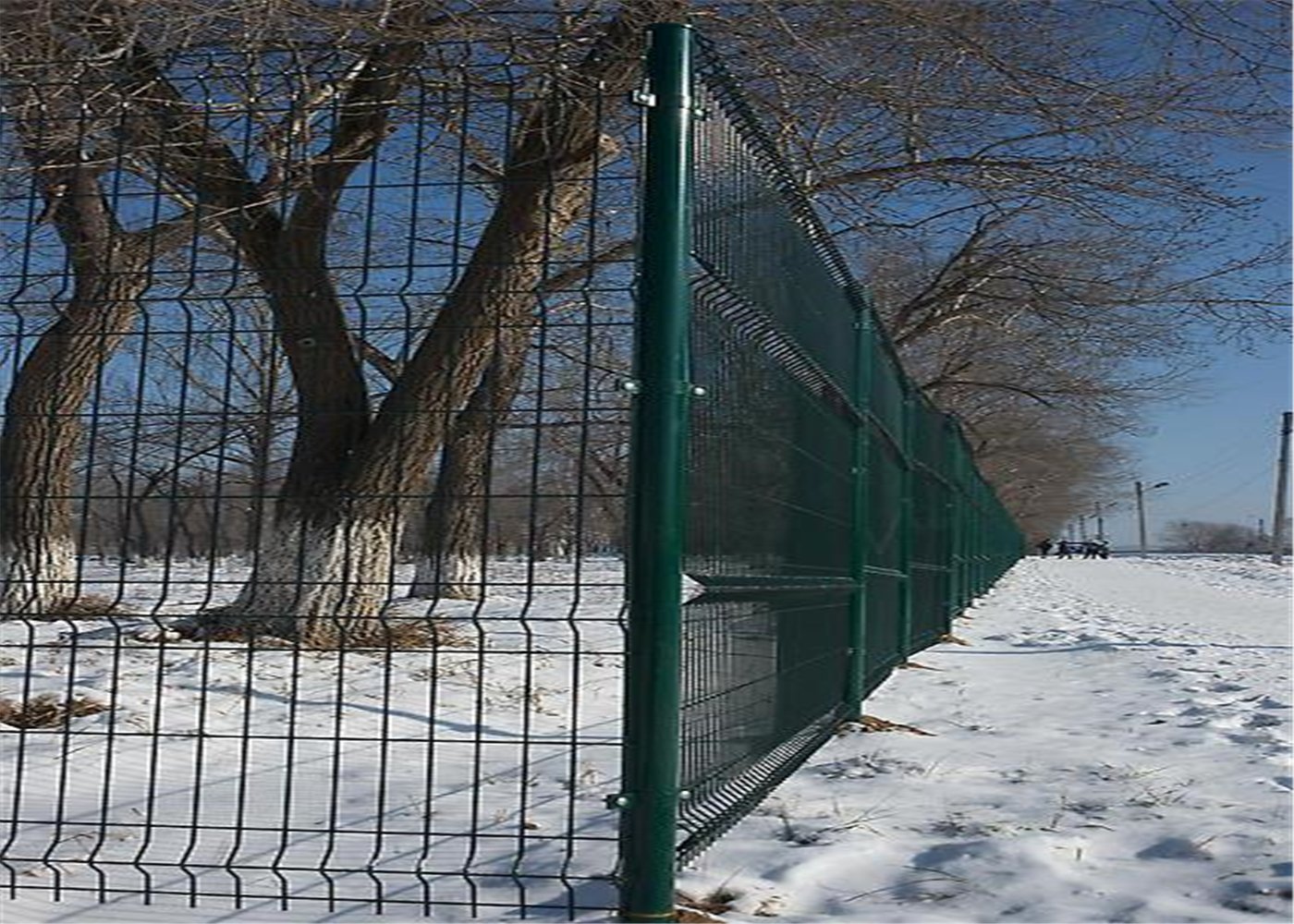

A Nylofor 3D fence can mark clear boundaries around sports grounds and educational campuses. Visibility helps staff observe pathways without creating an opaque wall. Select gate positions around daily traffic patterns, emergency access, and vehicle movements. Higher exposure areas may need stronger posts or additional traffic barriers.

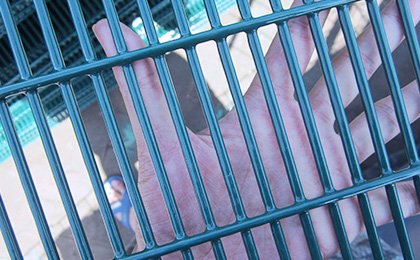

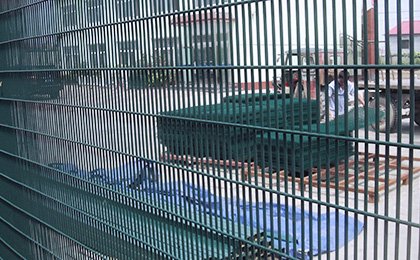

Industrial estates often prioritise corrosion protection, forklift clearance, and reliable vehicle gates. Landscaped properties may focus on finish colour and views across open space. Wider 3D mesh differs from Clear View Fence Panels, which can use much narrower openings. The Clearvu Fence Panels range also illustrates those security-focused alternatives.
For more demanding access risks, compare High Security Clearvu Fencing before selecting a higher-security mesh. A Nylofor 3D fence can suit general boundaries without claiming prison-grade intrusion resistance. Physical security also depends on lighting, gates, monitoring, and response procedures.

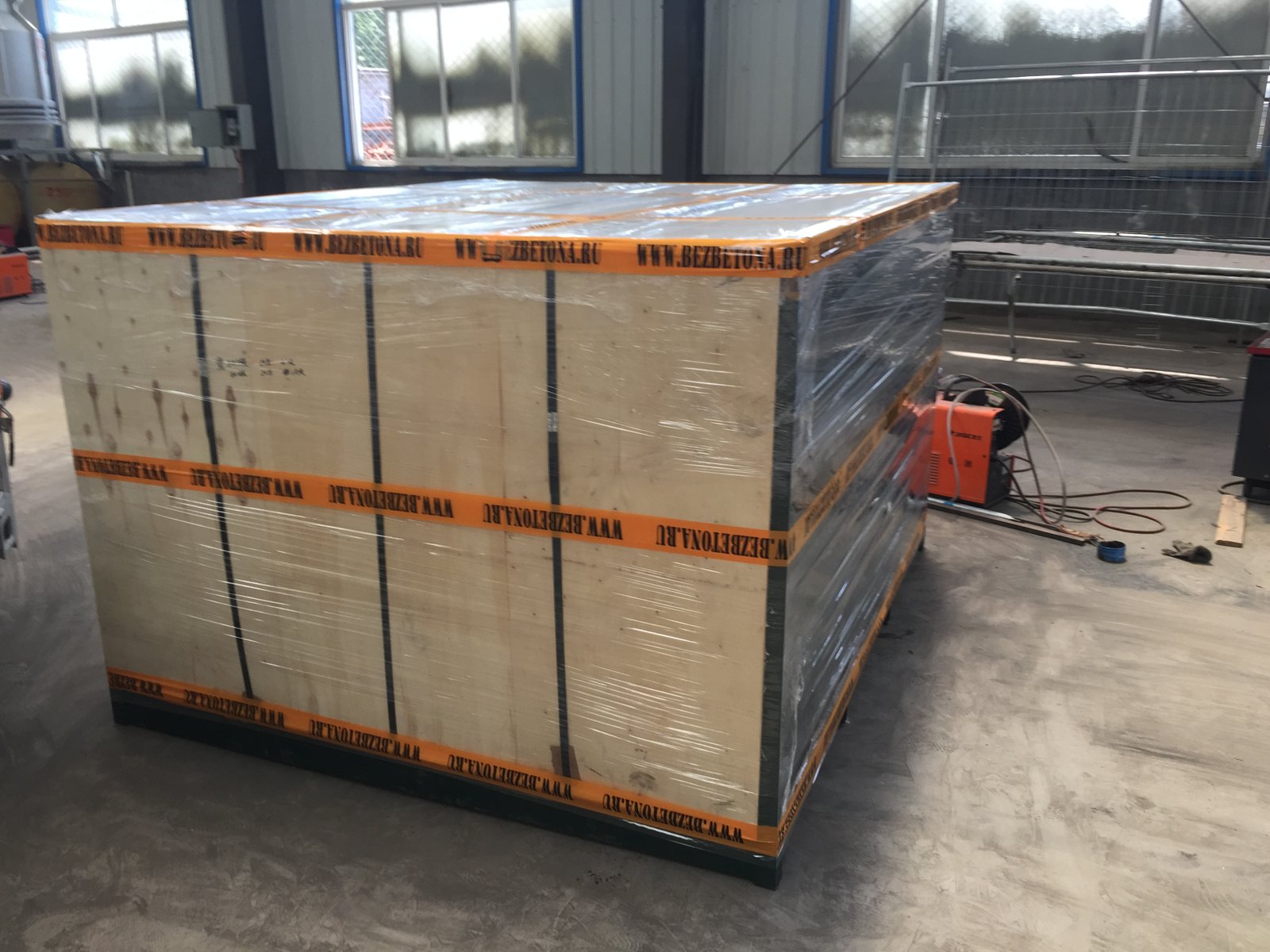

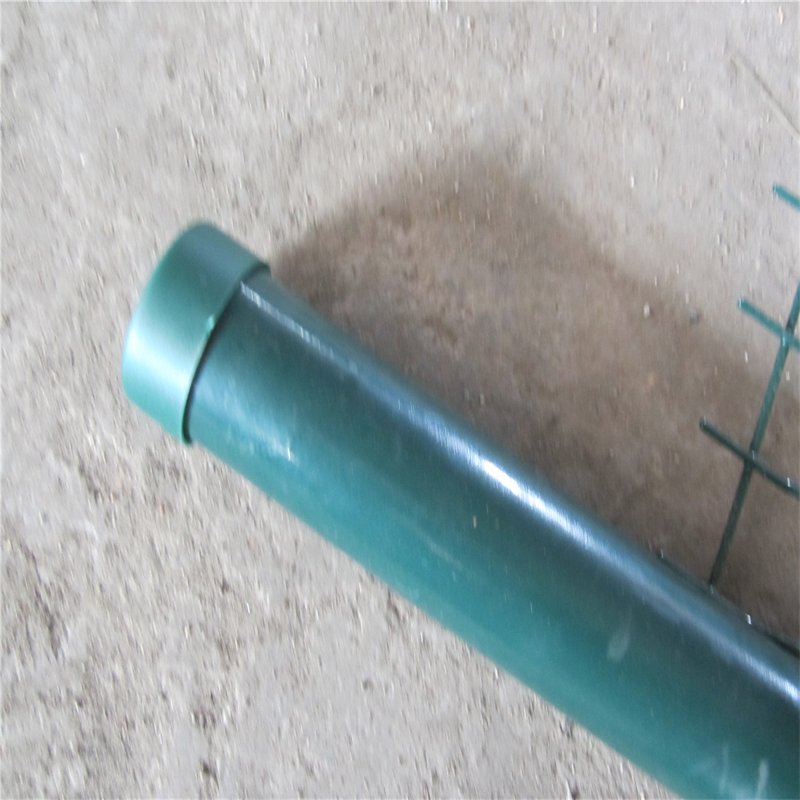

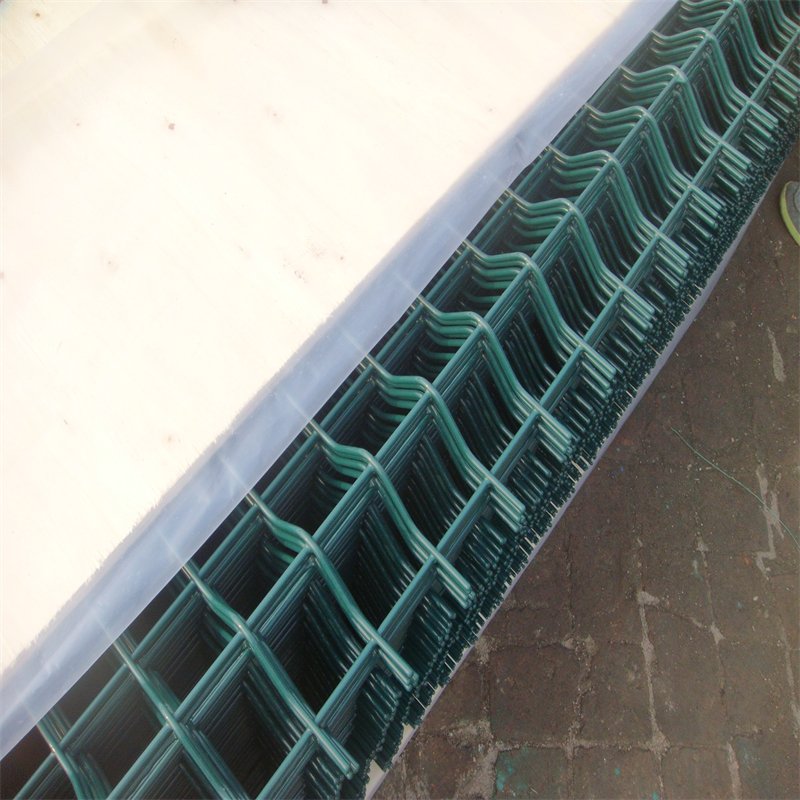

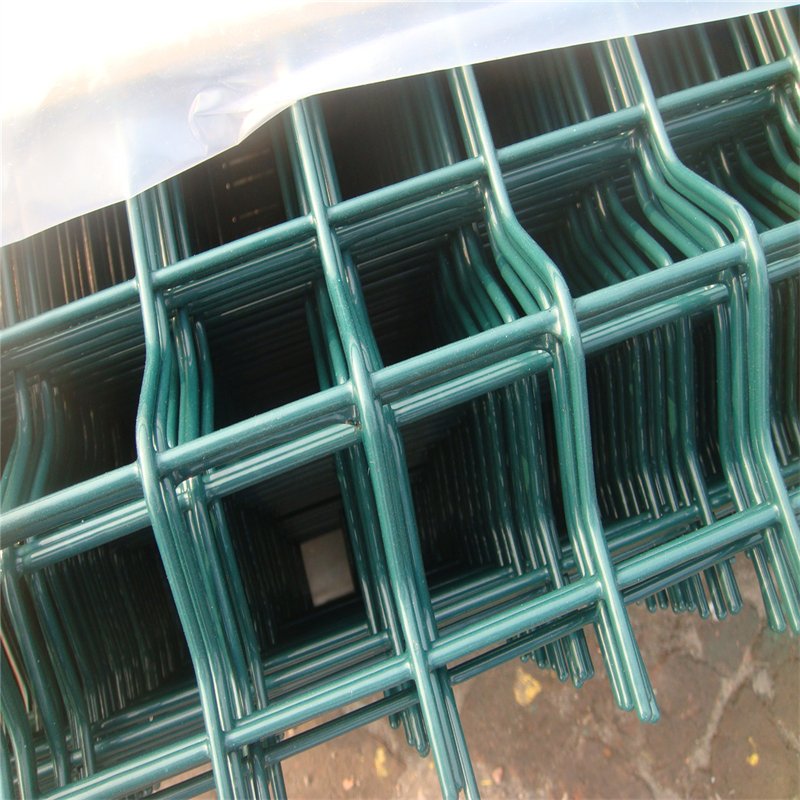

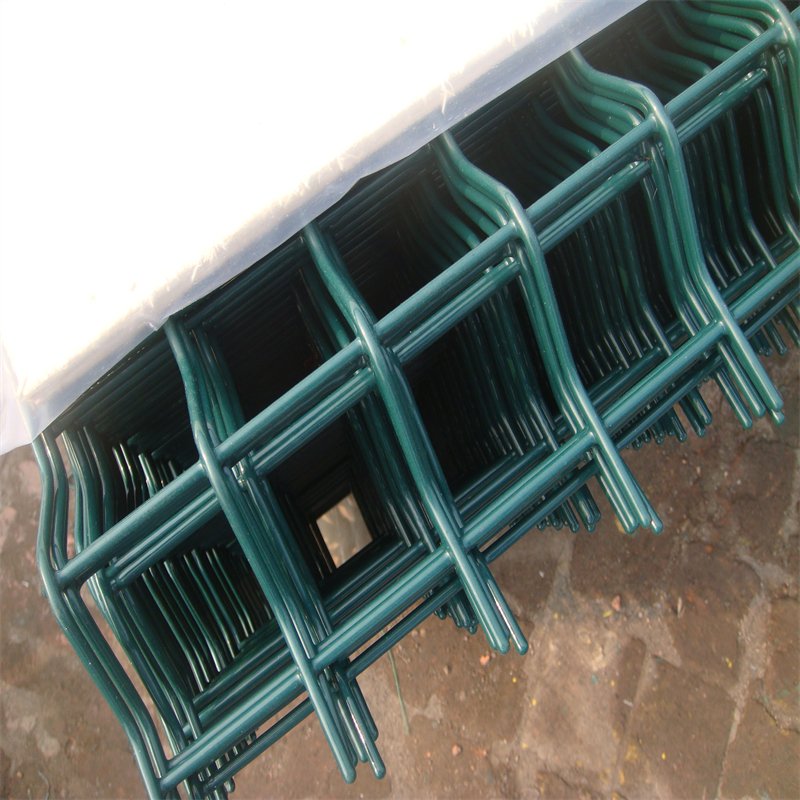

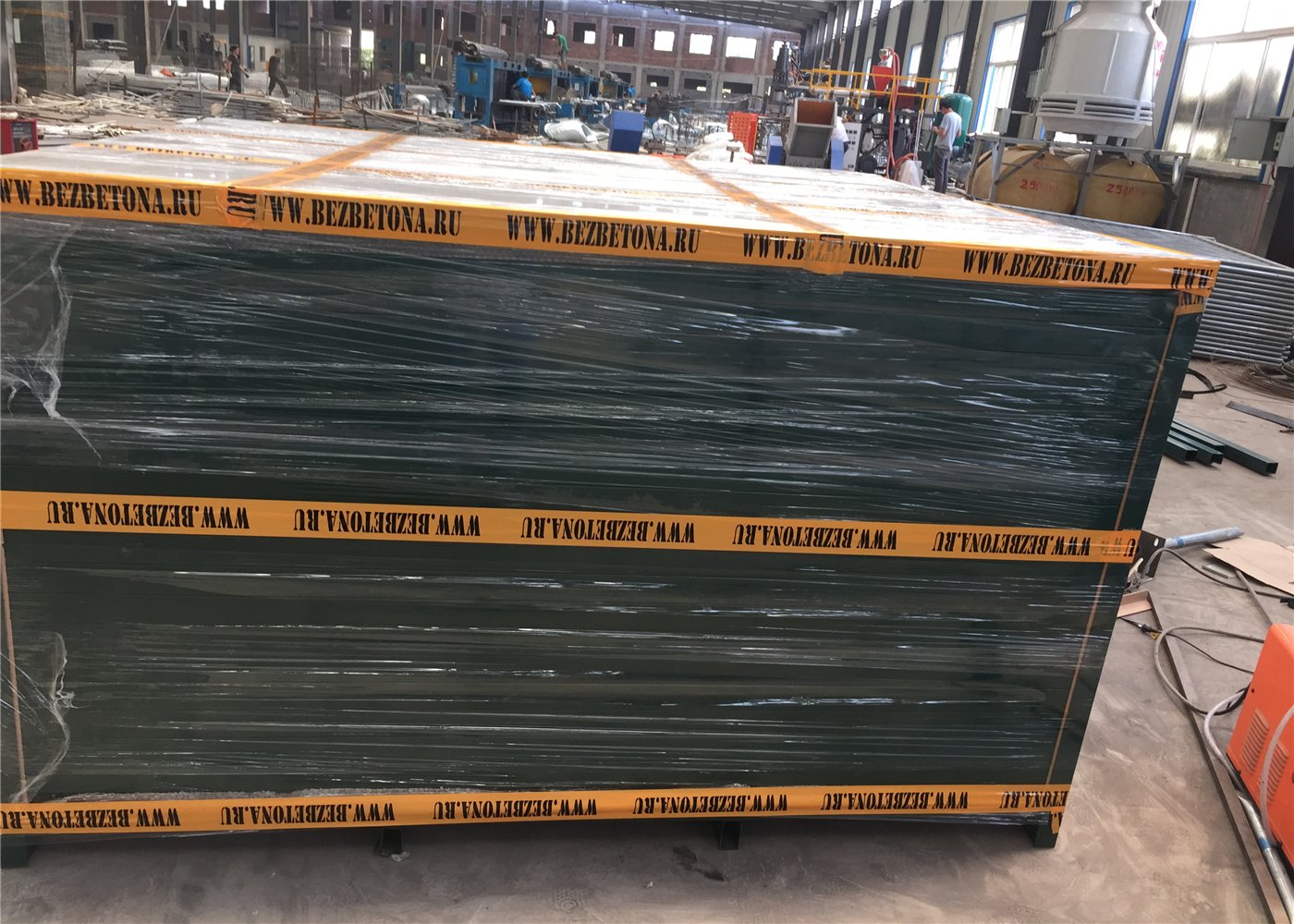

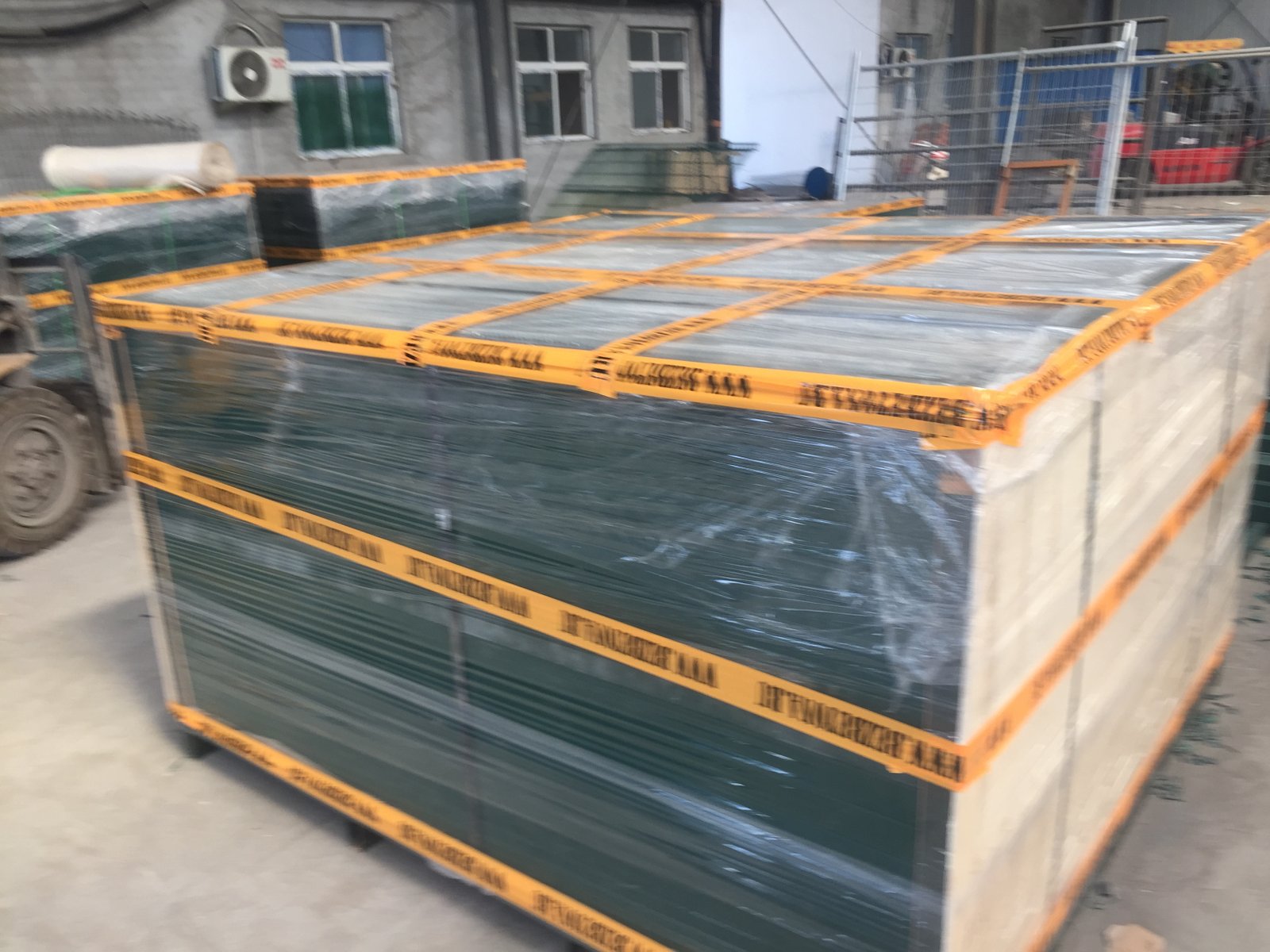

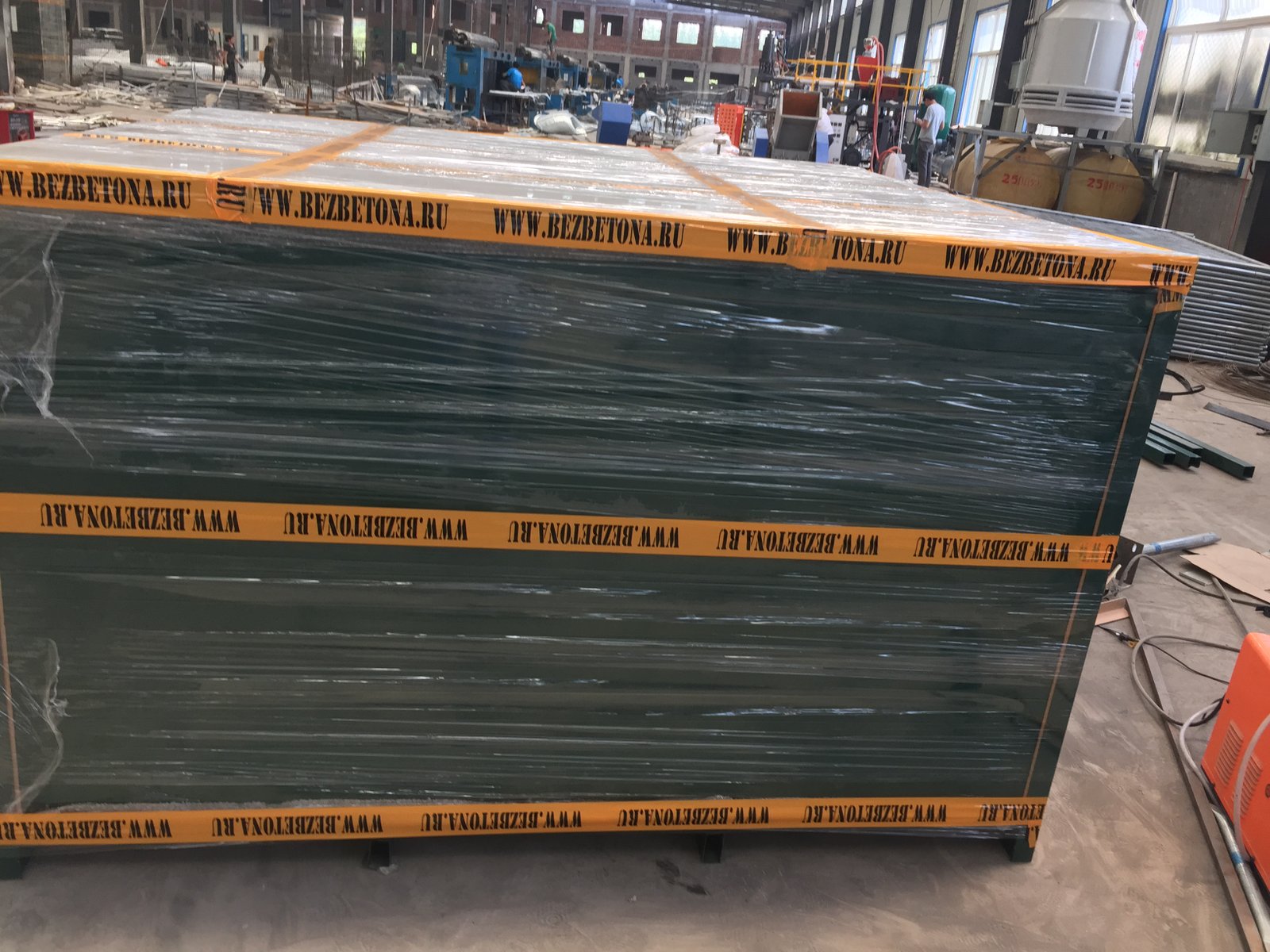

Large mesh panels need support during transport to limit bends and coating abrasion. Original project instructions describe rubber pallet mats, steel corner guards, protective strapping plates, and wooden top boards. Posts receive caps, protective film, and pallet support. Suppliers normally group matching clips and screws into labelled accessory cartons.
These details describe the supplied reference packing method, not every Betafence factory shipment. A Nylofor 3D fence purchase order should specify packing, labels, and responsibility for unloading. Separate packing lists by panels, posts, fixings, and gates. Clear identification reduces delays during container discharge and site distribution.
Inspect a Nylofor 3D fence on a schedule that suits site traffic and exposure. Check for loose connections, coating scratches, displaced caps, vegetation buildup, and standing water near posts. Repair coating damage with a compatible method approved for the product. Replace damaged components instead of forcing them back into shape.
Gates may need more frequent attention because hinges and locks move daily. Keep access routes clear and test gate operation after major ground movement. Record maintenance actions so the facilities team can identify recurring problems.
A Nylofor 3D fence primarily serves sites that need rigid welded mesh and everyday perimeter definition. Clearvu Clearview Fence uses another mesh approach where narrower openings matter. Clearvu Fencing can also suit different post profiles and security requirements. A project should compare complete assemblies rather than panel names alone.
The Clearview Fencing format typically targets more restricted boundaries. Some sites evaluate Welded Razor Wire Mesh for separate high-risk perimeters. Such products require additional safety and legal checks. They do not automatically form part of a standard Nylofor installation.
A Nylofor 3D fence quotation should identify the precise Betafence model and regional data sheet. Specify height, panel width, wire layout, fold count, post system, gate schedule, and colour. Add coating requirements, delivery terms, receiving checks, and agreed documentation.
When comparing alternative systems, buyers may also review Clearvu Fencing South Africa. However, they should not substitute one manufacturer's certificates for another's. List brand identity and accepted equivalents explicitly in the purchase agreement.
Ask the seller to confirm the panel count, post count, clip count, spares, packaging, and loading plan. Record whether gates and installation accessories fall inside the quoted scope. Clarify the quotation currency and freight terms before approving the order.
Does every Nylofor panel use 5 mm wire? No. The 3D Essential model uses different horizontal and vertical diameters.
Does panel width equal post spacing? Not necessarily. Fixing geometry and overlap can change the installed distance.
Can crews mix Betafence and generic fittings? Only after confirming compatibility and receiving the required approval.
Can crews install panels on sloping land? Yes, subject to the approved stepping or slope design.
What should buyers confirm first? The exact model, technical data sheet, site layout, and the complete supply scope.
Choose the Nylofor 3D fence configuration that matches the project's actual installation conditions. Detailed specifications help buyers compare quotations and avoid missing components. Proper measurement, consistent fittings, and suitable coatings support a reliable finished boundary.
