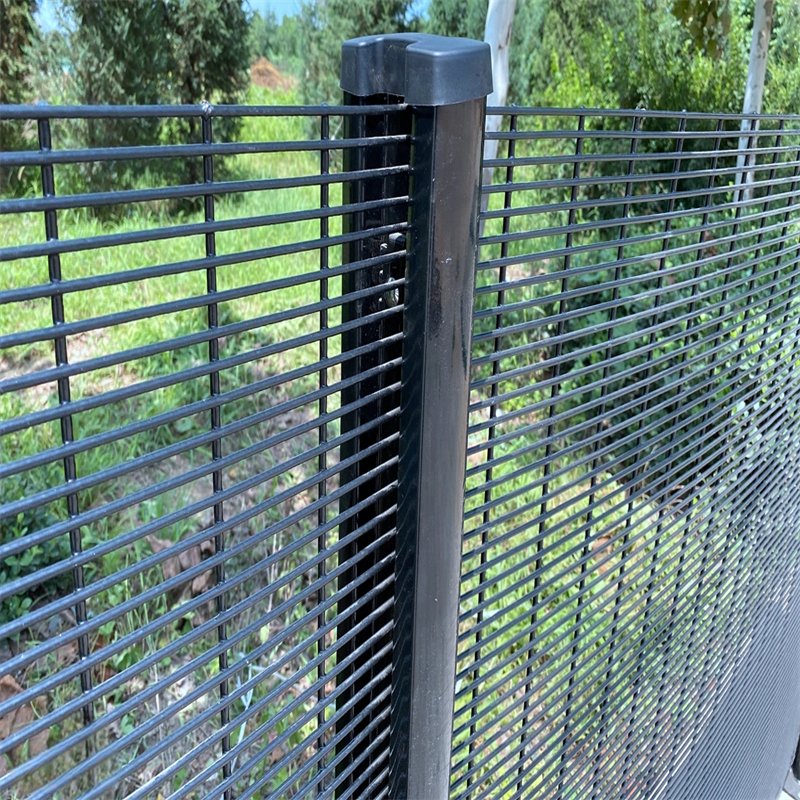

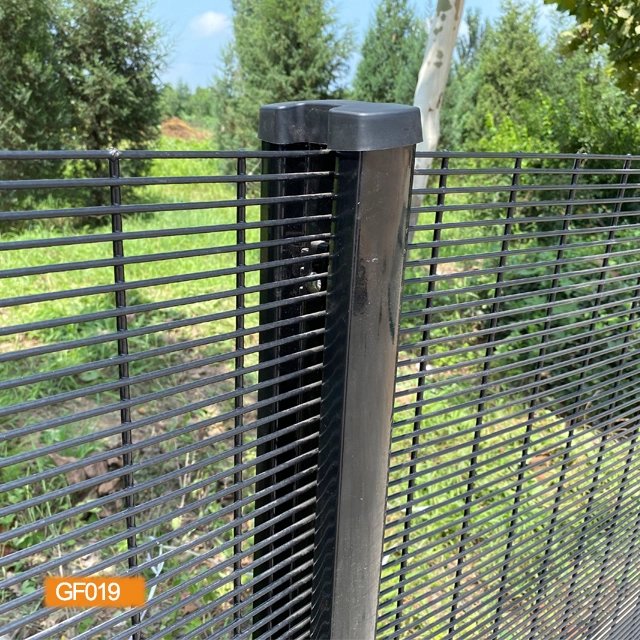

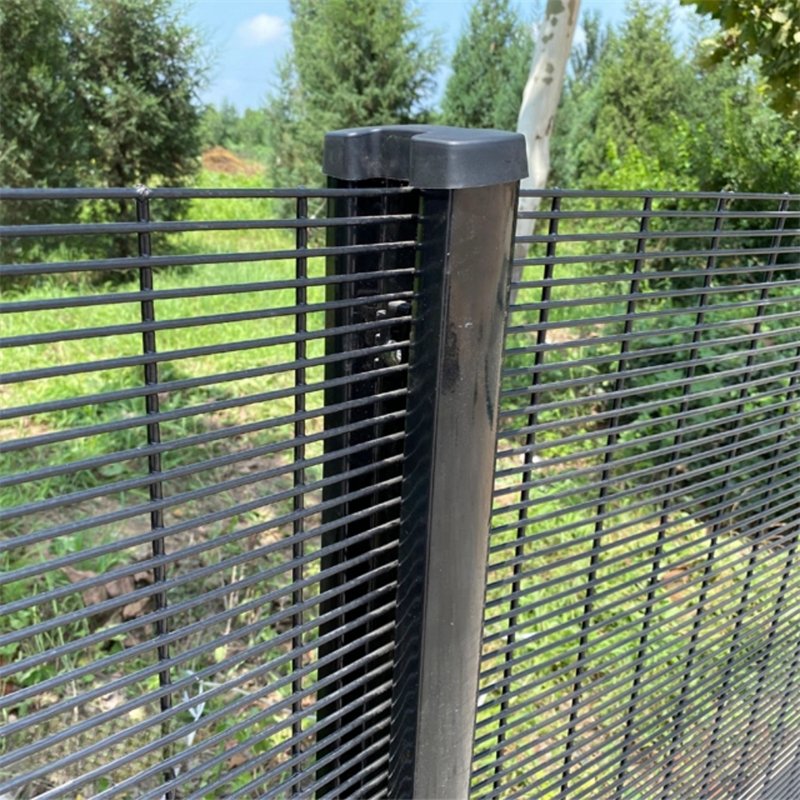

Clearvu Fencing IPE Post systems combine a slim steel support with welded security mesh and tamper-resistant fittings. The I-shaped profile provides distinct attachment faces without creating a visually heavy boundary. Across African markets, project teams use these posts around factories, warehouses, utility sites, and commercial properties. BMP supplies post options for imported fencing packages and projects requiring coordinated panels, clamps, and gates. Each Clearvu Fencing IPE Post order should begin with an approved profile drawing and installation layout.
Security projects often need both clear observation and a strong physical barrier. Clear Vu Fence panels maintain visibility while creating a defined perimeter. Where the application requires tighter openings, 358 Mesh offers another panel arrangement. The post, panel, and fasteners must work together rather than follow unrelated catalogues.

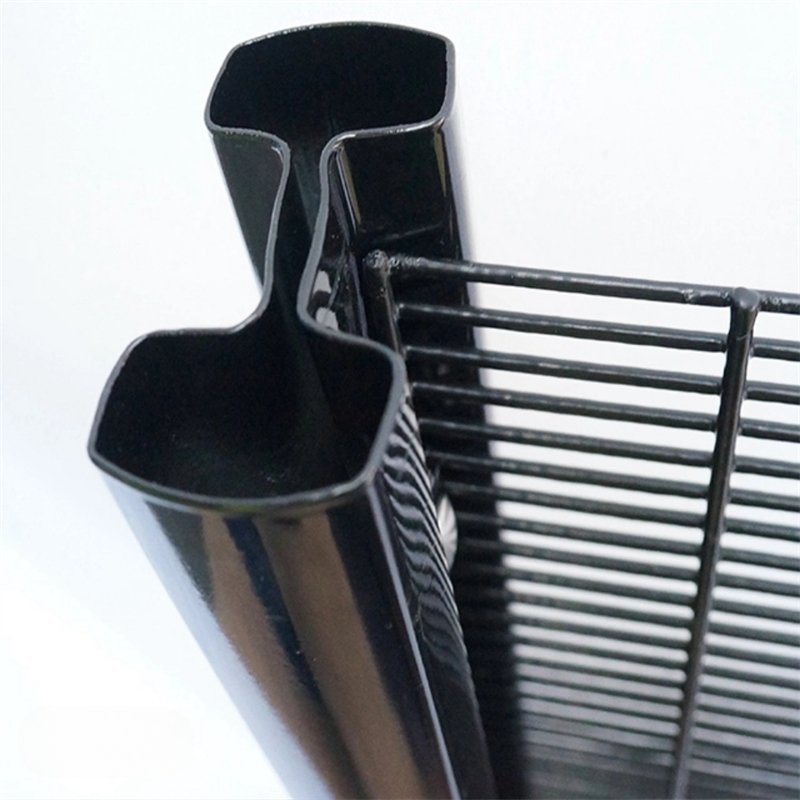

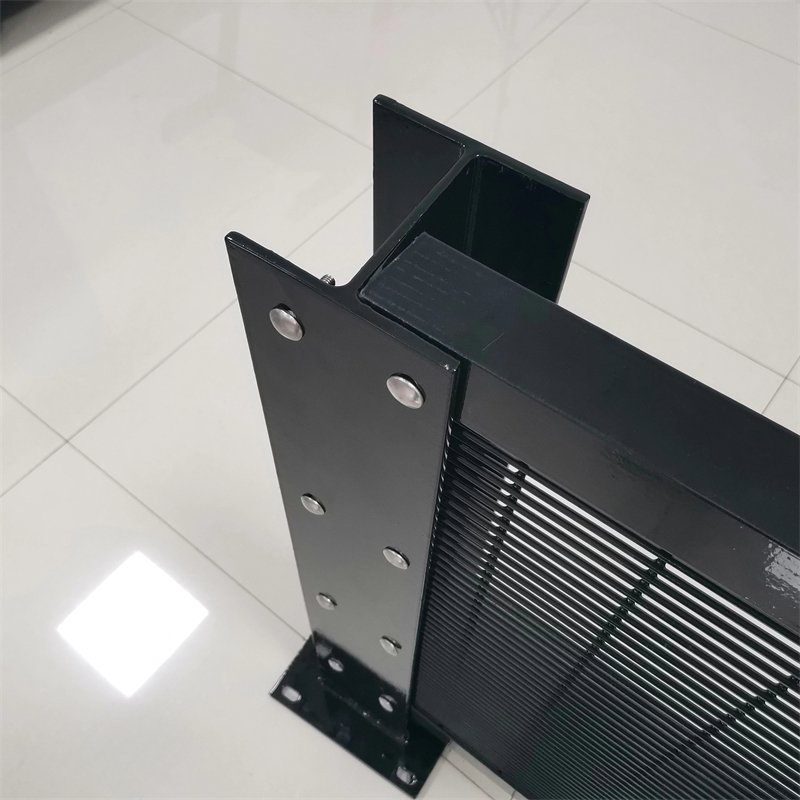

An IPE-style post has a central web and two flanges, creating an I-shaped cross-section. Standard European IPE beams generally have parallel flange faces. However, supplier-specific fence profiles do not automatically match a published structural IPE size. A Clearvu Fencing IPE Post may use a modified, roll-formed, or fabricated profile for fence connections.
Confirm the overall depth, flange width, web thickness, flange thickness, and inside radii on the drawing. If drawings specify Clearvu Fence Posts, retain their flange and fastener dimensions during procurement. The nominal outside measurements alone cannot establish the post's mass or structural performance. Compare Clearvu Fencing Post styles with the intended panel connection before finalizing the profile.
BMP offers reference sizes of 100 × 50 mm, 100 × 55 mm, and 77 × 44 mm. These figures describe nominal profile dimensions rather than interchangeable standard beam grades. The 100 × 50 mm option can use a 3.0 mm reference thickness. A Clearvu Fencing IPE Post with different dimensions needs its own drawing, weight calculation, and fixing schedule.
Smaller profiles can suit lighter arrangements when engineering checks support their use. Taller fences, demanding wind exposure, and heavy gates may require different post sections. Designers should confirm steel grade, post spacing, embedment, and panel loads together. The Clear View Fence Post family offers alternative support shapes where an I-shaped section does not suit the site.
The following schedule describes the original reference product and its common options. Each Clearvu Fencing IPE Post specification requires confirmation before manufacturing. Project drawings take priority over broad catalogue descriptions.
| Item | Reference specification | Important confirmation |
|---|---|---|
| Product | Clearvu Fencing IPE Post | Approved cross-section drawing |
| Profile options | 100 × 50 mm; 100 × 55 mm; 77 × 44 mm | Flange and web dimensions |
| Reference thickness | 3.0 mm for 100 × 50 mm option | Actual web and flange thickness |
| Steel options | Q195 or Q235 | Agreed material specification |
| Panel reference | 2000 mm high × 2900 mm wide | Nominal or finished panel dimensions |
| Vertical wire | 3.0 mm or 4.0 mm | Final wire combination |
| Horizontal wire | 4.0 mm or 5.6 mm | Final wire combination |
| Connection | Pre-drilled post, steel clamp, nut and bolt | Hole pitch and fastener details |

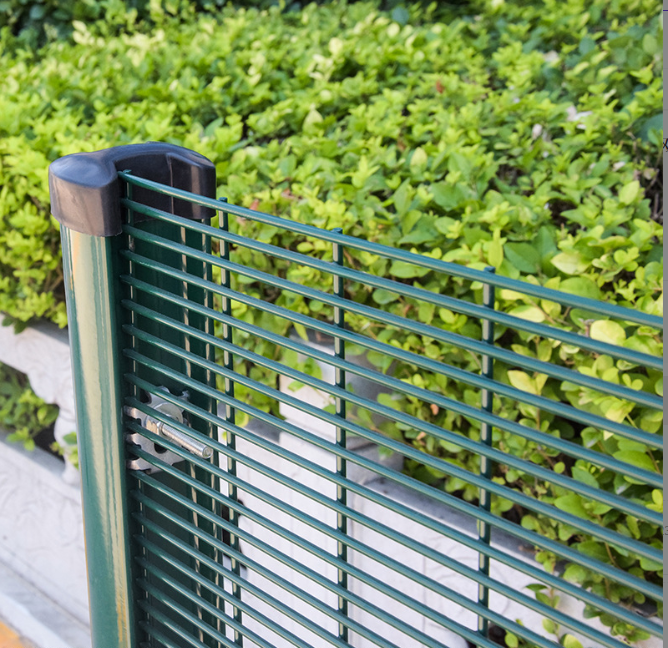

| Common colours | RAL 6005, RAL 9010, RAL 9005, RAL 7021 | Approved colour sample |
Profile length also depends on finished fence height and foundation design. Do not infer post length from panel height alone. Review Clearvu Fencing Specifications when comparing posts, panels, and accessory dimensions.
A typical reference panel measures 2.0 m high and 2.9 m wide. Vertical wire options include 3.0 mm and 4.0 mm diameters. Horizontal wires may use 4.0 mm or 5.6 mm, depending on the specified security grade. The Clearvu Fencing IPE Post must accommodate the finished panel dimensions and selected clamp positions.
Mesh pitch influences both visibility and resistance to climbing. Narrow spacing creates fewer convenient handholds than larger rectangular openings. The Clearvu Fence Panels selection covers different welded grid layouts. Buyers can also compare Clearvu Fence Panels when planning matching panel and post schedules.
Record whether mesh dimensions describe wire centres or clear openings. The actual clear gap decreases as the wire diameter increases. Panel width should also match the fixing allowance between adjacent posts.

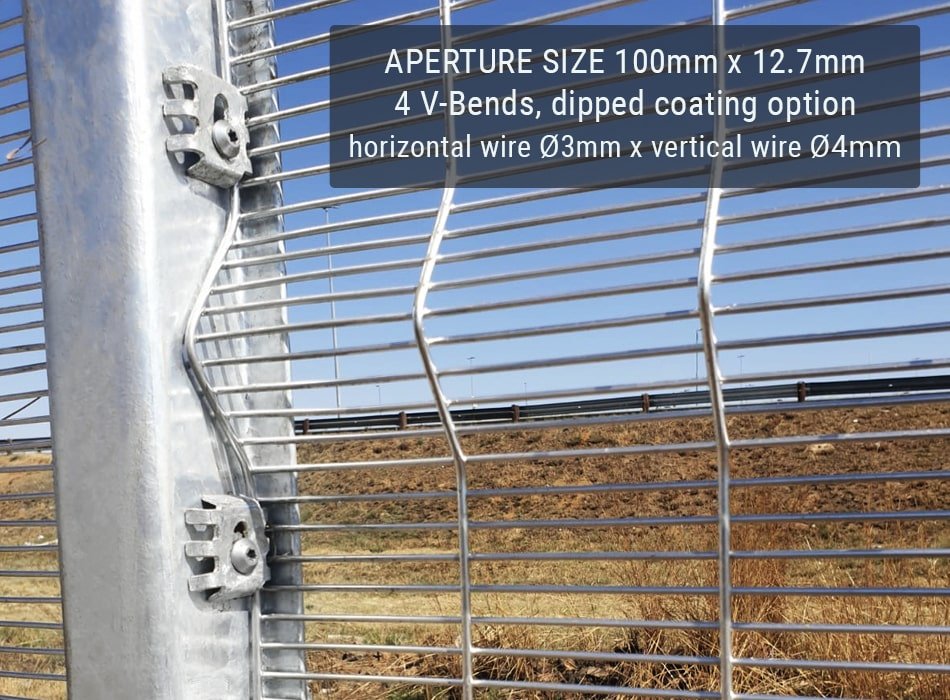

Pre-drilled holes can speed installation when they match the approved clamp layout. Installers position the mesh against the flange and secure it with compatible steel fittings. A Clearvu Fencing IPE Post system may use a flat bar, shaped clamp, nut, and bolt. Hole spacing, edge distance, and bolt diameter must match the design.

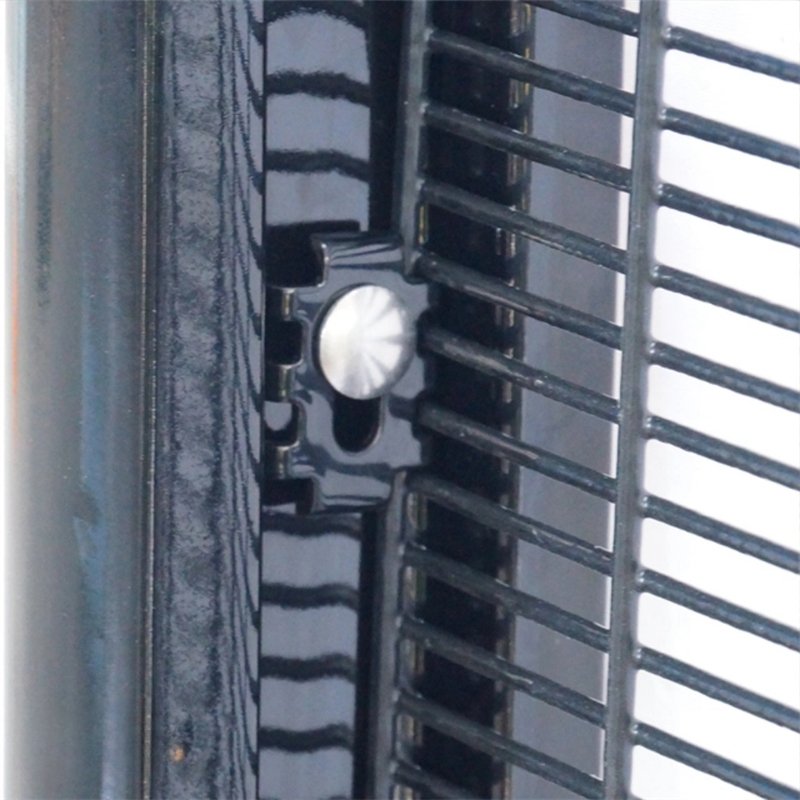

Use Clearvu Fence Clamps with the correct flange shape and panel edge. Alternative Clearvu Fence Clamps may require different holes or fasteners. Security bolts can limit casual tampering, but their installation still needs proper tightening.
Corner posts, end posts, and gate posts may need different drilling arrangements. Contractors should identify every special position on the shop drawing. Never assume that identical post lengths require identical hole patterns.
BMP can discuss zinc protection, powder coating, and combined finishes for Clearvu Fencing IPE Post applications. The original specification included several broad coating ranges. Treat those figures as historical reference values rather than automatic production guarantees. Select one measurable coating requirement in the purchase specification.
| Surface treatment | Reference minimum | Reference maximum | Unit |
|---|---|---|---|
| Electrogalvanized | 20 | 60 | g/m² zinc mass |
| Hot-dip galvanized | 35 | 700 | g/m² zinc mass |
| Powder coating | 100 | 120 | µm dry-film thickness |
These reference ranges do not prove compliance with a particular coating standard. A project should specify the process, inspection method, and minimum acceptance criteria. RAL 6005 green, RAL 9005 black, RAL 9010 white, and RAL 7021 grey offer common colour options. Confirm availability for each finish and batch.
For coastal installations, salt exposure can increase corrosion pressure on exposed steel. Inland industrial sites may face dust, condensation, and occasional standing water instead. Protect cut edges and inspect transport scratches before installation.
South African warehouses often need visible boundaries around loading areas and vehicle entrances. Projects in Botswana, Zambia, and Zimbabwe may prioritize dust control, rainfall runoff, and straightforward access for repairs. A Clearvu Fencing IPE Post can support consistent fence lines across these different settings. Its coating and foundation details should reflect the actual location.
Coastal properties in Mozambique, Tanzania, Ghana, or Nigeria may face humid air and salt exposure. Specify corrosion protection after considering distance from the coast and local operating conditions. Fence visibility can assist surveillance near storage yards and commercial compounds. Nevertheless, lighting, gates, and staff procedures remain necessary for complete site security.
The broader Clearvu Fencing South Africa market uses several post profiles. Clearvu Super Fencing provides another product reference for higher-security layouts. Compare the complete system rather than judging performance by brand names alone.
Posts transfer panel forces into concrete footings or engineered base connections. Taller mesh sections usually increase wind loads and demand careful foundation checks. The Clearvu Fencing IPE Post drawing should show embedment, base detail, and above-ground height. Groundwater, fill material, and nearby excavations can influence the foundation design.
During surveying, identify slopes, corners, buried services, and entrance locations. Confirm post centre distances against the panel width and clamp geometry. A small bay error can create installation problems across a long boundary. Engineering approval becomes especially important for tall panels and difficult soil.
Begin installation with a measured boundary plan and the final post schedule. Mark foundation positions, then verify post orientation before fixing or concreting. Keep flange faces aligned with the intended clamp direction. Confirm that the Clearvu Fencing IPE Post remains vertical throughout the work.
Allow foundations to reach the required strength before adding panel loads. Position welded panels without forcing them into unsuitable openings. Attach the correct clamps and bolts, then inspect the entire fixing line. Check bottom gaps near slopes and drainage channels.
Install gate frames and their supports according to the separate gate design. Clearvu Fence Gates may need heavier supports than ordinary panel joints. Record any field changes before final handover.
Physical mesh can work alongside alarms, cameras, and professionally designed electric fence equipment. Only qualified installers should design electrical systems and confirm local safety requirements. Do not attach electrical equipment directly without checking structural and electrical compatibility. A Clearvu Fencing IPE Post system should maintain access for inspection and repairs.

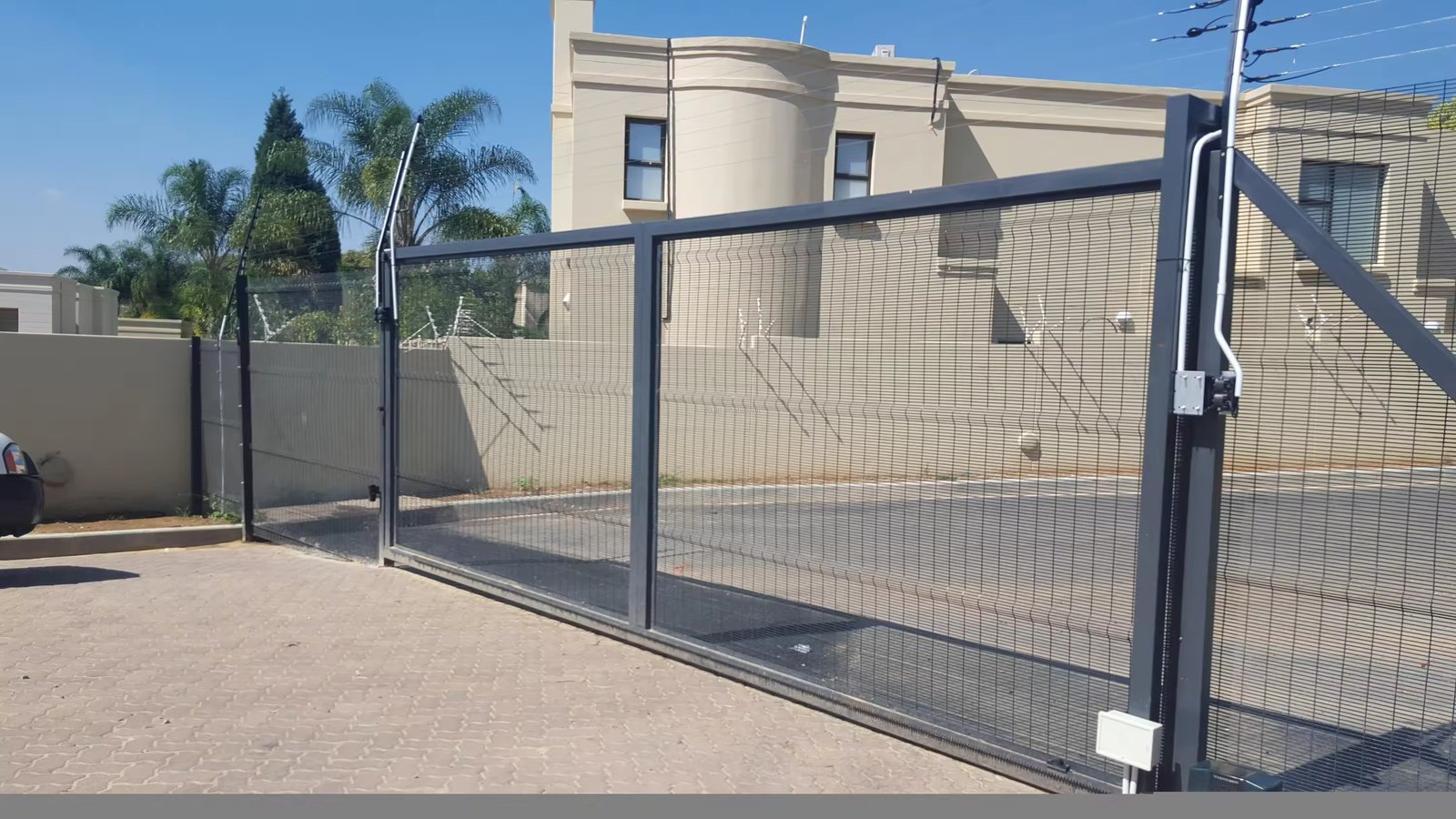

Vehicle entrances need clear turning space, reliable locks, and suitable gate stops. The Clearvu Gates range provides options for coordinating access points. Where approved, Welded Razor Wire Mesh may add a separate deterrent layer. Consider legal restrictions and safe maintenance access before selecting sharp security toppings.
A fence remains one part of a wider security plan. Good visibility helps staff observe activity, but it cannot replace controlled access and response procedures.
Inspect raw material, finished dimensions, drilled holes, and coating consistency before dispatch. For each Clearvu Fencing IPE Post batch, compare measurements with the approved production drawing. Verify flange alignment, hole pitch, straightness, and post length. Match fittings against sample assemblies before packing.
Material grades may include Q195 or Q235 where the purchase specification allows them. Request relevant mill records, coating inspections, and test documentation for the actual production batch. ISO, SGS, and other names do not automatically certify every fence configuration. Buyers should verify certificates and their scope before making compliance claims.
Projects can compare Clearvu Fencing for Sale and Clearview Fencing specifications when checking alternative supply packages. Confirm the final warranty terms in writing for the selected product and finish.
Long steel posts need packaging that protects their coatings during lifting and sea transport. BMP can group posts on pallets and separate contact points with suitable wrapping. Metal pallets help organize mesh panels during loading and unloading. Cartons protect clamps, nuts, and bolts from losses.
Each Clearvu Fencing IPE Post shipment should include a packing list and clear item identification. Label post profiles, lengths, hole patterns, and accessory quantities where the order contains several variations. Confirm container loading plans, lifting access, and arrival-site unloading equipment. Buyers should also agree on inspection stages and delivery terms.
Imported systems can offer competitive procurement choices, but comparisons need matching specifications and delivery conditions. Steel grade, coatings, shipping, duties, and lead times can change total landed cost. Compare equivalent quotations rather than assuming one country always offers better quality or pricing.
Send the total fence length, finished height, site location, and relevant drawings when requesting a quotation. Specify the Clearvu Fencing IPE Post profile, material grade, and finish. Include panel mesh pitch, wire diameters, connection hardware, and gate quantities. Explain any local requirements for coating tests or installation approvals.
BMP can quote coordinated components and export packing according to the agreed schedule. Confirm the written warranty, production lead time, payment terms, and inspection requirements before placing the order. An accurate component schedule reduces surprises at the installation stage.
Are 100 × 50 mm and 100 × 55 mm posts interchangeable? Not automatically. Flange width, thickness, holes, and panel clamps can differ.
Can a Clearvu Fencing IPE Post support a 2.9 m panel? It may, after the engineer confirms post spacing, loads, and connections.
Does galvanising eliminate all maintenance? No. Inspect coating damage, fixings, and areas where moisture collects.
Can the post support electric fencing? Compatible systems may allow this, subject to professional design and local rules.
What should buyers approve before production? Confirm the post drawing, panel details, clamps, coating requirements, and packing schedule.
