Clear View Fence Pictures: 358 Mesh, Installation, Panels & Gates

Clear View fencing creates a visible perimeter without the solid appearance of concrete walls. Its welded steel wires form a rigid mesh that supports surveillance and discourages convenient climbing. Different mesh densities offer different security characteristics. Buyers can also select compatible posts, clamps, pedestrian gates, and vehicle entrances.

South African properties face varying security and environmental conditions. Coastal buildings need appropriate corrosion protection, while urban warehouses often prioritise access control. Choosing the correct fencing system requires careful examination of both product details and installation conditions.

Clear View Fence Pictures: Complete Product Gallery

The following photographs introduce different Clear View fencing configurations. Compare panel proportions, mesh density, and overall design before selecting a product. Every project should use approved drawings for final manufacturing.

This original WordPress gallery contains five additional product images. The photographs help visitors explore available fencing designs. Customers should request close-up images when comparing unfamiliar systems.

Clear View Fence Pictures and Product Identification

Product photographs reveal important visual characteristics. Dense mesh usually appears less open than general-purpose welded fencing. Different post profiles also create distinct installation styles.

Look closely at panel edges and fixing positions. Matching components support a consistent fence line. The finished appearance should agree with the approved specification.

Why Detailed Photographs Matter

Online product descriptions cannot show every connection detail. Close-up photographs help explain clamps, posts, and security toppings. Installation views also illustrate practical arrangements.

Nevertheless, pictures cannot prove material strength. Buyers should combine visual inspection with relevant documentation. Reliable manufacturers can provide dimensional drawings and inspection records.

Clear View Fence Pictures: High-Security and Low-Security Mesh

Mesh density creates one of the clearest differences between fence systems. Narrow openings restrict convenient handholds and footholds. Wider openings can suit general perimeter separation.

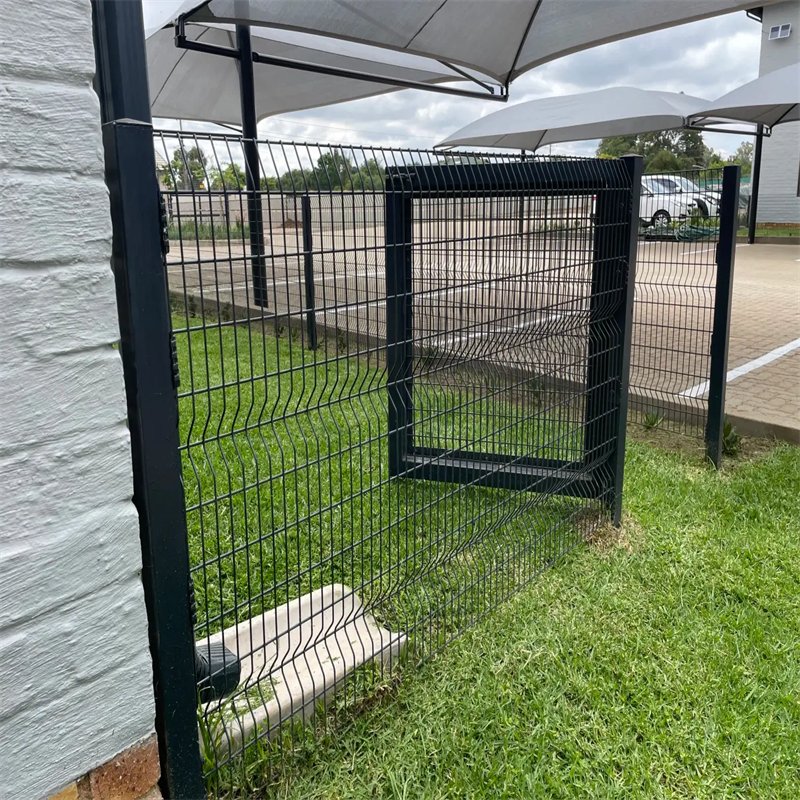

Low-security Clear View mesh with nominal 75 × 50mm spacing.

High-security Clear View mesh with nominal 75 × 12.7mm spacing.

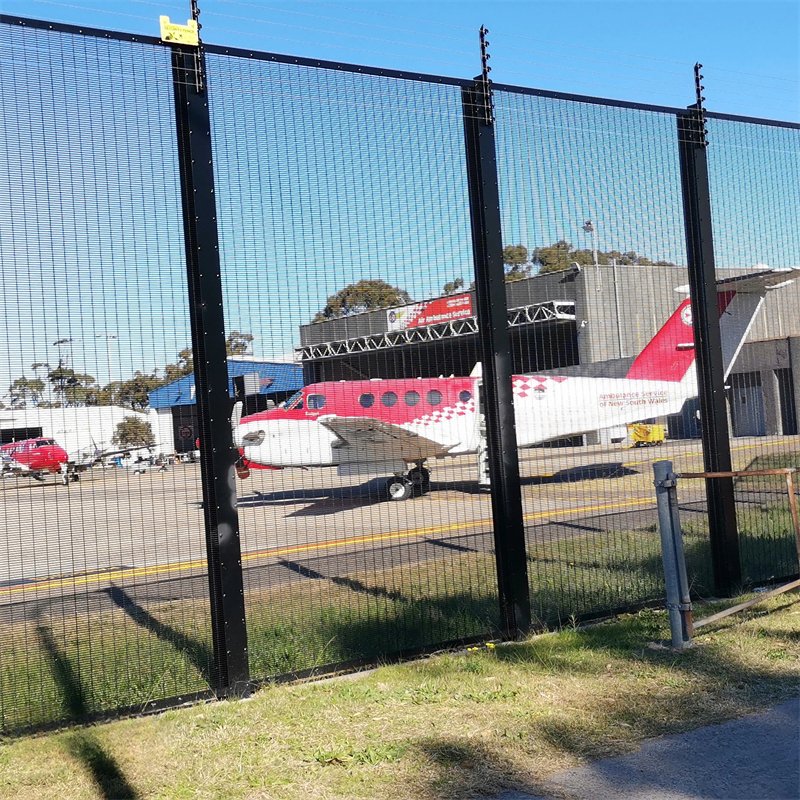

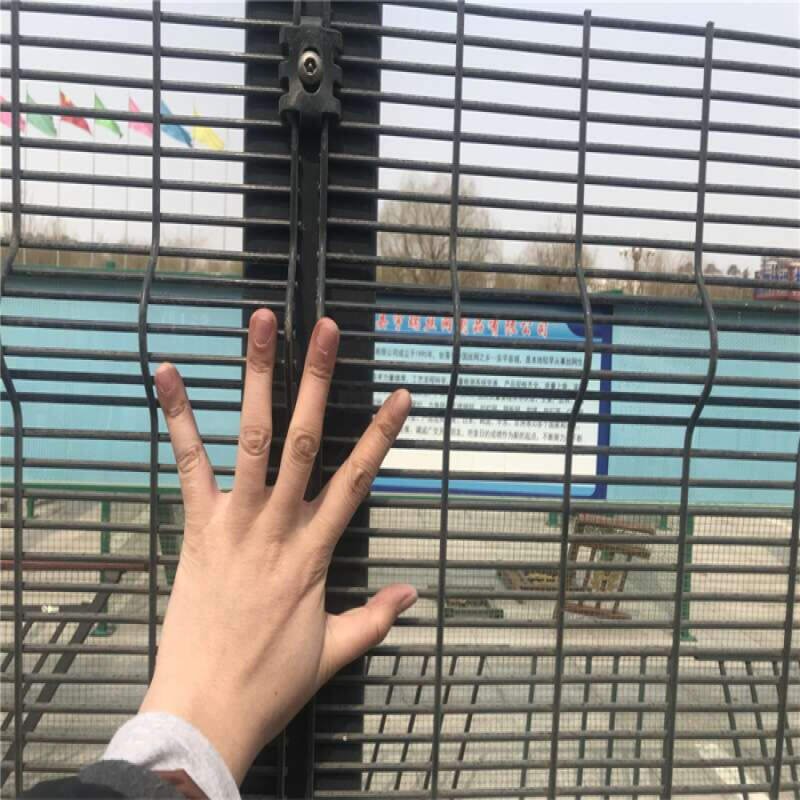

Clear View Fence Pictures of 358 Anti-Climb Mesh

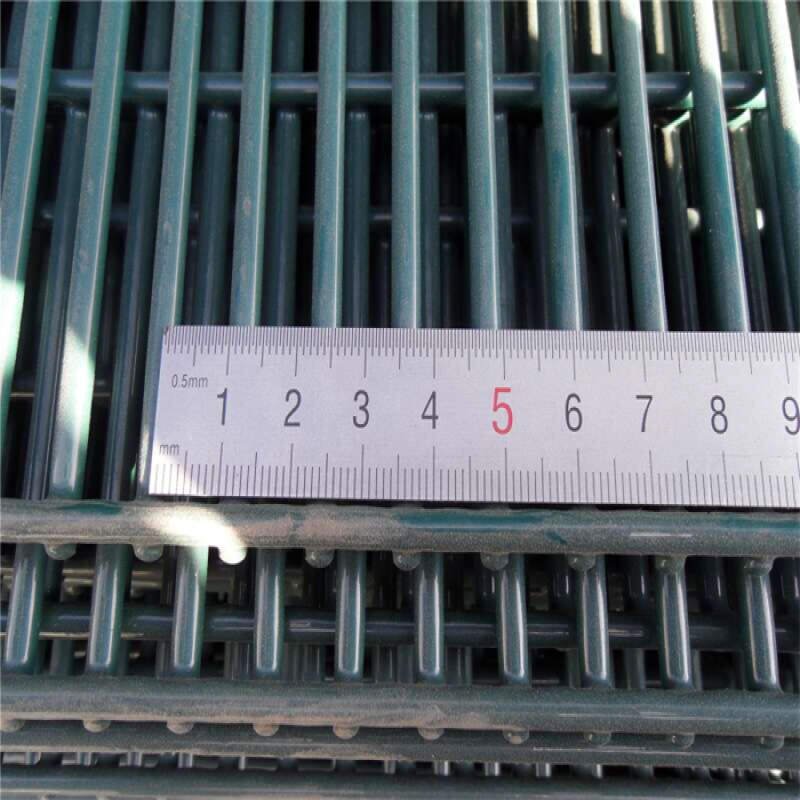

Traditional 358 fencing uses approximately 76.2 × 12.7mm wire centres. The familiar reference wire diameter measures approximately 4mm. Alternative specifications may use different diameters.

The stated spacing measures wire centres, not the unobstructed opening. Actual gaps become smaller after accounting for wire thickness. Buyers should confirm both dimensions.

Many industrial properties favour 358 Fence systems for narrow mesh geometry. Their performance still depends on complete installation details.

Medium-Density Mesh

Medium-density mesh provides an intermediate opening size. Some configurations use approximately 76 × 25mm wire centres. Material requirements depend on wire thickness and panel height.

Commercial properties may consider this option for selected boundaries. However, security requirements should guide the final choice. A site risk assessment provides useful direction.

Low-Density Mesh

Wider mesh can reduce the number of horizontal wires. This may reduce steel consumption under otherwise identical specifications. However, climbing deterrence also changes.

Low-density panels can suit general boundary applications. Buyers should consider visibility, appearance, and required security. Panel thickness remains important.

Clear View Fence Pictures: Welded Panel Designs

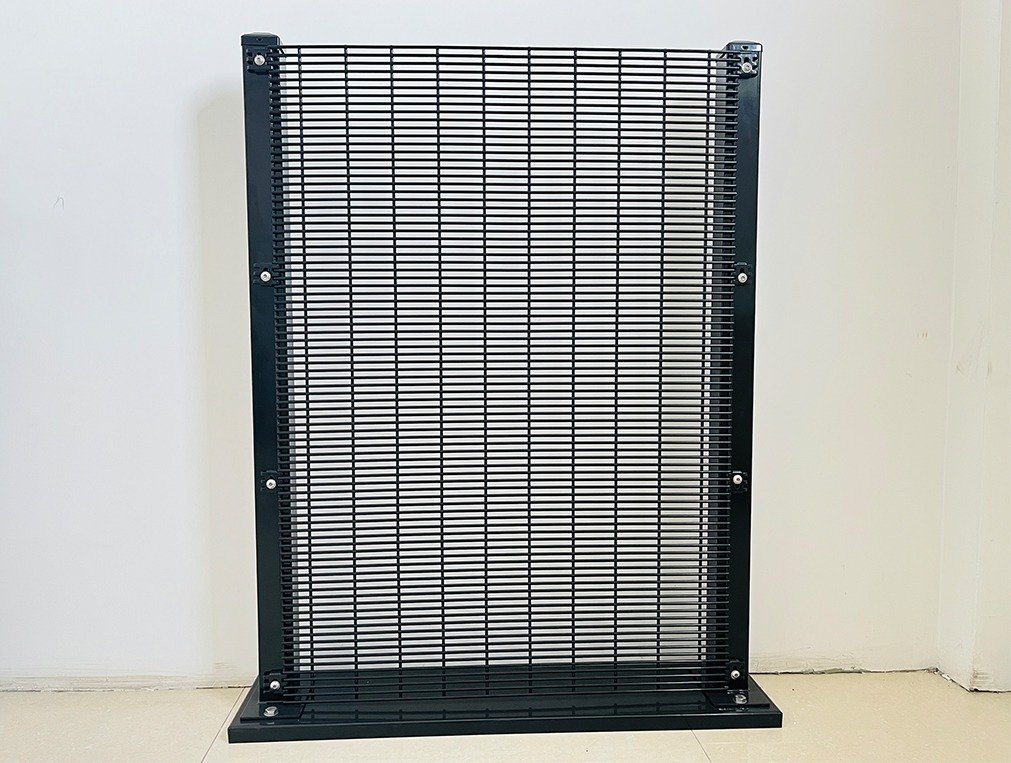

Welded panels combine horizontal and vertical steel wires. Their intersections create a consistent rectangular pattern. Panel geometry influences rigidity and installation methods.

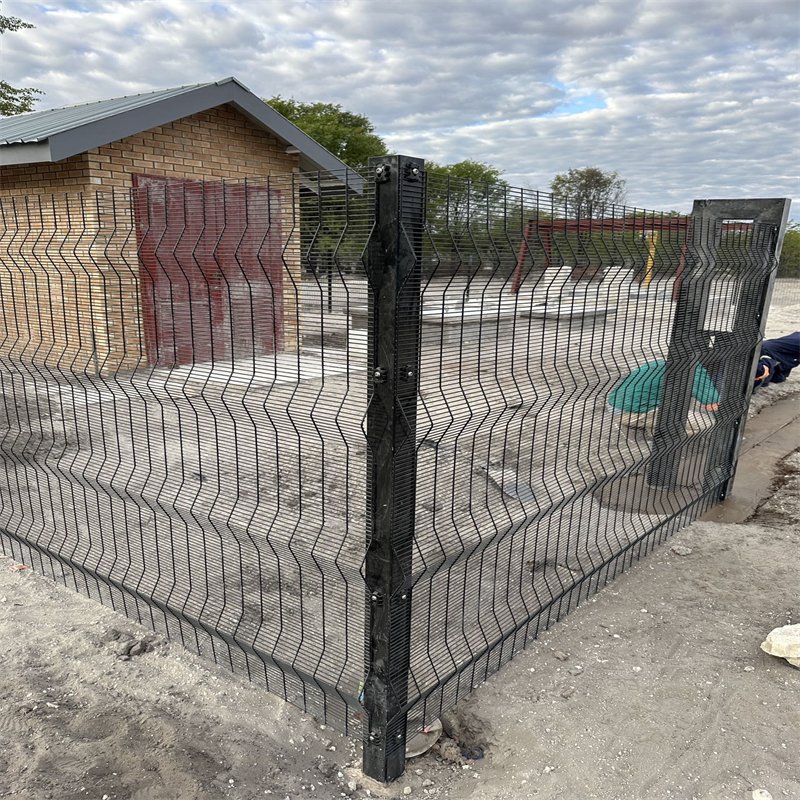

Original product reference for comparing welded mesh configurations.	Additional panel reference for checking product appearance.

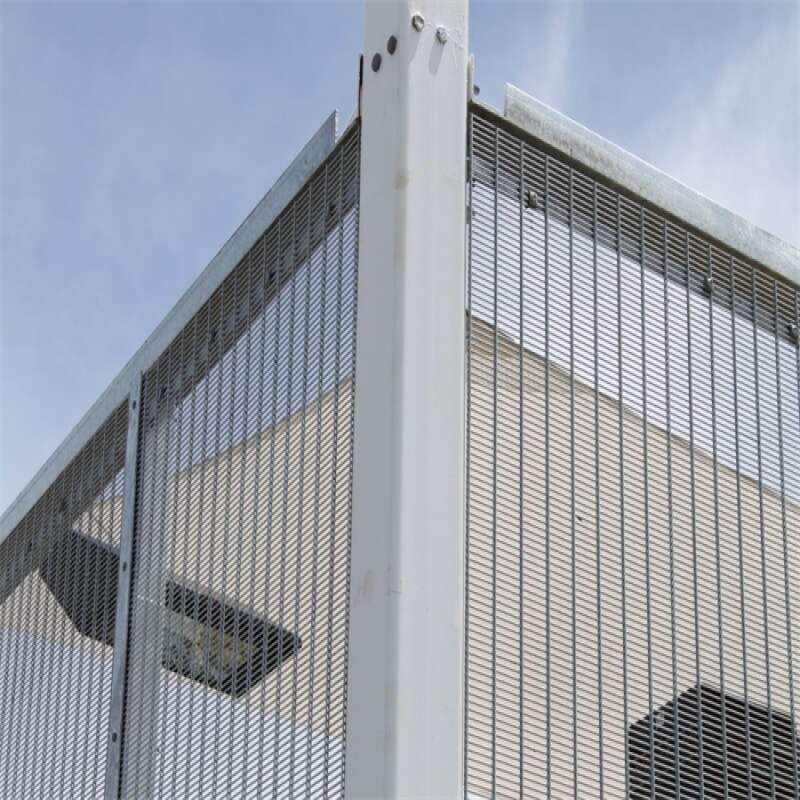

Welded mesh reference from the original product collection.	Security panel reference for reviewing available designs.

Clear View Fence Pictures of Flat Mesh Panels

Flat mesh panels maintain a consistent plane across the welded grid. Their appearance suits many modern security boundaries. However, flat geometry requires suitable structural support.

Buyers should review Clear View Mesh Fencing specifications when comparing these designs. Post spacing and connections influence overall performance.

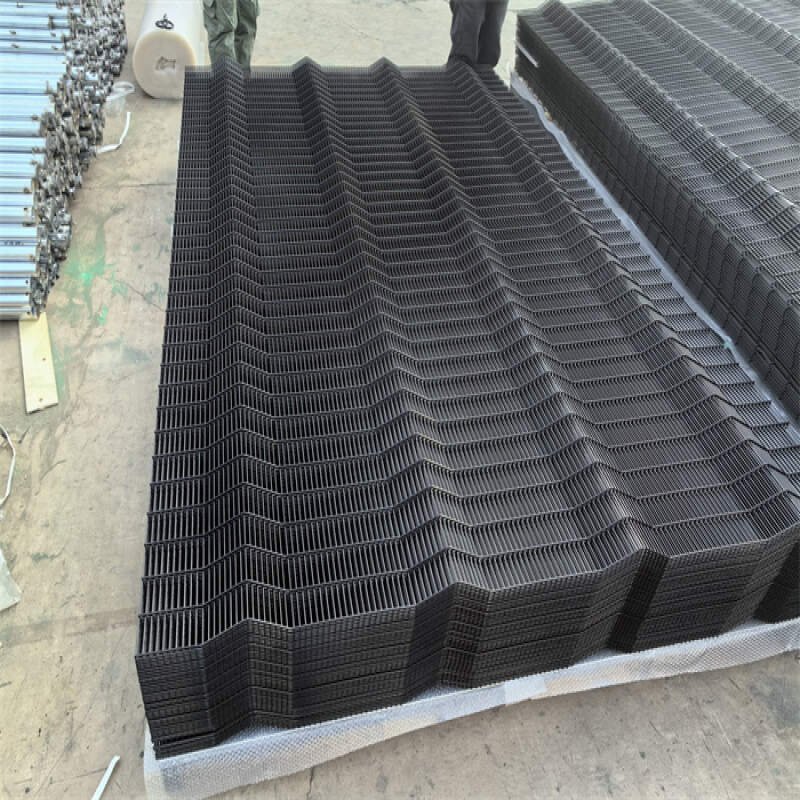

V-Bend Fence Panels

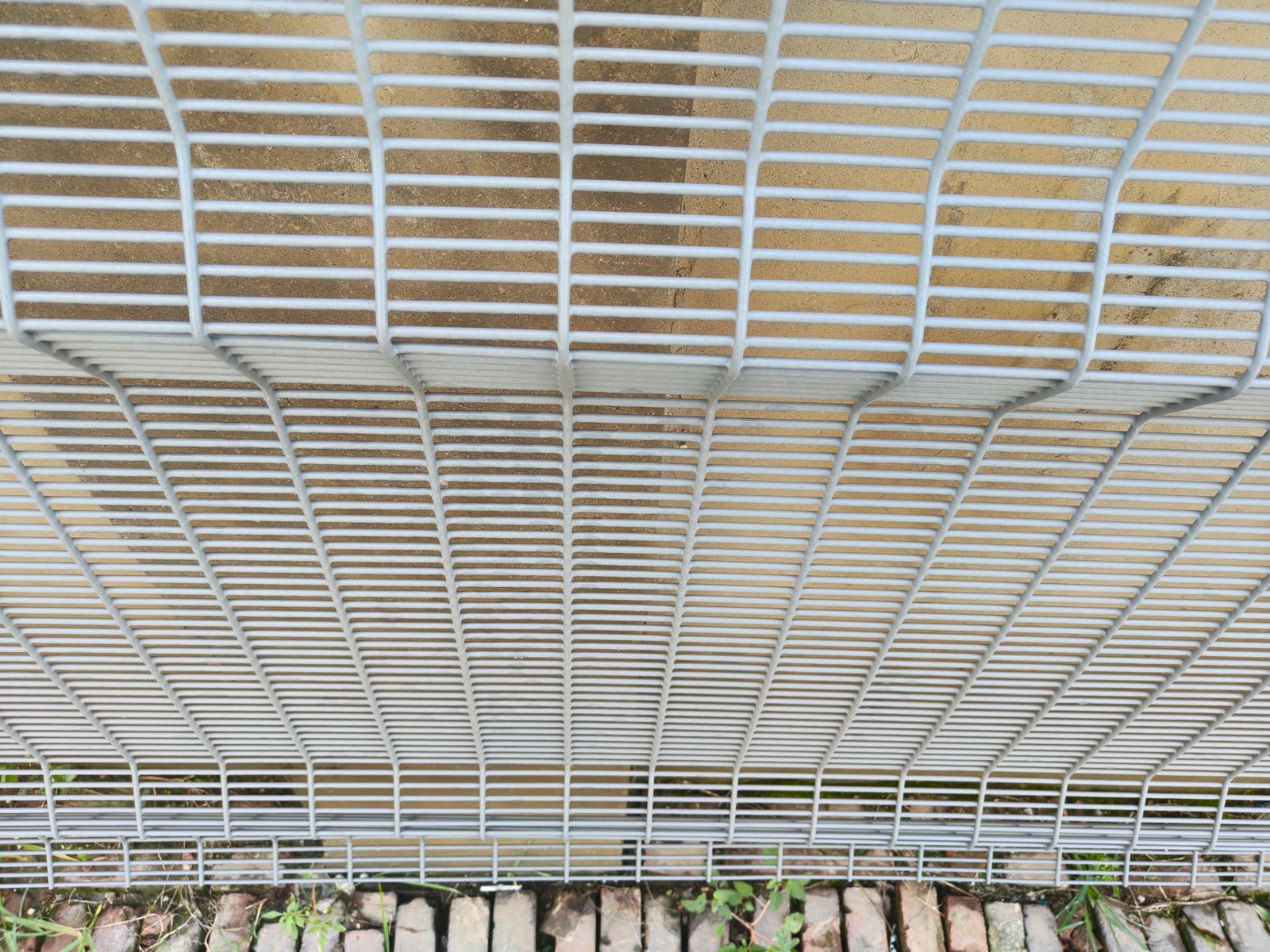

Some welded panels incorporate formed horizontal bends. These bends can improve rigidity in selected designs. Their geometry differs from traditional flat 358 mesh.

Projects using Welded Wire Mesh Fencing may require different panel profiles. Buyers should avoid treating every welded fence as identical.

Wire Diameter and Welding

Wire diameter influences steel consumption and mechanical characteristics. Manufacturers may use different horizontal and vertical wire sizes. Welding quality also affects joint reliability.

Inspect close-up photographs for consistent intersections. However, appearance alone cannot verify weld strength. Relevant testing provides stronger evidence.

Clear View Fence Pictures: Additional Panel Gallery

The next collection continues the original product photographs. These images help visitors compare available configurations before discussing dimensions with suppliers.

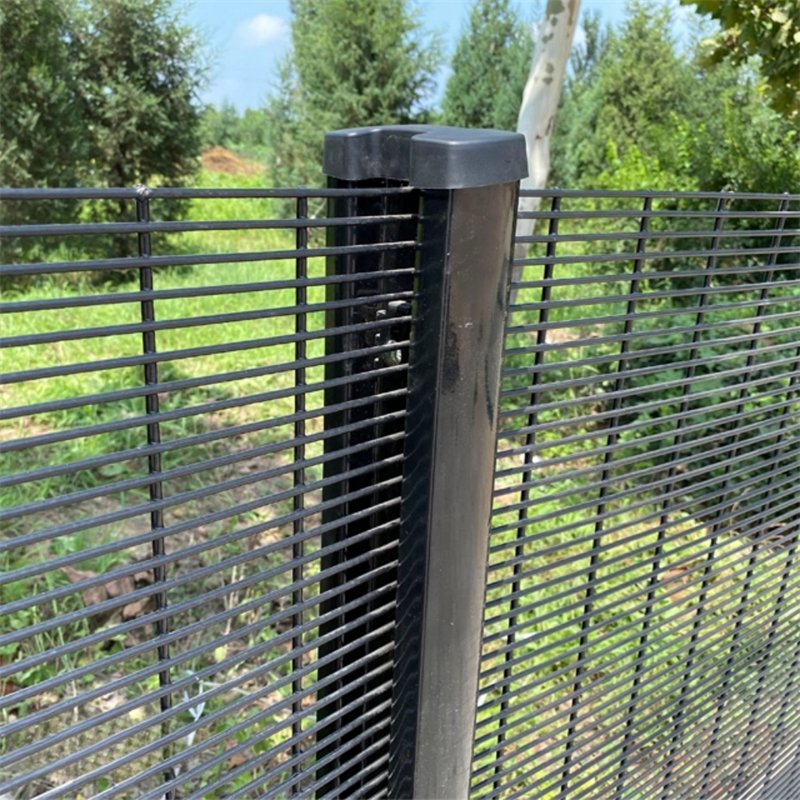

Additional Clear View fencing product reference.	Mesh panel reference for visual comparison.
Product photograph for reviewing perimeter fencing options.	Final reference from the original mesh product collection.

Clear View Fence Pictures: Panel Dimensions

Panel dimensions influence product selection and installation planning. Height affects material consumption and structural loading. Width determines the number of panels along a boundary.

These figures represent possible product configurations, not universal stock dimensions. Manufacturers should confirm availability. Engineering requirements may limit certain combinations.

Clear View Fence Pictures and Panel Width

Wider panels can reduce the number of intermediate posts. However, structural loading and handling requirements also change. Effective installed coverage depends on connection geometry.

Buyers can compare Clearview Fencing from China configurations during specification planning. Approved drawings should control final dimensions.

Choosing Suitable Panel Heights

Residential boundaries often use different heights from industrial facilities. Taller fences may provide additional physical separation. However, local planning requirements still apply.

Security designers should consider surrounding structures. Nearby objects may create climbing routes. Overall perimeter design matters more than height alone.

Clear View Fence Pictures: Posts and Fixings

Posts and clamps form essential parts of a complete fence. Strong panels need compatible supporting structures. Connection details influence installation quality and security.

Square and Rectangular Posts

Square steel posts offer familiar installation arrangements. Rectangular profiles provide alternative section geometry. Wall thickness and post length depend on structural requirements.

Matching posts support consistent panel alignment. Corners and gates may require stronger sections. Foundation design must reflect site conditions.

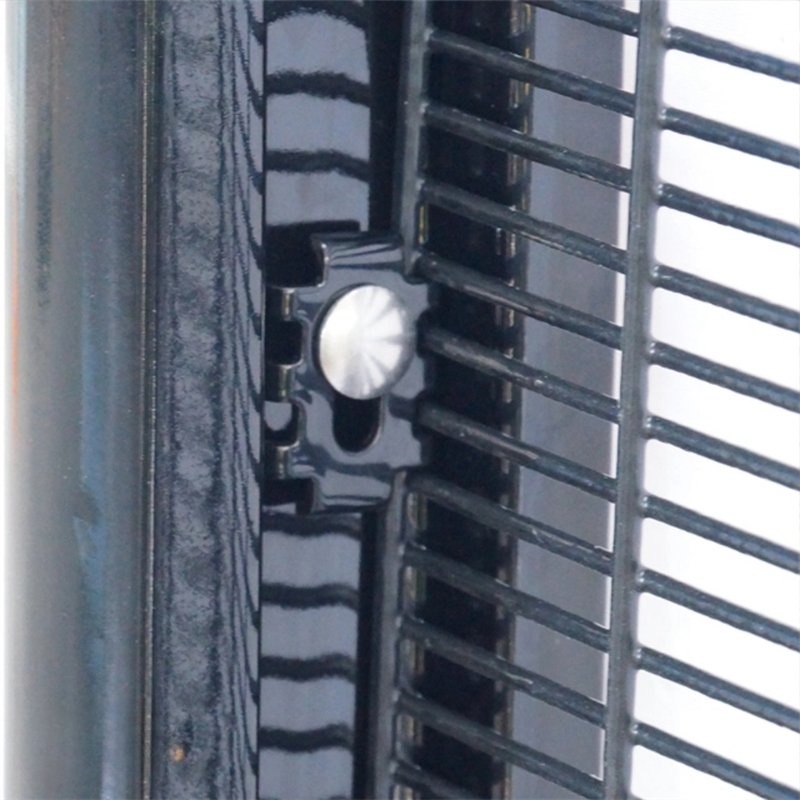

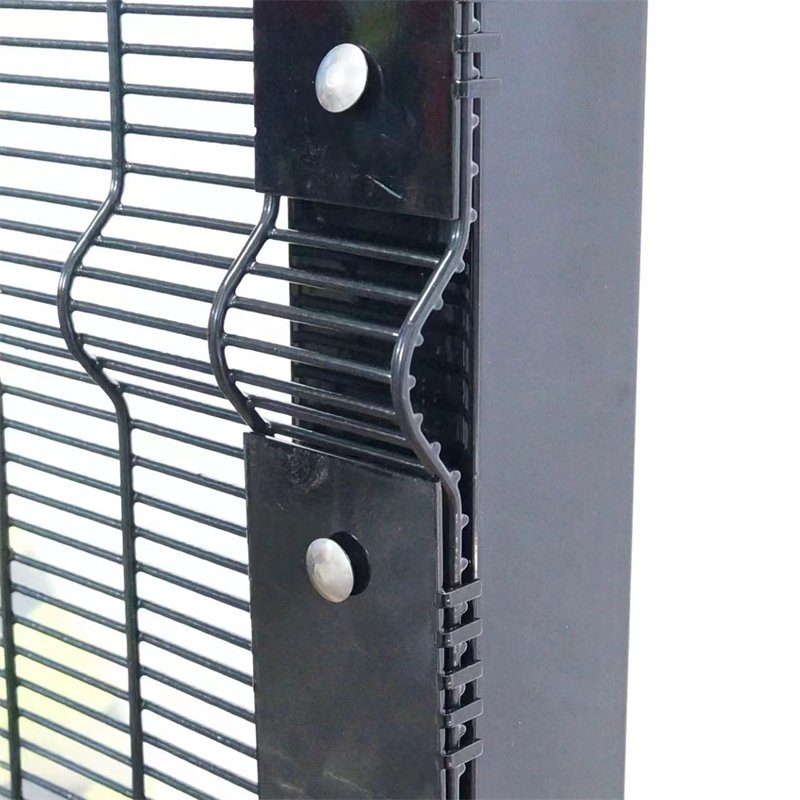

Clear View Fence Pictures of Clamp Connections

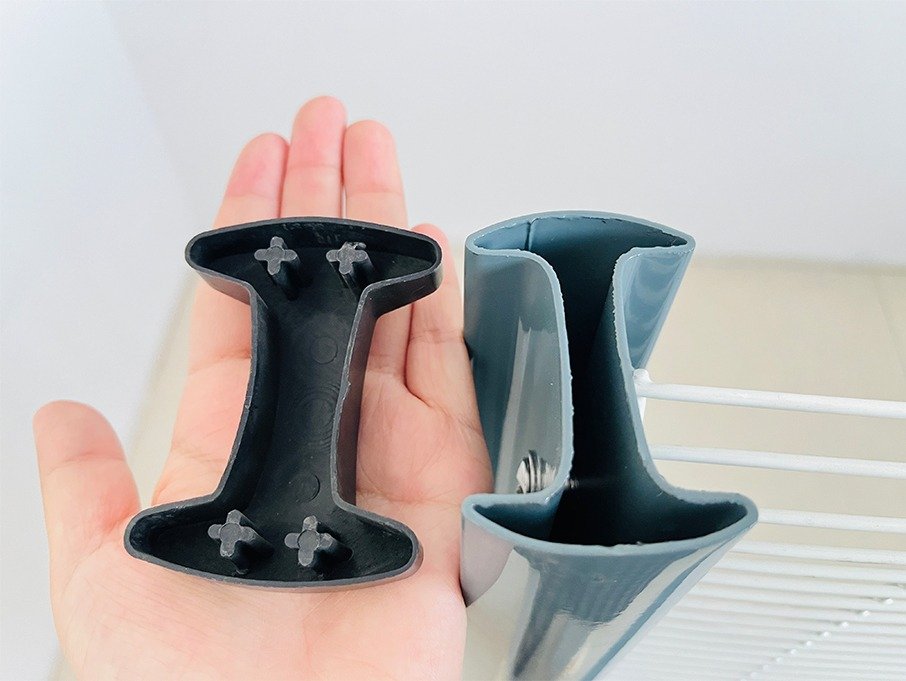

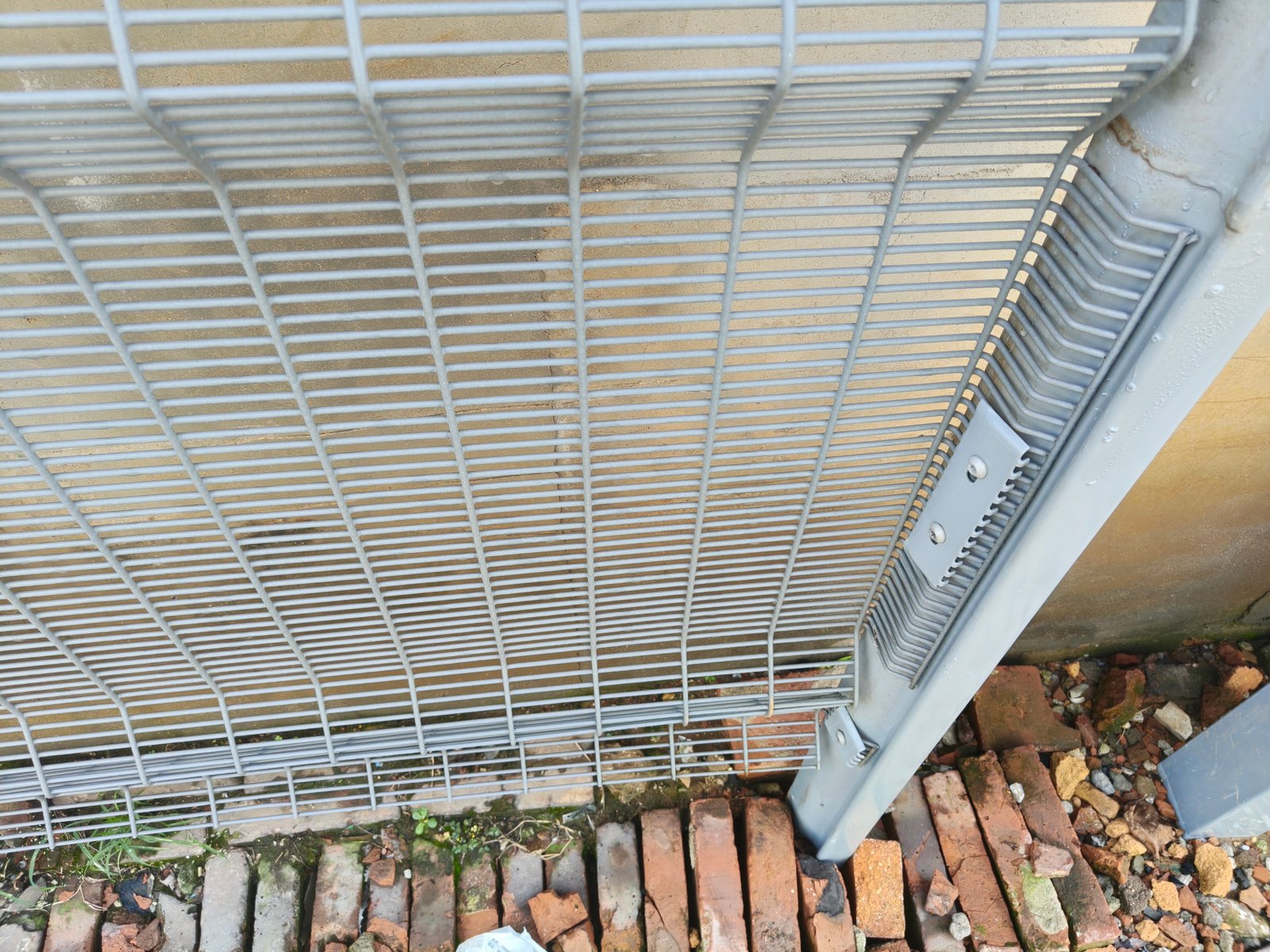

Clamps secure mesh panels to supporting posts. Some systems use short brackets. Others use continuous flat bars and multiple bolts.

Suitable Clearview Fencing Durban systems illustrate different connection arrangements. Buyers should confirm compatible fasteners.

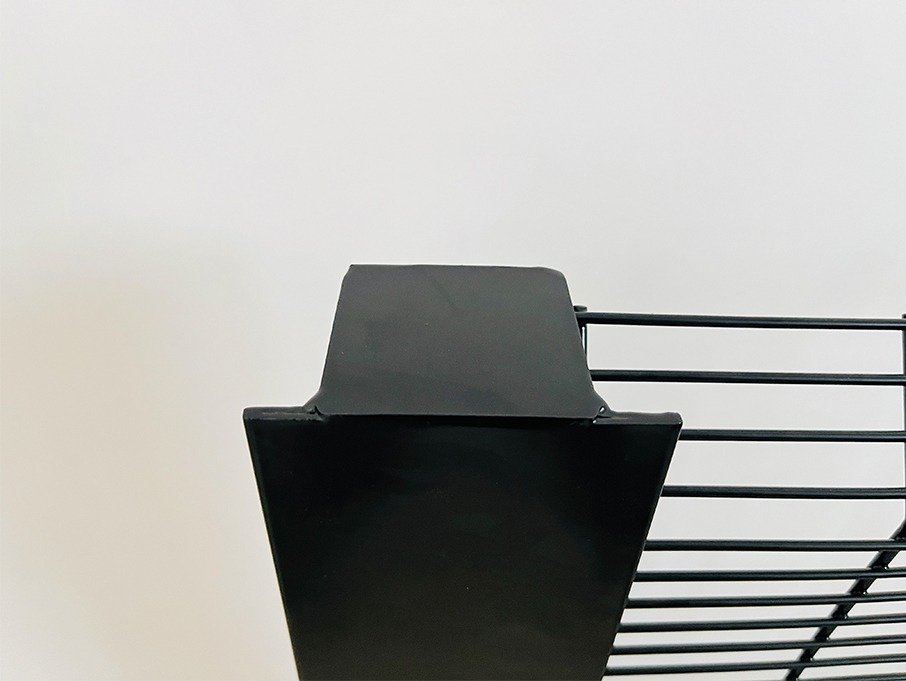

Security Bolts and Post Caps

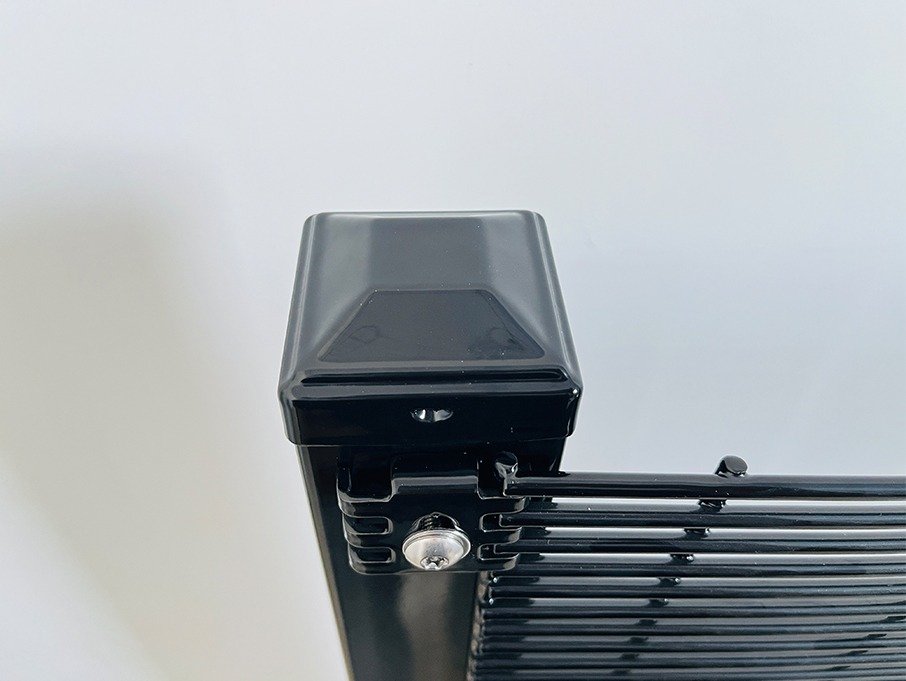

Anti-tamper bolts can discourage casual removal of panels. Post caps help reduce water entry into hollow sections. Both components deserve inspection.

Loose hardware can compromise alignment. Missing caps may expose steel interiors. Maintenance teams should check these details regularly.

Clear View Fence Pictures: Installation Examples

Installation photographs help buyers understand finished fence lines. Straight panels and consistent post spacing support a professional appearance. However, foundation quality requires separate verification.

The original WordPress installation gallery remains available above. It offers additional visual references for completed fencing arrangements.

Clear View Fence Pictures of Post Alignment

Accurate post positions simplify panel installation. Incorrect spacing can create connection problems. Installers should measure the boundary before excavation.

Corner locations require particular attention. Gate openings also affect the post schedule. Detailed site drawings reduce mistakes.

Concrete Foundations

Concrete foundations transfer fence loads into the ground. Their dimensions depend on soil and structural requirements. No universal foundation depth suits every site.

Engineers should review demanding installations. Existing slabs may need additional checks. Suitable drainage supports long-term stability.

Installation on Sloping Ground

Uneven terrain creates alignment challenges. Stepped installation can leave gaps beneath panels. Custom sections may improve the finished arrangement.

Installers should survey changes in elevation. Additional posts may increase material quantities. Planning helps prevent unexpected modifications.

Clear View Fence Pictures: Security Benefits

Clear View fencing combines physical separation with visibility. Security teams can observe activity through the mesh. However, complete protection requires additional measures.

Climbing Deterrence

Narrow mesh openings restrict convenient handholds. Taller panels may create additional climbing difficulty. However, nearby structures can reduce these benefits.

Property owners should inspect the entire boundary. Remove accessible climbing aids where practical. Consider compatible security toppings when appropriate.

Clear View Fence Pictures and CCTV Visibility

Open mesh allows cameras to observe areas beyond the boundary. This supports surveillance planning. However, camera placement and lighting remain important.

Vegetation may obstruct sightlines. Corners can create blind spots. Security teams should test camera coverage after installation.

Additional Security Features

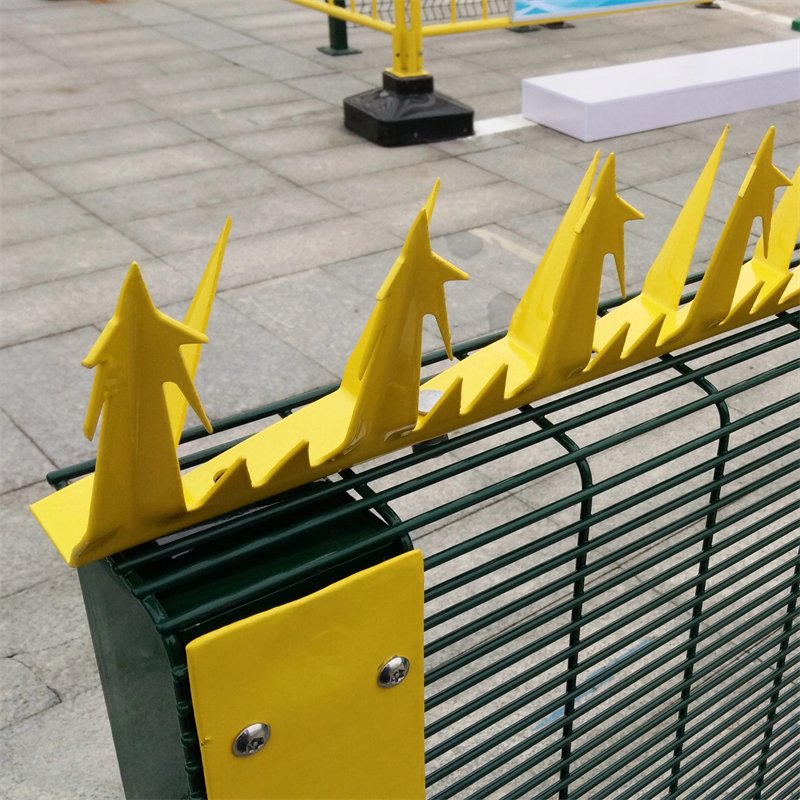

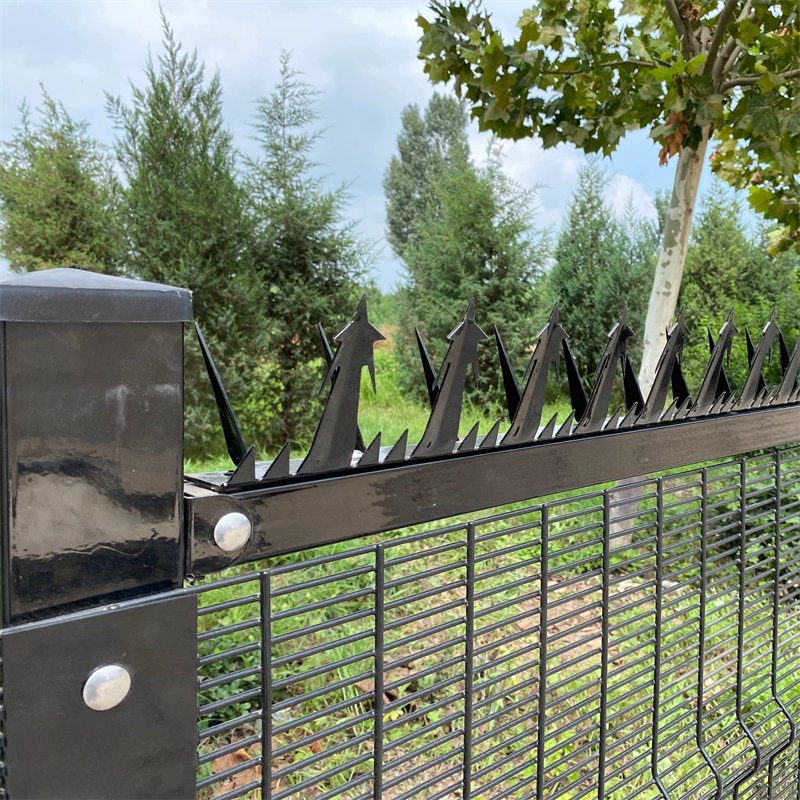

Some projects require anti-climb toppings or under-dig protection. Others use alarms and controlled gates. These components serve different security purposes.

Buyers should assess local requirements. Safety considerations may restrict certain additions. Qualified designers should approve complex systems.

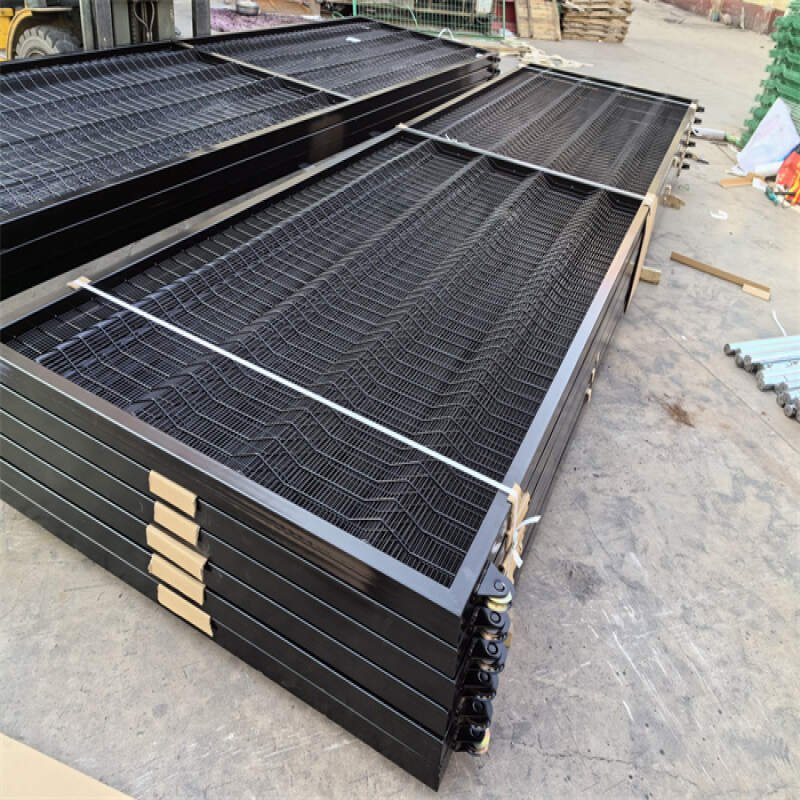

Clear View Fence Pictures: Vehicle and Pedestrian Gates

Gate design influences daily access and perimeter security. Pedestrian gates serve personnel movement. Vehicle gates accommodate larger openings and different operating loads.

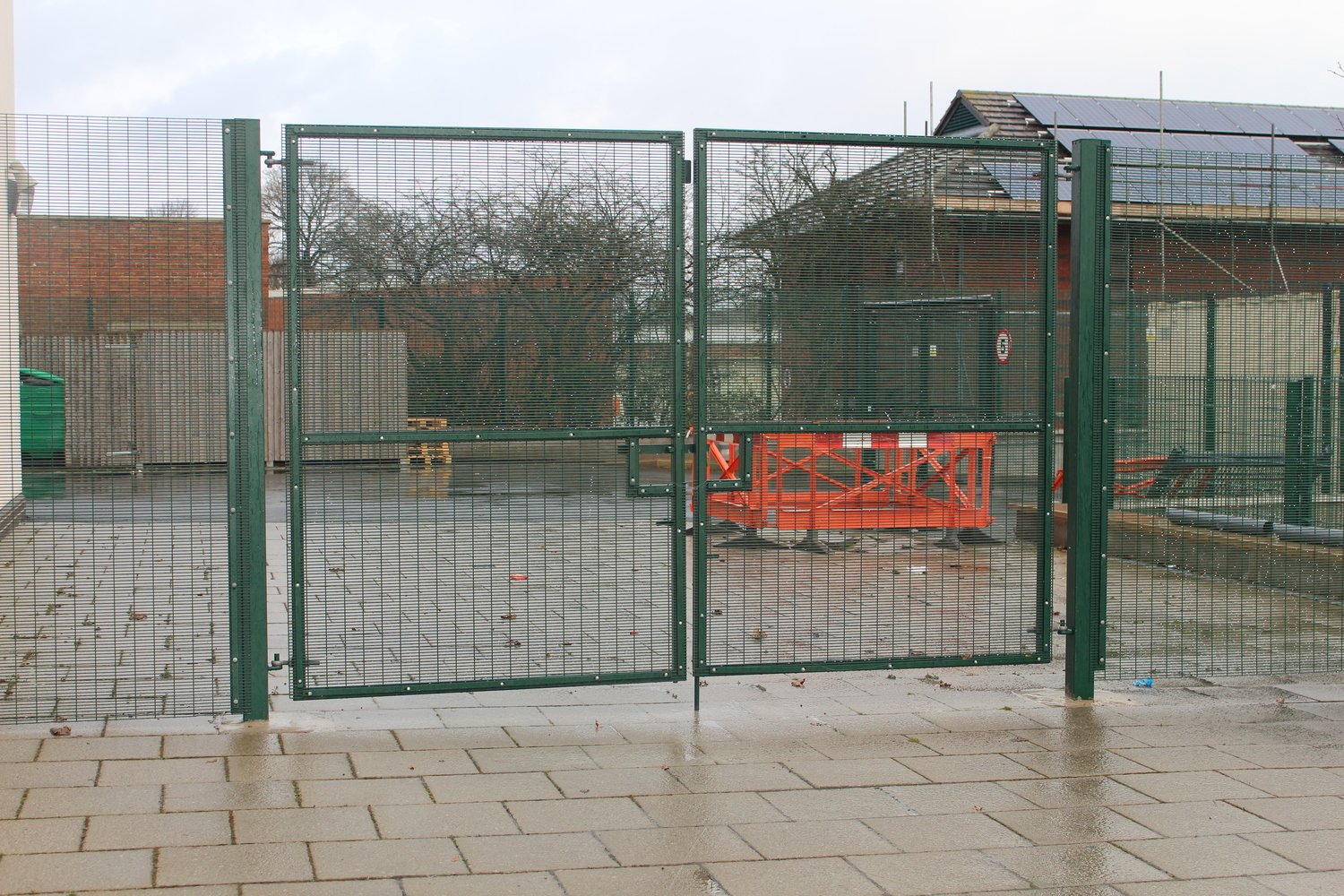

Vehicle gate reference for commercial and industrial entrances.

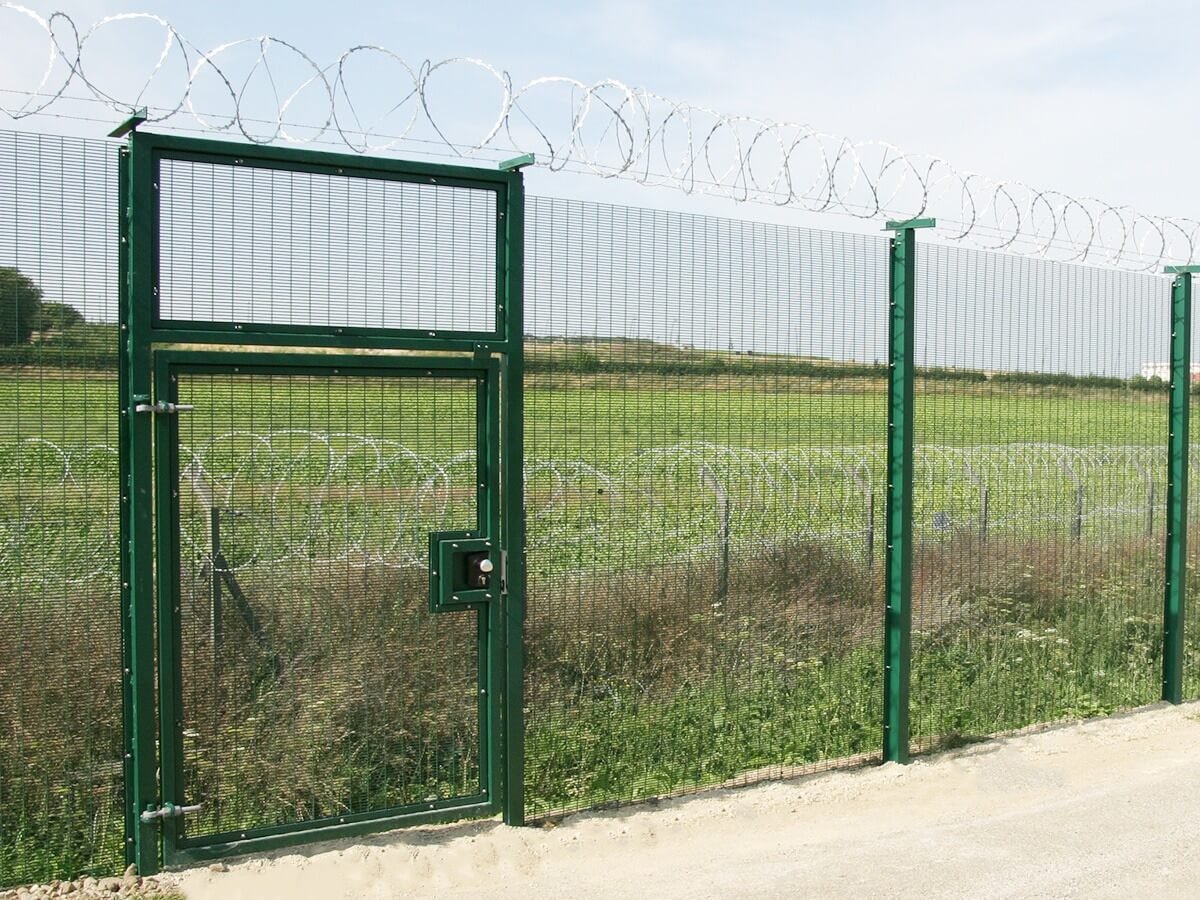

Pedestrian gate reference for controlled personnel access.

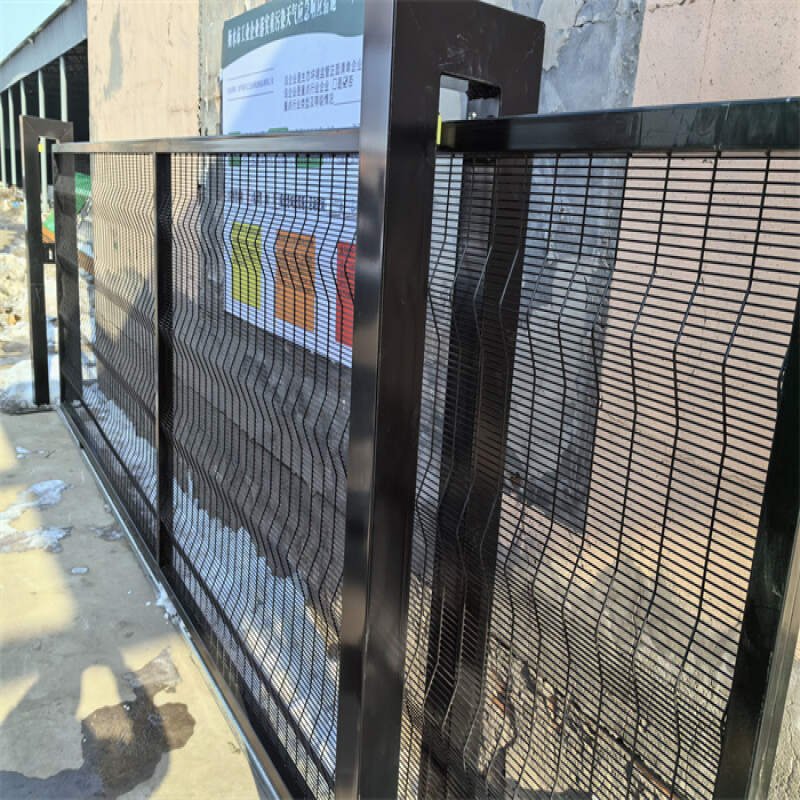

Electric sliding gate reference for vehicle entrance planning.

Clear View Fence Pictures of Swing Gates

Swing gates provide access through hinged leaves. Their design requires sufficient operating space. Supporting posts must accommodate gate loads.

Buyers should specify opening direction. Vehicle dimensions influence entrance width. Suitable locking arrangements support security.

Pedestrian Gate Design

Pedestrian gates help control daily personnel access. Locks and hinges must match operational requirements. Their frames should complement surrounding panels.

Security teams should review entrance visibility. Lighting can improve monitoring. Routine maintenance supports reliable operation.

Electric Sliding Gates

Sliding gates can suit selected vehicle entrances. Automated systems require compatible motors and safety devices. Ground conditions influence installation.

Buyers should confirm gate weight and operating requirements. Qualified technicians should assess automation. Appropriate maintenance helps prevent interruptions.

Clear View Fence Pictures: South African Applications

South African properties experience different security risks and environmental conditions. Product selection should reflect local requirements. Climate and access patterns influence complete system design.

Durban Coastal Properties

Durban's coastal environment exposes outdoor steel to moisture and airborne salts. Suitable corrosion protection becomes particularly important. Industrial sites may face additional environmental exposure.

Warehouses near transport corridors also need reliable access control. Open mesh supports perimeter observation. Gate design should accommodate operational traffic.

Clear View Fence Pictures for Cape Town

Cape Town combines coastal exposure with strong winds in many locations. Fence structures require suitable engineering. Protective coatings should reflect site conditions.

Properties near the sea may experience faster corrosion than sheltered inland sites. Regular inspection helps identify coating damage. Appropriate maintenance supports durability.

Johannesburg Commercial Security

Johannesburg contains warehouses, factories, offices, and residential developments. Different properties face different access risks. Security planning should reflect the site.

Industrial buyers may compare ClearVu Fence Johannesburg specifications. Complete systems should include suitable gates and hardware.

Pretoria Residential Estates

Pretoria residential developments often value visibility and appearance. Open fencing can complement landscaped boundaries. Controlled entrances support estate management.

Summer thunderstorms may affect exposed equipment. Gate motors and cameras need appropriate protection. Routine inspections help maintain reliable operation.

Clear View Fence Pictures: Coating and Colour Selection

Protective coatings influence appearance and corrosion resistance. Galvanised steel provides zinc-based protection. Compatible powder coating adds colour and another protective layer.

Galvanised Finish

Galvanising methods differ by manufacturing process. Pre-galvanised wire and post-fabrication galvanising require different specifications. Buyers should confirm the actual treatment.

Damaged coatings may need repairs. Environmental exposure influences maintenance requirements. Technical documents should identify relevant standards.

Clear View Fence Pictures of Powder-Coated Systems

Powder coating offers different colours and finishes. Green RAL 6005 and black RAL 9005 remain common choices. Custom colours may suit architectural projects.

However, colour alone cannot establish coating quality. Buyers should confirm pretreatment and thickness. Approved samples help prevent colour differences.

Coastal Corrosion Protection

Salt-laden air can accelerate steel corrosion. Coastal projects may require enhanced protective systems. Maintenance planning remains essential.

Buyers should review Clear View Fencing South Africa coating options. Final selection should reflect actual exposure.

Clear View Fence Pictures: Manufacturing and Quality Checks

Manufacturing quality influences product consistency. Accurate welding maintains mesh geometry. Proper handling helps preserve finished surfaces.

Wire Measurement

Manufacturers should verify wire diameter against the approved specification. Measuring instruments provide objective evidence. Photographs alone cannot establish precise dimensions.

Buyers may request inspection reports. Consistent material records support traceability. Relevant certificates help verify specified requirements.

Clear View Fence Pictures and Coating Inspection

Coating photographs can reveal obvious surface defects. However, thickness measurements require suitable instruments. Inspection procedures should follow the agreed specification.

Manufacturers should check damaged edges and weld intersections. Packaging must protect finished products. Buyers should review inspection requirements before production.

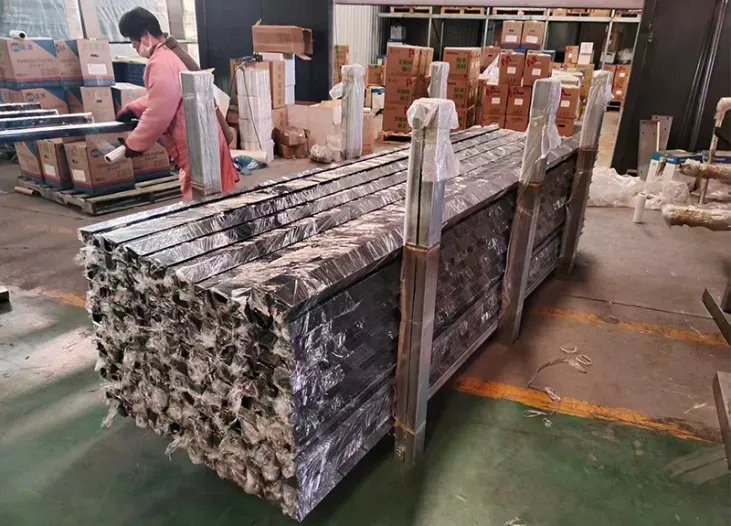

Export Packaging

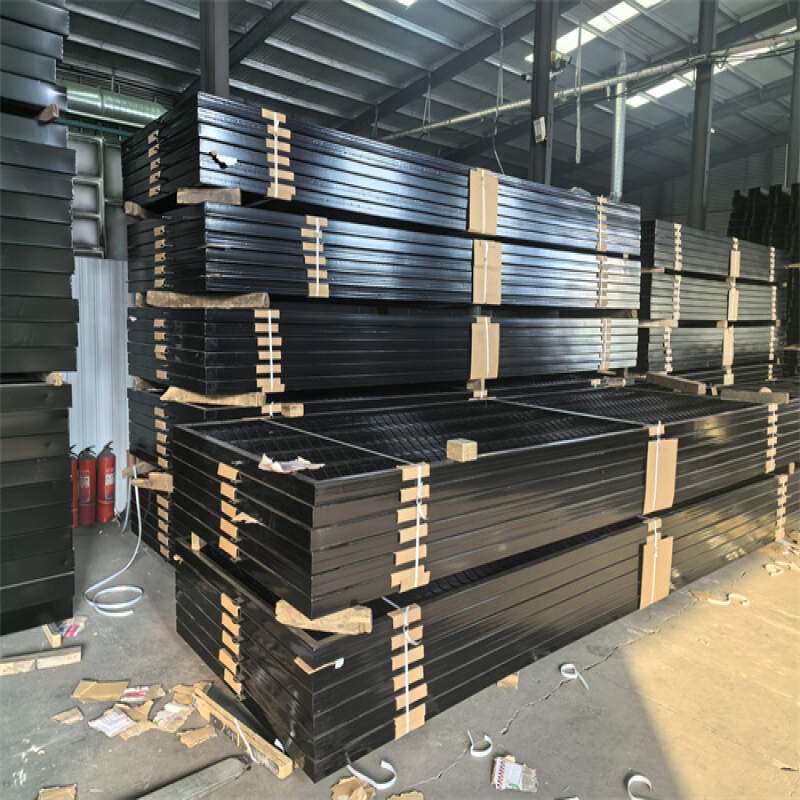

Steel pallets support organised panel transport. Protective separators help reduce coating damage. Accessory cartons keep smaller components together.

Factories should provide accurate packing lists. Container loading must respect weight limits. Proper unloading helps preserve product quality.

Clear View Fence Pictures: Choosing the Right Supplier

Reliable suppliers provide more than attractive photographs. Technical drawings, component schedules, and coating details support accurate purchasing. Buyers should confirm production capabilities.

Factory Product Range

Manufacturers may supply panels, posts, clamps, and matching gates. Coordinated components simplify installation. Custom dimensions require written approval.

Buyers can compare Clear Vu Fence configurations when planning complete systems. Every quotation should identify included components.

Clear View Fence Pictures and Technical Drawings

Photographs explain appearance, while drawings establish dimensions. Both documents serve important purposes. Buyers should never rely on pictures alone.

Approved drawings reduce production misunderstandings. Component schedules clarify quantities. Written specifications help contractors plan installation.

Manufacturer Warranty

BMP offers a 15-year manufacturer warranty for its ClearVu and Clearview fencing products, subject to written terms. Customers should review applicable conditions.

Coating maintenance remains important. Buyers should retain purchase records. Regular inspections support long-term performance.

Clear View Fence Pictures: Temporary and Permanent Fencing

Permanent security fencing differs from portable construction barriers. Each system serves a different purpose. Buyers should identify the intended application.

Construction sites often use Temporary Fencing Panels during building work. Compatible Temporary Fence Blocks support portable installations.

Contractors can also arrange Temporary Fence Gates for site access. Permanent Clear View fencing requires separate structural planning.

Clear View Fence Pictures: Buyer Comparison Checklist

A useful photo gallery should answer practical purchasing questions. Buyers should inspect several product details before requesting quotations.

• Compare high-density and low-density mesh photographs.
• Confirm horizontal and vertical wire centres.
• Request actual wire diameter measurements.
• Check panel height and width through drawings.
• Review post profiles and wall thickness.
• Inspect clamps, security bolts, and post caps.
• Compare galvanised and powder-coated finishes.
• Examine pedestrian, swing, and sliding gates.
• Confirm installation and foundation requirements.
• Request packing photographs before shipment.

Clear View Fence Pictures for Final Approval

Customers should compare approved product images with technical drawings. Manufacturing teams need exact dimensions. Installation contractors require compatible component schedules.

Clear communication helps prevent mistakes. Inspection photographs provide additional confidence. Written approvals remain essential.

Clear View Fence Pictures: Frequently Asked Questions

What Is Clear View Fencing?

Clear View fencing uses welded steel mesh for perimeter separation. Narrow openings can discourage climbing. Its open structure supports visibility.

Why Does 358 Mesh Have Narrow Openings?

Traditional 358 geometry restricts convenient handholds and footholds. However, security also depends on posts and fixings. Complete system design matters.

Can I Identify Wire Thickness From Photographs?

Photographs cannot reliably confirm wire diameter. Buyers should request measured dimensions. Inspection reports provide stronger evidence.

Are Custom Panel Sizes Available?

Manufacturers may offer custom dimensions. However, production requirements can affect availability. Buyers should submit drawings.

Which Fence Colour Works Best?

Colour selection depends on appearance and project requirements. Green and black remain popular. Coating quality matters more than colour alone.

Can Clear View Fencing Support CCTV?

Open mesh supports observation through the perimeter. However, camera positioning and lighting remain important. Security planning should consider blind spots.

Do Vehicle Gates Require Different Posts?

Gate loads differ from ordinary panel loads. Supporting posts may require stronger sections. Engineering review helps determine suitable arrangements.

Is Clear View Fencing Maintenance-Free?

No outdoor steel system remains completely maintenance-free. Coating inspections and hardware checks remain important. Coastal properties may require more frequent attention.

Can I Import Clear View Fencing From China?

Eligible buyers can arrange direct factory purchases. Shipping terms and customs requirements apply. Complete quotations should identify included components.

How Should I Compare Suppliers?

Compare identical panel specifications and accessories. Review drawings, coating requirements, and delivery terms. Photographs provide useful supporting evidence.

Clear View Fence Pictures: Final Gallery Summary

Clear View Fence Pictures offer a practical introduction to welded security mesh, supporting posts, installation methods, and matching gates. The original gallery presents multiple product configurations for visual comparison.

Dense 358 mesh suits selected demanding boundaries. Wider openings may serve general perimeter applications. Every project requires appropriate structural support.

Coastal properties need suitable corrosion protection. Urban warehouses often prioritise surveillance and access control. Residential developments may place greater emphasis on appearance.

For additional regional mesh options, ClearVu Fence Panels provide related product information. Buyers should confirm specifications before ordering.

BMP manufactures ClearVu and Clearview fencing for international projects. Contact clearvu@construction-fence.com with your drawings and requirements. Our team can prepare a detailed quotation.
