Clear View Fencing South Africa combines closely welded steel mesh with practical visibility for homes, estates, factories, and public infrastructure. BMP supplies compatible panels, posts, clamps, and gates for different site conditions. The right configuration depends on ground levels, traffic, surveillance, and the expected security risk.
South African buyers face different challenges across coastal cities, industrial corridors, and dry inland regions. A fence should protect the boundary without blocking necessary observation or emergency access. Effective security also requires appropriate gates, lighting, monitoring, and a reliable response plan.

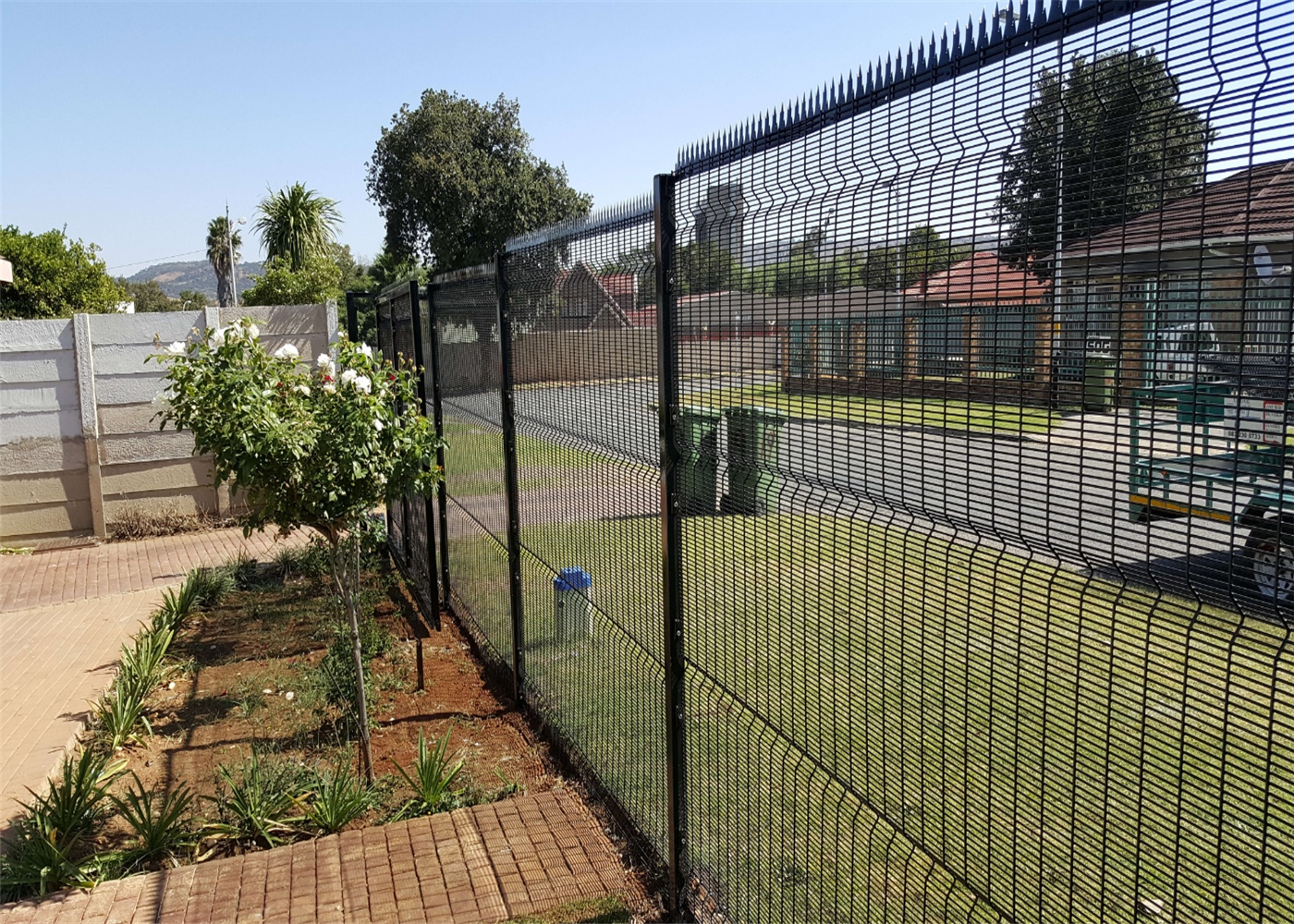

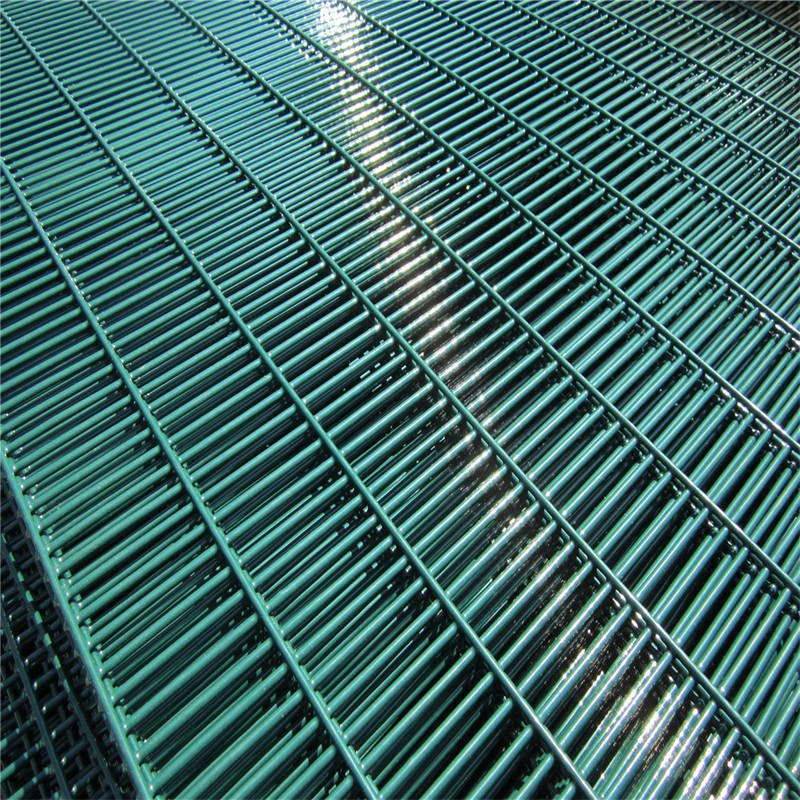

Many buyers prefer Clear View Fence Panels where solid masonry would conceal activity behind a boundary. Small mesh openings discourage convenient handholds while allowing useful views through the grid. No fence alone can guarantee protection against every intrusion attempt.
 |

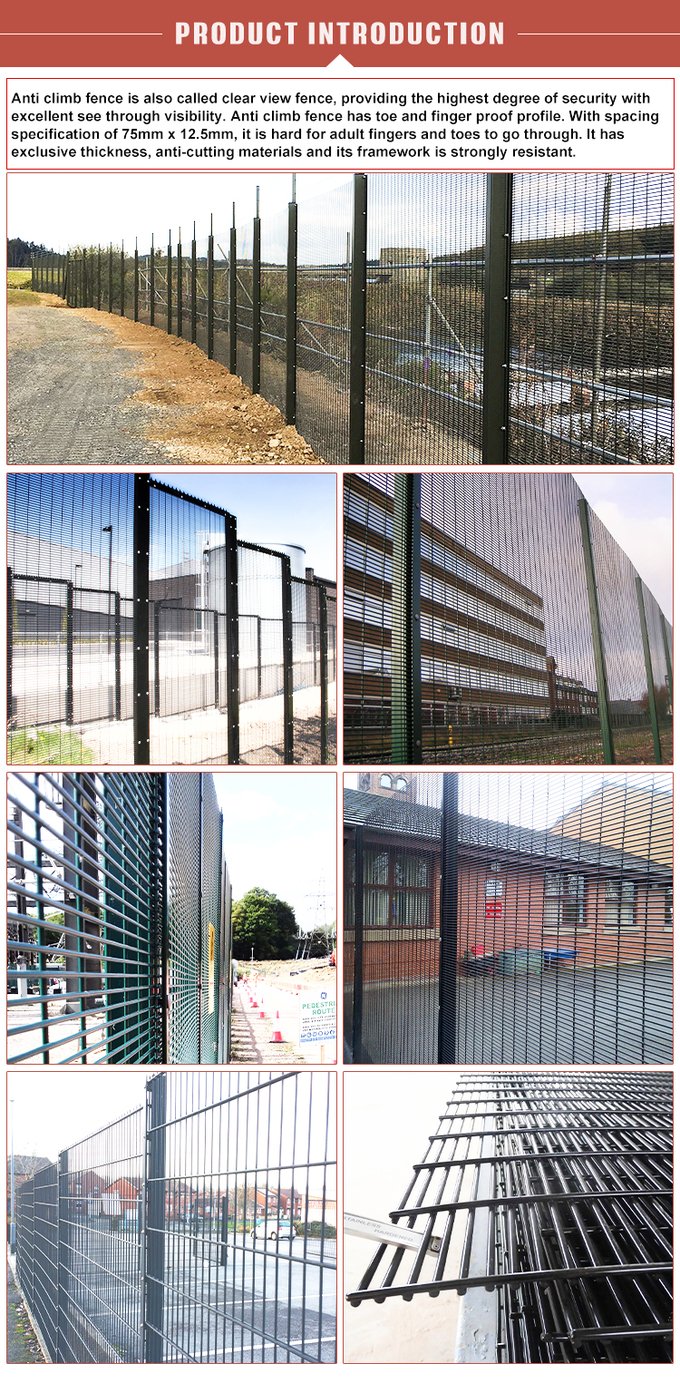

| Original BMP image: review the panel construction and associated details against the approved project drawing. |
Statistics South Africa reported more than 1.5 million household housebreaking incidents during its 2025/26 reporting period. That national estimate does not predict crime at any individual address. Site managers should examine local conditions before selecting physical security measures.
Commercial projects may prioritise protected stock, monitored loading bays, and separated staff entrances. Residential estates often need visibility along footpaths and common gardens. Utilities require controlled access for authorised maintenance personnel.
The original BMP catalogue distinguishes 3D, 2D, and 2D Plus panel families. It supplies dimensional values for 3D but leaves the other two columns unspecified. Those gaps must remain open until a model drawing identifies the actual products.

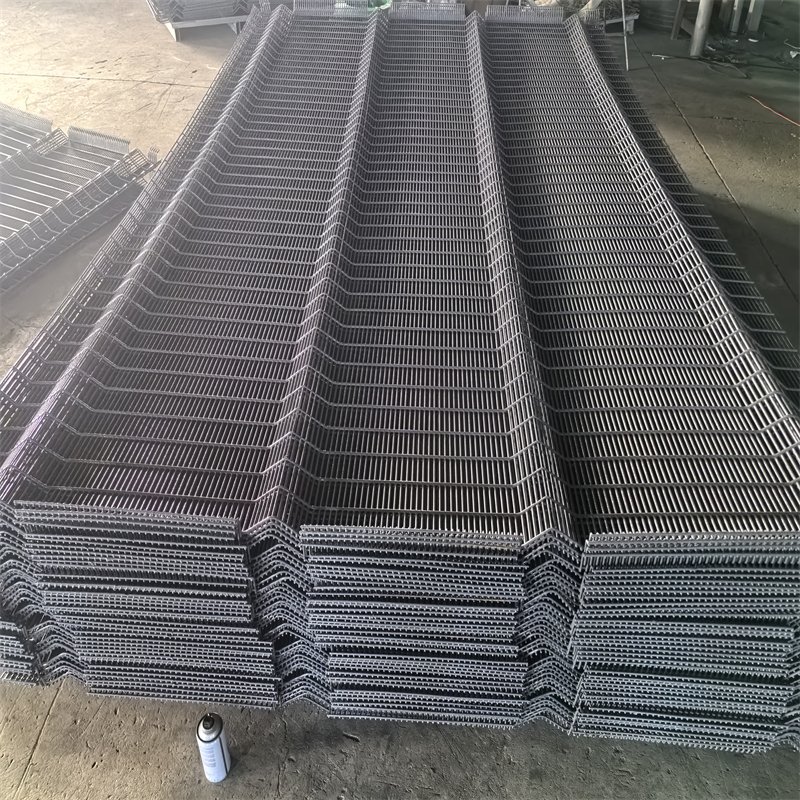

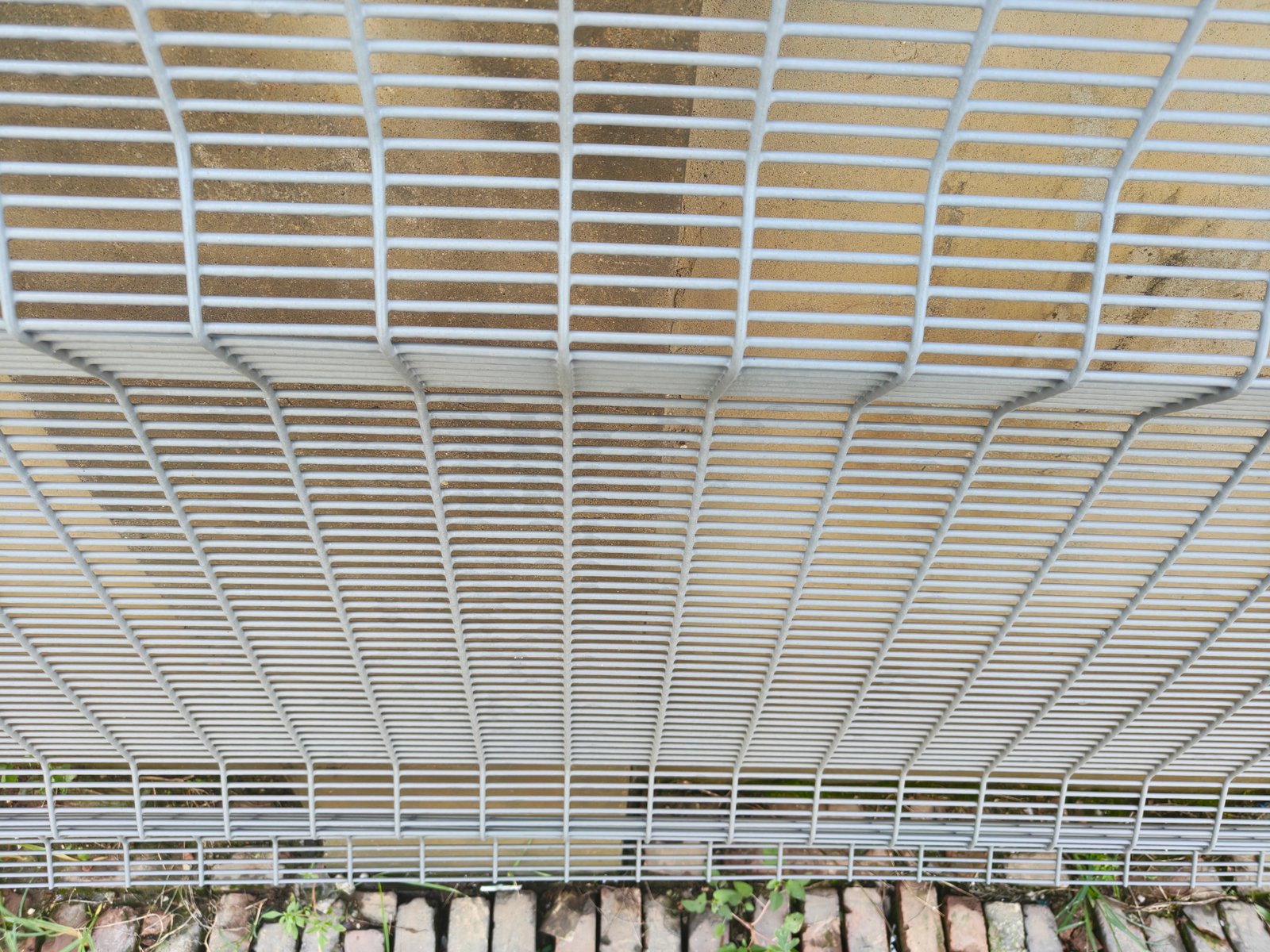

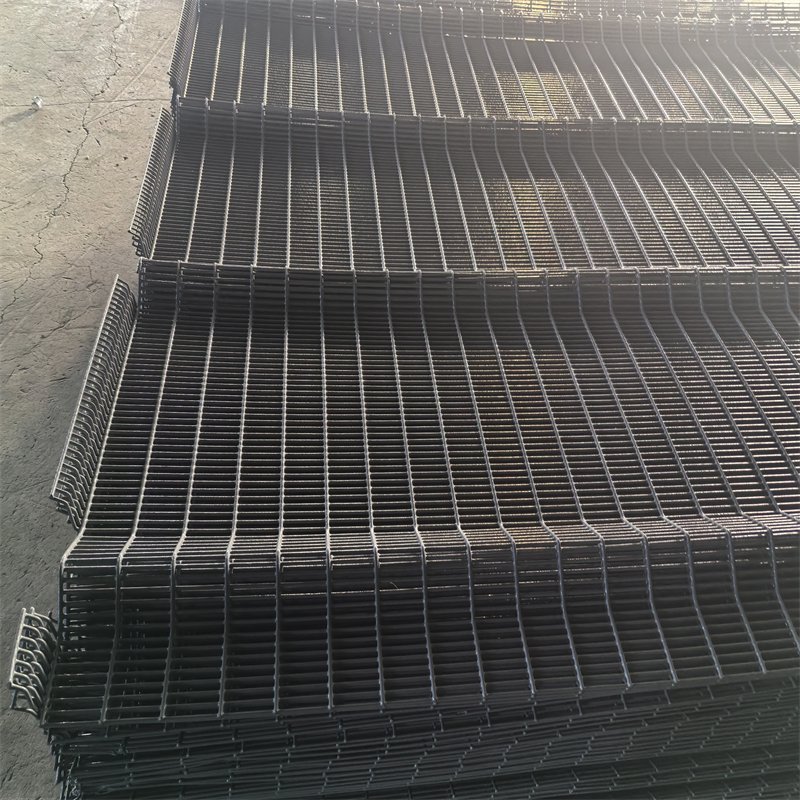

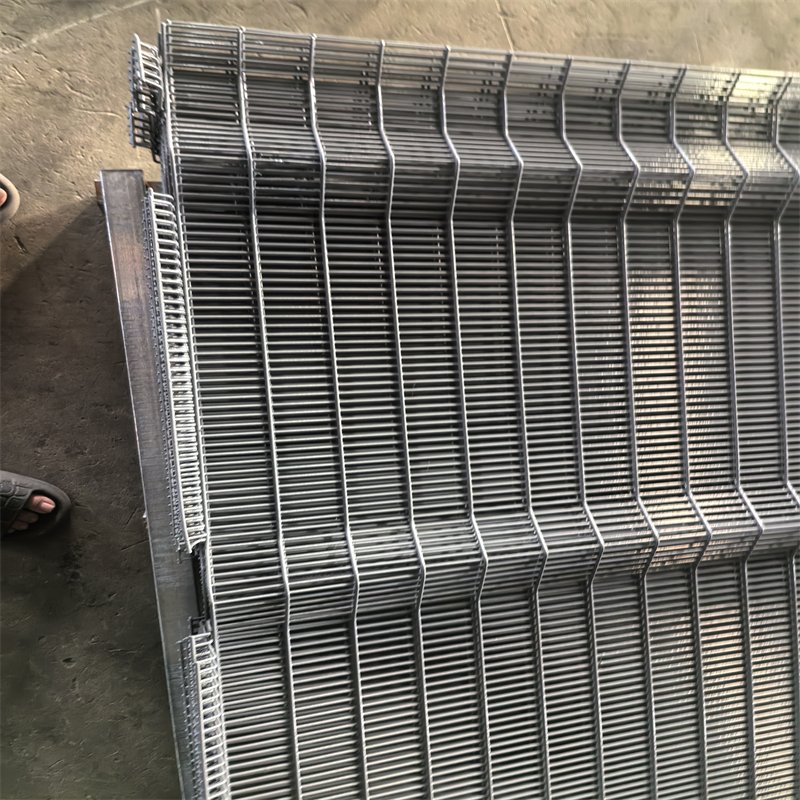

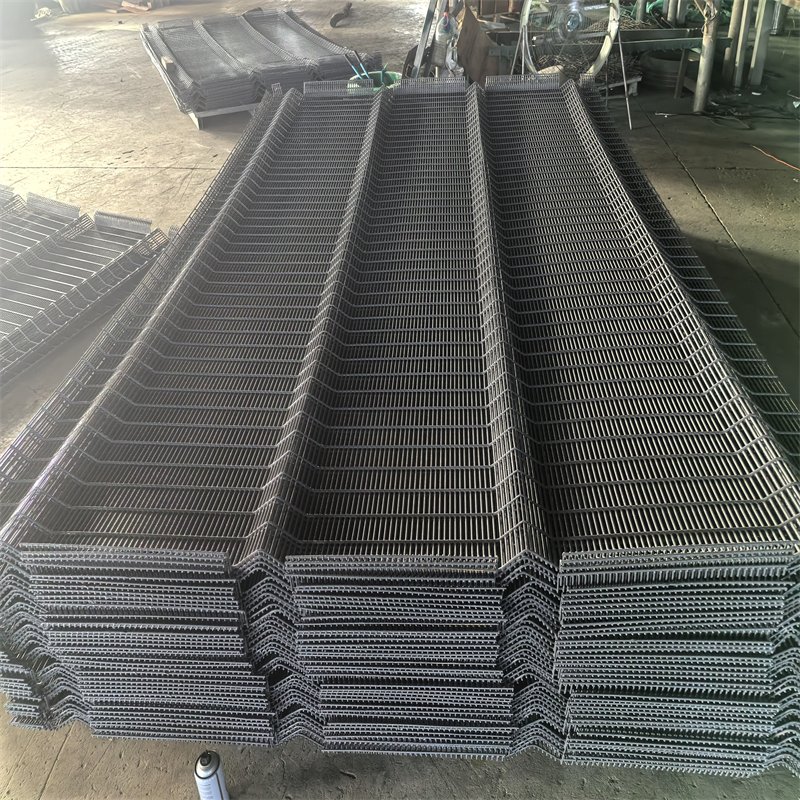

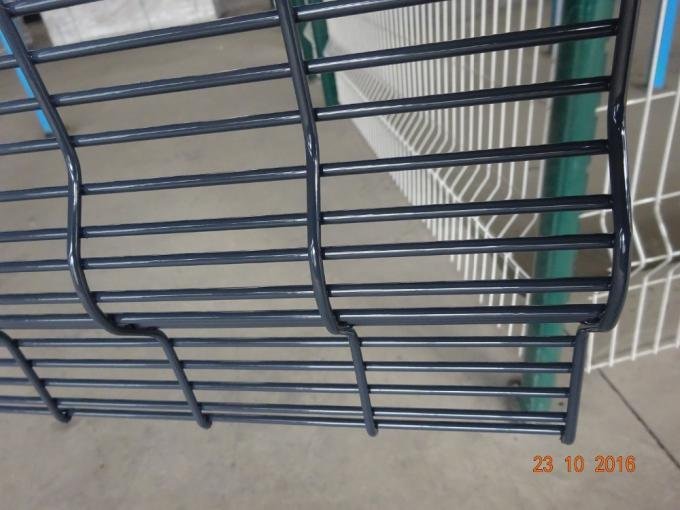

Three-dimensional panels contain formed folds that change sheet stiffness and appearance. Flat 2D mesh does not rely on those folds. A 2D Plus designation needs its own manufacturer's specification rather than an assumed universal construction.
The supplied 3D mesh options include three centre-spacing combinations and several wire pairs. These centre distances differ from the remaining clear aperture. For example, a 12.7 mm pitch crossing 4 mm wire leaves approximately 8.7 mm before coating.

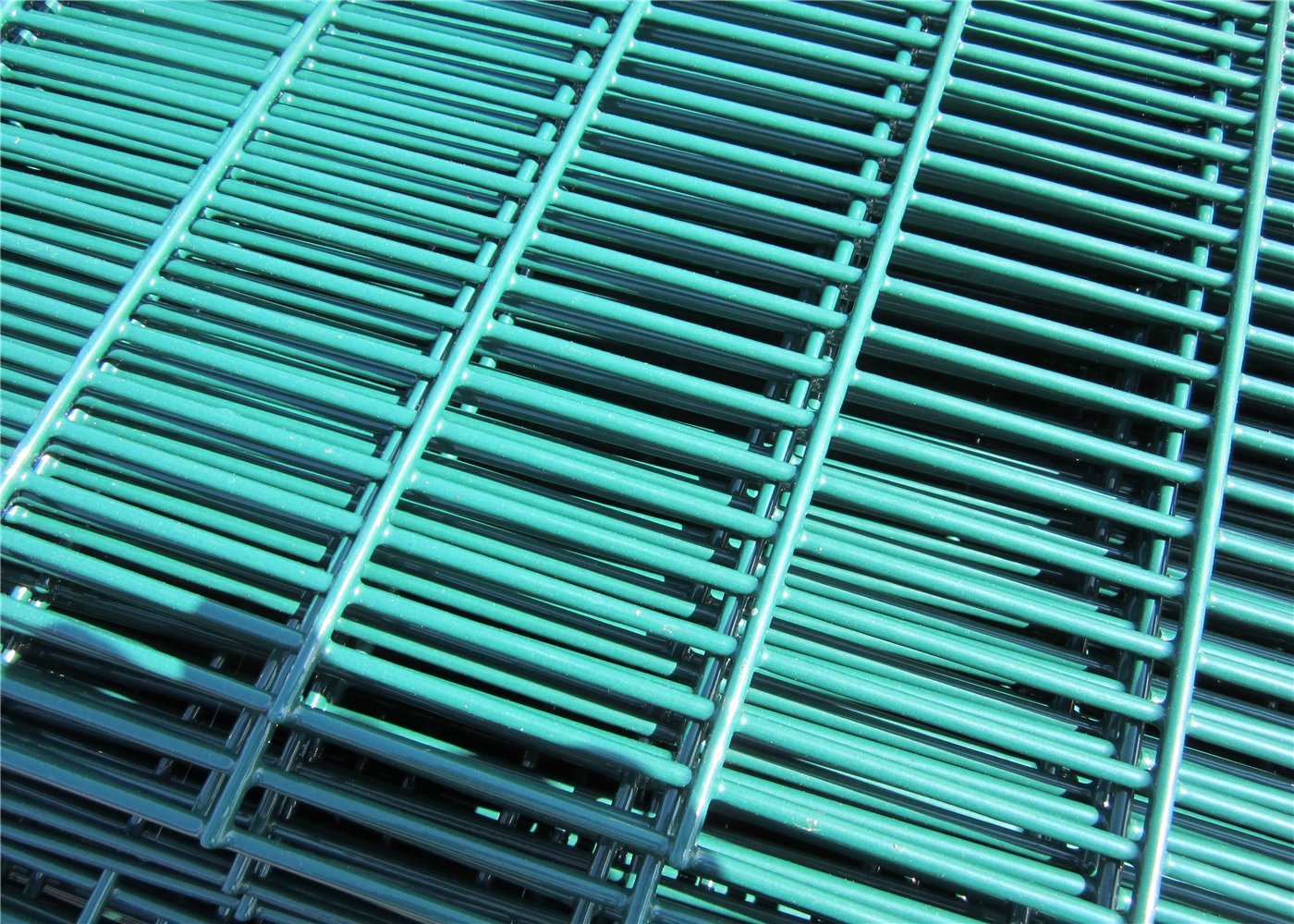

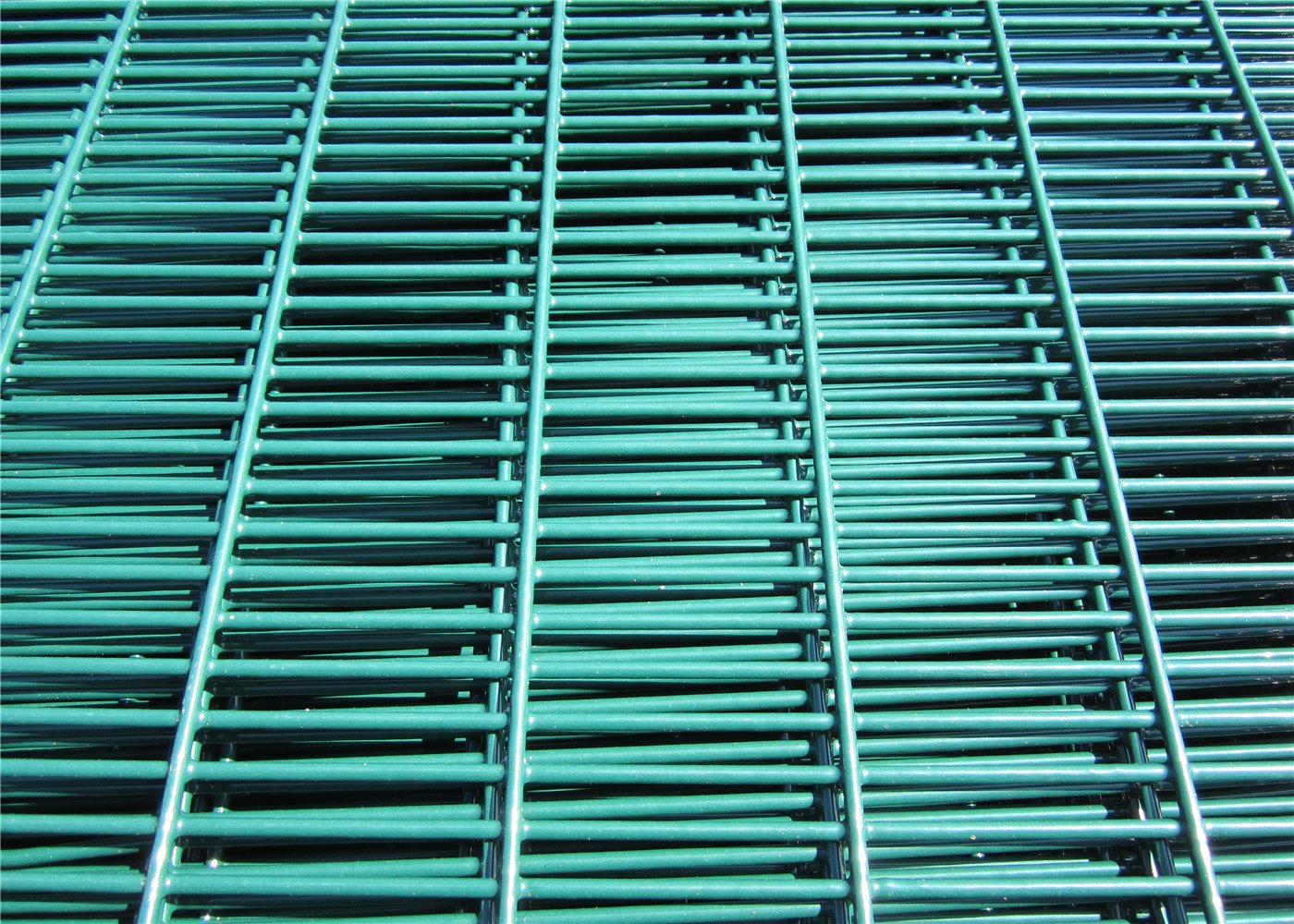

Selected 358 Mesh Fence designs use similarly tight spacing to discourage ordinary climbing grips. Wire thickness influences weight and gap dimensions. Buyers should label both wire directions on their approved drawings.
Flat 2D panels offer a straight mesh face and different fixing possibilities. The term 2D Plus may refer to a supplier-specific reinforced assembly. However, this source gives no dimensions or wire specifications for either model.
Another Anti-Climb Security Fencing arrangement illustrates how different mesh structures can share a security purpose. A product name cannot establish equal resistance. Request a complete drawing before comparing models.
The following table preserves the source's 3D data and its unspecified 2D columns. Values in parentheses identify the panel height associated with a post length or bracket count. The source does not provide an actual number for the 3D curves field.
| Specification | Mesh Panel 3D | Mesh Panel 2D | Mesh 2D Plus |
|---|---|---|---|
| Mesh centres (mm) | 76.2 × 12.7 / 75 × 12.5 / 101.6 × 12.7 | N/A in source | N/A in source |
| Panel height (mm) | 1800 / 2000 / 2200 / 2400 / 2700 / 3000 / 4000 | N/A in source | N/A in source |
| Panel width (mm) | 2500 / 2750 / 3000 | N/A in source | N/A in source |
| Line wire × cross wire (mm) | 3.0 × 4.0 / 3.2 × 4.0 / 3.4 × 4.0 | N/A in source | N/A in source |
| Number of curves | Source placeholder; confirm actual count | 0 in source | 0 in source |
| Post length (mm) | 2600 (1800) / 2700 (2000) / 2800 (2200) / 3000 (2400) / 3500 (2700) / 4000 (3000) / 5200 (4000) | N/A in source | N/A in source |
| Number of brackets | 6 (1800) / 7 (2000) / 8 (2200) / 9 (2400) / 10 (2700) / 12 (3000) / 14 (4000) | N/A in source | N/A in source |
Its bracket column does not define whether counts refer to one post, one edge, or a complete bay. Confirm that interpretation through a fixing drawing. Structural requirements may also change the proposed post lengths.
Project estimators can compare panel height with its corresponding source post length and bracket count. This view separates seven models from one crowded specification cell. It remains a catalogue reference rather than a foundation design.
| 3D Panel Height | Source Post Length | Source Brackets | Design Check |
|---|---|---|---|
| 1800 mm | 2600 mm | 6 | Post centre and attachment position |
| 2000 mm | 2700 mm | 7 | Actual embedment and level |
| 2200 mm | 2800 mm | 8 | Panel-to-post clearance |
| 2400 mm | 3000 mm | 9 | Wind and gate interfaces |
| 2700 mm | 3500 mm | 10 | Ground conditions and stiffness |
| 3000 mm | 4000 mm | 12 | Structural section and lifting |
| 4000 mm | 5200 mm | 14 | Special engineering and handling |
Posts transfer loads from welded mesh into foundations or approved structural base plates. Square, I-shaped, rectangular, and C-profile sections offer different fixing faces. Their wall thickness and orientation affect the final assembly.
A Clear View Fence Post must suit the chosen panel edge and connection. Different site loads may require another section thickness. Engineers should review tall fences and exposed corners separately.
The original table misaligns several family names and product identifiers. This revised table presents recognisable steel-profile names while retaining every source dimension. Final product codes require confirmation before ordering.
| Post Family | Popular Size A | Popular Size B | Popular Size C | Source Thickness (mm) |
|---|---|---|---|---|
| Square hollow section (SHS) | 60 × 60 mm | 80 × 80 mm | 100 × 100 mm | 1.2–1.5 |
| I-shaped / IPE reference | 100 × 55 mm | 100 × 68 mm | 120 × 74 mm | 1.2–2.0 |
| Rectangular hollow section (RHS) | 60 × 80 mm | 80 × 100 mm | 100 × 150 mm | 2.5–5.0 |
| C-profile with flat bar | 60 × 80 mm | 80 × 100 mm | 100 × 150 mm | 2.0–5.0 |
The source mistakenly identifies its square post as P2-IPE and its IPE post as P3-RHS. Its rectangular entry also repeats P4-C+F. Do not reuse those inconsistent codes without a corrected shop drawing.
I-shaped supports use a central web and projecting flanges. C-profile supports can use a continuous flat fixing bar. Neither connection automatically matches a standard square-post clamp.
The ClearVu Fencing IPE Post family illustrates the need for profile-specific fixing geometry. Measure drilling positions before surface finishing. A trial assembly can identify incompatible fasteners.

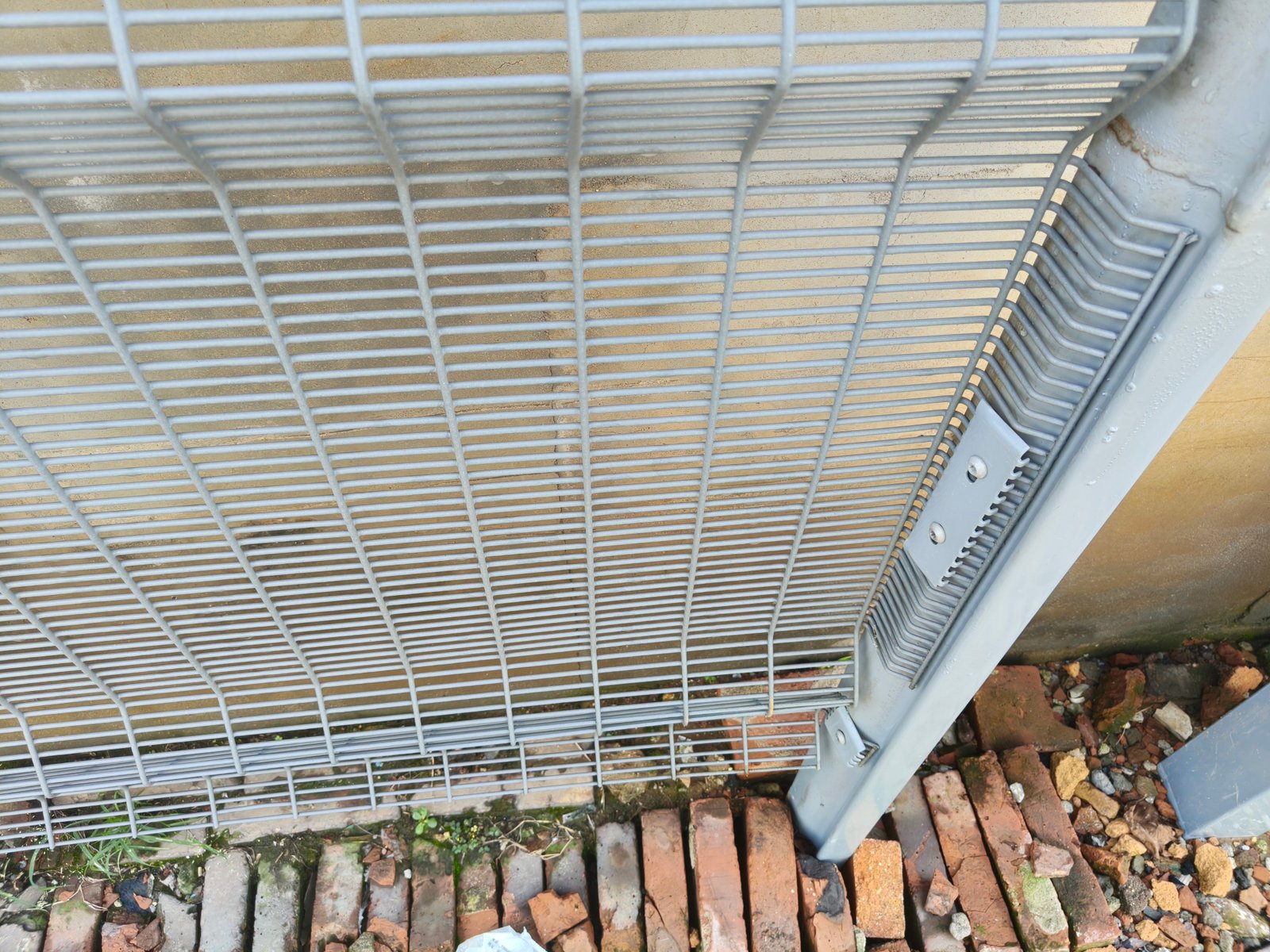

Intermediate posts may connect two neighbouring panels, while end posts secure one edge. Corners introduce different angles and clamp requirements. A complete material list should count every connection position.

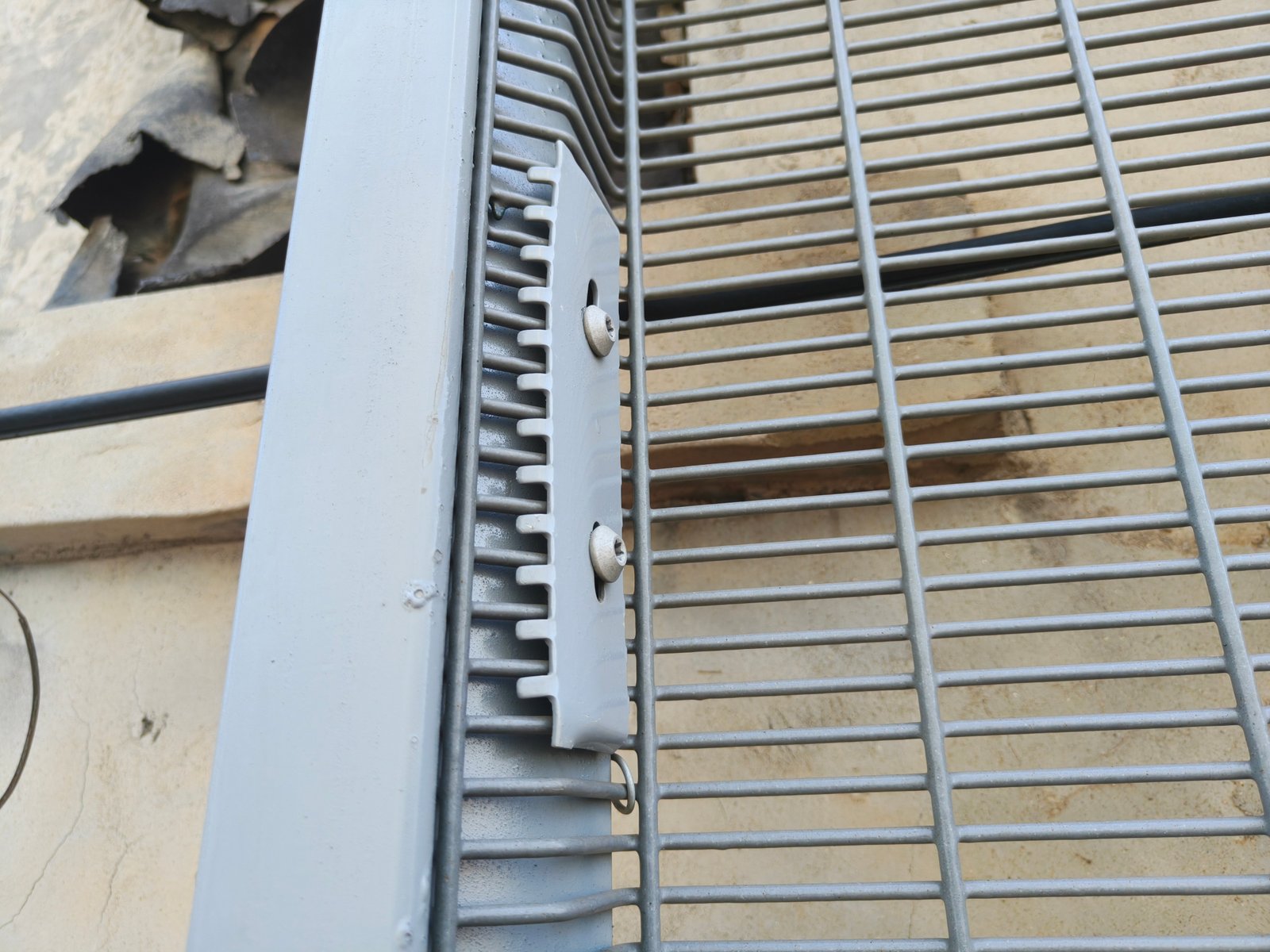

Matching ClearVu Fence Clamps include single and double connection options. Their dimensions must match the actual post and panel. Security bolts also require the correct tools.

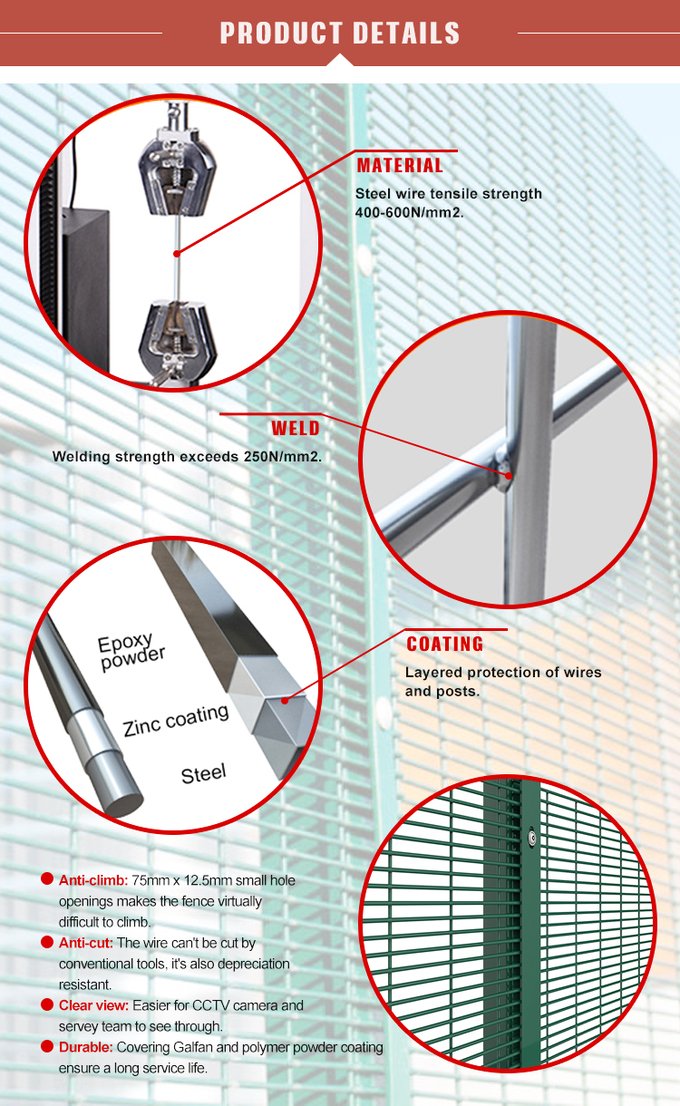

Coating decisions should follow the actual steel substrate and exposure environment. The source lists five mesh finishing codes but only three corresponding post treatments. Missing entries remain unspecified instead of receiving invented values.
| Component | ST1 | ST2 | ST3 | ST4 | ST5 |
|---|---|---|---|---|---|
| Mesh | PRE-EDG + PP | PRE-HDG + PP | PRE-GALFAN + PP | HDG | HDG + PP |
| Post | PRE-HDG + PP | HDG | HDG + PP | Not supplied | Not supplied |
PP denotes polyester powder coating in the original catalogue. EDG describes its electro-galvanized option, while HDG means hot-dip galvanized. GALFAN identifies a zinc-aluminium metallic coating.
The source uses PRE-HDG terminology for a pre-galvanized wire route. Actual processing and coating test methods require clarification. Welding can affect protection around intersections and exposed edges.
Its ST2 schedule lists three source zinc masses: 40–60, 80–100, and 200–300 g/m². These are alternative reference classes. A purchaser must select the appropriate level before manufacture.
Galfan commonly describes a zinc-aluminium alloy containing approximately 95% zinc and 5% aluminium. The alloy belongs beneath any compatible colour finish. Do not confuse its composition with an RAL colour specification.
The original ST4 note quotes 75–100 micrometres of zinc thickness. That statement requires the appropriate product standard and production records. It does not guarantee every continuously galvanized wire meets that value.

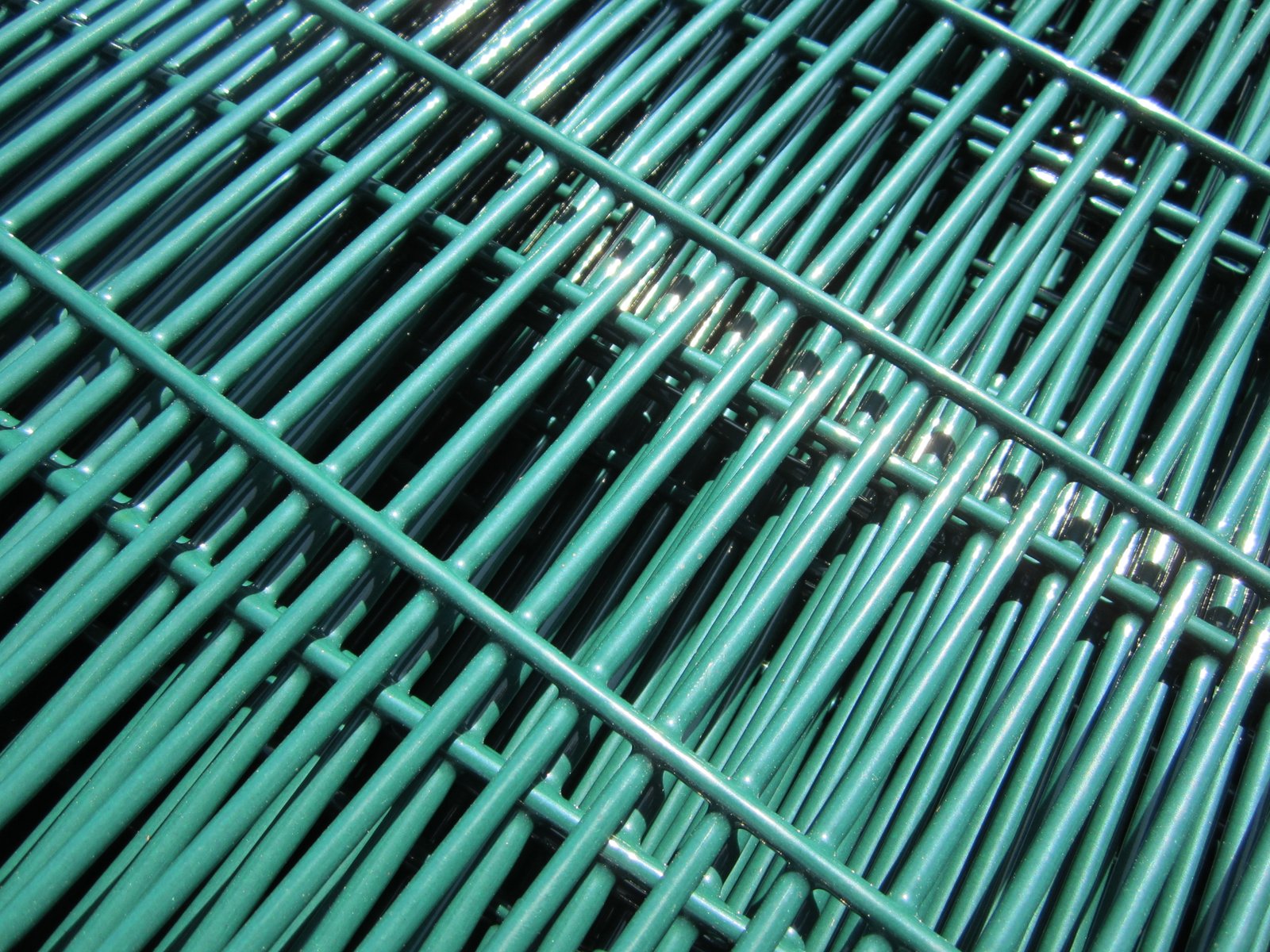

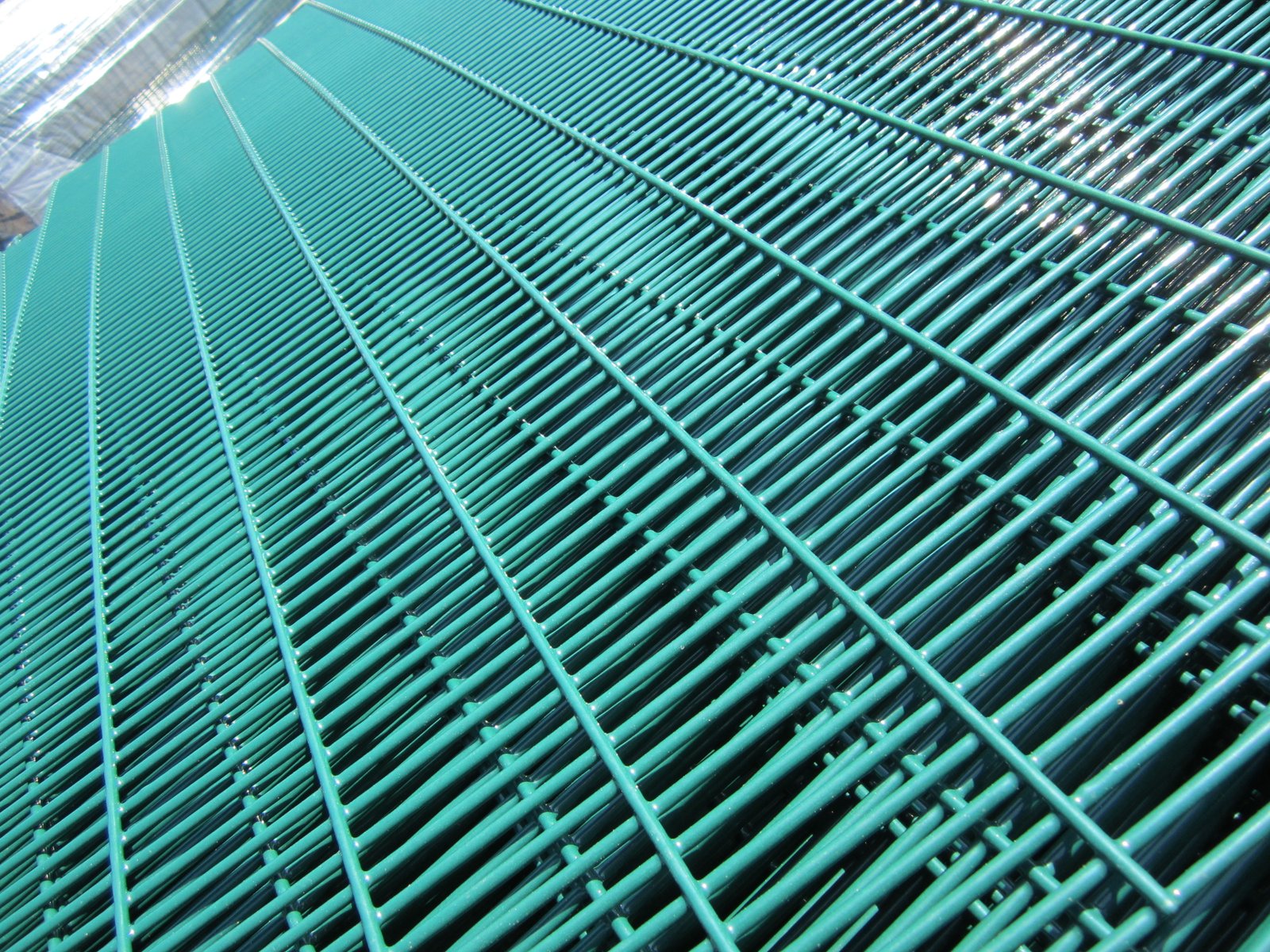

Compatible powder finishes can add colour and weather protection over prepared metal surfaces. A Powder Coated Clear View Fence needs agreed pretreatment and coating tests. Film adhesion matters near welds, bends, and fixings.
Popular source colours include RAL 6005 green, RAL 1021 yellow, RAL 9010 white, and RAL 9005 black. Buyers can request other RAL colours. Coating performance depends on chemistry and exposure, not colour alone.
Durban, Cape Town, Gqeberha, Johannesburg, and Kimberley offer different combinations of climate and site activity. A nationwide quotation should not assume identical coating requirements. Specify the destination and local exposure before confirming finishes.
Durban's port and nearby industrial sites can experience humid, salt-bearing air. Chloride deposits may accelerate corrosion where coating damage exposes steel. Inspect post bases, bolted connections, and lower panel edges regularly.
Warehouses also need protection from forklift movement and loading vehicles. Fence mesh cannot stop direct vehicle impacts by itself. Separate impact barriers may protect posts beside busy yards.
A ClearVu Fence Galvanised Epoxy Coating system offers another finish route for exposure comparisons. Buyers should still identify the exact layers. Any maintenance promise requires written terms.
Cape Town properties may combine marine air with exposed wind and seasonal rain. Wind loading depends on panel geometry, location, and support spacing. Open mesh reduces solidity but never eliminates structural forces.
Coastal estates also value unobstructed views toward gardens and access routes. Position cameras around buildings and gate structures carefully. A transparent fence cannot guarantee complete surveillance coverage.
Johannesburg and Pretoria sites often face urban traffic, industrial activity, and monitored property entrances. Security design should separate delivery vehicles from pedestrian gates. Nearby stockpiles can obstruct views or create climbing aids.
Seasonal rainfall may collect around poorly drained foundations. Routine inspections should address anchors, surface damage, and moving gates. Access control complements the physical mesh boundary.
Gqeberha's coastal industrial activity calls for both corrosion planning and managed freight entrances. The ClearVu Fencing Port Elizabeth range illustrates relevant regional configurations. Confirm finishes against actual marine exposure.
Kimberley's inland setting brings more attention to dust, seasonal rainfall, and dispersed industrial yards. Gate tracks need cleaning when grit accumulates. Ground conditions should guide each foundation detail.

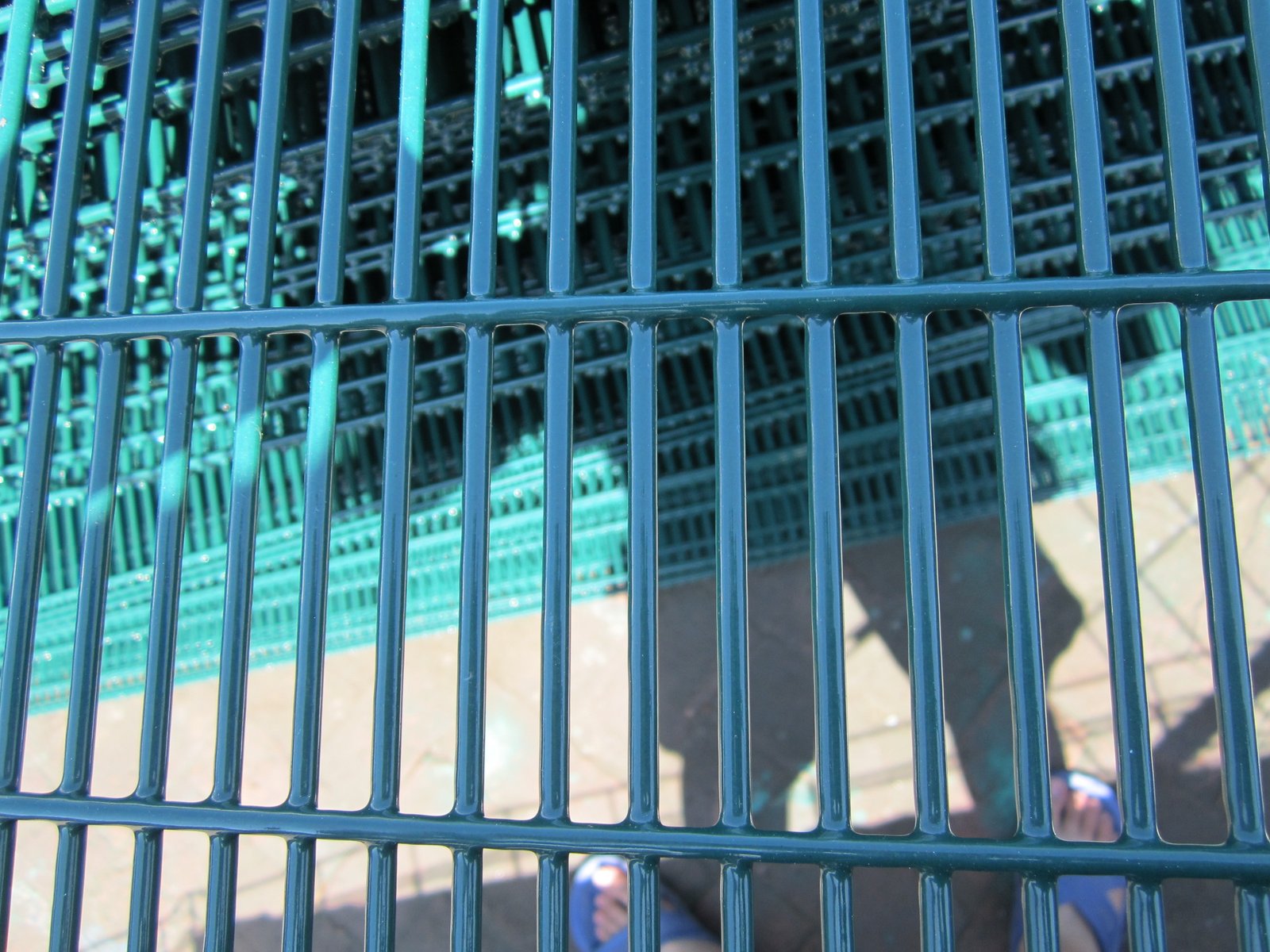

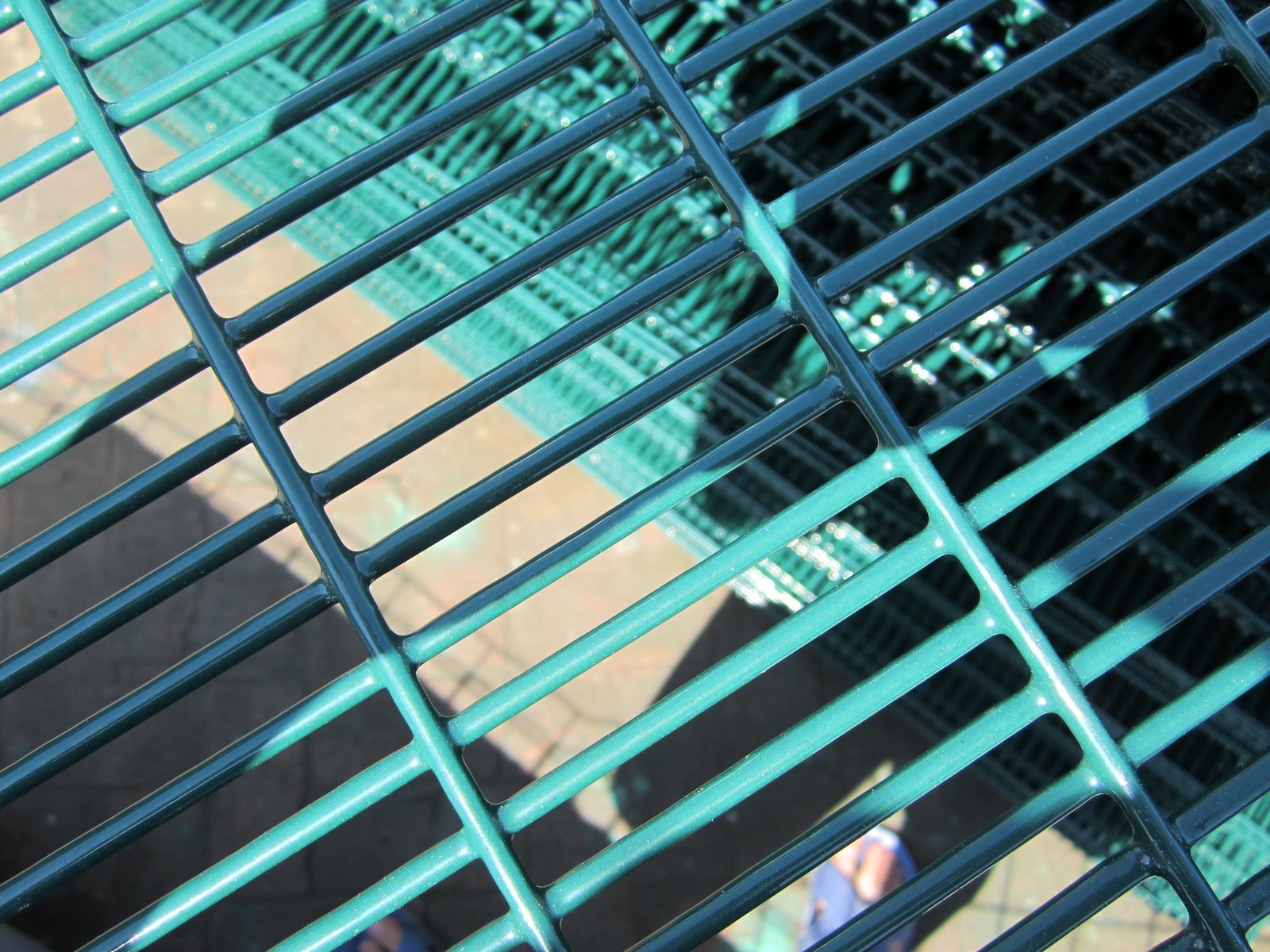

Small welded apertures discourage convenient climbing and preserve sightlines across much of a perimeter. They cannot prevent every cutting attack or concealment attempt. The complete security system also includes alarms, lighting, gates, and human response.
Factory labels such as high security or prison mesh do not establish independent test ratings. Clients should request performance evidence for the actual assembly. A camera survey helps identify remaining blind spots.
Security cameras can observe through narrow mesh under suitable lighting and positioning. Reflections, vegetation, parked trucks, and gate frames may interrupt those views. Test coverage after the real fence reaches completion.
Site operators can combine observation with appropriate intrusion detection. Equipment settings may need adjustment for wind and ordinary movement. An alarm without a response process offers limited practical value.

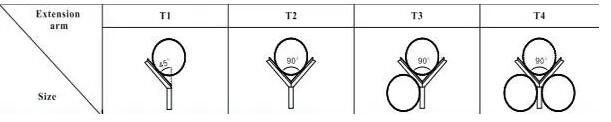

The original source treats the angle arm as optional rather than a required fence component. Any topping changes appearance, loading, and potential injury risks. Project teams should consider local rules and public access.
Shark-tooth profiles or razor systems need separate safety assessment. An inappropriate sharp topping can create hazards near children or maintenance routes. Avoid adding accessories solely for marketing effect.
 |
 |
| Optional arm image: approve support strength, clearances, and local safety requirements. | Original BMP reference: compare visible finishing and product arrangements with the purchase specification. |
A perimeter often faces its greatest operational challenges at openings. Pedestrian entrances need safe daily movement and reliable locking. Vehicle gates require larger frames and suitable support foundations.

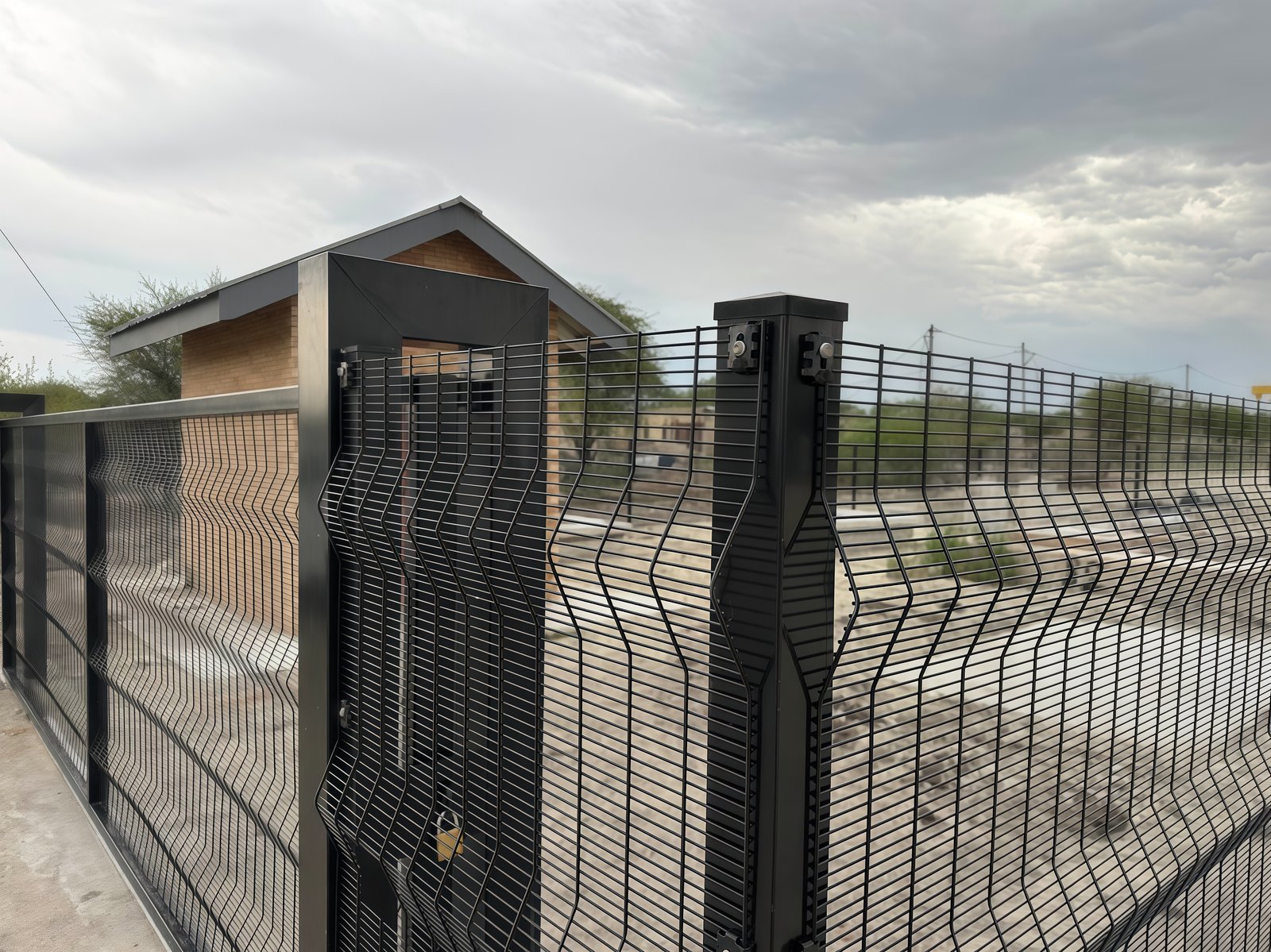

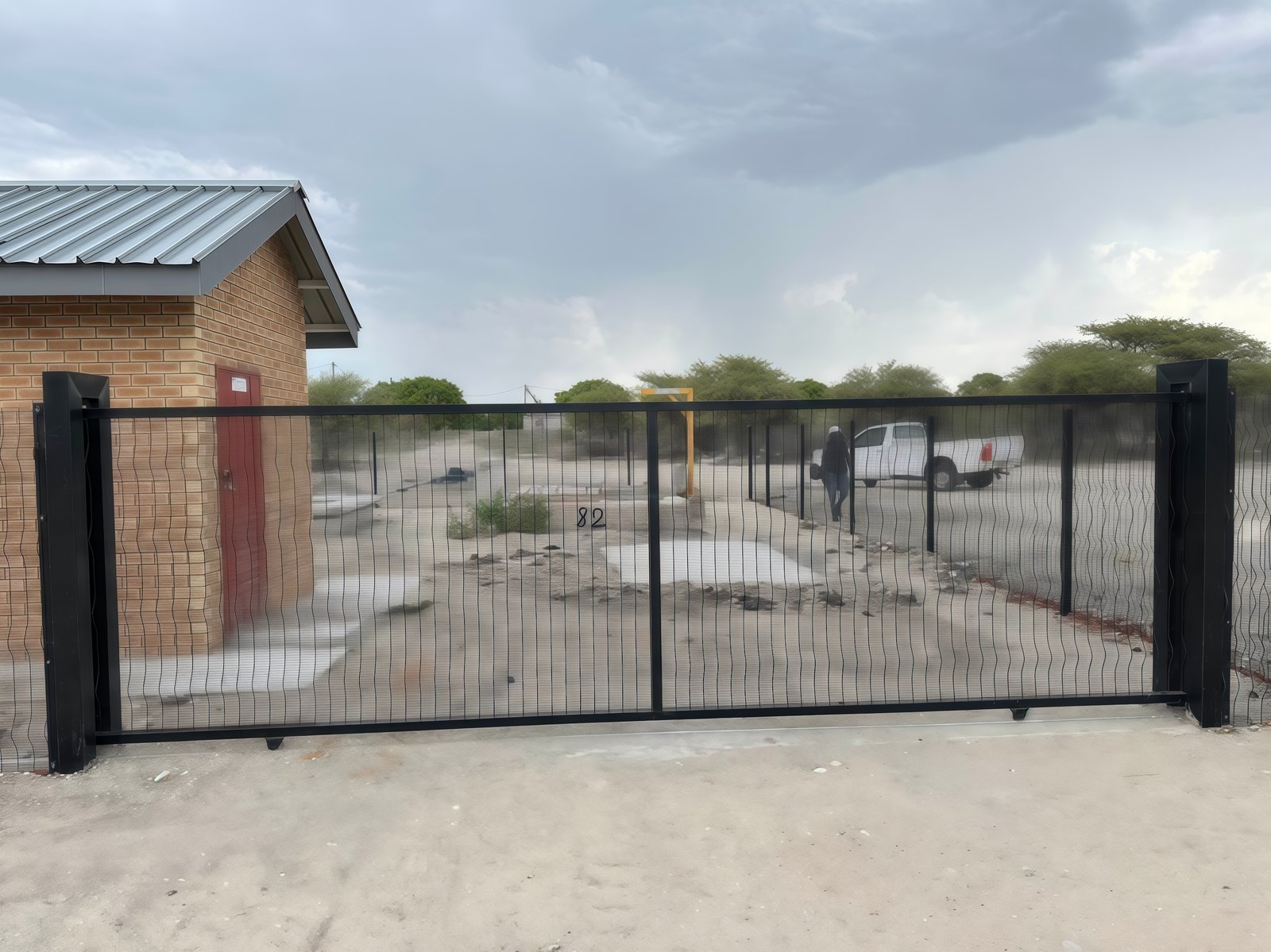

A Clear View Fence Gate can use mesh that matches nearby panels. Larger entrances may employ ClearVu Fence Sliding Gates with approved guide systems. Motorised equipment needs appropriate safety controls.
Gate posts often experience different forces from intermediate fence supports. Hinges, locks, and moving leaves also need service clearance. Their engineering should not rely on ordinary panel-post assumptions.
Survey the entrance before manufacturing the frame. Confirm ground slope and the direction of travel. Safe pedestrian routes deserve equal attention.
Measure the real boundary line, corners, gradients, and access openings before ordering. Panel width may differ from the installed post-centre distance. Clamp overlap and profile geometry affect each bay.
The ClearVu Fence Installation Guide provides useful setting-out concepts. However, footing dimensions need site-specific structural approval. Avoid copying post embedment depths across different soils.
Consider a straight 100 m boundary without gates or corners. If the approved post spacing equals 2.5 m, the run needs forty complete bays. A simple straight run then requires forty-one posts.
| Example Item | Assumption | Preliminary Quantity |
|---|---|---|
| Boundary length | 100 m | 100 linear metres |
| Installed post centres | 2.5 m | Approved drawing required |
| Panel bays | 100 ÷ 2.5 | 40 bays |
| Posts | 40 + 1 | 41 posts |
| Clamps and gates | Connection and access drawing | Confirm separately |
This example does not establish the post spacing for every BMP panel. Corner arrangements and closing pieces may alter quantities. Final procurement must use the approved installation drawing.

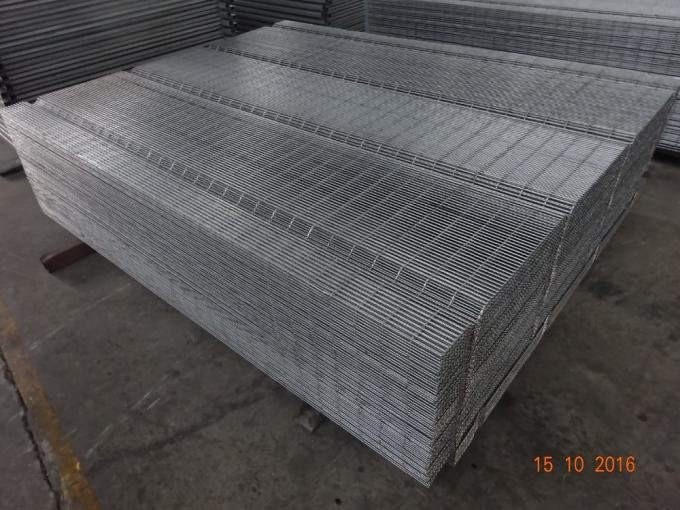

Completed panels need appropriate protection against rubbing and bending during shipment. Steel stillages, film, separators, and corner guards can support controlled handling. Posts and accessories should carry identifiable package labels.
Factory inspection should match the commercial invoice and packing list. Document coating condition before loading. Check verified package weights against container requirements.
Some facilities need a closer security grid, while others favour open tubular pickets. Corromesh uses another narrow welded-mesh configuration. Its post and connection details require their own checks.
Garrison Security Fencing instead uses steel pickets and supporting rails. Construction sites may prefer Temporary Construction Fencing during short-term works. Those movable systems cannot automatically replace permanent security foundations.
Schools may value visibility into sports areas and controlled pedestrian access. Public parks need safe boundaries without creating unnecessary injury hazards. Select mesh height and fittings according to the actual safety brief.
Airports, electrical substations, and restricted industrial sites demand additional operational review. Machinery guarding also follows separate safety standards. A perimeter product should never substitute for specialist machine protection.
No. The supplied catalogue gives dimensions only for its 3D model. Other variants require individual technical drawings. Confirm wire arrangements and fixing details before substitution.

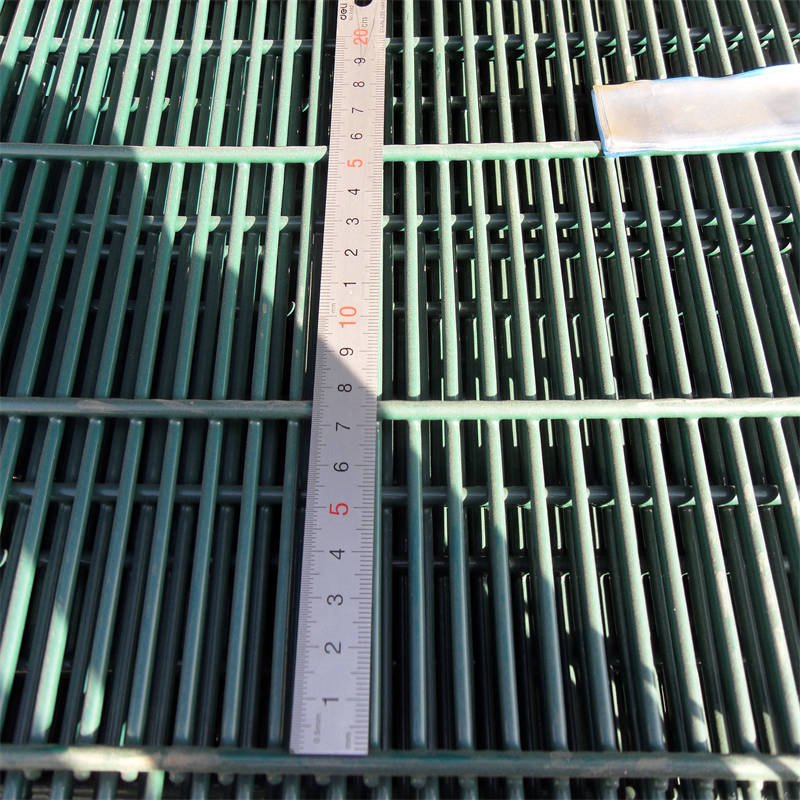

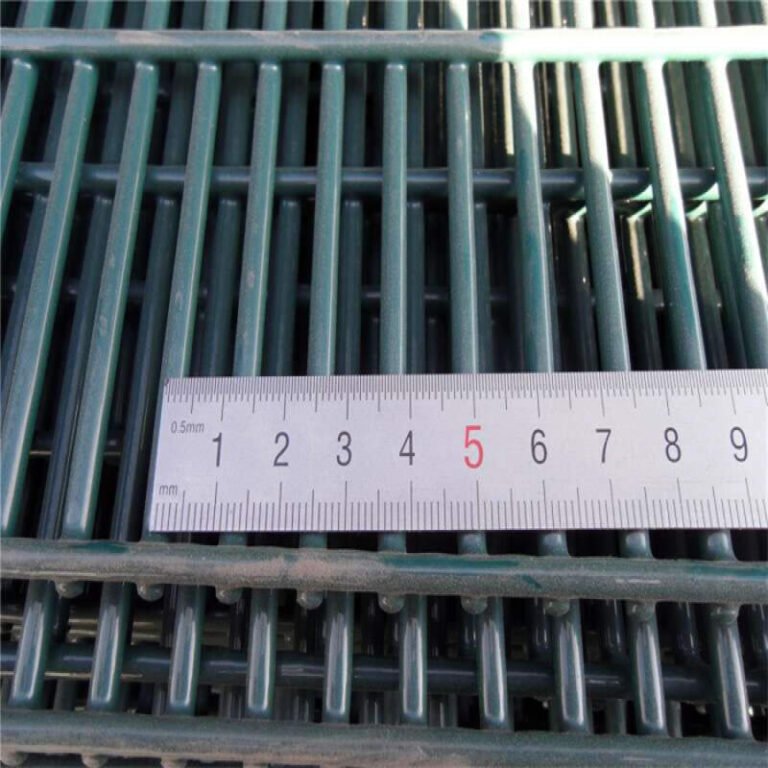

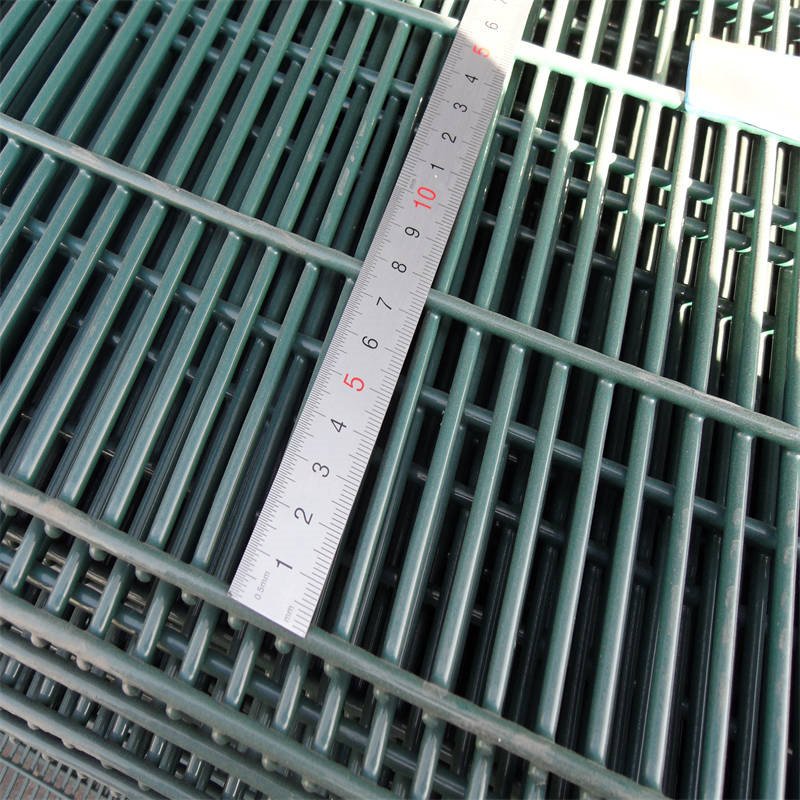

No. These figures describe nominal centre-to-centre spacing. The wire occupies part of the available gap. Actual clear openings depend on diameter and coating thickness.
No. Open mesh supports sightlines but cannot determine camera coverage alone. Buildings and stored materials may still block views. Test the finished installation.
BMP offers a 15-year manufacturer warranty for applicable ClearVu and Clearview products under written terms. Conditions depend on the supplied system, installation, and maintenance. Request the document with the quotation.
Send a boundary drawing, panel quantities, post schedule, gate sizes, and chosen coating. Include the destination and delivery responsibilities. Approved specifications allow BMP to prepare a coordinated commercial offer.
Boss Metal and Plastic Co., Ltd. supplies welded security mesh alongside suitable posts, clamps, and gates. A reliable fence begins with accurate measurements and clearly identified security requirements. Matching parts and suitable site engineering complete the installation.
