Clearview fencing midrand connects welded security mesh with the needs of estates, warehouses, schools, and commercial campuses. Midrand lies between Johannesburg and Pretoria, with important links along the N1 transport corridor. Each property needs a perimeter that matches its traffic, supervision, and access arrangements.
BMP manufactures ClearVu mesh, steel posts, clamps, and matching gates in China for export projects. Local installation requires suitable South African contractors and engineering approval. A transparent steel boundary can improve observation without promising immunity from intrusion.
Owners exploring Clear View Fence Panels should compare the entire assembly rather than one mesh photograph. Gates, foundations, corner fittings, and coating repairs all influence long-term operation. The correct solution starts with surveyed dimensions and an agreed risk assessment.
Waterfall combines landscaped residential communities with major office and retail properties. Kyalami includes estates and activity around business and event venues. Halfway House supports workshops, offices, distribution companies, and high-traffic commercial yards.
These settings need different entrance designs and maintenance schedules. An estate may prioritise pedestrian safety, while a loading depot needs forklift separation. Neither project should borrow the other's post schedule without review.
 |
 |

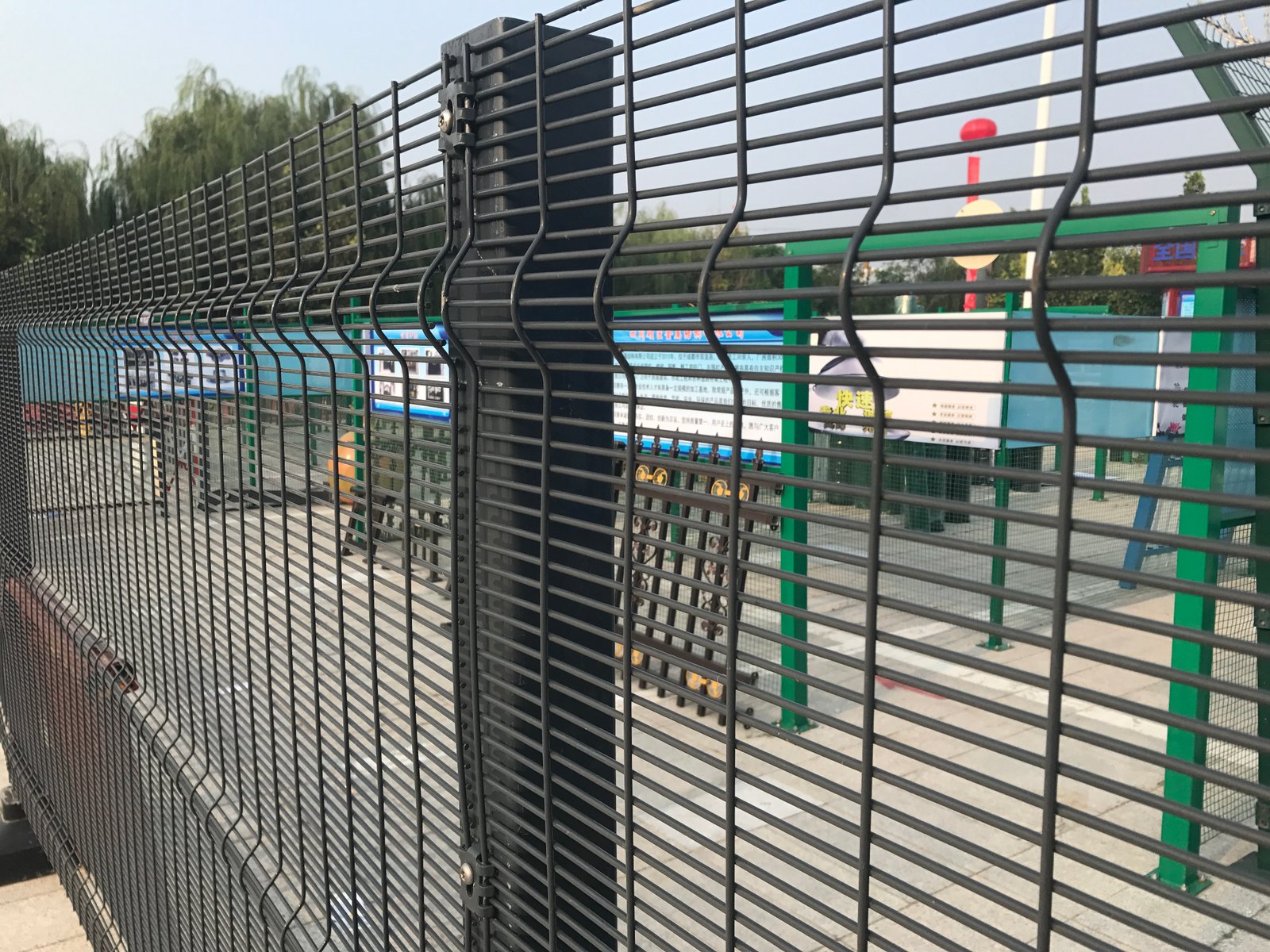

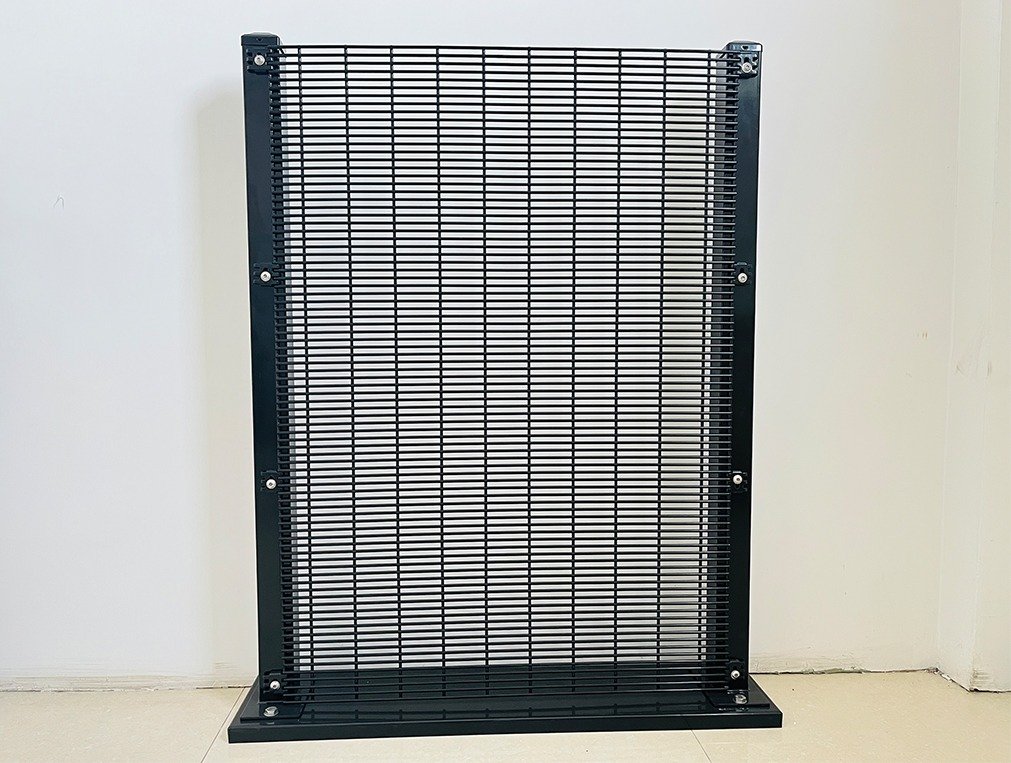

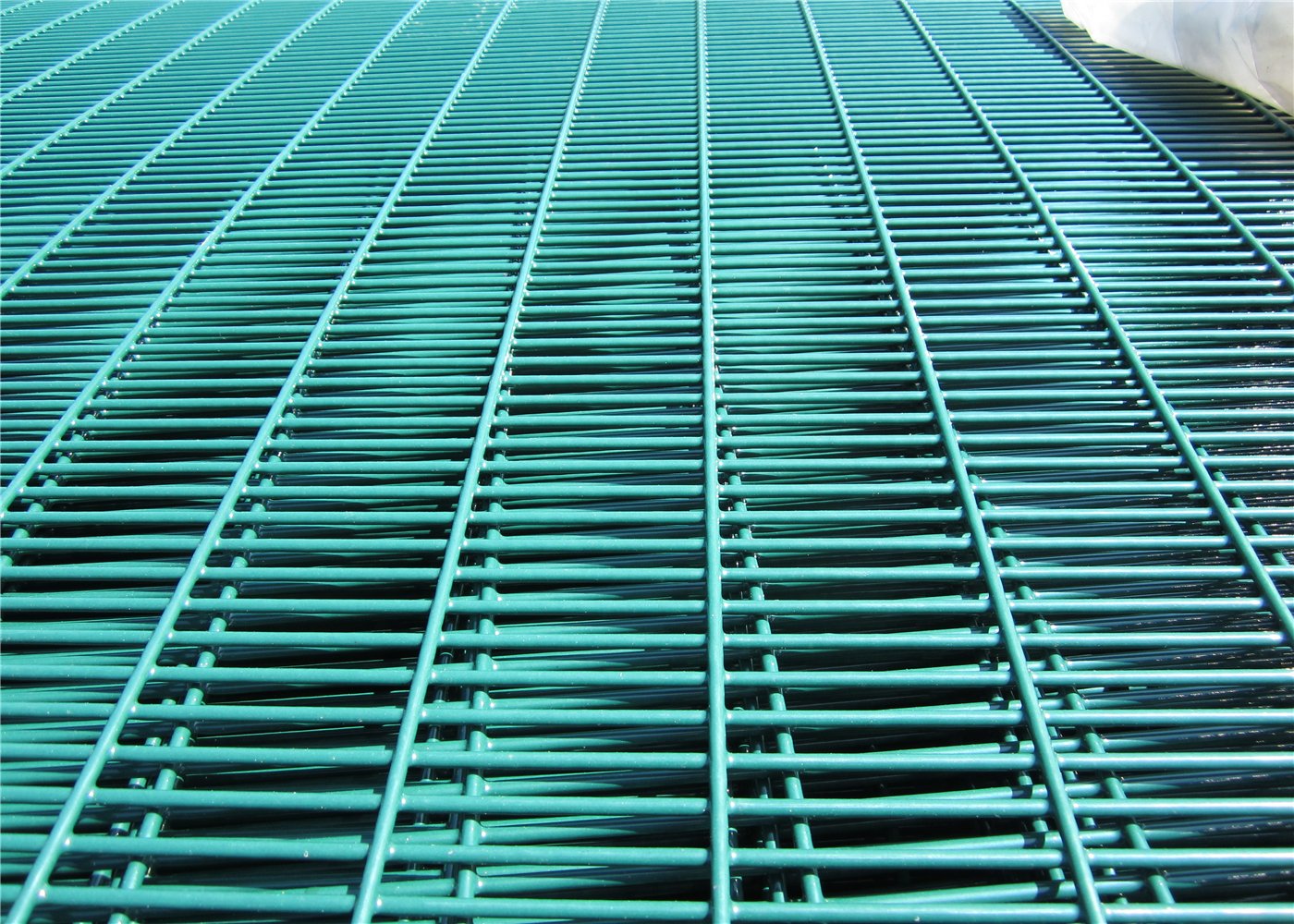

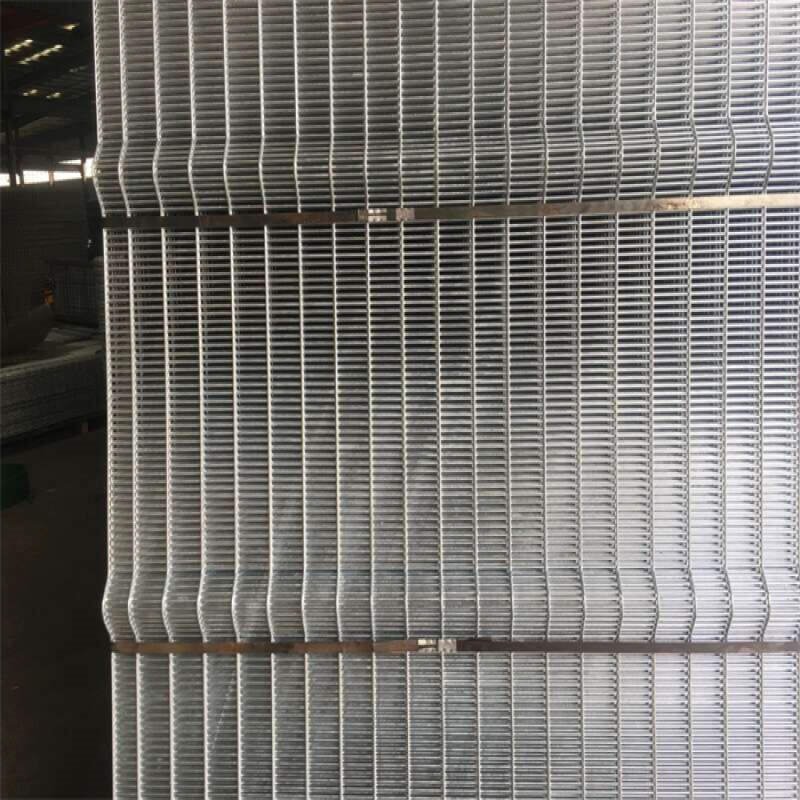

| Original BMP image: check V-bend geometry and mesh uniformity before coating. | Original BMP image: compare product features with the confirmed order drawings. |

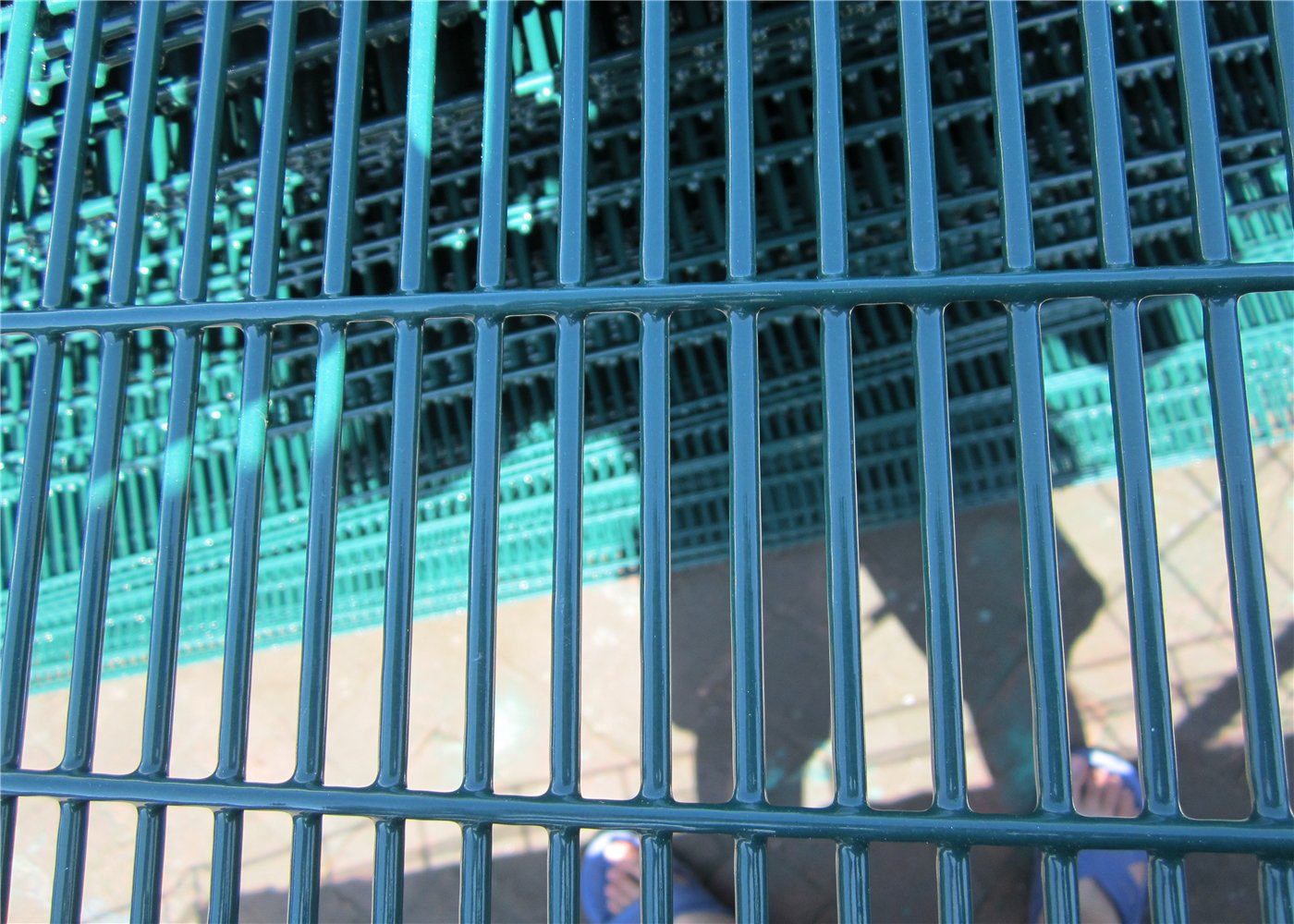

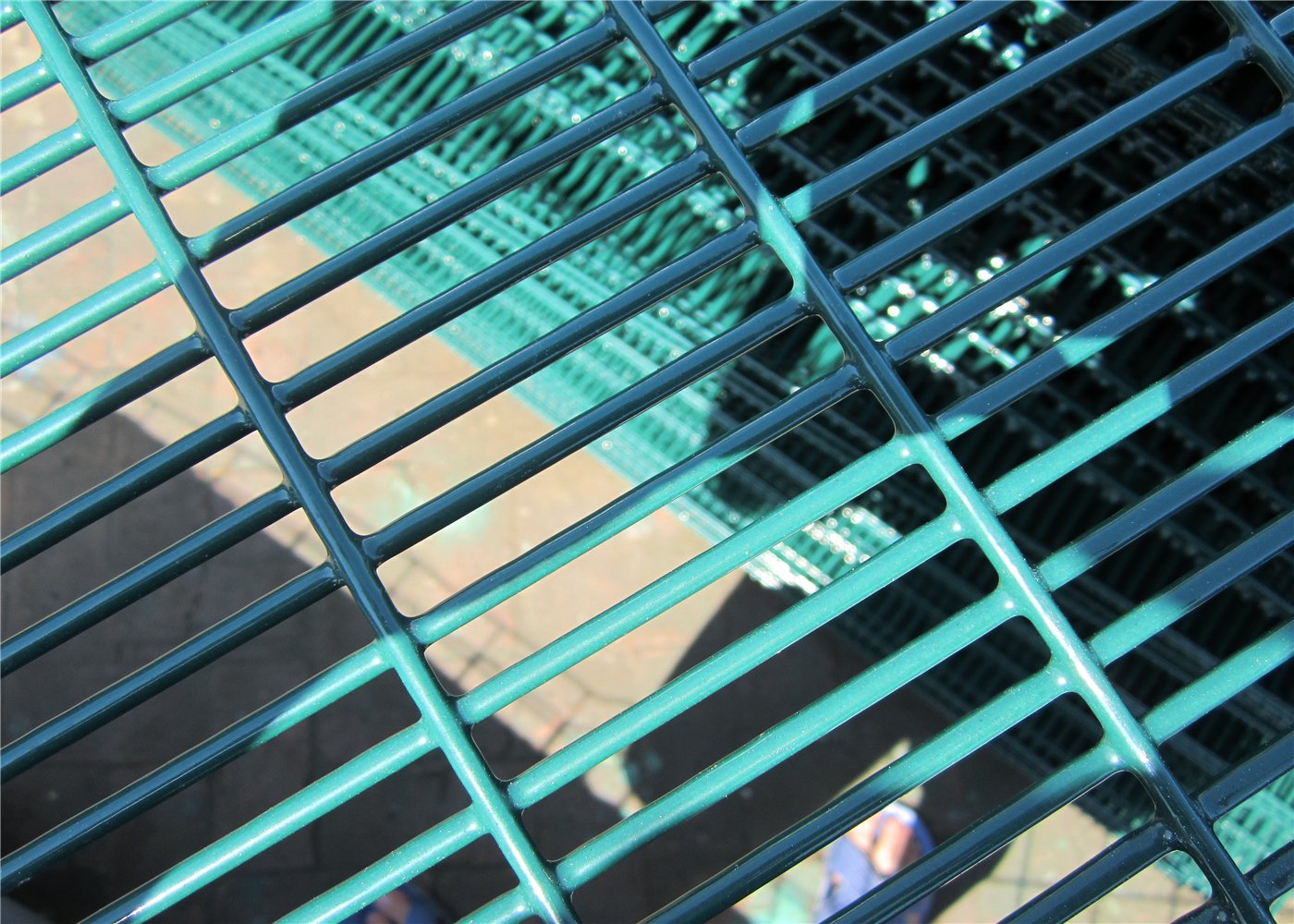

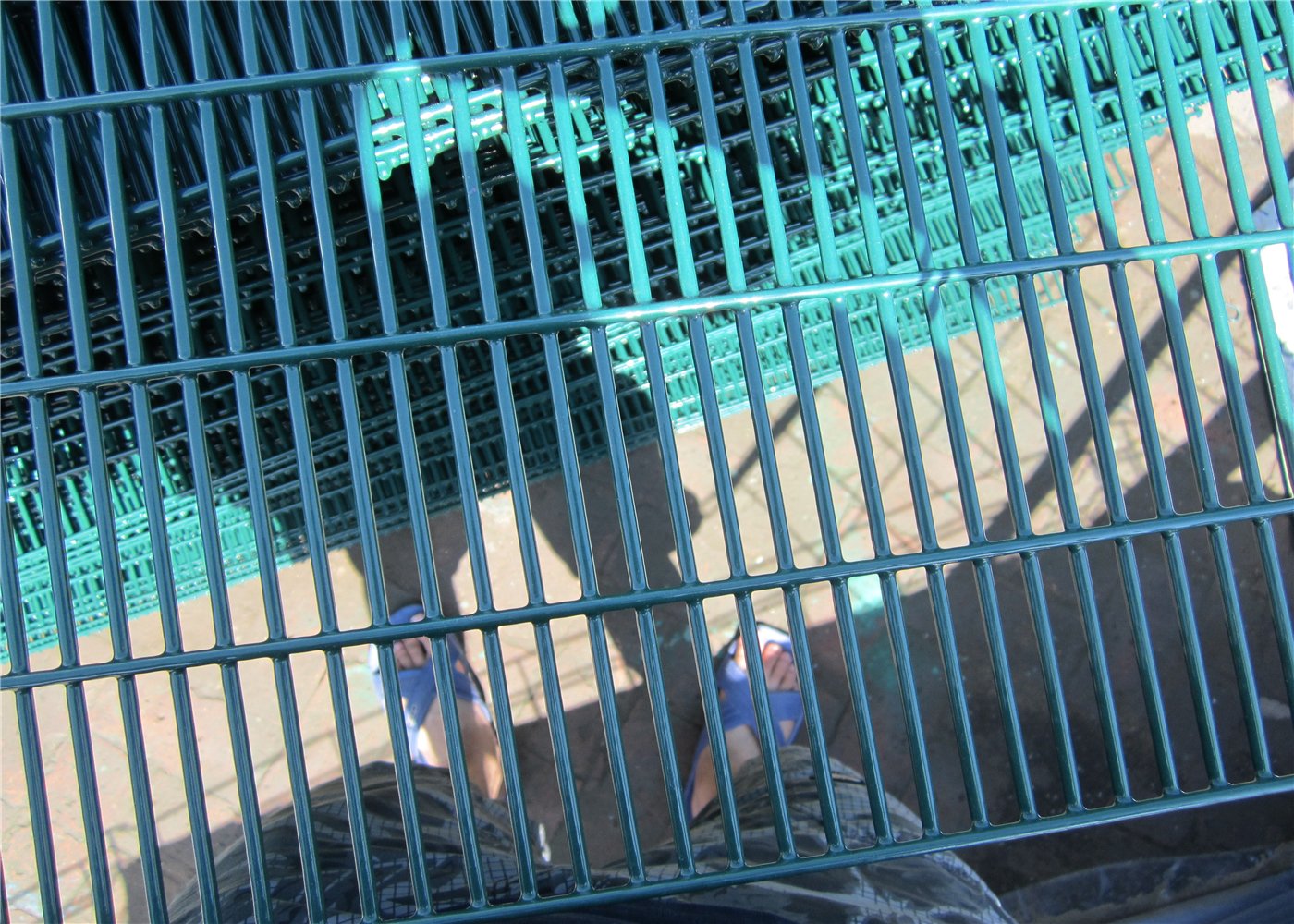

Close welded apertures make ordinary fingerholds less convenient than wider mesh. They also allow staff to see approaching visitors through much of the boundary. Cameras still need correct placement, lighting, and monitored response.

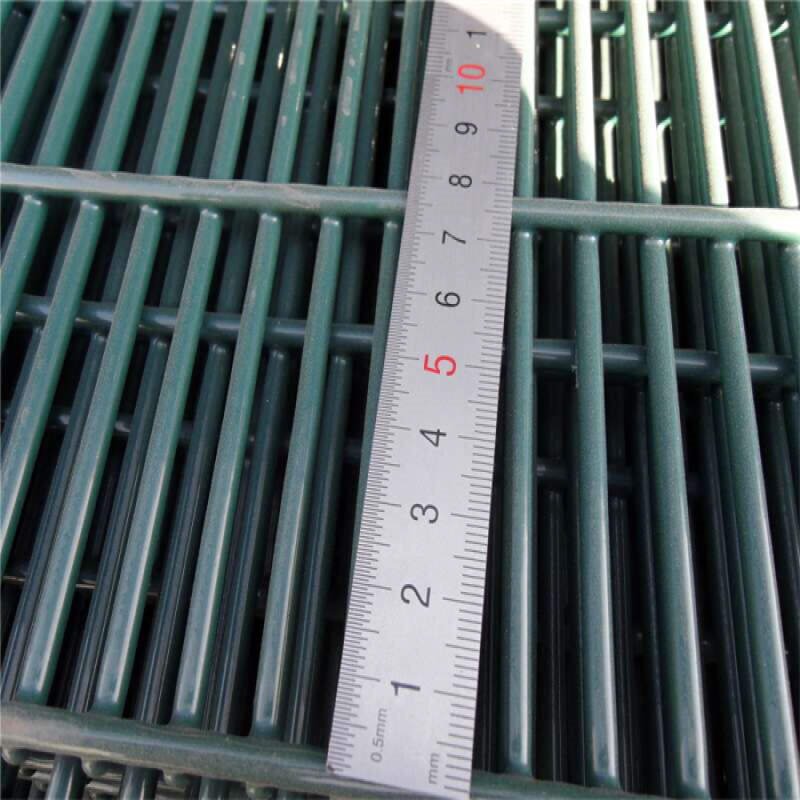

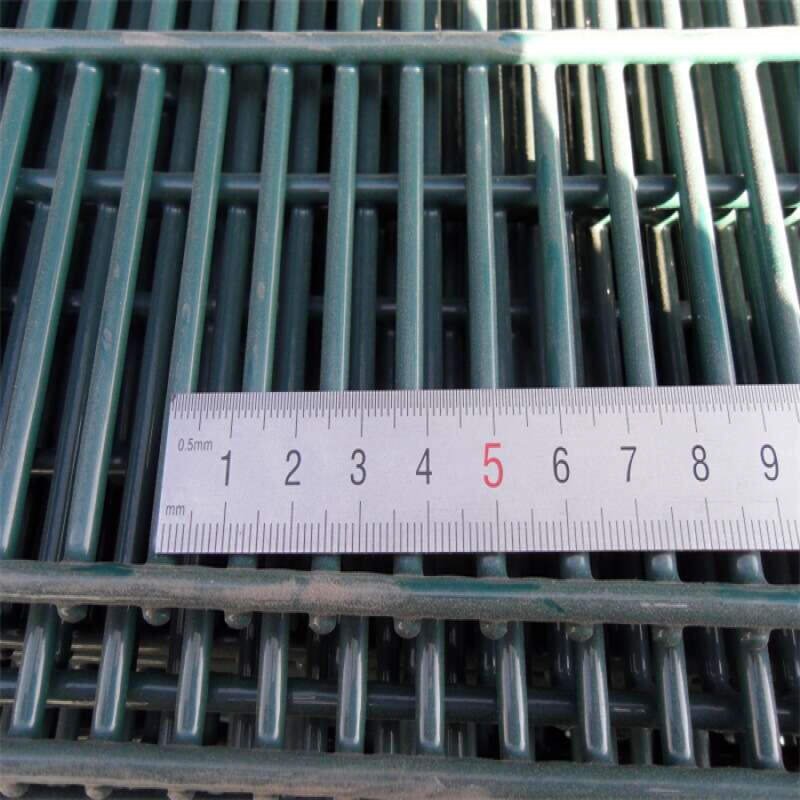

Some 358 Mesh Fence products use approximately 76.2 × 12.7 mm wire centres. That measurement describes pitch, not the remaining clear gap. A crossing 3 mm wire leaves approximately 9.7 mm before finishing.
Narrow openings may discourage casual climbing, but no steel mesh guarantees complete resistance to determined attack. Formal security claims require applicable test evidence for the complete system. A strong panel cannot compensate for unsecured entrances or poor foundations.

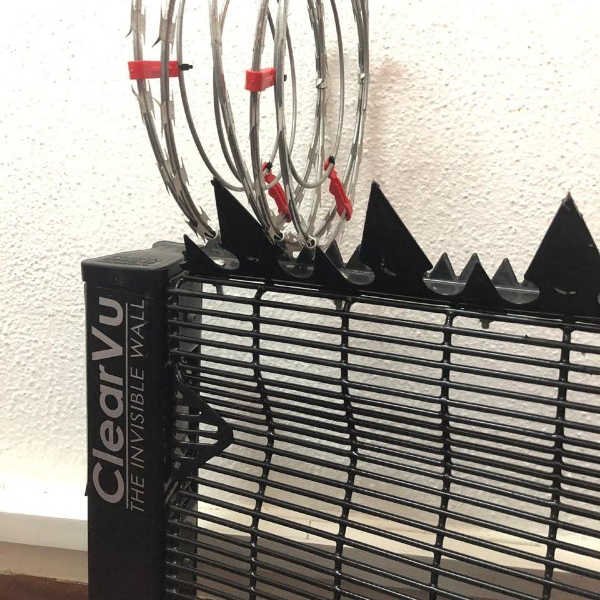

For more demanding compounds, High Security ClearVu Fencing offers related close-grid configurations. Their dimensions require separate confirmation. Do not translate a generic product label into an unsupported security rating.
The supplied catalogue contains five product families with seven heights each. Every panel uses a 3050 mm source length, but the mesh pitch changes. Wire orientation also differs between the first three and last two families.
These five families are source models rather than universal security grades. The BMP 76mm heading actually contains 76 × 100 mm spacing. Another BMP 100mm heading describes 50 × 100 mm spacing.
This source series pairs 3 mm horizontal wire with 4 mm vertical wire. Its seven listed heights share a nominal 76 × 12.7 mm grid. The original finish descriptions include ZincAlume, powder coating, and PVC.
| Panel Length (mm) | Panel Height (mm) | Mesh Centres (mm) | Horizontal Wire (mm) | Vertical Wire (mm) | Original Finish Options |
|---|---|---|---|---|---|
| 3050 | 1200 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 1500 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 1800 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 2000 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 2100 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 2400 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
| 3050 | 3000 | 76 × 12.7 | 3 | 4 | ZincAlume / powder-coated / PVC |
A 76 × 25 mm source grid provides wider spacing than the 12.7 mm series. Both steel directions retain the source's 3 mm and 4 mm combination. Special welding runs require availability confirmation before a project schedule becomes final.
| Panel Length (mm) | Panel Height (mm) | Mesh Centres (mm) | Horizontal Wire (mm) | Vertical Wire (mm) | Original Finish Options |
|---|---|---|---|---|---|
| 3050 | 1200 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1500 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1800 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2000 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2100 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2400 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 3000 | 76 × 25 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
This range uses 76 × 50 mm centres, retaining seven standard source heights. A wider aperture changes foothold geometry and visual density. Buyers should not assign 358 performance claims to this product automatically.
| Panel Length (mm) | Panel Height (mm) | Mesh Centres (mm) | Horizontal Wire (mm) | Vertical Wire (mm) | Original Finish Options |
|---|---|---|---|---|---|
| 3050 | 1200 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1500 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1800 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2000 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2100 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2400 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 3000 | 76 × 50 | 3 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
Despite the heading, this section's underlying table specifies 76 × 100 mm centres. It also reverses the wire combination to 4 mm horizontal and 3 mm vertical. The mismatch needs explicit clarification in purchase documents.
| Panel Length (mm) | Panel Height (mm) | Mesh Centres (mm) | Horizontal Wire (mm) | Vertical Wire (mm) | Original Finish Options |
|---|---|---|---|---|---|
| 3050 | 1200 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1500 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1800 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2000 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2100 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2400 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 3000 | 76 × 100 | 4 | 3 | Galvanized / powder-coated / PVC (Plascoat) |
Finally, this source series specifies 50 × 100 mm centres and 4 mm wire in both directions. Its heading refers broadly to 100 mm rather than the complete pitch. This grid requires a separate safety and access assessment.
| Panel Length (mm) | Panel Height (mm) | Mesh Centres (mm) | Horizontal Wire (mm) | Vertical Wire (mm) | Original Finish Options |
|---|---|---|---|---|---|
| 3050 | 1200 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1500 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 1800 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2000 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2100 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 2400 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |
| 3050 | 3000 | 50 × 100 | 4 | 4 | Galvanized / powder-coated / PVC (Plascoat) |

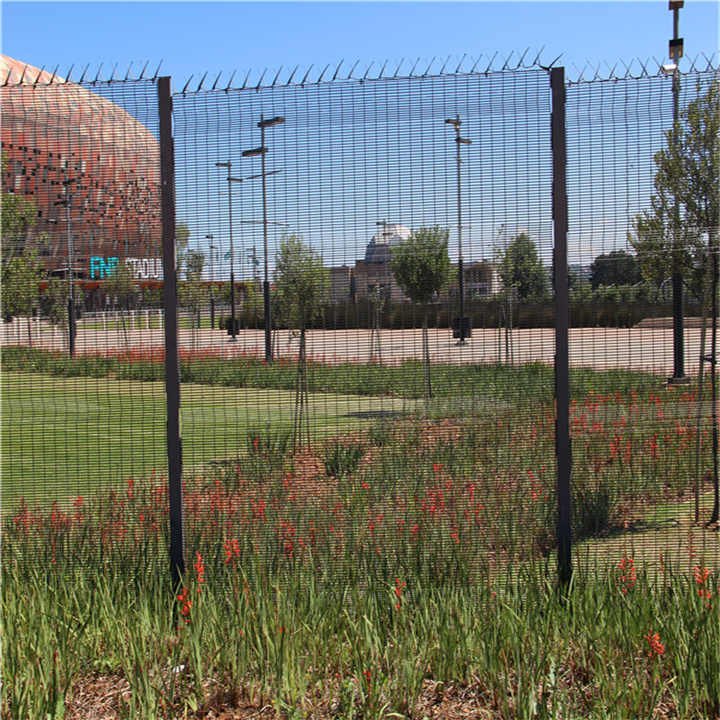

Estate gardens may need visibility and appearance alongside controlled entry. Warehouse yards need clear sightlines around stock and deliveries. Public walkways demand a different safety approach, especially near children.
Related ClearVu Fencing Panels describe high, medium, and low mesh families. An alternative ClearVu Mesh option may suit closer spacing. Confirm each model's true wire dimensions before comparing quotations.
School boundaries should preserve supervised access without creating unnecessary injury hazards. Position gates where staff can manage arriving families safely. A visible fence cannot substitute for appropriate child supervision.
Sports facilities may need a mesh pitch appropriate for ball containment. Machinery guarding requires specialist standards instead of ordinary perimeter assumptions. Distinguish those applications during product selection.
The original post schedule increases steel section sizes across taller fence references. Two alternatives appear at the same 3.6 m height. They use rectangular and square post sections with different directional properties.
| Fence Height (m) | Post Section × Thickness (mm) | Original Post Length (mm) |
|---|---|---|
| 2.0 | 60 × 60 × 2.5 | 2700 |
| 2.4 | 60 × 60 × 2.5 | 3100 |
| 3.0 | 80 × 80 × 2.5 | 3800 |
| 3.3 | 80 × 80 × 2.5 | 4200 |
| 3.6 | 100 × 60 × 3.0 | 4500 |
| 3.6 | 100 × 100 × 3.0 | 4500 |
| 4.2 | 100 × 100 × 4.0 | 5200 |
| 4.5 | 100 × 100 × 5.0 | 5500 |
| 5.2 | 120 × 120 × 5.0 | 6200 |
These figures preserve the supplied catalogue and are not a universal foundation design. Actual wind loading, ground conditions, and gate forces may require different supports. Engineers should confirm embedment and wall thickness before production.

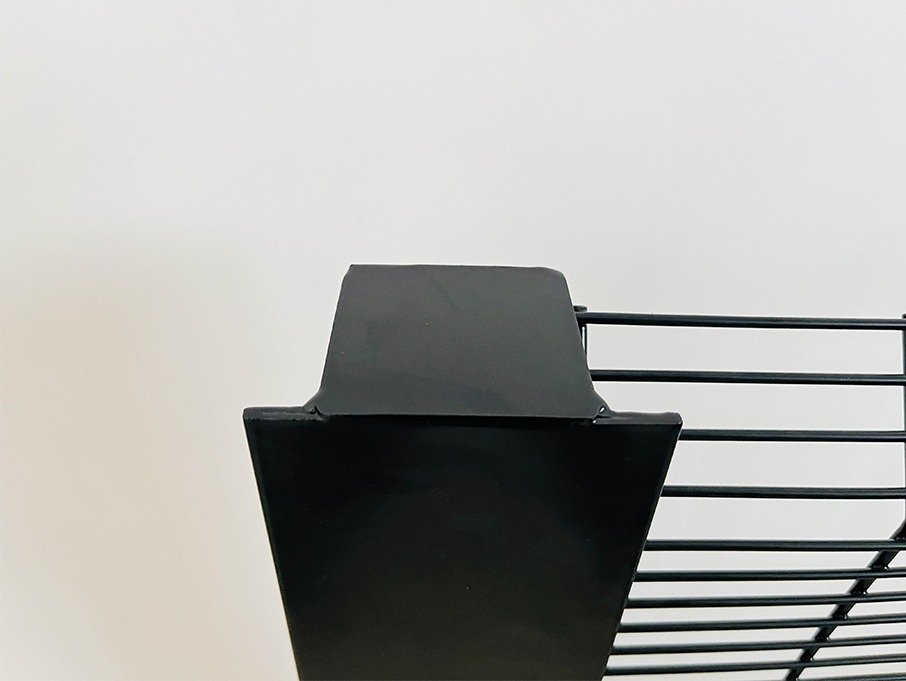

Steel posts need connection holes that match the selected mesh and clamp geometry. Square posts offer uniform faces, while rectangular sections need careful orientation. I-shaped sections introduce another flange arrangement.
Use Clear View Fence Post specifications when preparing the post schedule. Other projects may prefer ClearVu Fencing IPE Post details. Do not interchange profiles without structural and fastening checks.
Intermediate posts commonly handle two adjoining panels, while terminals hold one. Corners may need distinct clamp sizes and bolt quantities. Missing security hardware can delay an otherwise complete installation.

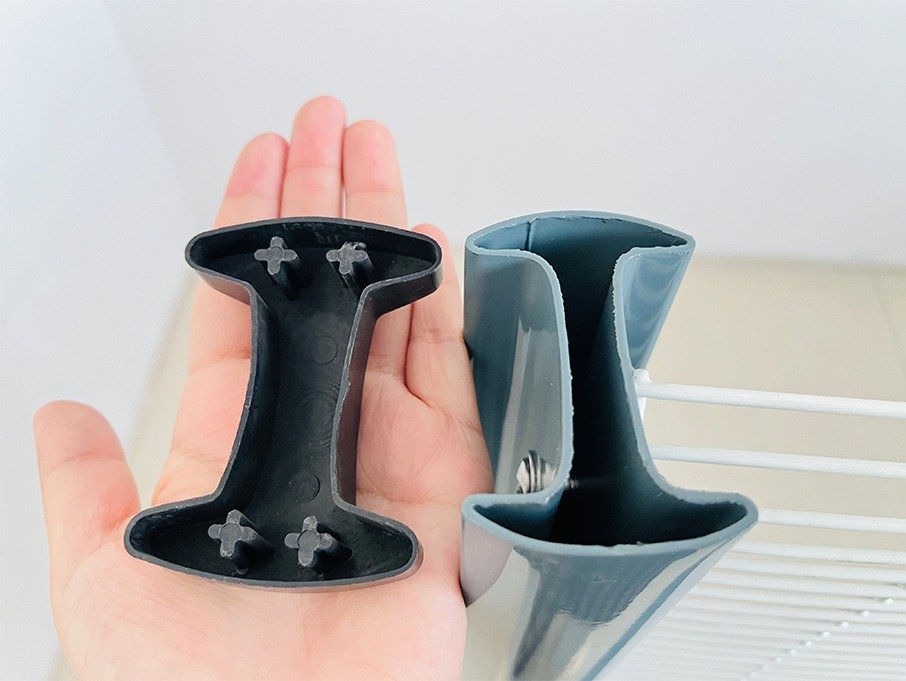

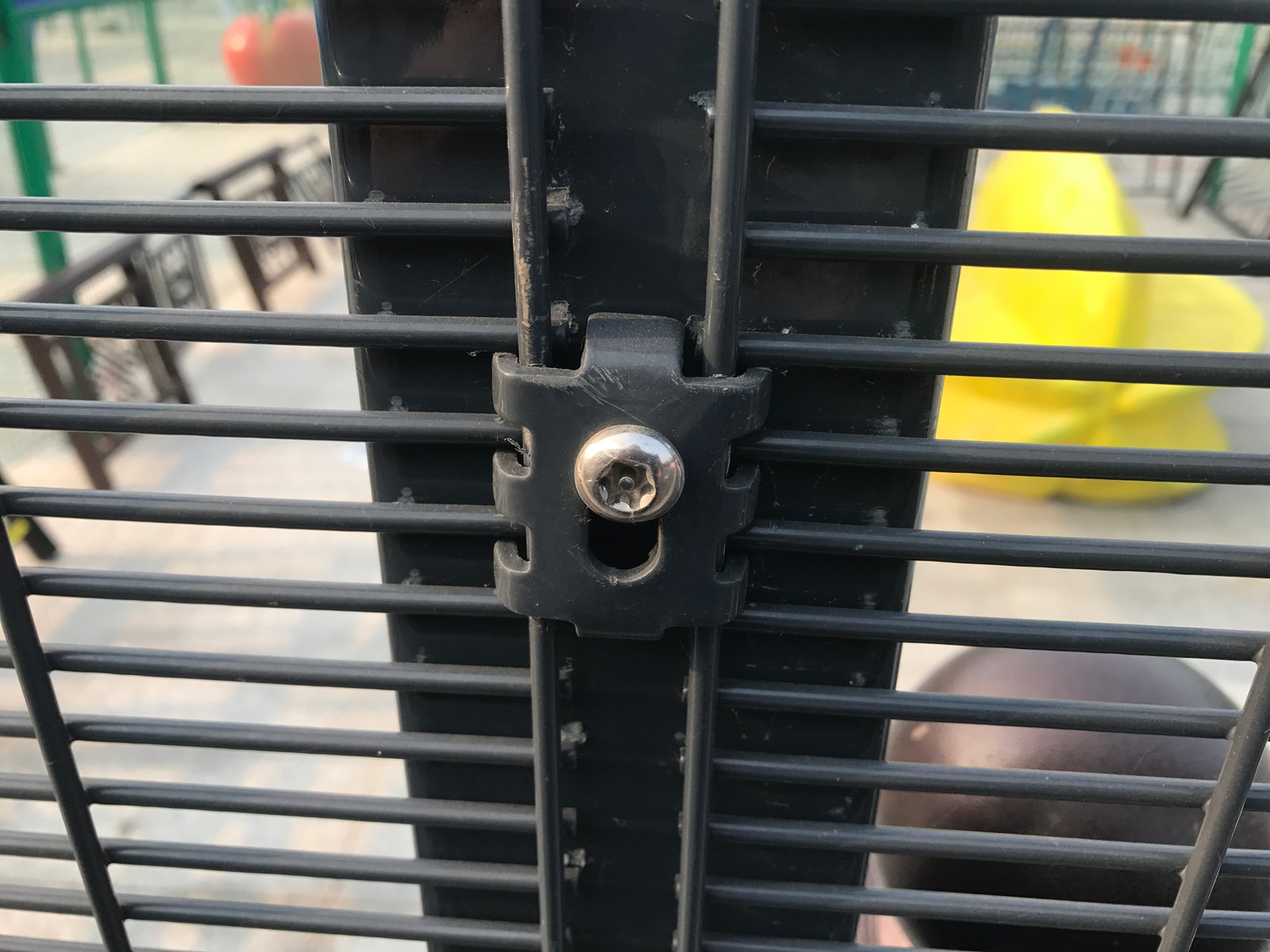

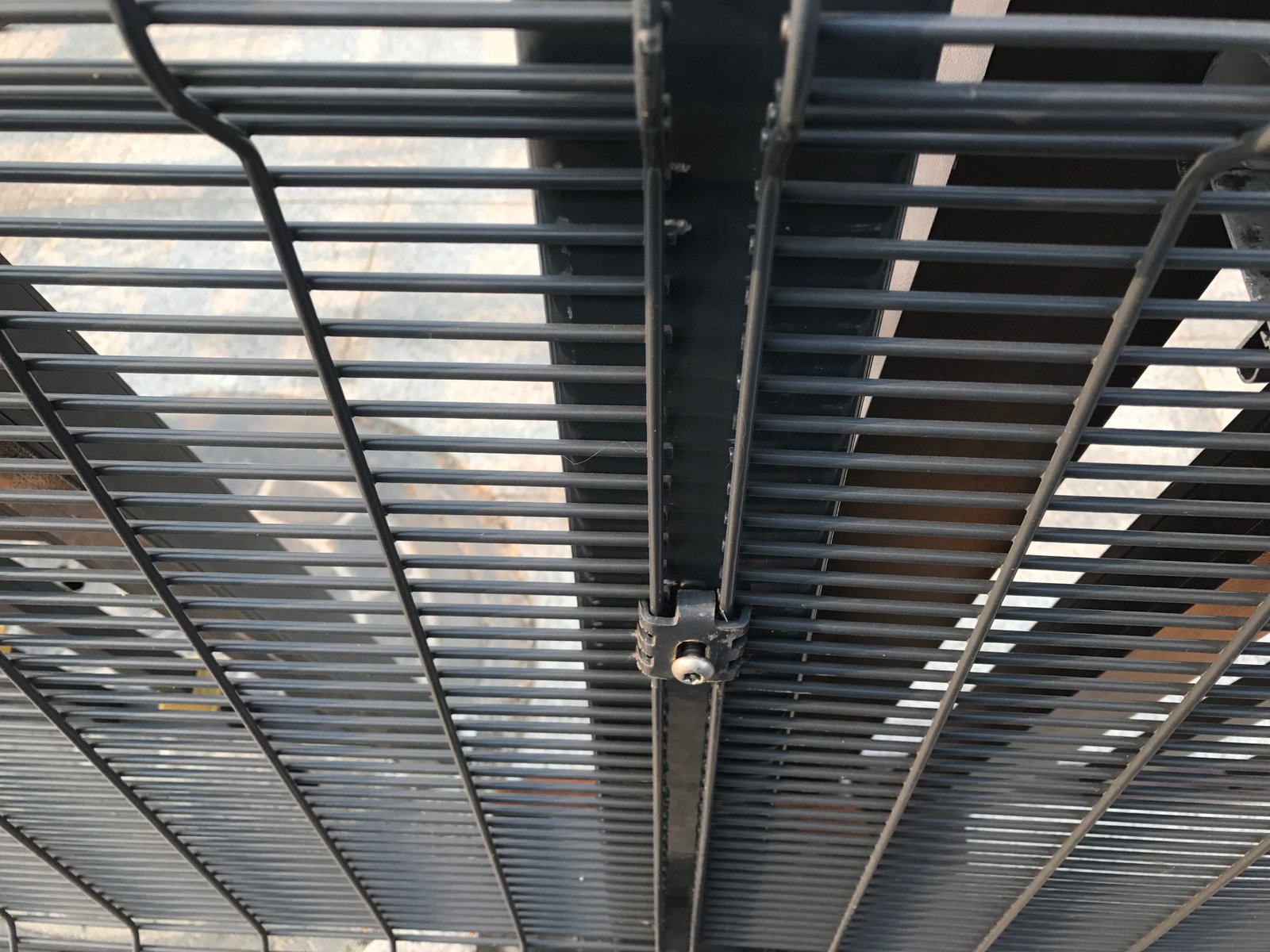

Matching ClearVu Fence Clamps require verified hole spacing and compatible steel sections. Trial-fit representative components before export packing. Record extra corner fittings separately.
Midrand lies inland on the Gauteng Highveld rather than near a seaport. Summer rainfall and thunderstorms can affect drainage around foundations and gate tracks. Dry-season dust can collect inside guides and moving hardware.
Zinc protection helps reduce steel corrosion, while compatible polymer coatings provide colour and another protective layer. A Powder Coated Clear View Fence needs suitable surface preparation. Actual film thickness and adhesion require inspection.
The original source uses ZincAlume, polyester powder coating, and Plascoat terminology. Those names do not represent identical finishing processes. Select a specified metallic substrate and approved polymer coating where applicable.
Plascoat describes a branded polymer-coating family, not a universal coating grade. Buyers should confirm product chemistry and colour availability. ZincAlume also needs its actual alloy and process description.
Some ClearVu Fence Galvanised Epoxy Coating systems use another protective sequence. A paint colour does not prove corrosion performance. Inspections should cover bolts, cut edges, and difficult coating recesses.
 |
 |

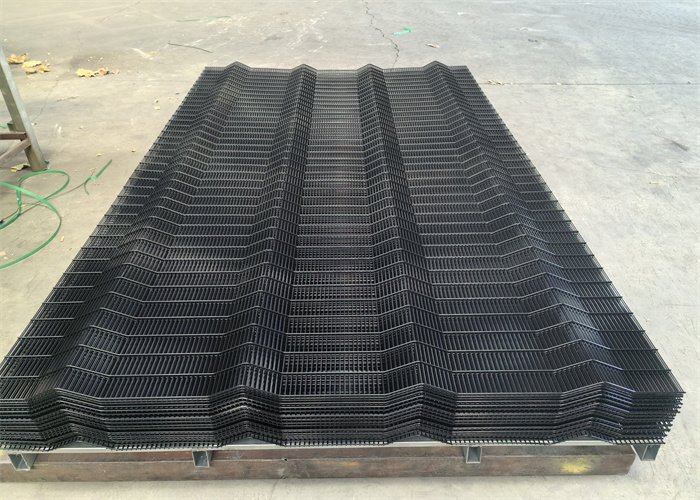

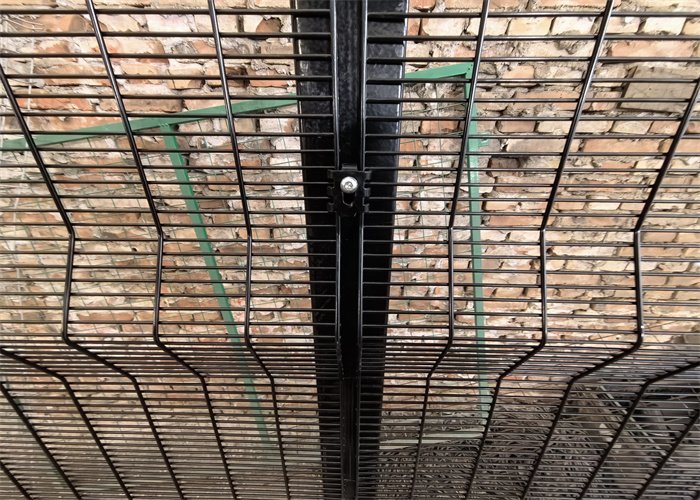

| Original BMP image: review source finish against the approved sample. | Original BMP image: compare appearance, wire geometry, and stated coating requirements. |
Stormwater can undermine neglected post surroundings or obstruct sliding tracks. Inspect low points after significant rainfall. Regular cleaning also helps reveal coating damage under dust deposits.
Do not assume a coating eliminates maintenance entirely. Steel repairs should follow the selected product's written procedure. Keep records for future warranty claims.
Business parks may require separate employee entrances and freight access. A visible boundary helps observation, but moving vehicles still pose collision risks. Bollards can protect exposed posts near turning trucks.
Matching Clear View Fence Gate systems include pedestrian and vehicle arrangements. Wider sites may select ClearVu Fence Sliding Gates. Tracks, motors, and safety controls need independent review.
Residential entrances often handle pedestrians, deliveries, and residents during overlapping periods. Separate traffic routes can reduce conflicts around gate leaves. Cameras should cover the approach without obstructing emergency entry.
Landscape planting needs thoughtful placement beside surveillance lines. Trees can conceal movement or create climbing aids. A complete perimeter plan considers these external objects.
Warehouses may keep valuable stock near boundary roads. Positioning containers beside fences can obscure observation and create climbing opportunities. An internal clear strip supports monitoring and maintenance.
Industrial entrances also face repeated truck vibration and dust. Check gate stops, fasteners, and guide rails on a planned cycle. Fence posts cannot serve as crash barriers without separate engineering.
Survey actual fence lines rather than estimating from satellite images alone. Record corners, slopes, existing retaining walls, gate widths, and underground utilities. Installed bay spacing may differ from nominal panel length.
A ClearVu Fence Installation Guide can support the installation sequence. However, local structural calculations remain necessary. Foundation dimensions depend on loads and ground conditions.
Consider an uninterrupted 122 m run with approved 3.05 m installed post centres. That assumption produces forty complete bays and forty-one posts. Real gate openings and corners change those quantities.
| Illustrative Item | Basis | Preliminary Result |
|---|---|---|
| Straight boundary length | 122 m | 122 linear metres |
| Assumed installed post centres | 3.05 m | Confirm against mounting drawing |
| Complete panels | 122 ÷ 3.05 | 40 bays |
| Posts | 40 + 1 | 41 posts |
| Gates, clamps and corners | Project drawing | Confirm separately |
The example assumes post spacing equals one source panel length. Actual overlaps and connection details can invalidate that assumption. Never set post holes without the approved layout.
Some projects need narrow welded mesh, while others prefer tubular rail and picket systems. Corromesh uses another security mesh arrangement. Its mounting details require separate review.
Garrison Security Fencing uses steel pickets and rails instead. Short-lived projects may use Temporary Construction Fencing before the permanent boundary reaches completion. Portable frames cannot automatically substitute for engineered fixed posts.
BMP manufactures welded panels and matching components in China. South African contractors may complete installation under an agreed local scope. The factory quotation should clearly identify product supply and delivery responsibilities.

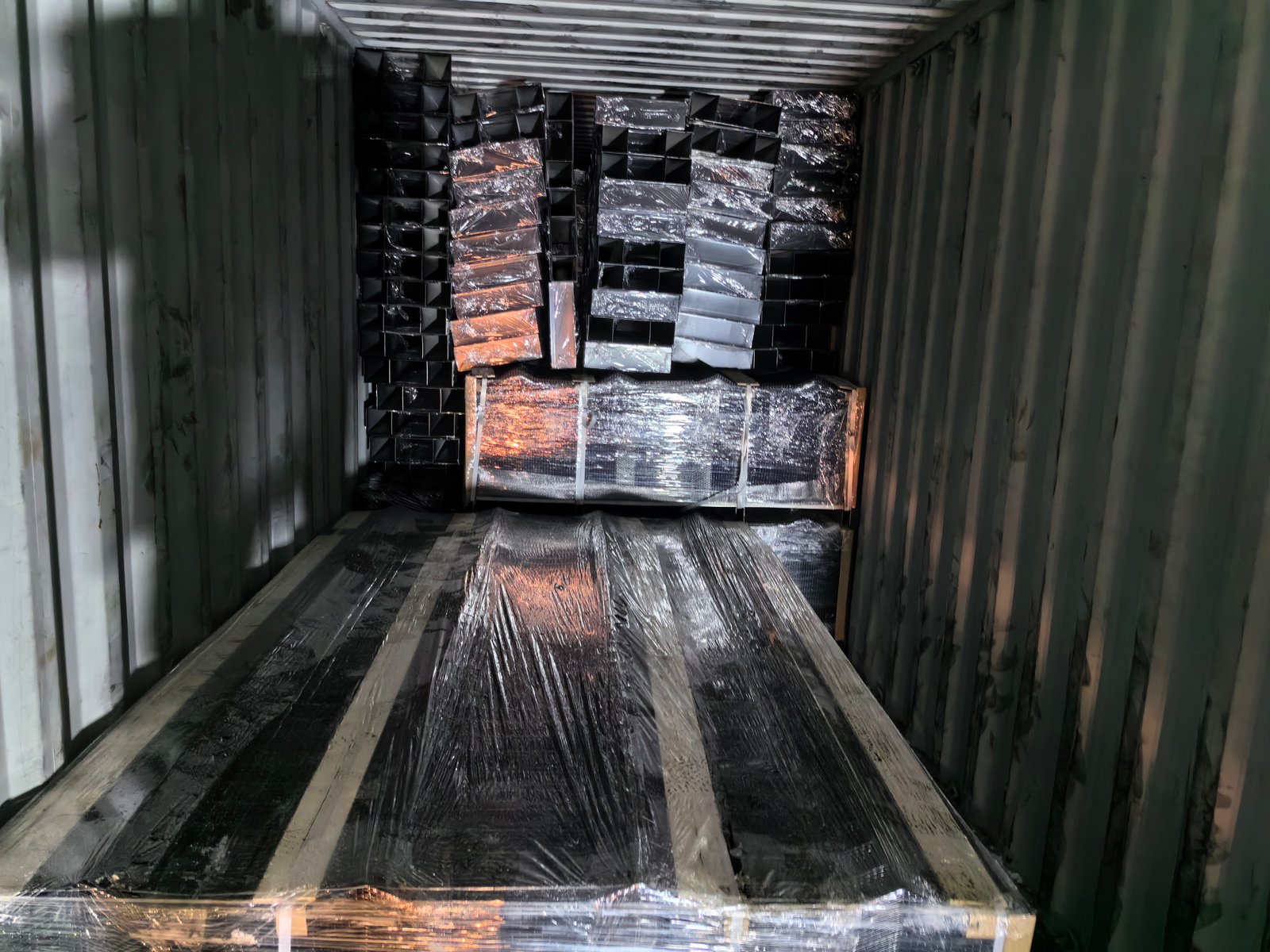

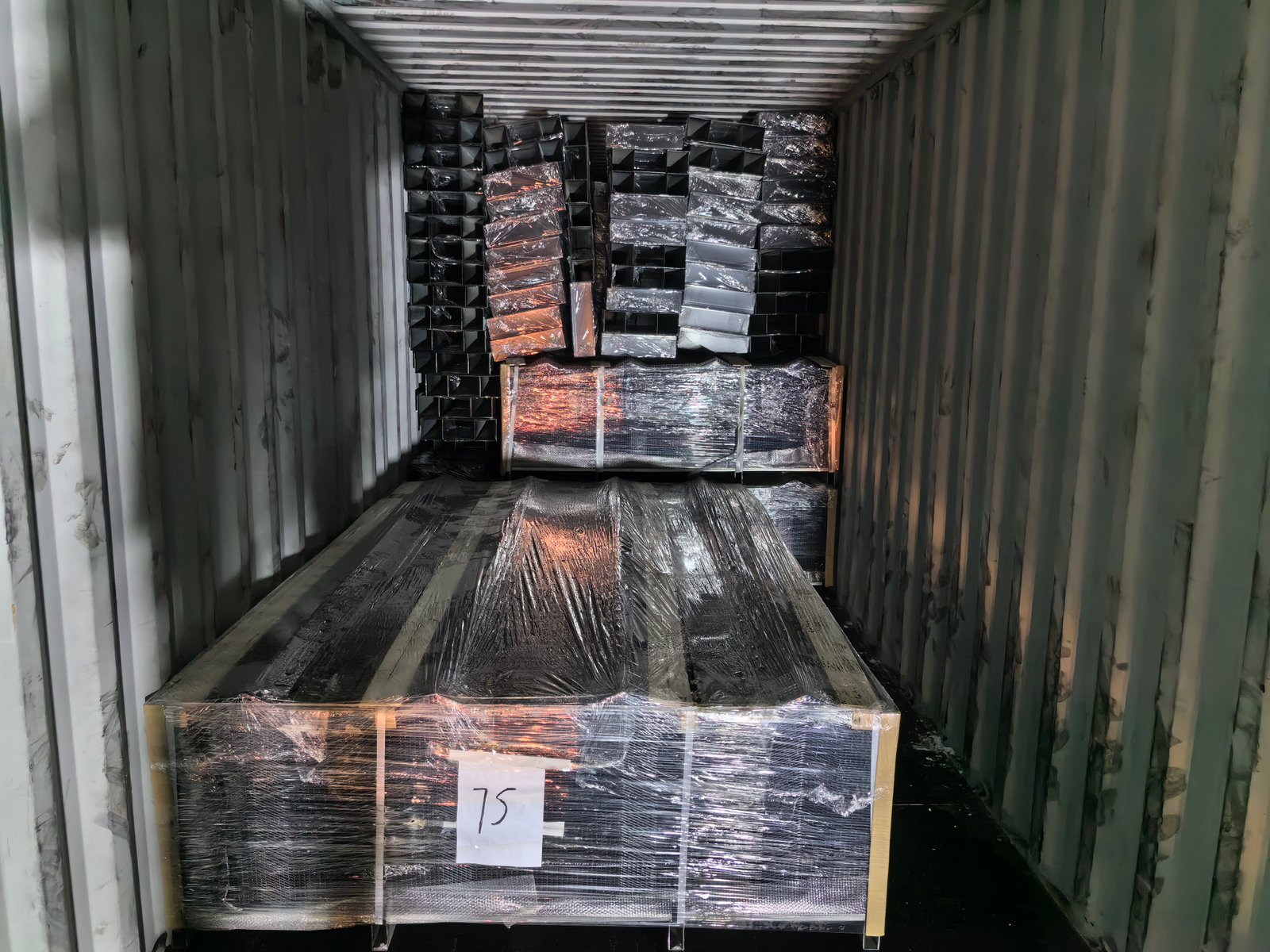

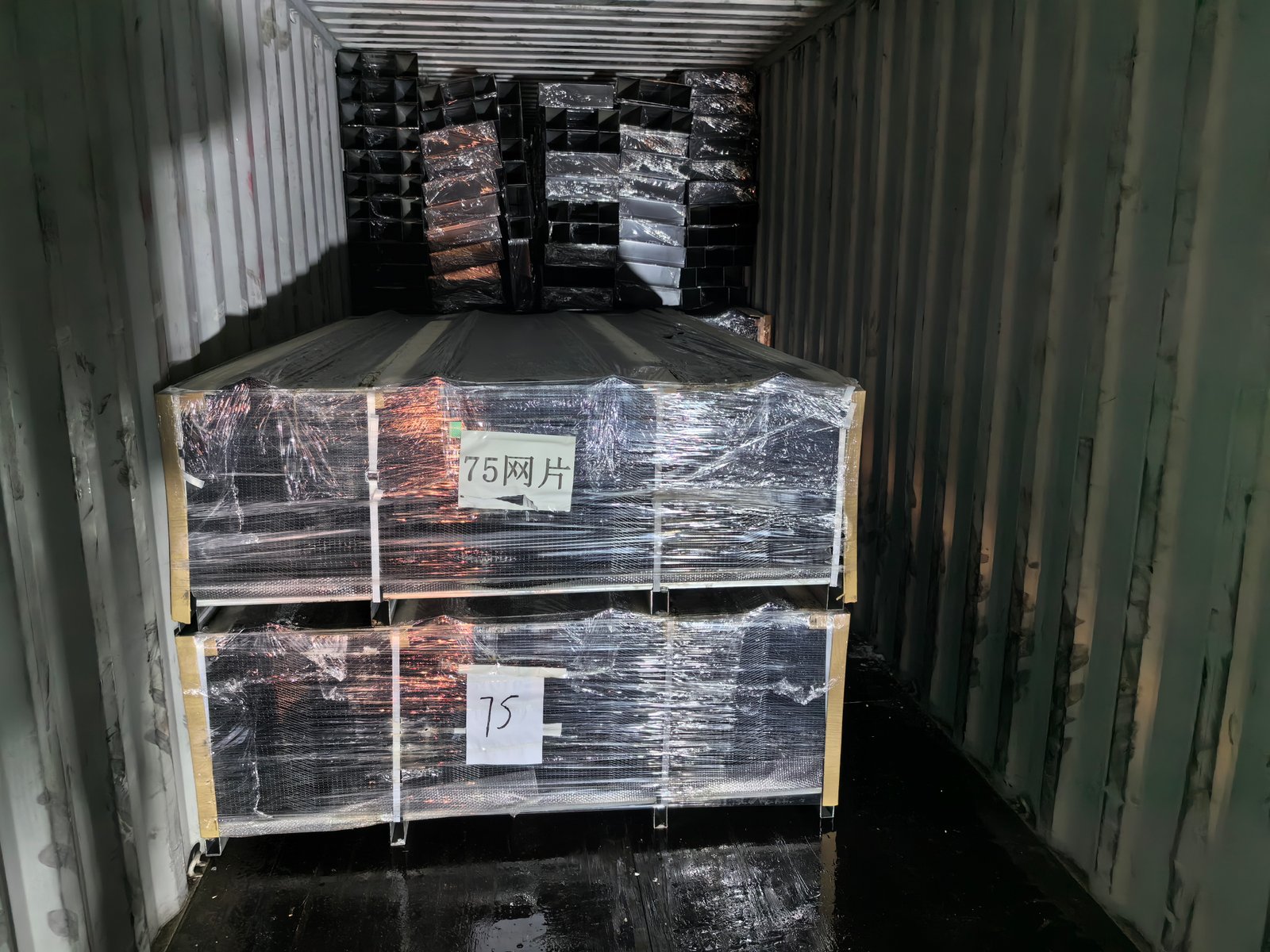

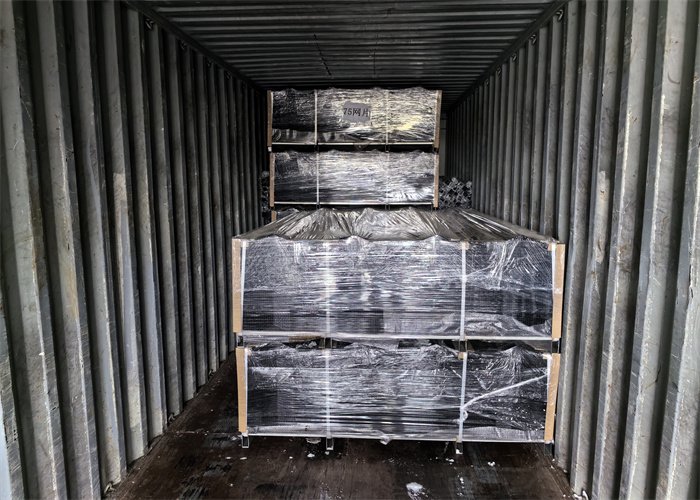

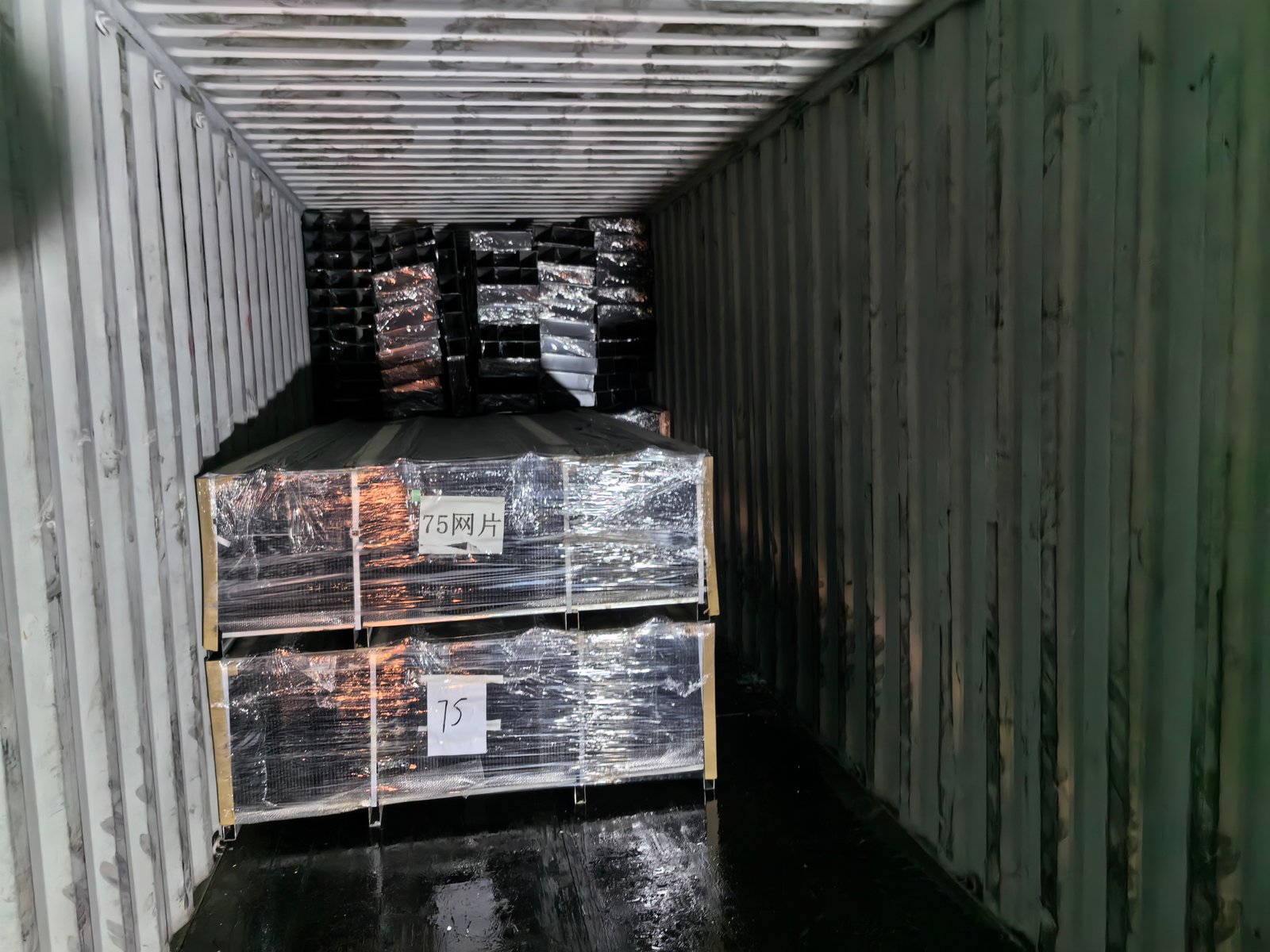

Check pallet measurements, protective separators, post quantities, and accessory cartons before shipment. A sample panel-and-post assembly can expose mismatched bolts. Keep dimensional inspection records with the commercial documents.
Metal stillages can support rigid panels during transport when their load ratings suit the cargo. Protective film helps limit abrasion between finished sheets. Corner guards protect coated edges from straps.
Match packing lists with the confirmed product schedule. Record actual gross weights and container restraints. Site crews should check damage before starting installation.

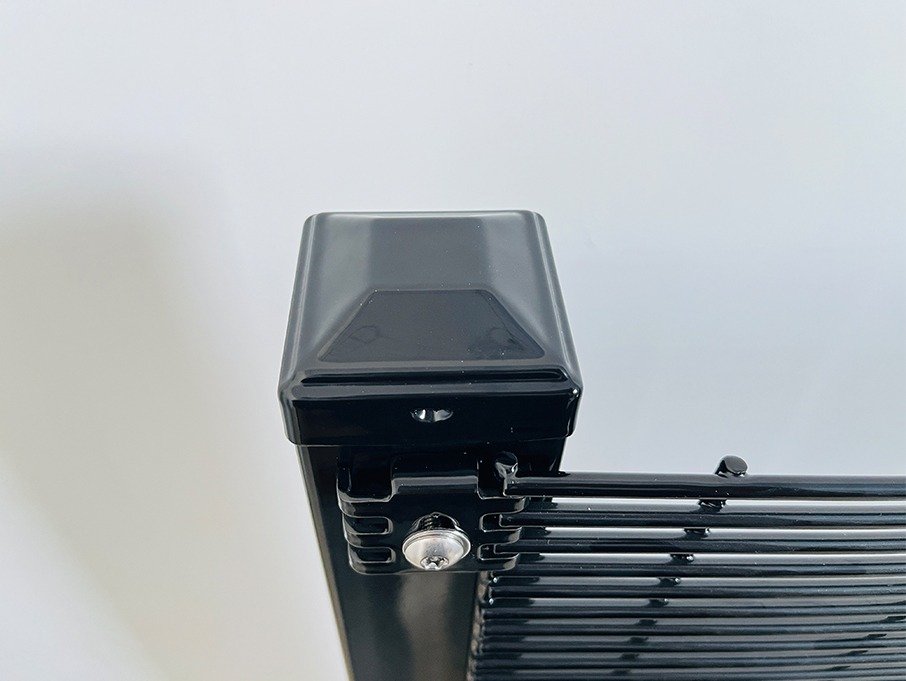

Does the quotation include posts, security bolts, and caps? Are gate frames part of the same order? Which coating process and inspection reports apply?
Can the supplier confirm actual post centres and planned foundation loads? Who arranges unloading and installation? Written answers reduce disputes during delivery.
No. The close 12.7 mm reference differs from 25, 50, and 100 mm grid options. Each model needs its own risk assessment. The actual test evidence determines any formal rating.
No. Clamp geometry, post width, and panel overlap influence the installed centre distance. Confirm setting-out from an approved drawing. Incorrect post placement creates avoidable site rework.
Midrand has an inland climate, unlike Durban's direct marine environment. Coating decisions should reflect actual corrosion exposure and maintenance expectations. Local industrial contaminants may still require additional protection.
BMP offers a 15-year manufacturer warranty for applicable ClearVu and Clearview products under written terms. Coverage depends on the supplied system and agreed conditions. Request the warranty document before confirming the order.
Boss Metal and Plastic Co., Ltd. supplies welded mesh, compatible steel posts, clamps, and gates for export projects. A useful inquiry identifies the Midrand location, site drawings, security requirements, and delivery scope. Factory production should follow one approved bill of materials.
Regional ClearVu Fence Panels illustrate related BMP export configurations. Their available dimensions may differ from the Midrand catalogue. Confirm every size, finish, quantity, and installation responsibility before ordering.
