Powder Coated Clear View Fence

Surface Finish: Galvanized Wire, Powder Coated
International Trade Terms: FOB, CFR, CIF
Usage: Prison, Airport, Gas Station
Type: Welded Mesh
Mesh Size: 12.7mm x 76.2mm
Height Range: 1.5m – 5m
Customization: Available
Wire Diameter Range: 3.0mm – 6.0mm
Condition: New
OBM (Original Brand Manufacturing): Available

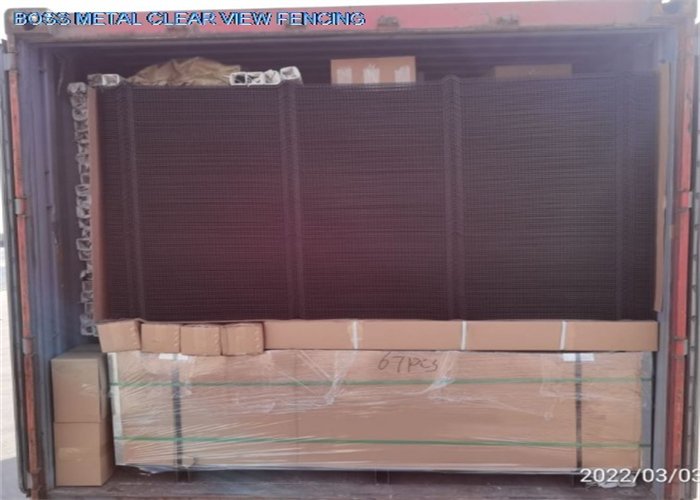

Transport Package: Steel Pallet
Specification: 1.5m – 5m Height
Trademark: BMP
Origin: China
HS Code: 73089000
Production Capacity: 20,000 meters per month
Price: $59.999 per kit

8615690482714 info@clear-view-fencing.co.za

Description

Our Powdwer coated Clear View Fence comes with a powder coating and has a zinc and aluminum finish that follows the SANS 10244-2 standards, with a minimum of 275g/m2. We promise it will last a long time – in fact, we give a 20-year warranty. These security fences, also known as see-through fences, are made from steel wire. They have small gaps in the welded panels, making the fence almost invisible. You won't miss any views, and no one can hide behind it.

The special finish is 95% zinc and 5% aluminum, making it three times more durable than the usual galvanized wire. For the outer layer, we use top-quality powder coating materials from AkzoNobel. This is the best in the industry for keeping its color and shine, even under the sun. Plus, we back it with a 10-year warranty. This fence is perfect for places near the sea or in industrial areas because it can handle moist conditions really well.

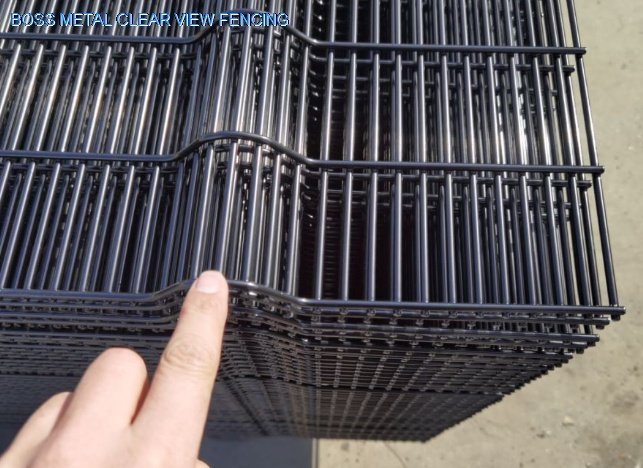

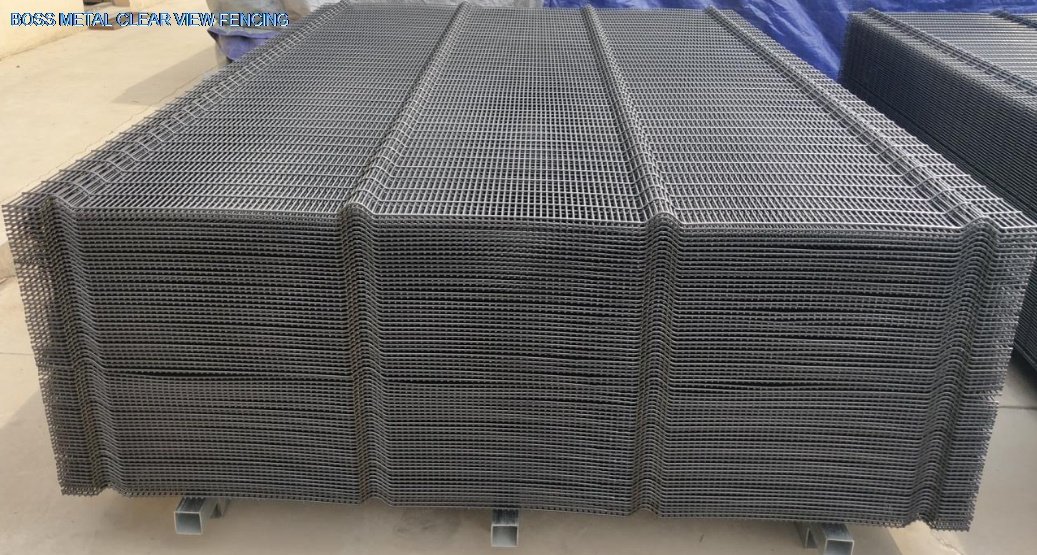

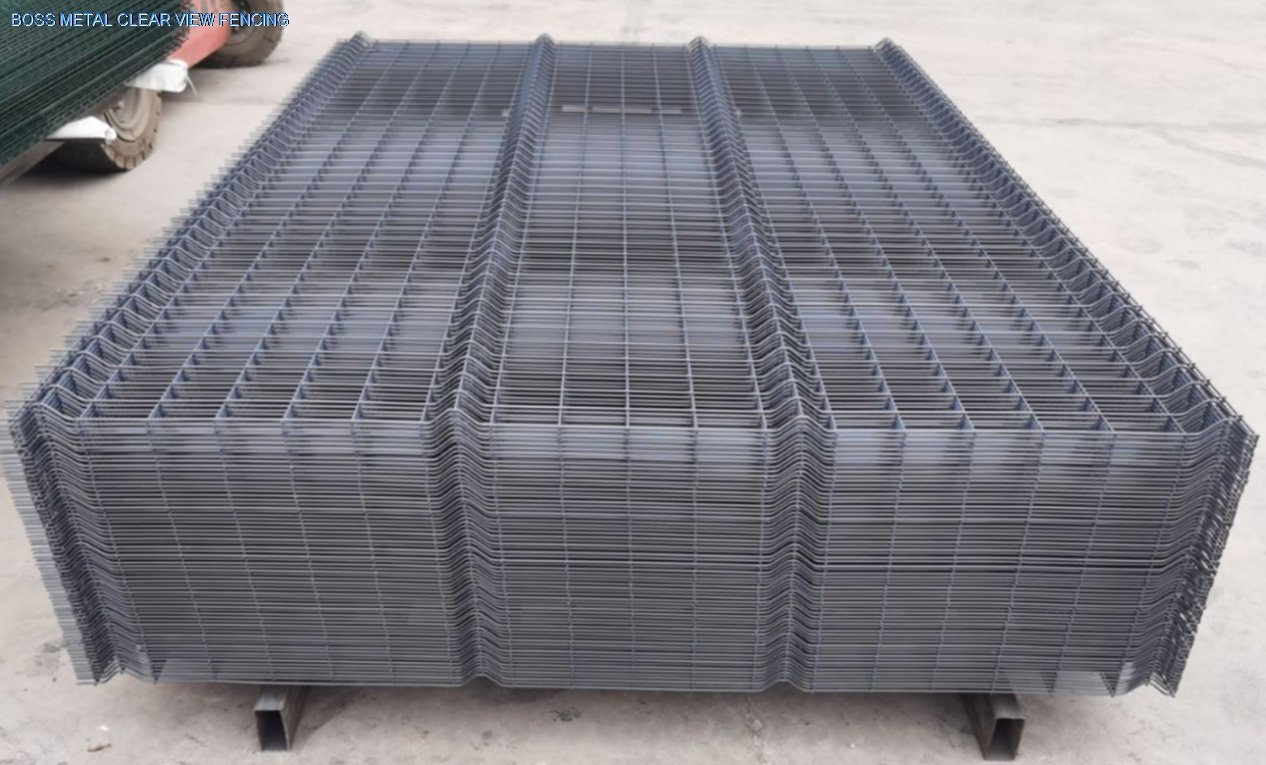

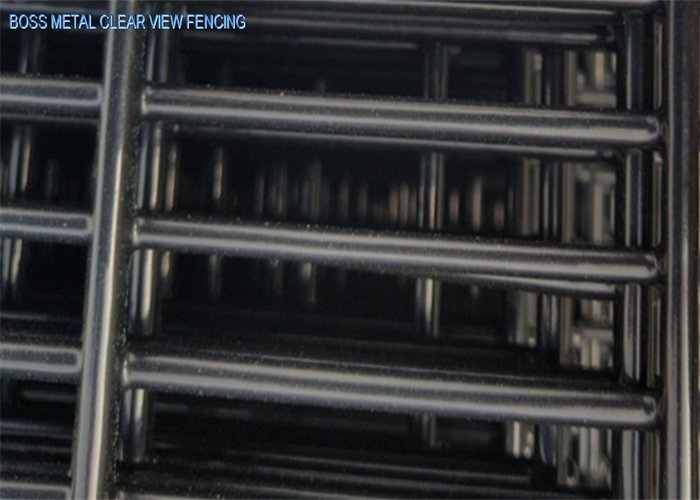

Powder coated Clear View Fence Panels

PVC coated Clear View Fence

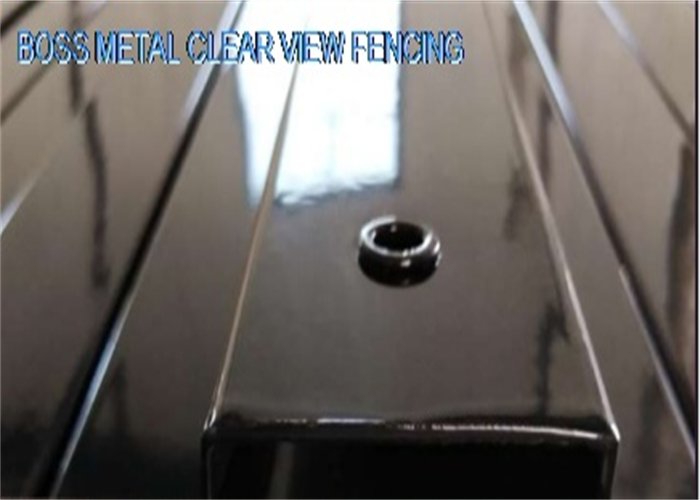

Powder coated Clear View Fencing Post

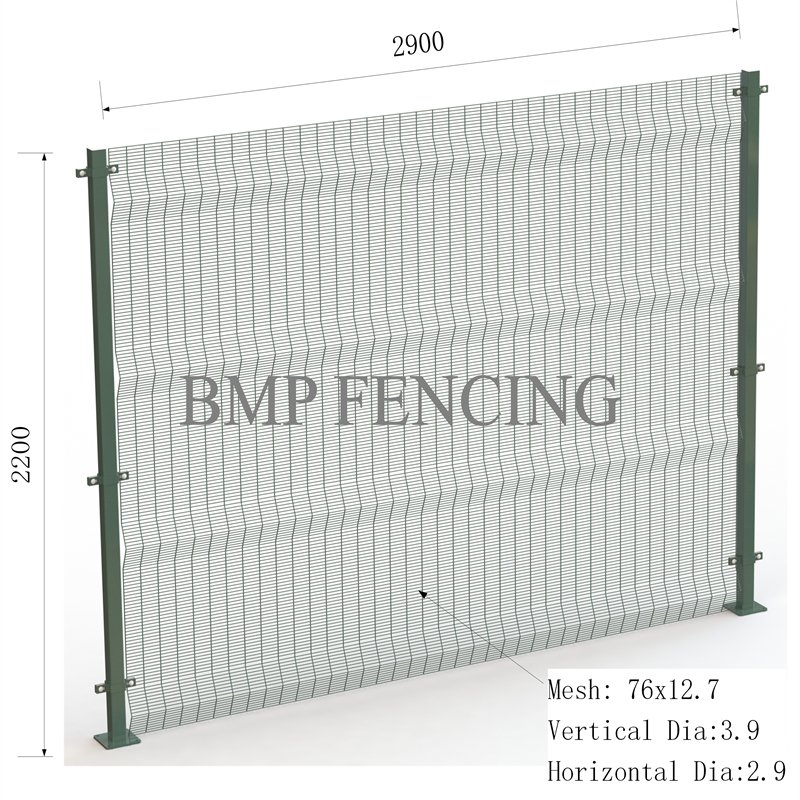

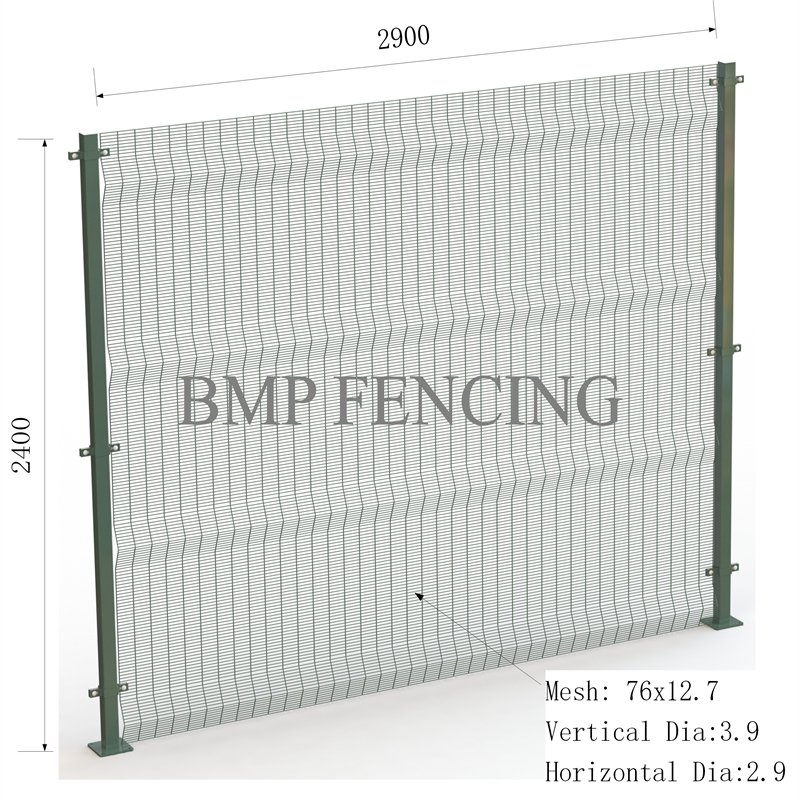

Clear View Fence Panels Specifications

Fence Height (mm)	Fence Width A (mm)	Mesh Aperture 1 High Security (mm)	Mesh Aperture 2 Medium Security (mm)	Mesh Aperture 3 Low Security (mm)	Wire Diameter (mm)	V Folds	Fence Width Options (mm)
1200	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	2 x 50mm depth	2950 / 3000 / 3050
1500	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	3 x 50mm depth	2950 / 3000 / 3050
1800	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
2000	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
2100	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
2200	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
2300	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
2400	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050
3000	2900	12.7 x 76.2	25 x 75	50 x 76	3 / 4 4/5.6	4 x 50mm depth	2950 / 3000 / 3050

Fencing Post Specifications for Heights 1200mm, 1500mm, and 1800mm

Fence Height	Post Length Options (mm)	Tapering Post A (mm)	Tapering Post B (mm)	Square Post (mm)	Rectangle Post (mm)	I Post (mm)	IPE Post (mm)	C Post (mm)	T Post (mm)	Wall Thickness (mm)
1200mm	1800, 2300, 2500, 2700	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
1500mm	2100, 2600, 2800, 3000	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
1800mm	2400, 2900, 3100, 3300	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0

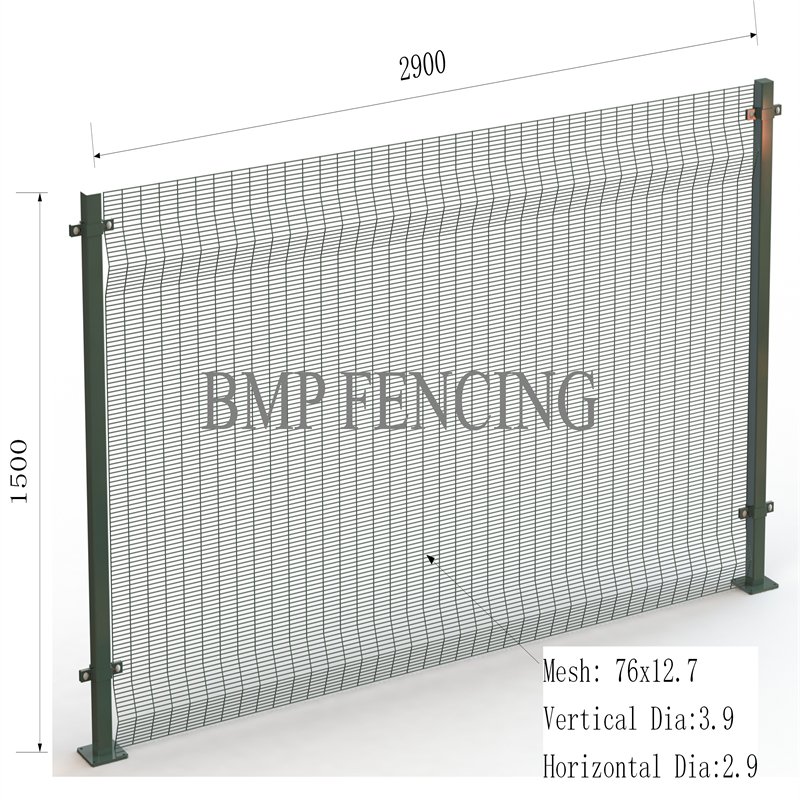

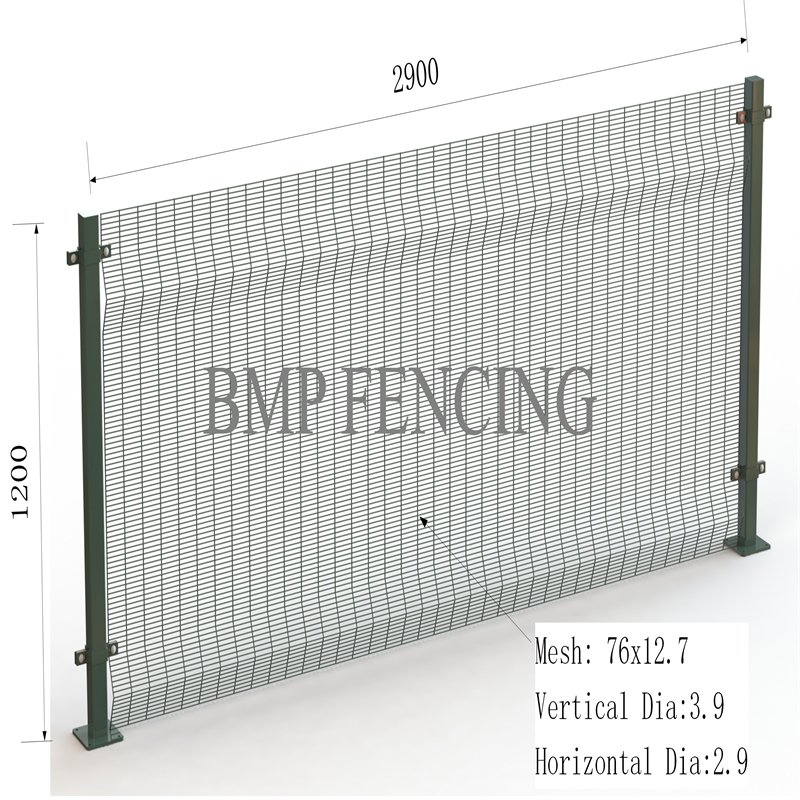

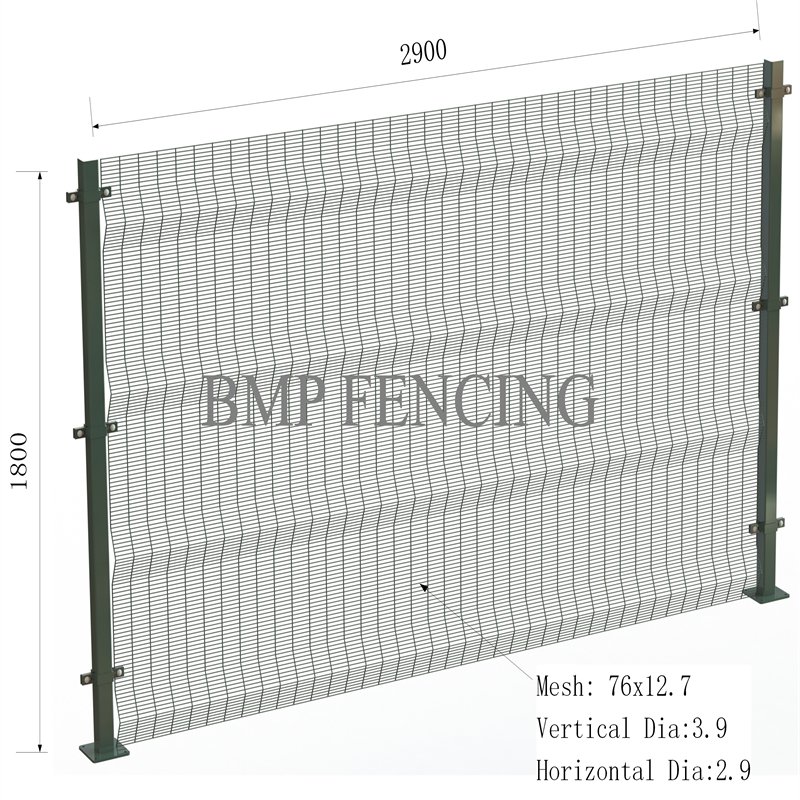

1200mm height	1500mm height	1800mm

Fencing Post Specifications for Heights 2000mm, 2100mm, and 2200mm

Fence Height	Post Length Options (mm)	Tapering Post A (mm)	Tapering Post B (mm)	Square Post (mm)	Rectangle Post (mm)	I Post (mm)	IPE Post (mm)	C Post (mm)	T Post (mm)	Wall Thickness (mm)
2000mm	2600, 3100, 3300, 2300	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
2100mm	2700, 3200, 3400, 3600	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
2200mm	2800, 2300, 3500, 3700	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70×44, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0

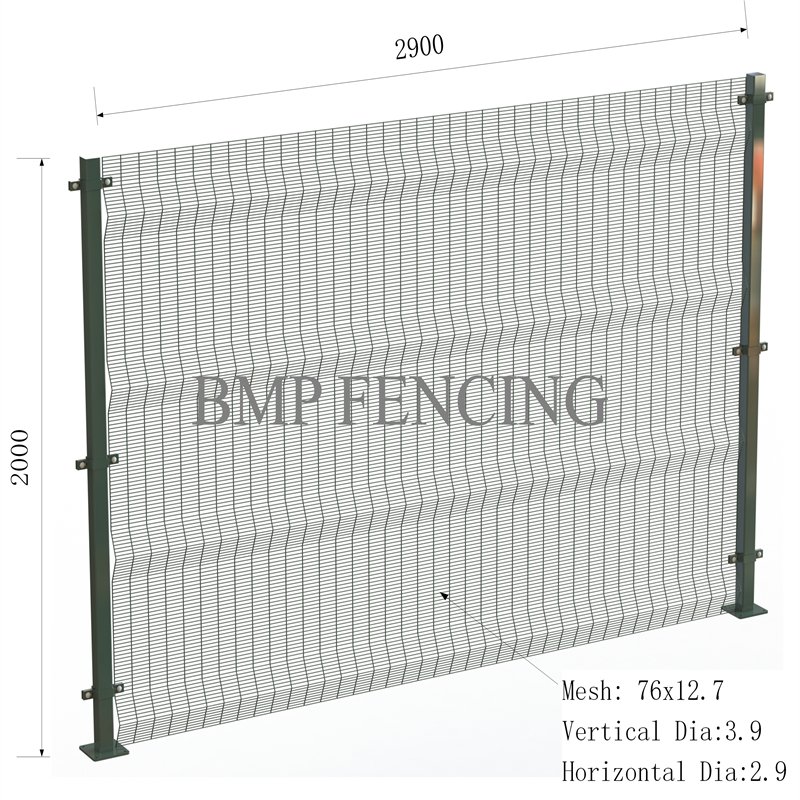

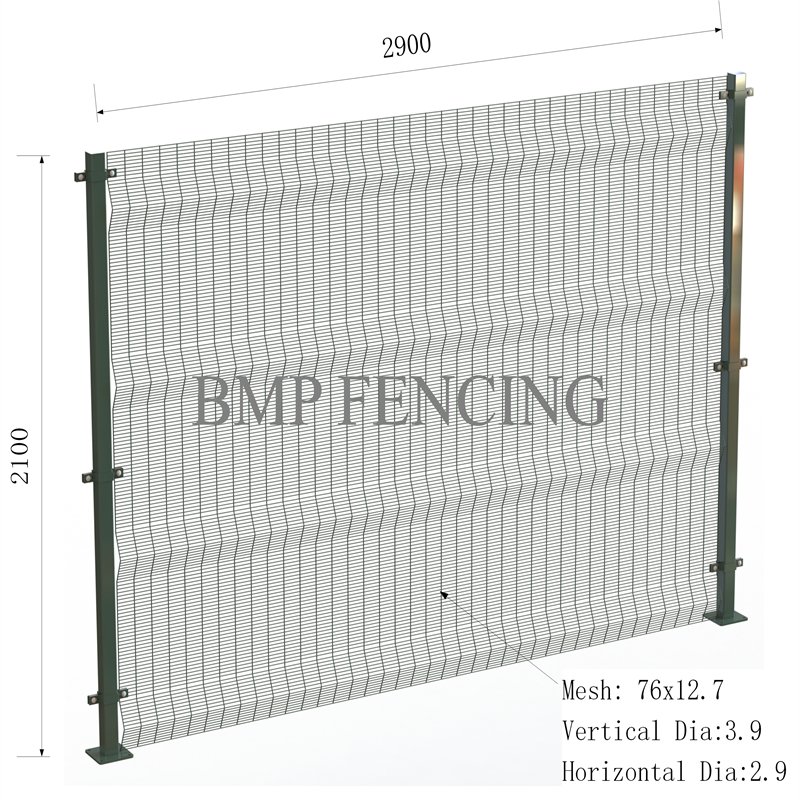

2000mm height	2100mm height	2200mm

Fencing Post Specifications for Heights 2300mm, 2400mm, and 3000mm

Fence Height	Post Length Options (mm)	Tapering Post A (mm)	Tapering Post B (mm)	Square Post (mm)	Rectangle Post (mm)	I Post (mm)	IPE Post (mm)	C Post (mm)	T Post (mm)	Wall Thickness (mm)
2300mm	2900, 2400, 3600, 3800	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70x44x2, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
2400mm	3000, 3500, 3700, 3900	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70x44x2, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0
3000mm	3600, 4100, 4300, 4500	85 x 45, Depth: 85	150 x 75 x 150	60×60, 76×76, 80×80, 100×100	60×80, 80×100, 100×150	70x44x2, 55×100	55×100, 100×68, 74×120	60×80, 80×100, 100×150	100×60, 76×40	1.6 - 6.0

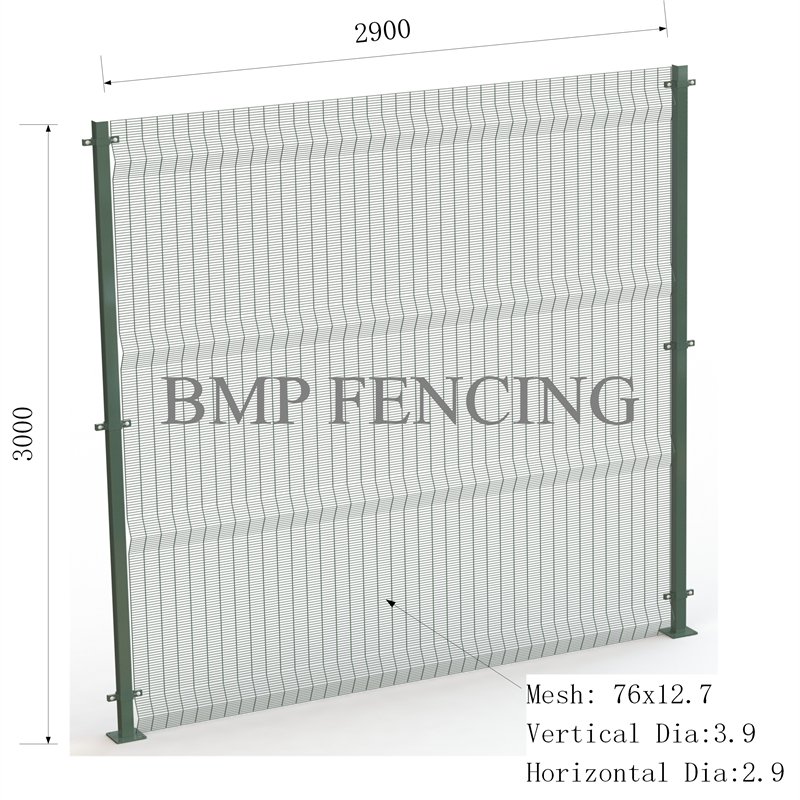

2400mm	3000mm

Wire Specifications

Wire Diameter (Vertical x Horizontal)	Aperture (mm)	Tensile Strength (mpa)	Weld Strength (%)
5.6mm x 4mm	75mm x 12.7mm	500 - 650	60% - 80%
4mm x 3mm	75mm x 25mm	500 - 650	60% - 80%
4mm x 3mm	75mm x 50mm	500 - 650	60% - 80%

Powder coated Clear View Fence Zinc Coating Options

Wire Diameter	Lightly Galvanised (g/m²)	Fully Galvanised (g/m²)	Galfan Coated (g/m²)
5.60mm	80	290	220
4.00mm	60	275	220
4.00mm	50	255	195

Powder coated Clear View Fence Color Coatings Options

Coating Type	Specification	Component Composition
Powder Coating	60-80 microns	N/A
Thermal Plastic	250 microns min.	N/A
Zinc/Aluminium Mix	N/A	95% Zinc, 5% Aluminium

Materials

Our clear view fencing steel materials are manufactured in compliance with internationally recognized ASTM standards, ensuring high quality and durability. Specifically, the materials used correspond to ASTM A283 Grade B for Q195 steel and ASTM A36/A283 Grade C for Q235 steel. This adherence to ASTM standards underlines our commitment to providing products that meet stringent quality and performance criteria, guaranteeing the structural integrity and longevity of our fencing solutions

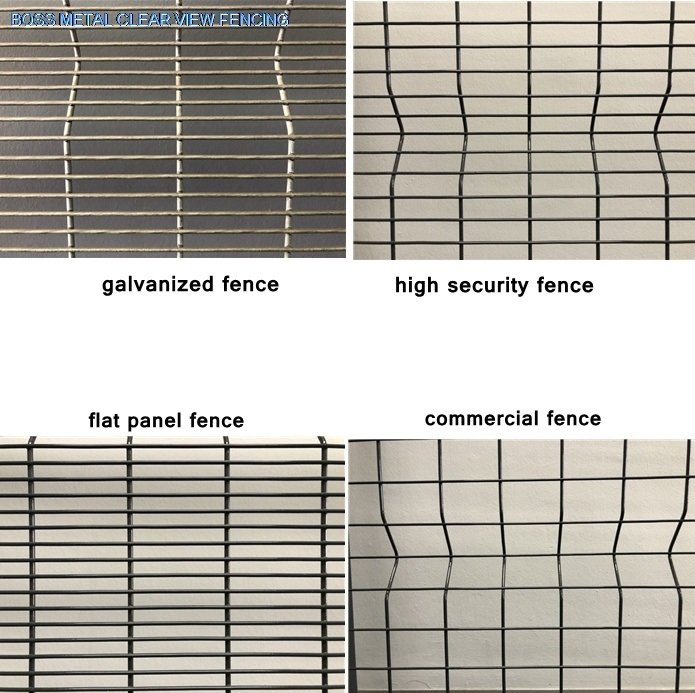

We Have Different Type Of Security Fence For The Market:

PVC coated Clear View Fence with standard see-through view fences common using standard security fence see-through view fence; the fence with bends increase the rigidity, more robust and suitable for the high-security area, with good looking and beautiful environment integration. The aperture is 76.2x12.7mm (3x1/2') with a wire diameter of horizontal 3.0mm and vertical 4.0mm (SANS 10244-2 MIN of 275g/m2); the composition of zinc coating consists almost entirely of zinc (>99%) and is lead-free, resulting in a finely crystallized zinc spangle that meets a bright high visual appearance. The corrosion resistance zinc coating is in direct release to the coating's thickness.

Flat single-layer see-through PVC coated Clear View Fence (also named 3150 type) 3150mm is the economic see-through view fence for the clients; with a thinner wire diameter and the same aperture, the price is very competitive, with the same see-through Effect. It is suitable for the self-use, Aperture is 76.2x12.7mm (3x1/2”) with wire diameter horizontal &vertical :3.15mm ((SANS 10244-2 MIN of 275g/m2),

We, BOSS METAL, Are A PVC Powder Coating Clear View Fence Manufacturer

PVC-coated Clear View Fence with long-distance see-through view fences. The welded fence is a cheap see-through view fence. The big aperture with suitable wire diameter made the fence significantly cheaper; it could be used for long-distance fences and will be very affordable.Aperture is 200x50mm with wire diameter 4.0mm(SANS 10244-2 MIN of 275g/m2),

Feature PVC-coated Clear View Fence

with high rigidity and a high level of security fence.

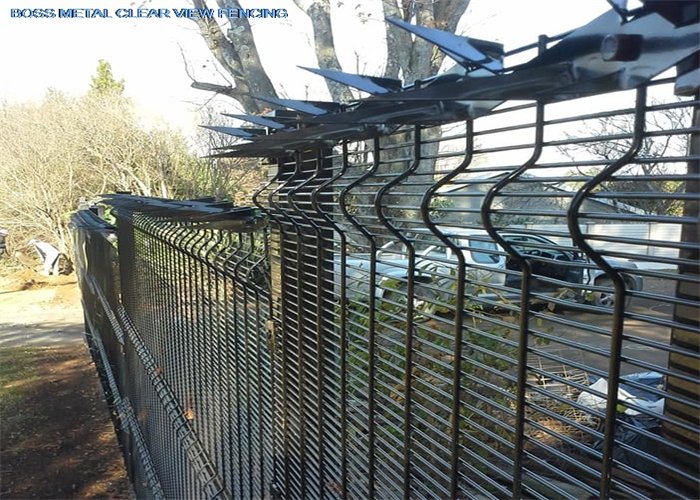

It can be used with barbed wire or razor wire.
Hard to climb and cut with high-density wire spacing
anti-finger to through
Corrosion resistance.
Maintains a clear view through the horizontal opening.
It is beautiful and has many colours.
Easy to deliver and install.
Long life expectancy.
Easy to maintain

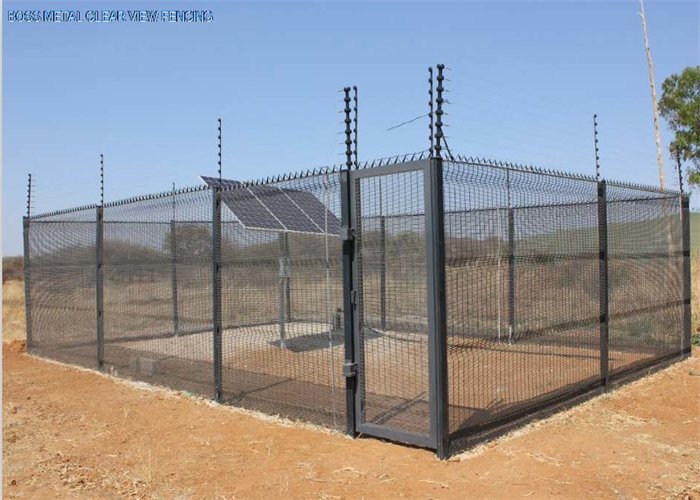

Using On PVC coated Clear View Fence

Power facilities security see-through fence
Windfarms security see-through fence
Landfills security see-through fence
Correctional facilities security see-through fence
Airports security see-through fence
Military facilities security see-through fence
Electrical substations security see-through fence
Railway security see-through fence

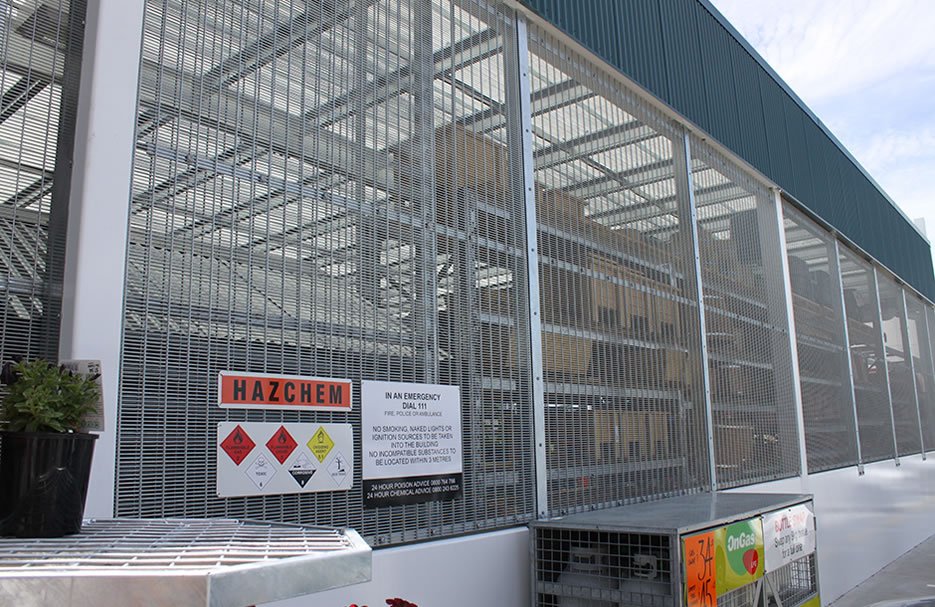

Industry zone security see-through fence

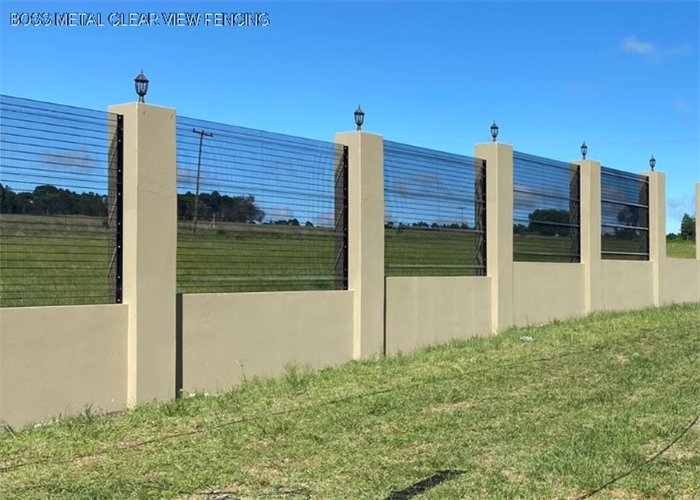

House protection security see-through fence
Factory boundary line, see-through security fence

Conclusion Powder coated Clear View Fence

Our powder-coated Clear View Fence is the best choice for lasting safety. It's made of strong steel wires welded close together, so you can look through it without missing any views. We coat the fence with a mix of 95% zinc and 5% aluminum, making it three times tougher than usual fences. Then, we add a layer of high-quality powder from AkzoNobel. This makes sure the fence keeps its color and shine, even in the sun or near the sea or factories. We believe so much in our clearvu invisible wall quality that we give a 20-year warranty for the fence and a 10-year warranty for its color. Perfect for any place, our Clear View Fence is the smart pick if you want secure, see-through fencing that lasts.
