Clear view fencing For Sale, clearvu fencing, 358 fencing, high security fencing is a highly attractive, yet seriously secure fencing solution that is popular across a wide range of applications based on its excellent strength, erection simplicity, and intrusion resistant anti-climb properties. Proven in prison environments 358 clear view rigid mesh fencing is virtually impossible to climb, or break through to protect your property. It’s widely used in Africa countries,like South Africa, Zambia, Zimbabwe, Mozambique,Botswana, Namibia,Mauritius, Nigeria,etc
These fences are commonly used in industrial and commercial environments due to their durability and high security. They can be found around warehouses, factories, construction sites, or any other location where security is a paramount concern. They serve to prevent unauthorized access and deter potential intruders.
In residential areas, clear view fencing can offer homeowners peace of mind. It provides a secure boundary for properties, while allowing homeowners to maintain visibility of their surroundings. It's particularly popular in areas where there's a high value on both security and aesthetics.
Clear view fencing can also be used in public areas such as parks, schools, and sports grounds. It allows for supervision and visibility while keeping the area secure.
Government buildings and other critical infrastructure such as military bases, airports, and power plants often use clear view fencing due to its high-security features.
This type of fencing is also used in wildlife parks and zoos. It provides a safe and secure environment for animals while allowing visitors clear visibility.
| Brand | BMP |
|---|---|
| Production Standard | SGS, CE |
| Model Number | 20005 |
| Material | Q195 or Q235 |
| Type | Welded type |
| Treatment | HDG, Polyester powder coating, plastic coating (PVC) |
| Color | Green RAL6005, Anthracite RAL7016 |
| Warranty | 10 years |
| Market | South Africa, Zambia, Nigeria, Zimbabwe, Mozambique, Botswana, Namibia, etc. |
| Payment Terms | TT or LC |
| Package Details | Pallet and carton |
| Delivery Times | Normally 20 days |
First and foremost, clear view fencing is designed to be both anti-climb and anti-cut. The mesh design is configured in a way that makes it incredibly difficult to get a foothold or a grip, thereby deterring potential climbers. Additionally, the small apertures in the fencing make it nearly impossible to cut through using conventional tools.
Despite the robust security, the fencing doesn't obstruct visibility, hence the name 'clear view'. The mesh design ensures that you can see clearly through the fence, providing both security and maintaining the aesthetics of your surroundings.
Clear view fencing offers high security at an affordable price. Compared to other types of high-security fencing, it offers great value for money, making it a cost-effective solution for both residential and commercial properties.
This type of fencing is highly durable and designed to withstand harsh weather conditions and potential wear and tear over time. Once installed, it requires minimal maintenance, which saves you time and effort in the long run.
Lastly, clear view fencing is available in a variety of colors. This allows you to choose a color that matches the style and aesthetic of your property, making the fence not just a security measure, but also a complementary feature of your property's exterior.

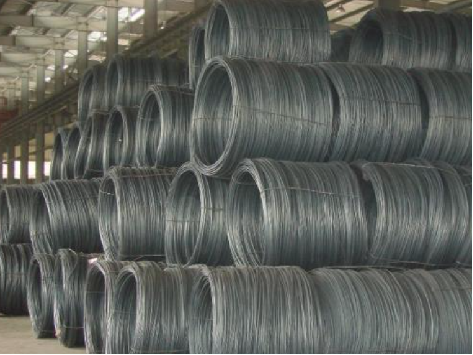

Our main component, the strengthen wire, is chosen with great care. We ensure it's robust and durable, so that the finished product can stand the test of time and meet all required standards.

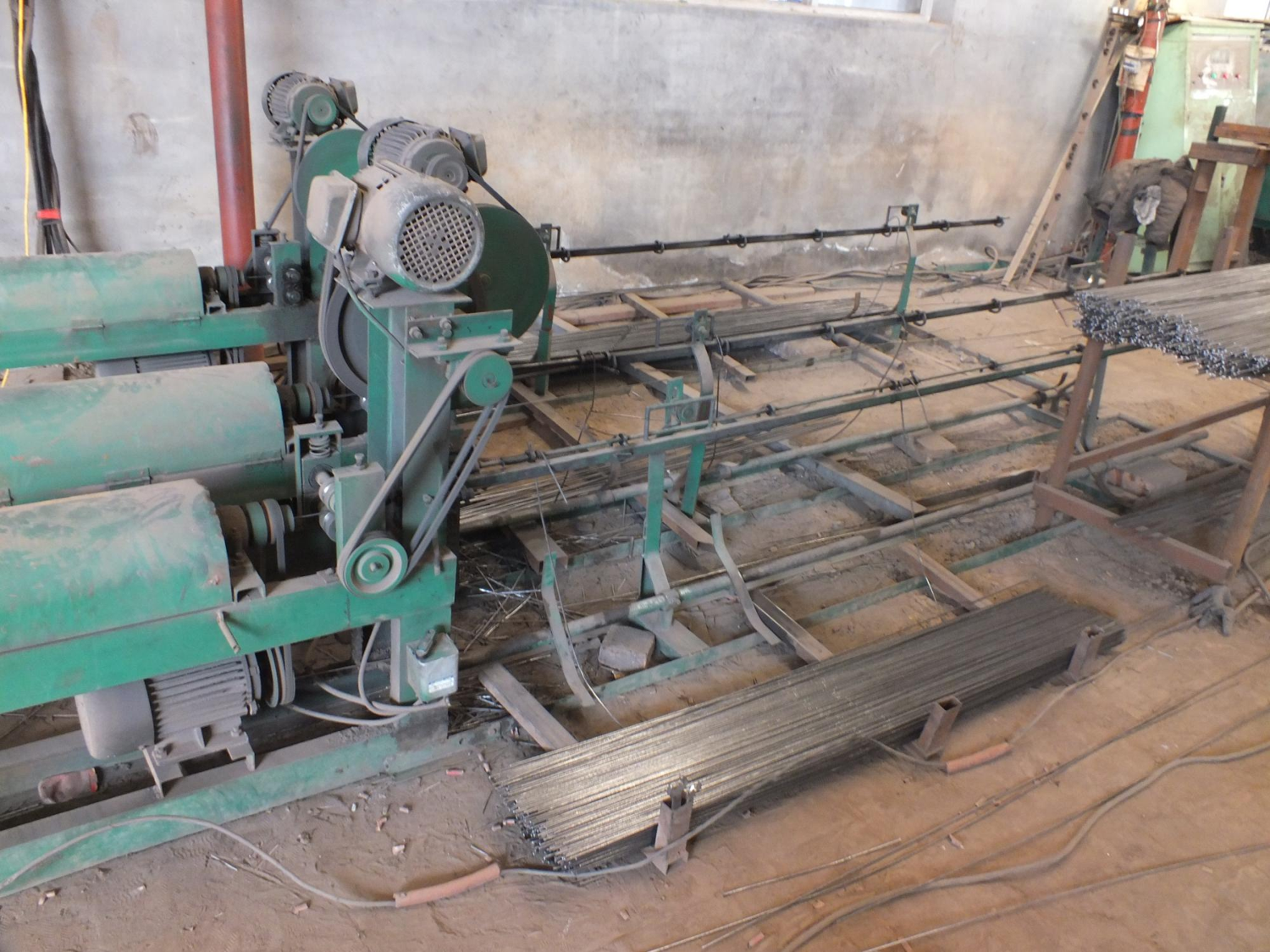

Next, we move on to cutting the strengthen wire and tubes. This is done with precision to meet the desired dimensions of the fencing panels. Maintaining uniform size and shape is critical, ensuring consistency across the product range.

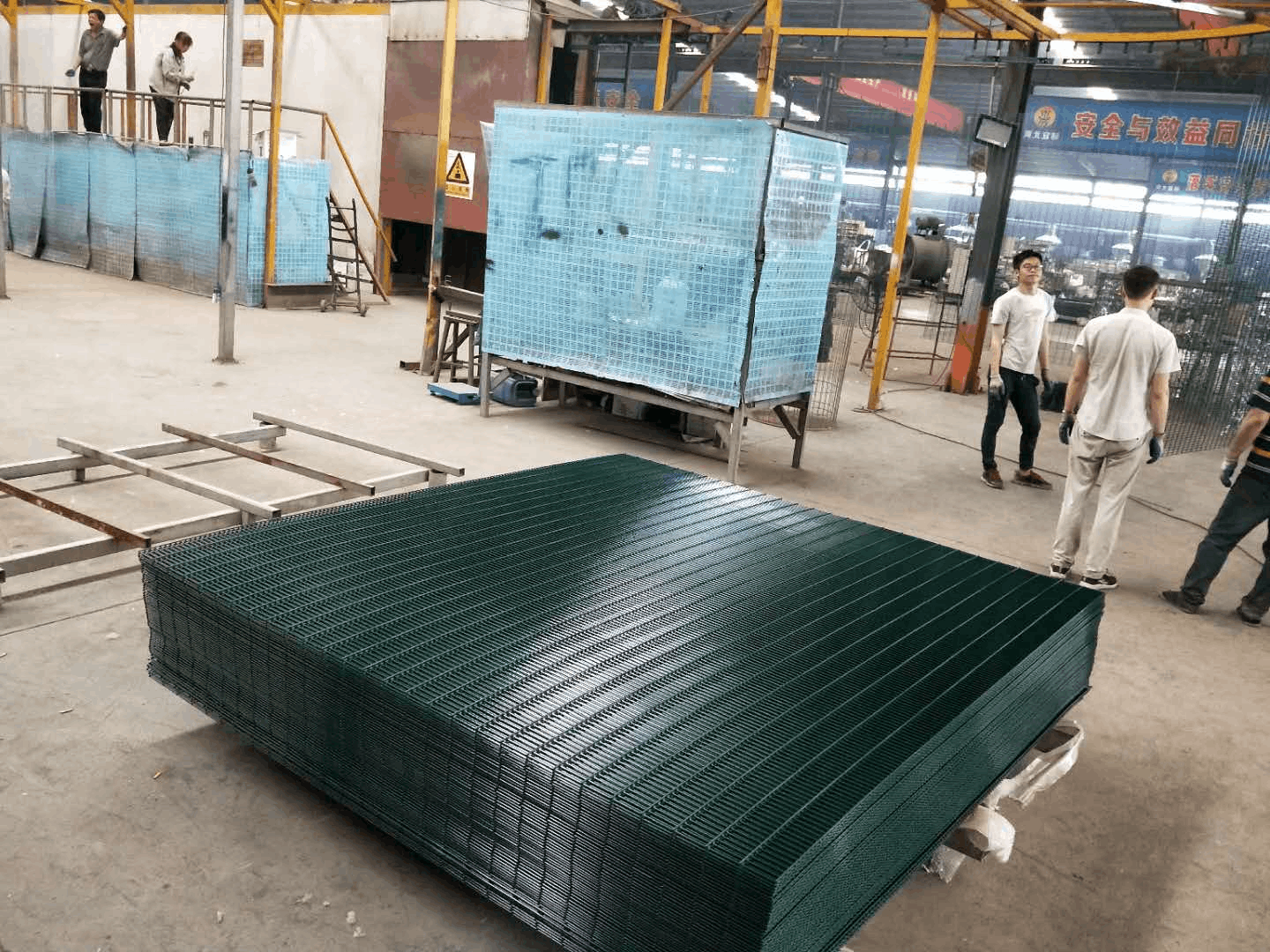

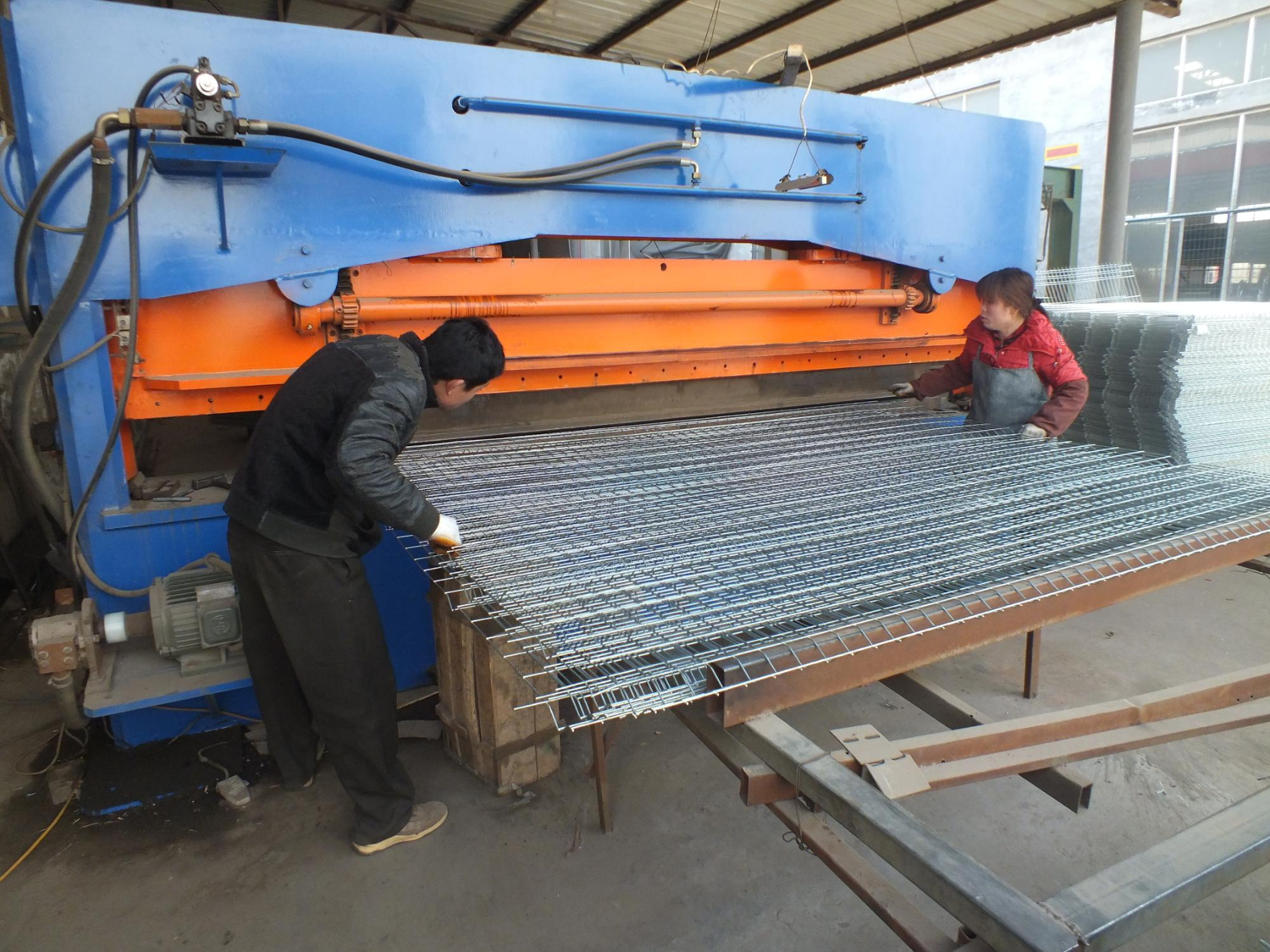

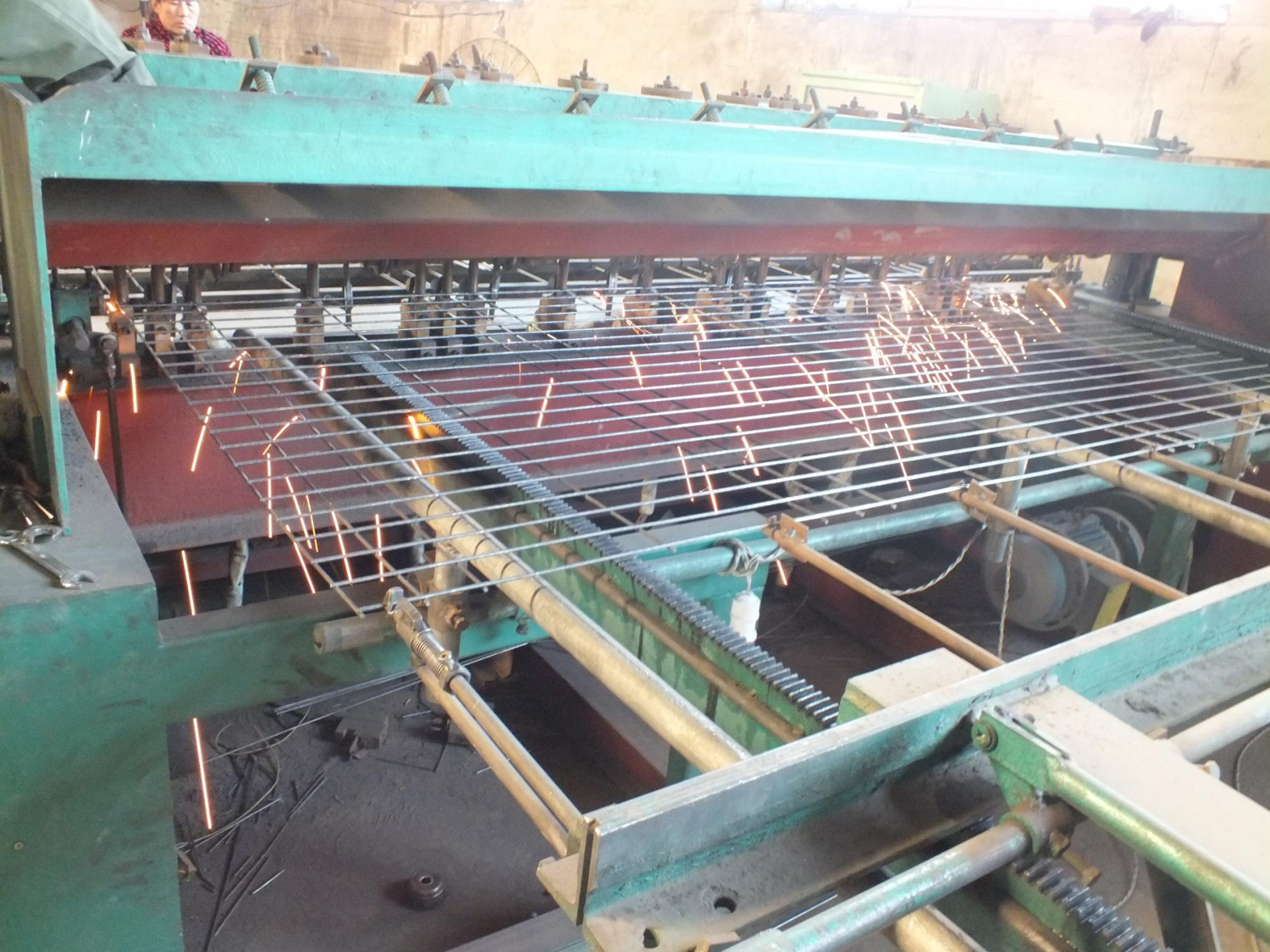

Once we've cut the wire and tubes, the next stop is welding. We use state-of-the-art machinery to weld the wires together, forming a sturdy wire mesh. This mesh serves as the backbone of the fencing panels, providing much-needed structural strength and stability.

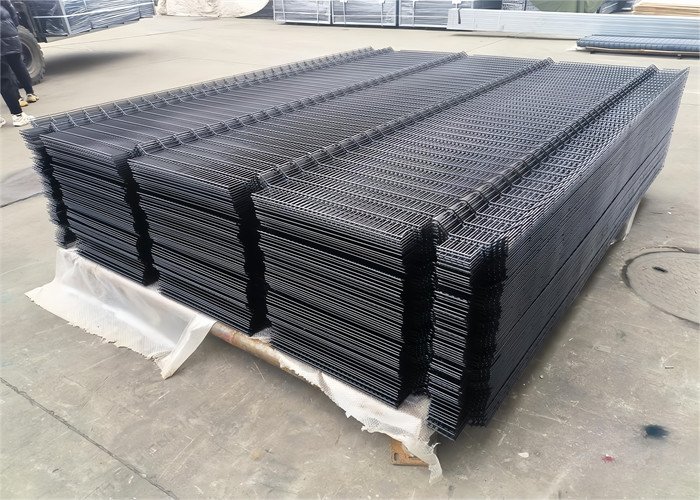

With the mesh ready, we now skillfully bend it into a distinctive 50mm deep V fold shape. Our proficient team members use special bending tools and equipment to achieve this unique V-shaped profile, which ensures clear visibility through the fence.

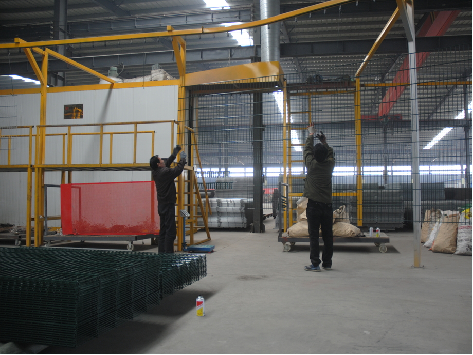

Following the bending process, we then apply a powder coating treatment to the Clear View fencing panels. This entails coating the panels with a layer of protective polyester powder, safeguarding them against corrosion. Moreover, this coating process enhances the durability of the panels and gives them a smooth, attractive finish.

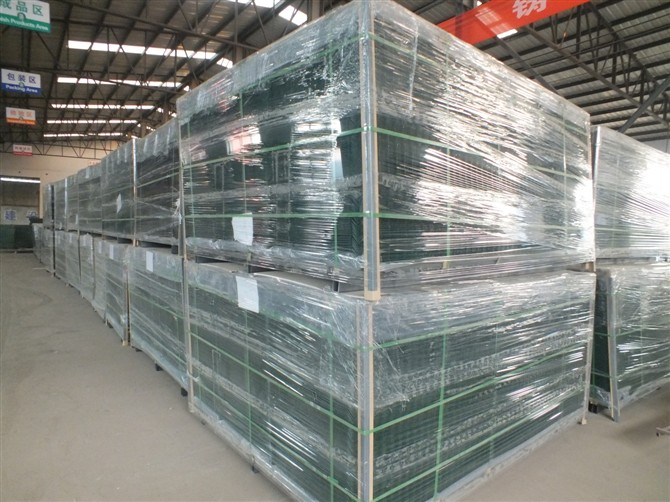

After the panels have been coated, we transition to packing them for shipping. During this stage, we use suitable materials, such as cartons and pallets, to shield the panels during transport and storage, keeping them safe from harm.

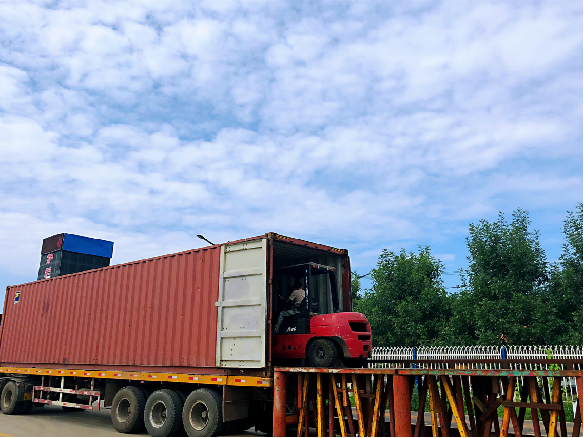

Next up is loading the packed Clear View fencing panels into shipping containers. This step guarantees effective transportation, reducing the possibility of any damage during transit.
Finally, the containers carrying the Clear View fencing panels embark on their journey to their intended destinations. Depending on the location, we might utilize land, sea, or air transportation, ensuring the panels arrive in perfect condition.
So, from raw materials to the finished product, that's how we make Clear View fencing. Every step in this process plays a vital role in delivering a high-quality, durable, and visually appealing product, ready for installation.
| Fence Details | Measurements |
|---|---|
| Height | |
| 1800 | 3000 (3 V-Bends) |
| 2000 | 3000 (3 V-Bends) |
| 2100 | 3000 (3 V-Bends) |
| 2400 | 3000 (4 V-Bends) |
| 3000 | 3000 (5 V-Bends) |
| Wire diameter | 4mm (Vertical) x 3mm (Horizontal) |
| Aperture | 75mm x 12.7mm |
| Tensile strength | 500 – 650 mpa |
| Weld strength | 60% – 80% |
| Coating Type | Coating Measurements |
|---|---|
| Lightly Galvanised | 60g/m² (previously), 50g/m² (now) |
| Fully Galvanised | 275g/m² (previously), 255g/m² (now) |
| Galfan Coated | 220g/m² (previously), 195g/m² (now) |
| Colour Coatings Type | Coating Measurements |
|---|---|
| Powder Coating | 60-80 microns |
| Thermal Plastic | 250 microns min. |
| 95% Zinc, 5% Aluminium | N/A |
| Fence Details | Measurements |
|---|---|
| Height | |
| 1800 | 3000 (3 V-Bends) |
| 2000 | 3000 (3 V-Bends) |
| 2100 | 3000 (3 V-Bends) |
| 2400 | 3000 (4 V-Bends) |
| Wire diameter | 4mm (Vertical) x 3mm (Horizontal) |
| Aperture | 75mm x 25mm |
| Tensile strength | 500 – 650 mpa |
| Weld strength | 60% – 80% |
| Coating Type | Coating Measurements |
|---|---|
| Lightly Galvanised | 60g/m² (previously), 50g/m² (now) |
| Fully Galvanised | 275g/m² (previously), 255g/m² (now) |
| Galfan Coated | 220g/m² (previously), 195g/m² (now) |
| Colour Coatings Type | Coating Measurements |
|---|---|
| Powder Coating | 60-80 microns |
| Thermal Plastic | 250 microns min. |
| 95% Zinc, 5% Aluminium | N/A |
| Fence Details | Measurements |
|---|---|
| Height | |
| 1800 | 3000 (3 V-Bends) |
| 2000 | 3000 (3 V-Bends) |
| 2100 | 3000 (3 V-Bends) |
| 2400 | 3000 (4 V-Bends) |
| 3000 | 3000 (5 V-Bends) |
| Wire diameter | 4mm (Vertical) x 3mm (Horizontal) |
| Aperture | 75mm x 50mm |
| Tensile strength | 500 – 650 mpa |
| Weld strength | 60% – 80% |
| Coating Type | Coating Measurements |
|---|---|
| Lightly Galvanised | 60g/m² (previously), 50g/m² (now) |
| Fully Galvanised | 275g/m² (previously), 255g/m² (now) |
| Galfan Coated | 220g/m² (previously), 195g/m² (now) |
| Colour Coatings Type | Coating Measurements |
|---|---|
| Powder Coating | 60-80 microns |
| Thermal Plastic | 250 microns min. |
| 95% Zinc, 5% Aluminium | N/A |
Preparing for Installation

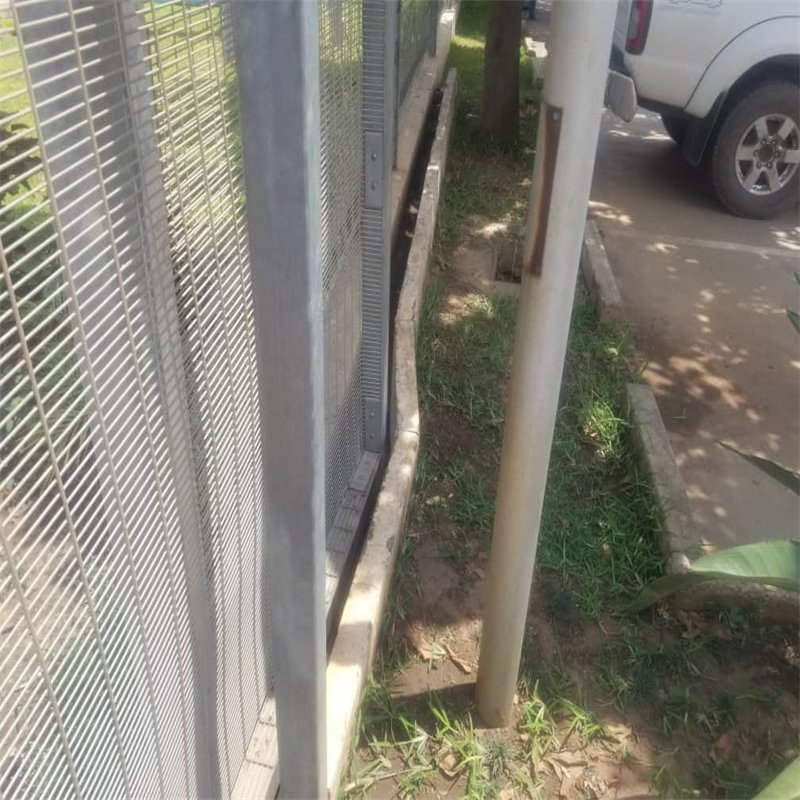

First of all, the installation of Clear View fencing, Clearvu fencing, 358 fencing, and high security fencing begins with site preparation. This involves clearing the ground where the fence will be installed, ensuring it is level, and free from any obstacles that could interfere with the process.
Next, the fence line is carefully marked out. We measure the positions for the fence posts with precision to maintain a straight line and ensure equal spacing. Once marked, we dig post holes to a specific depth. This is a critical step, as the stability of the entire fence relies on these posts being firmly planted.
After we have dug the post holes, we proceed with the installation of the fence posts. These are usually set in concrete, which when hardened, provides a sturdy base for the fence. Each post is carefully checked for vertical alignment, as this ensures a straight and uniform finish.
Once the posts are in place and the concrete has dried, we move on to attaching the fencing panels. These are securely fastened to the fence posts, often using brackets and screws. This process is carried out with meticulous attention to detail, ensuring each panel is level and lines up perfectly with the next.
If the fencing being installed is a high-security type like 358 fencing or Clearvu fencing, extra security features might be added at this point. This could include topping the fence with barbed wire or a similar deterrent to enhance the security level of the fencing.
Finally, after the fence has been fully installed, a comprehensive inspection is carried out. This final check ensures that all components are secure and that the fence is sturdy, straight, and up to the high standards expected.

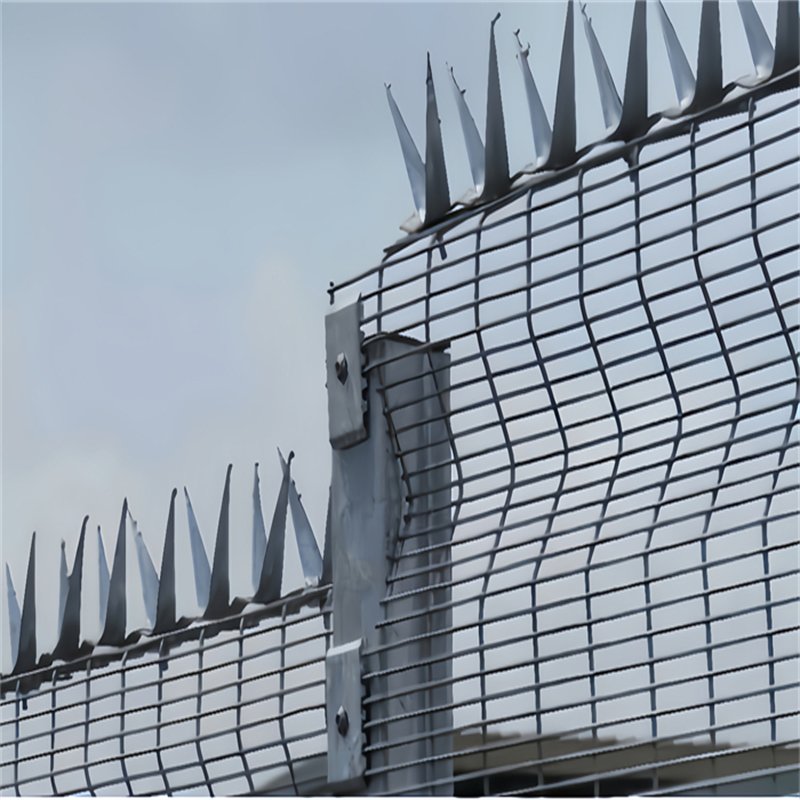

To boost security, you can consider a few supplementary enhancements for your clear view fencing.
Every time you place an order with us, we take meticulous care to ensure you receive the best quality clear view fencing.

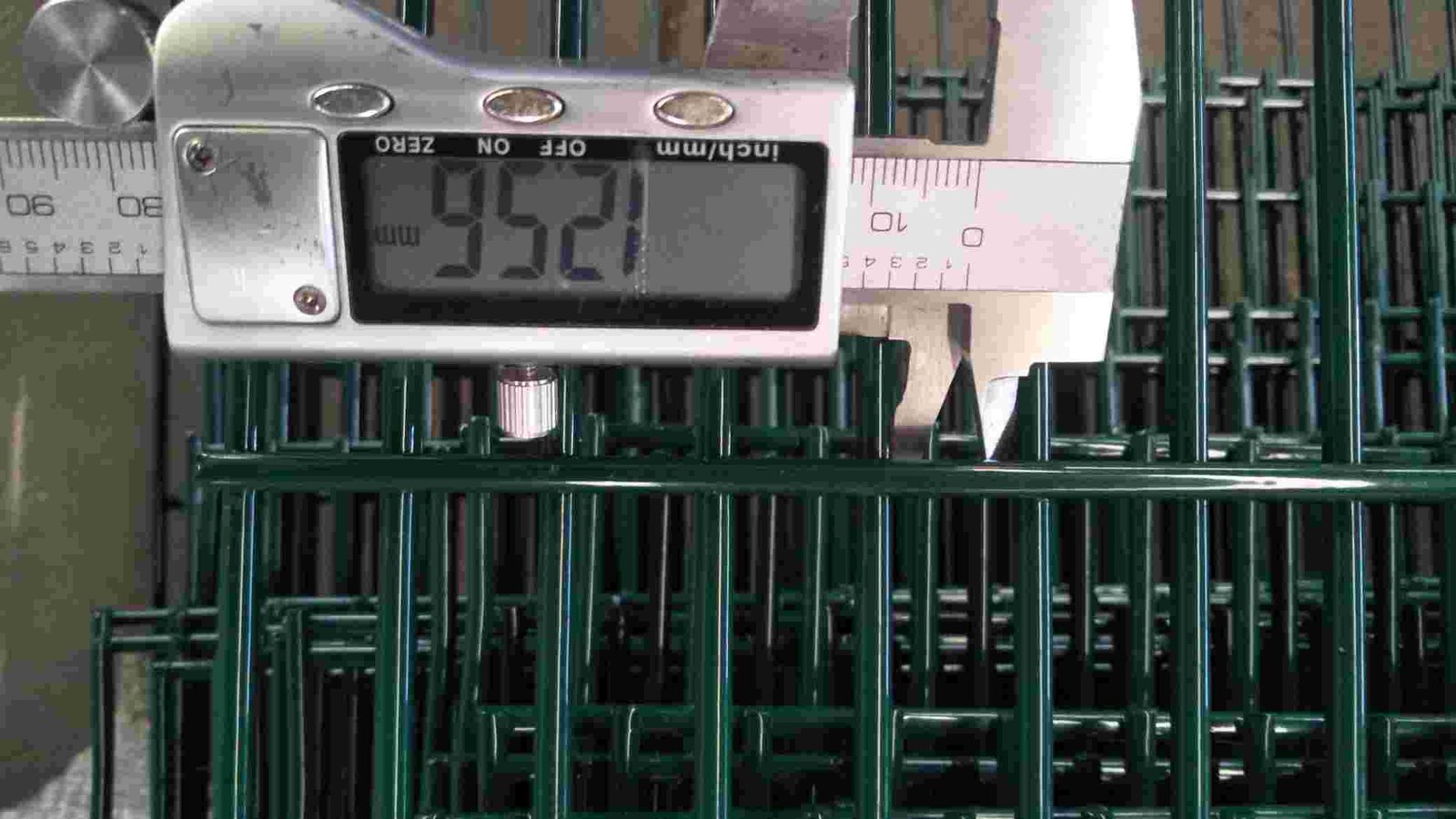

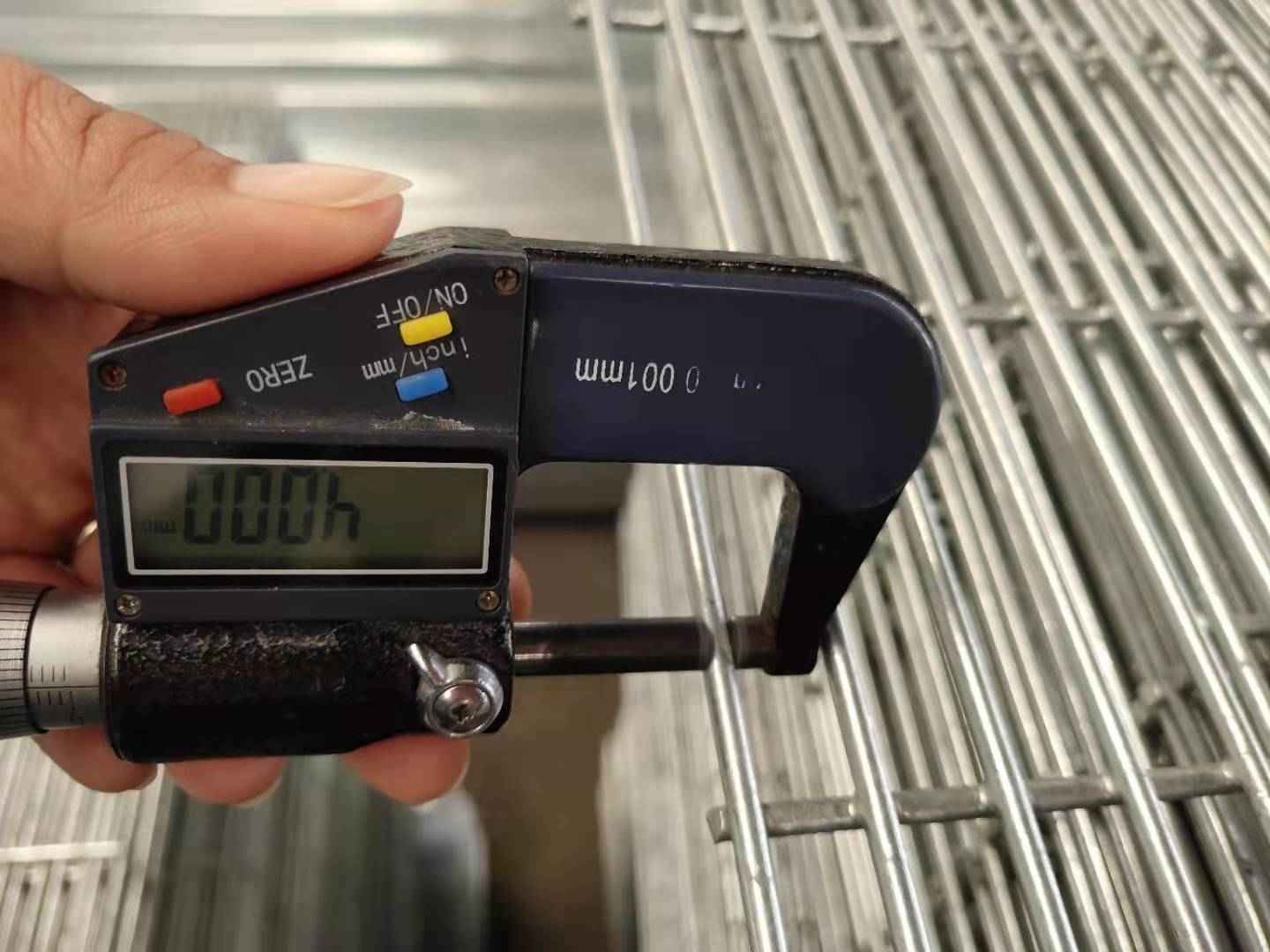

Firstly, we begin with measuring the thickness of the fencing. This is a crucial step as it ensures the fence is durable and robust enough to offer the security you need.

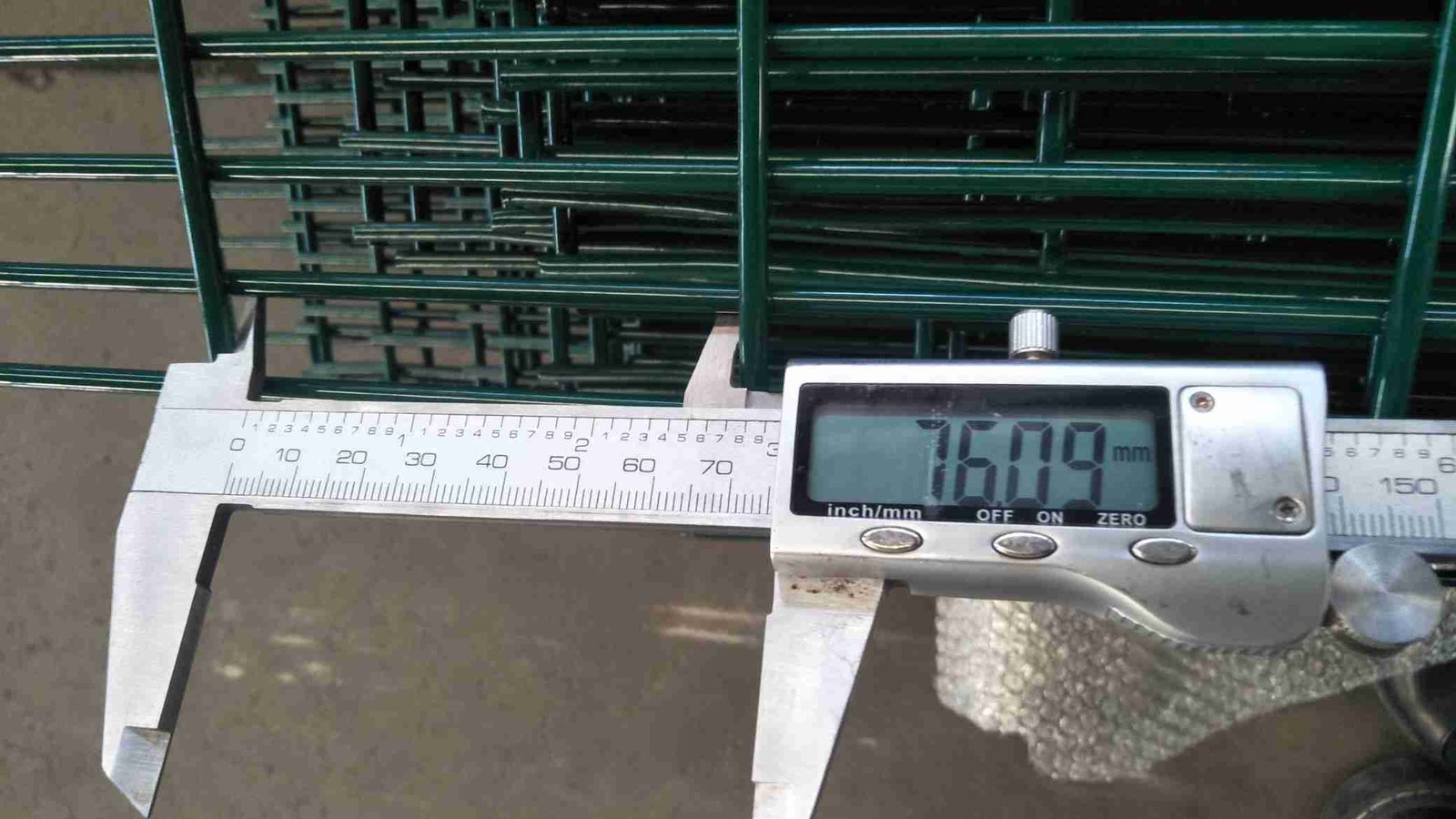

Next, we check the aperture or the gap size in the fencing. This process is important because it helps guarantee that the fencing fulfills its purpose of providing a clear view, while also ensuring that it's not easy to climb over or squeeze through.

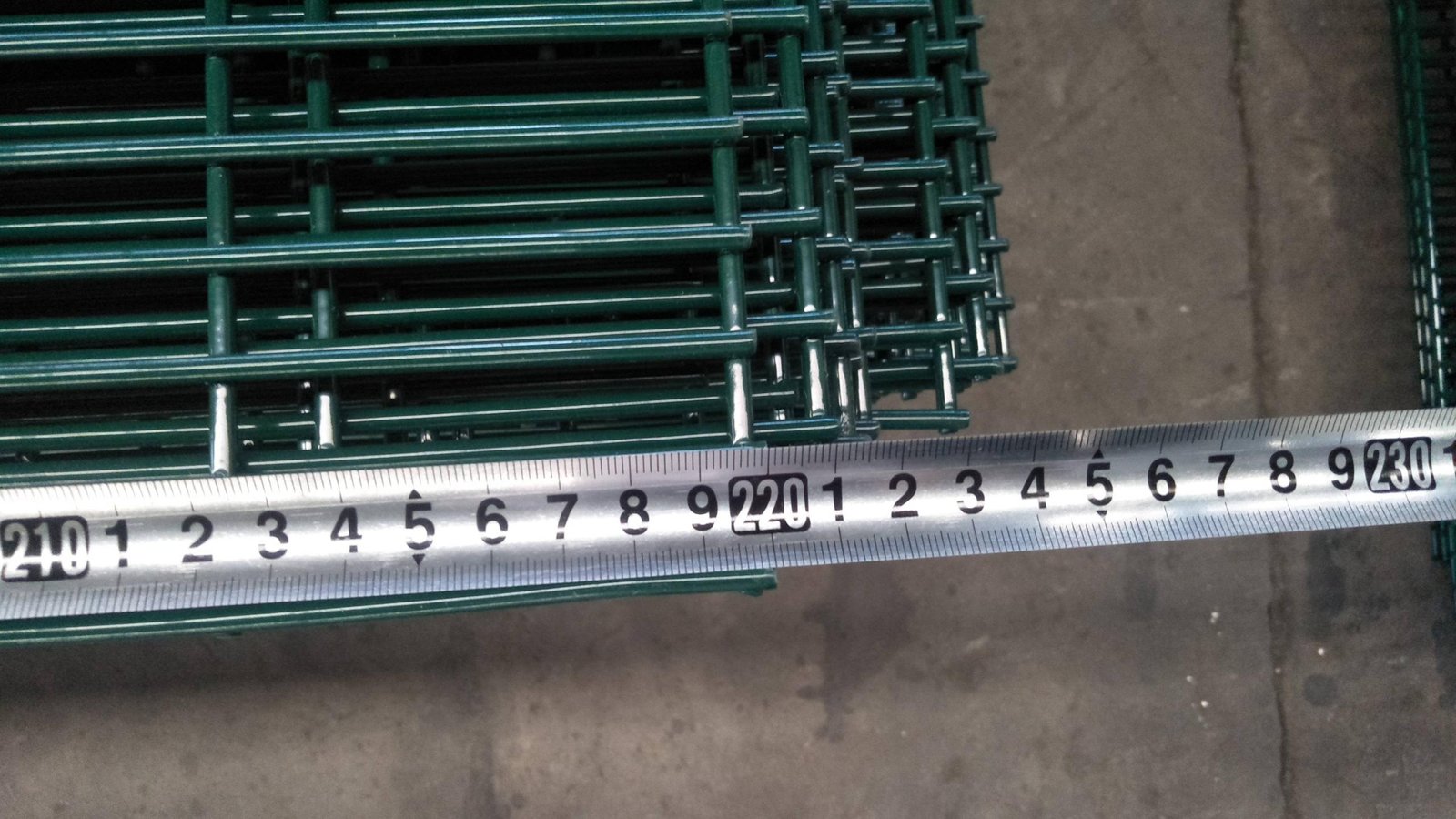

After assessing the thickness and aperture, we shift our focus to the length and height of the fence. This process is critical as it guarantees that the fencing will fit perfectly in your designated area. Not only that, but the right height also adds an extra layer of security, making it harder for anyone to vault over.
let's go over the careful packing process for our clear view fencing and its respective accessories.

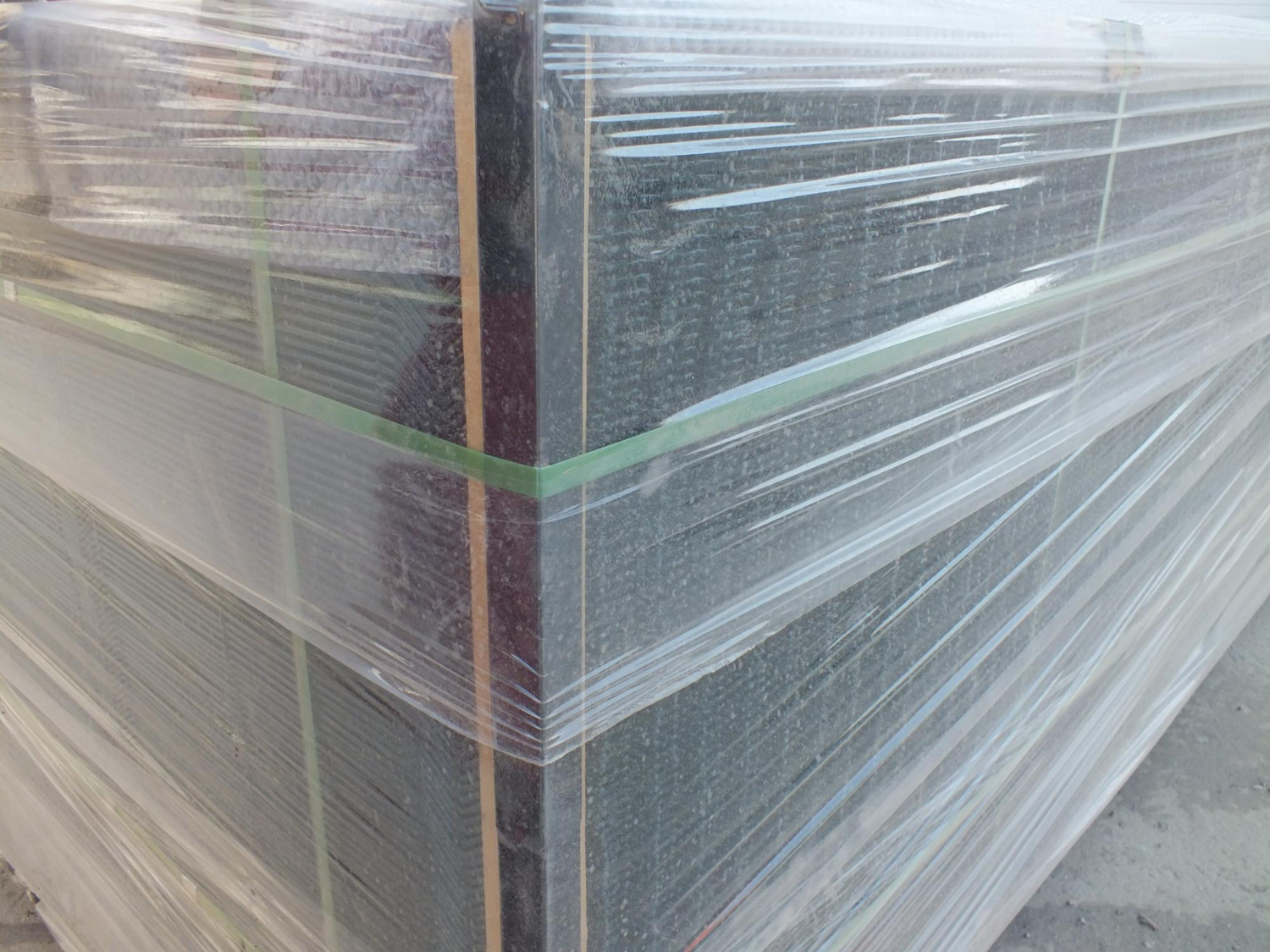

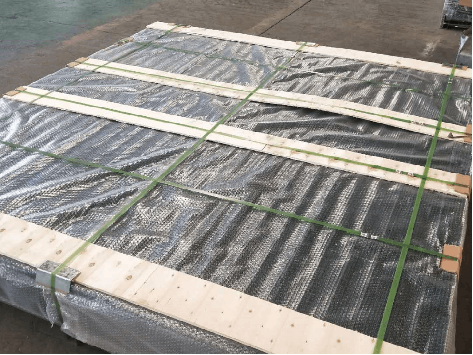

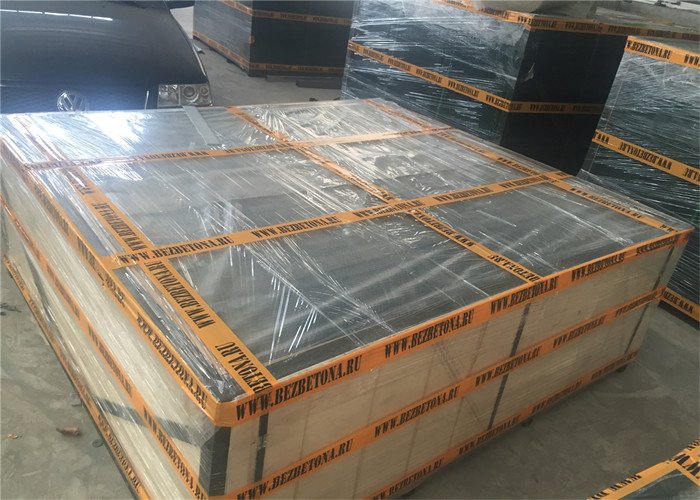

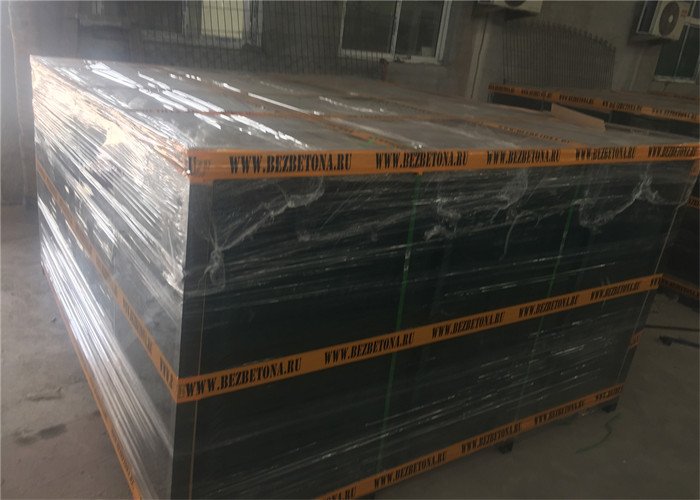

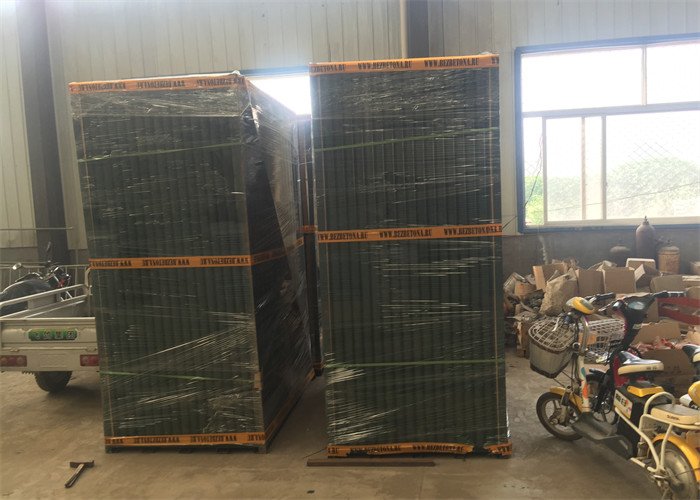

The journey to safeguard your clear view fencing begins with a comprehensive packing process. To start, we lay a protective plastic film at the bottom of the package. This serves as a shield to prevent any potential damage to the fence panel, ensuring it reaches you in impeccable condition.
Next, we fortify the package with four robust metal corners. These not only lend strength to the panel but also maintain its uniformity. This way, the fence panel remains solid and consistent throughout its journey.
Then, to safeguard the panel beneath, we place a sturdy wood plate at the top of the pallet. This measure ensures that the under panel stays safe and secure, avoiding any damage during transit.
Lastly, we use 40*60mm tubes plus angle steel situated at the bottom of the pallet in a vertical position. This pallet tube provides an added layer of support, making sure your fence remains upright and steady throughout transportation.

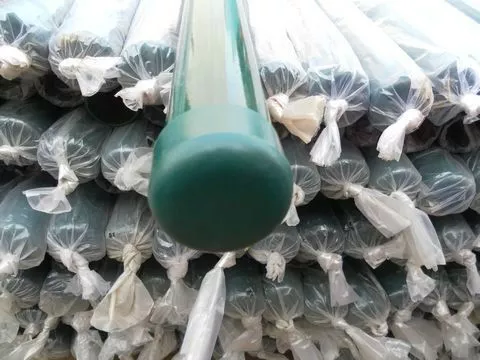

Moving onto the packing process for the posts, we start by installing caps on the top. This thoughtful addition not only reduces the labor cost on your end but also trims down the installation time. It's our little way of making the process easier for you.
Following that, each post is carefully enveloped in a long plastic bag. This is done to prevent any possible damage that might be caused by friction during the journey. It's another step towards ensuring your post remains intact and flawless.
Finally, for easier and safer handling, all posts are packed onto a metal pallet. This facilitates both loading and unloading, making the transport process smooth and hassle-free.

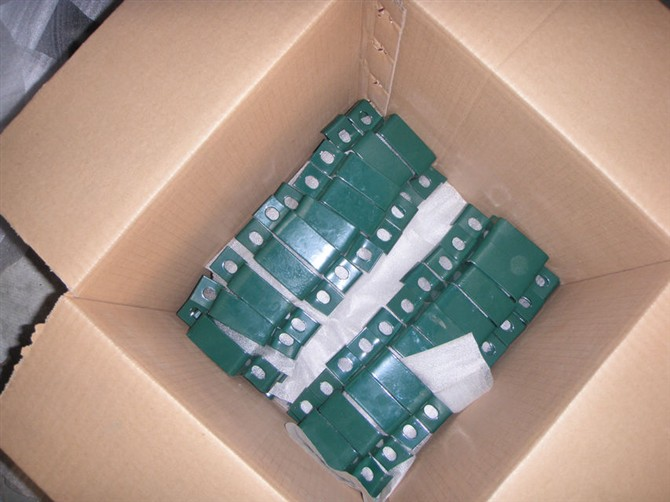

As for the accessories, our attention to detail continues. Clips and screws are grouped into sets and wrapped with a plastic film for additional protection. This, along with a robust carton box, ensures they are kept safe and secure during transit.
The carton box, measuring 300x250x300mm, provides ample space for the accessories, ensuring they reach you in perfect condition, ready for installation.

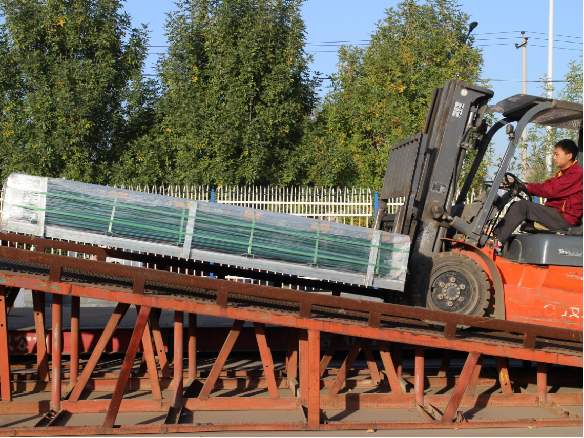

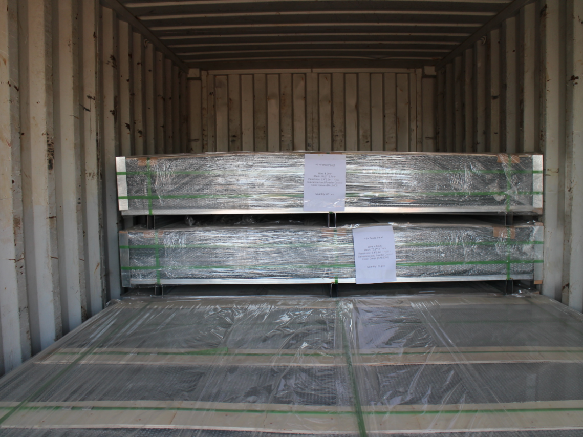

Firstly, the pallets carrying the carefully packaged fence panels are brought forward. Each pallet, equipped with strong metal corners and protective tubes at the bottom, is lifted using a forklift. The forklift operator, with precise control, maneuvers each pallet inside the container, placing them in a neat, space-optimized arrangement.

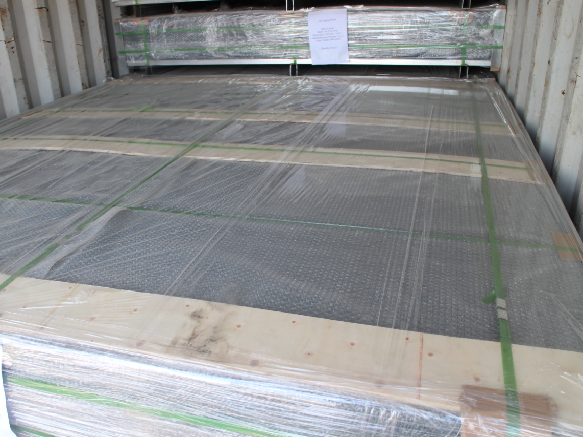

In between the layers of Clear View fencing for sale , you'd see the wood plates, providing a protective barrier, and ensuring the panels stay secure and undamaged during transportation. A glance at the bottom would reveal the protective plastic film, another safeguard against potential damage.
Next, come the posts. Each post, capped at the top and wrapped in a long plastic bag, is stacked on a metal pallet. The pallet is then carefully lifted and placed in the container next to the fence panels. The organized stacking ensures maximum space utilization while preventing damage from friction or movement.
Finally, the accessories are added. Small carton boxes, each measuring 300x300x400mm, are loaded into the container. These boxes, containing clips and screws, are meticulously packed to ensure no damage or loss during transit.
Once all the items are loaded, a final check is performed. The shipping container, now housing the Clear View Fencing and its accessories, is ready for secure shipment, ensuring each component reaches the customer in perfect condition.
