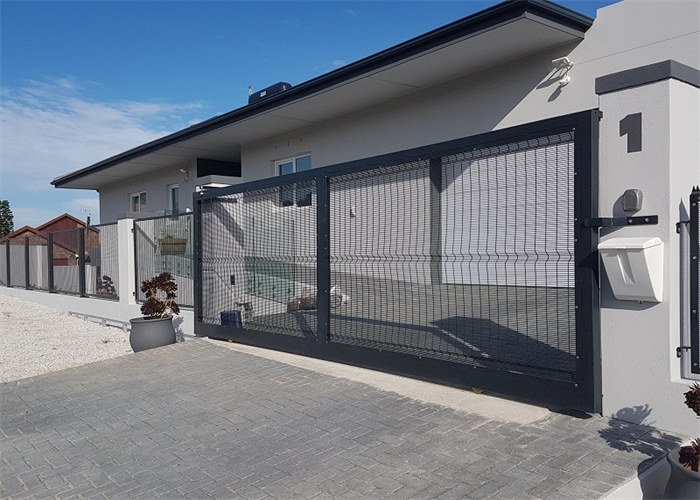

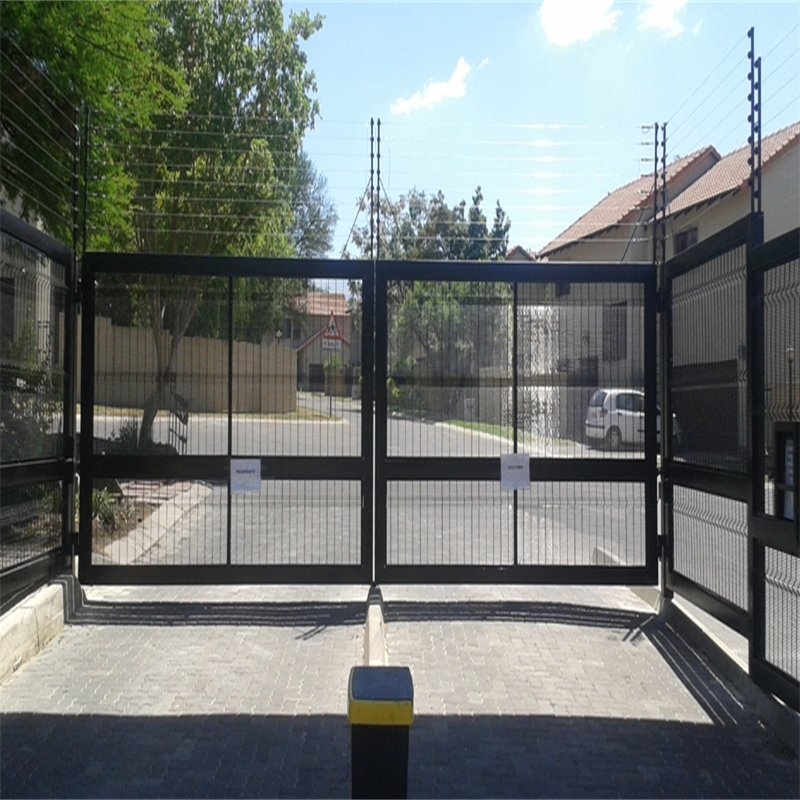

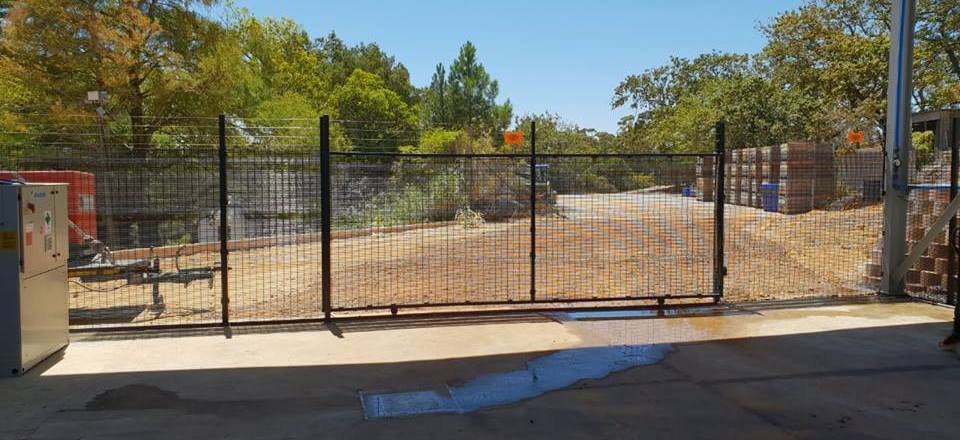

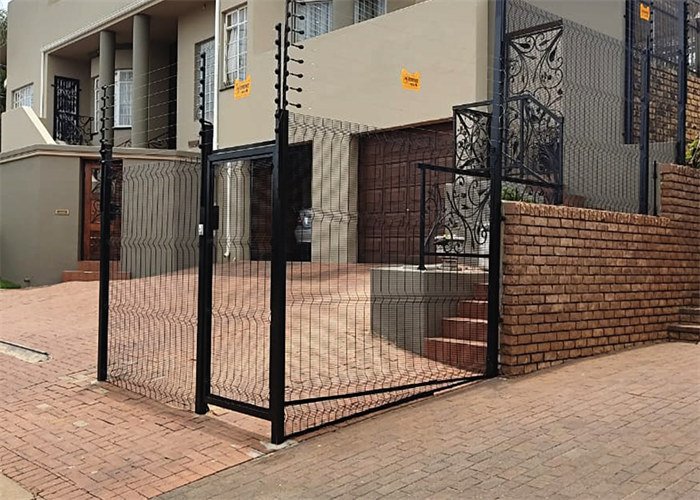

We mainly have two types of clear view fence gate: Pedestrian gates and Vehicle Gates (which include sliding gates and standard gates). You can choose these gates according to local requirements. We know that clear view fencing can be classified as low security, medium security and high security and our gates are the same as our clear view fencing.
Clear view fence gate is challenging to penetrate, with the small mesh aperture being effectively finger-proof and extremely difficult to attack using conventional hand tools. Clear-view fences are recognized as one of the most difficult to break through the barrier because it is difficult to climb. It is called security fencing and high-strength fencing. Clear-view fencing panels can be bent in part to enhance the aesthetic effect.
| Height (mm) | Length (mm) | V-Bends | Frame | Mesh Aperture |
|---|---|---|---|---|
| 1800 | 1500 | 3 or 4 | 40MM X 60MM, 60MM X 60MM, 75MM X 75MM AND 80MM X 80MM etc | Low security: 50mm x 75mm Medium security: 25mm x 75mm High security: 12.7mm x 75mm |
| 2000 | 1500 | 3 or 4 | ||
| 2100 | 1500 | 3 or 4 | ||
| 2400 | 1500 | 3 or 4 | ||
| 3000 | 1500 | 4 or 5 |
| Wire diameter | Aperture | Tensile strength | Weld strength |
|---|---|---|---|
| 4mm (Vertical) x 3mm (Horizontal) 4mm (Vertical) x4mm (Horizontal) 5.6mm (vertical) x4mm (horizontal) |
75mm x 12.7mm | 500 - 650 MPa | 60% - 80% |
| Lightly Galvanised | Fully Galvanised | Galfan Coated |
|---|---|---|
| 60g/m² | 275g/m² | 220g/m² |
| 50g/m² | 255g/m² | 195g/m² |
| Powder Coating | Thermal Plastic | 95% Zinc, 5% Aluminium |
|---|---|---|
| 60-80 microns | 250 microns min. | - |
| Height (mm) | Length (mm) | V-Bends | Frame | Mesh Aperture |
|---|---|---|---|---|
| 1800 | 2pcs x 3000mm or 1pcs x 5900mm | 3 or 4 | 40MM X 60MM, 60MM X 60MM, 75MM X 75MM AND 80MM X 80MM etc | Low security: 50mm x 75mm Medium security: 25mm x 75mm High security: 12.7mm x 75mm |
| 2000 | 2pcs x 3000mm or 1pcs x 5900mm | 3 or 4 | ||
| 2100 | 2pcs x 3000mm or 1pcs x 5900mm | 3 or 4 | ||
| 2400 | 2pcs x 3000mm or 1pcs x 5900mm | 3 or 4 | ||
| 3000 | 2pcs x 3000mm or 1pcs x 5900mm | 4 or 5 |
| Wire diameter | Aperture | Tensile strength | Weld strength |
|---|---|---|---|
| 4mm (Vertical) x 3mm (Horizontal) 4mm (Vertical) x4mm (Horizontal) 5.6mm (vertical) x4mm (horizontal) |
Low security: 50mm x 75mm Medium security: 25mm x 75mm High security: 12.7mm x 75mm |
500 - 650 MPa | 60% - 80% |
| Lightly Galvanised | Fully Galvanised | Galfan Coated |
|---|---|---|
| 60g/m² | 275g/m² | 220g/m² |
| 50g/m² | 255g/m² | 195g/m² |
| Powder Coating | Thermal Plastic | 95% Zinc, 5% Aluminium |
|---|---|---|
| 60-80 microns | 250 microns min. | - |
Note: The rest of the gate types (Pedestrian without V-bends and Vehicle without V-bends) follow the same specifications for frame, mesh aperture, wire diameter, zinc coating, and colour coatings. The only differences are in the height, length, and absence of V-bends.
| Height (mm) | Length (mm) | Frame | Mesh Aperture |
|---|---|---|---|
| 1800 | 1500 | 40MM X 60MM, 60MM X 60MM, 75MM X 75MM AND 80MM X 80MM etc | Low security: 50mm x 75mm Medium security: 25mm x 75mm High security: 12.7mm x 75mm |
| 2000 | 1500 | ||
| 2100 | 1500 | ||
| 2400 | 1500 | ||
| 3000 | 1500 |
| Height (mm) | Length (mm) | Frame | Mesh Aperture |
|---|---|---|---|
| 1800 | 2pcs x 3000mm or 1pcs x 5900mm | 40MM X 60MM, 60MM X 60MM, 75MM X 75MM AND 80MM X 80MM etc | Low security: 50mm x 75mm Medium security: 25mm x 75mm High security: 12.7mm x 75mm |
| 2000 | 2pcs x 3000mm or 1pcs x 5900mm | ||
| 2100 | 2pcs x 3000mm or 1pcs x 5900mm | ||
| 2400 | 2pcs x 3000mm or 1pcs x 5900mm | ||
| 3000 | 2pcs x 3000mm or 1pcs x 5900mm |
Boss Metal Supplies provides excellent quality security fencing from our leading factories in China. Clear View welded mesh is an aesthetically pleasing welded mesh fencing system for high-security applications. BMP manufactures and supplies clear-view fence gate welded mesh systems in hot-dipped, galvanized and galfan coated finishes. We manufacture from 1200mm high right through to 6000mm in height.
Applications include:
