Clear View Fencing is a high-strength welded wire mesh fencing system engineered to provide maximum perimeter protection without compromising visibility. Its tightly spaced mesh design serves as both a physical and psychological deterrent to unauthorized access, while the V-shaped bends in each panel enhance rigidity and structural strength.
Widely adopted in architectural, commercial, and defense applications, Clear View Fencing is a preferred solution for securing sensitive sites where both surveillance and aesthetics matter. Its anti-climb and anti-cut properties make it particularly effective for high-security zones.
To meet varying security demands, we offer three standard panel types:
High Security – for maximum risk areas such as prisons or military sites
Medium Security – for commercial and industrial use
Low Security – for residential or low-risk perimeter control
Panel Heights: 1.8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m (custom sizes available)
Panel Width: 2.515 m
Surface Coating:
Hot-dip galvanized prior to welding
Polyester powder coating in black, green, or white
Panel Design: 45 mm V-bends for enhanced strength

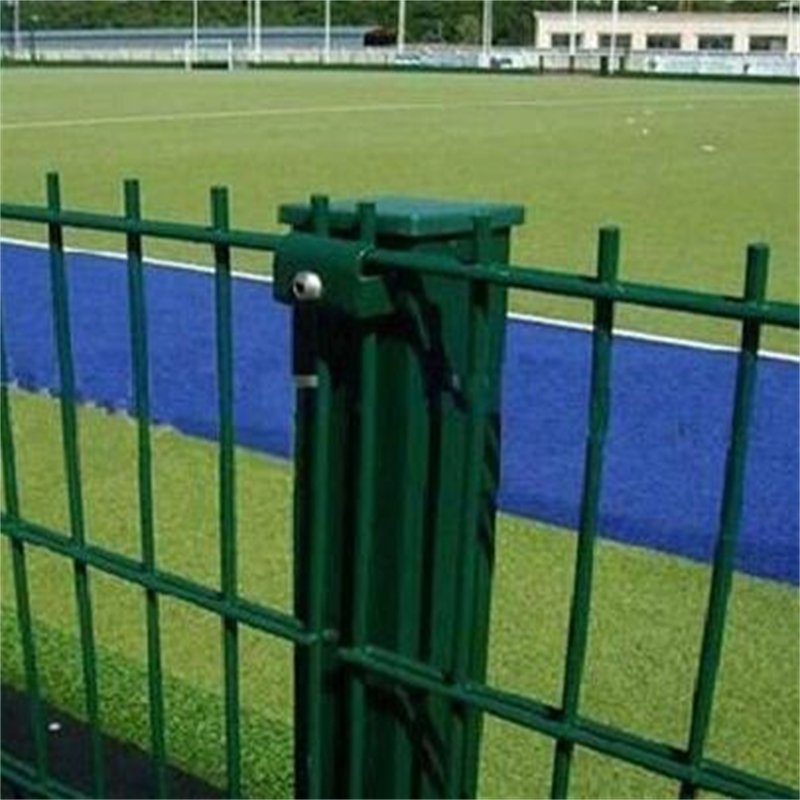

Posts: Steel posts with durable plastic top caps

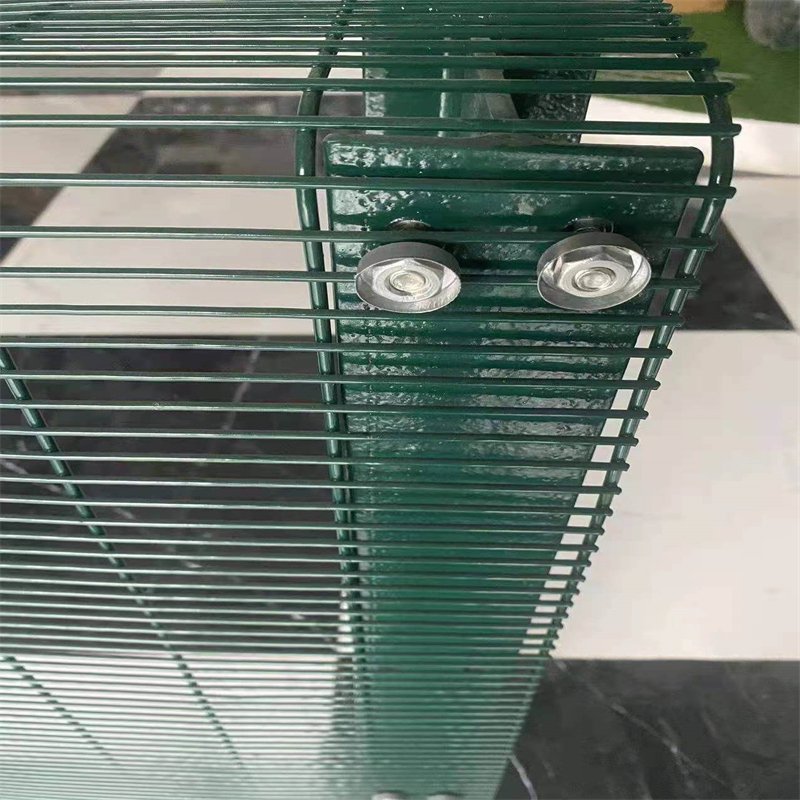

Fixing Method: Secure clamps and bolts

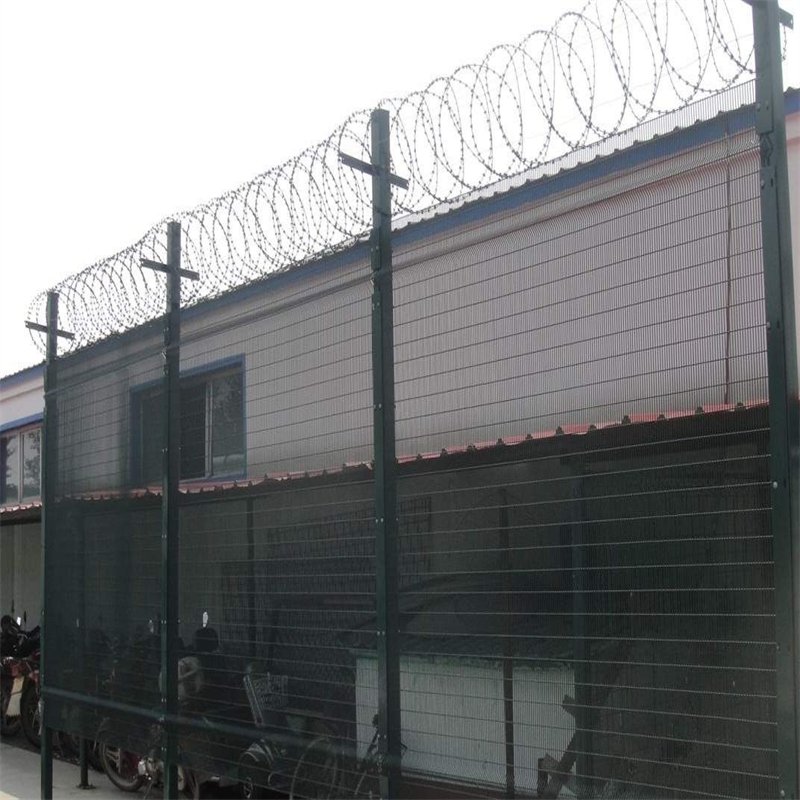

Optional Security Toppings: Razor wire, fence spikes, or electric fencing
| Security Level | Aperture | Vertical Wire Thickness | Horizontal Wire Thickness | Features |
|---|---|---|---|---|
| High Security | 76 mm × 12.5 mm | 4 mm | 3.5 mm | Most secure, anti-cut, anti-climb, highly visible |
| Medium Security | 76 mm × 25 mm | 4 mm | 4 mm | Anti-cut and highly visible |
| Low Security | 76 mm × 50 mm | 4 mm | 4 mm | Anti-cut, highly visible, cost-effective |
| Fence Height (mm) | Panel Size (H × W) | Post Section | Post Length (mm) | No. of Bends | No. of Clamps |
|---|---|---|---|---|---|
| 1800 | 1800 × 2515 mm | 60 × 60 × 2 mm | 2400 | 4 | 16 |
| 2000 | 2000 × 2515 mm | 60 × 60 × 2 mm | 2600 | 4 | 16 |
| 2200 | 2200 × 2515 mm | 60 × 60 × 2 mm | 2800 | 4 | 16 |
| 2400 | 2400 × 2515 mm | 80 × 80 × 3 mm | 3000 | 4 | 16 |
| 3000 | 3000 × 2515 mm | 80 × 80 × 3 mm | 3600 | 5 | 20 |
| Panel Size (mm) | Mesh Configuration | Wire Diameter | Weight (kg) | Pallet Qty | Galvanised (Class D*) | Galfan Coated (Class A**) |
|---|---|---|---|---|---|---|
| 2515 × 1207 | 76.2 × 12.7 mm | 3.95 mm | 27.2 | 50 | Y | Y |
| 2515 × 1270 | 76.2 × 12.7 mm | 3.95 mm | 28.6 | 50 | Y | Y |
| 2515 × 1829 | 76.2 × 12.7 mm | 3.95 mm | 41.1 | 25 | Y | Y |
| 2515 × 2134 | 76.2 × 12.7 mm | 3.95 mm | 47.8 | 25 | Y | Y |
| 2515 × 2438 | 76.2 × 12.7 mm | 3.95 mm | 54.6 | 25 | Y | Y |
| 2515 × 2705 | 76.2 × 12.7 mm | 3.95 mm | 60.6 | 25 | Y | Y |
| 2515 × 2997 | 76.2 × 12.7 mm | 3.95 mm | 67.1 | 20 | Y | Y |
| 2515 × 3302 | 76.2 × 12.7 mm | 3.95 mm | 73.9 | 20 | Y | |
| 2515 × 4204 | 76.2 × 12.7 mm | 3.95 mm | 94.0 | 15 | Y | |
| 2515 × 5207 | 76.2 × 12.7 mm | 3.95 mm | 116.4 | 10 | Y |
A clear view fence is suitable for high, medium, and low-security applications as the following:
| High-Security clear fencing with the most secure, anti-climbing, and highly visible residential fencing. | Medium Security clear view fencing with anti-cut and obvious features. | Low-security clear Vu fence for road fencing. |
 |
 |
 |
Clear View Fencing offers a superior balance of visibility, strength, and security. Engineered with anti-climb, anti-cut mesh and reinforced panel bends, it delivers robust perimeter protection while maintaining a clean, modern appearance. Available in multiple security levels and customizable sizes, Clear View Fencing is trusted across industries—from residential developments to high-security zones like military installations and utility infrastructure.
If you're looking for a long-lasting, low-maintenance fencing solution that doesn't compromise on security or aesthetics, Clear View Fencing is the ideal choice.
