Description BMP provides premium chain link fence rolls made using the Galvanized After Weaving (GAW) method. This process ensures the entire mesh—including cut ends—is coated with a thick layer of zinc for full protection against corrosion. Available in various gauges, mesh sizes, and coatings, BMP’s GAW chain link fence is ideal for long-term performance in residential, commercial, and high-security projects.

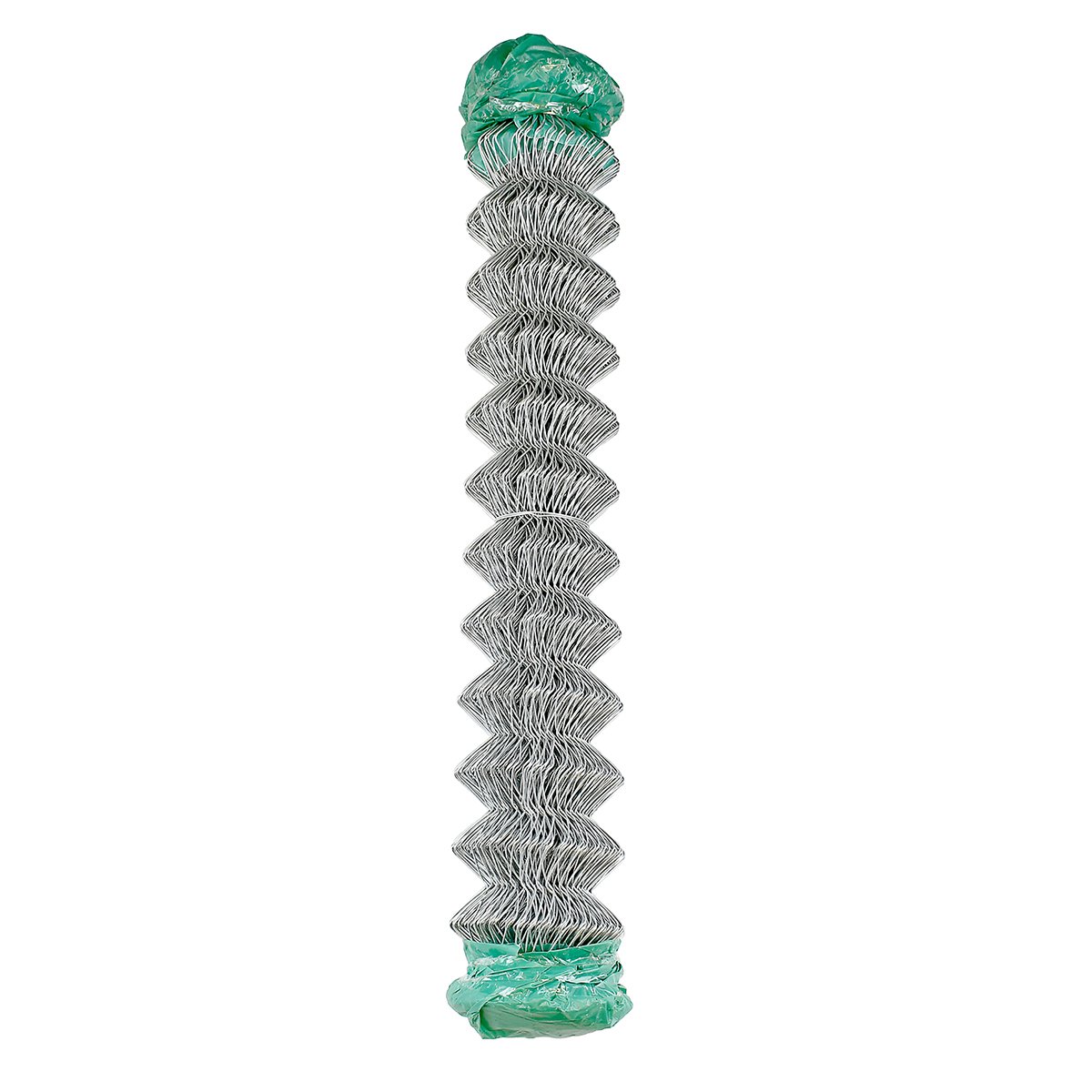

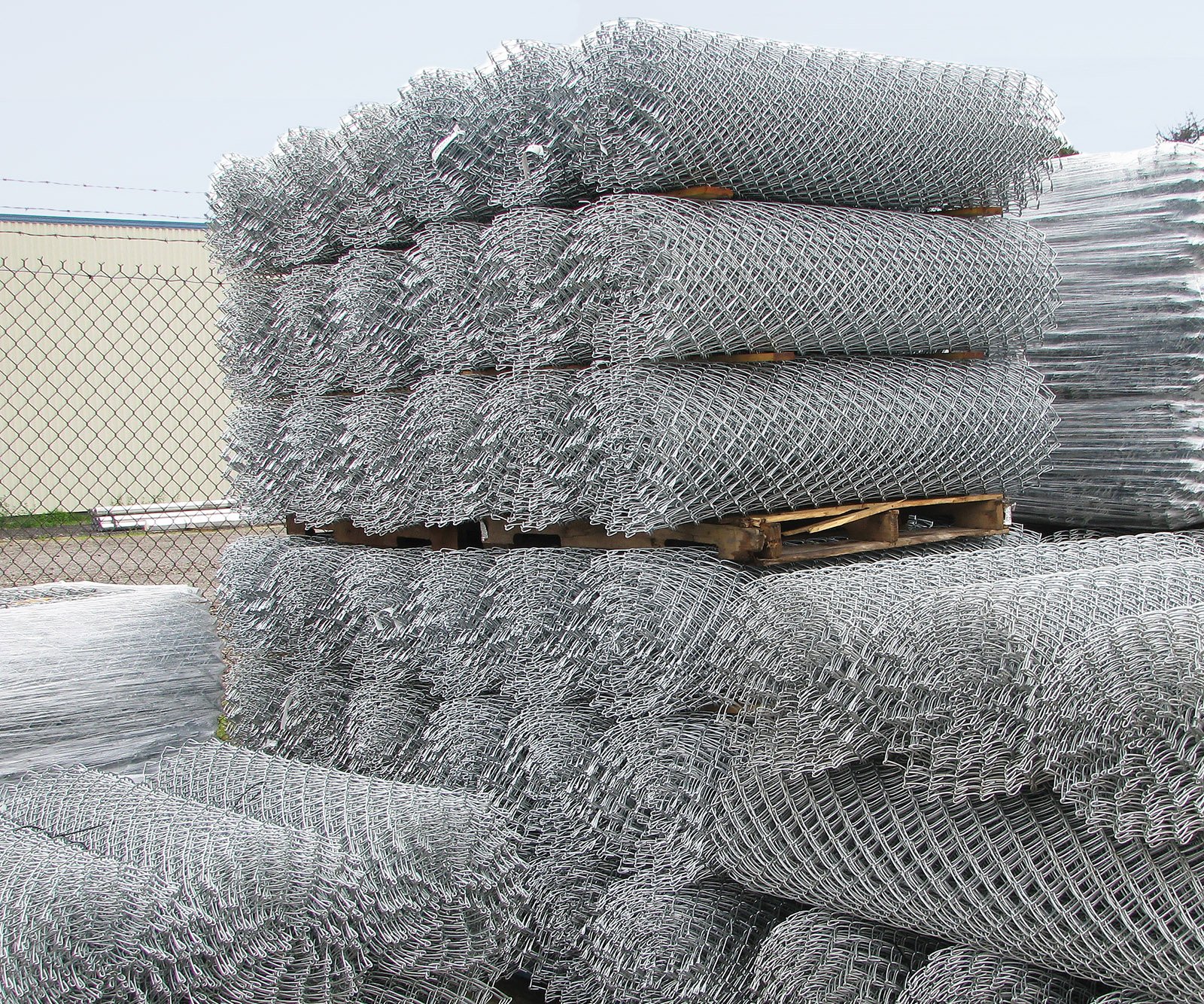

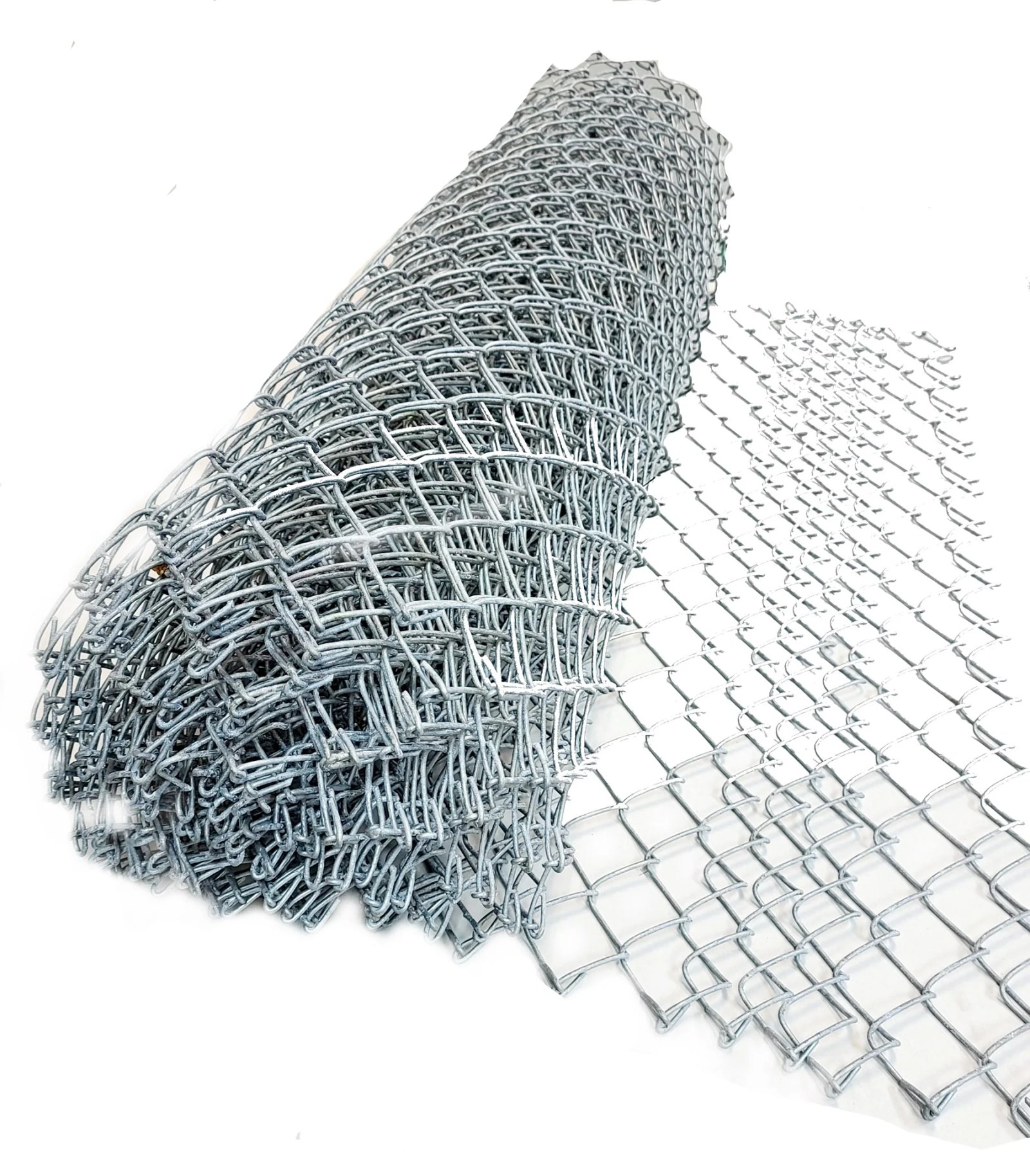

GAW-01: GAW chain link fence. |

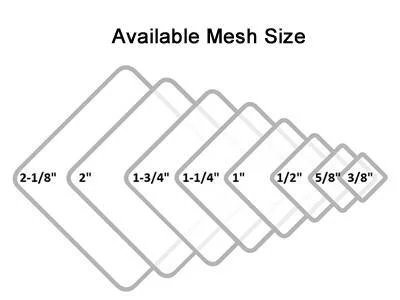

GAW-02: GAW chain link fencing mesh openings. |

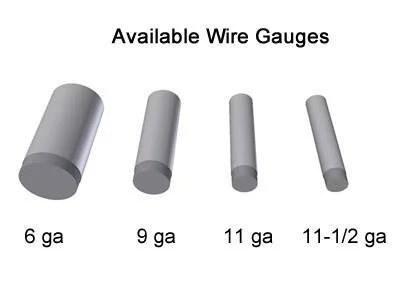

GAW-03: Core wire gauges |
✅ ASTM A392 – Standard for Galvanized Chain Link Fence Rolls
This is the main standard used in South Africa for hot-dip galvanized chain link fencing, especially in government and industrial projects.
Key Points from ASTM A392:
- Two Zinc Coating Classes:
- Class 1: Minimum 1.2 oz/ft² (≈366 g/m²)
- Class 2: Minimum 2.0 oz/ft² (≈610 g/m²)
- Wire Gauge Options: Typically 6, 9, 11 gauge
- Mesh Size: Commonly 2″, but others accepted per spec
- Finish Type: Galvanized after weaving (GAW) is acceptable and often required
Other Standards Commonly Referenced in South Africa:
BS EN 10244-2 Chain Link Fence Rolls
- Covers steel wire with metallic coatings (for chain link wire)
- Coating Types: Heavy galvanized (HDG) and standard zinc
- Often used for mesh and fencing wire standards
QCS (South Africa Construction Specifications)
- QCS 2014 and QCS 2022 reference ASTM A392 and BS EN standards for fencing
- In most cases, government or consultant projects will require ASTM A392 Class 2 coating for better corrosion resistance
Summary for South Africa Chain Link Fence Galvanizing Standard:
| Requirement |
Standard Followed in South Africa |
| Zinc Coating Class |
ASTM A392 – Class 1 (366 g/m²) or Class 2 (610 g/m²) |
| Wire Type |
Galvanized steel wire, hot-dip galvanized after weaving (GAW) preferred |
| Common Reference Specs |
ASTM A392, BS EN 10244-2, QCS 2014/2022 |
| Usage |
Airports, roads, schools, factories, compounds |

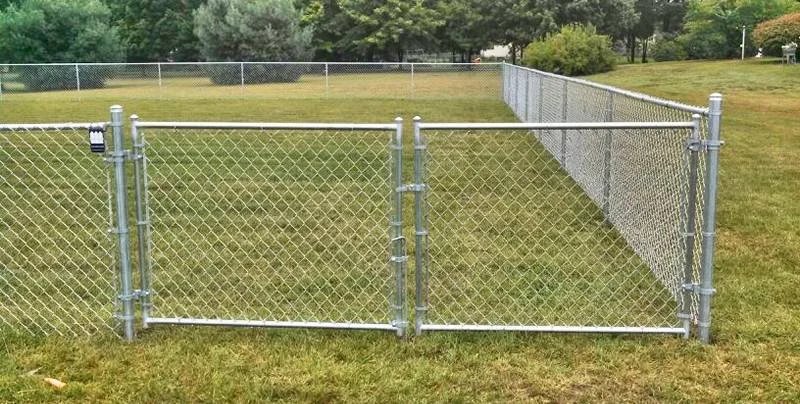

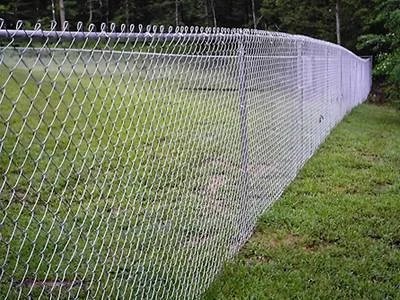

GAW-05: Farm residential chain link fence.

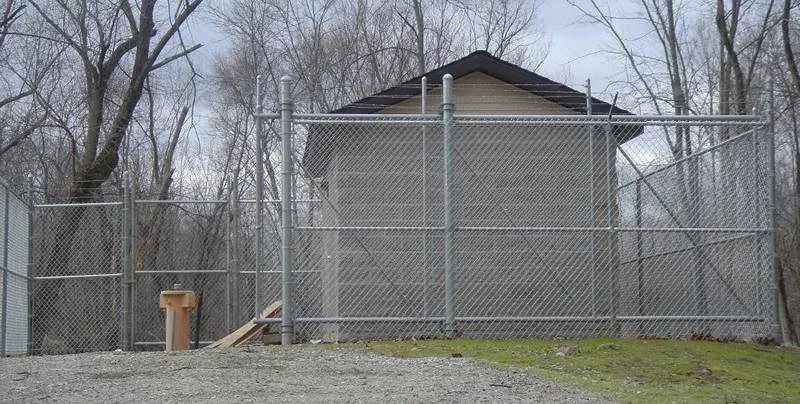

GAW-06: High security chain link fence.

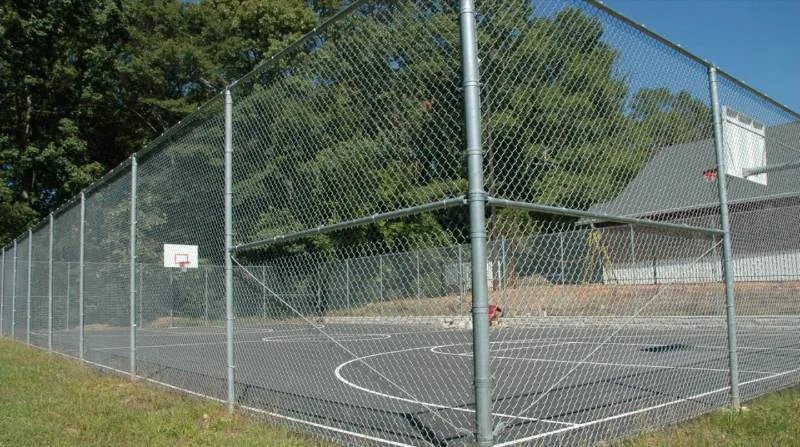

GAW-07: Basketball field chain link fence.

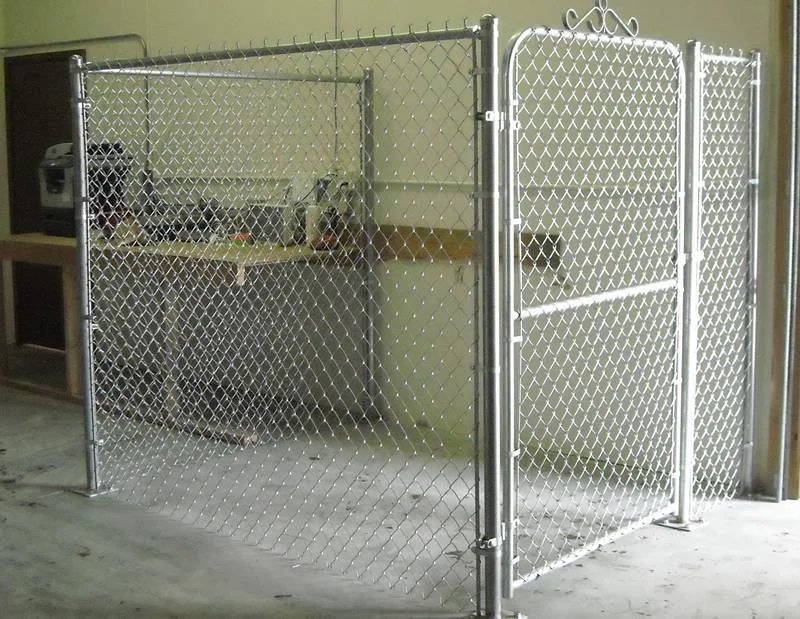

GAW-08: Indoor chain link enclosure.
Applications of Chain Link Fence Rolls
- Residential Security: Backyard enclosures, pet containment, farm fencing
- Commercial Projects: Warehouses, factories, and storage yards
- Highways and Roads: Safety fencing for roads and bridges
- Public Institutions: Schools, parks, and sports facilities
- Construction Sites: Temporary barriers and perimeter fencing
- Indoor Use: Machinery cages and indoor enclosures
✅ Key Benefits of BMP Chain Link Fence Rolls
- Complete Zinc Coating: Full protection from corrosion, even at cut ends
- Wide Range of Gauges & Mesh Sizes: Flexible for different needs
- Meets ASTM Standards: Conforms to ASTM A392 Class 1 & 2
- Rust-Free Performance: GAW coating provides long-lasting protection
- Low Maintenance: No painting or frequent treatment needed
- Cost-Effective: More affordable than stainless or PVC coated fences
- 15-Year Warranty: Confidence in product durability

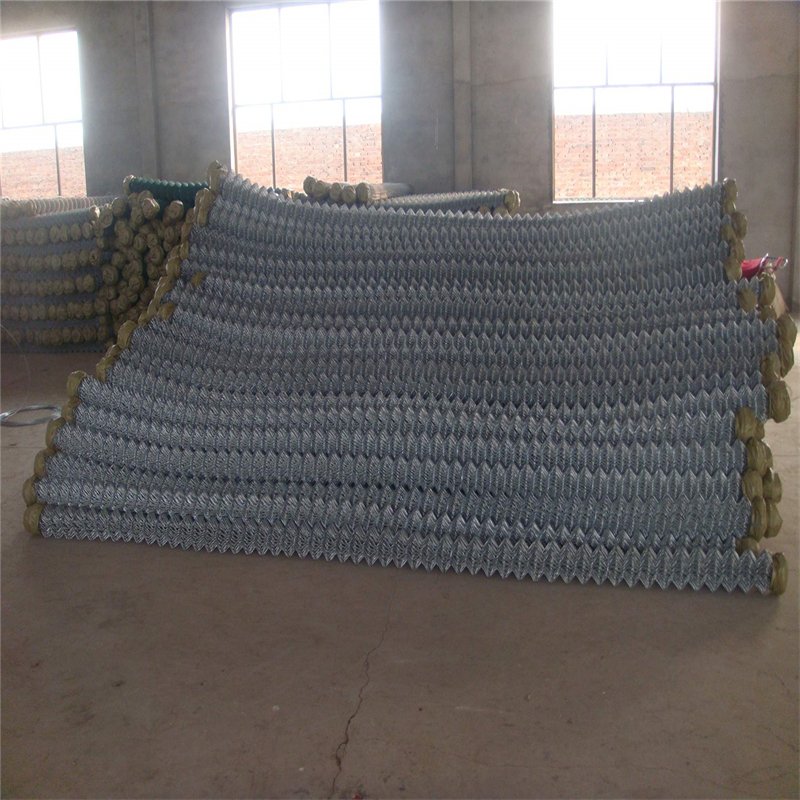

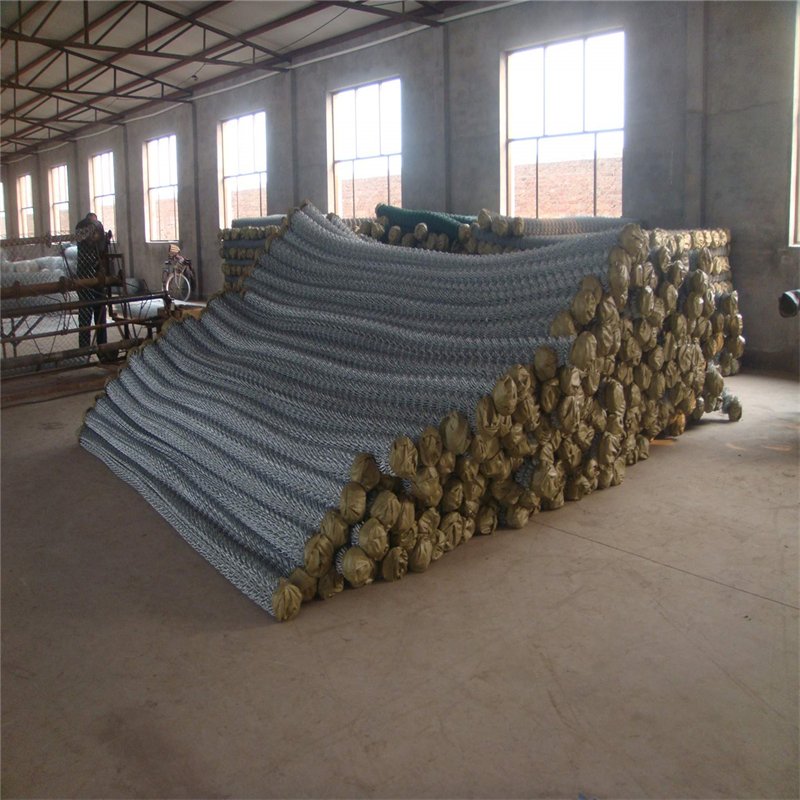

Packing & Delivery

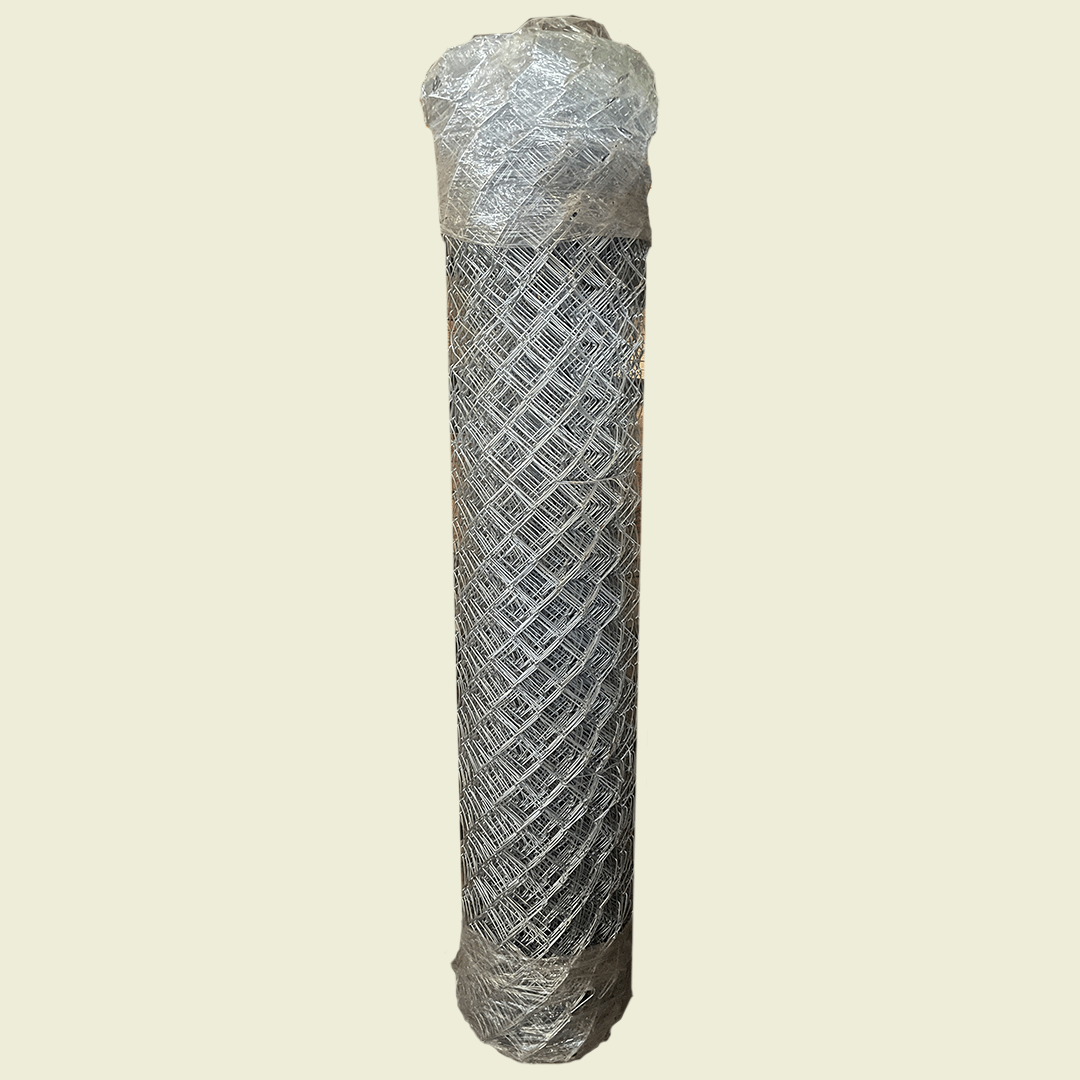

- Packing Style: Rolls wrapped with plastic film
- 20GP Capacity: Around 3,000 – 5,000 m²
- 40HC Capacity: Up to 10,000 m² depending on mesh and gauge
Complete Specifications Table Chain Link Fence Rolls
| Specification |
Details |
| Item |
GAW Chain Link Fence Rolls |
| Material |
Steel Wire |
| Process |
Hot-Dip Galvanized After Weaving |
| Wire Gauge Options |
6, 9, 11, 11½ |
| Mesh Sizes |
2⅛”, 2″, 1¾”, 1¼”, 1″, ½”, ⅝”, ⅜” |
| Fence Heights |
36″, 42″, 48″, 60″, 72″, 84″, 96″, 120″, 144″ |
| Roll Length |
Standard 50 ft (custom available) |
| Selvage Options |
Knuckle, Twisted |
| Zinc Coating Class |
Class 1: 366 g/m² (1.2 oz/ft²) |
|
Class 2: 610 g/m² (2.0 oz/ft²) |
| Optional Components |
Gates, posts, rails, hardware |
| HS Code |
73144900 |
| Unit Price (FOB Tianjin) |
USD 3.95 – 6.80/m² |
When to Use Chain Link Fence Rolls
- Moisture-Prone Areas: GAW provides rust resistance in humid or wet zones
- High-Corrosion Zones: Ideal where metal contact with water or chemicals is expected
- Long-Term Installations: Best when you need durability for over 10 years
- High-Security Needs: Use smaller mesh sizes and barbed selvage for deterrence
- Indoor Use: GAW mesh is clean and doesn’t flake like painted coatings
FAQ – BMP Chain Link Fence Rolls
Q: What is Galvanized After Weaving (GAW)?
A: The mesh is dipped in molten zinc after weaving, protecting all surfaces including cut ends.
Q: What’s the difference between Class 1 and Class 2 zinc coating?
A: Class 2 is heavier (610 g/m²), offering longer lifespan than Class 1 (366 g/m²).
Q: Can I order custom mesh or height?
A: Yes. BMP supports customization for mesh size, height, and roll length.
Q: What’s the typical application for 9-gauge wire?
A: 9-gauge is commonly used in commercial and security fencing.
Q: Do you supply gates and posts?
A: Yes. BMP offers full installation accessories like gates, rails, and hardware.
Customer Feedback – South Africa
“We chose BMP chain link fence rolls for our school expansion project. The GAW coating has been impressive—no rust even during the rainy season. Very satisfied with the quality.”
– Fahad R., Facilities Manager, Doha Education Authority
Conclusion: BMP Chain Link Fence Rolls – Strong, Coated, and Reliable
For durability, corrosion resistance, and cost-effectiveness, BMP’s chain link fence rolls made using the Galvanized After Weaving process stand out. Backed by ASTM standards and a 15-year warranty, these rolls are suitable for every environment—from a backyard to a high-security perimeter.
Contact BMP now to secure your site with high-quality, rust-proof .
