Clearview fencing Johannesburg offers a close-mesh security boundary without creating a solid visual barrier. The welded grid limits convenient climbing holds and complicates access with some conventional hand tools. Security teams can still inspect deliveries, entrances, and movement across the perimeter.
Johannesburg combines office parks, logistics depots, established neighbourhoods, industrial premises, and major transport corridors. Each property needs a different balance of visibility, durability, and entrance control. BMP supplies 358 mesh panels, posts, and compatible hardware for these requirements.
Local buyers comparing ClearVu Fence Johannesburg designs should begin with a measured site layout. Fence height alone never determines the entire security performance. Gate quality, monitoring, lighting, and maintenance remain essential.
 |

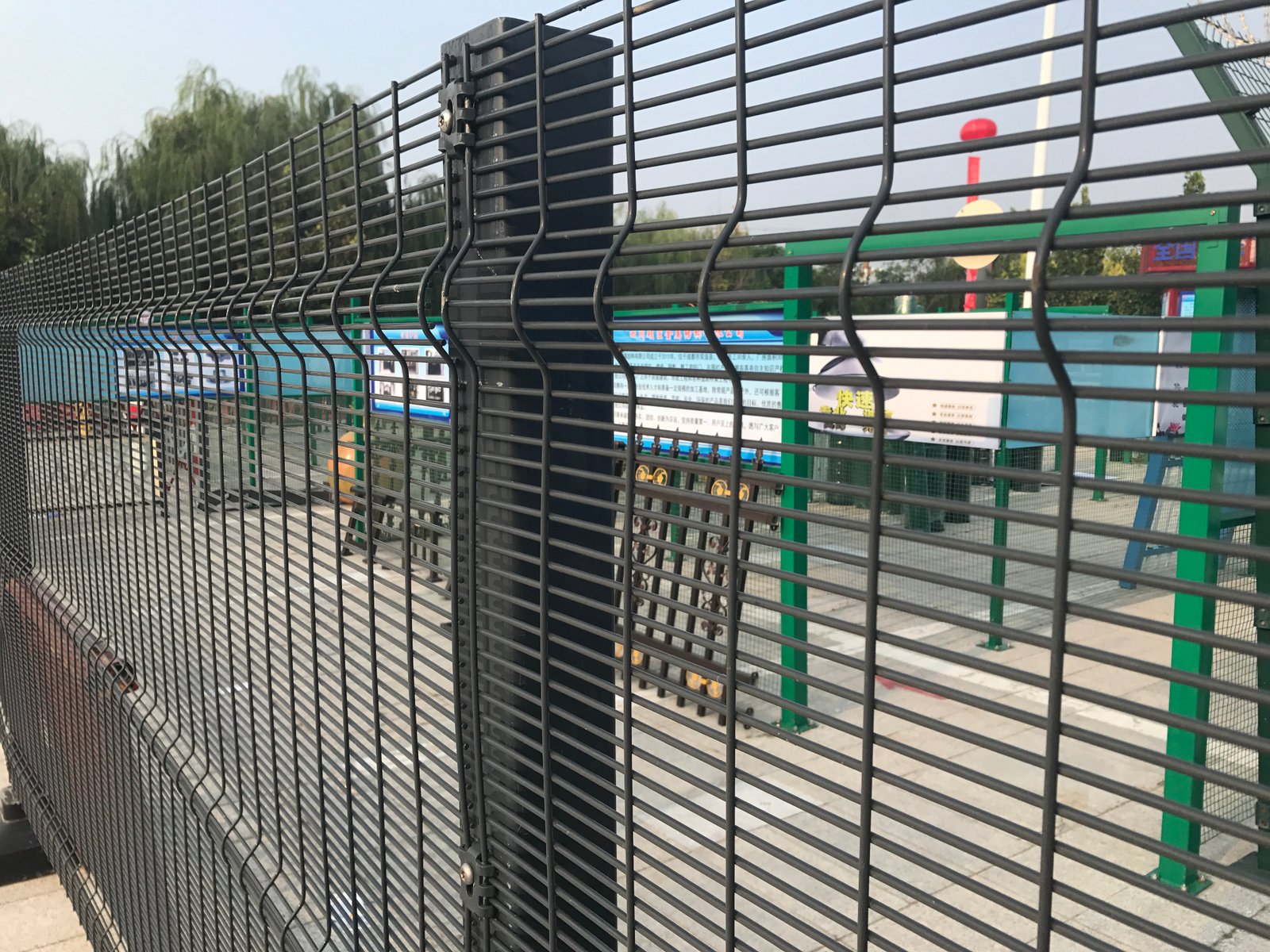

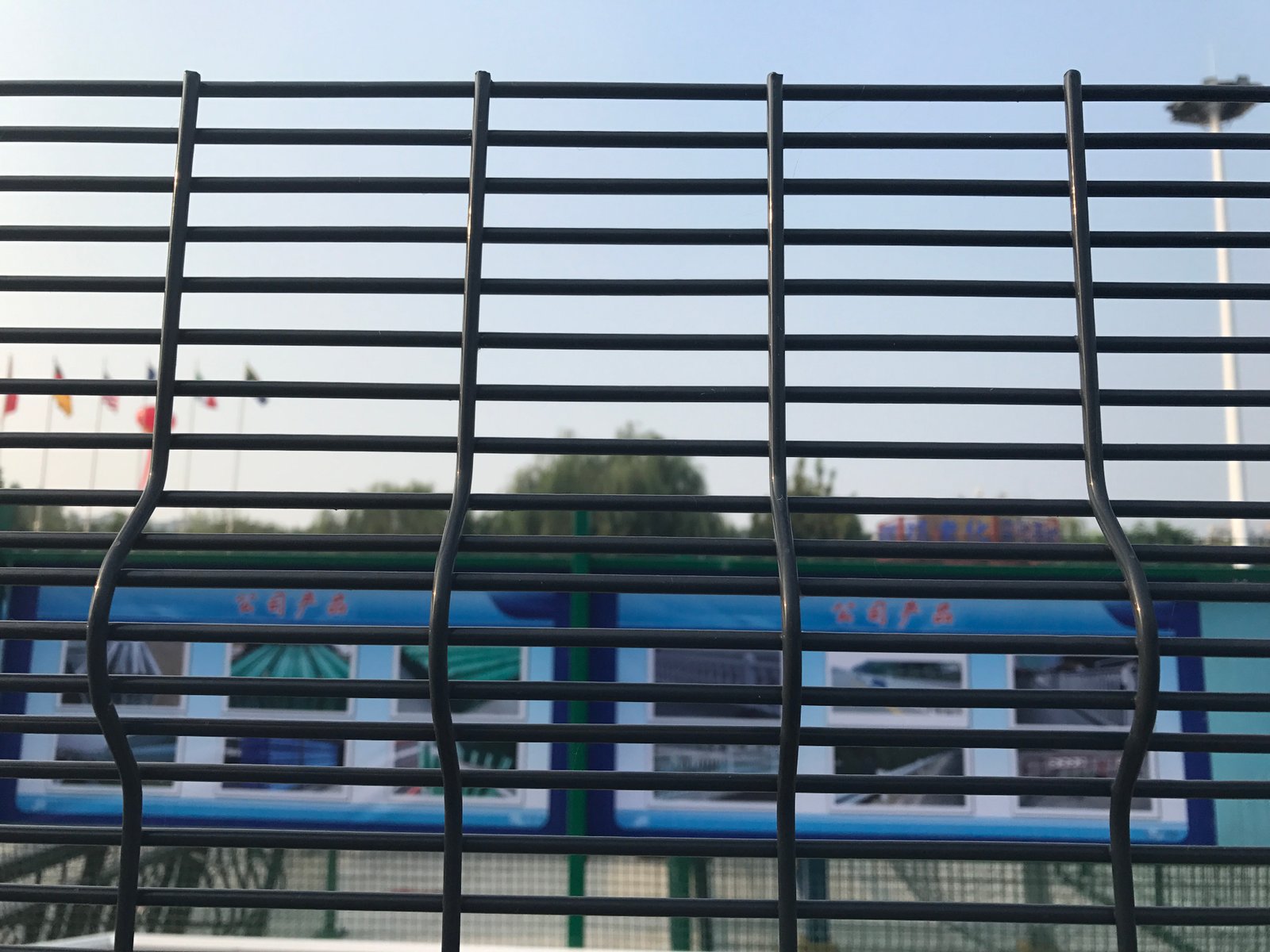

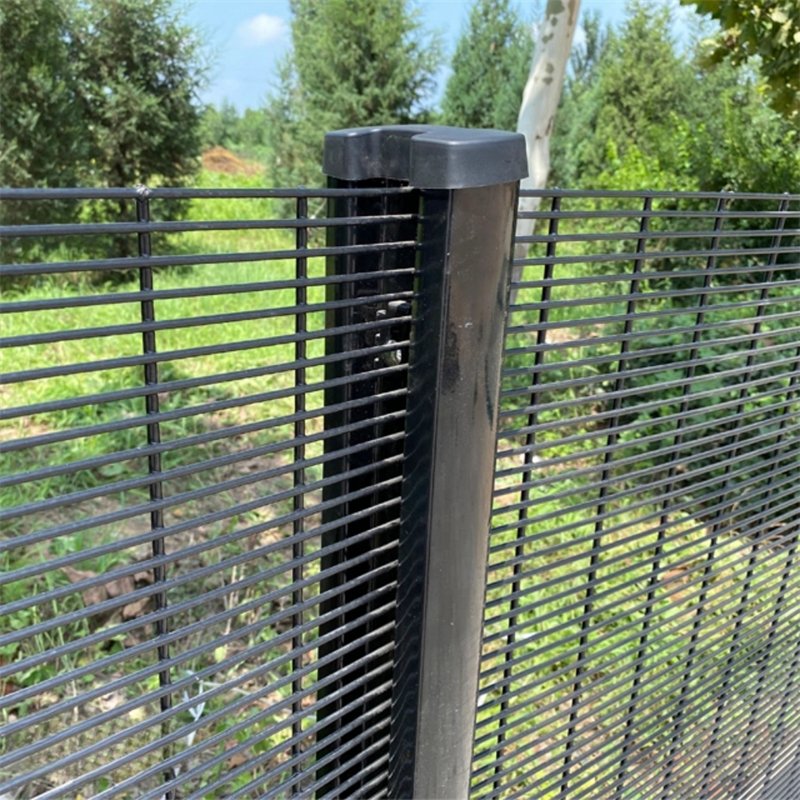

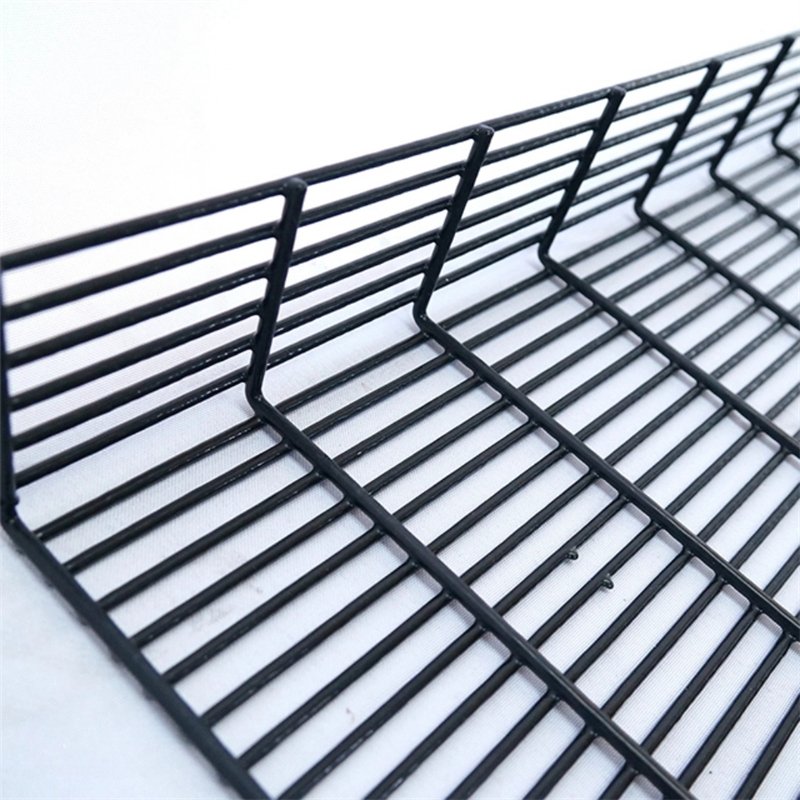

| Original product photograph: 358 close-mesh panel for a visible anti-climb perimeter. |
Johannesburg lies on the elevated Highveld, far from marine coastal conditions. Summer frequently brings thunderstorms, while winter usually stays drier with cold nights. Sudden runoff can expose weak foundations or collect near poorly drained gates.
Unlike coastal projects, inland corrosion planning rarely centres on continuous sea-salt exposure. Dust, standing water, coating scratches, and industrial deposits still deserve attention. Designers should survey ground levels and access routes before manufacturing.
Industrial districts such as City Deep and surrounding logistics areas depend on regular truck movement. Yard managers need boundaries that separate stock, vehicles, staff, and visiting contractors. A visible mesh line supports monitoring without concealing parked equipment.
Consider High Security Clear View Fencing around equipment compounds and restricted storage. Keep materials away from the fence to prevent improvised climbing aids. Protect vulnerable gate posts from accidental vehicle contact.
Residential estates and school campuses need controlled entry without creating isolated blind corners. Close mesh helps guards observe activity on both sides. Access planning should still accommodate deliveries, visitors, and emergency services.
Lower boundaries may need different designs from high-risk sections. Select panel height according to site risks, visibility, and local requirements. Avoid sharp or unsuitable hardware where people may make frequent contact.
Substations, water facilities, and communications sites may need restricted access around essential equipment. Operators often want clear patrol routes and effective camera coverage. Their fence design should complement the facility's broader security procedures.

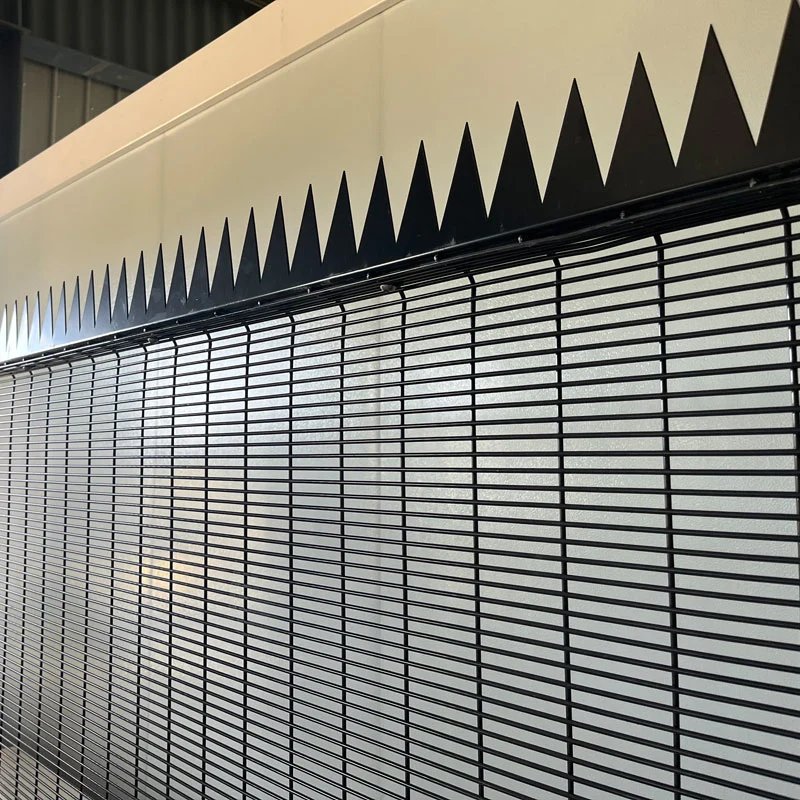

The 358 Mesh Fence pattern offers narrow openings and welded intersections. Project teams should still check relevant safety distances and engineering requirements. Never assume a catalogue fence carries a certified resistance grade.
The traditional 358 designation refers to three inches, half an inch, and approximately eight-gauge wire. Metric specifications commonly use 76.2 × 12.7 mm centres with 4 mm wire. Those measurements describe the wire pitch, not the clear opening.

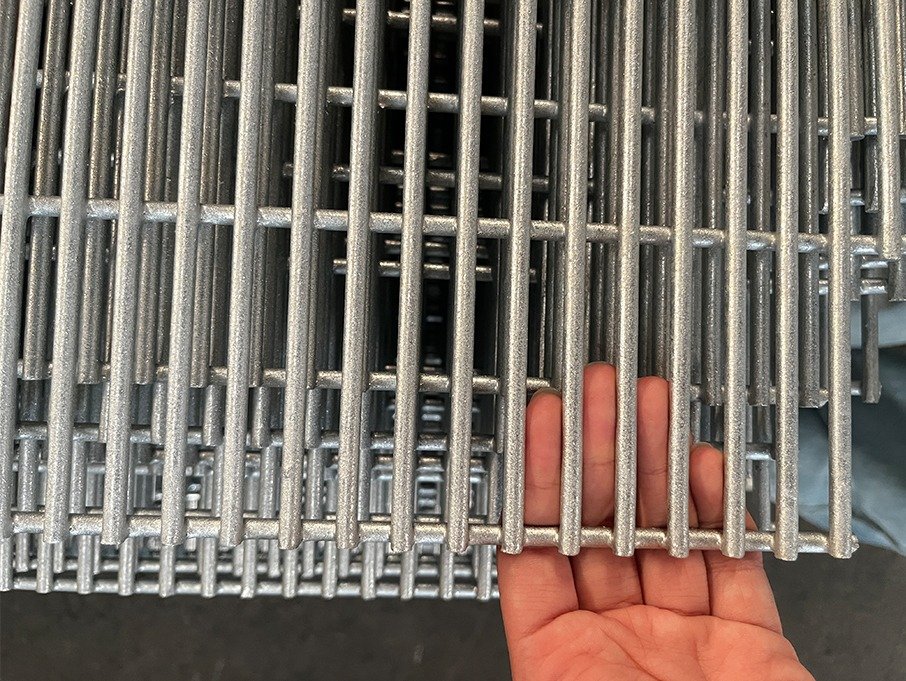

The remaining space is smaller because steel occupies part of each aperture. This limits convenient finger and toe holds. It also complicates some manual cutting techniques without making the fence impenetrable.

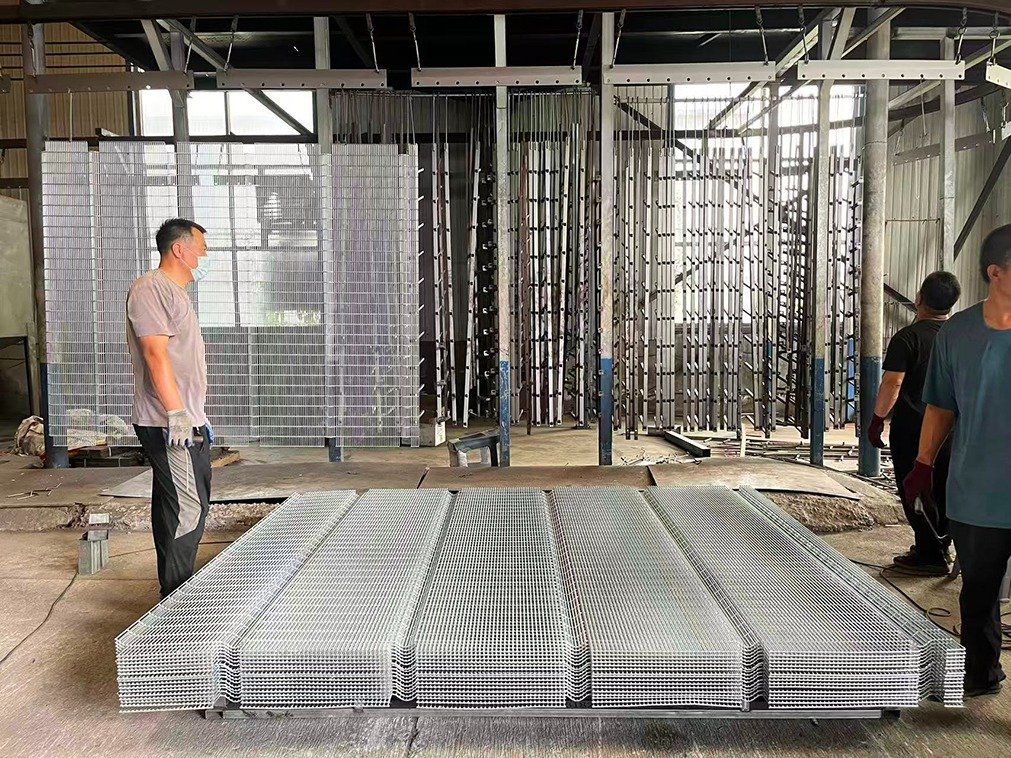

Every wire intersection contributes to the stiffness of a welded panel. Factories should monitor alignment, welding consistency, and coating coverage. Buyers should request clear tolerance limits and appropriate inspection results.

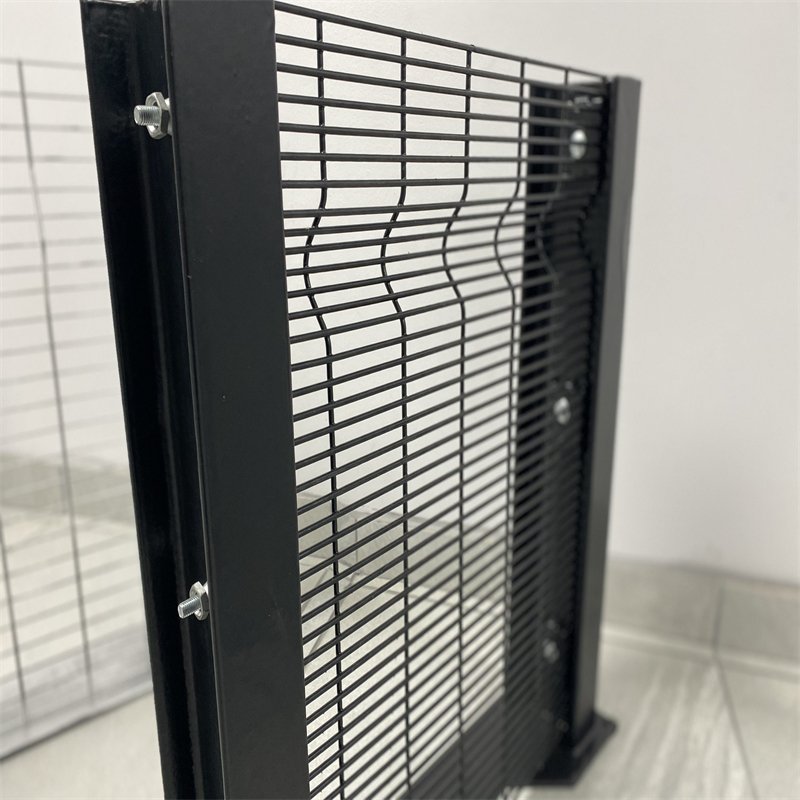

ClearVu Fence Panels can support transparent surveillance layouts. Camera effectiveness still depends on lighting, angles, and unobstructed views. Mesh alone cannot replace monitoring or an organised response.

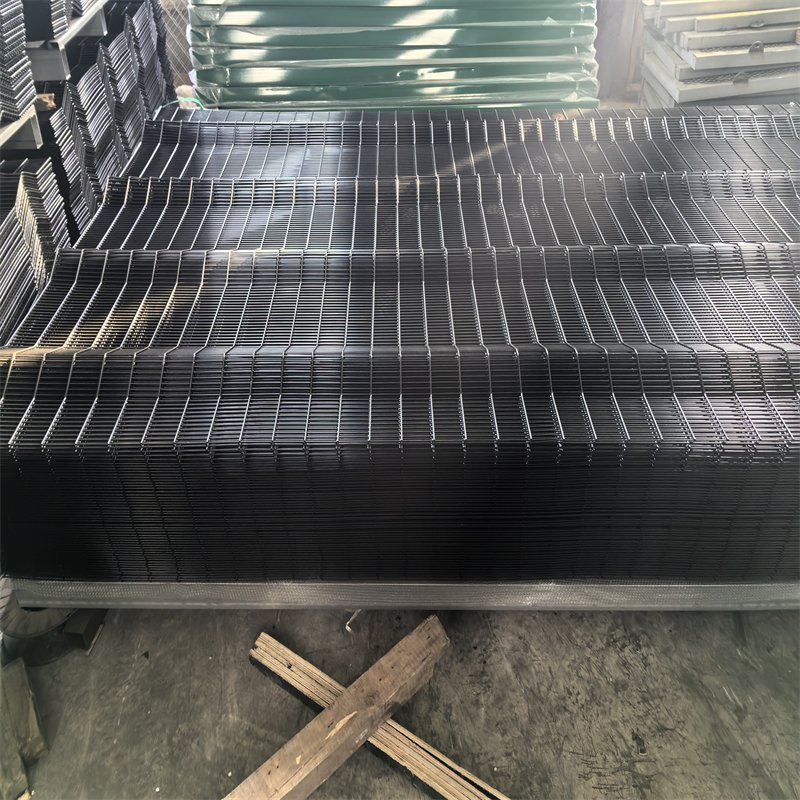

A flat panel and a reinforced panel may share the same nominal aperture. Additional bends, edge details, or frame members can change stiffness. Approve the actual technical drawing before comparing weights or fixing quantities.
Installers should inspect cut ends, distorted wires, and exposed welds. Avoid field changes that damage the protective finish. Match panel geometry to the approved post and clamp arrangement.
The original BMP catalogue includes a compact 2000 × 2200 mm reference configuration. That option specifies 4 mm wire and a 12.7 × 76.2 mm mesh. It also lists 60 × 60 × 2 mm posts with 2500 mm length.
The same reference includes 60 × 5 × 2000 mm flat bars, caps, bolts, and nuts. It specifies galvanized steel followed by a PVC finish. Final coating details must match the approved purchase specification.
The following table preserves all six supplied catalogue rows. One row lists 2004 mm panel height with a 3100 mm post. Verify that unusual combination before production rather than assuming a correction.
| Wire (mm) | Mesh Centres (mm) | Panel H × W (mm) | Post Section (mm) | Post Length (mm) | Intermediate Clamps | Corner Clamps |
|---|---|---|---|---|---|---|
| 4 | 12.7 × 76.2 | 2007 × 2515 | 60 × 60 × 2.5 | 2700 | 7 | 14 |
| 4 | 12.7 × 76.2 | 2004 × 2515* | 60 × 60 × 2.5 | 3100 | 9 | 18 |
| 4 | 12.7 × 76.2 | 2997 × 2515 | 80 × 80 × 2.5 | 3800 | 11 | 22 |
| 4 | 12.7 × 76.2 | 3302 × 2515 | 80 × 80 × 2.5 | 4200 | 12 | 24 |
| 4 | 12.7 × 76.2 | 3607 × 2515 | 100 × 60 × 3.0 | 4500 | 13 | 26 |
| 4 | 12.7 × 76.2 | 3607 × 2515 | 100 × 100 × 3.0 | 4500 | 13 | 26 |
*The 2004 mm panel height appears in the supplied source. Its relationship to the post length requires confirmation. Clamp counts remain catalogue references and may change at corners or gates.
Steel posts carry fence loads into the foundations. Wall thickness, profile, spacing, and soil properties influence performance. Taller panels need additional engineering instead of automatic substitution with longer posts.
Compatible ClearVu Fencing Post configurations can support different installation requirements. Clear View Fence Post options provide alternative profile references. Always match each post to the approved loading assumptions.
Highveld thunderstorms can send runoff across paved yards and sloping compounds. Poor drainage may undermine shallow foundations or damage gate tracks. Engineering should address soil capacity, wind exposure, and water paths together.
Check utilities before drilling or excavation. Keep concrete bases clear of drainage channels where practical. A neat panel alignment cannot compensate for unsuitable ground support.

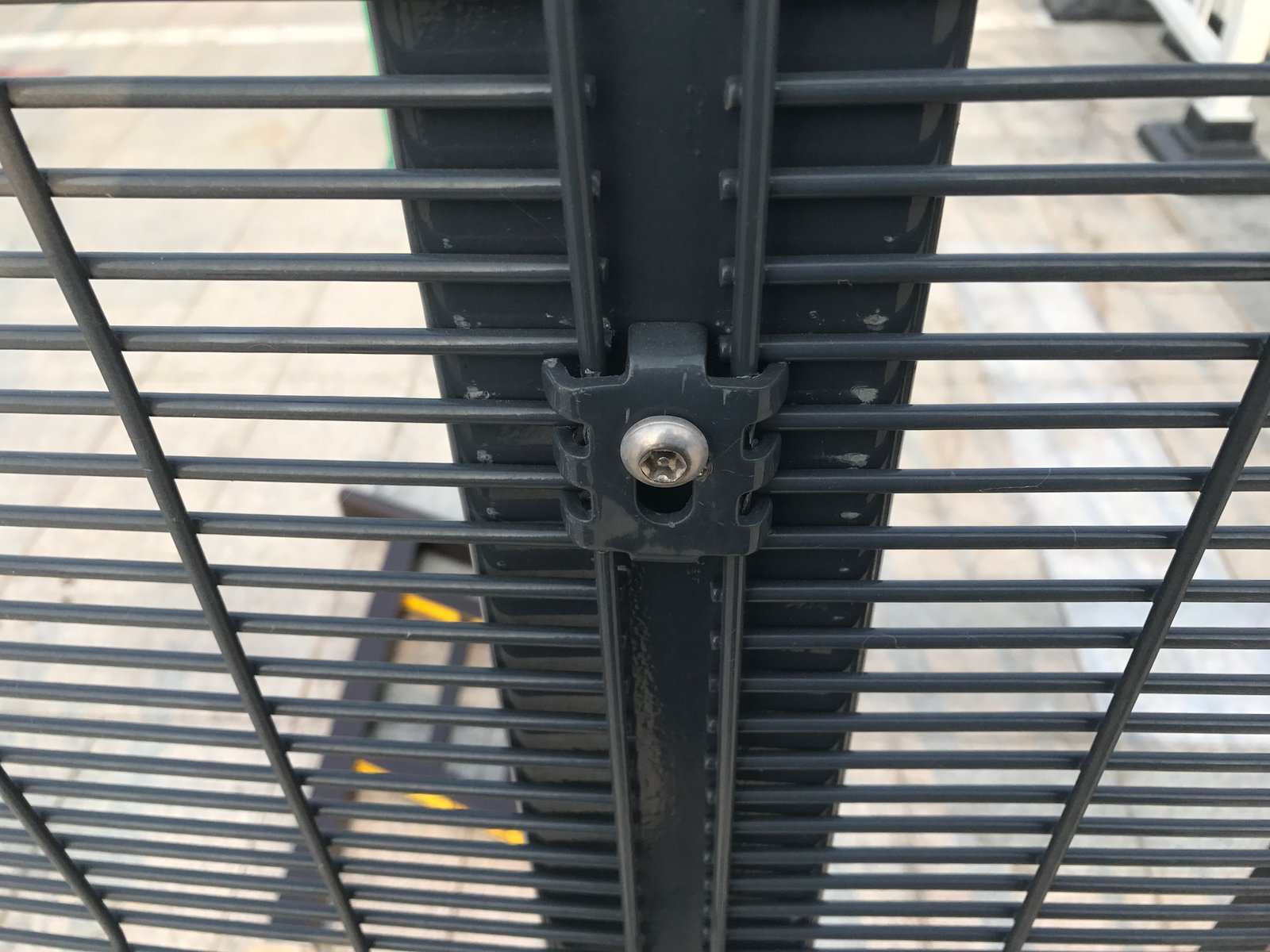

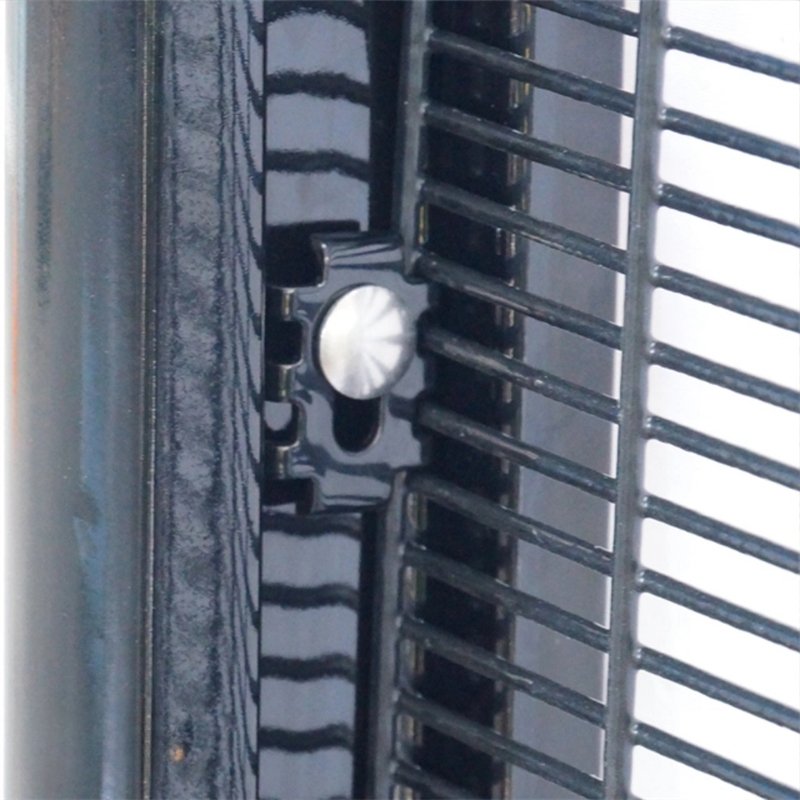

The reference system uses flat bars and suitable connecting bolts. ClearVu Fence Clamps must match the actual tube section and panel overlap. Mismatched holes can create loose joints or unwanted gaps.
Include Clear View Fence Accessories in the complete material schedule. Count fasteners separately for ends, corners, gates, and changes in elevation. Consider tamper-resistant fittings where the risk assessment requires them.
Inland exposure differs from the salt-laden air around coastal ports. However, ultraviolet exposure, dust, moisture, and coating damage can still affect steel. A suitable zinc and polymer system helps protect the finished panels.

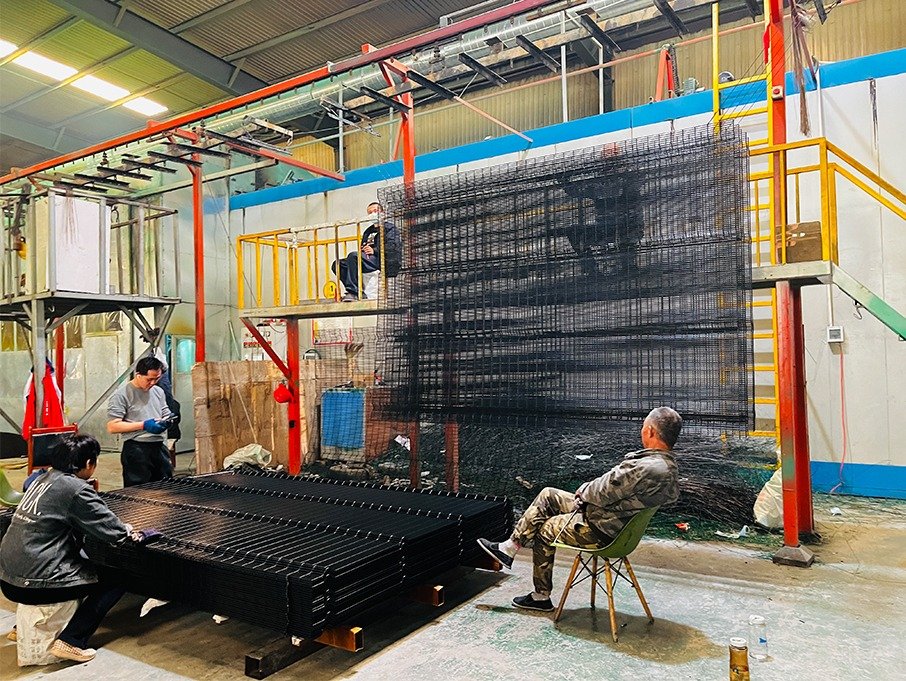

Specify whether the manufacturer uses galvanized wire before welding or galvanizes suitable fabricated components afterward. Those methods can protect weld areas differently. Powder coating or PVC coating also needs compatible pretreatment.
Inspect post bases, welded joints, and gate hardware after severe weather. Remove trapped debris and repair coating scratches using approved methods. Check whether soil or paving has shifted near the foundations.
Cold, dry winter days also create dust around sliding tracks and hinges. Clean moving parts and follow the manufacturer's lubrication instructions. Routine inspections prevent small faults from developing unnoticed.

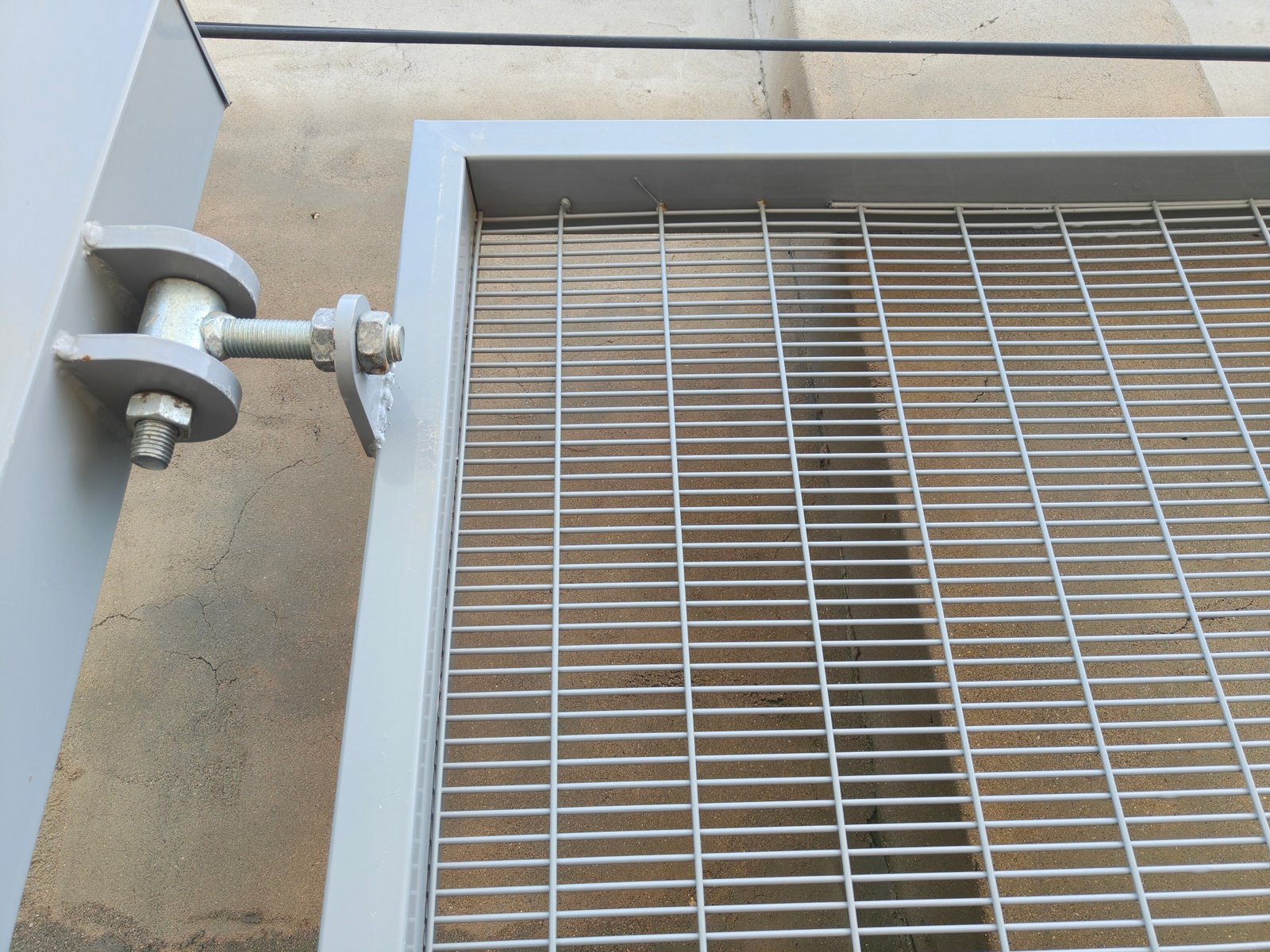

A secure boundary needs practical entrances for staff, deliveries, and emergency vehicles. Gate leaves impose different forces from fixed fence panels. Confirm opening dimensions before choosing hinges, tracks, or motors.

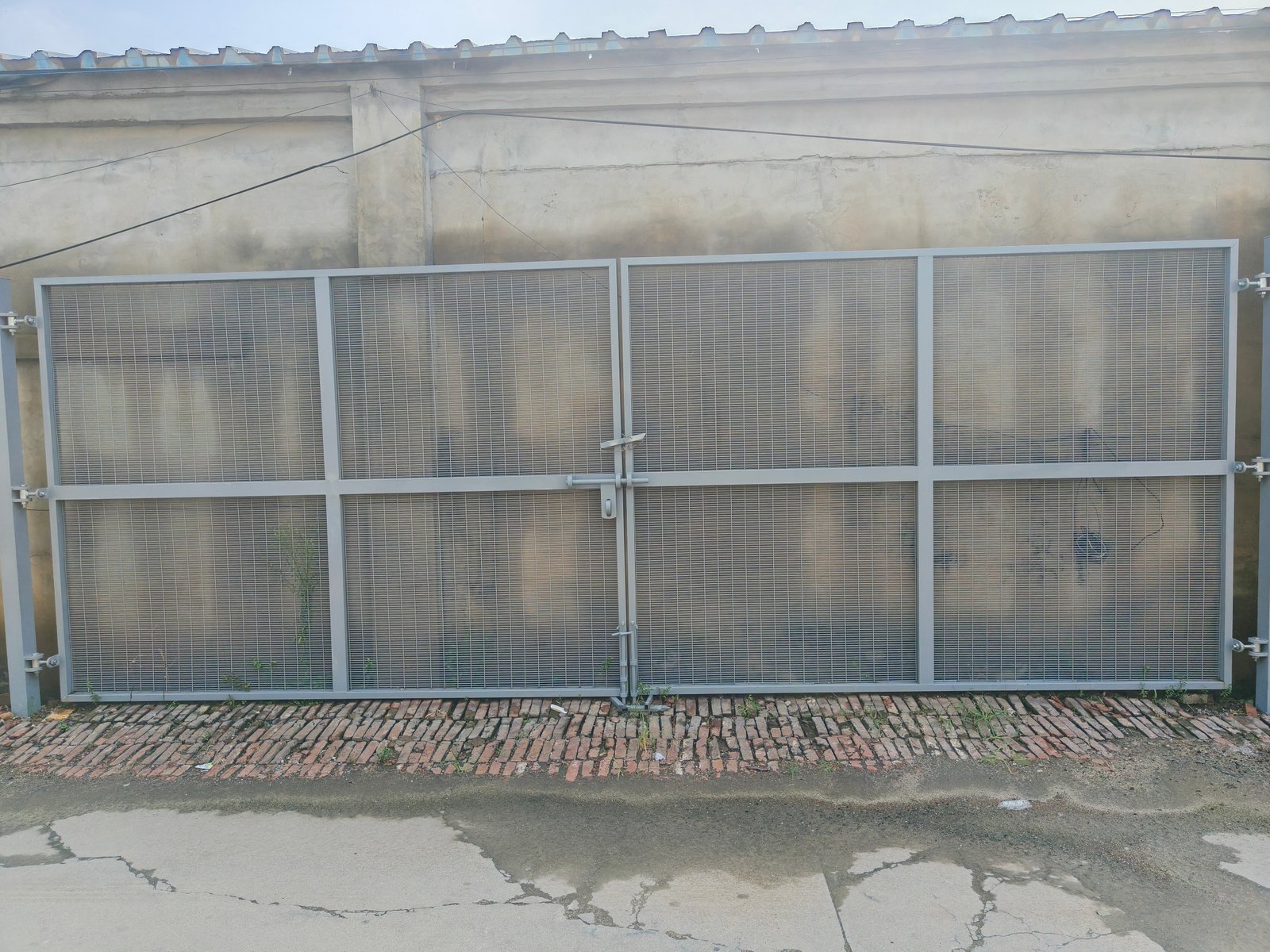

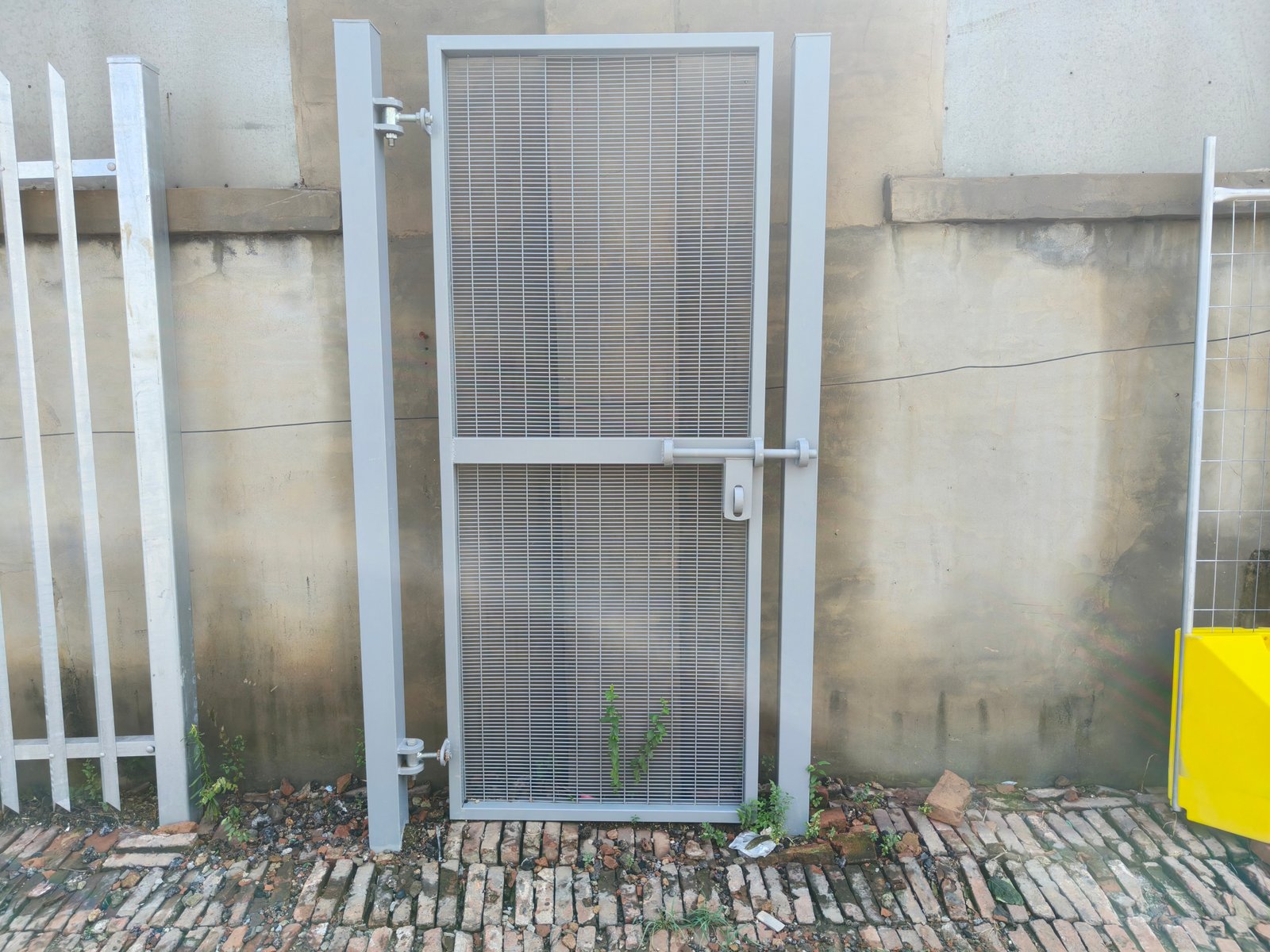

Pedestrian Gates can provide controlled access away from heavy vehicle routes. Larger depots may require Double Swing Gates for wider access. All hardware should support safe operation and maintenance.
Trucks waiting near gates can hide parts of the boundary from cameras. Design the stopping area before fixing gate positions. Keep pedestrian access separate from reversing vehicles where possible.
Sliding Gates can suit constrained sites with sufficient lateral space. Their track alignment and drainage need particular care. Automated models require suitable safety devices and emergency opening arrangements.
Some facilities need matching mesh across gates and fixed bays. ClearVu Fence Gates offer a related system category. Confirm finished dimensions and hardware compatibility before installation.

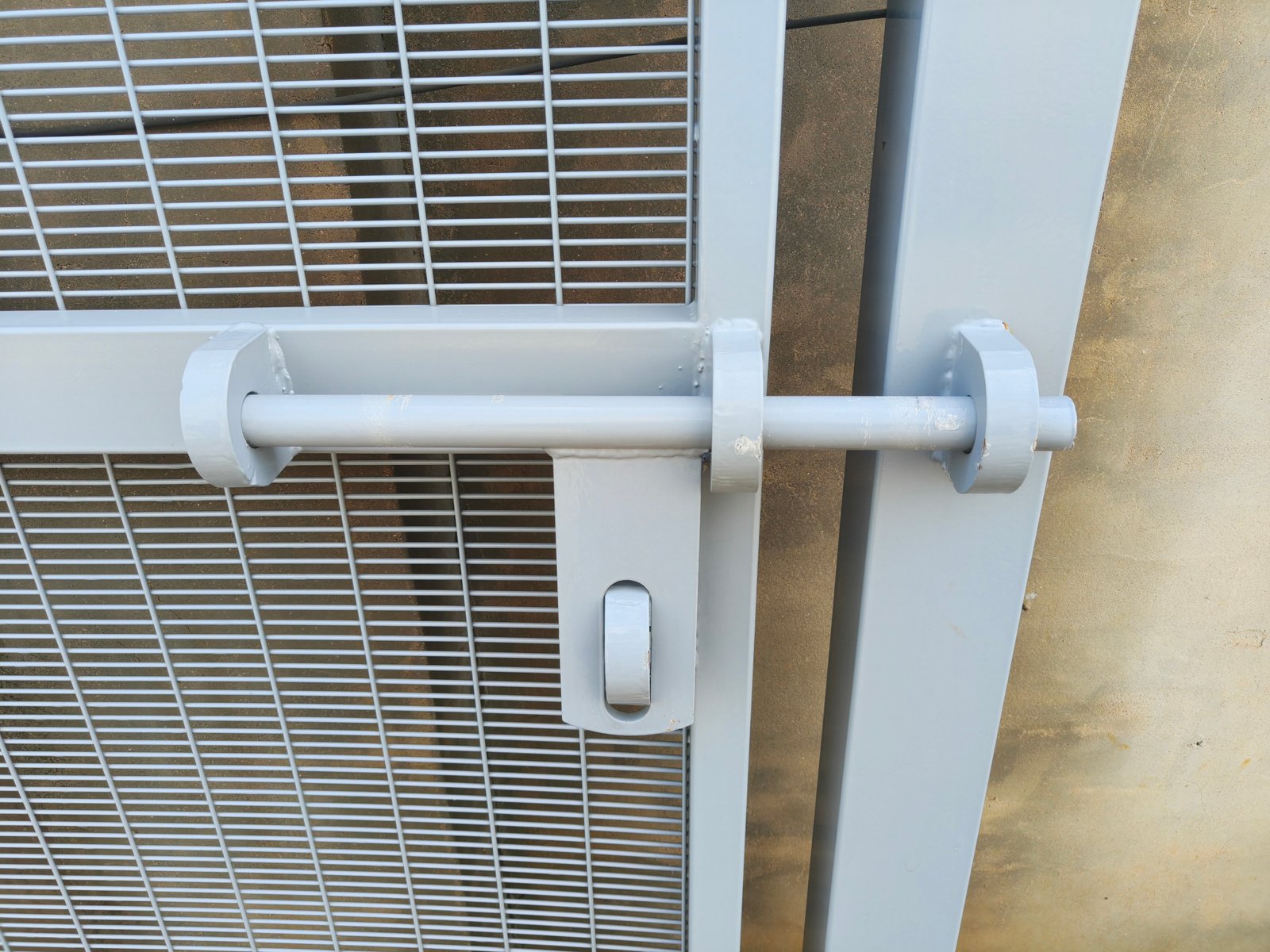

The Clear View Fence Gates range also covers different entrance configurations. Gate security depends on locking hardware, posts, controls, and daily operating procedures. No mesh pattern alone secures an open entrance.
A building project may temporarily interrupt an existing boundary. Contractors need safe separation while they replace sections and install foundations. Temporary barriers can reduce uncontrolled access during this period.
Temporary Construction Fencing provides movable panels for working zones and changing site layouts. These panels do not automatically match permanent 358 security performance. Choose temporary equipment according to access, wind, and site safety needs.
Different steel systems address different priorities. Corromesh provides another close-mesh format for comparison. Garrison Security Fencing uses tubular pickets instead of dense welded mesh.
Compare clear openings, wire diameter, fixing methods, and certificates before selecting a substitute. Decorative picket fencing may suit frontages with different security requirements. A high-risk compound needs a site-specific assessment.

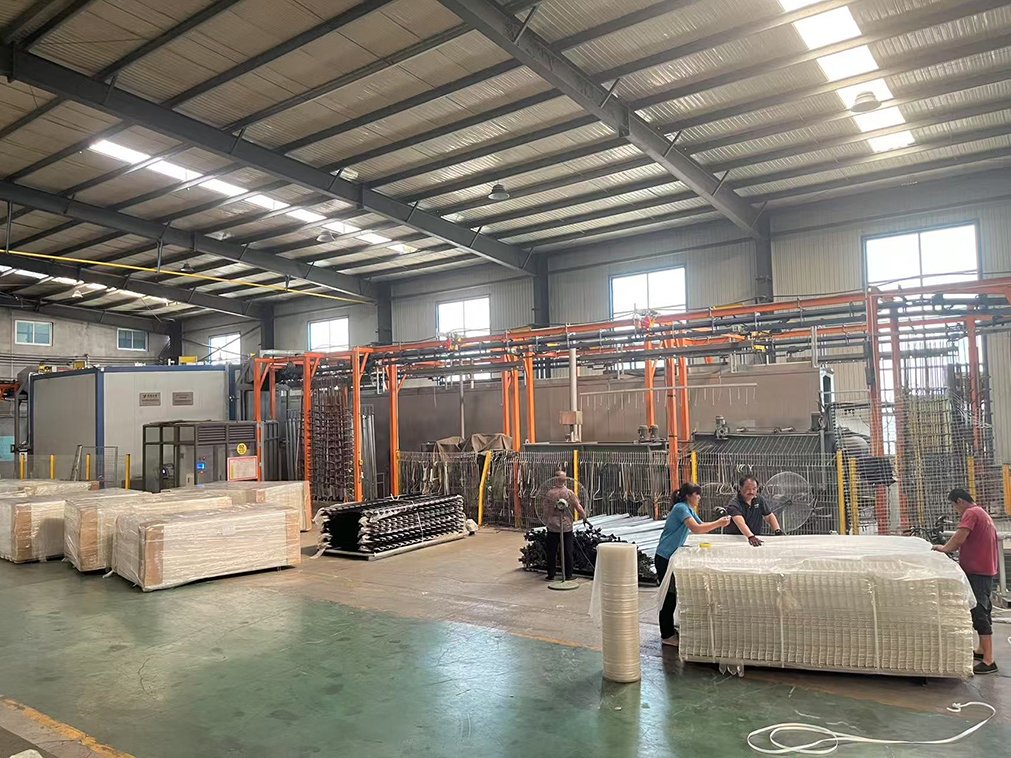

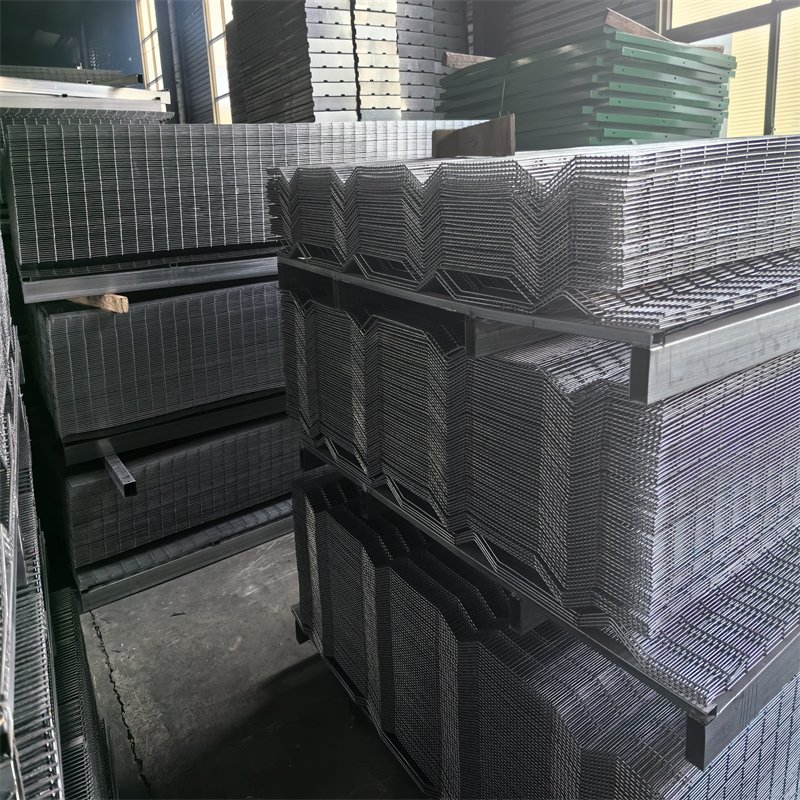

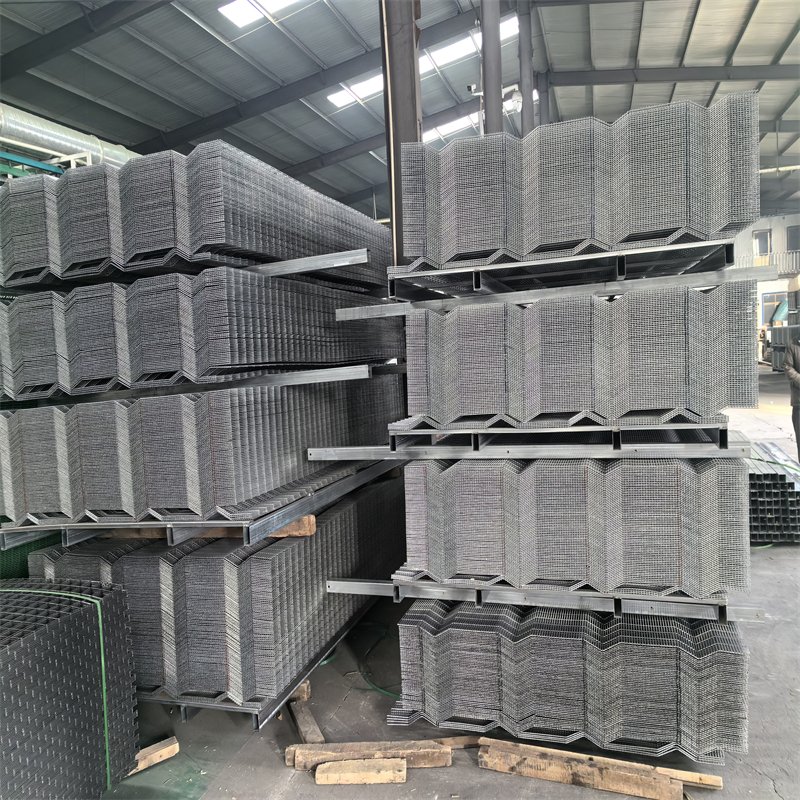

Large mesh panels need careful protection during stacking and ocean transport. Steel pallets support organized handling, while straps keep the bundles stable. Rubber mats and metal corners help reduce contact damage.
The supplied reference also mentions protective plates beneath straps and wooden sheets above stacked panels. Factories should protect post ends and separate heavy hardware from coated mesh. Loading plans must respect container weight and space limits.
 |

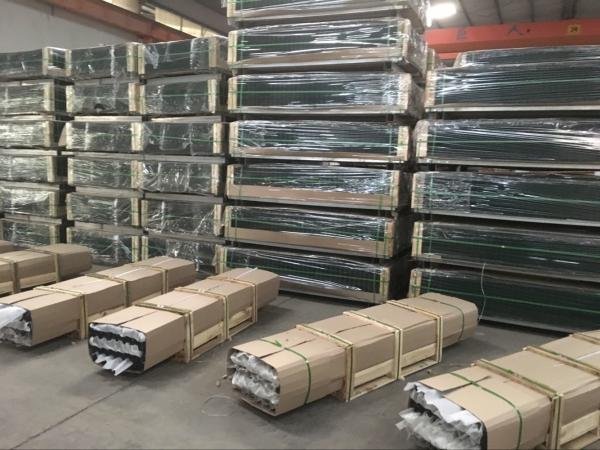

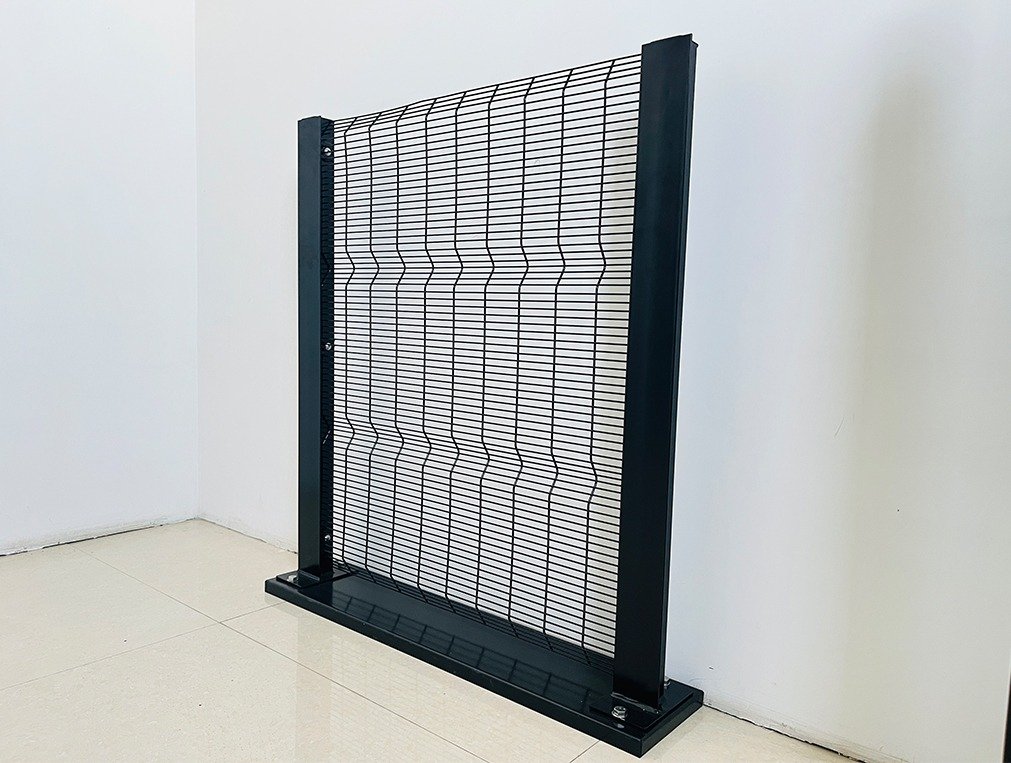

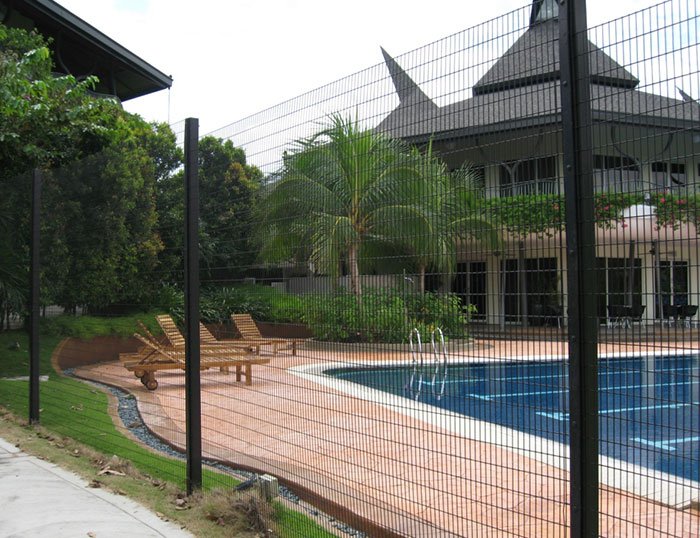

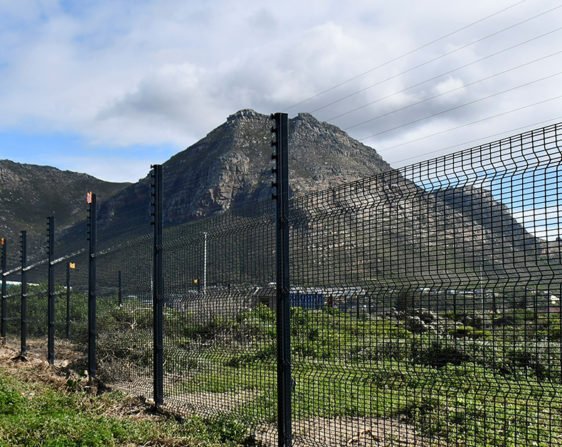

| Original catalogue photograph: 358 fence system and shipment preparation reference. |
Label panel heights, posts, clamp bars, and fastener cartons separately. Provide a clear packing list for warehouse receiving. Protective film should prevent abrasion without trapping water for prolonged storage.
 |
 |

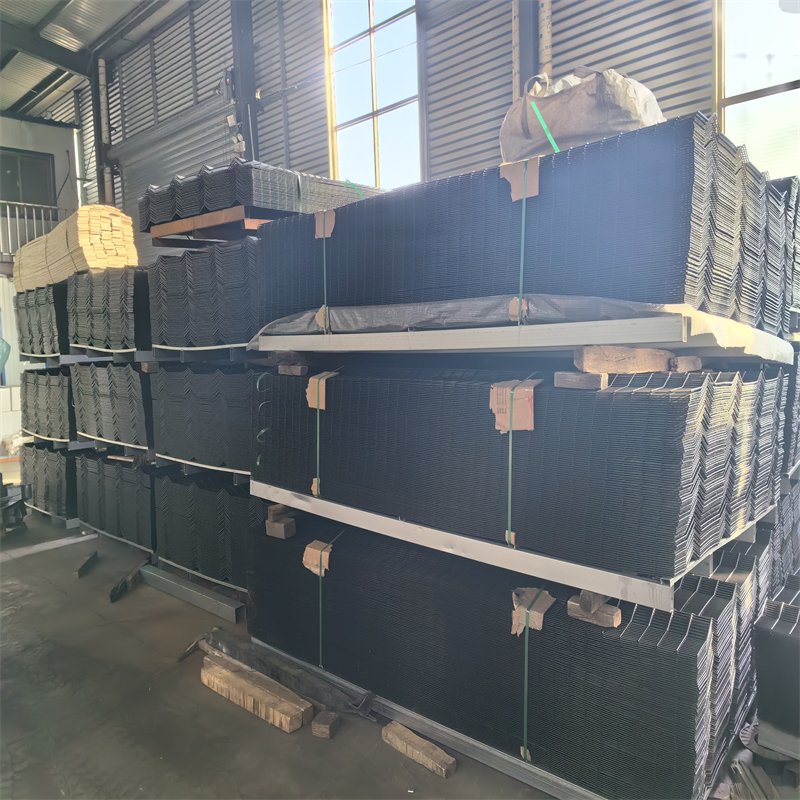

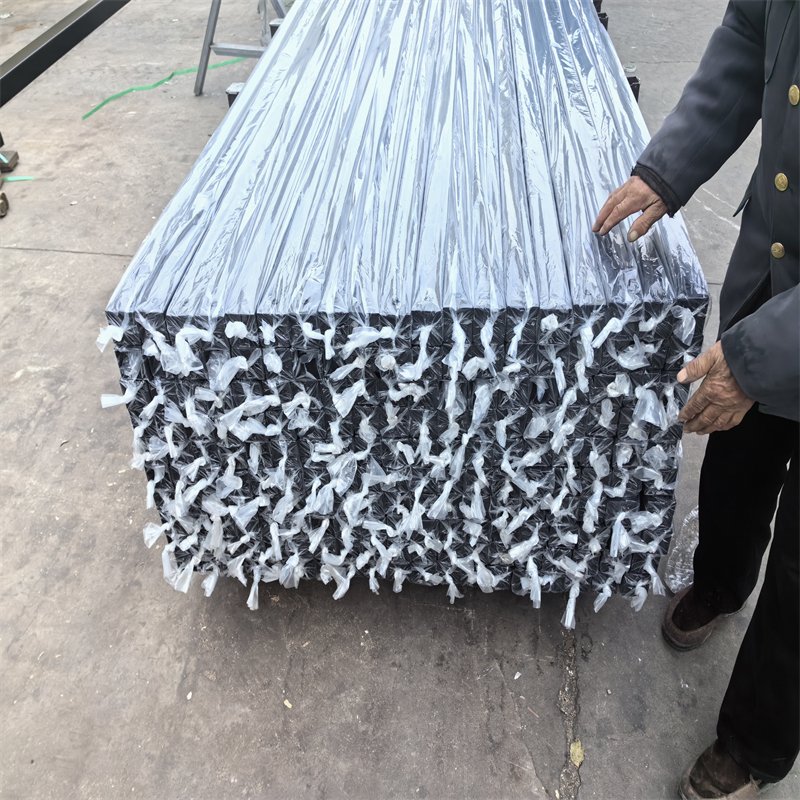

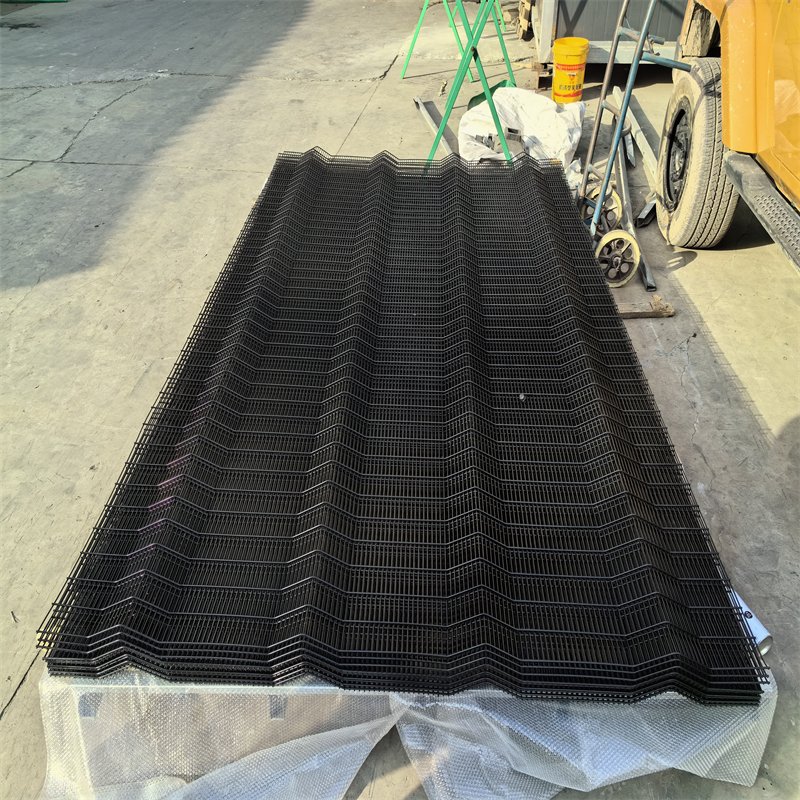

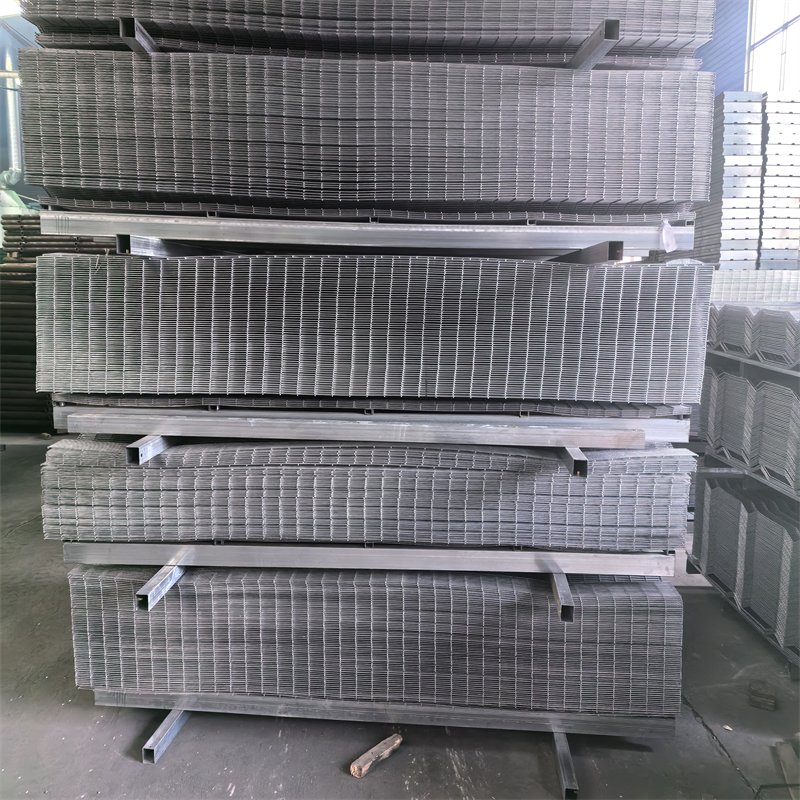

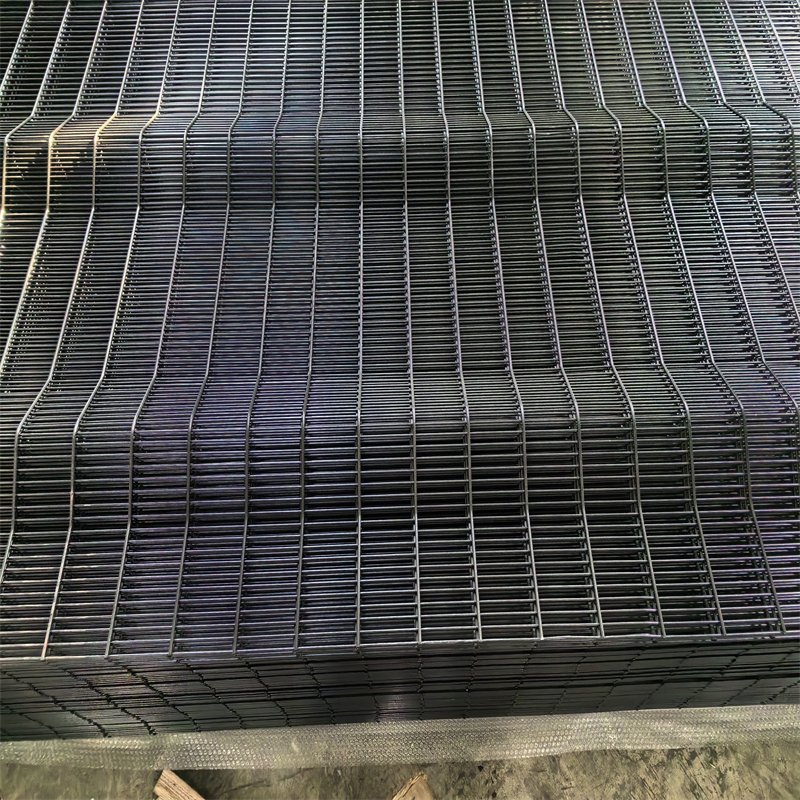

| Original packaging photograph: fence panel handling and protection. | Original packaging photograph: shipping preparation and bundled components. |

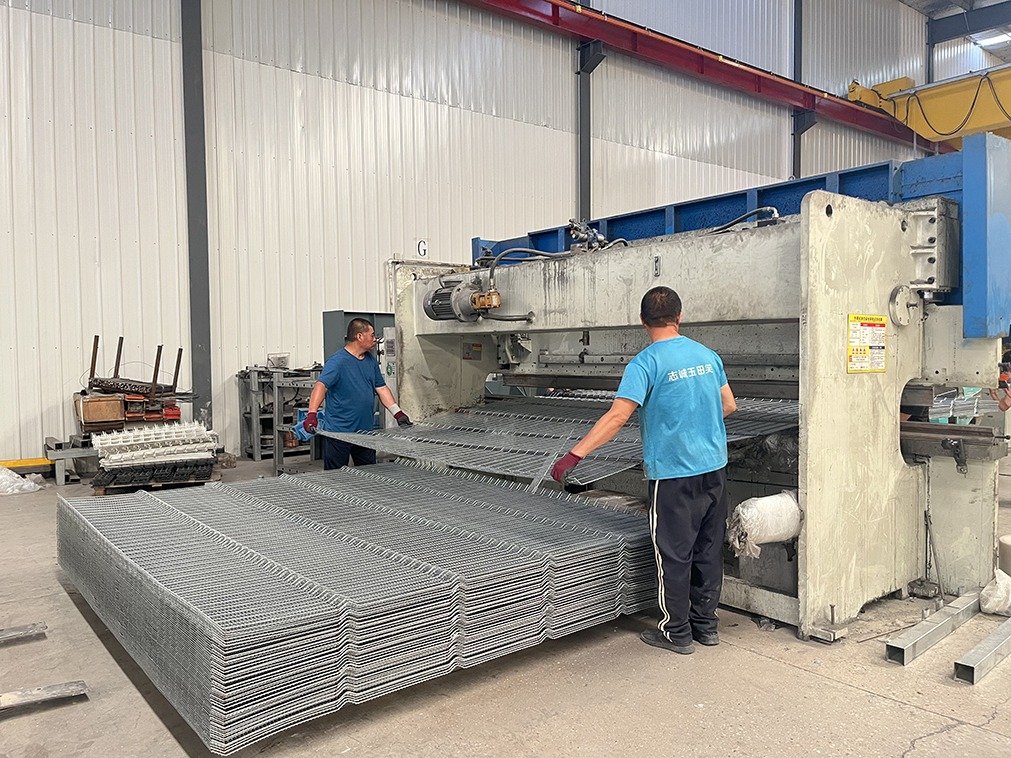

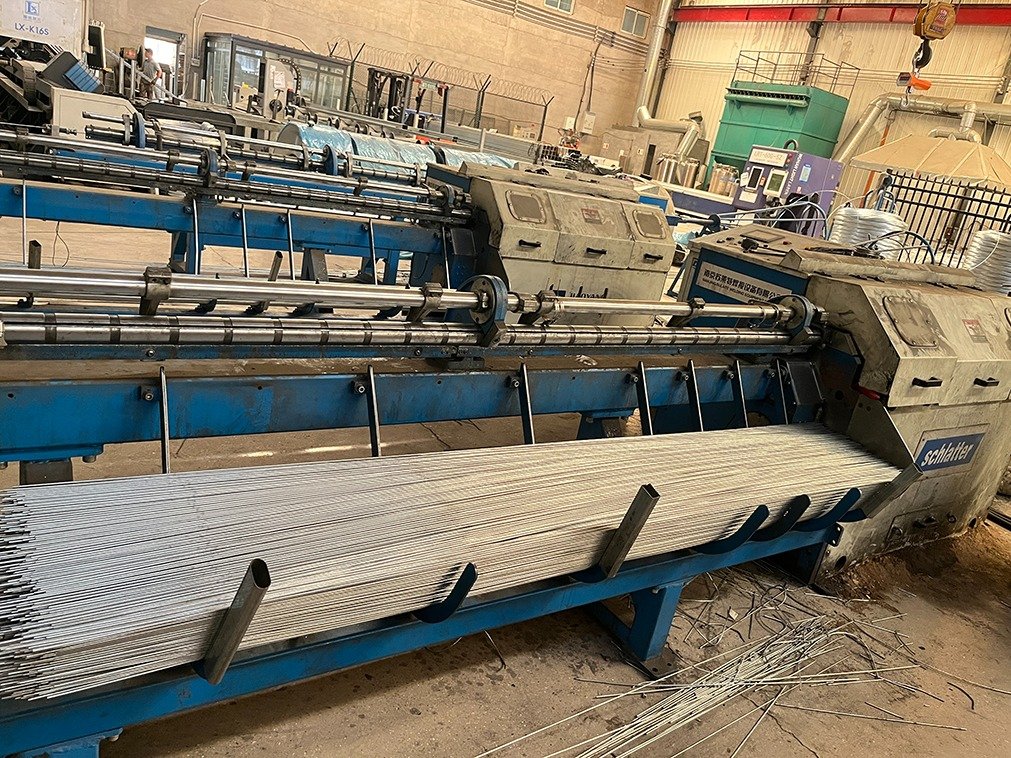

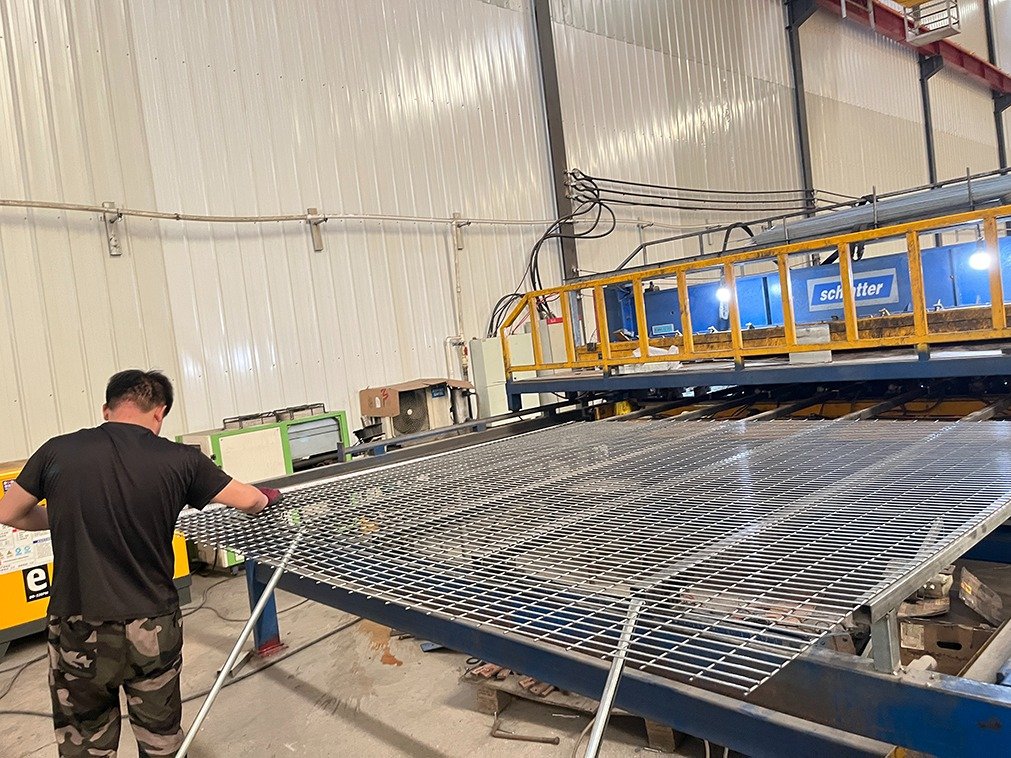

Production inspections should compare finished goods with the approved drawing. Measure wire diameter, panel width, mesh centres, post sections, and clamp dimensions. Inspect welds, coating damage, sharp edges, and overall straightness.
The ClearVu Fence Panels range offers another product reference for comparative specifications. However, buyers must confirm details directly for the actual shipment. Never infer a laboratory security rating from a product name.
The open grid usually preserves useful sightlines through a fence. Actual camera coverage depends on lighting, resolution, mounting positions, and nearby obstacles. Test the final views during commissioning.
No physical barrier guarantees complete protection. Dense welded mesh discourages climbing and complicates certain cutting methods. Effective security also requires gates, surveillance, and a response plan.
A suitable zinc system and compatible polymer coating can protect steel from typical inland exposure. Check moisture accumulation, scratches, and surface preparation. Select the coating process through the project specification.
Yes. BMP can review drawings for alternative dimensions, post profiles, clamp arrangements, and gates. Production feasibility and final pricing depend on the approved specification.
Boss Metal and Plastic Co., Ltd. manufactures welded security mesh systems for export projects. Our product options include 358 panels, supporting posts, fixing bars, and matching gates. We can review drawings, coatings, packing, and shipment requirements.
Send the measured perimeter, project location, desired height, and entrance schedule. Include any coating or test requirements with the enquiry. Complete information helps us prepare a coordinated material proposal.
