Cochrane fencing combines high-density welded steel mesh with advanced anti-climb protection and excellent visibility. Its ClearVu security systems help protect industrial facilities, commercial properties, and high-security environments. The narrow mesh apertures discourage climbing and support effective CCTV surveillance. Buyers can also compare similar anti-climb fencing systems from other manufacturers to meet their specific project requirements.
BMP manufactures its own welded security mesh, posts, and accessories for international projects. BMP does not claim to manufacture Cochrane branded products or act as its authorised representative. This article explains the product characteristics buyers should compare without confusing their origins.
Modern perimeters need more than an imposing fence. Facilities also need sightlines, organised access, and dependable maintenance. Suitable Clear View Fence Panels can support that balance without hiding the protected site.
 |
 |

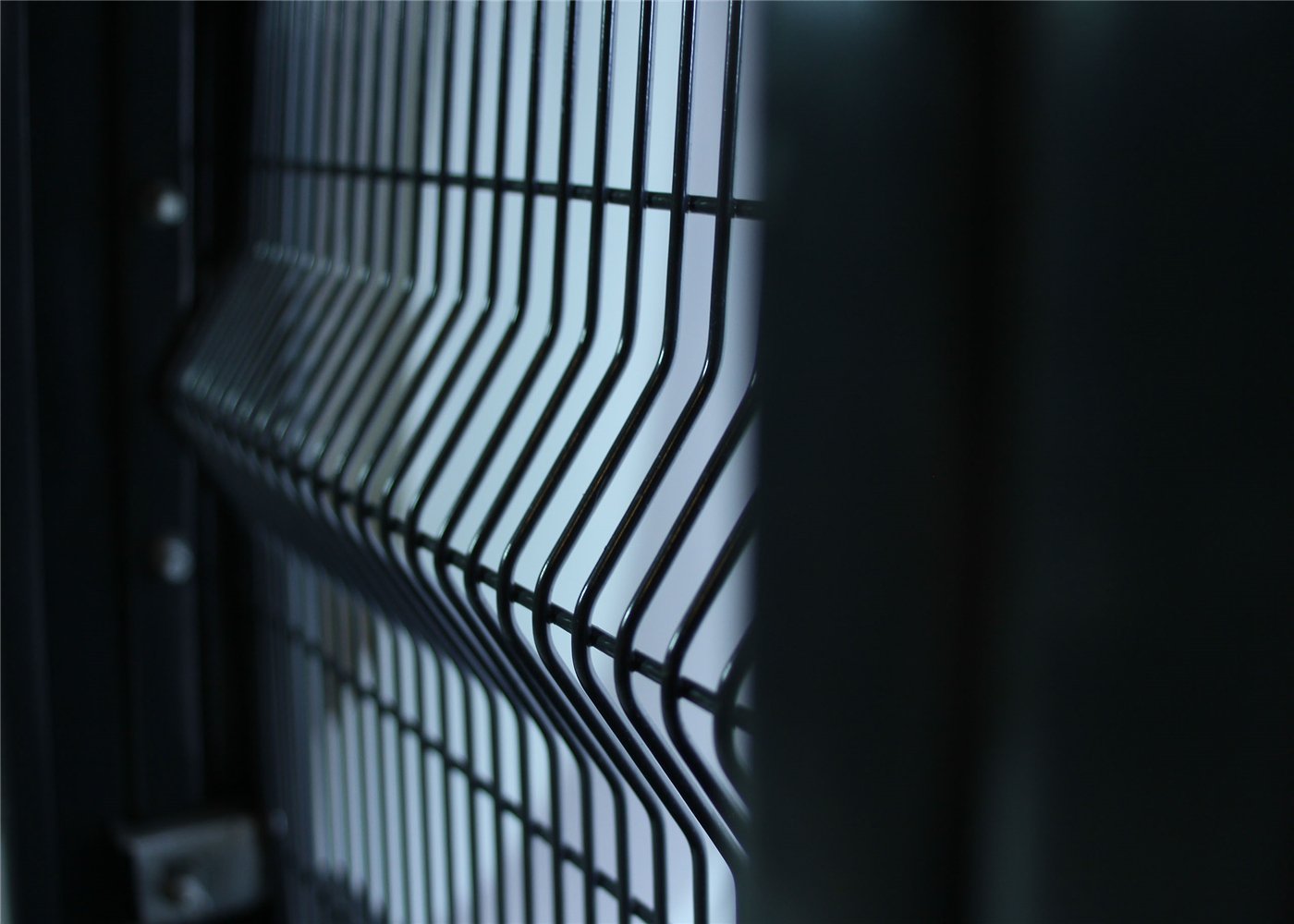

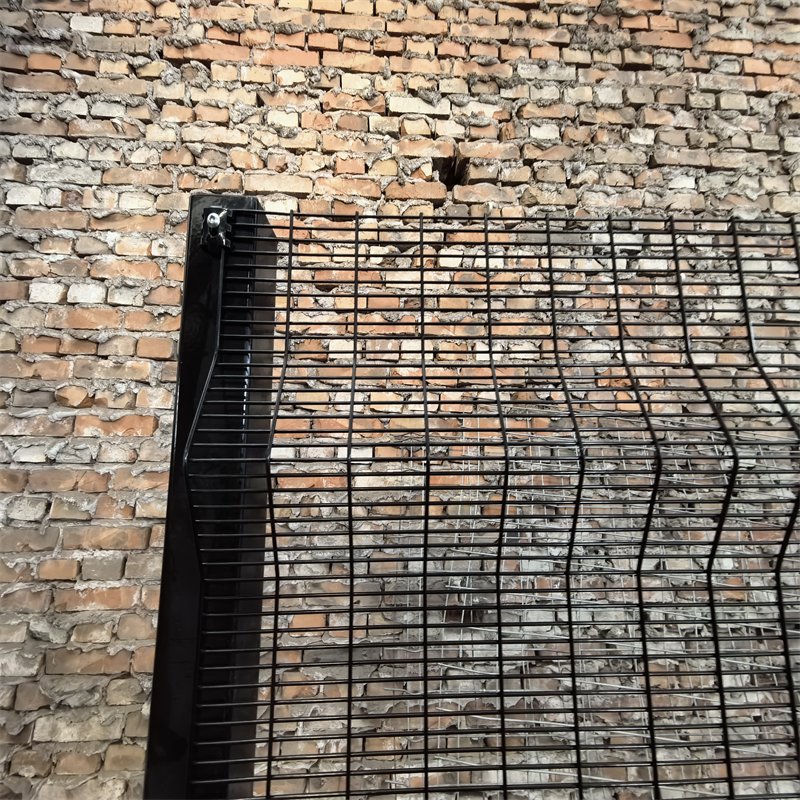

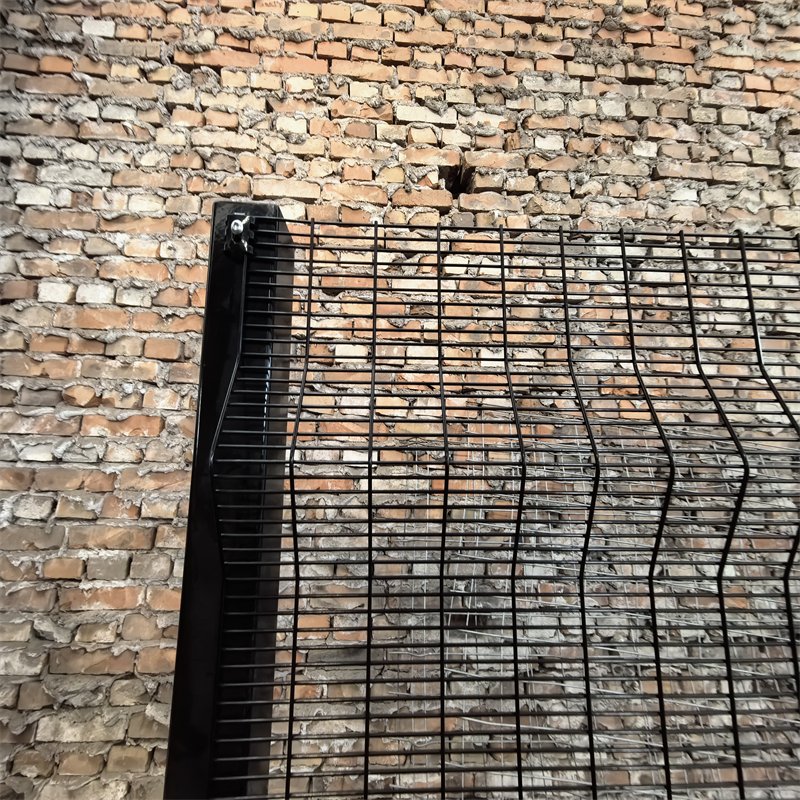

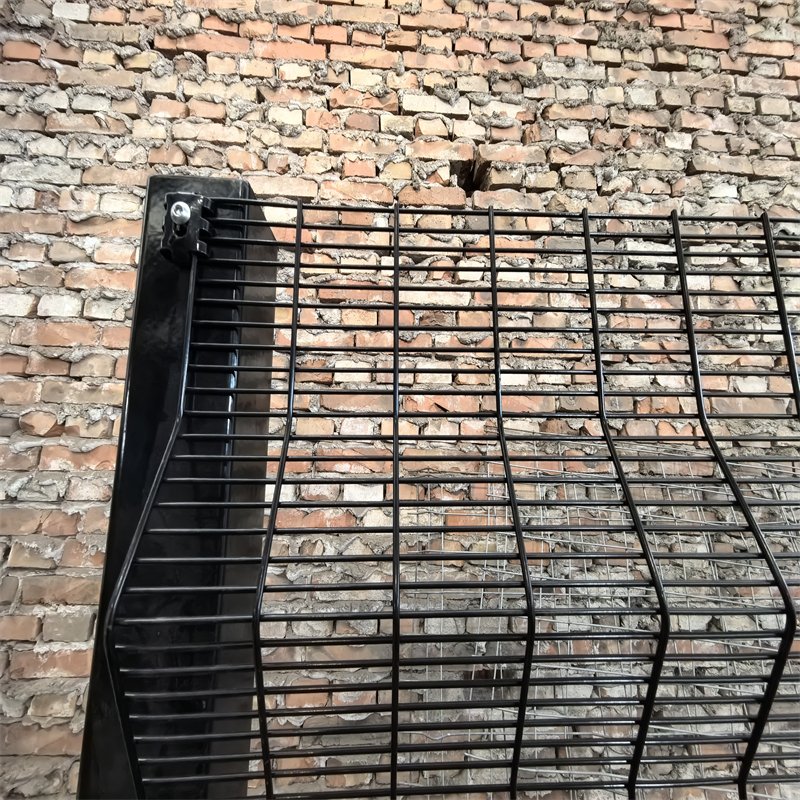

| Original reference: visible welded anti-climb mesh. | Original reference: security panel configuration and finish. |
The ClearVu name belongs to Cochrane's branded product family. Its close-aperture construction combines perimeter separation with useful visibility. Manufacturers offering similar mesh should identify their own products accurately.
Buyers can compare 358 Mesh Fence designs without assuming identical manufacturing methods. Panel dimensions, wire grades, fasteners, and certified performance may differ. A visual resemblance does not prove commercial affiliation or equivalent testing.
ClearVu identifies a specific brand in the security fencing market. Clear view also describes a fence characteristic that preserves visibility. These expressions have different commercial meanings in product descriptions.
A procurement document should name the required brand when genuine branded material matters. Alternatively, engineers can specify measurable performance criteria for approved equivalents. Never replace a specified branded product without the buyer's approval.
Traditional solid boundaries can obstruct observation along service roads and storage areas. High-density mesh offers narrower openings while maintaining useful views. Cameras and patrols can monitor activity through suitable panel layouts.
Actual visibility depends on wire size, lighting, equipment placement, and vegetation. The fence cannot correct an unlit gate or concealed camera angle. Designers should assess every corner during the site survey.
The source catalogue identifies 75 × 12.5 mm and 75 × 25 mm patterns. These dimensions describe wire centre spacing, not clear openings. The finished opening becomes smaller after allowing for wire diameter.
The reference uses 4 mm steel wire across its listed panel heights. Such narrow openings limit useful finger and toe holds. They can also hinder certain conventional cutting methods without stopping every tool.
ClearVu Fence Panels provide related close-mesh configurations in the BMP range. Buyers should compare panel drawings, steel grades, and finished coating processes.
The traditional 358 designation refers to three inches, half an inch, and approximately eight-gauge wire. Its common metric reference uses 76.2 × 12.7 mm centres and about 4 mm wire. The 75 × 12.5 mm pattern offers a closely related geometric option.
358 Mesh Fencing gives engineers another specification family for comparison. Confirm whether a drawing states centre spacing or clear aperture. That distinction prevents errors during manufacturing and inspection.
Low-carbon steel can support many welded security panel designs. Wire diameter affects panel stiffness, mass, and cutting resistance. Material certificates should identify the actual steel grade and ordered tolerance.
Each welded intersection needs consistent formation and alignment. Inspectors should check damaged joints and sharp ends before coating. Buyers requiring tested security performance must request relevant independent results.
The original source lists ten reference panel heights from 900 to 3600 mm. Every listed panel uses a nominal 2400 mm width. The reference wire diameter remains 4 mm throughout the series.
The vertical and horizontal labels follow the supplied catalogue. Final drawings should clarify wire orientation and measurement conventions. Custom panel height also changes post requirements and installation loads.
| Catalogue Reference | Panel Height (mm) | Panel Width (mm) | Vertical Centres (mm) | Horizontal Centres (mm) | Wire Diameter (mm) |
|---|---|---|---|---|---|
| Anti climb-900 | 900 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-1200 | 1200 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-1500 | 1500 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-1800 | 1800 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-2100 | 2100 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-2400 | 2400 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti-climb-2700 | 2700 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-3000 | 3000 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-3300 | 3300 | 2400 | 75 | 12.5 / 25 | 4 |
| Anti climb-3600 | 3600 | 2400 | 75 | 12.5 / 25 | 4 |
The table preserves the supplied dimensional reference without claiming current Cochrane factory availability. BMP alternatives require separate approved drawings. Do not mix the two product schedules in one purchase order.
Low fences may provide separation rather than substantial anti-climb deterrence. Taller panels change wind loads, support requirements, and access arrangements. A height increase must trigger an appropriate structural review.
ClearVu Fencing Specifications include other post and panel combinations. Engineers should assess any alternative against their site requirements. A nominal catalogue size is not a foundation design.
A useful drawing defines wire orientation, finished width, bend geometry, and edge condition. It should also identify fixing positions and any manufacturing allowances. These details reduce unnecessary field cutting.
For reference, 358 Security Fence products use several wire and post configurations. Confirm actual dimensions instead of relying on a category name. Buyers should approve one consistent installation set.
The original catalogue identifies four post section options, subject to model approval. These include 50 × 50, 50 × 75, 65 × 65, and 60 × 60 mm. It does not provide a complete wall thickness schedule for each profile.
Post sizing depends on the height, spacing, soil, and wind exposure. The ClearVu Fencing Post range offers a separate BMP system reference. Avoid combining unrelated post and clamp patterns.
| Reference Post Section | Dimensions (mm) | Design Requirement |
|---|---|---|
| Square option A | 50 × 50 | Confirm wall thickness and post length |
| Rectangular option | 50 × 75 | Confirm orientation and panel connection |
| Square option B | 65 × 65 | Confirm cap, base and fasteners |
| Square option C | 60 × 60 | Confirm structural capacity and fixing positions |
Post centre distance must reflect the finished panel and attachment method. Soil bearing, wind, and the base connection determine foundation requirements. Poor drainage can weaken the ground around exposed supports.
Clear View Fence Post formats include several steel profile choices. Engineers should approve embedment or base-plate fixing before construction. Inspect buried services and underground obstructions first.

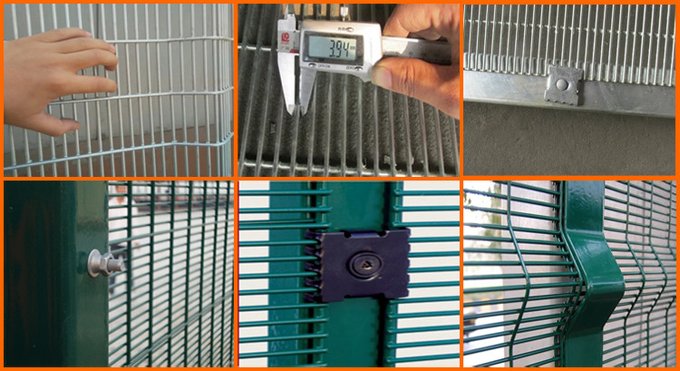

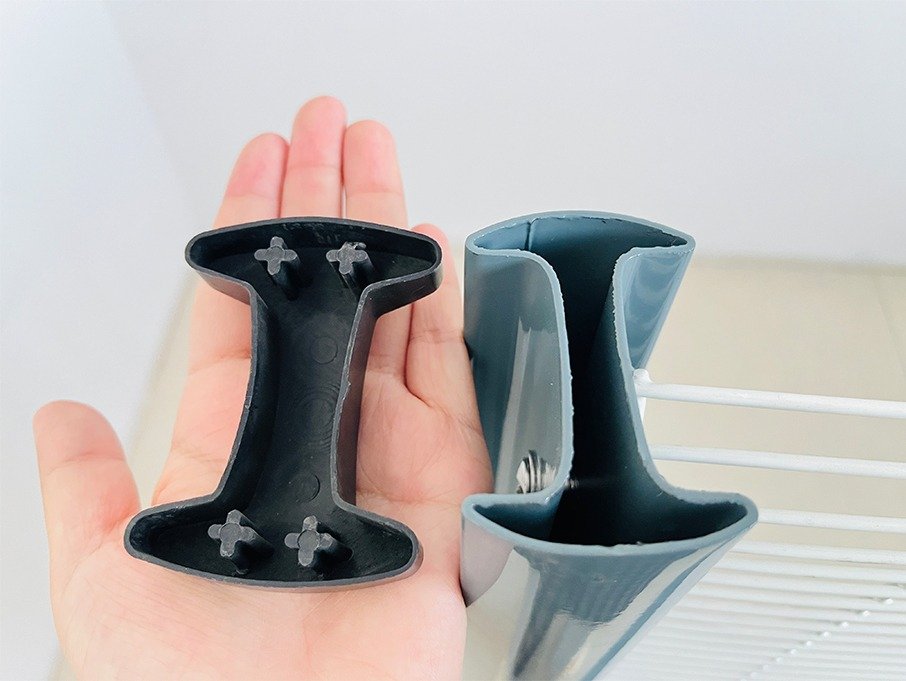

Secure fittings keep mesh aligned against its supporting posts. ClearVu Fence Clamps should match actual panel and post geometry. Wrong clamp dimensions can create movement or an exposed gap.

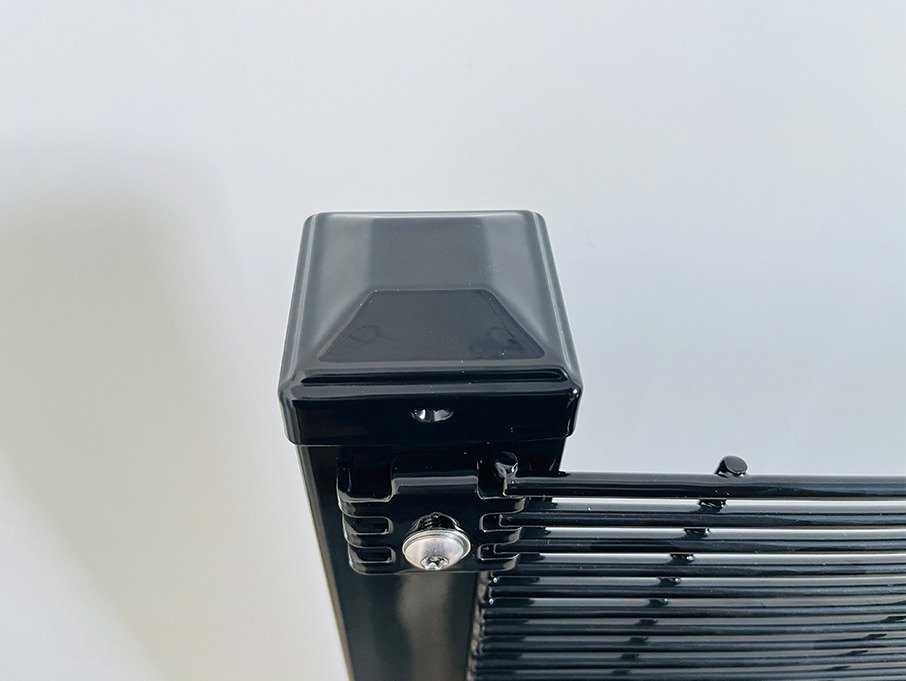

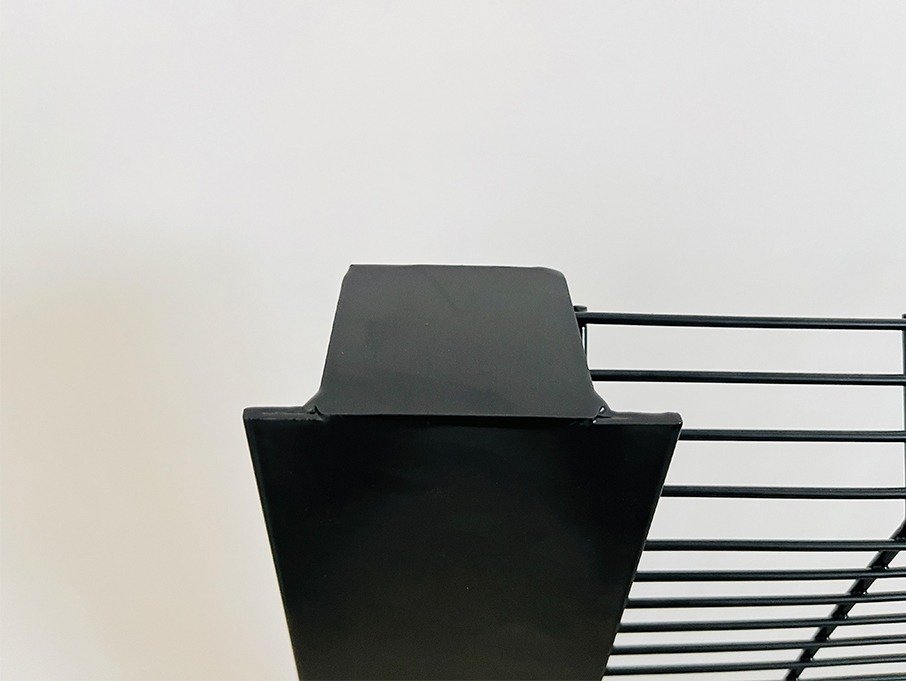

Post caps help restrict water entry into hollow steel sections. Security bolts can discourage casual removal when the design supports them. Confirm every accessory on the packing schedule.

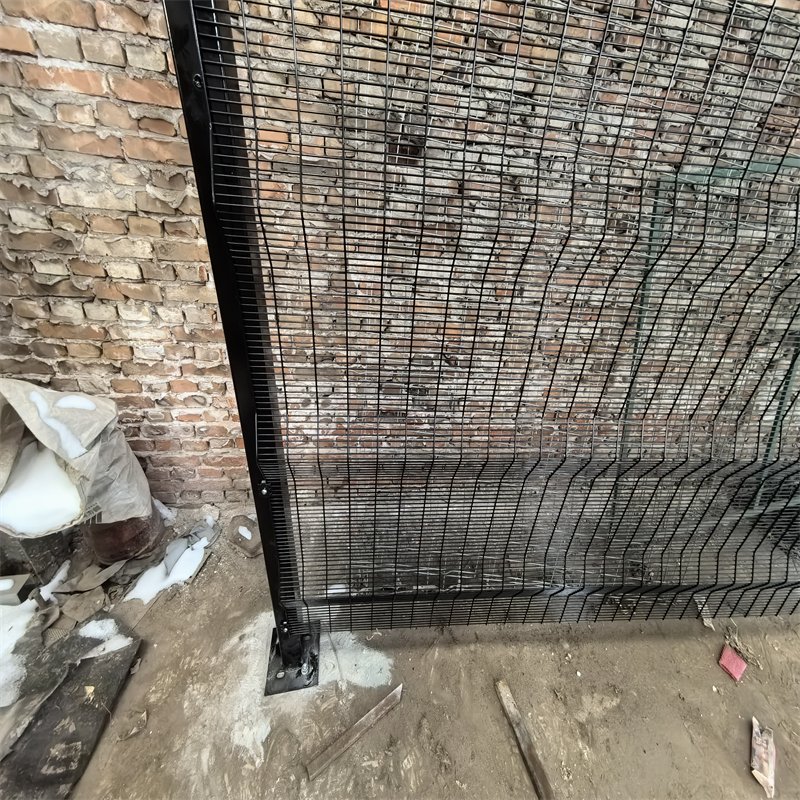

The original article includes two installation and drawing photographs beside its applications section. Both images remain below with their original source addresses. Captions distinguish the visual references from measured engineering drawings.
 |
 |

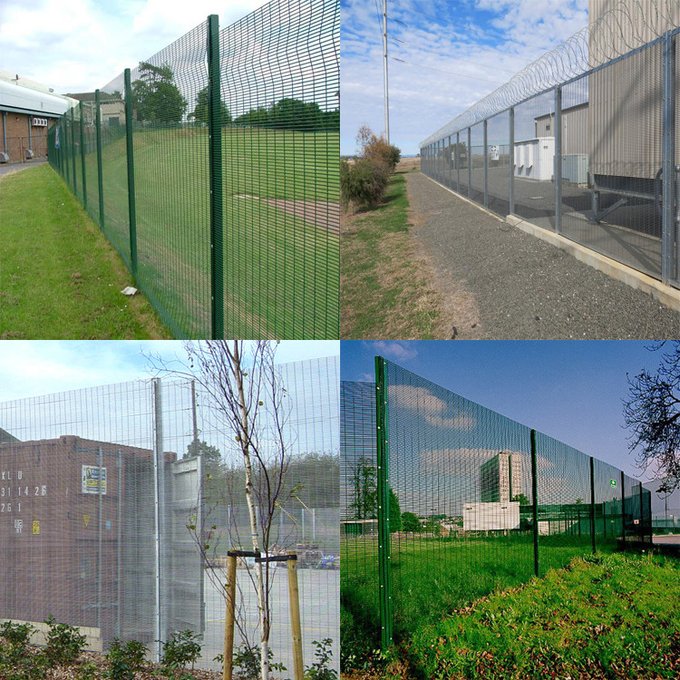

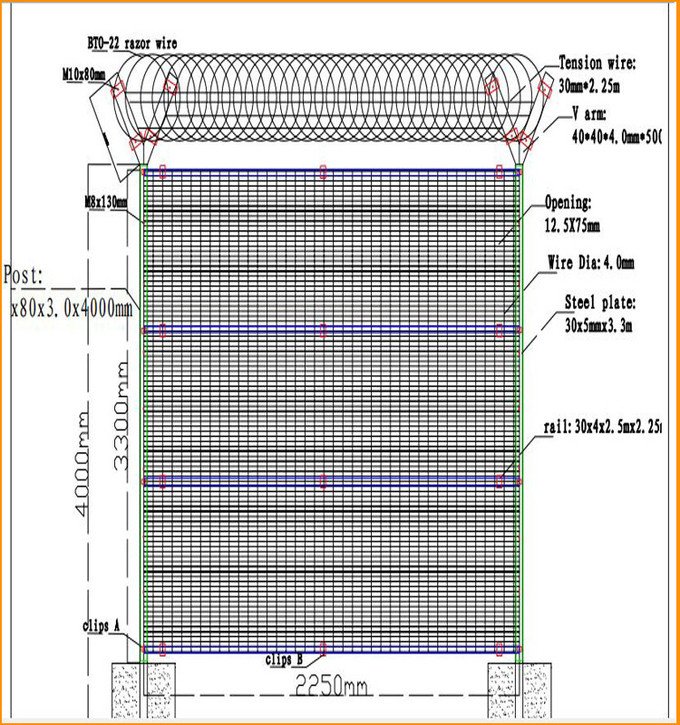

| Original product application photograph. | Original fence system drawing reference. |
Photographs help purchasers recognise a design, but only drawings define manufacturing dimensions. Ask for signed panel and post drawings before placing the final order. Gate details require separate review.

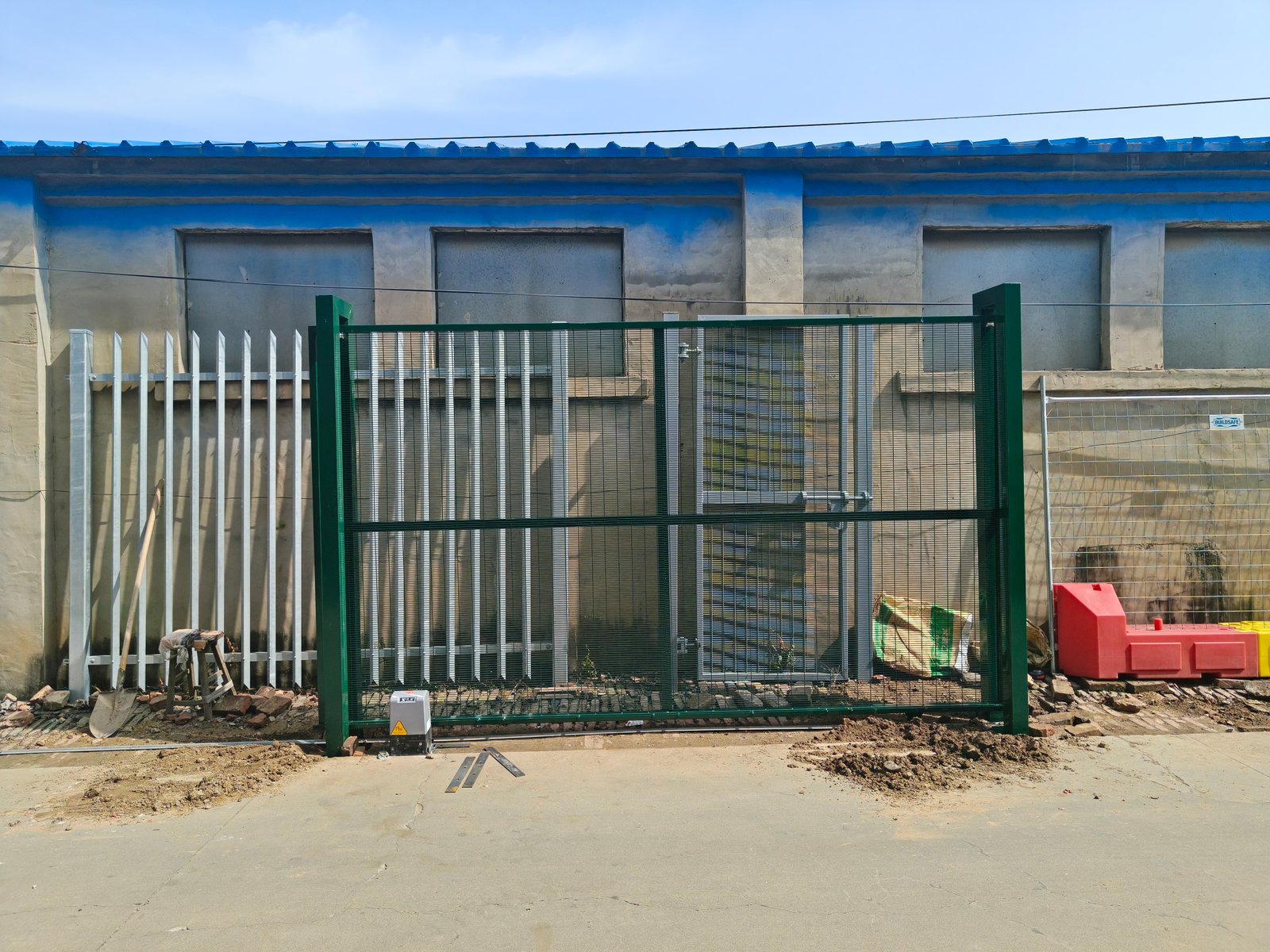

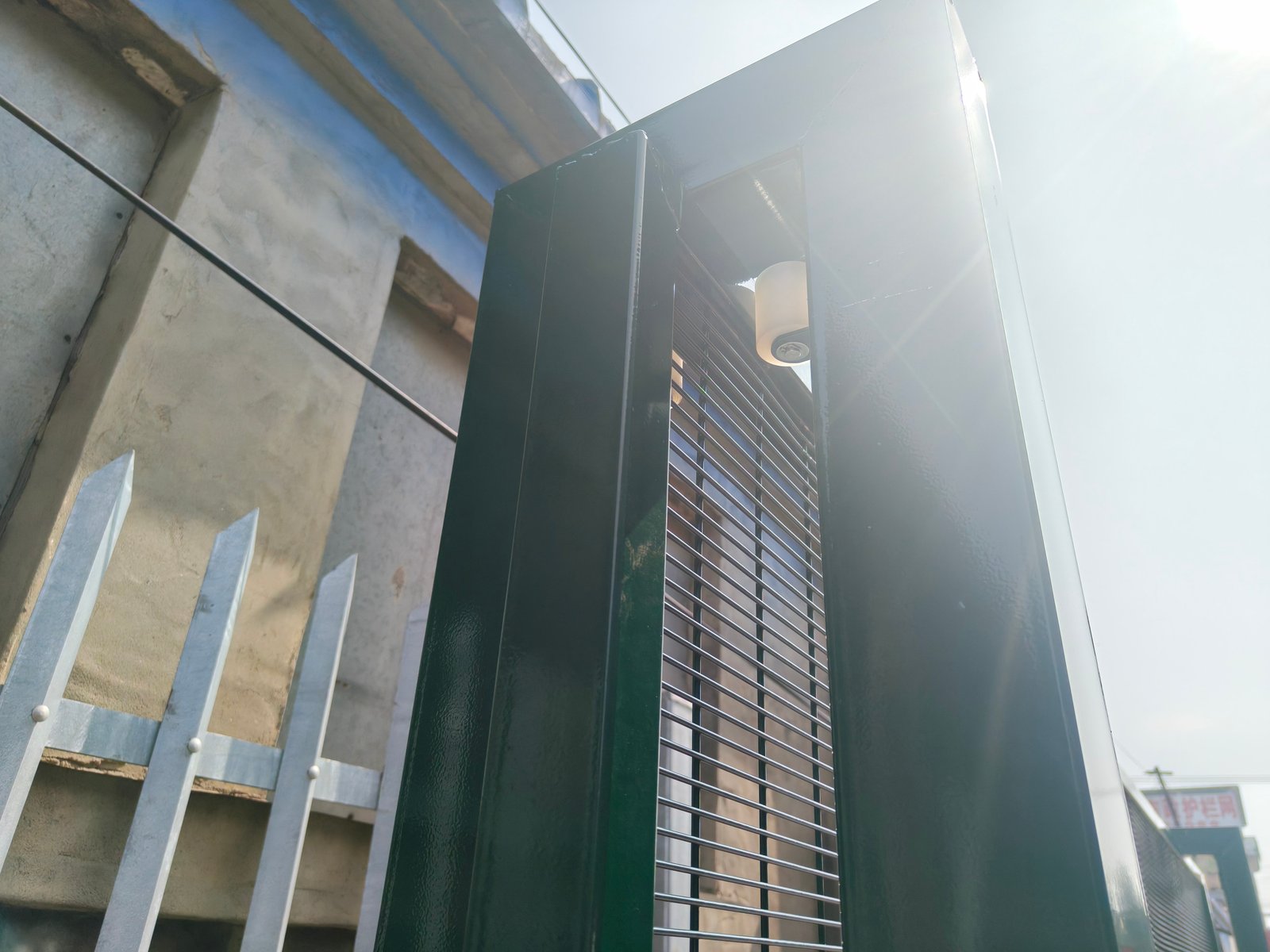

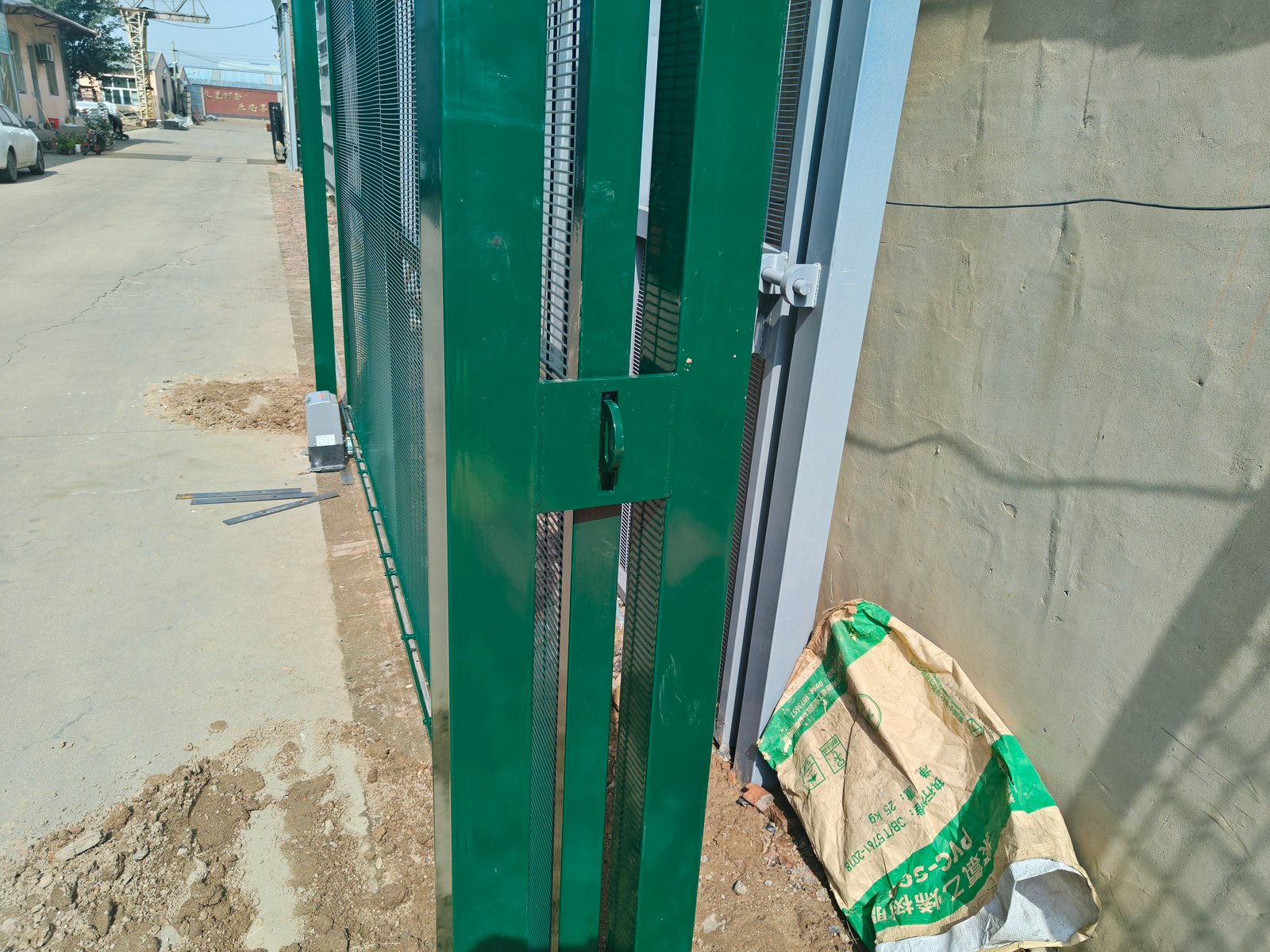

Gate leaves impose different loads from fixed panels. Hinges, tracks, locking hardware, and support posts need independent checks. Security staff also need reliable access during emergencies.

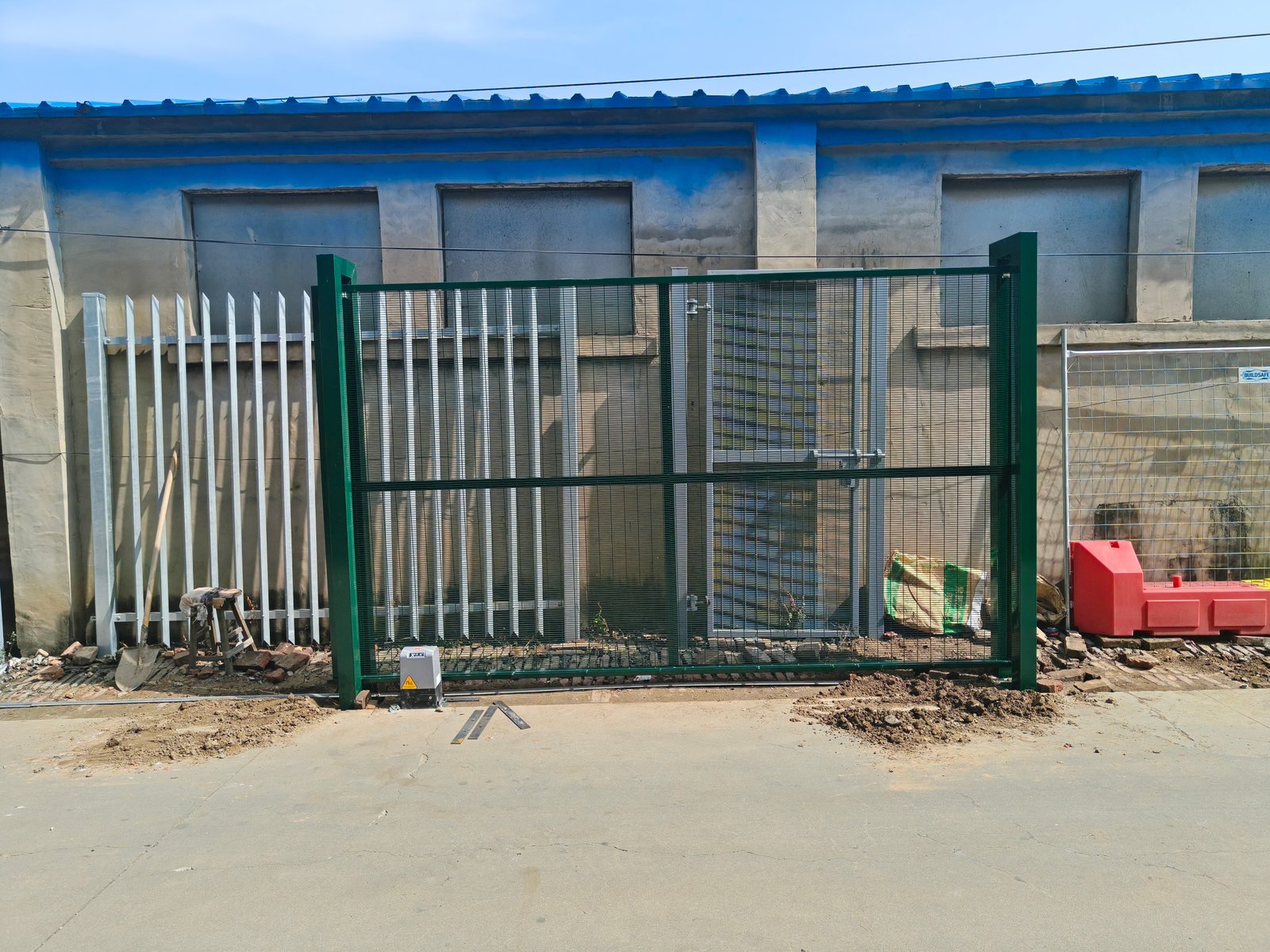

ClearVu Fence Gates provide related panel-style entrance options. Select swing or sliding arrangements according to space and vehicle movement. Never leave an unprotected gap between the gate and fence.
The source describes a sequence involving wire preparation, welding, galvanizing, surface preparation, and coating. Actual manufacturing routes vary according to the approved steel and finish specification. PVC and powder coatings require suitable surface preparation.
Some systems begin with galvanized wire, while others protect fabricated steel afterward. These methods can affect weld protection differently. The coating standard should match the material form and agreed process.
A continuous zinc layer helps protect exposed carbon steel against corrosion. Compatible polymer coatings can add colour and another protective barrier. Buyers should specify pretreatment, measured thickness, and adhesion requirements.
Do not equate a salt-spray result with guaranteed years outdoors. Environmental exposure, damage, and maintenance influence actual durability. Inspect gates and fixing edges alongside the main mesh panels.
Durban and Cape Town sites can experience salt deposits around exposed metal surfaces. Industrial yards may face additional pollutants and frequent wetting. Those conditions can accelerate deterioration when protective coatings suffer damage.
Johannesburg properties encounter seasonal storms, dust, and dry winters instead. Foundations still require attention to runoff and soil stability. A location-specific coating and inspection schedule gives better guidance than a generic lifespan claim.

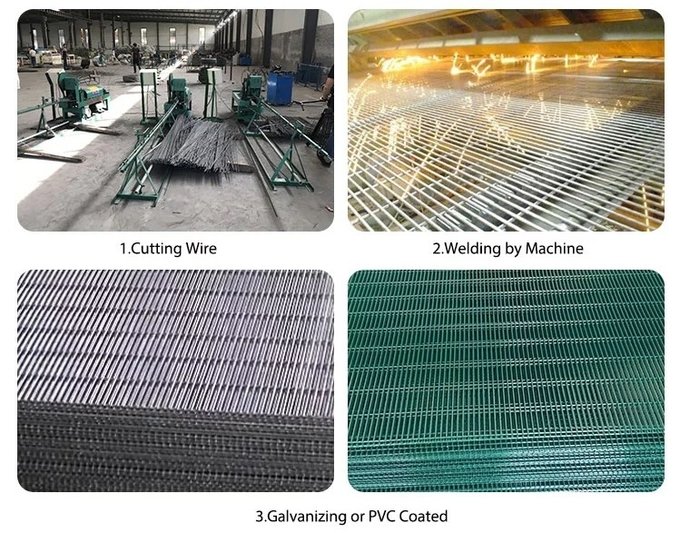

The original catalogue outlines straightening, cutting, welding, galvanizing, preparation, and final coating. BMP can review comparable manufacturing routes for its own products. Every production step should follow the approved purchase specification.
The source also states a monthly capacity of 7,000 pieces. Treat this figure as a historical catalogue claim, not confirmed current availability. Lead time depends on dimensions, orders, coating, and factory scheduling.
| Production Stage | Inspection Focus | Buyer Document |
|---|---|---|
| Steel preparation | Wire grade, diameter and straightness | Material specification |
| Mesh welding | Aperture alignment and weld consistency | Inspection record |
| Protective treatment | Zinc coverage and preparation quality | Coating process record |
| Final coating | Coverage, adhesion and appearance | Approved colour and test criteria |
| Final packing | Quantities, damage and identification | Packing list and photographs |
 |

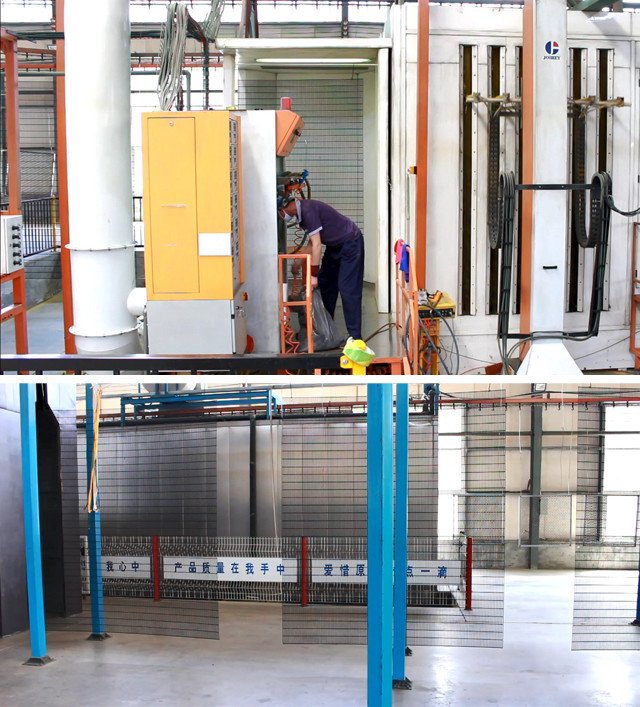

| Original factory production reference, retained from the supplied article. |
Engineers should compare actual samples with the approved drawings. Inspect panel width, steel diameter, mesh centres, welded joints, and surface finish. Record any deviation before authorising bulk dispatch.
Claims about cutting resistance need a specific testing method and report. Do not transfer Cochrane's brand claims to an untested BMP equivalent. The purchaser should approve any substitution explicitly.

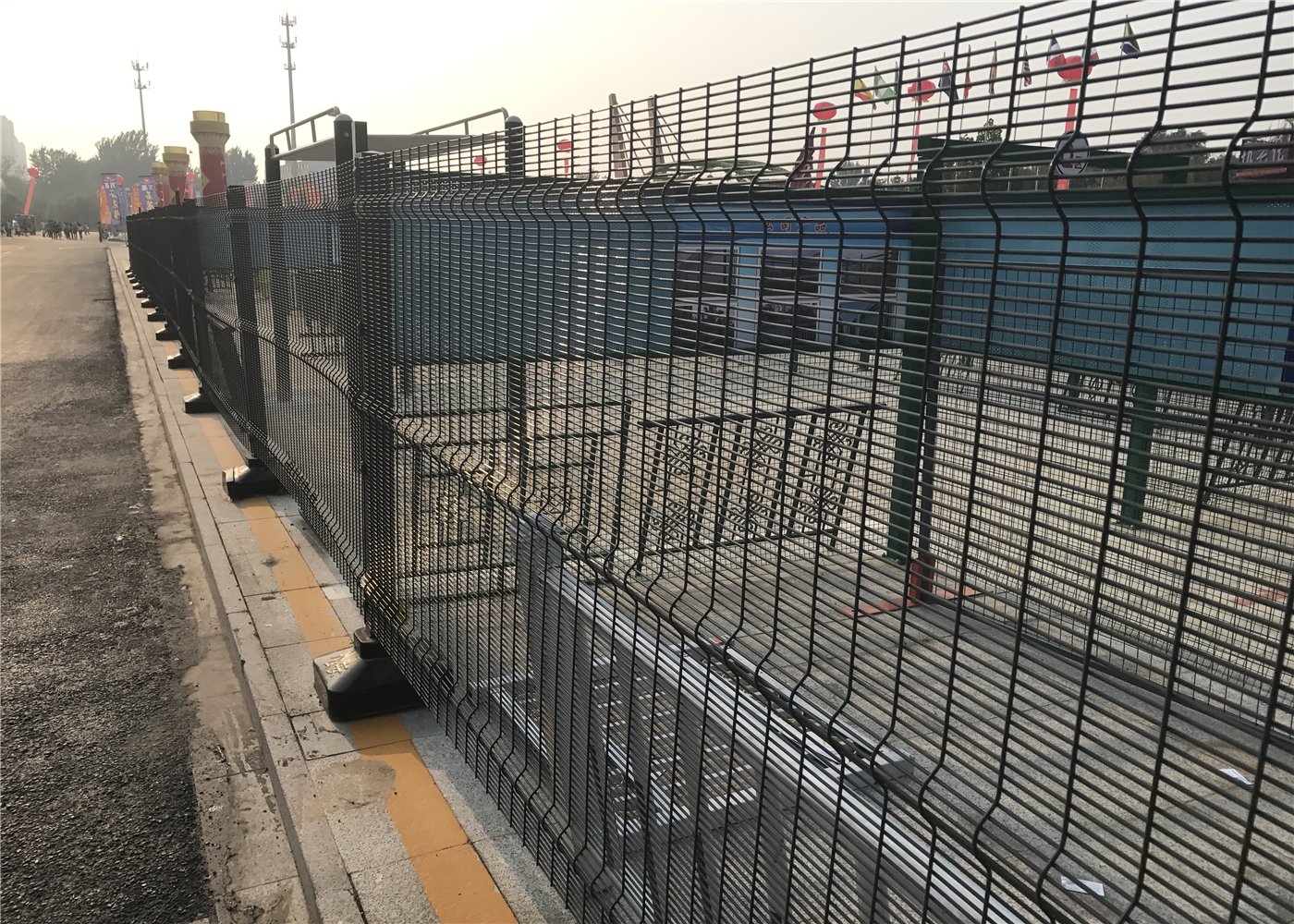

High-density welded mesh can serve selected commercial, industrial, and public-service perimeters. Applications may include substations, warehouses, transport hubs, and institutional properties. Different facilities require different access arrangements and protective measures.
The Clear View Fence for Sale catalogue illustrates other panel sizes and post layouts. Buyers should review these against their project's risk assessment. Ordinary mesh specifications do not establish certified prison or airport security performance.
A fence line should support camera placement and clear patrol routes. Close mesh permits visual observation without guaranteeing an uninterrupted image. Vegetation, stored equipment, and poor lighting can create blind zones.
Security managers should test actual sightlines at gates and corners. Maintenance teams need adequate space to inspect fittings safely. A complete plan also includes emergency access and incident response.
Facilities sometimes compare dense mesh with Corromesh for high-density welded barrier applications. Garrison Security Fencing uses tubular pickets with different openings. These systems serve different architectural and operational needs.
During construction, Temporary Construction Fencing can separate work zones from public circulation. Portable panels do not automatically provide comparable permanent security. Each product needs its own performance evaluation.

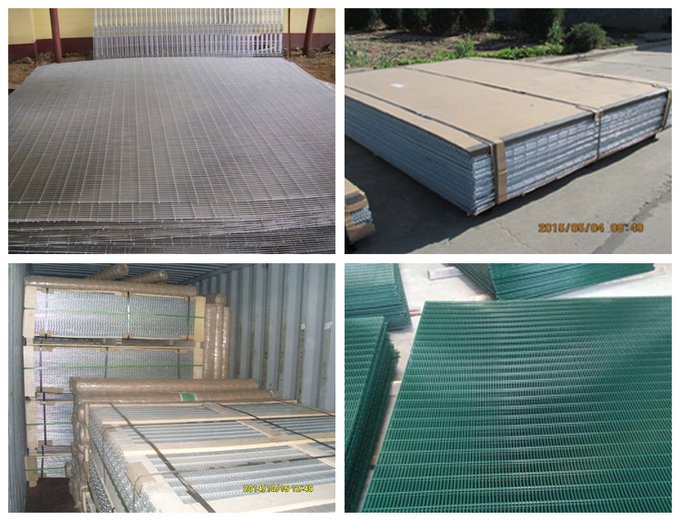

The original text describes metal pallets, protective cardboard, plastic film, and wrapped post bundles. Accessories travel in cartons with matching clips, nuts, and bolts. Suitable separators reduce abrasion during handling and ocean transport.
One reference packing method places five clip sets inside each plastic bag. Twelve such bags then enter one carton. Buyers should confirm that arrangement against the final accessory count.
| Component | Source Packing Method | Final Check |
|---|---|---|
| Mesh panels | Metal pallet, cardboard and plastic film | Protect coating and corners |
| Steel posts | PP bags, pallet and film | Check caps and bundle stability |
| Clips and hardware | Five sets per bag, twelve bags per carton | Verify complete hardware sets |
| Custom packing | Available by agreement | Approve pallet and carton schedule |
 |
 |

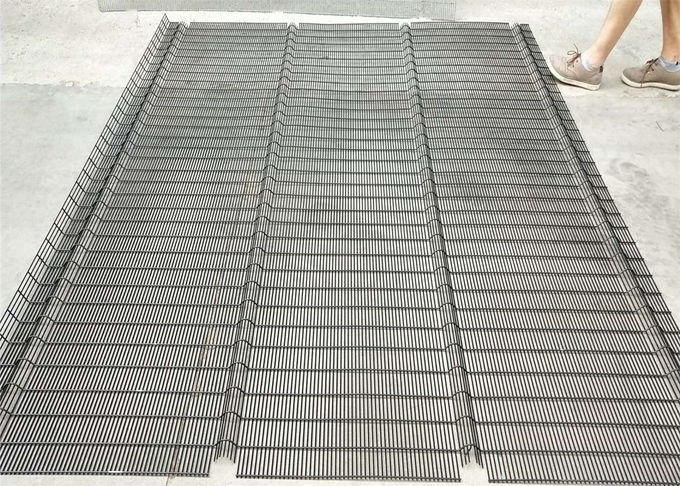

| Original panel pallet and shipment reference. | Original post and hardware packing reference. |
Separate panels, posts, gates, and accessories in the packing list. Record pallet count, gross weight, and component quantities. Confirm the final container loading plan against transport limits.
On arrival, inspect damaged wraps and compare carton labels with the documents. Report shortages before moving materials across several installation zones. Clear records make replacement requests easier.
Buyers should first decide whether they require genuine Cochrane branded products or approved alternatives. The answer determines sourcing, approvals, and technical documentation. Only verified commercial relationships can establish authorised brand supply.
This schedule helps suppliers quote comparable products without confusing a protected brand with descriptive fencing terminology. It also gives installers an agreed reference. Complete drawings reduce field alterations.
Does BMP make genuine Cochrane ClearVu products? BMP makes its own comparable security mesh products. This article does not claim Cochrane affiliation or authorised resale.
Are 75 × 12.5 mm dimensions actual holes? The supplied catalogue uses wire centre spacing. The clear opening depends on wire diameter.
Can a customer request taller panels? Yes, subject to product design and engineering approval. Posts and foundations must suit the final height.
Do close mesh panels guarantee complete security? No physical fence guarantees total protection. Gates, monitoring, response and maintenance remain essential.
Cochrane's branded ClearVu systems provide one reference point for high-density, visible perimeter security. BMP offers independently manufactured welded mesh solutions with compatible posts and hardware. Buyers should keep the brand and manufacturer identities clear throughout procurement.
For related export specifications, ClearVu Fence Panels provide a further BMP product reference. Send approved drawings, project location, coating requirements, and gate schedules. Our team can assess manufacturing, inspection, packing, and shipping needs.
