Boss Metal is a leading manufacturer specializing in Clearvu fencing solutions. Our factory is located in Anping Town, Hebei Province, China – widely known as the “Wire Mesh Hometown of China.” If you have any inquiries, we are ready to provide you with competitive Clearvu fence pricing either per set or per meter.
Clearvu Fencing Features

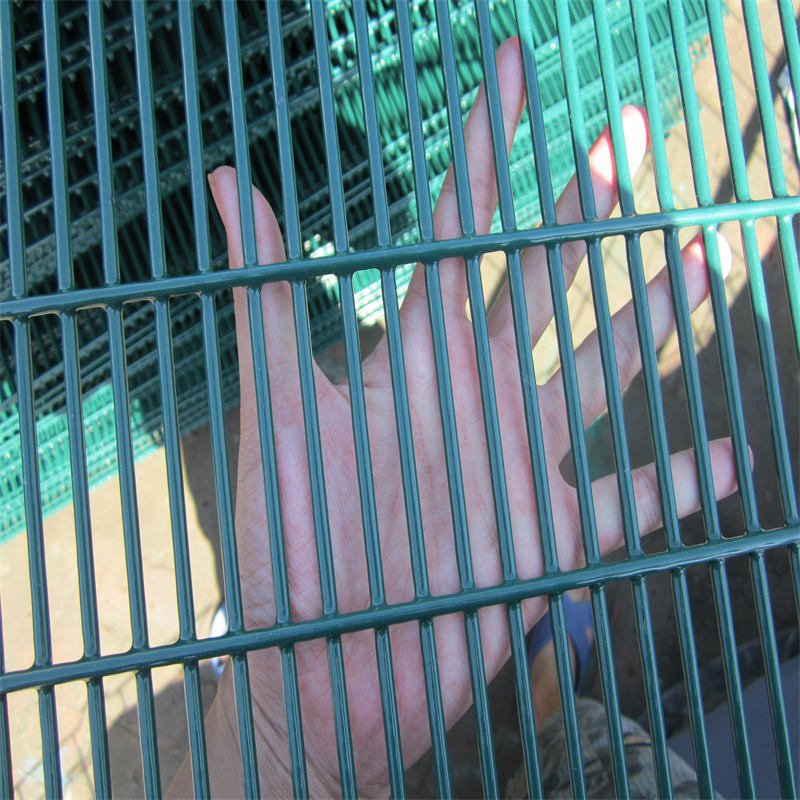

- Anti-Cut & Anti-Climb: The small mesh openings make it virtually impossible to cut or climb.
- High Visibility: A flat, two-dimensional profile ensures clear visibility through the fence.
- Anti-Vandal Fastening: Secure and tamper-resistant installation.
- Cost-Effective: An economical solution for high-security fencing.
- European Aesthetics: Stylish and sophisticated appearance.
- Durable Coating Finish: Plascoat high-quality coating available in three standard colors:
-
-
Black (RAL 9005)
-
Grey (RAL 7040)
-
Green (RAL 6005)
Technical Specifications Clearvu fencing
Panel Dimensions:
| Height (mm) |
Length (mm) |
V-Bends |
| 1800 |
3000 |
3 |
| 2000 |
3000 |
3 |
| 2100 |
3000 |
3 |
| 2400 |
3000 |
4 |
| 3000 |
3000 |
5 |
Wire Specs:
- Diameter: 4.0mm (Vertical) x 3.0mm (Horizontal)

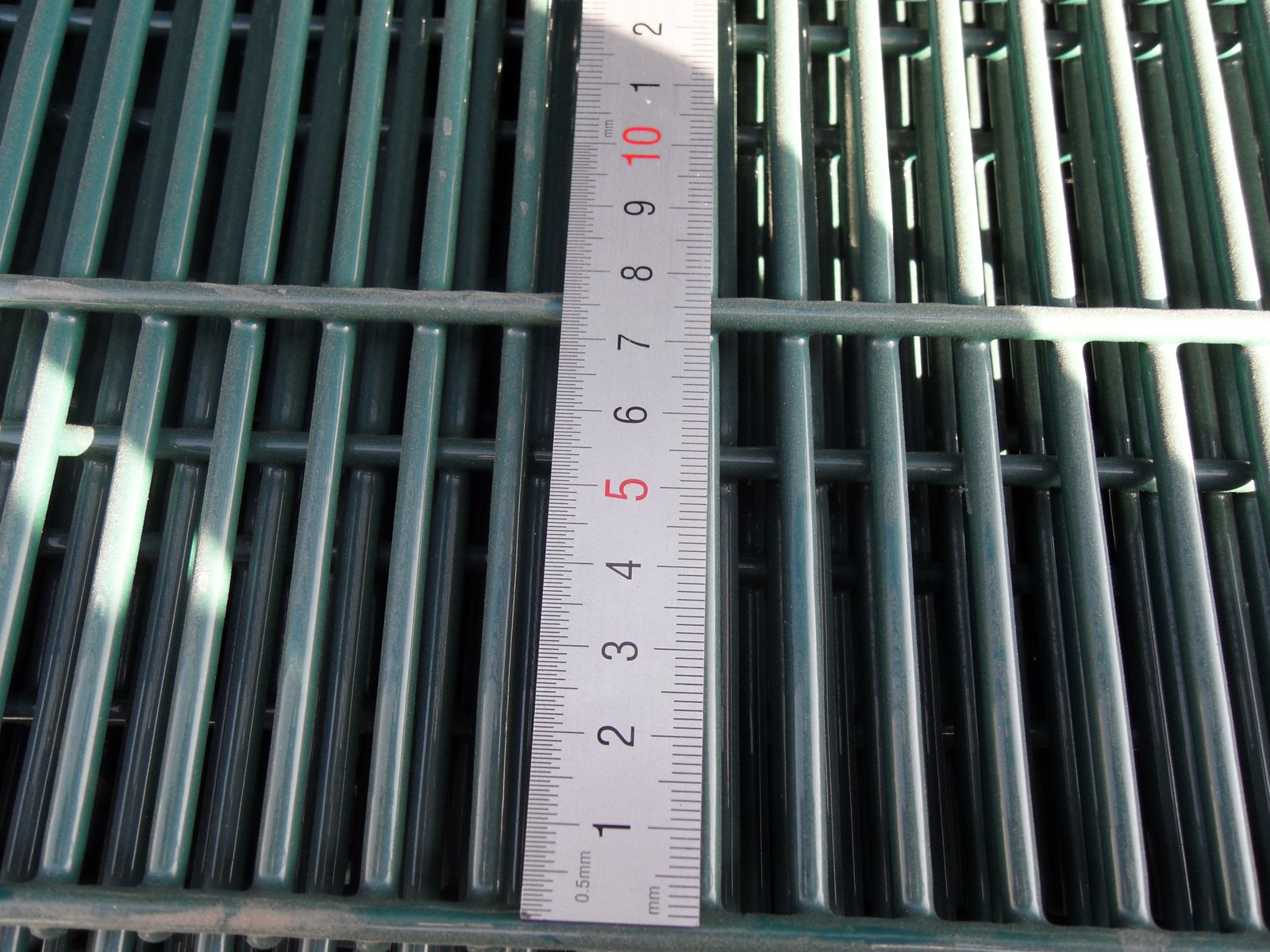

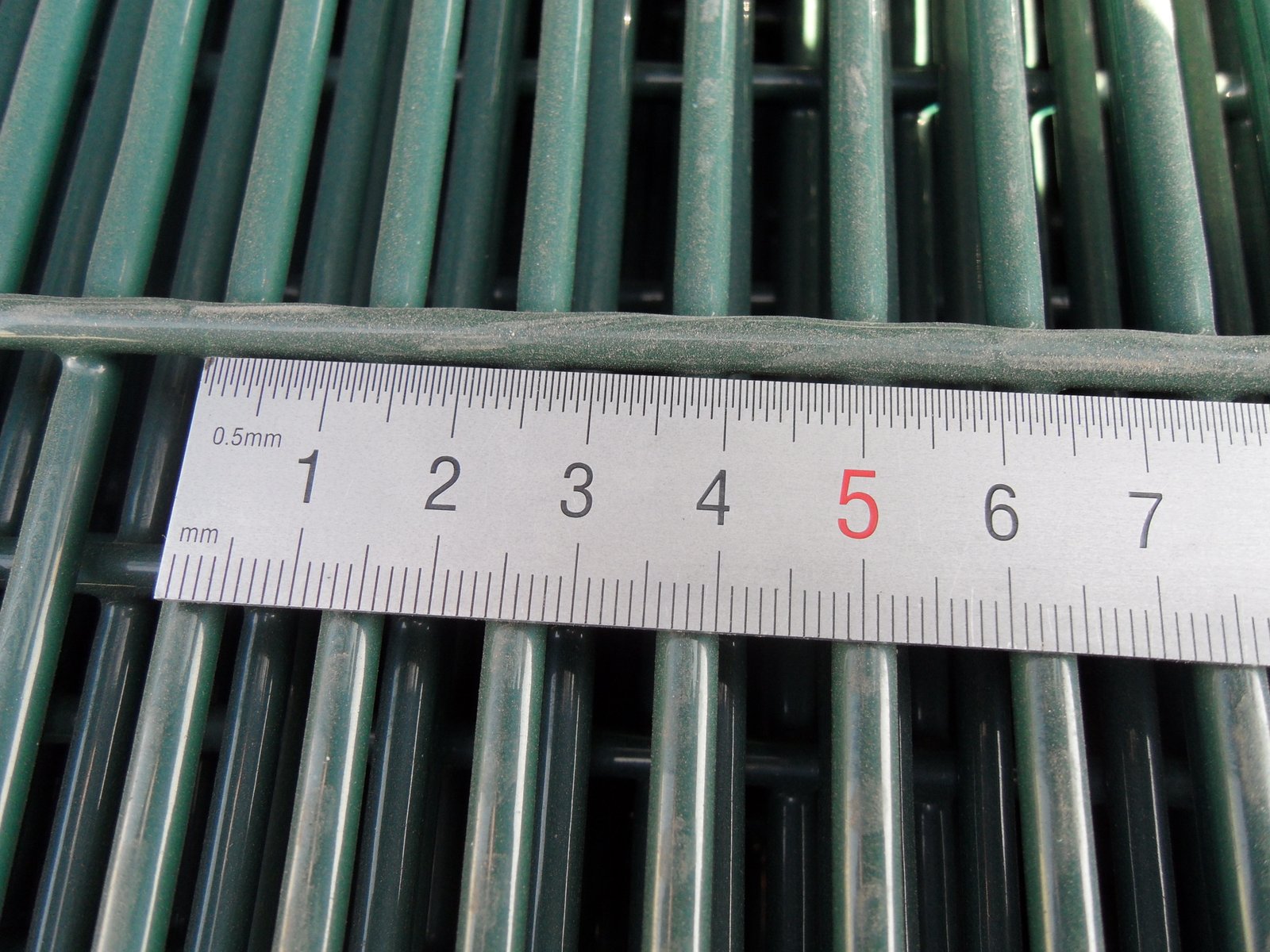

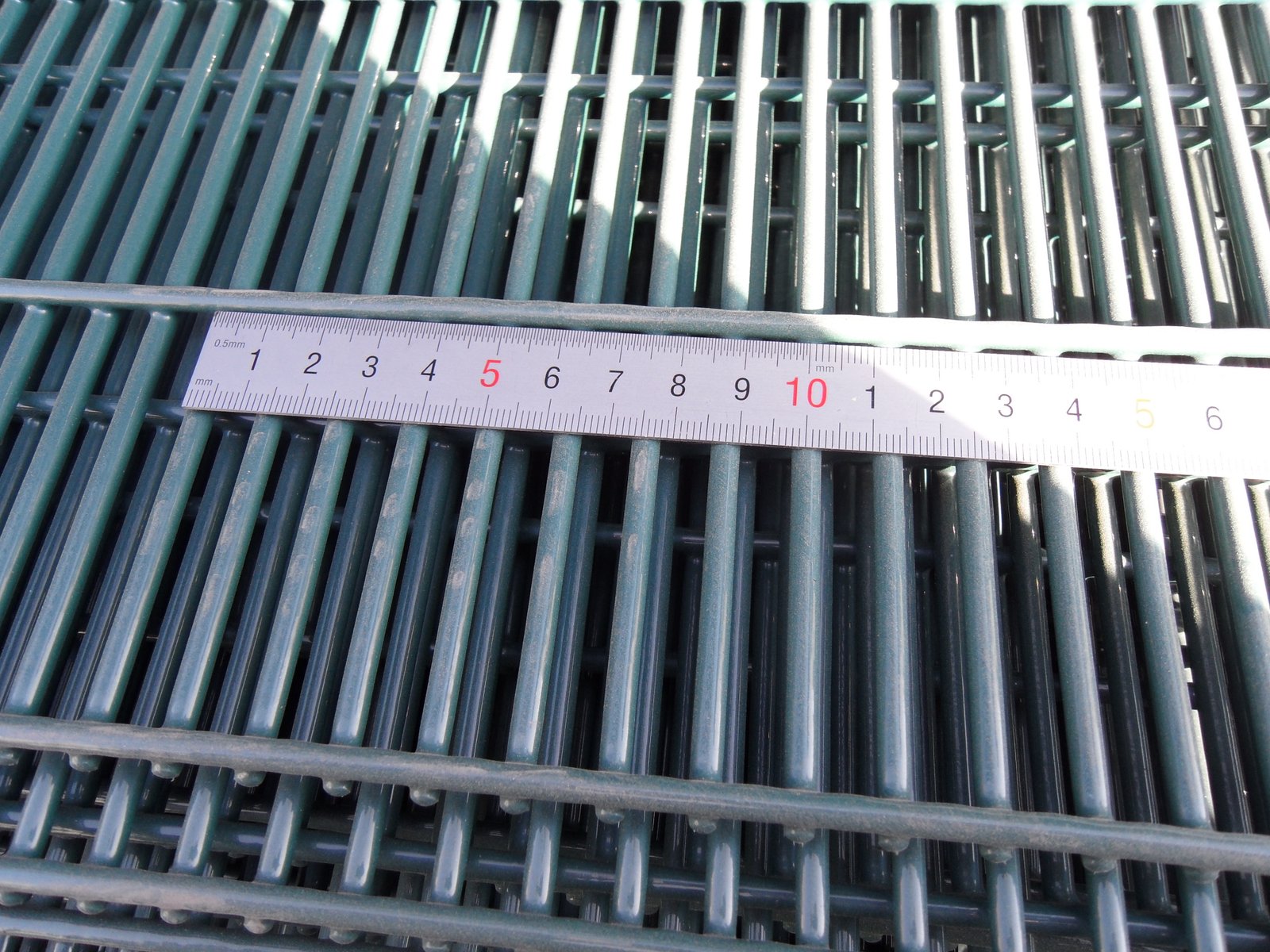

- Aperture: 75mm x 12.7mm
- Tensile Strength: 500 – 650 MPa
- Weld Strength: 60% – 80%
Zinc Coating Options:
| Coating Type |
Weight (g/m²) |
| Lightly Galvanised |
50g/m² – 60g/m² |
| Fully Galvanised |
255g/m² – 275g/m² |
| Galfan Coated |
195g/m² – 220g/m² |
Colour Coating Options:
- Powder Coating: 60–80 microns
- Thermal Plastic Coating: Minimum 250 microns
- Composition: 95% Zinc, 5% Aluminium
Additional Features Clearvu fencing
- Transparent design for visibility
- Anti-rust properties ensuring long service life
- Quick and easy installation
- Custom specifications available upon request
- High rigidity for enhanced protection
General Information
Quality Assurance
- Clearvu fencing production has passed the SGS on-site factory review.
- Certified under ISO 9001:2008 Quality Management System.
- Galvanization adheres to BS EN 10244-2:2001 standards.
- Each panel is backed by a 10-year quality guarantee.
Our Services
I. Pre-Sales Support
- Guaranteed product pass rate over 99%
- Free samples provided for evaluation
- Custom drawings and designs available at no extra charge
- Standard lead time for loading: within 25 days
II. After-Sales Service Clearvu fencing
- Whether FOB or CIF terms, we strive to secure the lowest shipping costs for your reference
- Weekly updates on production progress with real-time photos
- Installation testing conducted for both semi-finished and completed panels to ensure easy installation
- Warranty coverage ranging from 5 to 20 years depending on fence type and application environment
- Full shipment tracking provided; advance notifications and reminders for customs clearance included
