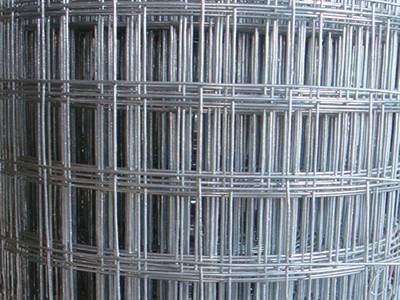

Hot-Dipped galvanized welded wire mesh is a prevalent material in concrete reinforcement, construction projects, and industrial applications. This material is manufactured from low-carbon steel or stainless steel wire that undergoes welding followed by specialized surface treatment. The resulting mesh fabric serves diverse purposes including building construction, protective systems, filtration, food processing, and agricultural applications.

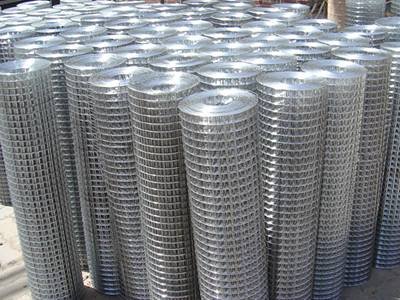

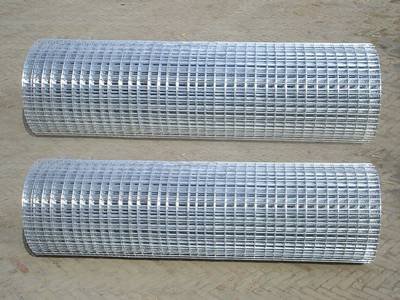

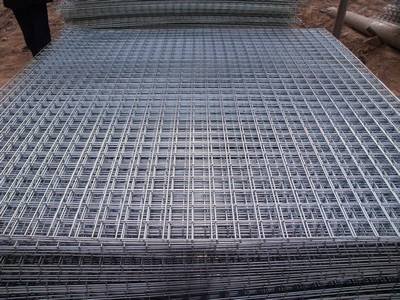

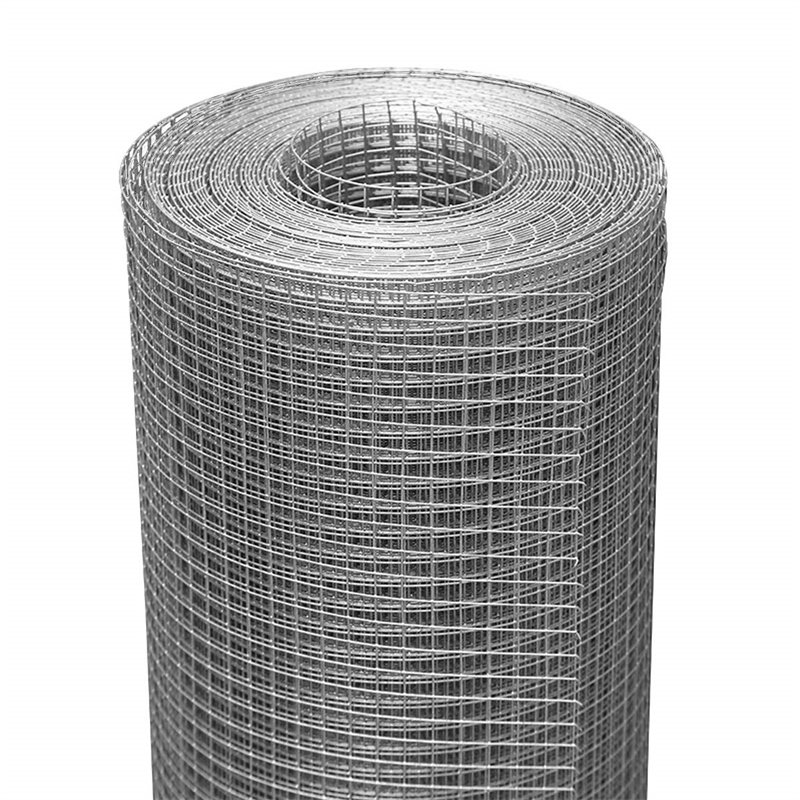

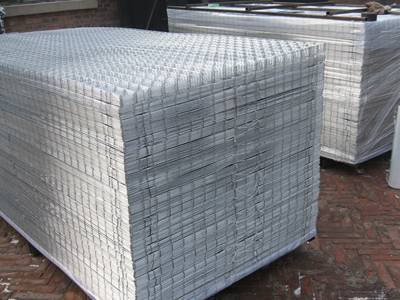

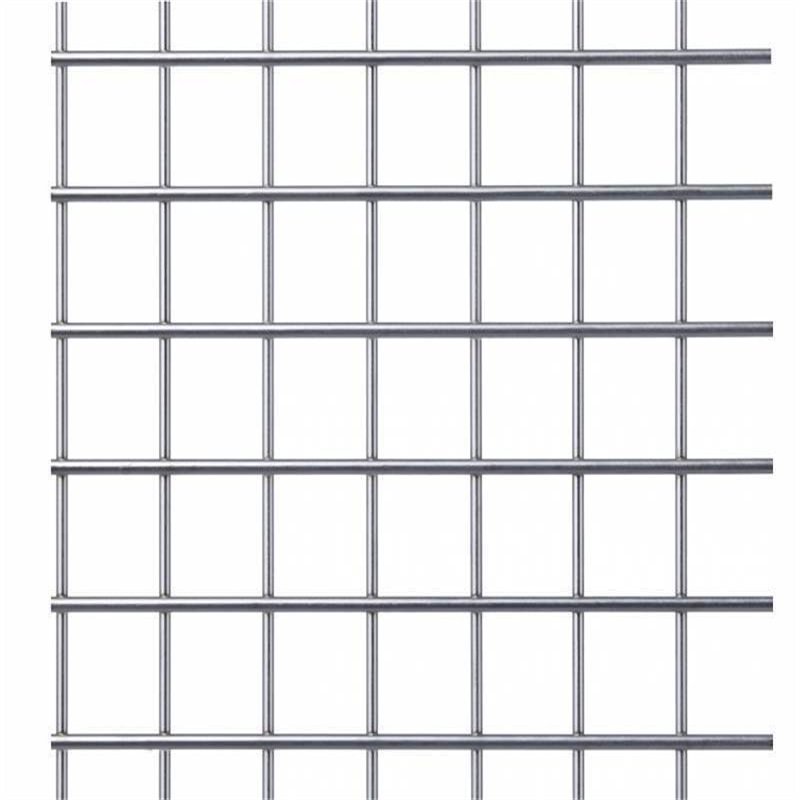

Available in panel, sheet, or roll formats, this material typically uses plain steel wire that undergoes a comprehensive hot zinc coating process. With its characteristic square openings, this configuration is particularly well-suited for constructing animal enclosures, fabricating wire containers, grilling applications, partition systems, grating solutions, and machinery protective barriers.
Galvanized welded wire mesh products exhibit key characteristics: uniformly flat surfaces, rigid structural integrity, consistent quality, and superior corrosion resistance.
Manufacturing involves two distinct approaches: galvanizing before welding or galvanizing after welding. The post-welding galvanization method delivers superior protection, especially at welded junctions. The hot-dipping process provides robust corrosion resistance for demanding daily use.
Our hot-dipped galvanized material offers diverse specifications with customization options:
Standard manufacturing specifications for hot-dipped galvanized welded wire mesh:
| Mesh Dimensions | Wire Specifications | ||
|---|---|---|---|
| mm | inches | BWG No. | mm |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 |
| 15.9 | 5/8 | 21-16 | 0.81-1.65 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 |
| 25.4×12.7 | 1×1/2 | 21-16 | 0.81-1.65 |
| 25.4 | 1 | 21-14 | 0.81-2.11 |
| 38.1 | 1 1/2 | 19-14 | 1.07-2.11 |
| 25.4×50.8 | 1×2 | 17-14 | 1.47-2.11 |
| 50.8 | 2 | 16-12 | 1.65-2.77 |
| 50.8-305 | 2-12 | - | - |
| Mesh Pattern | Dimensions (W×L) | Mass |
|---|---|---|
| 16×16 | 3ft×100ft | 24.75kg/roll |
| 16×16 | 4ft×100ft | 33.00kg/coil |
| 16×16 | 4ft×100ft | 41.25kg/coil |
| 16×16 | 5ft×100ft | 18.00kg/coil |
| 40×40 | 1m×100ft | 20.00kg/coil |
| Hot Zinc Coated Material | Hot-Dip Galvanized Material |
|---|---|
| 20×20×1.0×1×30m (6kg) | 20×20×1.0×1×30m (16kg) |
| 25×25×1.8×1×30m | 20×20×1.00×1×30m (16kg) |
| 50×50×1.80×1.5×30m (30kg) | 50×50×1.80×1.5×30m (30kg) |
| 50×25×1.60×1×30m (21kg) | 50×25×1.60×1×30m (21kg) |
| 50×25×1.80×1.5×30m (48kg) | 50×25×1.80×1.5×30m (48kg) |
Hot-dipped galvanized welded wire mesh distinguishes itself through larger wire diameters, expanded apertures, and increased width capacities compared to standard options. Fabrication utilizes specialized heavy-duty welding equipment.
This galvanized fencing solution serves numerous sectors including construction, animal enclosures, industrial safety barriers, highway fencing, sports facilities, and roadside protection. Additionally, it functions as concrete reinforcement in structural applications including buildings, roads, and bridges.
| Class | Mesh Size (mm) | Wire Ø (mm) | Height Range (cm) |
|---|---|---|---|
| A | 06×06 | 0.65 | 50-150 |
| 13×13 | 0.90 | ||
| 13×25 | 1.45 | ||
| 19×19 | 1.45 | ||
| 25×25 | 1.75 | ||
| B | 13×13 | 1.40 | 50-200 |
| 13×25 | 1.50 | ||
| 19×19 | 1.50 | ||
| 75×13 | 1.90 | ||
| 50×25 | 1.90 | ||
| 50×50 | 1.90, 2.80 | ||
| C | 13×13 | 1.20 | 50-200 |
| 19×19 | 1.20, 1.40 | ||
| 25×25 | 2.30 |
