358 welded mesh security fencing provides reliable perimeter protection through narrow steel openings, rigid welded panels, and secure structural connections. BMP manufactures these security systems for prisons, airports, logistics centers, electrical facilities, and industrial properties. Close wire spacing discourages climbing while allowing security personnel to observe activities beyond the boundary. Durable surface treatments help protect the steel against moisture, atmospheric corrosion, and demanding outdoor conditions.
Protecting valuable property requires more than installing a tall fence. Security managers must consider unauthorized access, surveillance coverage, operational gates, and maintenance requirements. Conventional wide-aperture fencing may provide convenient climbing points. Dense welded panels create a more challenging physical obstacle while preserving visual openness.
BMP supplies 358 welded mesh security fencing with different panel heights, structural posts, clamp bars, and protective finishes. Customers can select complete assemblies according to project drawings and environmental conditions. This guide explores specifications, connection methods, engineering calculations, manufacturing processes, and international procurement considerations.
358 welded mesh security fencing consists of horizontal and vertical steel wires joined through resistance welding. The traditional designation describes three inches, half an inch, and eight-gauge wire. These measurements correspond approximately to 76.2 × 12.7 mm spacing and 4 mm wire diameter.
The narrow rectangular openings limit accessible climbing points. Strong welded intersections help maintain panel geometry under ordinary loading. Structural posts and security fasteners complete the perimeter assembly.
Security professionals frequently describe this product as prison mesh. However, applications extend beyond correctional institutions. Industrial compounds, distribution centers, and infrastructure operators also need reliable physical boundaries.
Climbing usually requires sufficient space for hands and footwear. Narrow horizontal apertures reduce these opportunities. The dense wire arrangement also restricts access for many common cutting tools.
Nevertheless, no physical fence guarantees complete intrusion prevention. Gates, structural connections, and surrounding buildings may create alternative access points. Effective protection requires an integrated security strategy.
Mesh dimensions generally describe distances between wire centres. The actual opening becomes smaller after accounting for steel thickness. A 4 mm wire creates approximate clear openings of 72.2 × 8.7 mm.
Buyers should distinguish these measurements during specification reviews. Manufacturing tolerances also influence the finished geometry. Accurate drawings help prevent disputes during quality inspection.
358 welded mesh security fencing offers a distinctive combination of rigid construction and clear visibility. BMP provides galvanized and colored finishes for different architectural environments. The following images illustrate panel appearance, security characteristics, and dimensional inspection.
 |
 |
| Black welded security mesh complements residential and commercial buildings while providing a controlled boundary. | Industrial fencing can combine rigid mesh with approved additional security measures. |
 |
 |
| Close mesh spacing limits access for certain cutting tools compared with larger conventional openings. | Wire diameter inspection helps verify the agreed manufacturing specification. |
358 welded mesh security fencing comes in several structural configurations. BMP's original reference range includes eight standard product IDs. Each configuration uses corresponding posts, clamp bars, and fixing quantities.
| Product ID | Fence Height | Panel Size (H × W mm) | Post (Length × Section × Wall mm) | Clamp Bar (H × W × T mm) | Intermediate / Corner Fixings |
|---|---|---|---|---|---|
| 358F01 | 2.0 m | 2007 × 2515 | 2700 × 60 × 60 × 2.5 | 2007 × 60 × 5 | 7 / 14 |
| 358F02 | 2.4 m | 2400 × 2515 | 3100 × 60 × 60 × 2.5 | 2400 × 60 × 5 | 9 / 18 |
| 358F03 | 3.0 m | 2997 × 2515 | 3800 × 80 × 80 × 2.5 | 2997 × 80 × 6 | 11 / 22 |
| 358F04 | 3.3 m | 3302 × 2515 | 4200 × 80 × 80 × 2.5 | 3302 × 80 × 6 | 12 / 24 |
| 358F05 | 3.6 m | 3607 × 2515 | 4500 × 100 × 100 × 3.0 | 3607 × 100 × 7 | 13 / 26 |
| 358F06 | 4.2 m | 4204 × 2515 | 5200 × 100 × 100 × 4.0 | 4204 × 100 × 8 | 15 / 30 |
| 358F07 | 4.5 m | 4496 × 2515 | 5500 × 100 × 100 × 5.0 | 4496 × 100 × 8 | 16 / 32 |
| 358F08 | 5.2 m | 5207 × 2515 | 6200 × 120 × 120 × 5.0 | 5207 × 100 × 8 | 18 / 36 |
These figures represent BMP's original catalogue references. Final engineering approval must consider local wind loading, soil properties, and security requirements. The selected fastening method may also influence actual post spacing.
| Parameter | Reference Specification |
|---|---|
| Base Material | Low-Carbon Steel Wire |
| Traditional Wire Diameter | 4.0 mm |
| Custom Wire Options | 2.0–6.5 mm, Subject to Manufacturing Approval |
| Nominal Mesh Centres | 76.2 × 12.7 mm |
| Alternative Mesh Options | 75 × 12.5 / 100 × 15 mm |
| Reference Panel Width | 2515 mm |
| Alternative Panel Widths | 2000 / 2200 mm |
| Fence Height Range | 2007–5207 mm |
| Post Material | Structural Steel Hollow Sections |
| Post Finish | Galvanized and Compatible Polymer Coating |
| Popular Colors | RAL 6005 / RAL 9005 |
| Connection Options | Overlap Clamp Bars / Individual Brackets |
| Optional Reinforcement | Additional Vertical Wires, Subject to Drawing |
Alternative wire diameters and mesh spacing create different product configurations. They do not automatically meet conventional 358 geometry. Buyers should identify their required construction clearly.

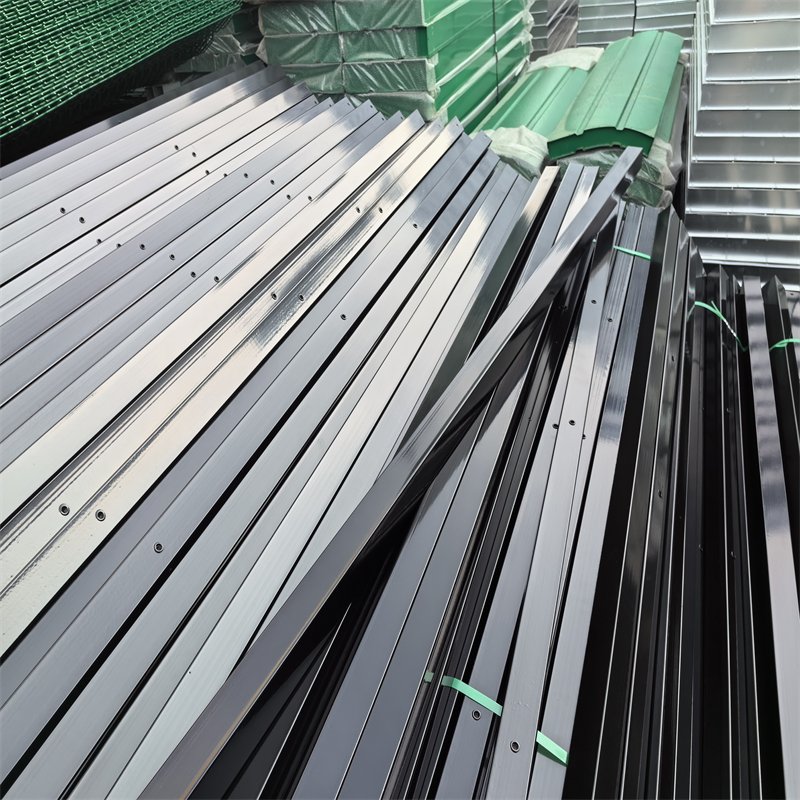

358 welded mesh security fencing requires matching structural posts for dependable performance. Taller installations generally demand stronger sections and more substantial foundations. BMP offers several steel post profiles according to the selected fence height.
| Product ID | Fence Height | Post Dimensions | Material | Finish | Post Cap |
|---|---|---|---|---|---|
| 358F01 | 2.0 m | 2700 × 60 × 60 × 2.5 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F02 | 2.4 m | 3100 × 60 × 60 × 2.5 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F03 | 3.0 m | 3800 × 80 × 80 × 2.5 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F04 | 3.3 m | 4200 × 80 × 80 × 2.5 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F05 | 3.6 m | 4500 × 100 × 100 × 3.0 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F06 | 4.2 m | 5200 × 100 × 100 × 4.0 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F07 | 4.5 m | 5500 × 100 × 100 × 5.0 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
| 358F08 | 5.2 m | 6200 × 120 × 120 × 5.0 mm | Structural Steel | Galvanized + Polymer Coating | Metal / Plastic |
Structural posts transfer panel loads into the supporting foundations. Wall thickness, post shape, and steel grade influence their bending behavior. Larger sections may provide greater resistance under demanding conditions.
However, section dimensions alone cannot establish complete structural suitability. Engineers must assess loading, post orientation, foundation support, and applicable safety requirements.
Post caps close exposed hollow steel sections and help limit water entry. Compatible metal caps provide one construction option. Selected plastic designs offer another practical alternative.
Proper detailing should also address drainage and coating continuity. Trapped moisture can contribute to corrosion within poorly protected sections.

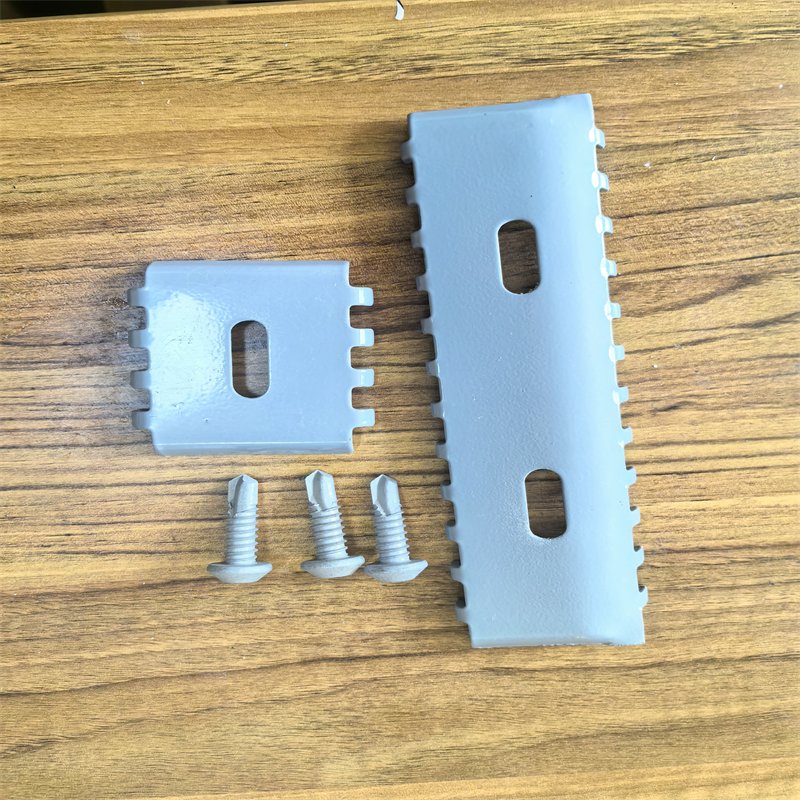

358 welded mesh security fencing can use different attachment systems depending on post geometry and security requirements. BMP's original product range illustrates two common connection arrangements. Each method requires compatible hardware and approved installation drawings.
Selected installations overlap adjacent panel edges by approximately 75 mm at the post. A slotted steel clamp bar secures the mesh against the supporting structure. Suitable security bolts complete the connection.
This design provides a continuous attachment arrangement along the panel edge. Installers must verify the overlap and post dimensions before drilling or fastening.
Other systems use individual steel brackets to attach panel edges without overlapping them. The brackets connect the mesh to compatible post sections. Fastener locations follow the approved assembly drawing.
Bracket designs can simplify certain installation arrangements. However, connection strength depends on hardware geometry and proper installation.
 |
 |

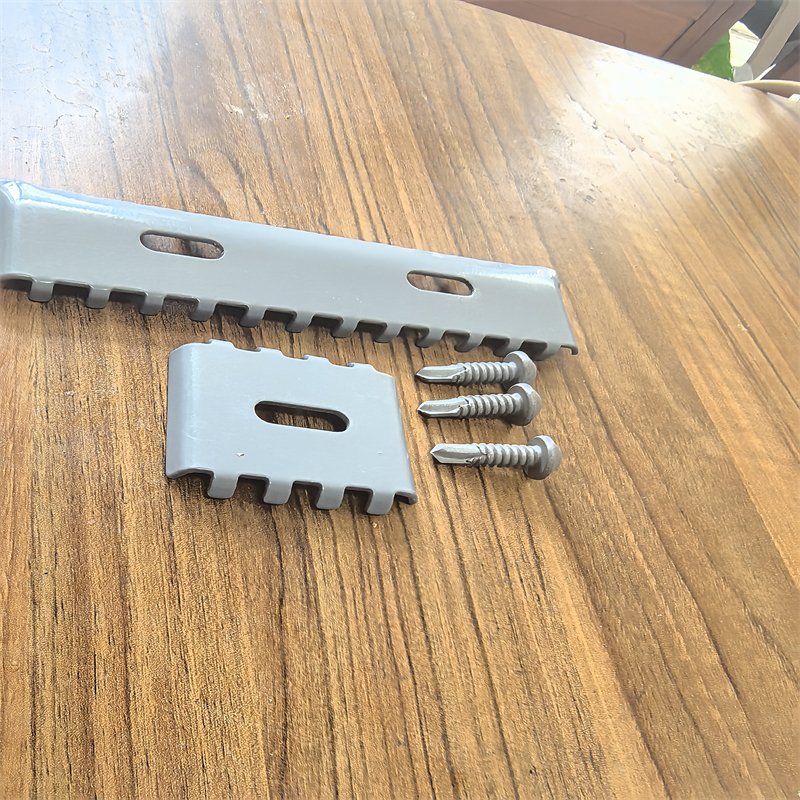

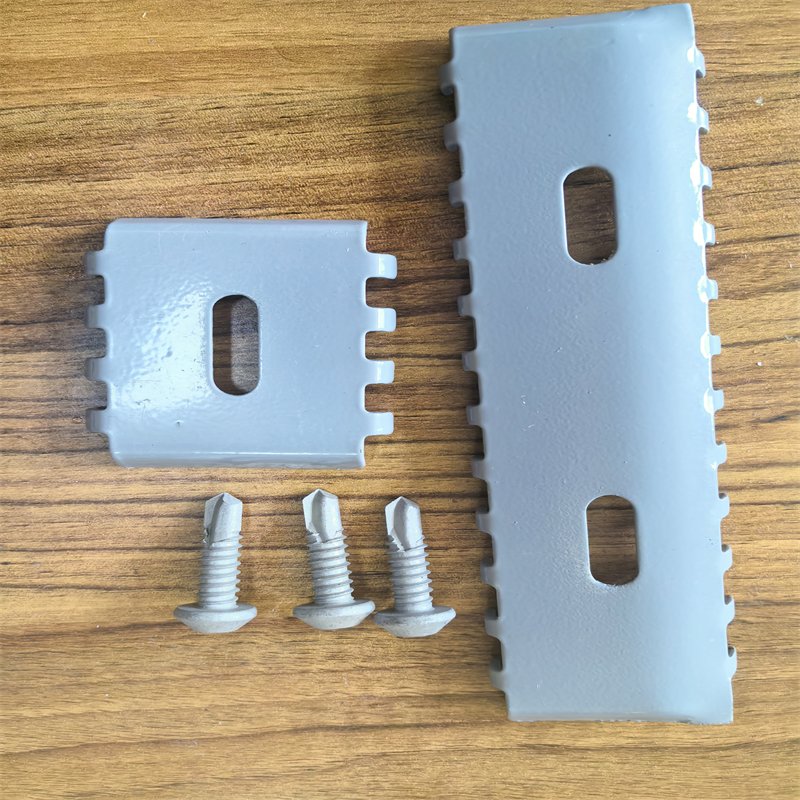

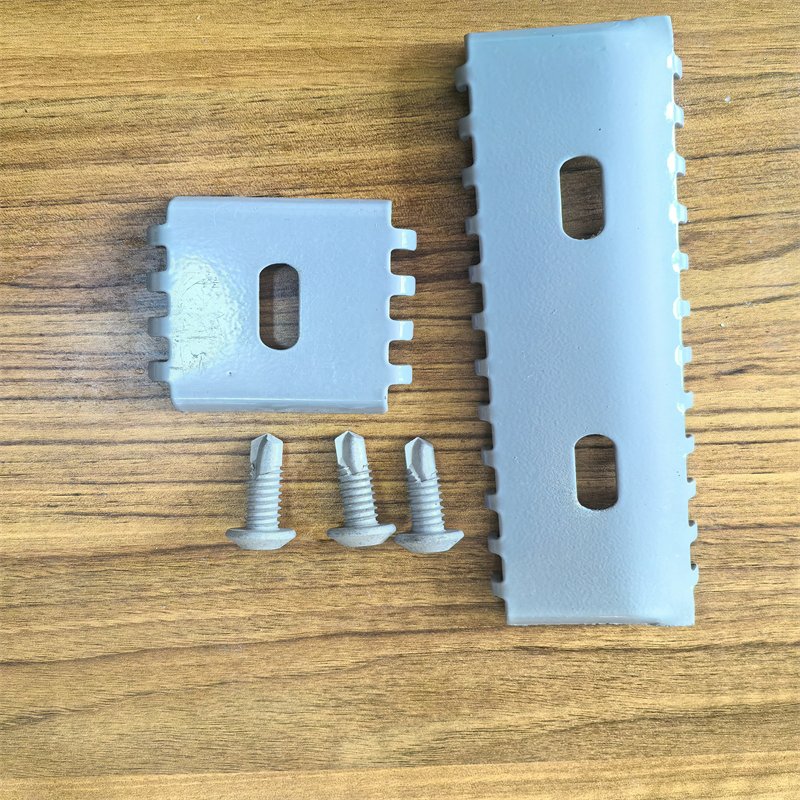

| Overlapping panel edges use a continuous clamp arrangement to secure the welded mesh. | Separate steel brackets connect adjacent panels without requiring the same overlap geometry. |
358 welded mesh security fencing connections often use specialized security bolts. M8 fasteners represent a common reference size for selected systems. Anti-tamper heads discourage removal with ordinary tools.
Installers should follow specified tightening procedures. Incorrect hardware or insufficient tightening can compromise connection reliability.
358 welded mesh security fencing helps increase the effort required for unauthorized entry. Effective protection depends on several connected factors rather than a single material property.
Narrow mesh openings restrict ordinary handholds and footholds. This geometry makes unsupported climbing more difficult. However, nearby buildings or stored materials may create alternative access routes.
Closely spaced steel wires limit access for many conventional cutting tools. Strong welded intersections help maintain the panel structure. Powerful specialized equipment can still damage the fence.
Reliable fasteners discourage casual panel removal. Continuous clamp bars may help distribute attachment forces. Every connection requires proper installation and inspection.
Open mesh allows security personnel to observe activity beyond the boundary. Cameras can monitor selected areas without a solid visual obstruction. Lighting and lens placement remain important.
Compatible security sensors can supplement the physical barrier. Detection systems may identify vibration or other suspicious disturbances. Proper calibration helps reduce unwanted alarms.
358 welded mesh security fencing supports industrial and infrastructure projects throughout South Africa. Different locations present different environmental and operational challenges. Security planning should reflect actual site conditions.
Johannesburg contains extensive warehousing, manufacturing, and distribution activity. Some properties face theft, vandalism, or unauthorized access risks. These concerns vary by location and operating arrangements.
Strong security mesh helps define controlled storage boundaries. Surveillance cameras can support monitoring through the narrow openings. Access gates should accommodate daily logistics movement.
Pretoria includes government infrastructure, industrial compounds, and commercial developments. Facilities may require controlled access without imposing solid perimeter walls. Black or green mesh can complement surrounding buildings.
Property managers should consider pedestrian access, emergency movement, and visitor safety. Different sites require different security arrangements.
Mining compounds often protect valuable machinery and technical equipment. Remote locations may face longer replacement lead times. Durable components and organized spare hardware can support efficient maintenance.
Ground conditions also influence foundation selection. Engineers should verify soil capacity before installing tall fencing.
358 welded mesh security fencing requires appropriate corrosion protection near South Africa's coastline. Marine salts, humidity, and industrial pollutants can accelerate deterioration. Actual exposure varies with distance from the sea and local conditions.
Durban combines maritime logistics with a warm coastal environment. Outdoor steel structures may encounter salt deposits and prolonged humidity. Warehouses also need secure boundaries around valuable goods and equipment.
Suitable coatings help manage corrosion risks. Strong panels can support access control while preserving surveillance visibility. Routine inspection remains important around exposed fasteners and post bases.
Cape Town experiences locally demanding wind conditions alongside marine exposure. Engineers must evaluate structural loads and corrosion protection separately. Taller panels can increase bending demands on posts.
Appropriate foundations help maintain stability. Protective finishes require compatible maintenance procedures near the coastline.
Gqeberha supports manufacturing, logistics, and maritime activity. Security fences may encounter industrial dust and salt-laden air. Coating specifications should reflect these local conditions.
Regular inspection helps identify early damage. Appropriate repairs can preserve protective coatings and connection reliability.
358 welded mesh security fencing can use different protective finishes according to project requirements. BMP offers galvanized steel and compatible polymer coatings. Customers should identify the exact manufacturing process before ordering.
Hot-dip galvanizing provides zinc corrosion protection for suitable fabricated steel articles. Zinc forms a barrier and offers sacrificial protection. Applicable standards depend on the product and galvanizing method.
Some welded mesh products use previously galvanized steel wire. Continuous wire galvanizing differs from batch galvanizing after fabrication. Buyers should confirm the relevant coating specification.
Galfan contains approximately 95% zinc and 5% aluminium. The alloy offers useful corrosion-protection properties under appropriate conditions. Coating mass and manufacturing quality remain important.
Compatible polymer coatings provide decorative colors and additional surface protection. Proper surface preparation supports coating adhesion. Thickness and testing requirements should match the approved purchase specification.
358 welded mesh security fencing can receive selected RAL finishes. Popular choices include RAL 6005 Moss Green and RAL 9005 Jet Black. Other colors may suit specific architectural requirements.
A physical sample can help confirm final appearance. Panel and post coatings should follow compatible specifications.

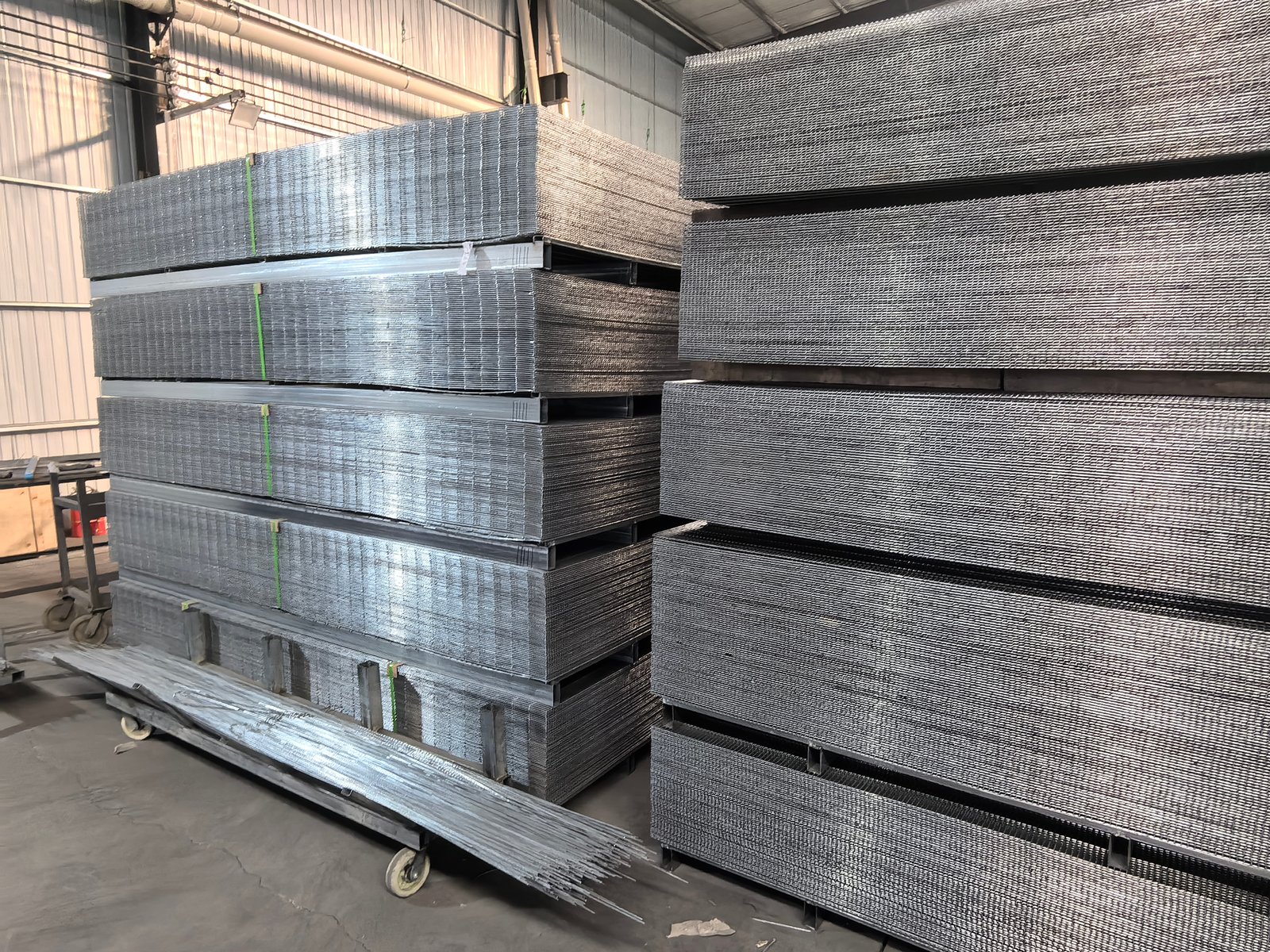

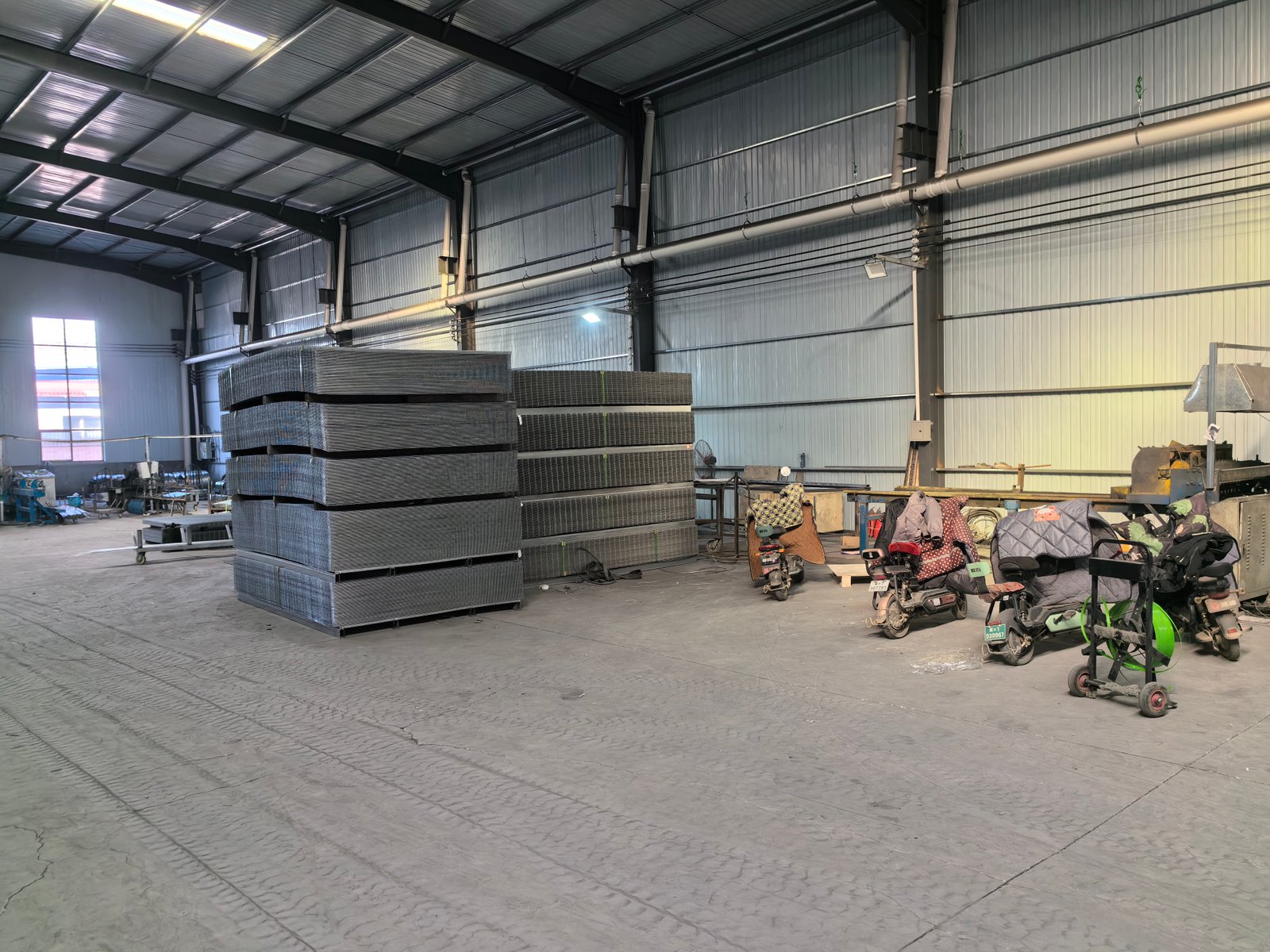

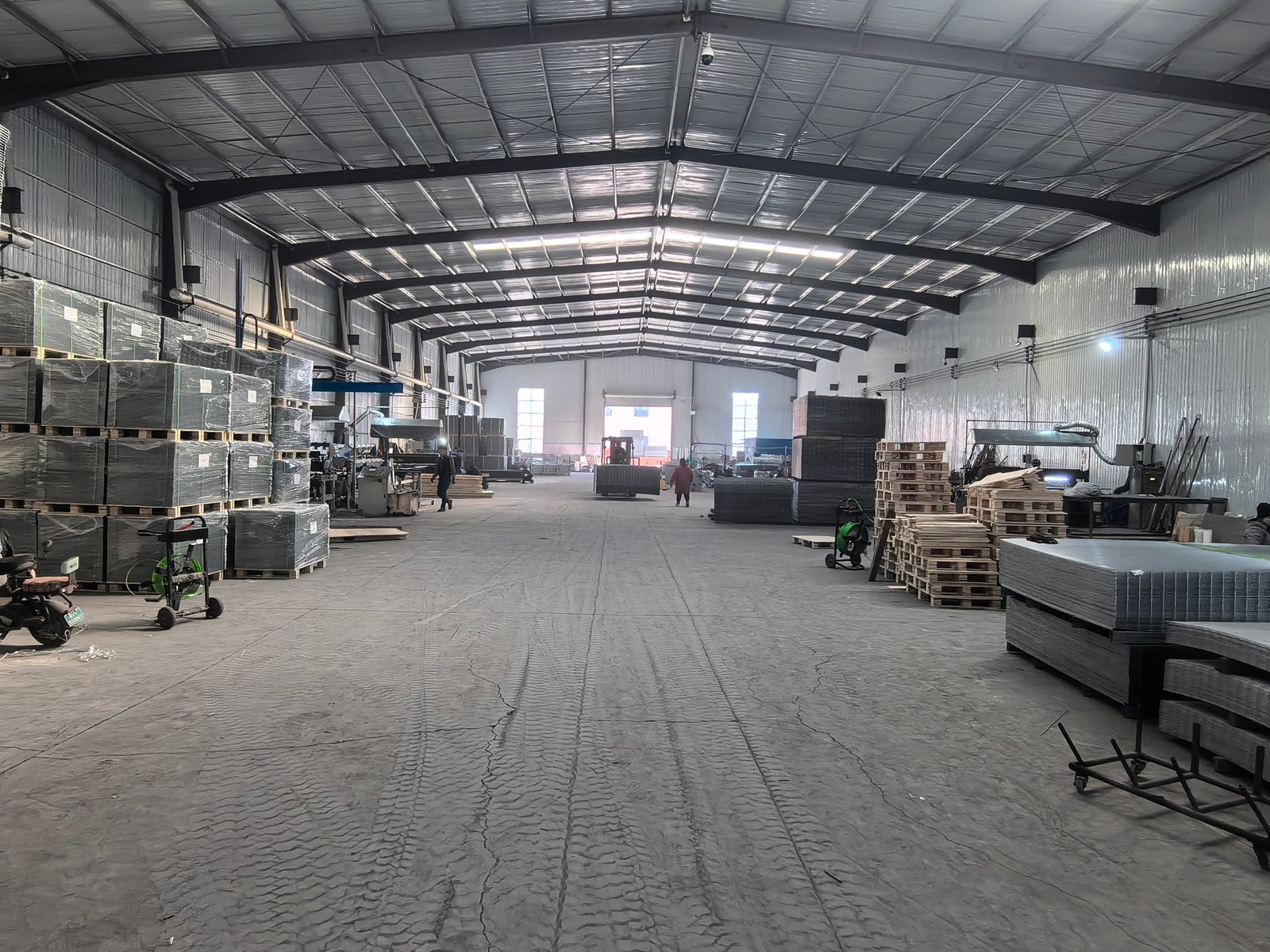

358 welded mesh security fencing quality begins with controlled steel wire preparation. Manufacturers must coordinate welding, dimensional checks, surface treatment, and assembly components. Consistent processes help reduce installation problems.
Manufacturing teams prepare wire according to specified diameters and material requirements. Straightness and consistent dimensions support accurate mesh geometry.

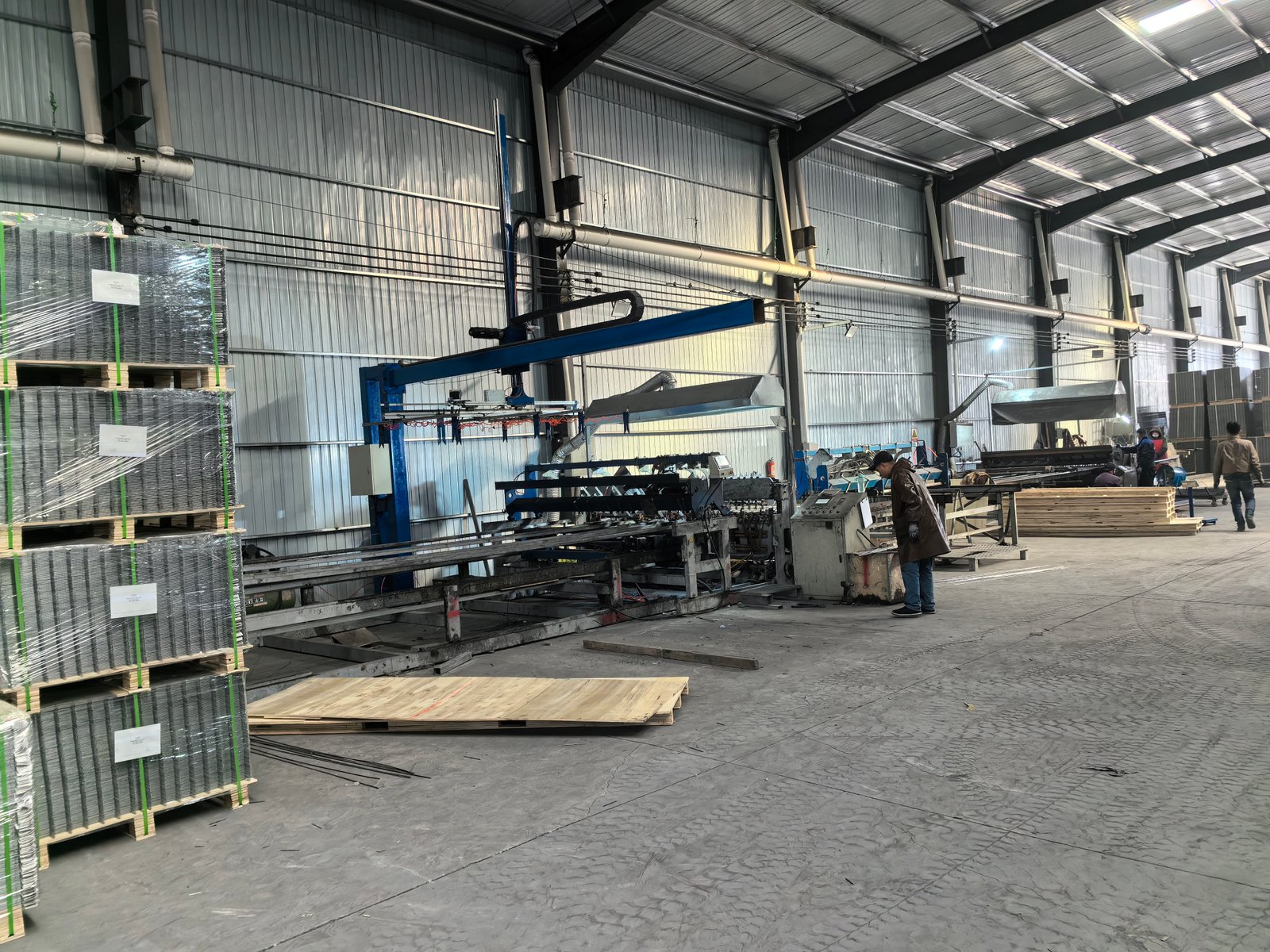

Automated welding equipment joins horizontal and vertical wires at their intersections. Suitable operating parameters influence joint quality. Inspectors should identify irregular or incomplete welds.

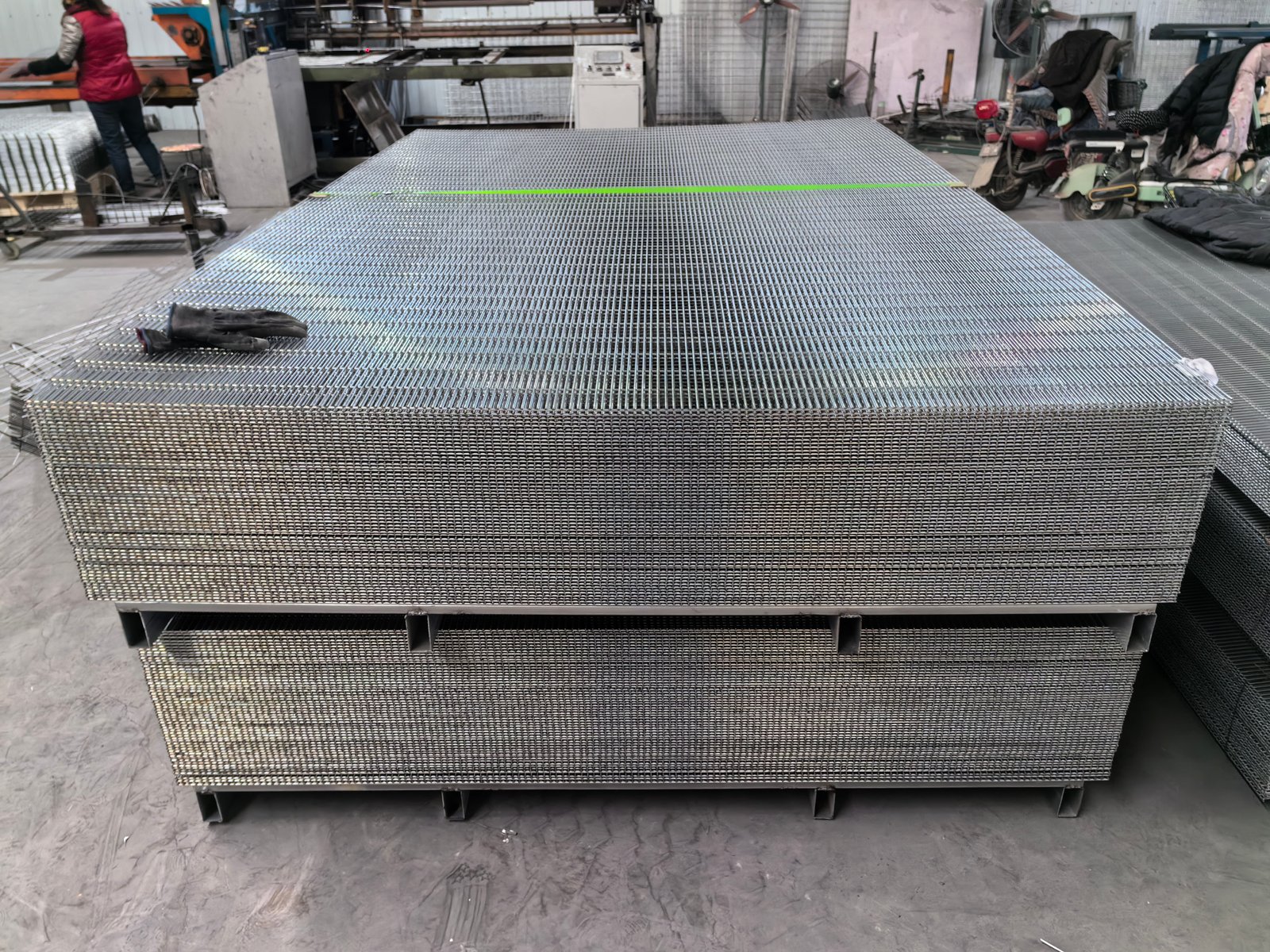

Production teams check panel width, height, and squareness. Accurate dimensions improve installation alignment. Approved tolerances help maintain consistency.
The coating process depends on the selected manufacturing specification. Some products use pre-coated wire, while others receive treatment after fabrication. Organic finishes may require additional preparation.
Structural posts and clamp bars require compatible dimensions. Hole locations must match the approved connection drawing. Correct fabrication reduces installation adjustments.
Inspectors review dimensions, coatings, welds, and accessory quantities. Appropriate records support customer acceptance before shipment.
358 welded mesh security fencing buyers should establish clear acceptance criteria. A documented inspection plan helps identify problems before container loading.
| Inspection Item | Recommended Verification |
|---|---|
| Wire Diameter | Measure horizontal and vertical wires. |
| Mesh Spacing | Verify wire centre-to-centre dimensions. |
| Weld Quality | Inspect intersections and required mechanical tests. |
| Panel Geometry | Check width, height, and squareness. |

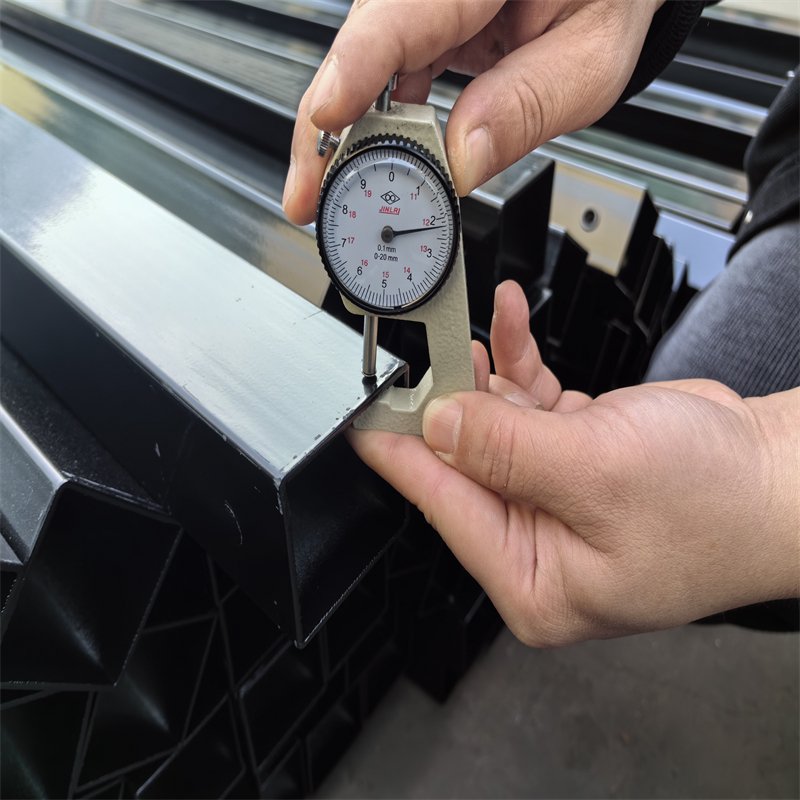

| Post Sections | Verify section dimensions and wall thickness. |
| Clamp Bars | Confirm length, thickness, and hole positions. |
| Security Fasteners | Check type, diameter, and quantity. |
| Protective Coatings | Inspect finish and required coating properties. |
| Accessories | Compare actual quantities with purchase schedules. |
| Export Packaging | Check pallet strength and protective materials. |
Weld tests should follow agreed procedures and acceptance criteria. Buyers should not rely on isolated strength figures without clear measurement definitions. Mechanical performance depends on steel properties and welding consistency.

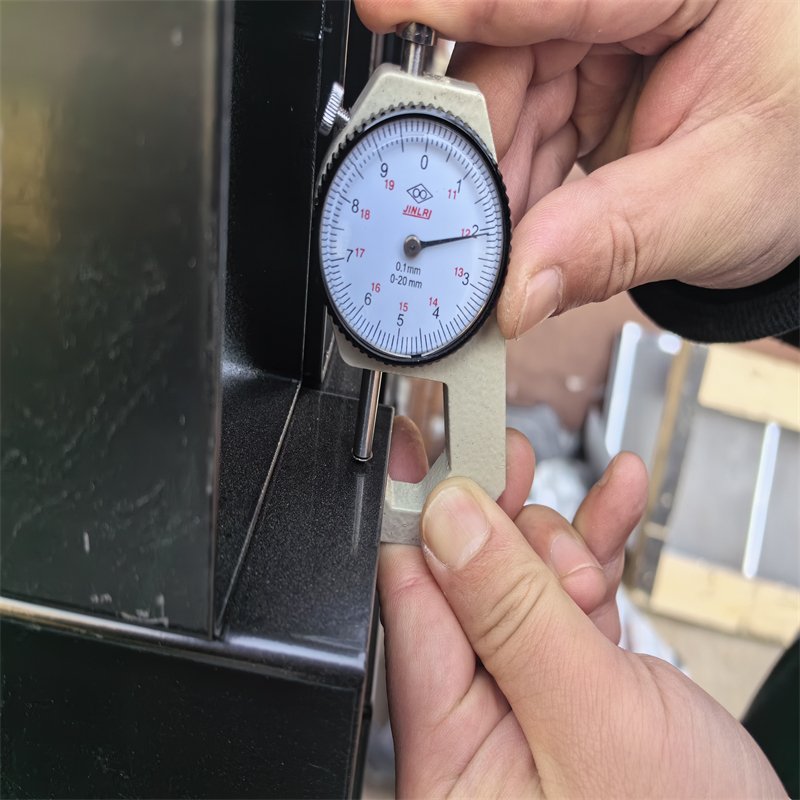

Different coating systems require different test methods. Metallic coating mass and polymer thickness are not interchangeable measurements. Inspectors should follow the approved product standard.
Project drawings should establish acceptable tolerances. Installers may encounter difficulties when posts and panels use incompatible dimensions.
358 welded mesh security fencing installation begins with an accurate boundary survey. Contractors must verify structural requirements before excavation. Correct preparation helps preserve alignment and coating quality.
Measure the perimeter and identify gates, corners, and changes in terrain. Check underground services and drainage conditions.
Use approved installation drawings to determine spacing. Panel overlap and bracket geometry may change the required module.
Excavate according to the structural design. Soil bearing capacity and wind loads influence foundation dimensions.
Position posts vertically and maintain correct alignment. Temporary support may help during concrete placement.
Use appropriate lifting equipment for heavy panels. Protect the coating during installation. Align panel edges before tightening fasteners.
Install compatible security bolts and steel brackets. Confirm connection geometry and required overlap. Follow the approved tightening procedure.
Check alignment, coating condition, and fastener security. Test gate operation and confirm required clearances.
Related ClearVu fence installation methods cover general site preparation. Specific 358 connections still require approved product drawings.
358 welded mesh security fencing projects require accurate material schedules. Panel quantities depend on approved installed spacing rather than nominal dimensions alone.
Measure the total fence length and deduct gate openings. Separate straight sections for accurate calculations.
Confirm post centre spacing using the approved connection design. Overlap arrangements can influence the required module.
Divide each straight fence run by its approved spacing. Review remaining lengths for partial panels.
A straight run generally needs one more post than its number of bays. Corners and gates can change the final count.
Use the fixing schedule for the selected panel height. Different configurations require different hardware quantities.
Consider a straight fence line measuring 200 metres. Assume an approved installed spacing of 2.5 metres for illustration.
| Calculation | Illustrative Quantity |
|---|---|
| Fence Length | 200 m |
| Assumed Bay Spacing | 2.5 m |
| Number of Bays | 80 |
| Panel Quantity | 80 |
| Post Positions | 81 |
| Clamp Bars | According to Connection Drawings |
| Security Bolts | According to Approved Fixing Schedule |
This simplified example excludes gates, corners, and special sections. The final module must match the selected manufacturer connection system.
358 welded mesh security fencing supports numerous facilities requiring controlled entry and visibility. Each project needs a suitable security assessment.
Correctional institutions require controlled boundaries and effective surveillance. Narrow welded mesh helps discourage ordinary climbing. Additional security zones may provide greater protection.
Airport facilities manage restricted operating areas and sensitive equipment. Secure fencing helps define controlled boundaries. Designs must follow applicable aviation requirements.
Substations contain equipment that requires restricted access. Strong fencing helps establish protective boundaries. Engineers must also consider electrical clearances and earthing.
Laboratories may store valuable instruments and controlled materials. Security mesh can help limit unauthorized access. Gate systems should support approved operational procedures.
Port facilities manage cargo, equipment, and vehicle movements. Secure boundaries support controlled access to operational areas. Coastal exposure also requires appropriate corrosion protection.
Warehouses often contain valuable stock and equipment. Narrow welded mesh supports surveillance visibility and controlled perimeter access. Lighting and gate management improve overall protection.
Selected residential developments prefer visible security boundaries over solid walls. Black powder-coated mesh can complement modern architecture. Safety and planning requirements should guide the design.

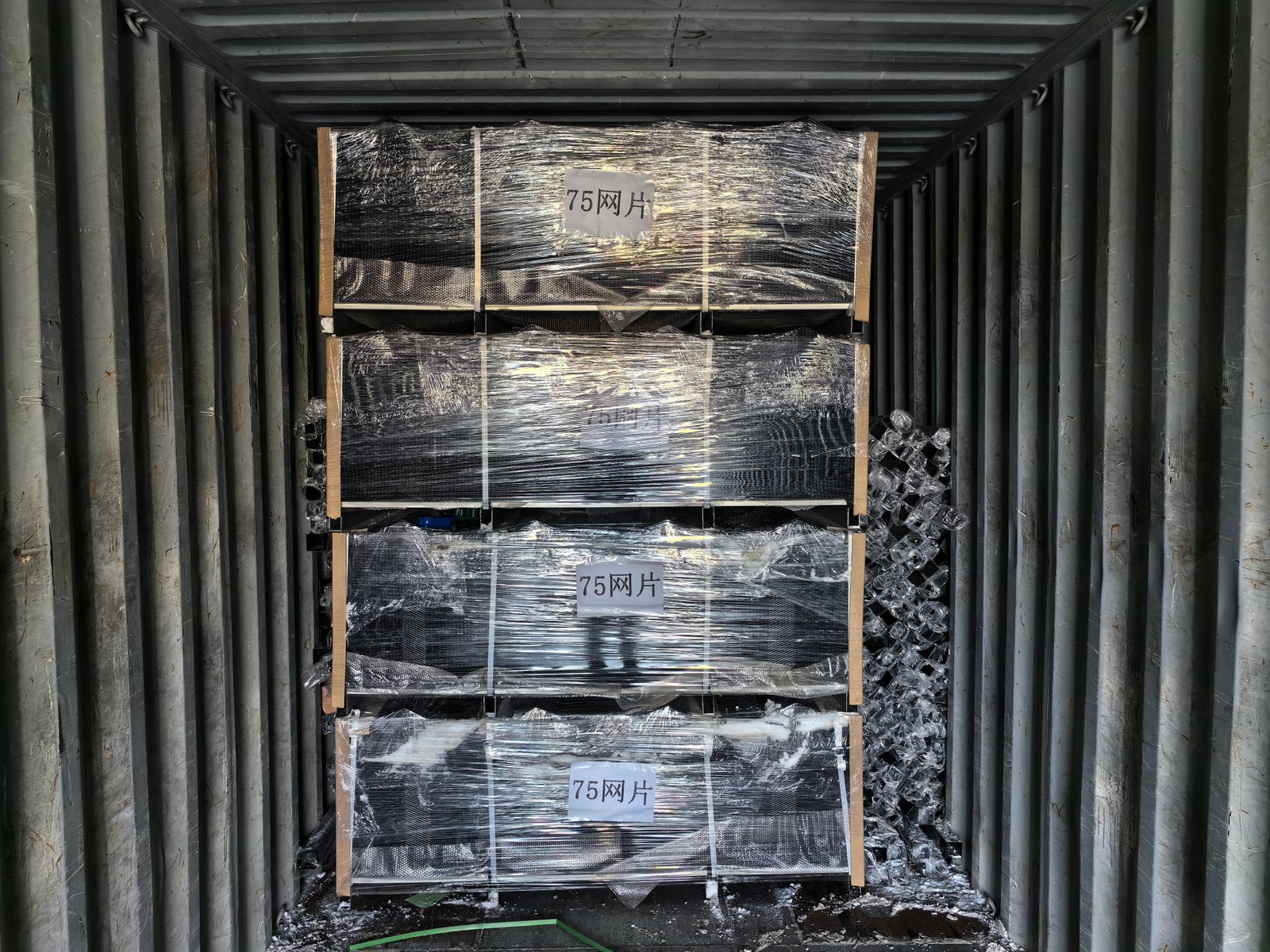

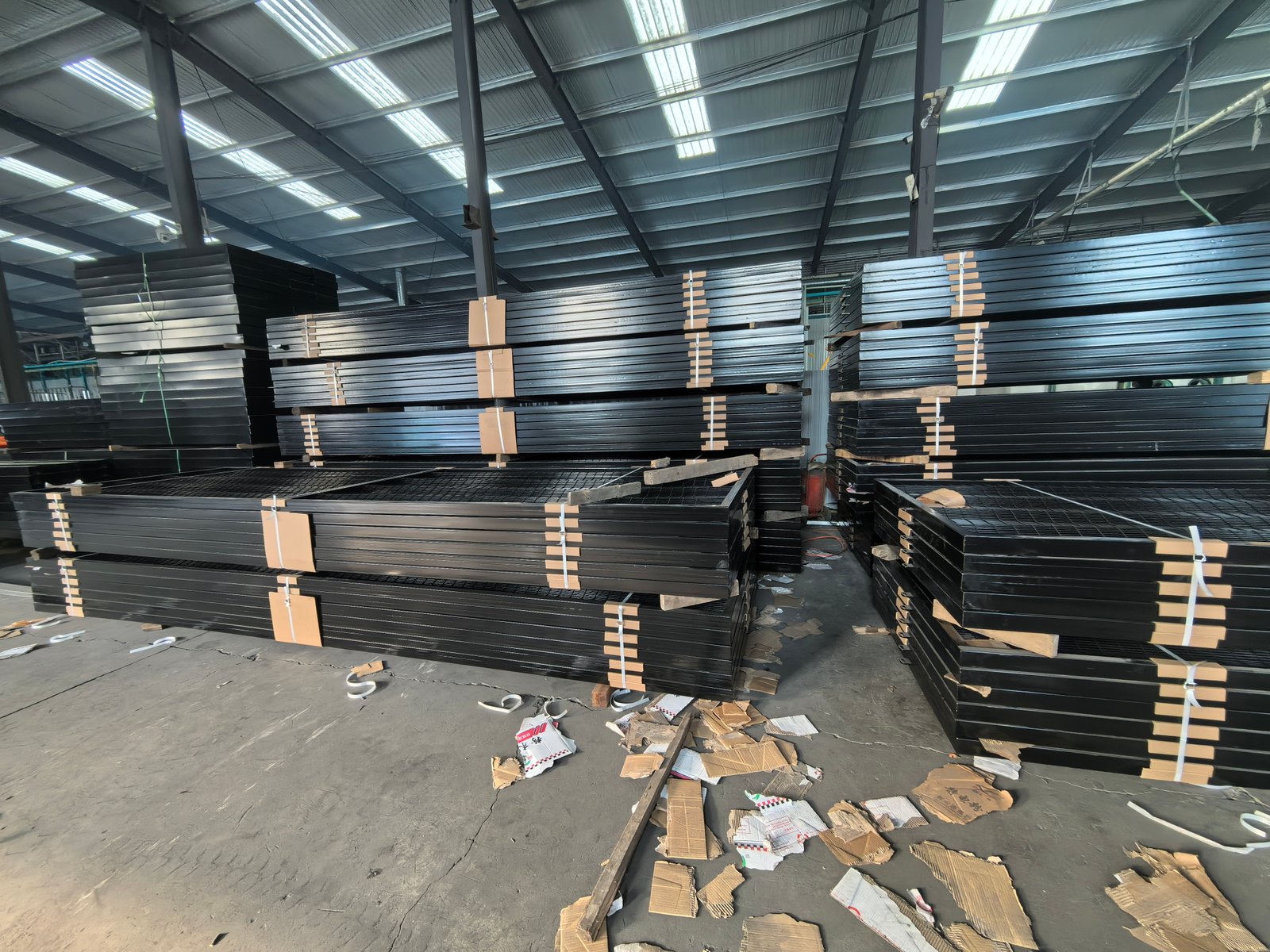

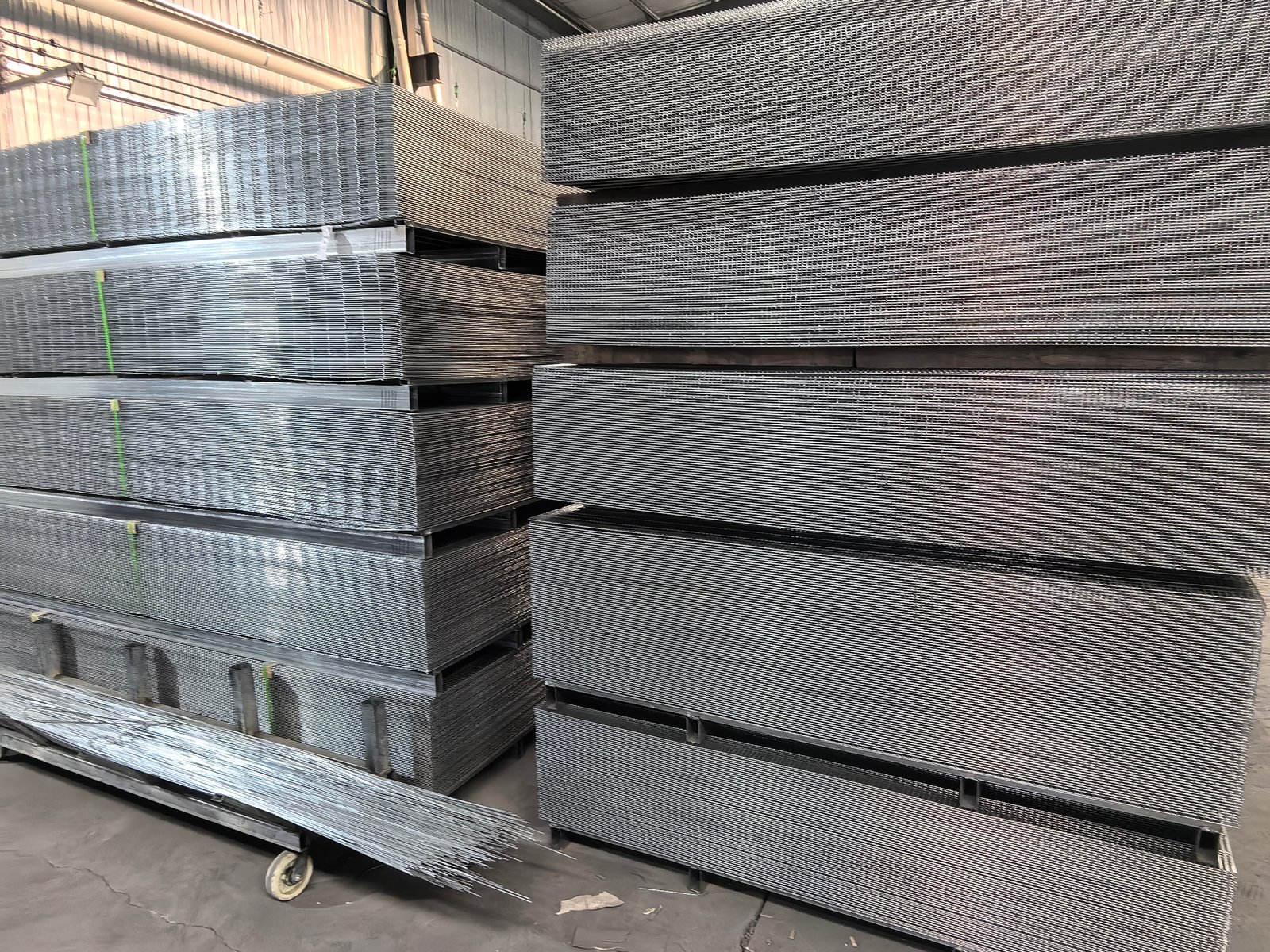

358 welded mesh security fencing requires suitable protection during international transportation. BMP uses pallet-based packing arrangements with protective materials.
Heavy panels can suffer scratches or deformation during improper handling. Secure strapping and appropriate support help reduce cargo movement. Accessories require clear identification.
Protective padding helps separate adjacent panels. Reinforced corners can reduce contact damage. Stable stacking supports safer handling.
Pallet selection depends on cargo dimensions and shipment requirements. Strong support structures help distribute load during lifting.

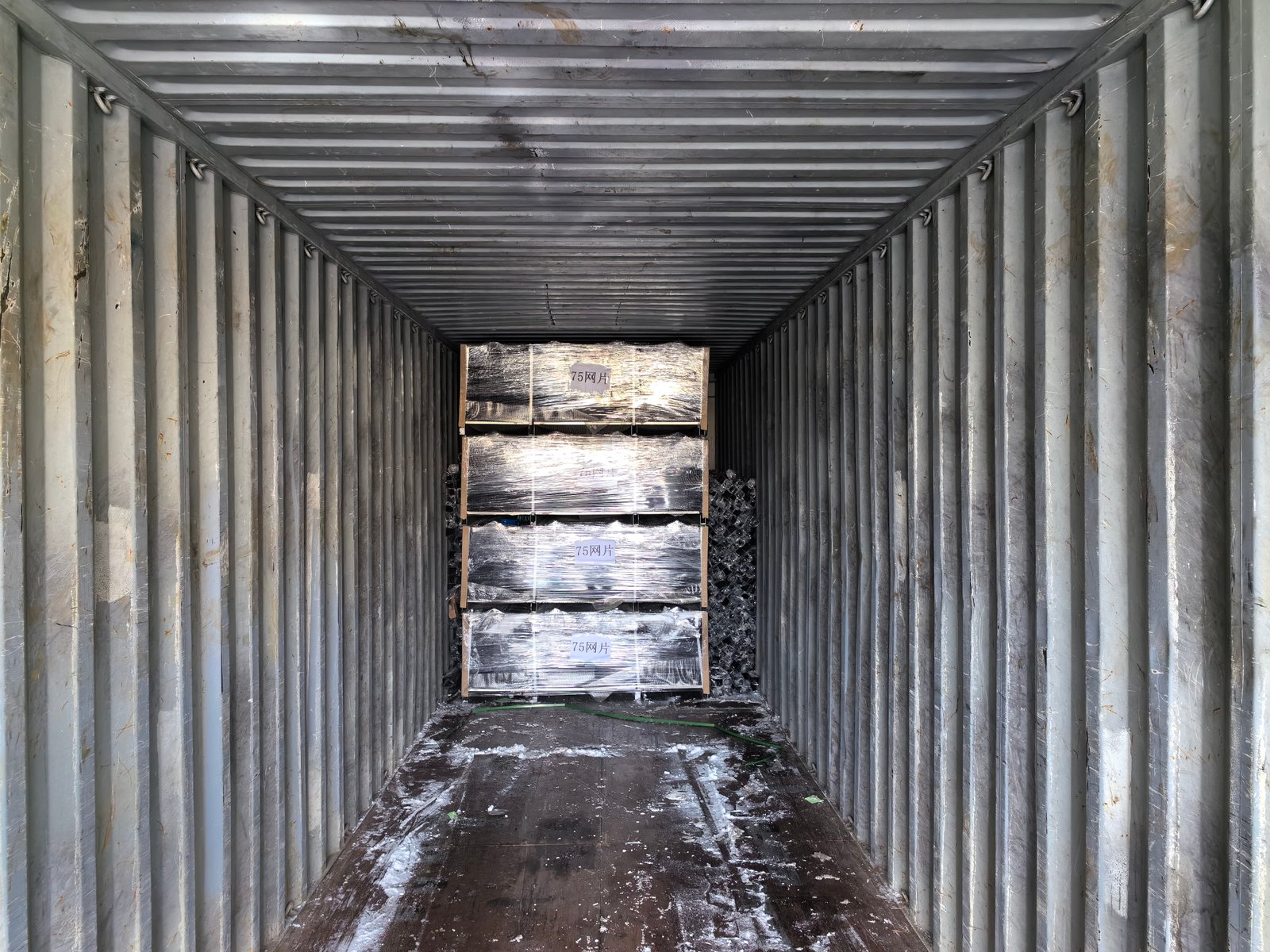

Shipping teams must consider container payload and restraint requirements. Large panel dimensions can influence container utilization.
Clamp bars, security bolts, nuts, and caps should follow a clear packing schedule. Correct identification helps prevent installation delays.
 |

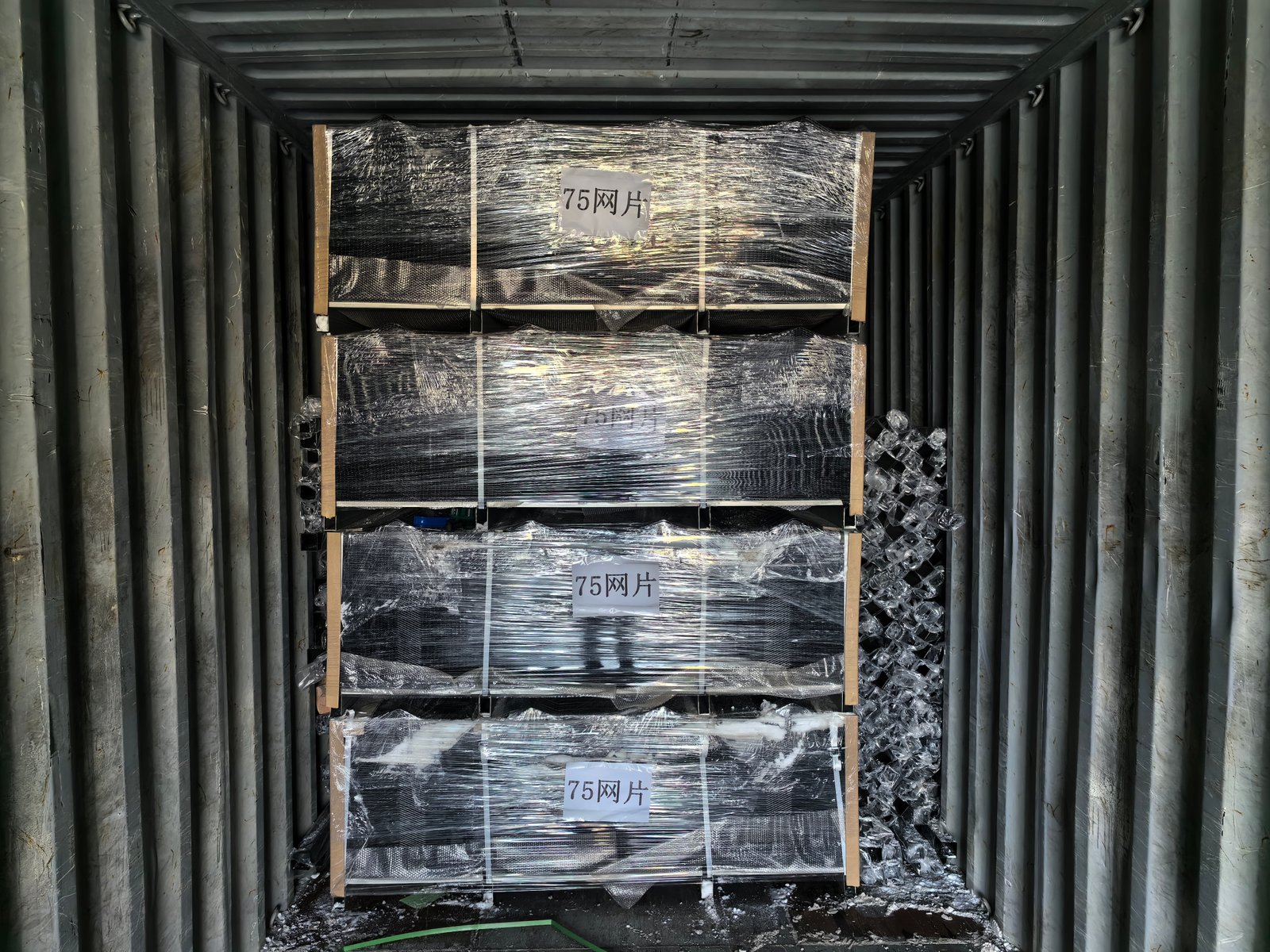

| Protective pallet packaging helps reduce scratches, deformation, and handling damage during international transportation. |
358 welded mesh security fencing needs periodic inspections despite its strong welded construction. Maintenance requirements vary according to coating quality and environmental conditions.
Check for visible corrosion, deformation, and damaged joints. Early repairs can prevent additional deterioration.
Loose fasteners may compromise connections. Replace damaged hardware using compatible components.
Repair coating damage using approved materials. Coastal sites may need more frequent checks.
Overgrown vegetation can obstruct surveillance and create unwanted access opportunities. Keep important inspection areas clear.
Inspect hinges, locks, and automated equipment regularly. Proper gate maintenance supports reliable access control.
Initial purchasing price represents only part of project expenditure. Installation, maintenance, repairs, and component replacement contribute to long-term costs.
358 welded mesh security fencing procurement should begin with a complete technical specification. Buyers can reduce disputes by confirming the following details.
Related Clear View fence prices provide broader purchasing comparisons. Individual 358 configurations require specification-based quotations.
The designation refers to three inches, half an inch, and eight-gauge steel wire. These measurements approximate 76.2 × 12.7 mm spacing and 4 mm diameter.
Its narrow openings discourage climbing and support demanding security applications. Correctional facilities commonly use similar systems.
Narrow openings restrict access for many conventional tools. Specialized equipment can still damage steel fencing.
BMP's original reference panels commonly measure 2515 mm wide. Alternative widths may require manufacturing confirmation.
Yes, the catalogue includes configurations exceeding five metres. Such installations require appropriate structural approval.
Overlap designs secure adjacent panel edges together at the post. Separate brackets attach panels without the same overlap arrangement.
Selected configurations use specialized security fasteners. Actual bolt dimensions depend on the approved connection design.
Coating selection depends on marine exposure and maintenance conditions. Buyers should request a suitable corrosion-protection specification.
Yes, BMP can quote compatible posts and accessories. Final dimensions depend on the approved fence design.
Yes, the open structure supports visual observation. Appropriate camera positioning helps maintain image quality.
Foundation arrangements depend on structural requirements. Engineers should approve the selected method.
Selected RAL colors are available subject to coating requirements. Green and black remain common choices.
Use approved installed spacing and actual boundary measurements. Gates and corners influence the final material schedule.
Approved drawings, inspection records, and suitable material documentation help verify product specifications.
Provide panel dimensions, wire diameter, coating requirements, accessories, quantities, and delivery destination. Technical drawings improve quotation accuracy.
358 welded mesh security fencing projects require manufacturing consistency and accurate technical communication. BMP supplies security mesh panels, structural posts, fastening components, and selected protective finishes.
Our team helps customers evaluate panel dimensions, post arrangements, connection methods, and export requirements. Clear documentation supports production planning and installation.

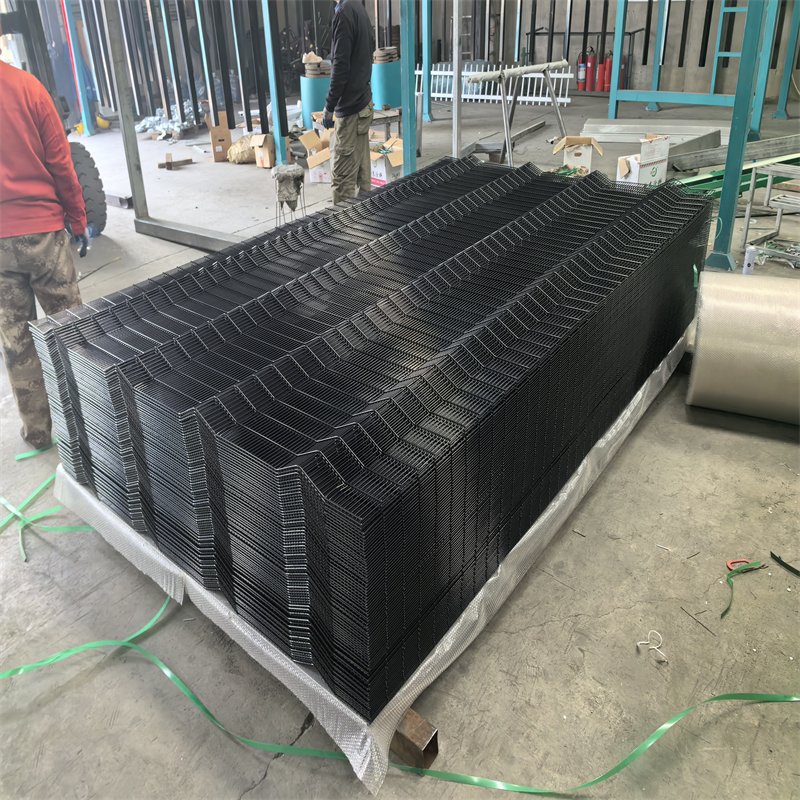

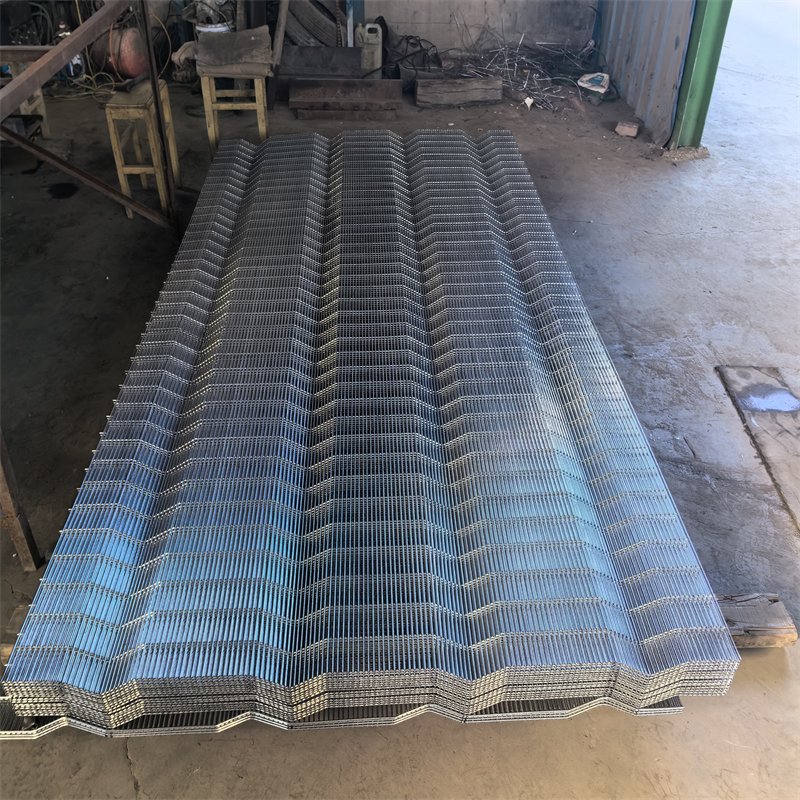

Customers considering alternative systems may also examine ClearVu fence panels for different mesh configurations. Compatible ClearVu fence posts can support selected related products.
Large projects may also use crowd control barriers for temporary pedestrian management. These barriers serve different purposes from permanent high-security fencing.
358 welded mesh security fencing combines narrow openings, welded steel construction, and effective visibility for demanding perimeter applications. Its design helps discourage climbing and supports controlled boundary management.
Reliable performance depends on suitable posts, secure fasteners, protective coatings, and professional installation. Regular inspection also contributes to long-term reliability.
BMP offers multiple product configurations for industrial, commercial, institutional, and infrastructure projects. Our team can review manufacturing drawings, accessories, and international delivery requirements.
Contact BMP to request a 358 welded mesh security fencing quotation based on your project's specifications.
