358 weldmesh fencing combines narrow welded steel openings with strong perimeter protection and exceptional visibility. BMP manufactures this security system for prisons, airports, industrial compounds, warehouses, and critical infrastructure. Its compact wire spacing restricts ordinary climbing attempts while supporting effective surveillance. Robust welded intersections improve panel rigidity, and suitable protective coatings help resist corrosion.
Modern perimeter security requires more than a strong physical barrier. Property owners also need reliable access control, clear observation, and practical maintenance arrangements. Solid walls often obstruct sightlines, while conventional fences may provide convenient climbing points. Closely spaced welded mesh offers a useful alternative for demanding environments.
BMP supplies 358 weldmesh fencing in multiple heights with matching posts, clamp bars, and security fasteners. Customers can select galvanized finishes, compatible powder coatings, and project-specific installation accessories. Each configuration addresses different structural requirements, environmental conditions, and security objectives.

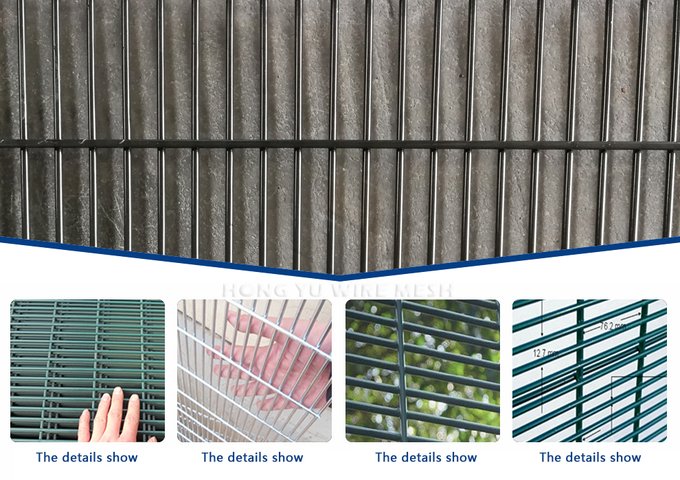

358 weldmesh fencing consists of steel wires joined through resistance welding at each intersection. The traditional designation refers to three inches, half an inch, and eight-gauge steel wire. These dimensions correspond approximately to 76.2 × 12.7 mm spacing and 4 mm wire diameter.
Security professionals often call this construction prison mesh because of its narrow rectangular apertures. Small openings provide limited room for ordinary fingers and footwear. The rigid structure also restricts access for certain conventional cutting tools.
Unlike flexible chain-link fabric, welded steel panels maintain a consistent rectangular shape. Suitable posts and fastening assemblies support the mesh along the perimeter. Correct installation helps maintain the intended security performance.

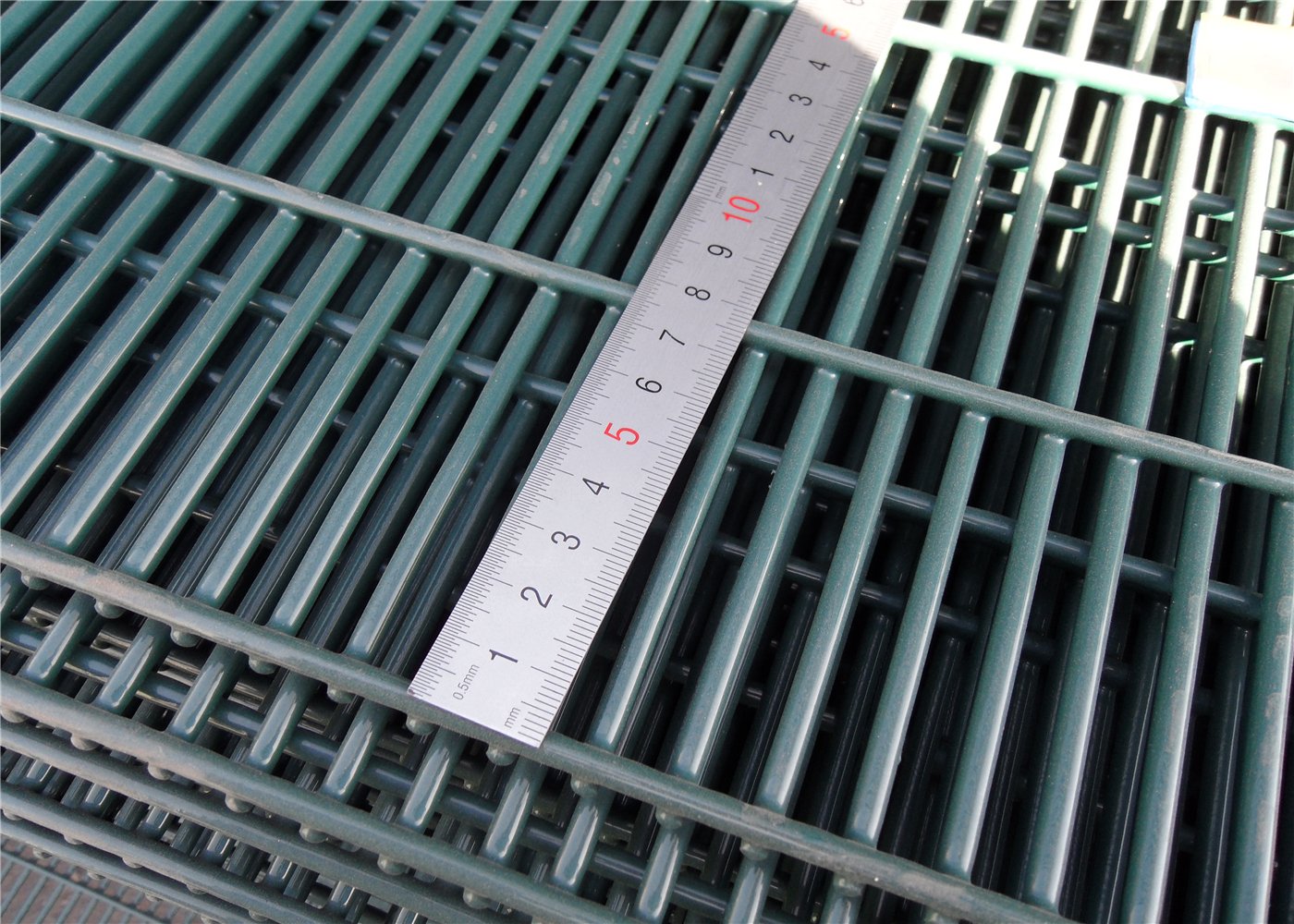

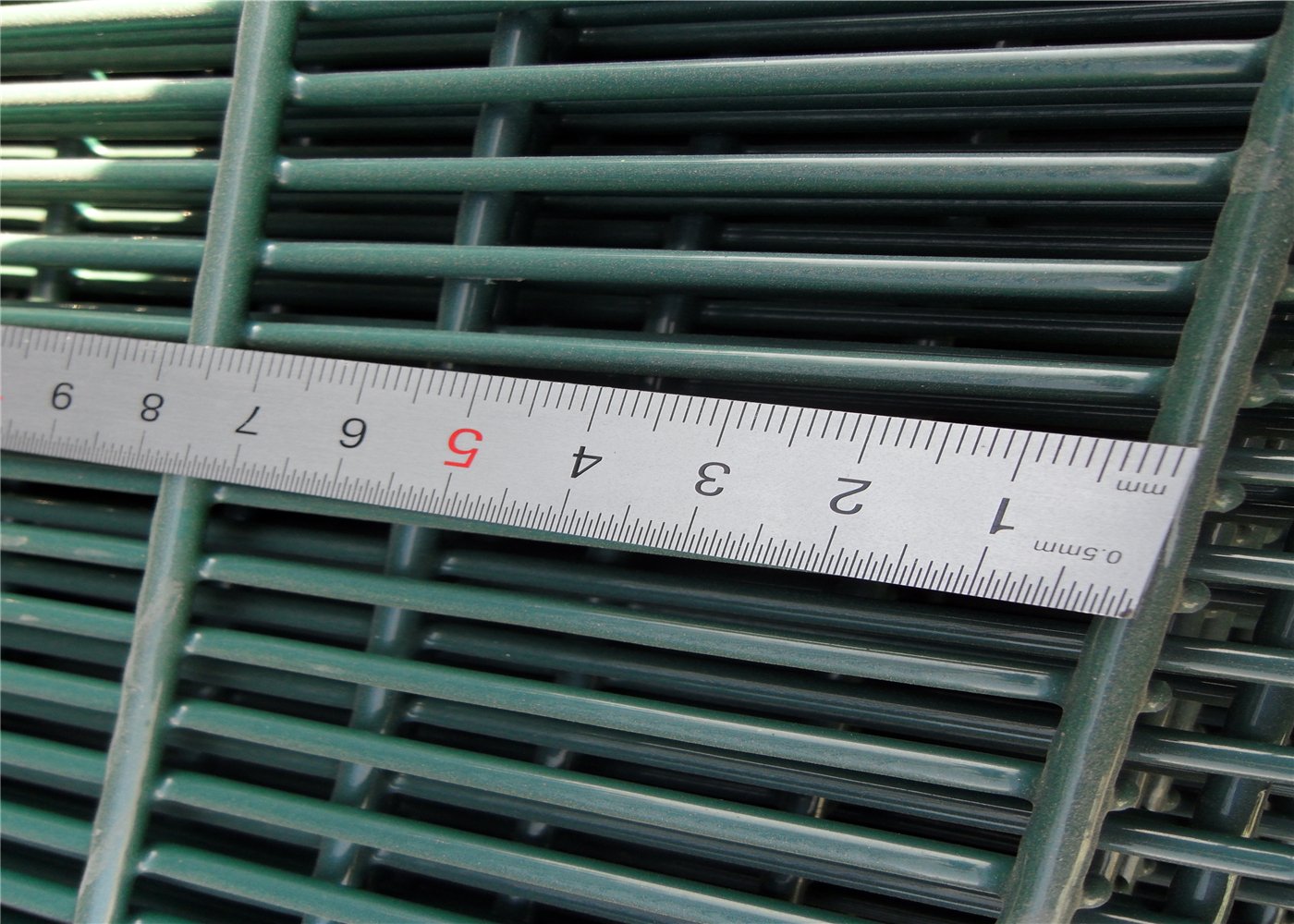

Horizontal wire centres typically measure 76.2 mm apart. Vertical centres measure approximately 12.7 mm. Actual clear openings become smaller after accounting for wire thickness.
For 4 mm steel wires, the approximate clear opening measures 72.2 × 8.7 mm. Manufacturing tolerances may affect the finished measurements. Buyers should distinguish centre spacing from clear aperture dimensions.
Ordinary climbing depends on accessible handholds and footholds. Dense horizontal wires reduce these opportunities. The narrow design therefore increases climbing difficulty compared with many conventional fences.
However, determined intruders may use specialized tools or alternative climbing methods. Security managers should assess the complete perimeter rather than relying exclusively on mesh geometry.

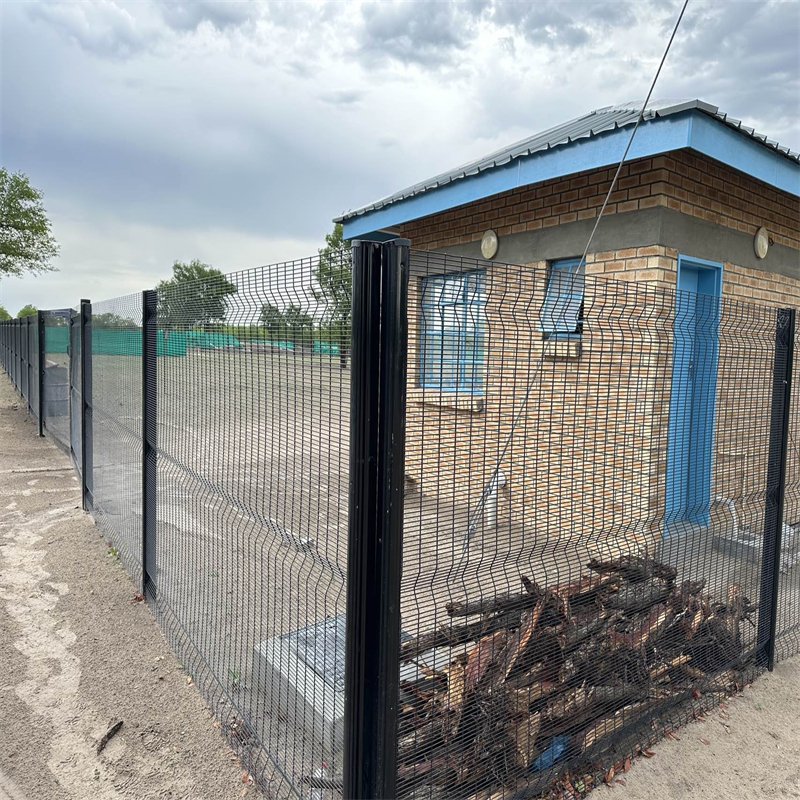

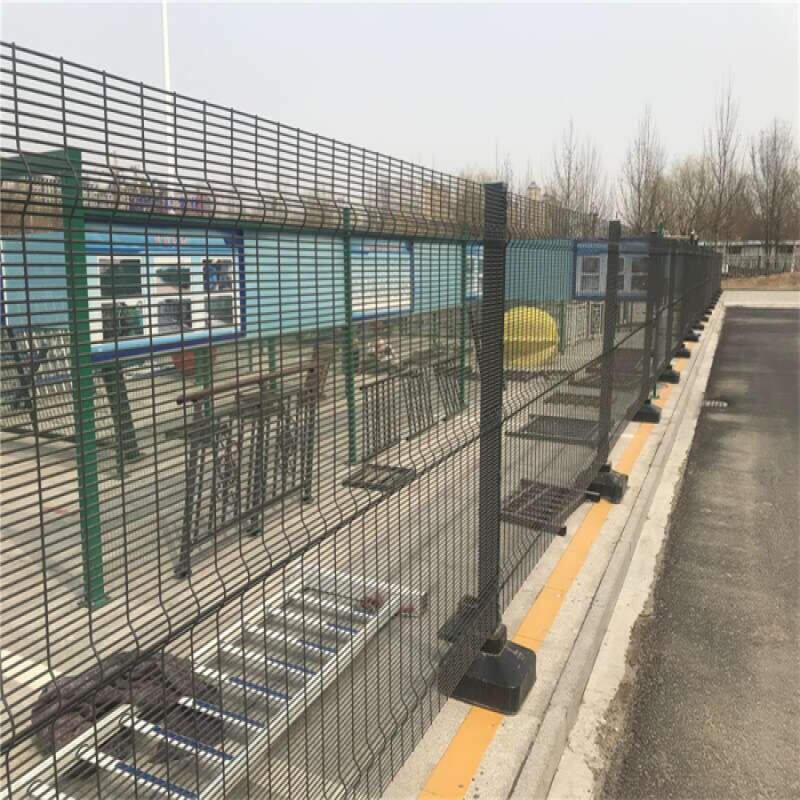

358 weldmesh fencing combines strong steel construction with a relatively unobtrusive appearance. Its open structure allows observation across the security boundary. Selected RAL finishes help the panels complement nearby buildings and landscaping.
 |

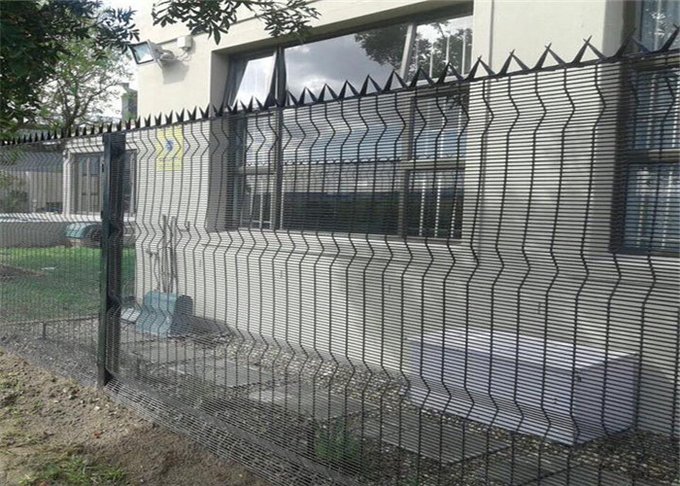

| Rigid welded security mesh provides closely spaced openings without creating an opaque perimeter wall. |
The appearance suits facilities that require both protection and clear surveillance visibility. Green finishes can complement landscaped properties, while black panels suit many contemporary buildings. Color selection should follow the project specification.
358 weldmesh fencing requires compatible structural components for reliable installation. BMP offers several panel heights with corresponding post sections and clamp bars. The following table preserves the original product dimensions.
| Fence Height | Panel Size (H × W) | Post (Length × Section × Wall) | Clamp Bar (H × W × Thickness) | Intermediate / Corner Fixings |
|---|---|---|---|---|
| 2.0 m | 2007 × 2515 mm | 2700 × 60 × 60 × 2.5 mm | 2007 × 60 × 5 mm | 7 / 14 |
| 2.4 m | 2400 × 2515 mm | 3100 × 60 × 60 × 2.5 mm | 2400 × 60 × 5 mm | 9 / 18 |
| 3.0 m | 2997 × 2515 mm | 3800 × 80 × 80 × 2.5 mm | 2997 × 80 × 6 mm | 11 / 22 |
| 3.3 m | 3302 × 2515 mm | 4200 × 80 × 80 × 2.5 mm | 3302 × 80 × 6 mm | 12 / 24 |
| 3.6 m | 3607 × 2515 mm | 4500 × 100 × 60 × 3 mm | 3607 × 100 × 7 mm | 13 / 26 |
| 3.6 m Alternate | 3607 × 2515 mm | 4500 × 100 × 100 × 3 mm | 3607 × 100 × 7 mm | 13 / 26 |
| 4.2 m | 4204 × 2515 mm | 5200 × 100 × 100 × 4 mm | 4204 × 100 × 8 mm | 15 / 30 |
| 4.5 m | 4496 × 2515 mm | 5500 × 100 × 100 × 5 mm | 4496 × 100 × 8 mm | 16 / 32 |
| 5.2 m | 5207 × 2515 mm | 6200 × 120 × 120 × 5 mm | 5207 × 100 × 8 mm | 18 / 36 |
These dimensions represent BMP's reference configurations. Actual structural suitability depends on loading conditions, foundations, and connection details. Qualified engineers should approve the final design.
| Parameter | Specification |
|---|---|
| Product | 358 Welded Steel Security Mesh |
| Common Description | Prison Mesh / Anti-Climb Fence |
| Steel Material | Low-Carbon Steel Wire |
| Nominal Wire Diameter | 4.0 mm |
| Mesh Centres | 76.2 × 12.7 mm |
| Standard Panel Width | 2515 mm |
| Reference Panel Heights | 2007–5207 mm |
| Post Type | Square or Rectangular Steel Sections |
| Connection | Clamp Bars and Security Fasteners |
| Metallic Coating | Galvanized Zinc / Specified Zinc-Aluminium Alloy |
| Optional Finish | Compatible Polymer Powder Coating |
| Popular Colors | RAL 6005 / RAL 9005 |
| Packaging | Protective Film and Export Pallets |
358 weldmesh fencing supports physical security through several complementary characteristics. Its narrow openings discourage climbing, while strong welded construction maintains panel stability. Appropriate fasteners help secure the assembly.
The small horizontal openings offer limited footholds. This feature increases the difficulty of ordinary climbing attempts. Security teams should still consider nearby walls, trees, and equipment.
Dense steel wires restrict access for many conventional hand-operated cutting tools. Strong intersections support the surrounding mesh. Specialized cutting equipment can still penetrate steel fencing.

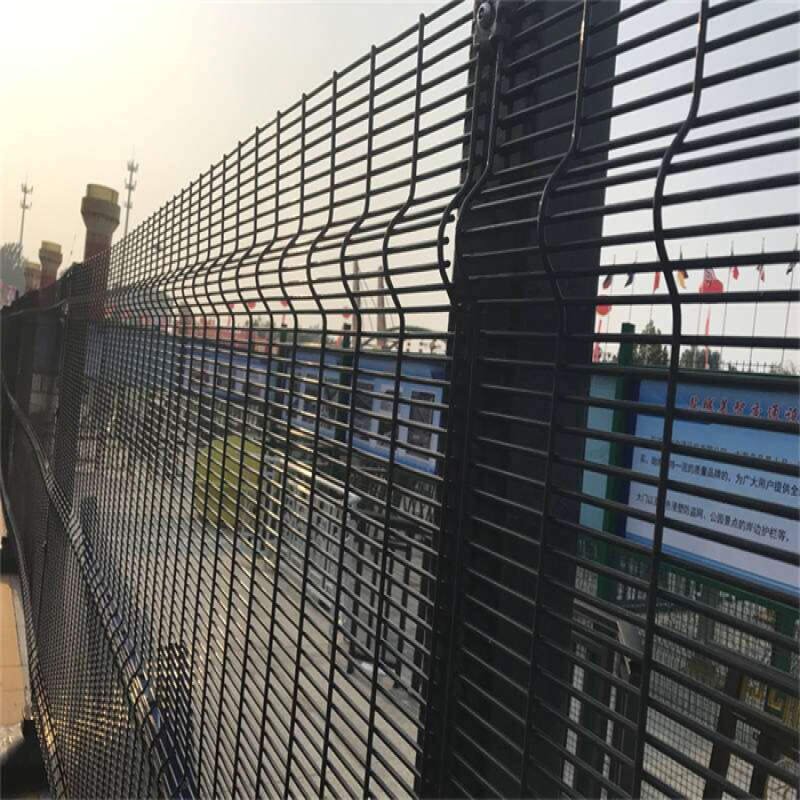

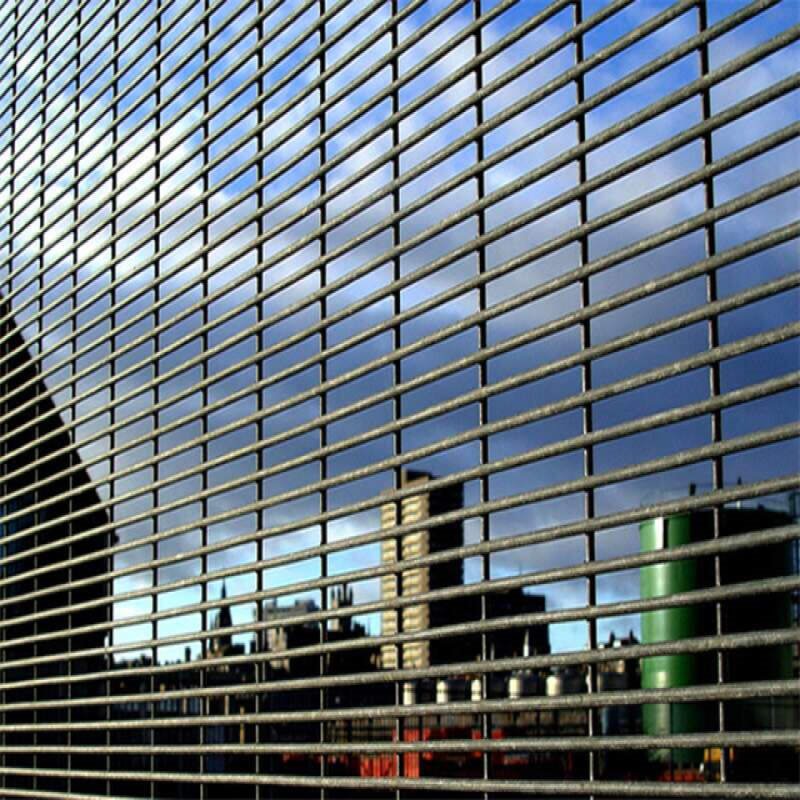

Open mesh allows security guards to observe surrounding activity. Cameras can monitor through the fence when installers select suitable mounting positions. Clear visibility also supports routine inspections.
Resistance welding creates numerous connected intersections. Consistent weld quality helps maintain panel geometry. Strong posts and connections complete the structural system.
Security managers can combine the perimeter with compatible detection equipment. Cameras, lighting, and controlled gates strengthen the security arrangement. System design should reflect actual operational requirements.

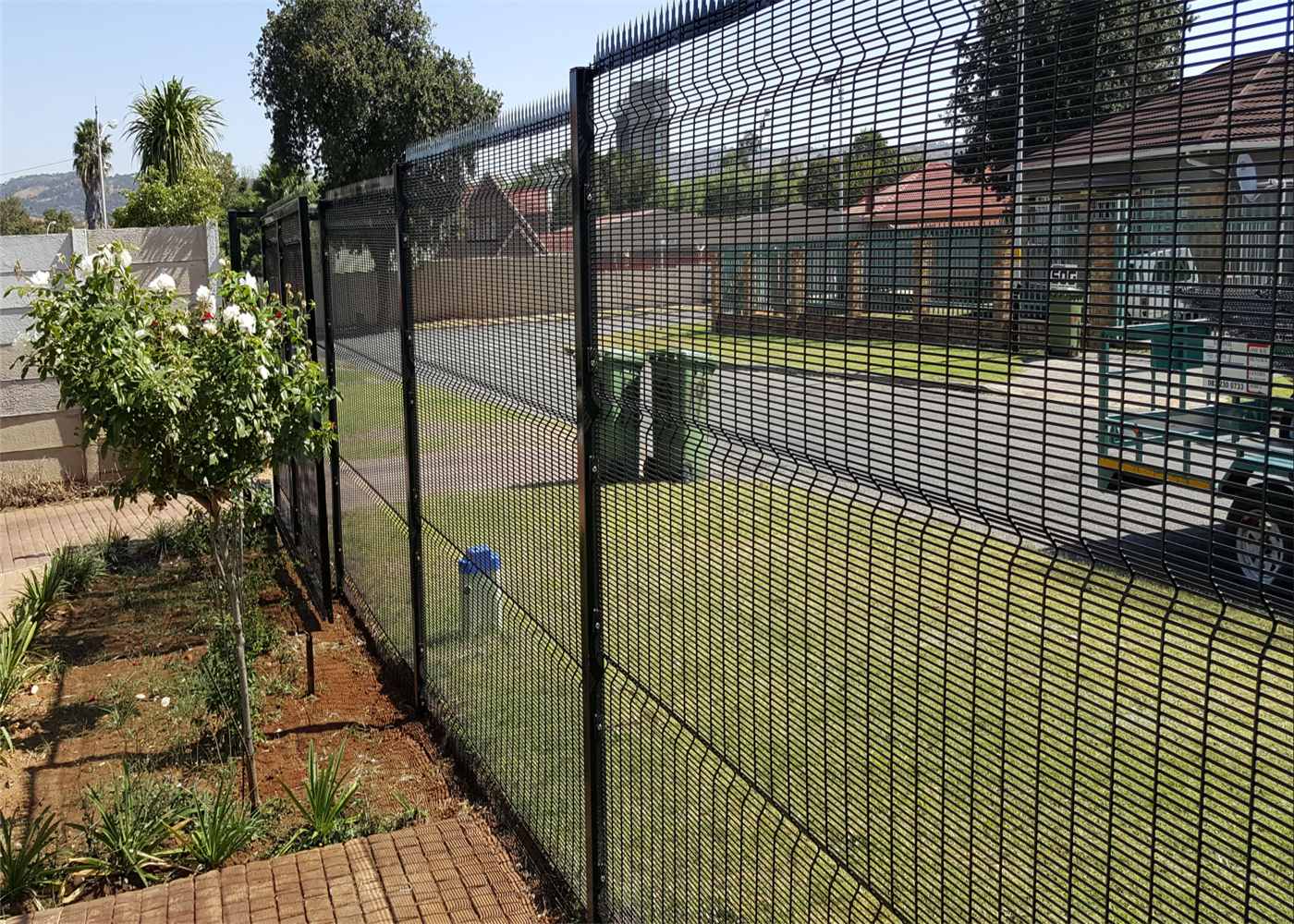

358 weldmesh fencing provides security without the heavy appearance of a solid concrete wall. Its slender wires and regular geometry create a visually consistent perimeter. Designers can coordinate panel colors with building exteriors.

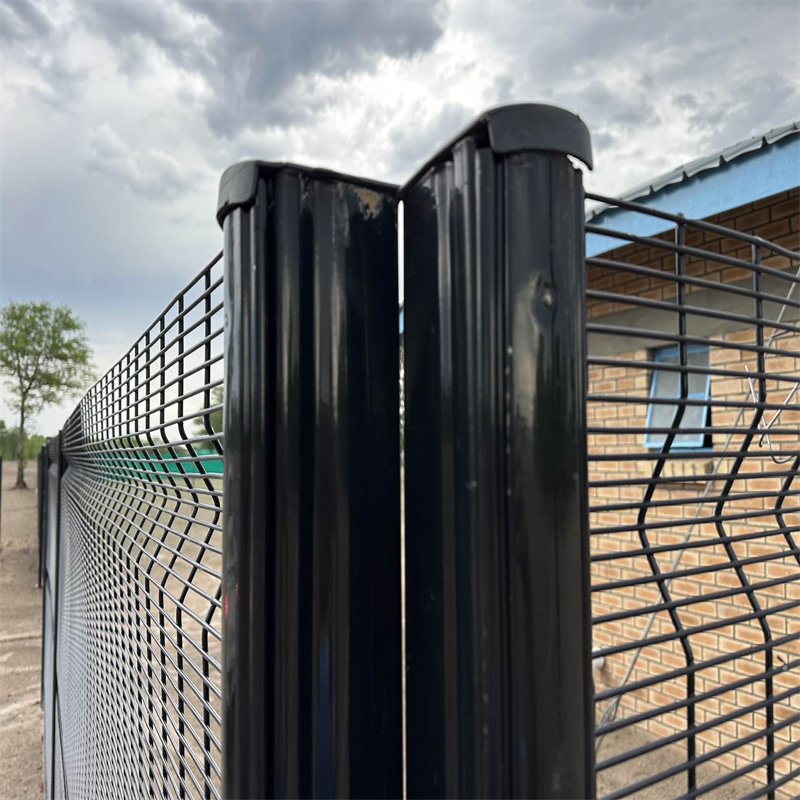

Black finishes may complement contemporary offices and residential developments. Green panels often suit landscaping and industrial compounds. The appropriate choice depends on architectural requirements.
Commercial facilities need clear boundaries that support daily operations. Security mesh provides controlled separation while preserving observation. Properly positioned gates maintain pedestrian and vehicle access.
Solid walls can obstruct surveillance and create hidden areas. Open fencing supports observation through the perimeter. Lighting and camera placement remain essential considerations.

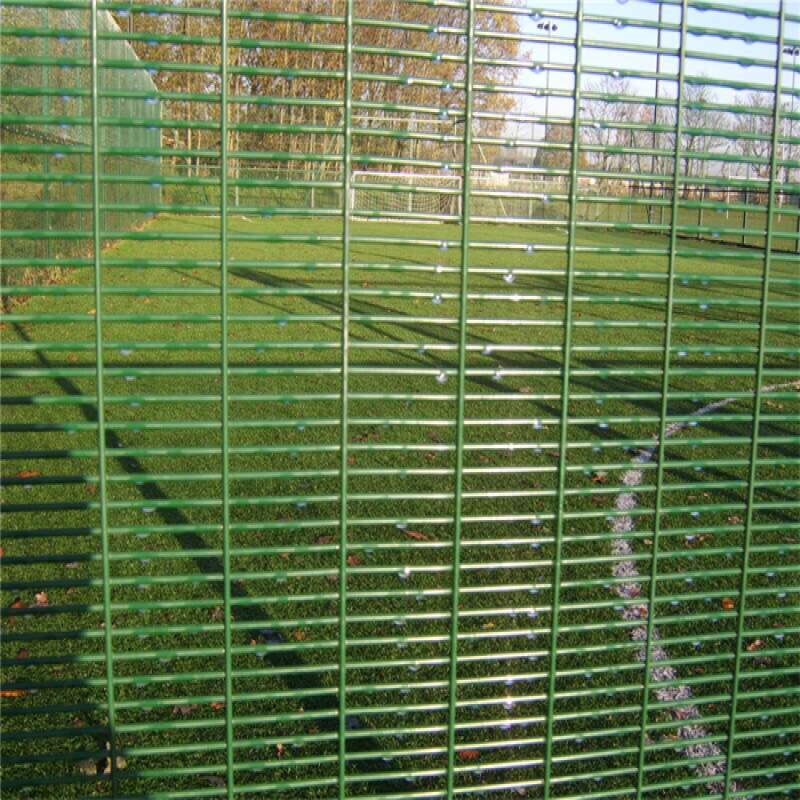

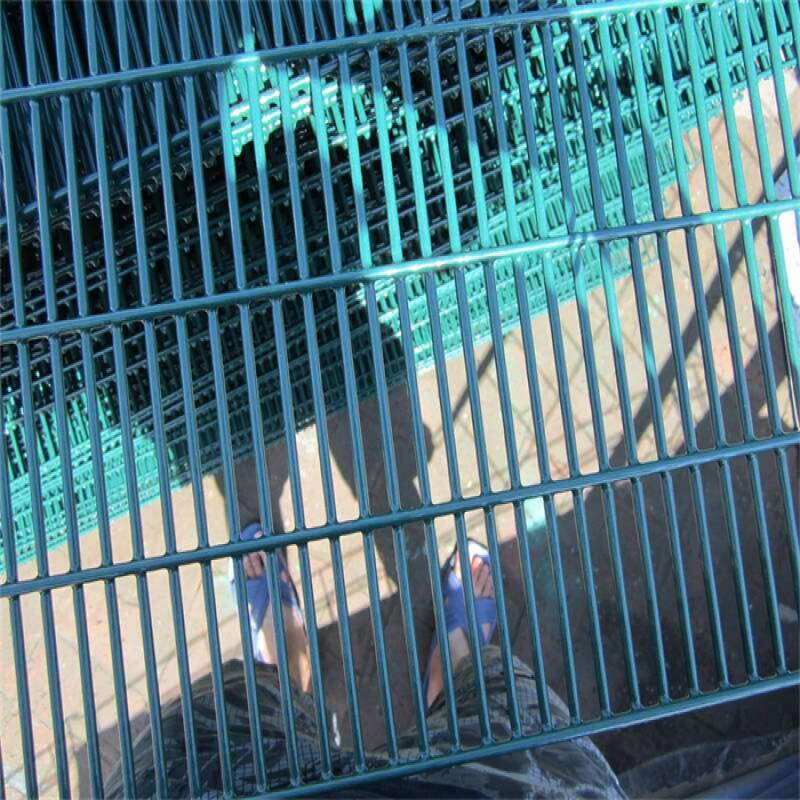

Green powder-coated panels can complement gardens and vegetation. Their narrow profile creates less visual obstruction than solid barriers. Property managers should still prevent vegetation from blocking inspections.
 |
 |
| Welded wire construction supports a strong perimeter while maintaining a relatively open appearance. | Suitable protective finishes help security panels complement surrounding buildings and outdoor facilities. |
358 weldmesh fencing relies on appropriate structural posts to transfer loads into the foundations. BMP offers square and rectangular hollow sections in several sizes. Taller panels generally require stronger support.

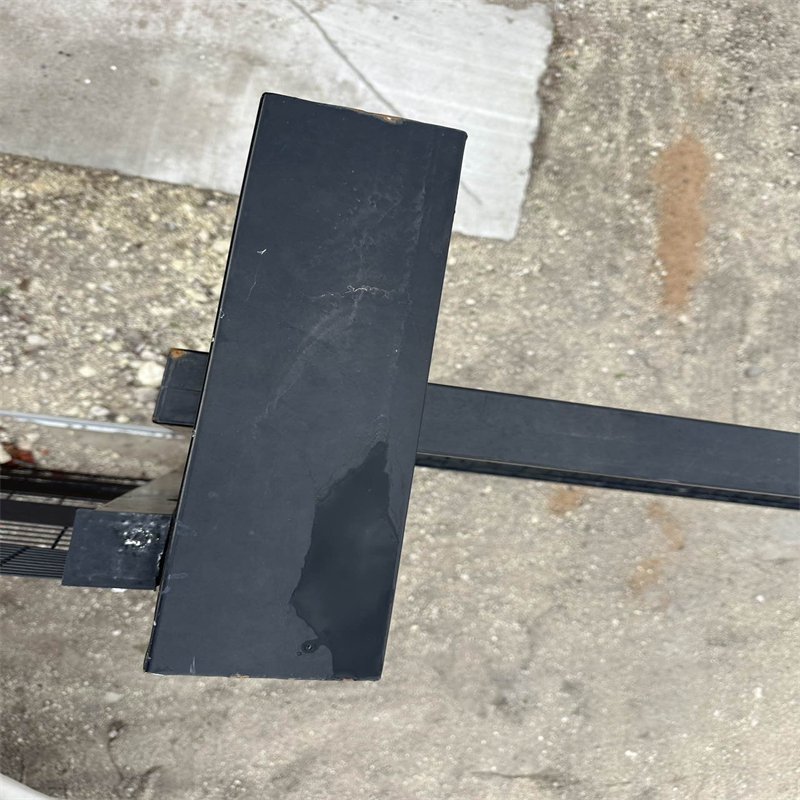

Square posts provide convenient flat mounting surfaces. Common reference sizes include 60 × 60 mm and 80 × 80 mm. Larger configurations may use 100 × 100 mm sections.
Rectangular sections offer different bending properties along their principal axes. BMP's reference range includes a 100 × 60 mm option. Engineers should confirm the correct structural orientation.

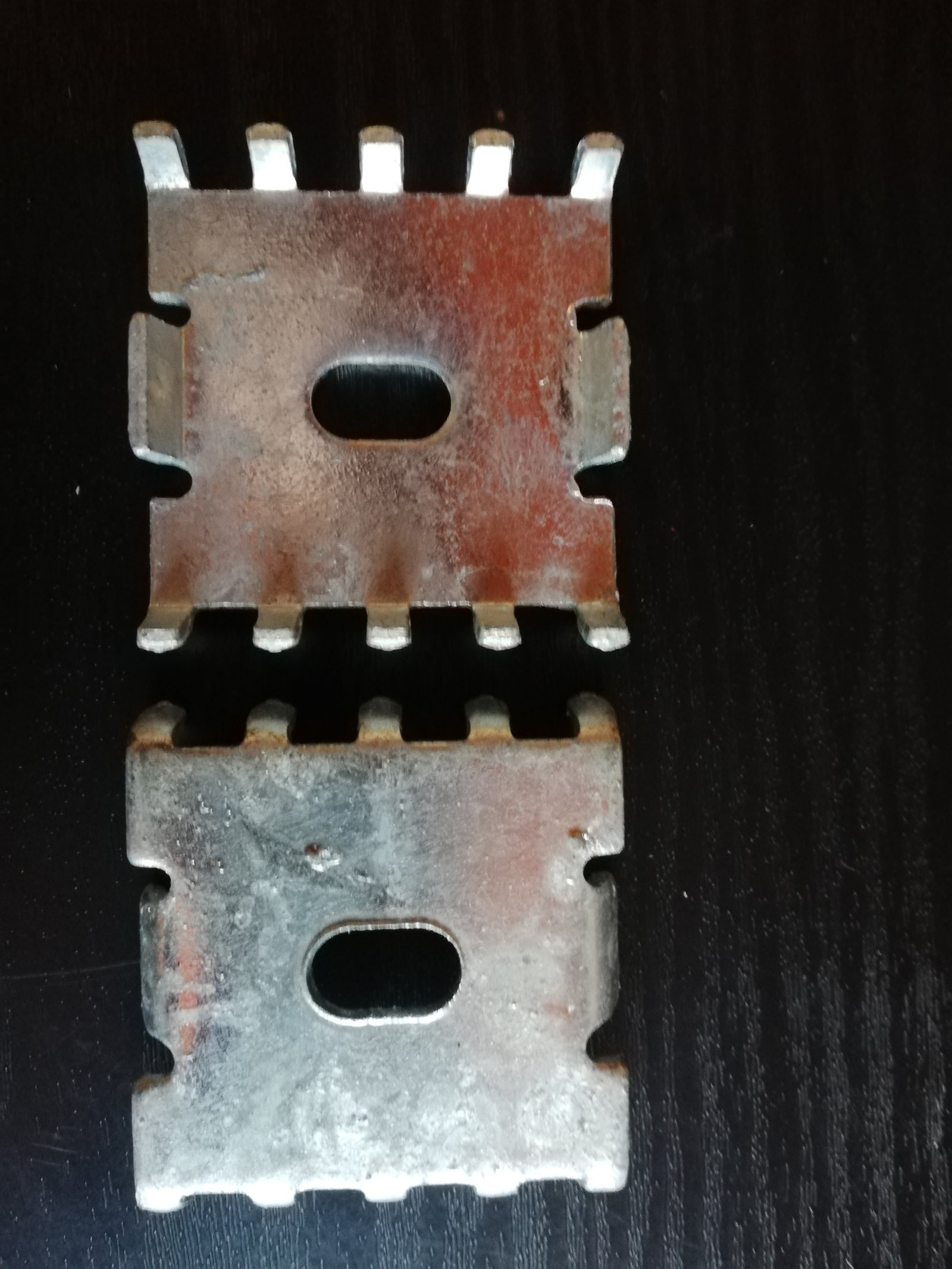

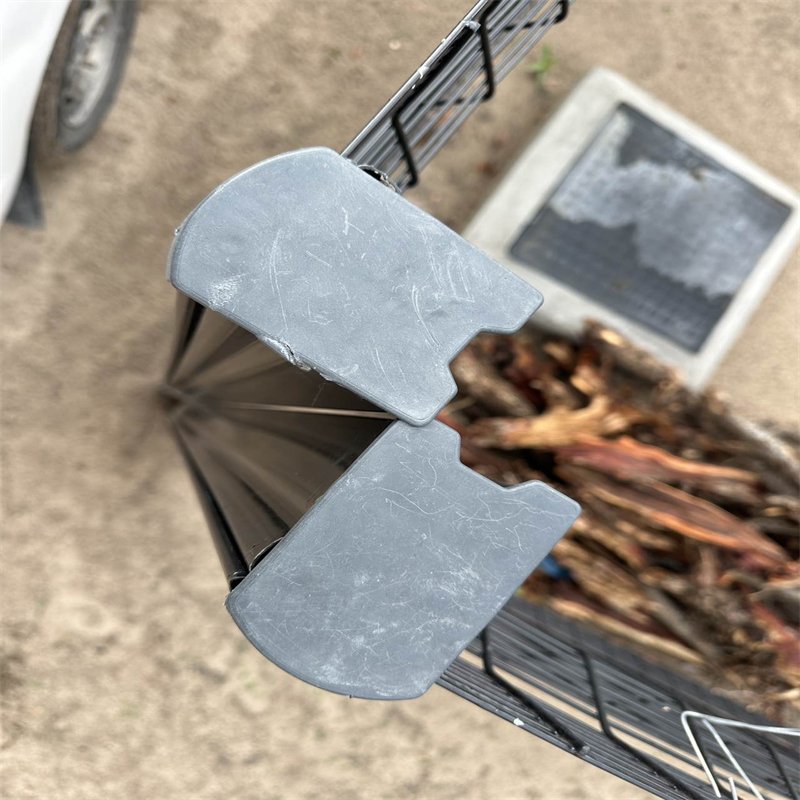

Steel clamp bars secure the mesh against its supporting posts. Their dimensions vary according to fence height. Suitable connection details help maintain continuous attachment.

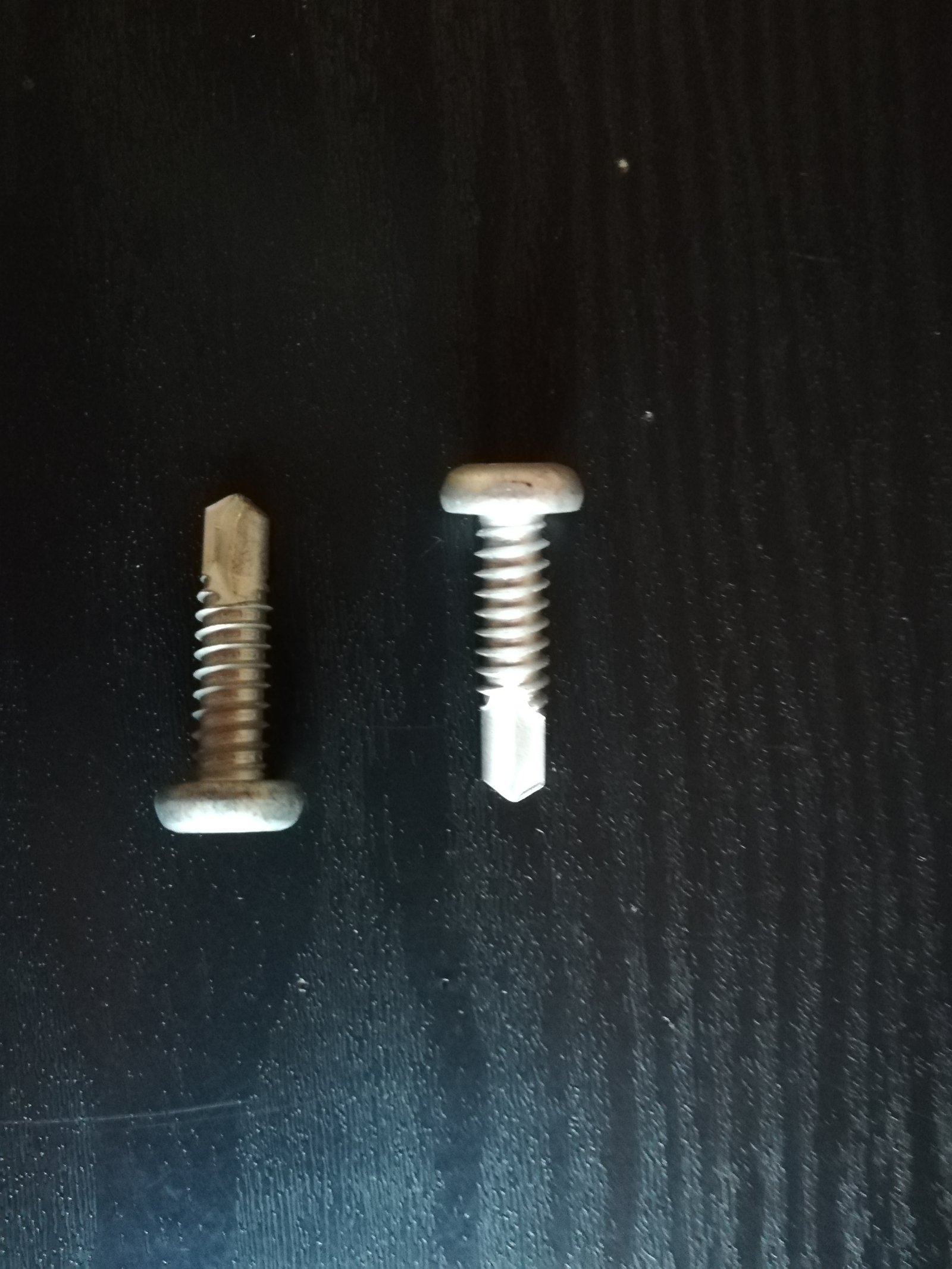

Specialized bolt heads can discourage unauthorized removal. Installation teams must use compatible tools and follow tightening requirements. Missing or loose fasteners may compromise the assembly.

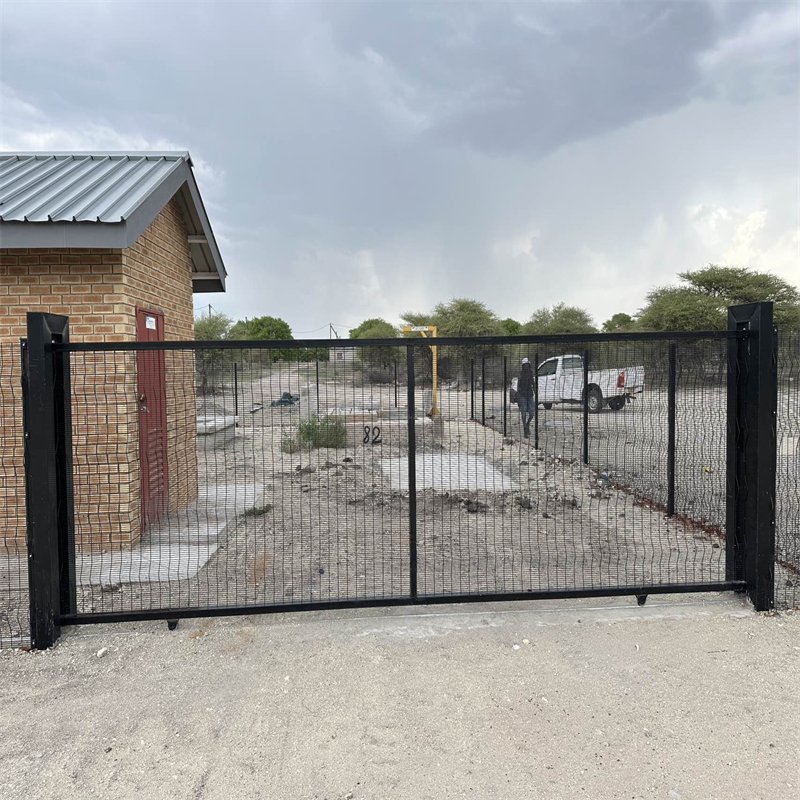

358 weldmesh fencing can connect with suitable pedestrian and vehicle gate systems. Gate frames must support the selected mesh and hardware. Wide entrances may require additional structural reinforcement.
Industrial facilities sometimes favor ClearVu fence sliding gates where vehicle movement requires controlled access. Gate dimensions should follow the approved project design.
358 weldmesh fencing quality begins with consistent steel wire preparation. Manufacturers must control wire diameter, spacing, welding, and panel dimensions. Each stage contributes to installation accuracy.
Production teams prepare straight steel wires according to the technical specification. Dimensional consistency supports accurate mesh geometry. Material quality also influences welding performance.
Welding equipment joins intersecting wires through controlled electrical resistance. Suitable settings help achieve consistent joints. Excessive heat or insufficient pressure can reduce quality.
Manufacturing teams must monitor panel flatness and dimensional accuracy. Excessive distortion can complicate installation. Quality checks help identify unsuitable panels before coating.
Inspectors should examine intersections for visible defects. Mechanical testing may form part of the approved quality plan. Testing criteria must match the product specification.
Metallic and organic coatings require suitable substrate conditions. Cleaning and pretreatment help support finish quality. Manufacturers should follow the selected coating process.
358 weldmesh fencing requires suitable corrosion protection for outdoor use. BMP offers galvanized and compatible polymer-coated configurations. Different environments may require different coating specifications.
Zinc coatings help protect steel against atmospheric corrosion. Zinc provides barrier protection and sacrificial action. Coating performance depends on processing quality and environmental exposure.
Galfan commonly contains approximately 95% zinc and 5% aluminium. The alloy provides useful corrosion-protection characteristics. Actual performance depends on coating mass and manufacturing conditions.
Compatible powder finishes offer decorative color and additional surface protection. Proper pretreatment improves adhesion. Buyers should specify coating thickness and acceptance requirements.
358 weldmesh fencing near the coastline may experience airborne salt and repeated moisture exposure. These conditions can accelerate corrosion. Appropriate protective finishes help reduce deterioration risks.
Marine environments also require careful attention to fasteners and post bases. Routine cleaning may remove accumulated contaminants. Regular inspections support long-term maintenance.
358 weldmesh fencing can support security around Durban's industrial warehouses and logistics facilities. The coastal climate combines warm humidity with maritime activity. Salt exposure creates additional corrosion challenges for outdoor steel.
Port-related properties often store valuable cargo, equipment, and vehicles. Unauthorized access may create financial losses or operational disruption. Secure perimeter boundaries support access control and surveillance.
Salt deposits can accumulate on exposed steel surfaces. Suitable coatings help protect vulnerable areas. Maintenance teams should inspect fasteners and posts regularly.
Logistics compounds require vehicle entrances and pedestrian access points. Strong gates help manage movement through the perimeter. Security cameras can monitor loading areas.
358 weldmesh fencing provides narrow openings and practical visibility around restricted storage areas. The open structure supports observation without creating a solid wall.
Property managers can also compare ClearVu fence panels for alternative mesh arrangements. Final selection should reflect security and environmental requirements.
358 weldmesh fencing installations around Cape Town face varying marine and wind exposure. Coastal locations may experience salt-laden air and strong winds. Engineers must evaluate structural loading and corrosion protection separately.
Taller panels can create greater bending demands on supporting posts. Wind conditions vary across coastal and inland sites. Structural calculations should guide post and foundation selection.
Marine exposure may shorten coating life when the protective system lacks suitable durability. Appropriate material selection reduces this risk. Regular maintenance remains important.
Selected properties require clear boundaries and controlled access. Welded mesh maintains visibility while discouraging ordinary climbing. Gate systems and surveillance equipment provide additional protection.

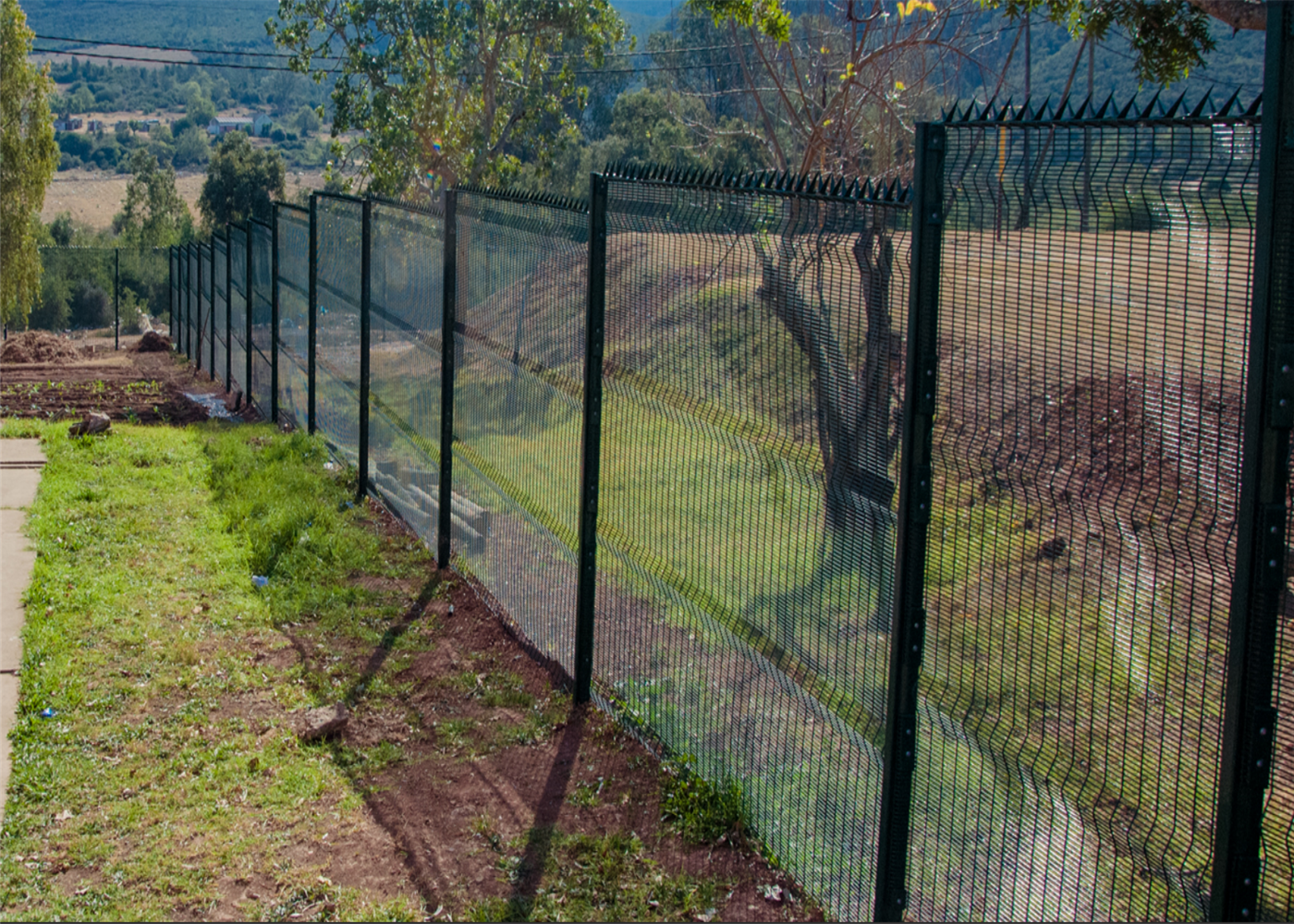

358 weldmesh fencing also suits inland industrial locations where property security represents an important concern. Johannesburg contains extensive logistics and manufacturing operations. Pretoria includes institutional facilities, commercial developments, and industrial compounds.
Warehouses may contain valuable stock and machinery. Unauthorized access can cause financial losses. Strong perimeter fencing supports monitored storage boundaries.
Manufacturing facilities often need restricted areas around expensive equipment. Welded steel mesh provides physical separation without blocking observation. Controlled gates support normal operations.
358 weldmesh fencing can help define restricted areas around selected institutional properties. Designers should balance security with emergency access and pedestrian safety.
Security risks vary by property and neighborhood. A site-specific assessment provides a better basis for fence design.
358 weldmesh fencing serves facilities where unauthorized entry can create significant security consequences. These applications require careful structural design and access management.
Prisons require controlled perimeter boundaries and effective observation. Narrow mesh can discourage climbing and tampering. Additional monitoring measures may strengthen protection.
Military compounds need boundaries around restricted operational areas. Security fencing can support layered access control. Project requirements must follow the responsible authority's specifications.
Airport perimeters separate public areas from restricted operations. Welded security mesh helps establish physical boundaries. Aviation requirements determine the final installation design.
Substations contain equipment that presents serious hazards. Strong fencing helps restrict unauthorized access. Engineers must also verify electrical safety requirements.
Water infrastructure may require protection around pumps, controls, and treatment equipment. Security mesh helps establish controlled technical areas. Maintenance access remains important.
Railway operators manage depots, maintenance facilities, and restricted equipment. Durable fencing supports separation from public access. Installation must respect transport safety requirements.

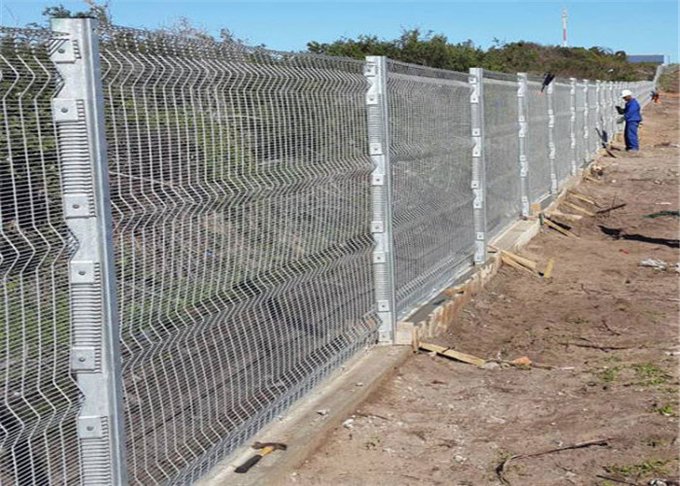

358 weldmesh fencing requires accurate surveying and suitable construction methods. Proper post alignment helps prevent installation difficulties. Contractors should follow approved technical drawings.
Measure the proposed fence alignment and identify gates, corners, and terrain changes. Check underground utilities before excavation.
Use the approved connection arrangement to determine spacing. Nominal panel width does not always equal installed post centres.
Excavate according to structural calculations. Soil conditions and wind loads influence foundation dimensions.
Install posts vertically and maintain accurate alignment. Temporary support may help during concrete placement.
Lift panels with suitable equipment. Align the mesh before securing its edges. Avoid damaging protective finishes.
Install compatible security fasteners and brackets. Follow approved tightening instructions. Check each connection before proceeding.
Review alignment, coating condition, gate movement, and fastener security. Complete necessary repairs before final acceptance.
358 weldmesh fencing procurement starts with accurate boundary measurements. Buyers must calculate panel quantities, posts, clamp bars, and security fasteners. Gates and corners require separate attention.
Measure the complete perimeter and deduct planned openings. Separate individual straight runs for accurate calculations.
Use manufacturer drawings to establish the correct post centres. Connection geometry can influence the installed module.
Divide each straight section by its approved spacing. Review remaining lengths for partial panels.
A straight run generally requires one more post than its number of bays. Shared corners can change the total.
Use the approved fixing schedule for the selected height. Include gate hardware and special connection components.
Consider a straight security boundary measuring 150 metres. Assume an approved installed bay spacing of 2.5 metres for illustration.
| Calculation | Illustrative Result |
|---|---|
| Total Length | 150 m |
| Assumed Bay Spacing | 2.5 m |
| Number of Bays | 60 |
| Panel Quantity | 60 |
| Post Positions | 61 |
| Clamp Bars | According to Approved Drawings |
| Security Fasteners | According to Fixing Schedule |
This example excludes gates and special corners. Actual spacing must follow the selected manufacturer's installation design.

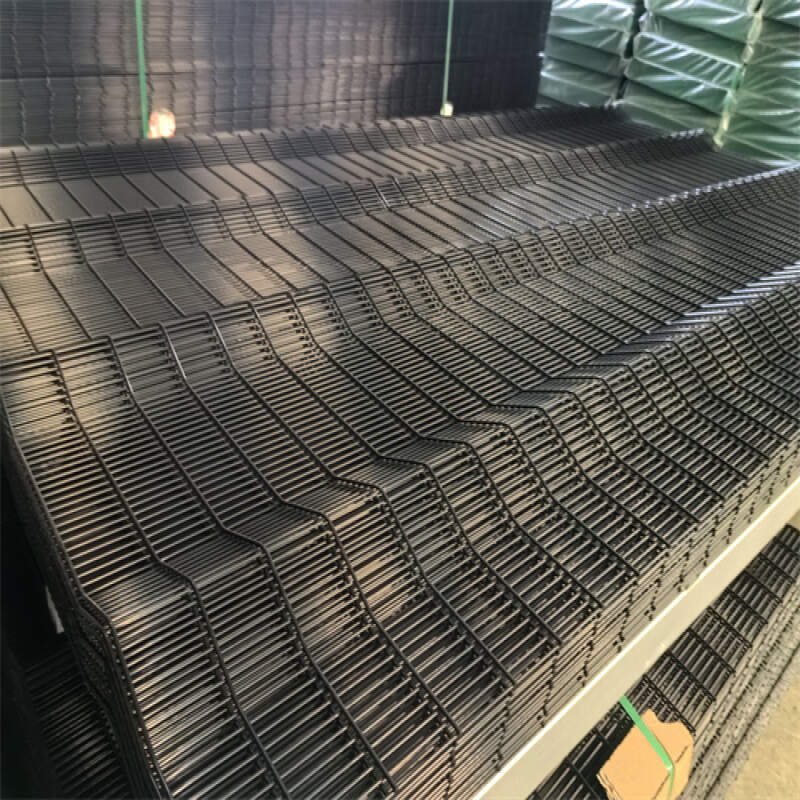

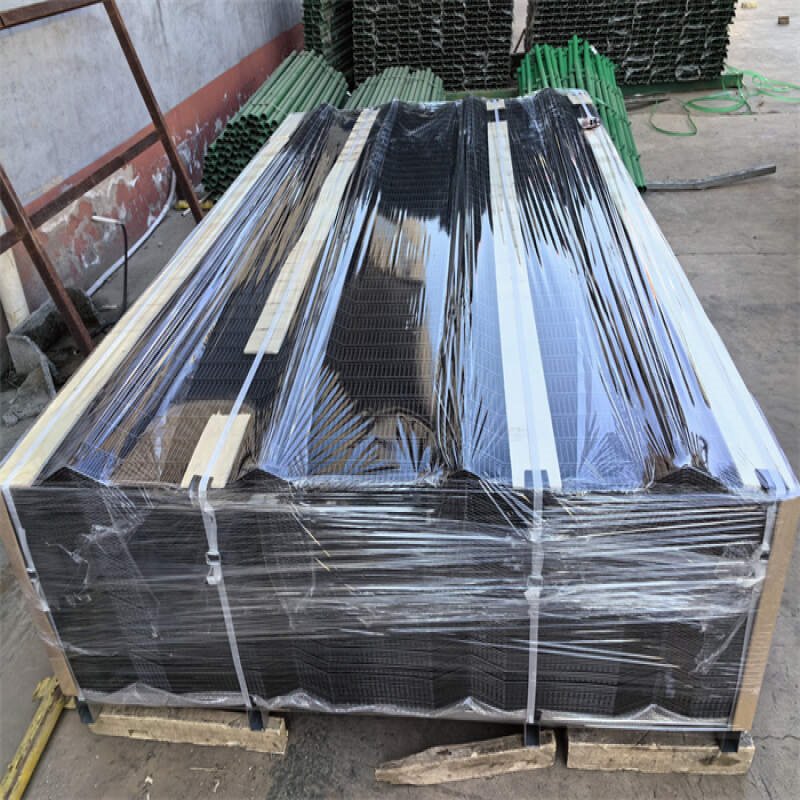

358 weldmesh fencing requires suitable packaging during factory loading and international transportation. BMP can arrange steel pallets, protective materials, and secure bundle preparation.
Protective materials help reduce abrasion between adjacent panels. Coated surfaces require careful handling during stacking.

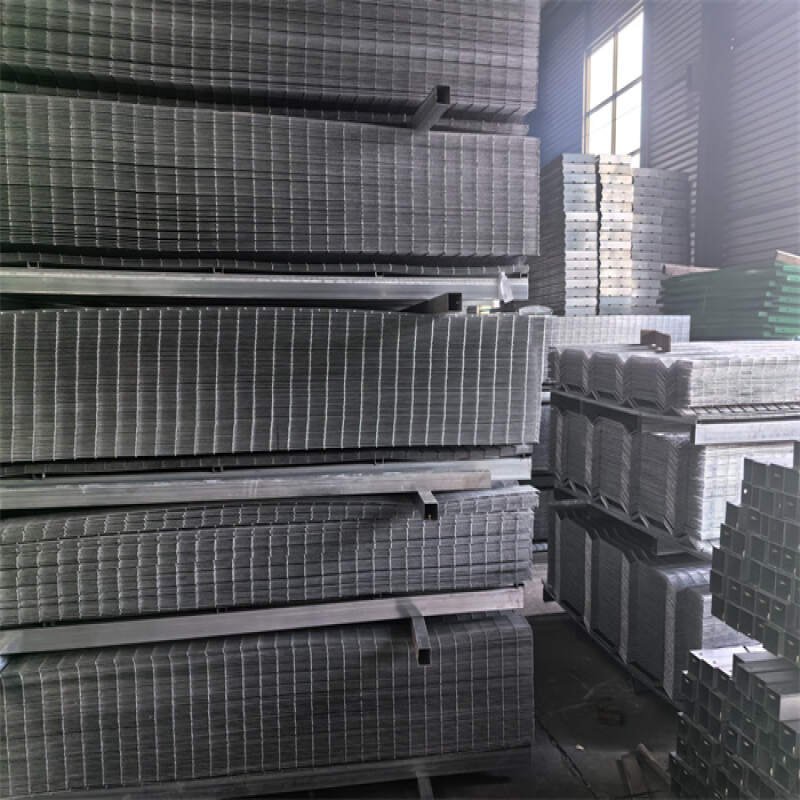

Metal pallets support organized handling and container loading. Pallet strength must match the cargo weight.
Reinforced packaging corners can reduce contact damage. Stable bundles help prevent movement during transportation.
Shipping teams must respect container payload and restraint requirements. Panel dimensions influence loading efficiency.
Clamp bars, bolts, caps, and brackets need clear labeling. Accurate packing lists simplify destination inventory checks.
 |
| Welded security panels need stable support and protective packing to reduce handling and transportation damage. |
358 weldmesh fencing buyers should establish manufacturing inspection requirements before production. Consistent checks help verify steel dimensions, welding quality, coating condition, and accessory compatibility.
| Inspection Item | Recommended Verification |
|---|---|
| Wire Diameter | Measure horizontal and vertical steel wires. |
| Mesh Spacing | Verify centre-to-centre dimensions. |
| Welded Intersections | Inspect consistency and required mechanical tests. |
| Panel Dimensions | Check height, width, and squareness. |
| Steel Posts | Verify section dimensions and wall thickness. |
| Clamp Bars | Confirm thickness, length, and hole locations. |
| Fasteners | Check diameter, type, and quantity. |
| Surface Coatings | Inspect appearance and specified coating properties. |
| Export Packaging | Verify protective materials and pallet security. |
358 weldmesh fencing depends on consistent welded intersections. Poor joints can reduce panel rigidity. Manufacturers should use suitable welding controls and inspection methods.
Metallic coating requirements depend on the selected process. Polymer finishes may need separate thickness and adhesion checks. Buyers should request appropriate documentation.
Accurate panel dimensions simplify installation. Customers should agree on tolerances before manufacturing begins.
358 weldmesh fencing offers durable construction when manufacturers use suitable materials and protective coatings. However, no outdoor steel fence remains completely maintenance-free under every condition.
Check intersections for corrosion, damage, or deformation. Early attention can prevent further deterioration.
Loose or missing hardware can weaken connections. Replace defective components with compatible parts.
Repair scratches and exposed steel with approved materials. Coastal sites may require more frequent inspection.
Overgrown plants can obstruct surveillance and routine maintenance. Keep important inspection routes accessible.
Inspect hinges, locks, and automated equipment regularly. Reliable movement supports security and emergency access.
358 weldmesh fencing from BMP can qualify for a 15-year manufacturer warranty under the applicable product terms. Warranty coverage depends on the specified system and contractual conditions.
Customers should review exclusions, environmental requirements, and maintenance responsibilities before ordering. A warranty does not eliminate the need for inspections or appropriate care.
358 weldmesh fencing costs depend on steel consumption, panel dimensions, surface treatment, and accessories. Buyers should compare complete systems rather than panel-only prices.
Thicker steel wires increase material consumption. Quotations should use equivalent specifications for meaningful comparisons.
Taller panels require more steel and potentially stronger posts. Their dimensions may also affect transportation costs.
Different coatings involve different processing requirements. Buyers should match finishes to expected exposure.
Posts, clamp bars, bolts, and gates contribute to project expenditure. Confirm the complete supply scope before comparing prices.
Container utilization, destination, and local installation conditions influence total costs. Foundation construction may represent a significant additional expense.
Customers can compare related Clear View fence price per meter information during budgeting. Actual 358 quotations require individual technical specifications.
358 weldmesh fencing purchases can encounter problems when technical requirements remain incomplete. Buyers should confirm all important details before manufacturing.
Nominal dimensions usually refer to wire centres. Actual openings are smaller. Buyers should identify the measurement convention.
Strong wire alone does not guarantee reliable panels. Welding consistency contributes to structural performance.
Different panel heights require different structural support. Engineers should approve the selected post arrangement.
Missing bolts or brackets can delay installation. A complete material schedule reduces this risk.
Different galvanizing processes provide different protective characteristics. Buyers should confirm coating specifications rather than relying on generic descriptions.
Outdoor steel requires periodic inspection. Coating damage and loose hardware may require repair.
The designation describes three inches, half an inch, and eight-gauge wire. These values correspond approximately to 76.2 × 12.7 mm spacing and 4 mm steel.
The narrow openings discourage ordinary climbing. Correctional facilities often use similar welded security systems.
Dense openings restrict access for many conventional cutting tools. Specialized equipment can still damage steel fencing.
BMP's reference range commonly uses 2515 mm panels. Custom dimensions require manufacturing confirmation.
Yes, the catalogue includes taller configurations. Engineers must verify their structural suitability.
Popular finishes include RAL 6005 green and RAL 9005 black. Other colors may suit specific projects.
BMP can quote compatible structural posts, clamp bars, and fastening components. Buyers should confirm the complete package.
Yes, open welded construction supports surveillance visibility. Camera positioning and lighting remain important.
Suitable corrosion-protection systems can support coastal applications. Buyers should consider marine exposure and maintenance requirements.
Compatible gates can support controlled vehicle access. Structural requirements depend on the opening width and operating method.
Yes, periodic inspections help identify coating damage and connection problems. Maintenance needs vary with environmental exposure.
Use approved post spacing and actual boundary measurements. Include gates, corners, and special sections.
Wire diameter, panel size, coating, accessories, and delivery terms influence costs.
Customers can request alternative dimensions and finishes. Technical approval determines manufacturing feasibility.
Share fence length, panel height, coating requirements, accessories, and destination. Technical drawings improve quotation accuracy.
358 weldmesh fencing projects require consistent manufacturing and reliable technical communication. BMP supplies security mesh panels alongside structural posts, fastening components, and selected finishes.
Our team helps customers review panel dimensions, coating systems, and installation accessories. Clear specifications improve production planning and reduce unnecessary site modifications.
For alternative designs, ClearVu fence panels offer different mesh configurations. Compatible ClearVu fence posts also support selected related applications.
Temporary pedestrian management sometimes requires crowd control barriers around construction and event areas. These products serve different functions from permanent security fencing.
358 weldmesh fencing combines narrow welded mesh, durable steel construction, and practical surveillance visibility. These features make it suitable for demanding industrial, institutional, and infrastructure applications.
Successful projects require suitable posts, secure fasteners, appropriate coatings, and professional installation. Routine inspection also contributes to long-term performance.
BMP offers multiple panel heights, matching accessories, and export packaging arrangements. Our team can review specifications and prepare project-specific quotations.
Contact BMP to discuss your 358 weldmesh fencing requirements and request a detailed technical quotation.
