clearview fencing dundee offers practical perimeter protection for homes, farms, industrial compounds, schools, and commercial properties in northern KwaZulu-Natal. BMP manufactures welded steel security panels with several mesh openings, panel widths, and supporting post configurations. Our range includes fine anti-climb mesh, lighter commercial panels, tapered posts, IPE posts, and square hollow sections. Moreover, galvanized and powder-coated finishes help protect steel against seasonal rainfall and outdoor exposure. Consequently, property owners can balance visibility, security, and architectural appearance.
Dundee lies within Endumeni Local Municipality in the uMzinyathi District. Its economy includes agriculture, livestock farming, commercial services, and a long history of coal mining. Meanwhile, nearby Glencoe and Wasbank contribute to the region's wider agricultural and industrial activities. These environments create different requirements for property boundaries, equipment compounds, and controlled entrances.
Dundee combines established residential neighbourhoods, agricultural properties, industrial activity, and historical tourism facilities. Consequently, perimeter fencing must accommodate different security and operational requirements.
Fine welded mesh offers useful visibility across property boundaries. Furthermore, suitable gates allow controlled access without creating unnecessary visual barriers.
However, a successful installation also depends on post strength, foundation design, and protective coatings.
Dundee experiences warm summers and cooler, relatively dry winters. Summer rainfall often arrives through thunderstorms across northern KwaZulu-Natal.
Consequently, drainage becomes important around fence foundations and vehicle entrances. Meanwhile, winter frost may influence construction schedules and exposed surfaces.
Therefore, contractors should assess ground conditions before installation rather than rely on standard footing dimensions alone.
Dundee has strong historical connections with coal mining. Consequently, industrial workshops and equipment compounds remain relevant applications for security fencing.
Welded mesh can help separate restricted storage areas from public access routes. Furthermore, open panels support observation across machinery yards.
However, active mining facilities may require specialized security and safety specifications.
Local agriculture includes cattle farming, sheep farming, dairy operations, and crop production. Consequently, farm security often centres on workshops and equipment storage.
Fine mesh can help protect machinery compounds and residential areas. Meanwhile, wide gates support agricultural vehicle access.
However, ordinary security mesh should not automatically replace species-specific livestock fencing.
BMP offers several panel widths, heights, and wire configurations. Consequently, customers can match the fencing system to site dimensions.
| Specification | Available Options |
|---|---|
| Panel Width | 2900mm, 2950mm, 3000mm, 3050mm |
| Standard Height Range | 1800mm, 2000mm, 2100mm, 2200mm, 2400mm, 3000mm |
| Additional Panel Heights | 1200mm, 1500mm, selected configurations |
| Reference Coated Wire Diameter | 3.5mm |
| Alternative Wire Combination | 3mm horizontal wire and 4mm vertical wire |
| Fine Security Mesh | 76.2 × 12.7mm |
| Alternative Mesh | 25 × 75mm, 50 × 100mm, and other configurations |
| Surface Finish | ZincAlume, powder coating, PVC coating |
| Customization | Panel dimensions, wire specifications, posts, and gates |
The original product range also includes five specific mesh configurations. However, their security performance differs because opening dimensions vary.
Mesh aperture describes the spacing between adjacent steel wires. However, suppliers may report centre spacing or clear opening dimensions.
Consequently, buyers should confirm the measurement convention before manufacturing.
Wire diameter influences panel weight, stiffness, and cutting resistance. Meanwhile, coating thickness can affect the finished diameter measurement.
Therefore, purchase specifications should distinguish bare steel diameter from coated wire diameter.

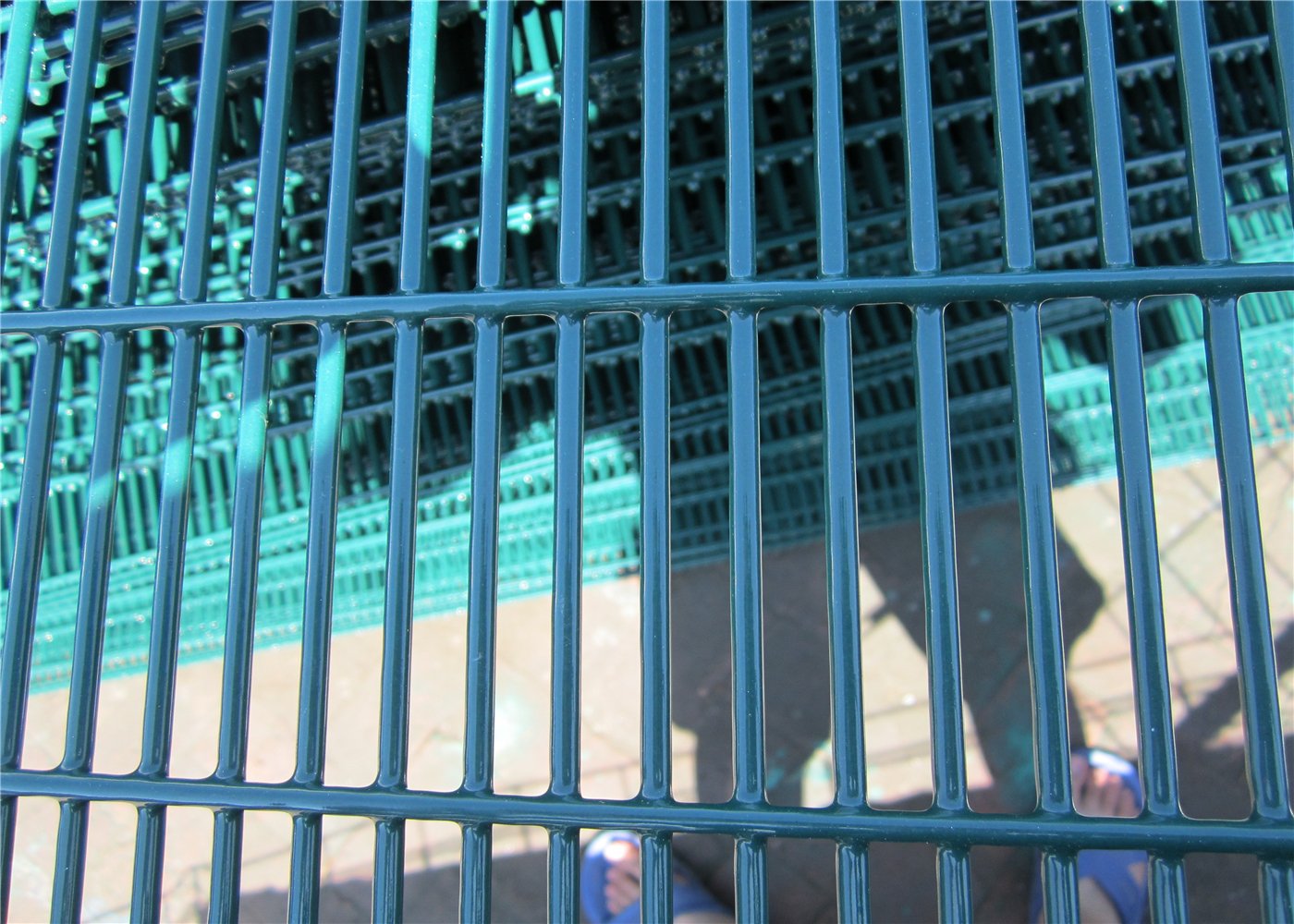

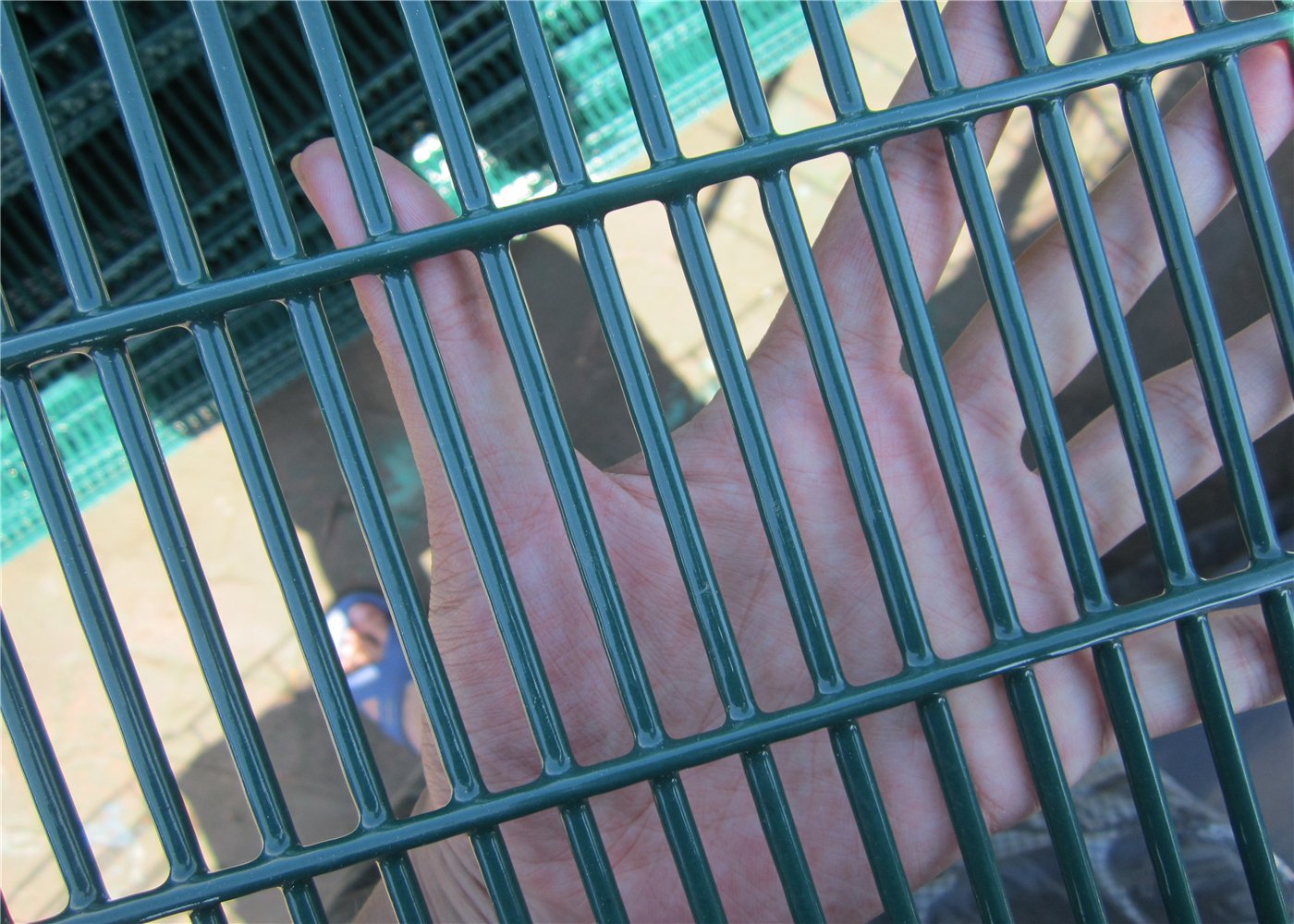

This fine mesh configuration provides narrow openings suitable for selected anti-climb applications. Consequently, it offers fewer convenient fingerholds than wider mesh.
| Feature | Specification |
|---|---|
| Panel Length | 3050mm |
| Panel Heights | 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, 3000mm |
| Mesh Opening | 76mm × 12.7mm |
| Horizontal Wire | 3mm |
| Vertical Wire | 4mm |
| Surface Finish | ZincAlume, Powder Coated, or PVC |
The narrow horizontal spacing discourages convenient climbing holds. Furthermore, welded intersections help maintain panel geometry.
However, security performance also depends on post connections and the surrounding environment.
This configuration increases one mesh dimension while retaining the original wire arrangement. Consequently, buyers should assess its suitability for commercial boundaries.
| Feature | Specification |
|---|---|
| Panel Length | 3050mm |
| Panel Heights | 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, 3000mm |
| Mesh Opening | 76mm × 25mm |
| Horizontal Wire | 3mm |
| Vertical Wire | 4mm |
| Surface Finish | ZincAlume, Powder Coated, or PVC |
Wider openings can reduce wire consumption in selected configurations. However, they also change climbing resistance and physical security characteristics.
The 76 × 50mm configuration provides a more open welded pattern. Consequently, it may suit selected commercial and general boundary applications.
| Feature | Specification |
|---|---|
| Panel Length | 3050mm |
| Panel Heights | 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, 3000mm |
| Mesh Opening | 76mm × 50mm |
| Horizontal Wire | 3mm |
| Vertical Wire | 4mm |
| Surface Finish | ZincAlume, Powder Coated, or PVC |
This option offers greater visual openness than fine 358 mesh. However, buyers should not treat it as an equivalent anti-climb configuration.
This wider aperture offers a different balance between visibility and physical separation. Consequently, it generally suits less demanding security applications.
| Feature | Specification |
|---|---|
| Panel Length | 3050mm |
| Panel Heights | 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, 3000mm |
| Mesh Opening | 76mm × 100mm |
| Horizontal Wire | 3mm |
| Vertical Wire | 4mm |
| Surface Finish | ZincAlume, Powder Coated, or PVC |
Large openings provide more accessible handholds than fine security mesh. Therefore, high-security buyers should compare alternative configurations carefully.
This configuration provides another welded mesh alternative for selected boundary projects. Consequently, customers can compare panel weight and visibility requirements.
| Feature | Specification |
|---|---|
| Panel Length | 3050mm |
| Panel Heights | 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, 3000mm |
| Mesh Opening | 50mm × 100mm |
| Horizontal Wire | 3mm |
| Vertical Wire | 4mm |
| Surface Finish | ZincAlume, Powder Coated, or PVC |
Its larger apertures differ significantly from traditional 358 mesh. Therefore, customers should define the required security grade before ordering.
Different mesh openings provide different levels of physical restriction. Consequently, the narrowest configuration is not always necessary for every project.
| Mesh Configuration | Relative Opening Size | Potential Application | Selection Consideration |
|---|---|---|---|
| 76 × 12.7mm | Very narrow | Higher-security perimeter | Restricts convenient climbing holds |
| 76 × 25mm | Narrow | Selected commercial security | Requires project-specific assessment |
| 76 × 50mm | Medium | General commercial boundaries | Greater physical openness |
| 76 × 100mm | Wide | General boundary separation | Not equivalent to fine anti-climb mesh |
| 50 × 100mm | Wide | Selected general fencing | Evaluate climbing and access risks |
For higher-security boundaries, 358 Mesh Fencing Panels provide a fine-aperture alternative. Meanwhile, 358 Welded Mesh includes additional panel structures.

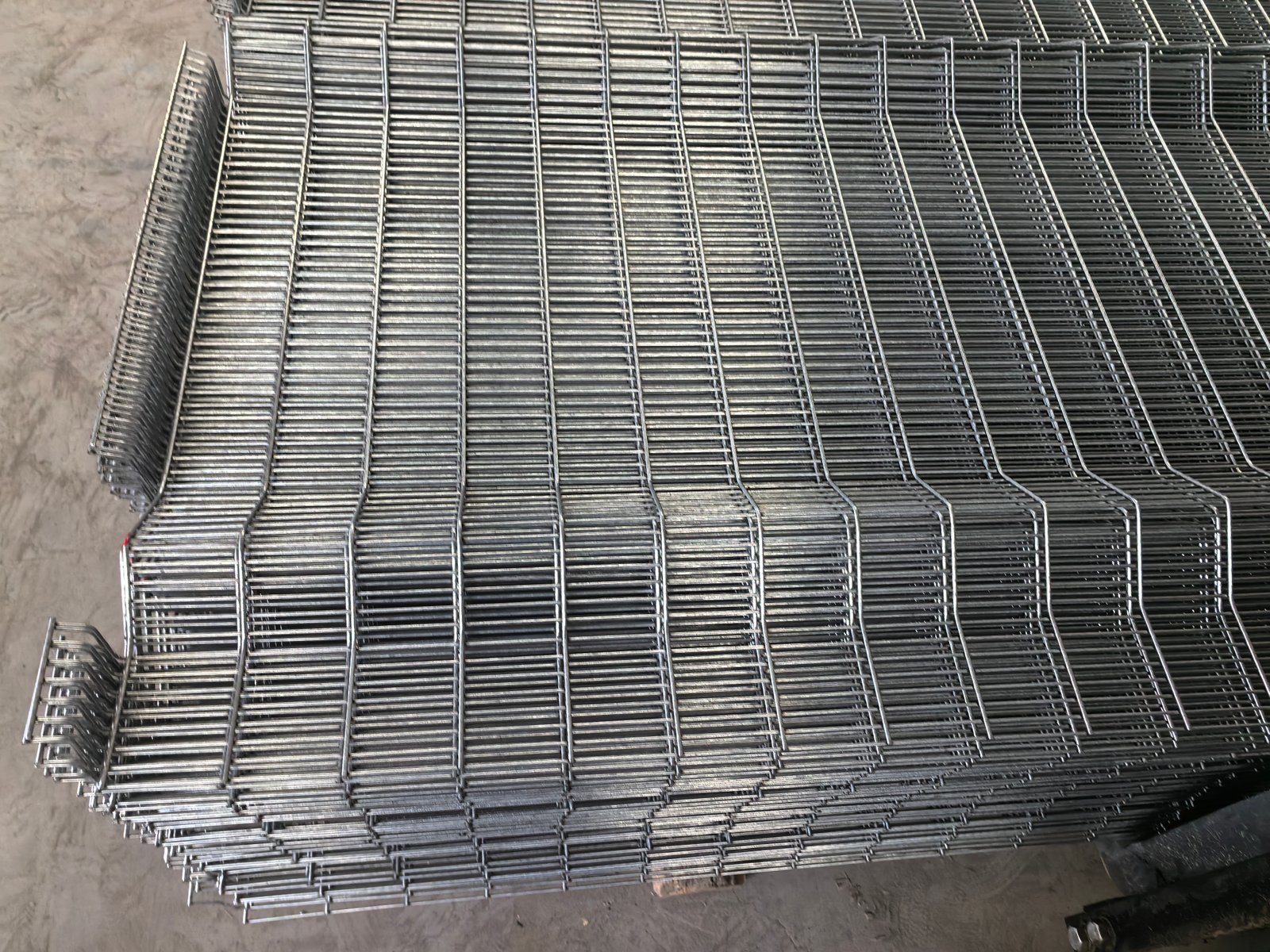

Selected ClearVu panels include formed horizontal and vertical edge details. These features change panel geometry and connection arrangements.
The original design includes four recessed horizontal bands, each approximately 50mm deep. Consequently, the formed geometry can improve panel stiffness.
However, actual strength depends on wire diameter, weld quality, and overall dimensions.
The original panel includes two side flanges approximately 75mm deep, formed at 70 degrees. These details accommodate selected concealed fixing arrangements.
Furthermore, their geometry can support a flush post-and-panel appearance.
Two additional flanges measure approximately 30mm along the upper and lower edges. Consequently, the panel maintains a defined edge profile.

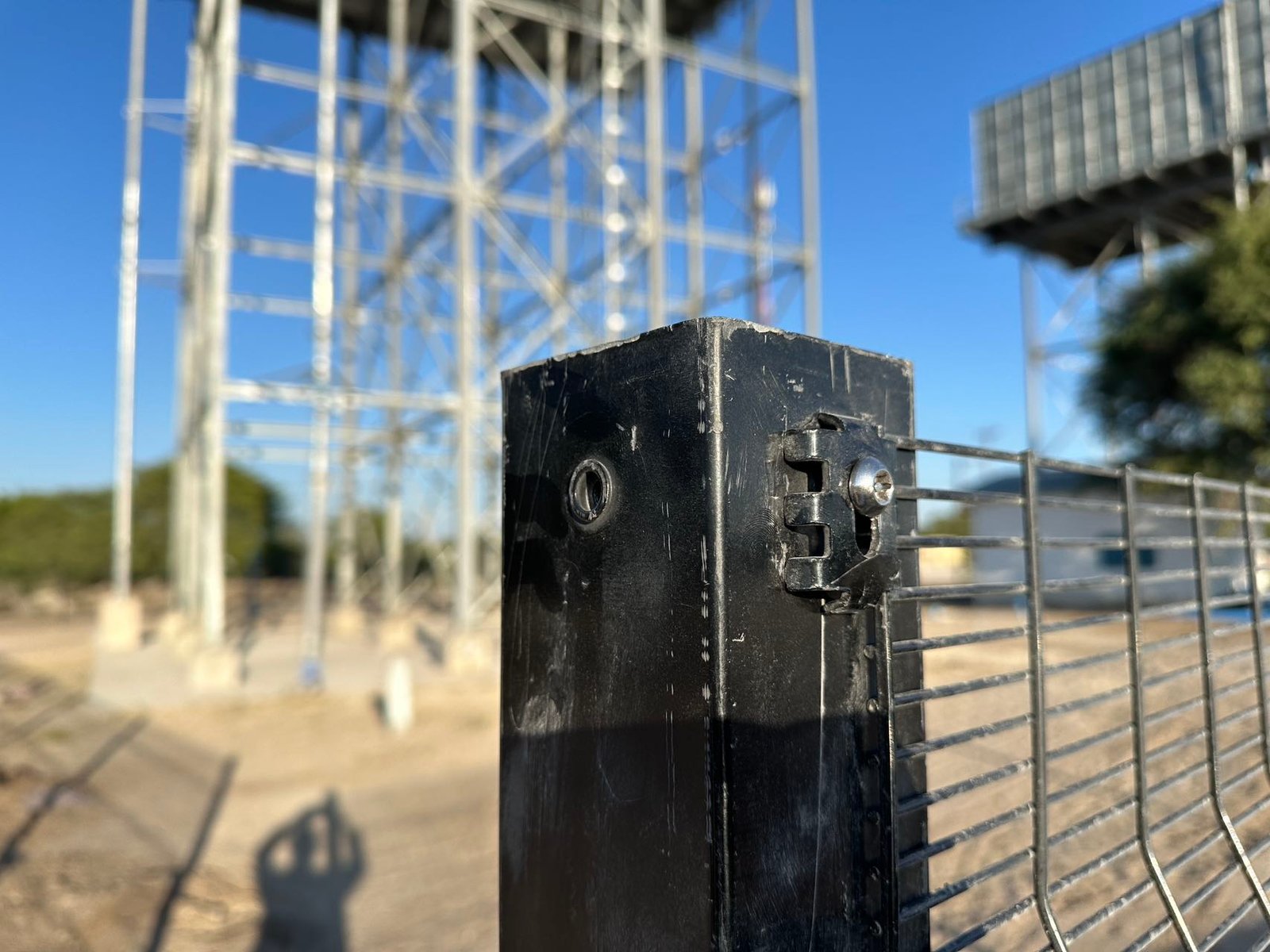

The original system uses a locking recess arrangement at the post connection. Consequently, compatible components help secure the panel edge.
However, actual fastening geometry requires approved manufacturing drawings.
The original description identifies a 48-line wire connection arrangement. However, wire count depends on panel height and spacing.
Therefore, buyers should confirm the actual line count for each panel size.

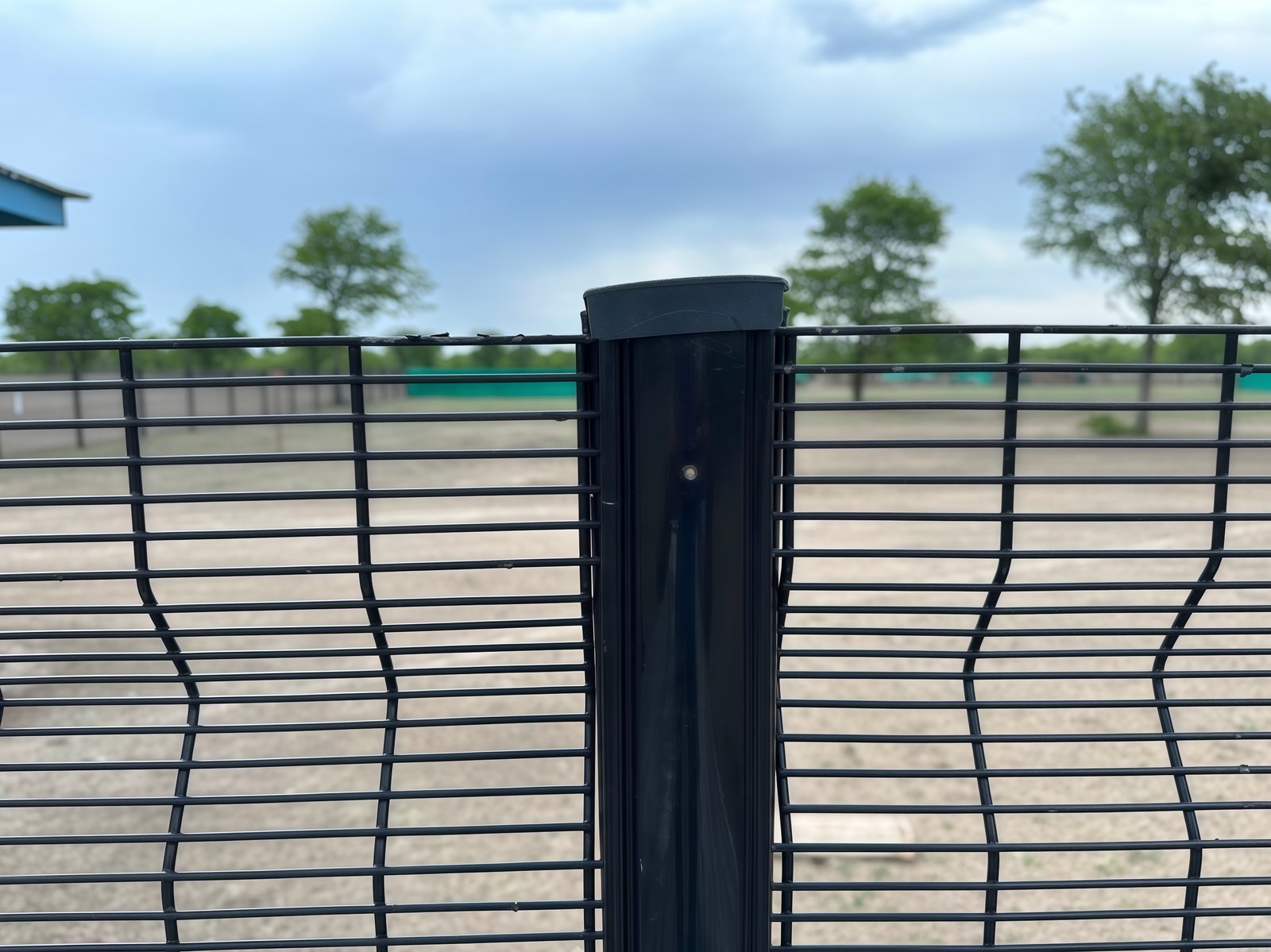

Tapered steel posts provide a distinctive profile for selected ClearVu systems. Consequently, they can support integrated panel-edge connections.
| Feature | Original Specification |
|---|---|
| Reference Post Length | 2400mm |
| Post Profile | Tapered steel post |
| Maximum Profile Width | 85mm |
| Tapered Width | 45mm |
| Profile Depth | 85mm |
| Panel Connection | Locking Recess Mechanism |
| Post Cap | UV-stabilized polymer cap |
| Base Pin | 12mm |
| Reference Foundation | 600mm deep × 400mm square |
| Original Concrete Strength | 50MPa |
The original foundation measures 600mm deep with a 400mm square section. It also specifies 50MPa concrete.
However, these values represent one reference arrangement rather than a universal foundation requirement.
Consequently, qualified engineers should confirm footing dimensions and concrete specifications for actual site conditions.
Tapered posts can provide integrated panel connections and a clean architectural appearance. Furthermore, suitable caps help restrict debris entering the section.
However, the post profile must match the selected panel edge geometry.
IPE-style profiles provide another supporting arrangement for selected ClearView panels. The following table preserves all four original combinations.
| Fence Height (mm) | Panel Dimensions (Width × Height) | IPE Post Profile |
|---|---|---|
| 1800 | 3048 × 1800 | 70 × 44 × 1.6mm |
| 2000 | 3048 × 2000 | 70 × 44 × 1.6mm |
| 2400 | 3048 × 2400 | 70 × 44 × 1.6mm |
| 3000 | 3048 × 3000 | 70 × 44 × 1.6mm |
All four original configurations use a 70 × 44 × 1.6mm reference profile. However, taller panels increase loading demands.
Therefore, structural verification remains essential before installation.

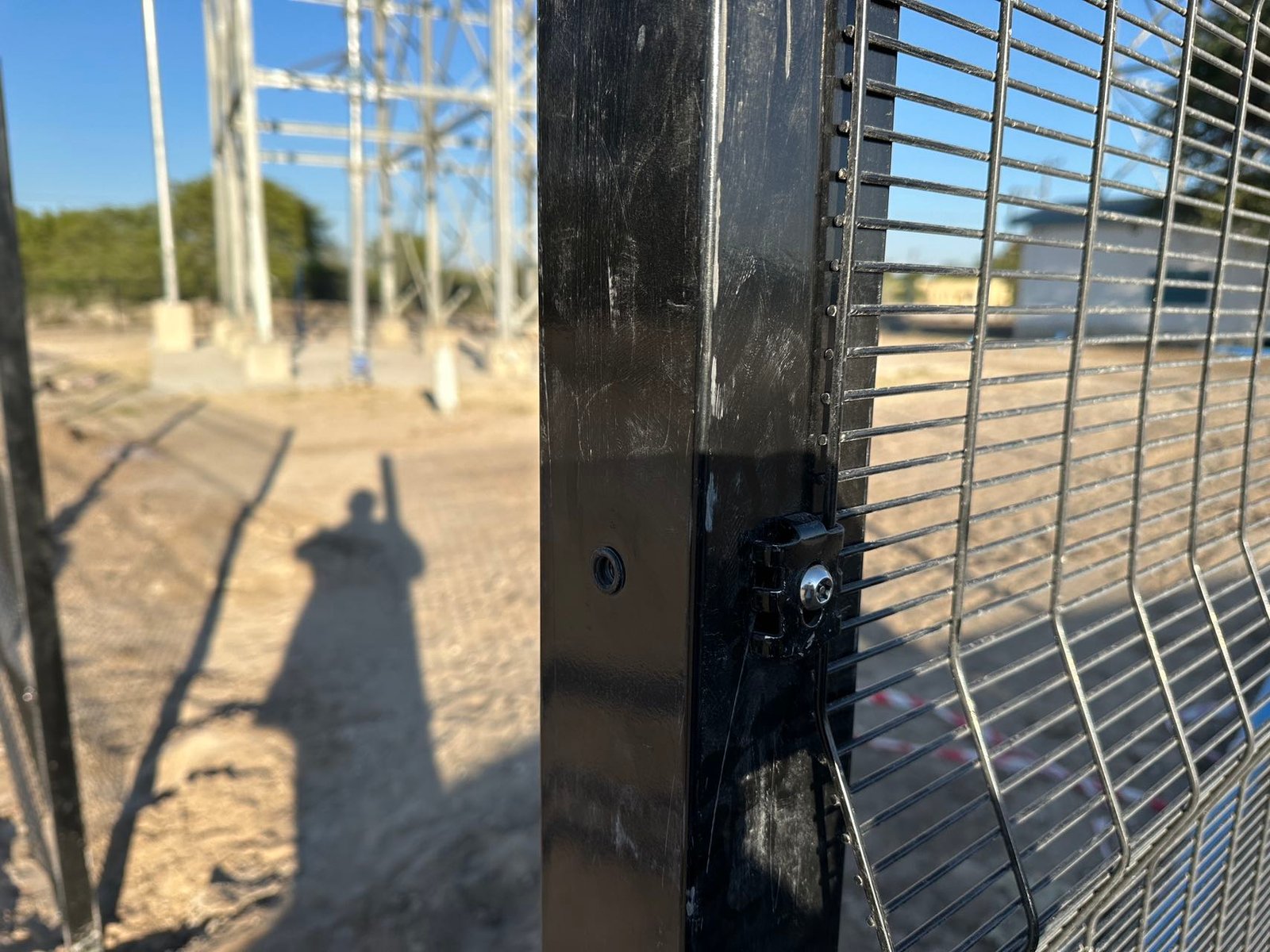

Compatible clamps and brackets secure mesh panels against the selected profile. Consequently, connection dimensions should appear in approved drawings.
Foundation requirements depend on soil capacity, wind exposure, and panel height. Therefore, catalogue profile dimensions cannot determine footing size alone.
Square hollow sections provide flat mounting surfaces and familiar steel geometry. Consequently, they suit several welded mesh configurations.
The following table preserves all five original SHS post combinations.
| Fence Height | Post Section | Post Length |
|---|---|---|
| 1800mm | 60 × 60 × 2mm | 2400mm |
| 2000mm | 60 × 60 × 2mm | 2600mm |
| 2200mm | 60 × 60 × 2mm | 2800mm |
| 2400mm | 80 × 80 × 3mm | 3000mm |
| 3000mm | 80 × 80 × 3mm | 3600mm |
The original schedule increases the post section for taller configurations. However, these dimensions require project-specific verification.
The original range uses 60 × 60 × 2mm posts for selected lower panels. However, structural suitability depends on loading conditions.
The original range uses 80 × 80 × 3mm posts for selected taller panels. Consequently, these sections provide a different structural arrangement.

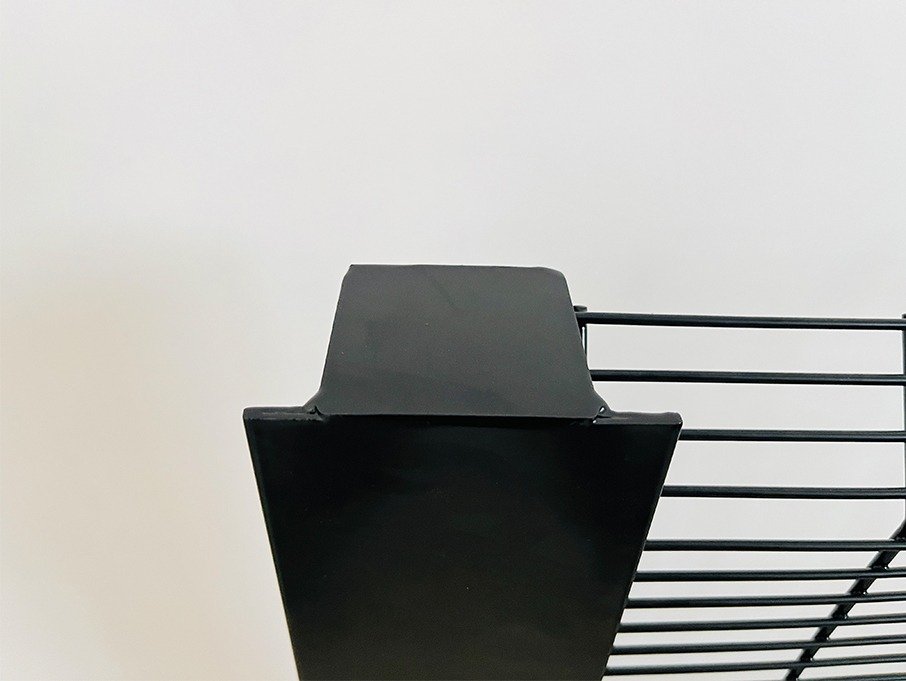

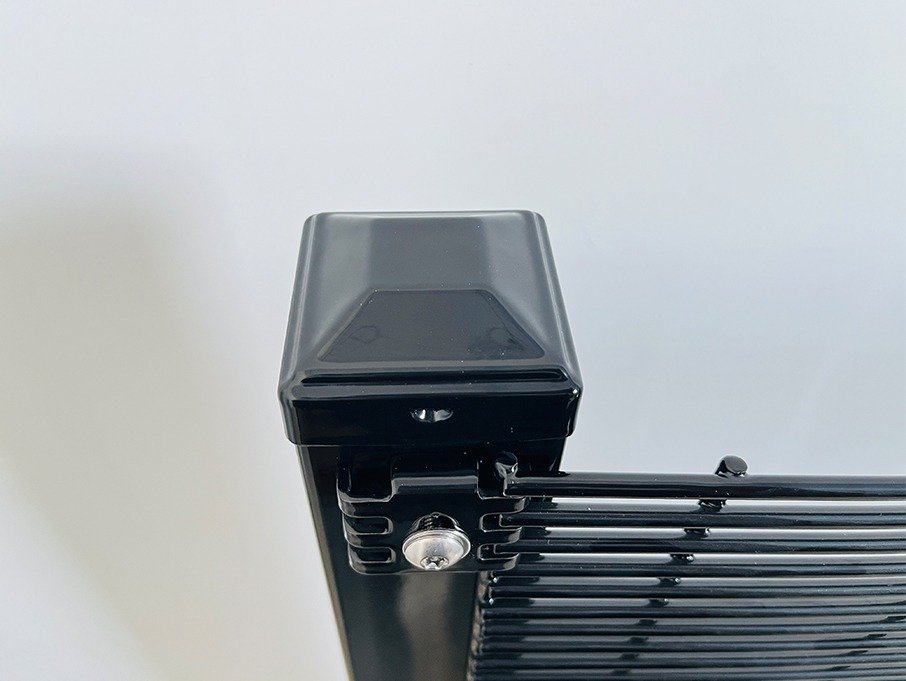

Suitable post caps help restrict moisture and debris entering hollow sections. Furthermore, they provide a finished appearance.
Flat steel bars or compatible clamps can secure selected mesh panels. However, fixing quantities depend on the approved design.

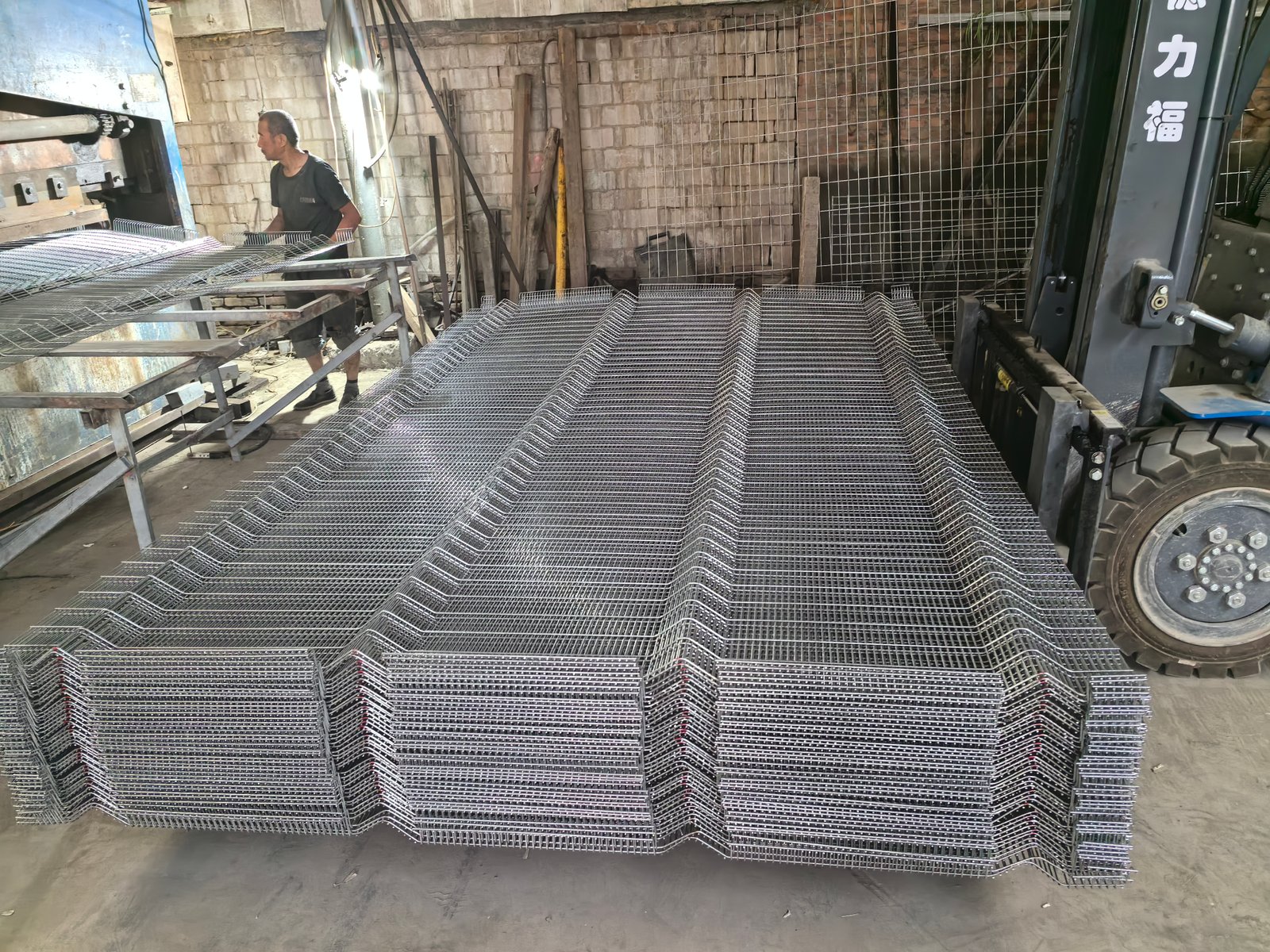

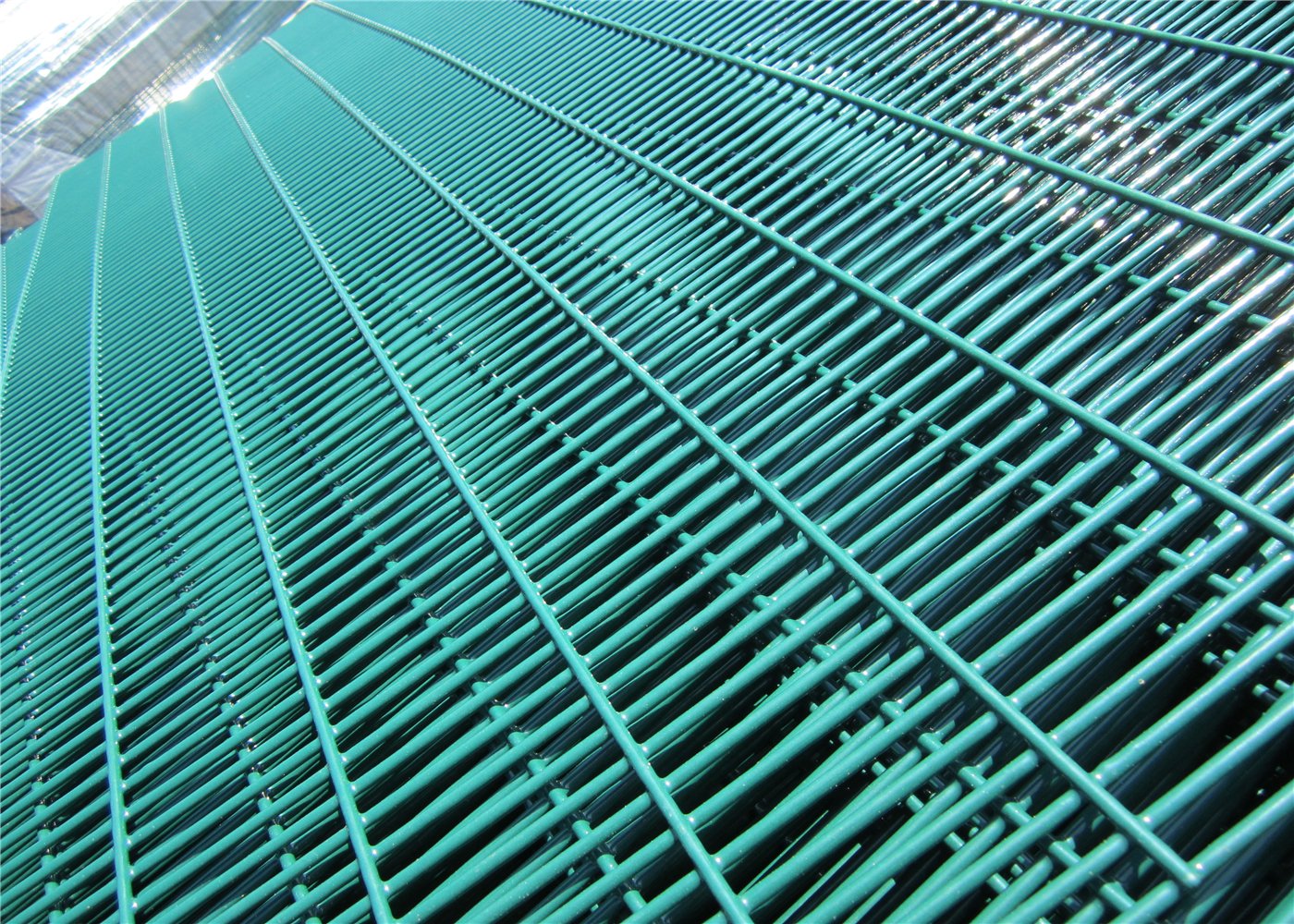

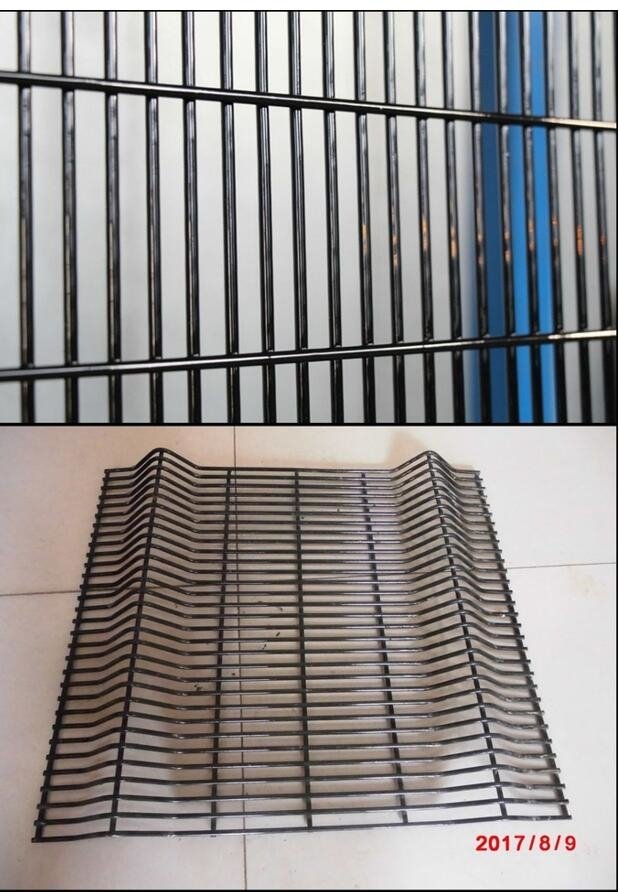

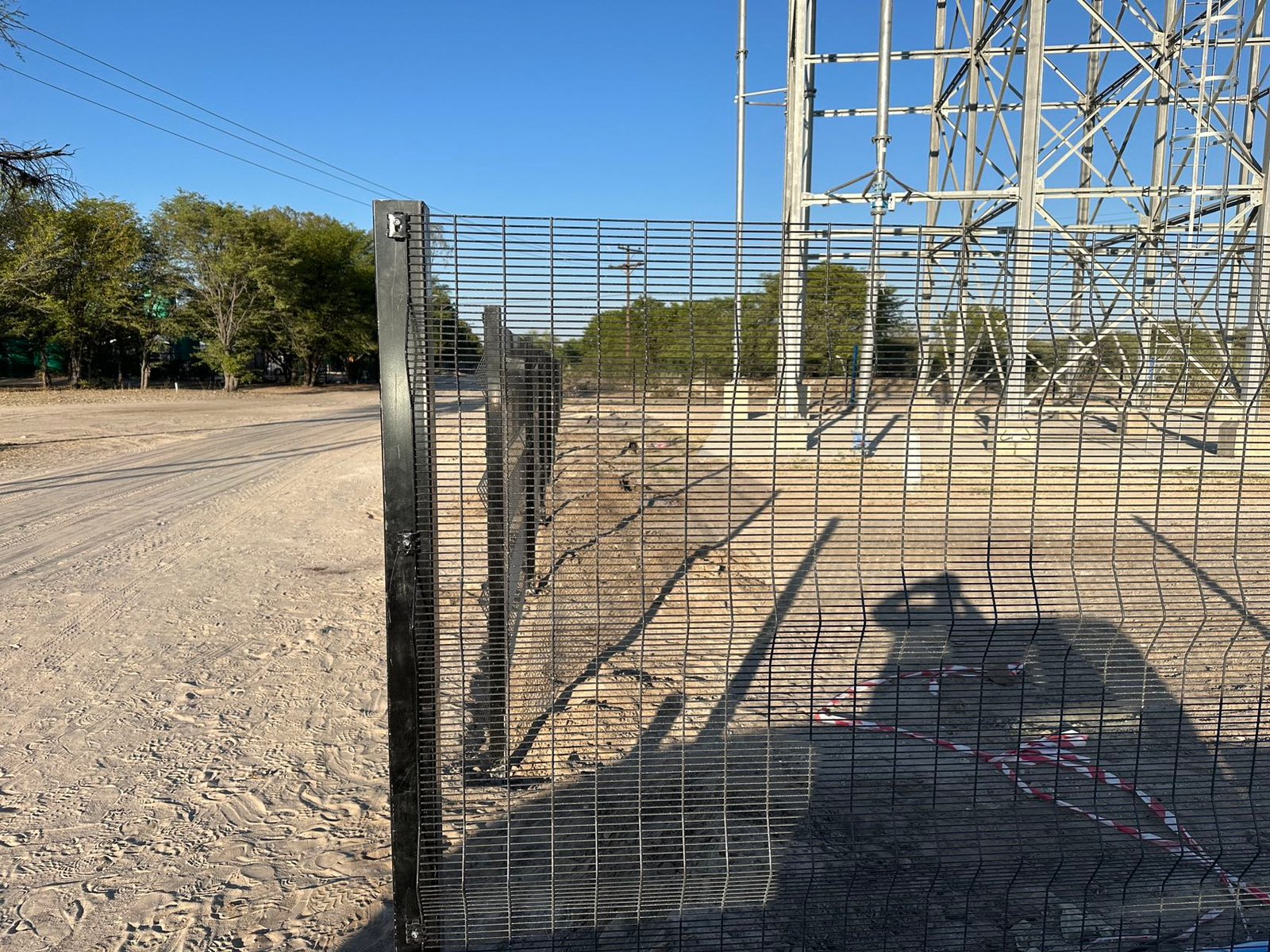

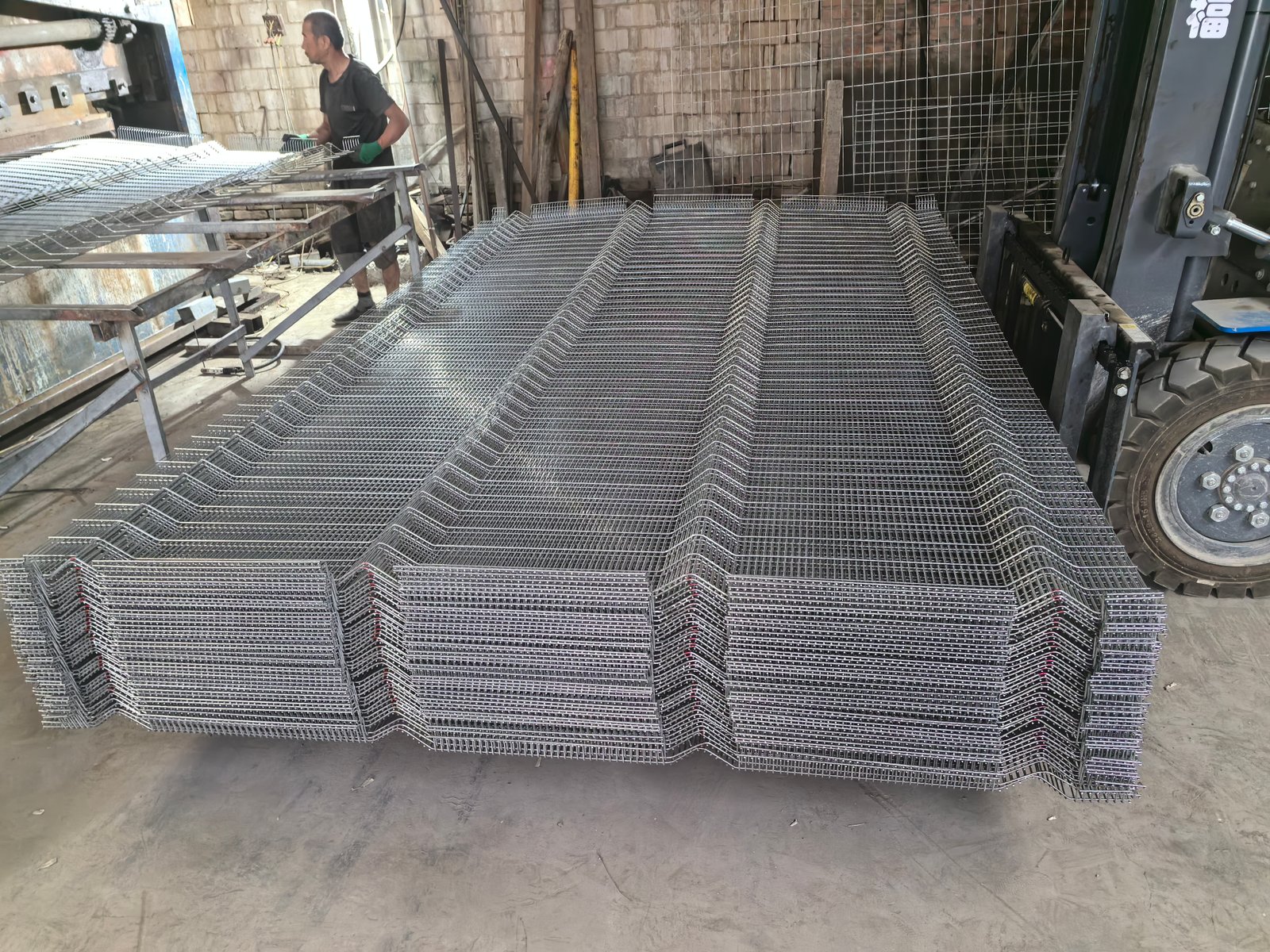

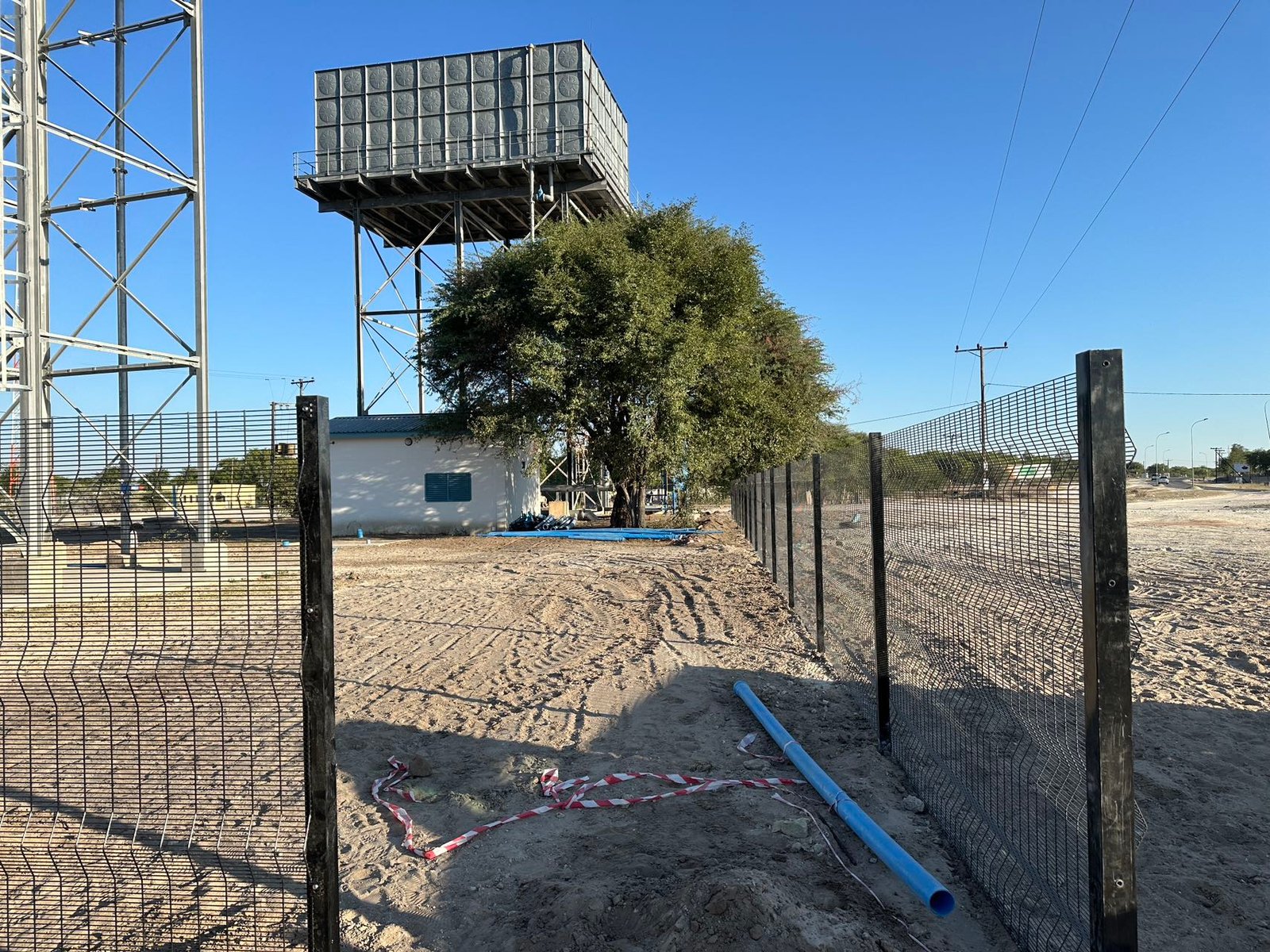

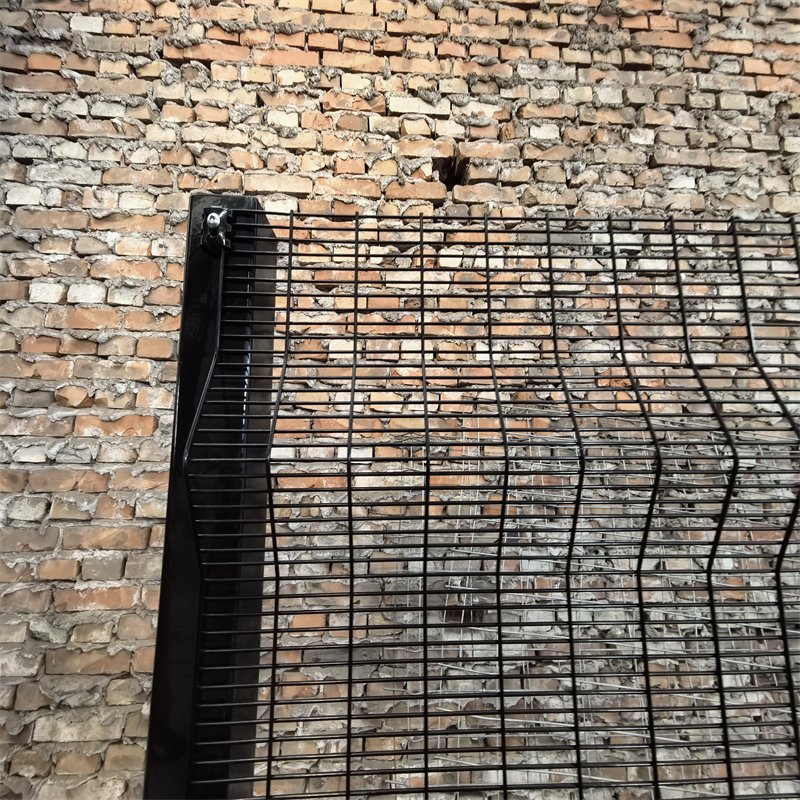

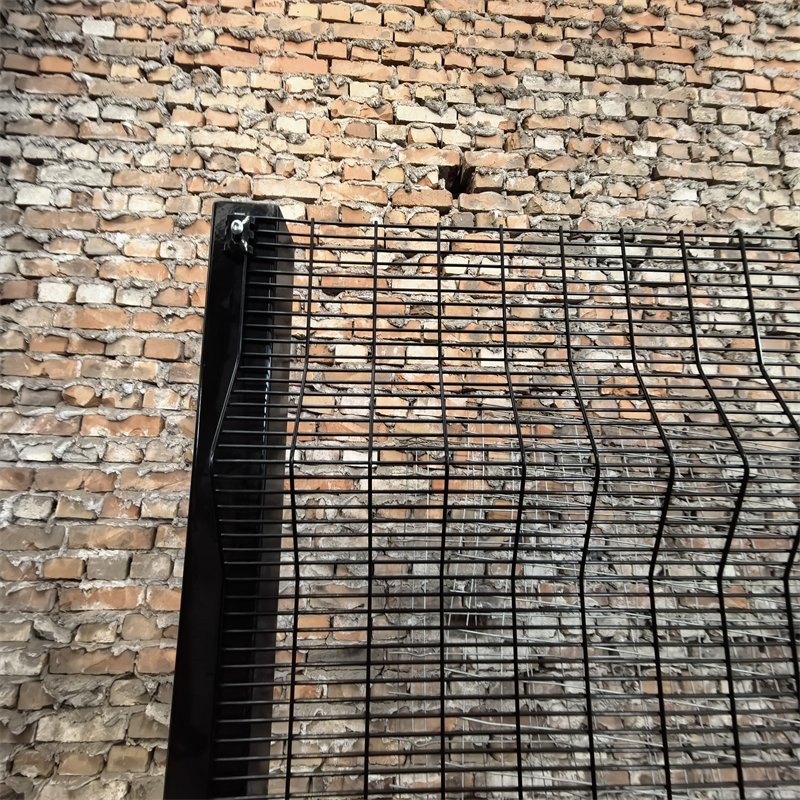

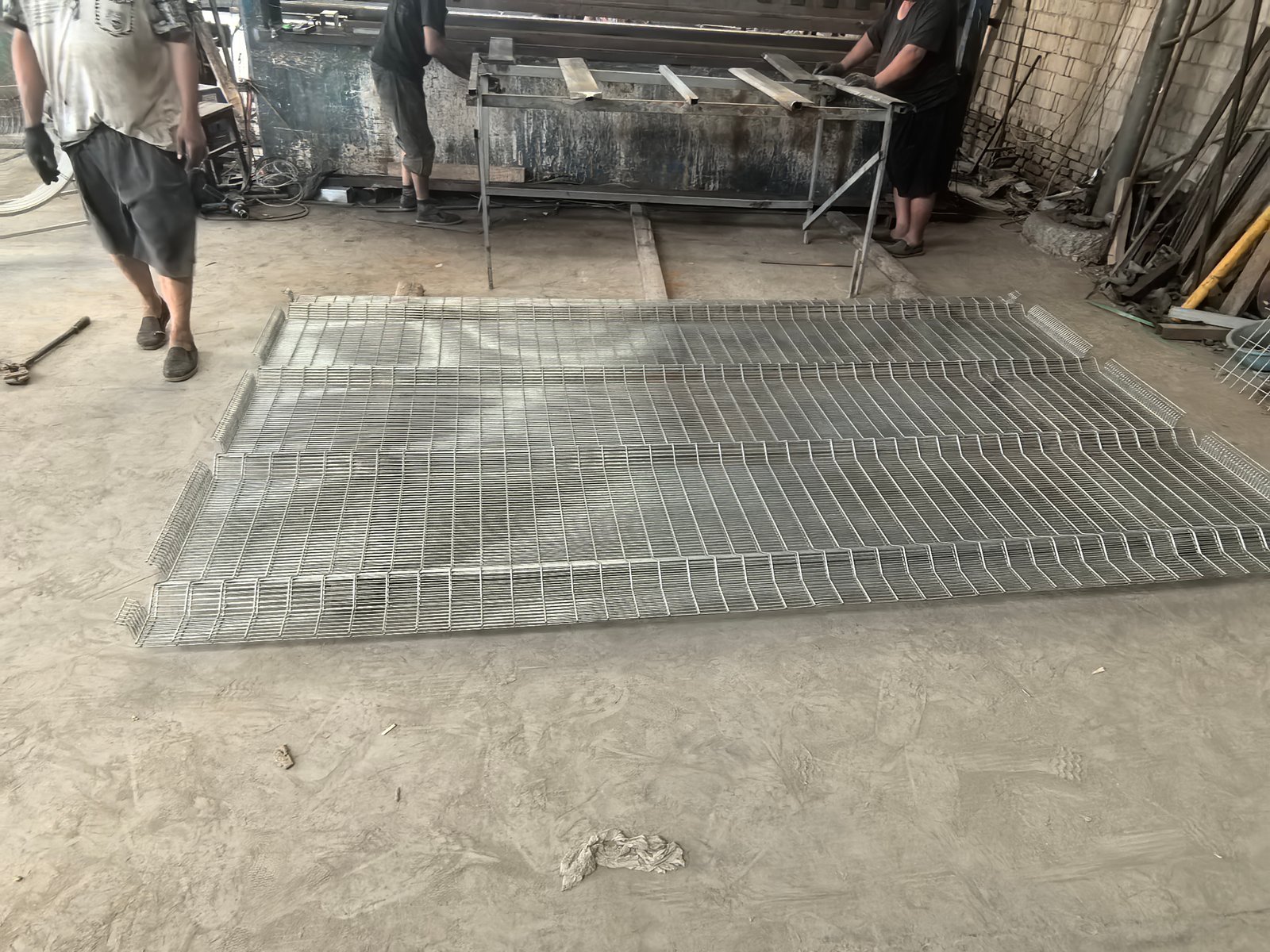

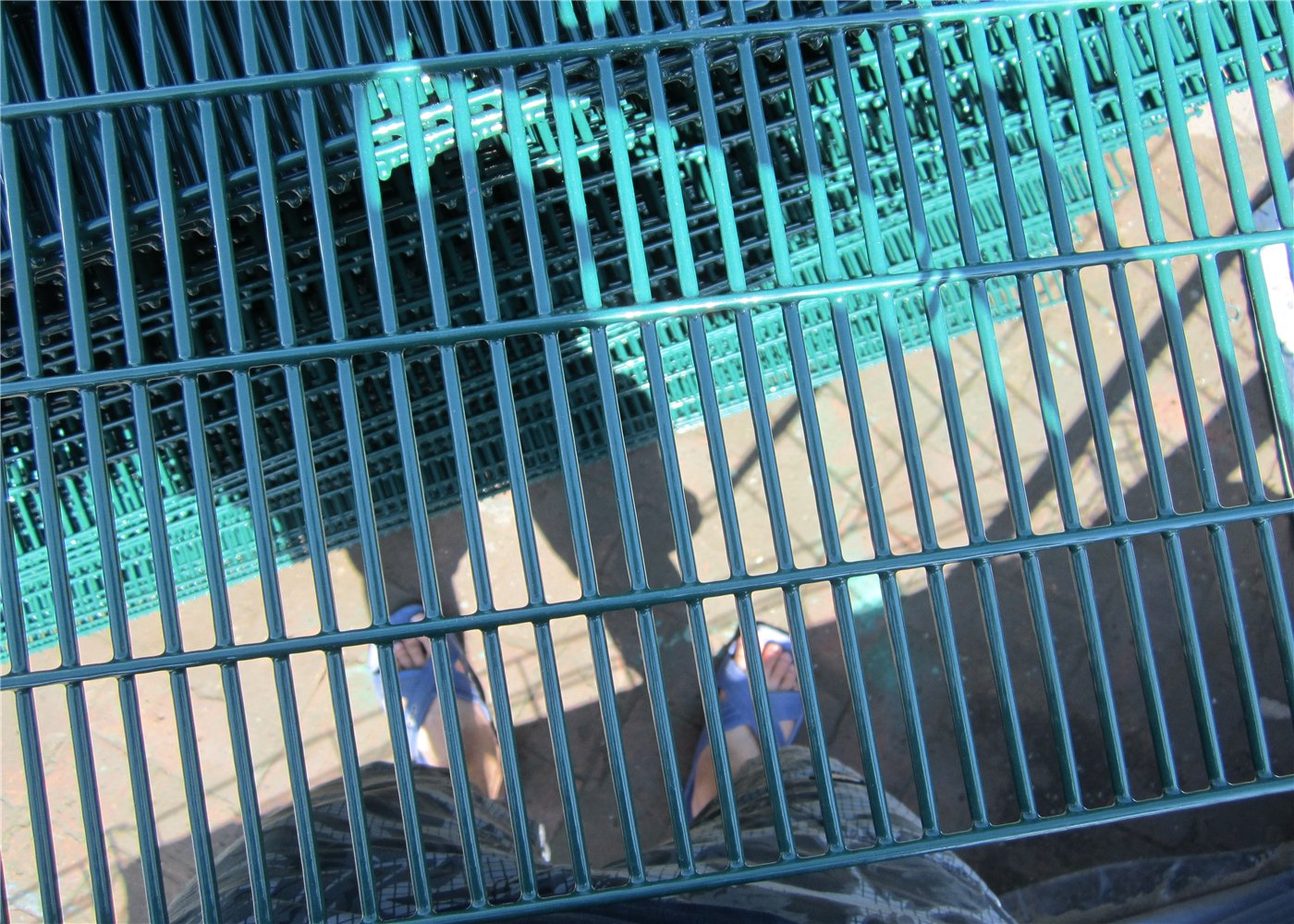

The following original product images illustrate ClearView panel construction and protective finishes. Both images remain unchanged from the supplied article.
Fine welded mesh combines physical separation with visibility. Consequently, the panel can support selected residential and commercial security applications.

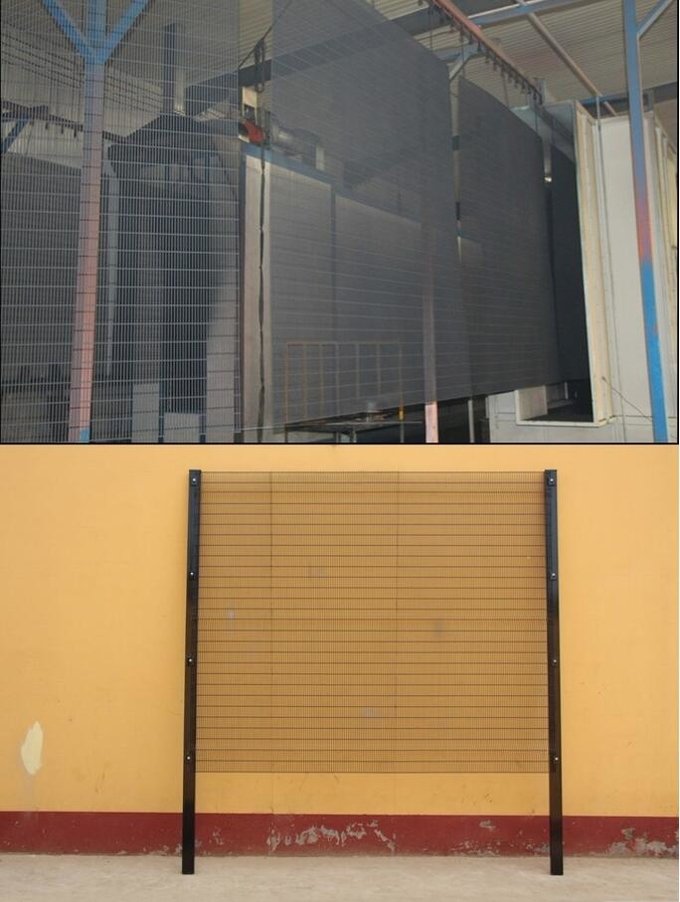

Powder coating adds colour and protective coverage to compatible steel substrates. However, surface preparation determines coating adhesion and long-term performance.
Dark green and black finishes suit many property designs. Meanwhile, suitable galvanized substrates provide an additional corrosion-protection layer.
Outdoor steel requires suitable corrosion protection. Consequently, buyers should compare coating systems according to local exposure.
Zinc-aluminium coatings help protect steel against atmospheric corrosion. However, actual performance depends on coating mass and material specification.
Hot-dip galvanizing provides a zinc coating on suitable steel components. Consequently, it helps reduce corrosion risks during outdoor service.
Polyester powder coating adds colour and another protective layer. However, coating preparation and compatibility remain essential.
PVC coating offers another protective finish for selected welded mesh products. However, coating thickness and adhesion require verification.
Dundee's inland environment differs from coastal marine conditions. Nevertheless, summer rainfall and industrial exposure can still affect unprotected steel.
Consequently, buyers should define coating requirements before manufacturing.
Residential boundaries should balance security, visibility, and appearance. Consequently, homeowners should assess entrances and surrounding structures.
Fine welded mesh provides physical separation without creating a solid visual barrier. Furthermore, suitable gates support controlled access.
Managed residential developments require consistent boundary details. Consequently, matching panels and posts create a uniform appearance.
Open mesh preserves visibility across landscaped areas. However, privacy requirements may favour additional screening.
Industrial premises may require secure storage yards and controlled service entrances. Consequently, welded security mesh can support operational separation.
Equipment compounds benefit from clear boundaries and controlled gates. Furthermore, open mesh supports observation across the protected area.
Workshops may require secure outdoor storage. However, machine guarding requires separate safety assessment.
Loading areas need adequate vehicle clearance. Consequently, fence and gate layouts should accommodate operational traffic.
Agricultural operations require practical access arrangements. Consequently, gate dimensions should reflect actual machinery requirements.
Dairy operations may require controlled access around equipment and service buildings. However, hygiene and animal movement requirements remain important.
Farm workshops often contain valuable tools and machinery. Consequently, security mesh can help establish protected storage compounds.
Storage areas benefit from clear boundaries and suitable gates. However, the fence design should reflect operational requirements.
Schools and public spaces require safe boundaries and controlled entrances. Consequently, fence selection should consider pedestrian movement.
Open welded mesh supports visibility across selected outdoor areas. However, emergency access and child safety remain essential.
Sports grounds may require physical separation between activity areas and public access. However, impact resistance requires project-specific assessment.
Public parks may use open fencing to define selected boundaries. Consequently, accessibility and visibility remain important design considerations.
Gates create necessary openings through the perimeter. However, moving components require additional structural attention.
Pedestrian gates support controlled access through designated entrances. Suitable locks and hinges help maintain reliable operation.
Double swing gates provide vehicle access where adequate clearance exists. However, gate posts must resist additional hinge loads.
Sliding gates offer another option for commercial and residential entrances. Consequently, designers should assess tracks, motors, and safety devices.
Farm equipment may require wider entrances than ordinary passenger vehicles. Therefore, gate dimensions should reflect machinery requirements.
Successful installation begins with accurate boundary measurements. Consequently, contractors should identify corners, slopes, gates, and underground services.
Surveyors should confirm property lines and existing structures. Furthermore, accurate measurements help determine panel quantities.
Concrete foundations transfer post loads into the supporting ground. However, footing dimensions depend on soil capacity and structural loading.
Summer thunderstorms can create concentrated surface runoff. Consequently, contractors should protect drainage channels and vulnerable foundations.
Cold weather may affect concrete curing and installation schedules. Therefore, contractors should follow suitable temperature-related construction procedures.
Sloping sites may require stepped panels or customized layouts. However, excessive ground clearance can weaken perimeter security.
Consistent post spacing supports accurate panel installation. Consequently, approved drawings should identify actual fixing centres.
Open welded mesh supports observation through the perimeter. However, camera placement and lighting determine actual surveillance quality.
Mesh wires positioned close to a lens may interfere with focus. Therefore, installers should test camera positions before final mounting.
Suitable lighting improves nighttime visibility. However, poorly positioned fixtures may create glare.
Overgrown vegetation can obstruct camera views. Consequently, landscape maintenance should support perimeter observation.
BMP prepares welded mesh panels, posts, and accessories for international shipment. Suitable packaging helps reduce handling damage.
Steel pallets provide durable support for heavy mesh panels. Furthermore, suitable separators help reduce coating abrasion.
Protective film can reduce surface contact during transport. However, packaging materials must suit cargo dimensions.
Steel posts require suitable restraints and protective wrapping. Consequently, handling teams can organize packages more efficiently.
Clamps, bolts, and caps should remain in identified cartons. Furthermore, accurate labels support receiving inspections.
Packing lists should identify quantities and package counts. Consequently, buyers can compare deliveries against approved schedules.
Routine inspection helps preserve security and appearance. Consequently, property owners should establish a practical maintenance schedule.
Higher-security projects may require 358 Mesh Fencing Panels with narrower apertures. Meanwhile, 358 Welded Mesh provides additional flat and formed configurations.
For broader project comparisons, Clear View Fencing South Africa includes several post and coating arrangements. Similarly, Clearvu Fence provides another regional reference for welded security fencing.
Temporary pedestrian separation requires a different barrier category. For example, Steel Crowd Control Barriers support selected public events and construction areas.
However, portable barriers cannot replace permanent high-security fencing.
ClearView fencing uses welded steel mesh to create a visually open security boundary. Fine apertures discourage ordinary climbing attempts.
The original range includes 2900mm, 2950mm, 3000mm, and 3050mm widths. Additional dimensions may require customization.
Reference heights include 1200mm through 3000mm, depending on the selected configuration. Custom dimensions may also be available.
Fine 76 × 12.7mm mesh generally restricts climbing holds more effectively than wider openings. However, complete system design remains important.
IPE-style posts use a profiled section, while SHS posts use square hollow steel. Their connections and structural properties differ.
Yes. Compatible tapered posts can support selected ClearVu panel designs. However, panel edges must match the locking mechanism.
Yes. Suitable protective coatings and foundations support outdoor use. However, seasonal rainfall and maintenance remain important.
Yes. Welded mesh can help establish controlled access around equipment compounds. However, gates and surveillance should complement the boundary.
Yes. Stepped or customized arrangements can accommodate selected slopes. However, accurate surveys remain essential.
Yes. BMP manufactures compatible pedestrian, double swing, and sliding gates according to project requirements.
No. Protective finishes reduce corrosion risks, but installations still require inspection and suitable cleaning.
Provide total fence length, height, mesh specification, post type, coating, gate dimensions, site conditions, and delivery requirements.
BMP manufactures welded security mesh panels, steel posts, clamps, and compatible gates for international projects. Our manufacturing experience since 2006 supports customized dimensions and protective finishes.
Furthermore, coordinated production helps buyers organize complete material schedules. Accurate drawings also support installation planning and quality inspection.
Ultimately, clearview fencing dundee combines adaptable mesh designs, clear visibility, and practical steel construction. Suitable coatings and foundations help address northern KwaZulu-Natal's seasonal weather. BMP supplies configurable fencing systems for residential, agricultural, commercial, and industrial properties.
