Clearview fencing Johannesburg helps property owners protect boundaries without blocking important sightlines. Its welded mesh combines narrow openings, strong wires, and secure post connections. The design discourages climbing while keeping entrances, roads, and outdoor areas visible. Homeowners, warehouses, schools, and industrial sites can select different security grades.
Boss Metal and Plastic Co., Ltd. (BMP) manufactures clear view fencing systems for international projects. We supply fence panels, posts, clamps, and matching gates. Buyers can choose dimensions, coatings, colours, and security accessories according to project needs. Each project starts with the perimeter layout and its required protection level.

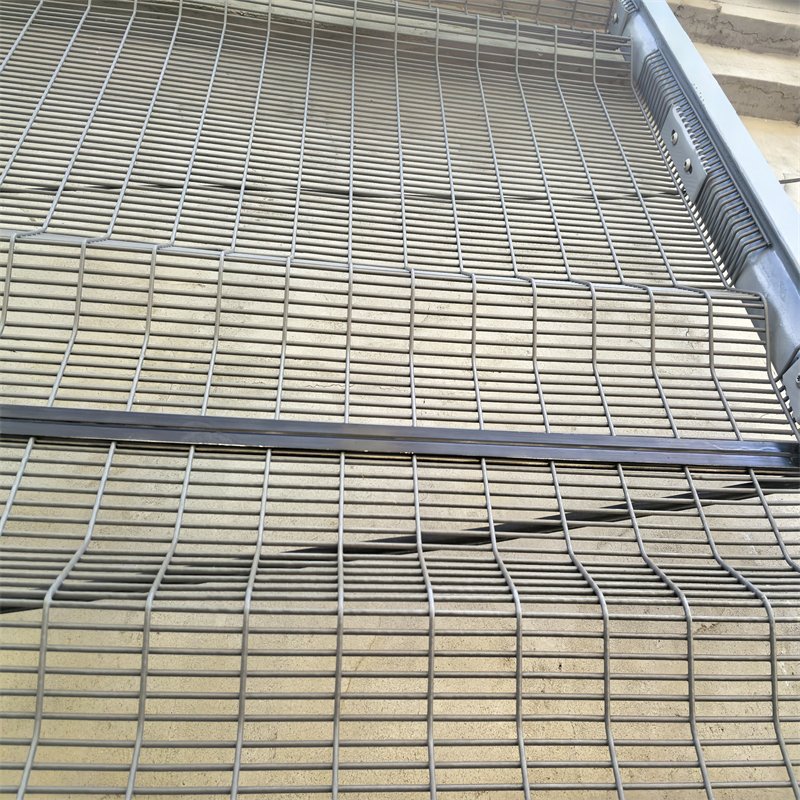

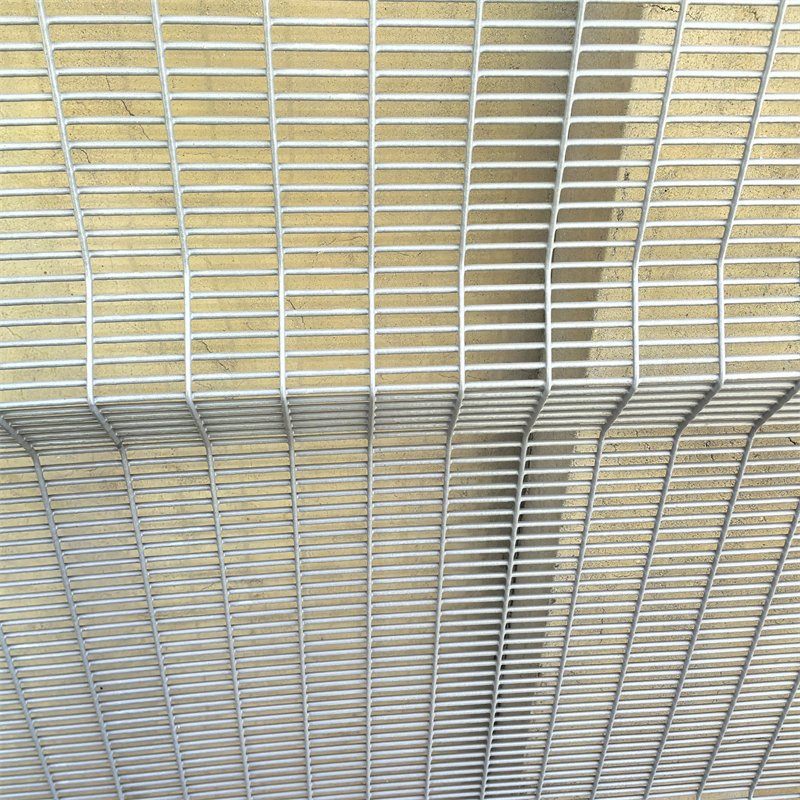

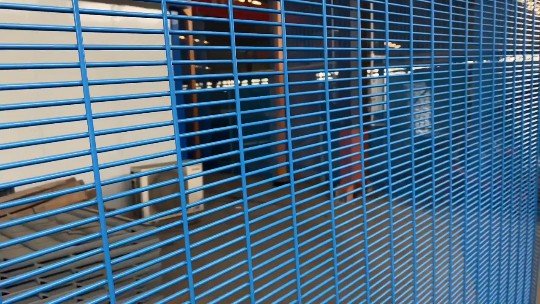

Security fencing should create a reliable boundary without hiding activity behind the fence. Clear view mesh supports this goal through its closely spaced welded wires. Narrow apertures make climbing difficult because they offer limited finger and footholds. The open structure also supports guards, cameras, and routine visual inspections.
Johannesburg projects often combine offices, parking areas, workshops, and delivery entrances. Each area may need a different height or access arrangement. For panel configurations, explore our clear view fence panels. The product range supports practical comparisons before buyers approve a final layout.
BMP offers several panel heights and mesh configurations. Designers can match each specification to the expected security risk. The following dimensions describe common product options rather than mandatory project sizes.
Exact wire diameters, apertures, and finishes depend on the selected panel series. Buyers should approve a technical drawing before production. For another mesh configuration, review our 358 welded wire mesh fence.
High-security panels use narrow openings for stronger resistance to climbing. Medium-security panels balance protection, visibility, and material requirements. Low-security panels suit projects where boundary separation matters more than intrusion resistance. The table below compares the original product configurations.
| Security option | Mesh aperture | Vertical wire | Horizontal wire | Main characteristics |
|---|---|---|---|---|
| High security | 76 × 12.5 mm | 4 mm | 3.5 mm | Narrow mesh, anti-climb design, clear visibility |
| Medium security | 76 × 25 mm | 4 mm | 4 mm | Security and visibility balance |
| Low security | 76 × 50 mm | 4 mm | 4 mm | Boundary control and wider openings |
Site conditions should determine the final security grade. A warehouse boundary may require different protection from an internal garden fence. Our 358 mesh fence page provides another reference for security mesh selection.

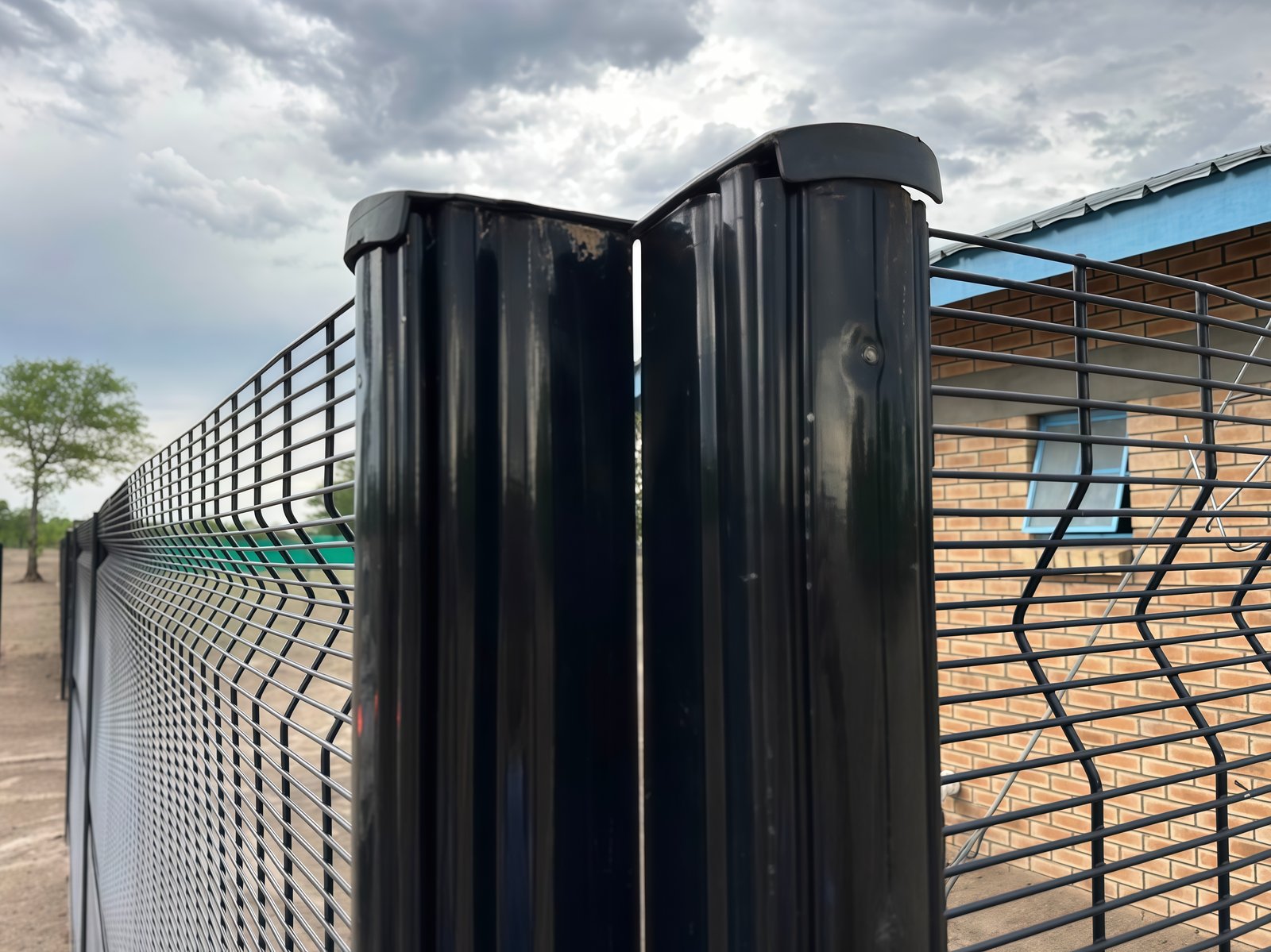

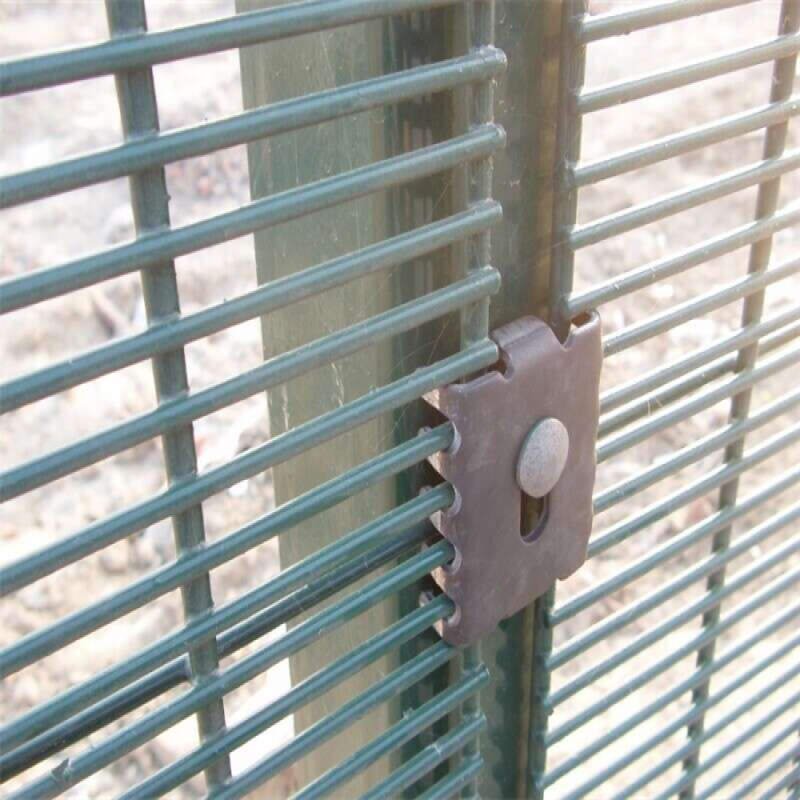

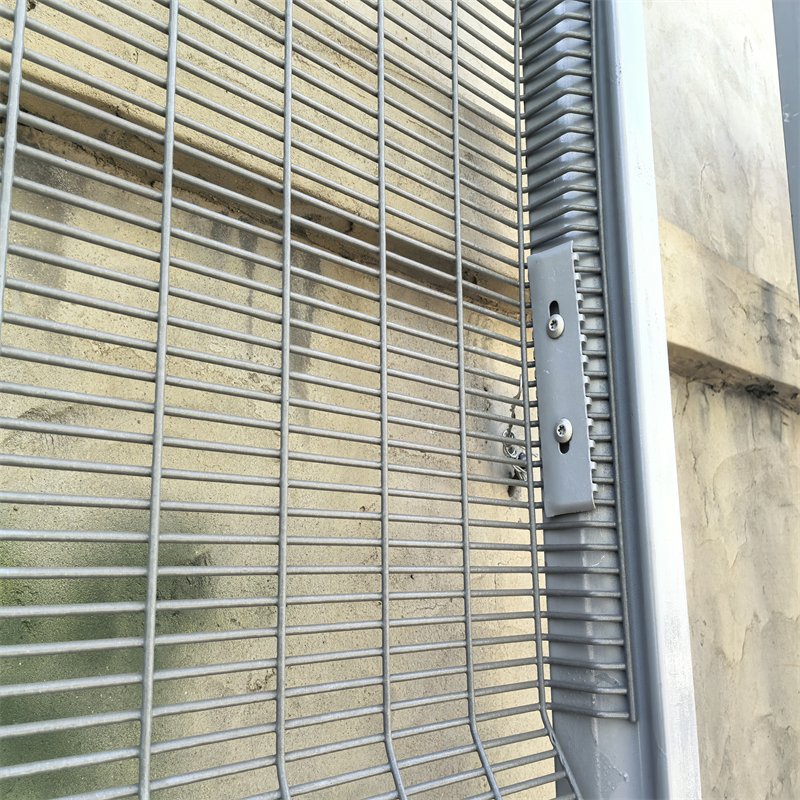

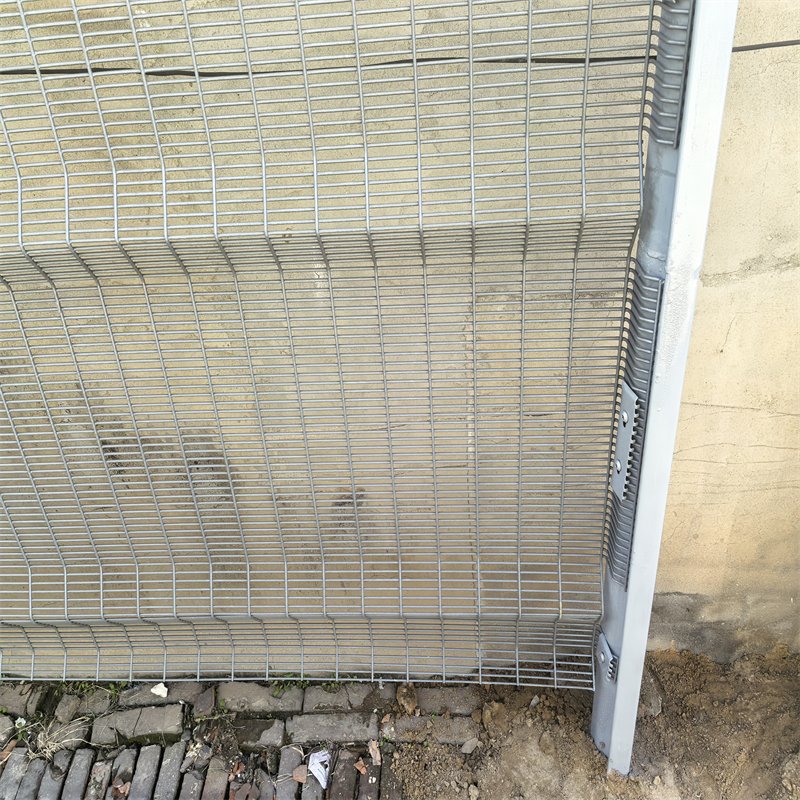

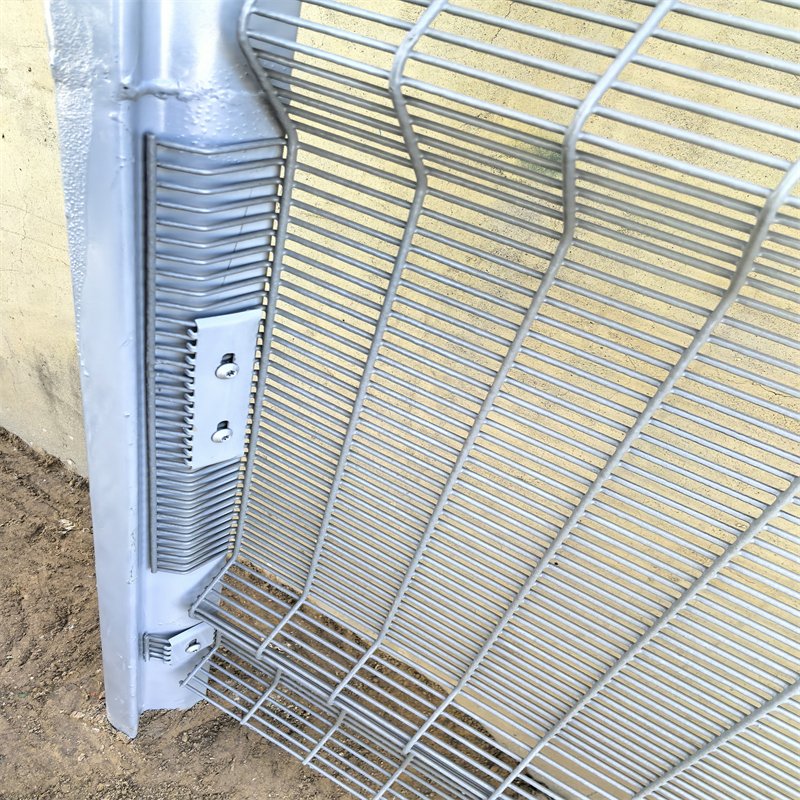

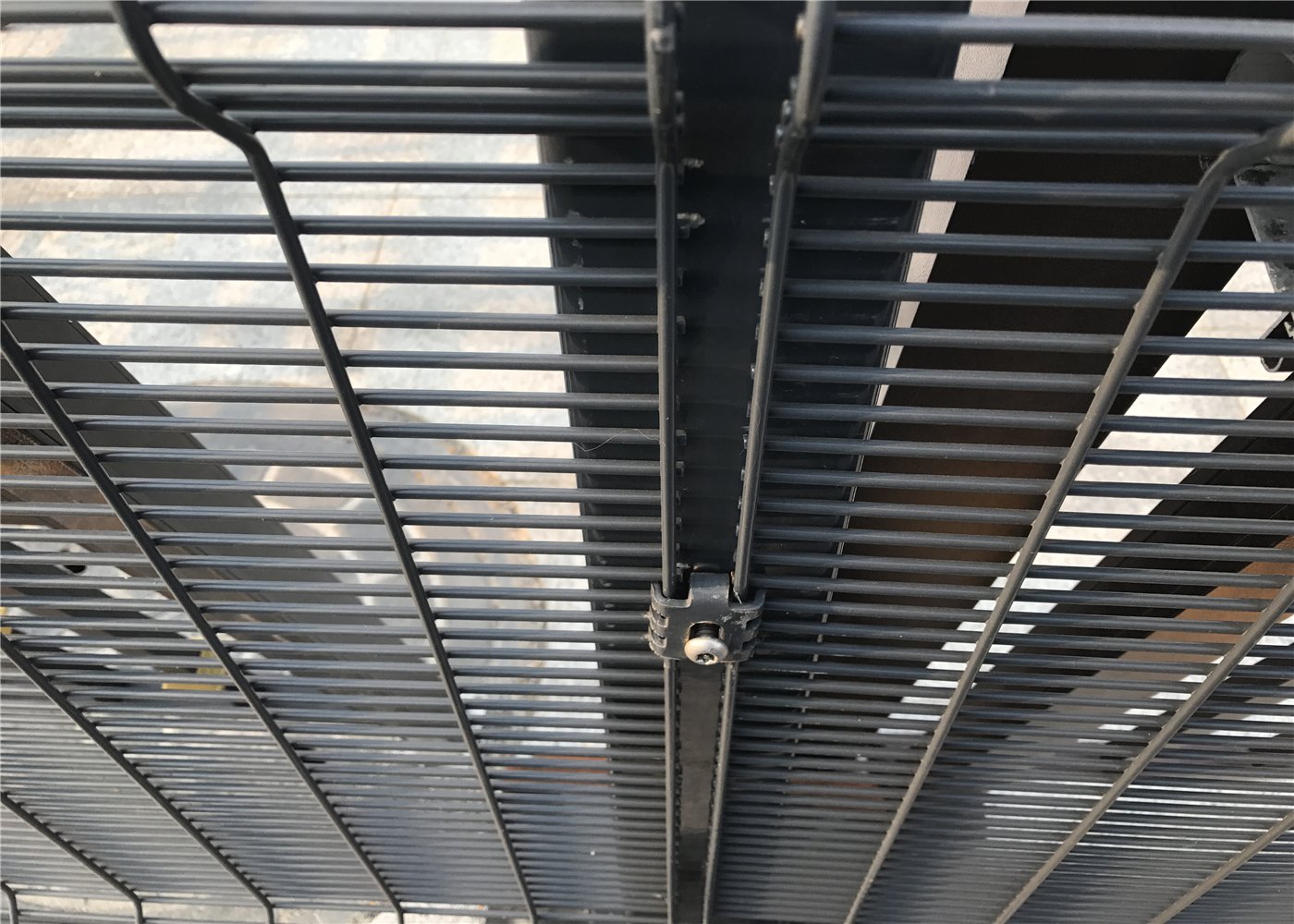

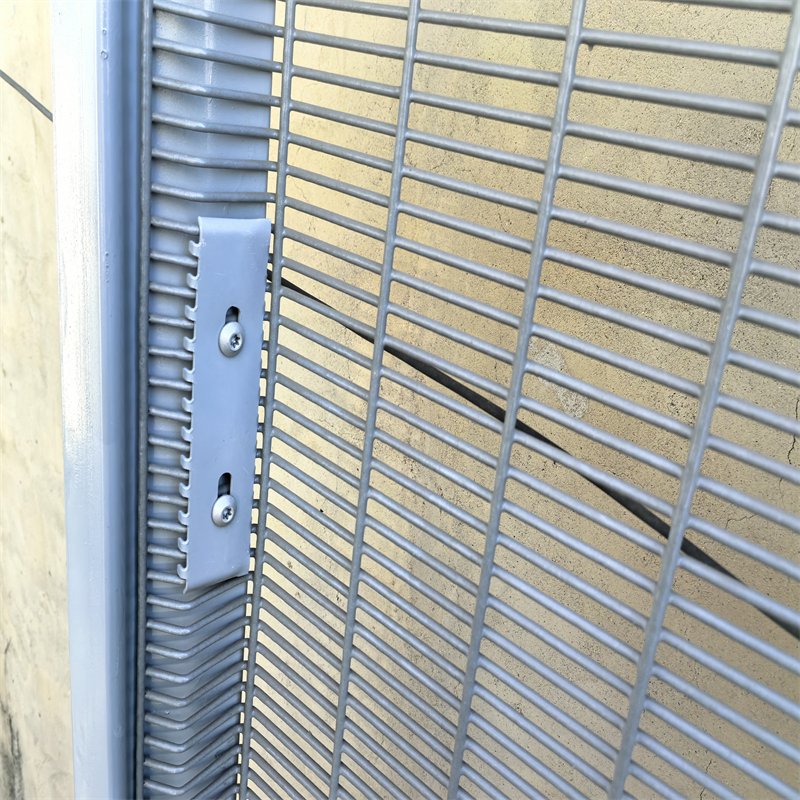

Posts carry panel loads and transfer forces into the foundation. Clamps connect the mesh to posts and help protect panel edges. Corner posts, end posts, and gate posts need separate layout checks. Engineers should confirm foundations against ground conditions and local wind exposure.

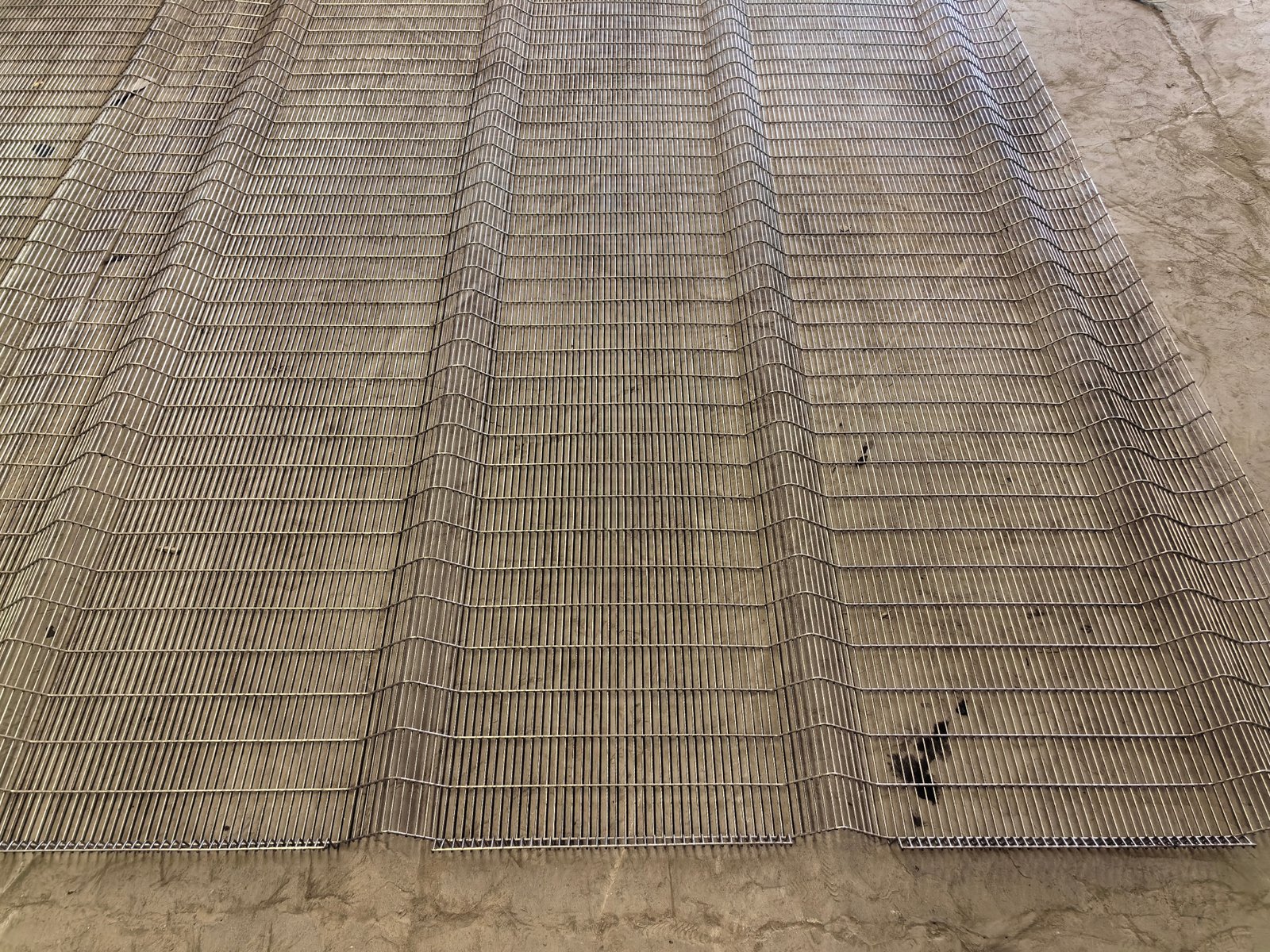

| Fence height | Panel size | Post section | Post length | V-bends | Listed clamps |
|---|---|---|---|---|---|
| 1,800 mm | 1,800 × 2,515 mm | 60 × 60 × 2 mm | 2,400 mm | 4 | 16 |
| 2,000 mm | 2,000 × 2,515 mm | 60 × 60 × 2 mm | 2,600 mm | 4 | 16 |
| 2,200 mm | 2,200 × 2,515 mm | 60 × 60 × 2 mm | 2,800 mm | 4 | 16 |
| 2,400 mm | 2,400 × 2,515 mm | 80 × 80 × 3 mm | 3,000 mm | 4 | 16 |
| 3,000 mm | 3,000 × 2,515 mm | 80 × 80 × 3 mm | 3,600 mm | 5 | 20 |
These figures follow the supplied reference table. Confirm clamp quantities and post lengths against the approved installation drawing. Soil strength, loading, and gate positions can change the required design.

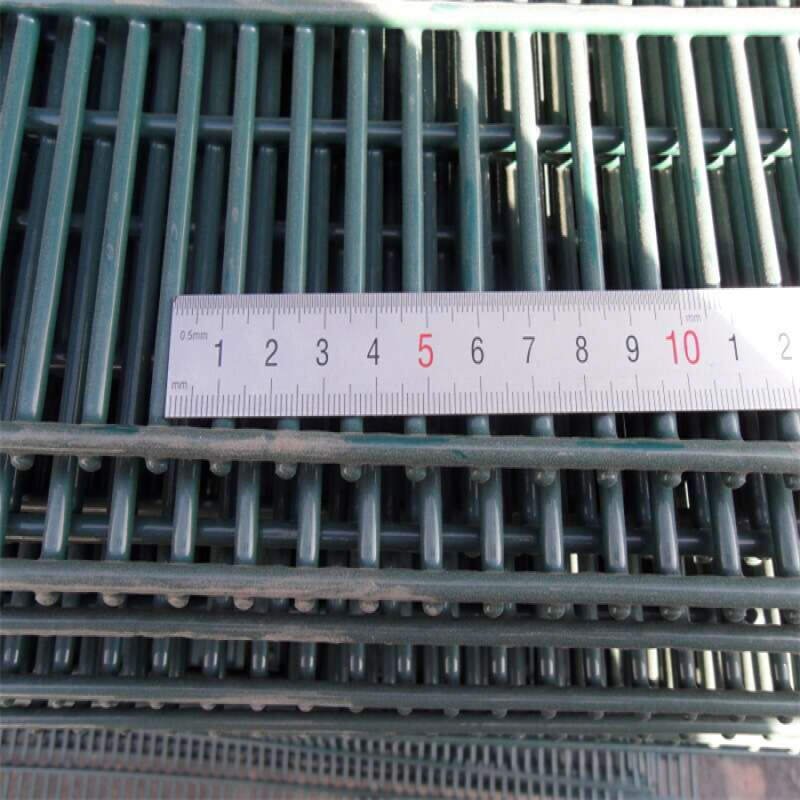

Panel weight affects handling, transport, foundation planning, and installation equipment. The following reference series uses 76.2 × 12.7 mm mesh and approximately 3.95 mm wire. Actual weights may change with production tolerances and coating specifications.
| Panel dimensions | Mesh configuration | Wire diameter | Approximate weight | Panels per pallet | Galvanized series | Galfan series |
|---|---|---|---|---|---|---|
| 2,515 × 1,207 mm | 76.2 × 12.7 mm | 3.95 mm | 27.2 kg | 50 | Yes | Yes |
| 2,515 × 1,270 mm | 76.2 × 12.7 mm | 3.95 mm | 28.6 kg | 50 | Yes | Yes |
| 2,515 × 1,829 mm | 76.2 × 12.7 mm | 3.95 mm | 41.1 kg | 25 | Yes | Yes |
| 2,515 × 2,134 mm | 76.2 × 12.7 mm | 3.95 mm | 47.8 kg | 25 | Yes | Yes |
| 2,515 × 2,438 mm | 76.2 × 12.7 mm | 3.95 mm | 54.6 kg | 25 | Yes | Yes |
| 2,515 × 2,705 mm | 76.2 × 12.7 mm | 3.95 mm | 60.6 kg | 25 | Yes | Yes |
| 2,515 × 2,997 mm | 76.2 × 12.7 mm | 3.95 mm | 67.1 kg | 20 | Yes | Yes |
| 2,515 × 3,302 mm | 76.2 × 12.7 mm | 3.95 mm | 73.9 kg | 20 | — | Yes |
| 2,515 × 4,204 mm | 76.2 × 12.7 mm | 3.95 mm | 94.0 kg | 15 | — | Yes |
| 2,515 × 5,207 mm | 76.2 × 12.7 mm | 3.95 mm | 116.4 kg | 10 | — | Yes |
The final three rows describe tall reference panels. Transport planning must account for their dimensions and handling limits. Buyers should confirm manufacturing availability before using these sizes in construction drawings.
Clear view fencing brings several benefits to commercial and residential sites. The mesh creates a visible barrier without forming a solid wall. Its welded structure helps maintain panel shape under normal service conditions.
Security performance also depends on installation quality and site layout. Strong panels cannot compensate for weak foundations or unsecured gates. For other product shapes, see our clear vu fence range.
Johannesburg includes residential neighbourhoods, business parks, logistics centres, and industrial facilities. These sites require clear boundaries and controlled access. Fence selection should reflect each site's daily activities and security priorities.

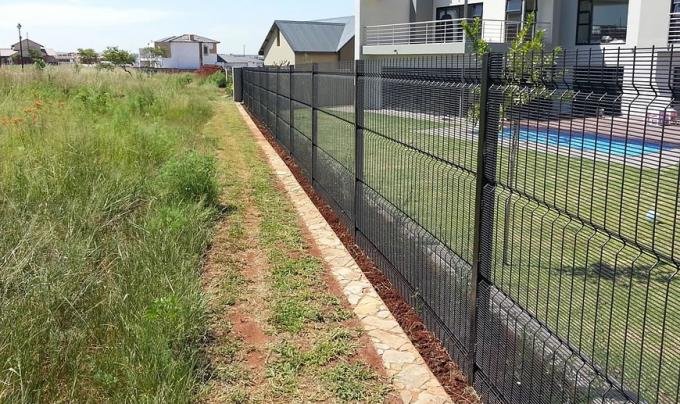

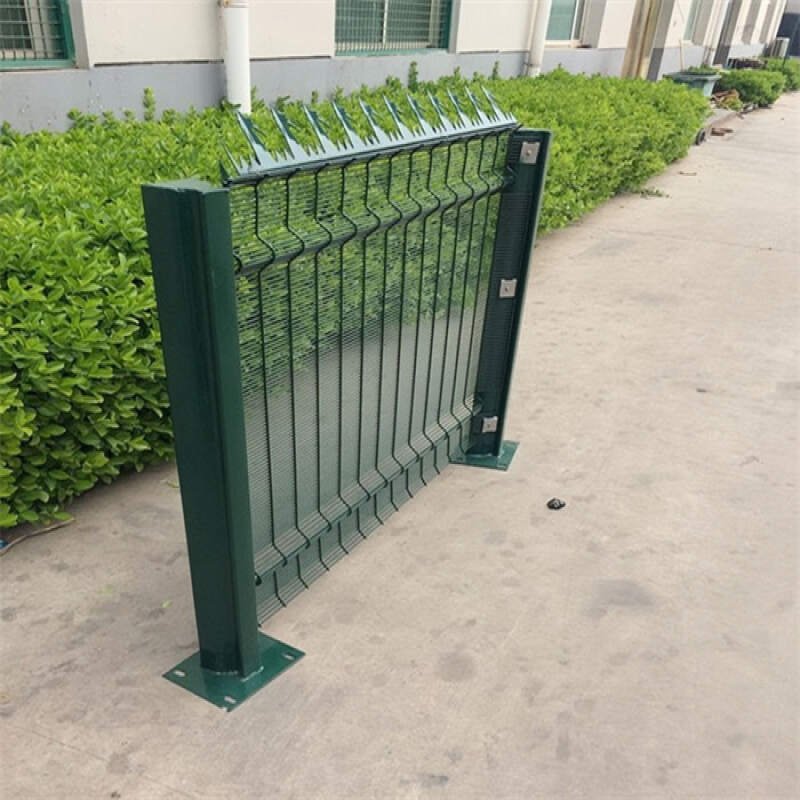

Residential properties benefit from mesh that keeps gardens, driveways, and perimeter approaches visible. Black and green finishes can complement common building materials. Matching pedestrian gates provide convenient access without changing the overall fence appearance.
Factories and warehouses often need strong perimeter lines around loading areas and storage yards. A clear mesh boundary helps security teams monitor deliveries and vehicle movement. Designers can add access controls at vehicle entrances while maintaining consistent panel heights.

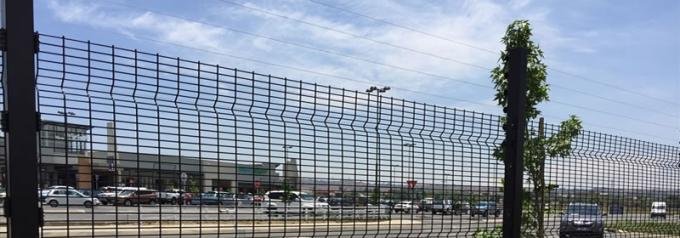

Schools may use clear view fencing to separate activity areas and manage entrances. Parking facilities benefit from better sightlines near pedestrian routes. Public sites should evaluate accessibility, emergency exits, and relevant safety requirements before selecting gates.
Other applications include utility compounds, transport sites, offices, workshops, and agricultural boundaries. High-risk facilities may require additional controls beyond perimeter mesh.
Good installation begins with an accurate site survey. Installers should measure straight runs, corners, slopes, and access openings. They should also identify services, drainage routes, and nearby structures.
Mark post centres using the approved panel width and fixing arrangement. Check each corner before digging foundations. Confirm soil conditions and suitable concrete dimensions with a qualified local professional. Keep posts aligned while concrete gains the required strength.
Installers should position panels without forcing mesh edges into the posts. Tighten clamps according to the approved fixing instructions. Use compatible fasteners at corners, slopes, and end posts. Check every connection after the fence reaches full alignment.

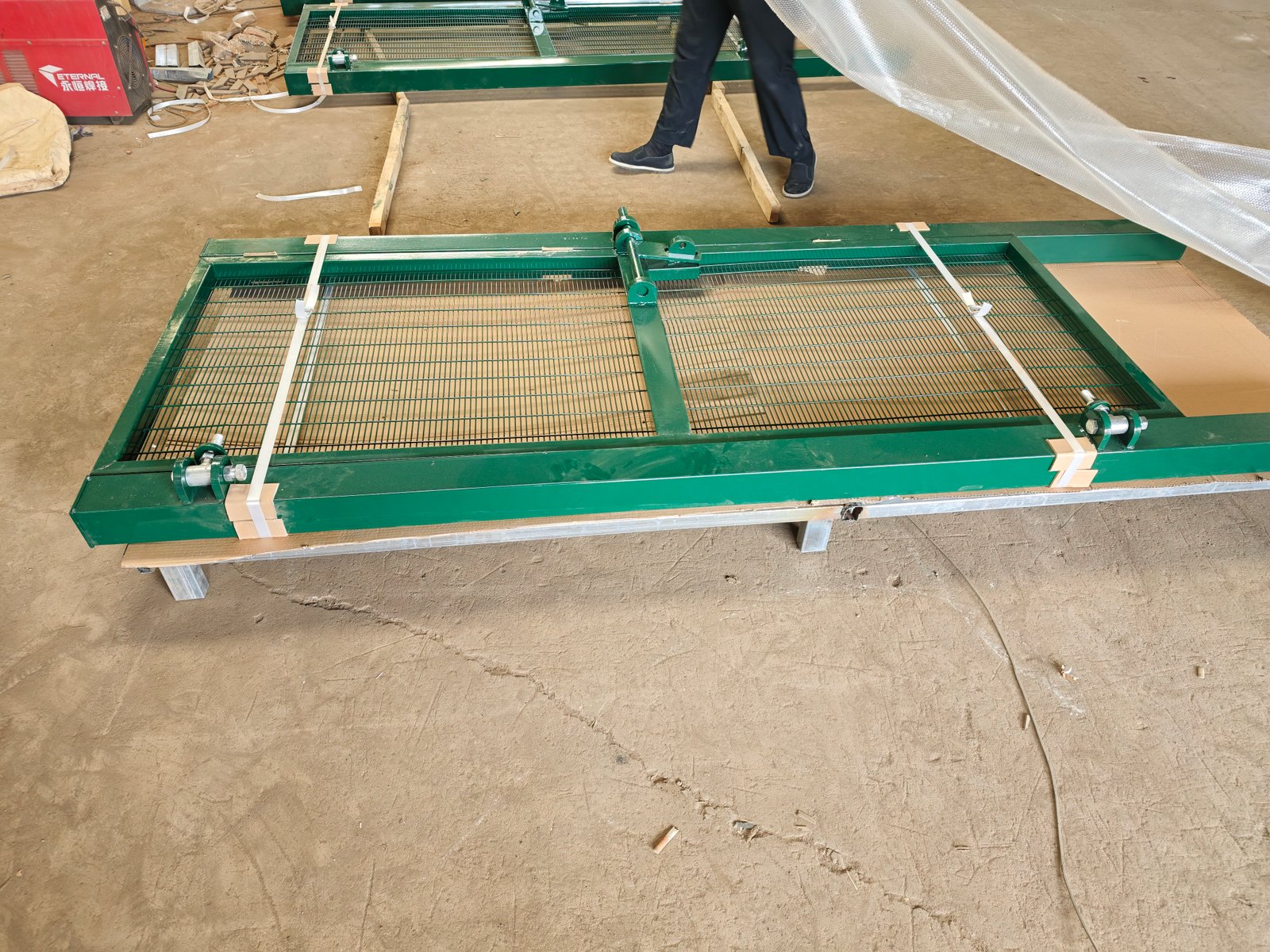

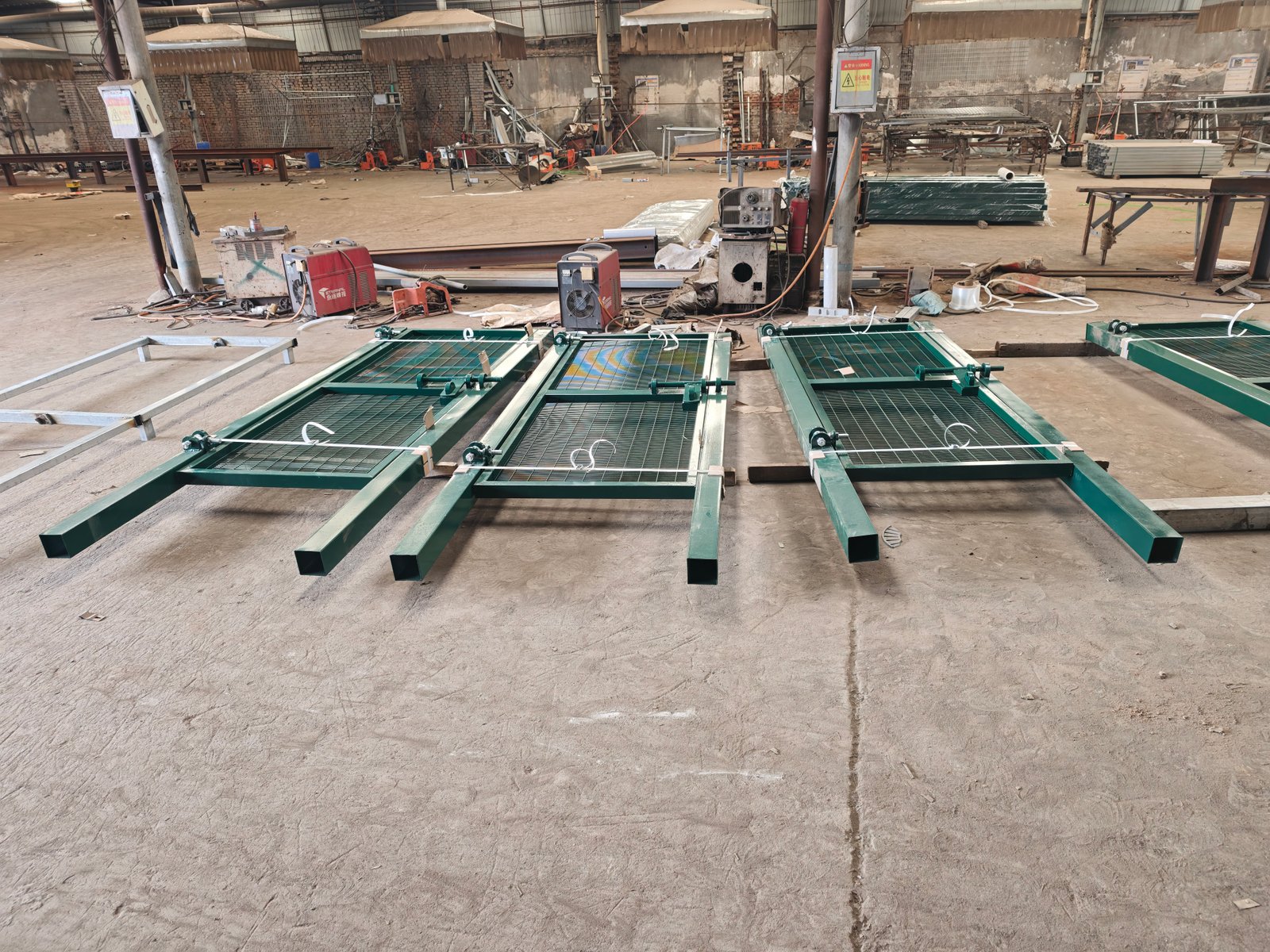

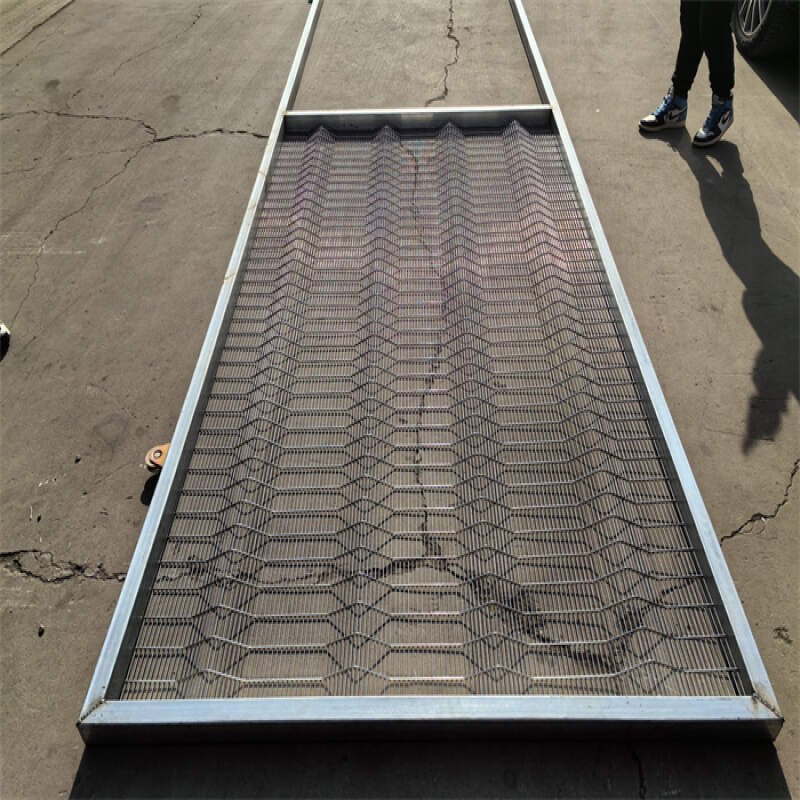

Pedestrian and vehicle gates require suitable frames, hinges, locks, and supporting posts. Sliding gates also need correct tracks, guides, and safety provisions. Buyers can compare our clear view fence gate products. Larger entrances may benefit from clearvu fence sliding gates.
For powered gates, select compliant safety equipment and qualified installers. Check vehicle clearance, pedestrian movements, and emergency access during planning. A complete security system needs reliable access control as well as strong fencing.
Coating selection influences appearance, corrosion resistance, and future maintenance. Buyers should match the finish to local exposure and the expected service conditions. Different coating systems provide different levels of protection.
Zinc coatings help protect steel from atmospheric corrosion. Some panels use galvanized wire before welding. Other specifications call for hot-dip galvanizing after fabrication. Buyers should confirm the exact process and coating thickness.
Polyester powder coating provides colour and an additional surface barrier. Black, dark green, and white remain common project choices. Surface preparation matters because poor adhesion can reduce coating performance. Inspect welds, cut edges, and fixing areas during quality checks.
Galfan coatings use zinc-aluminium alloys for corrosion protection. Some systems combine metallic coatings, pretreatment, and polyester powder layers. The original reference lists zinc coatings near 80–100 g/m² for certain galvanized wire panels. It also lists approximately 275–300 g/m² for selected Galfan wire panels.
These values describe particular reference finishes, not every BMP product. Ask for a confirmed coating specification before placing an order. Local exposure, drainage, and installation damage also influence service life.
Several choices influence project cost. Mesh density, wire diameter, panel height, and post size affect material consumption. Surface treatment, gate design, and security toppings also change the project scope.
Installation access and foundation conditions can add further costs. Freight, customs procedures, and delivery arrangements matter for imported fencing. Buyers should compare complete systems instead of comparing panel prices alone.
Our clear view fence price per meter resource explains additional cost considerations. A detailed quotation should identify the panel, post, clamp, finish, and transport basis.
These examples show how different security grades suit different surroundings. Choose the mesh aperture and finish according to each site's requirements.

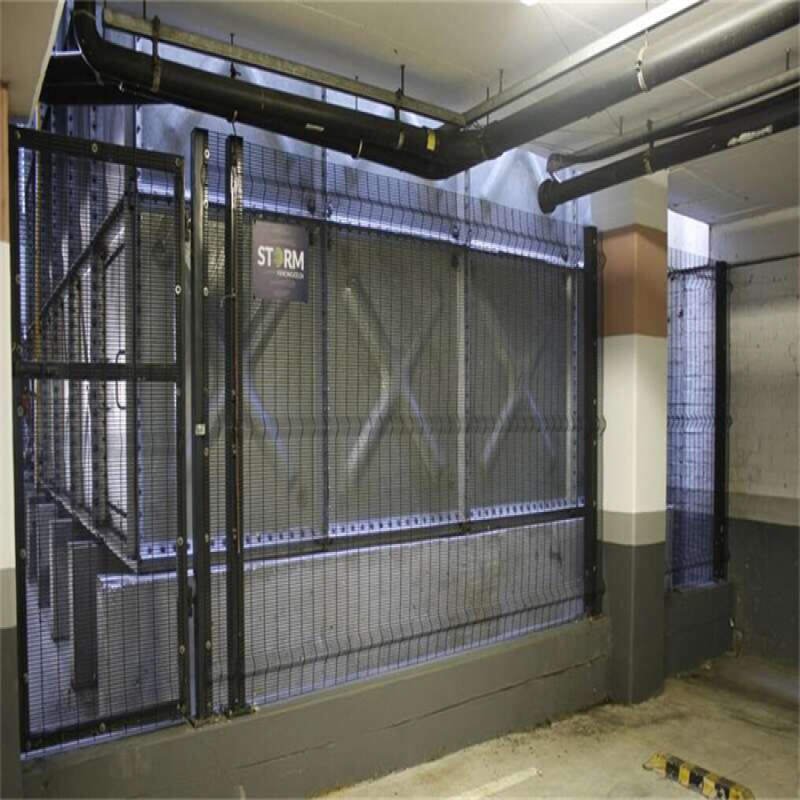

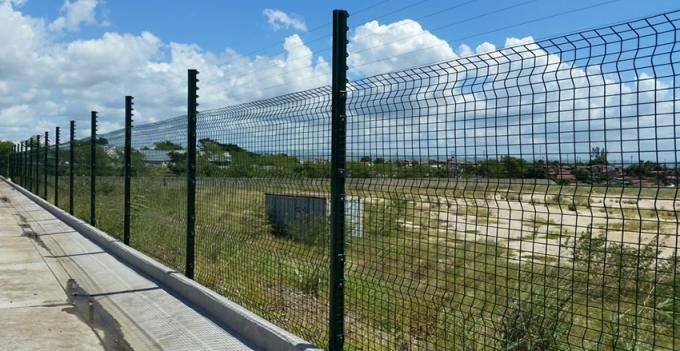

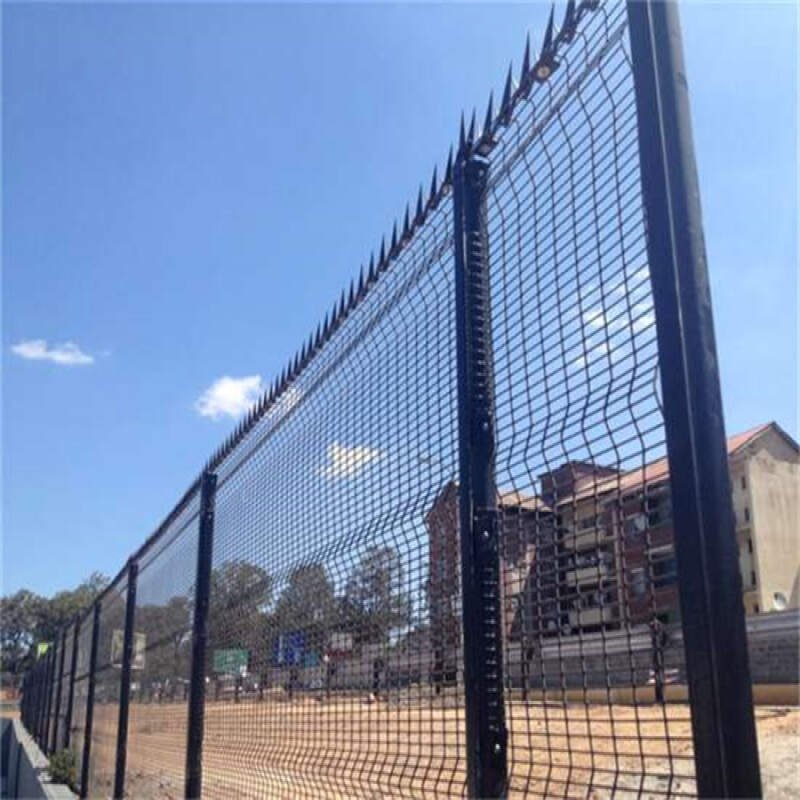

| High-security residential fencing | Medium-security parking fencing | Low-security roadside fencing |
 |
 |
 |
Routine inspections help protect fence performance over time. Walk the perimeter and check for damaged mesh, loose clamps, and leaning posts. Remove vegetation that traps moisture against metal surfaces. Clear debris from gate tracks and drainage points.
Repair coating damage using methods that match the original finish. Check exposed edges after alterations or site repairs. Maintain hinges, locks, and gate motors according to their manufacturers' instructions. Document any damage that could reduce perimeter security.
The correct height depends on security risks, site use, and applicable rules. Residential boundaries may need different designs from industrial compounds. Confirm local requirements before ordering materials.
Yes, installers can use suitable stepped layouts or approved panel arrangements. Steep slopes may need special posts and foundation details. Request a drawing before final production.
Narrow mesh openings limit usable handholds and footholds. Secure panel connections reduce obvious weak points. Good lighting and access management strengthen the overall security plan.
Compare galvanizing, Galfan, and powder-coated systems against the site's exposure conditions. Ask the supplier for the complete coating process. Inspect the coating after transport and installation.
Yes, BMP offers compatible gate options for different entrance sizes. Confirm gate clearances, opening direction, and hardware requirements. Motorized systems also need suitable safety controls.
Share the total perimeter length, desired height, mesh aperture, wire diameter, and coating colour. Include gate dimensions, post details, site drawings, and the delivery destination. These details help us prepare a consistent technical proposal.
BMP helps buyers compare fencing configurations and prepare materials for perimeter projects. Our manufacturing scope includes welded panels, posts, clamps, gates, and optional security accessories. We can discuss drawings, packing arrangements, and export requirements before production.
Send your project specifications to clearvu@construction-fence.com for a tailored quotation. Include your required security grade and delivery location. Our team can then review the product details and identify any missing measurements.
