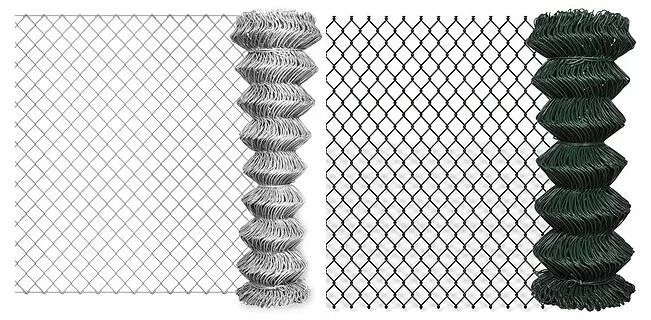

Metal chain link fence is also called diamond wire mesh. It is made by weaving metal wires into diamond shapes. BMP supplies this fence in galvanized, PVC, or PE coated finishes. It suits gardens, schools, factories, roads, and event sites.
| Material Type | Coating | Rust Resistance | Lifespan | Typical Use |
|---|---|---|---|---|
| Galvanized Steel | Zinc | Moderate | 10–15 years | Budget fences, general purpose |
| PVC Coated Wire | PVC over zinc | High | 15–25 years | Homes, gardens, schools |
| PE Coated Wire | PE over zinc | Very High | 15–25 years | Safety zones, heat-prone areas |
| Stainless Steel Wire | None | Excellent | 30+ years | Coastal, marine, or high-security |
| Aluminum-Coated Wire | Aluminum | Excellent | 20–30 years | Salty, humid, or chemical sites |
 |
 |
<li data-start="2961" data-end="2989">Easy to install and repair
| Item | Detail |
|---|---|
| Product | Metal Chain Link Fence |
| Mesh Size | 2.5″ x 2.5″ (60x60mm) |
| Wire Diameter | 8 Gauge (4.00mm) |

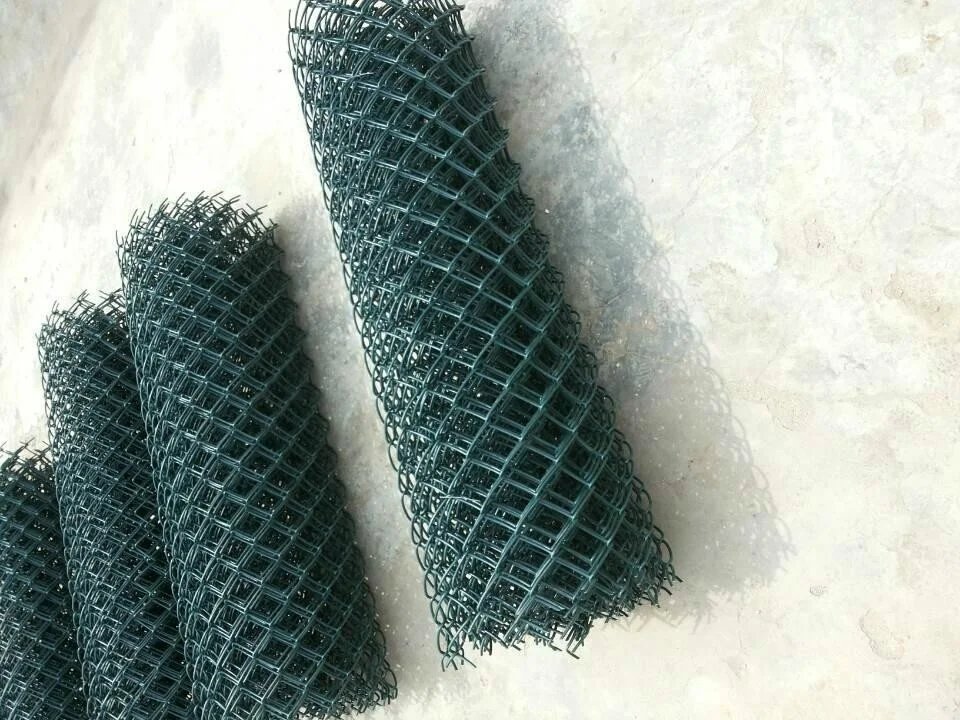

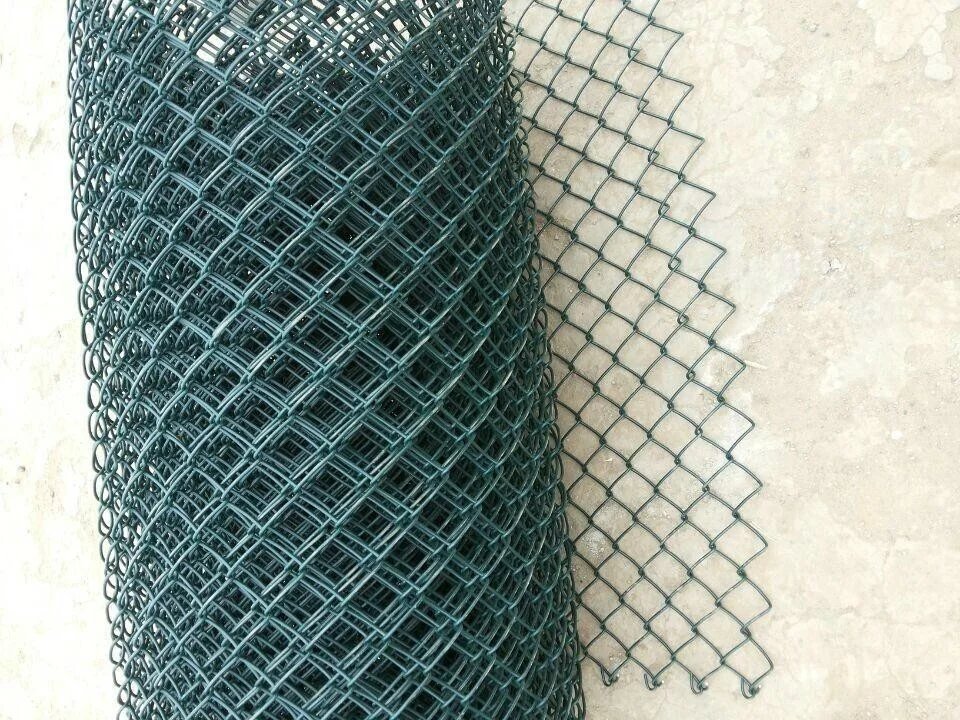

| Coating | PVC / PE over galvanized wire |
| Surface Finish | Galvanized + PVC / PE |
| Colors Available | Orange, Green, Black, White |
| Roll Length | 10m – 21m |
| Heights | 1200mm – 2100mm |
| Edge Options | Knuckle-Knuckle, Knuckle-Barb, Barb-Barb |
| HS Code | 73144900 |
| Price Estimate | $3.90 – $6.50 per meter |
| Item | Detail |
|---|---|
| Post Diameter | ∅60mm / ∅75mm |
| Wall Thickness | 1.50mm – 5.20mm |
| Coating | Galvanized or PVC Coated |
| Top Design | V type or single crack branch |

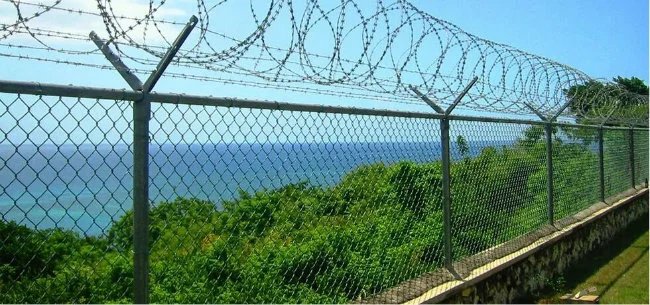

| Fence Top | With barbed wire or razor spikes |
<div class="sticky end-(--thread-content-margin) h-0 self-end select-none">
<
li data-start="4533" data-end="

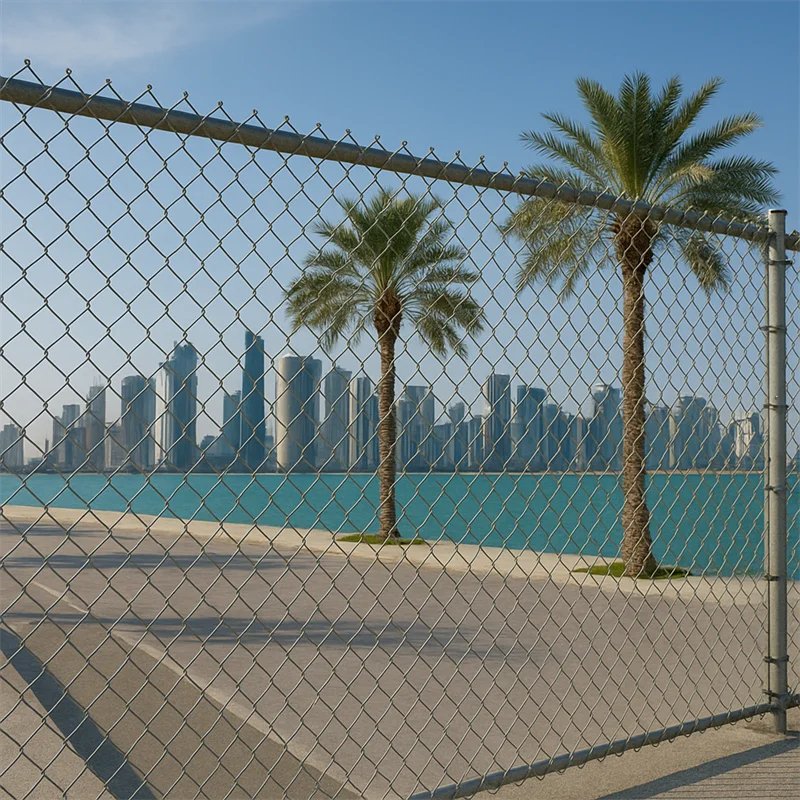

“We used BMP’s metal chain link fence for a Doha road project. The orange PVC stood out, and quality stayed strong even in summer heat. Great service and fast shipping.”
— Project Manager, Doha Infrastructure Group
Tropical & Humid Climates (e.g., Singapore)
Use PVC-coated wire to resist moisture and prevent rust.
Aluminum-coated wire offers strong corrosion resistance.
Stainless steel is ideal for areas with coastal salt spray.

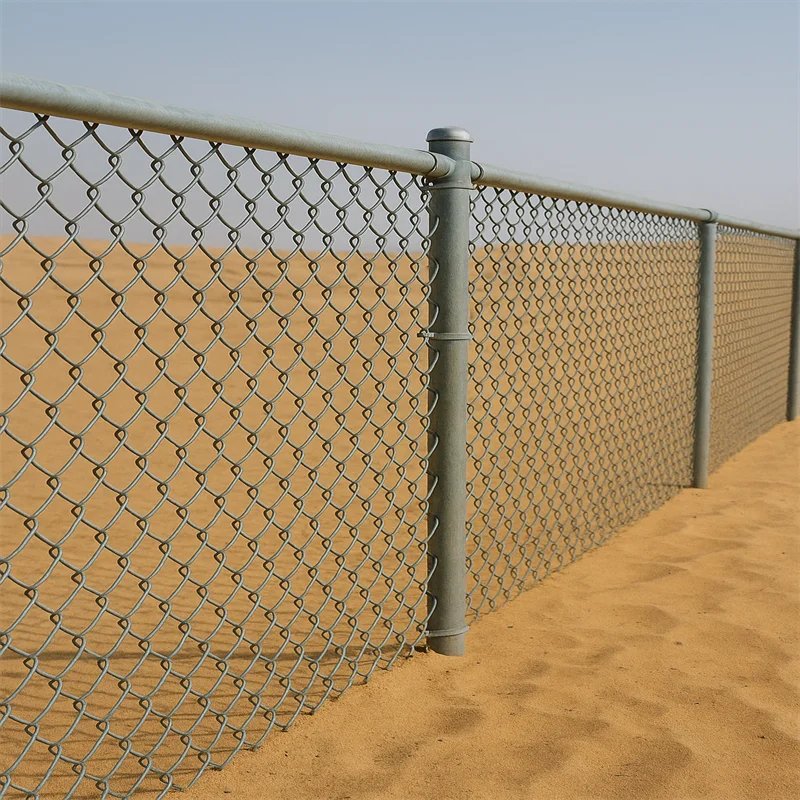

☀️ Hot, Dry, Desert Climates
Choose PE-coated wire—it withstands strong UV rays and abrasive sand.
Industrial or Chemical Environments
Go with stainless steel for excellent resistance to corrosion.
Aluminum-coated wire also resists acidic or chemical exposure.
| Material | Up-Front Cost | Total Life-Cost | Best Fit |
|---|---|---|---|
| Galvanized | Lowest | Moderate | Short projects, tight budgets |
| PVC-Coated | Medium | Low over time | Homes, schools, parks |
| PE-Coated | Medium-High | Low over time | Extreme heat, safety zones |
| Aluminum-Coated | High | Low | Coastal or polluted air |
| Stainless Steel | Highest | Lowest | High-security, marine plants |
Use these points to balance cost, durability, and look. The right material keeps your metal chain link fence strong for its full service life.
What’s more, the Chain Link Fence with barbed edges is more popular and has higher security.
BMP stocks 25 mm, 50 mm, 60 mm, and 75 mm meshes.
Eight-gauge, nine-gauge, and eleven-gauge fit most metal chain link fence jobs.
Walk the fence line, mark corners, then total the linear meters.
Yes. Step the posts, then stretch the mesh between each level.
Use a come-along, tension bar, pliers, level, and cutting wheel.
Yes. Pick smaller mesh and bury bottom wire to stop digging.
Clip single links with bolt cutters, then twist the wire free.
Yes. Slide slats through the metal chain link fence after you finish.

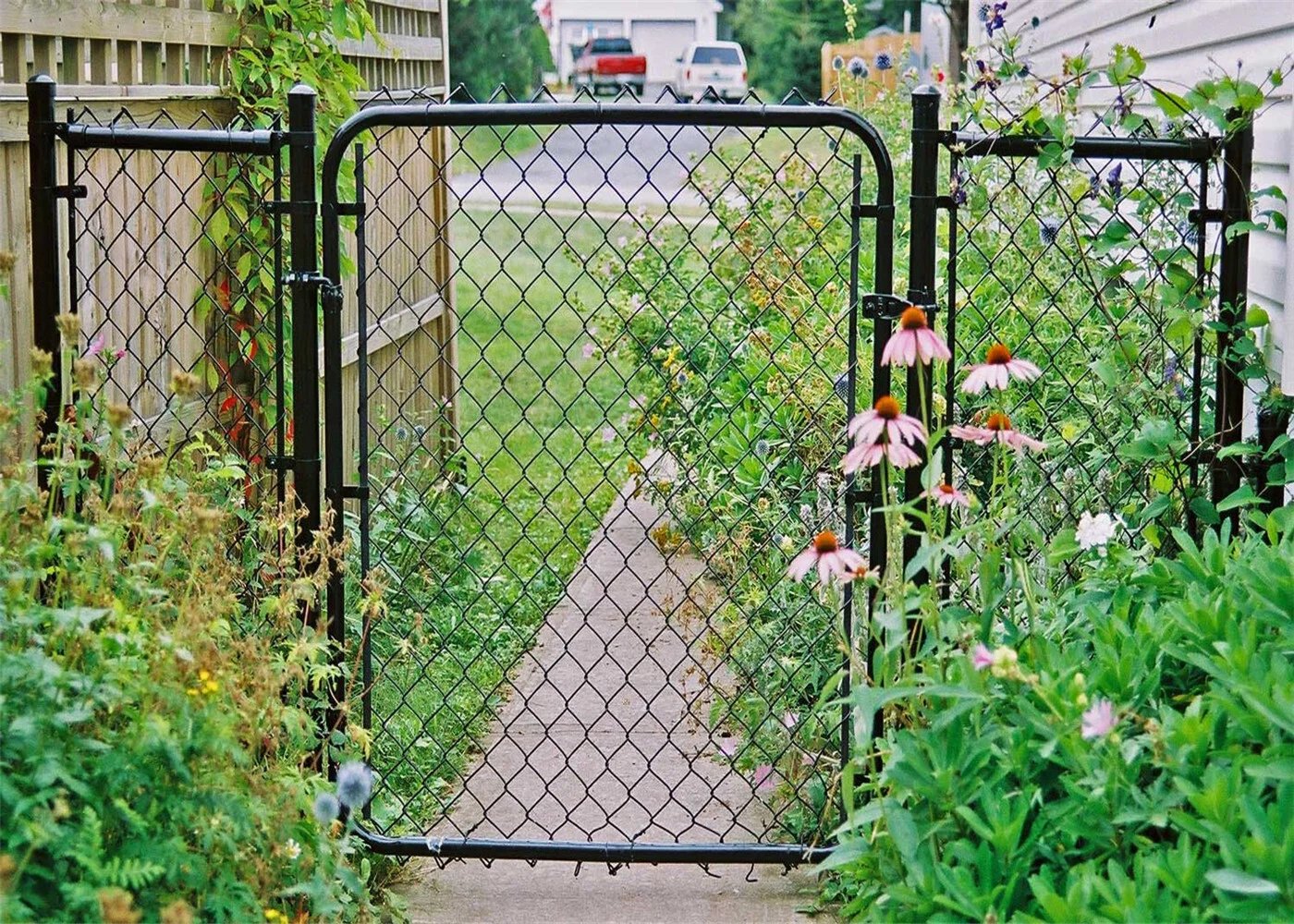

BMP builds matching gates with the same mesh and coating.
Light gray and beige reflect sun better than black or green.
Rinse every six months with water and mild soap.
Remove broken links, weave a new section, then tighten again.
Salt cuts life short. Choose PVC-coated metal chain link fence for coasts.
No. Paint will not bond. Order the color you need from BMP.
Yes. Strip the plastic, then recycle the steel core.
BMP issues ISO 9001, ASTM test reports, and origin forms.
Sea freight needs about twenty-five to thirty days from China to Doha.
We support T/T, L/C at sight, and Alibaba trade orders.
Yes. Tell us the meters per color when you place the purchase.
We can. Choose straight barb, V-top, or Y-top during quoting.
Add bottom tension wire and tighten top rail every twenty meters.
PE coating resists UV, so colors stay bright for fifteen years or more.
BMP offers a ten-year quality warranty on every metal chain link fence roll.
BMP’s metal chain wire fence offers strength, color, and long life. With a 4.00mm wire and 2.5″ mesh, it fits homes, roads, and event zones. Our PVC and PE coatings resist rust and UV. Choose BMP for complete solutions—from fence rolls to post systems and export packing.
