Clearview fence for sale searches often begin with panel prices, yet successful projects require more than welded mesh. Buyers also need matching posts, clamps, gates, protective finishes, and accurate installation drawings. BMP supplies 358 security mesh systems for properties seeking controlled access and useful perimeter visibility.
Dense wires reduce convenient climbing holds without concealing activity behind a solid wall. Security teams can monitor entrances, loading yards, and equipment compounds through the fence. The design cannot replace reliable locks, lighting, cameras, or a response procedure.
Before comparing quotations, decide whether the project needs a standard 358 sheet, reinforced 2D construction, or 3D folded panels. Each option creates different loads and fixing requirements. Matching Clear View Fence Panels to their intended duty avoids unnecessary material changes.
A complete fencing package includes structural supports and compatible fastening hardware. Quantity schedules should distinguish ordinary posts from corner, end, and gate supports. Coating details also matter because replacement parts should match the original finish.
For demanding boundaries, High Security ClearVu Fencing provides a related dense-mesh configuration. Less sensitive areas may suit another security grade. Rather than specify maximum height everywhere, buyers should map distinct risks around the property.
The familiar 358 designation describes a three-inch by half-inch grid with approximately eight-gauge steel wire. Its metric reference is 76.2 × 12.7 mm centre spacing and roughly 4 mm wire. The clear opening becomes smaller after subtracting wire diameter.
Conventional cutting tools may struggle with the narrow working space. However, determined attackers can damage steel using other equipment. Anti Climb Fence designs should form one layer within a wider security plan.
 |
 |

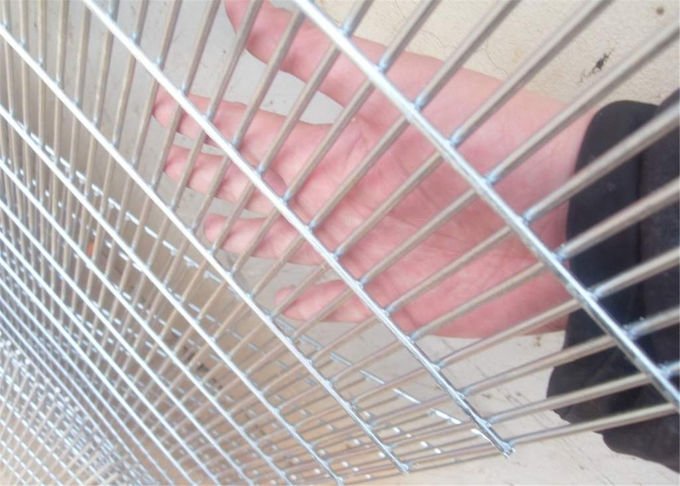

| Original product photo: dense welded wires complicate certain cutting methods. | Original product photo: small apertures limit ordinary finger and toe holds. |
Close mesh still permits useful views across protected property. Camera results depend on lighting, viewing angles, and clear patrol routes. Vegetation or stacked materials can obstruct sightlines despite the transparent panel.
Each welded intersection needs consistent strength and alignment. Factory inspections should verify wire straightness, panel geometry, and visible weld defects. Nominal descriptions cannot substitute for agreed test methods or security certificates.
Buyers often confuse nominal wire centres with the actual clear aperture. The two measurements are not interchangeable. Drawings should define orientation, tolerance, wire diameter, and whether values apply before or after coating.

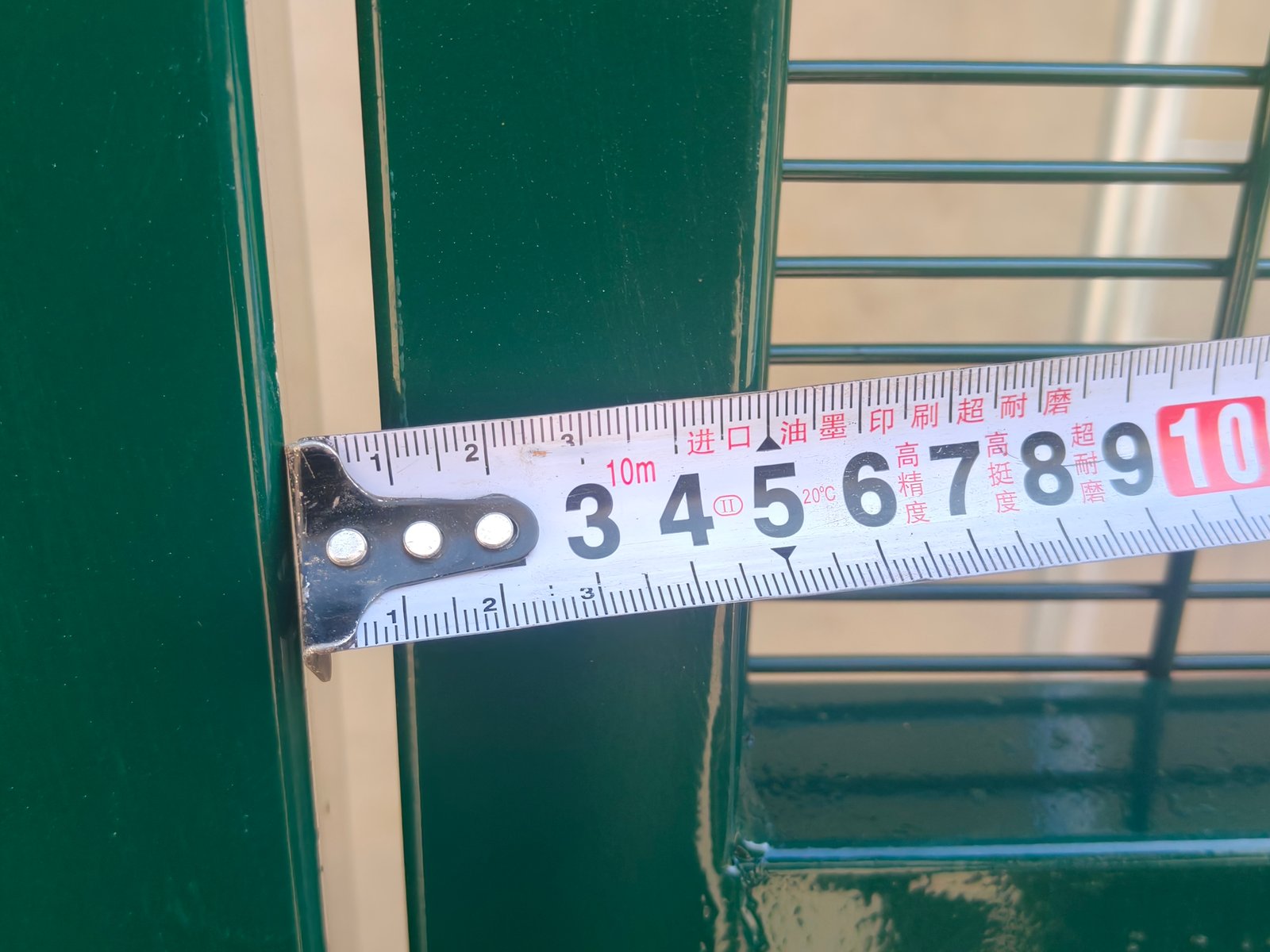

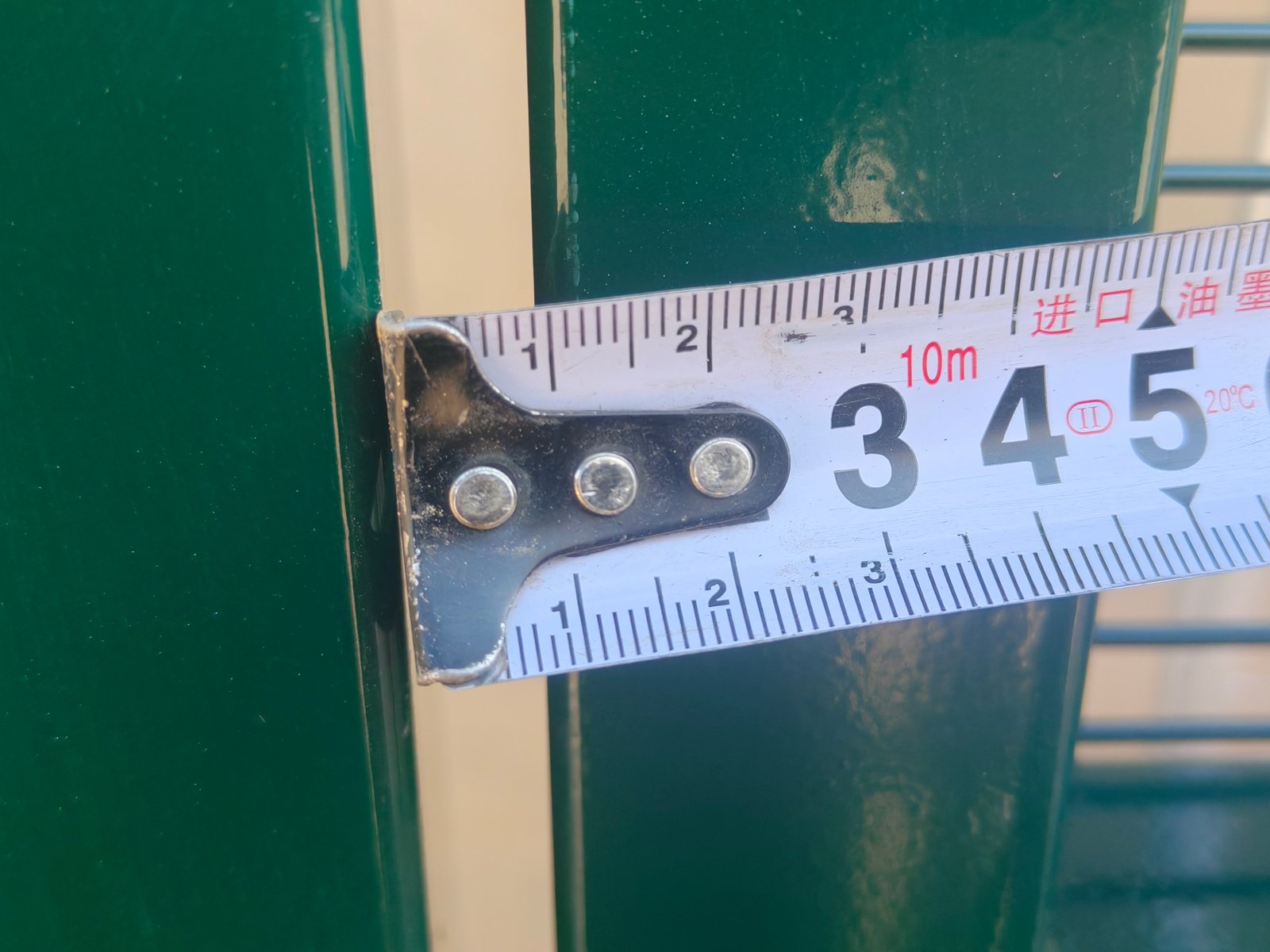

Original catalogue photographs show ruler checks along both mesh directions. They provide useful visual references but do not replace calibrated measurements. A sample approval should record the correct steel dimensions.
 |
 |
| Mesh inspection: reference spacing along the wider 76.2 mm direction. | Mesh inspection: narrow pitch around 12.7 mm; confirm finished dimensions. |
Standard 358 designs commonly use approximately 4 mm wire in both directions. Different wire combinations alter weight, stiffness, and cutting resistance. Ask for the actual finished panel mass when estimating handling and container capacity.
A dense panel can weigh more than an open-mesh alternative. No universal multiplier describes every product, because frame design and coating also affect mass. Purchasing teams should compare documented specifications rather than marketing labels.
The source catalogue specifies a nominal panel width of 2515 mm across eight fence heights. Post sections, clamp bars, and fixing quantities increase with the reference height. The figures below preserve the original schedule for quotation comparisons.
Engineers must approve post foundations for the actual wind, soil, and site loads. A 5207 mm panel requires different installation planning from a 2007 mm panel. Catalogue lengths never guarantee structural suitability on their own.
| Fence Height | Panel Height × Width | Post Length × Section × Wall | Clamp Bar Height × Width × Thickness | Intermediate / Corner Clamps |
|---|---|---|---|---|
| 2.0 m | 2007 × 2515 mm | 2700 × 60 × 60 × 2.5 mm | 2007 × 60 × 5 mm | 7 / 14 |
| 2.4 m | 2400 × 2515 mm | 3100 × 60 × 60 × 2.5 mm | 2400 × 60 × 5 mm | 9 / 18 |
| 3.0 m | 2997 × 2515 mm | 3800 × 80 × 80 × 2.5 mm | 2997 × 80 × 6 mm | 11 / 22 |
| 3.3 m | 3302 × 2515 mm | 4200 × 80 × 80 × 2.5 mm | 3302 × 80 × 6 mm | 12 / 24 |
| 3.6 m | 3607 × 2515 mm | 4500 × 100 × 100 × 3 mm | 3607 × 100 × 7 mm | 13 / 26 |
| 4.2 m | 4204 × 2515 mm | 5200 × 100 × 100 × 4 mm | 4204 × 100 × 8 mm | 15 / 30 |
| 4.5 m | 4496 × 2515 mm | 5500 × 100 × 100 × 5 mm | 4496 × 100 × 8 mm | 16 / 32 |
| 5.2 m | 5207 × 2515 mm | 6200 × 120 × 120 × 5 mm | 5207 × 100 × 8 mm | 18 / 36 |
Clamp counts reflect the original intermediate and corner arrangements. Actual totals depend on corners, terminal posts, and gate interfaces. Confirm every fitting position in the approved drawing.
Some systems use an approximately 75 mm overlap at supporting posts. Slotted clamp bars and M8 bolts suit the original reference arrangement. Other products use separate clamps without the same overlap.
The panel width therefore may differ from the installation bay width. Surveyors should calculate post centres from the exact approved connection detail. Forced adjustments on site can create gaps and damaged coatings.
Posts transfer fence loads into concrete or other engineered foundations. Square sections in the reference range include 60, 80, 100, and 120 mm options. Wall thickness changes with system height and loading.
Some projects use ClearVu Fencing IPE Post layouts instead of square hollow sections. The flange geometry changes bolt access and clamp placement. Metal fittings must match the selected profile.
Specify ClearVu Fence Clamps according to steel thickness and mesh edges. Tamper-resistant hardware can discourage casual removal. Installers should still check tightening, alignment, and coating damage.

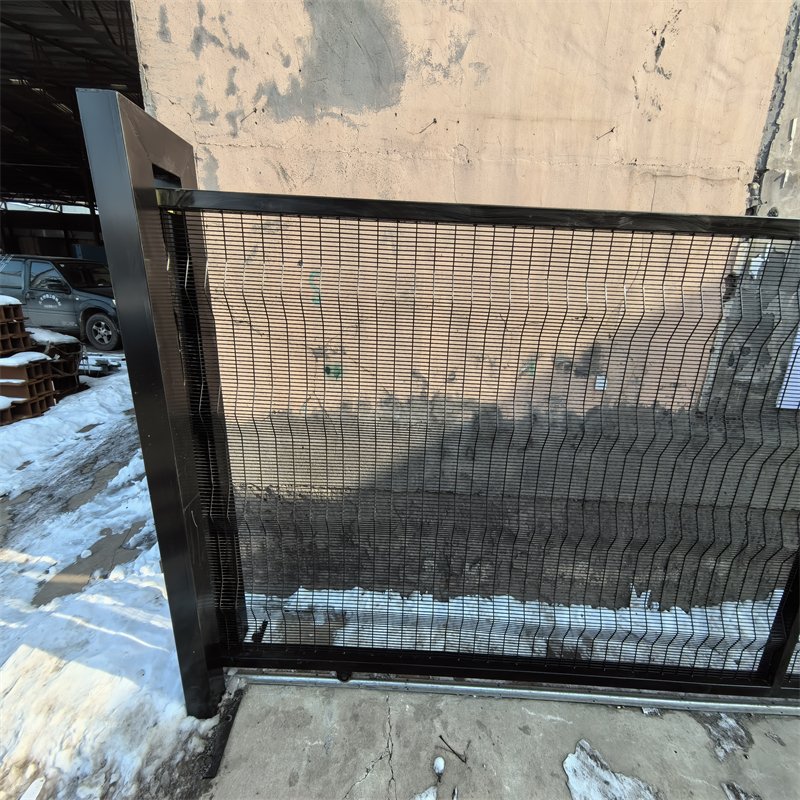

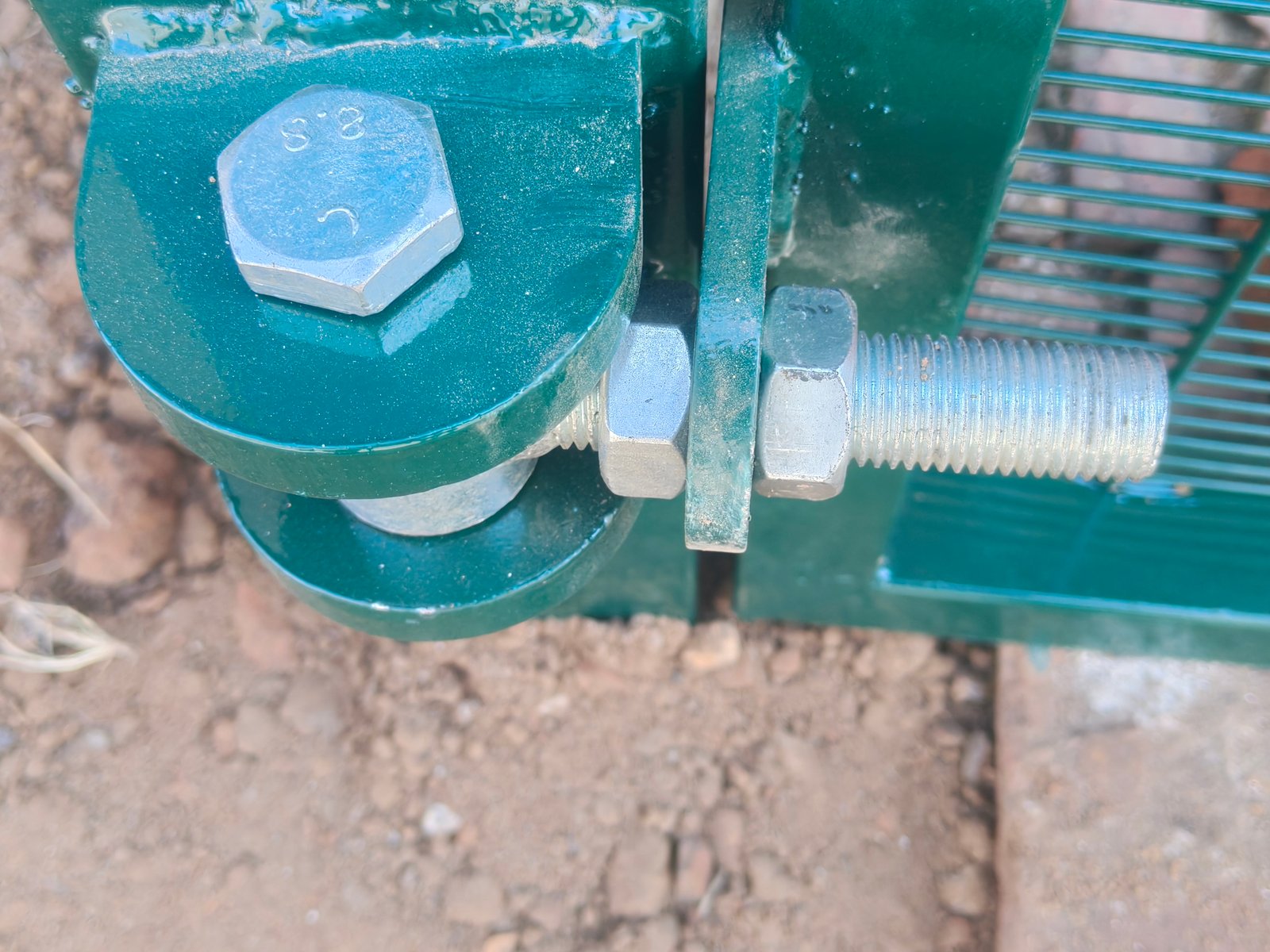

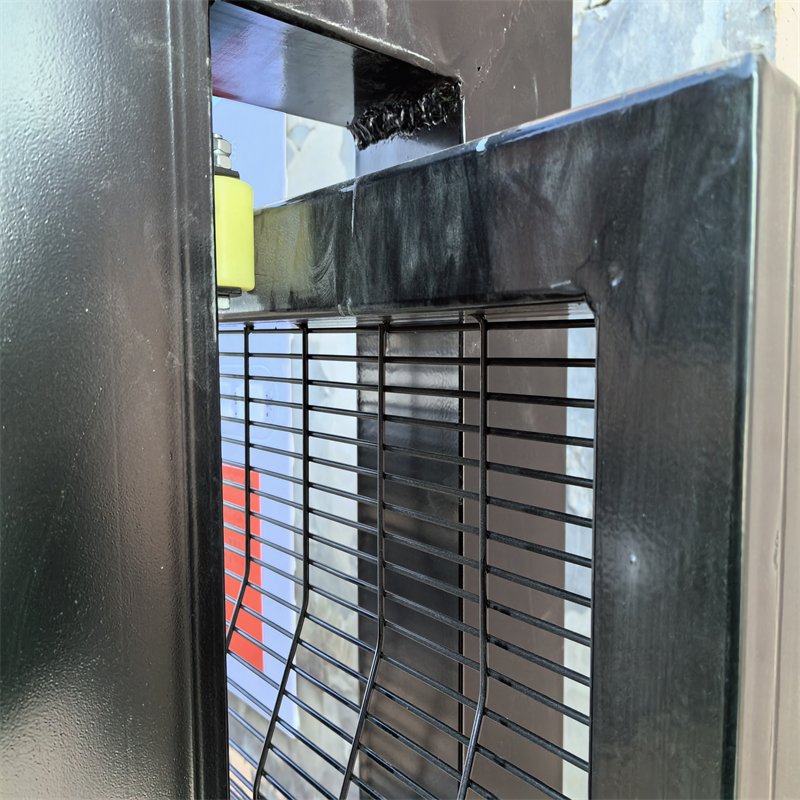

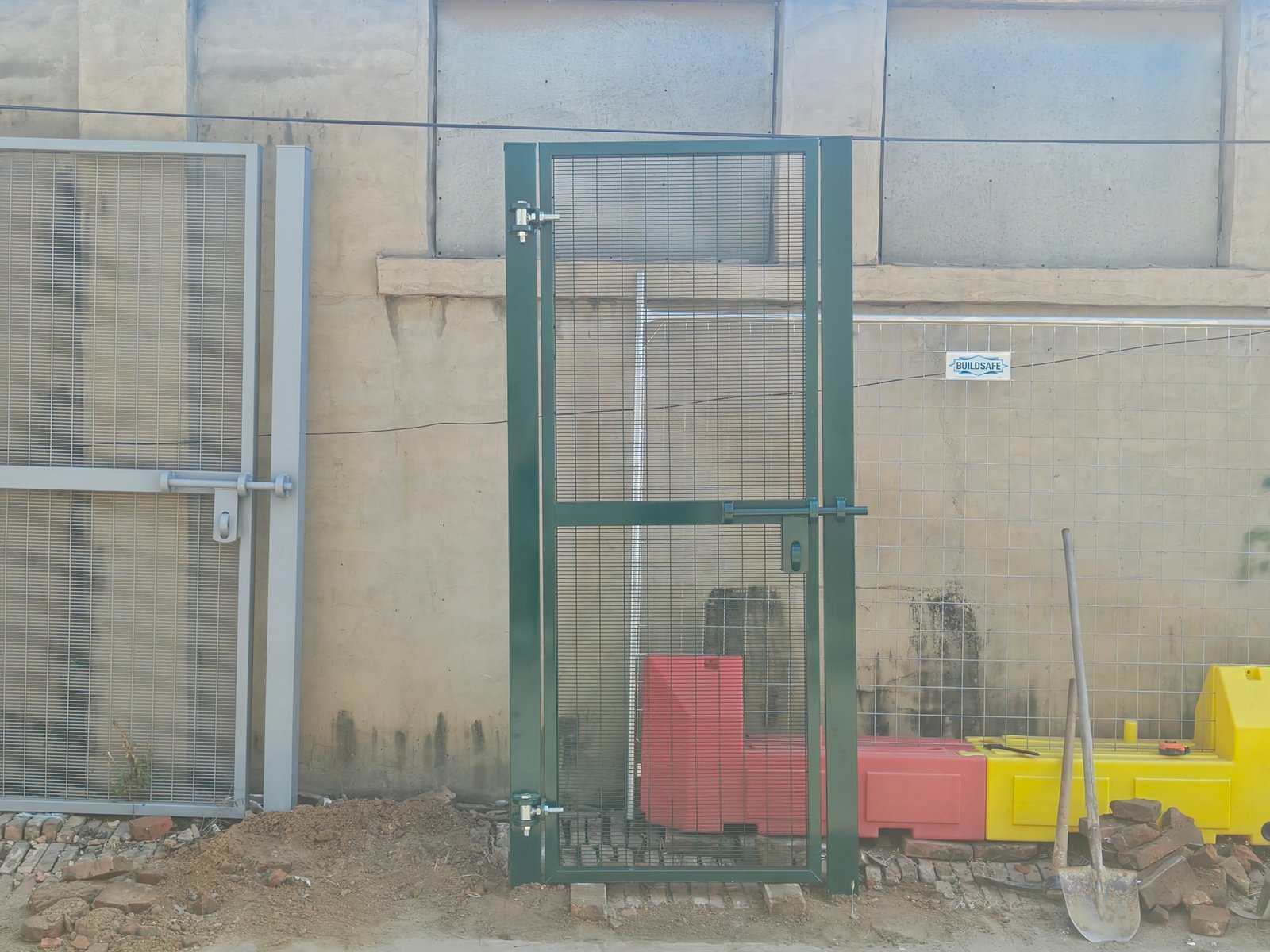

Pedestrian entrances and vehicle gates need independent support designs. Moving leaves impose different forces from fixed fence panels. Select clear opening widths before calculating hardware quantities.
Sites with limited swing clearance may choose Sliding Gates for vehicle access. Tracks require drainage, accurate alignment, and suitable safety devices. The gate should match adjacent mesh without weakening the entrance.
Standard 358, reinforced 2D, and folded 3D mesh share a security-fencing purpose. Their construction methods differ considerably. Match the format to the desired strength, appearance, post system, and installation environment.
Some ClearVu Fence Panels use different apertures for distinct security grades. Buyers should not treat every clear-view product as identical 358 mesh. Request separate drawings for each proposed alternative.
Traditional panels create a close welded grid without prominent horizontal folds. The flat profile supports patrol visibility and makes access through small openings more difficult. Stiffness still depends on wire dimensions, welding, height, and fixings.
ClearVu Fencing for Sale includes related standard panels and hardware options. A sample helps establish the actual appearance and mass. Choose the finish only after agreeing on steel and mesh dimensions.
The original 2D configuration adds selected horizontal reinforcement wires behind the face grid. Its main vertical wires measure 6 mm, while horizontal wires use 4 mm steel. Additional 4 mm wires appear at approximately 152.4 mm centres on the inside face.
This arrangement can increase panel rigidity compared with a suitable lighter configuration. However, strength depends on the final welded design and tested properties. The support posts must match the heavier panel and fixing arrangement.
 |
 |
| Original 2D product photograph: reinforced welded security panel. | Original installation photograph: matching green post and panel connection. |

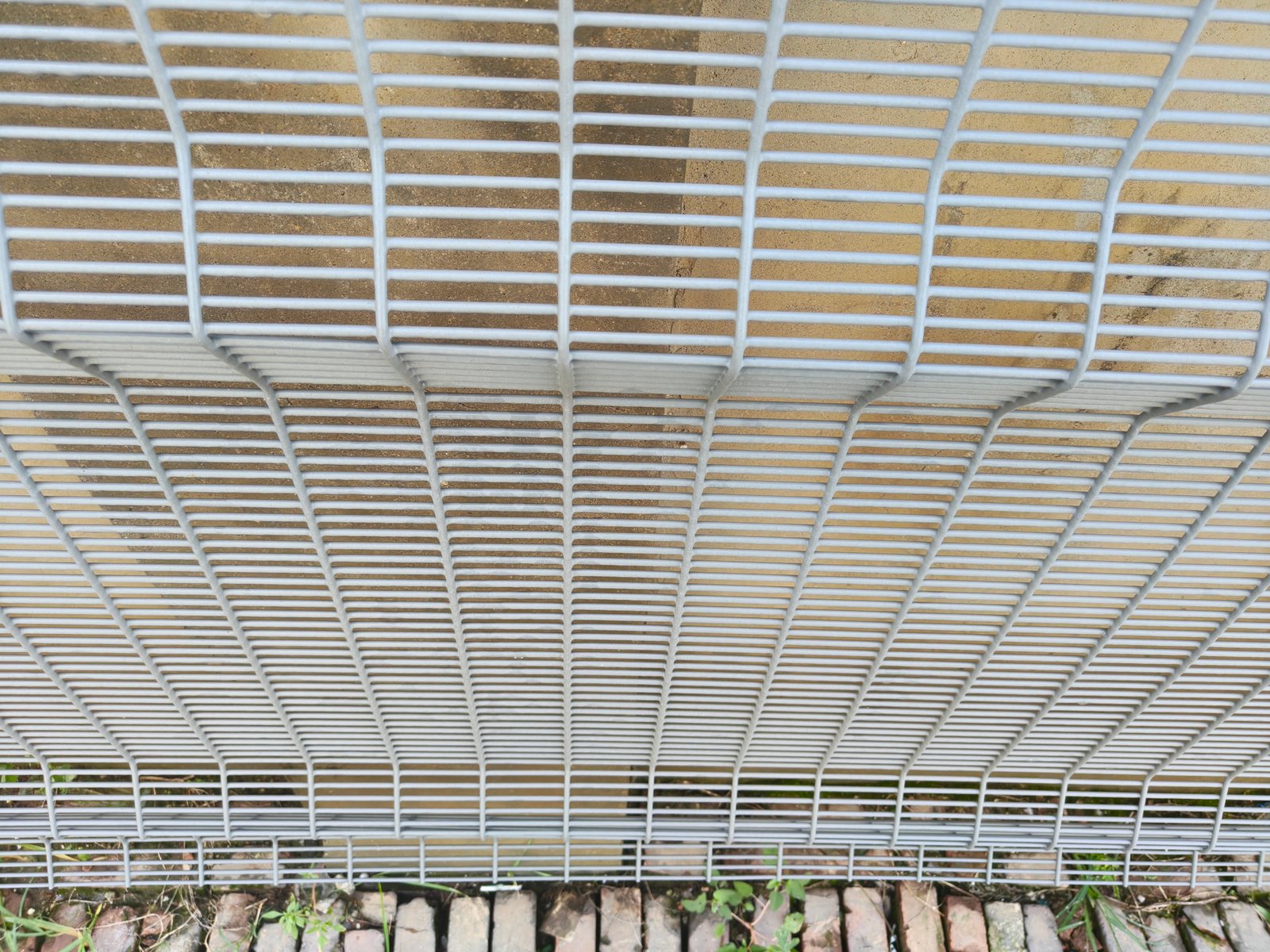

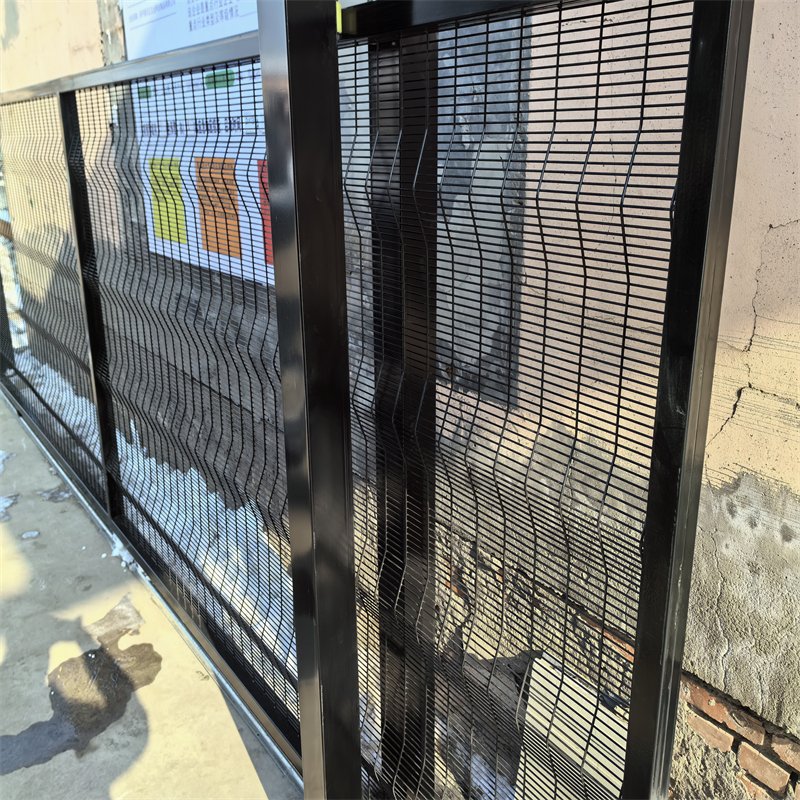

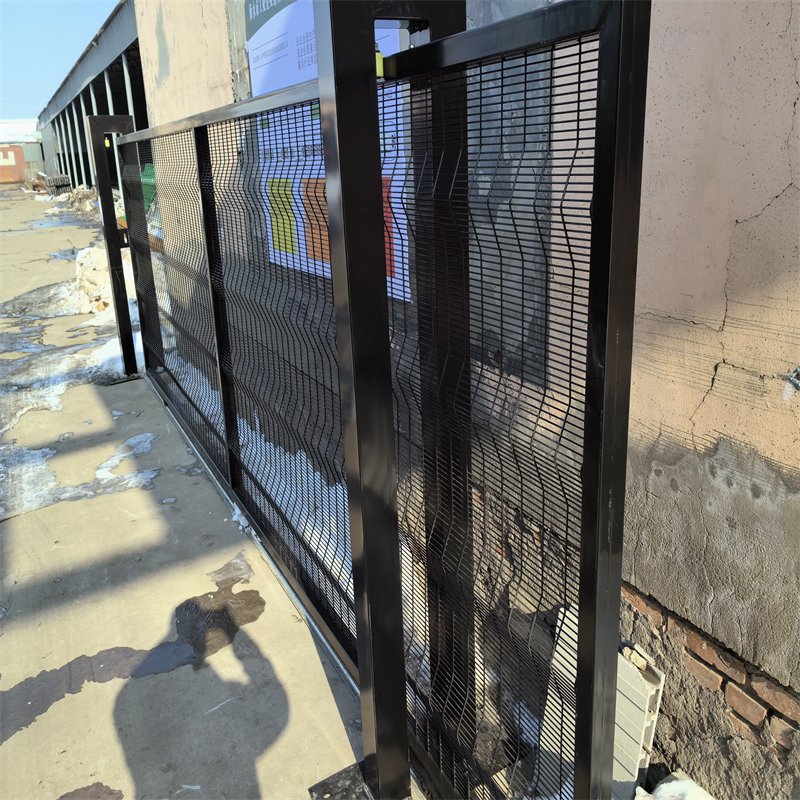

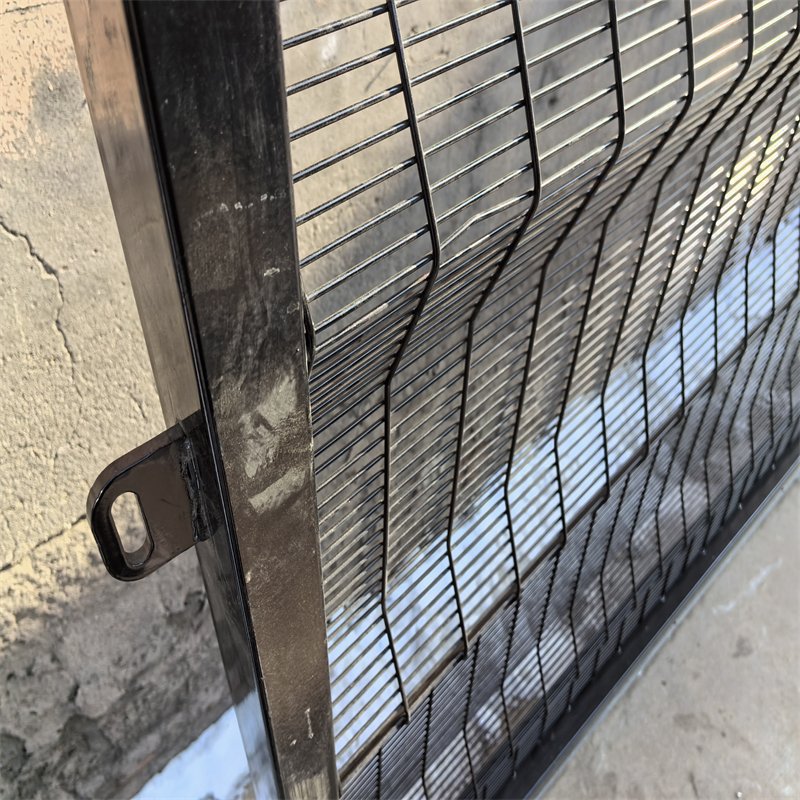

Pressed V-shaped folds introduce additional geometry into a welded panel. These bends can improve rigidity while giving long boundaries a distinctive appearance. Actual bend depth and placement require a separate manufacturing drawing.
For comparison, All View Fencing includes flat and folded panel options. Do not assume that two visually similar V-bend products share identical dimensions. Approved samples should guide the final selection.
 |
 |
 |

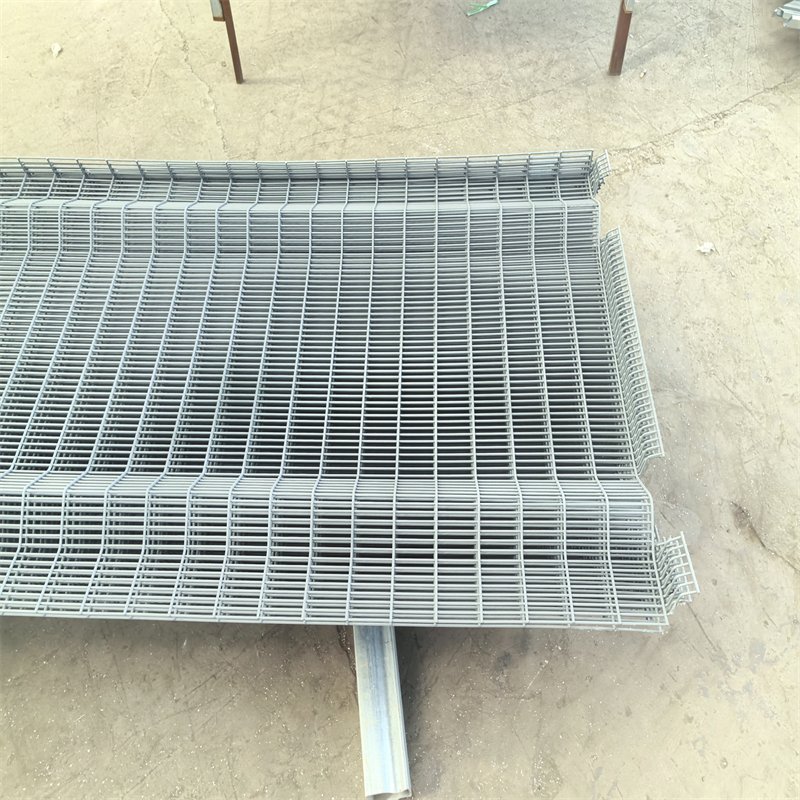

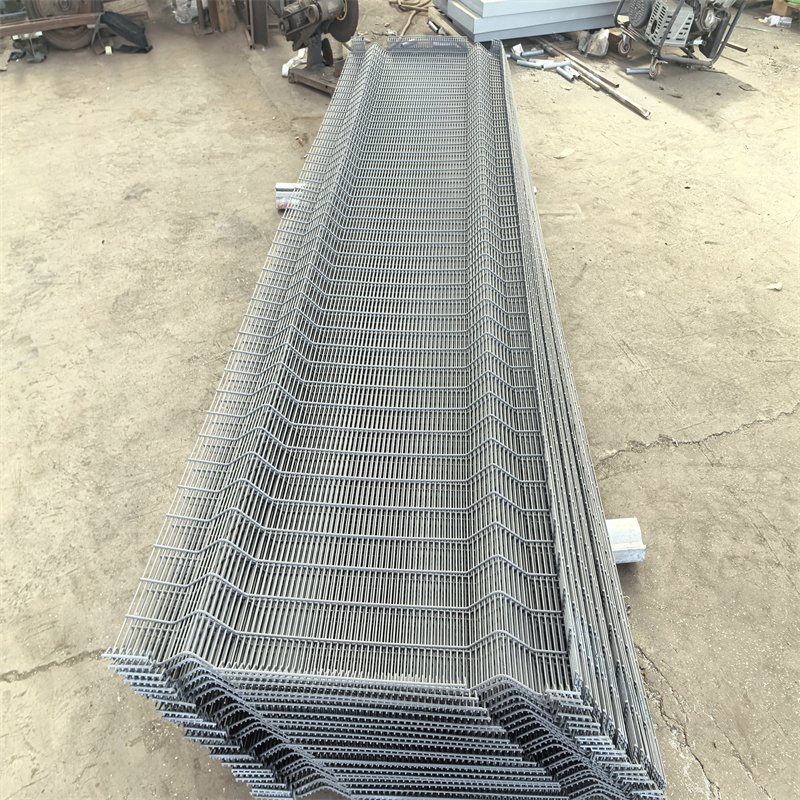

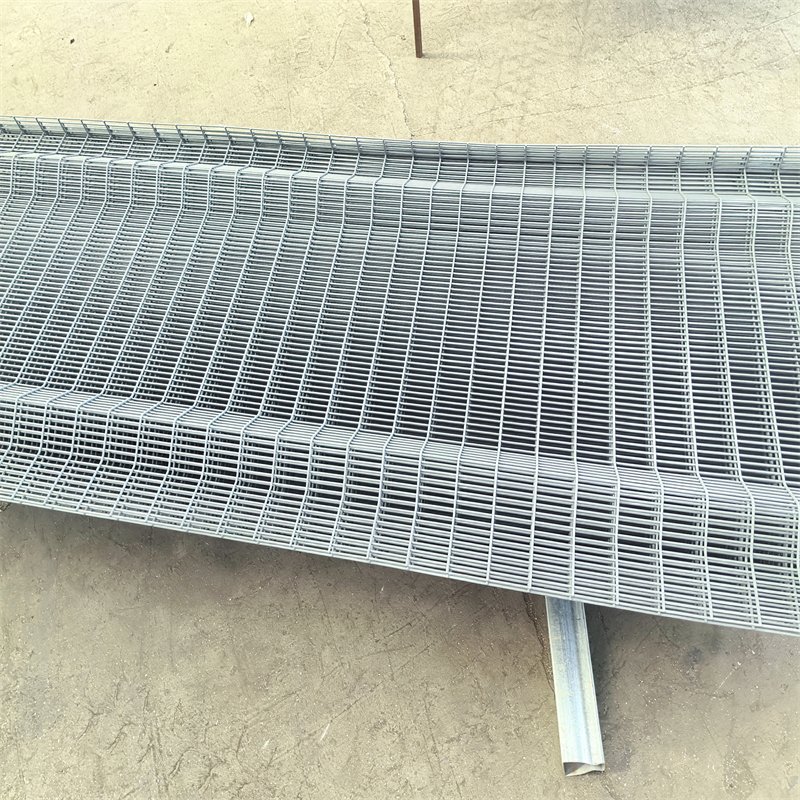

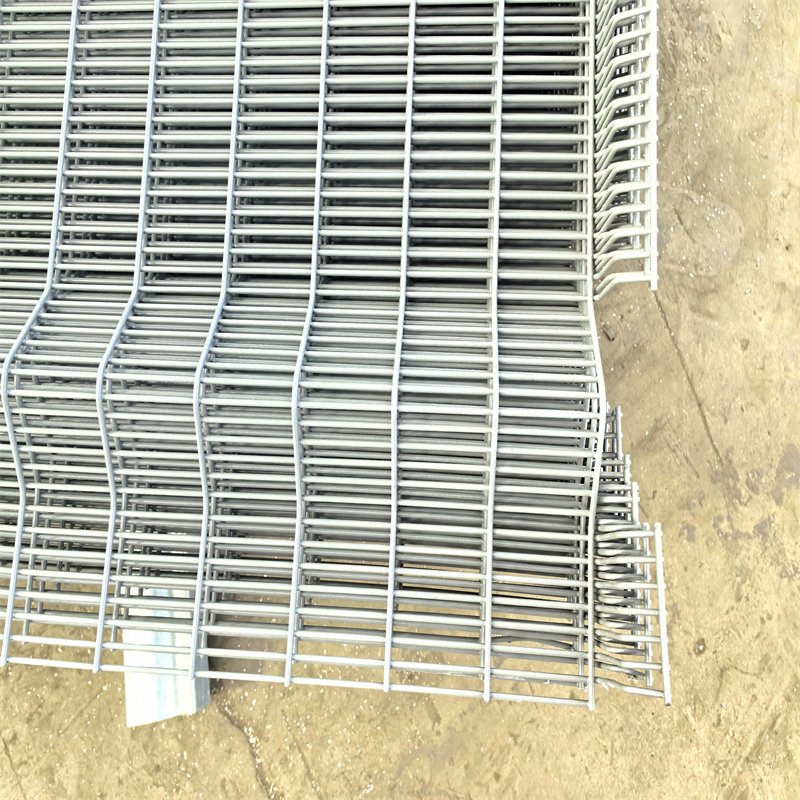

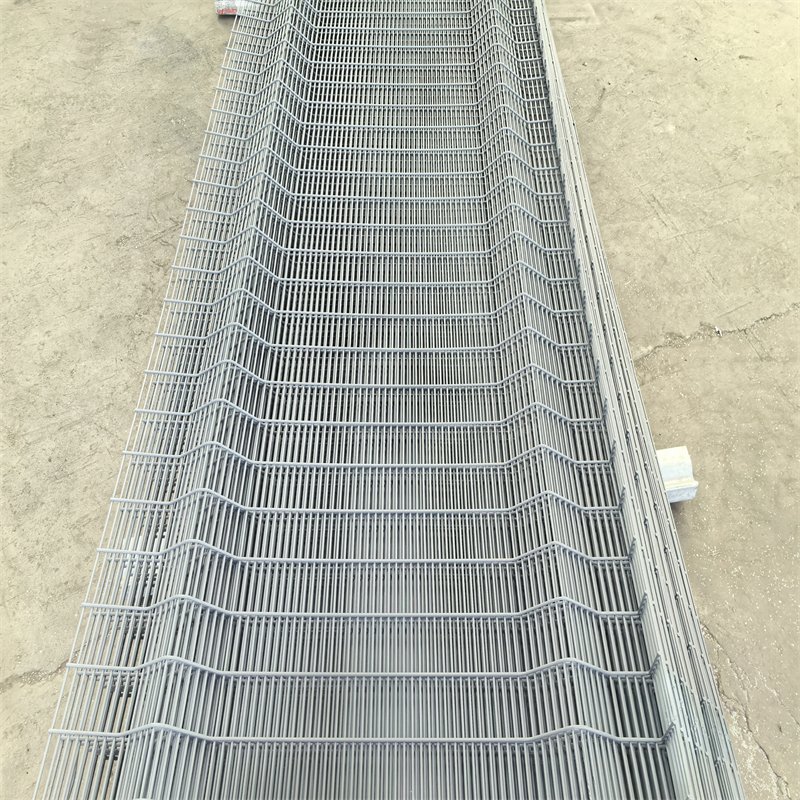

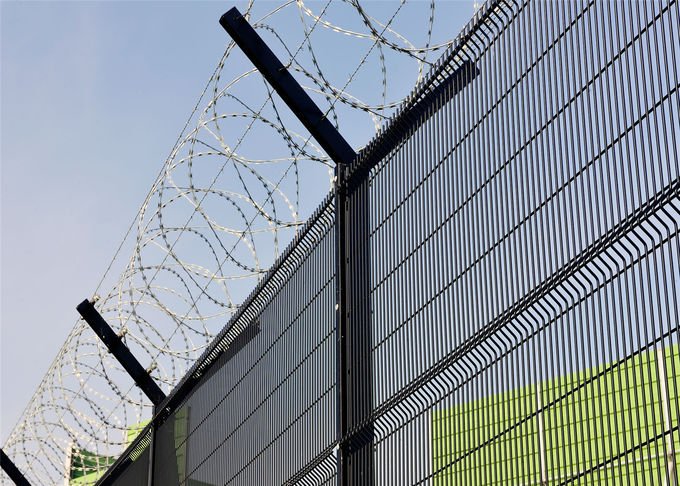

| 3D product photograph: panel geometry and visible security mesh. | 3D reference photograph: galvanized welded construction. | 3D reference photograph: alternative panel detail. |
Galvanized and zinc-aluminium coated steel offer different protective systems. Suitable pretreatment and polyester coating can add colour and environmental resistance. Each order should specify the actual process, coating mass, and dry-film thickness.
Green RAL 6005 and black RAL 9005 remain common choices. Colour does not establish coating durability by itself. Powder Coated Clear View Fence products require preparation, adhesion, and inspection criteria.
Durban and Cape Town sites may encounter salt-laden air and moisture near the coast. Exposed cut edges, posts, and fittings need particular corrosion attention. By contrast, inland Gauteng properties often manage dust, summer storms, and water retention.
ClearVu Fencing KwaZulu Natal projects may require coastal coating specifications for port-adjacent facilities. Inland ClearVu Fence Johannesburg applications bring different rainfall and industrial conditions. Neither location guarantees a fixed outdoor lifespan from a laboratory salt-spray result.
BMP offers a 15-year manufacturer warranty on its ClearVu products under the applicable written terms. Confirm the covered components and coating conditions before accepting the agreement. Regular maintenance remains essential throughout service.
Inspections should cover welds, post caps, foundation movement, bolt security, and damaged paint. Clean areas where leaves or soil trap moisture. Record repairs so replacement components match their original specification.
Warehouses, utilities, campuses, commercial estates, and transport facilities need different levels of access control. Narrow mesh helps discourage climbing along exposed boundaries. Yet the strongest panel cannot correct an unsecured entrance.
High-security installations need separate planning for alarms, cameras, personnel, and emergency access. Public-facing areas also require safe edges and suitable gates. Select optional security toppings only where the site permits them.
Distribution yards should protect stock while preserving views of vehicle movements. Fencing layouts can separate loading operations from pedestrian routes. Collision protection may be necessary where forklifts operate close to posts.
For alternative architectural needs, Garrison Security Fencing uses tubular pickets and rails. Its geometry differs from dense 358 mesh. Buyers should compare actual openings, coating systems, and certified performance.
Corromesh provides another close-aperture security fence construction. Certain variants use corrugations and different wire diameters. No substitution should proceed without technical approval.
During new building work, Temporary Construction Fencing may separate active worksites from visitors. Portable boundaries serve another purpose than permanent intrusion-resistant mesh. Both systems need appropriate site safety checks.

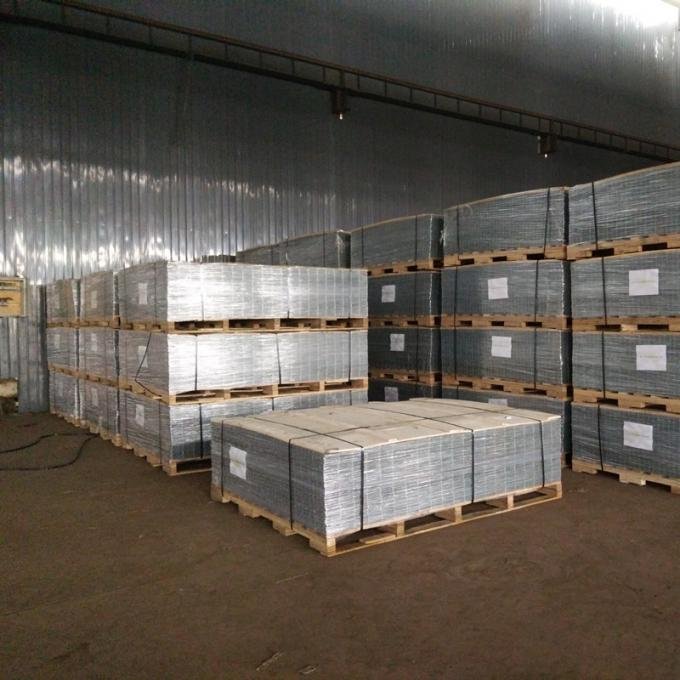

Export packing protects panels against bending, scratches, and contact damage. The original catalogue describes pallet mats, metal corner supports, strap protection, and top boards. Actual arrangements depend on panel dimensions and container limits.
Posts should travel in stable bundles with protected ends. Hardware cartons need labels showing clamp types and matching bolt quantities. Buyers should request photographs of the completed pallets before shipping.
 |
 |
 |

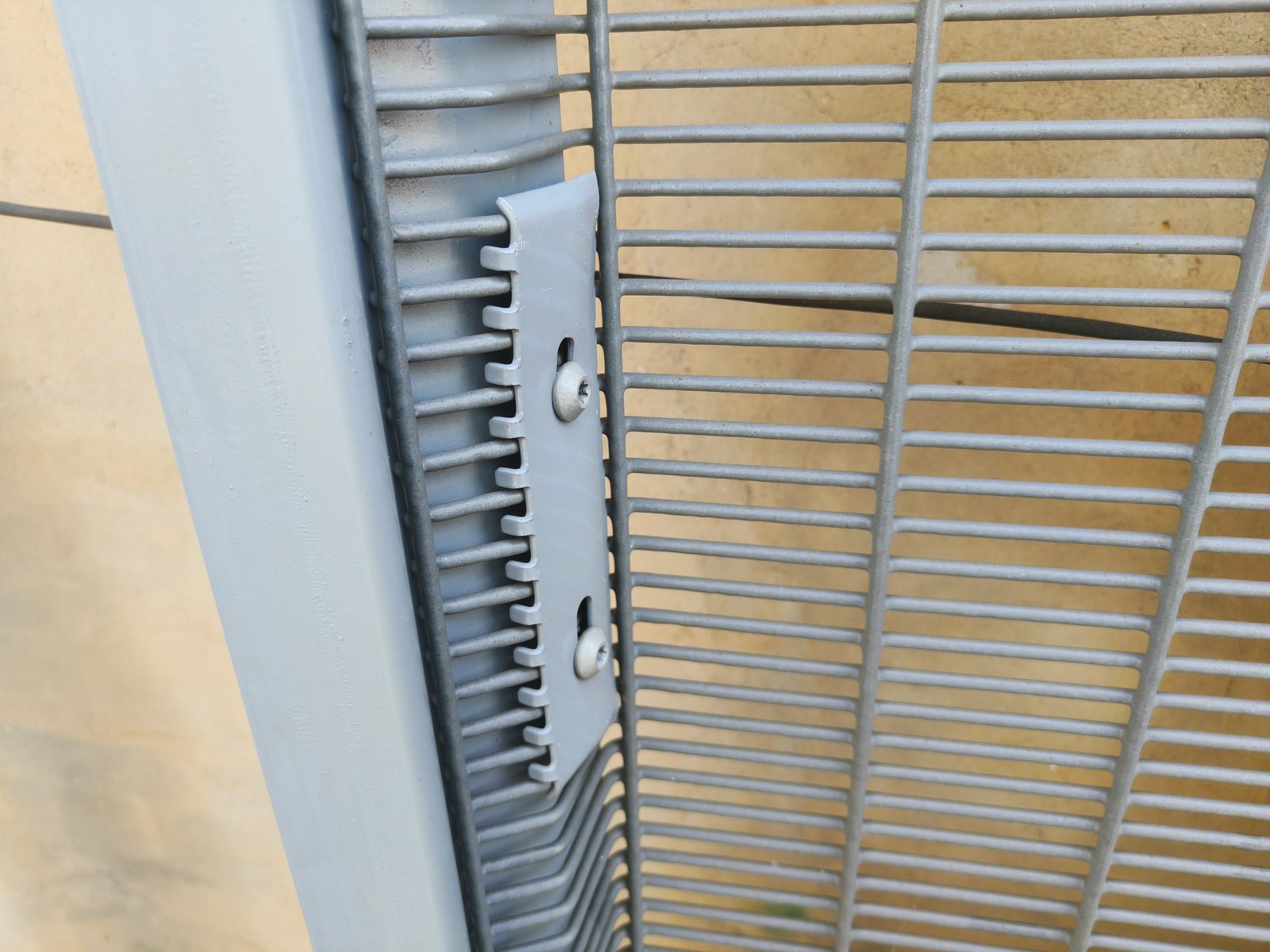

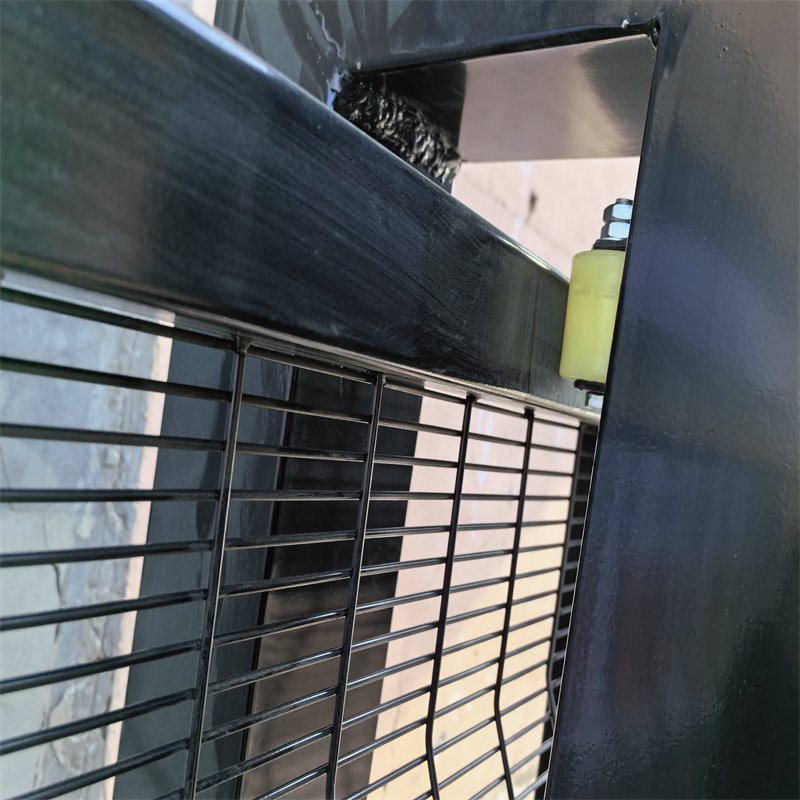

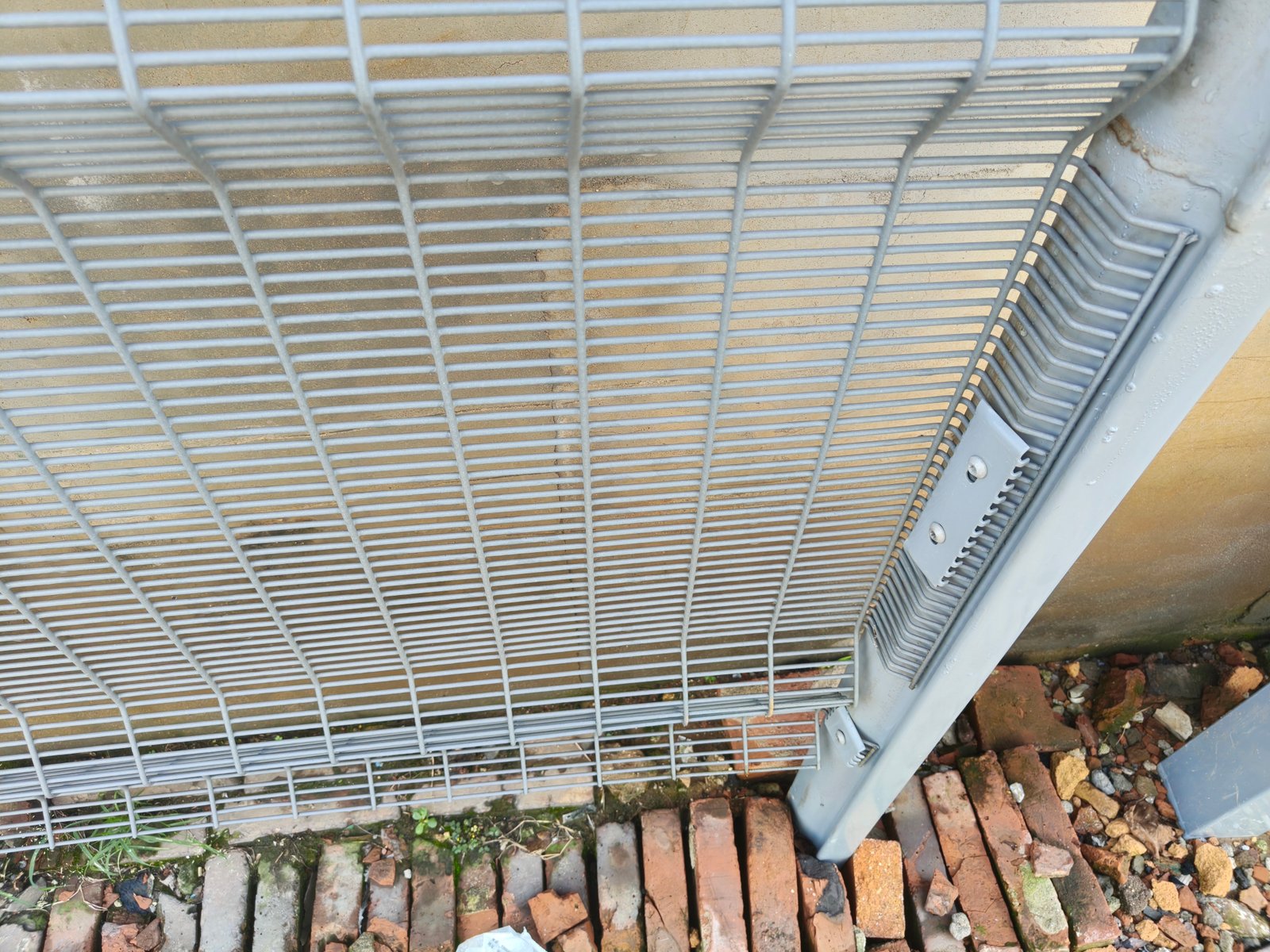

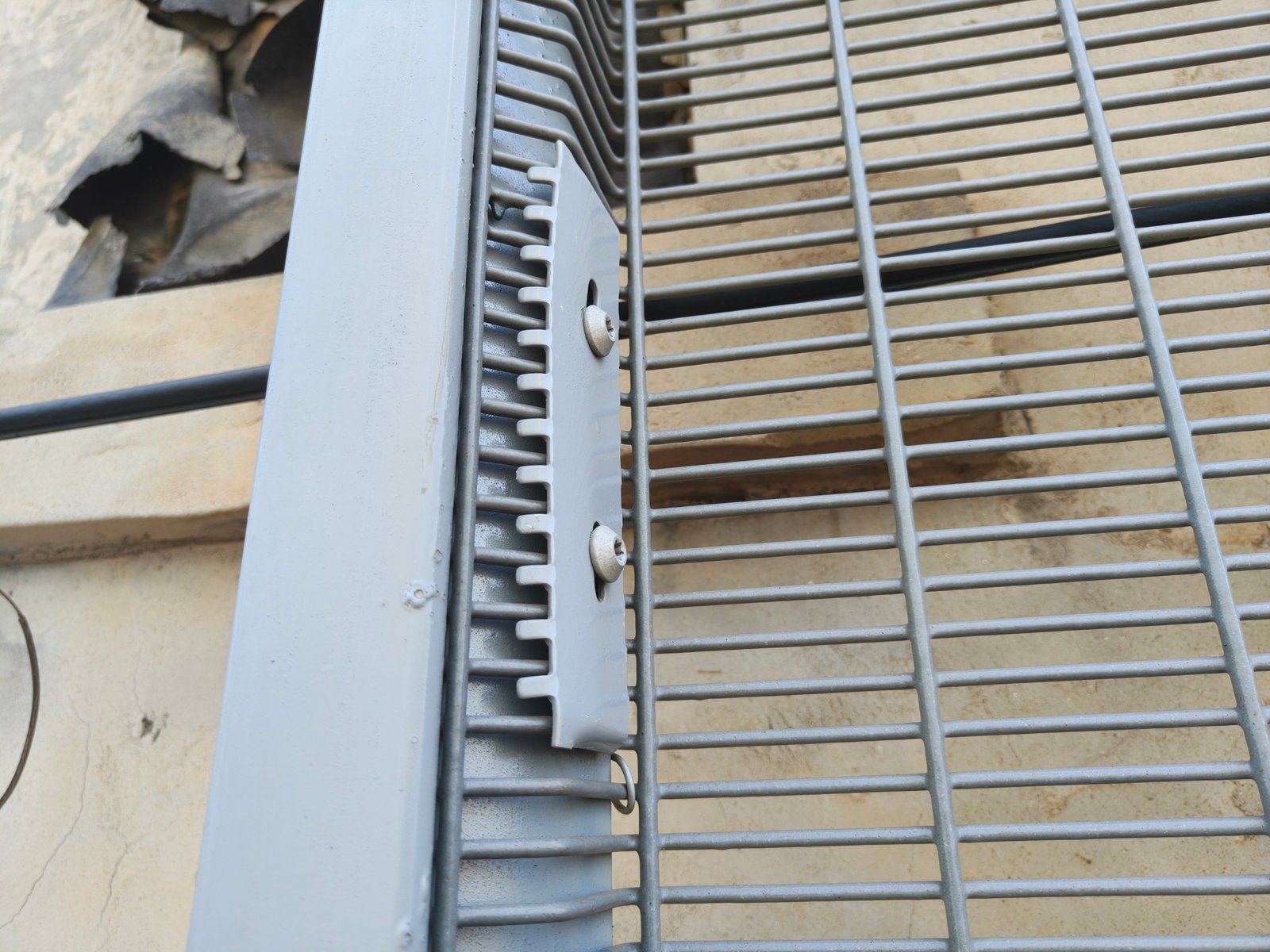

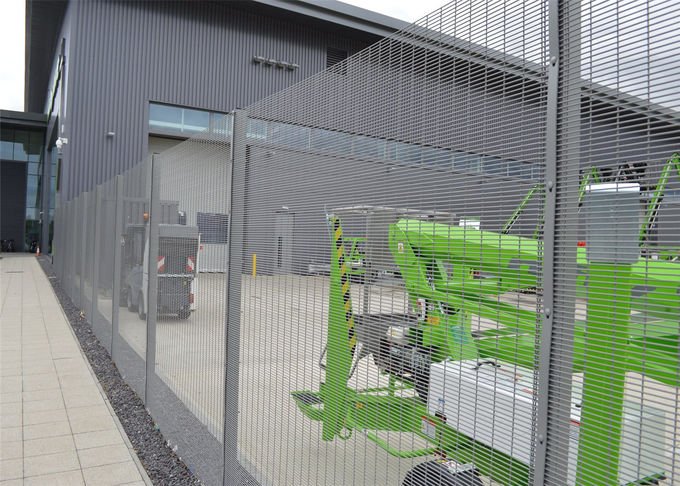

| Installation photo: panel overlap and clamp position. | Finished fence photo: black security mesh and posts. | Packing photo: protection for shipping and handling. |
A reliable packing list separates panels, posts, clamps, and gates. It should also identify pallet counts and gross weights. Photographs can document coating condition and factory assembly before shipment.
Clearview Fencing from China orders may require different export and inland delivery arrangements. Confirm shipping terms and customs documents with the relevant professionals. Never assume a container capacity without checking finished product weights.
Clear specifications make supplier offers easier to compare. Record every product component before seeking a final price. A complete bill of materials reduces installation delays and mismatched fittings.
Does the 358 name guarantee a security rating? No. It describes a mesh pattern and approximate wire gauge. A specified resistance rating needs applicable test evidence.
Can buyers change panel dimensions? BMP can review custom requests against tooling and structural requirements. Manufacturing should follow approved drawings rather than generic catalogue examples.
Should buyers order panels without posts? They can, provided the existing supports match the new mesh and fixings. Check compatibility before manufacturing replacements.
Boss Metal and Plastic Co., Ltd. supplies welded security panels with matching steel posts and fixing systems. Buyers can compare ClearVu Fence Panels when preparing regional project specifications. Final manufacturing follows the confirmed product schedule.
Share the site drawing, required heights, gate details, coating requirements, and shipping destination. Our team can review product compatibility and export packing. A coordinated proposal helps buyers avoid incomplete fencing packages.
