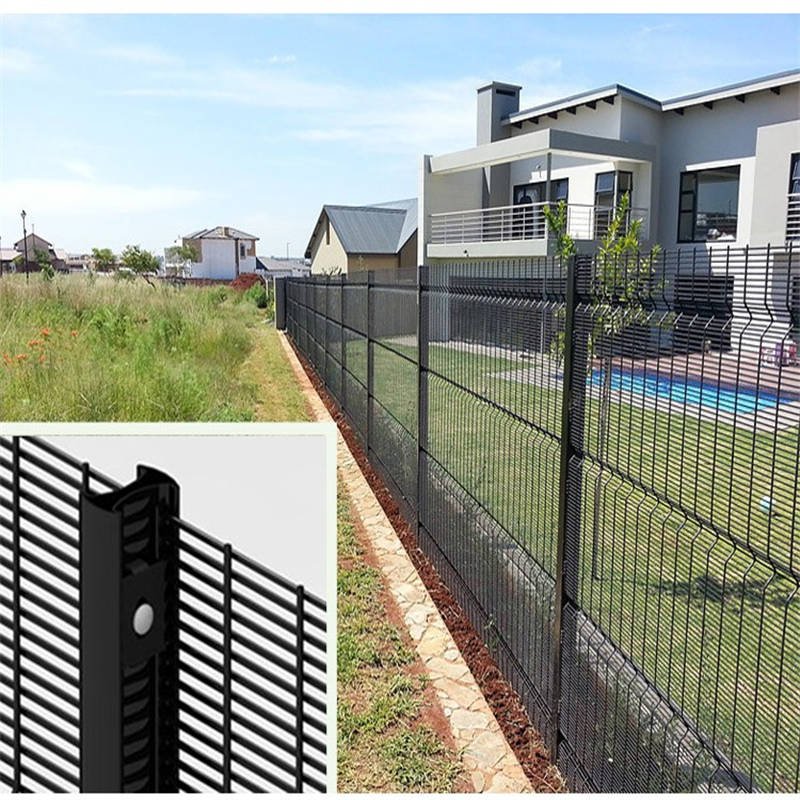

Clearview fencing George provides a practical security barrier for commercial properties, industrial sites, and sensitive infrastructure. Its compact welded mesh restricts climbing while preserving visibility across the boundary. Property owners can assess movement without relying on a solid wall. The system combines mesh panels, steel posts, clamps, and optional security toppings.
George sits within South Africa's Garden Route region. Project conditions vary between inland properties and sites exposed to coastal moisture. Careful coating selection helps owners manage corrosion and ongoing maintenance. Boss Metal and Plastic Co., Ltd. (BMP) manufactures security fencing in Anping, China. We support project orders with drawings, material options, and export packing.
A secure perimeter needs more than a strong panel. Post spacing, foundations, gates, and fasteners also influence performance. Our anti-climb design uses narrow apertures and welded steel wires. Its open structure helps security teams observe areas beyond the fence.
Customers comparing security grades can examine Anti Climb Fence specifications alongside 358 Security Fencing. These products share a security-focused mesh concept. However, aperture geometry and reinforcement may differ between models.
The fence cannot eliminate every intrusion risk. Combine physical barriers with lighting, supervision, and suitable detection equipment. This layered approach can improve site control.

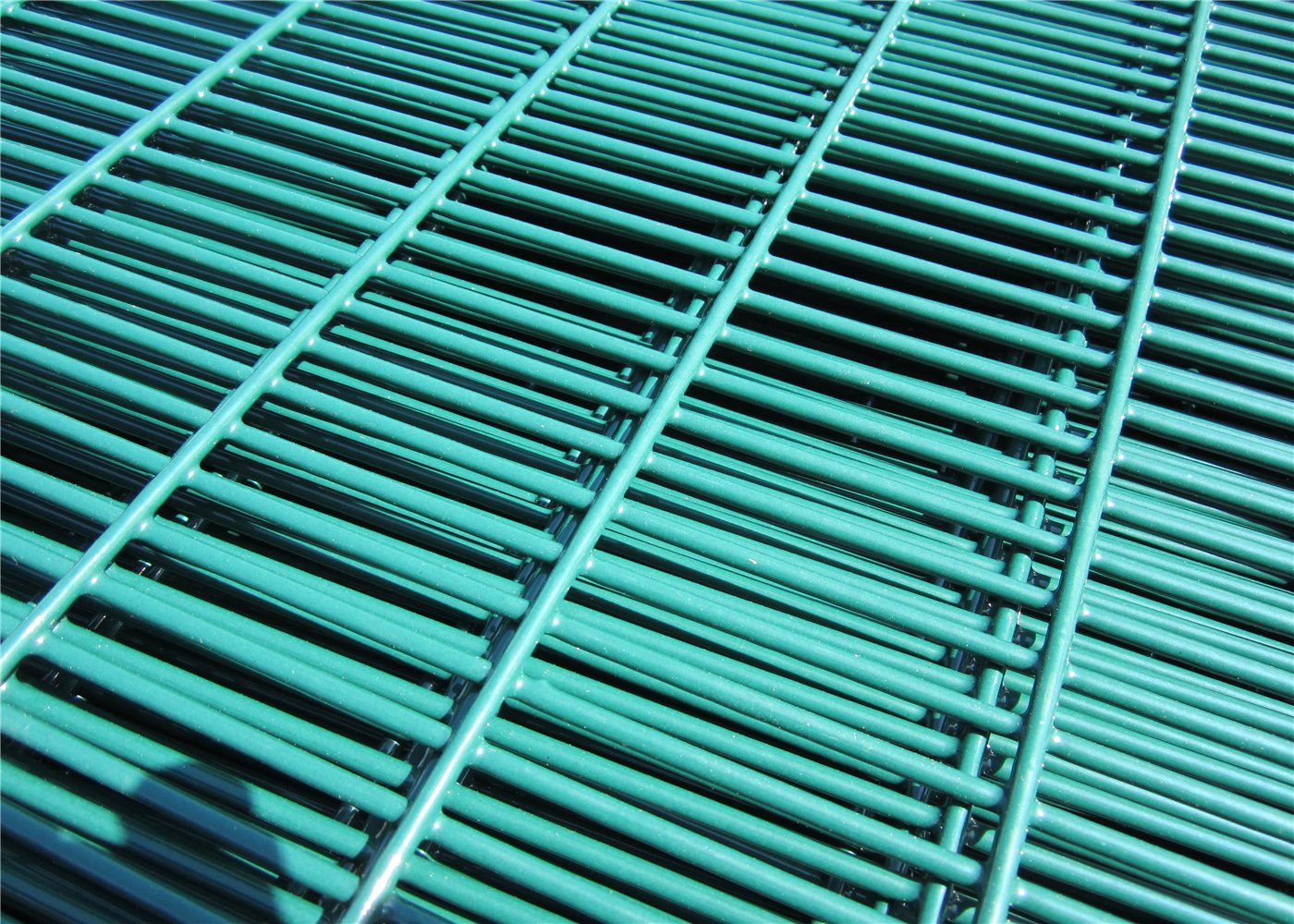

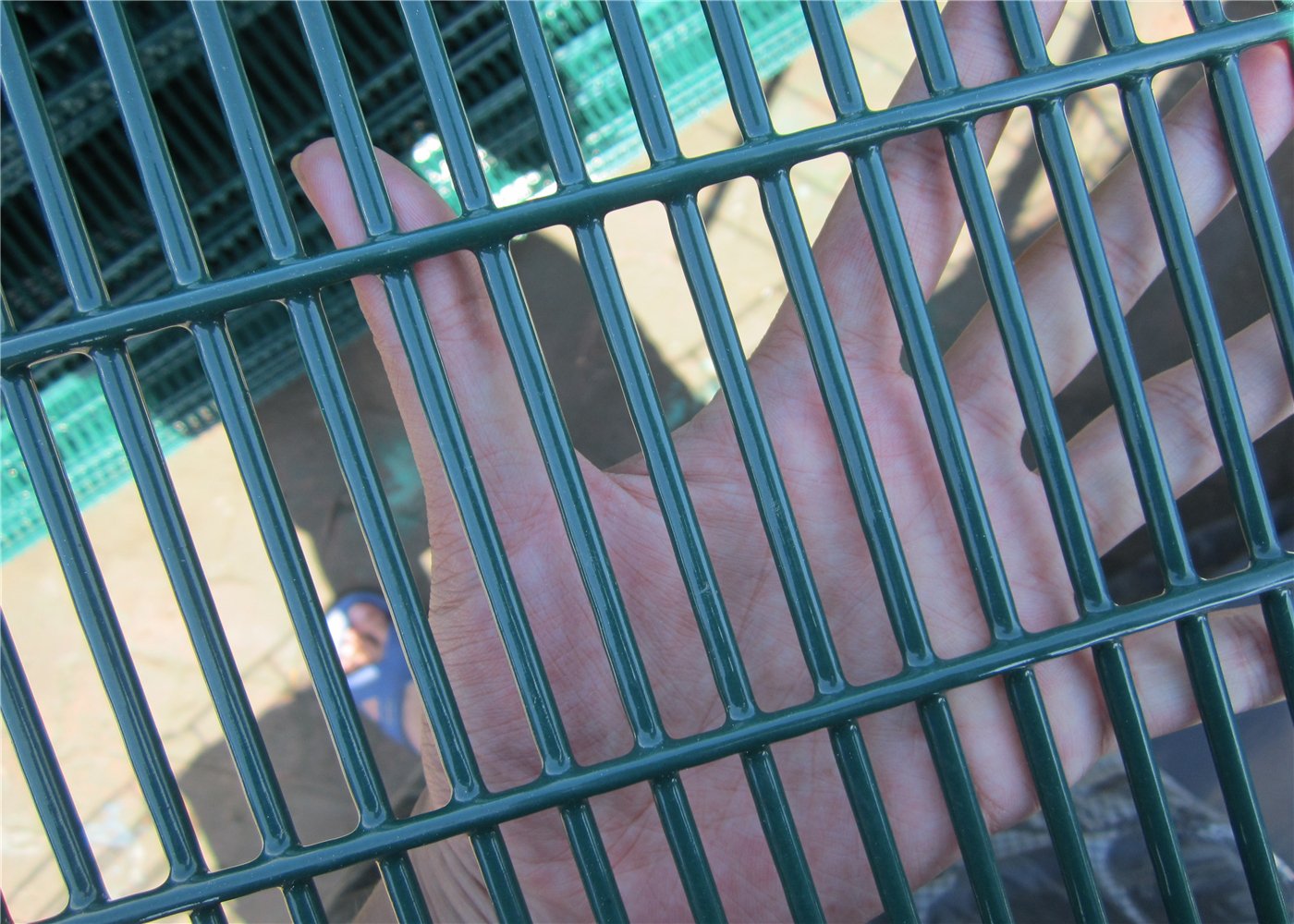

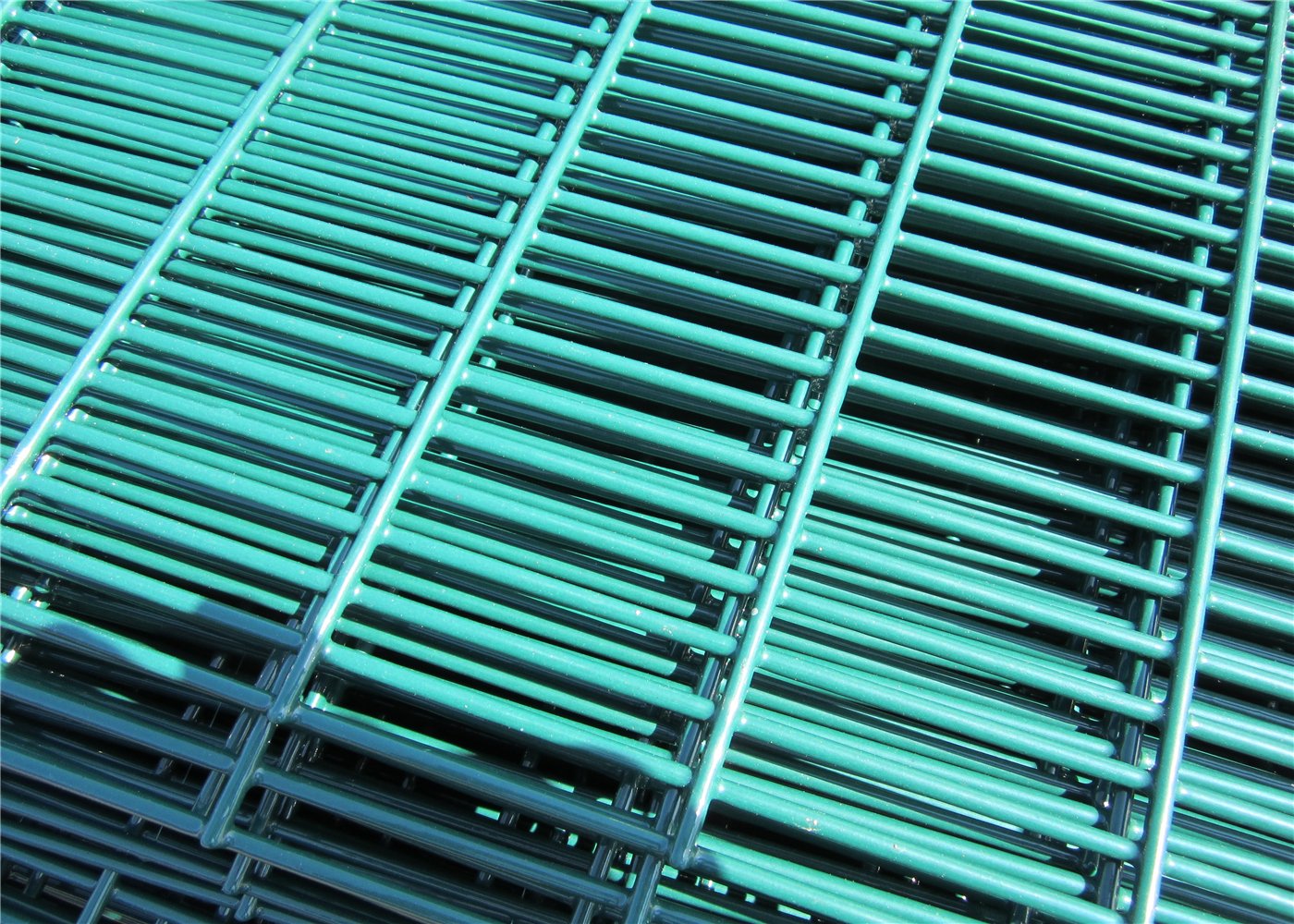

Standard welded fencing often includes openings that offer convenient footholds. Narrow anti-climb mesh reduces those footholds and makes hand access harder. Double vertical wires can add stiffness where the approved design specifies them.
The structure also discourages quick attacks using basic hand tools. Actual resistance depends on steel grade, wire diameter, weld quality, and tool selection. For another high-security option, review Prison Mesh configurations.
Traditional 358 mesh commonly uses an aperture near 76.2 × 12.7 mm. The 358 designation refers to three inches, half an inch, and eight-gauge wire. This article's narrower anti-climb option uses a 70 × 8 mm reference aperture.
A smaller opening can provide fewer climbing opportunities. Yet buyers should compare entire systems rather than aperture alone. Our Clear View Fence Panels range provides other dimensions and panel formats.

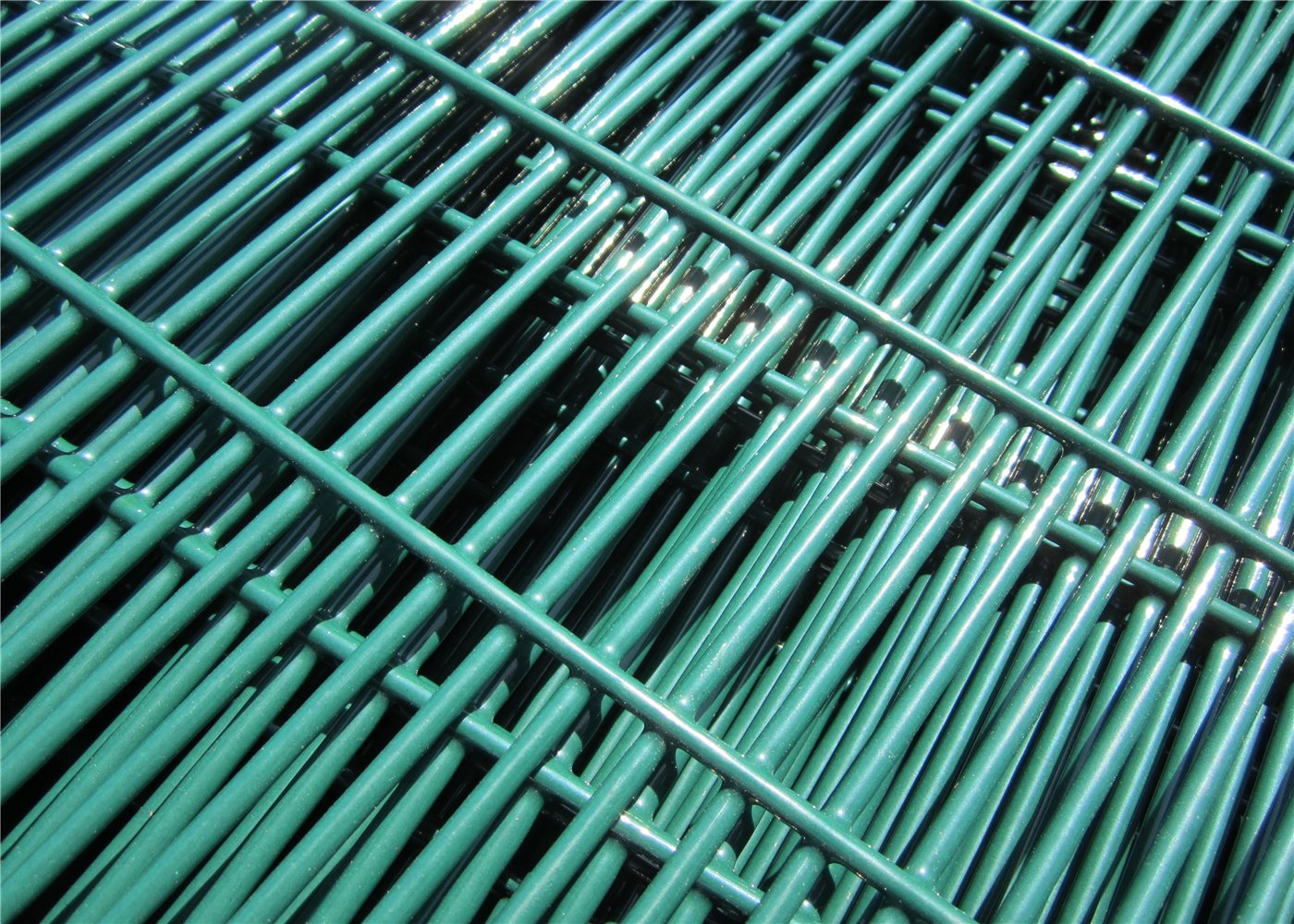

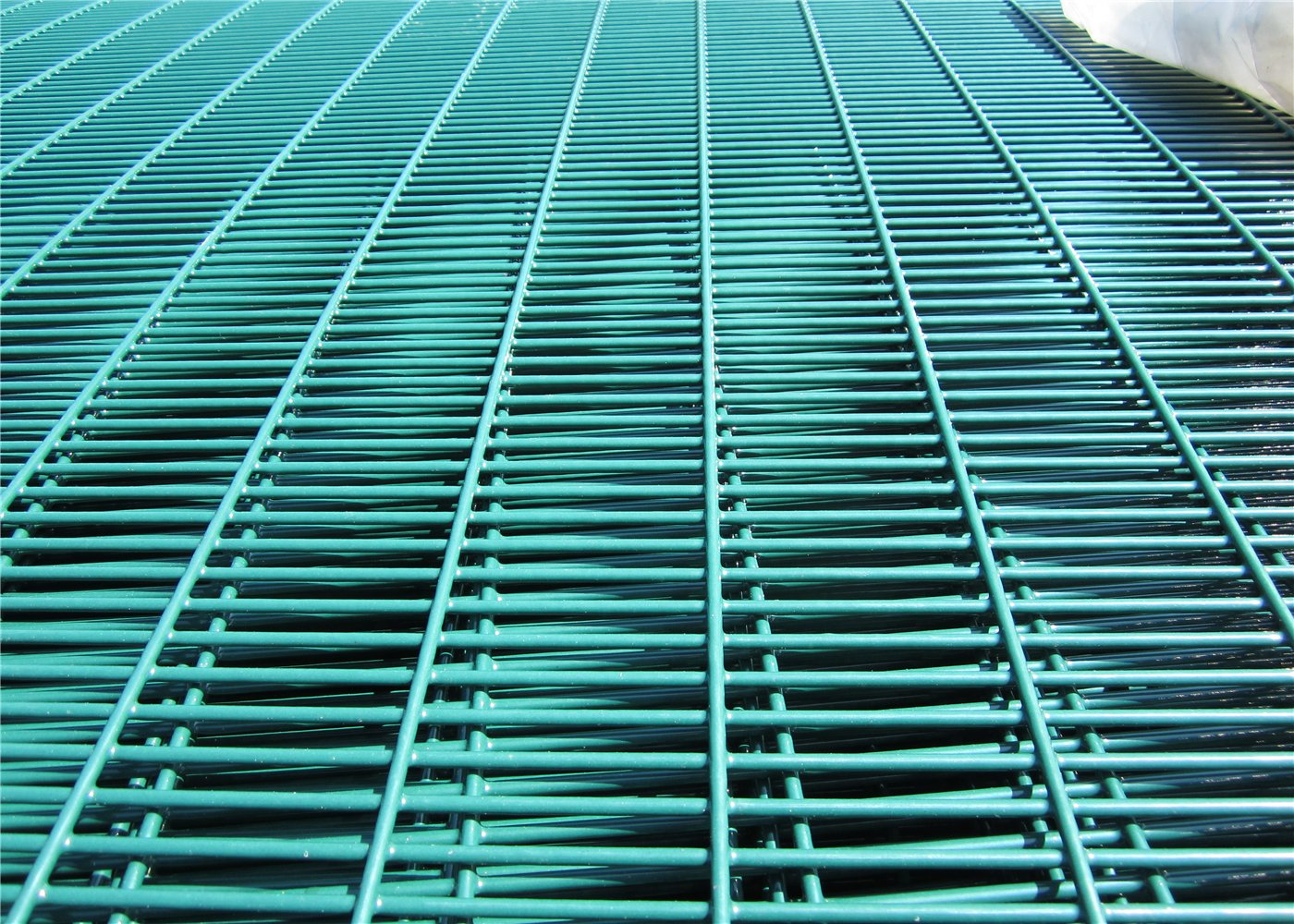

Double vertical wires provide additional reinforcement in selected panels. Welded intersections transfer forces between wires and help preserve the mesh geometry. Production inspection should check weld consistency before coating.
Specify the precise wire arrangement in your drawings. Do not assume every narrow-aperture fence uses identical reinforcement. Panel weight and post loading change with the number of wires.

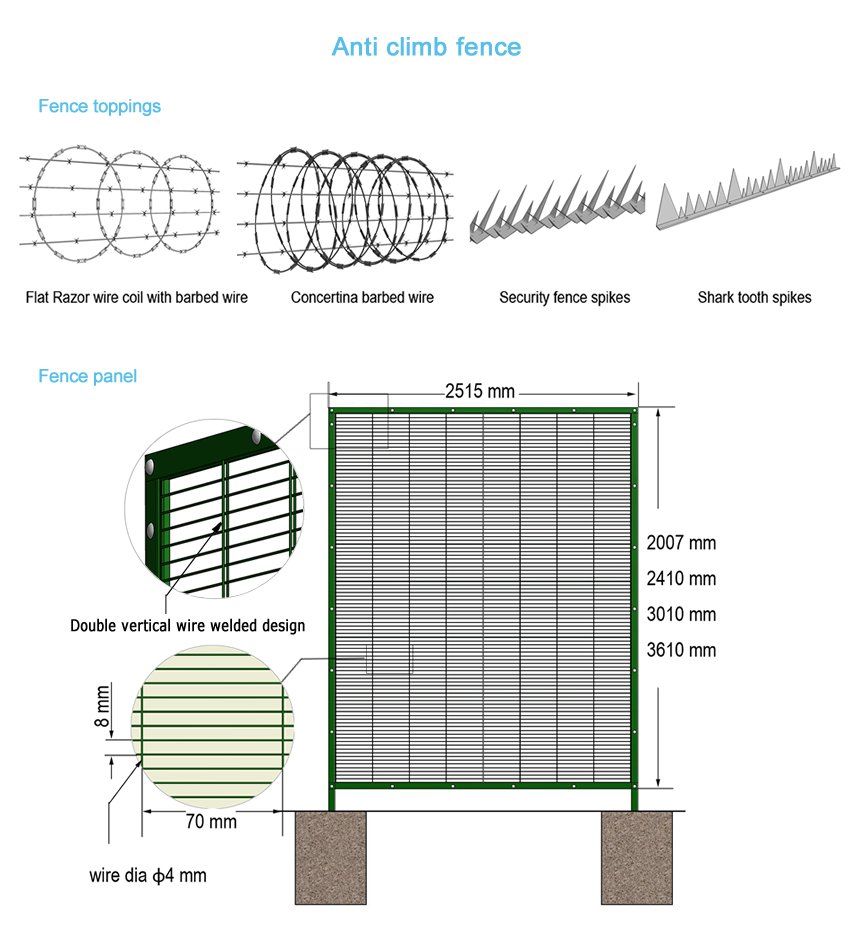

The standard reference design uses 4 mm steel wire and narrow welded apertures. A 2,515 mm panel width supports repeatable installation planning. Engineers can specify taller panels or alternative dimensions after design review.
Production tolerances and aperture measurement methods require agreement before manufacturing. Request a signed drawing for every custom panel. Related ClearVu Fence Panels offer further size and finish references.

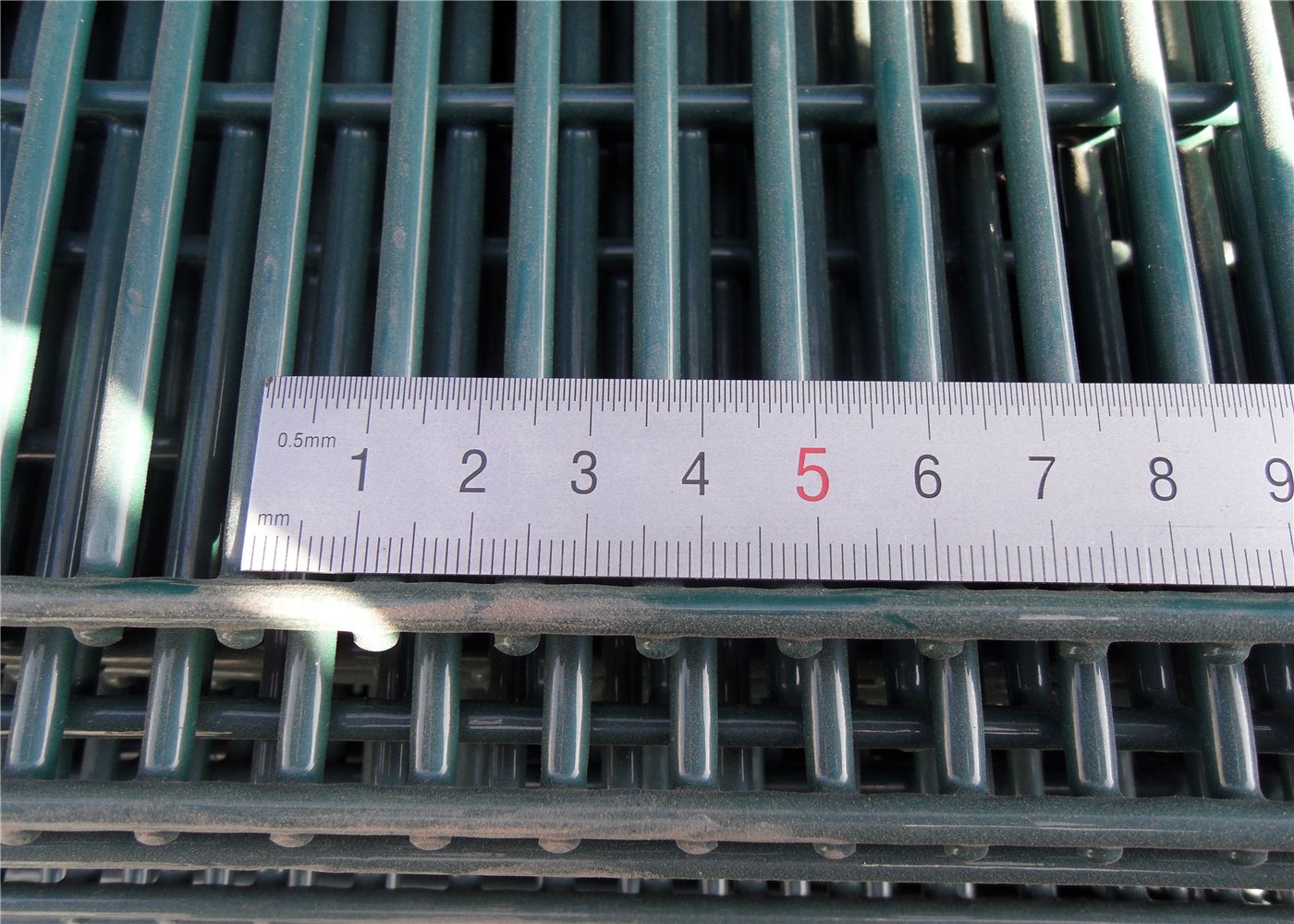

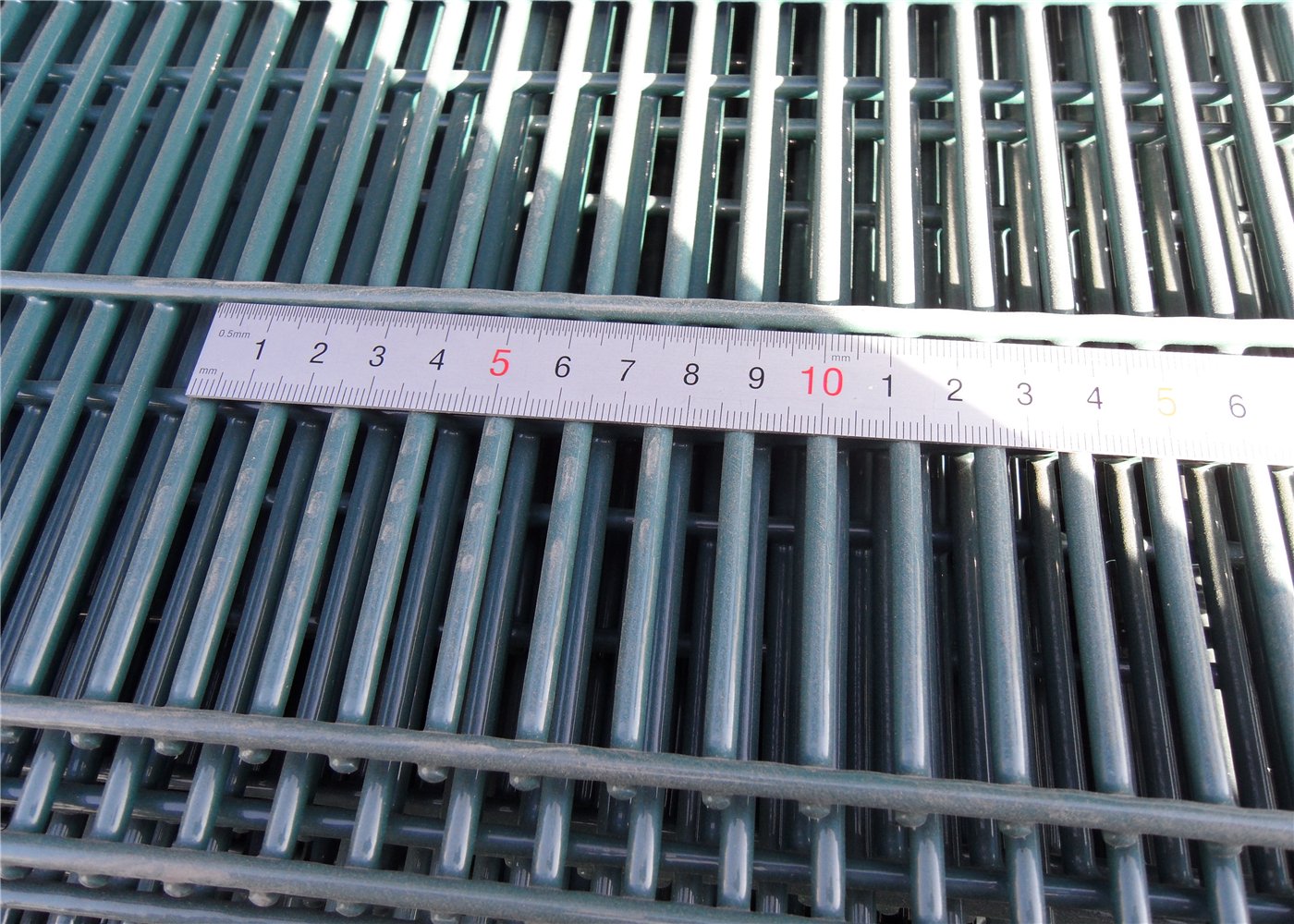

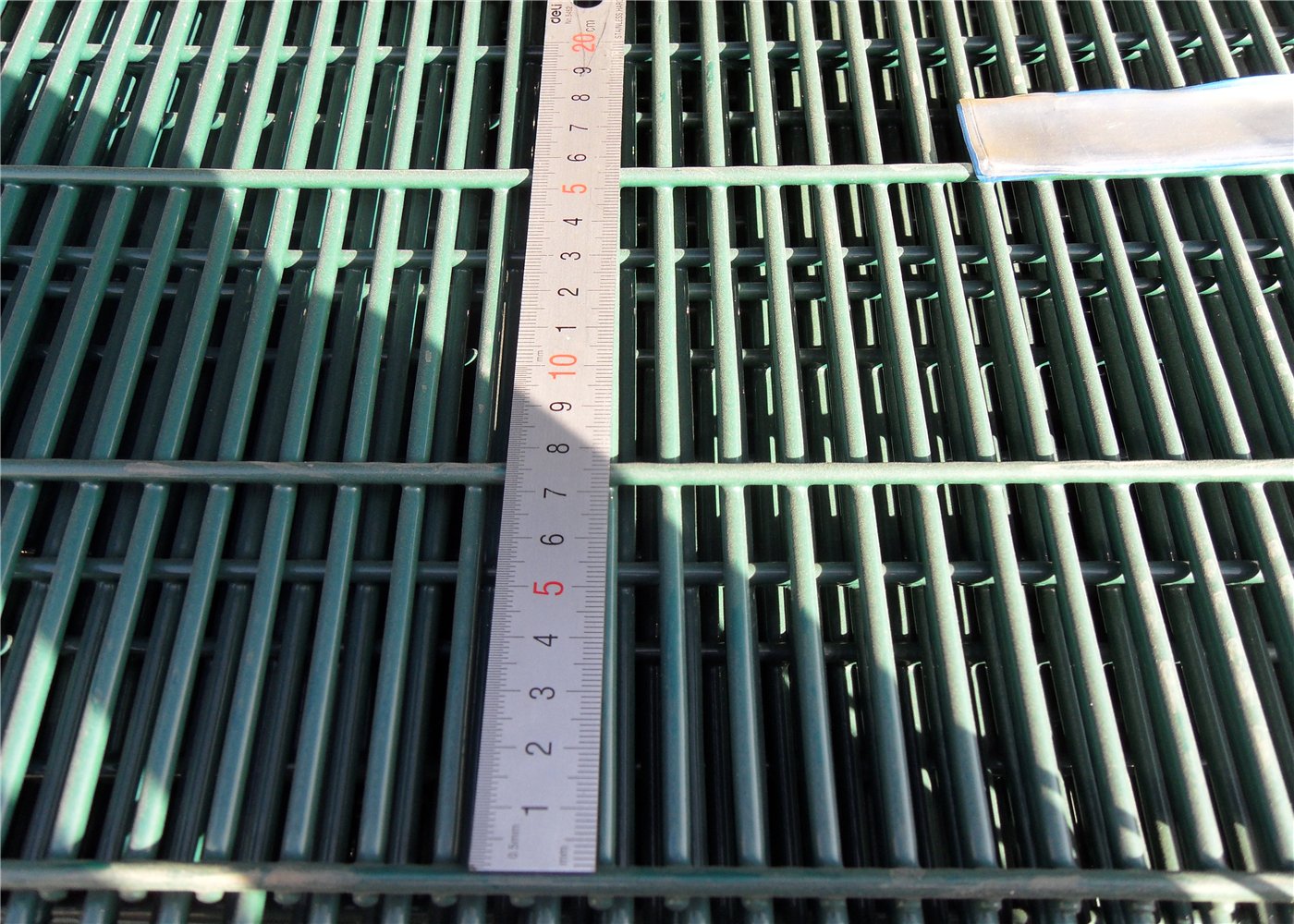

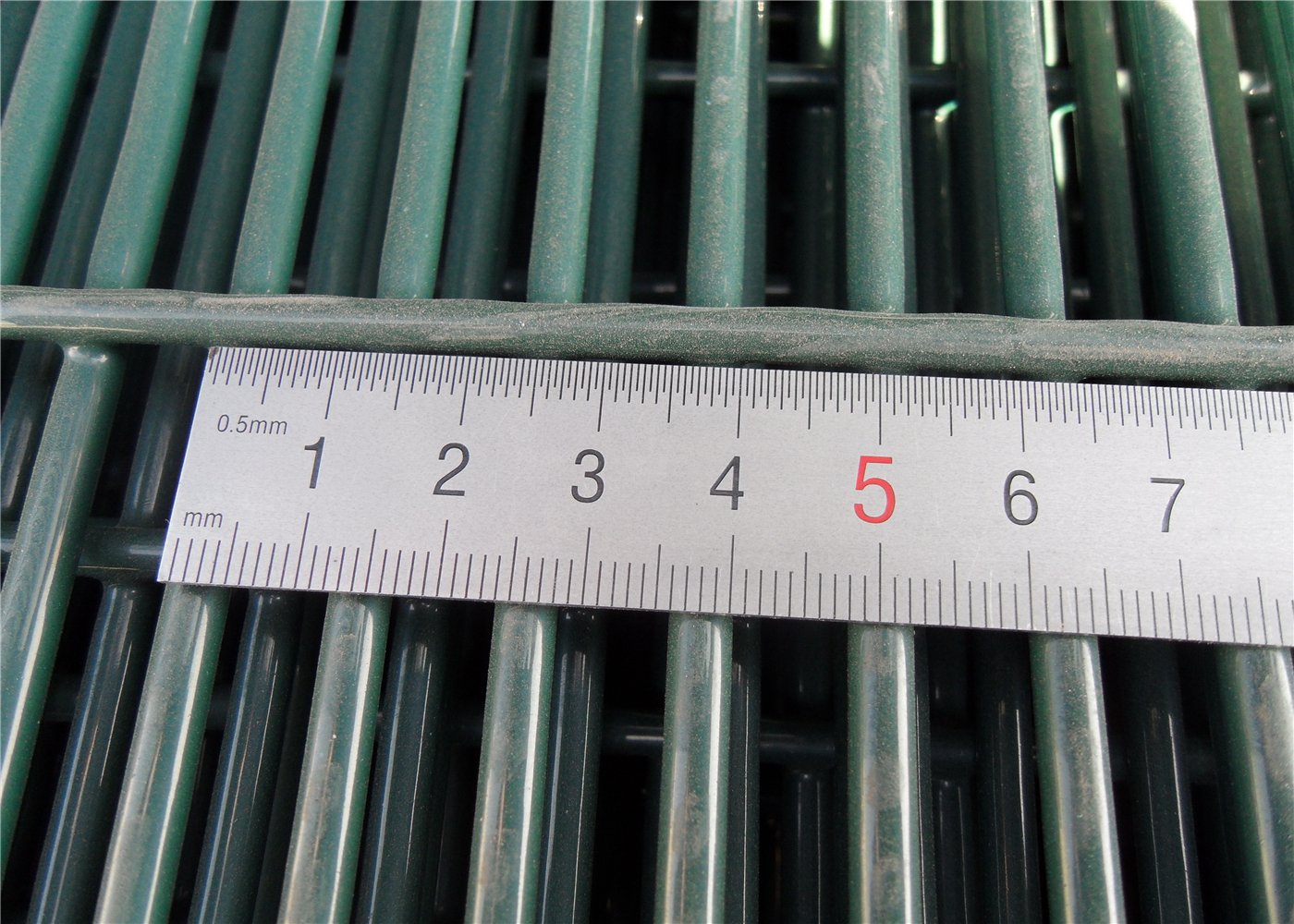

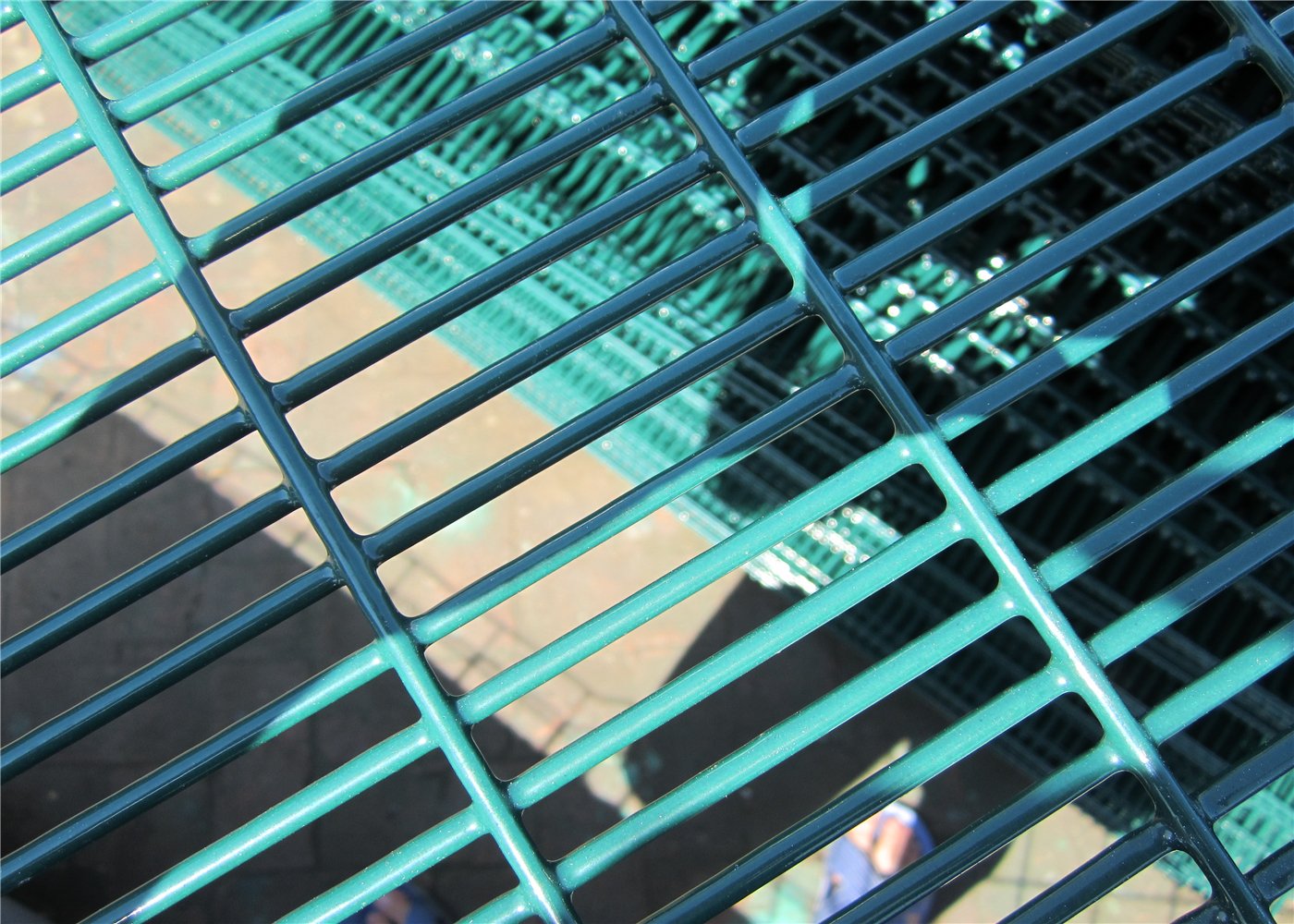

Openings measuring 70 × 8 mm create a particularly dense welded pattern. Confirm whether the specification describes clear openings or wire-centre distances. This distinction affects finished aperture dimensions.
A protective coating helps steel resist weather exposure. Standard colour discussions often include black, green, brown, and yellow. Buyers may also request a specified RAL colour for coordinated projects.
The following table retains the original panel, post, and clamp reference dimensions. These figures support preliminary planning rather than final engineering approval. Site conditions may require stronger posts or different foundations.
| Fence height | Panel height × width | Post length × section × wall | Clamp bar dimensions | Straight / corner fixings |
|---|---|---|---|---|
| 2.0 m | 2007 × 2515 mm | 2700 × 80 × 80 × 3 mm | 2007 × 60 × 5 mm | 7 / 14 pcs |
| 2.4 m | 2410 × 2515 mm | 3100 × 80 × 80 × 3 mm | 2400 × 60 × 5 mm | 9 / 18 pcs |
| 3.0 m | 3010 × 2515 mm | 3800 × 100 × 100 × 3 mm | 2997 × 80 × 6 mm | 11 / 22 pcs |
| 3.6 m | 3610 × 2515 mm | 4500 × 100 × 100 × 3.5 mm | 3607 × 100 × 7 mm | 13 / 26 pcs |
All measurements follow the supplied reference table. Corner assemblies may need additional clamps, braces, or post reinforcement. Verify drawings before applying these quantities to an actual site.
Ground conditions, wind loads, and fence height influence foundation dimensions. An engineer should confirm embedment depth and concrete requirements. Sloping terrain may require stepped panels or different post lengths.
The reference clamp counts distinguish straight runs from corners. Use the manufacturer-approved arrangement for each connection. Wider posts and thicker clamp bars may support taller panel configurations.
Protective finishes deserve special attention near humid or salt-exposed locations. George projects can face different exposure levels across the wider Garden Route. Select a finish using local conditions and maintenance expectations.
Galvanising protects steel through its zinc layer. Zinc-aluminium coatings offer another metallic protection option. Powder or PVC systems can add a coloured barrier when surface preparation suits the coating.
For a general comparison, see High Security Clear View Fencing. Review the requested coating thickness and inspection procedure before order confirmation.
Hot-dip galvanising after welding can cover exposed welded surfaces. Pre-coated wire uses a different manufacturing sequence and needs suitable weld protection. Galfan refers to a zinc-aluminium coating system.
A powder finish can improve appearance and add corrosion protection. Some specifications request a polymer thickness of at least 120 microns. Confirm the actual system through coating records and sample approval.
Salt-spray hours alone do not predict a precise outdoor service life. Ask suppliers for relevant testing, surface preparation details, and maintenance instructions.
Posts distribute panel loads into the ground and keep the boundary aligned. Square tubes suit many straight runs and corners. Taller installations may require heavier sections and stronger foundations.
Project drawings should identify wall thickness, post caps, fixing positions, and finish details. The ClearVu Fence Posts page shows another product reference. Evaluate compatibility before mixing components from different systems.
Clamp bars hold the panel edges against supporting posts. Security bolts and shear nuts can limit casual interference. Stainless steel fasteners may suit selected corrosion-sensitive locations.
Compare hole spacing and clamp dimensions before assembly. The ClearVu Fence Clamps product range provides another fitting reference. Use the approved fastener schedule for each installation.

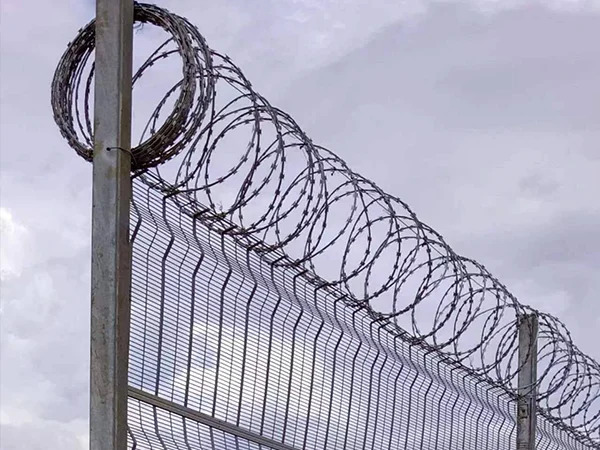

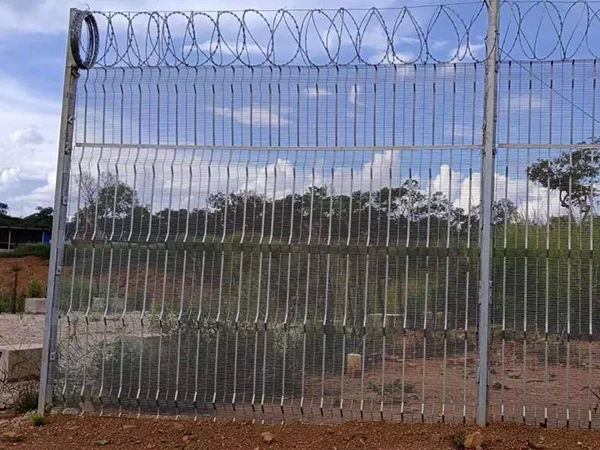

Additional toppings can discourage climbing across a finished perimeter. Options include flat-wrap razor wire, concertina coils, barbed wire, and steel spikes. Choose additions according to site risks and applicable safety requirements.
Some projects combine the mesh with detection cables or electric fencing. Qualified specialists should assess electrical safety and public access. Physical barriers must not obstruct required emergency routes.
Common accessories include 600 mm and 750 mm razor coil diameters. Original product references also specify 55 loops and an extension near 7.5 m. These figures depend on coil design and installation method.

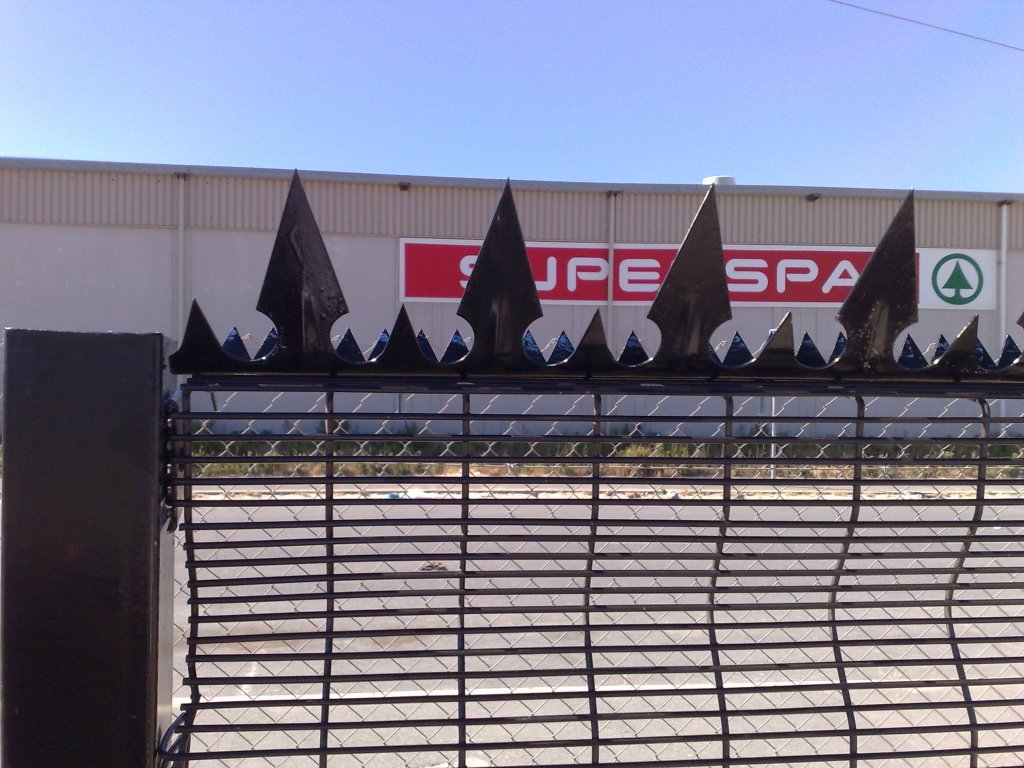

Spike options include short and long teeth with different mounting profiles. Review the Razor Spikes range for a related product category. Local regulations and safe clearances remain essential.

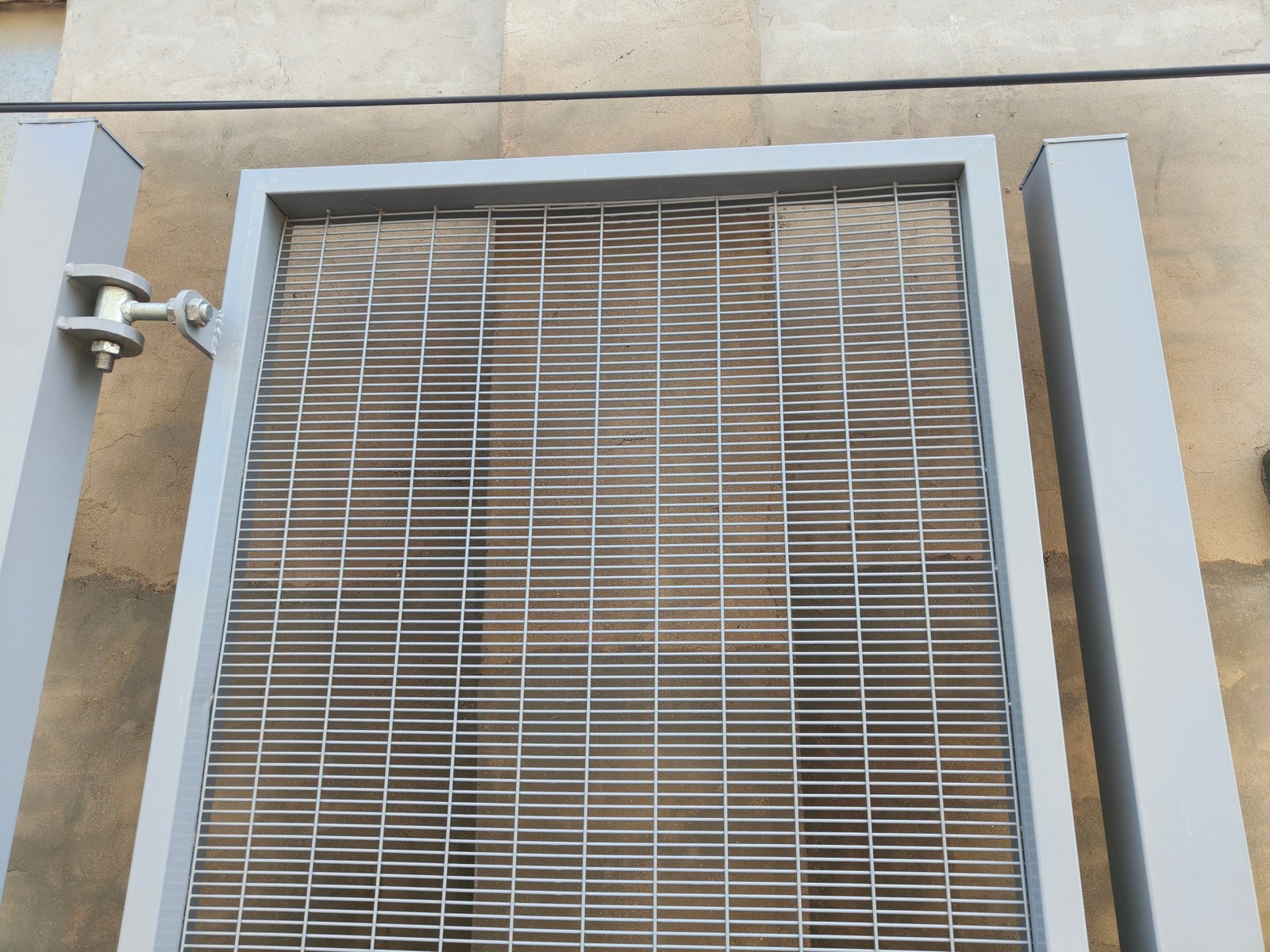

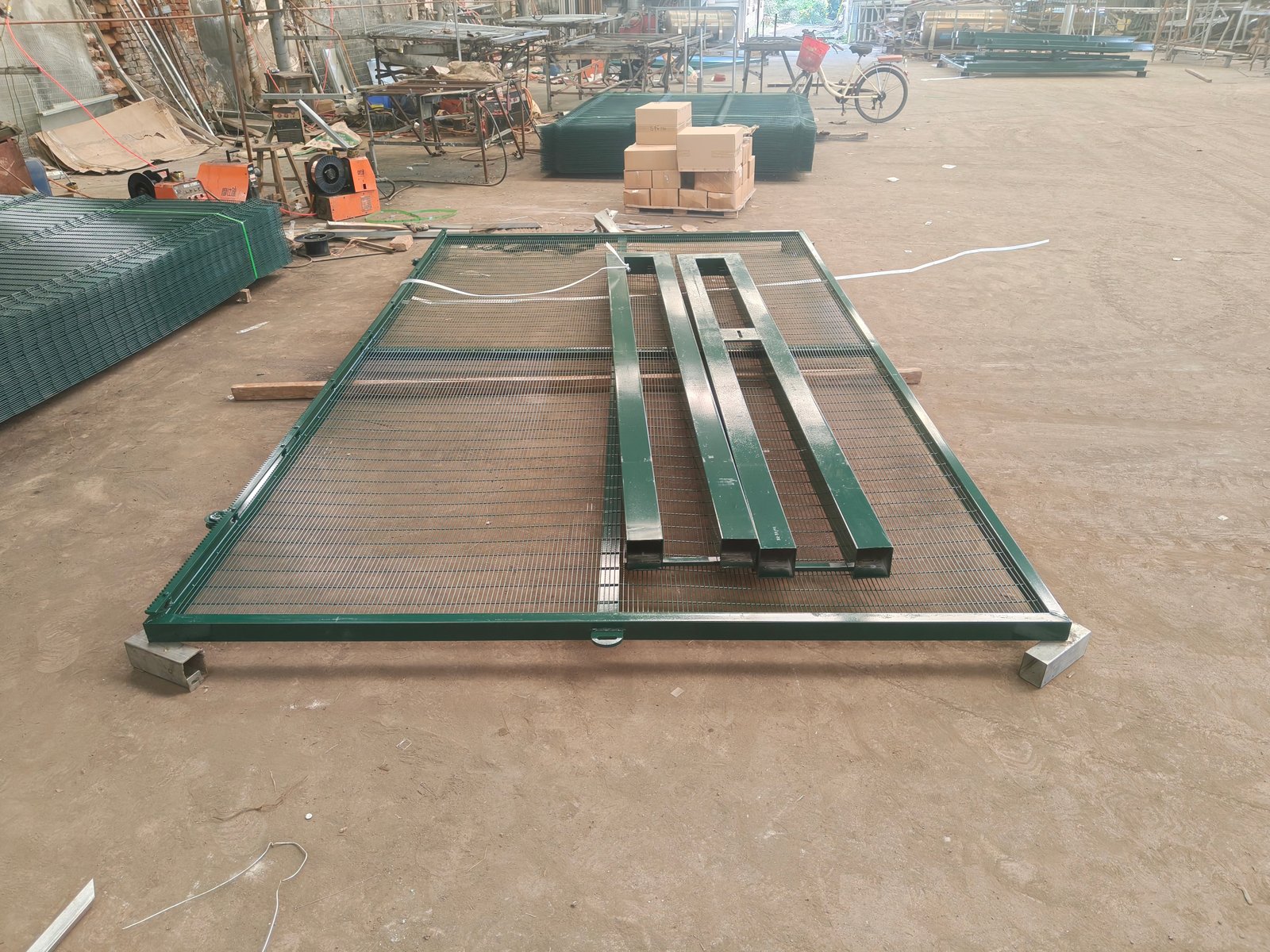

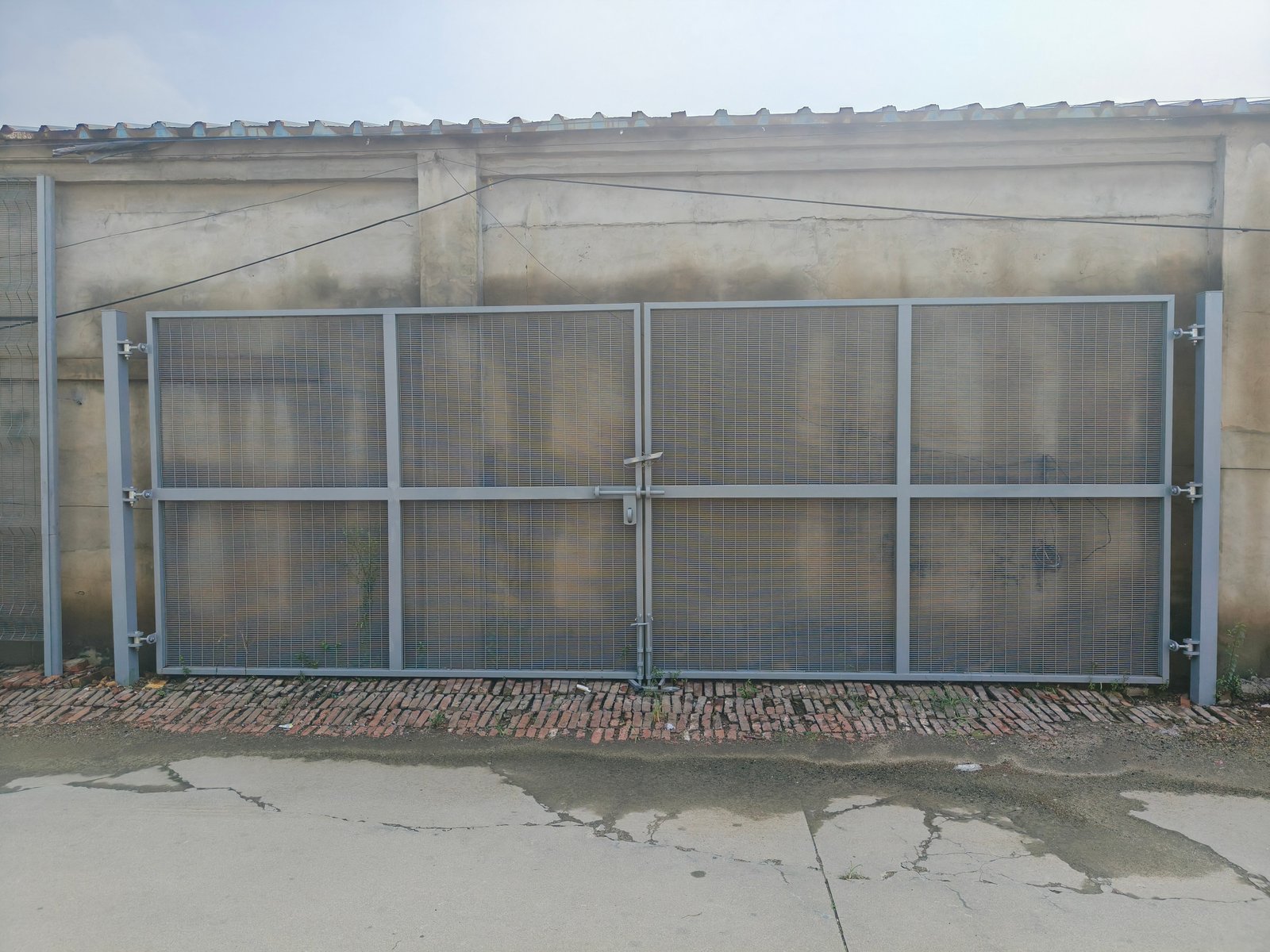

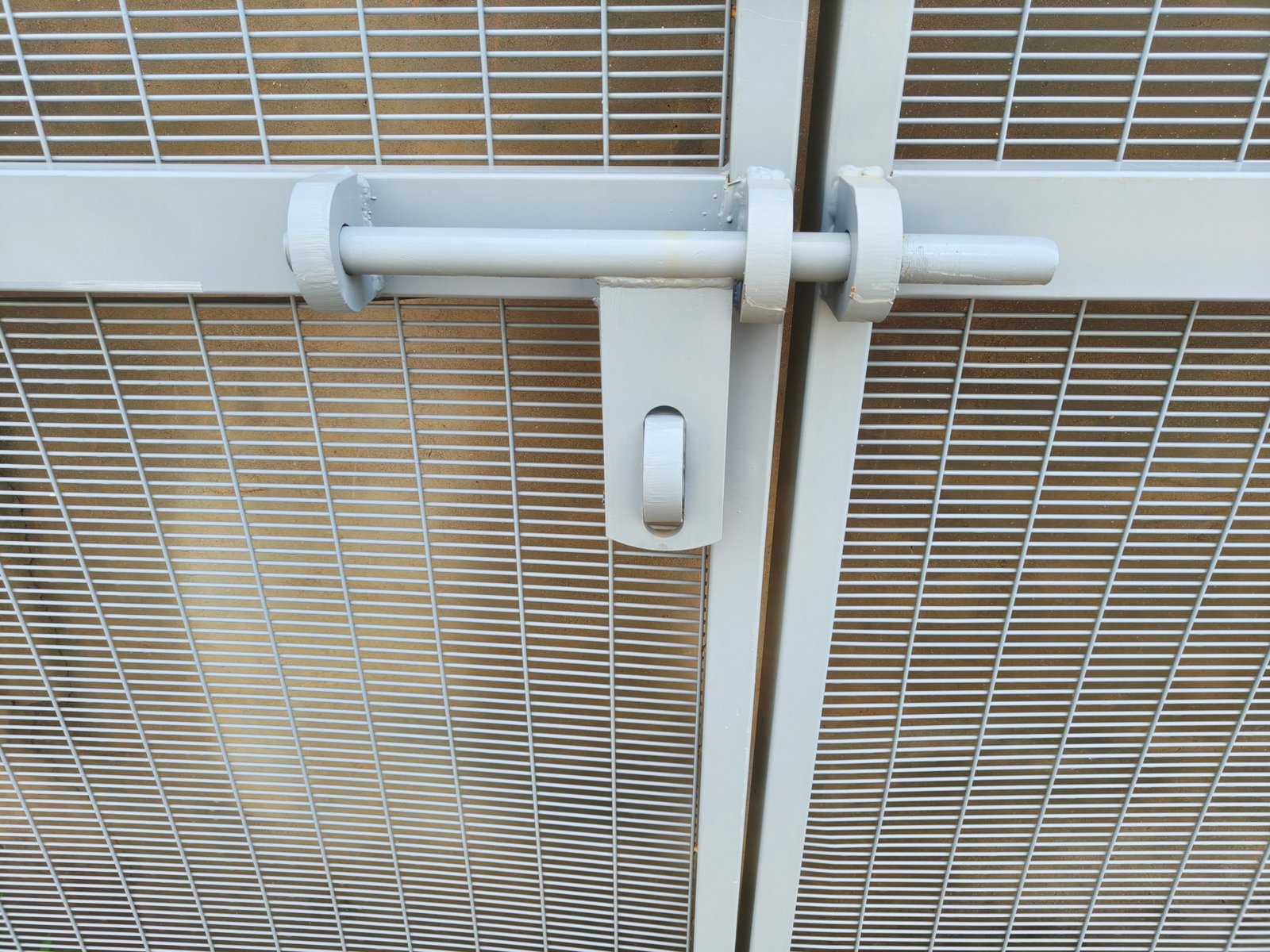

Access points may need pedestrian, swing, or sliding gates. The ClearVu Sliding Gates range provides gate examples. Gate frames and posts need separate structural checks.
Start installation planning with a measured survey. Mark corners, gates, changes in ground level, and service crossings. Match the post layout to approved panel drawings.
Clients requiring other panel arrangements can review Clear View Fencing options. Match the final configuration to the site's risk assessment.
Sloped sites need special attention around gaps below panels. Steps or raked layouts can follow the terrain. The chosen method must preserve security and adequate ground clearance.
Heavy gates create different loads from ordinary fence panels. Specify independent foundations where the design requires them. Confirm vehicle access, drainage, and emergency opening arrangements.
Narrow-aperture mesh suits locations requiring surveillance and controlled entry. Buyers can increase security through stronger posts, approved toppings, and access monitoring. The correct specification depends on risk and site conditions.
Not every property needs the smallest available mesh. Projects with lower risks may consider Low Security Clear View Fencing. This comparison can balance visibility, material use, and project needs.
Industrial sites often prioritise protected equipment and controlled vehicle entry. Residential projects may emphasise visibility, appearance, and pedestrian access. Infrastructure buyers usually demand documented specifications and inspection records.
Project planning can also draw on Clear View Fence South Africa product information. Assess the actual threat level before choosing a security grade.
BMP manufactures welded mesh fencing in Anping, Hebei Province, China. Factory supply allows buyers to request project drawings and tailored production specifications. Export orders require careful packing and document preparation.
Our quality process focuses on raw wire, welds, panel dimensions, coatings, and accessories. Buyers can request photographs and inspection records before shipment. For additional configurations, browse High Security ClearVu Fence Panels.
Inspect incoming steel materials before welding. Check mesh pitch, finished height, post holes, and clamp fit. Review coating consistency and repair any transport-related damage.

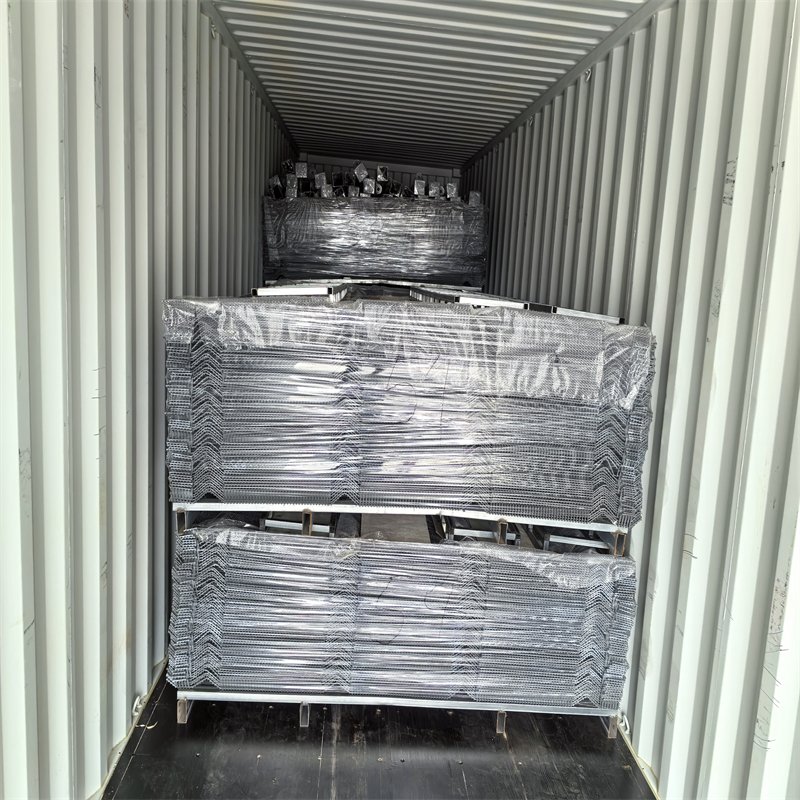

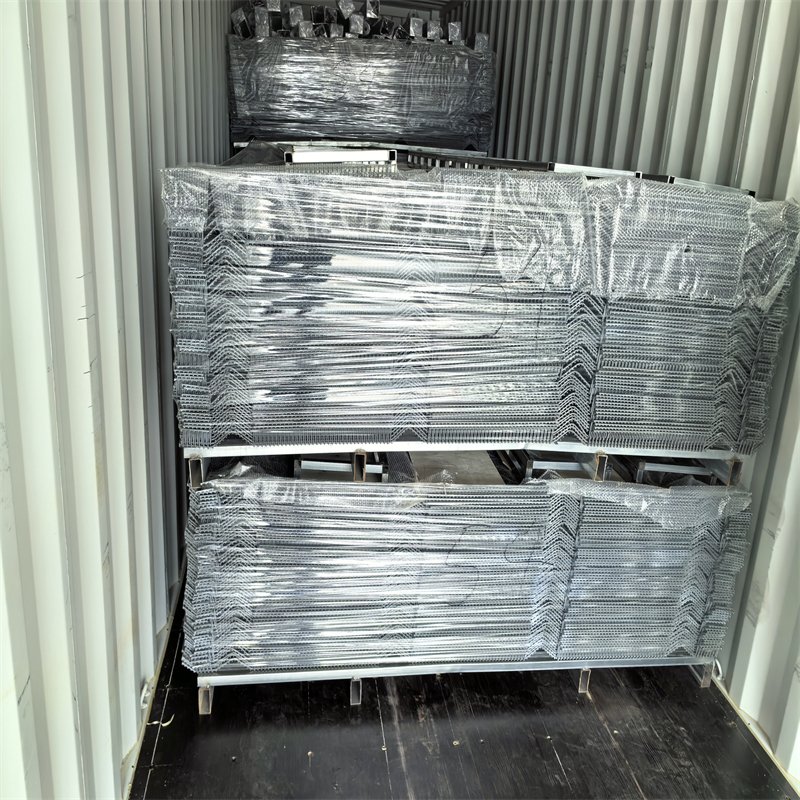

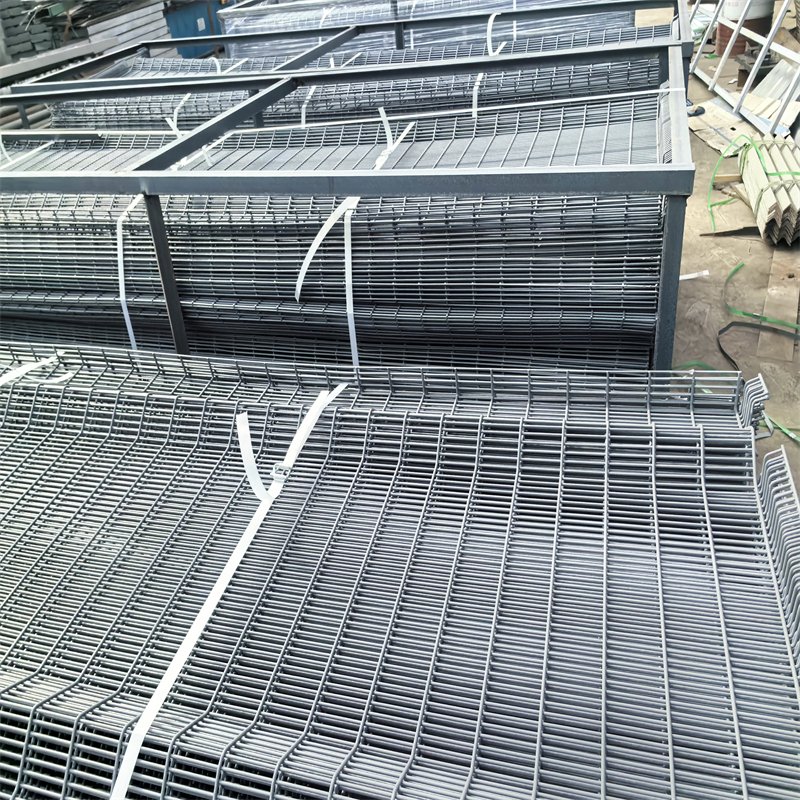

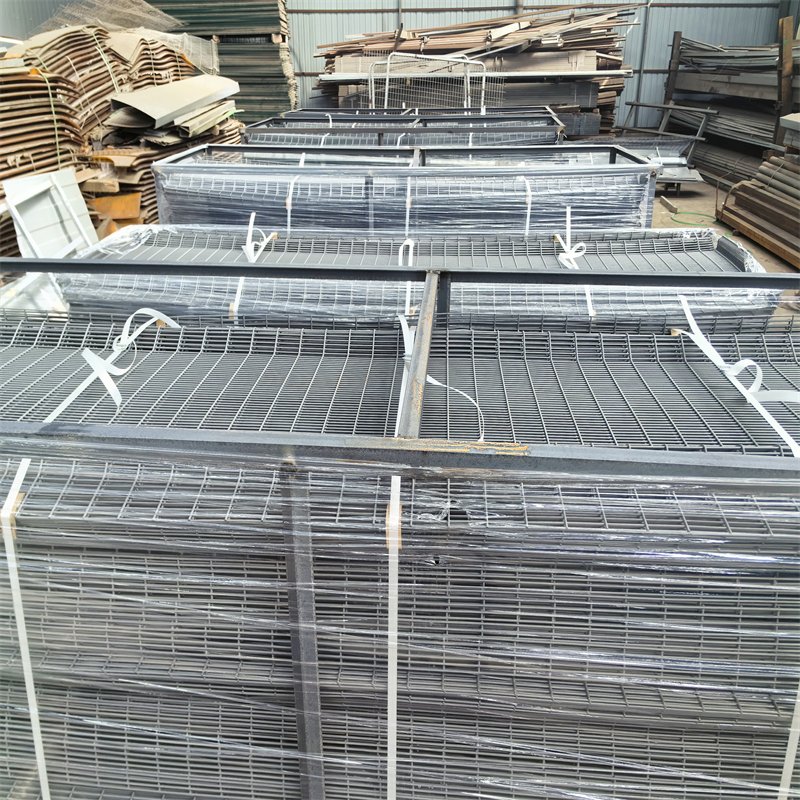

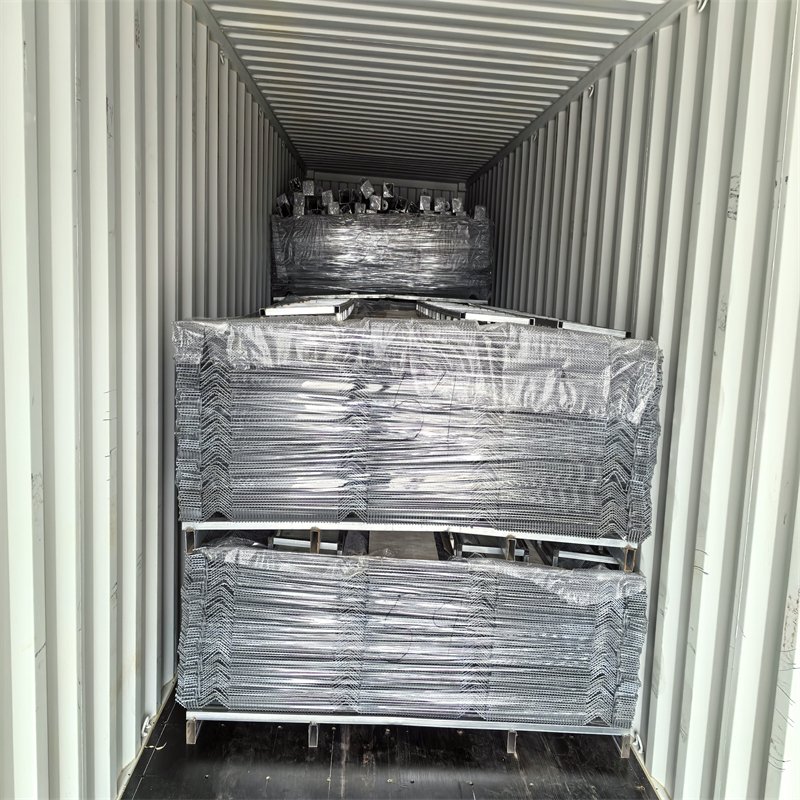

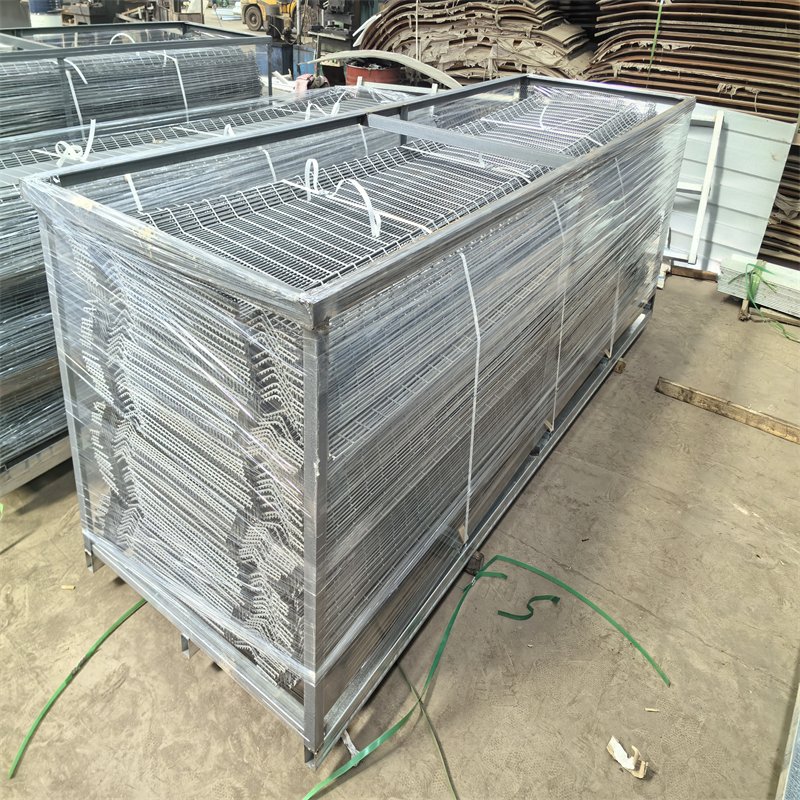

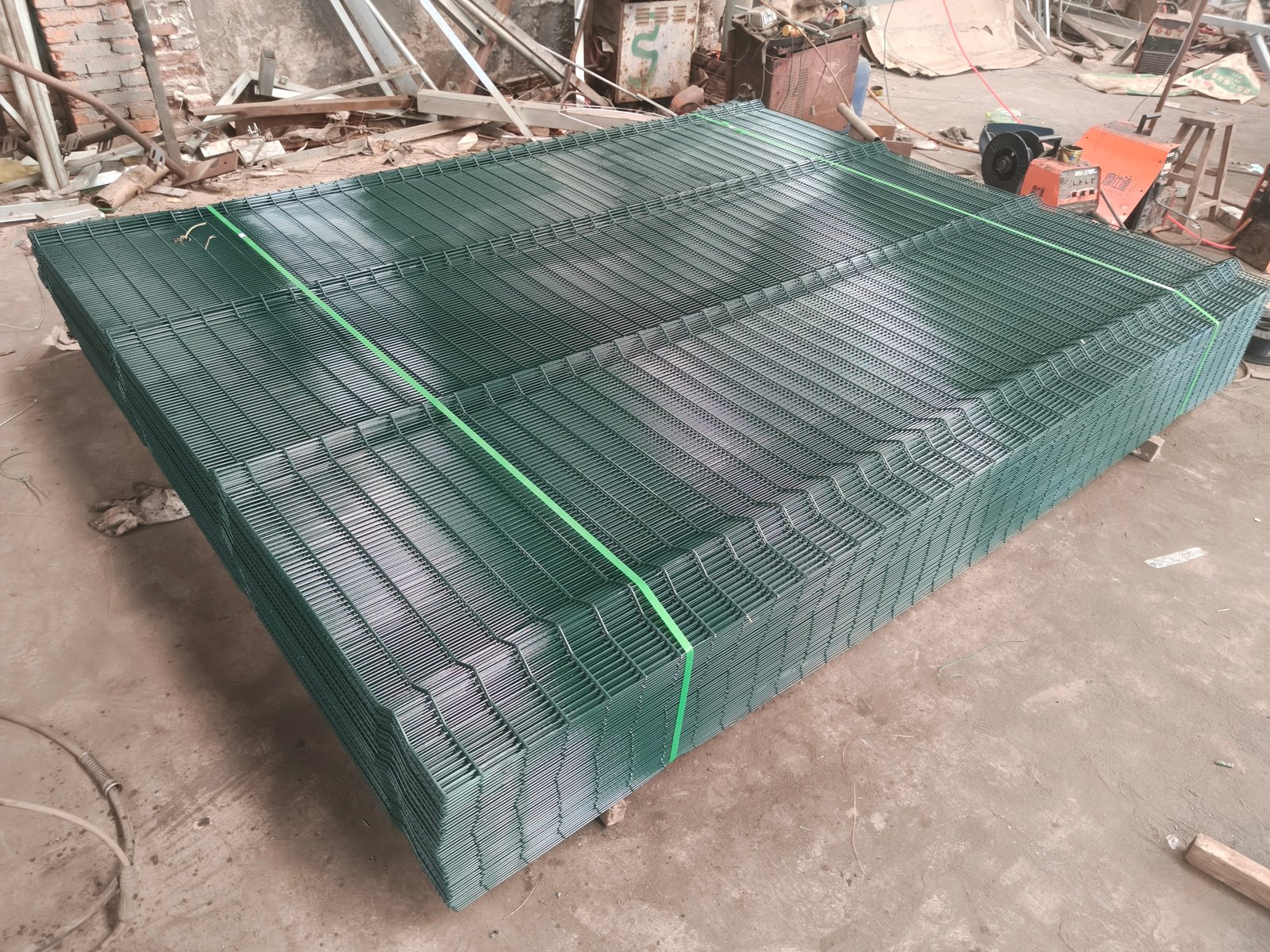

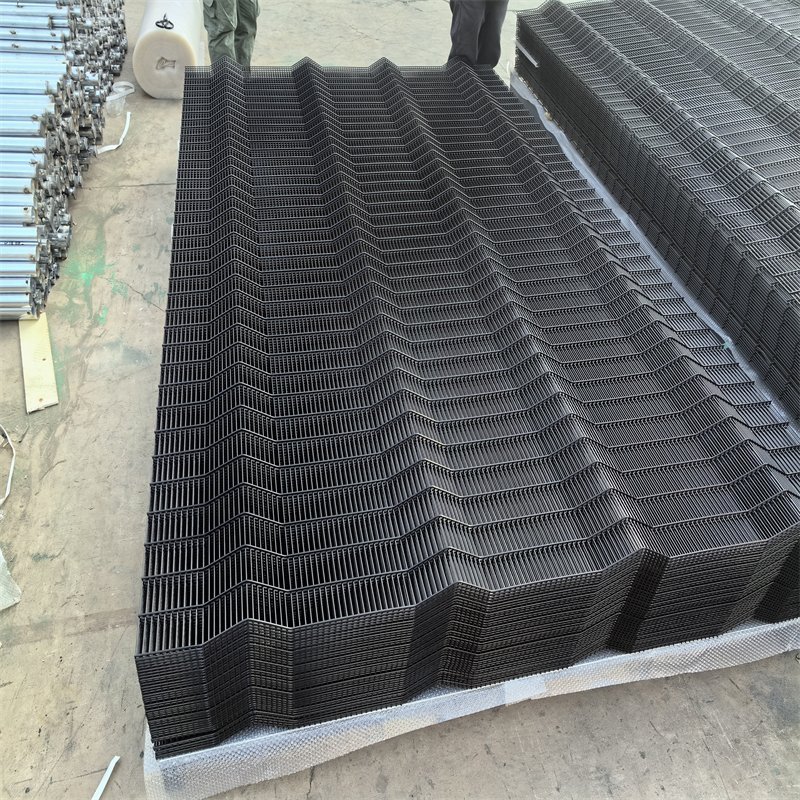

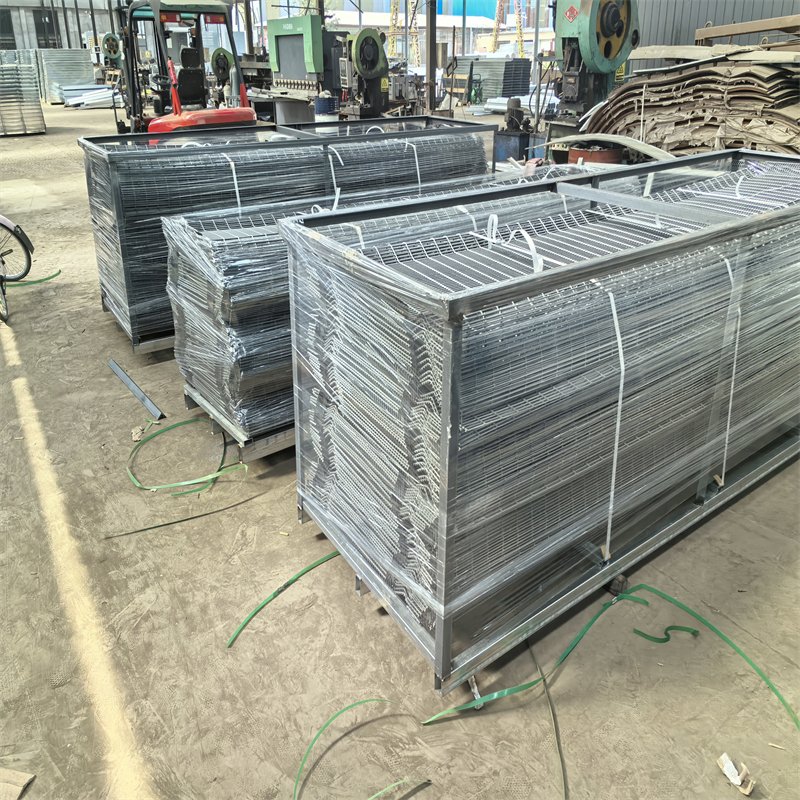

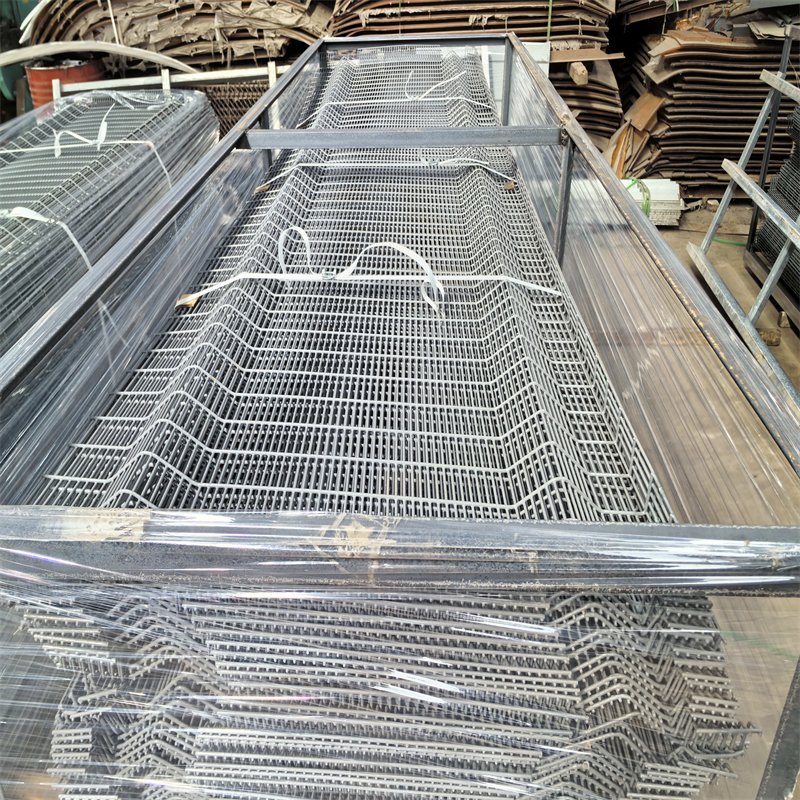

Steel pallets help group panels for export loading. Separate cartons protect smaller fasteners and accessories. Confirm pallet dimensions, container suitability, and handling equipment with the forwarding agent.
A complete enquiry helps avoid missing components and costly revisions. Provide the perimeter length and required finished height. Show corners, slopes, and entrances on a simple plan.
Confirm aperture, wire diameter, panel width, and required coating. List the post type, clamps, gate equipment, and security toppings. Buyers seeking related products can consult ClearVu Fencing for Sale.
Coastal exposure may justify additional coating specifications. Regional buyers can compare Clear View Fencing Cape Town and Clear View Fencing Durban. These pages discuss other South African project configurations.
Does the narrow mesh prevent all climbing? No. It reduces useful footholds and can delay intrusion. Overall performance depends on the complete perimeter design.
Does George require a special coating? Choose coatings based on actual moisture, salt exposure, and maintenance needs. Project conditions vary by location.
Can I install security toppings? Many systems support them with compatible brackets. Confirm local rules, structural capacity, and safe clearances.
Are these panels available from a local factory? BMP manufactures in China and supplies international projects. Confirm shipping terms and local installation arrangements.
Yes. Custom heights, post sections, wire arrangements, and colours may be available. Production feasibility depends on drawings and order quantities.
Contact BMP with your site details and preferred specifications. Our team can review the panel system, accessories, and export requirements. A clear technical enquiry supports accurate production planning and a consistent finished perimeter.
