Why clearview fencing potchefstroom Suits Different Properties
Clearview fencing combines welded steel construction with small rectangular openings. The narrow mesh provides limited space for convenient handholds and footholds. Its transparent appearance also supports observation across suitable boundaries.
University campuses need managed entrances and clear pedestrian routes. Farms often require long boundary runs and dependable gates. Residential developments may prioritise attractive finishes and controlled visitor access.
clearview fencing potchefstroom and Perimeter Security
Physical fencing helps discourage casual trespassing and defines restricted areas. However, no mesh system guarantees complete protection against determined attacks.
Security planners should consider lighting, cameras, gate controls, and response procedures. Effective protection depends on the complete perimeter arrangement.
Visibility Across Open Boundaries
Solid walls obstruct views beyond a property. Welded mesh allows guards and cameras to observe activity through the boundary.
Nearby vegetation can still create blind spots. Property managers should maintain important observation areas.
clearview fencing potchefstroom: Understanding 358 Mesh
The traditional 358 designation describes three-inch horizontal spacing, half-inch vertical spacing, and approximately eight-gauge wire. Metric equivalents commonly use 76.2 × 12.7 mm centres with 4 mm wire.
These measurements describe distances between wire centres. Actual openings are smaller because steel wires occupy part of the spacing.
For example, 4 mm wire leaves approximately 8.7 mm clear space across a 12.7 mm pitch. This geometry reduces convenient gripping opportunities.
clearview fencing potchefstroom with Different Wire Diameters
Manufacturers offer different wire combinations for security fencing. Common options include 3.0 mm, 3.5 mm, and 4.0 mm steel wires.
Thicker wires generally increase panel weight and rigidity. Buyers should specify both wire directions before approving production.
High-security projects can consider High Security Clearvu Fencing with compatible supporting components.
358 Mesh Compared with Wider Welded Mesh
| Feature | 358 Mesh | Wider Welded Mesh |
|---|---|---|
| Typical Centres | 76.2 × 12.7 mm | Varies by product |
| Climbing Resistance | Limited footholds | Depends on opening size |
| Visibility | Open welded grid | Open welded grid |
| Material Weight | Depends on wire diameter | Depends on configuration |
| Applications | Higher-security boundaries | General or specialist fencing |
Different projects require different security levels. Buyers should compare complete systems rather than mesh openings alone.
clearview fencing potchefstroom: Original Product Photographs
The following photographs preserve all six original image sources. Each image includes descriptive alternative text and a product caption.

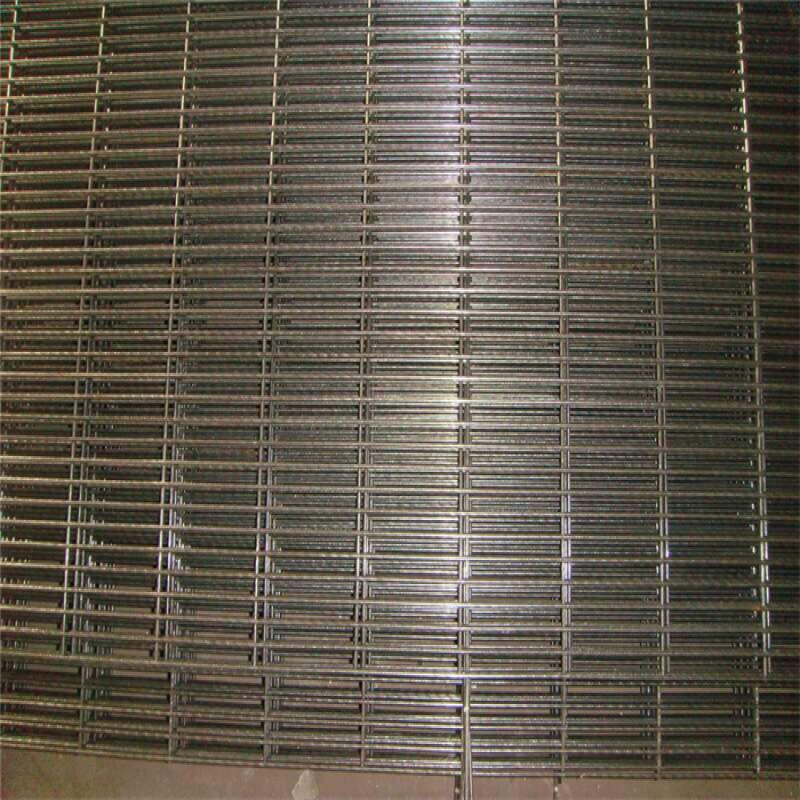

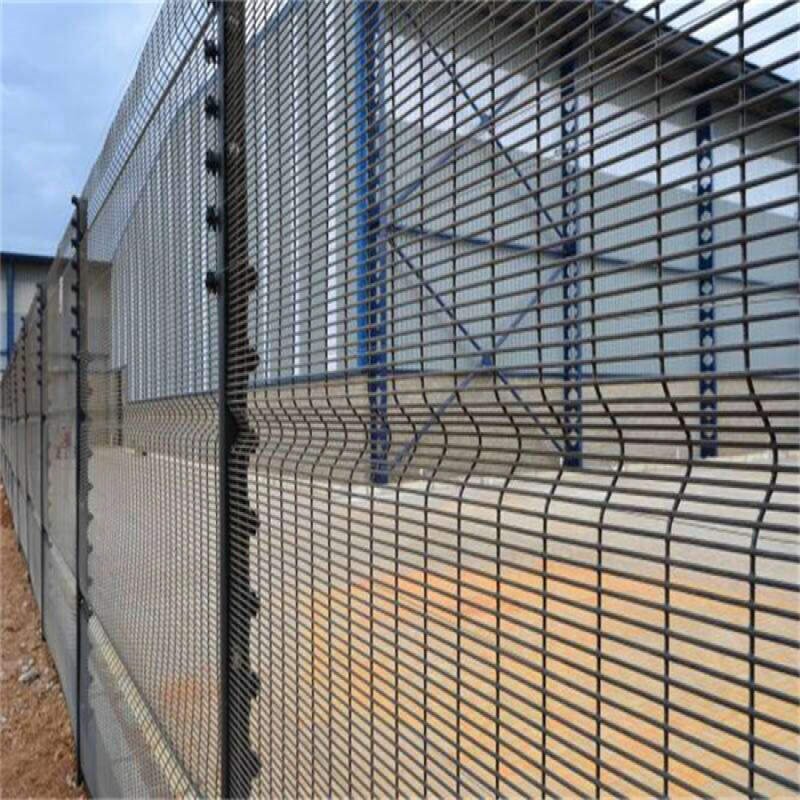

 Original 358 security mesh photograph showing the welded fencing product. |

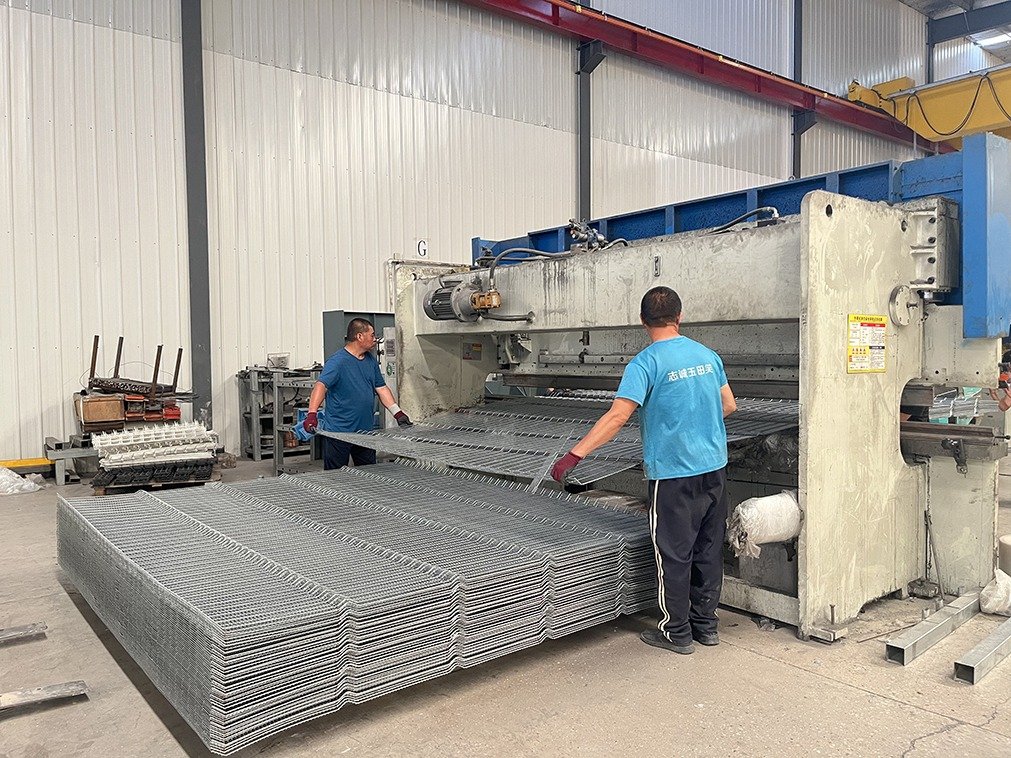

 Additional product photograph for reviewing the security mesh appearance. |

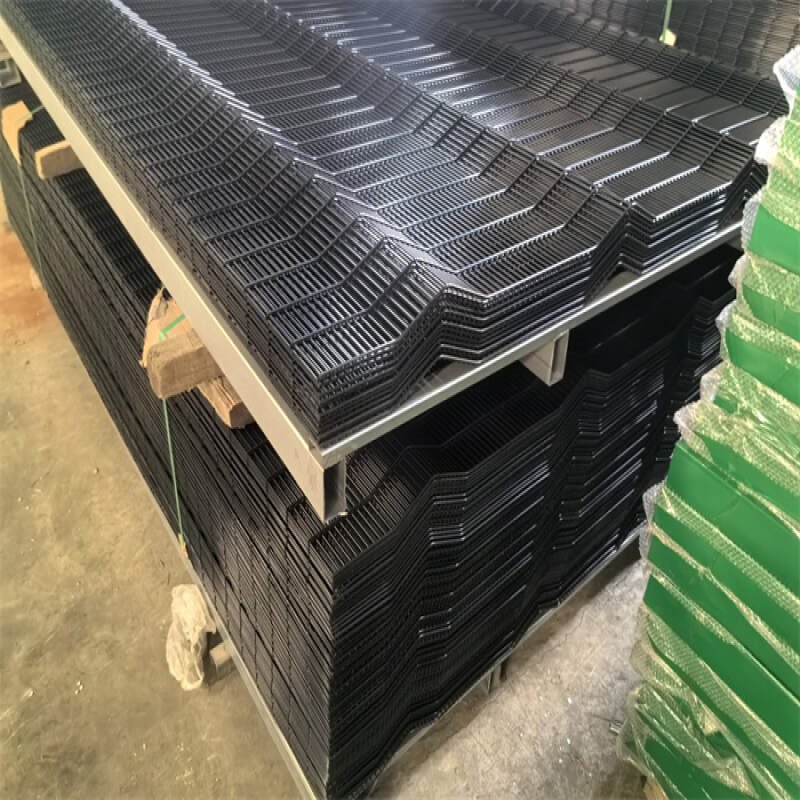

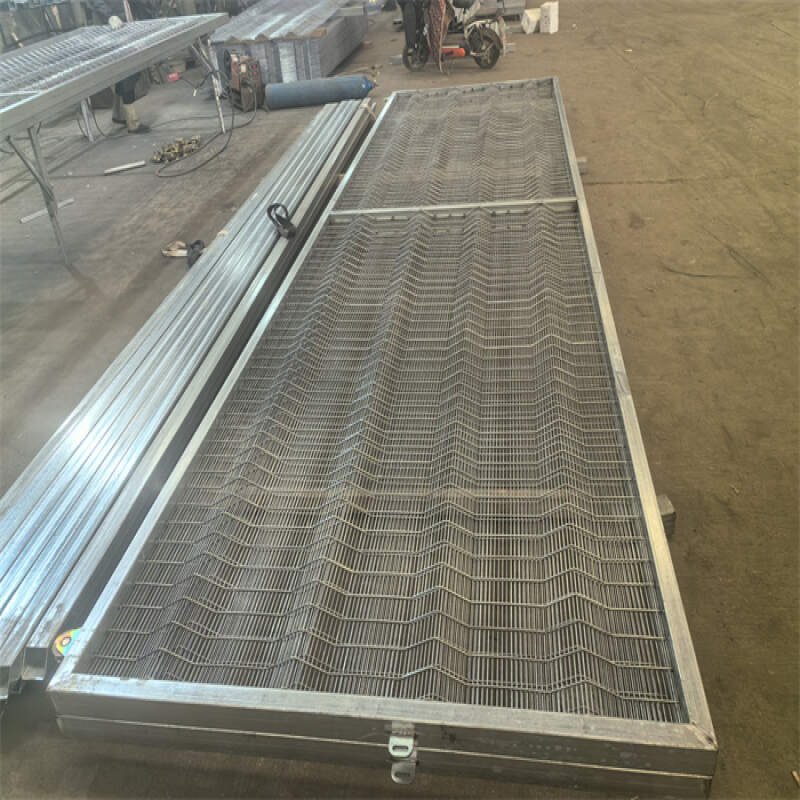

 Original welded security panel reference from the supplied article. |

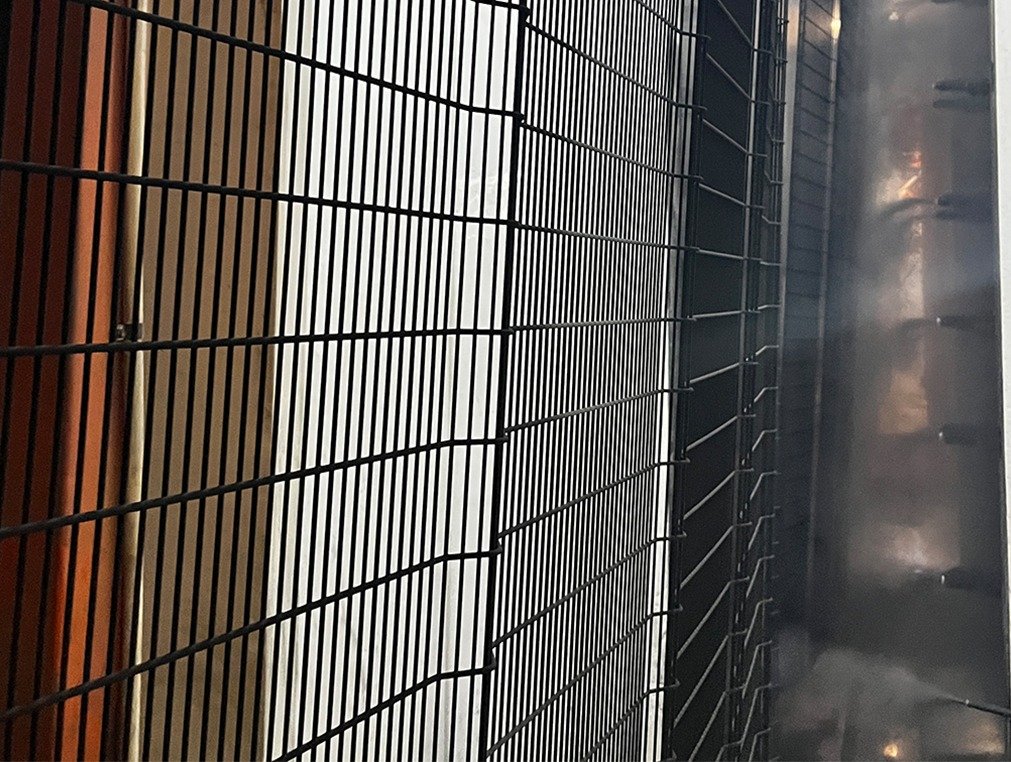

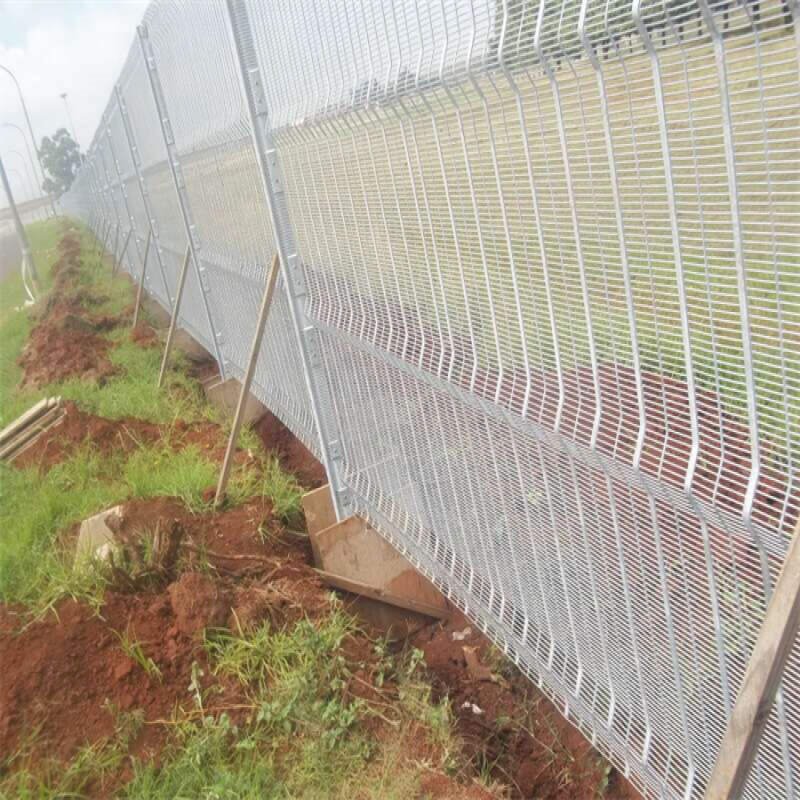

 Security fencing photograph for comparing product construction. |

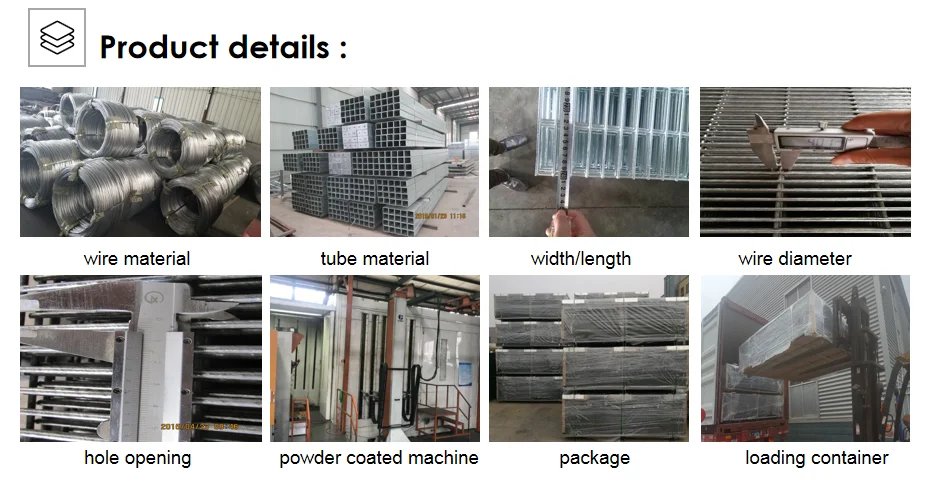

 Original anti-climb security fencing product reference. |

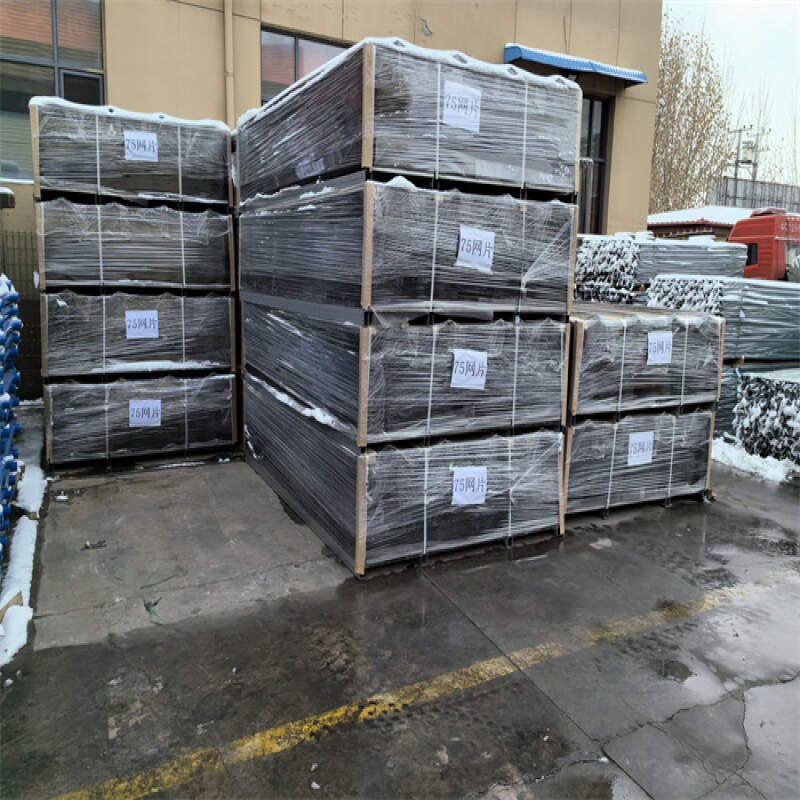

 Final original product image retained from the existing article. |
clearview fencing potchefstroom: Original Technical Specifications
The original catalogue includes nine fence heights between 1200 mm and 3600 mm. Every reference row uses 2400 mm panel width and 4 mm wire.
Post dimensions and coatings vary across the original examples. Engineers must verify their suitability for each project.
| Fence Height (mm) | Width (mm) | Wire Diameter (mm) | Mesh Centres (mm) | Post Type | Post Height (mm) | Surface Treatment | Colour Options |
|---|---|---|---|---|---|---|---|
| 1200 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 1600 | Galvanised + PVC Coated | Black, Green, Blue, etc. |
| 1500 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 1900 | Galvanised + Powder Coated | Black, Green, Blue, etc. |
| 1800 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 2200 | Hot-Dip Galvanised | Black, Green, Blue, etc. |
| 2100 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 2600 | Galvanised + PVC Coated | Black, Green, Blue, etc. |
| 2400 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 3000 | Galvanised + Powder Coated | Black, Green, Blue, etc. |
| 2700 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 3300 | Hot-Dip Galvanised | Black, Green, Blue, etc. |
| 3000 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 3600 | Galvanised + PVC Coated | Black, Green, Blue, etc. |
| 3300 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 3900 | Galvanised + Powder Coated | Black, Green, Blue, etc. |
| 3600 | 2400 | 4 | 12.7 × 76.2 | 50 × 50 / 60 × 60 mm | 4200 | Hot-Dip Galvanised | Black, Green, Blue, etc. |
The original schedule lists 50 × 50 mm and 60 × 60 mm posts throughout. These sizes do not establish structural suitability for every height.
Taller panels may require stronger sections and deeper foundations. Wind exposure, soil conditions, and gate loads influence final design.
clearview fencing potchefstroom with Custom Panel Widths
The original table specifies 2400 mm panels. Other product ranges offer different widths for suitable projects.
Buyers can compare Clearvu Fence Panels when selecting dimensions.
Post Length and Foundation Depth
Post length must accommodate the finished fence height and installation method. Soil conditions determine suitable foundation requirements.
Engineers should verify each post section. Catalogue dimensions cannot replace a structural assessment.
clearview fencing potchefstroom for University Campuses
Potchefstroom hosts North-West University's Potchefstroom Campus. University facilities combine teaching spaces, laboratories, accommodation, and recreational areas.
These activities create different access requirements. Perimeter fencing must support security without disrupting authorised pedestrian movement.
clearview fencing potchefstroom Around Academic Buildings
Academic facilities often need controlled access outside normal operating hours. Transparent mesh can help security teams observe selected boundaries.
Gate locations should follow established pedestrian routes. Poorly positioned barriers can create unnecessary congestion.
Student Accommodation Security
Student residences may require managed entrances and visible perimeter boundaries. Suitable fencing can support controlled access.
Lighting and cameras should complement the physical barrier. Emergency exits must remain practical and compliant.
clearview fencing potchefstroom for Research Facilities
Research buildings may contain specialised equipment and restricted work areas. Narrow security mesh can help define controlled zones.
Access requirements depend on facility operations. Security teams should coordinate gates, alarms, and visitor procedures.
clearview fencing potchefstroom for Farms and Agricultural Properties
Agriculture forms an important part of the surrounding regional landscape. Farms may contain equipment, workshops, irrigation systems, and livestock areas.
Different agricultural activities require different fencing solutions. High-security mesh suits selected compounds rather than every grazing boundary.
clearview fencing potchefstroom for Farmhouses
Farmhouses may benefit from a secure residential compound. Transparent mesh preserves views across surrounding land.
Vehicle gates should accommodate everyday farm access. Suitable locks and lighting support controlled entry.
Equipment Storage and Workshops
Farm workshops often contain tools, machinery, and valuable equipment. Clearview fencing can separate these areas from general agricultural land.
Nearby equipment should not create convenient climbing aids. Security planners should assess storage layouts carefully.
clearview fencing potchefstroom Around Agricultural Research Areas
Research plots may require controlled entry and clear boundaries. Narrow welded mesh can support selected facility protection needs.
However, wildlife movement and ecological requirements may influence design. Appropriate environmental assessments remain important.
Farm Boundary Versus Security Compound
Long livestock boundaries usually need different materials and cost structures. High-security welded mesh serves more specialised applications.
Buyers can compare Welded Wire Mesh Fencing for alternative perimeter designs.
clearview fencing potchefstroom Near the Mooi River
The Mooi River influences land use and drainage around Potchefstroom. Properties near watercourses may experience changing soil moisture.
Heavy rainfall can increase runoff and erosion risks. Foundation planning should account for these conditions.
clearview fencing potchefstroom and Floodplain Considerations
Floodplain sites require careful assessment before construction. Fence foundations should not obstruct drainage or worsen local flooding.
Engineers must evaluate erosion and ground stability. Environmental permissions may also apply near watercourses.
Moisture and Corrosion Protection
Repeated moisture exposure can accelerate corrosion around damaged coatings. Galvanising provides zinc-based protection for steel.
Compatible powder coating adds another protective layer. Buyers should specify appropriate coating standards.
clearview fencing potchefstroom for Riverside Facilities
Selected riverside facilities may require controlled access. Transparent fencing can preserve observation across landscaped areas.
However, public access and ecological restrictions may affect fence placement. Owners should confirm applicable requirements.
clearview fencing potchefstroom: Highveld Weather Protection
Potchefstroom experiences seasonal rainfall, often through intense summer thunderstorms. Hail and strong winds can accompany some storms.
Dry periods may increase dust accumulation on exposed structures. These conditions influence maintenance and structural planning.
clearview fencing potchefstroom During Summer Thunderstorms
Wind applies lateral forces to mesh panels. Taller installations need suitable posts and foundations.
Rainwater can also affect exposed soil. Contractors should consider drainage around the fence line.
Hail and Surface Damage
Severe weather may damage nearby branches and loose equipment. Falling objects can strike fence panels.
Maintenance teams should inspect coatings after significant storms. Prompt repairs help limit corrosion.

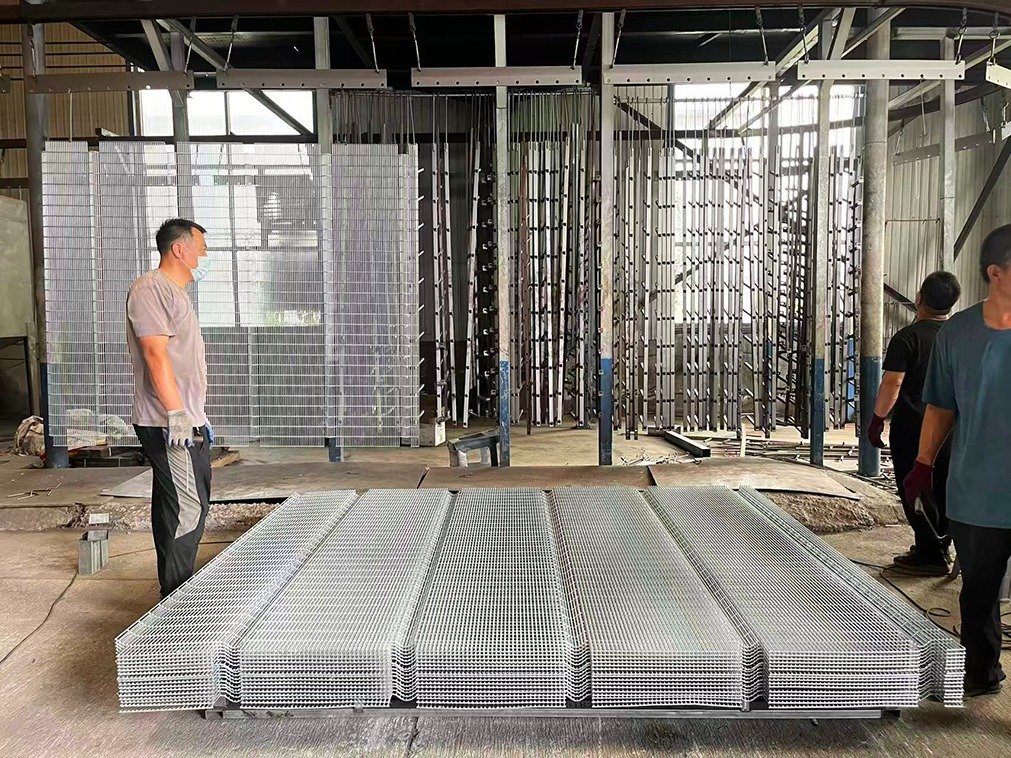

clearview fencing potchefstroom with Powder Coating
Polyester powder coating provides colour and surface protection. Common options include RAL 6005 green and RAL 9005 black.
Surface preparation influences adhesion and durability. Buyers should confirm coating thickness and inspection requirements.
clearview fencing potchefstroom: Posts, Clamps, and Gates
A complete fence includes more than welded mesh panels. Posts, clamps, bolts, caps, and gates influence security performance.
Components must match the approved drawings. Incorrect fittings can create loose connections or installation delays.
clearview fencing potchefstroom with Square Posts
Square hollow sections offer practical mounting surfaces. Common options include 60 × 60 mm and 80 × 80 mm profiles.
Wall thickness affects structural capacity. Taller fencing may need stronger supporting sections.
Security Clamps and Fixings
Clamps secure mesh panels against supporting posts. Security bolts discourage casual removal.
Different systems use individual brackets or continuous flat bars. Buyers should verify clamp geometry before purchasing.
clearview fencing potchefstroom Pedestrian Gates
Pedestrian gates manage authorised access. Hinges and locks must suit expected usage.
Gate frames should align with surrounding panels. Appropriate clearances support reliable operation.
Vehicle Access Gates
Farms and campuses may require wider entrances. Swing and sliding gates offer different operating arrangements.
Gate posts need separate structural consideration. Motorised systems require suitable safety devices.
clearview fencing potchefstroom: Installation Planning
Installation starts with a measured boundary survey. Contractors should identify corners, slopes, gates, and underground services.
Step 1: Measure the Boundary
Record the full fence length. Mark entrances and changes in direction.
Check property boundaries before excavation. Accurate drawings help prevent ordering mistakes.
clearview fencing potchefstroom Foundation Preparation
Foundation requirements depend on soil, wind, and fence height. Moist ground may require different construction methods.
Qualified engineers should approve demanding installations. Universal footing sizes cannot suit every property.
Step 3: Position Posts
Install posts according to approved spacing. Check alignment before securing them.
Allow concrete to achieve suitable strength. Avoid premature loading.
clearview fencing potchefstroom Panel Installation
Handle panels carefully to protect their coatings. Attach compatible clamps and security bolts.
Check panel alignment and ground clearance. Repair surface damage using suitable materials.
Final Inspection
Inspect all posts and connections. Test gates and locks before handover.
Complete the installation records. Provide maintenance guidance to the property owner.
clearview fencing potchefstroom: Permanent and Temporary Boundaries
Permanent Clearview fencing uses structural posts and foundations. Temporary barriers support construction projects and changing work areas.
Campus renovations may use Temporary Fencing to separate construction zones. Portable panels allow contractors to adjust access routes.
Building projects may require Temporary Hoarding around selected work areas. Solid screening provides different visibility characteristics.
Public events can use Crowd Control Barriers to guide pedestrian movement. These barriers do not replace permanent high-security fencing.

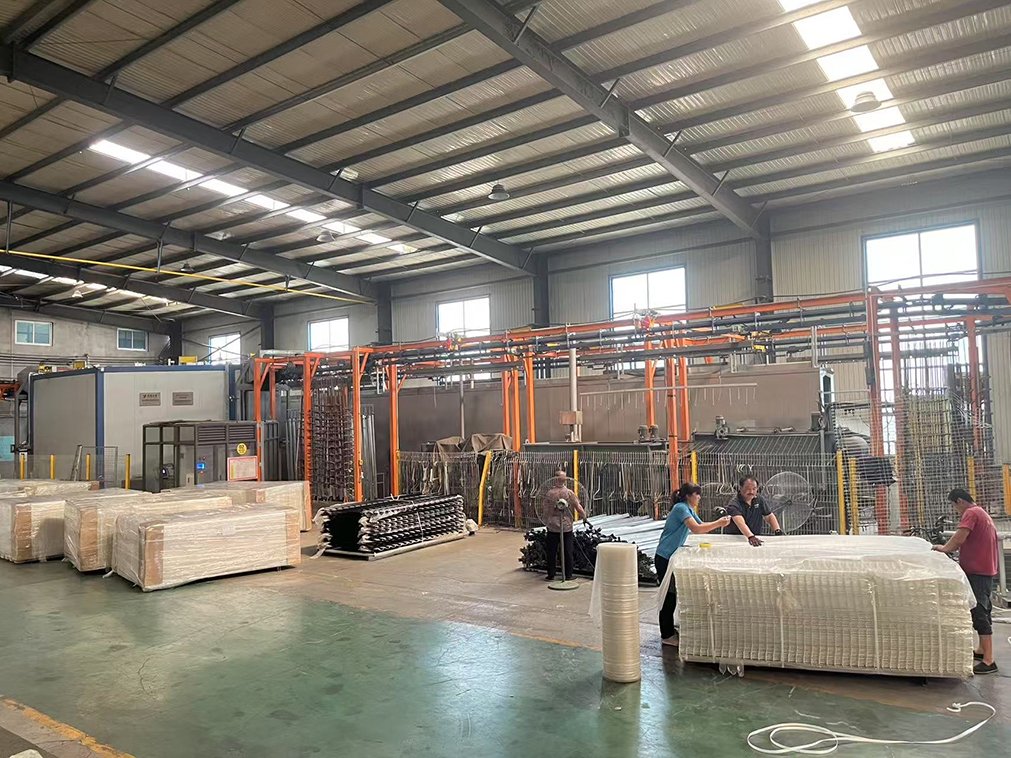

clearview fencing potchefstroom: Packaging and International Supply

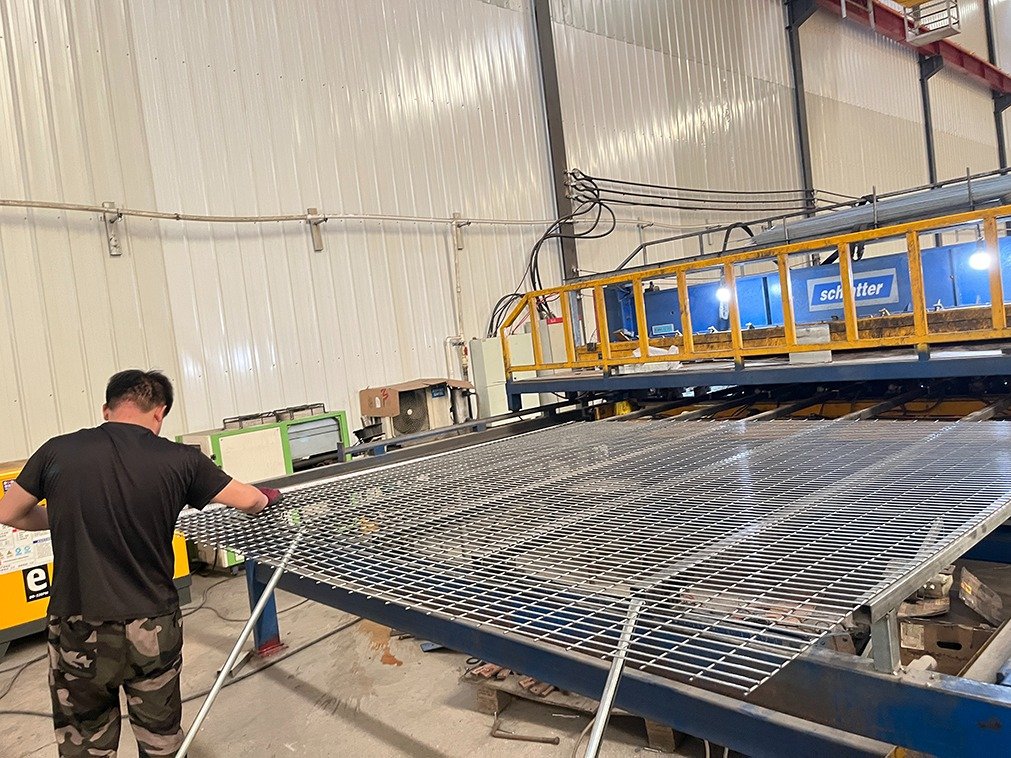

BMP manufactures welded security mesh and matching components in China. Buyers can specify panels, posts, clamps, and gates.

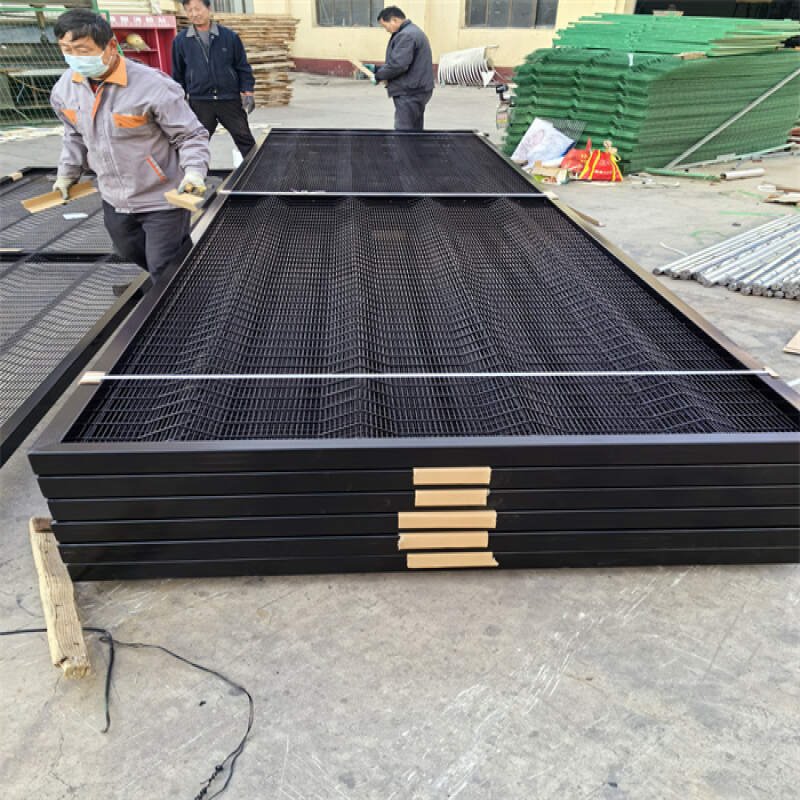

Steel pallets support panels during transport. Protective film helps reduce handling damage.

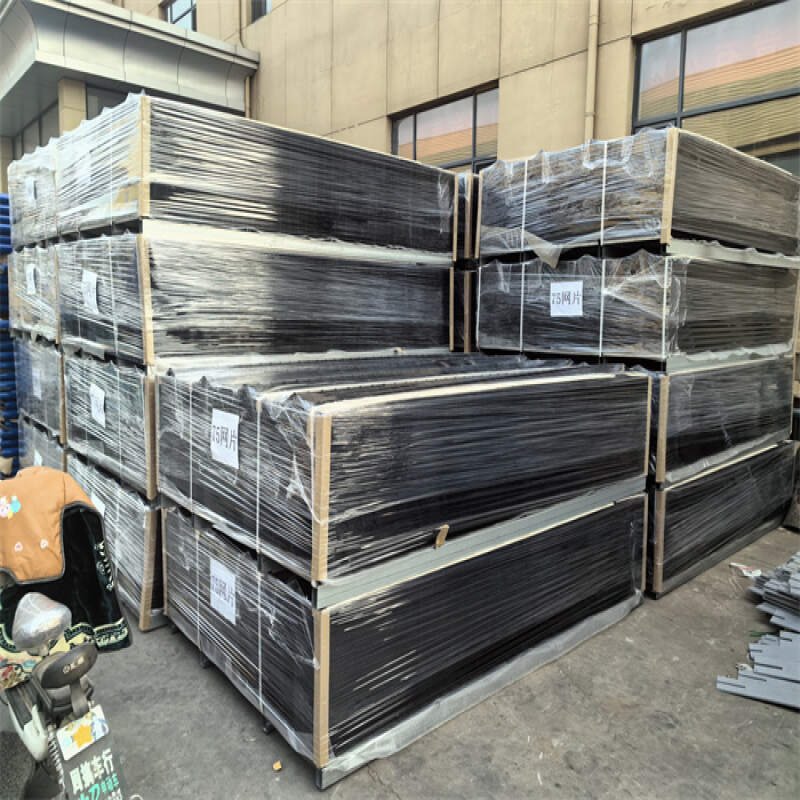

clearview fencing potchefstroom Export Packaging
Manufacturers can wrap panels with protective materials. Posts may travel in suitable protective bags.
Clamps and bolts require labelled cartons. Accurate packing lists support shipment checks.
Quality Inspection
Inspectors should verify mesh centres and wire diameters. Panel dimensions require separate measurement.
Coating inspections help identify defects. Buyers may request photographs before shipment.
clearview fencing potchefstroom Factory Procurement
Importers should compare complete fence systems. Panels alone cannot represent the entire project requirement.
Shipping terms and installation costs affect total expenditure. Buyers can review Clearview Fencing from China for related supply arrangements.
clearview fencing potchefstroom: Common Buying Mistakes
Incomplete specifications can create mismatched components. Buyers should confirm every major dimension before production.
clearview fencing potchefstroom with Incorrect Mesh Measurements
Wire centres differ from clear openings. Drawings should identify the measurement basis.
Confirm both directions and wire thickness. Avoid relying on product names alone.
Ignoring Soil Conditions
Foundation performance depends on the ground. Wet soil and erosion may influence structural capacity.
Qualified designers should assess challenging sites. Standard catalogue dimensions cannot replace engineering approval.
clearview fencing potchefstroom with Incompatible Accessories
Clamps must match the post profile. Incorrect fittings can damage coatings or create loose joints.
Buyers should approve connection drawings. Replacement parts require the same compatibility checks.
clearview fencing potchefstroom: Maintenance Checklist
| Component | Inspection Focus | Recommended Action |
|---|---|---|
| Mesh Panels | Damage and deformation | Repair or replace affected sections |
| Steel Posts | Movement and corrosion | Investigate structural concerns |
| Clamps | Loose or damaged fittings | Secure or replace components |
| Gates | Hinges, locks, alignment | Service moving parts |
| Foundations | Erosion and cracking | Arrange suitable assessment |
| Coatings | Scratches and exposed steel | Clean and repair finishes |
clearview fencing potchefstroom After Heavy Rainfall
Inspect drainage around foundations after severe storms. Erosion can weaken supporting ground.
Check posts for unusual movement. Investigate damaged sections promptly.
Manufacturer Warranty
BMP offers a 15-year manufacturer warranty for its ClearVu and Clearview fencing products, subject to written terms.
Buyers should review applicable coverage. Correct installation and maintenance remain important.
clearview fencing potchefstroom: Buyer Specification Checklist
| Requirement | Information Needed |
|---|---|
| Project Location | Potchefstroom or surrounding area |
| Fence Length | Total linear metres |
| Panel Height | 1200–3600 mm or approved alternative |
| Panel Width | 2400 mm or custom |
| Mesh Centres | 76.2 × 12.7 mm |
| Wire Diameter | 4.0 mm or approved alternative |
| Post Section | Size and wall thickness |
| Clamp System | Type and quantity |
| Surface Treatment | Galvanising and coating requirements |
| Colour | RAL reference |
| Gates | Type, size, and quantity |
| Site Conditions | Soil, drainage, slopes, wind |
| Delivery Terms | Destination and shipping arrangements |
clearview fencing potchefstroom: Frequently Asked Questions
Is 358 Mesh Suitable for University Campuses?
Yes, suitable systems can support controlled campus boundaries. Access requirements and safety considerations determine the final design.
clearview fencing potchefstroom: Which Height Works Best?
The appropriate height depends on security requirements. Common options include 1.8m, 2.1m, and 2.4m panels.
Can Clearview Fencing Protect Farm Equipment?
Yes, selected compounds can benefit from narrow welded mesh. Gates and surveillance should support the perimeter.
Does Clearview Fencing Require Maintenance?
Yes, regular inspections support long-term performance. Coatings, clamps, posts, and gates need periodic attention.
clearview fencing potchefstroom: Are Custom Gates Available?
Manufacturers can supply pedestrian, swing, and sliding gates. Buyers should provide dimensions and operating requirements.
Can Buyers Order Complete Fence Kits?
Yes, manufacturers can supply panels, posts, clamps, bolts, and caps. Gates require separate confirmation.
clearview fencing potchefstroom: Final Recommendations
clearview fencing potchefstroom provides transparent perimeter protection for university facilities, farms, schools, homes, and commercial properties. Narrow welded mesh discourages convenient climbing while supporting observation.
Campus boundaries require controlled pedestrian access. Agricultural compounds benefit from secure gates and practical maintenance arrangements. Properties near the Mooi River need careful drainage planning.
Summer thunderstorms also influence structural requirements. Suitable posts, foundations, coatings, and fixings remain essential.
Buyers can compare Clearvu Fencing for Sale, 358 Anti-Climb Fence, and Clear Vu Fence for related configurations.
Additional Clearvu Fencing Eastern Cape and Clearvu Fencing Pinetown products provide regional references.
Buyers can also compare Clearvu Fence Panels for another African market.
Boss Metal and Plastic Co., Ltd. manufactures Clearview fencing panels, posts, clamps, gates, and accessories for international projects.
Contact clearvu@construction-fence.com with your drawings, quantities, and delivery requirements for an itemised quotation.
