Green chain link fence

Item: Vinyl-coated chain link fabric
Material: Vinyl-coated zinc-plated steel wire
Wire Gauge Options: 6, 9, 11, 11-1/2 gauge
Mesh Sizes: 3/8″, 1/2″, 5/8″, 1″, 1-1/4″, 1-3/4″, 2″, 2-1/8″
Colors Available: Black, green, brown, white, or custom
Selvage Types: Knuckle or twisted
Height Options: 36″, 42″, 48″, 60″, 72″, 84″, 96″, 120″, 144″
Roll Length: 50 feet or custom lengths
Typical Applications:
Residential yards and gardens
Commercial parks and buildings
Schools and playgrounds
Highways and security perimeters
Tennis courts and baseball fields
Temporary fencing and pastures
Special Orders: Custom specs available upon request

Coating Types

Extruded Coating: Basic vinyl layer over wire
Extruded & Adhered: Improved bonding for better performance
Fused & Adhered: Highest durability and longest lifespan

Inquiry Now

8615690482714 clearvu@construction-fence.com

Description

Green chain link fence blends strength with landscape appeal. Powder-coated wire and posts hide rust and match lawns and gardens. Crews install rolls fast, keeping labor budgets low.

39bf9342765320a8c80c3d5573c2-2

Key Benefits

Neutral Look – Green mesh fades into grass and shrubs.
Corrosion Shield – PVC coat seals zinc, blocking salt and sand.
Low Heat Gain – Dark color absorbs glare, safer for pets.
Easy Fixes – Replace damaged fabric without cutting posts.
Long Life – Dual-coat system lasts 15 – 20 years with simple care.

Common Applications Green chain link fence

Area	Why It Fits
Homes	Privacy slats create quiet backyards.
Schools	Green shade calms play areas.
Sports fields	Mesh stops balls and resists kicks.
Farms	Fence marks paddocks without startling animals.
Warehouses	Green blends with landscaped buffers.

Complete Specifications

Item	Range	Notes
Mesh opening	50 mm (standard)	40 mm for pets, 25 mm for security
Wire diameter	2 mm – 4 mm	Thicker wire boosts lifespan
Roll length	25 m	Custom cuts on request
Heights	1.2 m / 1.5 m / 1.8 m / 2.4 m	Taller lines need bigger posts
Post diameter	48 mm (line)	60 mm for terminals
Post spacing	3 m	Reduce to 2.5 m in wind zones
Finish	Hot-dip zinc + PVC green	RAL 6005 as default
Coating weight	Zinc 275 g/m²	PVC 0.4 mm thick
Top rail	Ø32 mm – Ø42 mm	Rail ties every 600 mm
Gate style	Swing or slide	Match frame color

Installation Tips Green chain link fence

Mark corners with stakes and string.
Dig terminal holes 600 mm deep, line holes 400 mm.
Pour 25 MPa concrete and set posts plumb.
Thread top rail before concrete cures.
Hang mesh, insert tension bar, and stretch tight.
Clip fabric every 300 mm along rails and posts.
Fit gates, latches, and optional privacy slats.

Maintenance Guide Green chain link fence

Hose down dust twice a year.
Touch up chips with matching epoxy paint.
Oil gate hinges every spring.
Inspect ties after storms and refasten if loose.

Price Snapshot – Doha, May 2025

Wire	Height	Material (QAR / m)	Installed (QAR / m)
2.5 mm	1.5 m	70 – 90	140 – 190
3 mm	1.8 m	90 – 120	170 – 240
4 mm	2.4 m	130 – 170	250 – 340

Bulk orders over 500 m cut unit cost by 8 %.

FAQs Green chain link fence

"This

This photo shows a worker installing a <yoastmark class=

Does green coating fade?
Quality PVC holds color 10 – 12 years before slight dulling.

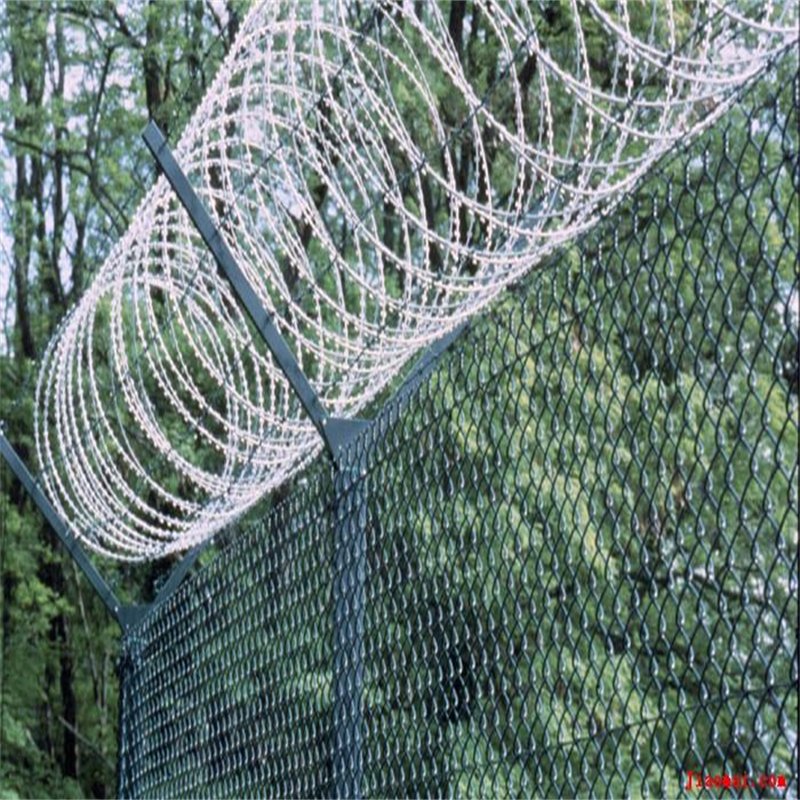

Can I add razor wire later?
Yes. Use bolt-on brackets above top rail.

Will sand abrasion peel the coat?
Thick PVC resists desert grit better than paint.

How wide should a driveway gate be?
Four meters fits most pickups and service trucks.

Is vinyl color customizable?
Yes. Dark green is standard; black and brown cost 5 % more.

Conclusion Green chain link fence

Green chain link fence pairs solid security with natural style. Select the right wire gauge, height, and post size for your site. Lock prices early, install during cooler months, and follow light upkeep for two decades of service.
