A clear view fence combines anti-climb mesh geometry, welded steel construction, and excellent visibility for modern perimeter protection. Its narrow openings discourage climbing while allowing security personnel to observe surrounding activities. Property owners choose these systems for industrial sites, residential estates, schools, commercial buildings, and sensitive facilities.
Unlike conventional solid barriers, welded security mesh maintains an open appearance without eliminating physical boundary protection. This design supports CCTV surveillance, natural observation, and controlled access. Customers can select different wire diameters, panel heights, coatings, and compatible security components.
BMP has manufactured steel fencing products since 2006. Our clear view fence panels support projects requiring consistent dimensions and configurable security features. The complete range includes welded mesh panels, supporting posts, clamps, and entrance gates.

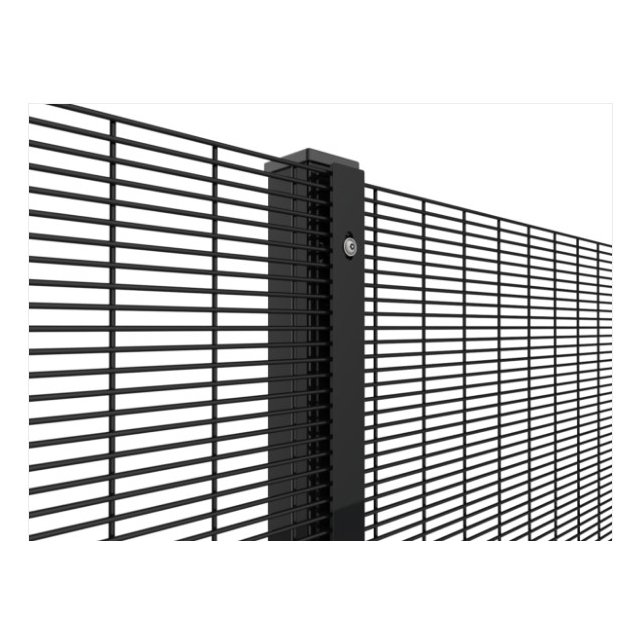

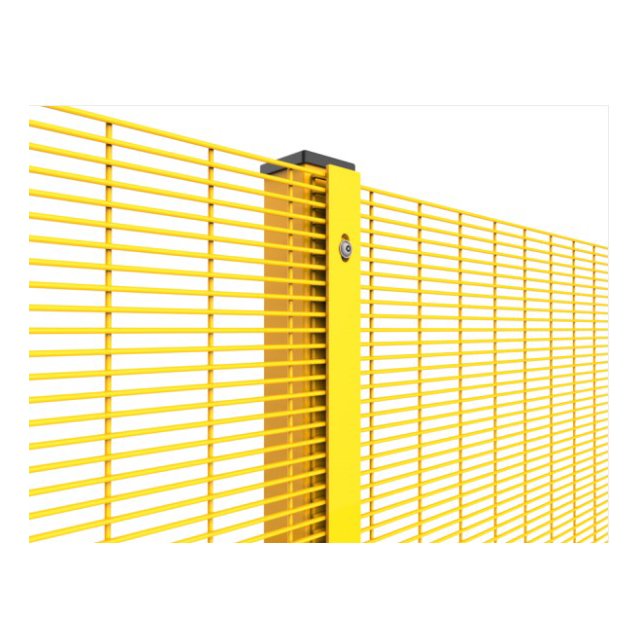

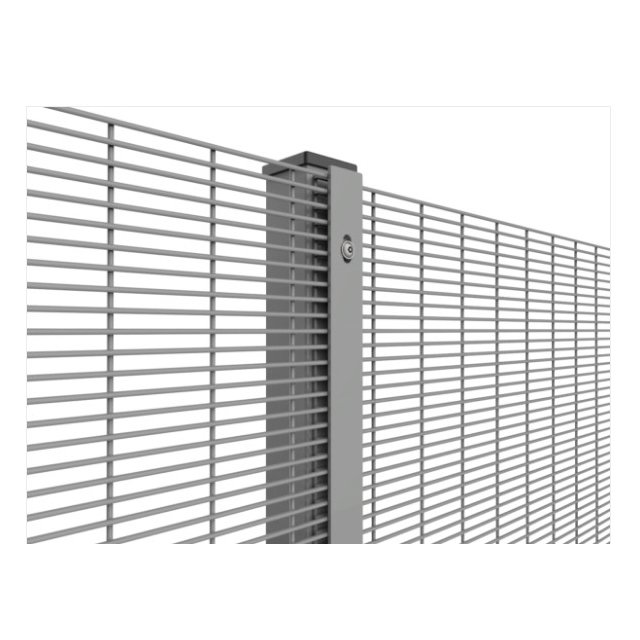

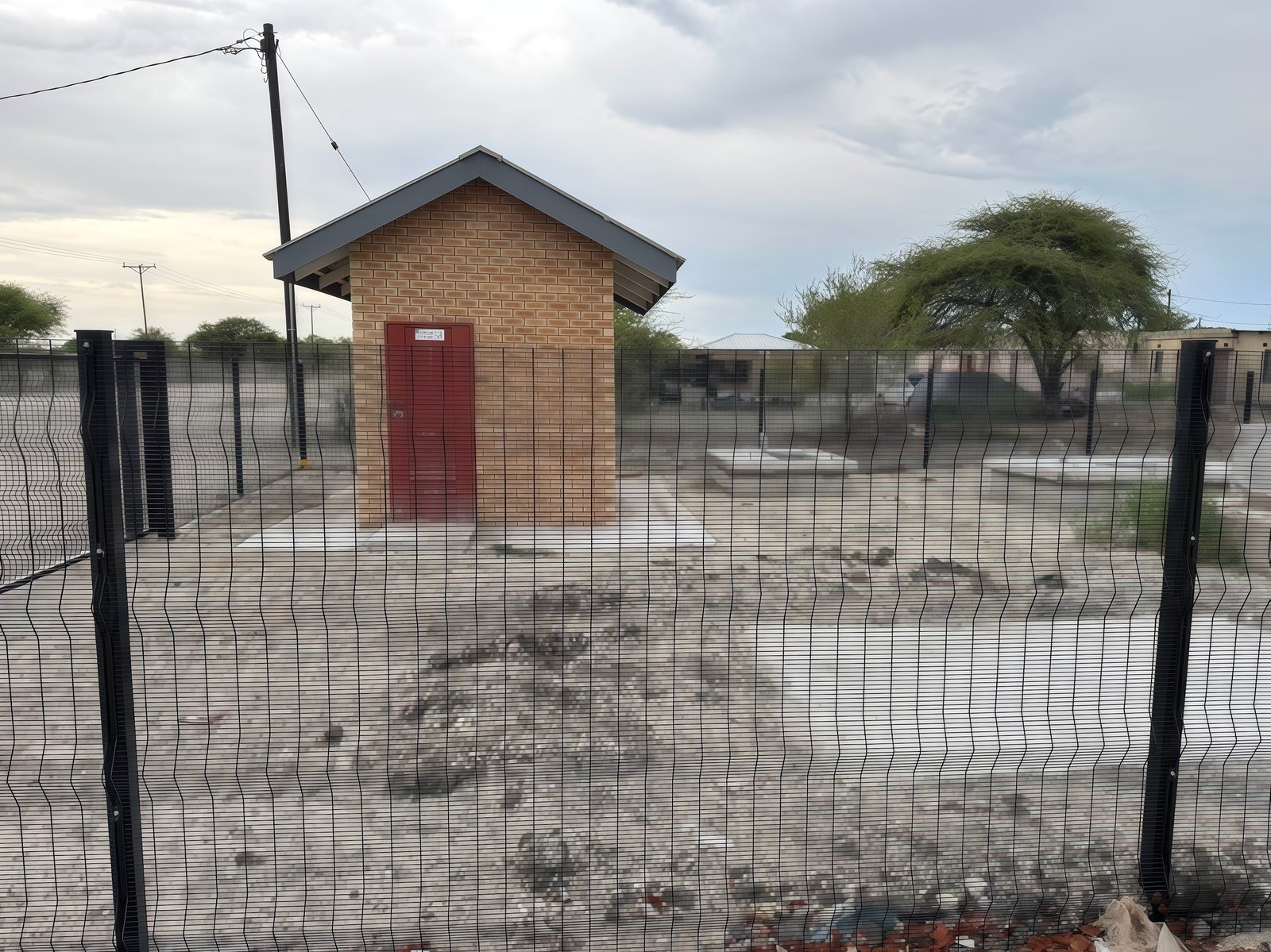

A clear view fence uses rigid welded steel mesh to form a protective property boundary. Closely spaced horizontal wires reduce practical handholds and make climbing more difficult. Vertical wires connect the mesh structure and help maintain panel rigidity.
The traditional 358 designation describes three-inch horizontal spacing, half-inch vertical spacing, and eight-gauge wire. In metric measurements, the dimensions correspond to approximately 76.2mm × 12.7mm centres and 4mm wire.
Security mesh can also use alternative wire combinations and aperture dimensions. However, larger openings generally offer fewer anti-climb advantages than traditional 358 construction. The 358 welded wire mesh fence remains a recognised reference for narrow-aperture designs.
Climbing attempts depend partly on available finger and toe holds. Narrow welded openings limit these gripping opportunities across the panel surface. Proper fence height and secure connections improve the overall barrier.
Wire diameter also affects resistance to deformation and attempted cutting. Strong welded intersections contribute to a rigid structure under expected service conditions. The complete installation requires suitable foundations, posts, and secure fastening components.
Security performance depends on the interaction between mesh construction, structural support, and installation quality. A properly specified system can discourage opportunistic intrusion while preserving useful visibility. This combination supports several commercial and residential security objectives.
Security ratings require specific testing rather than visual assessment alone. Buyers should request appropriate documentation when projects demand certified resistance levels. For demanding environments, high security clear view fence configurations deserve particular consideration.
BMP offers several welded mesh configurations for different property requirements. Smaller apertures emphasise anti-climb performance, while larger openings accommodate general boundary applications. Manufacturing drawings should define exact centre spacing, wire dimensions, and panel geometry.
| Panel Width | Panel Height Options | Mesh Centres | Horizontal Wire | Vertical Wire | Finish Options |
|---|---|---|---|---|---|
| 3050mm | 1200, 1500, 1800, 2000, 2100, 2400, 3000mm | 76.2 × 12.7mm | 3.0 / 4.0mm | 4.0mm | Zinc-Aluminium / Powder Coated / PVC |
| 3050mm | 1200, 1500, 1800, 2000, 2100, 2400, 3000mm | 76 × 25mm | 3.0mm | 4.0mm | Galvanized / Powder Coated / PVC |
| 3050mm | 1200, 1500, 1800, 2000, 2100, 2400, 3000mm | 76 × 50mm | 3.0mm | 4.0mm | Galvanized / Powder Coated / PVC |
| 3050mm | 1200, 1500, 1800, 2000, 2100, 2400, 3000mm | 76 × 100mm | 4.0mm | 3.0mm | Galvanized / Powder Coated / PVC |
| 3050mm | 1200, 1500, 1800, 2000, 2100, 2400, 3000mm | 50 × 100mm | 4.0mm | 4.0mm | Galvanized / Powder Coated / PVC |
These figures describe reference manufacturing options rather than one universal security rating. The nominal mesh measurements indicate wire centre-to-centre spacing. Actual clear apertures become smaller after accounting for wire thickness.
Traditional 358 mesh commonly uses 4mm horizontal and vertical steel wires. Alternative configurations combine thinner horizontal wires with stronger vertical wires. Such variations change panel weight, rigidity, and manufacturing costs.

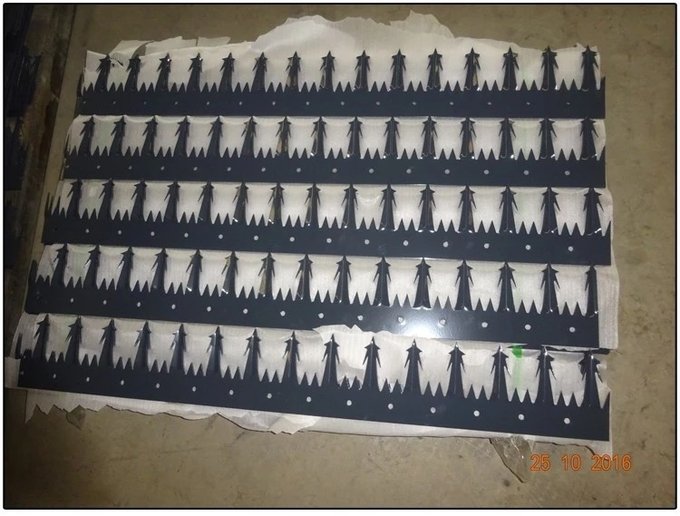

Higher-security projects may require stronger wires or additional protective systems. Customers should compare complete technical specifications rather than relying on product names. The 358 mesh panels category provides useful reference dimensions.

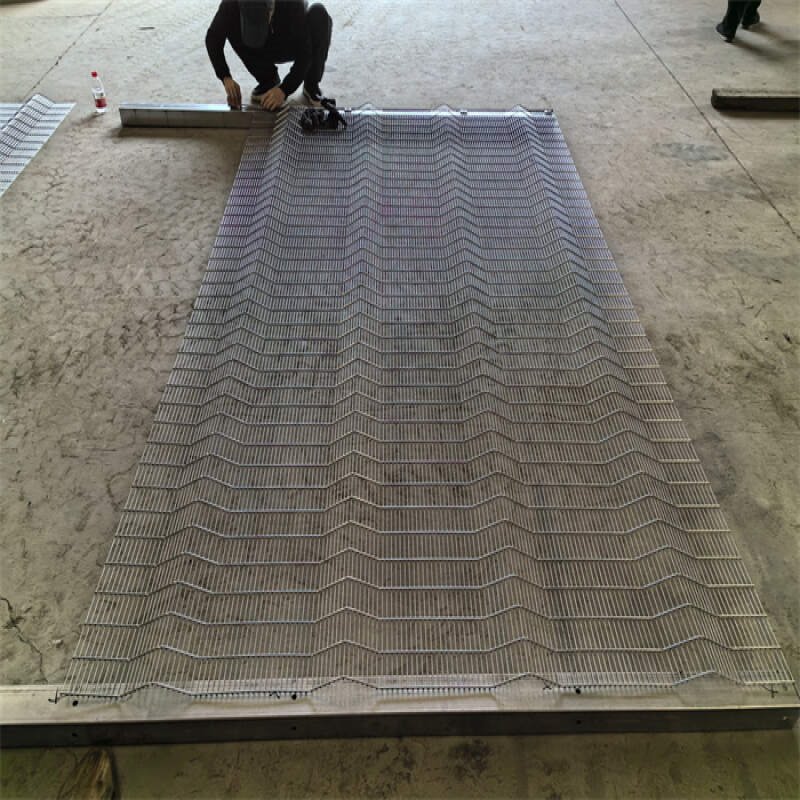

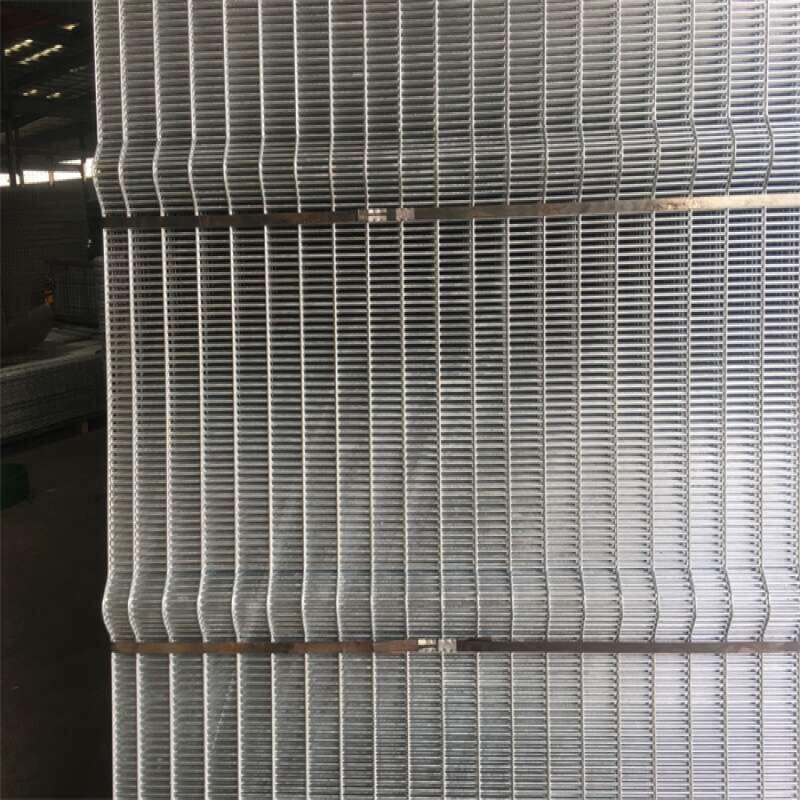

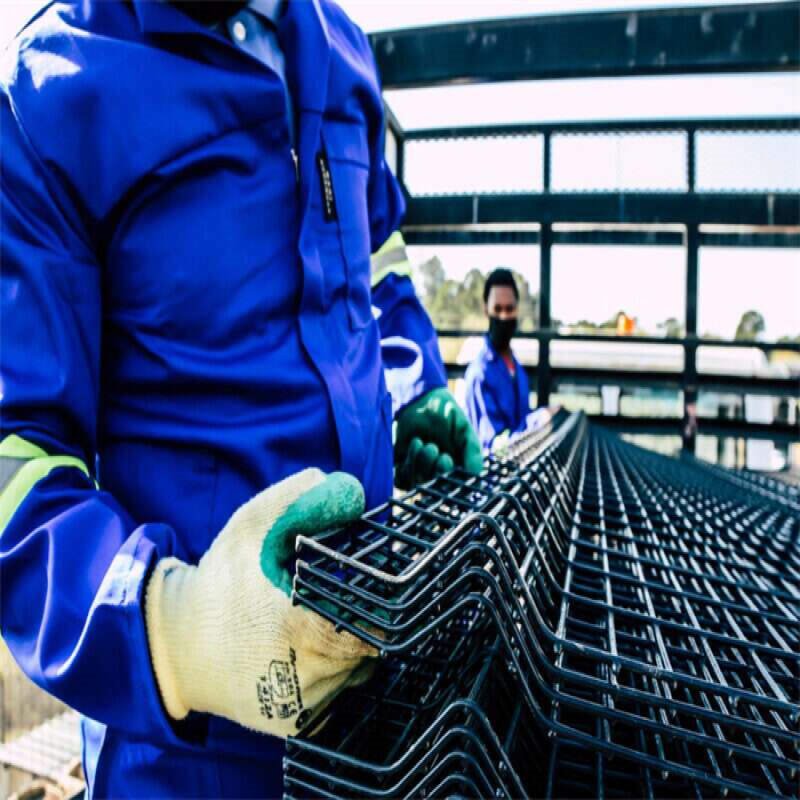

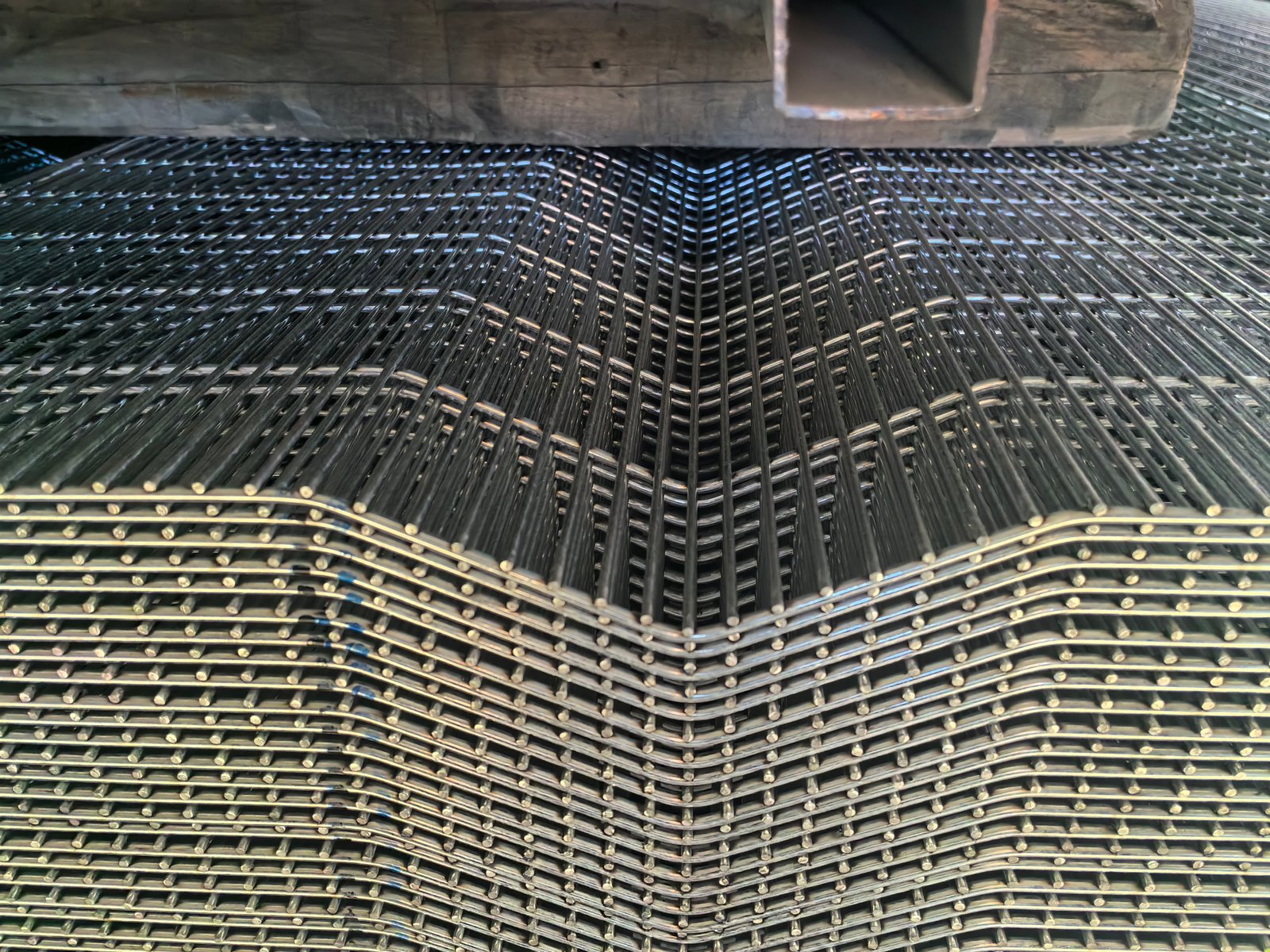

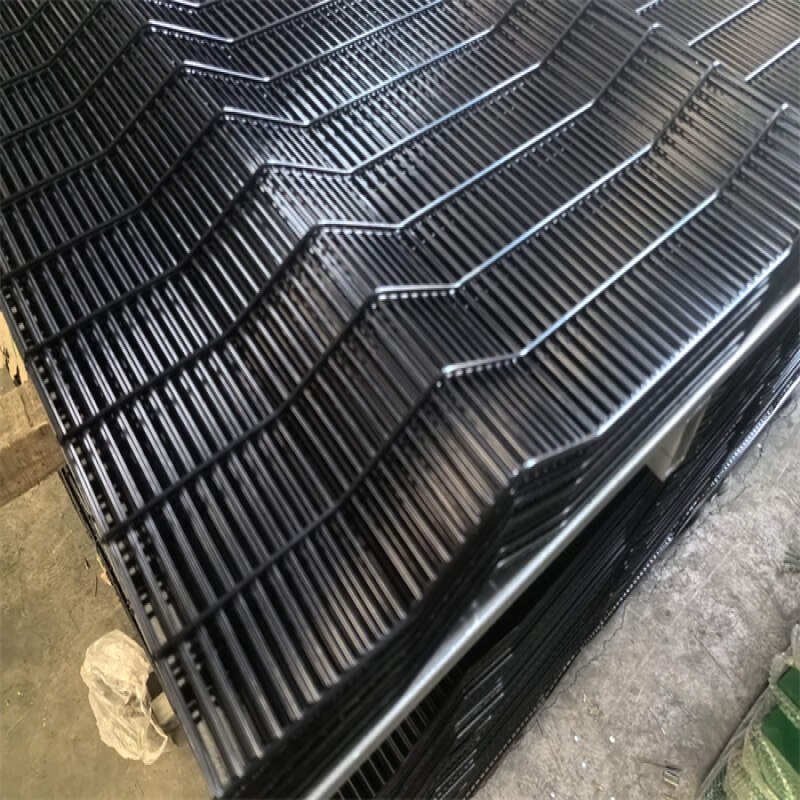

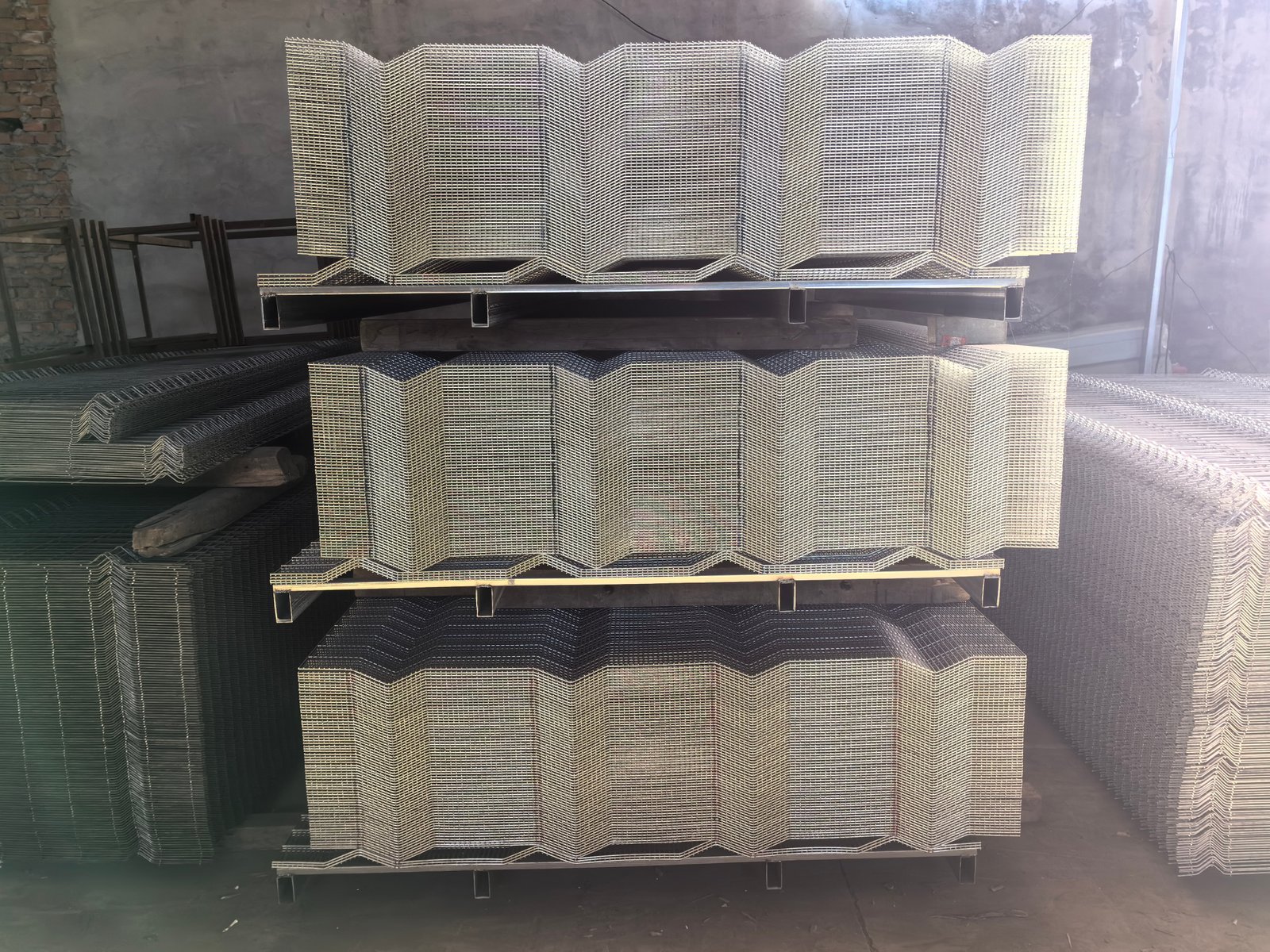

Some welded mesh panels incorporate horizontal V-shaped bends for additional rigidity. These profiles create a three-dimensional structure that helps resist ordinary deformation. Manufacturers can vary the number of folds according to panel height.
Flat 358 security mesh and V-fold mesh represent different design configurations. Flat panels often suit projects prioritising consistent anti-climb geometry. Formed mesh can provide structural and architectural advantages for other applications.
| Panel Width | Panel Height | Reference V-Folds | Horizontal Wire | Vertical Wire | Available Finish |
|---|---|---|---|---|---|
| 3050mm | 1200mm | 2 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 1500mm | 2 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 1800mm | 3 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 2000mm | 4 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 2100mm | 4 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 2400mm | 4 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
| 3050mm | 3000mm | 4 | 3.0mm | 4.0mm | Galvanized / Powder Coated |
Fold quantities represent the supplied reference configurations. Final structural requirements depend on panel design, wind loading, and installation conditions. The 3D fence panel category illustrates related formed-mesh construction.
Fence posts support the mesh and transfer external forces into foundations. Taller fences generally require stronger sections and carefully designed concrete footings. Post spacing also depends on panel dimensions and connection geometry.
| Fence Height | Post Section | Post Length | Intermediate Clamps | Corner Fixings |
|---|---|---|---|---|
| 2000mm | 60 × 60 × 2.5mm | 2700mm | 7 | 14 |
| 2400mm | 60 × 60 × 2.5mm | 3100mm | 9 | 18 |
| 2997mm | 80 × 80 × 2.5mm | 3800mm | 11 | 22 |
| 3607mm | 100 × 60 × 3.0mm | 4500mm | 13 | 26 |
| 4204mm | 100 × 100 × 4.0mm | 5200mm | 15 | 30 |
| 4496mm | 100 × 100 × 5.0mm | 5500mm | 16 | 32 |
| 5207mm | 120 × 120 × 5.0mm | 6200mm | 18 | 36 |
This table preserves reference combinations from the original specifications. Engineers must verify post dimensions, clamp counts, and foundation requirements for each project. These values do not replace structural calculations.
Clamps attach the welded panels to supporting posts. Security bolts and compatible brackets can discourage unauthorised removal. Flat-bar systems also distribute connection forces across selected mesh sections.
Corner posts may require additional fastening components because they connect panels from different directions. Accurate hardware quantities simplify installation and prevent material shortages. Customers can compare ClearVu fence clamps when coordinating related security mesh components.
Protective coatings help steel fencing withstand moisture, outdoor exposure, and atmospheric contaminants. Buyers should select finishes according to the property's environment and maintenance expectations. Different coating processes also affect manufacturing procedures and appearance.
Hot-dip galvanizing creates a zinc layer around prepared steel components. The zinc provides barrier protection and sacrificial corrosion resistance. Post-fabrication galvanizing can protect exposed welds and steel surfaces.
Coating thickness should match project requirements and relevant standards. Installers must avoid unnecessary damage during handling and assembly. Regular inspections help identify vulnerable areas before corrosion spreads.

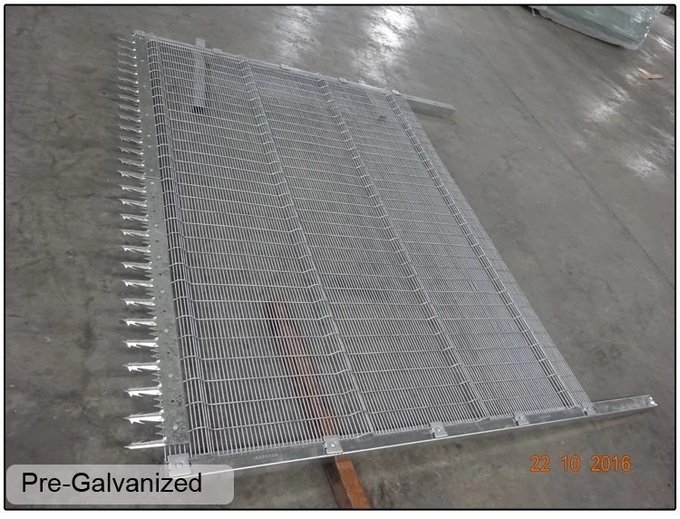

Pre-galvanized wire receives zinc protection before panel fabrication. Manufacturers then weld the wires into mesh panels. Welding can affect coating continuity around intersections.
Additional finishing may improve protection where manufacturers follow suitable preparation procedures. Buyers should confirm the complete coating process rather than assuming equivalent protection across different systems.
Polyester powder coating provides decorative colour and additional environmental protection. Common colours include black, dark green, and anthracite grey. Custom RAL finishes can support architectural requirements.
Surface preparation and coating adhesion remain important for long-term performance. Manufacturers should control curing temperatures and coating thickness. Damaged areas require appropriate maintenance to reduce corrosion risks.
Zinc-aluminium coatings provide another protective option for steel wire. PVC coatings create an additional physical barrier around suitable prepared substrates. Their durability depends on adhesion, coating thickness, and environmental exposure.
Customers should request relevant coating information before selecting materials. Coastal environments often demand stronger corrosion protection than sheltered inland properties. Site-specific exposure determines the appropriate coating strategy.
Fence colour influences the visual relationship between buildings, landscaping, and perimeter boundaries. Dark finishes often create a restrained appearance around commercial properties. Green fencing can complement gardens, schools, and recreational areas.
| RAL Reference | Colour | Common Application |
|---|---|---|
| RAL6005 | Moss Green | Schools and landscaped properties |
| RAL9005 | Jet Black | Residential estates and commercial premises |
| RAL7016 | Anthracite Grey | Modern buildings and business parks |
| RAL9010 | Pure White | Selected architectural projects |
| RAL7030 | Stone Grey | Industrial and institutional boundaries |
Available colours depend on the selected coating system and manufacturing arrangements. Clients should approve physical samples when exact colour matching matters.
South African properties face different security requirements across industrial, residential, and public environments. Urban facilities often prioritise intrusion deterrence and monitored access. Rural installations may also require protection for equipment, agricultural facilities, and infrastructure.
Factories need boundaries that protect machinery, storage compounds, and controlled working areas. Security personnel benefit from clear observation around entrances and service roads. Closely spaced welded mesh helps discourage casual climbing.
Large industrial sites may require higher panels and specially designed vehicle gates. The high security 358 mesh fencing category supports these demanding applications. Additional lighting and monitoring improve the broader security strategy.

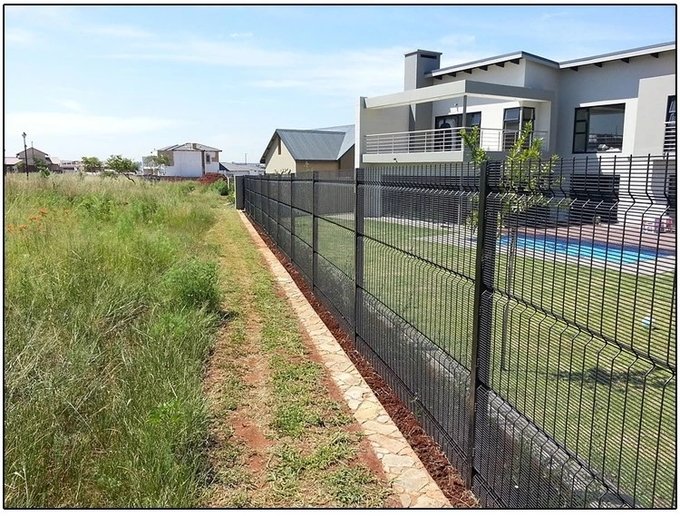

Residential estates seek effective perimeter protection without creating an excessively enclosed appearance. Transparent welded mesh preserves views across gardens and shared boundaries. Compatible gates provide controlled access for residents and visitors.
Property managers may combine security fencing with cameras, electric detection systems, and monitored entrances. Local conditions influence material selection and installation planning. Buyers comparing clear view fencing Gauteng can assess regional residential applications.
Schools require appropriate boundaries around playgrounds, pedestrian entrances, and maintenance areas. Open mesh helps staff maintain visibility across selected outdoor spaces. Properly configured gates support controlled entry during operating hours.
Public facilities also need accessible emergency routes and safe pedestrian circulation. Designers should consider these requirements before choosing fence heights and gate positions. Security arrangements must complement applicable safety regulations.
Warehouses frequently manage valuable goods, delivery vehicles, and external storage areas. Perimeter fencing helps separate authorised operations from surrounding public spaces. Clear visibility assists guards and surveillance equipment.
Vehicle entrances should accommodate loading operations without obstructing nearby traffic. Gates also require reliable locks and compatible automation systems. Accurate planning reduces operational conflicts after installation.
Environmental exposure strongly influences fencing durability across South Africa. Durban's coastal atmosphere contains airborne salt and frequent moisture. These conditions increase corrosion risks when protective coatings deteriorate.
Cape Town properties may encounter strong winds alongside coastal exposure. Installers must consider structural loading and the selected corrosion protection. The clear view fencing Cape Town category provides regional application context.
Inland Gauteng faces summer thunderstorms, ultraviolet exposure, and industrial dust. These conditions also affect coating performance and maintenance. Appropriate surface treatment reduces unnecessary deterioration around welds and connections.
Effective security does not depend on fencing alone. Cameras, lighting, detection equipment, and appropriate response procedures complete the protective arrangement.
Different fencing products address different operational priorities. Traditional 358 mesh emphasises narrow openings and anti-climb geometry. Other systems may offer lighter construction, different architectural styles, or temporary mobility.
| Fence Type | Key Characteristic | Common Application |
|---|---|---|
| 358 Clear View Mesh | Narrow welded openings | Higher-security boundaries |
| 3D Welded Mesh | Horizontal reinforcement folds | Schools and commercial properties |
| Chain Link | Flexible woven mesh | General boundary fencing |
| Palisade Fencing | Vertical steel pales | Industrial perimeters |
| Garrison Fencing | Vertical tubular steel construction | Residential and commercial sites |
| Temporary Fencing | Movable panel system | Construction sites and events |
Construction companies often use temporary fencing panels before completing permanent perimeter work. Movable systems accommodate changing worksite boundaries and access requirements.
These installations also require suitable temporary fence blocks and compatible bracing components. Stable supports help reduce movement under exposed conditions.
Architectural projects sometimes favour garrison fencing instead of welded security mesh. Its vertical steel profiles create a different appearance and structural configuration.

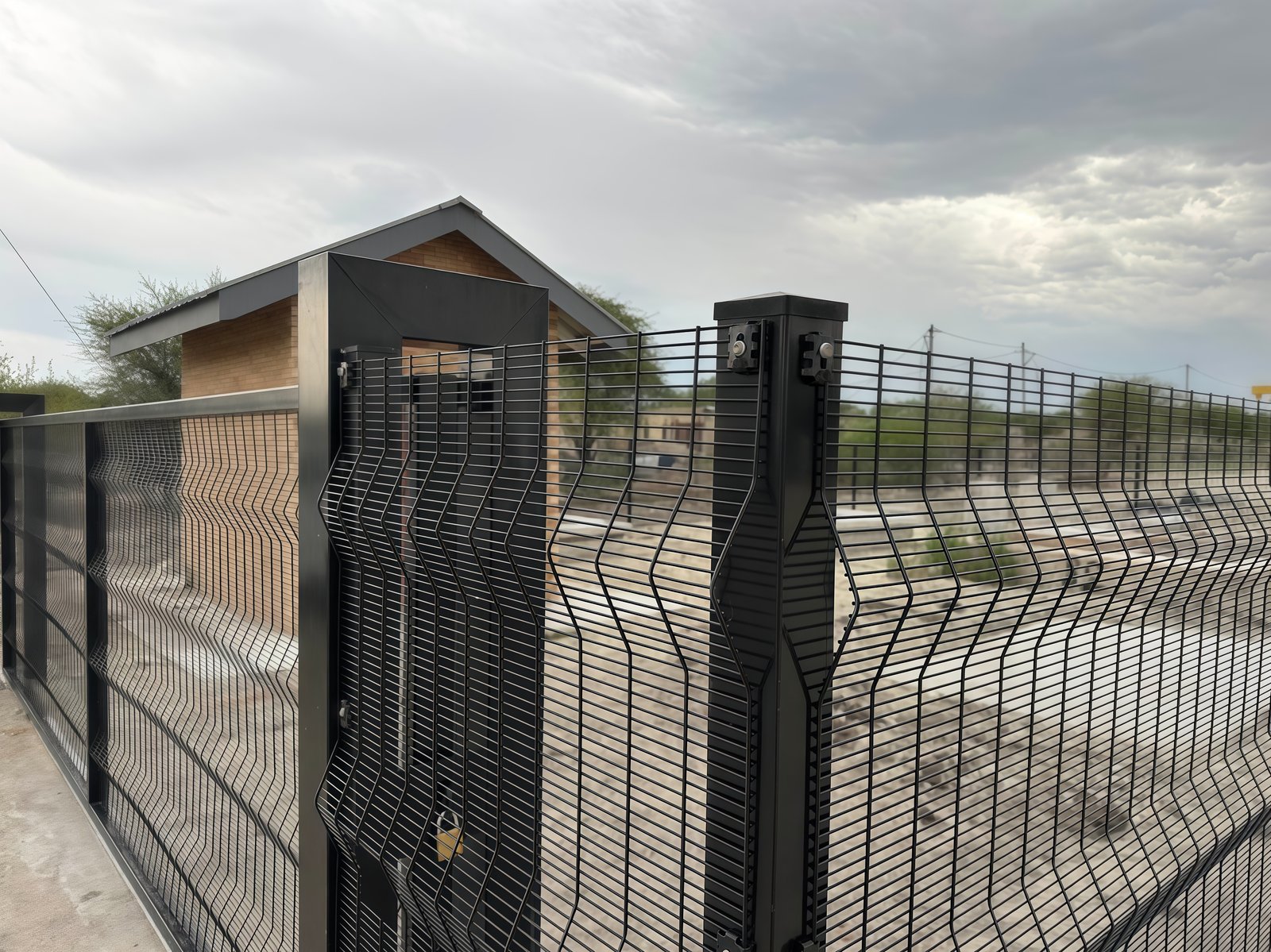

Every security perimeter needs suitable access points for pedestrians and vehicles. Gate selection depends on entrance width, traffic volume, and available operating space. Compatible mesh designs help maintain a consistent boundary appearance.
Pedestrian gates support controlled access to schools, offices, and residential developments. Suitable locks and hinges help maintain dependable operation. Designers should also consider accessibility and emergency exit arrangements.
Double-swing gates accommodate vehicle entrances where sufficient opening clearance exists. Their frames require appropriate hinges and supporting posts. Gate dimensions should match actual vehicle requirements.

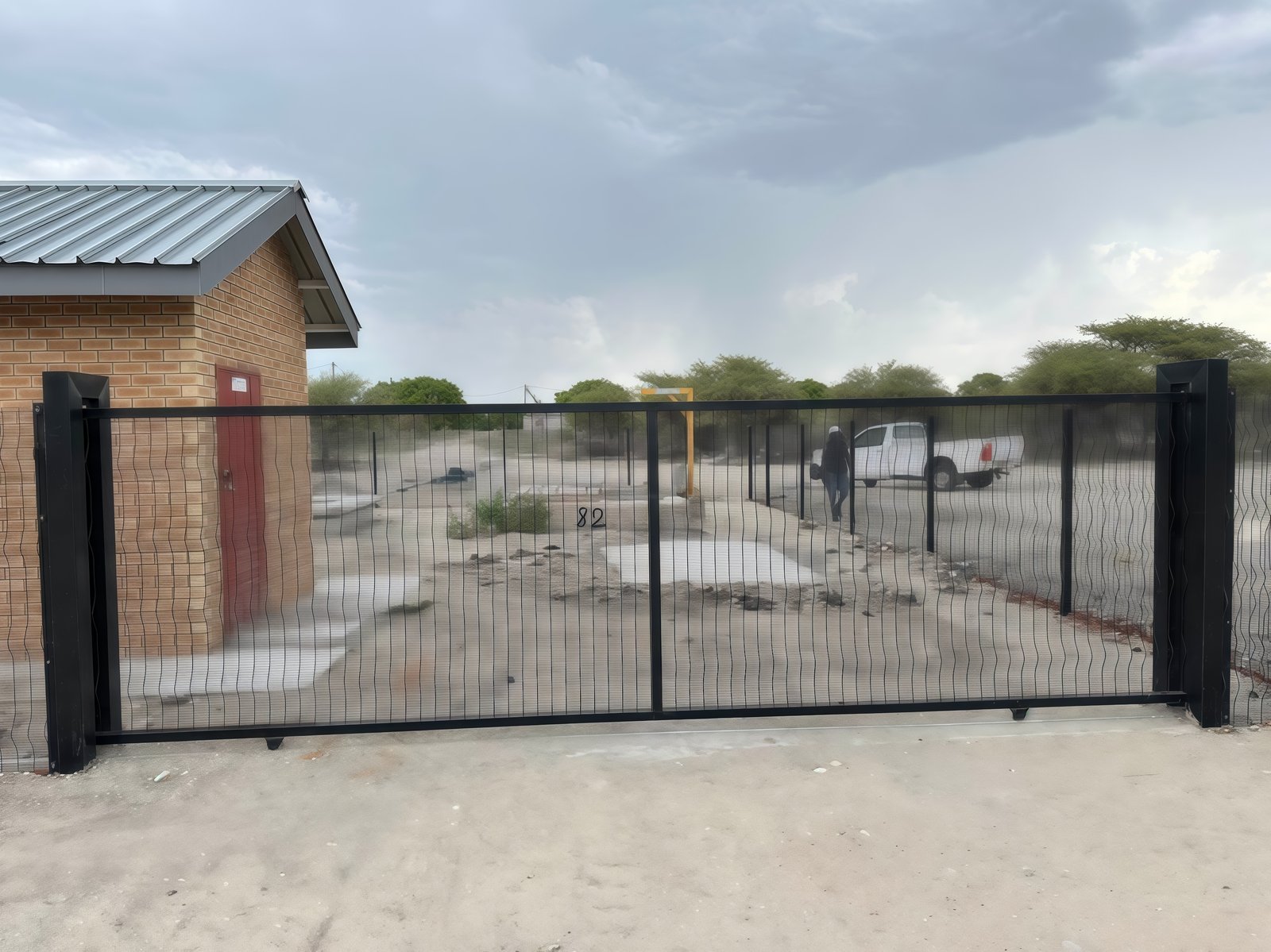

Sliding gates suit entrances with adequate lateral operating space. Appropriate tracks, rollers, motors, and safety controls support reliable movement. Industrial facilities may prefer this arrangement for frequent vehicle access.
Customers can coordinate clear view fence gates with surrounding panels and posts. Matching specifications reduce unnecessary installation adjustments.
Accurate installation begins with a detailed survey of the property boundary. Contractors should identify slopes, corners, underground services, and existing structures. These factors influence post positions and foundation requirements.
Panel width does not always equal post centre spacing. Fastening geometry and overlap arrangements affect actual installation dimensions. Approved construction drawings should determine the final layout.
Foundation size depends on soil conditions, fence height, wind exposure, and structural loads. Taller fences commonly require deeper or stronger foundations. Engineers should verify the appropriate design before installation.
Existing concrete slabs may accommodate approved base-plated supports after structural assessment. Other sites require embedded posts within concrete footings. The ClearVu fence installation guide covers general installation considerations.
Consistent alignment creates an attractive and structurally reliable fence line. Installers should check post verticality before securing panels. Suitable brackets and fasteners maintain the intended connection arrangement.
Corner details may require additional components or changes in panel positioning. Contractors should confirm these requirements before ordering materials. Correct planning reduces installation delays and unnecessary wastage.

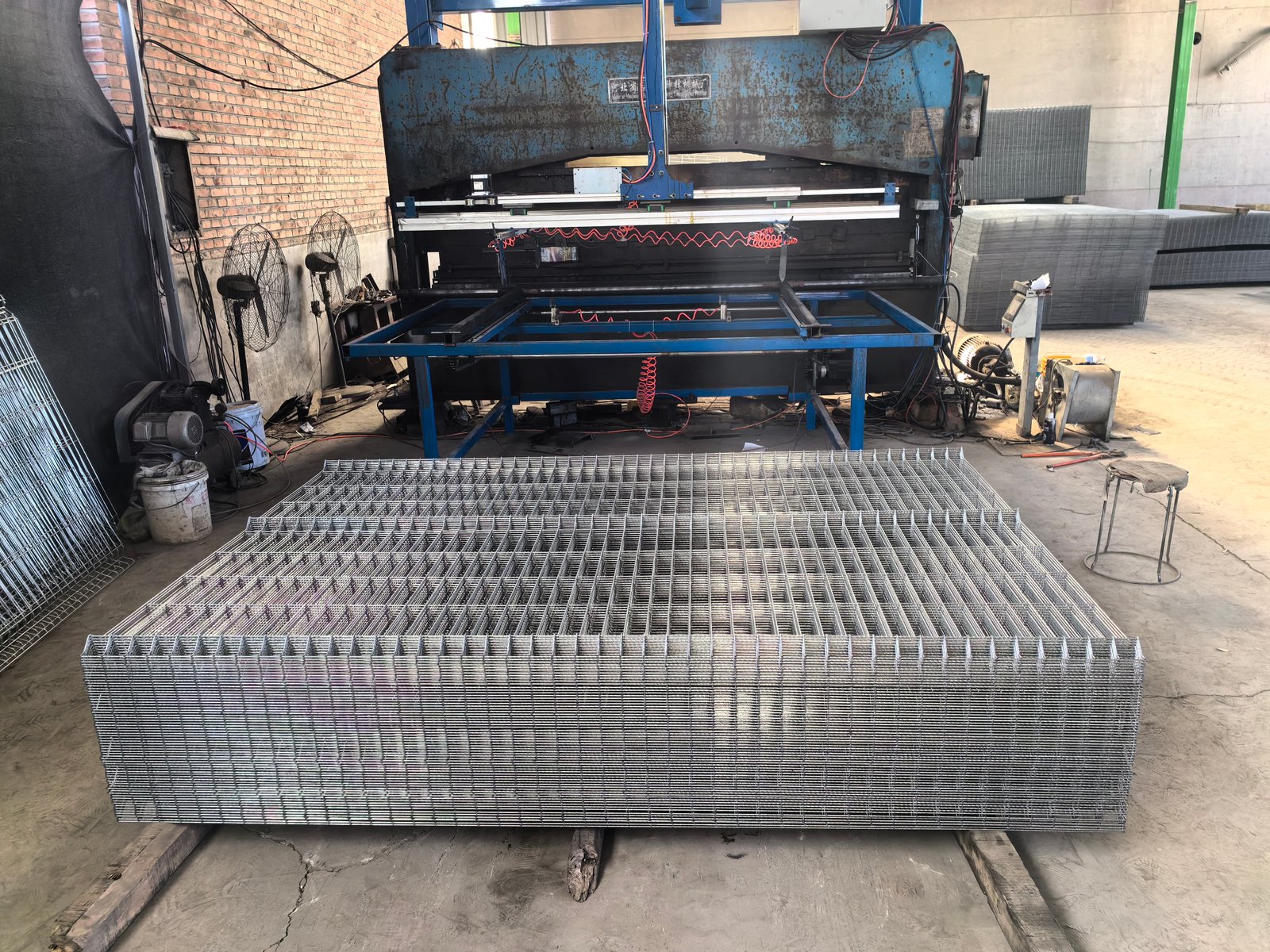

BMP manufactures welded steel fencing products in Anping County, Hebei Province, China. Production begins with raw wire preparation and dimensional checks. Automated welding equipment forms panels according to approved manufacturing specifications.

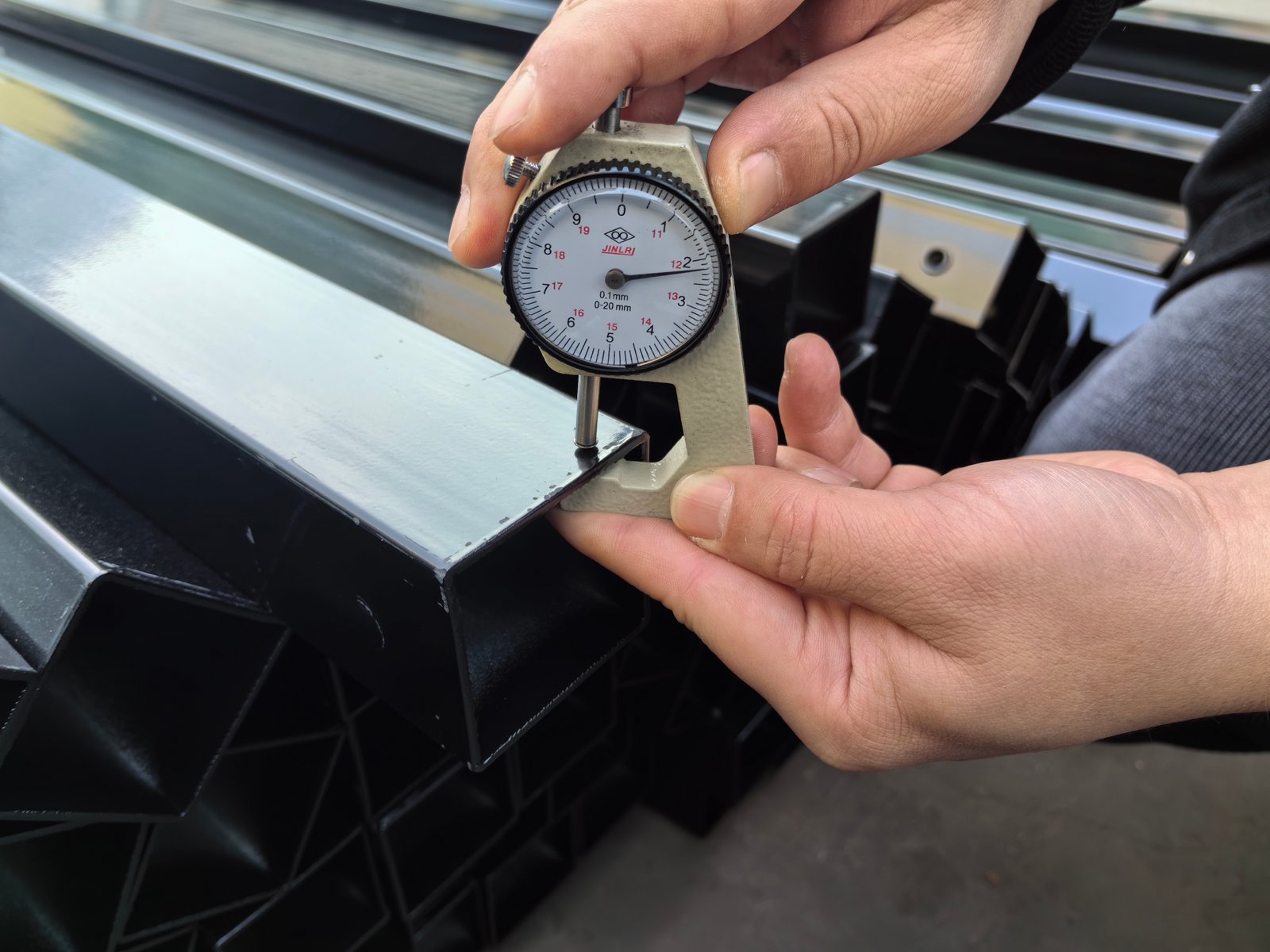

Operators inspect mesh alignment and welded intersections during fabrication. Surface treatment follows the selected protective coating process. Finished products require dimensional and appearance inspections before export packaging.
Customers may request relevant product documentation and inspection arrangements. Manufacturing quality depends on consistent process control throughout production. The clear view fencing manufacturers category covers related production considerations.

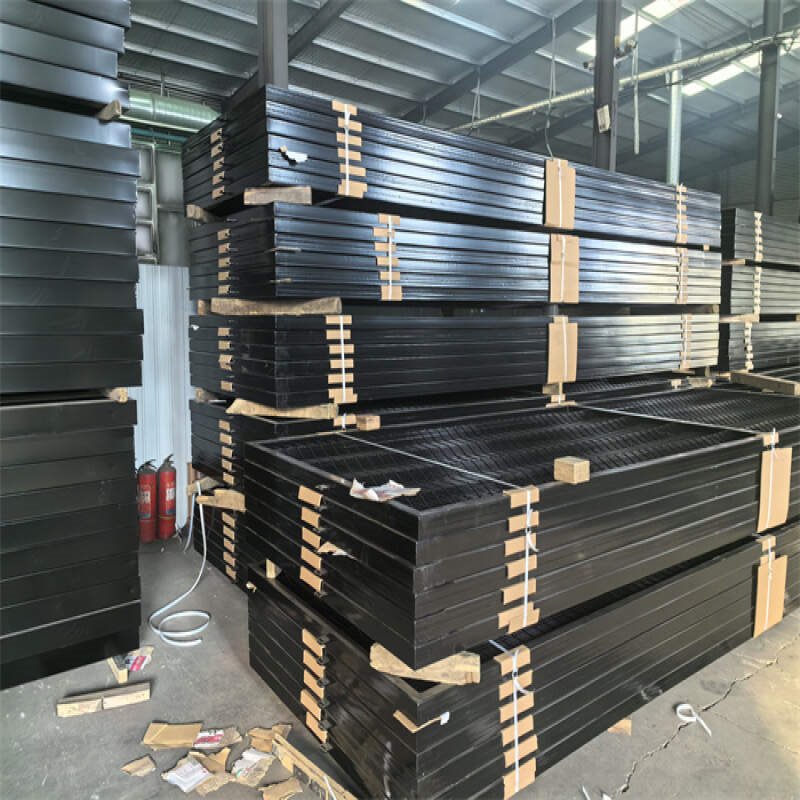

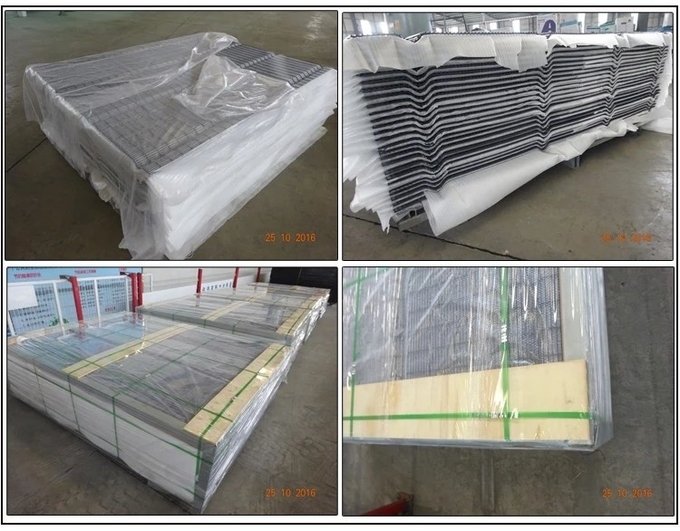

Export packaging protects fence panels during handling, transportation, and container loading. BMP commonly uses steel pallets, protective plastic film, and securing straps. Proper separation helps reduce scratches between finished surfaces.
Manufacturing teams position protective material beneath the first panel. Corner supports help maintain pallet stability during movement. Additional separators reduce direct contact between coated panels.
Fence posts receive suitable caps and protective wrapping before pallet loading. Small accessories travel inside labelled bags and cartons. Clear packing lists help customers identify supplied materials during delivery inspections.
 |
 |
Powder-coated surfaces can suffer scratches when panels move against each other. Protective separators reduce direct metal contact during handling. Secure strapping also helps maintain pallet stability.
Loading teams should verify pallet positioning before closing shipping containers. Appropriate handling reduces avoidable cosmetic damage. Customers should inspect delivered materials before beginning installation.
Accurate quantity calculations begin with total perimeter length. Buyers should subtract gate openings before estimating the required mesh panels. Panel width and effective installed spacing determine the number of bays.
For example, a 300-metre straight perimeter using 3.05-metre bays requires approximately 99 panels. Actual quantities depend on corner arrangements and installation allowances. Posts, clamps, gates, and spare materials require separate calculations.
Complex boundaries may need shorter custom panels near corners and access points. Contractors should prepare drawings before confirming final quantities. Careful planning reduces unnecessary material waste.
Fence costs depend on panel dimensions, wire diameter, surface finish, and supporting components. Heavier mesh generally requires more steel than lighter configurations. Corrosion protection also influences manufacturing expenses.
Gate assemblies, foundations, transport, and labour add further project costs. High-security installations may require specialised clamps or additional monitoring equipment. The clear view fence price per meter category explains common pricing considerations.
Customers should compare complete technical specifications rather than isolated material quotations. Different products may use similar names while offering different steel weights. Accurate documentation supports more meaningful cost comparisons.
Routine maintenance helps preserve appearance and protective performance. Property managers should inspect coated surfaces, welded intersections, clamps, and gate hardware. Early repairs reduce the likelihood of progressive corrosion.
Cleaning removes accumulated dust, salt deposits, and environmental contaminants. Coastal properties may require more frequent attention than sheltered inland sites. Maintenance intervals should reflect actual exposure conditions.
BMP offers a 15-year manufacturer warranty for its ClearVu and Clearview fencing products, subject to applicable terms. Service life depends on coating selection, installation quality, exposure, and maintenance. Buyers should review the written warranty conditions for their order.

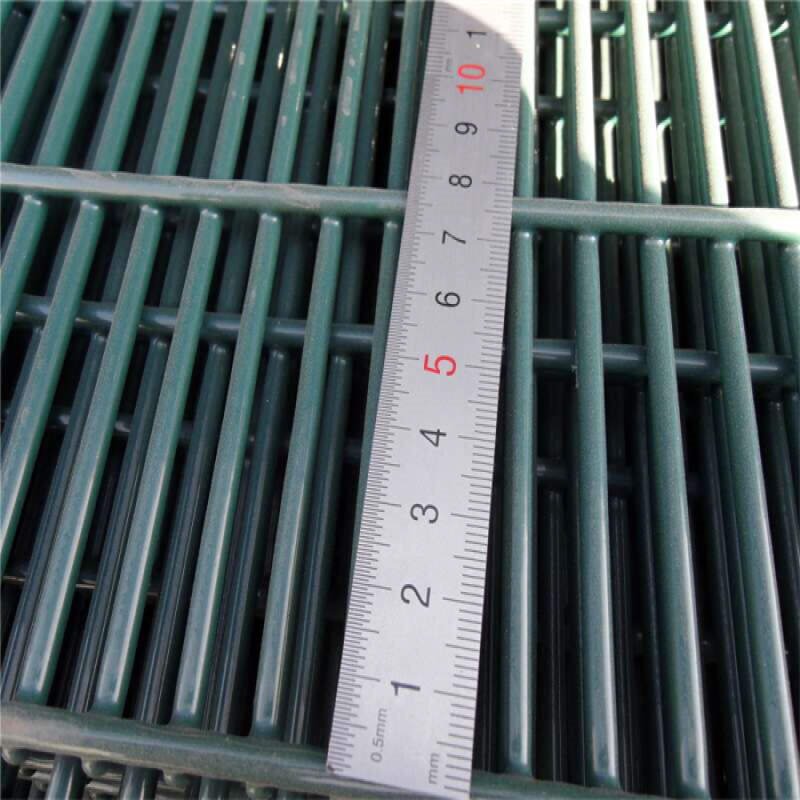

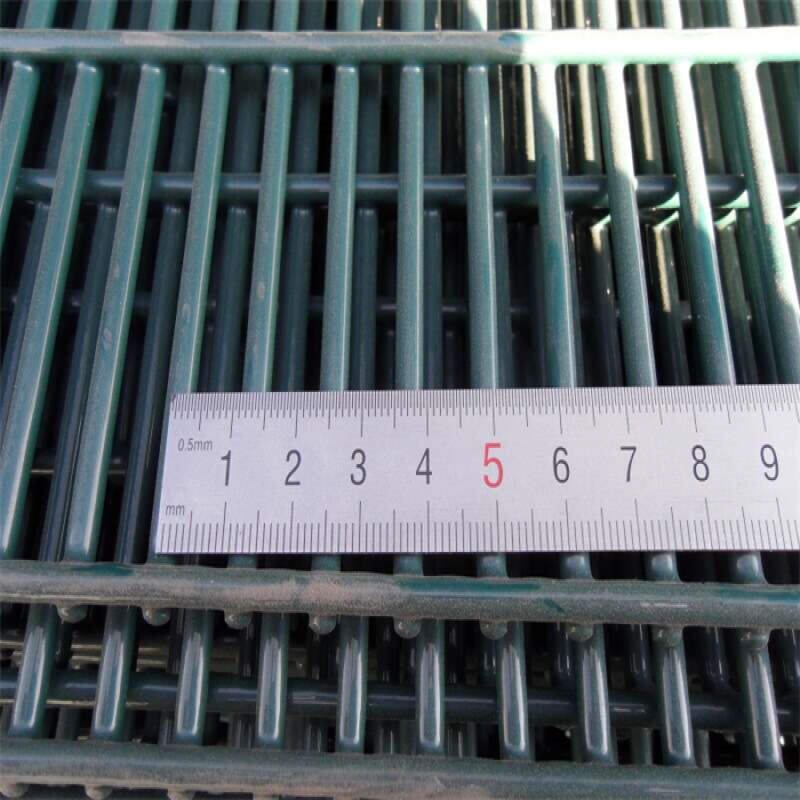

Traditional 358 security mesh uses 76.2mm × 12.7mm centre spacing with approximately 4mm steel wires. Other configurations use different dimensions. Buyers should confirm the actual manufacturing drawings.
Narrow mesh openings make climbing more difficult by limiting practical handholds. Appropriate fence heights and secure connections improve protection. No physical barrier guarantees complete resistance against determined intrusion.
Yes, open welded mesh supports observation through appropriate fence sections. Camera placement and lighting still affect image quality. Security designers should verify coverage during installation planning.
Coastal environments require particular attention to corrosion protection. Suitable galvanizing and compatible coating systems can improve durability. The correct specification depends on local exposure and project requirements.
Common options include 1200mm, 1500mm, 1800mm, 2000mm, 2100mm, 2400mm, and 3000mm. Taller custom configurations may require additional engineering. Manufacturing availability depends on the chosen design.
Yes, BMP offers compatible posts, clamps, and gates alongside welded mesh panels. Customers should specify complete project requirements. Matching components simplify procurement and installation coordination.
Wire selection depends on security requirements, panel dimensions, and structural considerations. Traditional 358 mesh commonly uses 4mm steel wire. Alternative specifications require individual evaluation.
Yes, periodic inspections help identify surface damage and loose components. Appropriate cleaning preserves appearance and reduces contaminant accumulation. Gate mechanisms also require maintenance.
A clear view fence combines strong welded mesh construction with useful visibility and adaptable security features. Its applications extend from residential estates to industrial facilities and sensitive infrastructure.
Correct specifications, protective coatings, compatible components, and professional installation support dependable long-term performance. BMP supplies configurable security fencing systems and coordinated export packaging. Contact our team with perimeter dimensions, panel requirements, and drawings for a tailored quotation.
