Clear view fencing for sale involves more than selecting a welded steel panel from a photograph. Buyers need matching posts, fixings, access gates, and coatings that suit the project. BMP manufactures security fencing components for contractors sourcing complete perimeter packages.
Dense mesh can discourage climbing while preserving views through an industrial or commercial boundary. However, overall security also depends on entrances, surveillance, foundations, and maintenance. An accurate purchase schedule helps prevent missing components and unnecessary site alterations.
Companies reviewing Clear View Fence Panels should compare finished dimensions before discussing freight or installation. The specification needs both wire diameter and mesh centres. Similar-looking products can belong to different security grades.
 |

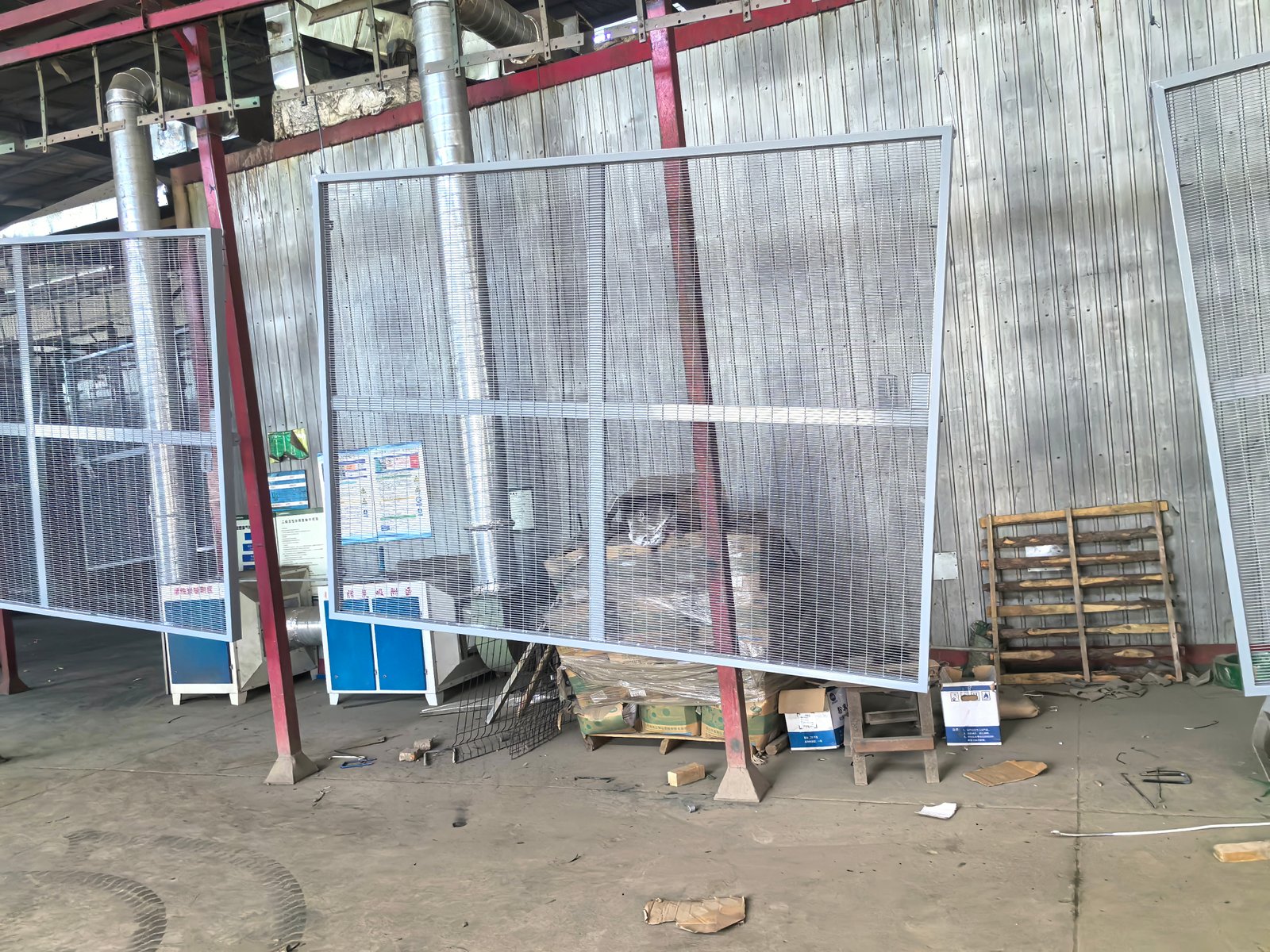

| Original BMP reference image: compare welded mesh geometry and the supported steel fence system. |
One supplier may quote panels only, while another includes posts, clamps, and security bolts. These offers cannot be compared fairly without matching quantities. Gate openings and corner posts can also change the required steel weight.
A useful bill of materials separates straight bays from ends, corners, and access points. Installation drawings should record each post-centre distance. A low panel rate may prove expensive when the contractor discovers omitted accessories.
Panel width and completed boundary length are different measurements. Clamps, overlaps, and terminal details affect the number of bays. Buyers should calculate their material requirement using approved post centres.
For example, a nominal 2500 mm sheet does not automatically create a 2500 mm installed bay. The chosen connection may alter usable coverage. Factory drawings should settle this point before production.
High-density mesh emphasizes limited footholds and narrower openings. Medium-density systems can balance security requirements and steel consumption. Wider-grid products often suit boundaries with lower access risks.

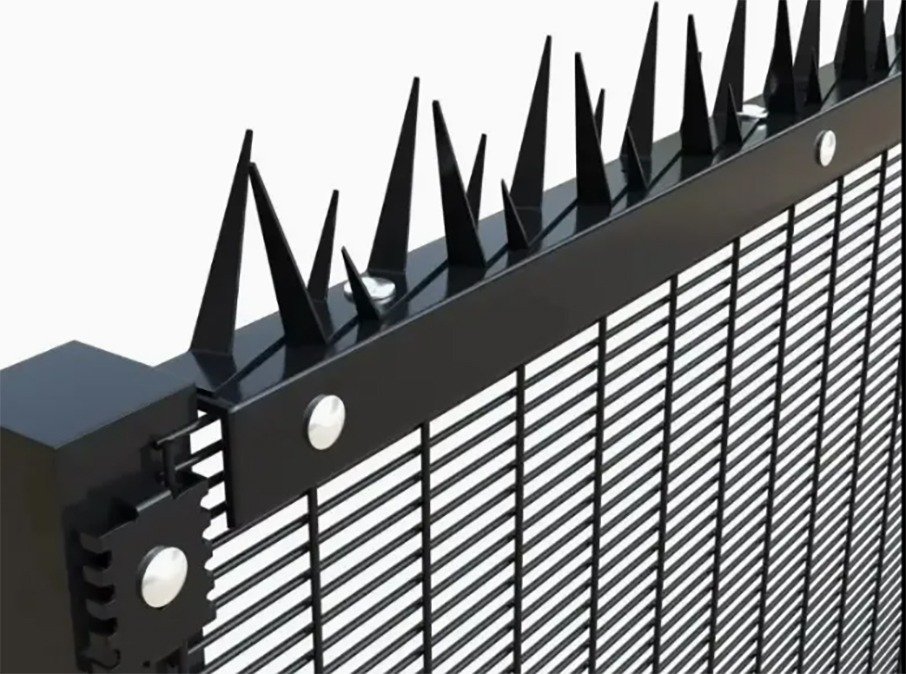

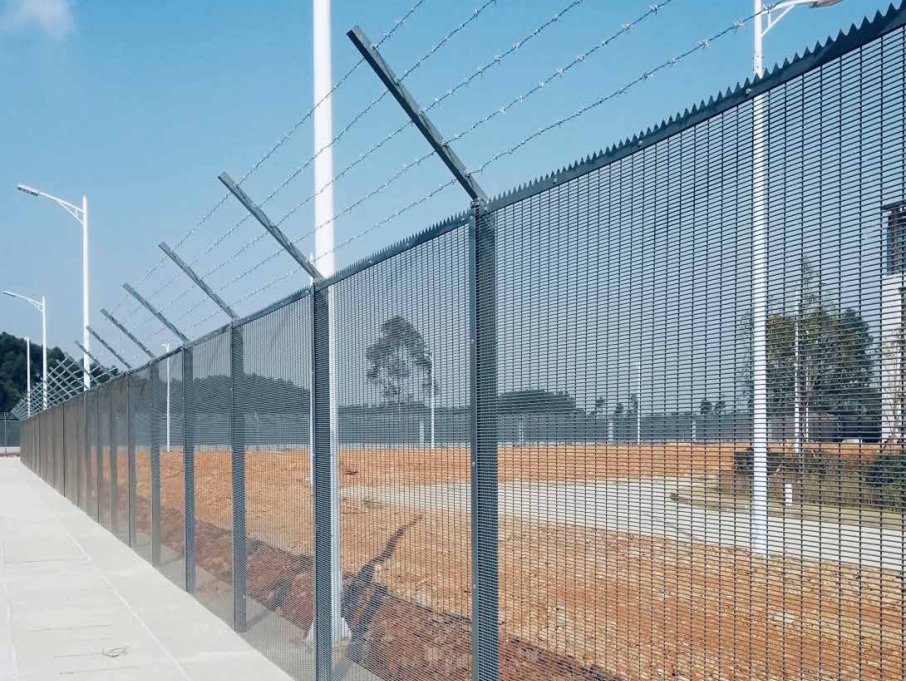

High Security Clear View Fence designs can serve selected restricted compounds. Other ClearVu Fence Panels support different dimensions and finishes. Choose the grade through a site risk assessment.

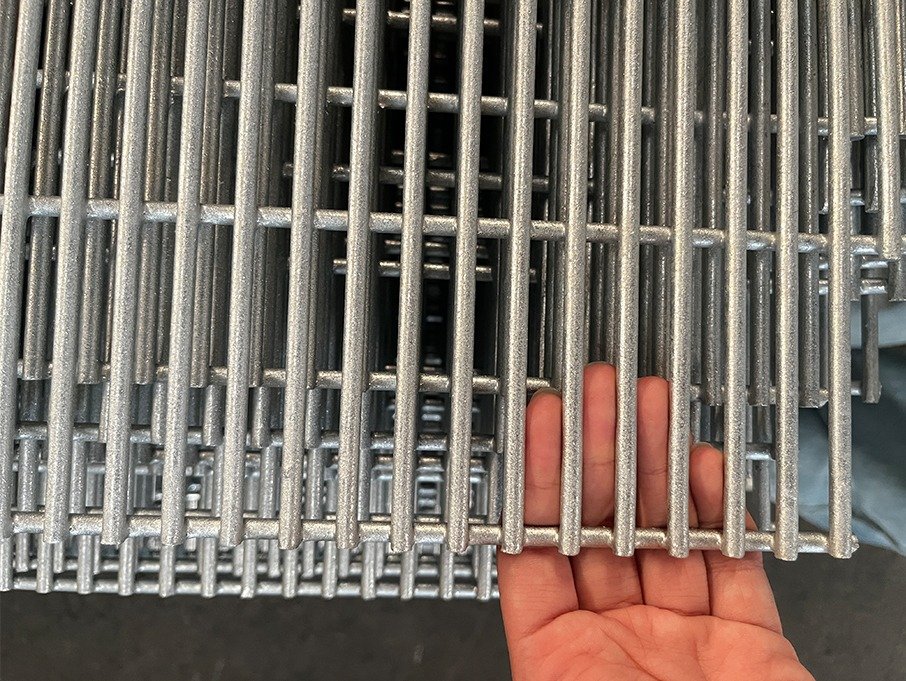

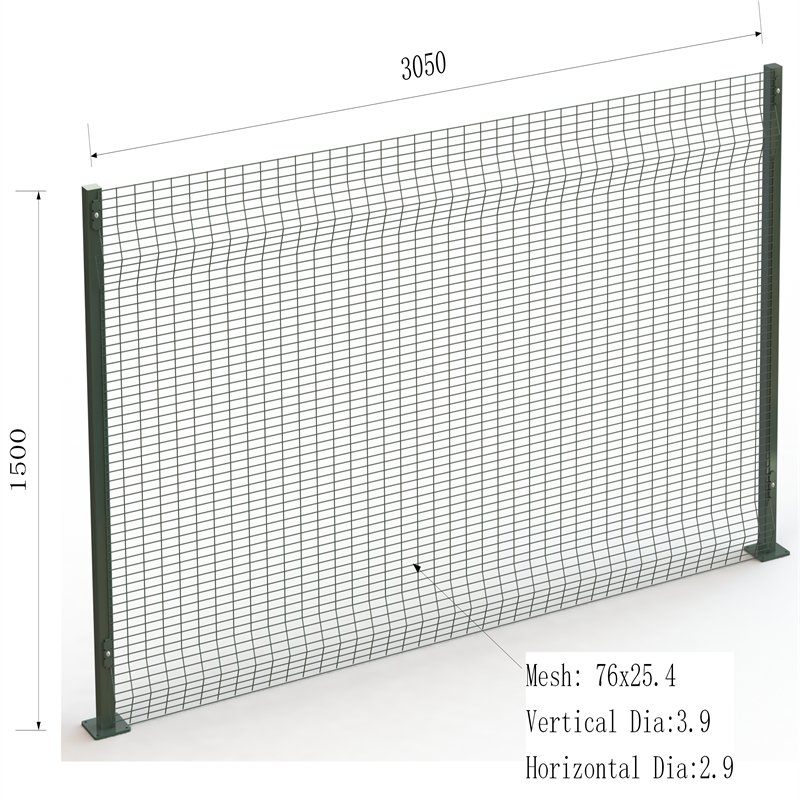

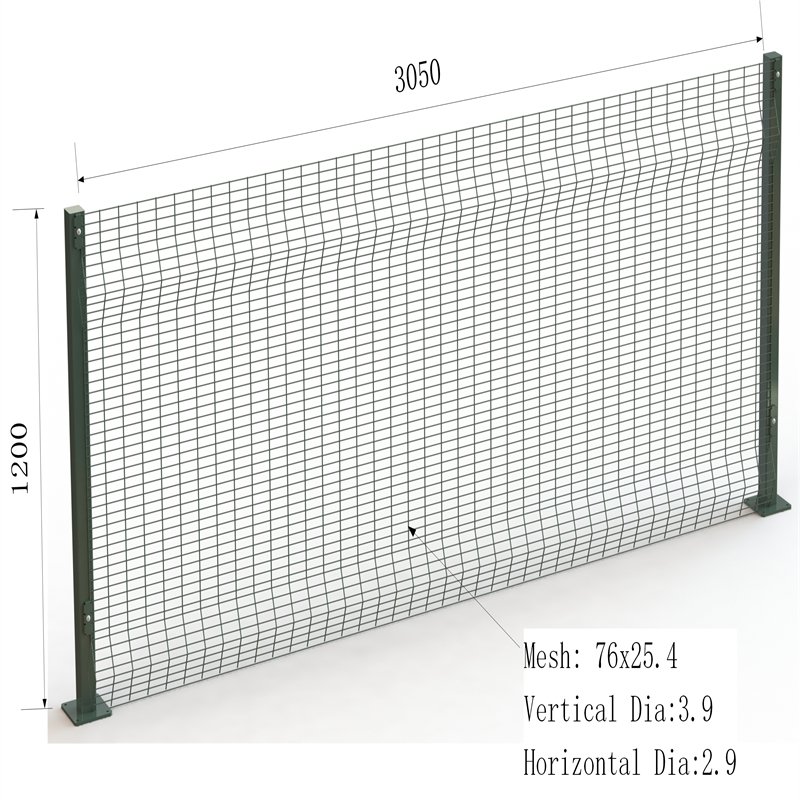

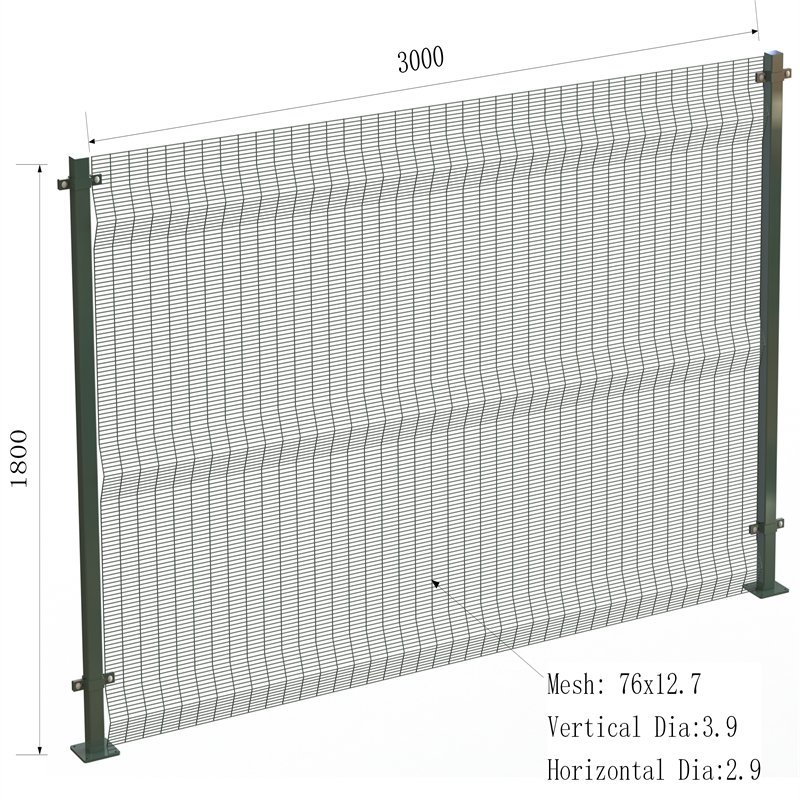

The term 358 describes a three-inch by half-inch grid with approximately eight-gauge wire. Common metric references use 76.2 × 12.7 mm centres and roughly 4 mm diameter steel. Centre spacing differs from the remaining clear aperture.
Short vertical openings restrict convenient finger and toe holds. Welded intersections also contribute to panel integrity. Nevertheless, no mesh guarantees immunity from all cutting equipment or forced entry.
The drawing must identify both vertical and horizontal wire directions. Coating thickness and steel diameter reduce the visible gap between adjacent strands. Confusing nominal pitch with clear space can cause inspection disputes.
358 Mesh Fence models typically emphasize narrow apertures and high visibility. Request a sample when a project imposes strict dimensional tolerances. Testing claims should match the specific supplied assembly.
One catalogue uses 4 mm wire for its main 358 reference. Another lists 3.0 × 4.0, 4.0 × 4.0, and 4.0 × 6.0 mm alternatives. Those combinations change weight and rigidity.
Specify wire orientation rather than assuming both directions share one thickness. The finished panel mass also affects shipping calculations. Buyers should ask for actual unit weights before booking containers.
The first source table contains nine finished panel-and-post combinations. Its 3600 mm height appears twice with different post profiles. Both original choices remain below for accurate reference.
| Wire Diameter | Mesh Centres | Panel Height × Width | Post Length × Section × Wall |
|---|---|---|---|
| 4 mm (8-gauge reference) | 12.7 × 76.2 mm; 0.5 × 3 in | 2000 × 2500 mm | 2700 × 60 × 60 × 2.5 mm |
| 2400 × 2500 mm | 3100 × 60 × 60 × 2.5 mm | ||
| 3000 × 2500 mm | 3800 × 80 × 80 × 2.5 mm | ||
| 3300 × 2500 mm | 4200 × 80 × 80 × 2.5 mm | ||
| 3600 × 2500 mm | 4500 × 100 × 60 × 3.0 mm | ||
| 3600 × 2500 mm | 4500 × 100 × 100 × 3.0 mm | ||
| 4200 × 2500 mm | 5200 × 100 × 100 × 4.0 mm | ||
| 5000 × 2500 mm | 5200 × 100 × 100 × 5.0 mm | ||
| 5200 × 2500 mm | 6200 × 120 × 120 × 5.0 mm |
These values originate from the original supplier reference, not a structural approval. The 5000 mm panel paired with a 5200 mm post needs particular attention. Its remaining length may not suit buried foundations without redesign.
A taller panel generally increases steel consumption and handling demands. Its support system may also require larger foundations. Buyers should specify height based on the protected assets and permitted site design.
Commercial entrances might use a different height from restricted equipment yards. A uniform boundary sometimes simplifies maintenance, but it can increase unnecessary material costs. Engineers should approve any transition between security levels.
The source pairs a 5000 mm panel with a 5200 mm post. That leaves only 200 mm beyond nominal panel height. This figure is insufficient evidence for a safe buried-post design.
Foundation depth must follow engineering calculations and the actual terrain. Gate supports, wind loading, and soil capacity can change the design. Seek an approved revised post schedule before manufacturing.
The second original table combines adjustable widths with alternative wire sizes and bracket counts. Its shorter heights permit 2500, 2750, or 3000 mm widths. Taller options use narrower reference widths.

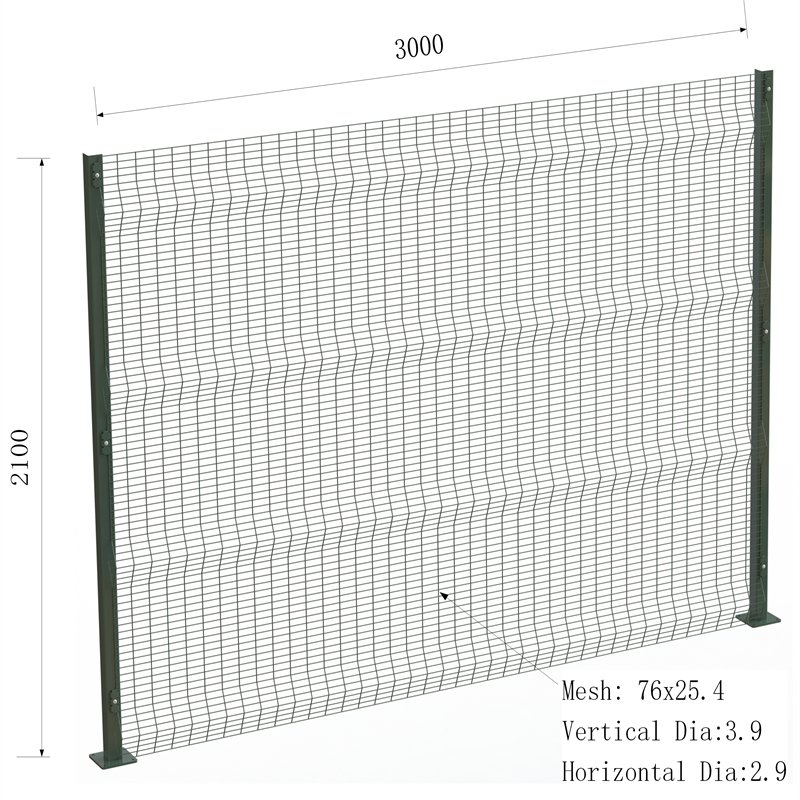

| Mesh Centres | Height (mm) | Width Options (mm) | Line × Cross Wire (mm) | Post Length (mm) | Brackets |
|---|---|---|---|---|---|
| 76.2 × 12.7 mm | 2100 | 2500 / 2750 / 3000 | 3.0 × 4.0; 4.0 × 4.0; 4.0 × 6.0 | 2700 | 7 |
| 2200 | 2500 / 2750 / 3000 | 2800 | 8 | ||
| 2400 | 2500 / 2750 / 3000 | 3000 | 9 | ||
| 2700 | 2200 / 2300 | 3700 | 10 | ||
| 3000 | 2200 / 2300 | 4000 | 11 | ||
| 3600 | 2200 / 2300 | 4800 | 12 | ||
| 4000 | 2200 / 2300 | 5200 | 14 |
Bracket quantities belong to the source configuration and may change with fixing arrangements. Corners, gates, and end posts can require different hardware. A complete component schedule must identify each location.
Small fasteners can delay an installation when their quantities do not match the panels. Buyers should count brackets by post position, not merely panel quantity. Corner connections may differ from ordinary intermediate bays.
ClearVu Fence Clamps provide selected single and double fastening arrangements. Final sizes depend on the post geometry and panel edge. Sample assembly helps confirm their compatibility.
The original post comparison lists SHS, IPE, RHS, and C-profile systems with flat bars. These supports differ in geometry and connection access. The chosen profile should match the fence drawing and structural loading.
| Catalogue Option | P1-SHS Square Post | P2-IPE Post | P3-RHS Rectangular Post | P4-C+F Flat-Bar Post |
|---|---|---|---|---|
| Popular Size A | 60 × 60 mm | 100 × 55 mm | 60 × 80 mm | 60 × 80 mm |
| Popular Size B | 80 × 80 mm | 100 × 68 mm | 80 × 100 mm | 80 × 100 mm |
| Popular Size C | 100 × 100 mm | 120 × 74 mm | 100 × 150 mm | 100 × 150 mm |
| Wall Thickness Reference | 1.2–1.5 mm | 1.2–2.0 mm | 2.5–5.0 mm | 2.0–5.0 mm |
These wall thicknesses are catalogue references rather than universal structural recommendations. Thin sections may not suit high or exposed installations. Post dimensions require confirmation against the final engineering calculations.

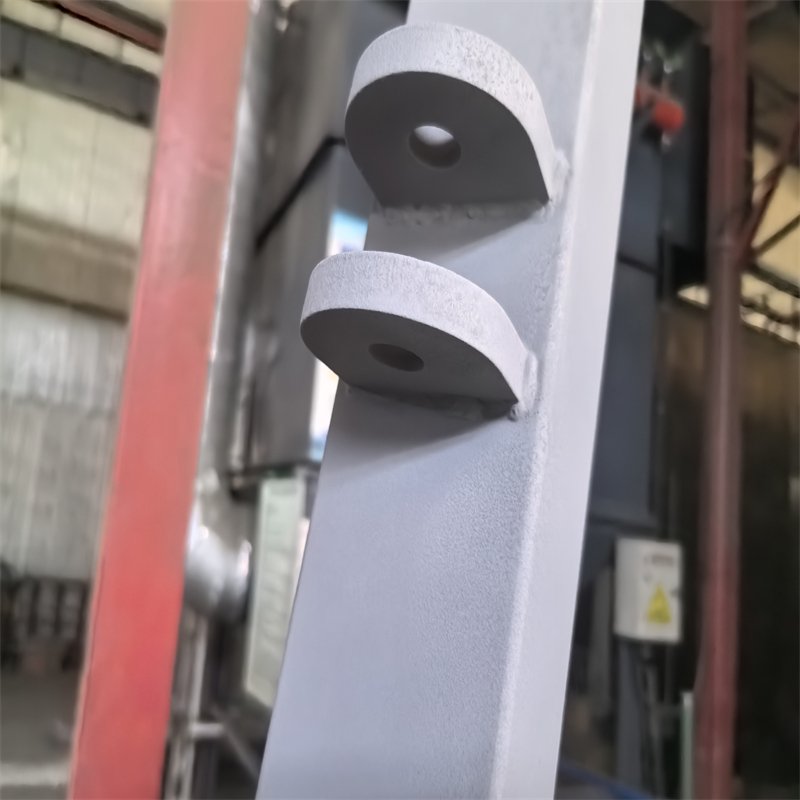

Square hollow posts offer accessible faces for selected clamps and flat bars. Clear View Fence Post sections include several size choices. Their finish should match the adjacent security mesh.
Base plates and buried sections follow different foundation designs. Site engineers should establish embedment, anchor requirements, and wind resistance. Post caps also need suitable environmental protection.
IPE-style posts use flanges and a web, requiring matching attachment plates. ClearVu Fencing IPE Post configurations illustrate those connection differences. Rectangular hollow posts provide another attachment geometry.
Do not assume two nominal sections share identical hole locations. Request detailed drawings for both the panel and its post. Correct compatibility reduces drilling through finished protective coatings.

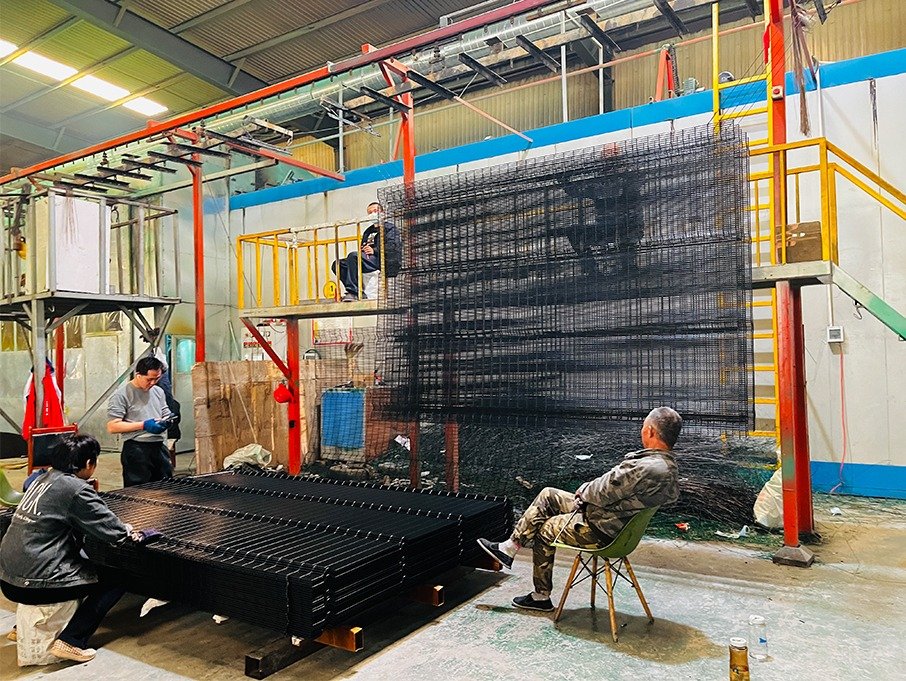

Galvanized steel offers zinc-based protection against corrosion. Compatible polyester finishes can provide colour and further environmental protection. The chosen manufacturing route affects weld coverage and coating acceptance.

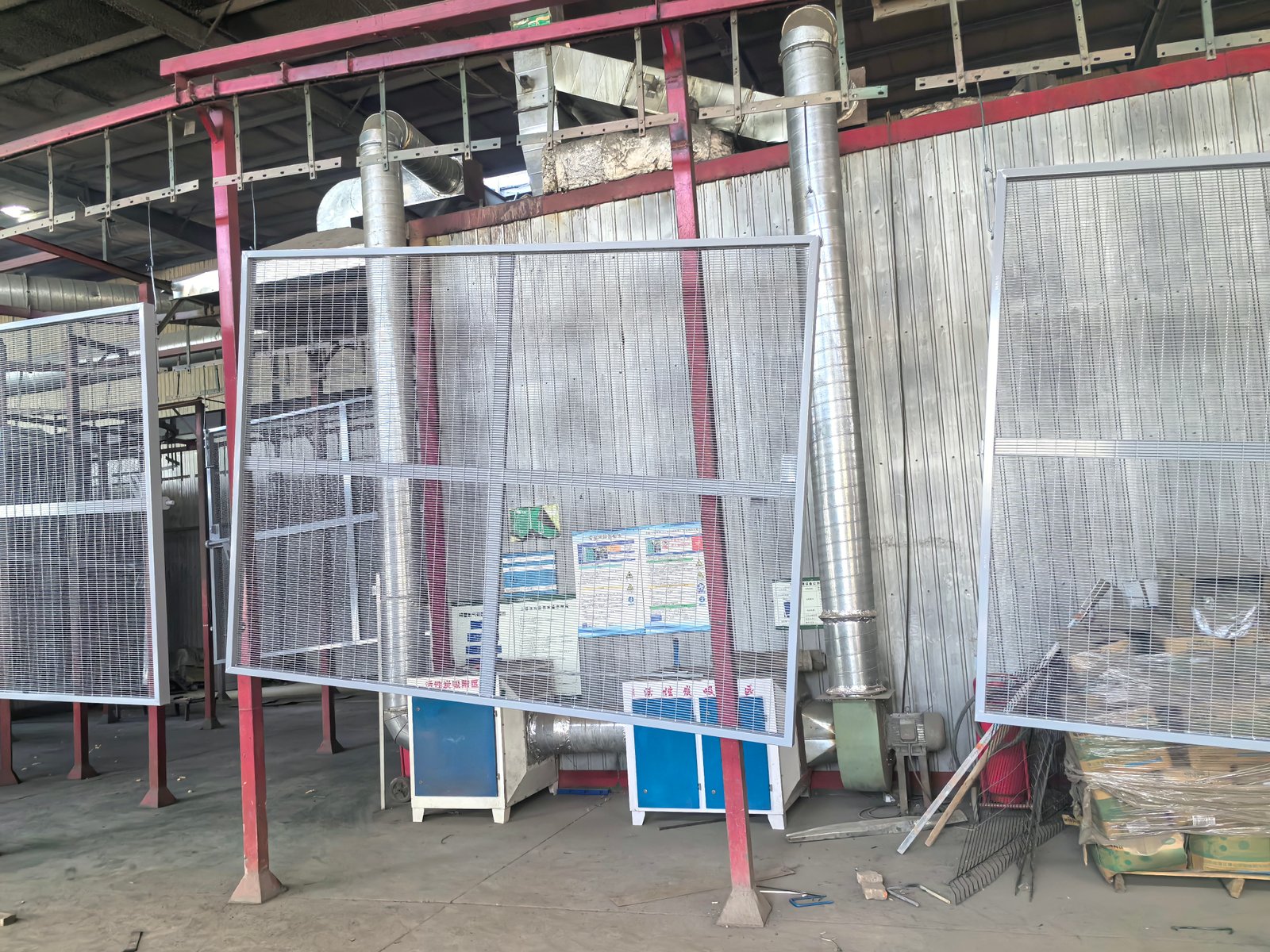

Some systems use galvanized wire before welding, followed by polymer finishing. Others galvanize suitable fabricated assemblies afterward. A quotation must identify which route the factory will apply.

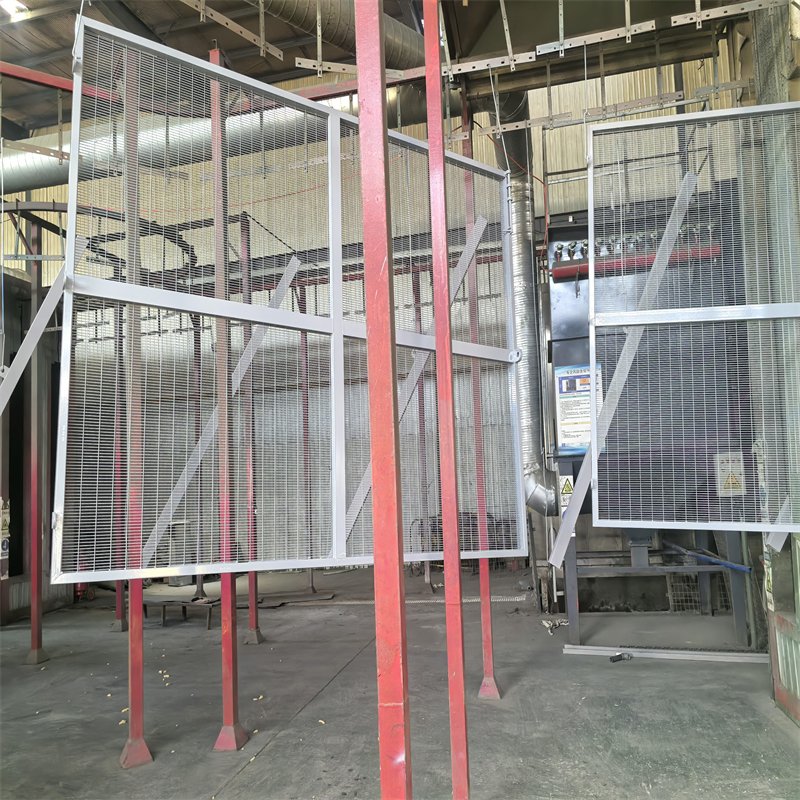

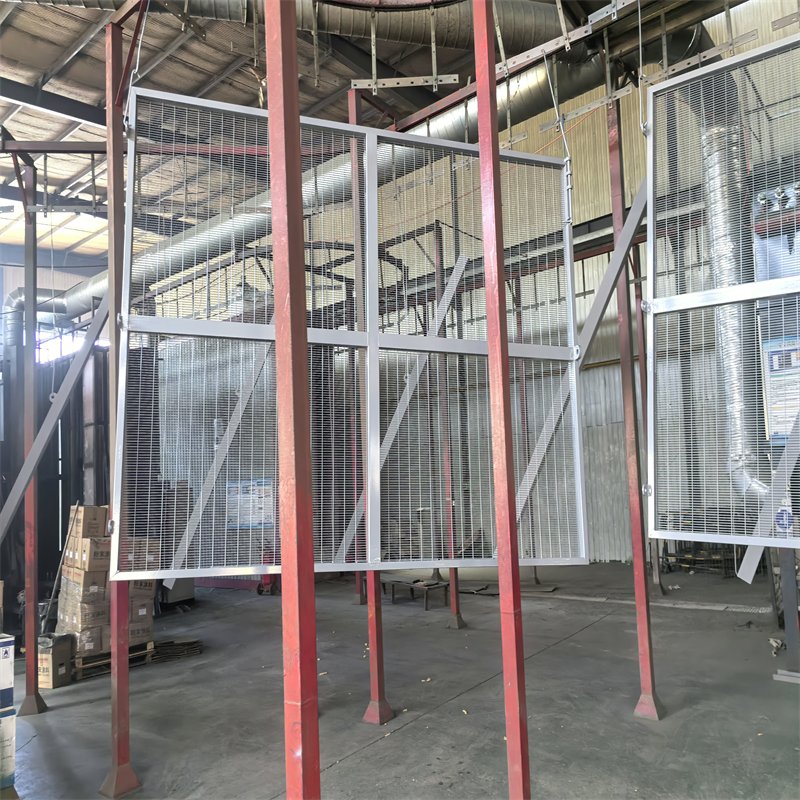

Powder Coated Clear View Fence products offer several colour options. Dark green RAL 6005 and black RAL 9005 are familiar choices. Actual service life depends on coating quality and exposure.
Ask for the zinc specification, film thickness, and adhesion checks. Painted steel still needs maintenance around scratches and fasteners. A colour description alone cannot prove corrosion performance.
South African coastal warehouses near Durban can experience moisture and airborne salts. Those conditions increase concern around exposed steel edges and damaged coatings. Salt deposits should influence the maintenance plan.
Inland Gauteng facilities encounter different conditions, including dust and seasonal rainfall. Site-specific exposure matters more than a broad national label. Buyers should select finish quality accordingly.

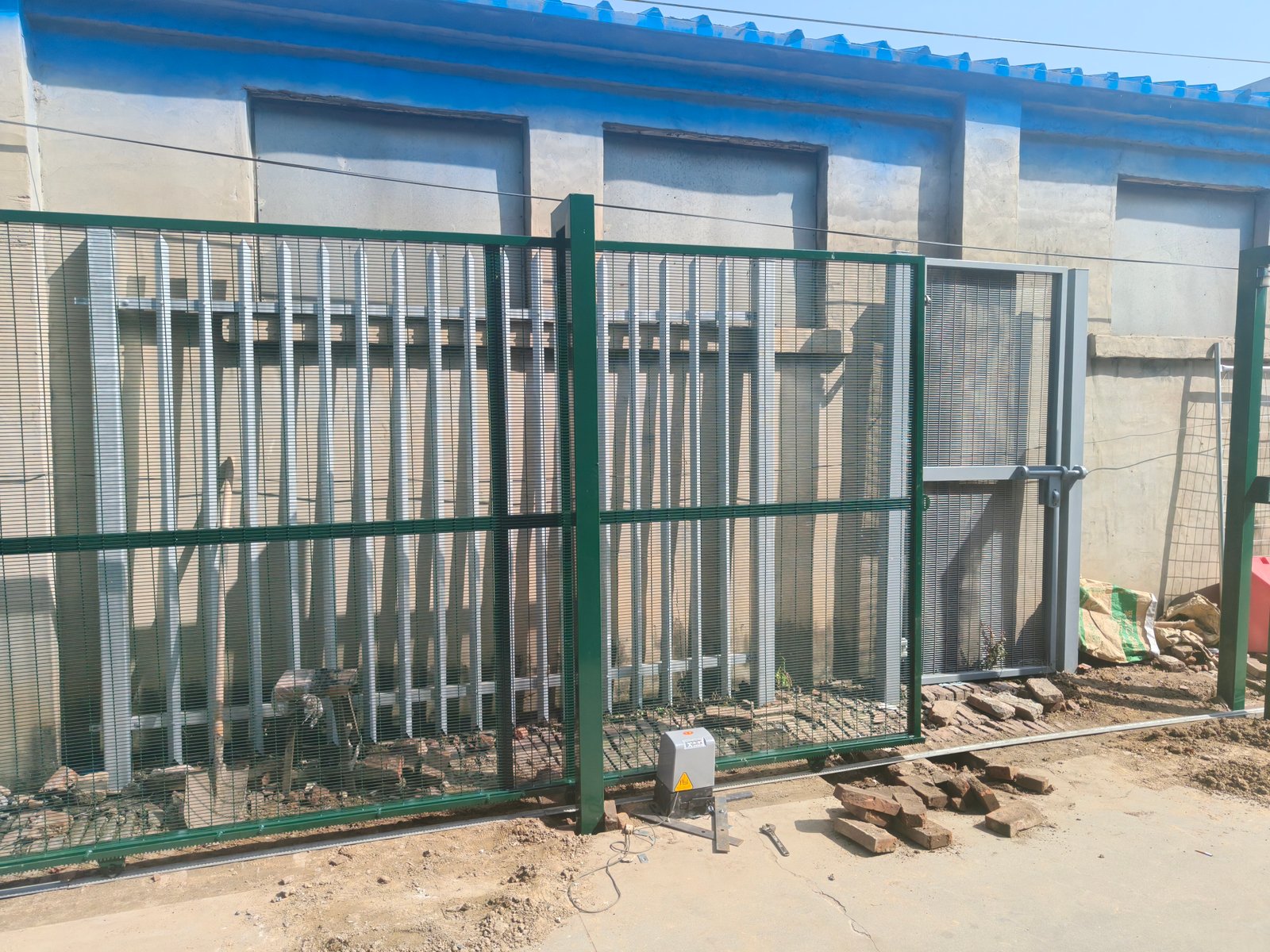

Entrances create breaks in the fence line and require independent hardware specifications. A gate frame experiences different forces from fixed mesh panels. The post schedule should distinguish swinging, sliding, and pedestrian access.

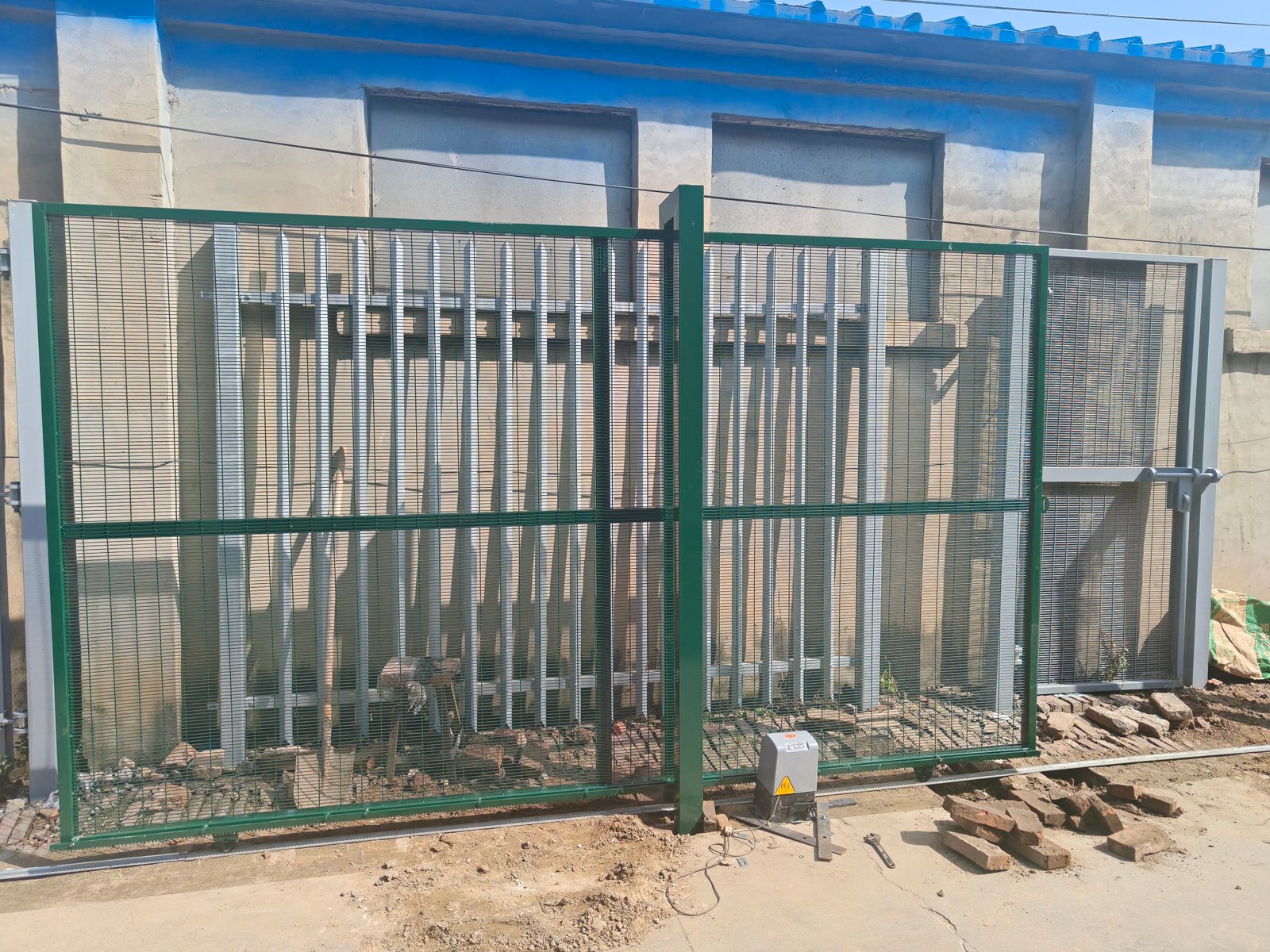

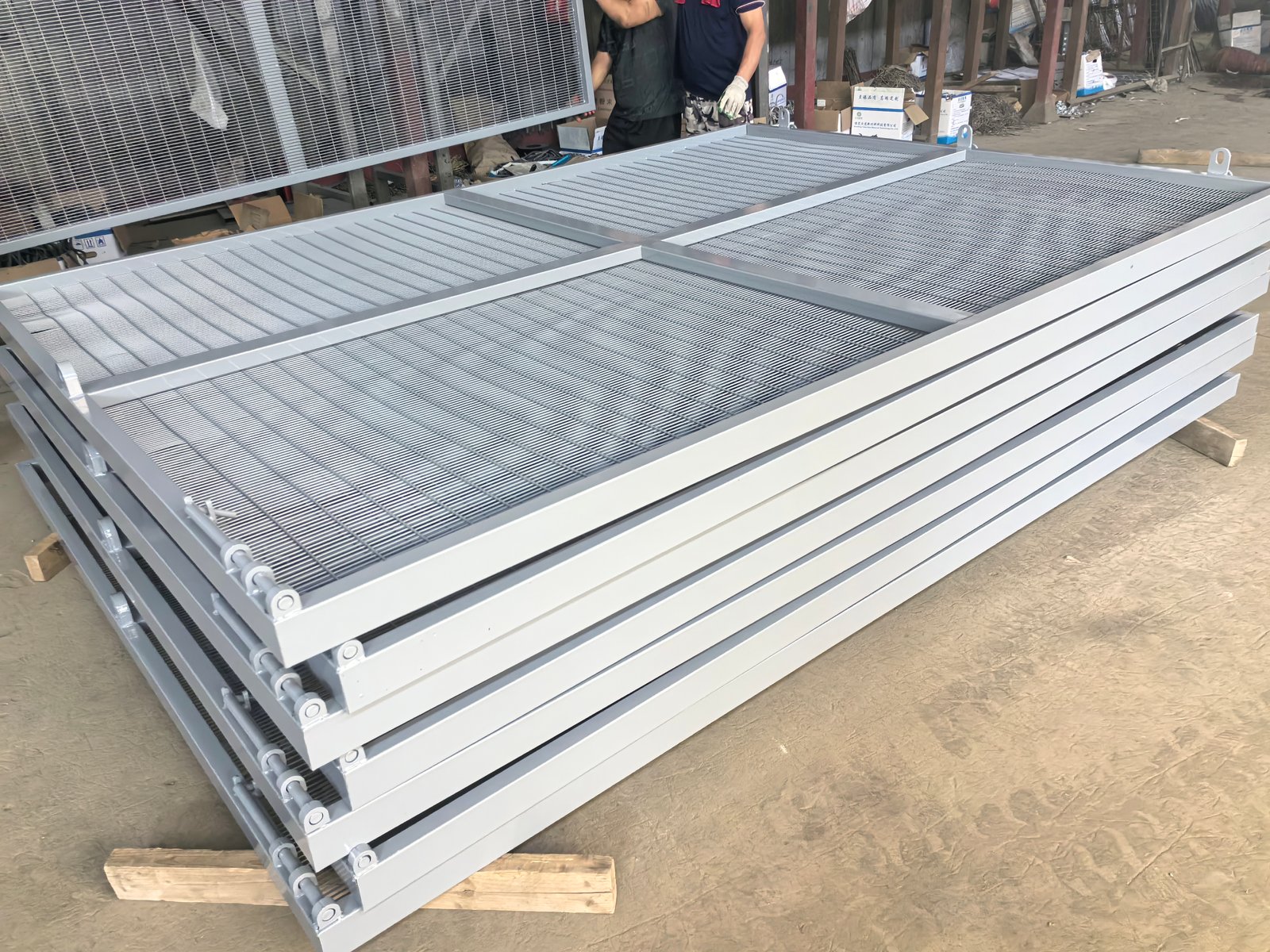

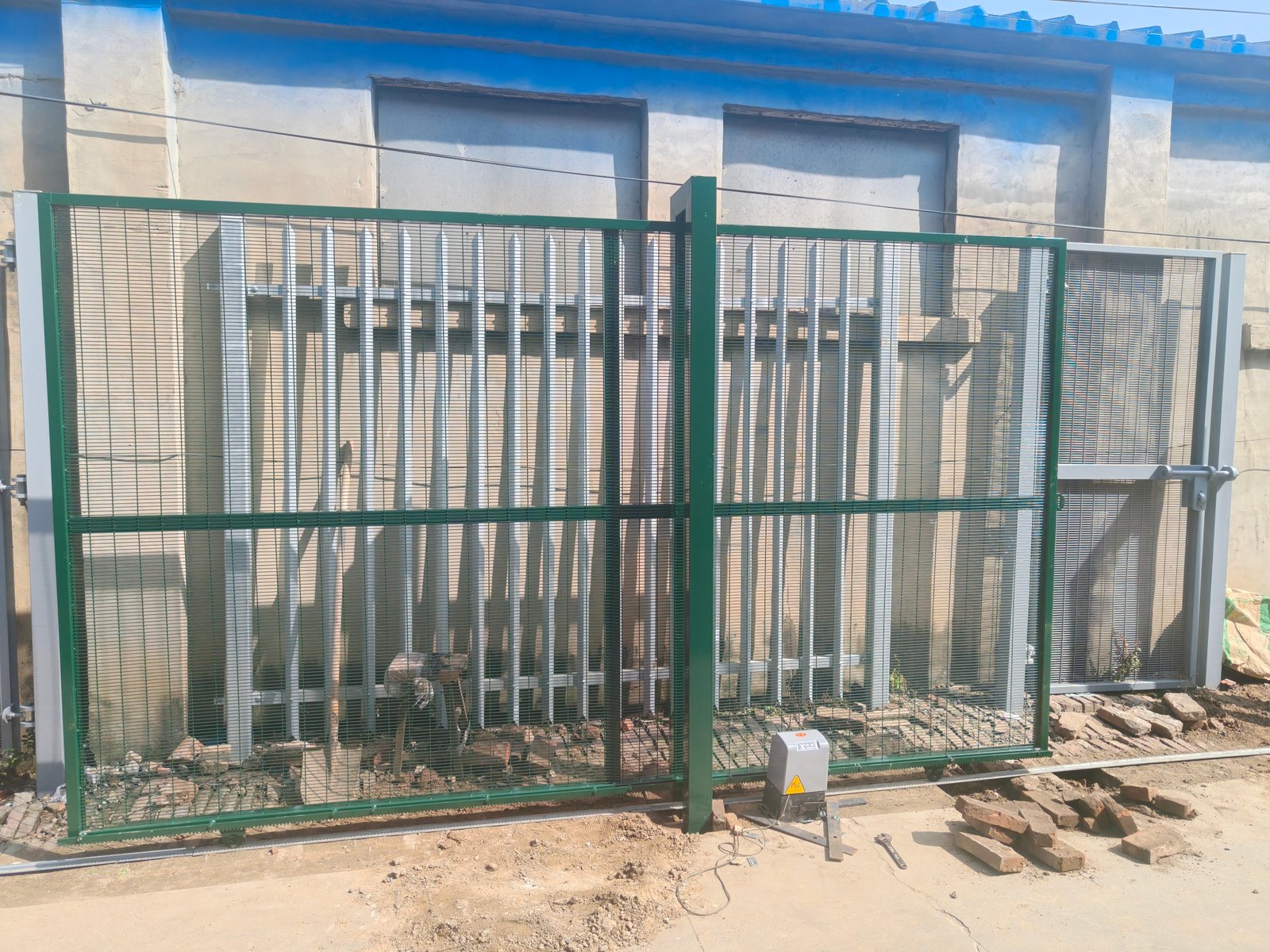

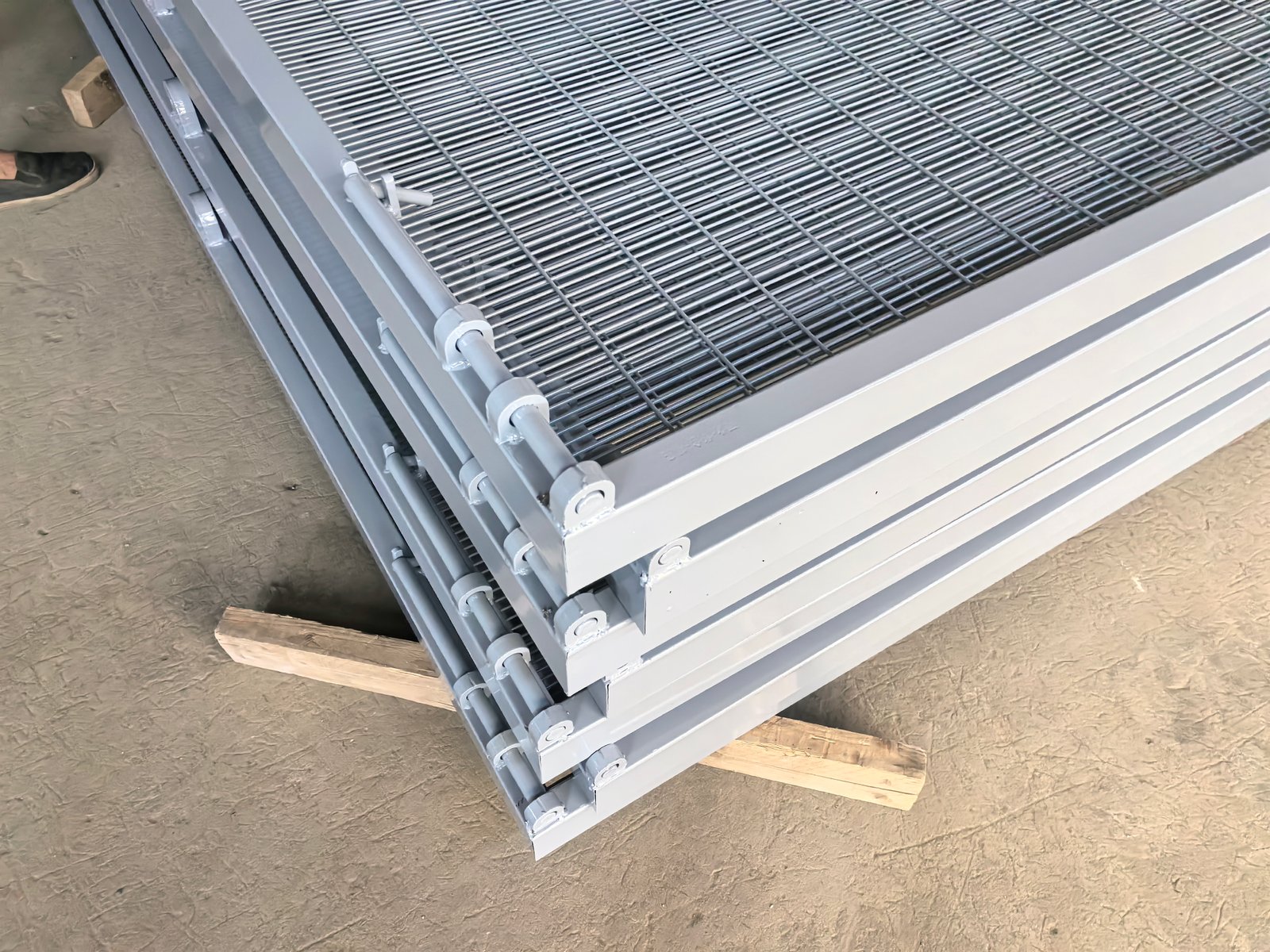

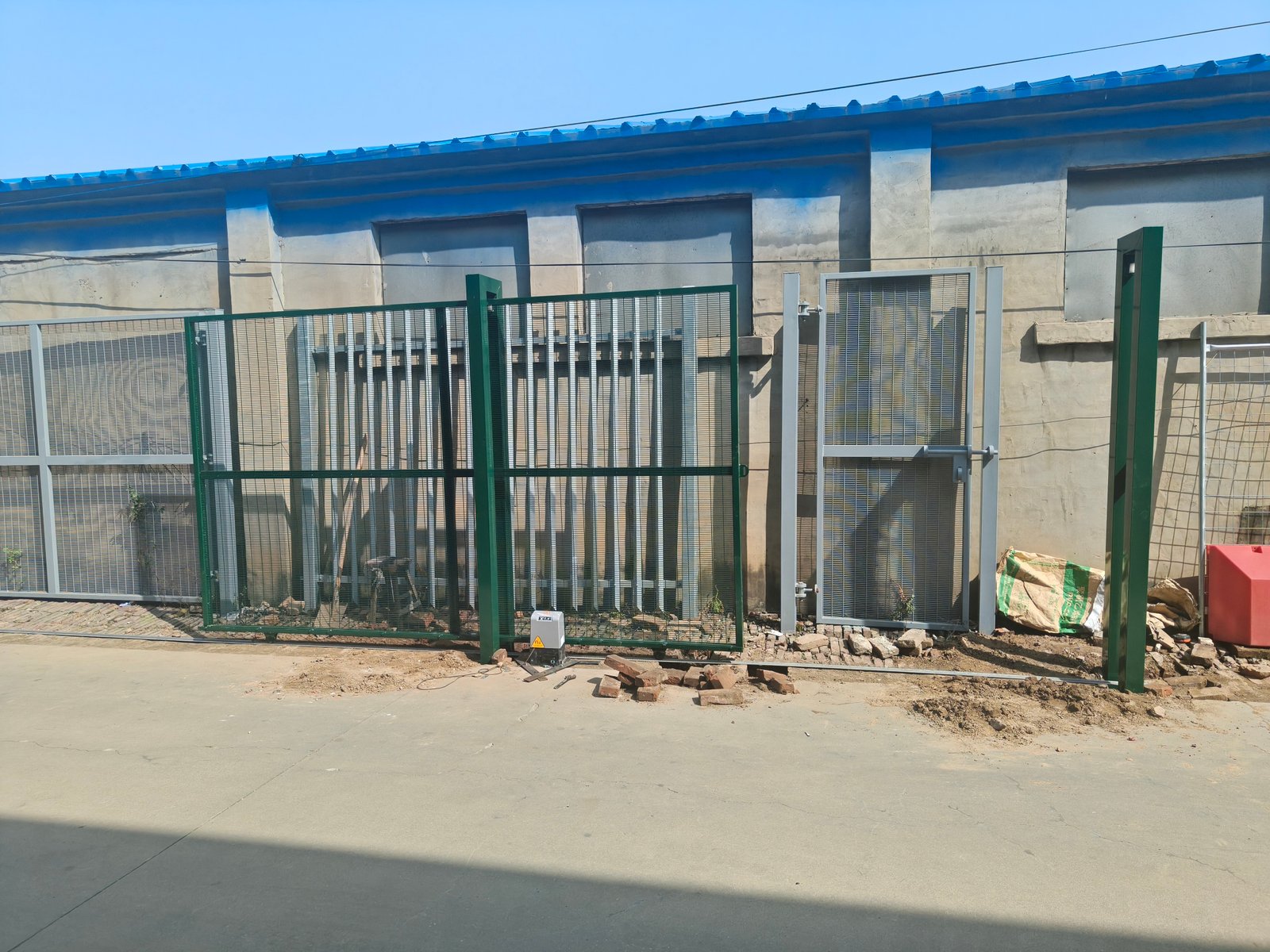

Clear View Fence Gate products include matching welded infill options. ClearVu Fence Sliding Gates address selected wide entrances with suitable clearance. Locking equipment and safe operation need separate approval.
Suppliers should itemize hinges, stops, locks, guides, and motors when applicable. An incomplete gate quotation can distort the total project cost. The buyer should confirm installation responsibility before placing the order.
Wide vehicle openings may need stronger posts and foundations. Pedestrian entrances require convenient, controlled access. The final design must preserve safe emergency egress.
Wire diameter, aperture density, height, and coating all influence material consumption. Post sections, fittings, and shipping add further costs. A lower panel quotation may exclude important system components.
For Clear View Fence for Sale enquiries, provide one consistent bill of materials. Ask each supplier to use the same coating and delivery terms. This creates a more meaningful comparison.
Unusual widths may require special production runs or cutting plans. Taller panels increase steel weight and may need additional support. Extra gate hardware also changes manufacturing complexity.
Delivery charges depend on packaging dimensions and freight routes. Installation costs vary with ground conditions and local labour. Buyers should compare finished project scope rather than individual components.
A good request identifies the final destination and precise goods. It also separates optional accessories from required system components. Suppliers can then prepare a more dependable commercial offer.

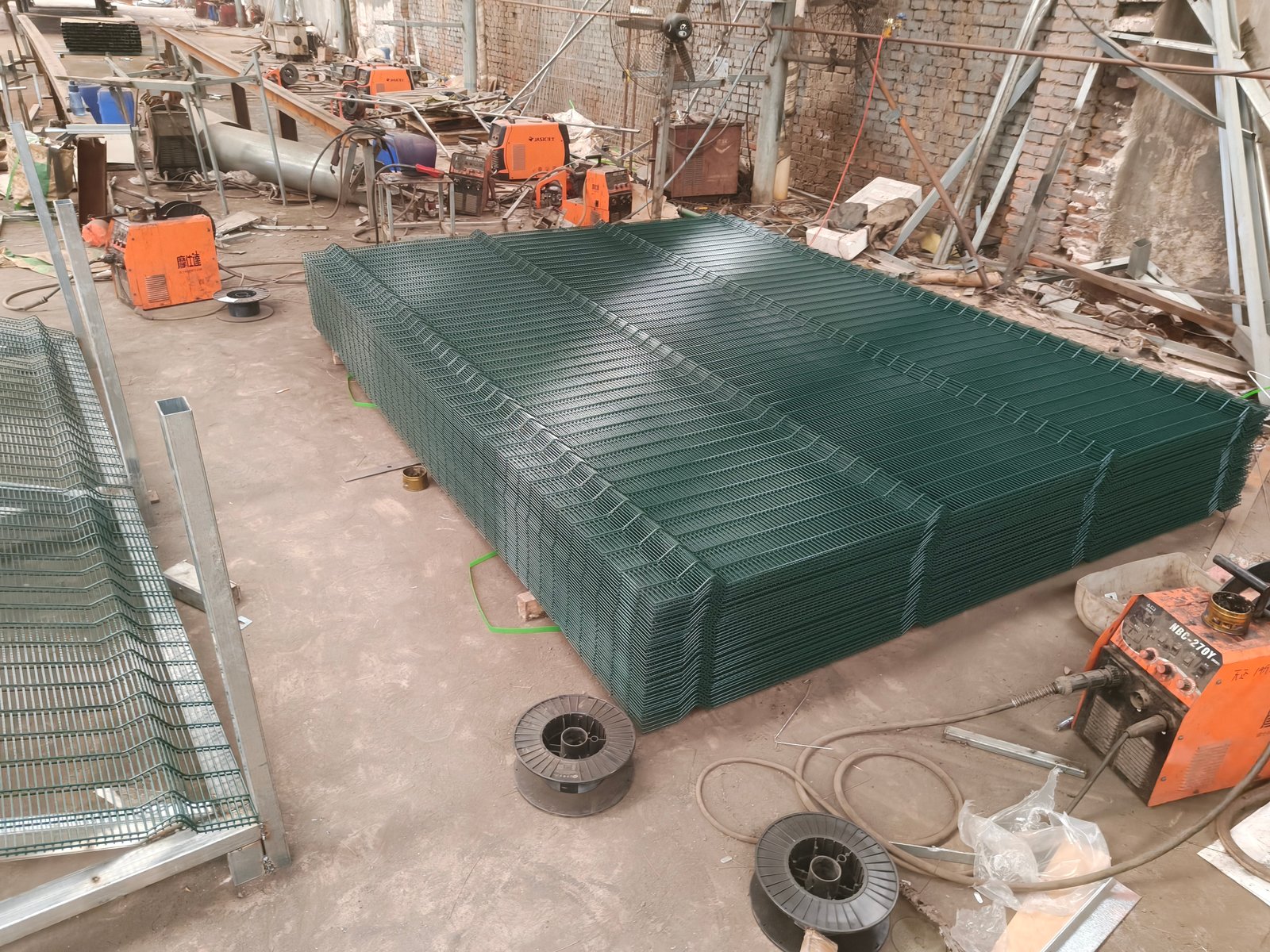

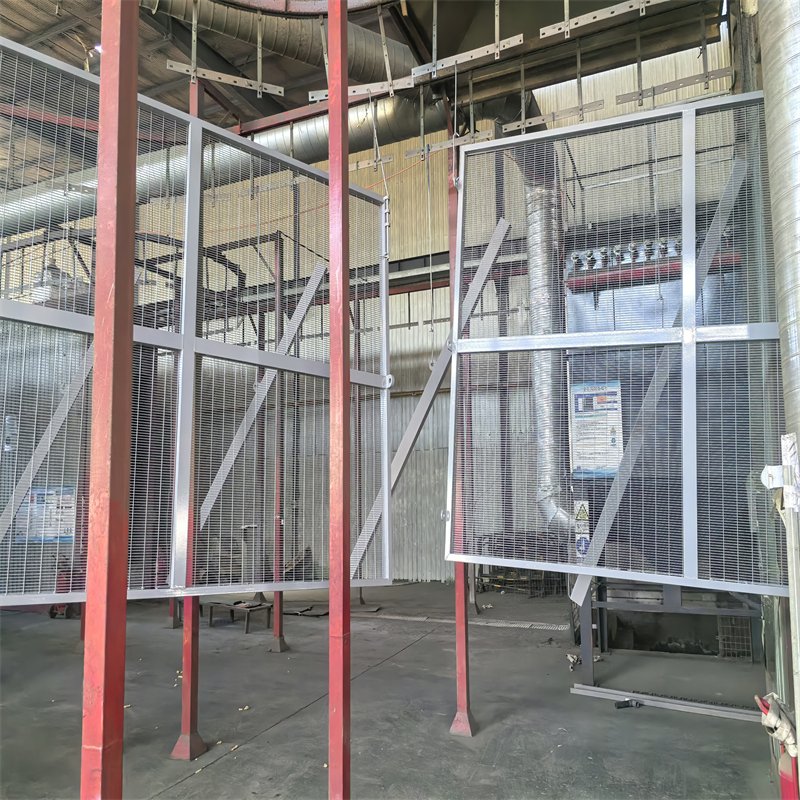

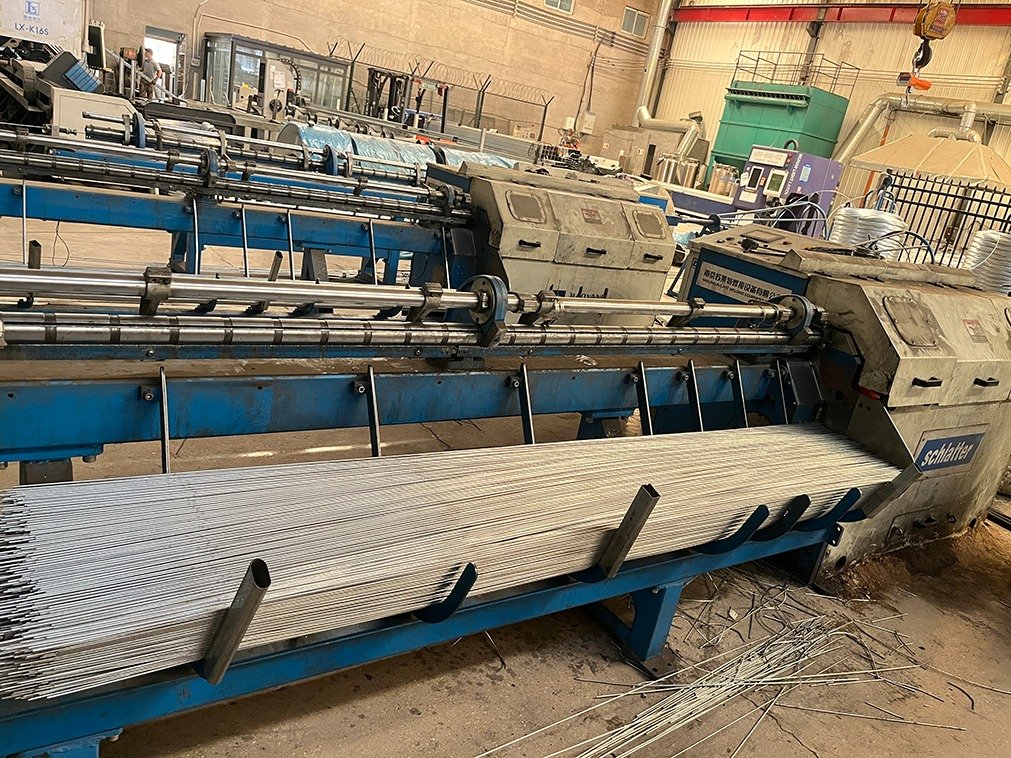

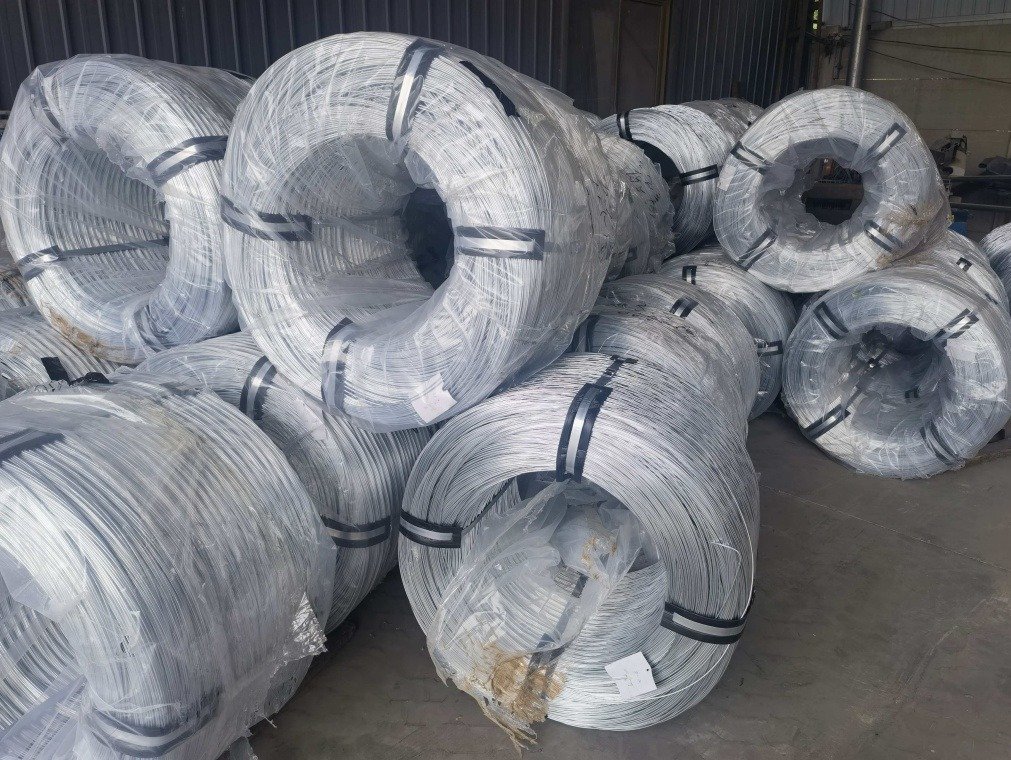

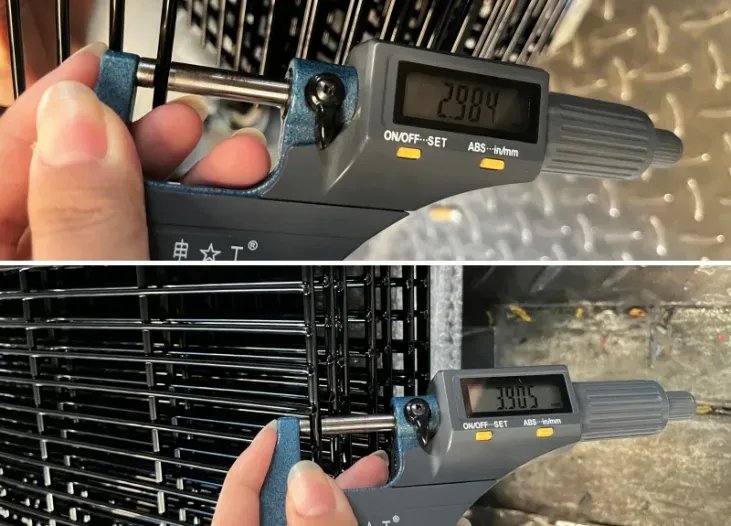

Production quality begins with wire diameter and straightness checks. Welded intersections need consistent geometry before any protective finishing. Final inspection should also cover dimensions, coatings, and fittings.
A sample assembly can reveal incompatible clamps or incorrect holes. Buyers can request photographs of finished pallets before dispatch. Inspection records should match the actual order specification.

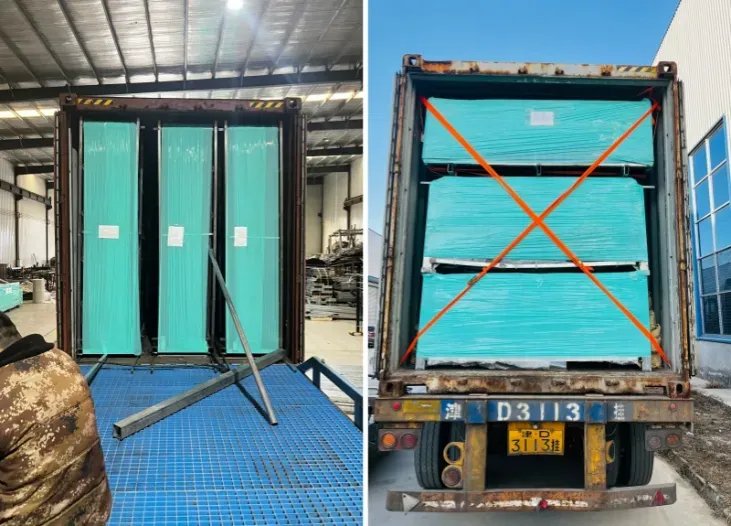

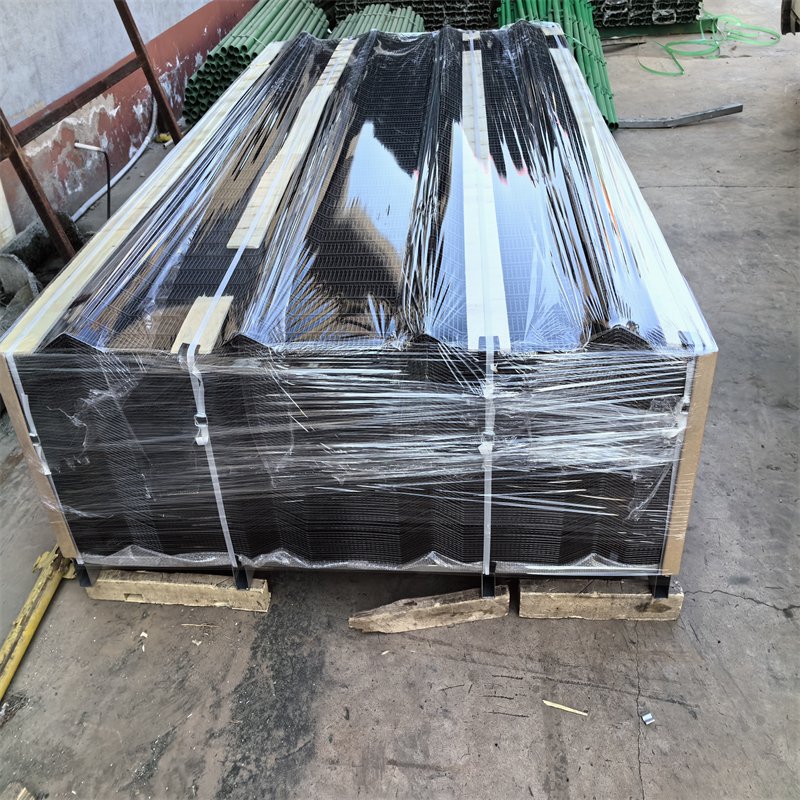

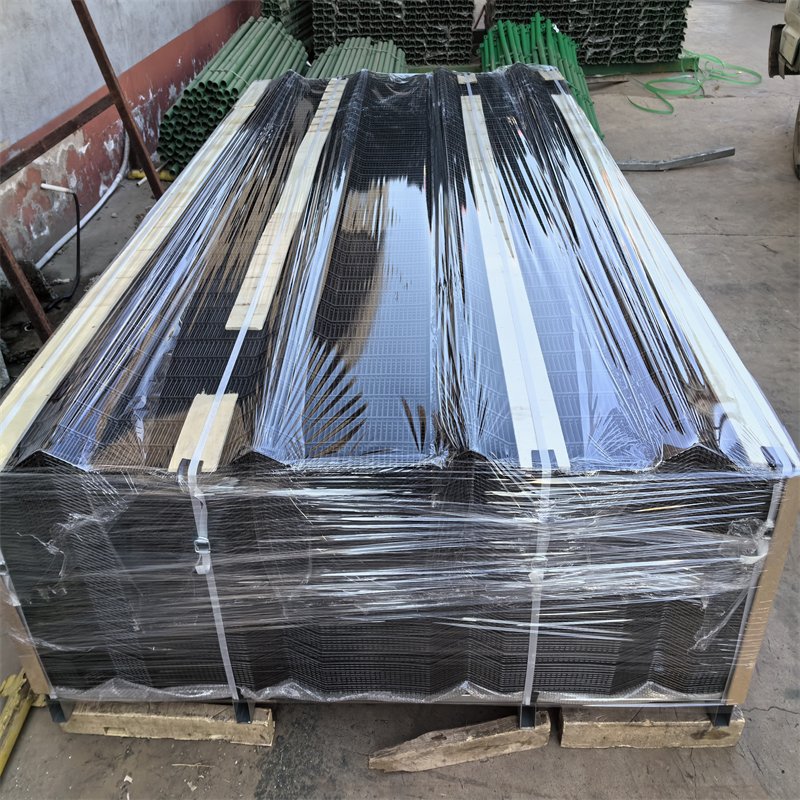

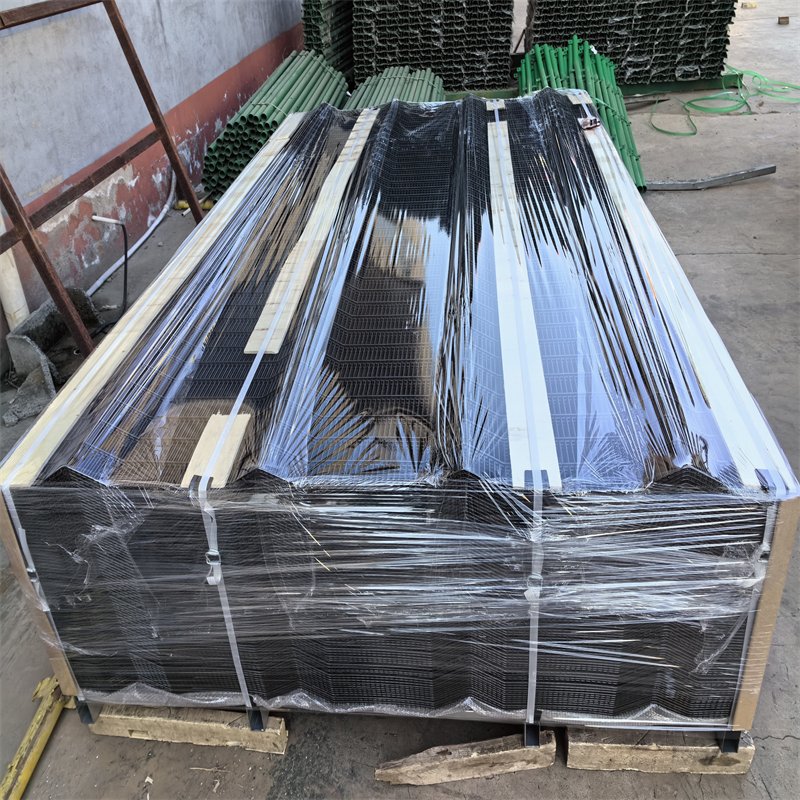

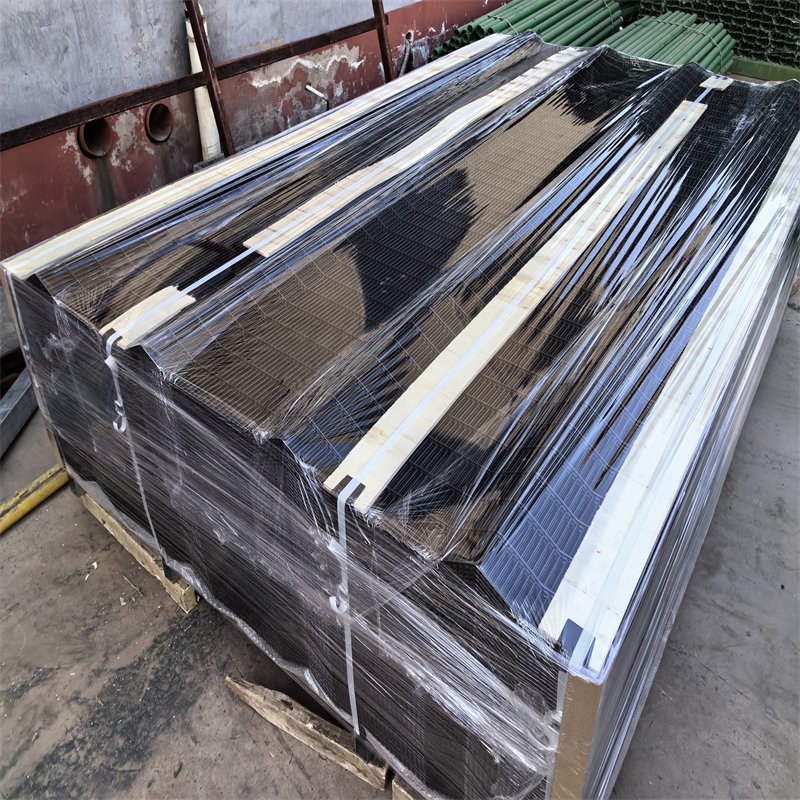

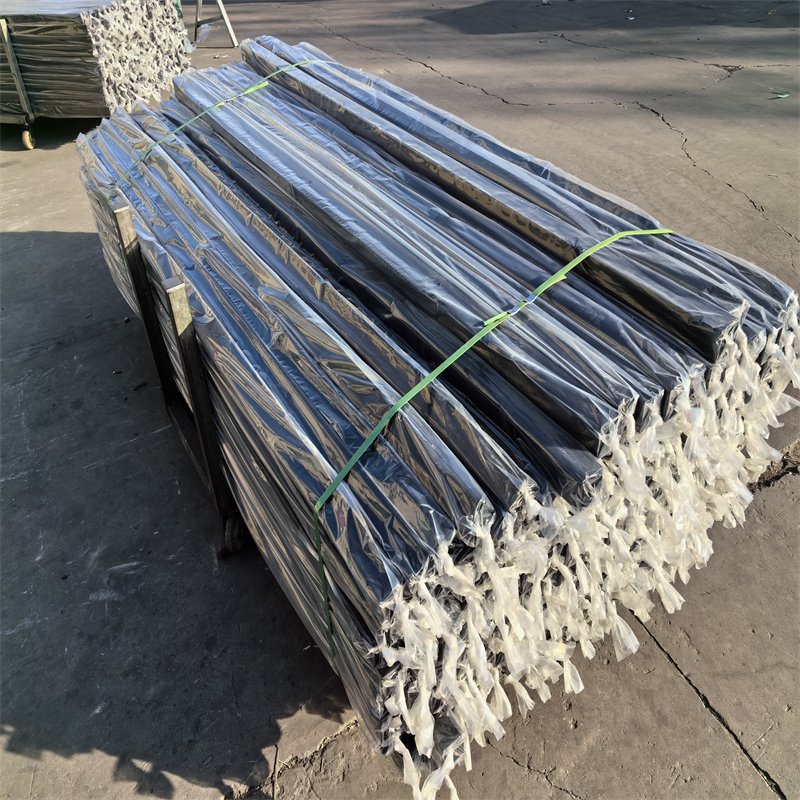

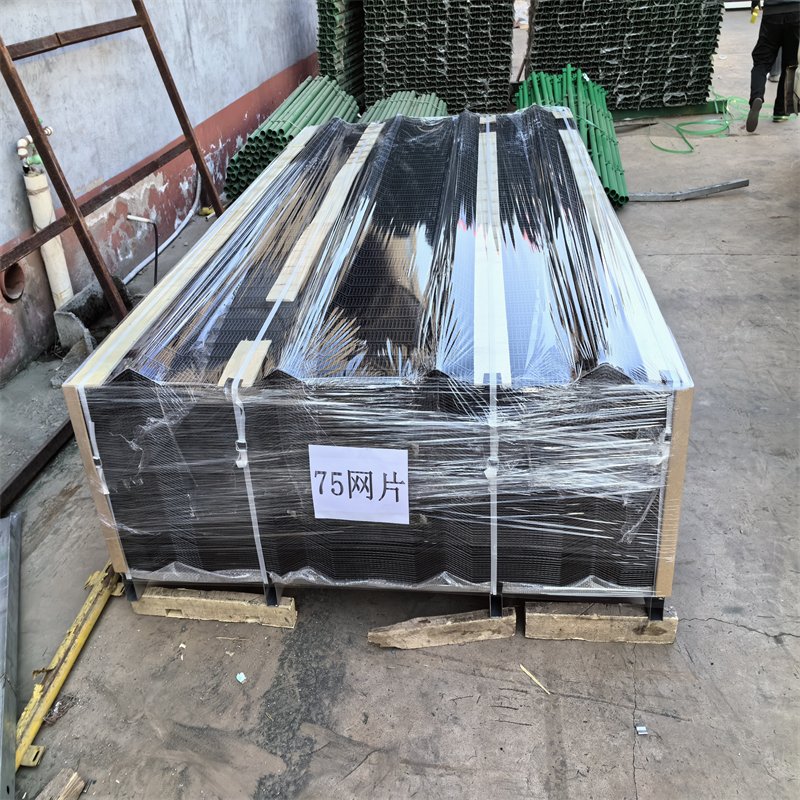

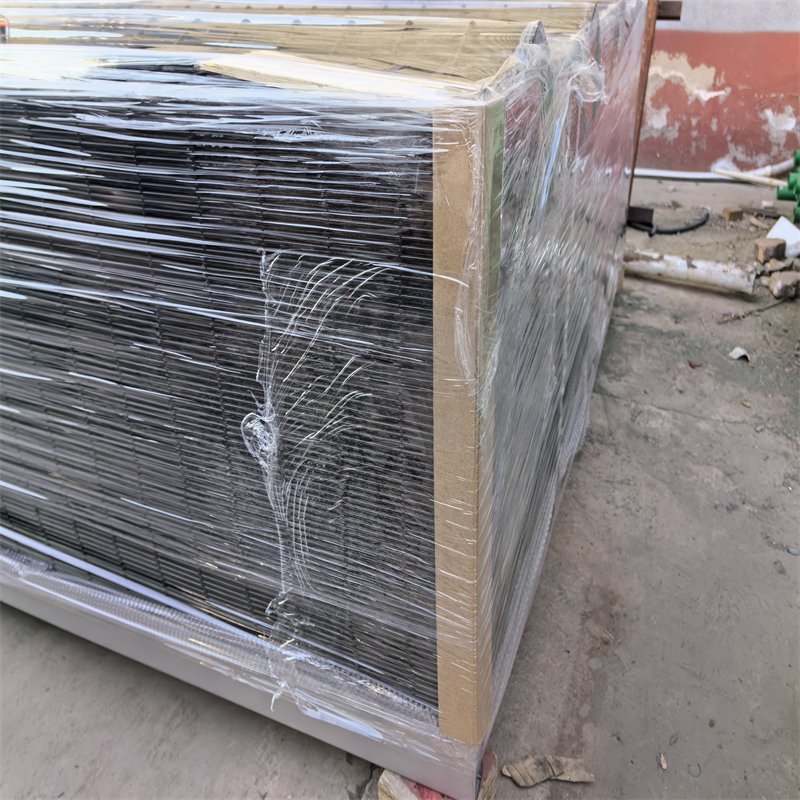

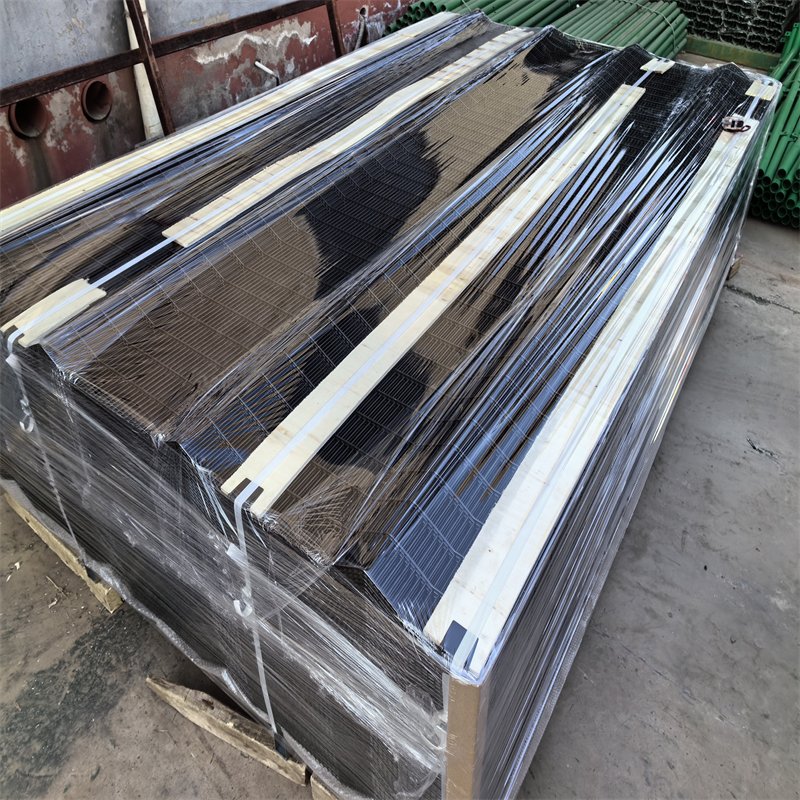

Large welded sheets can scratch one another during container handling. Steel pallets with separators and edge protection help limit contact damage. Posts and smaller hardware should remain clearly identified.
The packing list must record panel counts, post quantities, and gross weights. Container plans should follow actual finished measurements. Excessive stacking can deform panels or compromise safe handling.
 |
| Original BMP reference image: review finished goods and protective export arrangements against the packing list. |

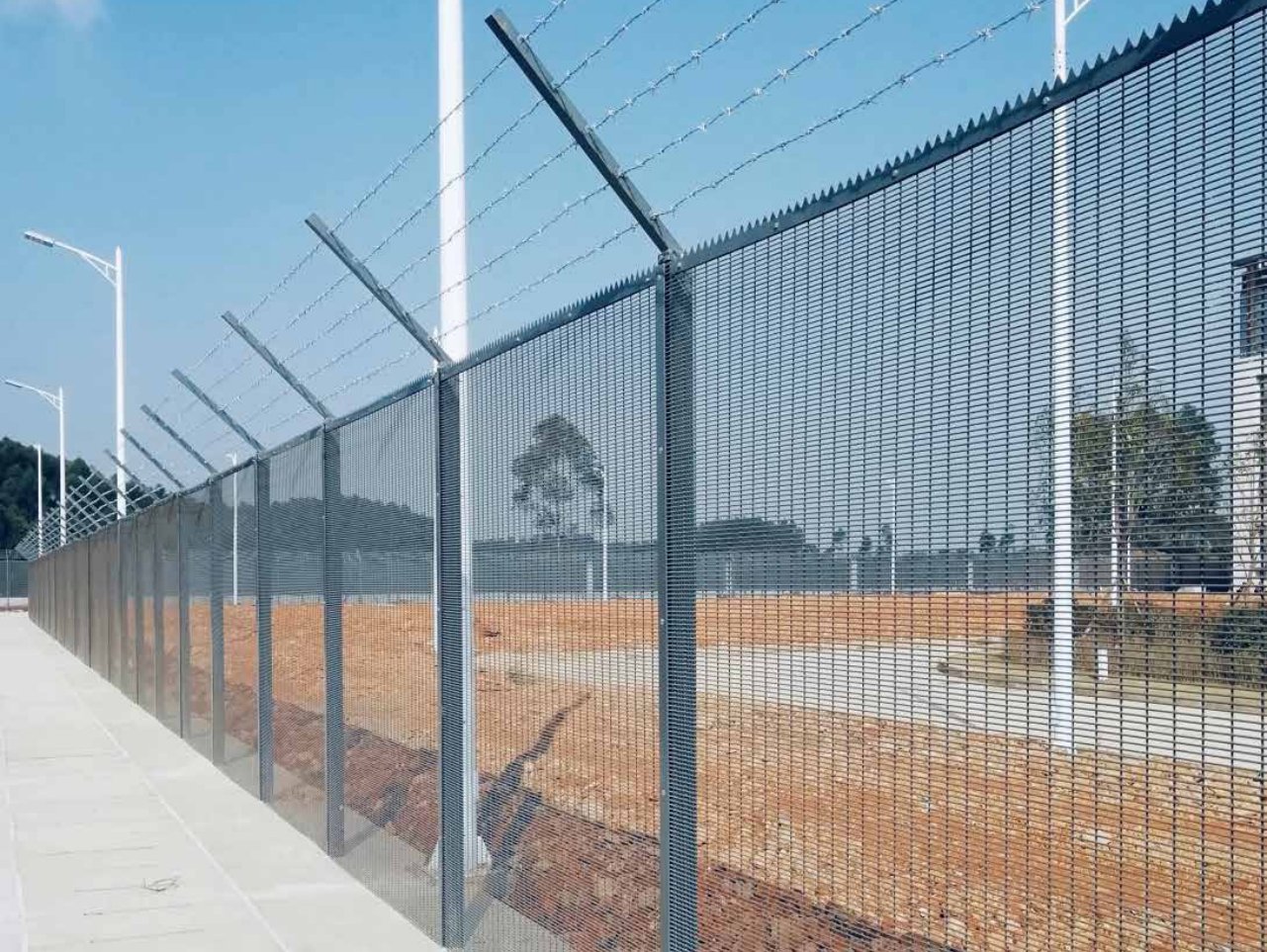

A residential boundary and an industrial loading yard rarely share identical requirements. Schools need safe access and unobstructed observation. Critical facilities may demand formal testing and additional intrusion detection.
Coastal warehouses require appropriate corrosion protection and regular inspection. Inland industrial compounds may prioritize drainage and collision protection. The design should follow actual exposure and operational risks.
Clear mesh can maintain visibility around campus entrances and landscaped estate boundaries. Visitor procedures and dependable locks remain important. Child-accessible areas may require safer edges without hazardous toppings.
Security should support normal movement rather than obstruct emergency routes. Gate position matters as much as mesh density. A qualified site assessment should guide the selection.

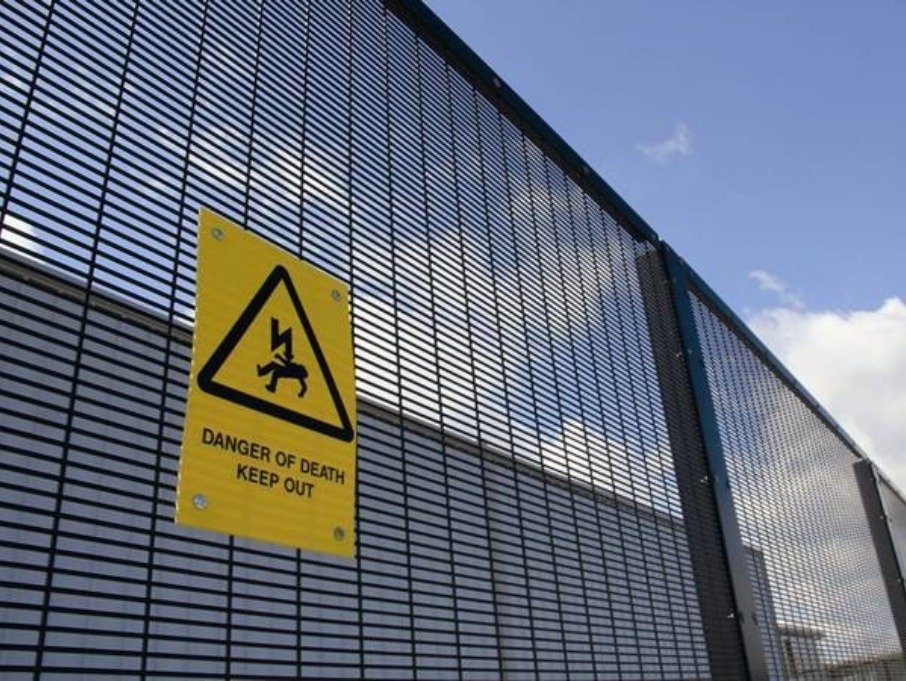

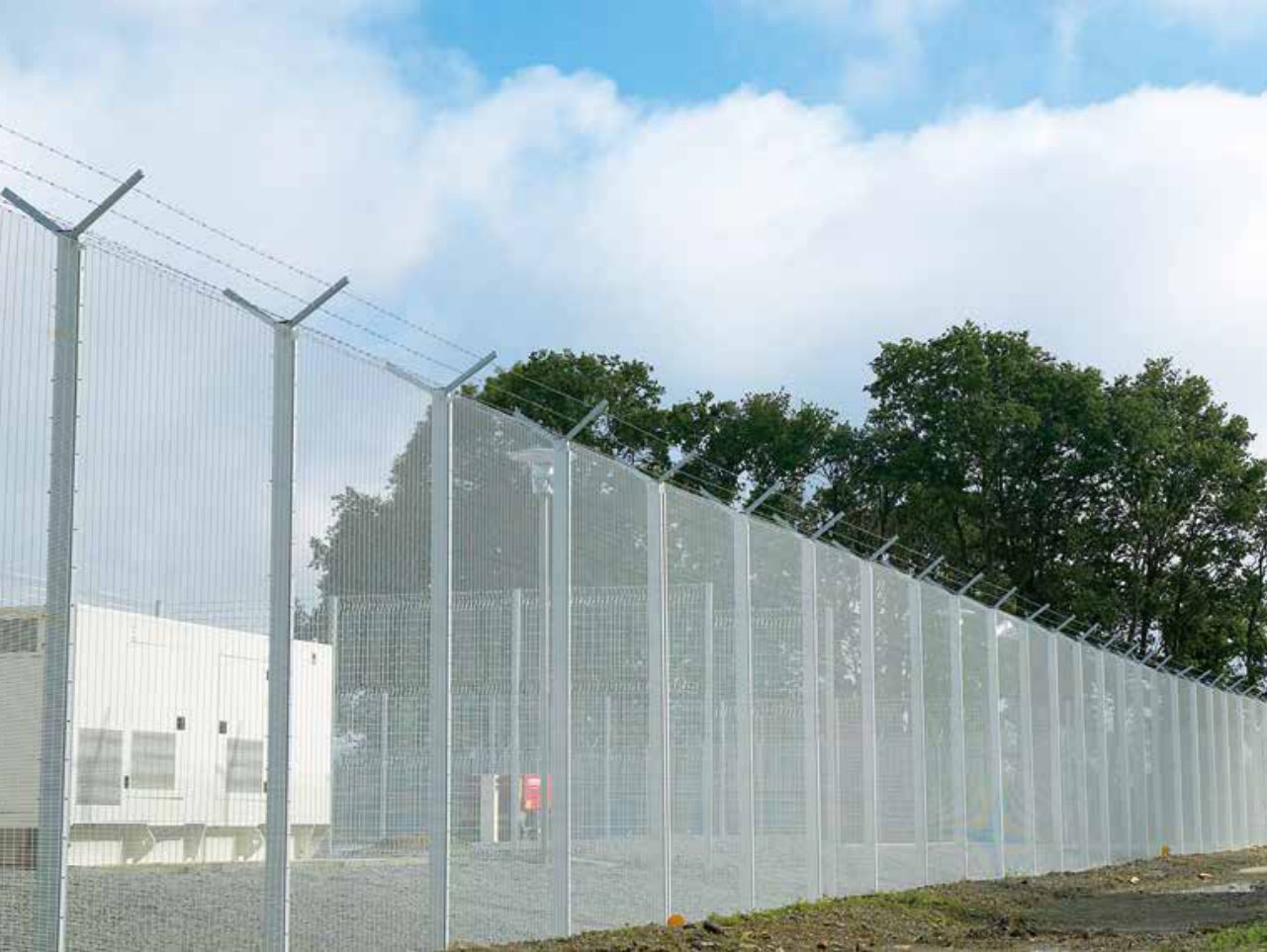

Warehouses and substations may need narrower mesh near restricted equipment. Service access must remain safe for authorised workers. Metal fencing near electrical infrastructure requires appropriate engineering review.
ClearVu Fencing Specifications South Africa includes related system dimensions for procurement comparisons. Formal requirements should control the final design. Generic product descriptions cannot replace project certification.
Buyers sometimes compare dense mesh against alternative steel fence designs. Each product presents different openings, fixing methods, and maintenance demands. The preferred option depends on the approved security objective.
Corromesh uses a related security mesh construction with distinct geometry. Garrison Security Fencing instead relies on tubular pickets and horizontal rails. Their specifications should not be substituted without buyer approval.
Construction phases may benefit from Temporary Construction Fencing before permanent foundations are ready. Portable supports are not equivalent to engineered permanent posts. Select the appropriate product for each phase.
Importers may review ClearVu Fence Panels when comparing related BMP export products. Panel sizes and hardware configurations can vary between regional catalogues. Confirm one approved drawing for the current order.
Different destinations also create different freight and customs responsibilities. Clarify the required Incoterm in writing. The factory should identify every excluded service.
No. Height, panel width, loading, and connection details affect structural requirements. Post selection needs an approved technical drawing and appropriate engineering.
BMP can review alternative RAL colours and compatible coating systems. The available options depend on manufacturing approval. Request a finish sample for important architectural projects.
No fence provides complete security on its own. Narrow openings discourage climbing and complicate some conventional attacks. Effective protection also requires gates, monitoring, and response procedures.
BMP offers a 15-year manufacturer warranty for its ClearVu and Clearview products under applicable written terms. Confirm which components and conditions receive coverage. Normal inspection and proper installation remain essential.
Boss Metal and Plastic Co., Ltd. manufactures welded security mesh and matching steel fence components for international buyers. Our team can review complete material schedules, coatings, sample assemblies, and export packing. Final manufacture should follow approved dimensions and written quality requirements.
Send your boundary drawing, requested heights, gate schedule, and delivery destination. Include the required security grade and preferred protective finish. A detailed enquiry supports a coordinated commercial quotation.
