Clearview fence Boksburg projects often balance busy industrial entrances with secure, visible property boundaries. Warehouses need space for loading vehicles, while residential estates manage visitors and pedestrian movement. BMP supplies welded mesh panels, steel posts, compatible clamps, and matching gates for these different requirements.
Boksburg forms part of the City of Ekurhuleni on Gauteng's East Rand. Areas such as Anderbolt and Boksburg East contain industrial operations and logistics-related property. Their boundary designs should consider vehicle approaches, stored goods, gate clearance, and surveillance sightlines.

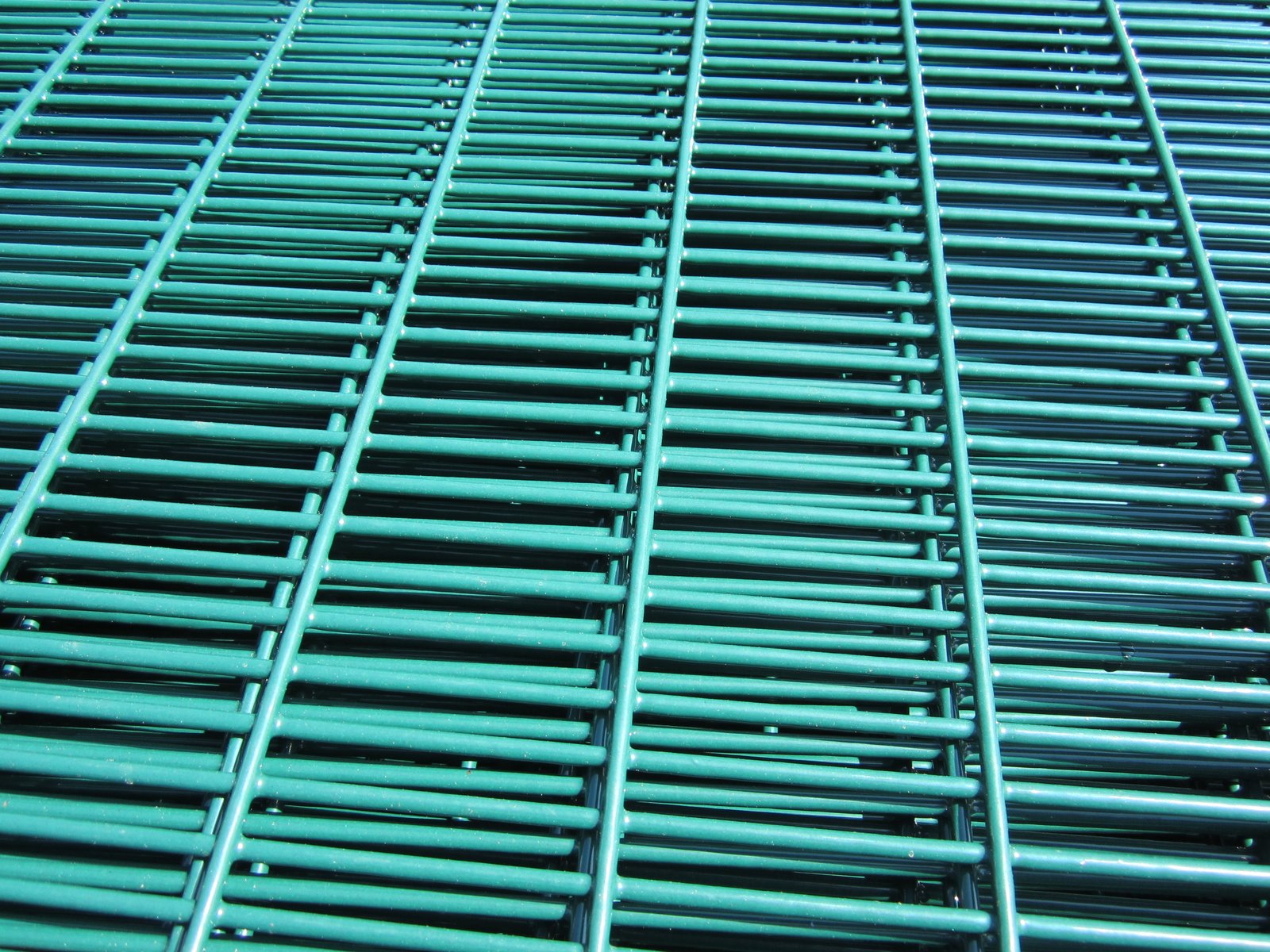

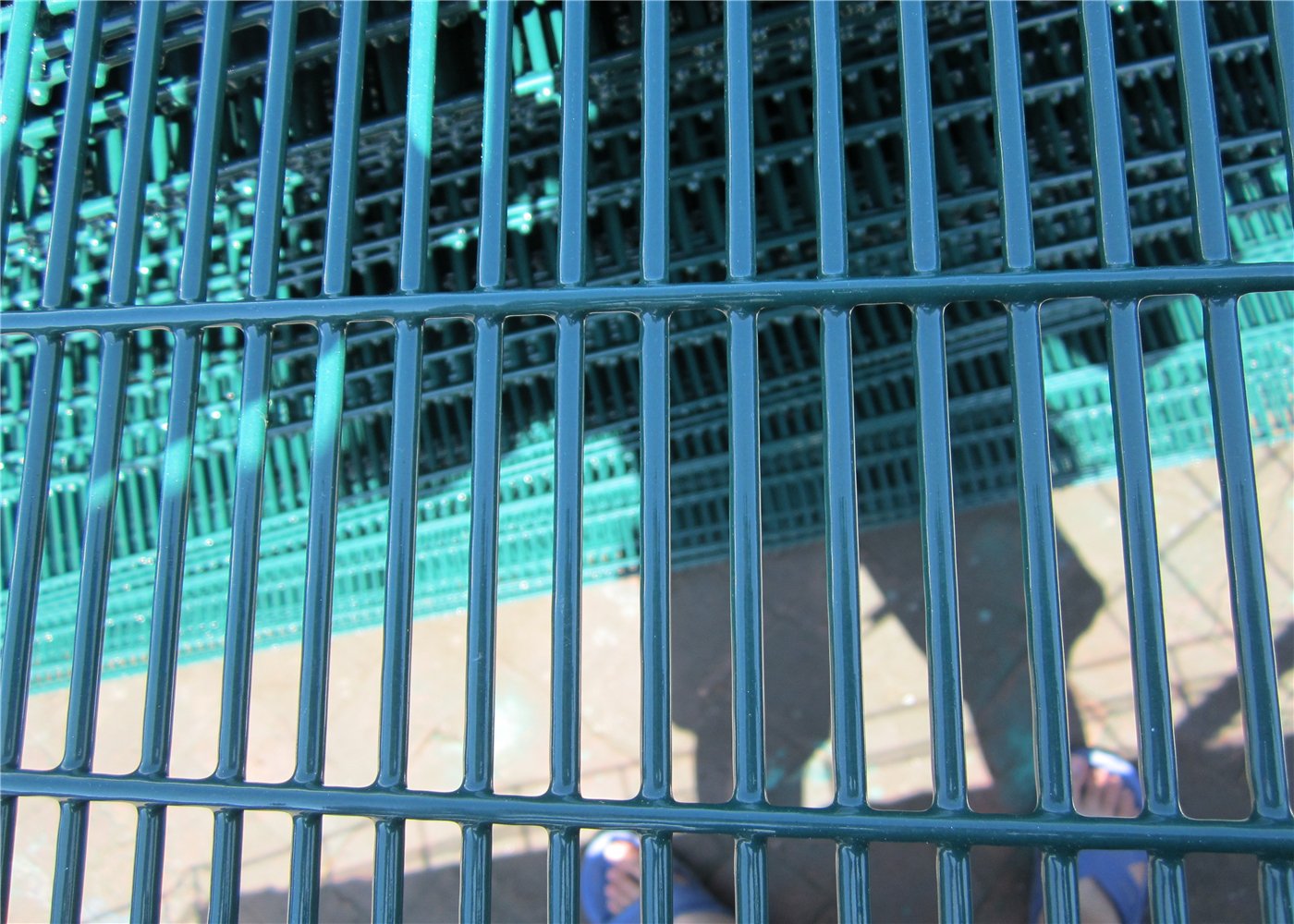

Managers choosing Clear View Fence Panels can retain visual access through a closely welded grid. Narrow apertures discourage easy climbing, but they cannot replace secure gates or a practical response plan. The completed system needs suitable foundations and routine maintenance.
 |
 |

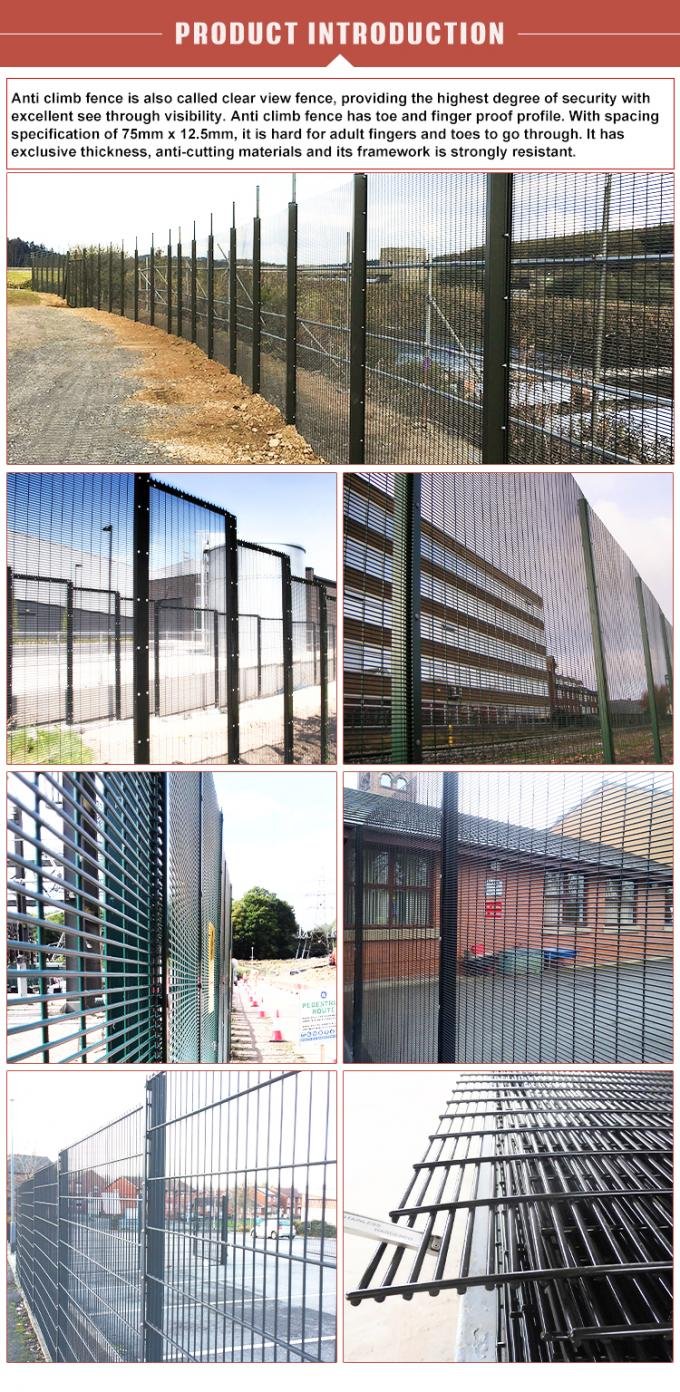

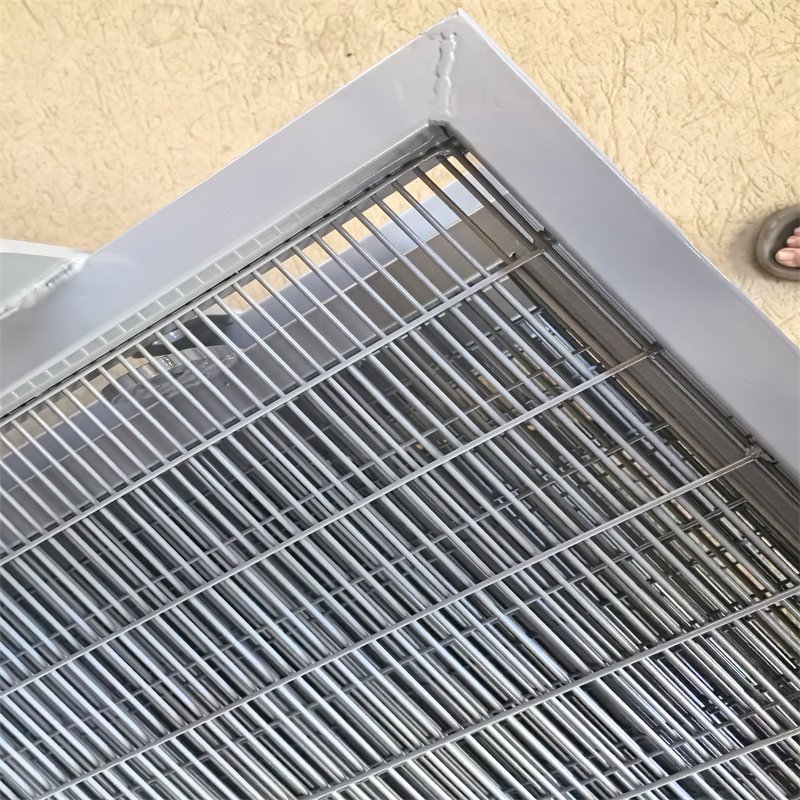

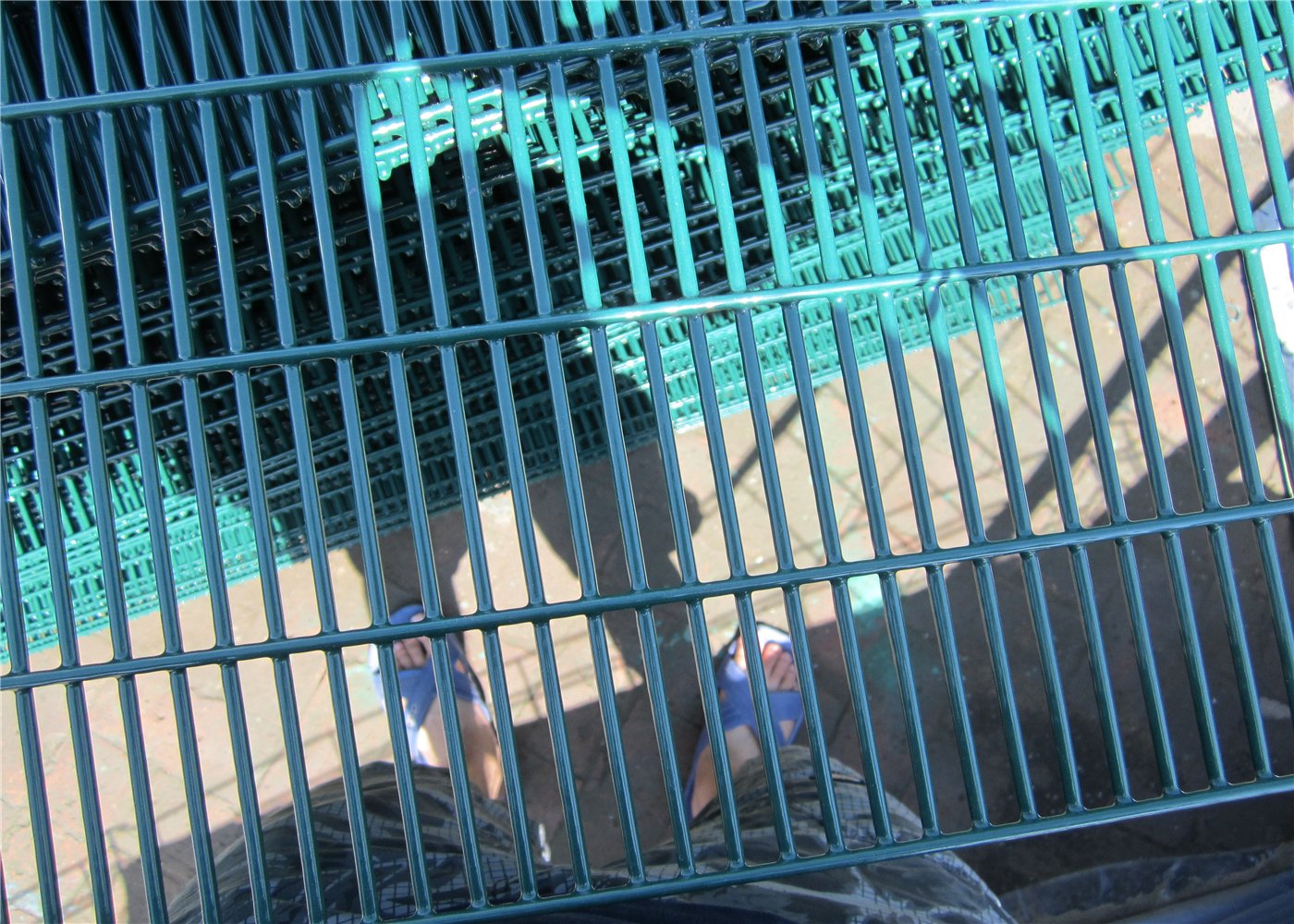

| Original BMP photograph: inspect panel appearance and the open visibility across the mesh. | Original BMP photograph: compare welded grid details and the finished fencing arrangement. |
Industrial boundaries frequently run beside loading bays, service roads, and equipment yards. A fence post next to a turning truck faces different risks from a garden boundary. Separate bollards or crash protection may be appropriate near vulnerable corners.
Gauteng also experiences seasonal summer thunderstorms, making drainage important around posts and sliding-gate tracks. Standing water can damage the surrounding ground and expose protective finishes at low points. Contractors should inspect runoff routes before agreeing on foundation positions.
Workshops often move raw materials and equipment between buildings and outdoor storage. A see-through perimeter can support observation across these working areas. Keep pallets and stored steel away from the fence where practical.
Nearby machinery may require a separate protective screen with its own safety requirements. Ordinary perimeter mesh does not automatically qualify as a machine guard. The final design should reflect the actual hazard assessment.
Heavy vehicles need sufficient space before and after each gate opening. Sliding tracks and gate motors should not obstruct safe pedestrian routes. Independent vehicle barriers can protect exposed steel posts from accidental collisions.
Entrance geometry matters more than using one height throughout every boundary. Gate operators should maintain clear views of waiting vehicles and visitors. Cameras and lighting must cover practical approach angles.

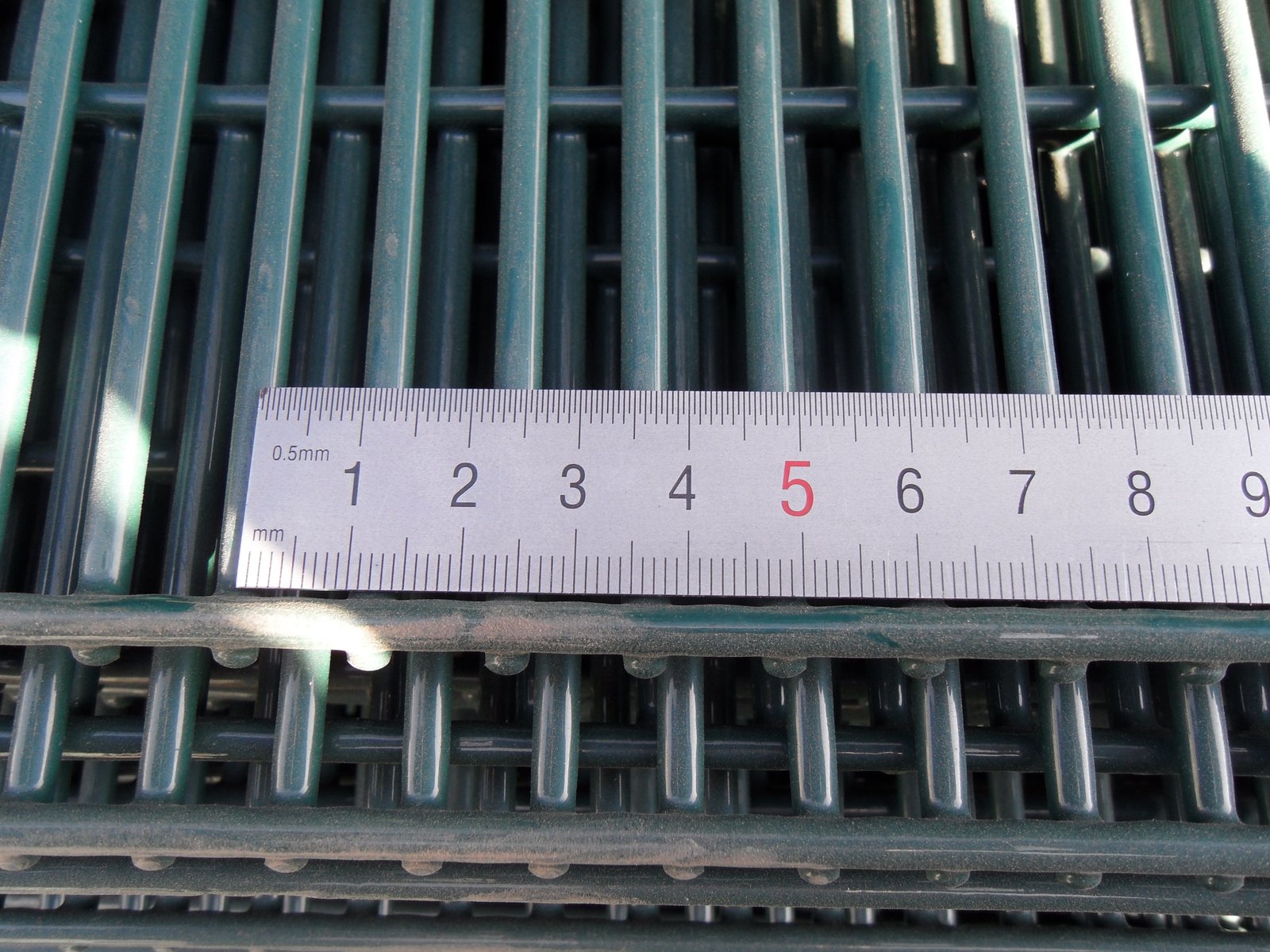

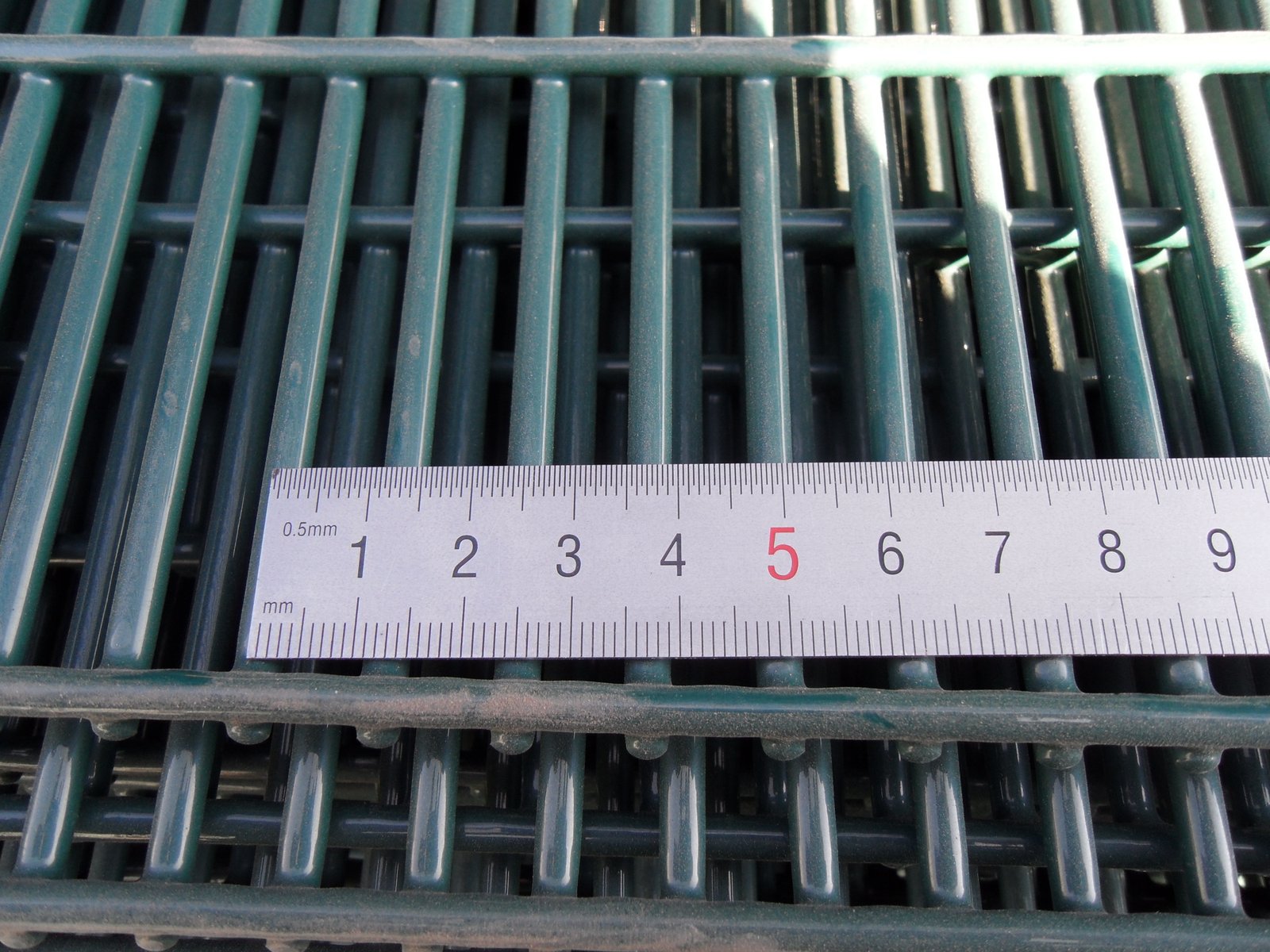

The 358 name refers to approximately three-inch by half-inch centres with eight-gauge steel wire. A common metric reference uses 76.2 × 12.7 mm pitch and roughly 4 mm wire. These figures describe centre spacing rather than the clear opening.

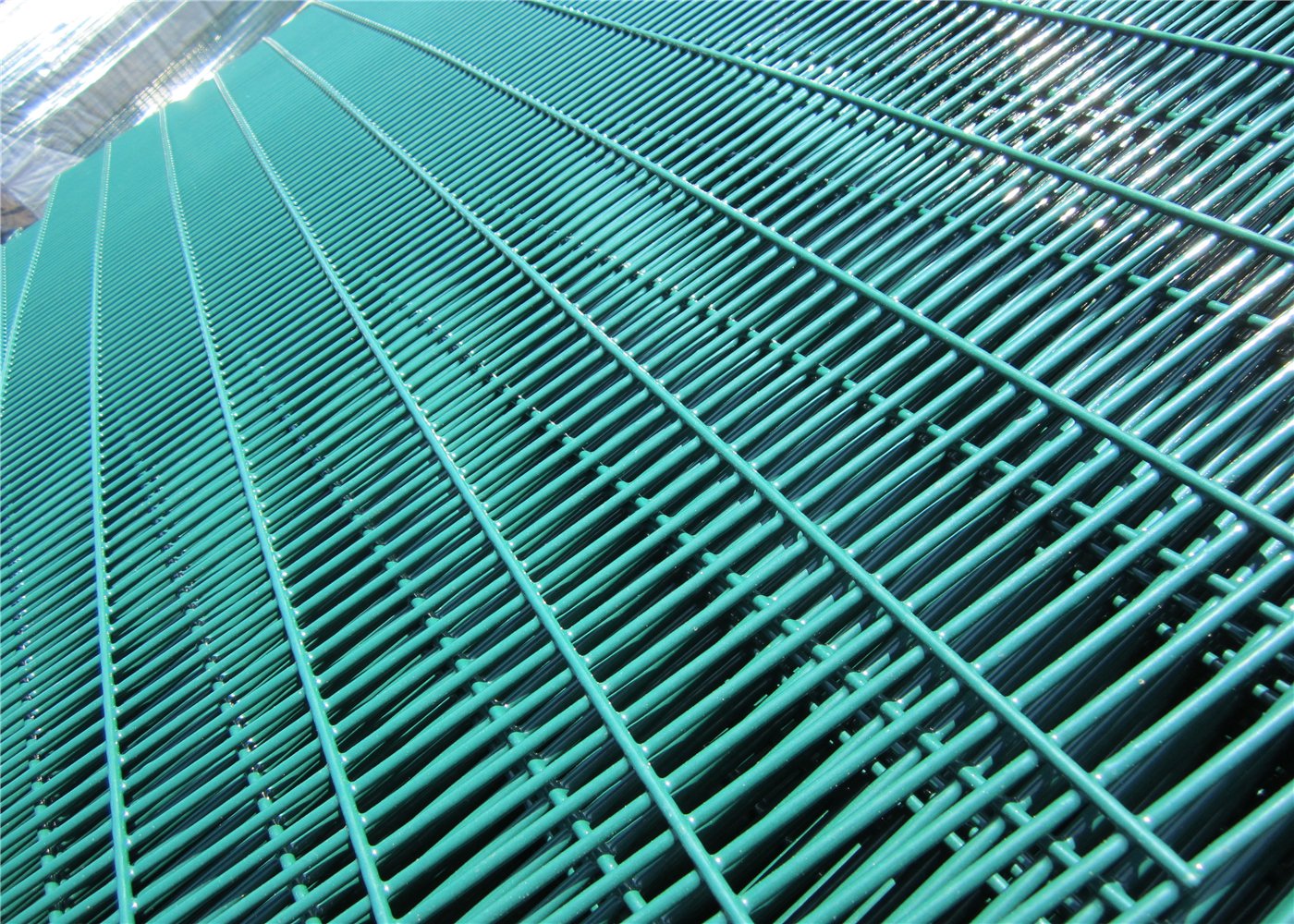

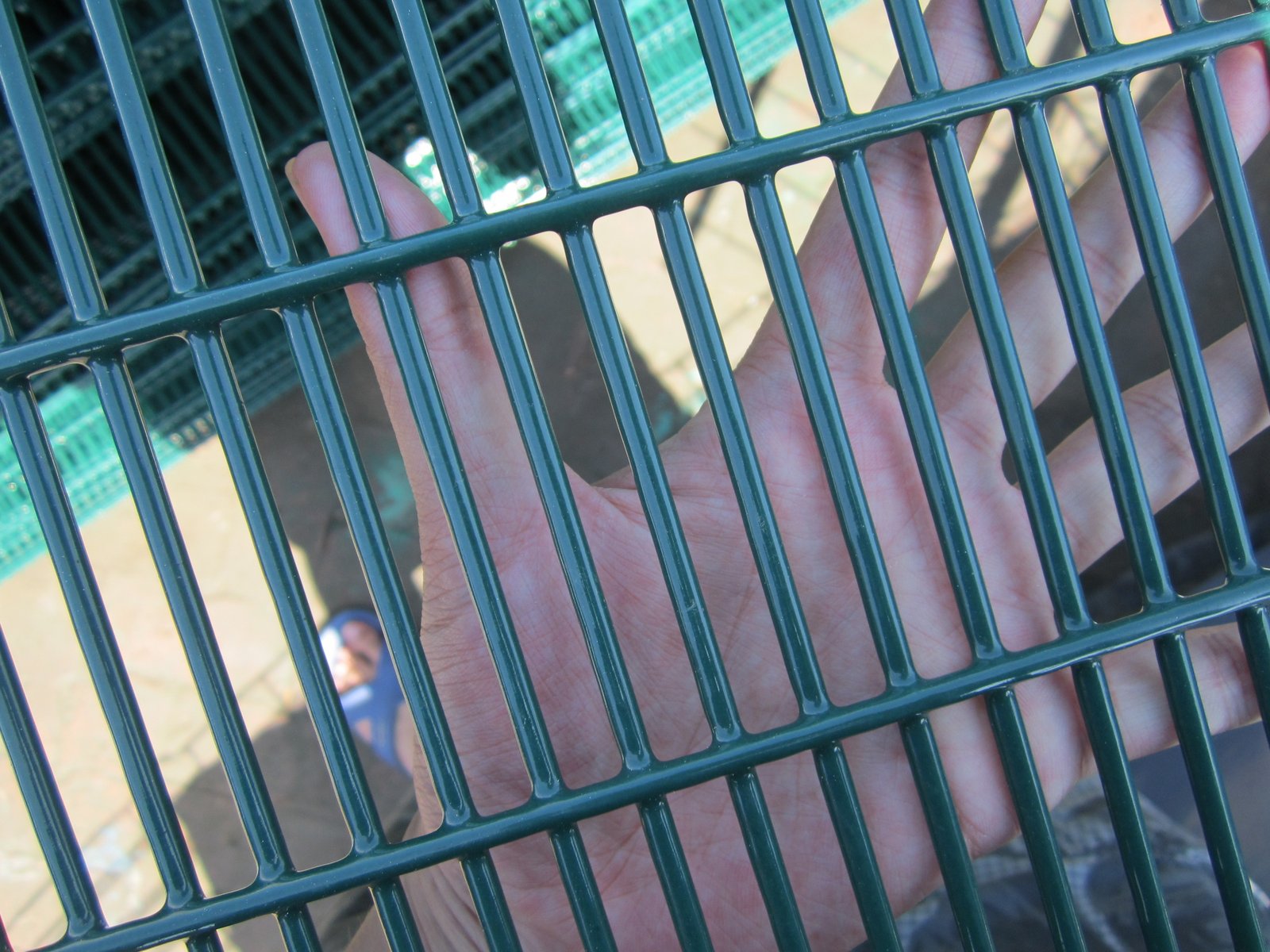

Dense welded apertures offer few convenient finger or toe holds. Some ordinary cutting tools also face limited working space. Nevertheless, no fence guarantees complete protection against all attack methods.
For more restrictive sites, High Security ClearVu Fencing offers another close-mesh reference. The chosen product still needs approved posts, fixings, and gate interfaces. A formal security classification requires applicable test evidence.

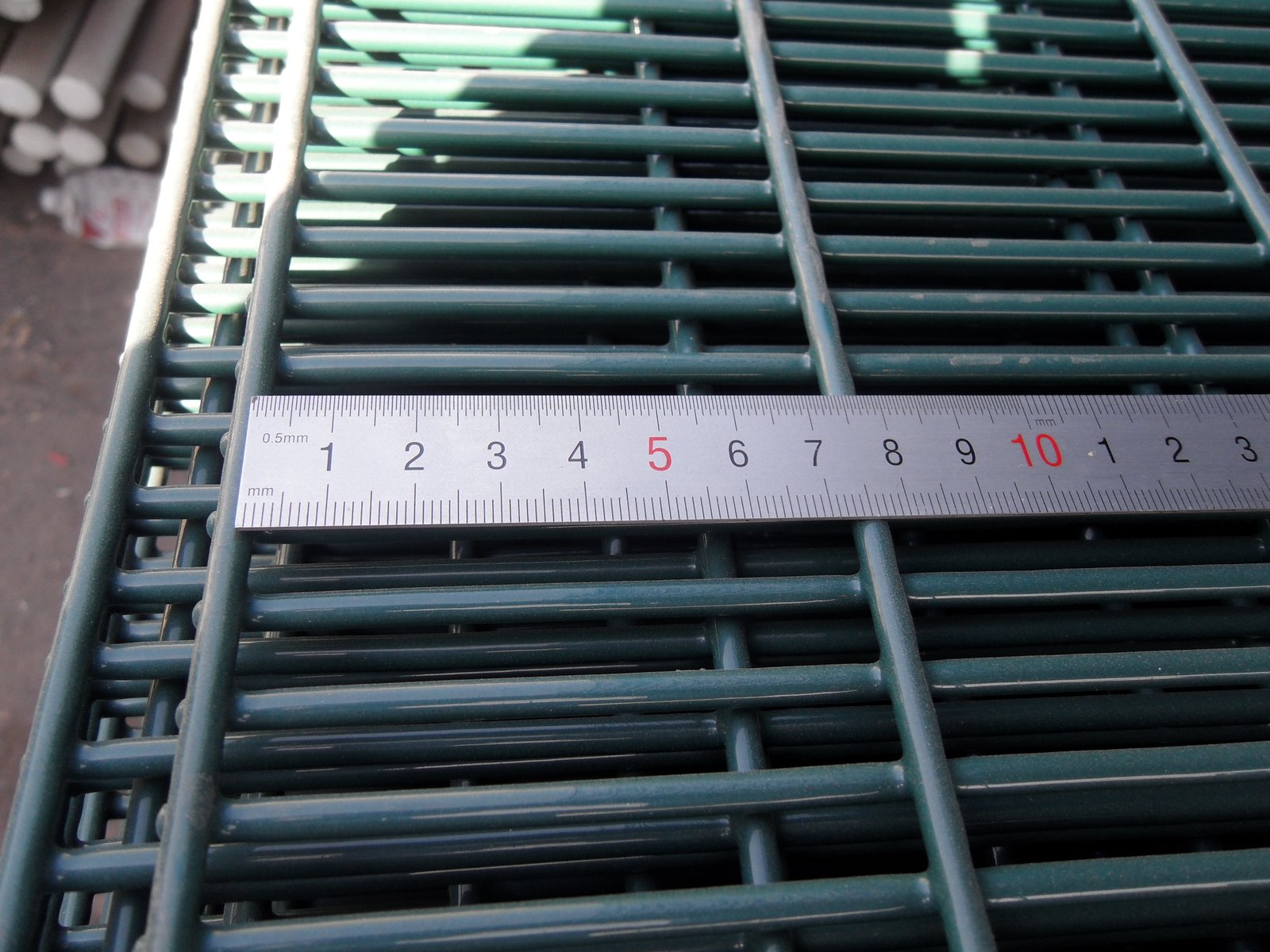

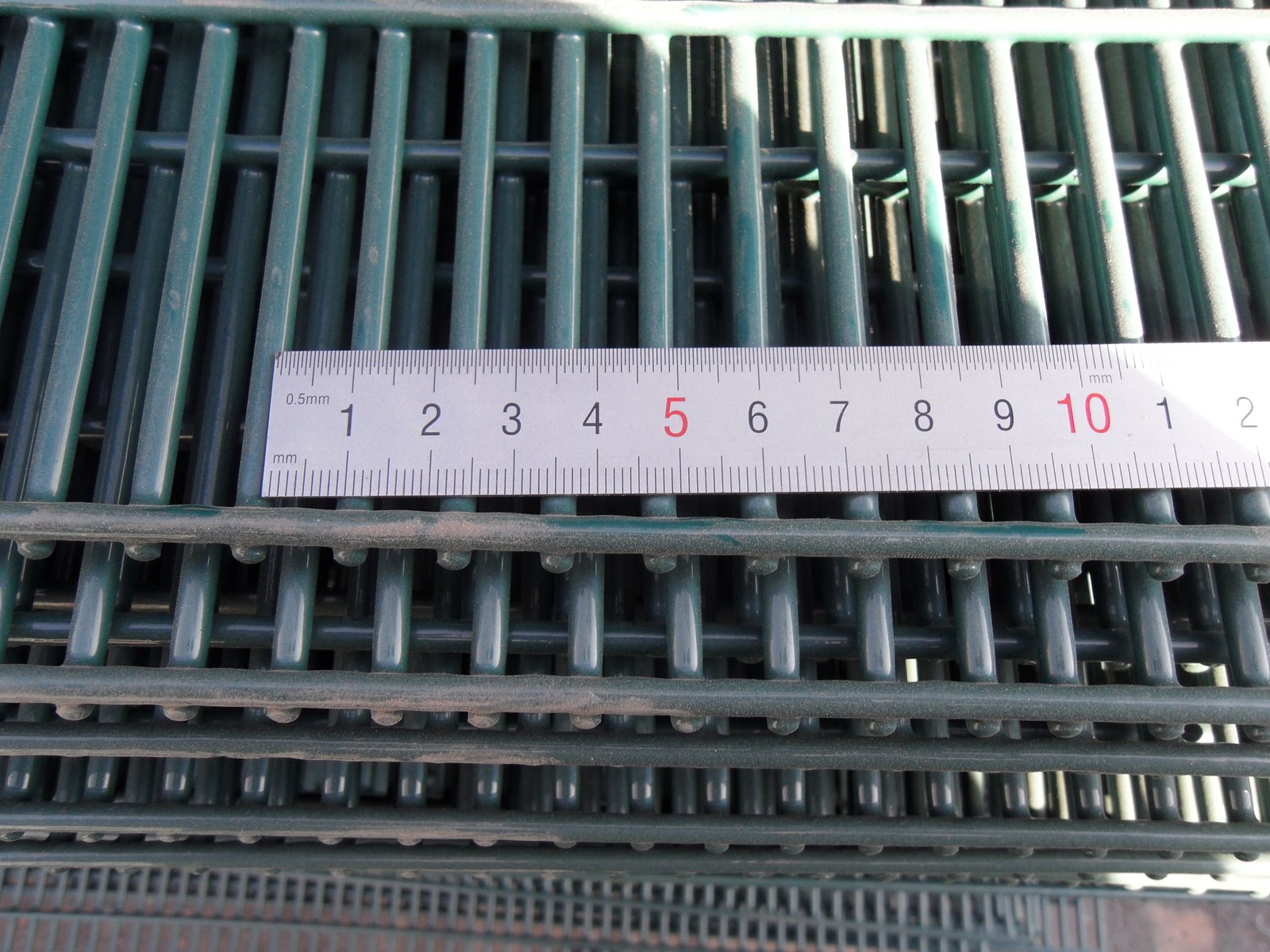

A wire's diameter occupies part of the centre-to-centre spacing. The remaining open gap therefore differs from the catalogue pitch. Coatings can reduce the clear space further.
The source lists 76.2 × 12.7 and 75 × 12.5 mm mesh centres. Another option measures 101.6 × 12.7 mm. A 358 Mesh Fence commonly uses the narrowest standard pattern. Buyers should name each wire orientation and aperture explicitly.

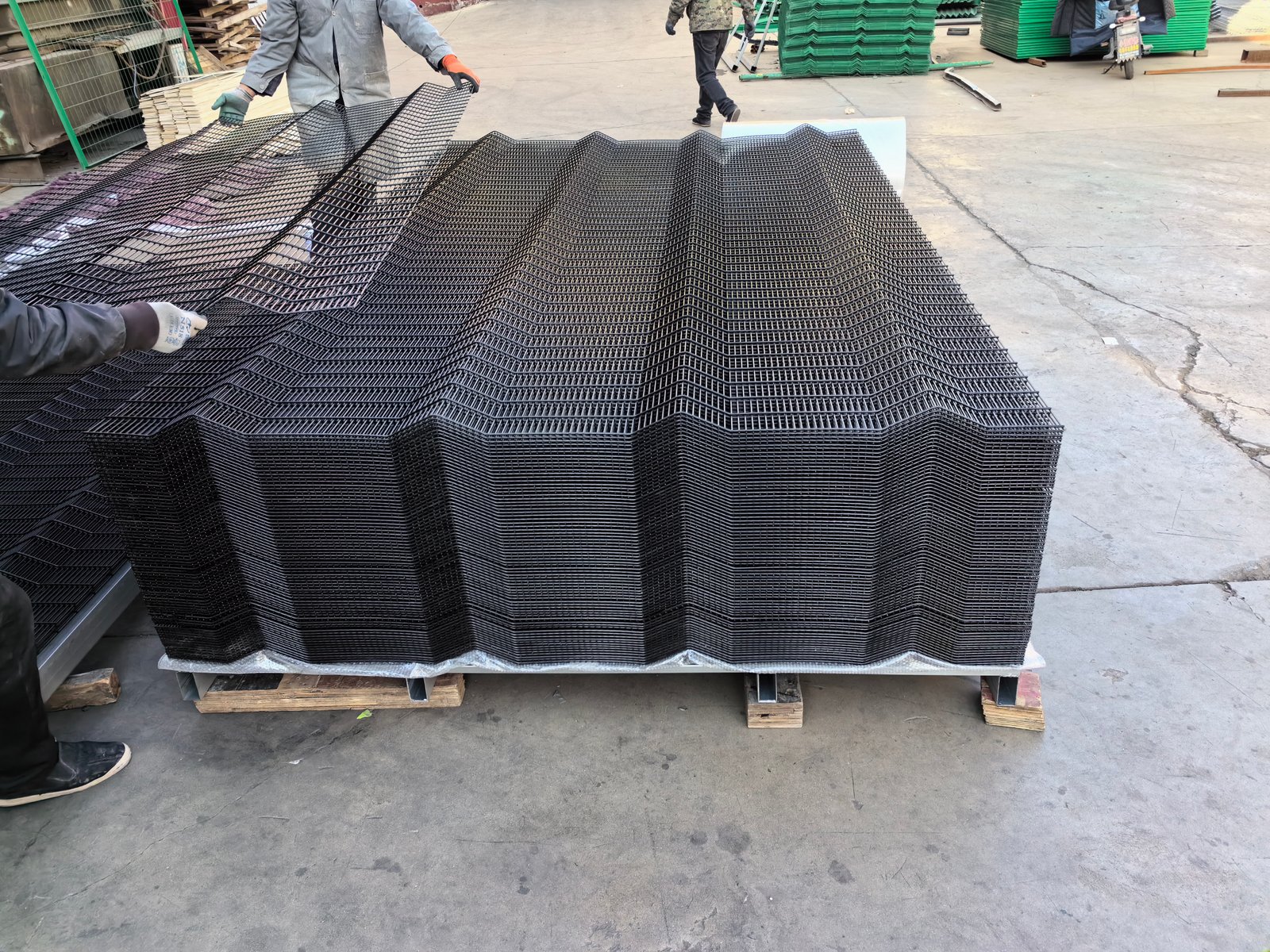

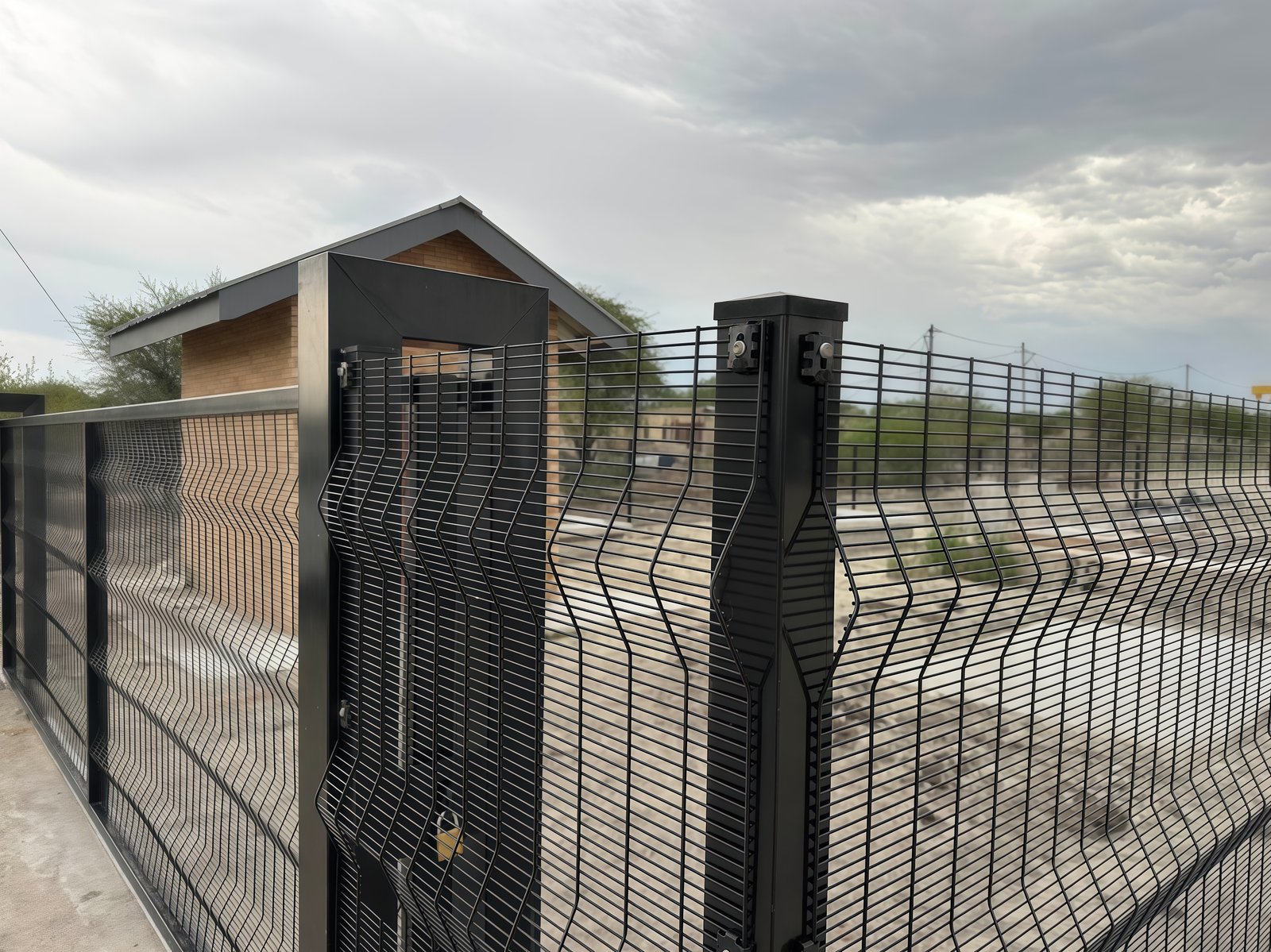

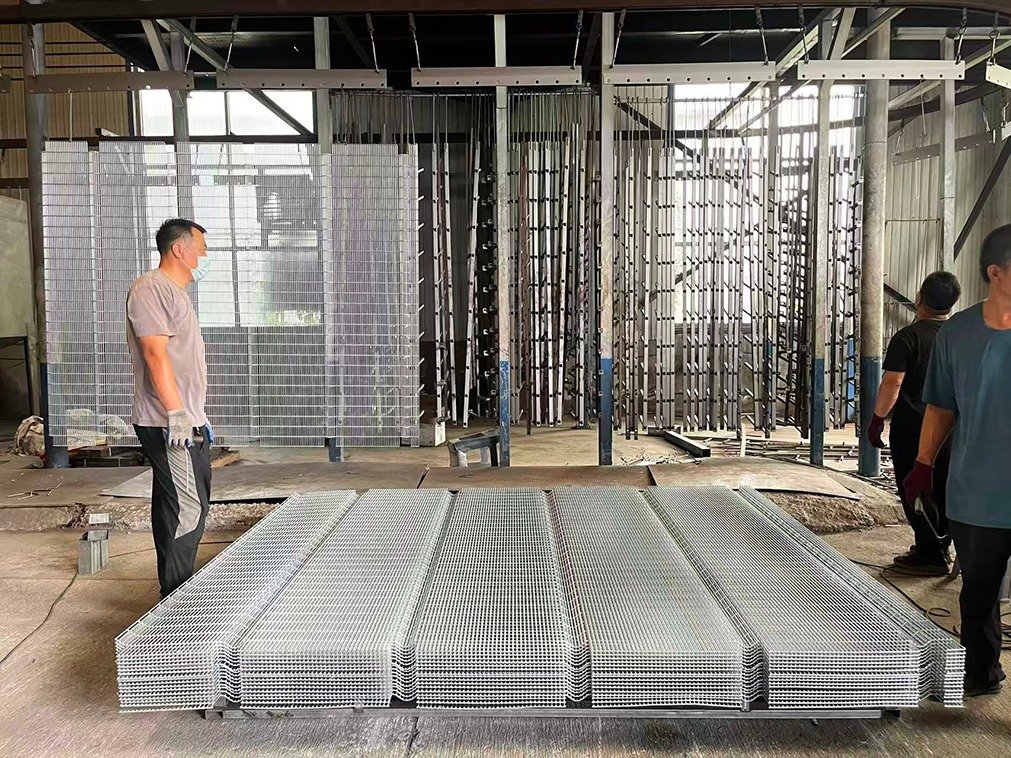

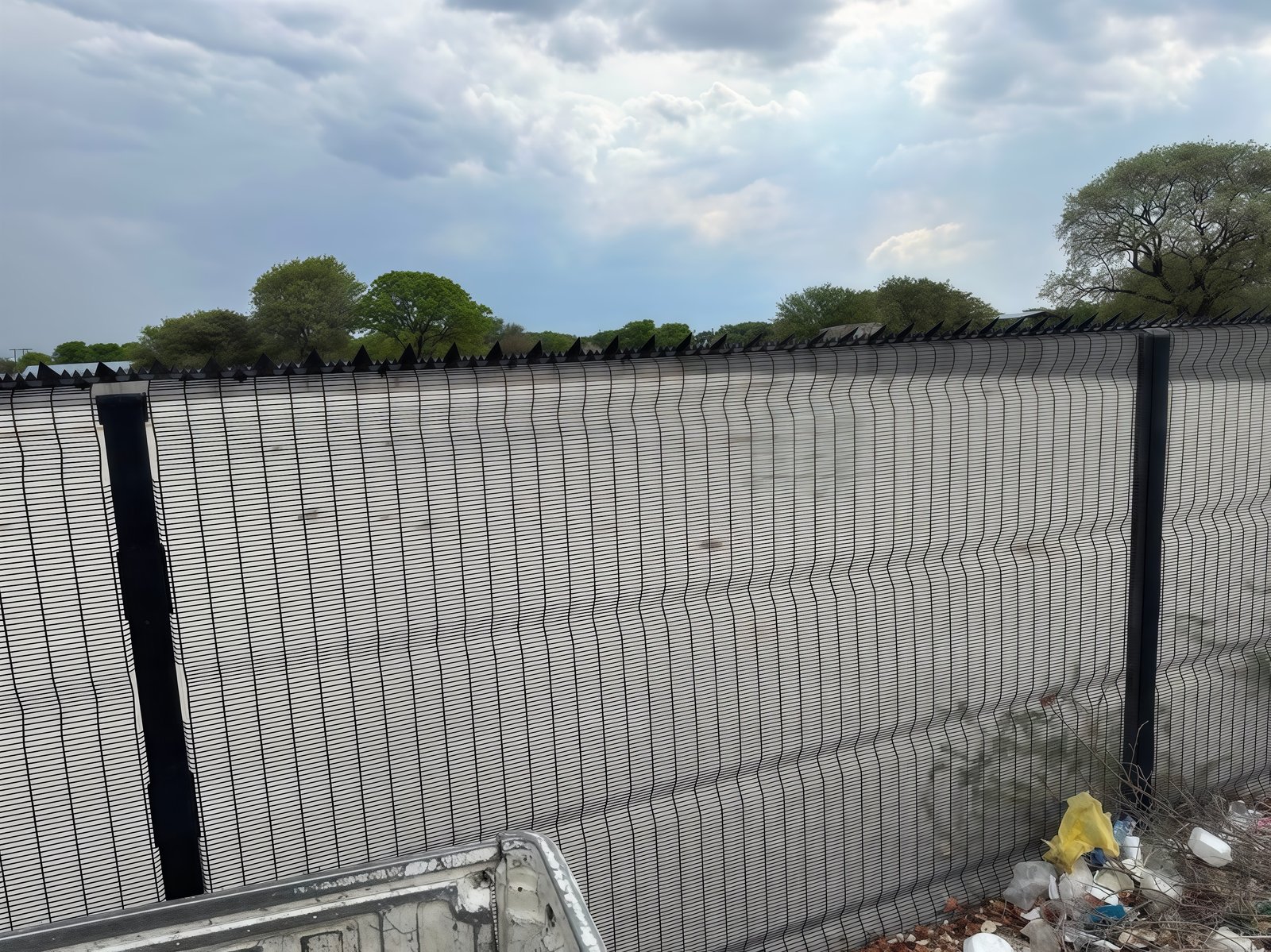

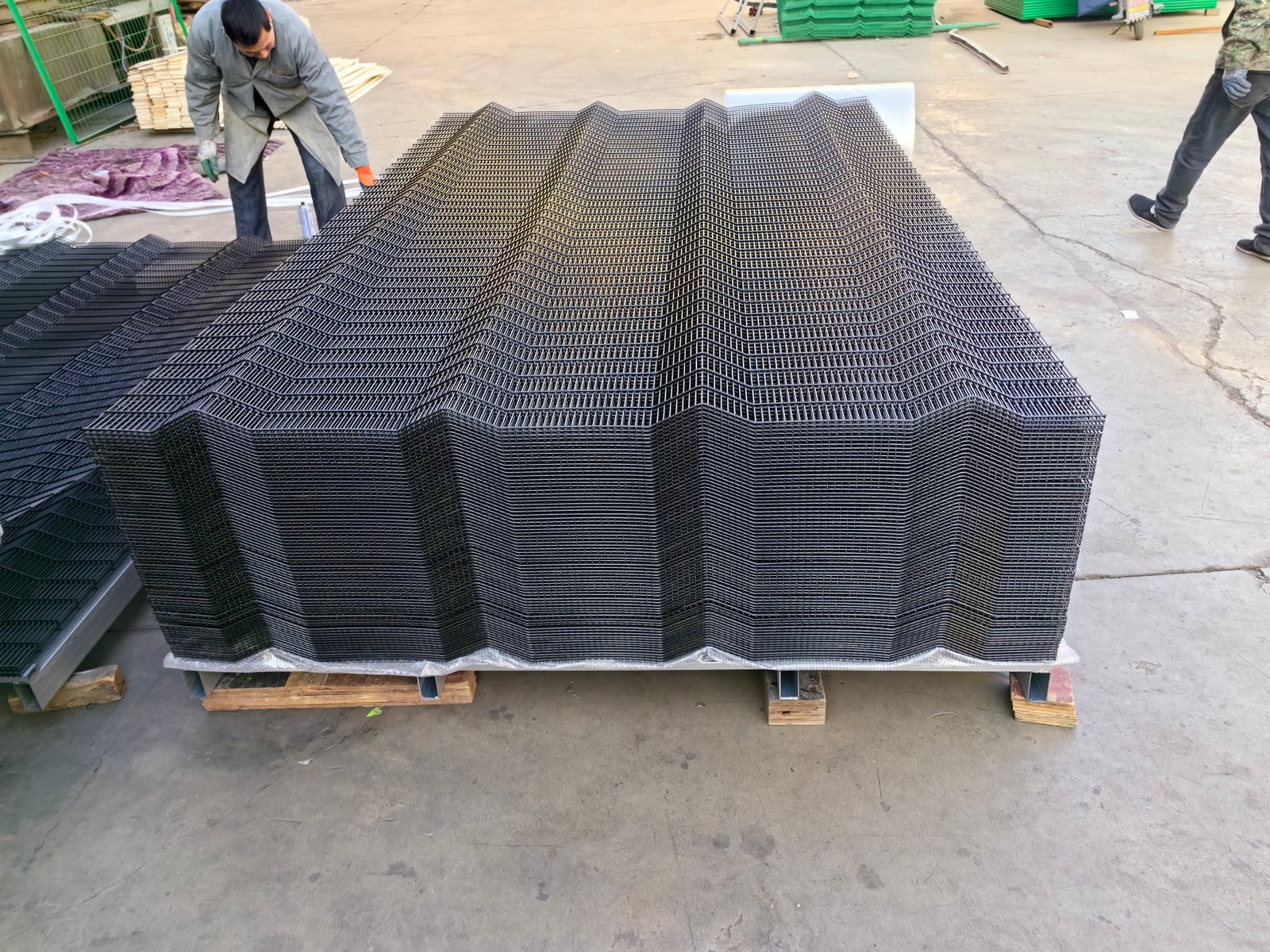

Flat 2D panels use a continuous welded grid without formed strengthening curves. A 3D panel introduces V-bends that change its rigidity and appearance. The source also describes 2D Plus with an additional horizontal wire every eleven mesh intervals.
Each version needs its own manufacturing drawing and connection schedule. An extra wire changes weight and local geometry. Never treat these construction types as automatic equivalents.
The original catalogue lists seven 3D panel heights and several width options. Its bracket quantities increase as panel height rises. All figures below remain as source references rather than structural approvals.
| Mesh Centres, mm | Panel Height, mm | Panel Width, mm | Wire Combinations, mm | V-Bends | Post Length, mm | Brackets |
|---|---|---|---|---|---|---|
| 76.2 × 12.7 / 75 × 12.5 / 101.6 × 12.7 | 1800 | 2500 / 2750 / 3000 | 3.0 × 4.0 / 3.2 × 4.0 / 3.4 × 4.0 | 3 | 2600 | 6 |
| 2000 | 2500 / 2750 / 3000 | 4 | 2700 | 7 | ||
| 2200 | 2500 / 2750 / 3000 | 4 | 2800 | 8 | ||
| 2400 | 2500 / 2750 / 3000 | 4 | 3000 | 9 | ||
| 2700 | 2500 / 2750 / 3000 | 5 | 3500 | 10 | ||
| 3000 | 2250 / 3000 | 5 | 4000 | 12 | ||
| 4000 | 2250 | 5 | 5200 | 14 |
These rows describe the source's 3D panel options. Flat 2D and reinforced 2D Plus variants need distinct wire schedules. ClearVu Fence Panels provide related product dimensions for comparisons.
Bracket quantities must correspond to the actual support arrangement. Intermediate posts, corners, terminals, and gates may need different fixing counts. The original bracket table does not establish one universal installation method.
A nominal panel width does not always equal the post-centre distance. Overlaps, clamp bars, and post geometry change effective bay coverage. Request a dimensioned elevation before preparing foundations.
Commercial yards may use taller panels than domestic garden boundaries. Higher steel surfaces create different loading and lifting requirements. Engineers should review the selected height against local wind and ground conditions.
Uniform height can simplify stock planning, although mixed zones sometimes suit a site better. School entrances may require safer edge treatment. Restricted plant areas could need different gate controls.
The source provides square, IPE, rectangular, and C-section profiles with flat bars. Each family needs compatible bolts and clamp geometry. Post thickness affects structural behaviour and attachment design.
| Catalogue Reference | Square Post | IPE Post | Rectangular Post | C-Post with Flat Bar |
|---|---|---|---|---|
| Popular Size A | 60 × 60 mm | 100 × 55 mm | 60 × 80 mm | 60 × 80 mm |
| Popular Size B | 80 × 80 mm | 100 × 68 mm | 80 × 100 mm | 80 × 100 mm |
| Popular Size C | 100 × 100 mm | 120 × 74 mm | 100 × 150 mm | 100 × 150 mm |
| Original Thickness Range | 1.2–1.5 mm | 1.2–2.0 mm | 2.5–5.0 mm | 2.0–5.0 mm |
These dimensions reproduce catalogue options without implying each section suits every fence height. The final post size depends on loads and foundation design. Thin-walled profiles may be unsuitable for taller exposed boundaries.

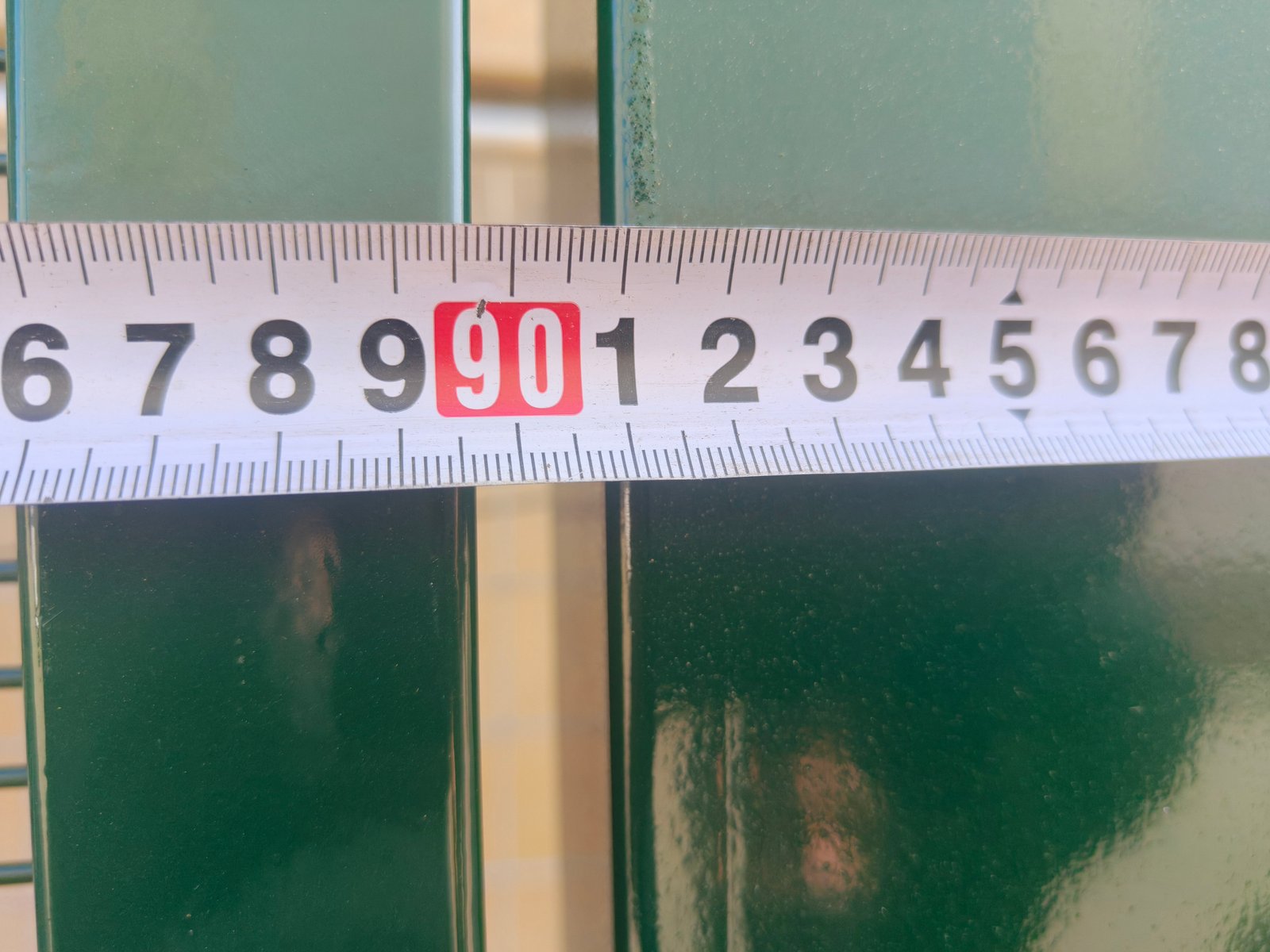

A Clear View Fence Post can use different steel sections according to the approved assembly. I-shaped sections present different flange geometry from square hollow posts. ClearVu Fencing IPE Post drawings help identify suitable attachment details.
Flat bars can spread restraint along an edge, while localized clamps use separate fixing points. Neither system guarantees security without correctly sized hardware. A sample assembly should confirm hole alignment and bolt access.
Two meeting fence runs can load corner posts from different directions. Their connections may require separate flat bars or clamp plates. Installers should identify each corner before issuing the post schedule.
ClearVu Fence Clamps offer single and double fixing arrangements for suitable profiles. Choose the exact bolt and plate combination before drilling. Fastener replacement should not damage surrounding coatings.

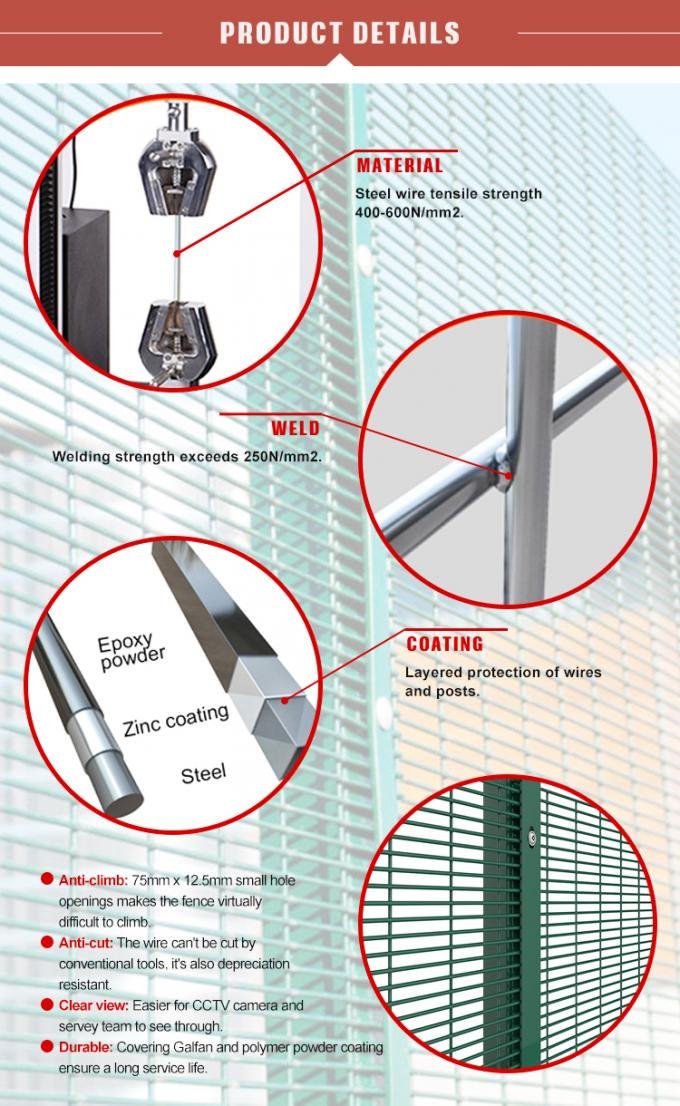

Surface protection matters in busy industrial environments where scratches and moisture can affect exposed steel. The original table distinguishes five treatment schedules for mesh and posts. Its abbreviations appear below with their source meanings.
| Component | ST1 | ST2 | ST3 | ST4 | ST5 |
|---|---|---|---|---|---|
| Mesh | PRE-EDG + PP | PRE-HDG + PP | PRE-GALFAN + PP | HDG | HDG + PP |
| Post | PRE-HDG + PP | HDG | HDG + PP | ||
PP means polyester powder coating, while HDG means hot-dip galvanizing. The catalogue uses EDG for electrogalvanizing and Galfan for zinc-aluminium alloy protection. These treatments need separate written manufacturing specifications.
| Source Coating Reference | Catalogue Figure | Procurement Clarification |
|---|---|---|
| ST2 pre-galvanized zinc class 1 | 40–60 g/m² | Verify coating mass and wire standard |
| ST2 pre-galvanized zinc class 2 | 80–100 g/m² | Confirm measurement and production route |
| ST2 pre-galvanized zinc class 3 | 200–300 g/m² | Confirm the agreed class on certificates |
| ST3 Galfan | 95% zinc / 5% aluminium | Verify alloy specification and coating mass |
| ST4 hot-dip galvanized | 75–100 µm | Confirm applicable component and testing standard |
Dark green RAL 6005 and black RAL 9005 suit many commercial landscapes. The original catalogue also lists yellow RAL 1021 and white RAL 9010. A colour specification cannot determine actual corrosion resistance.
Powder Coated Clear View Fence options illustrate other compatible finishes. Test zinc protection and polymer film separately when the contract requires both. Damage around welds and bolt holes needs appropriate repair.
Boksburg lies inland, so direct marine salt spray differs from exposure beside Durban's coastline. Summer rainfall, road dust, and industrial deposits can still affect coated steel. Moisture often accumulates near poorly detailed post bases.
Choose protection according to actual site conditions rather than a generic city label. Maintenance should include cleaning, inspection, and approved repairs. A coating warranty does not eliminate normal care.
The same fence geometry can serve different functions around a district. School sites need safe pedestrian access, while substations require restricted maintenance routes. Residential estates may prioritize visibility and architectural appearance.
Clear View Fencing South Africa covers multiple security mesh configurations. Each project should still choose dimensions through its own safety and risk assessment. Hazardous toppings require separate local review.
Residents may favour mesh that permits landscaping views and supervision near entrances. Security cameras still depend on lighting, angles, and clear approaches. Plants and parked vehicles can obstruct observation despite transparent panels.
Property managers should keep access gates reliable and pedestrian routes visible. A fence alone cannot establish a verified reduction in crime. Site-specific procedures complete the security plan.
Electrical facilities require controlled access and sufficient working clearances. Metallic fencing may also need specialist earthing and safety design. Those decisions belong to qualified project engineers.
The perimeter should permit emergency maintenance without exposing the public to operational hazards. Close mesh supports visual monitoring from the correct locations. Dedicated testing may be necessary for restricted infrastructure.

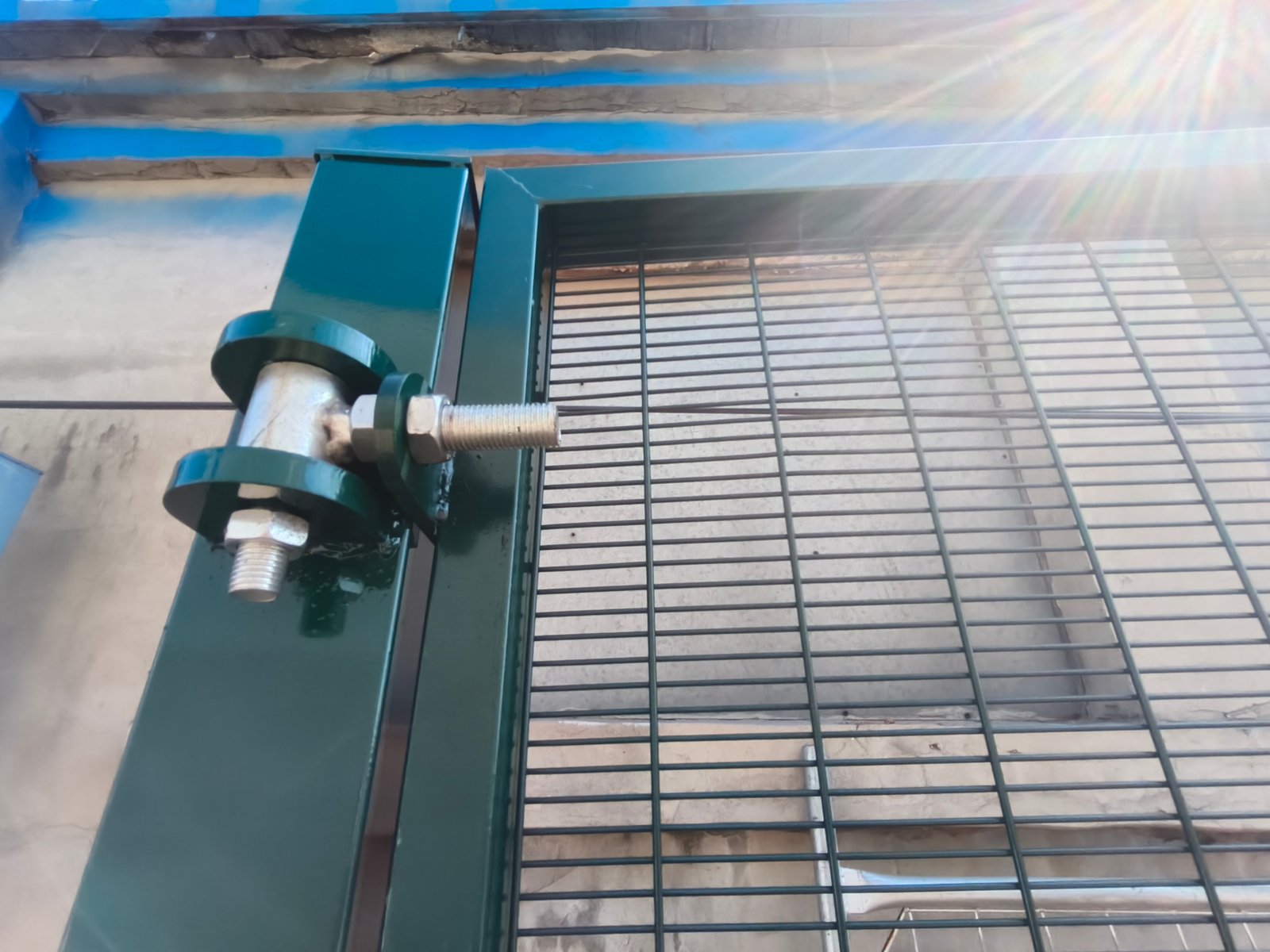

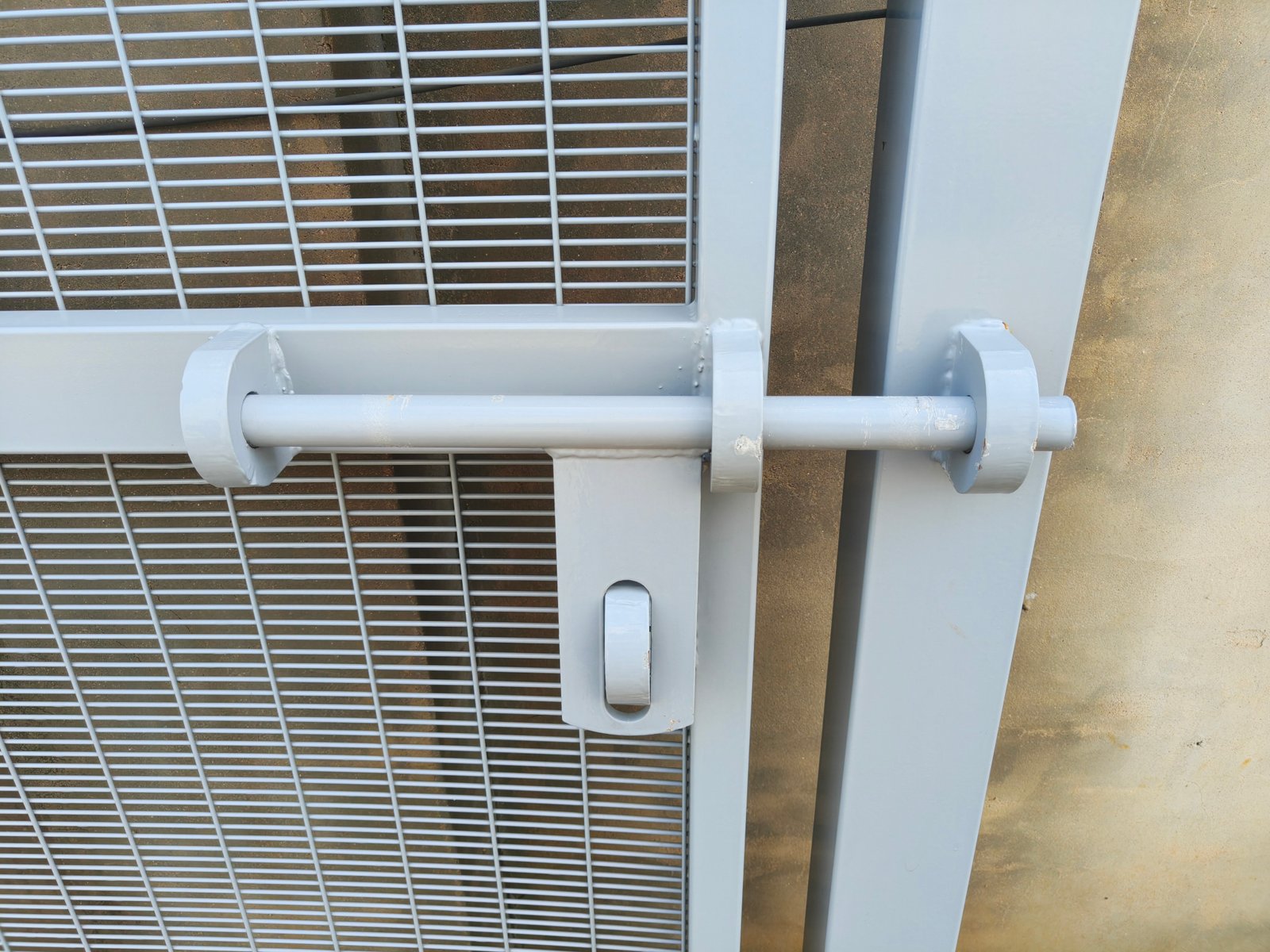

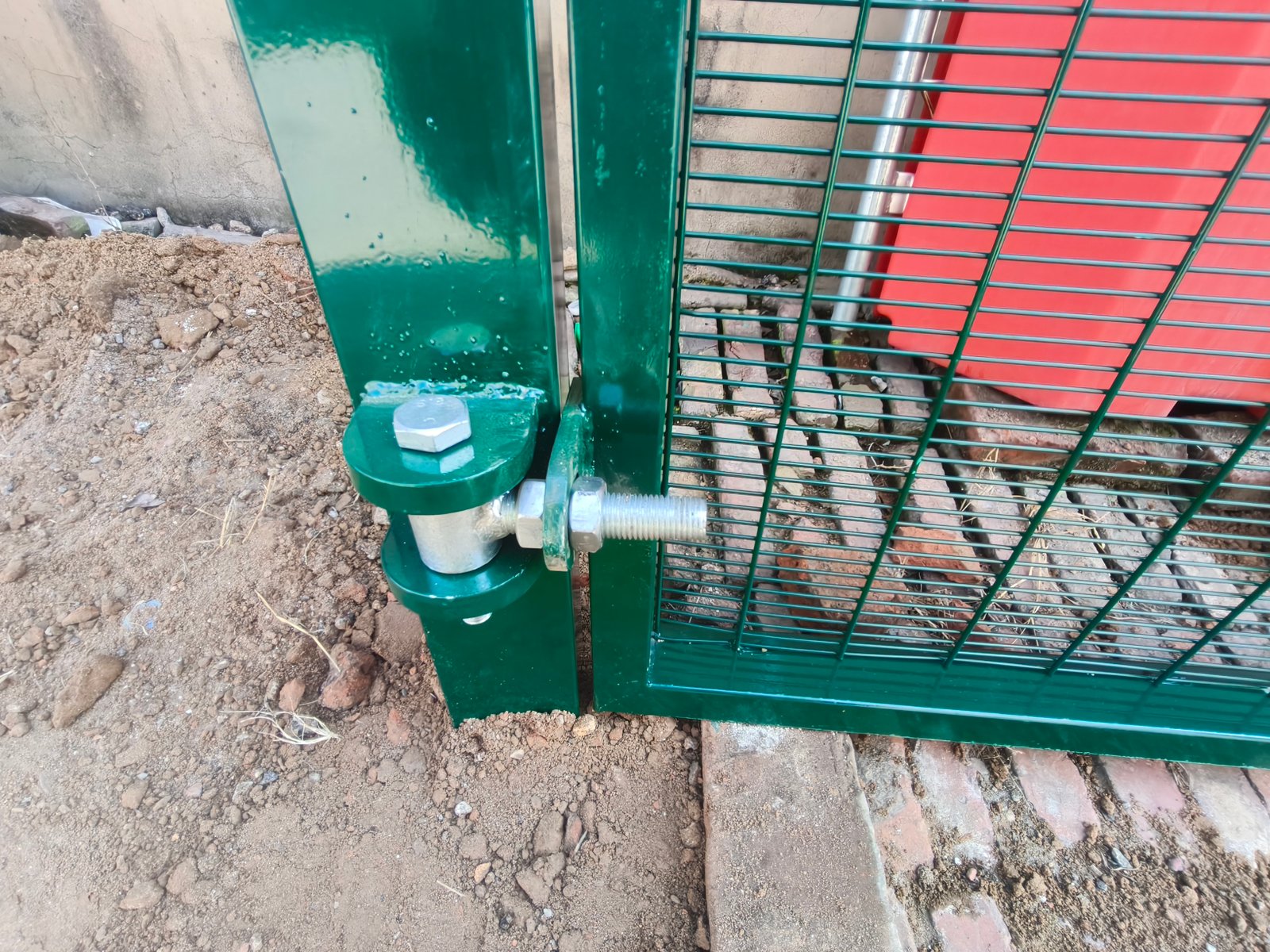

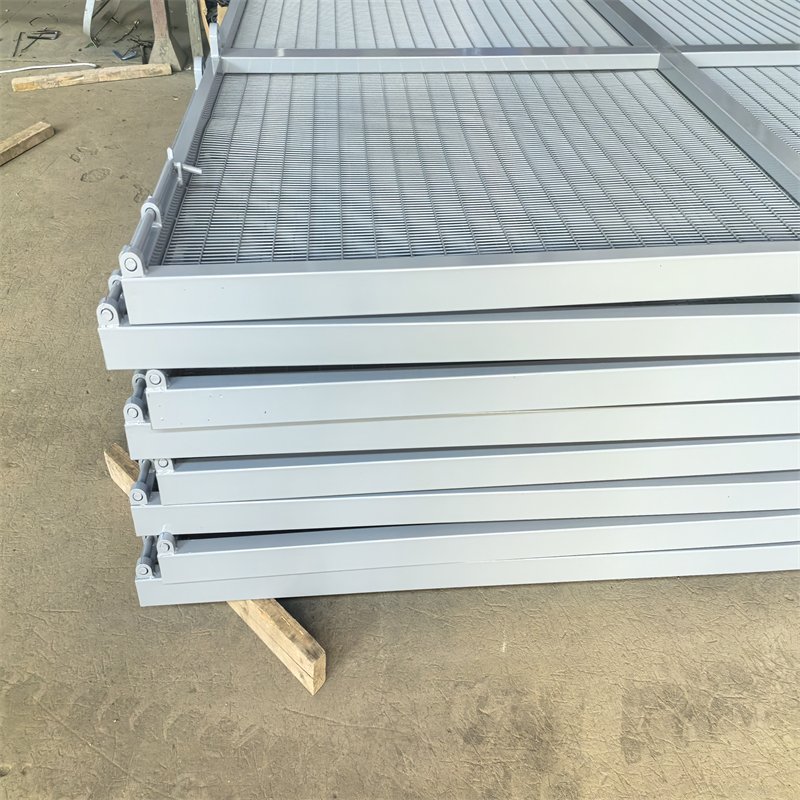

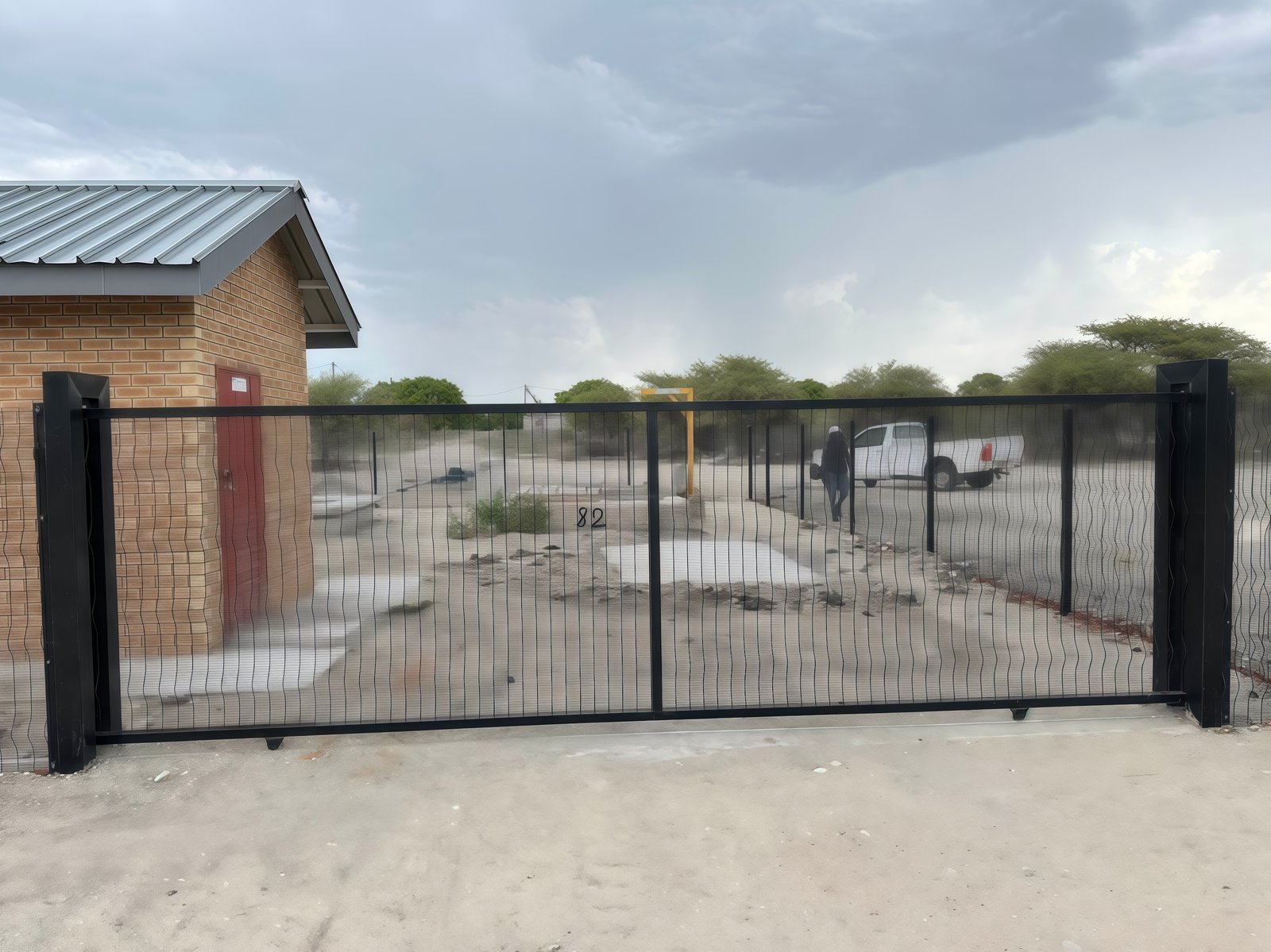

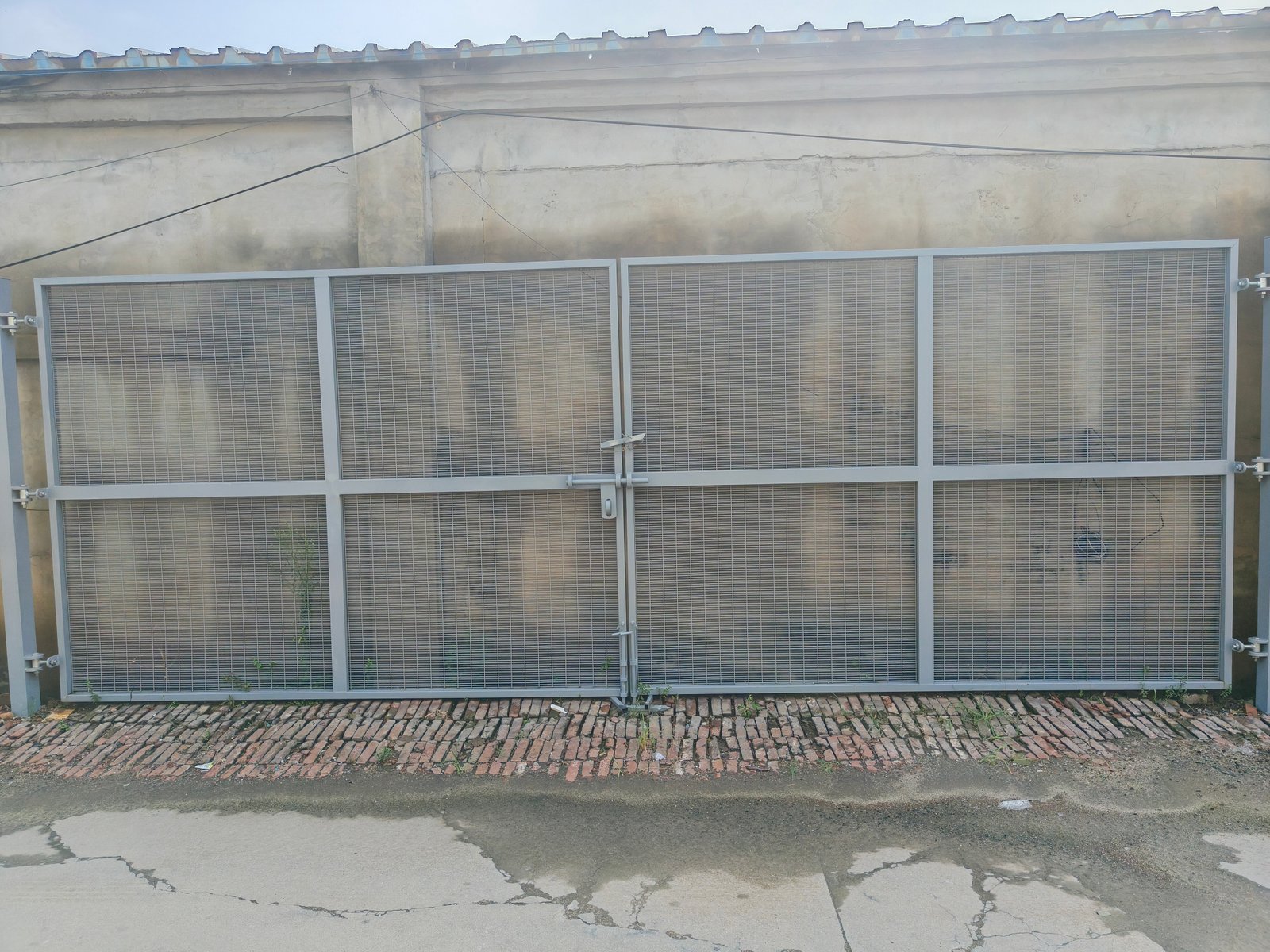

A well-built mesh boundary can fail operationally when the entrance works poorly. Gate hinges, motors, tracks, and locks deserve independent attention. Their supports often carry greater forces than intermediate fence posts.

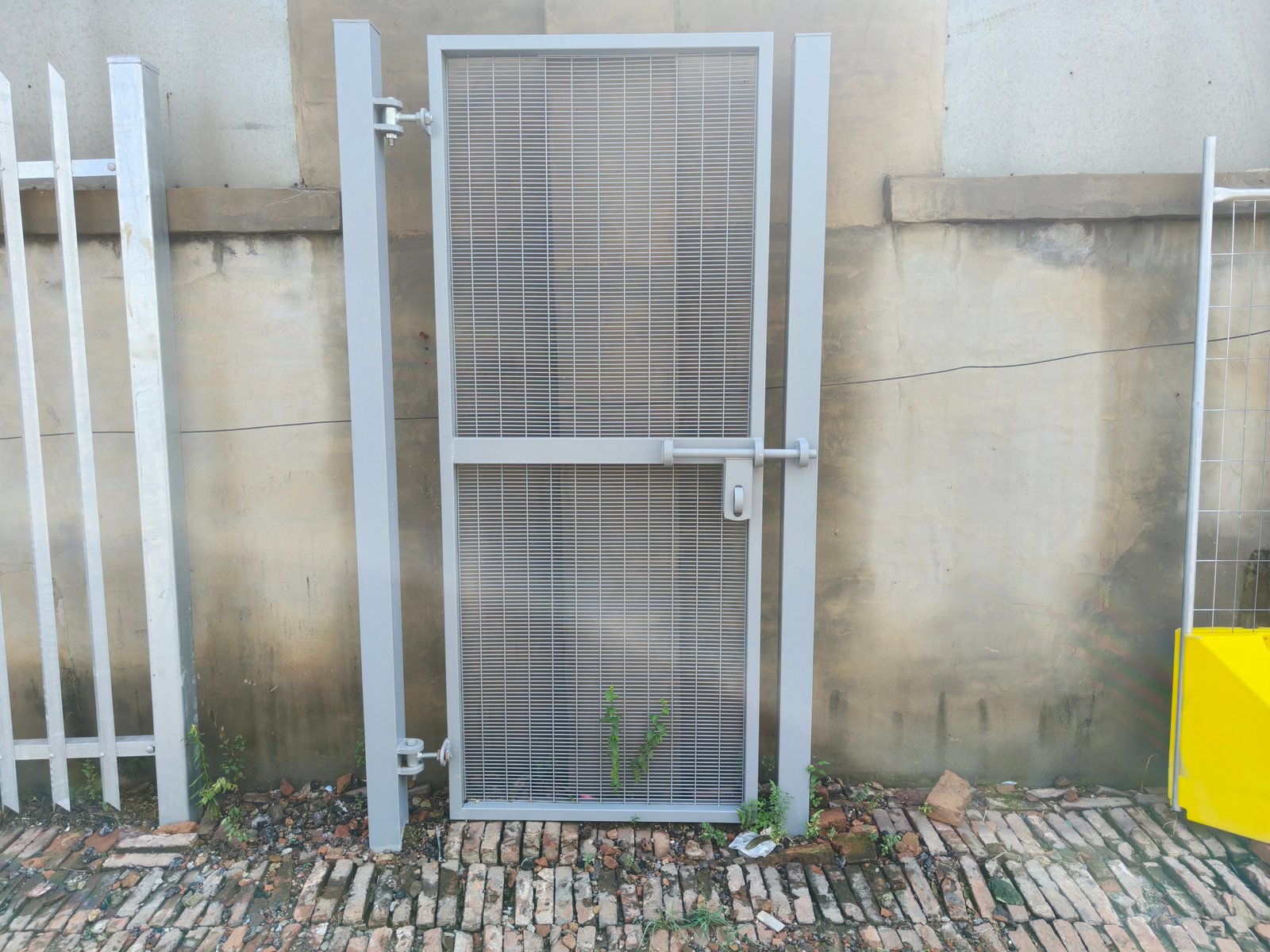

Pedestrian entrances and vehicle access should follow different movement patterns where practical. Clear View Fence Gates include pedestrian, swing, and sliding arrangements. Select the gate around the actual clearance and operating demand.
Truck routes may require wide openings and space for a moving gate leaf. ClearVu Fence Sliding Gates offer related manual and powered configurations. The site plan must confirm travel length and safe access.
Tracks need protection from debris and standing stormwater. Power loss arrangements also deserve early discussion. A gate should support emergency procedures without weakening ordinary access control.
A busy warehouse may separate delivery drivers from regular staff movement. Schools and estates also benefit from visible, supervised pedestrian approaches. Gate locking and safe egress require suitable local compliance.

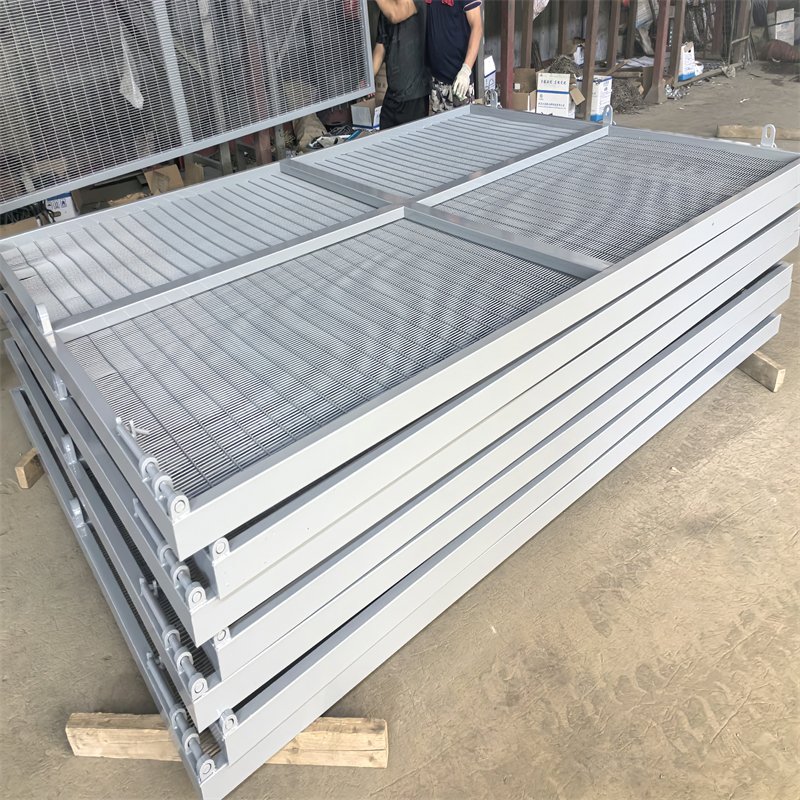

Matching mesh helps maintain a consistent appearance across fixed and moving sections. Structural calculations must address the actual gate frame. Secure fasteners alone cannot compensate for weak hinges.

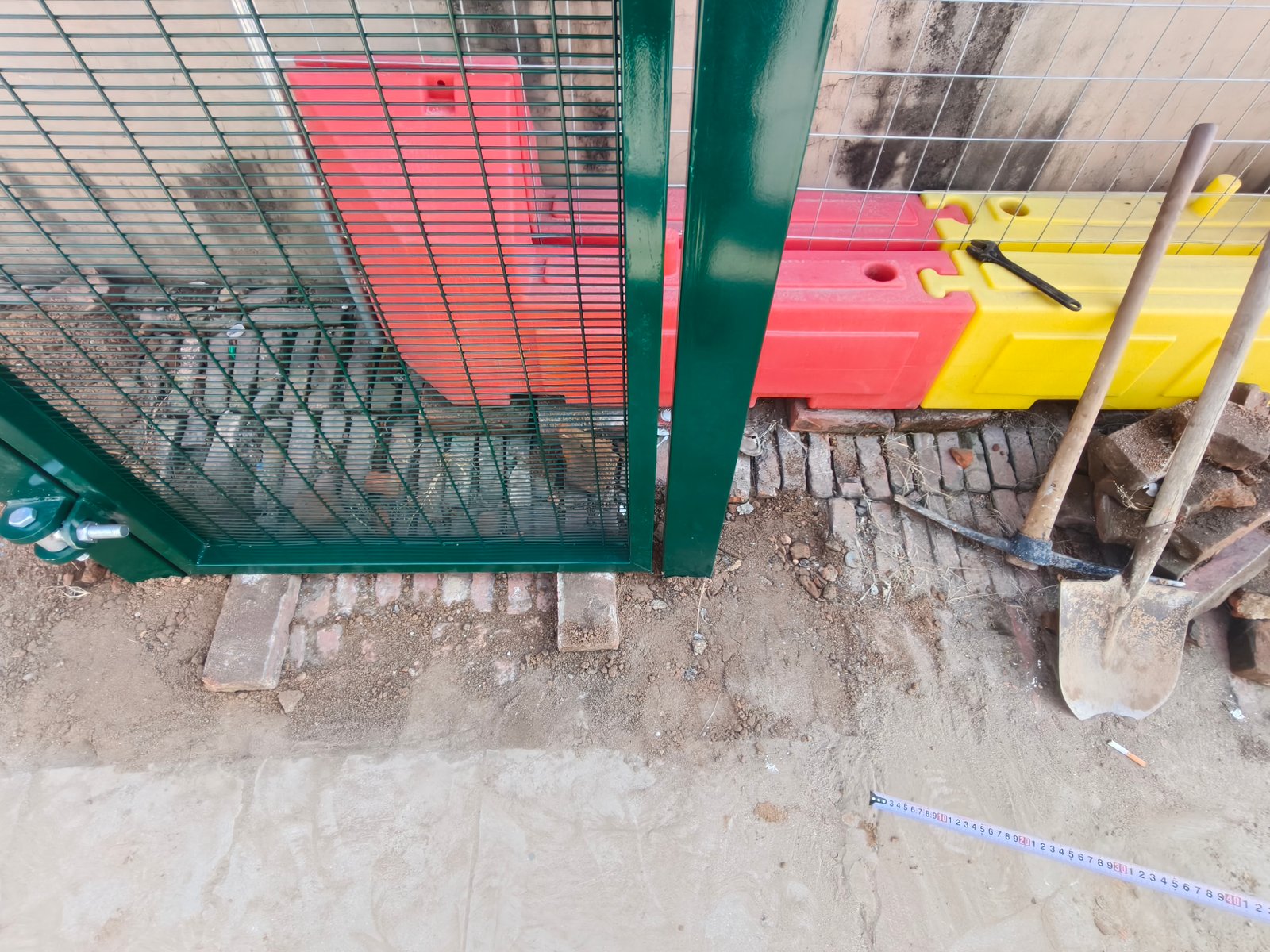

Contractors should survey boundaries, corners, slopes, gates, and underground services before excavation. Foundation size depends on steel loads and local ground conditions. A catalogue post length cannot replace engineering design.
For assembly sequencing, the ClearVu Fence Installation Guide outlines related preparation steps. Final construction must follow approved drawings. Contractors should also document damaged coatings before handover.
Urban properties may direct stormwater toward paved entrance areas. Poorly positioned base plates can obstruct existing flow paths. The foundation layout should respect drainage and nearby kerb levels.
Local erosion may expose steel or weaken ground support after repeated storms. Concrete details need adequate durability and approved curing. Routine inspections should include low fence edges and access tracks.
Sloping yards may require stepped panels or specially shaped closing bays. Either arrangement can change bottom clearance and effective width. Survey finished ground elevations before finalizing quantities.
Cutting coated steel on site may expose unprotected edges. Approved repair methods should accompany the installation schedule. Factory-prepared special panels can reduce unnecessary modifications.

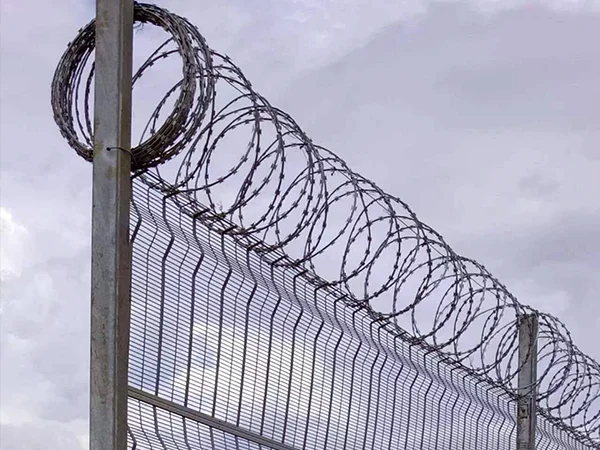

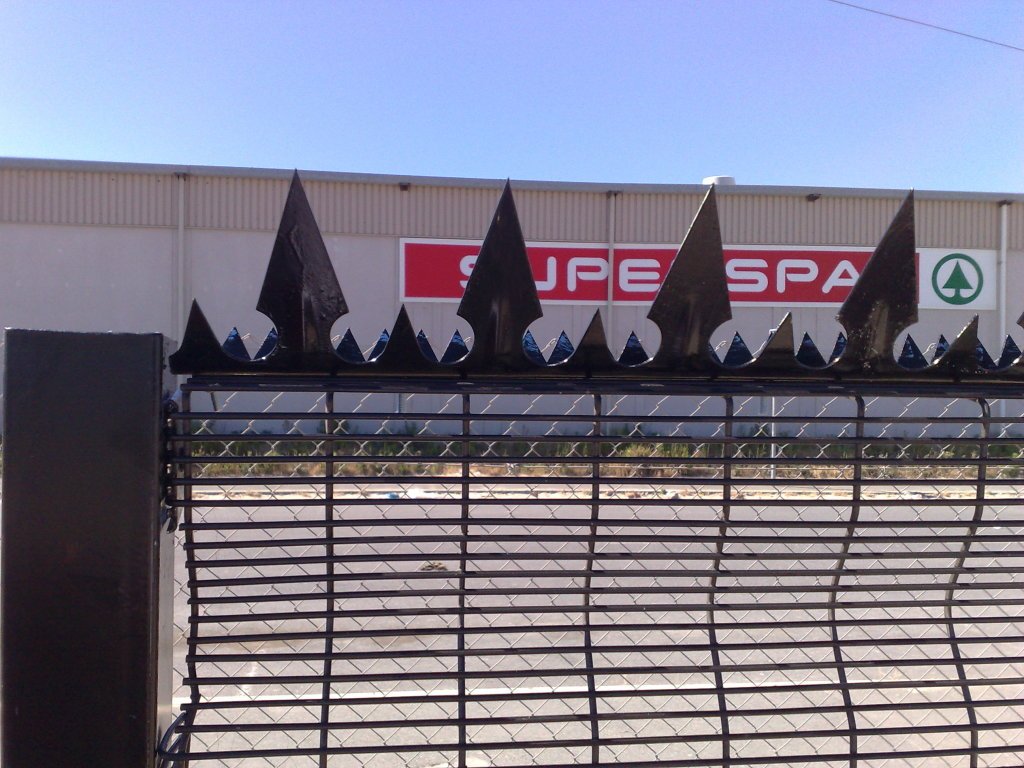

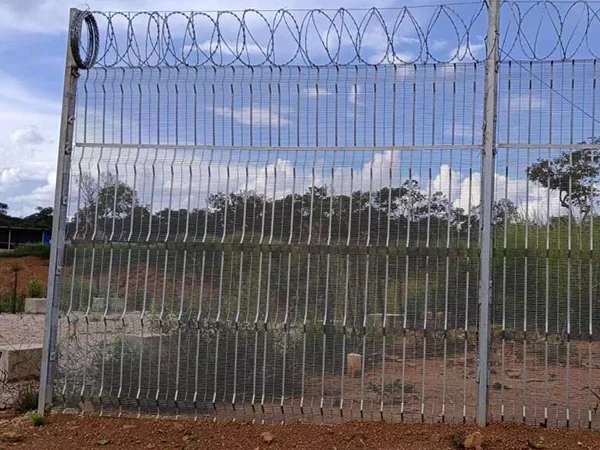

The source includes a narrow photograph illustrating an angled fence arm. An optional topping can add an additional deterrent at controlled sites. Its safety and structural implications require separate approval.
 |
| Original BMP accessory photograph: angled-arm reference; verify permissions, support strength, and safe placement before selecting toppings. |
Sharp wire toppings may be inappropriate near children or public pedestrian paths. Additional arms also increase loading and maintenance requirements. Never attach them without a suitable design and legal review.
Different fence categories solve different security and access problems. Dense welded mesh uses a close grid, while tubular pickets rely on separate steel members. Portable construction barriers emphasize mobility rather than permanent engineered foundations.
Corromesh offers another welded security mesh geometry. Garrison Security Fencing uses pickets and horizontal rails. Neither product should replace a specified mesh without technical approval.
Renovations sometimes require movable separation before permanent footings are ready. Temporary Construction Fencing serves this changing worksite role. Its portable feet cannot replace the foundation design for permanent security mesh.
Construction access should remain controlled during each phase. Schedule installation around drainage, deliveries, and pedestrian movement. Distinct plans help prevent unsafe gaps during changeovers.
Quotations should identify panels, posts, clamps, gates, finishing, and freight separately. Different suppliers may omit accessories from their initial material rates. A common bill of quantities helps buyers compare equivalent scope.
ClearVu Fencing Specifications can help organize the relevant component questions. Confirm all selected dimensions in a final signed drawing. BMP can also review regional ClearVu Fence Panels references for related mesh options.
BMP offers a 15-year manufacturer warranty for its ClearVu and Clearview fencing under applicable written terms. Customers should confirm which products and finishes receive coverage. Proper installation and regular maintenance remain important.
Inspection records should identify mesh dimensions, coating condition, and matching hardware. An approved drawing helps with replacement components later. Keep the packing list and material certificates alongside project records.

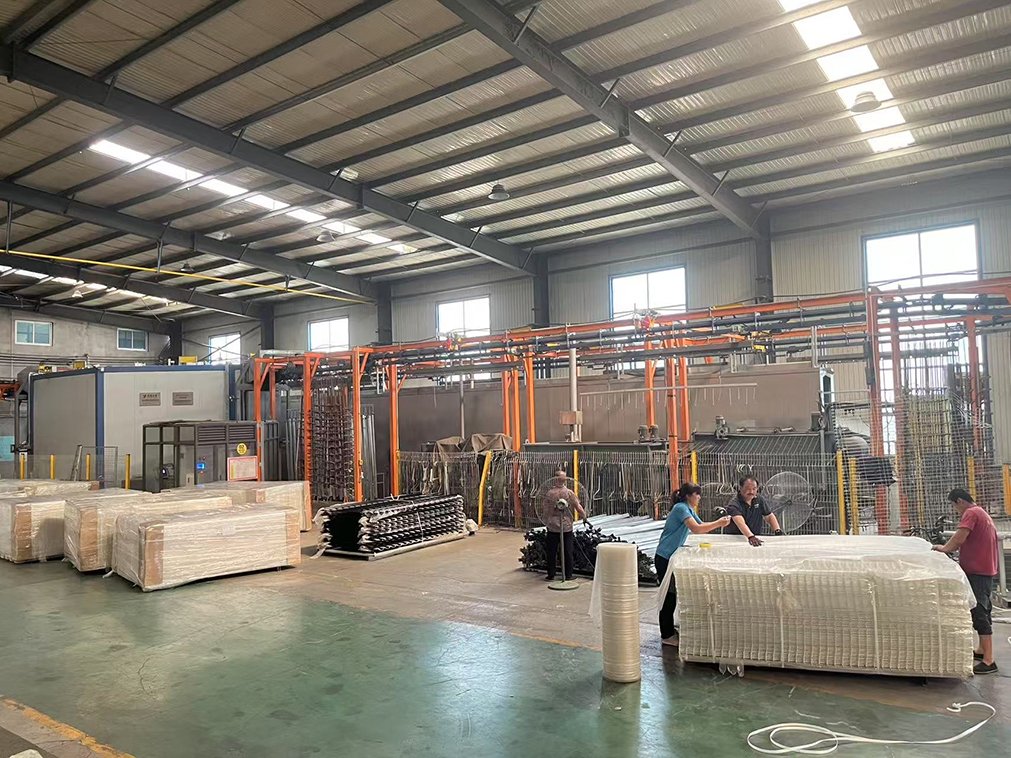

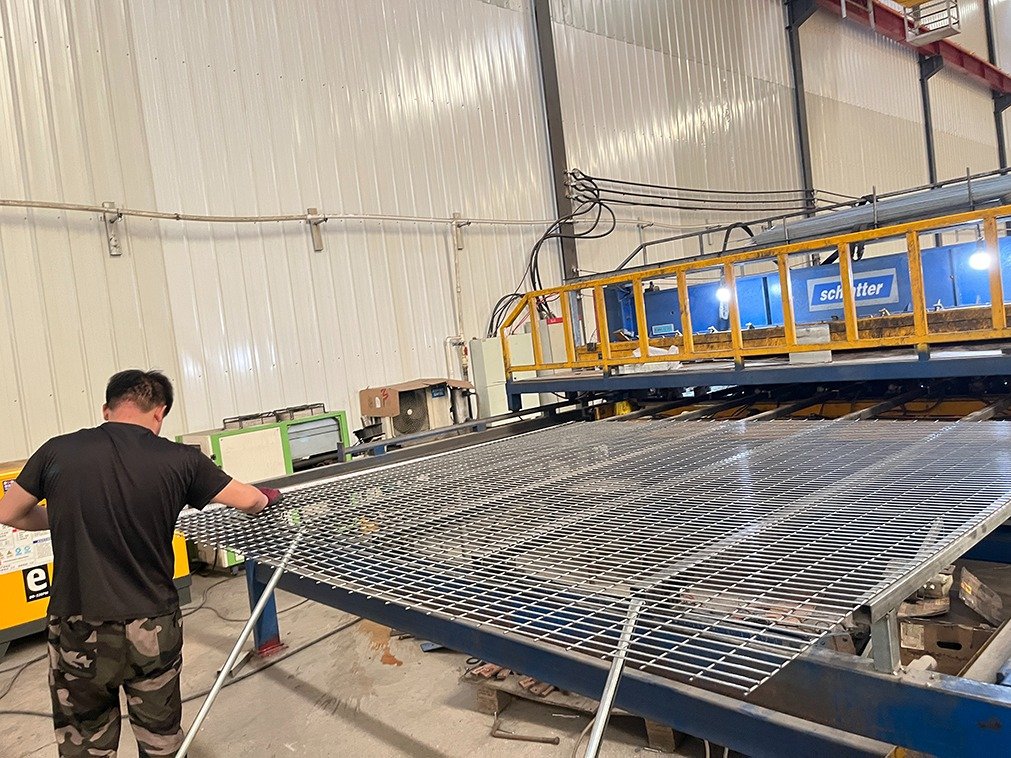

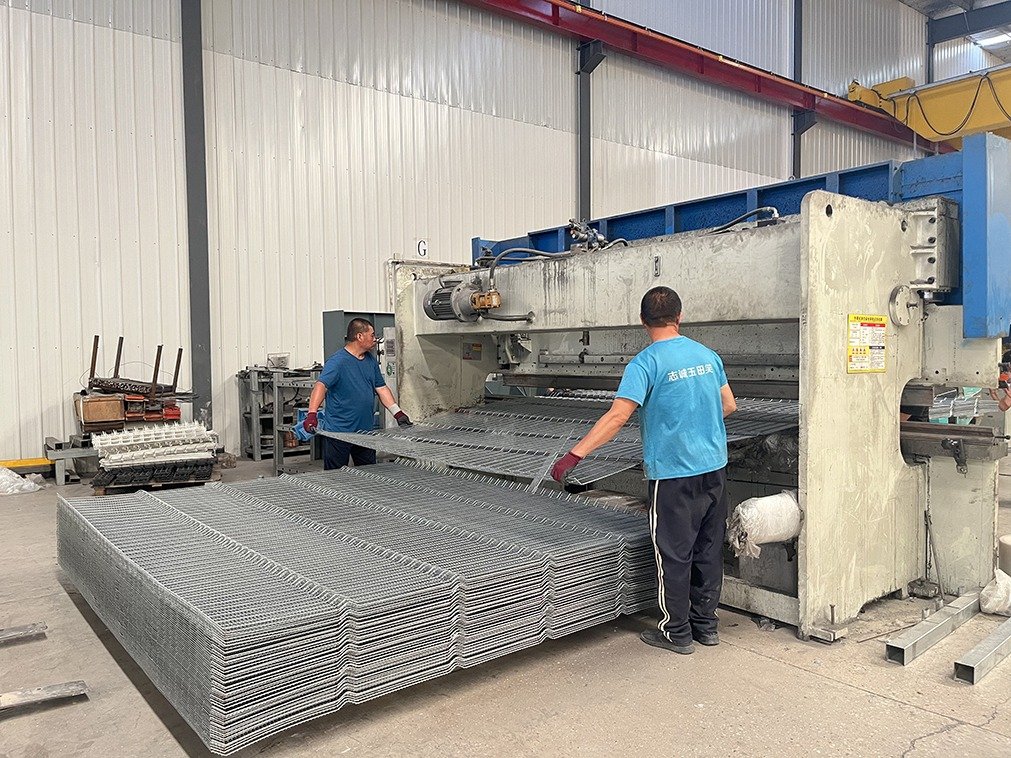

BMP manufactures welded security mesh, supporting steel posts, clamps, and matching gates for overseas project buyers. Boksburg customers can specify industrial, residential, or utility requirements against one coordinated schedule. The approved design should account for traffic, drainage, and property access.
Share your boundary drawing, security requirements, finish selection, and intended delivery destination. Include gate quantities and special installation conditions. A complete enquiry helps BMP prepare a consistent technical and commercial proposal.
