People searching clearview fencing chamberlains may want security mesh, steel posts, or materials for a boundary project. Chamberlains operates a South African hardware and building-supply retail business. BMP separately manufactures welded security fencing and matching steel components for project procurement.
These businesses serve different purchasing needs, and this article does not claim a retail partnership between them. Chamberlains lists metal sections and reinforcing materials within its broader building-material categories. Buyers should confirm whether any specific ClearVu or 358 panel appears in current local inventory.
For planned perimeter projects, Clear View Fence Panels provide a starting point for specifying welded mesh. Procurement should cover compatible posts, clamps, gates, protective coatings, and site engineering. A product name alone cannot establish the complete supplied package.
Retail stores can help customers find common construction supplies and selected steel materials. Specialized perimeter projects additionally require detailed panel drawings and coordinated fixing schedules. A manufacturer's quotation should state every component rather than assuming availability through a retailer.
Chamberlains operates branches across Gauteng, including an East Rand location in Benoni. Branch availability and fencing stock may change independently from BMP manufacturing schedules. Request current information from the relevant seller before promising delivery to a construction site.
Visible welded mesh suits projects requiring perimeter separation without an opaque wall. Close horizontal openings discourage easy climbing and retain useful observation through the boundary. Guards and cameras still need lighting, suitable angles, and unobstructed approaches.
High Security Clear View Fence systems combine dense mesh with suitable supports and secure fittings. A steel panel cannot compensate for an unlocked gate or weak foundation. Treat surveillance, access management, and physical barriers as connected design elements.
The industry uses 358 for approximately three-inch by half-inch wire spacing with eight-gauge steel. Metric references commonly describe 76.2 × 12.7 mm centres and roughly 4 mm wire. These dimensions represent pitch rather than the empty space between the strands.

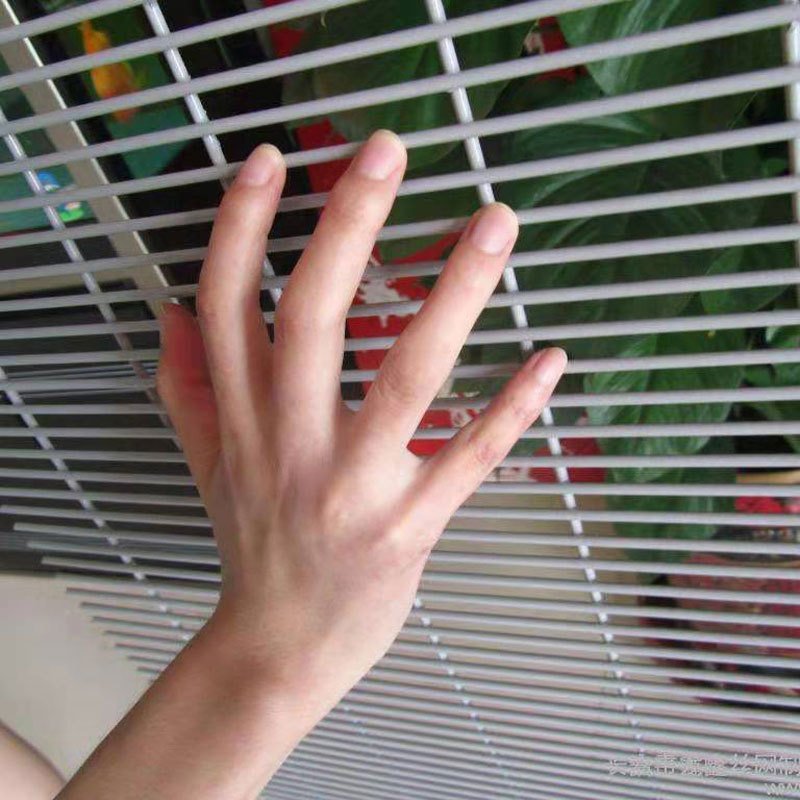

With 358 Mesh Fence, tight spacing restricts convenient finger and toe holds. Welded intersections also help maintain the grid's overall shape. However, no welded barrier guarantees protection against every cutting tool or intrusion attempt.
Not every estate, school, or storage yard requires the same mesh density. A wider aperture can reduce steel consumption while preserving visibility. Buyers should document the required security objective before choosing the alternative.
ClearVu Fence Panels include several reference wire diameters and panel heights. Each configuration needs a compatible post and clamp arrangement. A catalogue comparison does not replace approved site drawings.
The source document provides nine panel configurations, ranging from nominal 2.0 m to 5.2 m heights. Its reference width remains 2515 mm throughout the schedule. Fixing quantities increase with panel height and double at corner locations.
The table below retains the source values, including its inconsistencies and unfilled post selections. Buyers should resolve those entries before the factory prepares a final production drawing. Nominal height labels should not override actual measured panel dimensions.
| Nominal Fence Height (m) | Source Panel Height × Width (mm) | Source Post Section | Post Length (mm) | Intermediate Fixings | Corner Fixings |
|---|---|---|---|---|---|
| 2.0 | 2007 × 2515 | 60 × 60 × 2.5 mm | 2700 | 7 | 14 |
| 2.4 | 2400 × 2515 | * Not specified in source | 3100 | 9 | 18 |
| 3.0 | 2400 × 2515 | 80 × 80 × 2.5 mm | 3800 | 11 | 22 |
| 3.3 | 2997 × 2515 | * Not specified in source | 4200 | 12 | 24 |
| 3.6 | 3302 × 2515 | 100 × 60 × 3.0 mm | 4500 | 13 | 26 |
| 3.6 | 3607 × 2515 | 100 × 100 × 3.0 mm | 4500 | 13 | 26 |
| 4.2 | 4204 × 2515 | 100 × 100 × 4.0 mm | 5200 | 15 | 30 |
| 4.5 | 4496 × 2515 | 100 × 100 × 5.0 mm | 5500 | 16 | 32 |
| 5.2 | 5207 × 2515 | 120 × 120 × 5.0 mm | 6200 | 18 | 36 |
The 3.0 m row shows a 2400 mm panel, while the 3.3 m row shows 2997 mm. These heights do not directly match their nominal labels. Accordingly, engineers should request corrected production drawings rather than silently changing the historical catalogue.
The source also uses asterisks instead of two post sections. No responsible supplier should invent missing wall thicknesses from adjacent rows. Request written confirmation before calculating material quantities or footing positions.
Corner locations connect fence runs from two directions and may require separate hardware sets. The original catalogue counts fourteen corner fixings beside seven intermediate fixings at nominal 2.0 m height. Other post and clamp systems may calculate quantities differently.
Count ends, corners, intermediate posts, and gate supports separately. An approved fixing drawing should guide actual installation quantities. Avoid treating one bracket count as universal across the entire perimeter.

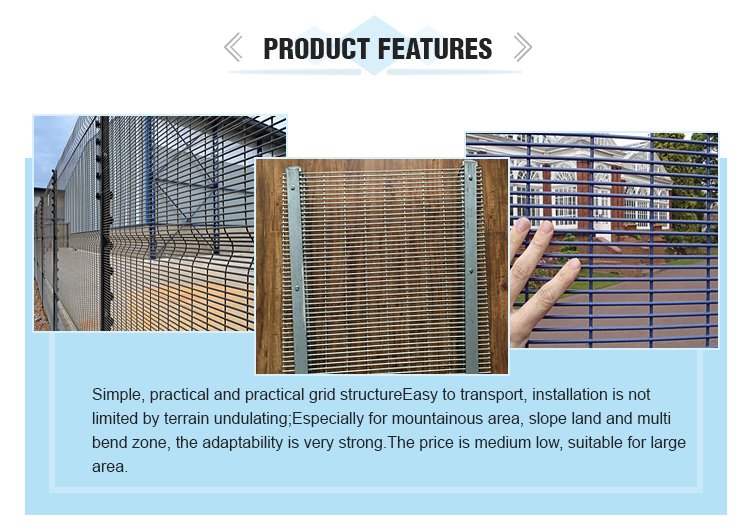

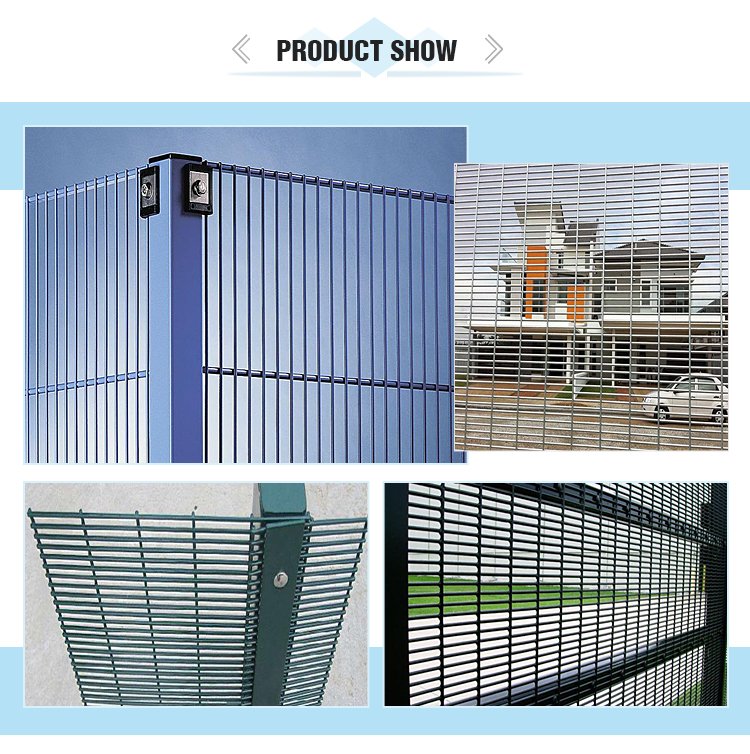

The following four BMP photographs come directly from the supplied article. Their original image addresses remain intact within a simple WordPress table. Each caption identifies the photograph as a product reference rather than inventing unseen dimensions.
 |
 |

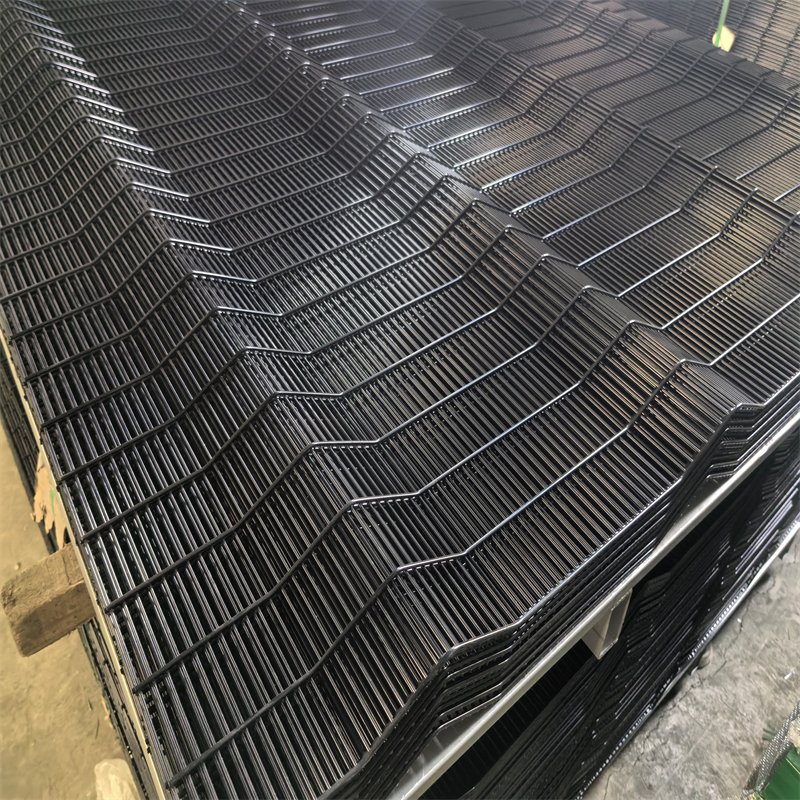

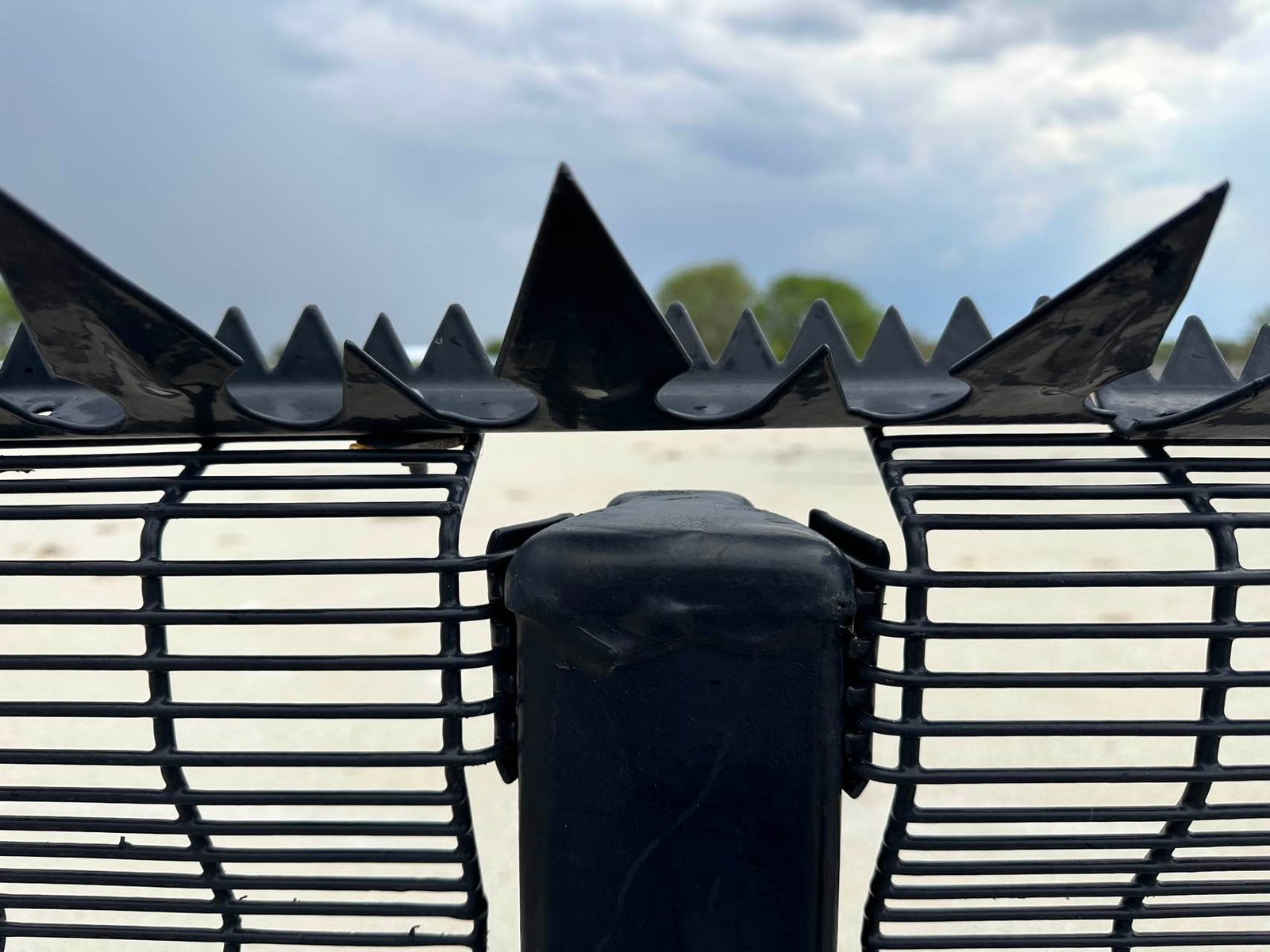

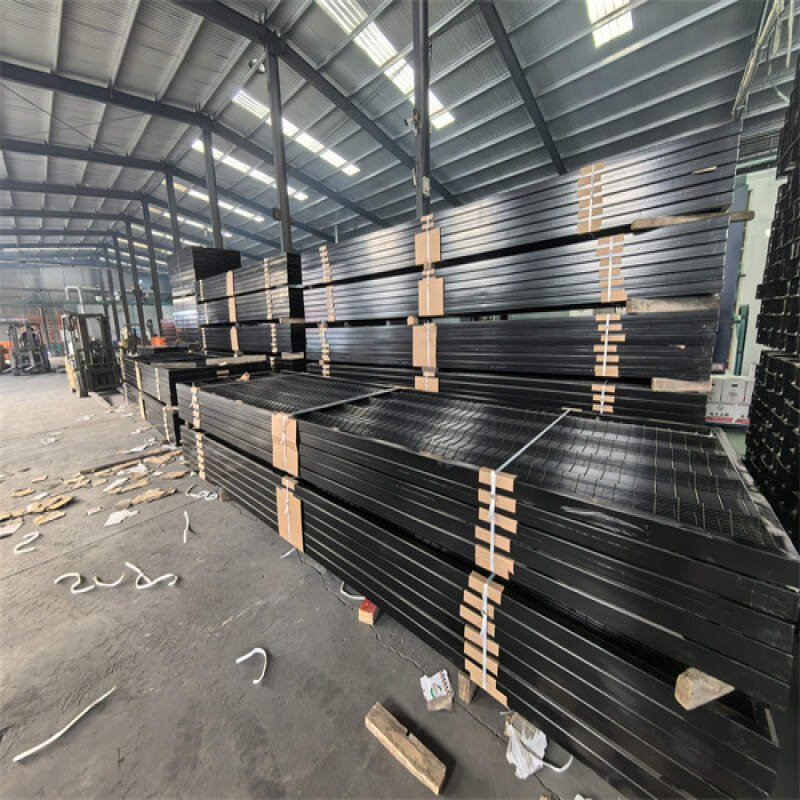

| Original BMP image 1: clear-view steel security fencing product reference. | Original BMP image 2: compare overall panel appearance with the approved catalogue. |
 |
 |

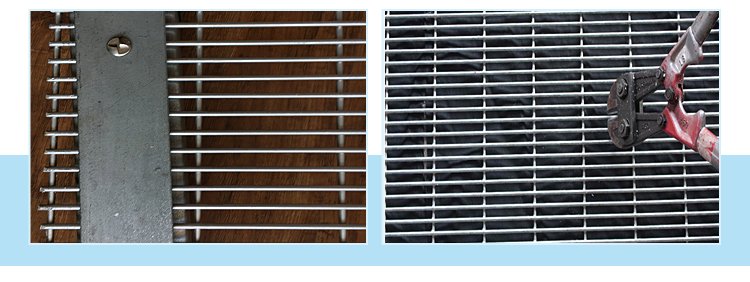

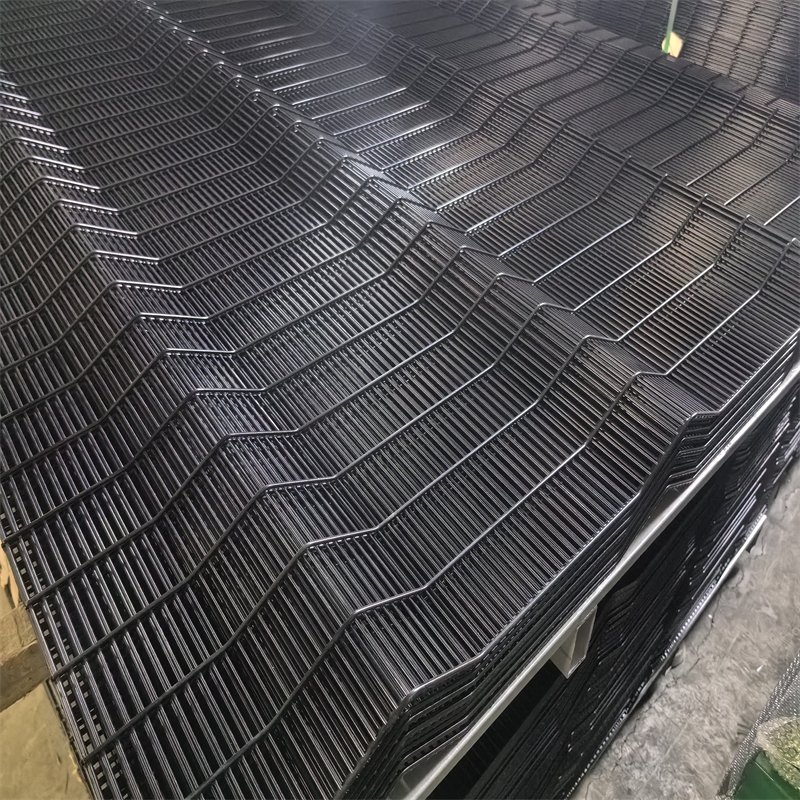

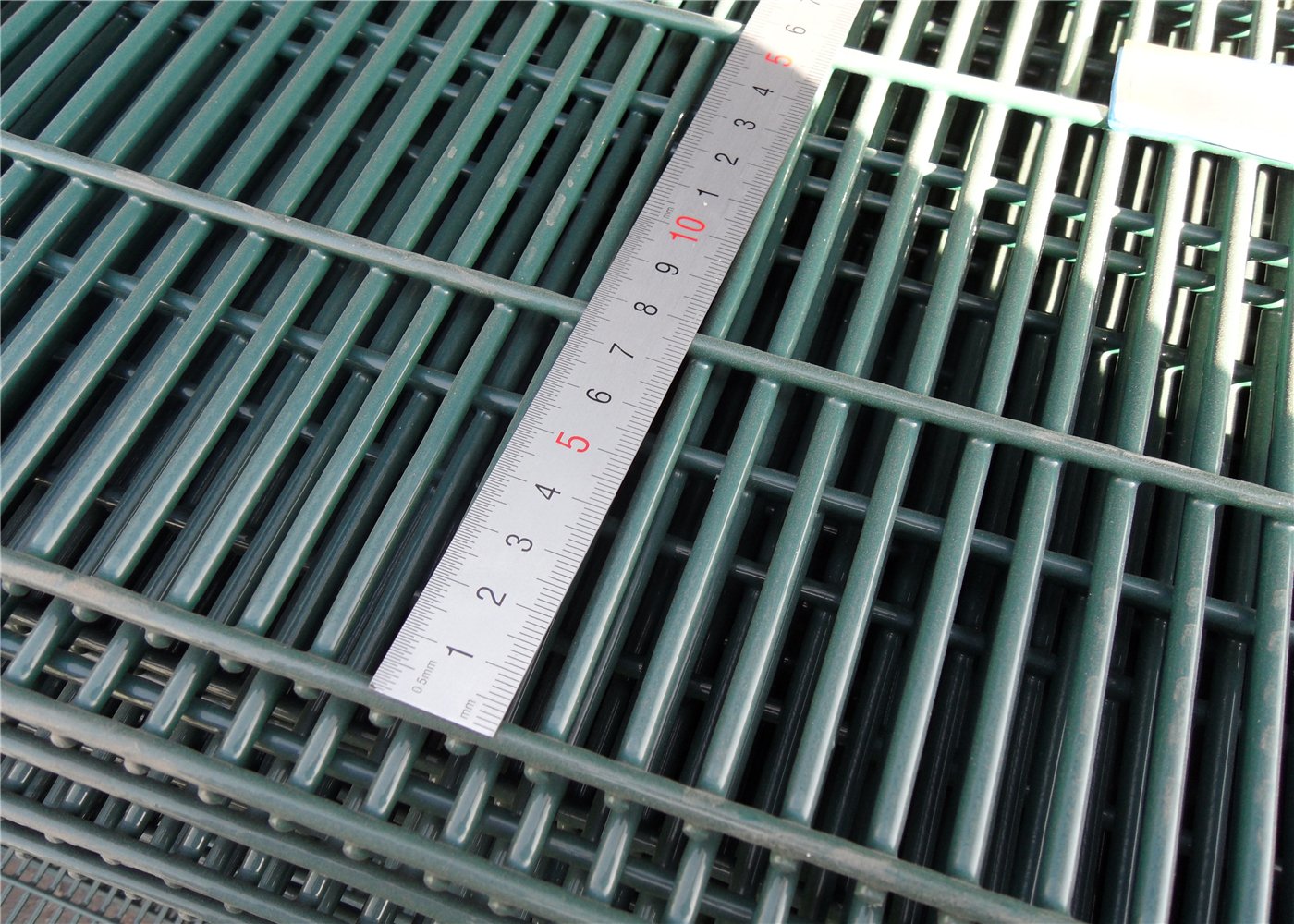

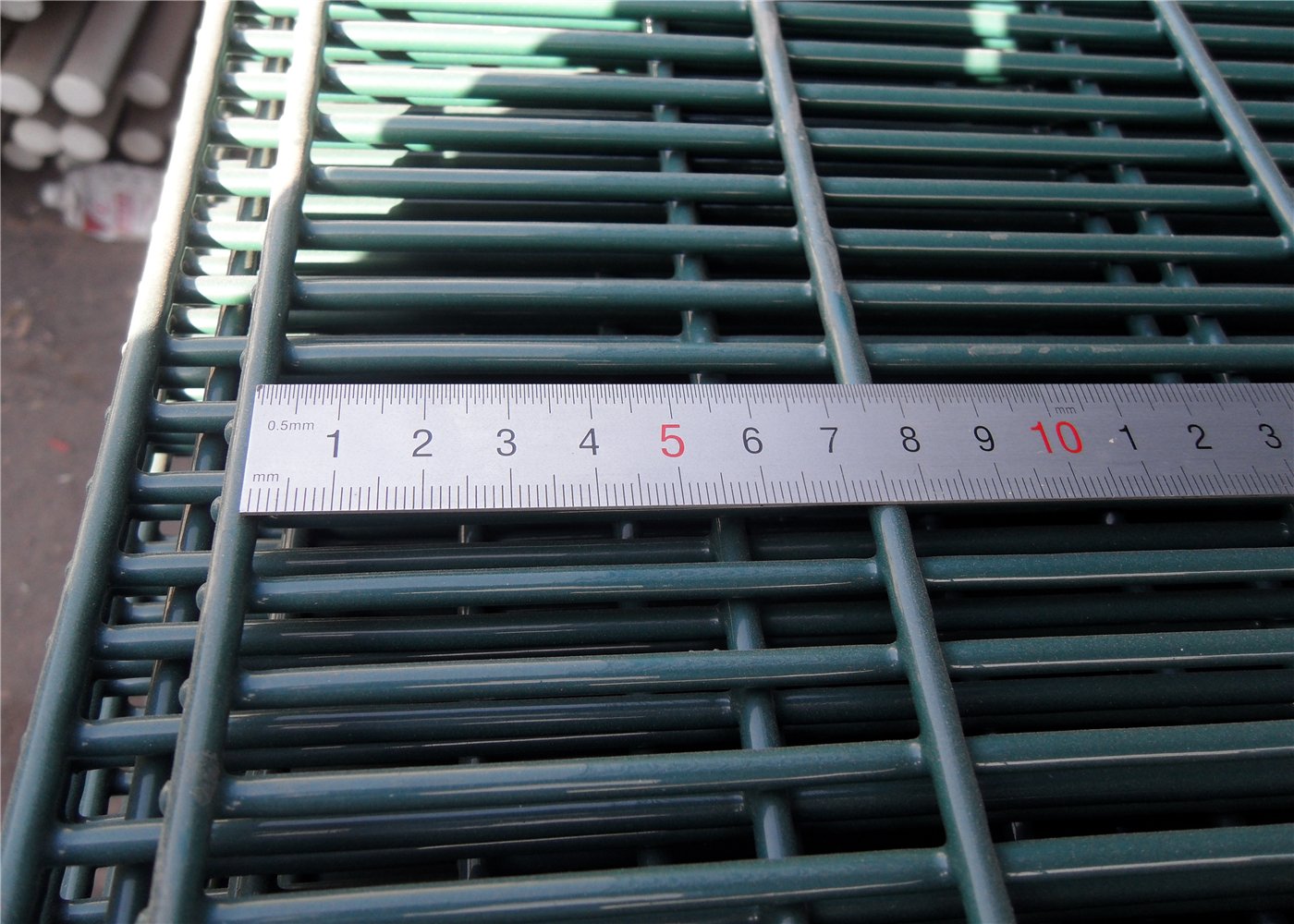

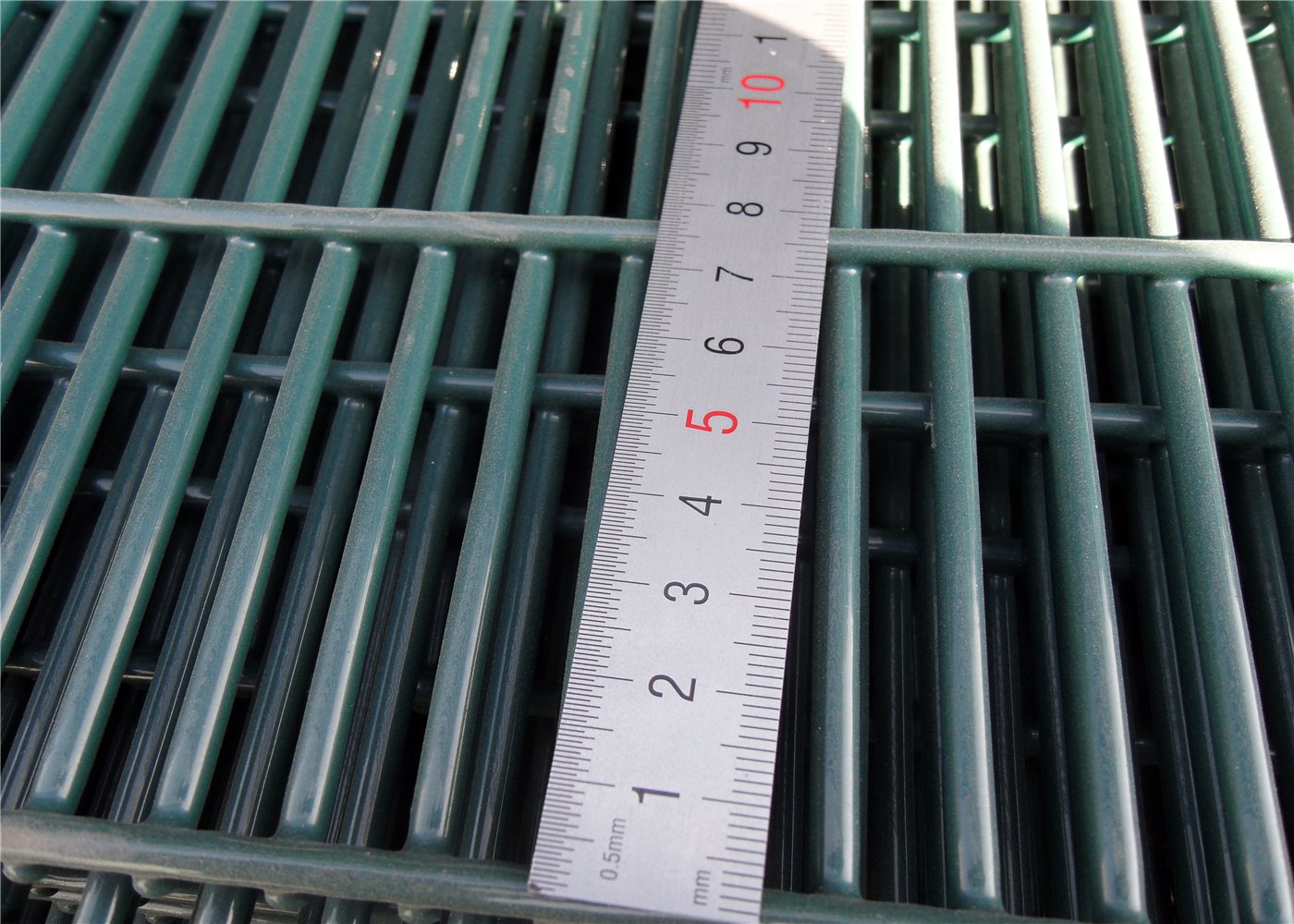

| Original BMP image 3: use wire measurements to confirm the selected mesh option. | Original BMP image 4: review the fence finish and supporting steel arrangement. |
A catalogue post length should not serve as a universal footing design. Wind pressure, soil bearing, panel size, and ground slopes influence foundation requirements. Tall fences increase loading and need competent local engineering.
Clear View Fence Post options include square, rectangular, and shaped supports. Each section requires appropriate wall thickness and compatible steel connections. Post caps and protective finishes also deserve attention.
Gauteng boundaries often cross driveways, retaining structures, or changing ground levels. Stepped panels can follow some slopes while creating different lower-edge clearances. Survey finished ground levels before choosing special panel sizes.
Rainwater should not collect around post foundations or electric gate tracks. Concrete details and drainage routes need coordination with the civil works. Routine inspections should check erosion after summer thunderstorms.
Different post profiles offer different mounting faces and internal clearances. ClearVu Fencing IPE Post products use flanges and a central web. Square hollow sections instead provide flat exterior faces for selected fixing plates.
These profiles are not automatically interchangeable. Request detailed cross-section drawings, bolt positions, and protective coating requirements. A sample assembly can prevent expensive site drilling.
The original article lists four production routes involving galvanized steel and optional polymer coatings. Each route creates different requirements around welding and finishing. Choose one documented process rather than combining incompatible catalogue labels.
| Original Option | Source Surface Treatment | What Buyers Should Check |
|---|---|---|
| 1 | Hot-dip galvanized wire followed by PVC coating | Wire coating specification and protection around welds |
| 2 | Electrogalvanized wire followed by PVC coating | Zinc mass, pretreatment, and polymer adhesion |
| 3 | Hot-dip galvanizing after welding | Finished component suitability and zinc thickness |
| 4 | Electrogalvanizing after welding | Coverage, coating thickness, and corrosion testing |
The terms PVC coating and powder coating do not identify identical chemistries. Ask for the actual polymer product, application method, and curing requirements. Coating performance depends on preparation and environmental exposure.
Powder Coated Clear View Fence products offer several exterior colour options. Black and dark green are familiar choices for commercial and residential boundaries. The approved RAL colour cannot prove zinc thickness.
Check edges, fastener holes, and welded intersections for coating damage. Prompt repairs help reduce exposure at scratched surfaces. Actual warranty conditions should specify the selected finishing system.
Gauteng projects generally face inland rainfall, dust, and varying industrial deposits. Durban's coastal facilities may also encounter salt-laden air and persistent moisture. The same finish cannot promise identical service life across both environments.
Choose corrosion protection through site exposure and product testing. Coastal yards should inspect joints and post bases more frequently when conditions demand. Maintenance remains necessary even when galvanized steel receives a polymer topcoat.
Matching hardware is essential for consistent panel installation. Incorrect clamp shapes can leave gaps or damage protective coatings. Terminal posts and gate approaches may require different plates from ordinary intermediate bays.
ClearVu Fence Clamps provide selected single and double fastening options. Their bolts, plate thicknesses, and hole positions need confirmation on drawings. No supplier should count loose accessories without matching each post location.
Gates create moving loads and different safety requirements from fixed panels. Clear View Fence Gates can use welded mesh infill to match the perimeter. Hinges, latches, stops, and pedestrian access controls require separate scheduling.
ClearVu Fence Sliding Gates suit selected vehicle entrances with adequate side travel. Tracks need drainage and regular cleaning in outdoor environments. Motorized systems require appropriate operating safety arrangements.
A gate can compromise the boundary when locking hardware fails or staff leave it unsecured. CCTV should monitor practical approach routes rather than only the fence line. Security managers must plan emergency access alongside normal entry control.
Nearby vehicles can also strike posts during turning movements. Independent barriers may protect exposed gate supports around busy loading yards. The correct solution depends on traffic and structural review.
Two further original photographs accompany the source's product-detail section. They remain under the supplied BMP website domain. Their captions help readers identify inspection priorities without replacing factory measurements.
 |
 |

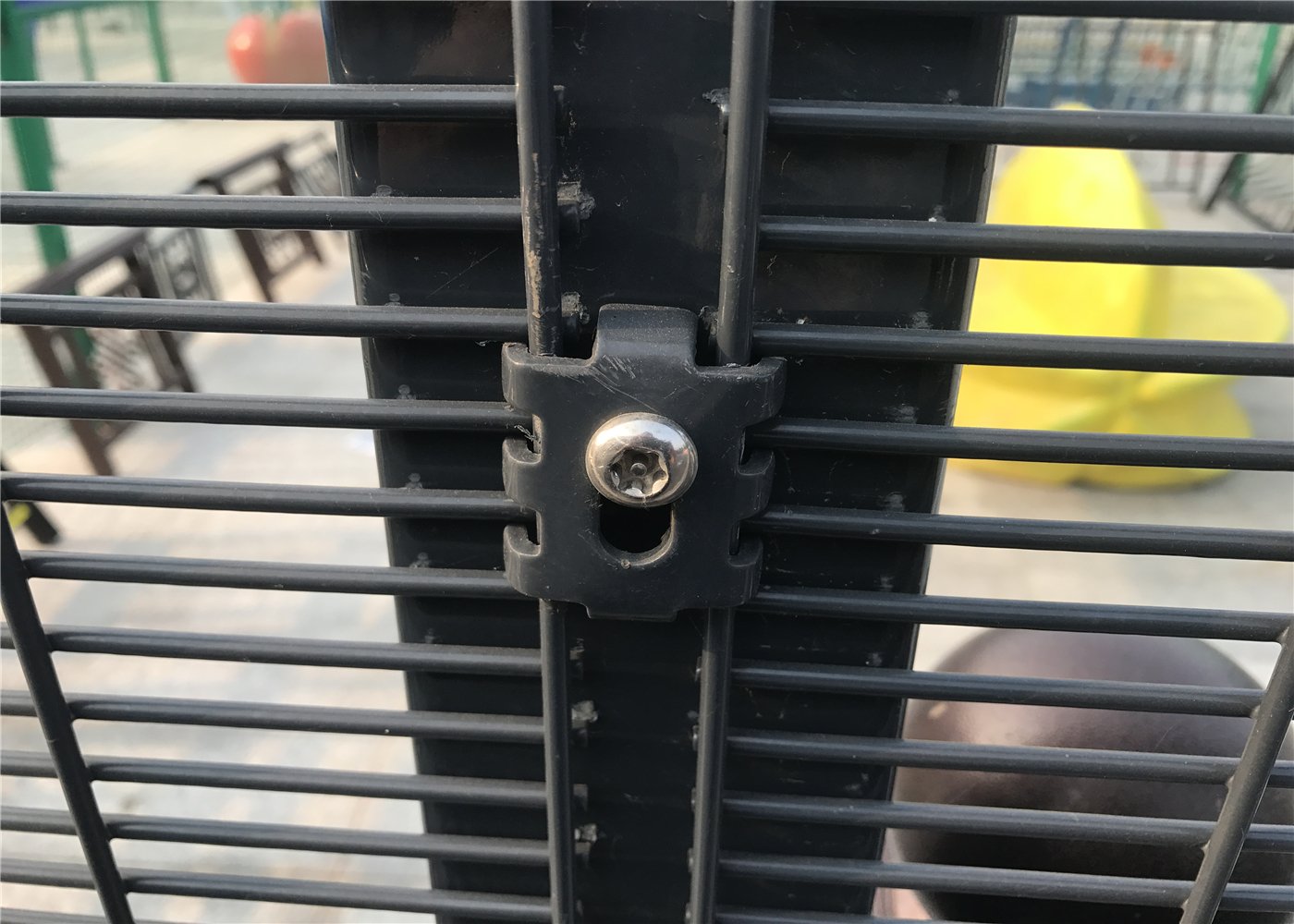

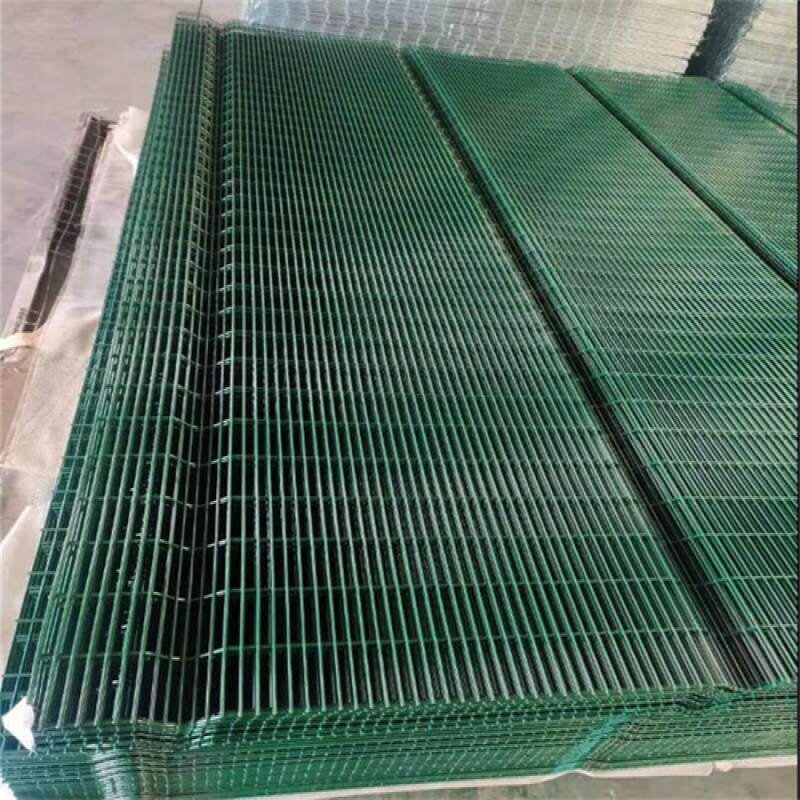

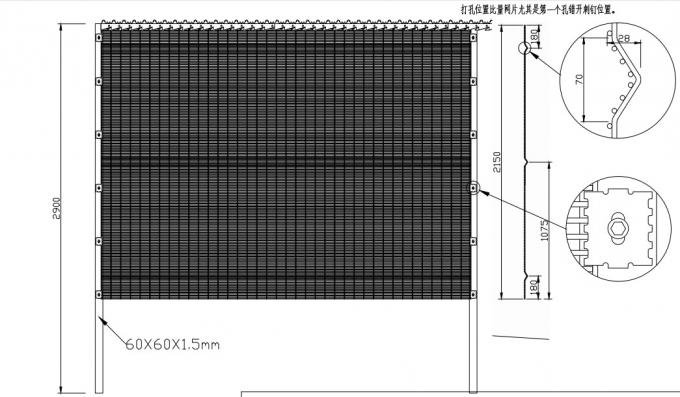

| Original BMP image 5: inspect the finished mesh and panel edge. | Original BMP image 6: compare fitting appearance with approved component drawings. |
Reliable production requires more than an attractive sample. Technicians should verify steel grades, wire diameters, weld alignment, and finished dimensions. Coating tests and accessory checks should match the actual purchase specification.
Factory CAD drawings should identify post centres, panel overlaps, and gate openings. Revision control helps prevent mismatches between sales quotations and production instructions. Buyers can request inspection photographs before packing begins.
| Inspection Stage | Required Check | Useful Evidence |
|---|---|---|
| Incoming materials | Wire diameter, steel grade, and post section | Material identification and dimensional readings |
| Panel welding | Mesh pitch, squareness, damaged joints | Weld and measurement inspection sheet |
| Coating | Zinc process, finish thickness, adhesion | Applicable finishing test results |
| Assembly | Post and clamp fit, security bolts, gate interfaces | Approved sample assembly |
| Final packing | Quantities, pallet protection, package identification | Packing list and loading photographs |
A brand name or general certificate cannot prove every test result. Request the actual method, sample identity, and acceptance level where needed. Store signed drawings with the quality records.

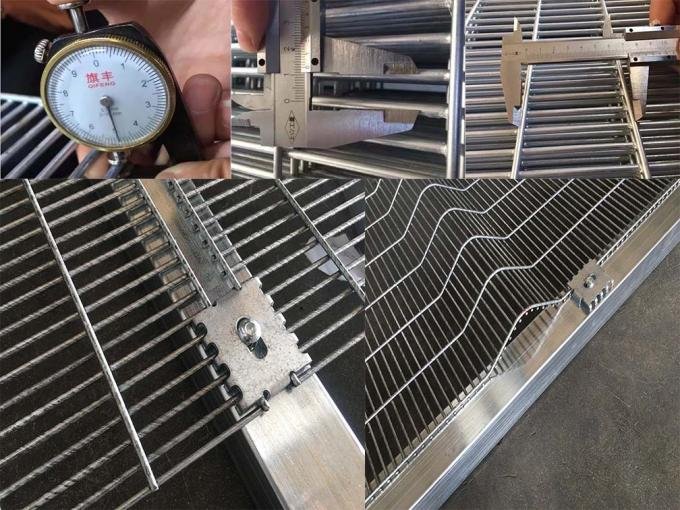

The source provides one additional photograph under its quality-control section. It appears below with an explanatory caption. Product measurements still require documented checks.
 |

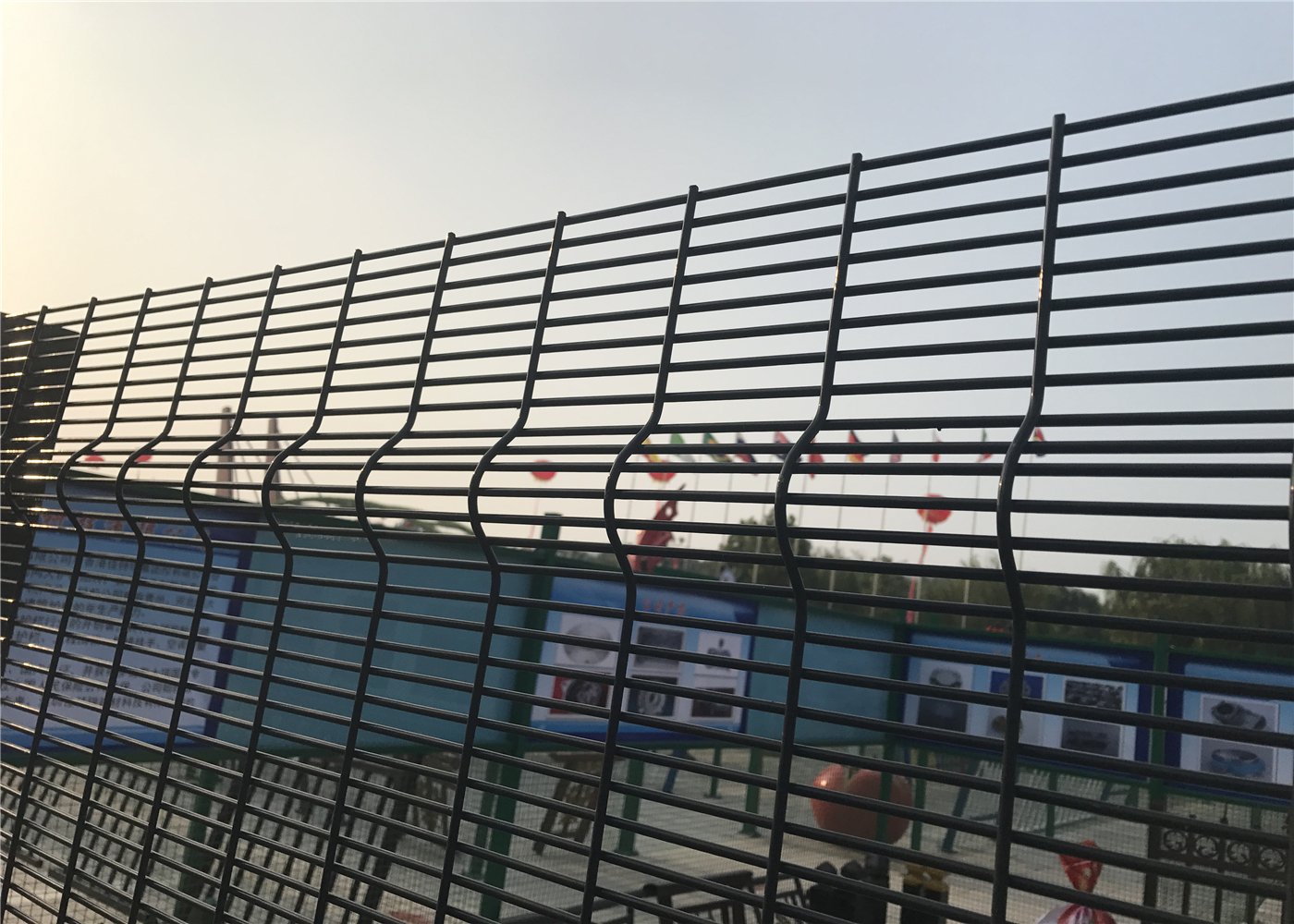

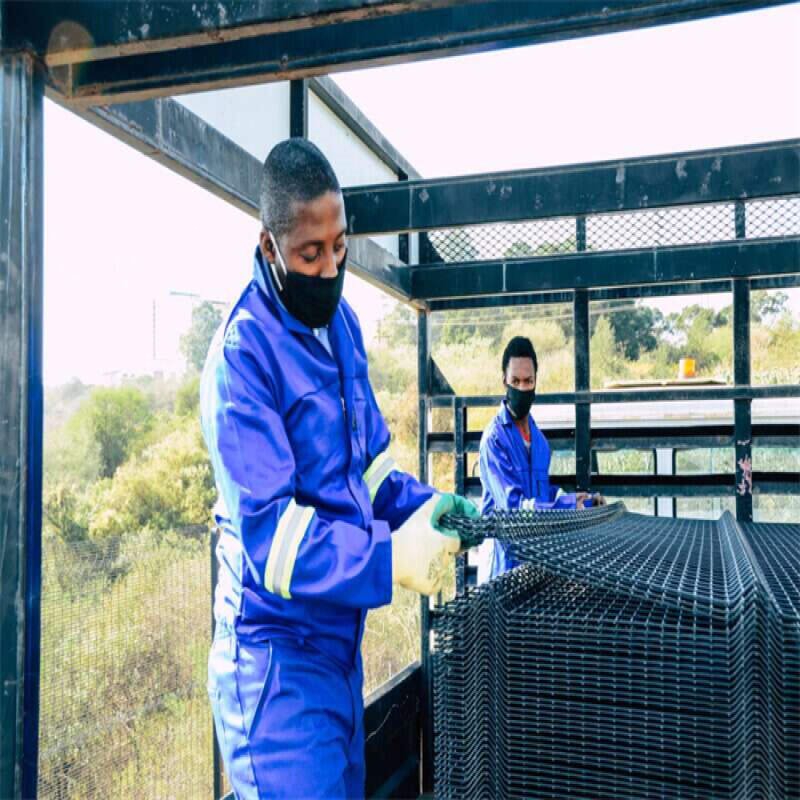

| Original BMP image 7: quality-control reference for finished security fence products. |
One product specification rarely suits every boundary. Residential estates value controlled pedestrian access and a tidy visual appearance. Industrial yards may prioritize loading gates, monitored storage, and vehicle separation.
Gauteng builders can compare common hardware supplies with the components of a complete mesh system. Coastal developments require additional attention to salt exposure and coating maintenance. Each project needs a documented local risk assessment.
Chamberlains lists an East Rand branch in Benoni, a practical reference for nearby Gauteng construction buyers. Its branch location does not establish ClearVu panel inventory. Industrial fencing quotations should still identify the supplying manufacturer and all required components.
Warehouse boundaries often run beside turning vehicles and stacked goods. Maintain clear camera views across the entrance and loading approach. Avoid placing pallets close enough to assist climbing.
Education sites need safe entrance arrangements and reliable observation around pedestrian routes. Estates may prefer slim steel panels that complement landscaping. Neither setting should adopt dangerous toppings without appropriate safety review.
Close mesh can limit convenient climbing holds while retaining visibility. However, gate operation and emergency procedures remain important. Site-specific regulations determine any additional requirements.
Different metal fencing systems use different steel geometry and fixing arrangements. A welded security grid cannot substitute automatically for a picket or portable barrier. Each system needs its own loading and maintenance assessment.
Corromesh provides another close-aperture welded security approach. Garrison Security Fencing uses tubular pickets and rails instead. Comparing their actual drawings helps clarify each product's structural differences.
Construction phases may require portable separation while crews install permanent footings. Temporary Construction Fencing uses movable panels and portable supports. It should not inherit a permanent security rating without suitable test evidence.
Contractors must secure access during the transition between systems. Temporary feet have different stability limits from fixed posts. Choose suitable equipment for each phase.
A large finished panel needs protection against abrasion during container handling. Steel pallets, separators, and secure restraints help limit contact damage. Posts and smaller hardware should carry clear package identifiers.
Ocean freight charges depend on finished quantities, actual weights, and the agreed port. An export quote may exclude customs duties and inland installation. Buyers should identify each shipping responsibility before confirming the purchase.

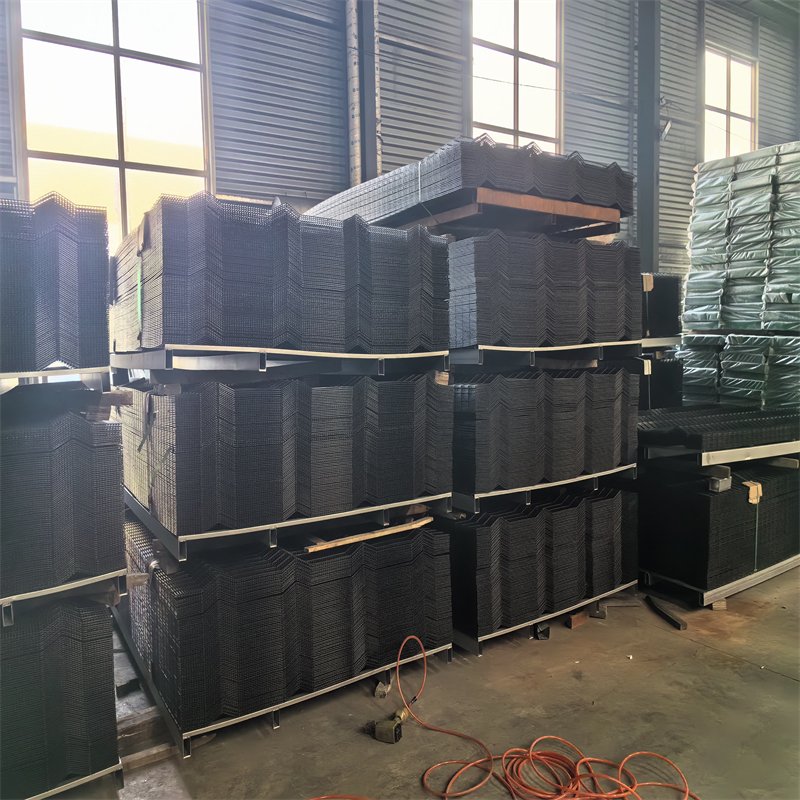

The last original picture belongs to the packaging section. BMP's image remains inside a WordPress table with its original source address. Check the final packing plan against actual shipment quantities.
 |

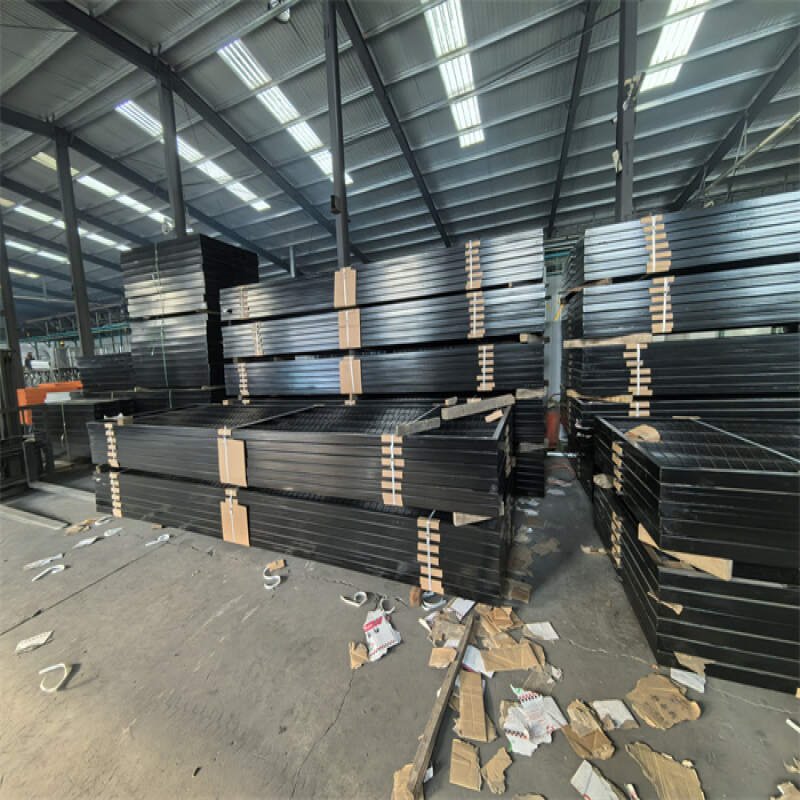

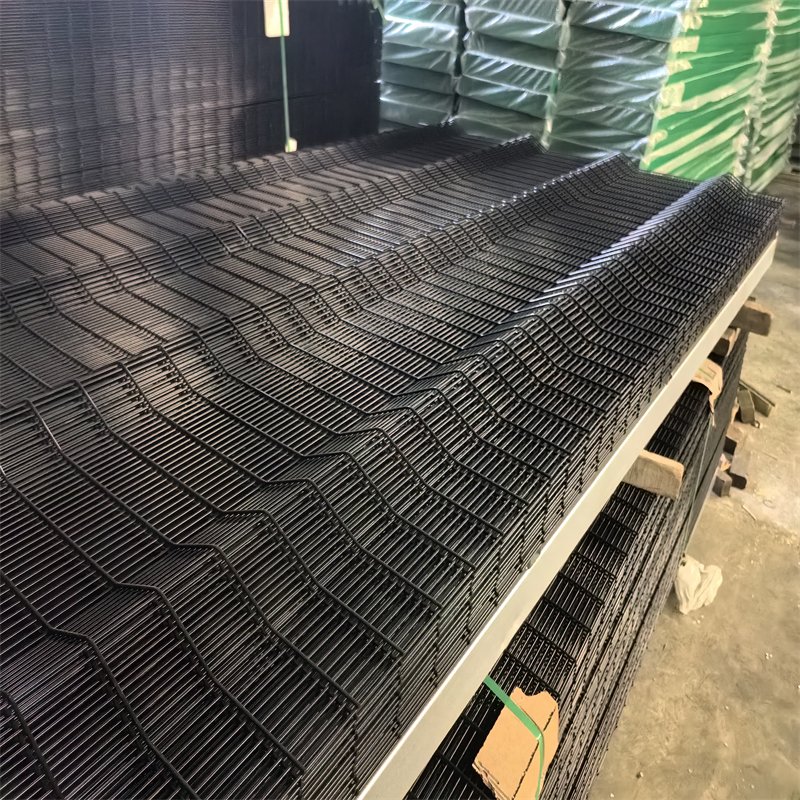

| Original BMP image 8: export packaging and handling reference for finished security fencing components. |
Compare panel counts and post lengths with the signed packing list. Inspect metal surfaces for scratches and damaged corners. Store loose fittings in clearly labelled cartons before installation.
Customs documents should agree with the actual goods and shipment terms. Transport damage needs photographic documentation at receiving. Local installers should keep the original drawings for later repairs.
A clear enquiry identifies the exact panel geometry, project lengths, and gate requirements. Buyers should also state coastal or inland exposure conditions. Quote comparisons need identical component scope and delivery terms.
Does Chamberlains currently stock BMP 358 security panels? Its public building-material pages do not establish that specific inventory. Confirm current products and availability directly with the retailer.
Can BMP supply a coordinated project fence system? The manufacturer offers matching panels, posts, fittings, and related gates for quotation. Actual scope depends on approved specifications and agreed delivery terms.
BMP offers a 15-year manufacturer warranty for ClearVu and Clearview fencing under applicable written terms. Coverage depends on the selected products and the agreed environmental conditions. Proper installation and reasonable maintenance still matter.
Regular inspections should cover coatings, gate hinges, clamps, drainage, and accidental damage. Replacement components should match the original assembly. Keep the warranty document with the technical drawings.
Searching a hardware retailer's name can start a useful materials comparison. A complete security perimeter still requires coordinated technical drawings and a clearly identified supplier. No verified relationship between BMP and Chamberlains should be assumed.
For import buyers, Clear View Fence for Sale configurations offer another product reference. The ClearVu Fence Installation Guide outlines general assembly considerations. Actual foundations and loading requirements demand local engineering approval.
Regional ClearVu Fence Panels also show alternative BMP export options. Customers should confirm which configuration their project needs. Send boundary drawings and gate schedules for a coordinated technical quotation.
