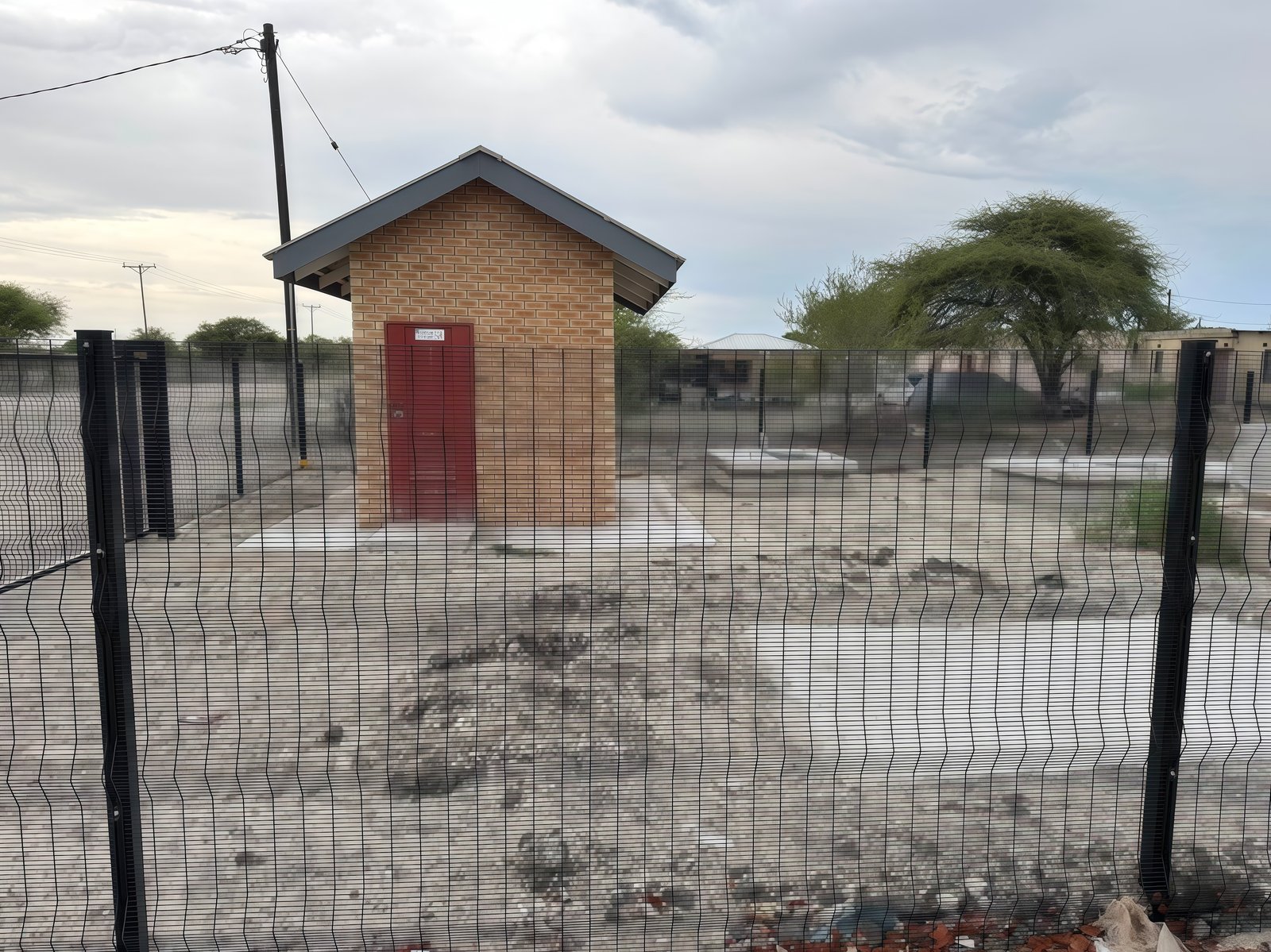

Clearvu fencing Durban combines narrow welded mesh, strong steel posts, and a clear view across the perimeter. This security fence discourages climbing while supporting everyday surveillance. It suits residential estates, commercial properties, factories, warehouses, and infrastructure projects in KwaZulu-Natal.
Boss Metal and Plastic Co., Ltd. manufactures welded mesh fencing in Anping, China. Our team supports export orders with technical drawings, coating choices, fittings, and packaging plans. Durban buyers can request complete panel, post, and clamp systems for their projects.
The system uses small welded openings to reduce useful fingerholds and footholds. Its open mesh preserves sightlines for guards, lighting, and CCTV systems. Panel stiffness also depends on wire diameter, welded joints, folds, and post support.
Buyers comparing related products can review Clear Vu Fence and Clear View Fence Panels. Both product families offer welded mesh configurations for different perimeter requirements.

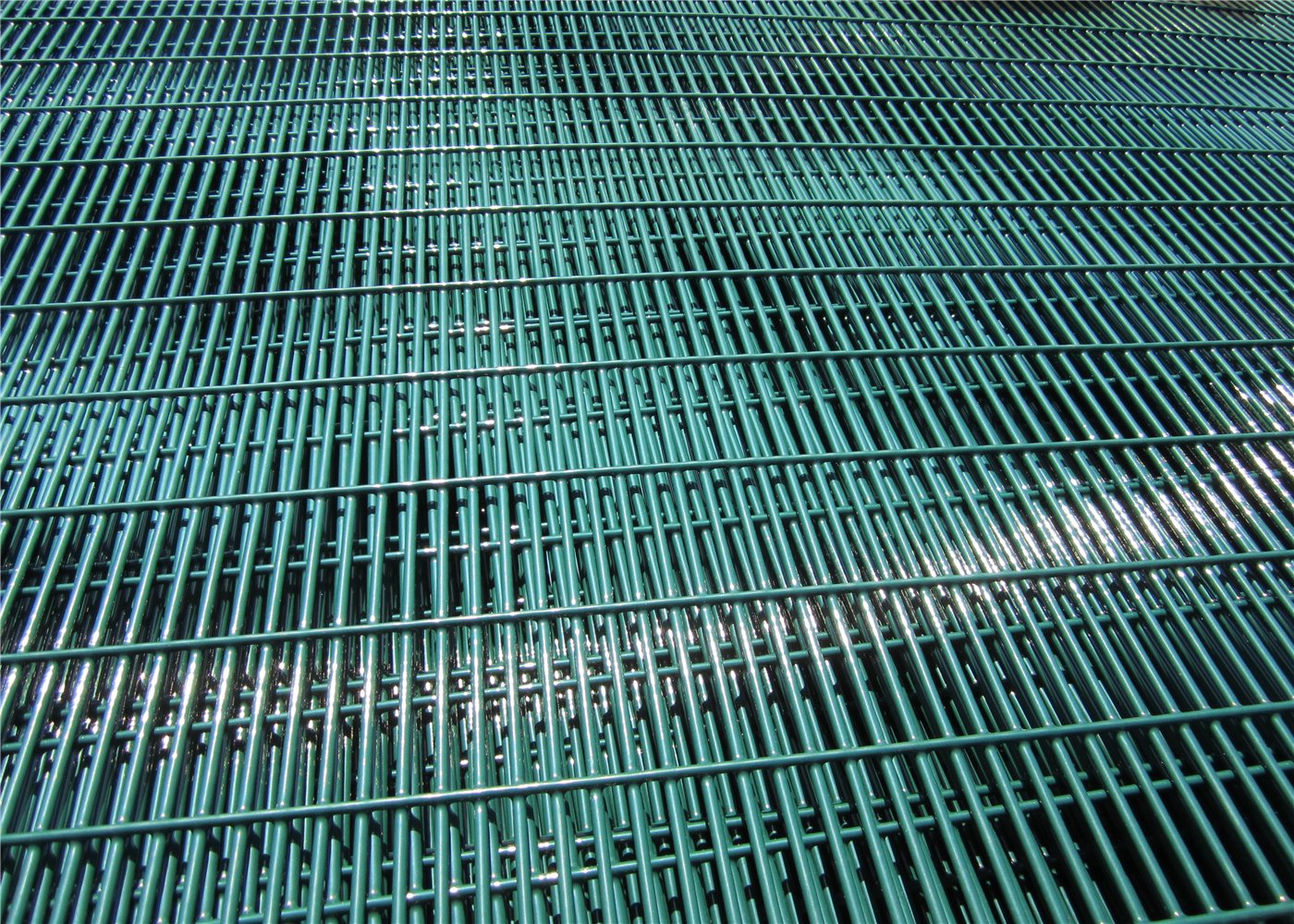

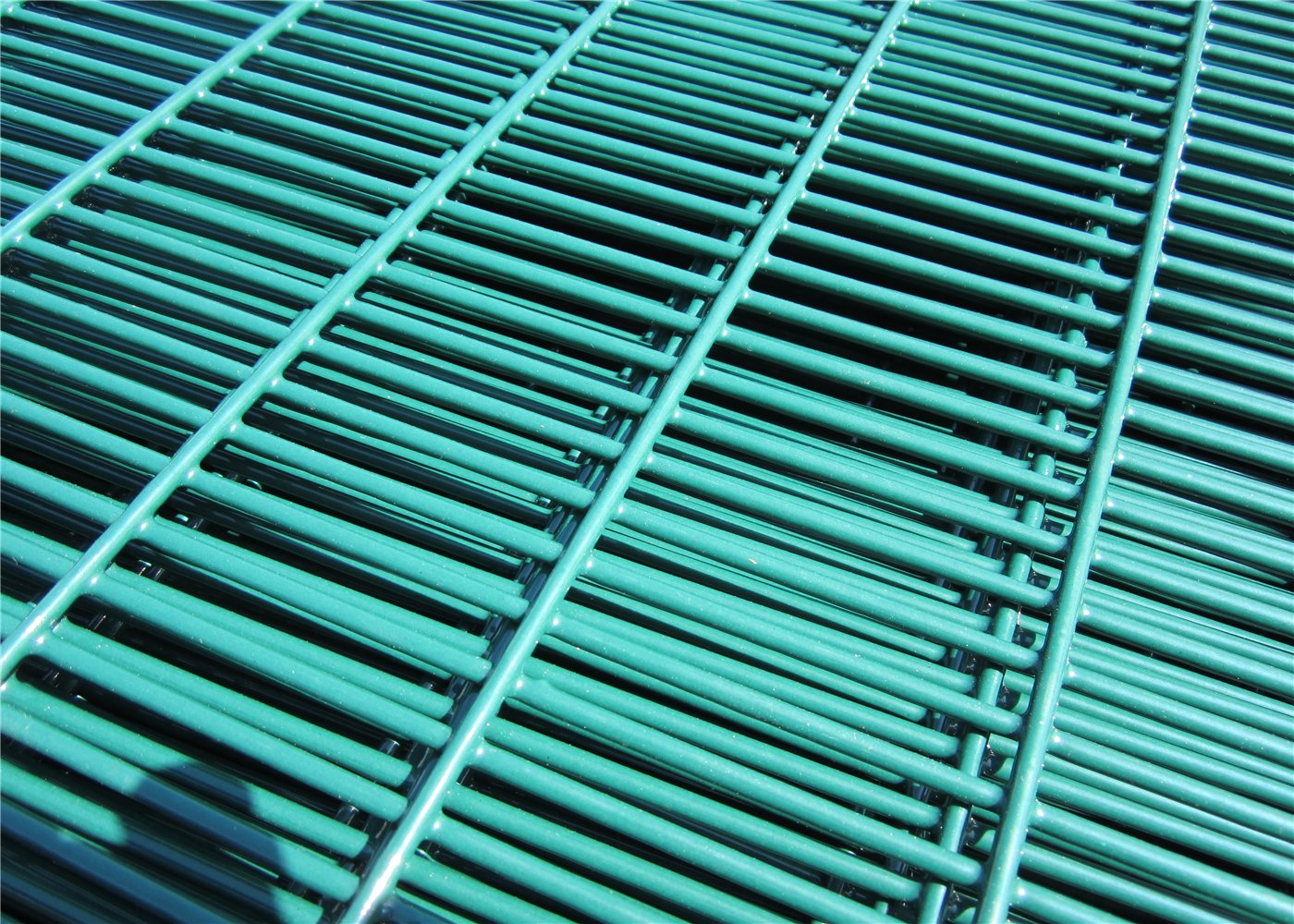

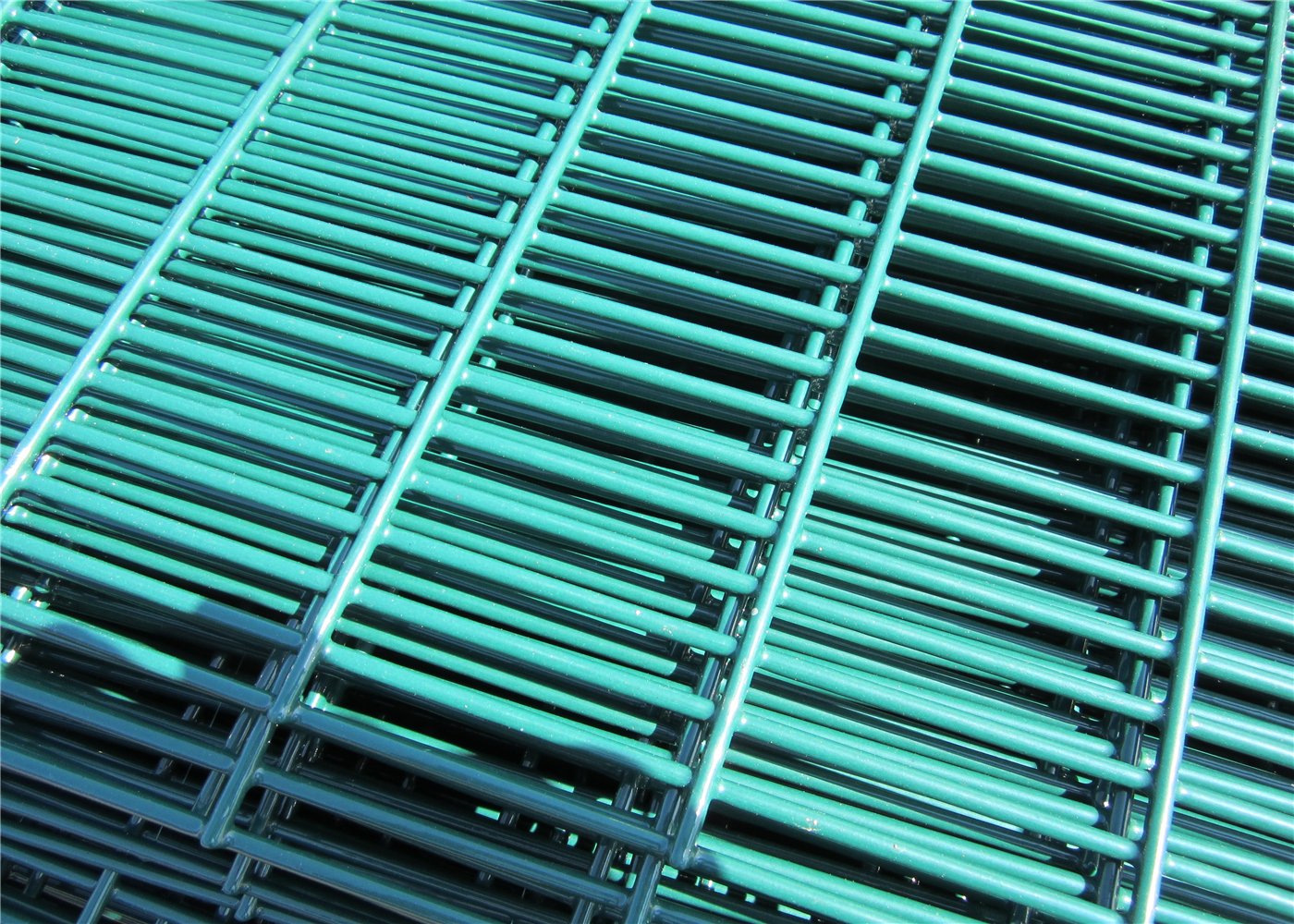

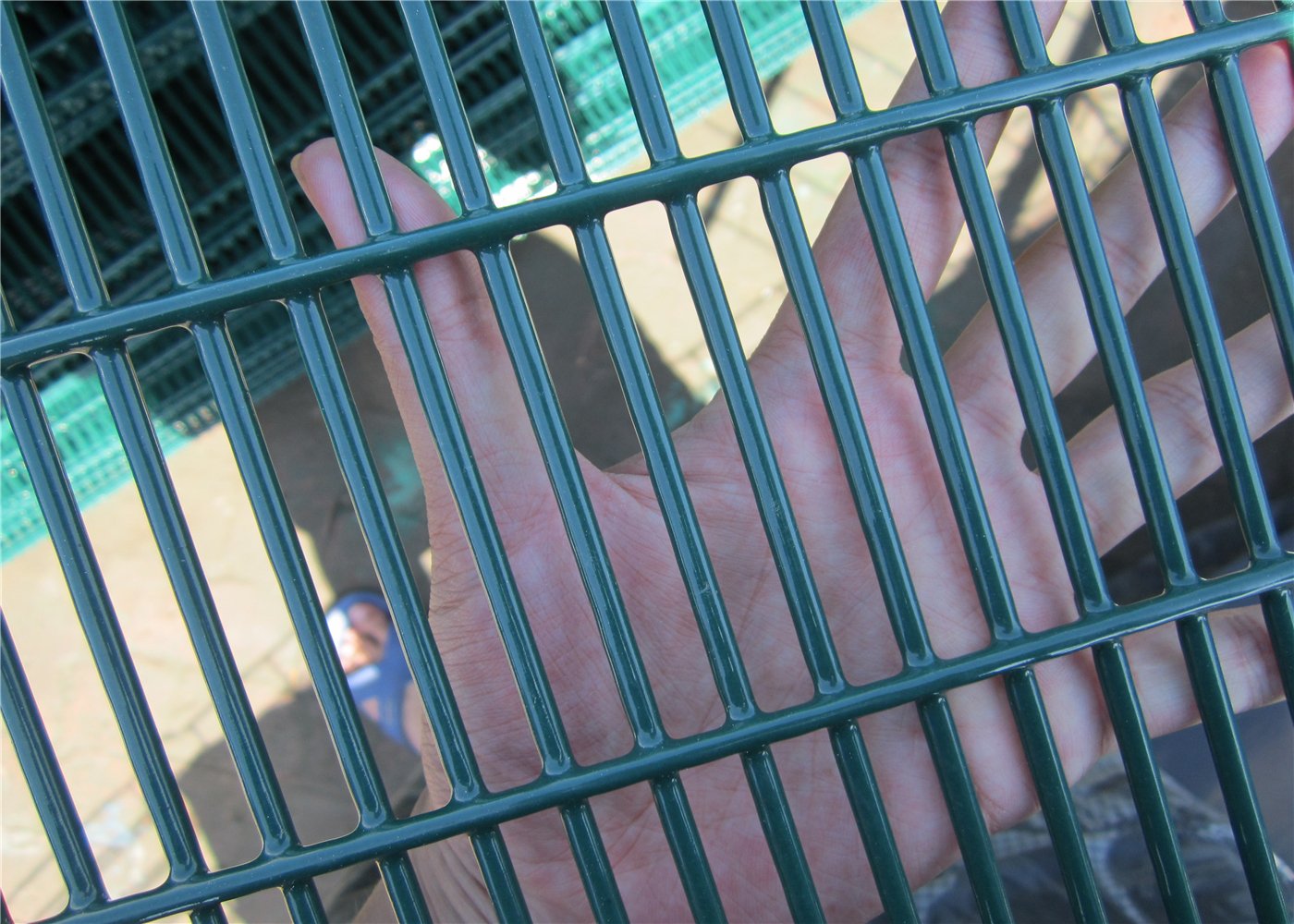

A 76.2 × 12.7 mm mesh pitch restricts convenient hand and foot placement. The commonly used 358 designation references three inches, half an inch, and approximately eight-gauge wire. Other wire sizes can share the same aperture pattern.
The smaller openings also complicate access for some conventional cutting tools. However, no steel fence can guarantee absolute resistance against determined attacks. Gates, foundations, alarms, and routine supervision complete the security strategy.
The High Security Clear View Fence provides a useful reference for higher-risk boundary designs.

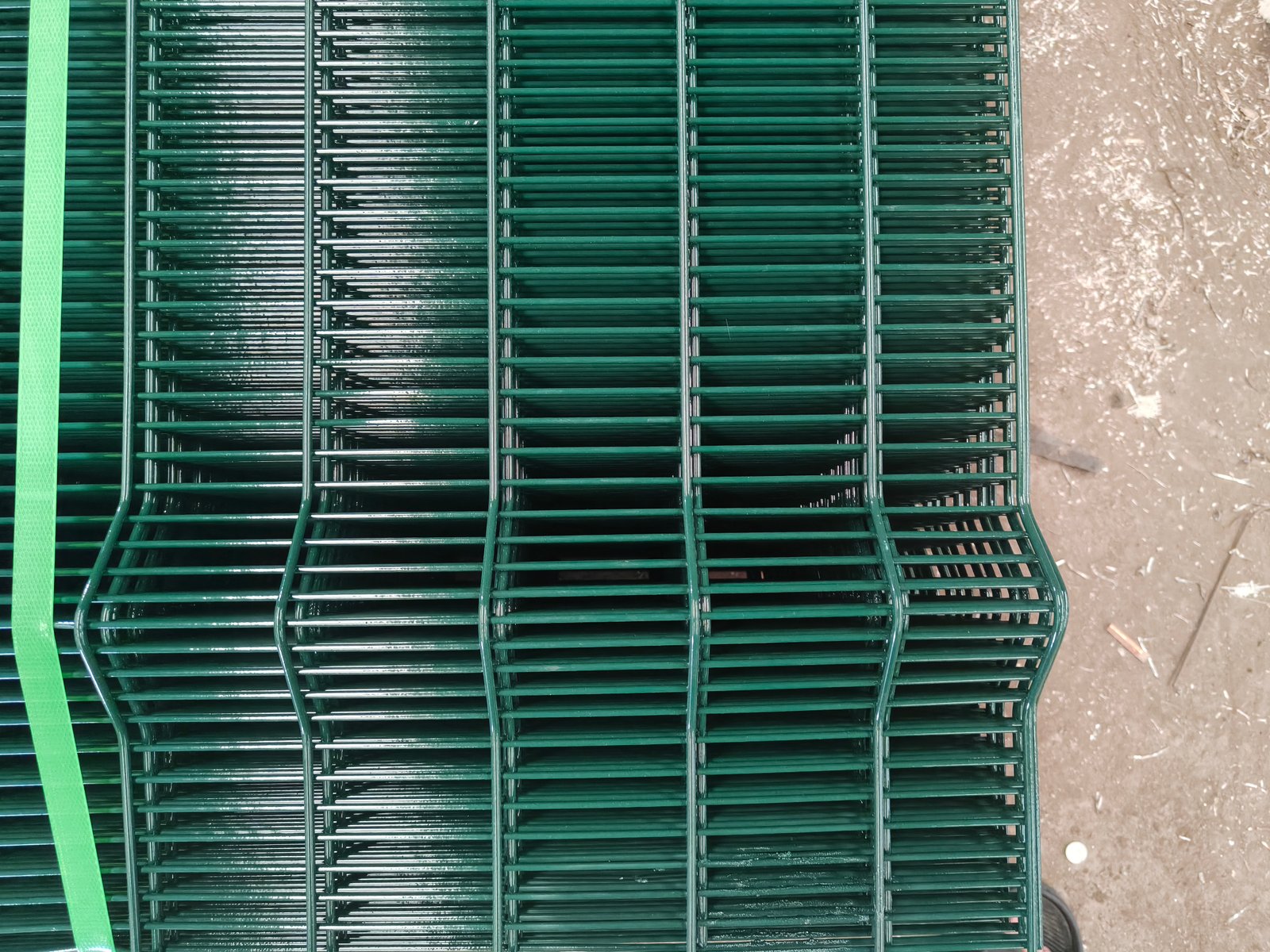

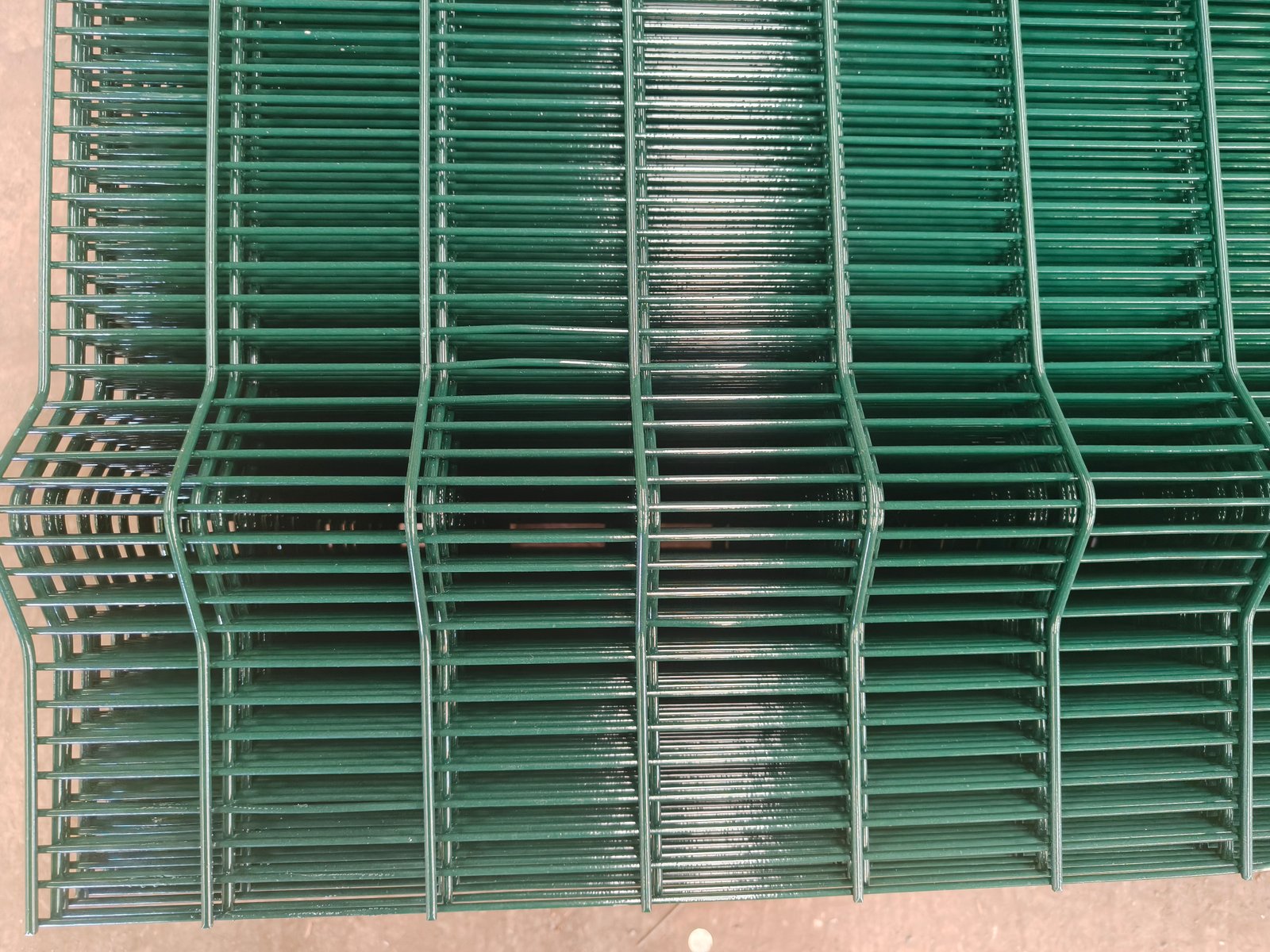

Our original panel schedule uses a 3305 mm width with several standard height options. Each reference panel uses 76.2 × 12.7 mm welded mesh. Four horizontal V-folds add rigidity in this particular configuration.
These dimensions describe the supplied reference design, not every Clearvu system. Confirm wire orientation, centre spacing, and finished dimensions before production. Customers can also compare Clear View Fencing for additional mesh grades.
Wire combinations require confirmation of horizontal and vertical orientation. Taller panels may need different structural reinforcement after engineering review.
The following table preserves the five panel configurations from the original specification. All measurements use millimetres unless the table states otherwise. The factory should approve final fabrication drawings before welding.
| Panel dimensions | Mesh pitch | Wire combination | Horizontal bands | Edge flange options | Through bolts |
|---|---|---|---|---|---|
| 3305 × 1800 mm | 76.2 × 12.7 mm | 3 / 3 mm | 4 × 50 mm V | 2 × 70° × 75 mm + 2 × 30°, or 2 × 90° × 50 mm | Included |
| 3305 × 2000 mm | 76.2 × 12.7 mm | 3 / 4 mm | 4 × 50 mm V | 2 × 70° × 75 mm + 2 × 30°, or 2 × 90° × 50 mm | Included |
| 3305 × 2100 mm | 76.2 × 12.7 mm | 4 / 4 mm | 4 × 50 mm V | 2 × 70° × 75 mm + 2 × 30°, or 2 × 90° × 50 mm | Included |
| 3305 × 2400 mm | 76.2 × 12.7 mm | Custom | 4 × 50 mm V | 2 × 70° × 75 mm + 2 × 30°, or 2 × 90° × 50 mm | Included |
| 3305 × 3000 mm | 76.2 × 12.7 mm | Custom | 4 × 50 mm V | 2 × 70° × 75 mm + 2 × 30°, or 2 × 90° × 50 mm | Included |
Folded edges can support fastening and improve the panel's installed geometry. Through bolts transfer connection forces into compatible posts and clamps. Their exact position depends on post profile and approved installation drawings.
Check clearances before selecting bolts, nuts, washers, or security heads. Request a sample connection when unfamiliar components meet on the same project.

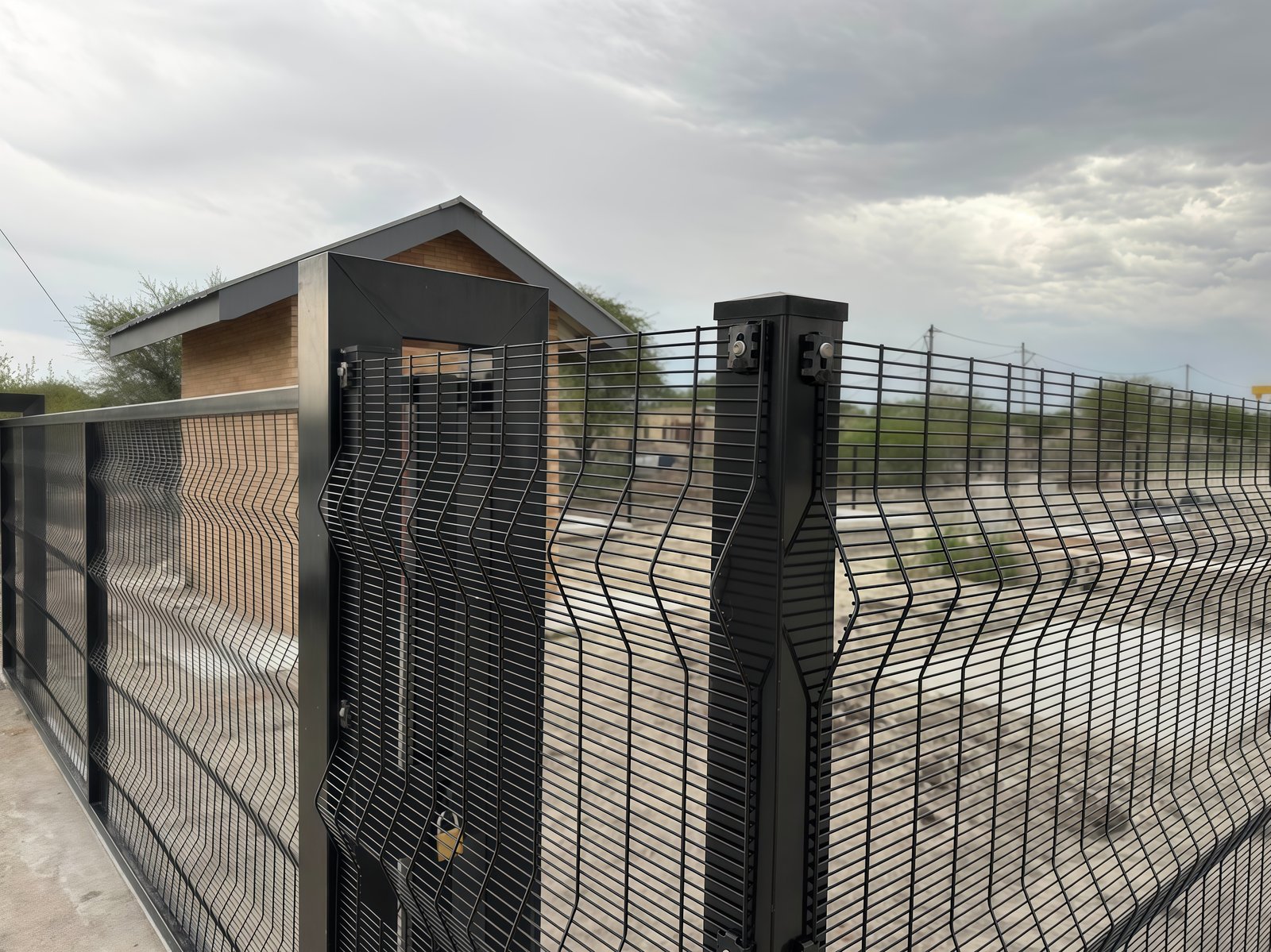

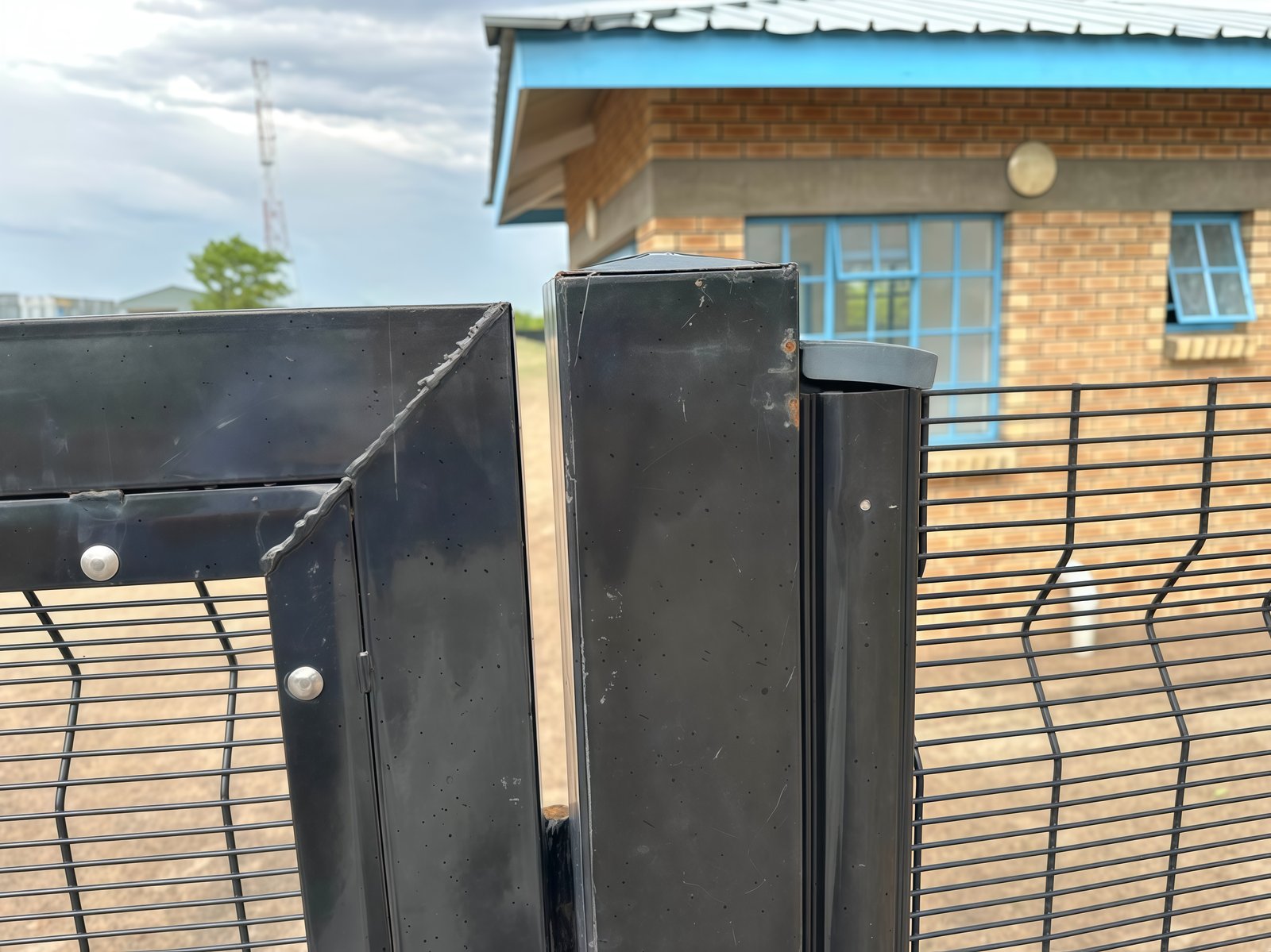

Posts carry panel loads into the ground or a concrete structure. The original design offers two tapered post profiles with locking recesses. Every reference post includes a polymer cap and an indicated protective finish.
Other options include square steel posts and rectangular steel posts. Our related Clearvu Fence range covers alternative post arrangements. Buyers can also review Clearvu Fence Posts for matching product categories.
| Fence height | Post length | Post profile | Locking recess | Polymer cap | Source finish |
|---|---|---|---|---|---|
| 1.8 m | 2.4 m | 85 × 45 × 85 mm or 150 × 75 × 150 mm taper | Included | Included | Galvanised and aluminium-based coating* |
| 2.0 m | 2.6 m | 85 × 45 × 85 mm or 150 × 75 × 150 mm taper | Included | Included | Galvanised and aluminium-based coating* |
| 2.1 m | 2.7 m | 85 × 45 × 85 mm or 150 × 75 × 150 mm taper | Included | Included | Galvanised and aluminium-based coating* |
| 2.4 m | 3.0 m | 85 × 45 × 85 mm or 150 × 75 × 150 mm taper | Included | Included | Galvanised and aluminium-based coating* |
| 3.0 m | 3.6 m | 85 × 45 × 85 mm or 150 × 75 × 150 mm taper | Included | Included | Galvanised and aluminium-based coating* |
*The source describes an aluminium coating without identifying its precise composition. Confirm the full coating specification before ordering.

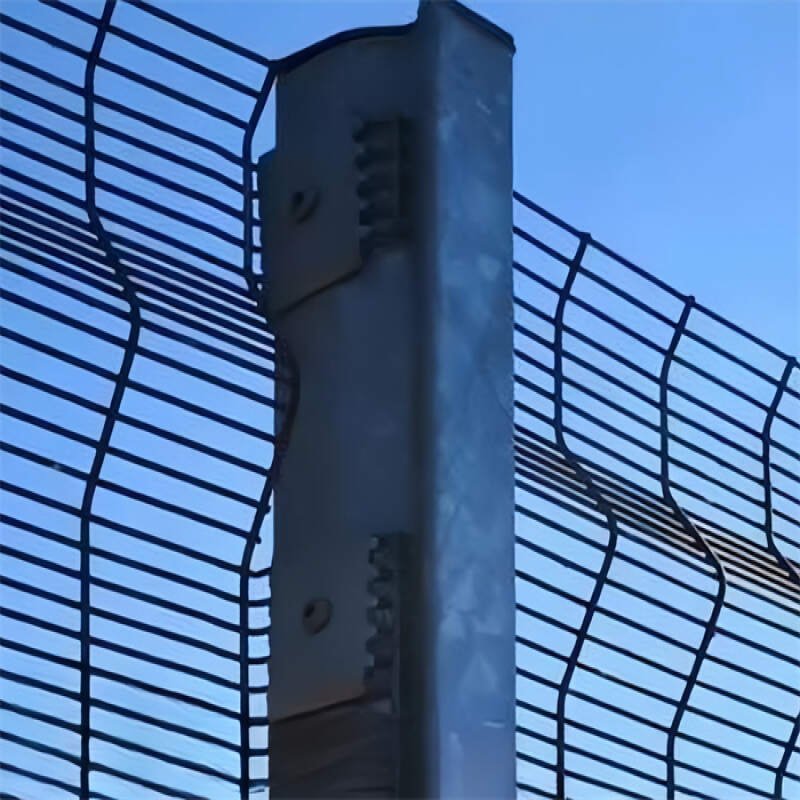

Tapered posts combine a shaped front profile with a fixing channel. Some installations use posts directly within concrete foundations. Others require base plates, anchors, and a verified concrete substrate.
Post length alone cannot establish a safe foundation design. A qualified engineer should assess soil, wind loading, panel height, and local requirements.

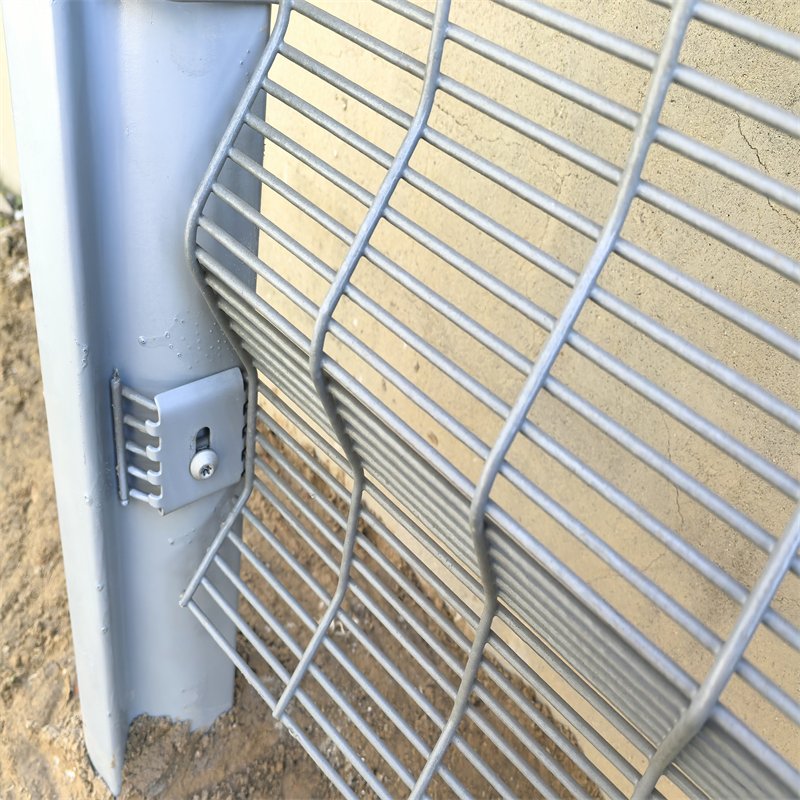

Clamp selection influences fence integrity and installation speed. The reference system offers single-bolt and double-bolt steel plates. Hot-dip galvanised steel or suitable coated steel can protect the fastening hardware.
Each connector must fit the chosen post and panel profile. For another hardware reference, consult Clearvu Fence Clamps. Confirm fastener counts separately for straight runs, corners, and end posts.
| Clamp type | Plate dimensions | Material | Thickness |
|---|---|---|---|
| Single Bolt Clamp Plate | 50 × 76 mm | Hot-dip galvanised or black steel | 3.0–5.0 mm |
| Double Bolt Clamp Plate | 50 × 165 mm | Hot-dip galvanised or black steel | 3.0–5.0 mm |
Single-bolt plates can suit specific straight-line fastening arrangements. Double-bolt plates offer a different connection footprint and mounting pattern. The approved engineering design should determine the correct application.
Check coating compatibility across clamps, bolts, and posts. Avoid mixing unsuitable metals in exposed coastal conditions. Verify tamper-resistant nuts when the project requires stronger access protection.
A suitable finish protects steel against moisture and environmental exposure. Available processes include pre-galvanised wire, galvanising after fabrication, and polyester powder coating. Each process has different preparation and inspection requirements.
Buyers can compare Powder Coated Clear View Fence with other product finishes. Specify coating mass, film thickness, pretreatment, and inspection criteria in the purchase order.
Pre-galvanised wire already carries zinc before the factory creates the mesh. Welding may affect local protection around intersections. Hot-dip galvanising after fabrication follows a different process sequence.
Powder coating can add colour and another barrier over an appropriately prepared substrate. Customers should not treat these finishing methods as identical. Request the applicable standards and inspection results for each component.
Durban's marine exposure can challenge poorly protected steel, especially near salt spray and moisture. Actual corrosion risk depends on location, wind, drainage, and maintenance. Sites beside the coast may need stricter coating controls than inland properties.
Specify compatible finishes for panels, posts, gates, clamps, and bolts. Repair scratches and cut edges promptly. A salt-spray result cannot directly guarantee a specific number of outdoor service years.
The Clearvu Super Fencing range provides additional references for project comparisons.
Green RAL 6005 and black RAL 9005 remain common security fence colours. Grey and custom RAL options can match the surrounding architecture. Always approve the exact colour code before production.
Inspect exposed edges, clamp interfaces, and gate hinges during routine maintenance. Remove deposits without damaging the finish. Keep coating repair instructions with the project's maintenance records.
A site survey should identify corners, slopes, entrances, drainage, and nearby services. Measure the actual fence route instead of multiplying panel widths alone. Post profiles and fixing details affect final centre distances.
Local contractors should follow approved engineering drawings for foundations and anchoring. BMP supplies fencing products from China and can assist with technical information. A product shipment does not automatically include local installation services.
Teams can examine 358 Welded Mesh Fencing for related installation configurations.
Sloped ground may require stepped panels, adjusted post lengths, or custom fabrication. Confirm all level changes before production. Unplanned field cutting can damage protective coatings and disrupt panel alignment.

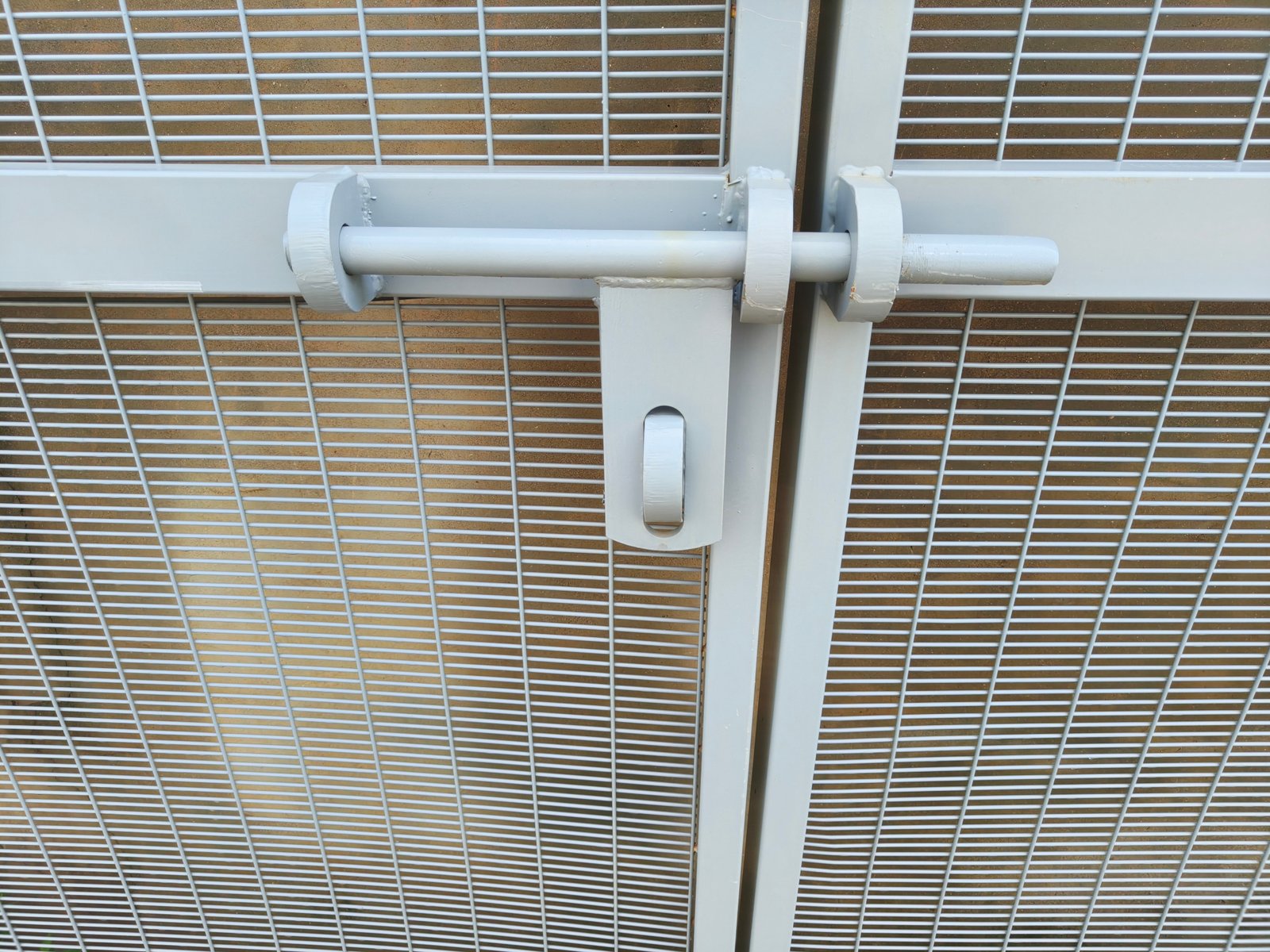

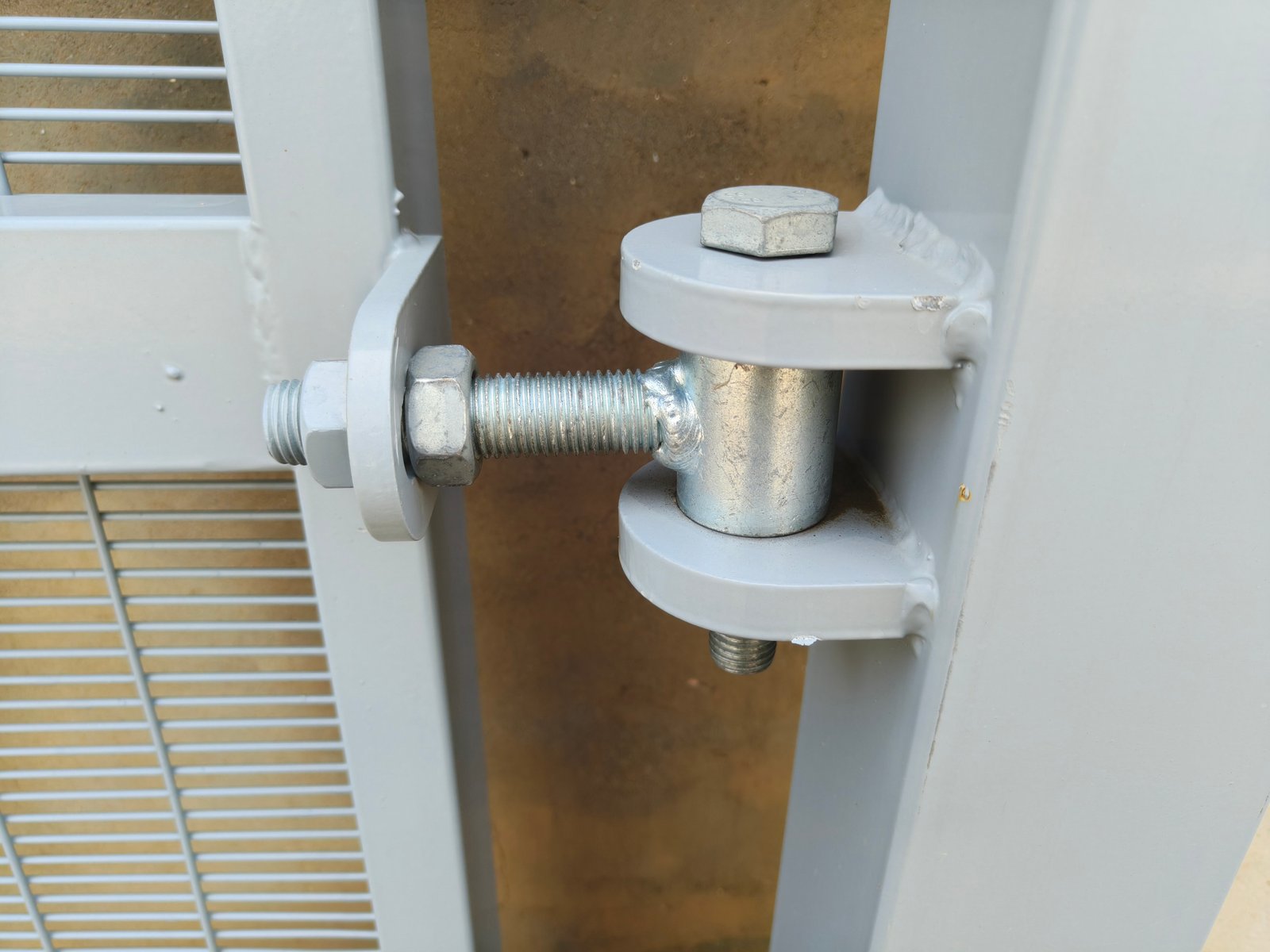

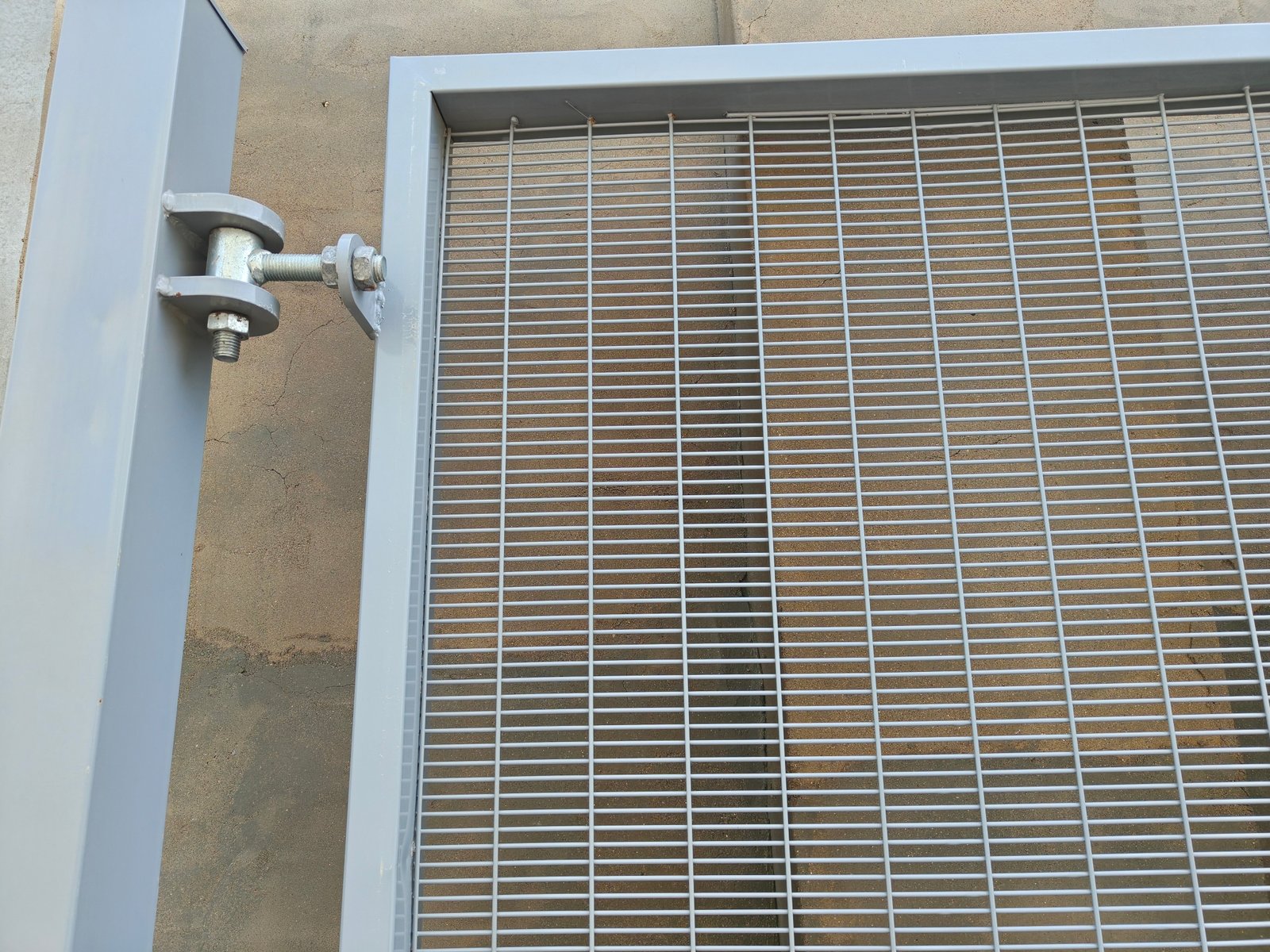

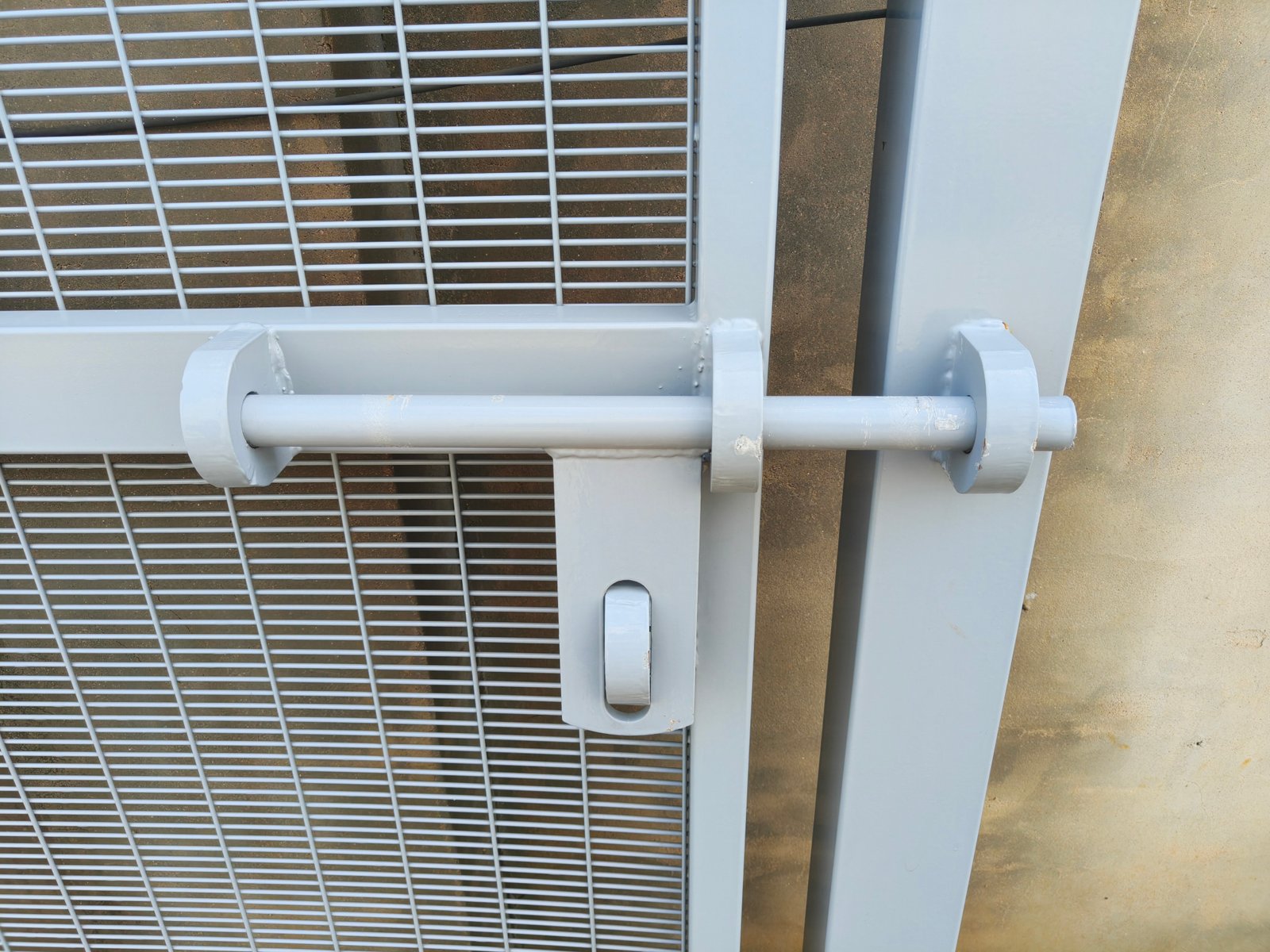

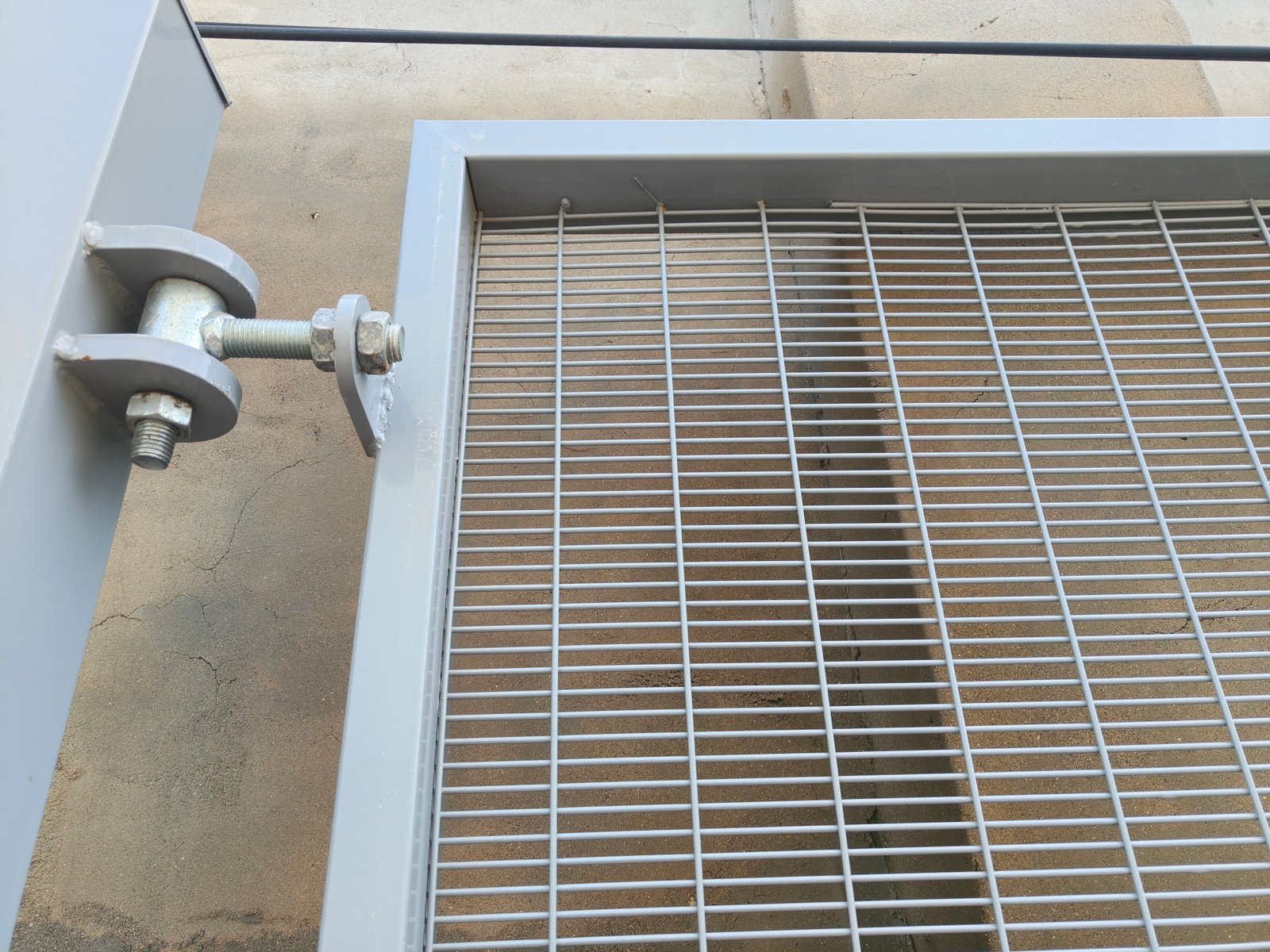

Set gate openings according to frame dimensions and required clearance. Allow room for hinges, locks, guide rails, and future maintenance.

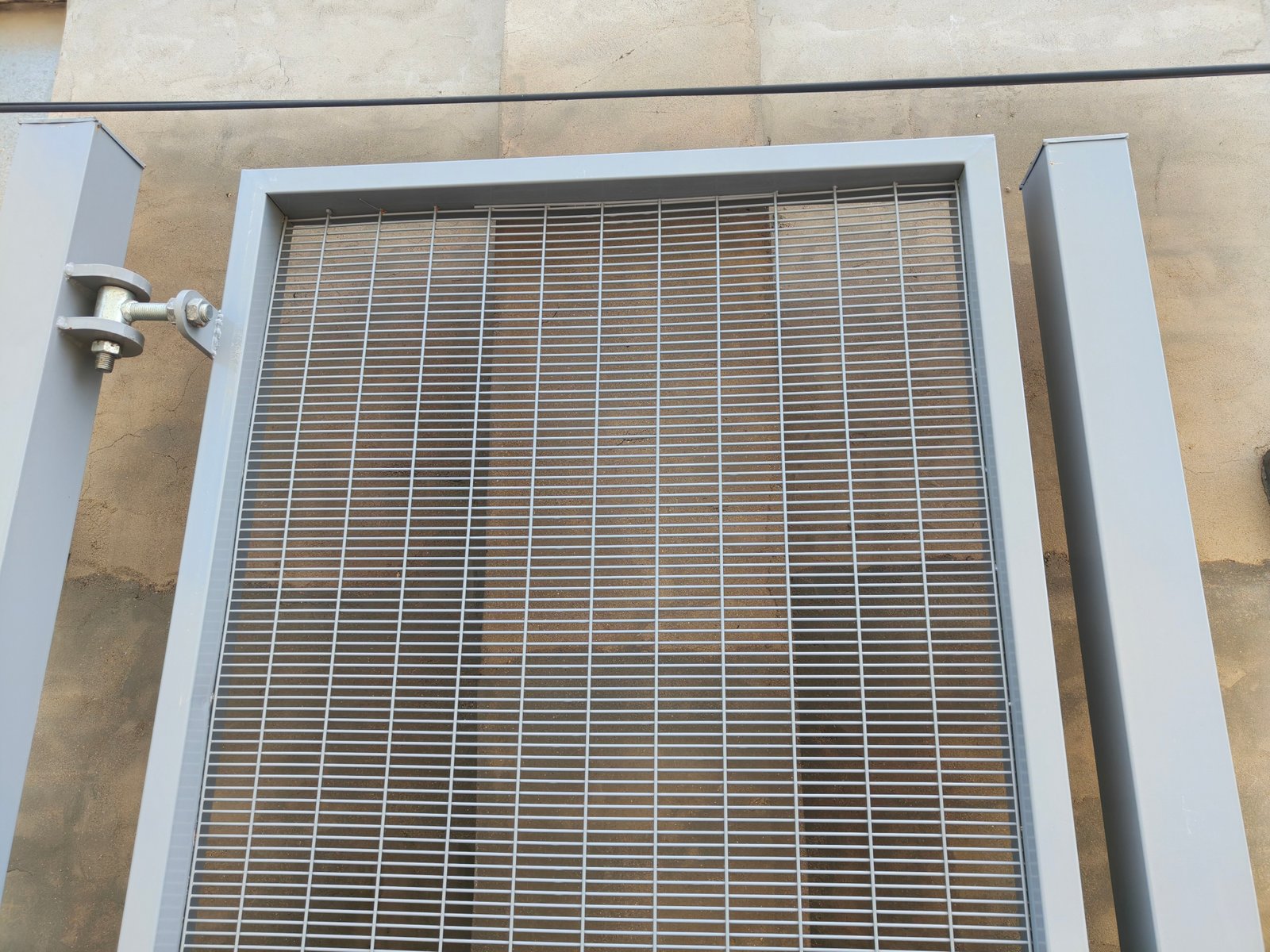

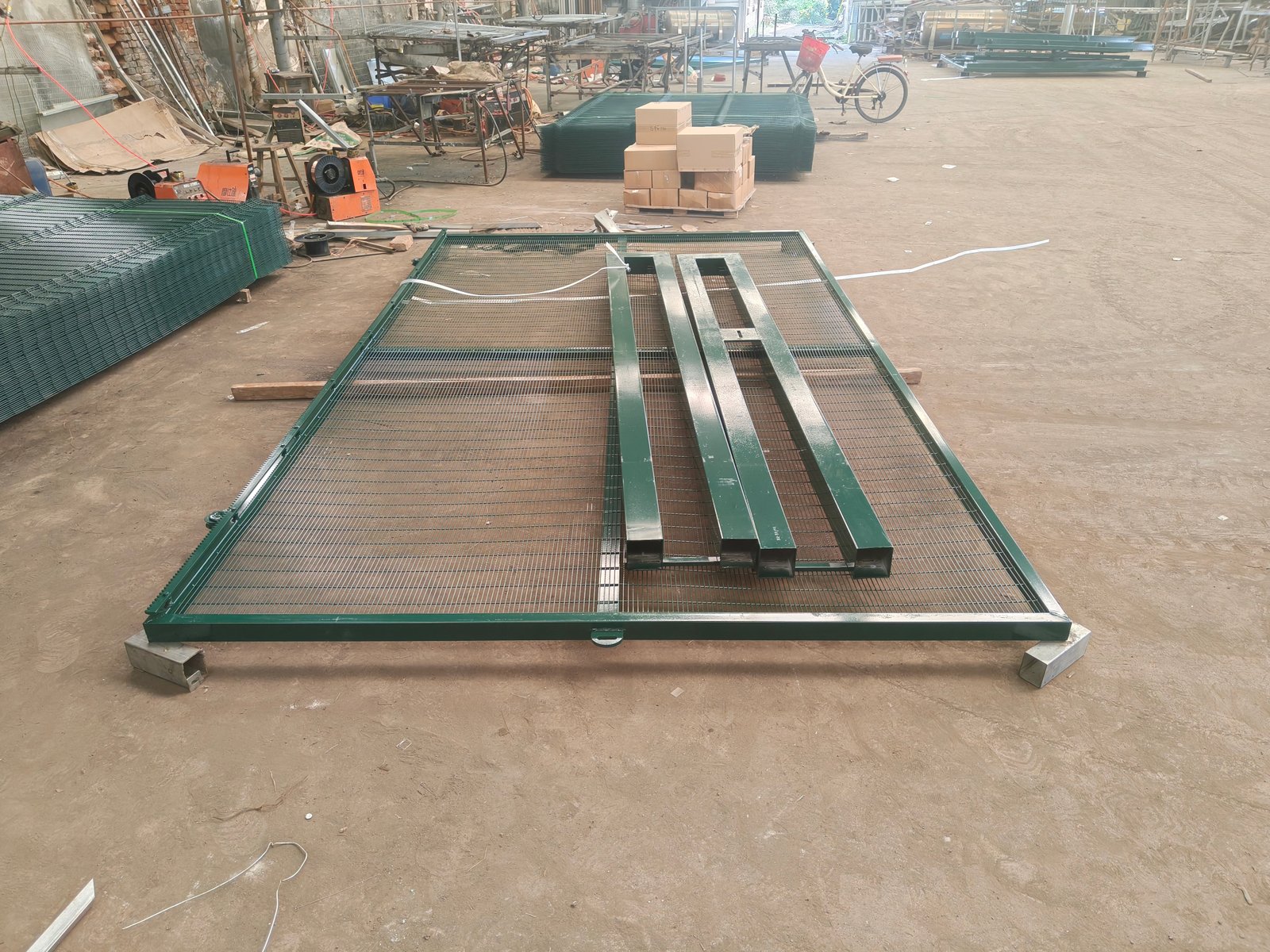

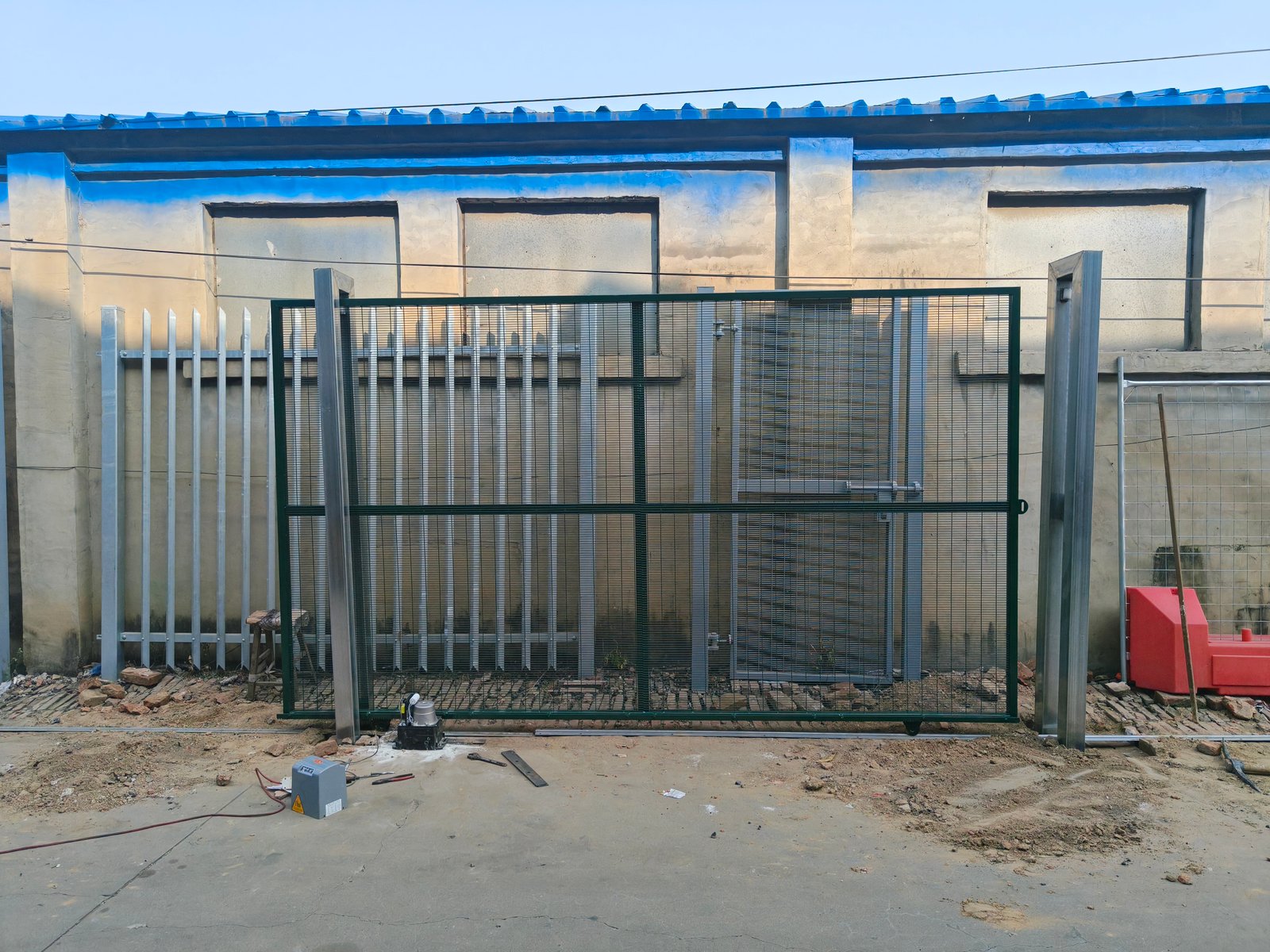

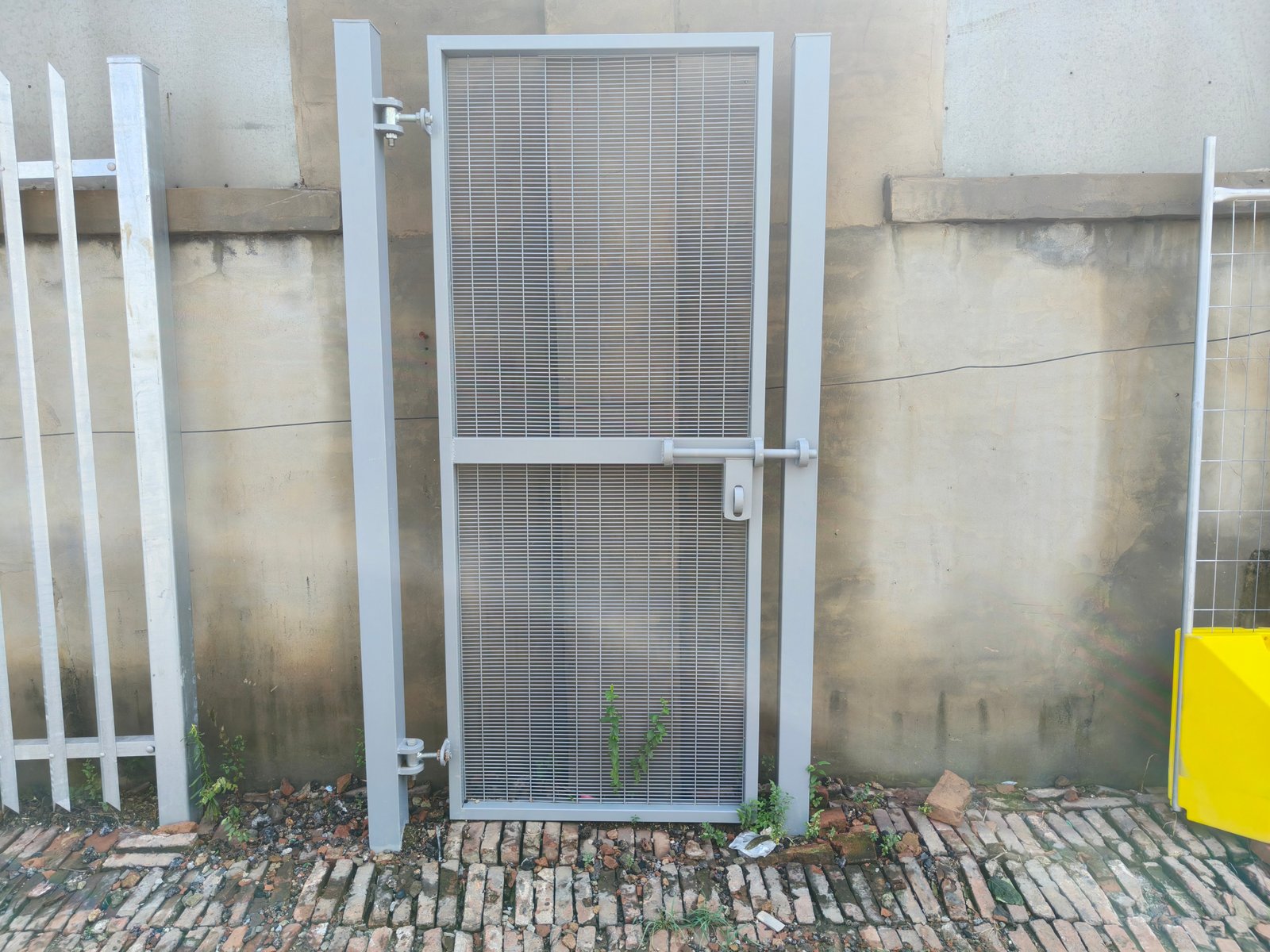

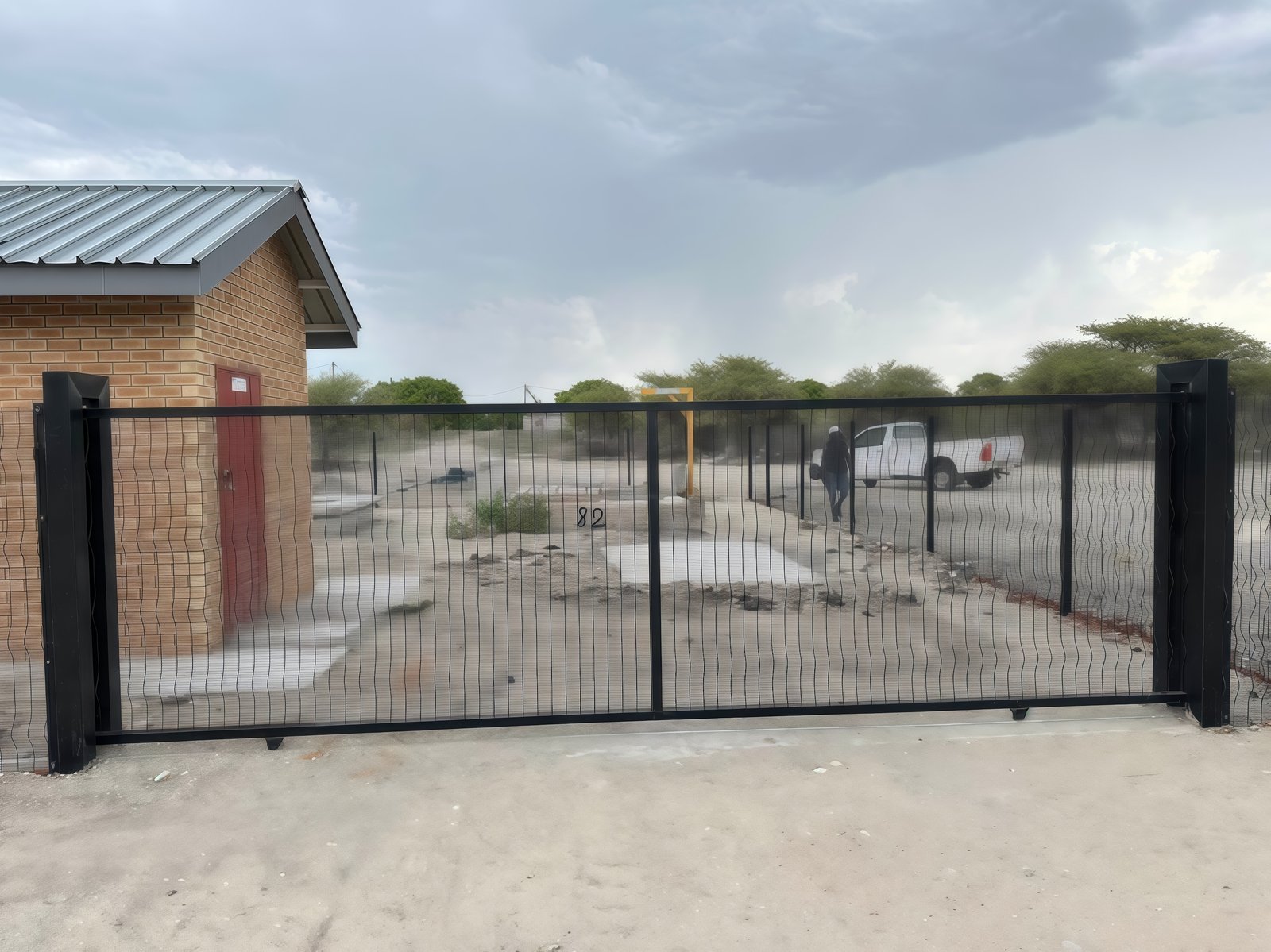

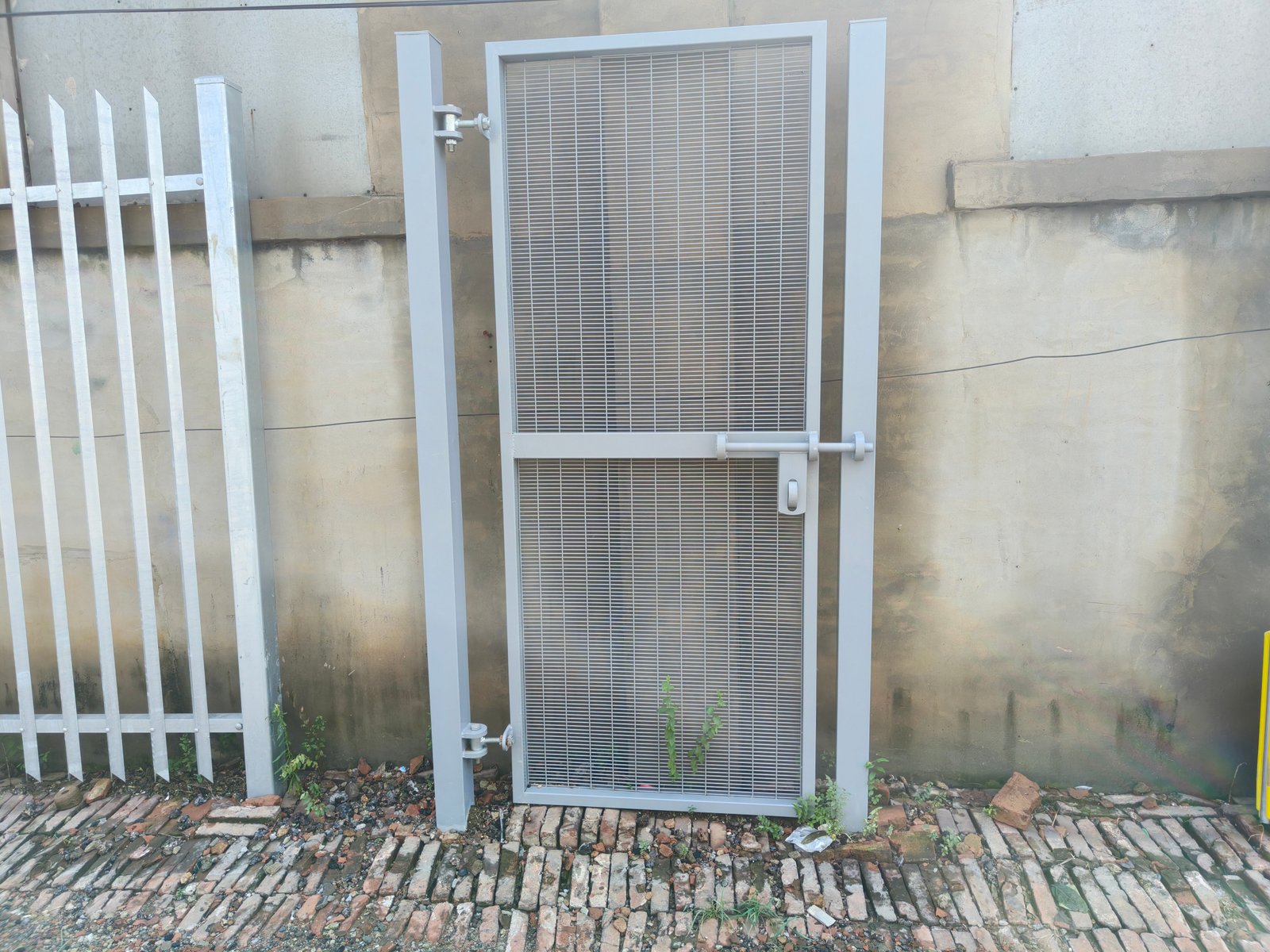

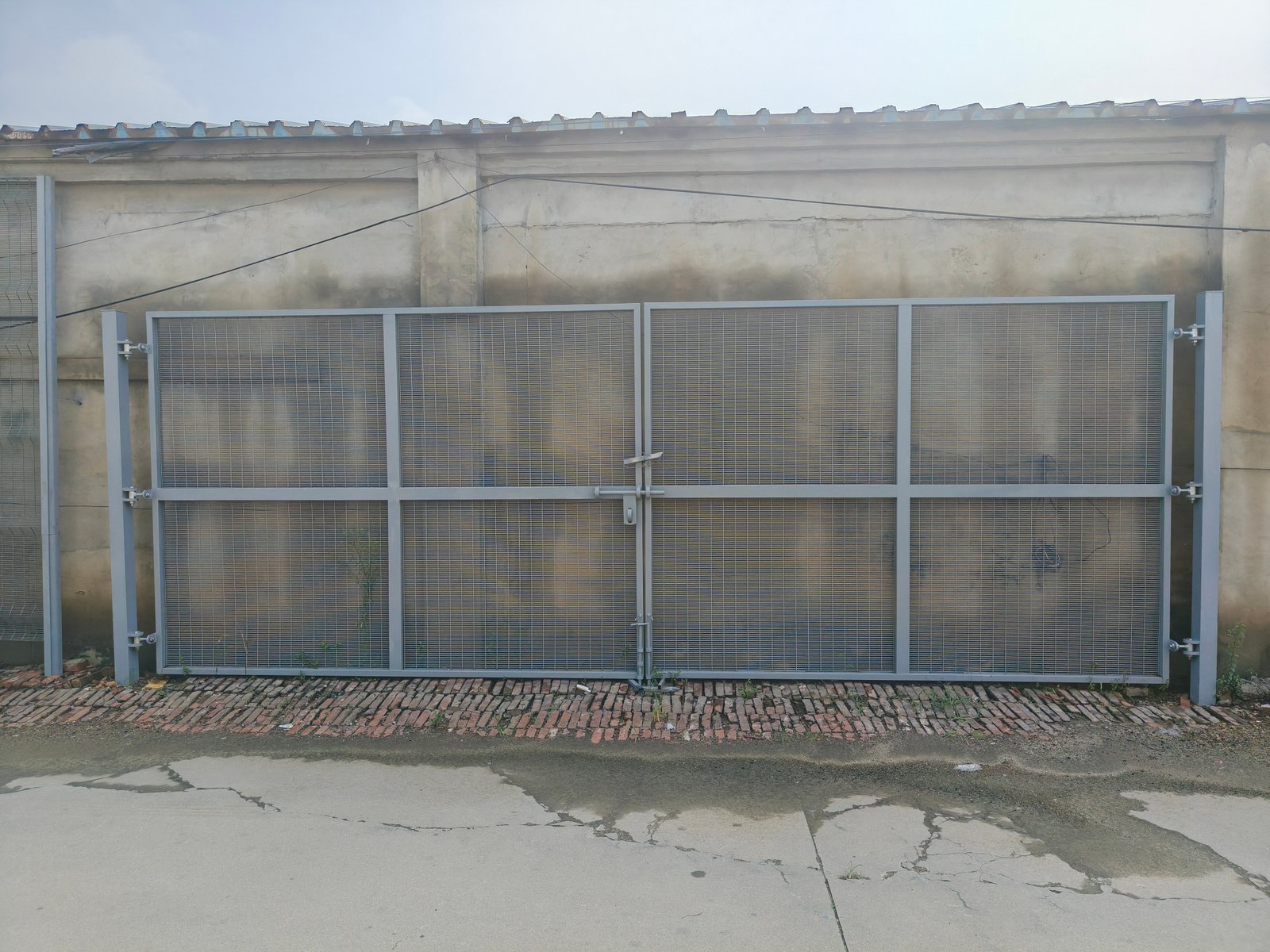

The full perimeter may include pedestrian gates, swing gates, sliding gates, and protective toppings. Access control must match the site's daily operating needs. For gate configurations, review Clear View Fence Gate.
Customers may also compare Clearvu Sliding Gates. Gate automation requires suitable controls, emergency release arrangements, and safe installation.

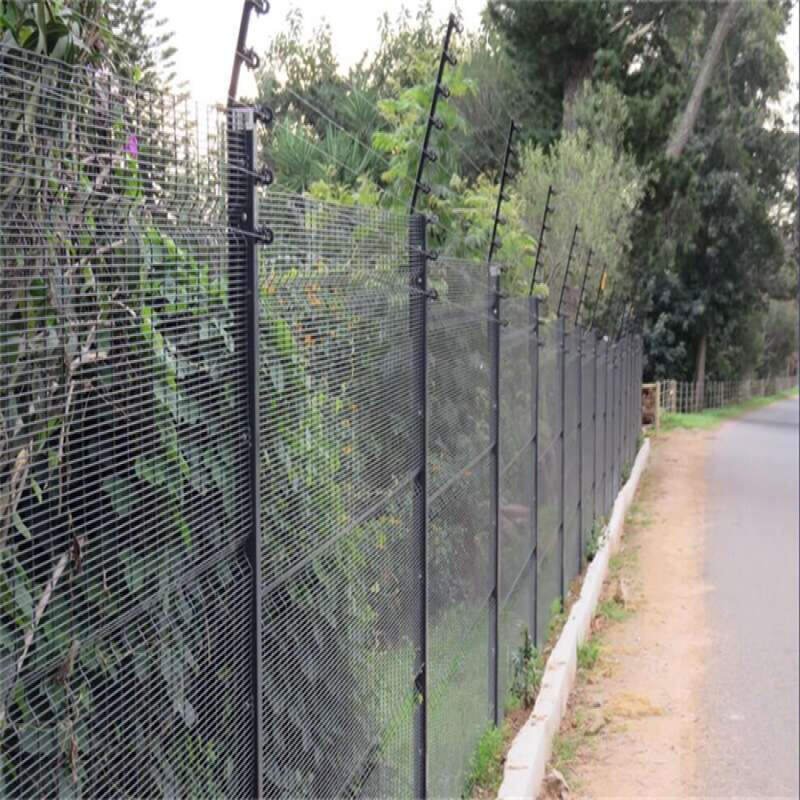

High-security sites may specify razor wire, spikes, or electric fence brackets. These products require careful legal and safety review. Their use may not suit public recreation spaces or residential areas.
The Razor Wire Flat Wrap product offers one topping category. Confirm permitted locations, warning signs, and installation clearances before selection.
For matching mesh products, explore Clearvu Fence Panels. A consistent specification supports smoother gate and panel integration.
Security needs differ across properties, even within the same city. Commercial entrances may prioritise visibility and controlled access. Warehouses may require stronger protections around goods and vehicles.
Evaluate people movement, site risks, and access routes before choosing a security grade. Avoid relying on mesh tightness alone when the site needs comprehensive protection.
High-security installations often use narrow mesh and stronger fastening systems. Medium-security boundaries may balance visibility, wire content, and cost. Lower-risk areas may use wider apertures with compatible posts.
The Low Security Clear View Fencing product provides a reference for wider openings. The High Security Clearvu Fencing range supports tighter mesh comparisons.
BMP organises raw material checks, panel welding, surface treatment, product inspection, and export packing. Production approval starts with confirmed dimensions and approved drawings. Buyers should specify any required inspection reports before the factory begins fabrication.

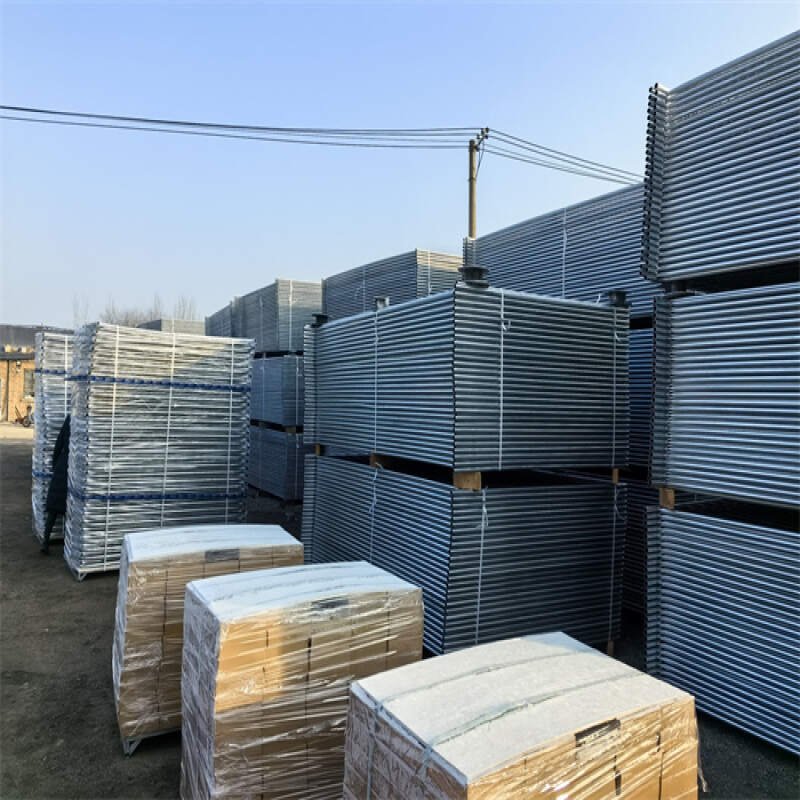

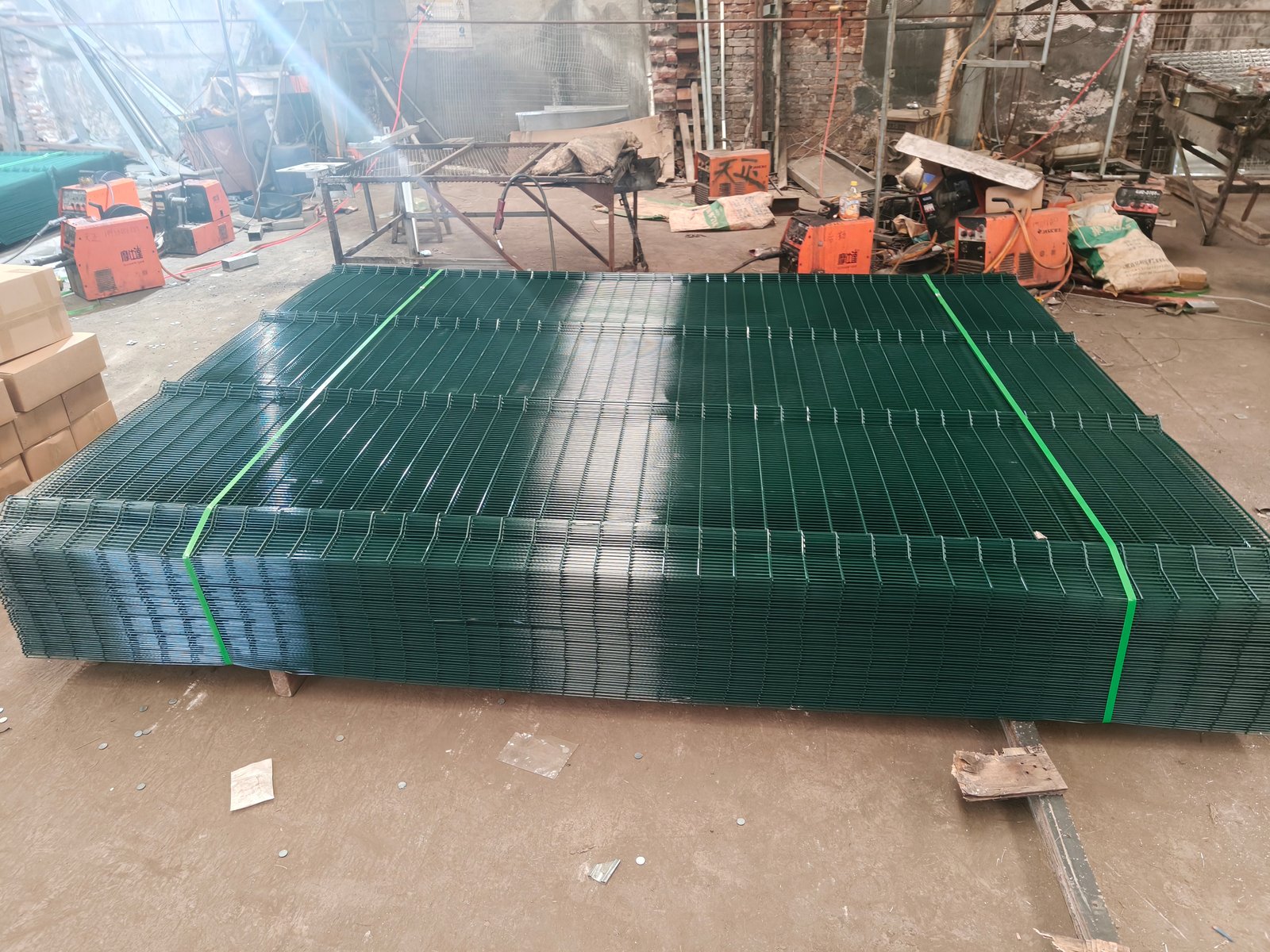

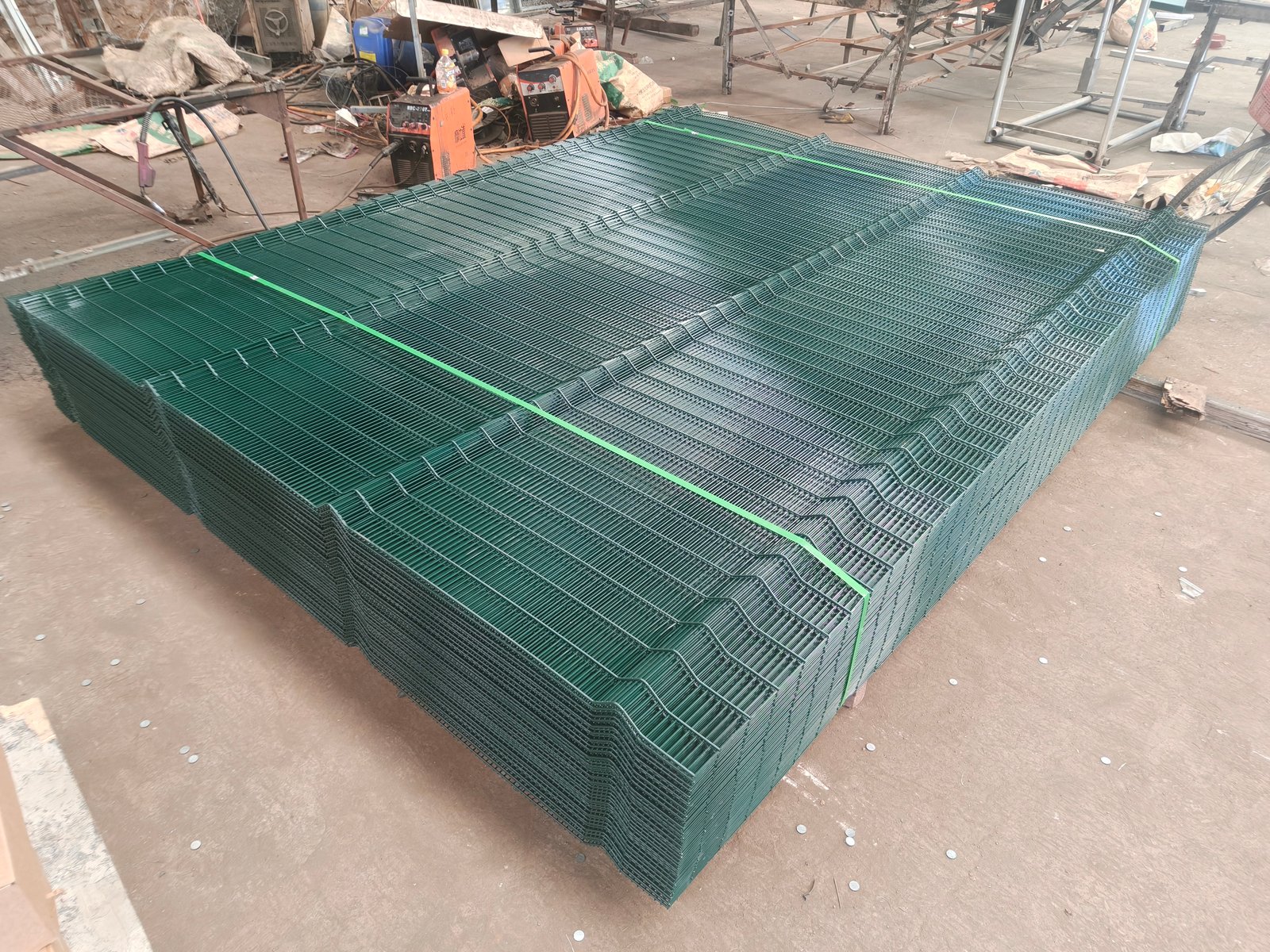

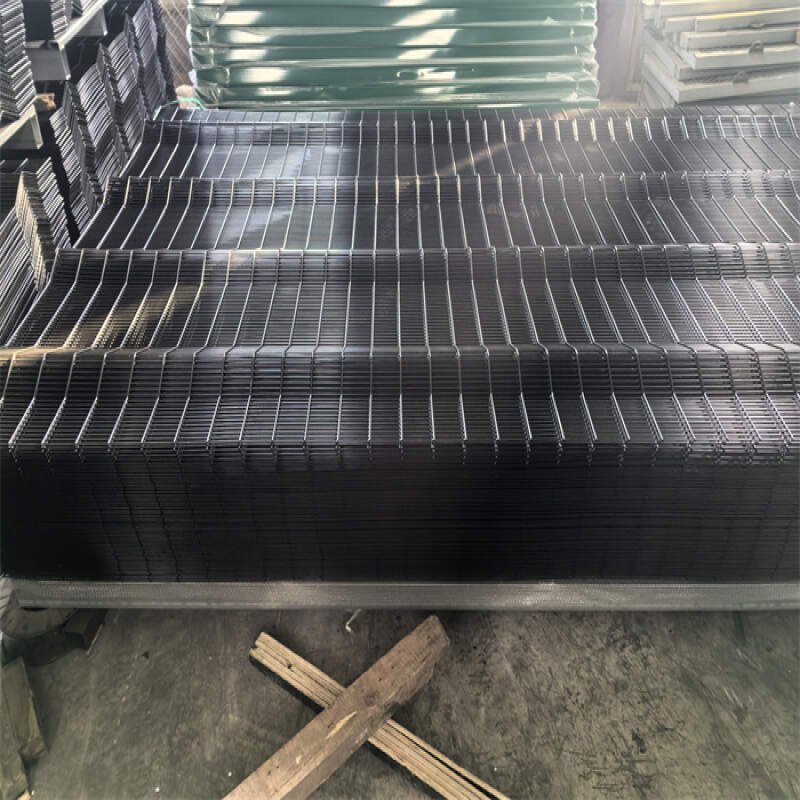

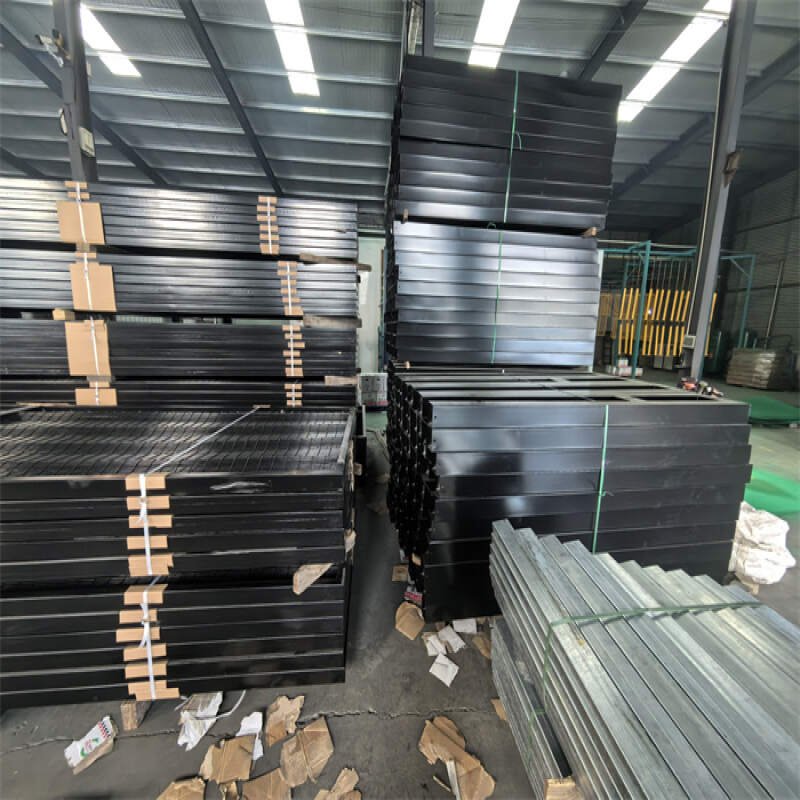

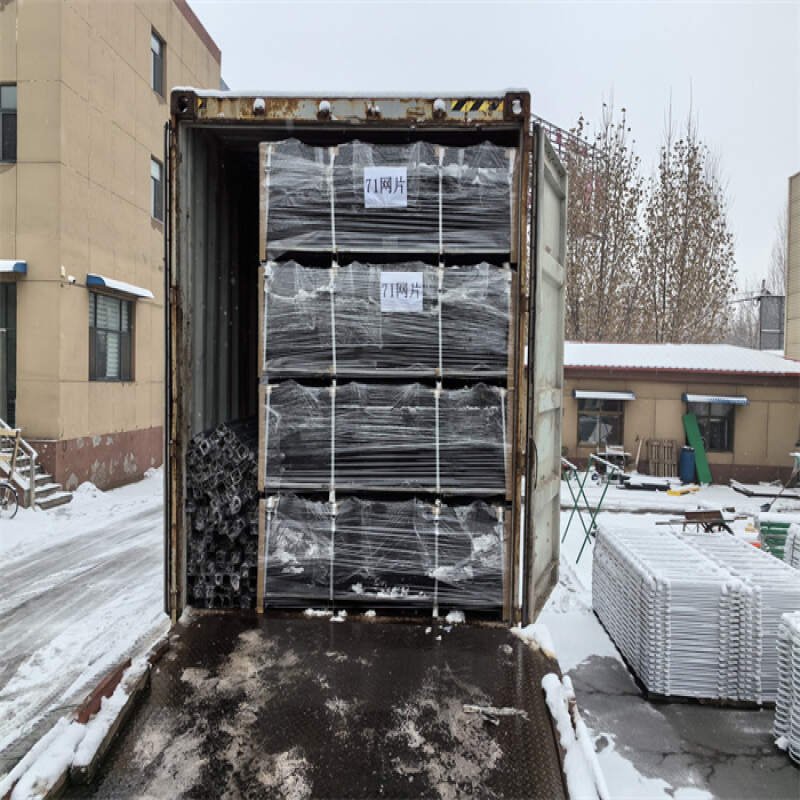

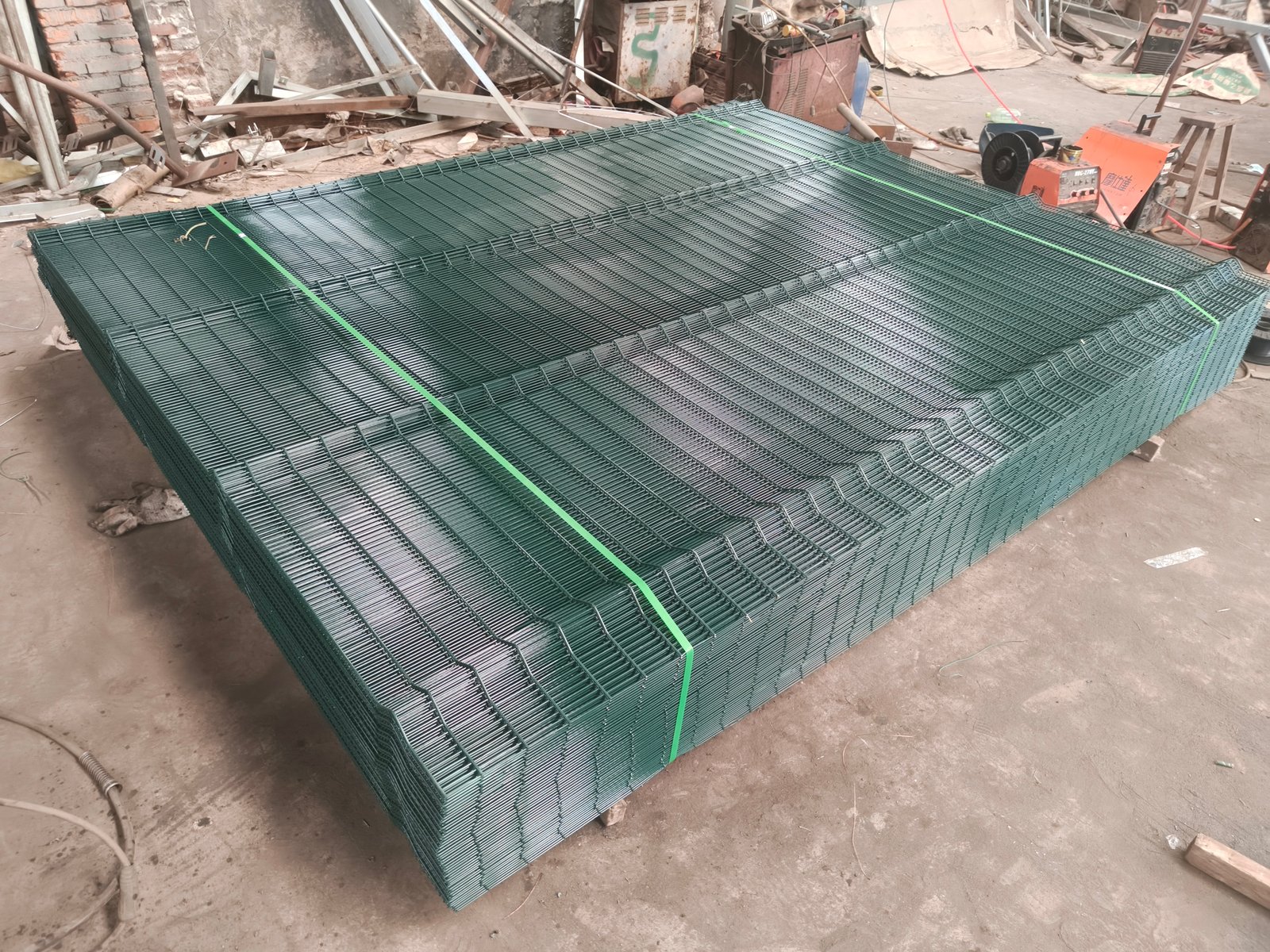

Steel pallets help organise panels for container loading and transport. Protective film and separators reduce abrasion between finished components. The factory packs clamps and fasteners in counted cartons.
The Clear View Fencing factory page provides additional manufacturing information.
Durban customers should identify the destination port and final delivery address. The quotation should state its Incoterm and included freight responsibilities. Import clearance, local transport, and installation may require separate arrangements.
What makes Clearvu mesh different from ordinary fencing? Narrow apertures restrict convenient climbing grips while preserving visibility. Welded intersections and secure fixings contribute to the complete system.
Can customers request custom heights? Yes, our team can review unusual dimensions and matching posts. Manufacturing approval depends on engineering requirements and production feasibility.
Which coating suits humid or coastal sites? The answer depends on site exposure and maintenance plans. Request a complete compatible coating system and relevant test documentation.
Do you supply gates and fixing accessories? BMP can include gate systems, posts, clamps, and suitable hardware in a quotation. Confirm gate drawings and accessory quantities before approval.
Does the fence completely prevent cutting or climbing? No physical mesh guarantees complete security. Correct installation and complementary surveillance help improve the overall perimeter.
Send the project length, required fence height, preferred aperture, wire diameter, and coating finish. Include the delivery location and expected gate quantities. Share drawings when the site has slopes, unusual corners, or security toppings.
BMP can then prepare a product schedule and shipping proposal for your requirements. Clear documentation supports accurate manufacturing, packing, and project planning.
